Genuine Parts Diagrams for 2018 CFORCE 850 EPS - CF800AU-2AChange Model
Showing 77 parts diagrams.
E01

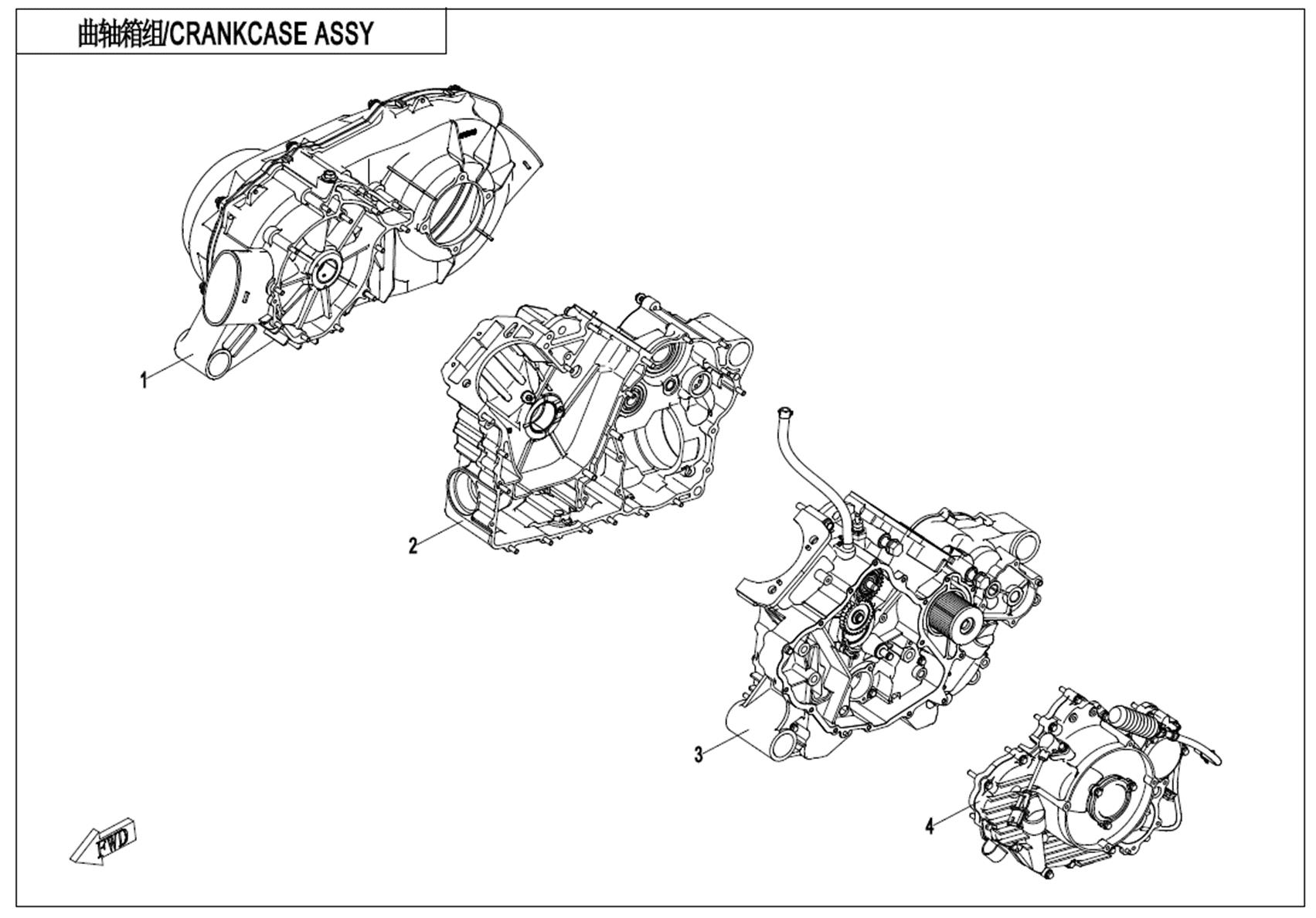

CRANKCASE ASSY
E01-1-V2

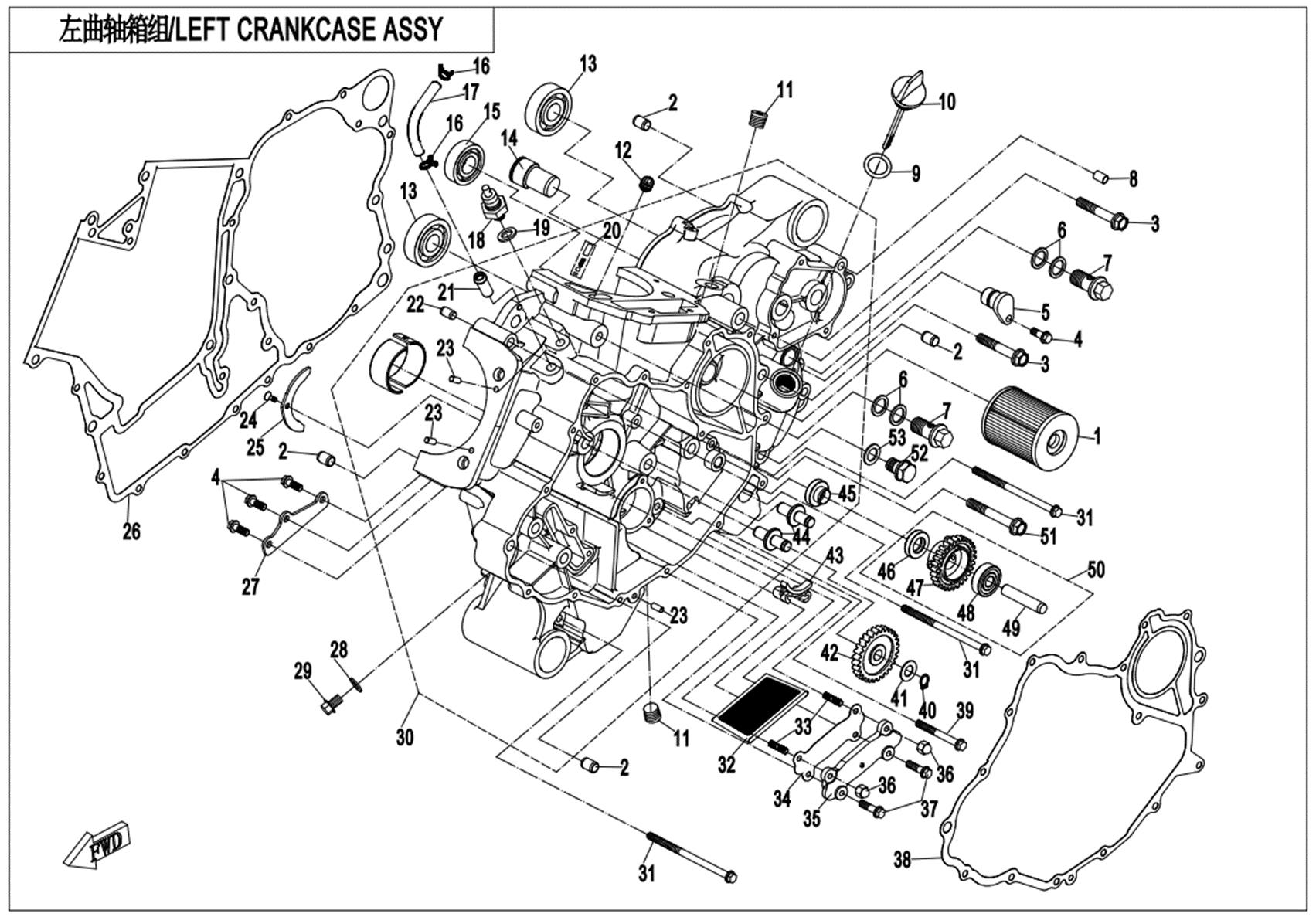

LEFT CRANKCASE ASSY
E01-2-V5
RIGHT CRANKCASE ASSY.
E01-3-V2

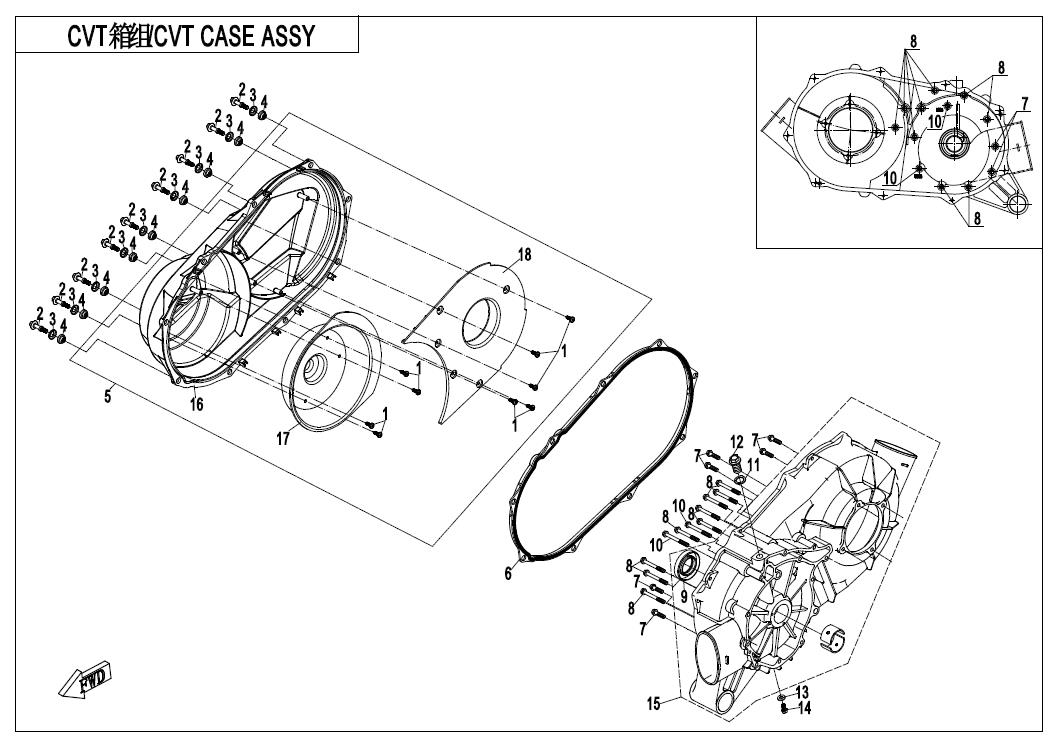

CVT CASE ASSY.
E01-4

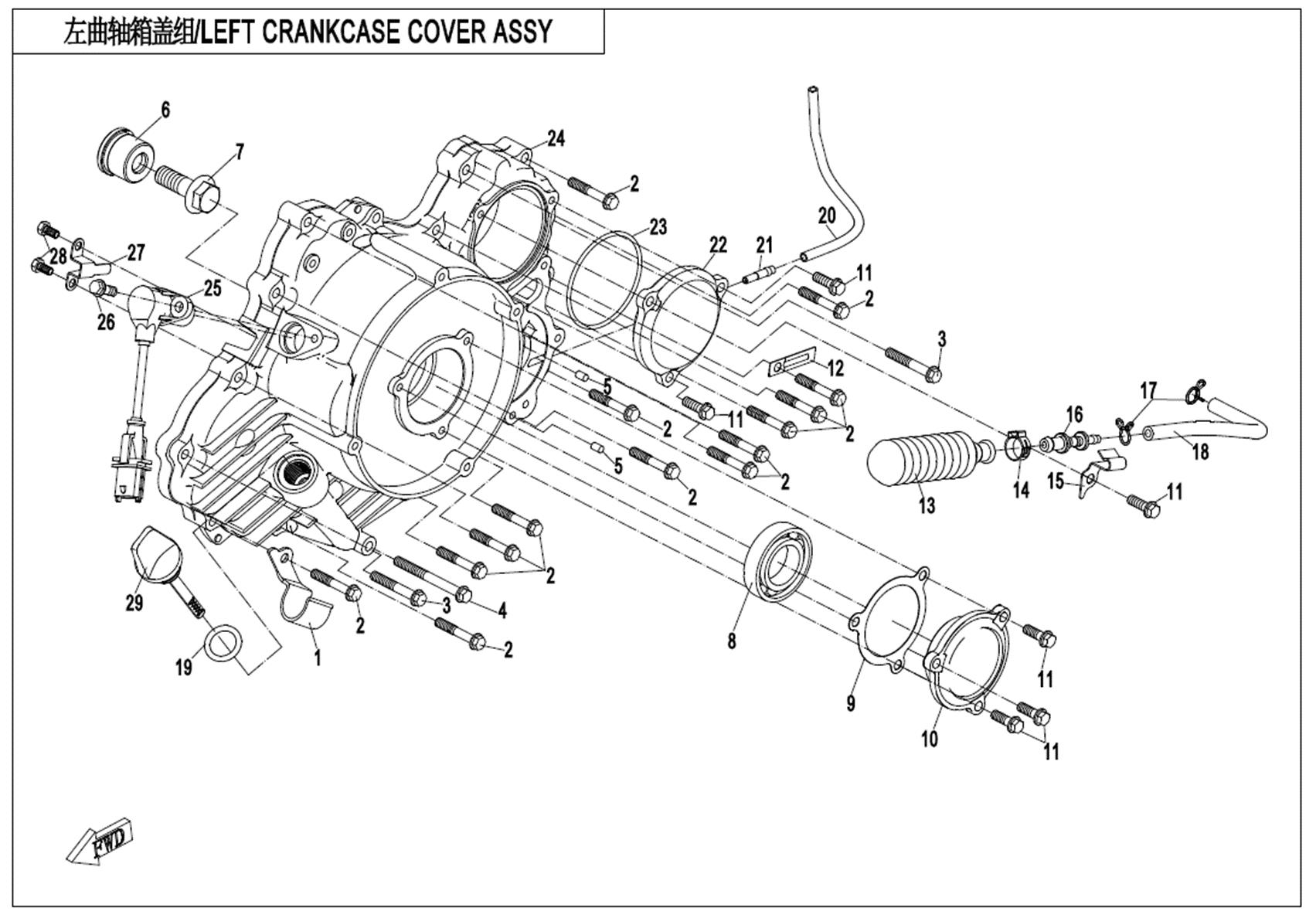

LEFT CRANKCASE COVER ASSY
E02-1

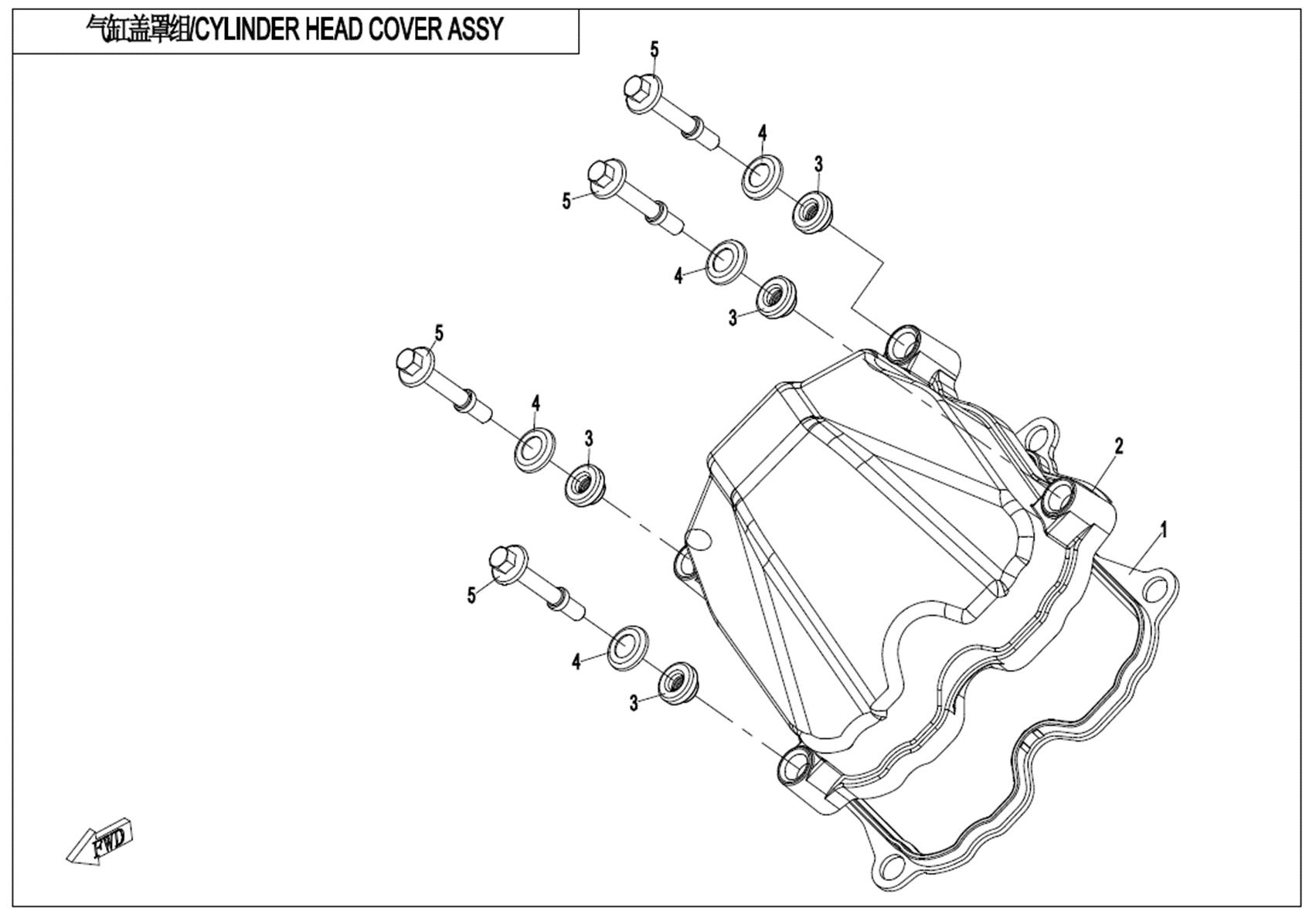

CYLINDER HEAD COVER ASSY
E02-2-V2

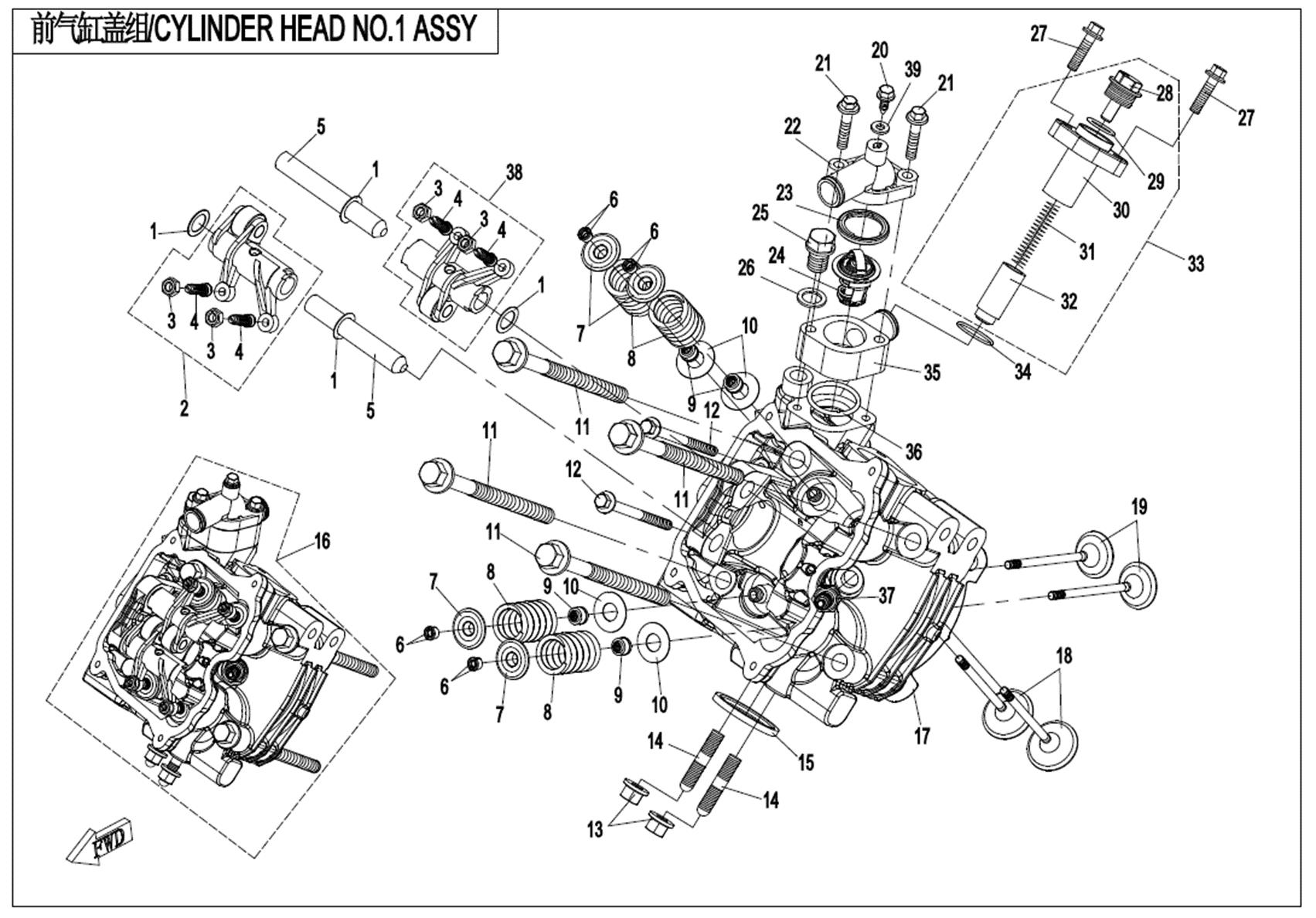

CYLINDER HEAD NO.1 ASSY
E02-3

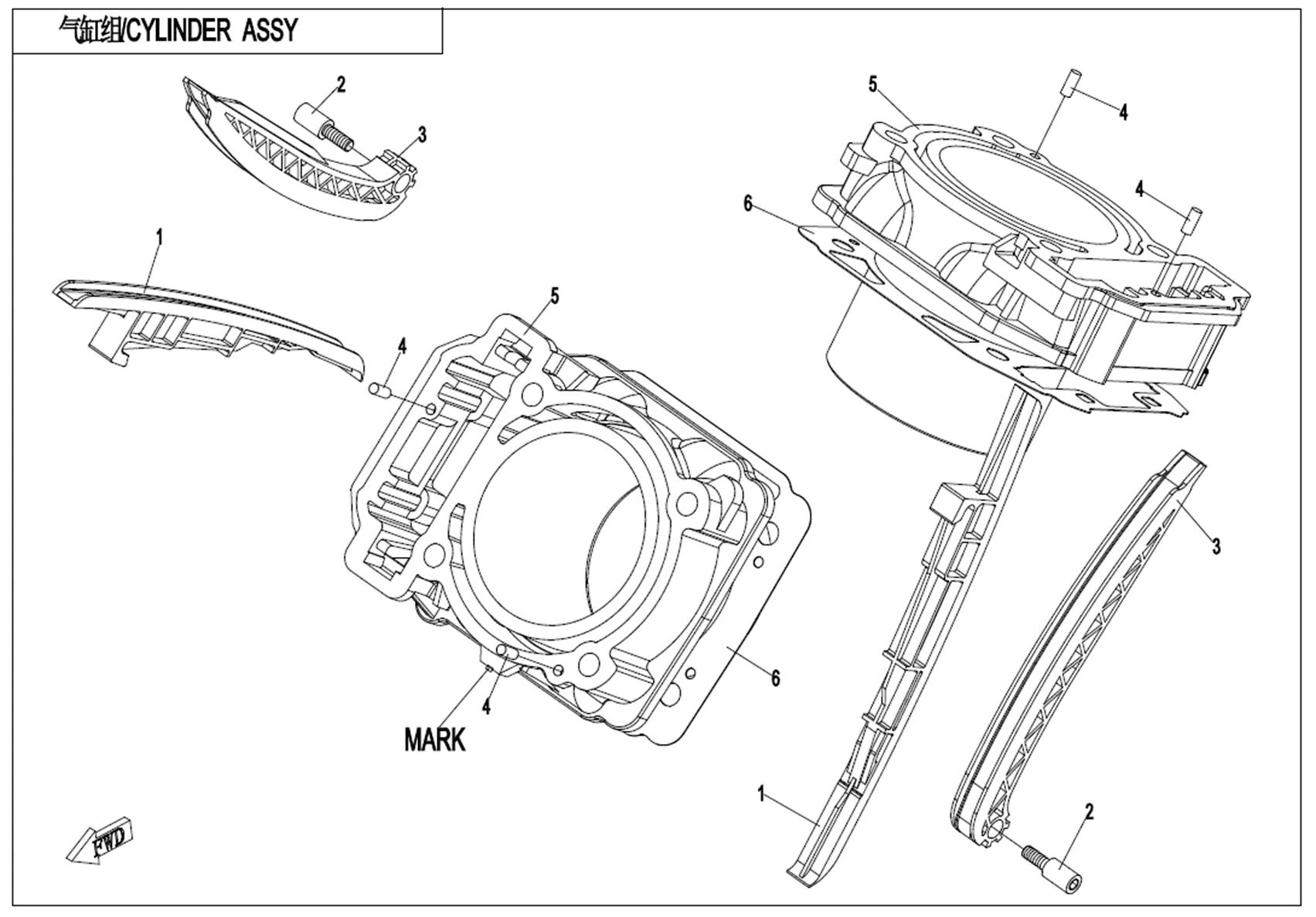

CYLINDER BODY
E02-4

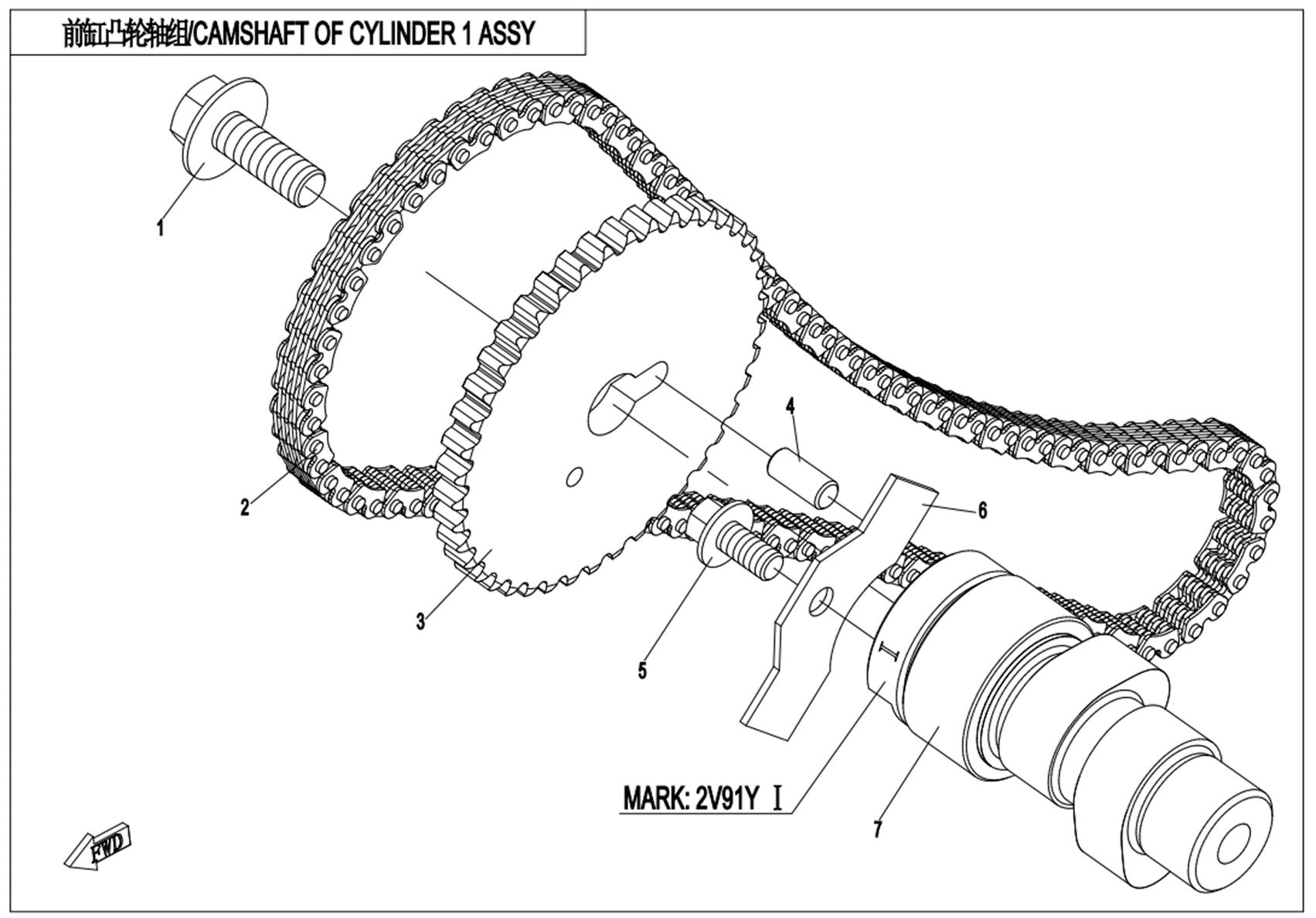

CAMSHAFT OF CYLINDER 1 ASSY
E02-5

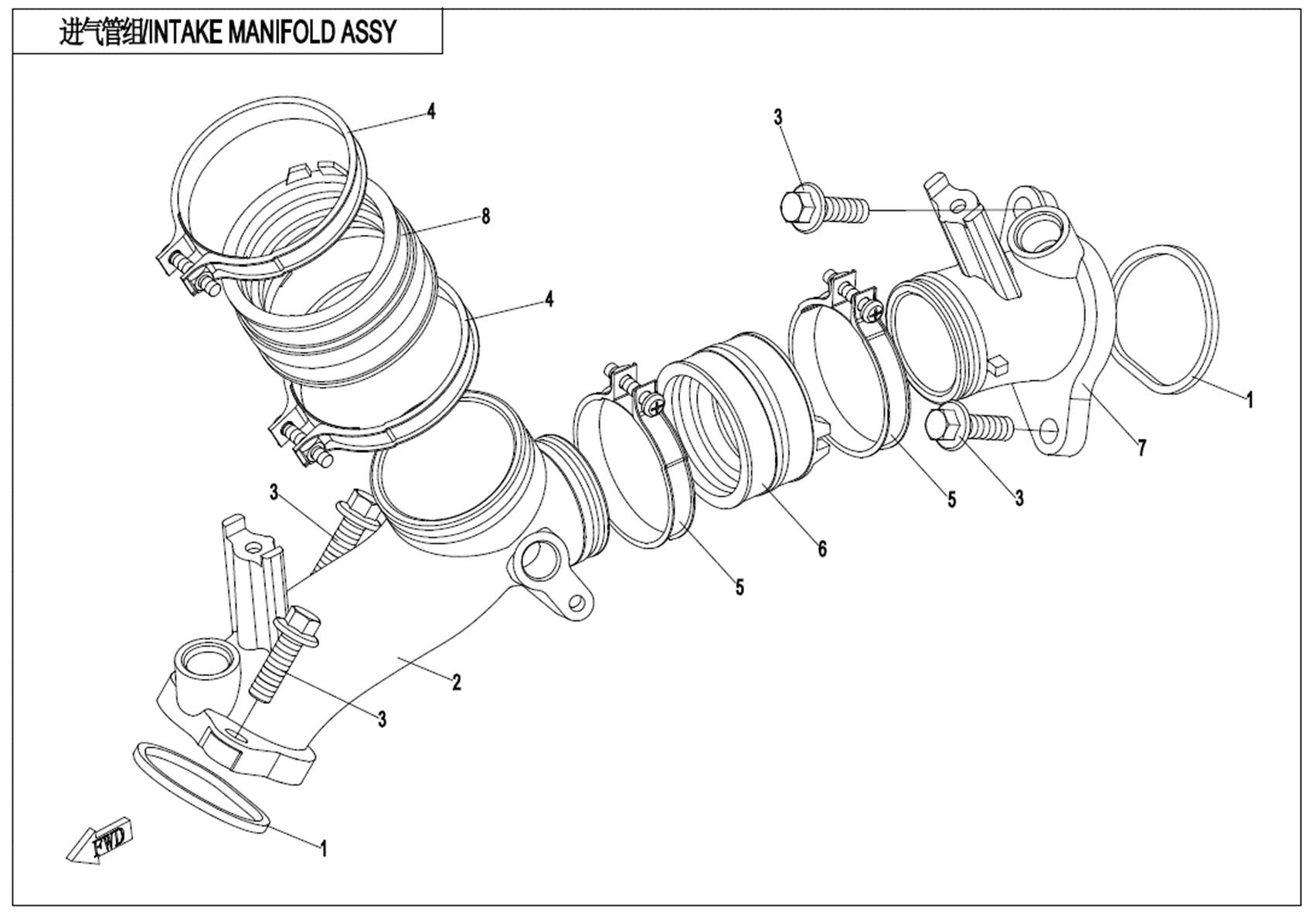

INTAKE MANIFOLD ASSY
E02-6-V3

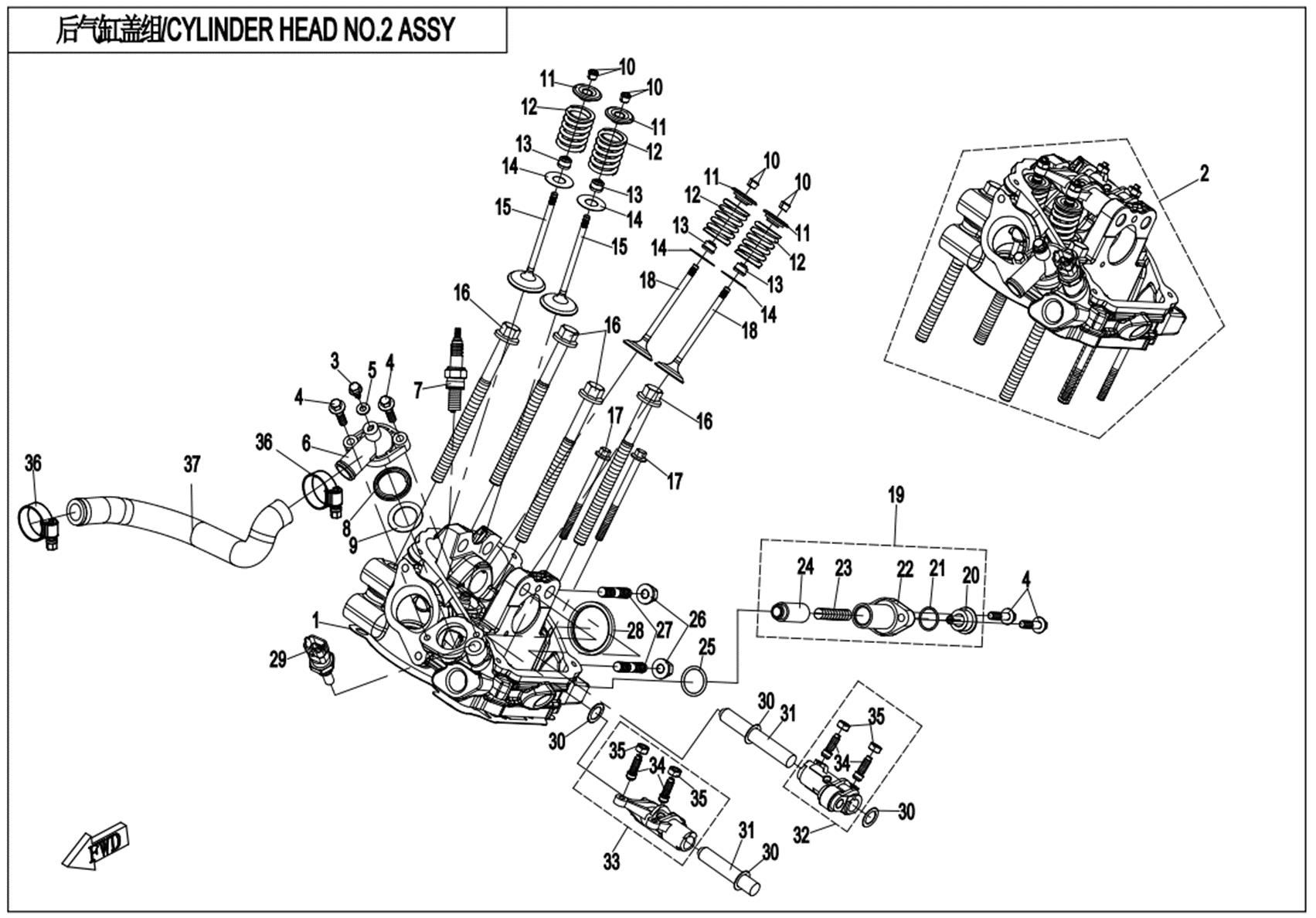

CYLINDER HEAD NO.2 ASSY
E02-7

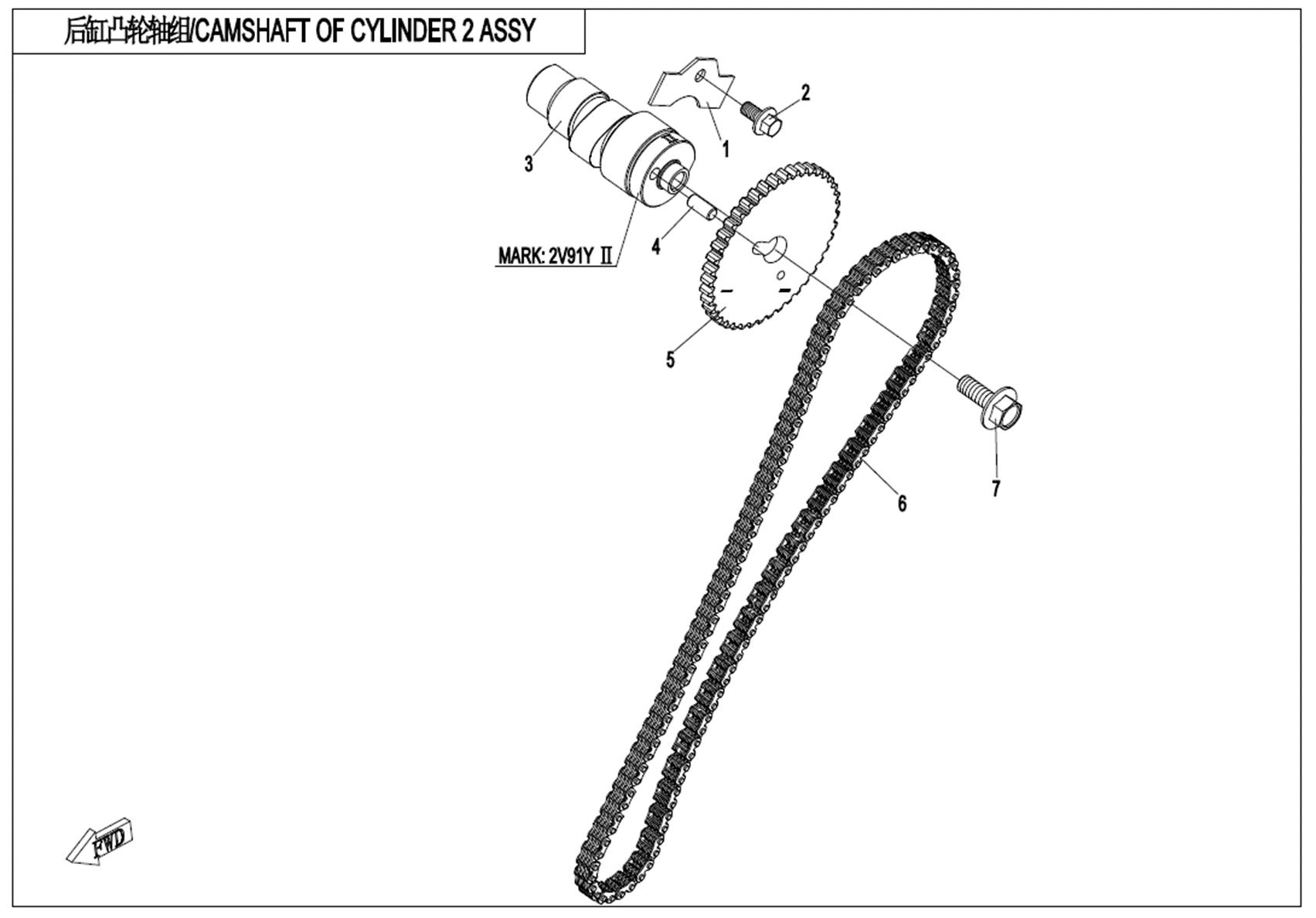

CAMSHAFT OF CYLINDER 2 ASSY
E03-B

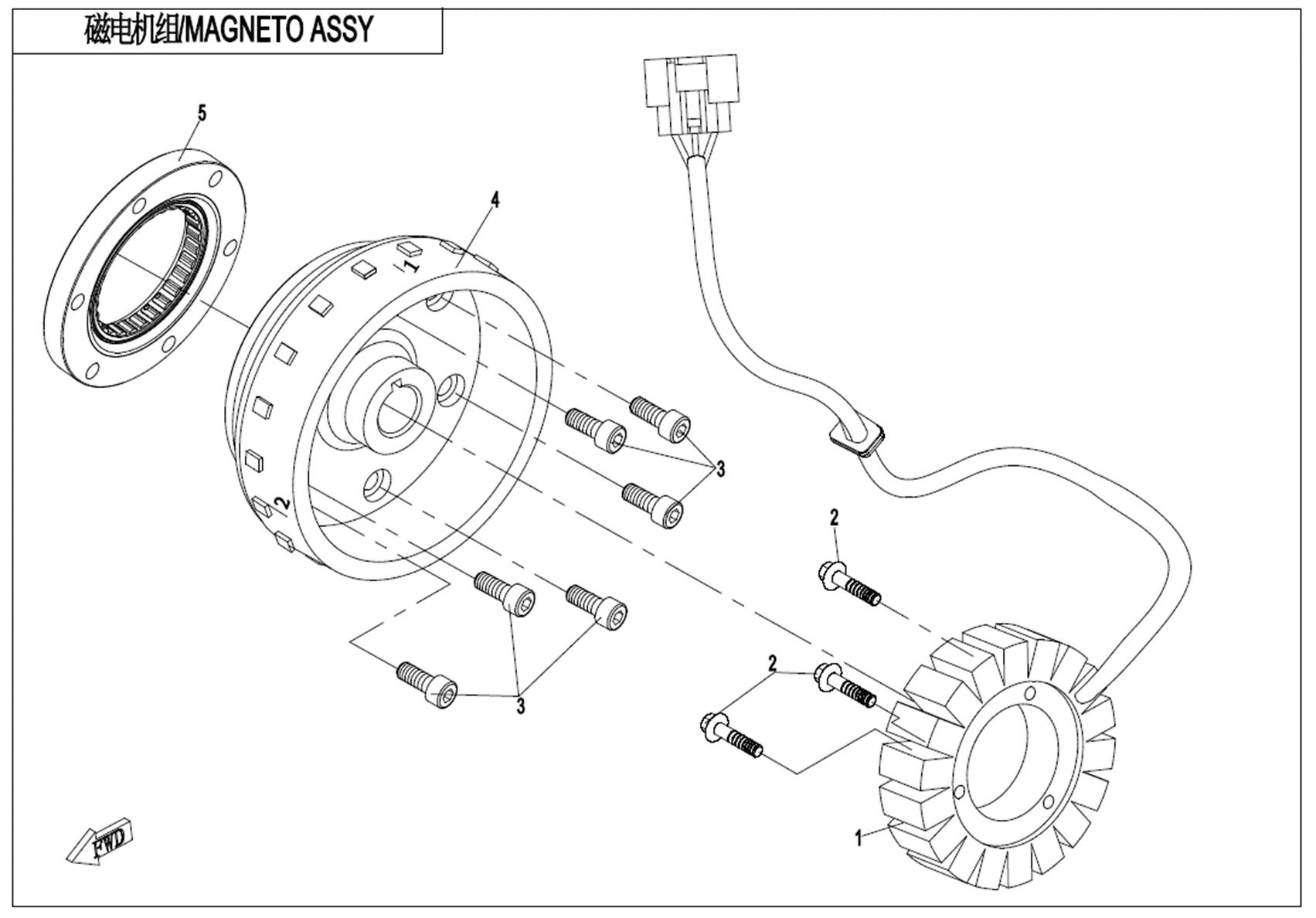

MAGNETO ASSY.(FOR EPS)
E04

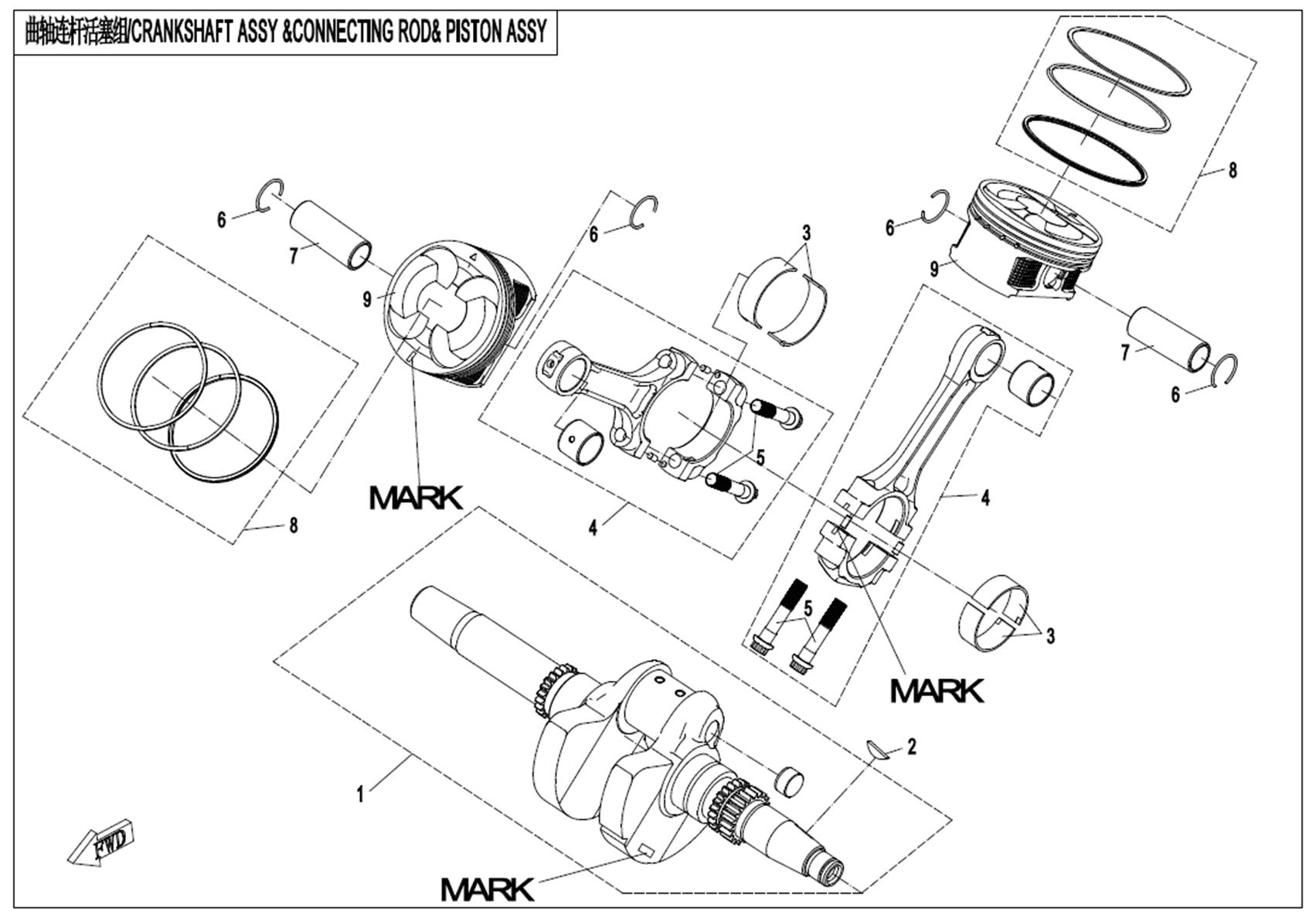

CRANKSHAFT?CONNECTING ROD?PISTON ASSY
E05-B

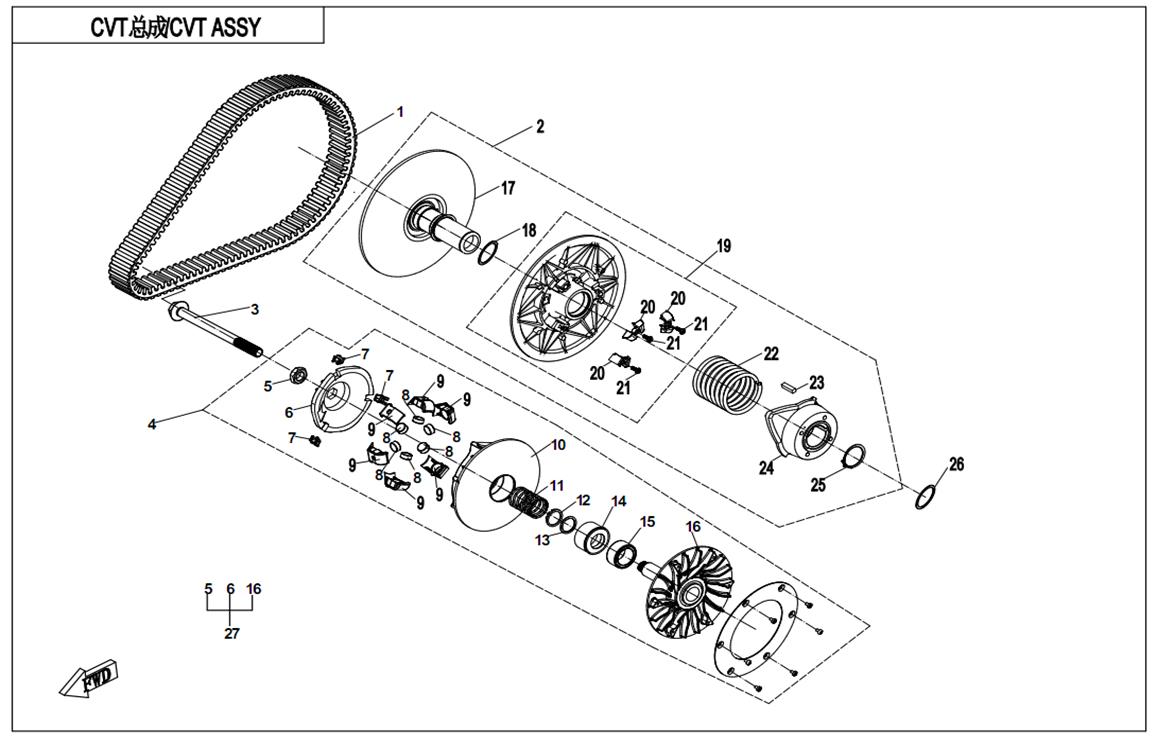

CVT ASSY (NON-SPEED LIMITED & DIE THRUST COLLAR)
E06-1

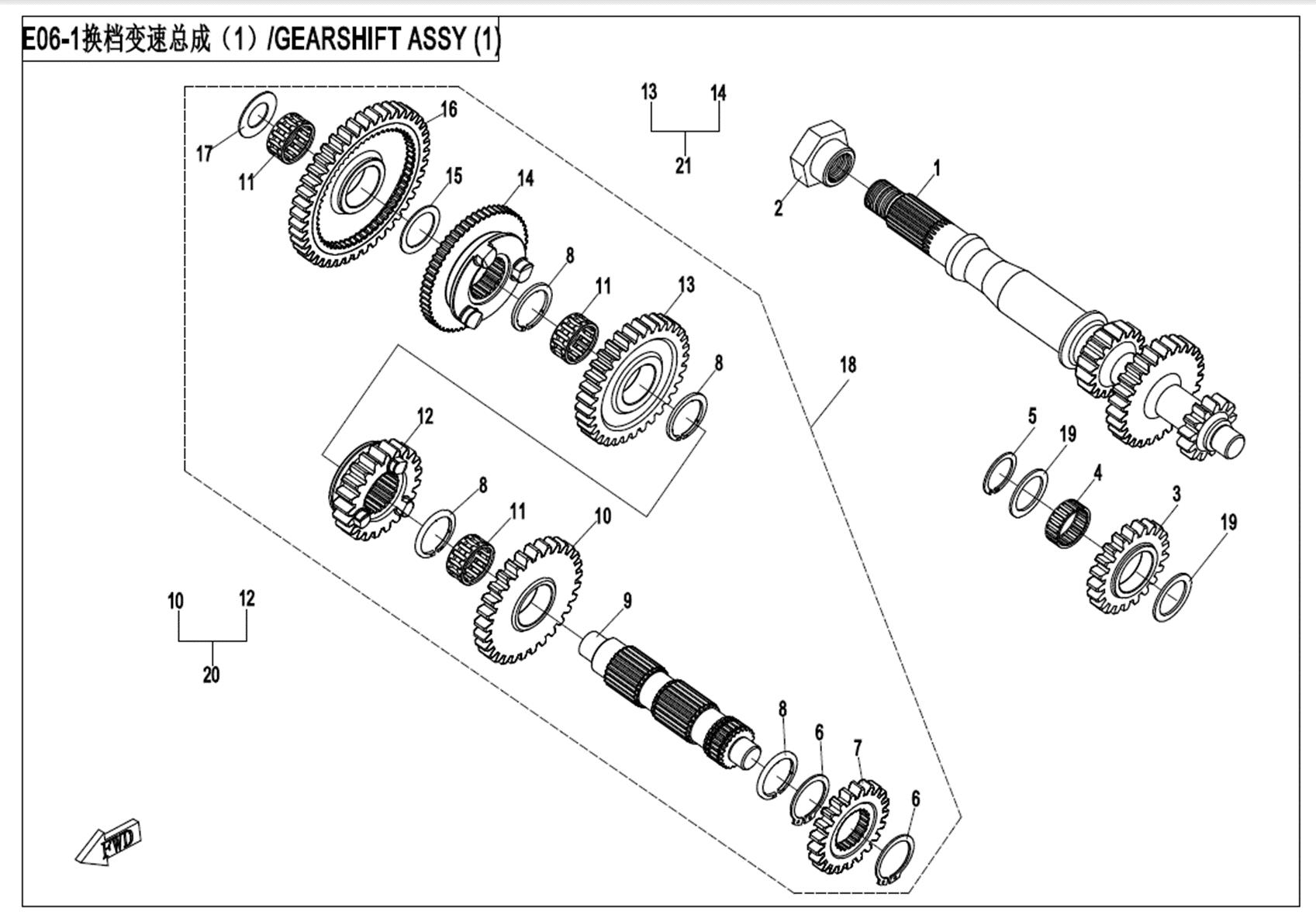

TRANSMISSION SYSTEM(I)
E06-2-V3
TRANSMISSION SYSTEM(II)
E06-3
TRANSMISSION SYSTEM(III)

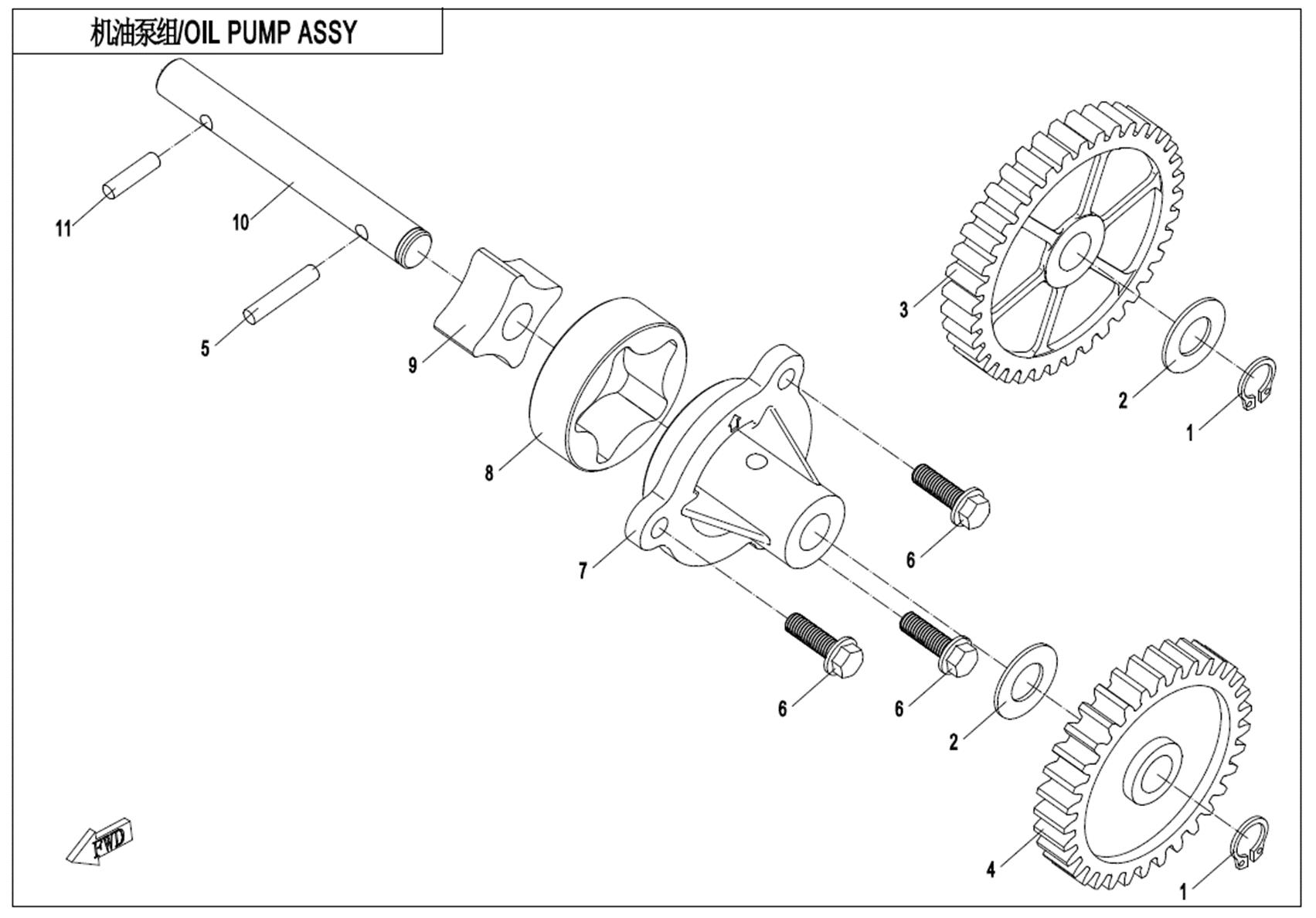

E07-1
OIL PUMP ASSY
E07-2-V3

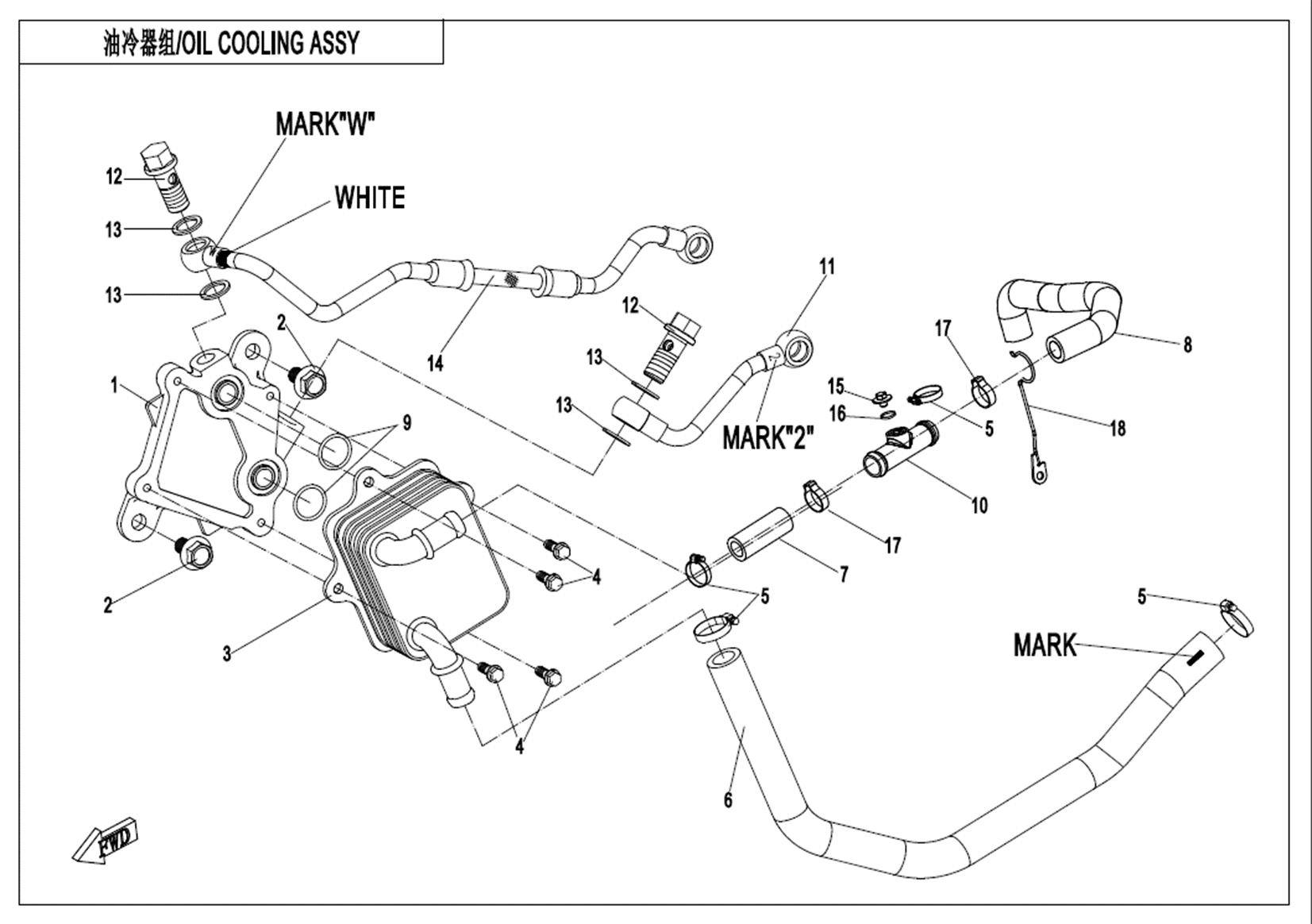

OIL COOLING SYSTEM.
E08

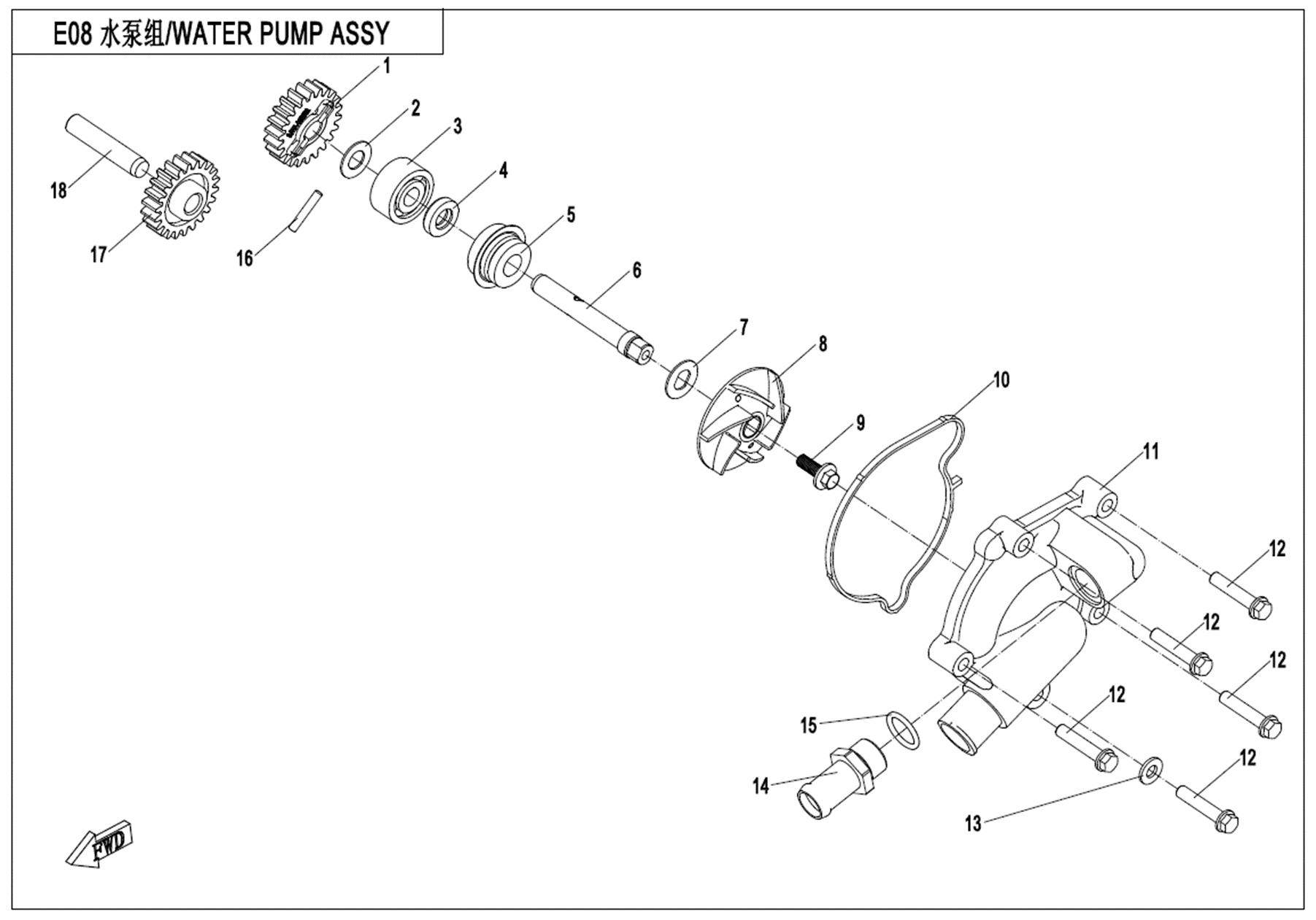

WATER PUMP ASSY.
E09

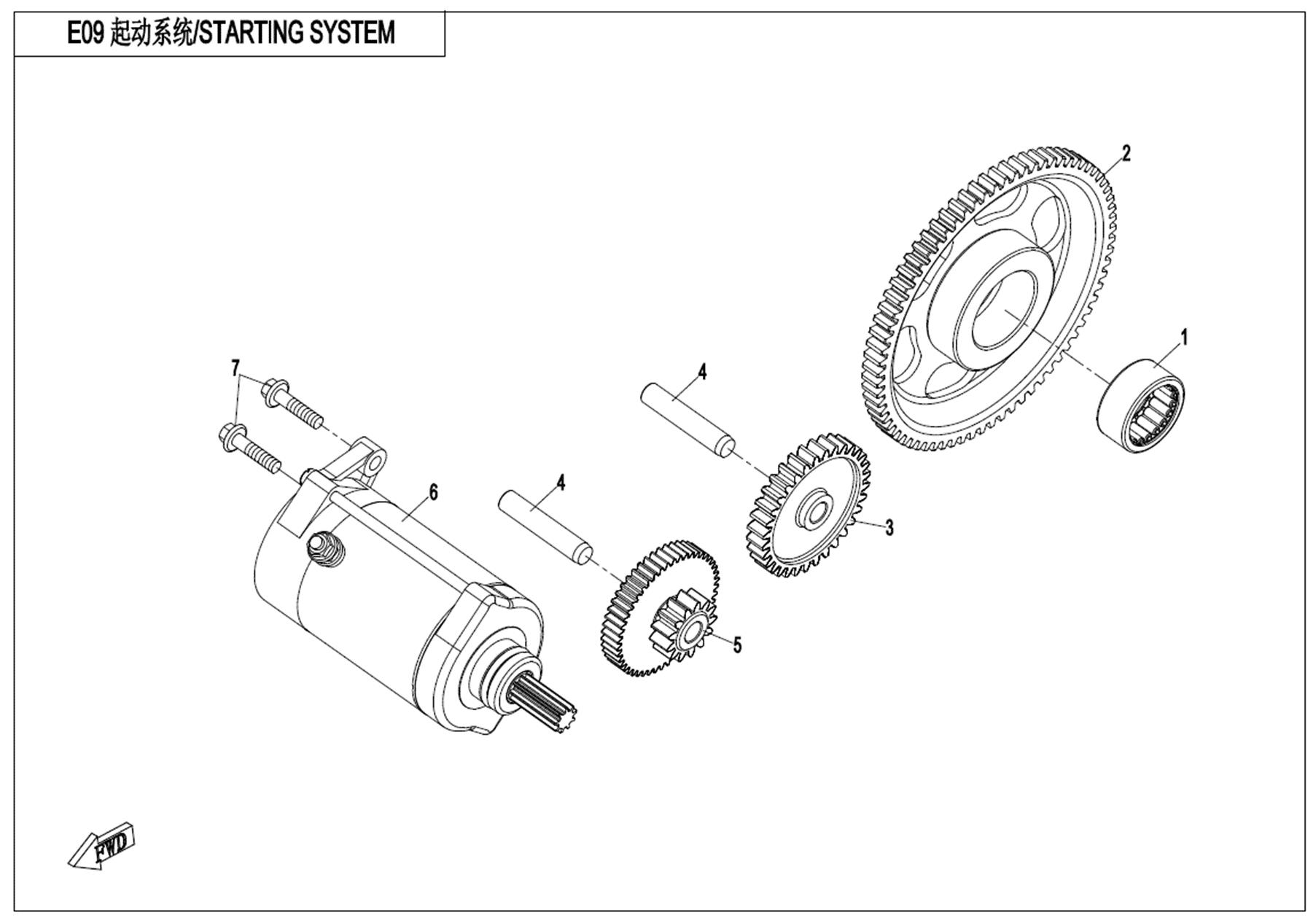

STARTING SYSTEM
F02-2-V2

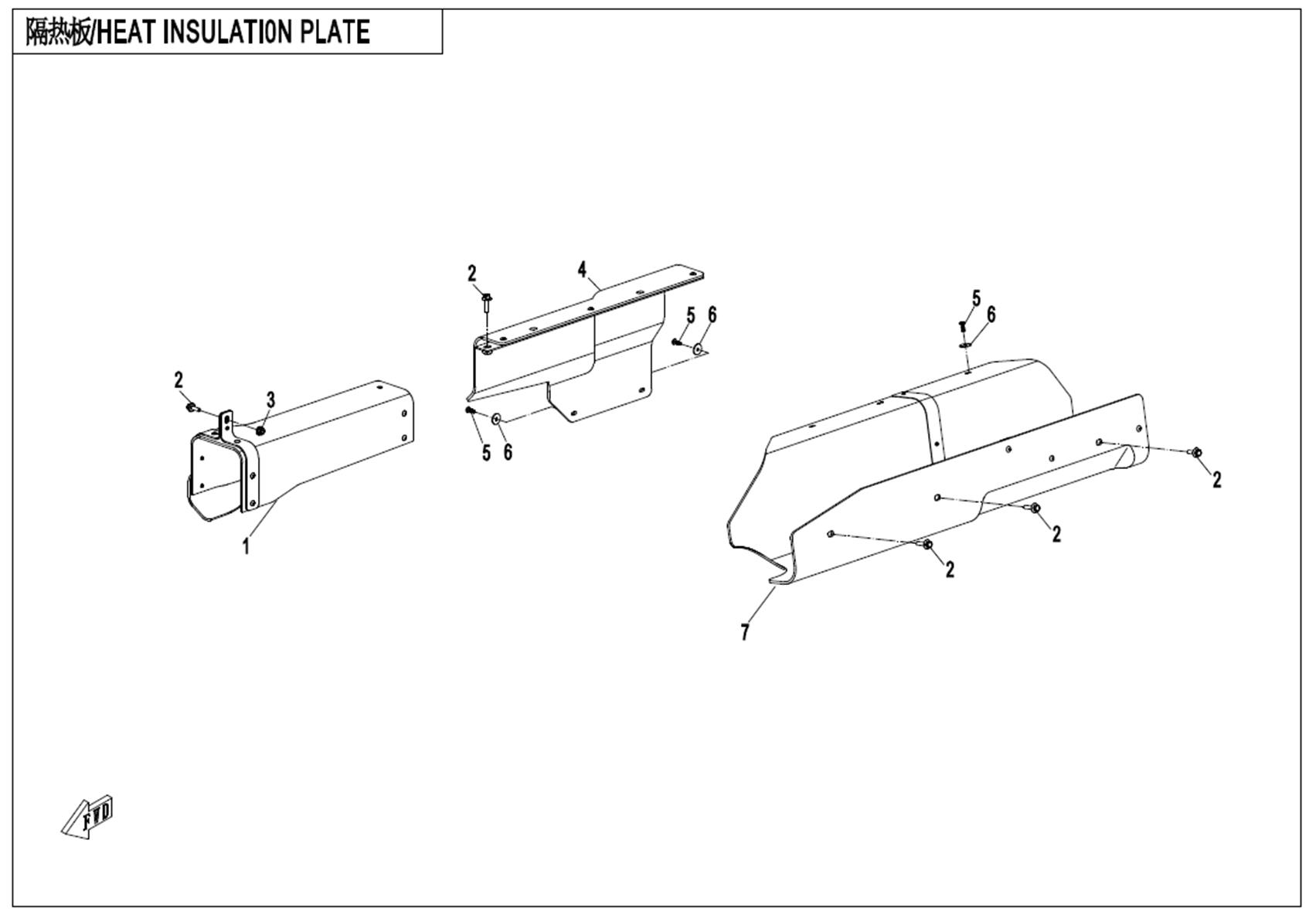

HEAT INSULATION PLATE

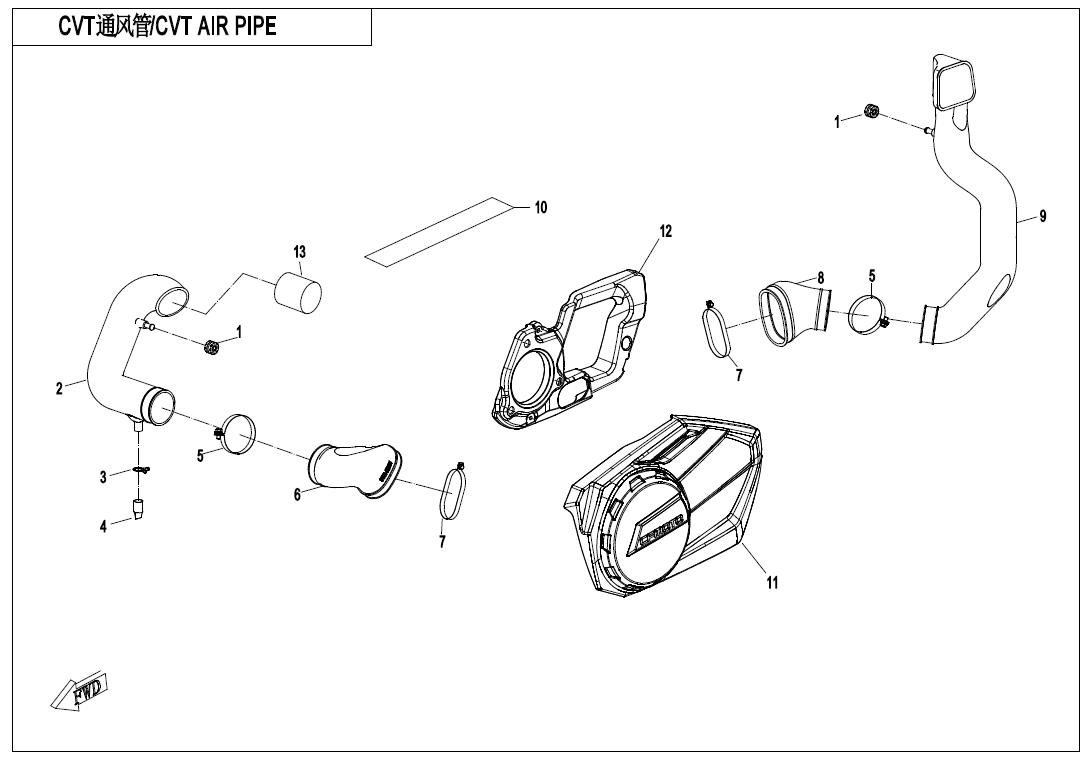

F00-V2 CVT AIR PIPE

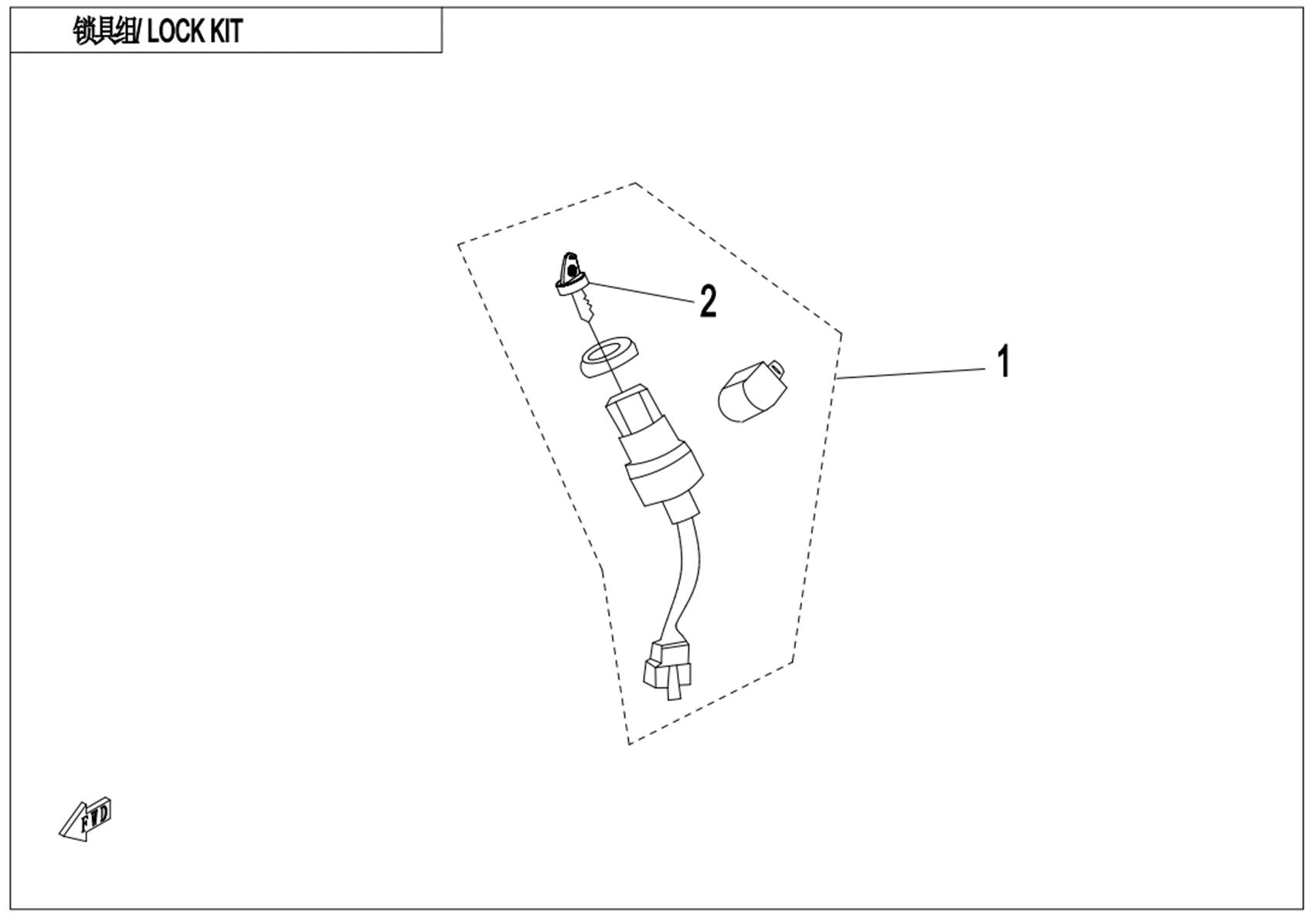

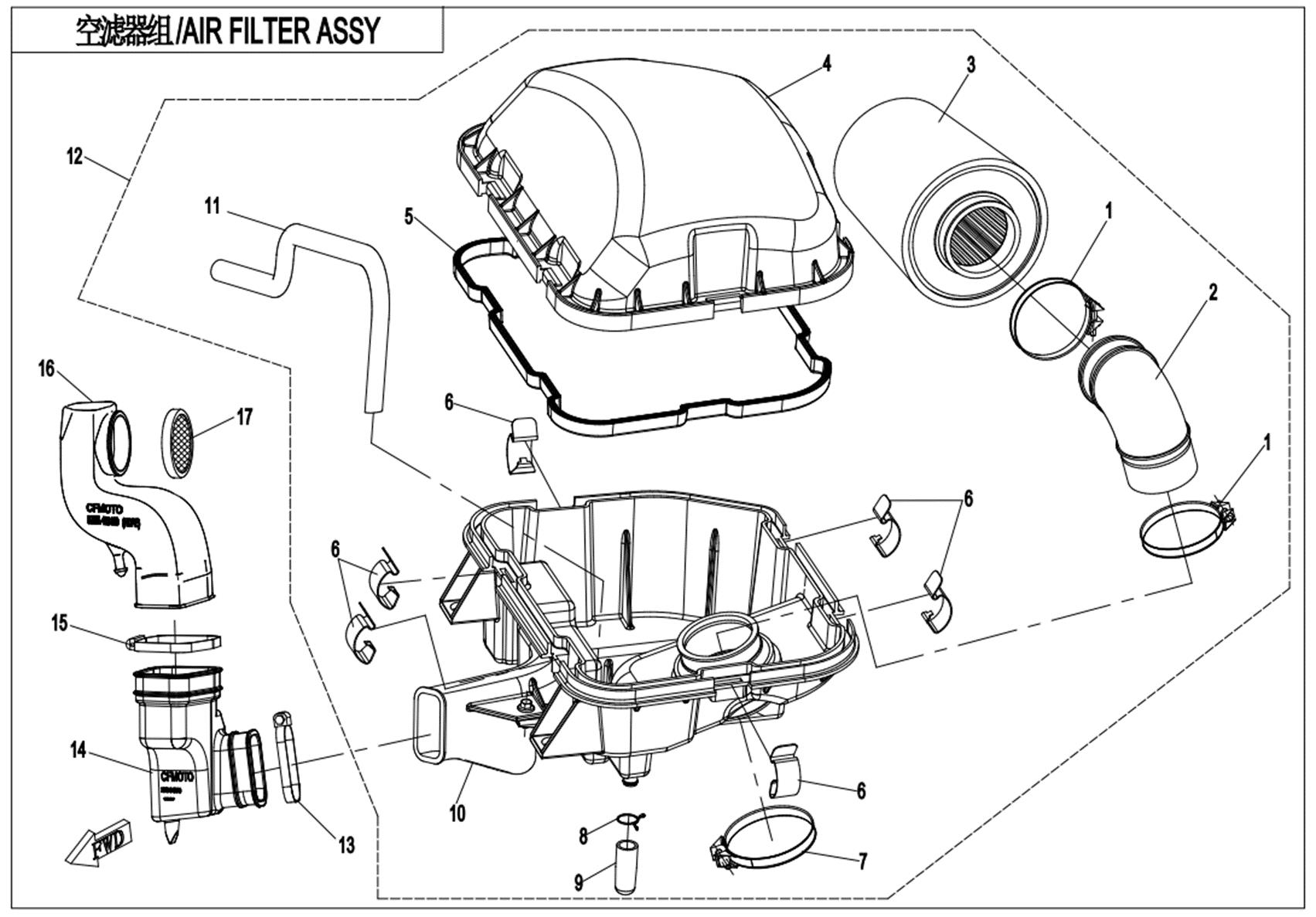

F01
LOCK KIT
F02-1-A

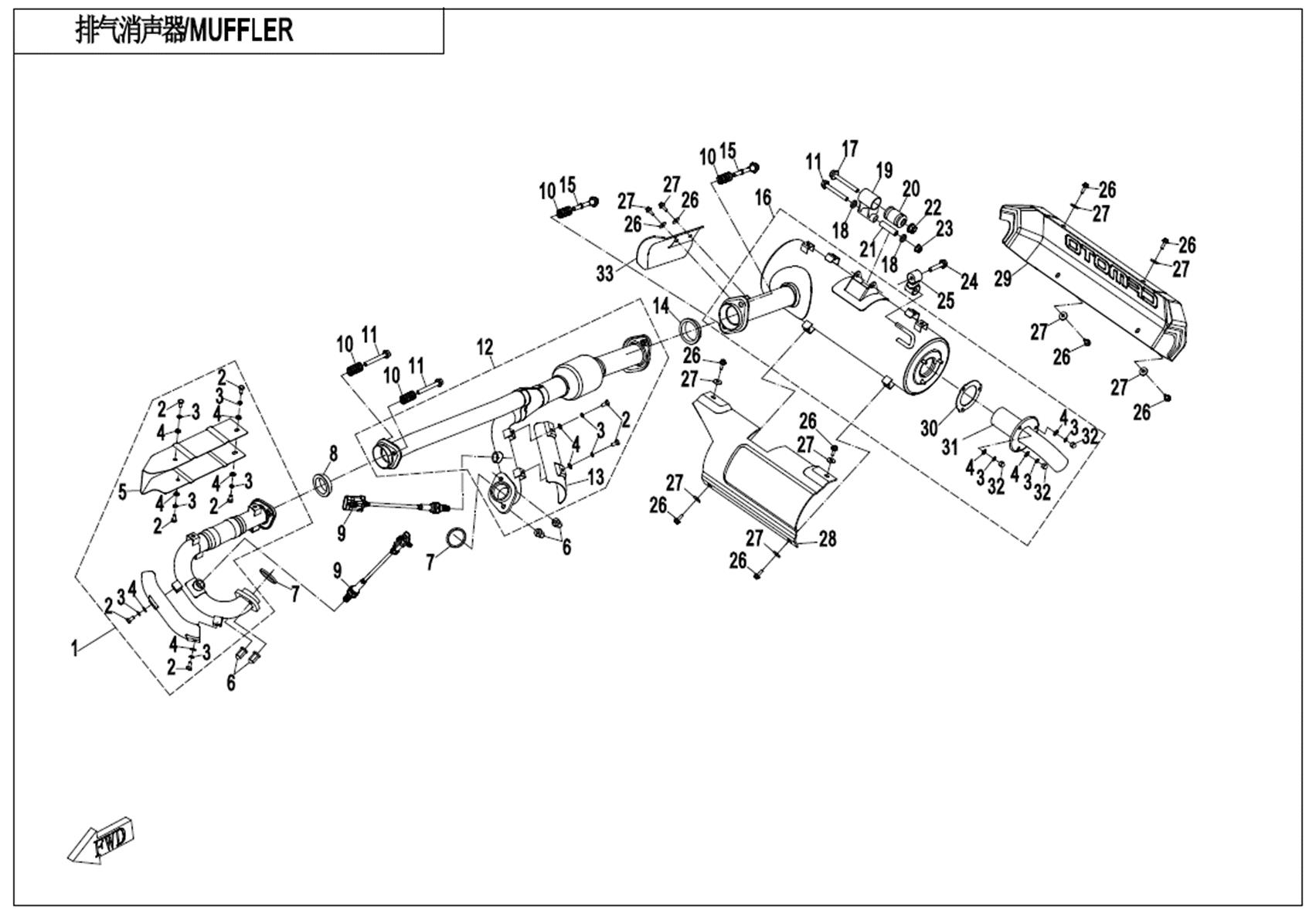

MUFFLER(STANDARD)

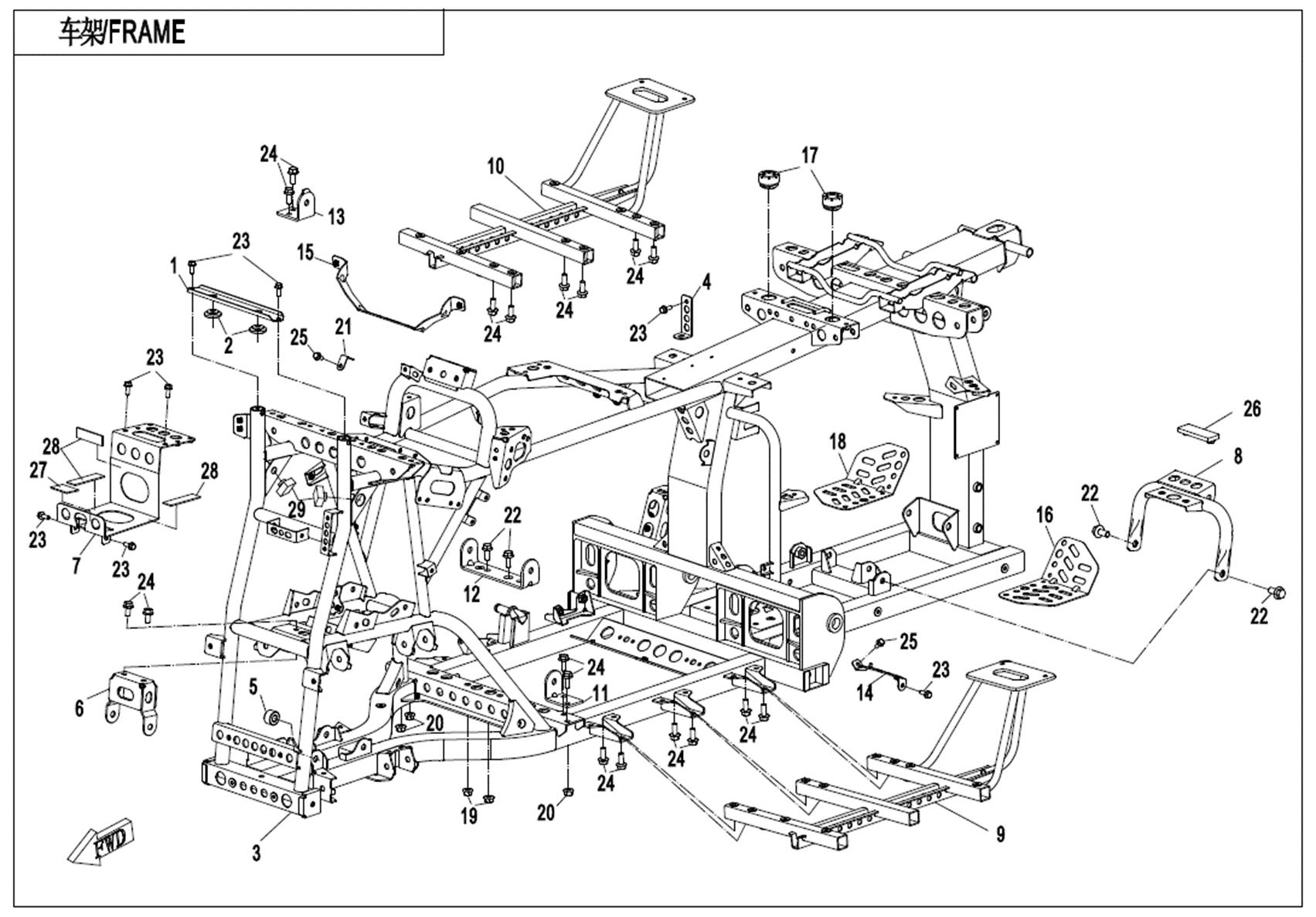

F03-V3
FRAME
F04-1-A

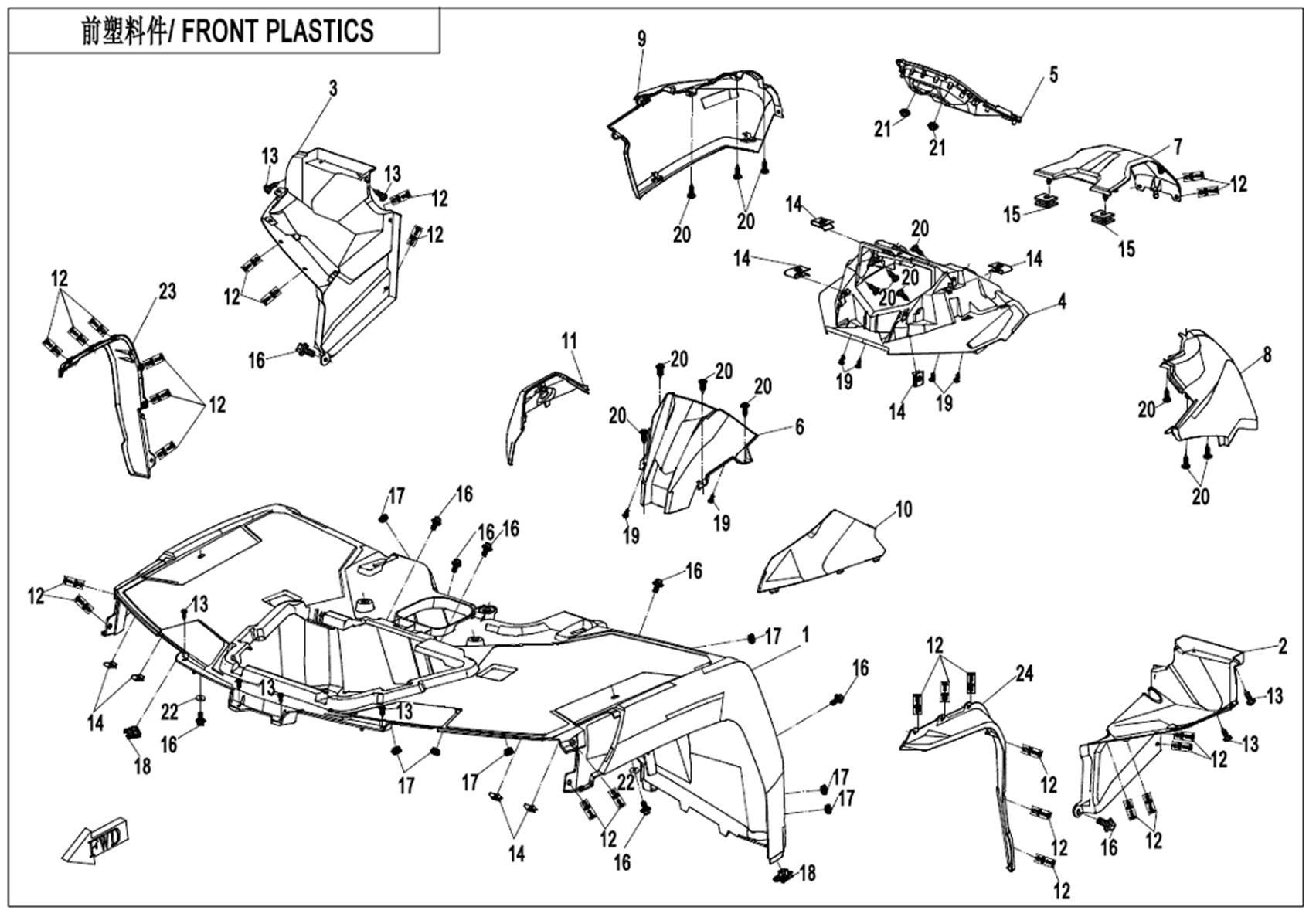

FRONT PLASTICS-PEARL BLACK
F04-1-B
FRONT PLASTICS-TIMBER CAMO
F04-1-C
FRONT PLASTICS-CRYSTAL ORANGE
F04-2-A

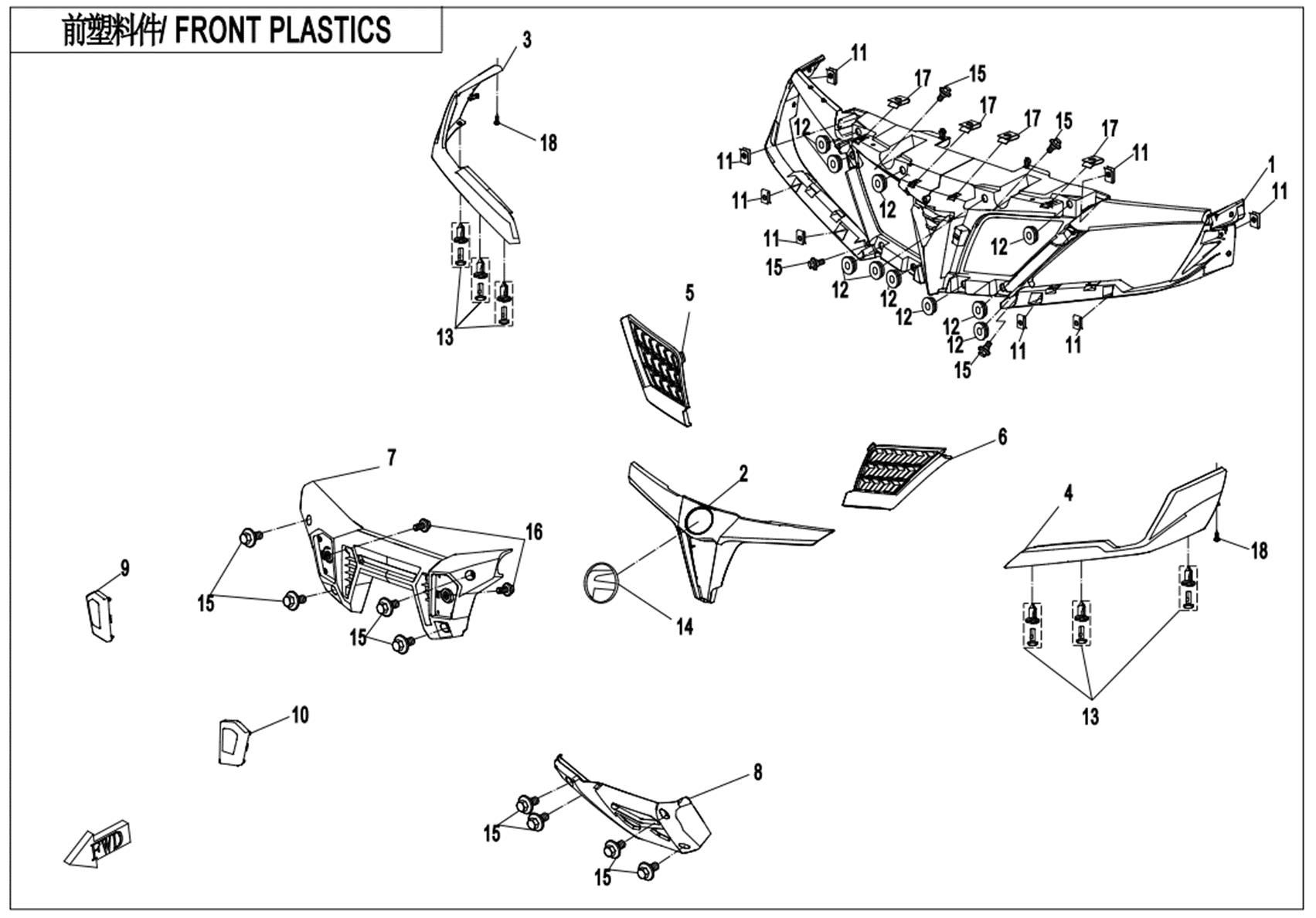

FRONT PLASTICS-PEARL BLACK
F04-2-B
FRONT PLASTICS-MAPLE CAMO FOR HUNTING
F04-2-C
FRONT PLASTICS-CRYSTAL ORANGE
F04-3-A-V2

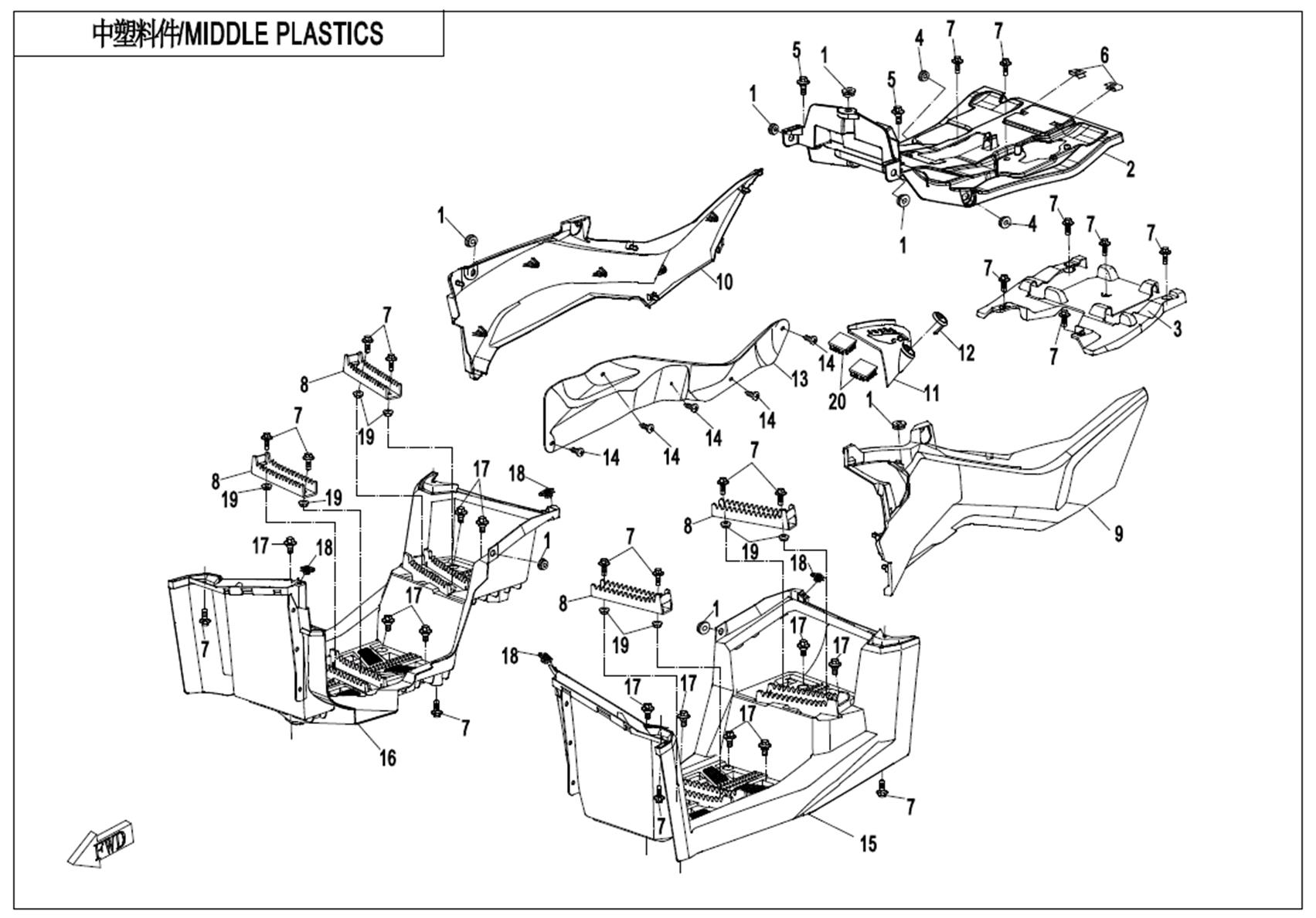

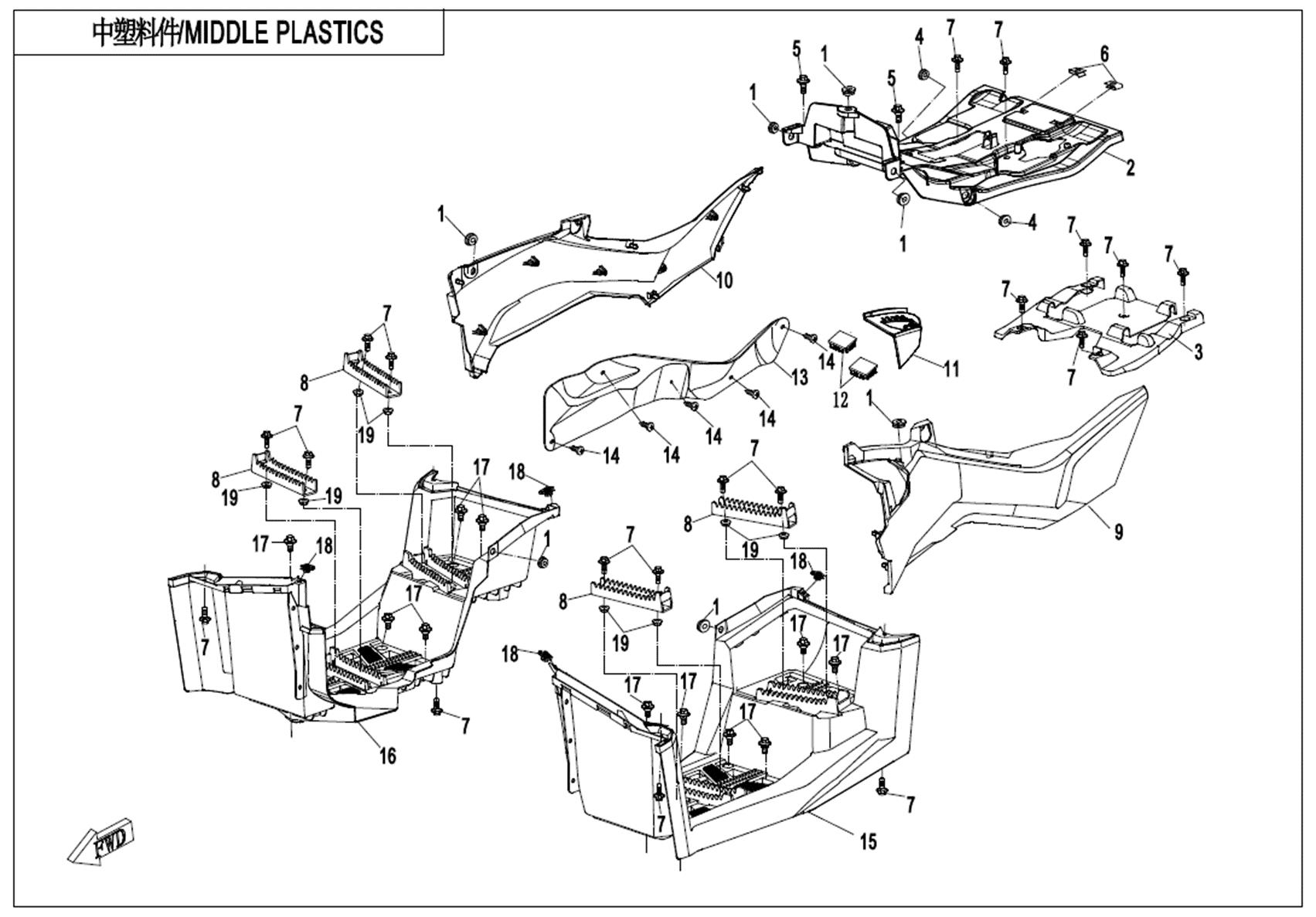

MIDDLE PLASTICS-MATTLE BLACK
F04-3-B-V2
MIDDLE PLASTICS-MAPLE CAMO FOR HUNTING
F04-3-C-V2
MIDDLE PLASTICS-CRYSTAL ORANGE
F04-4-A

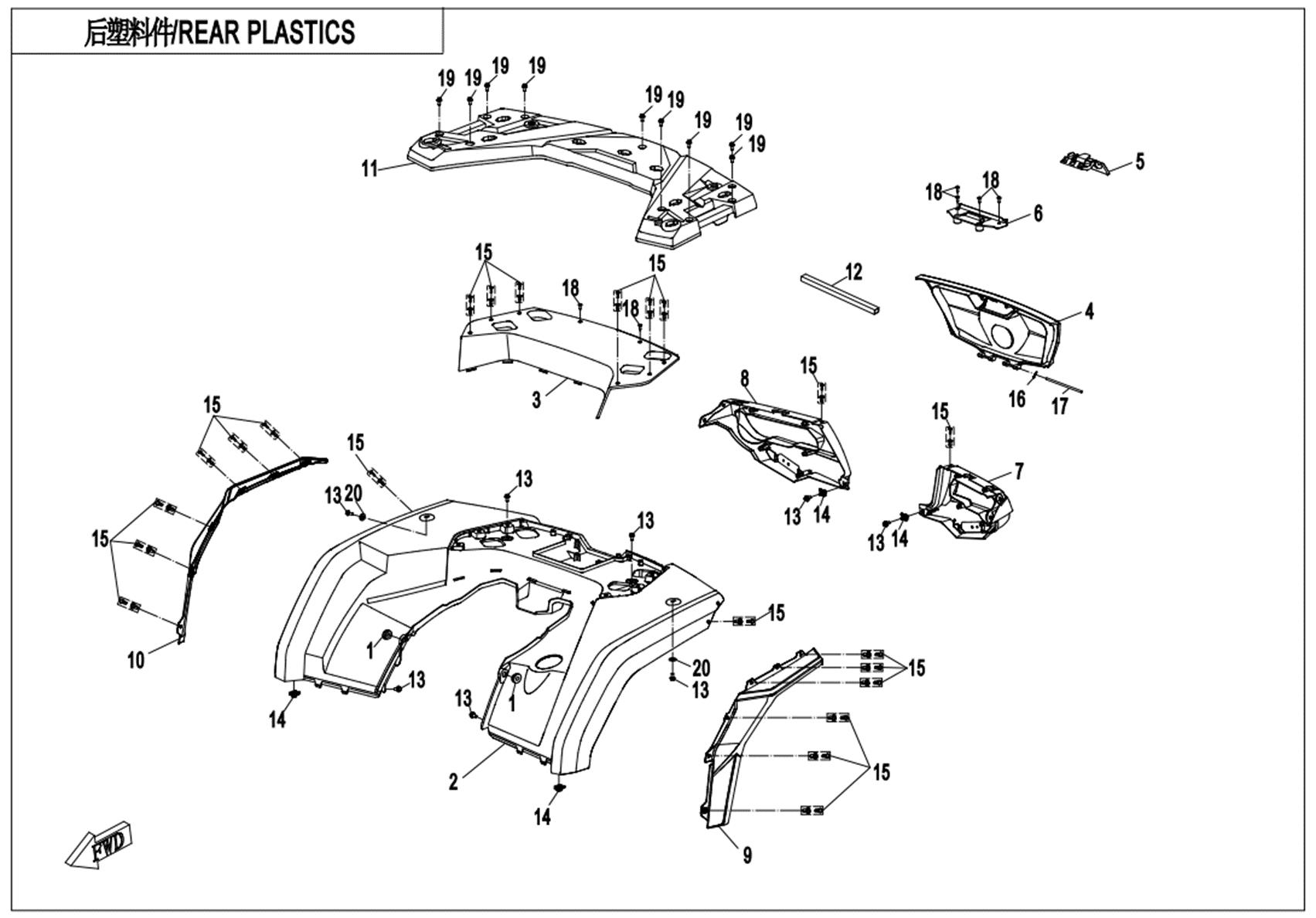

REAR PLASTICS -MATTLE BLACK
F04-4-B
REAR PLASTICS -MAPLE CAMO FOR HUNTING
F04-4-C
REAR PLASTICS -CRYSTAL ORANGE
F04-5

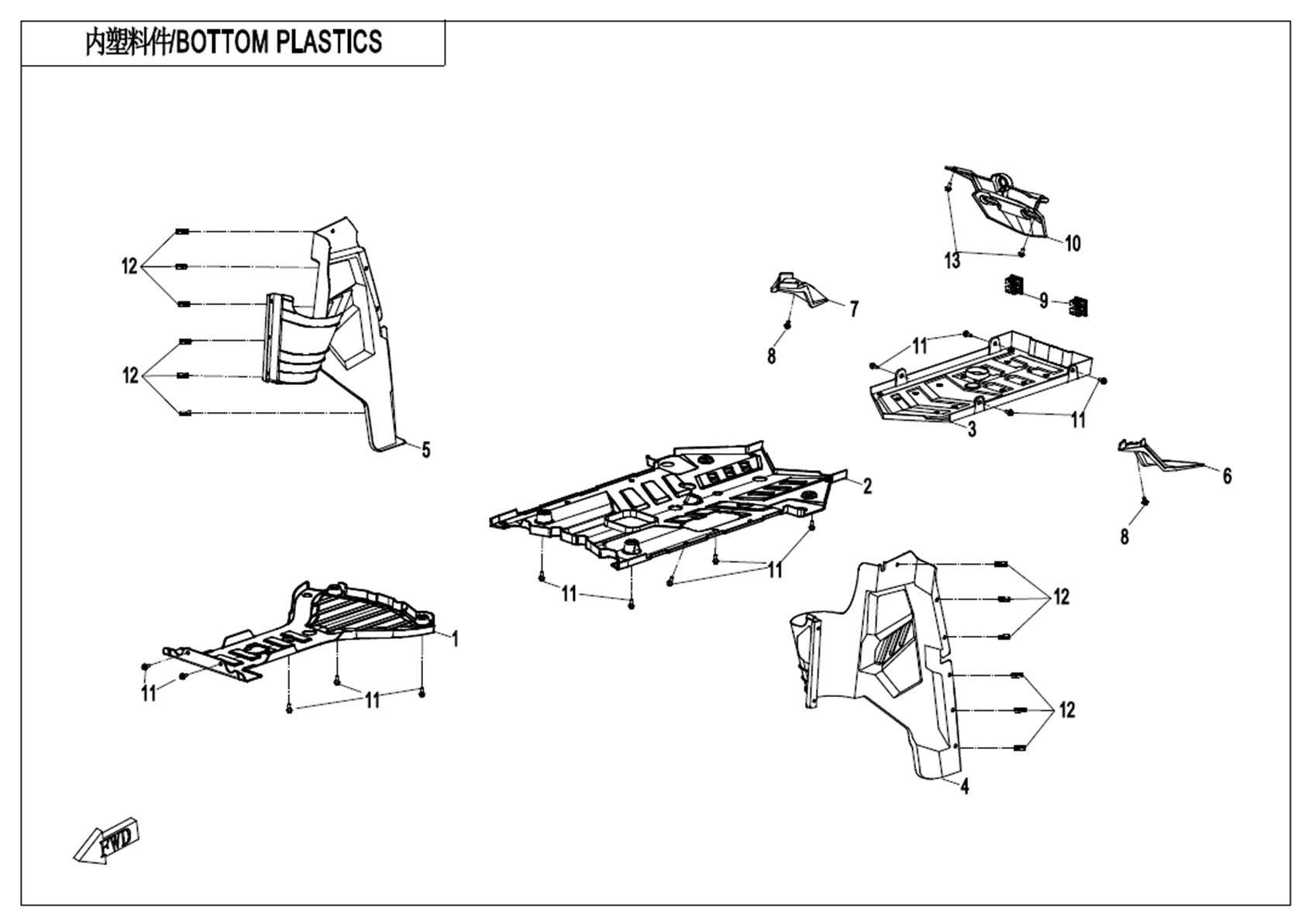

BOTTOM PLASTICS
F04-6-A

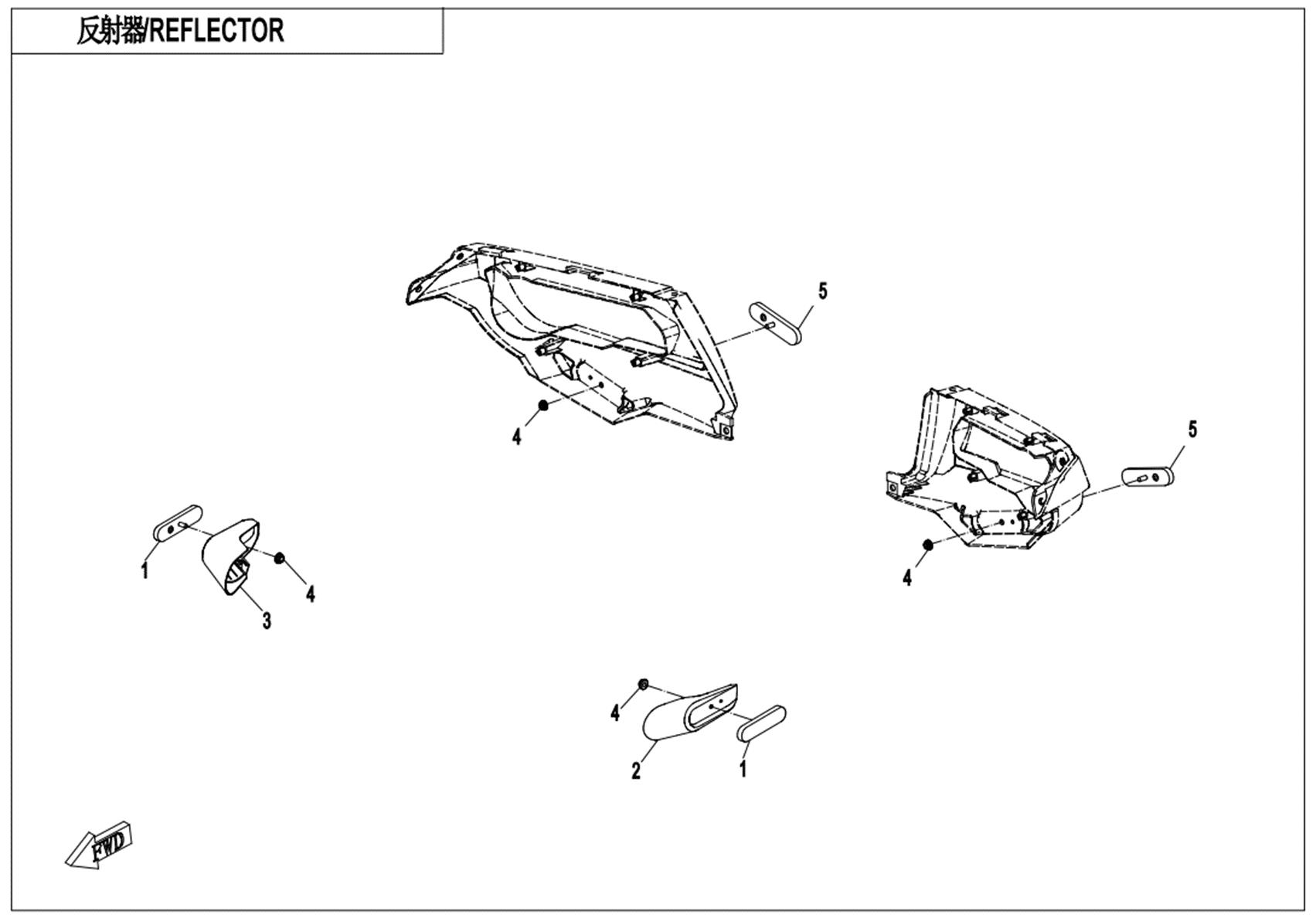

REFLECTOR
F05-1

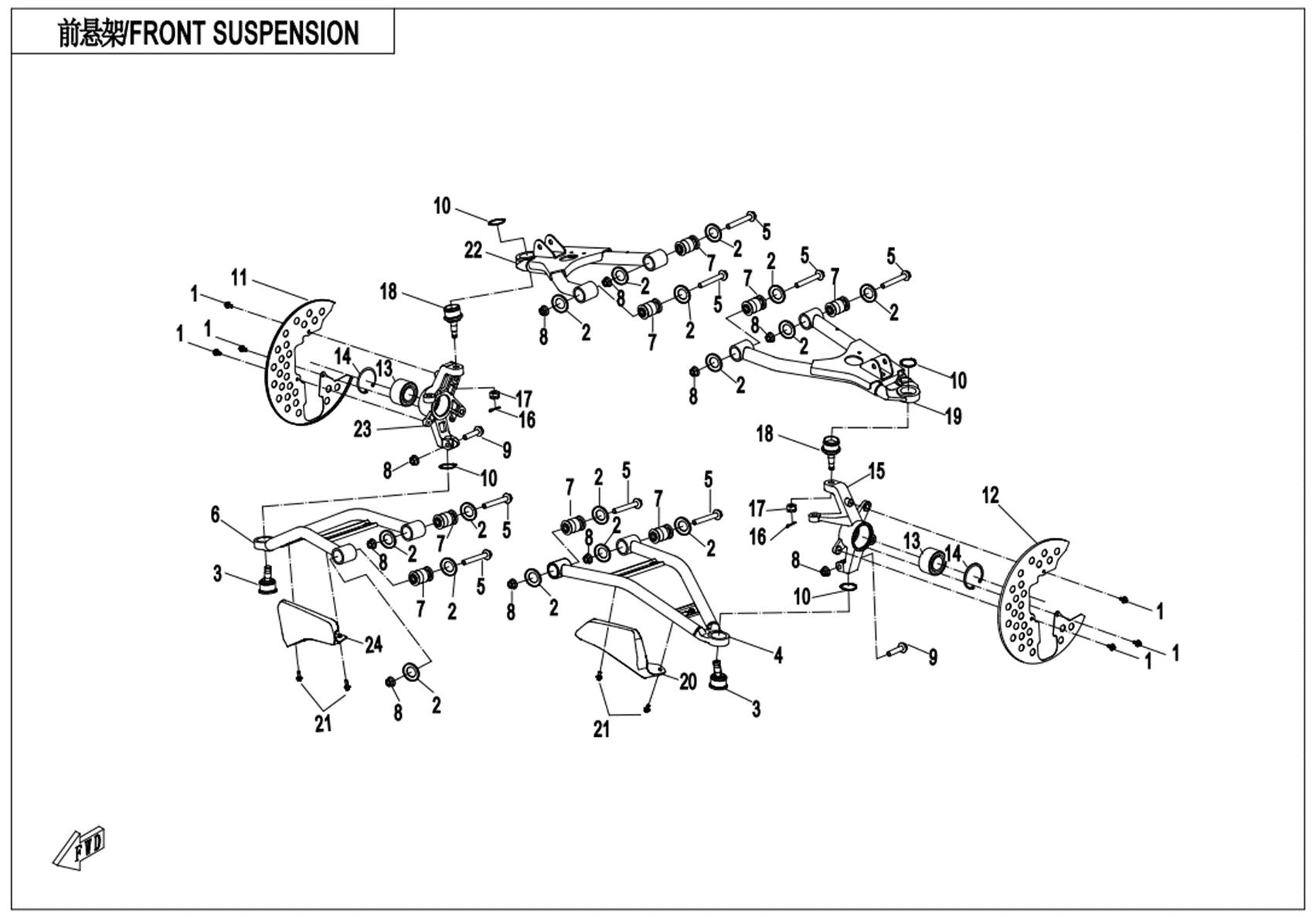

FRONT SUSPENSION
F05-2-A-V2

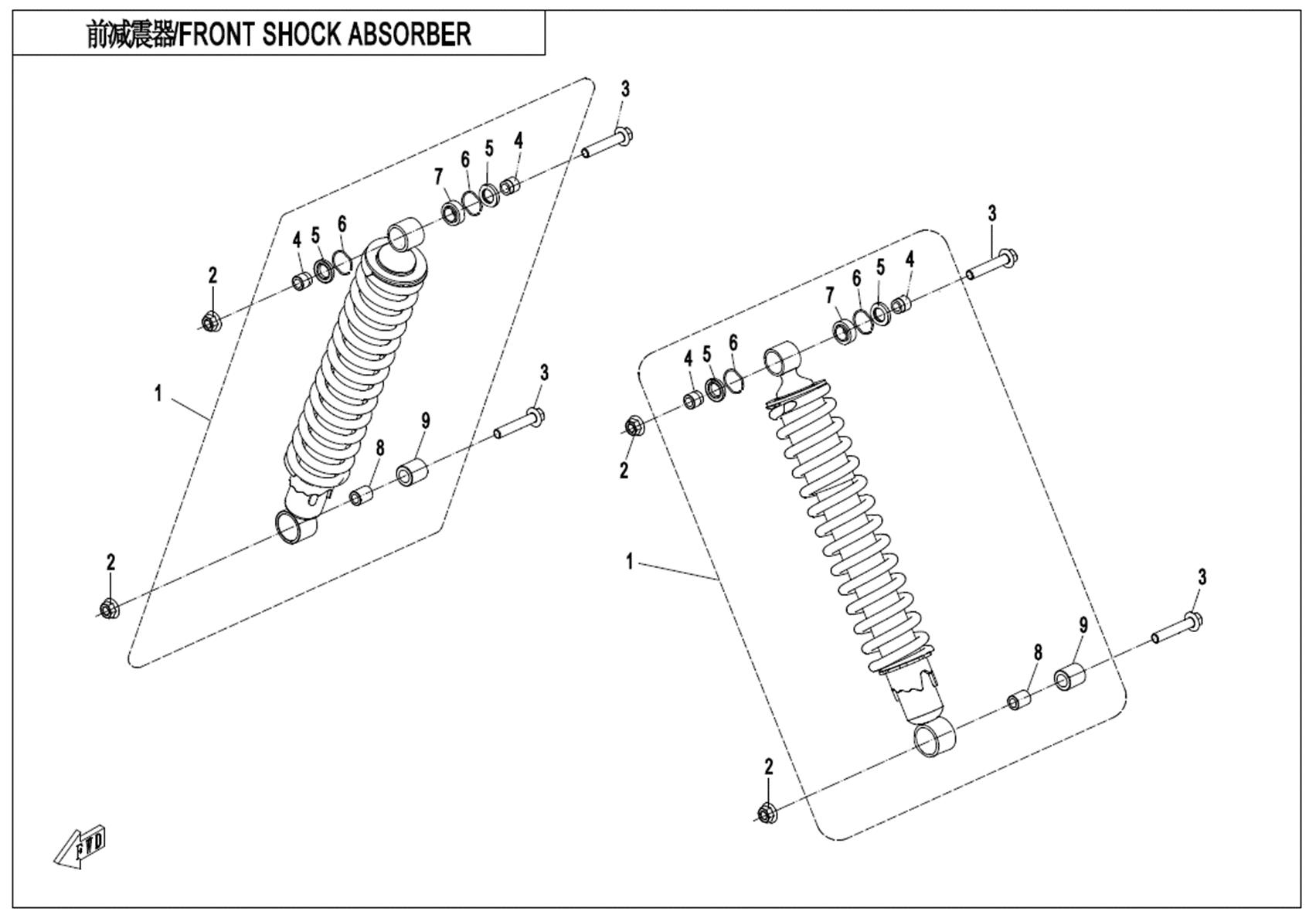

FRONT SHOCK ABSORBER-OIL
F06-1

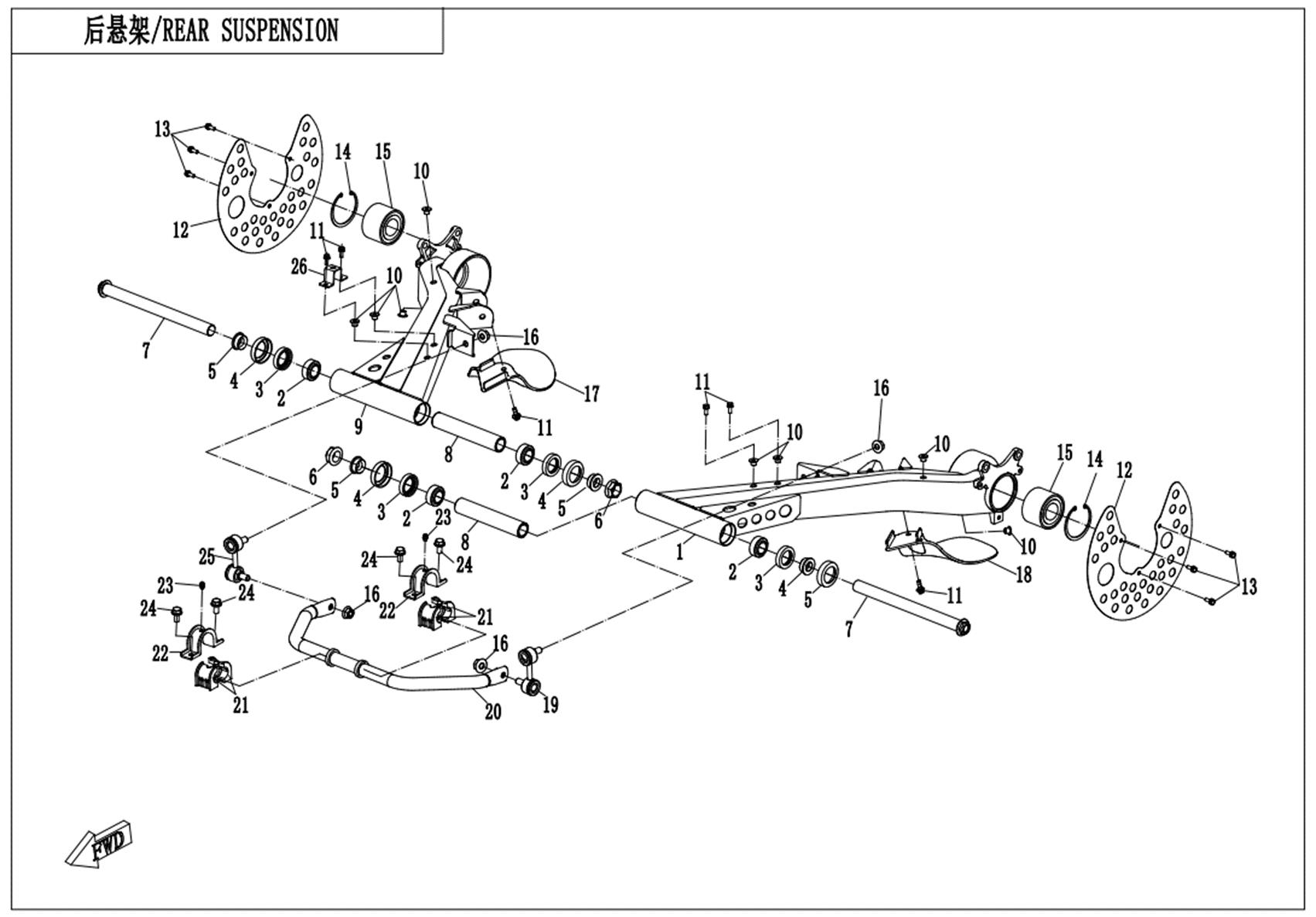

REAR SUSPENSION
F06-2-A-V2

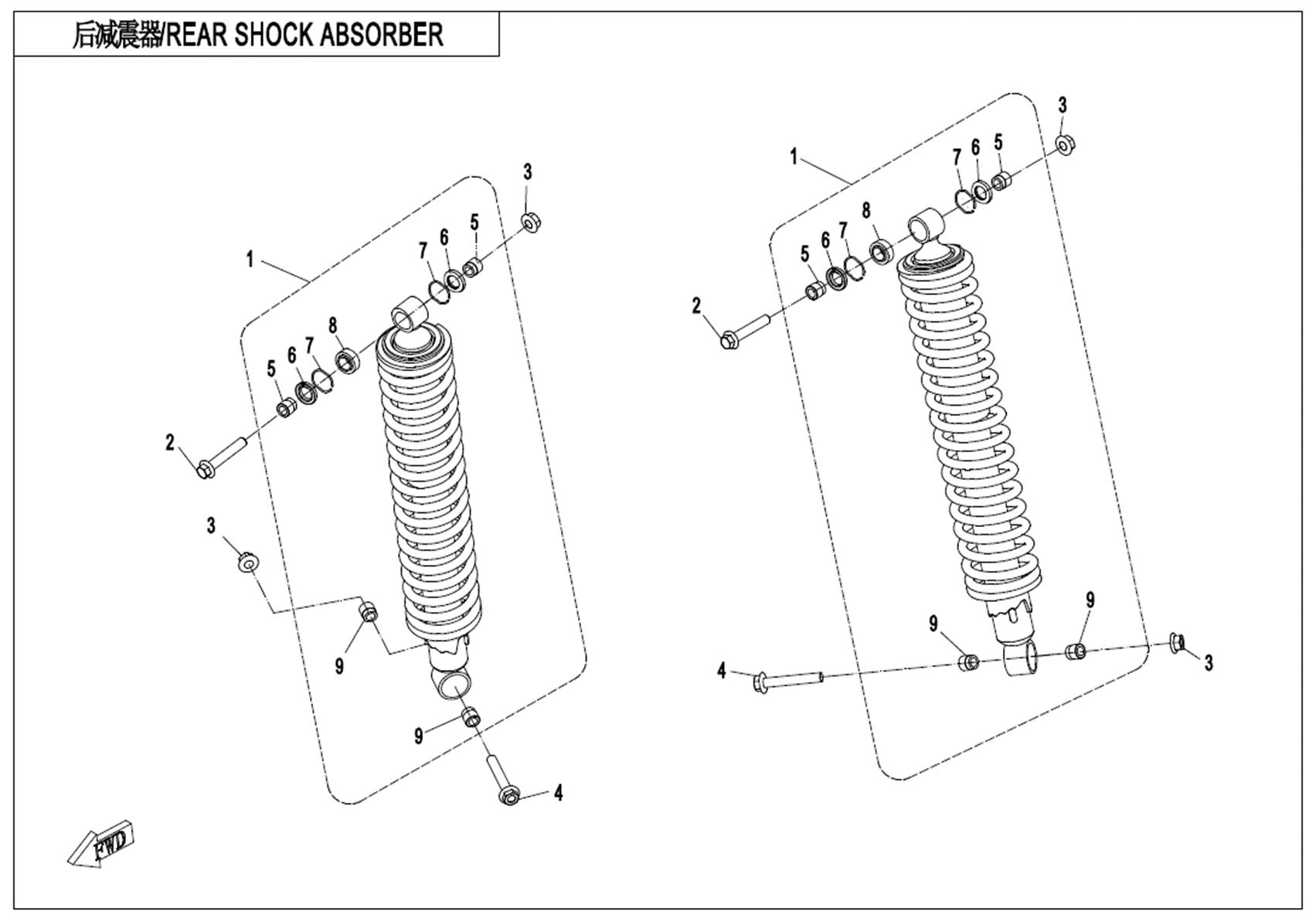

REAR SHOCK ABSORBER(OIL)
F07

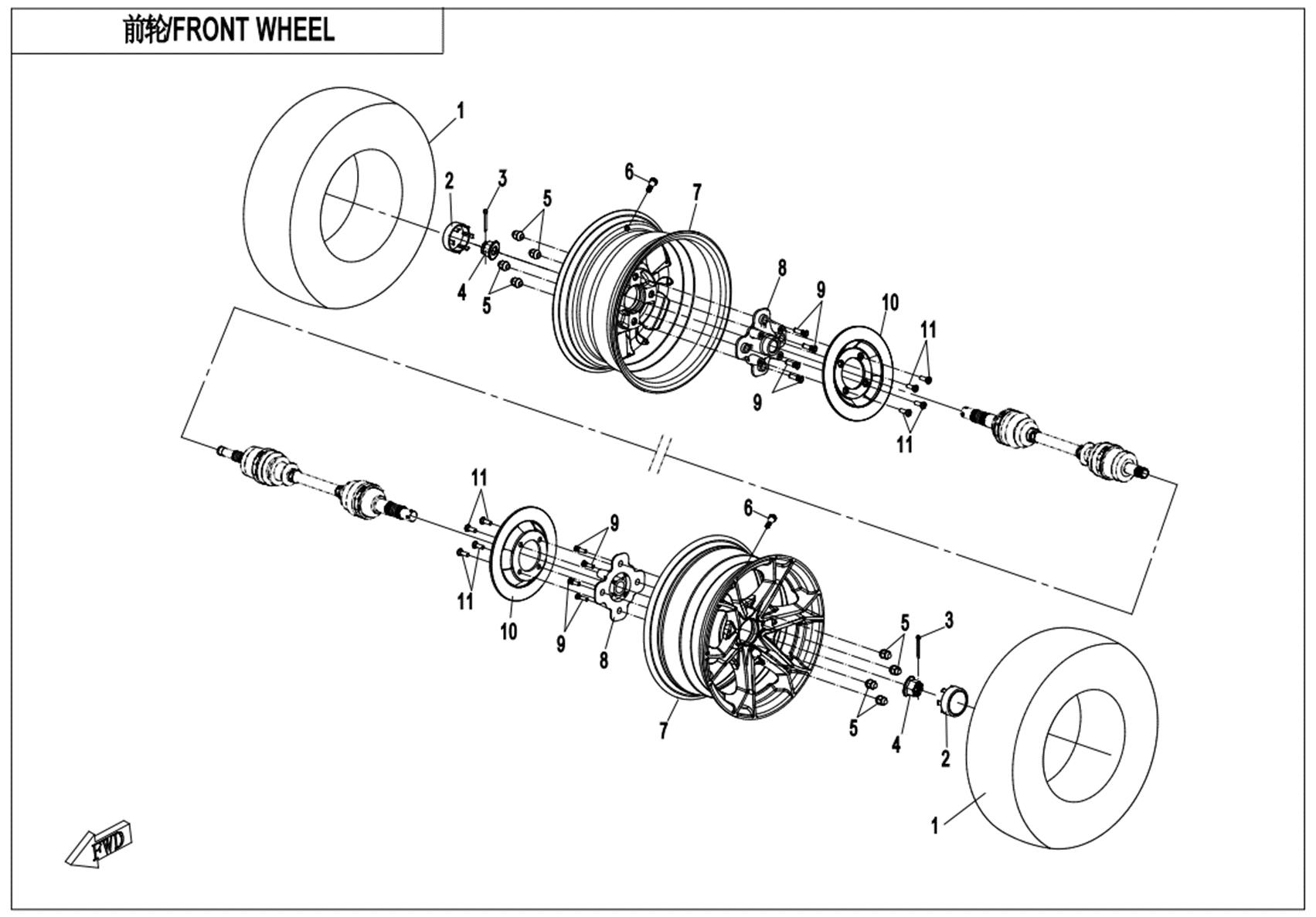

FRONT WHEEL

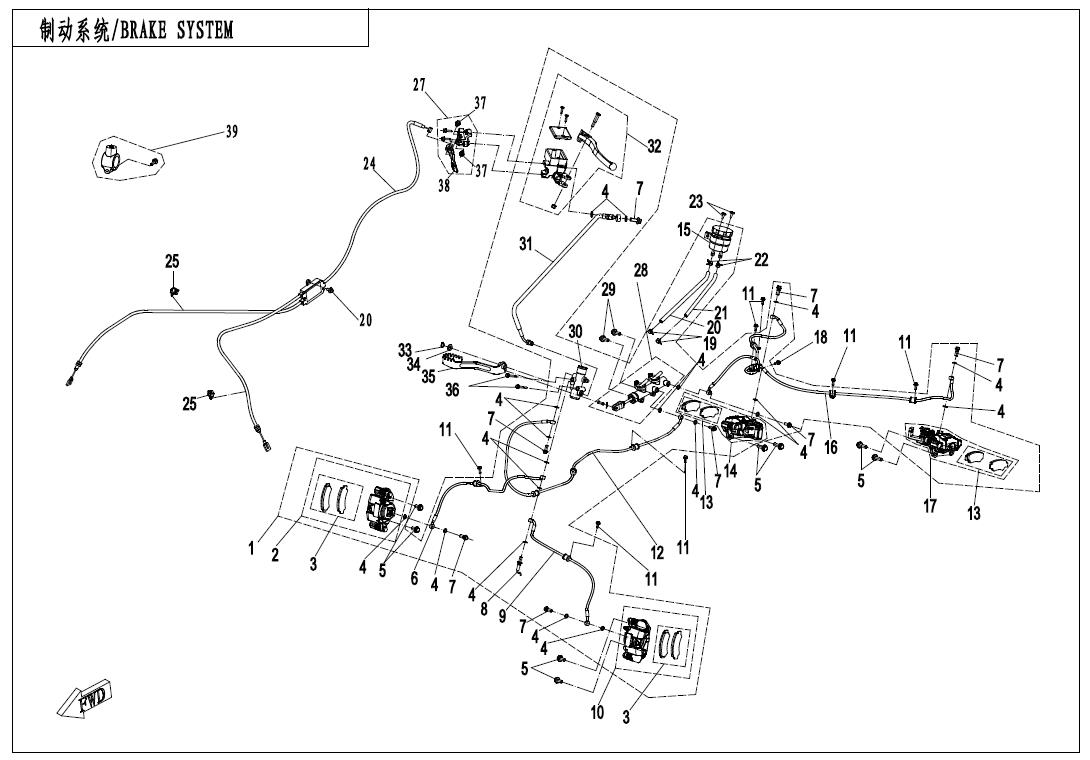

F08-A

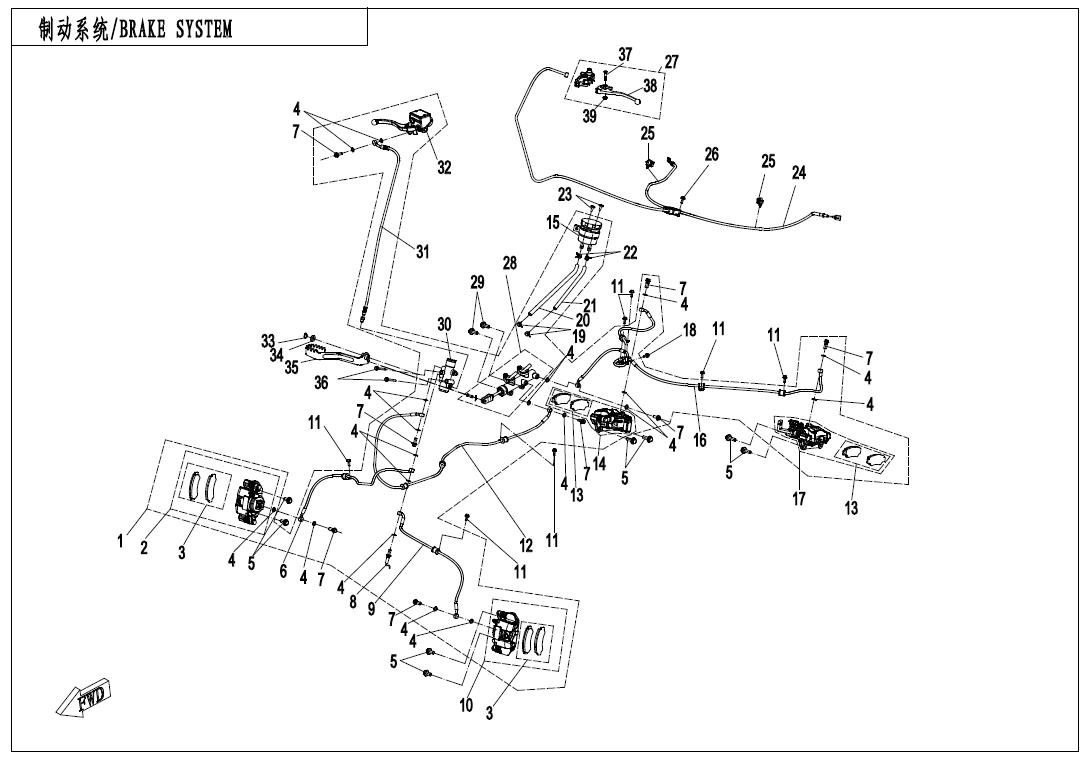

BRAKE SYSTEM-LH,PARKING
F08-B
BRAKE SYSTEM-RH,PARKING

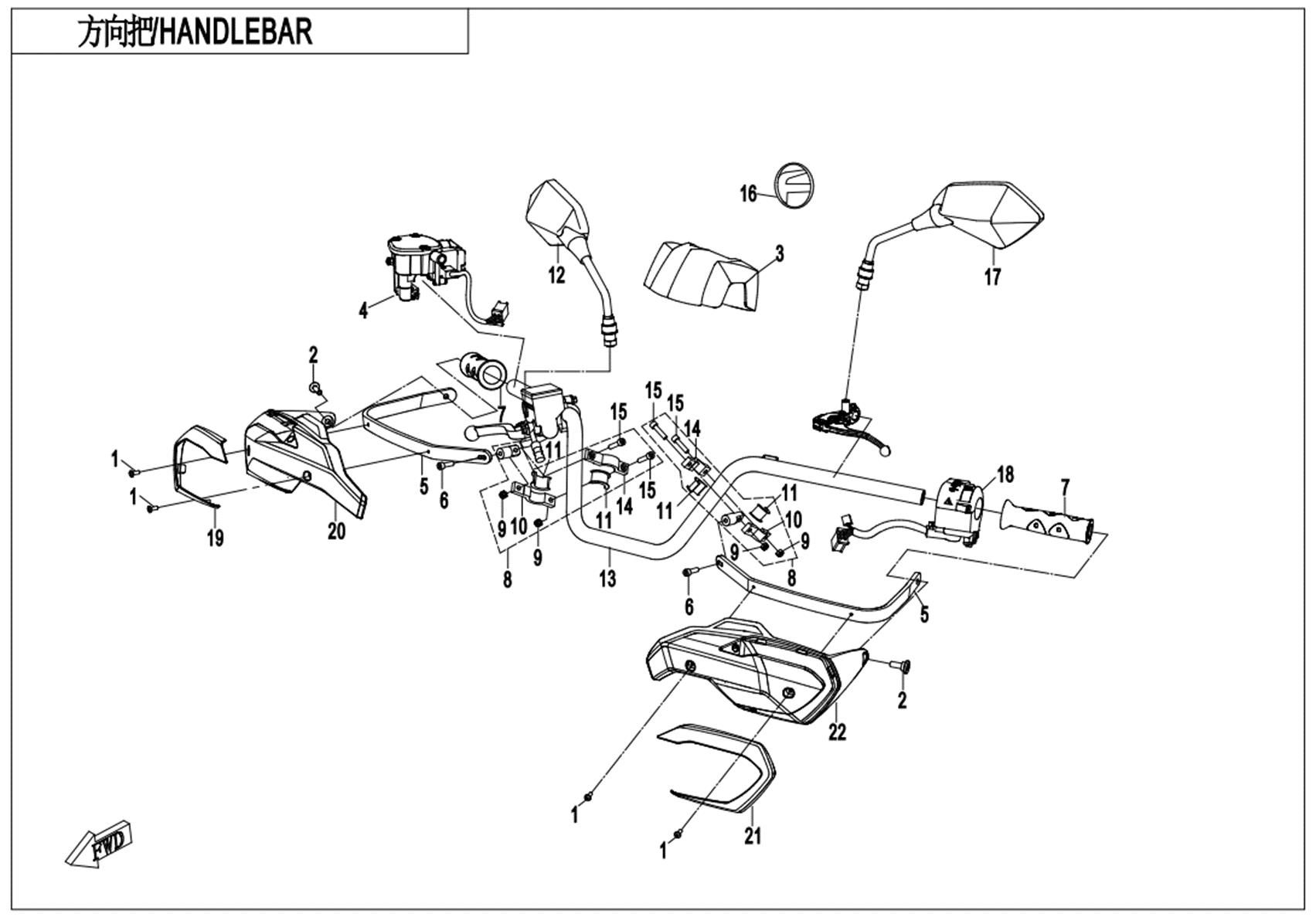

F10-1-A
HANDLEBAR-PEARL BLACK
F10-1-B
HANDLEBAR-TIMBER CAMO
F10-1-C
HANDLEBAR-CRYSTAL ORANGE
F10-2-C-V2

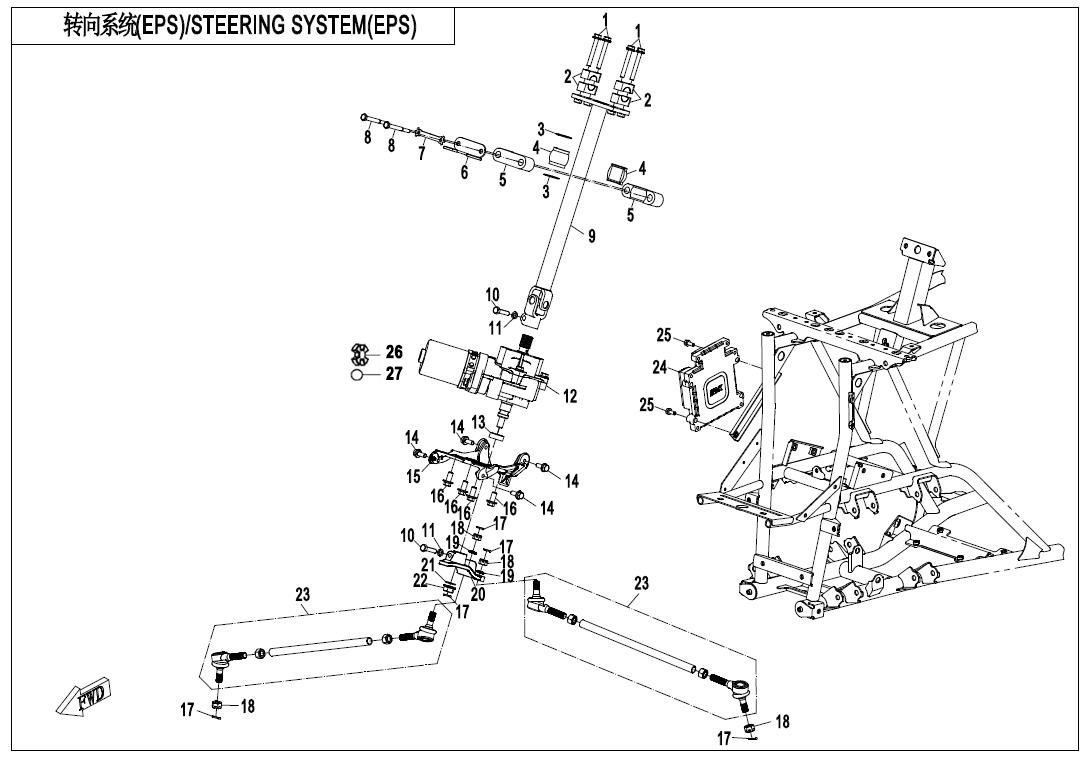

STEERING SYSTEM(EPS,ACDELCO)
F11

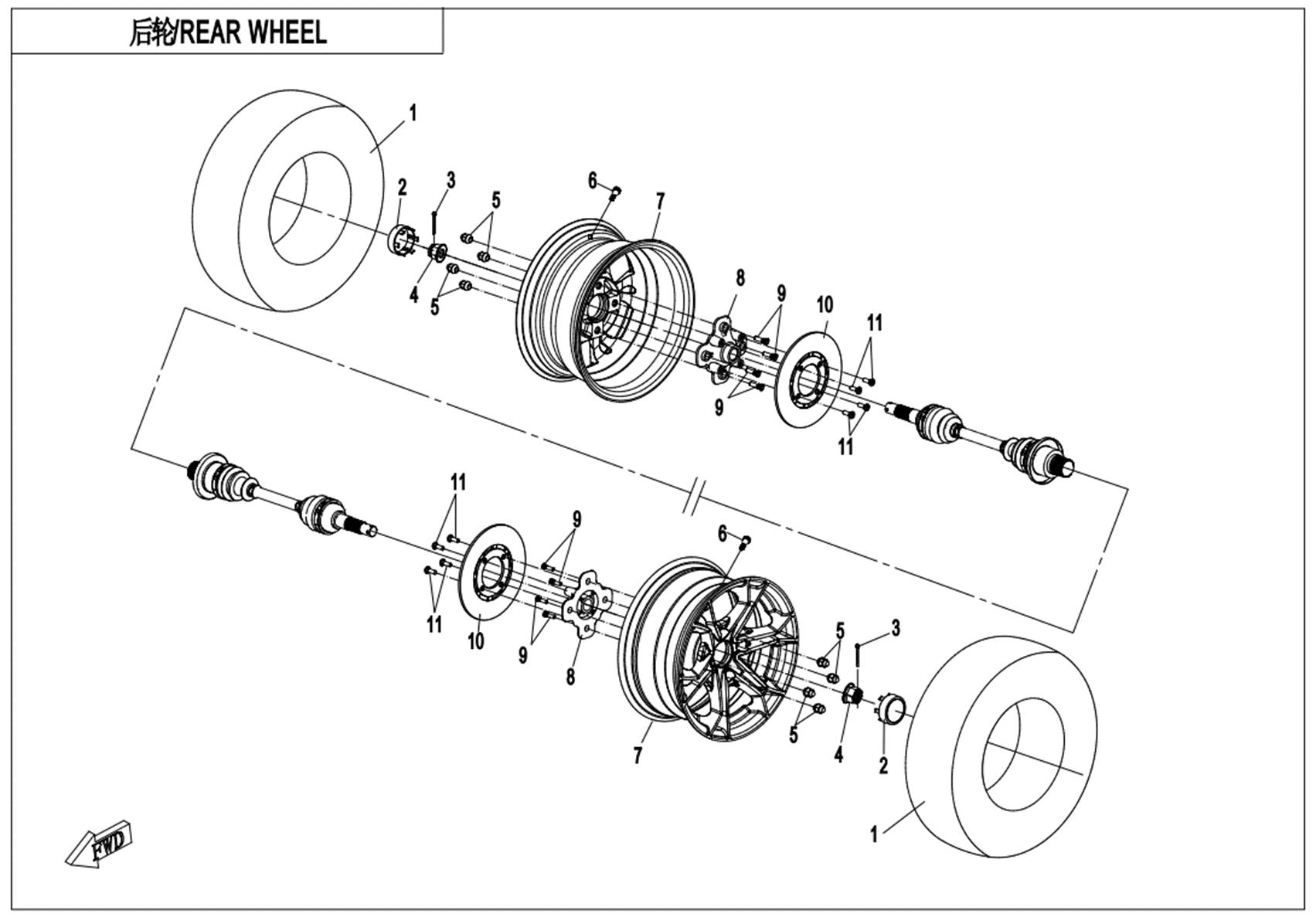

REAR WHEEL
F12-A

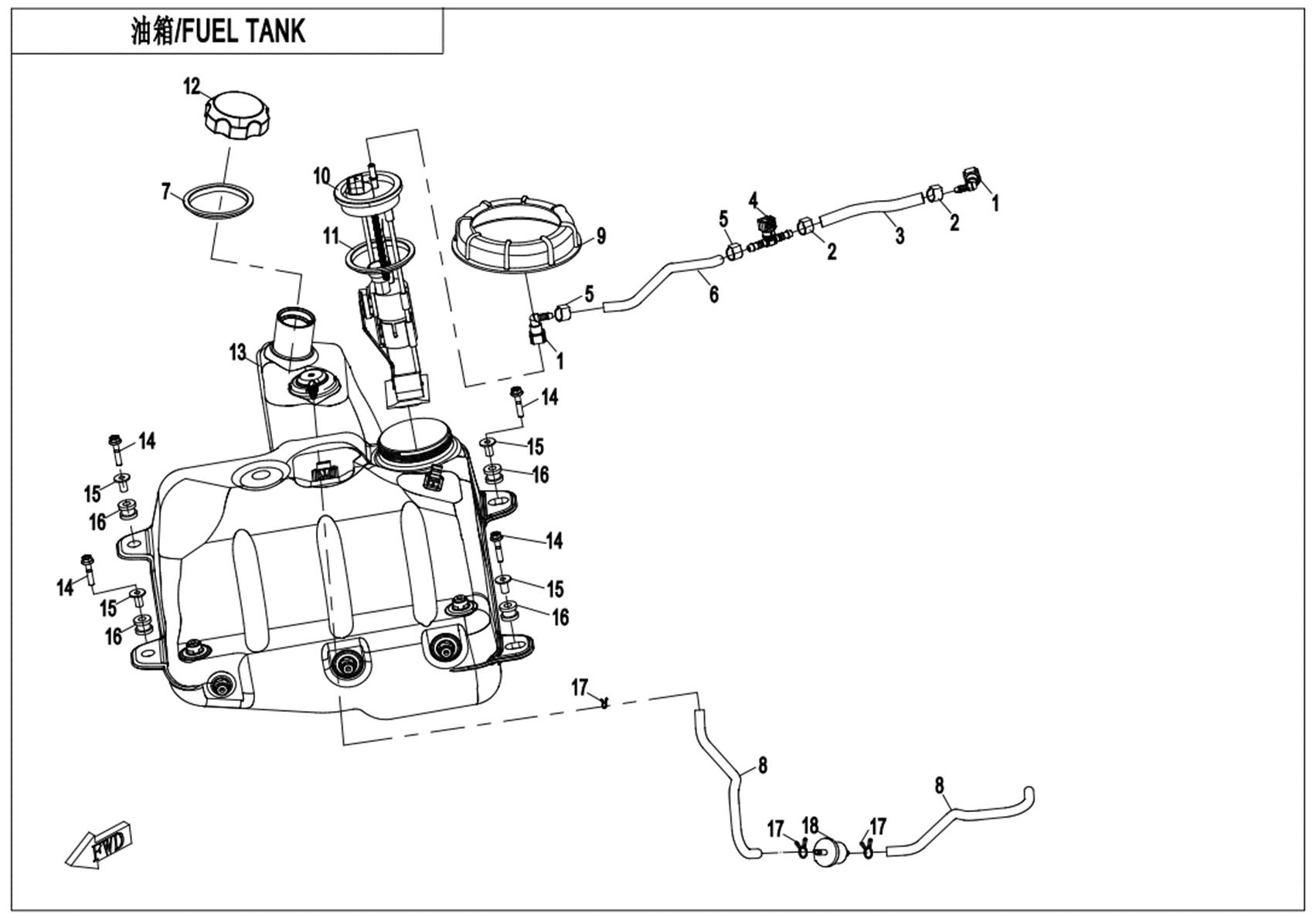

FUEL TANK(STANDARD)
F13-A

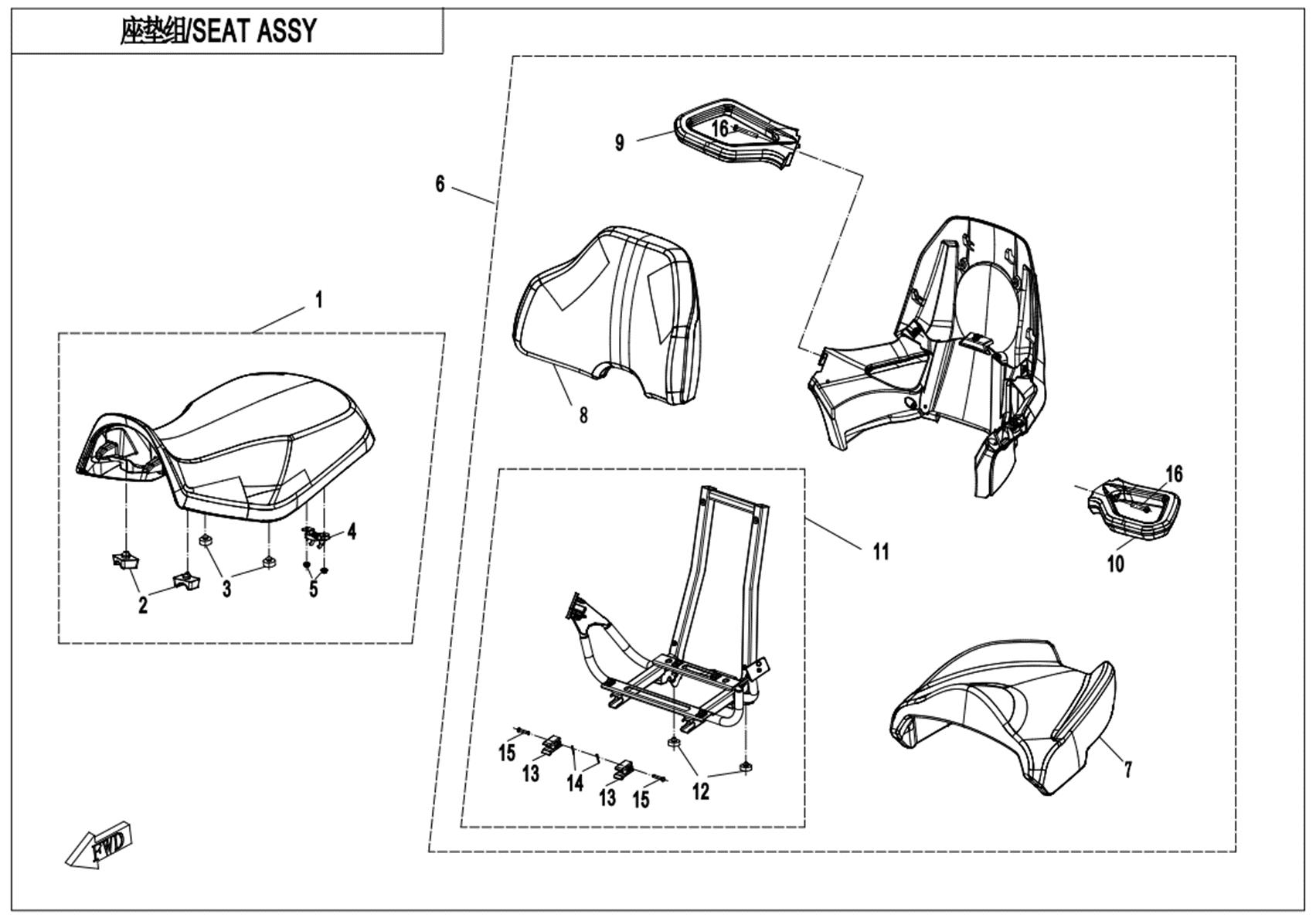

SEAT -BLACK
F14-A

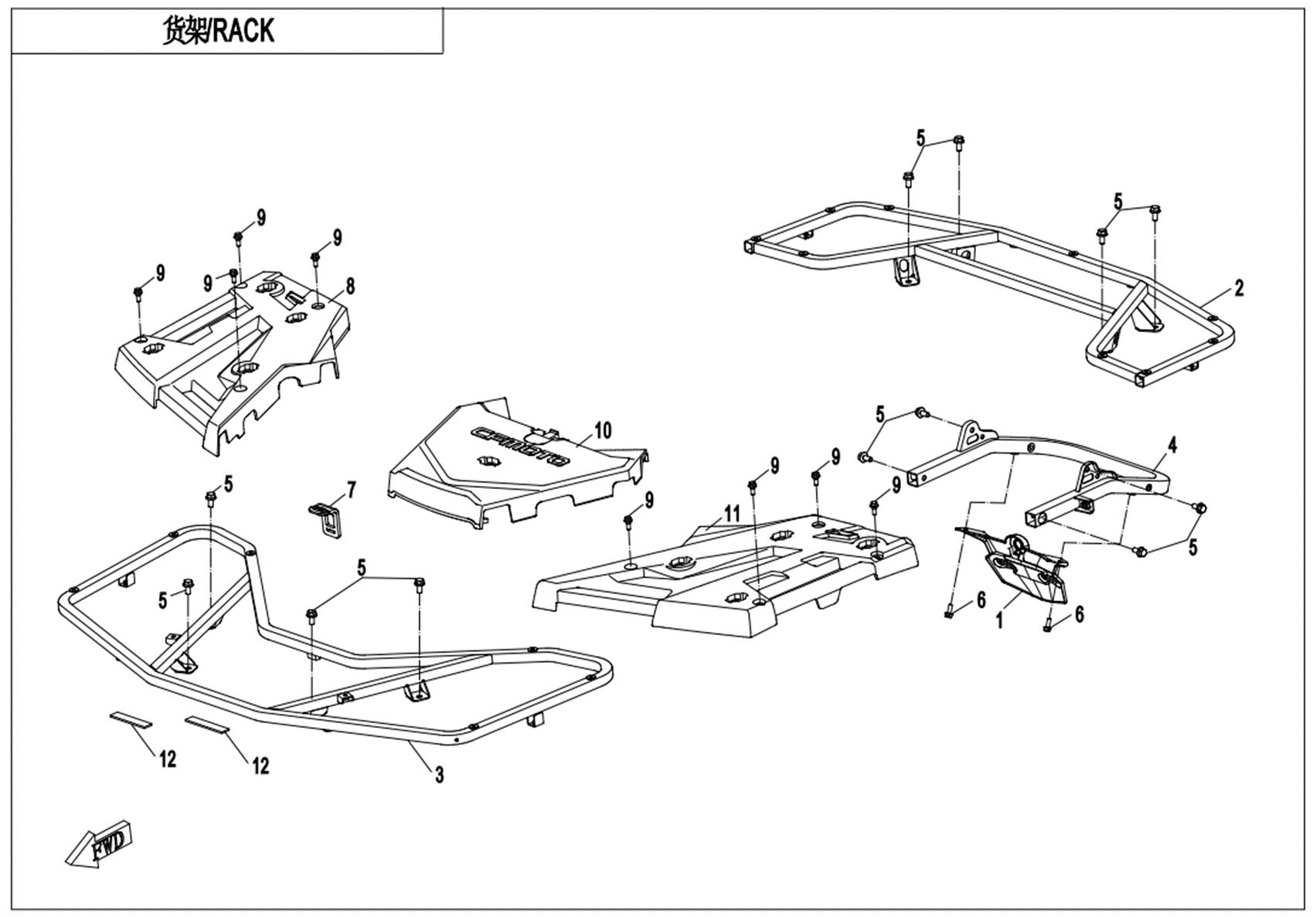

RACK(STANDARD)
F15-1-B

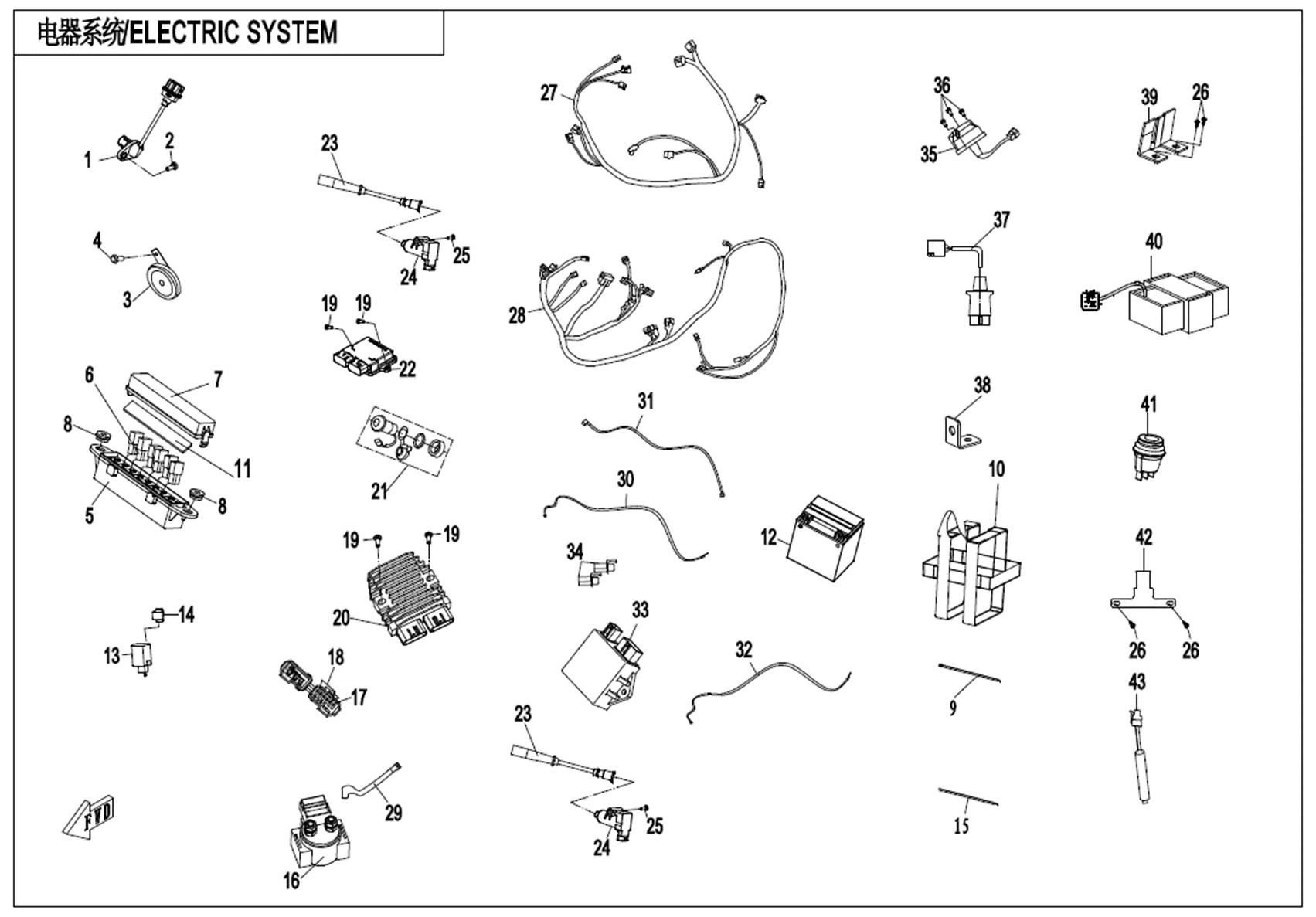

ELECTRIC SYSTEM(HIGH POWER)
F15-2

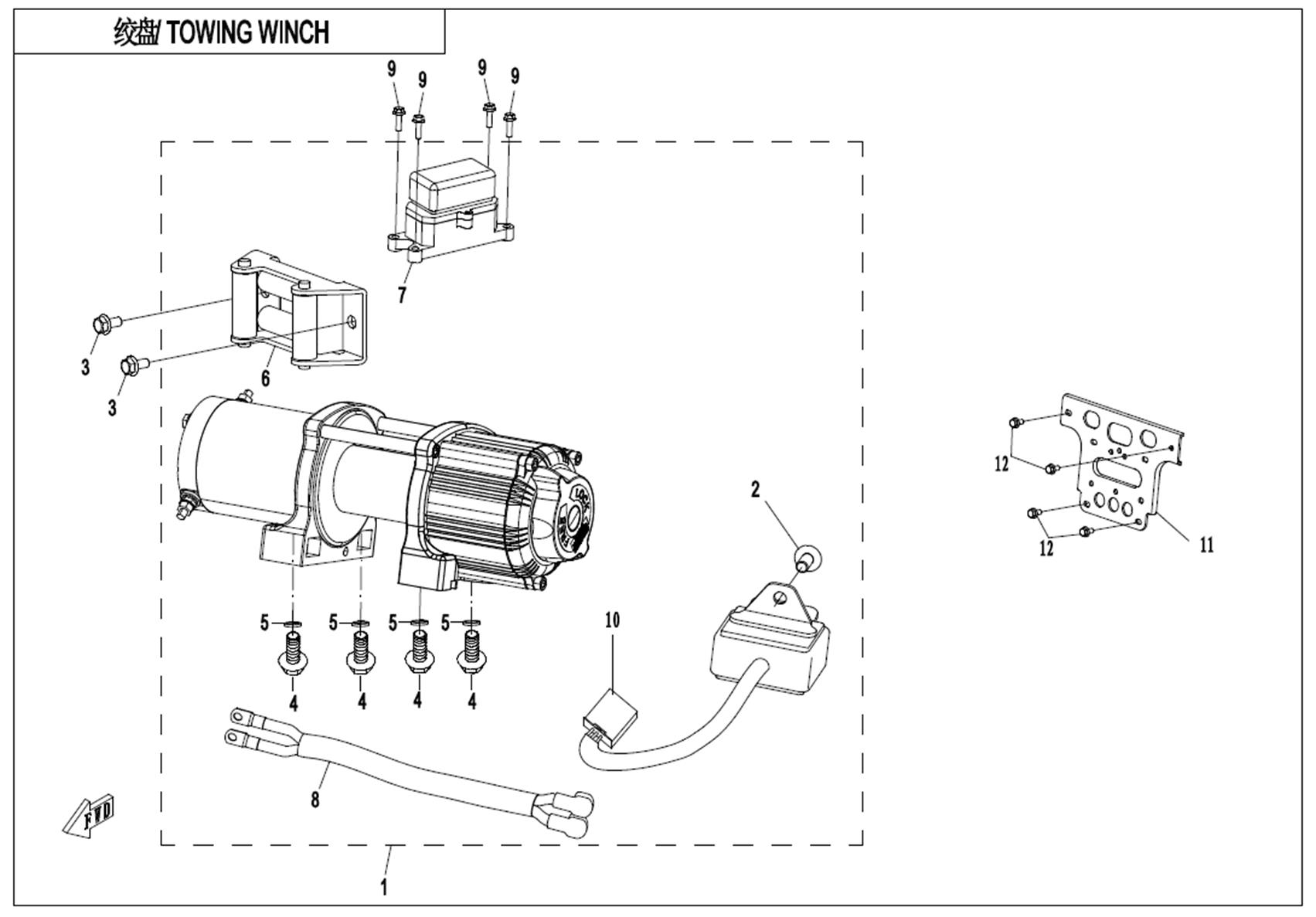

TOWING WINCH
F15-3-A

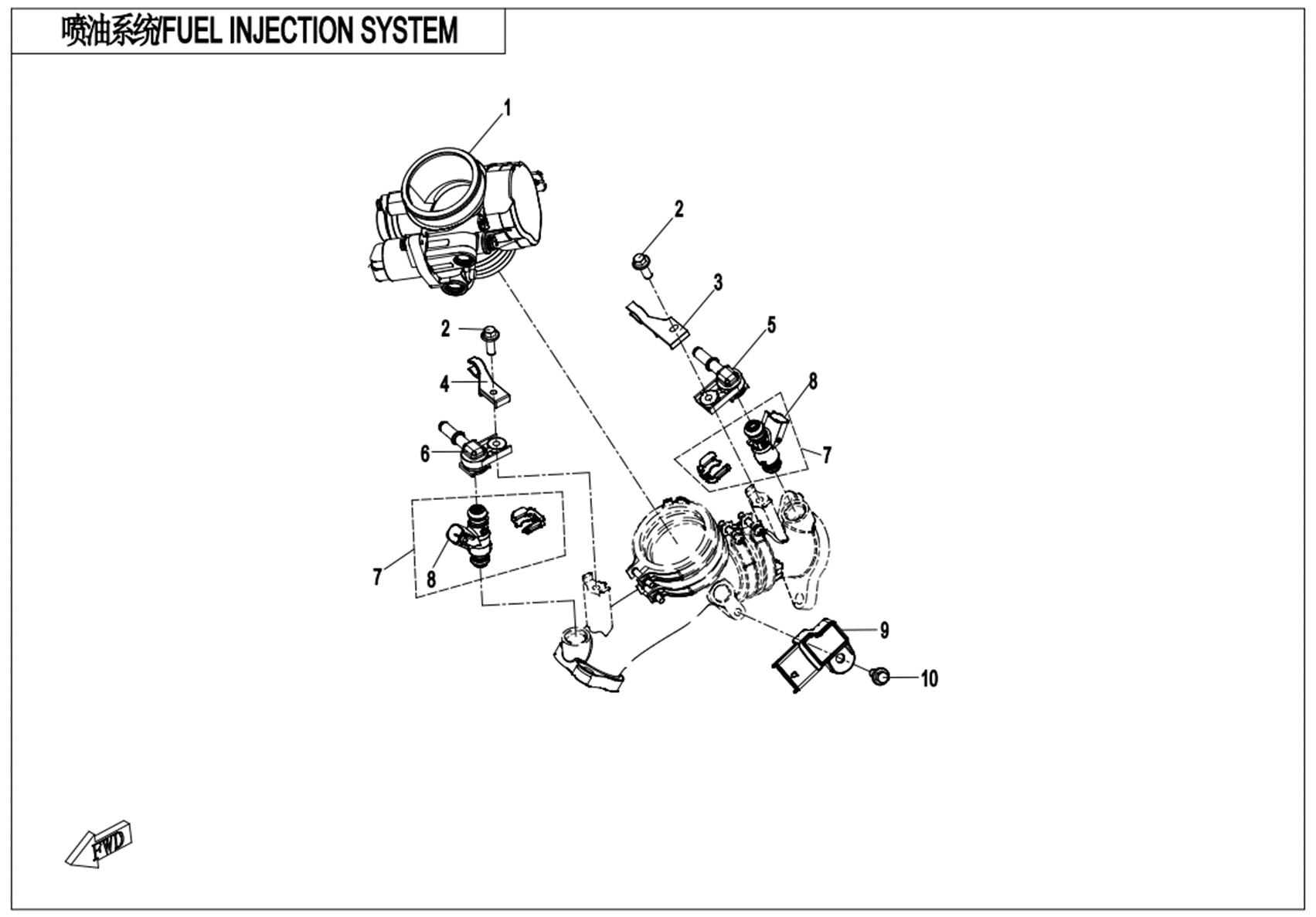

FUEL INJECTION SYSTEM-NO FUEL VAPORIZATION SYSTEM
F16

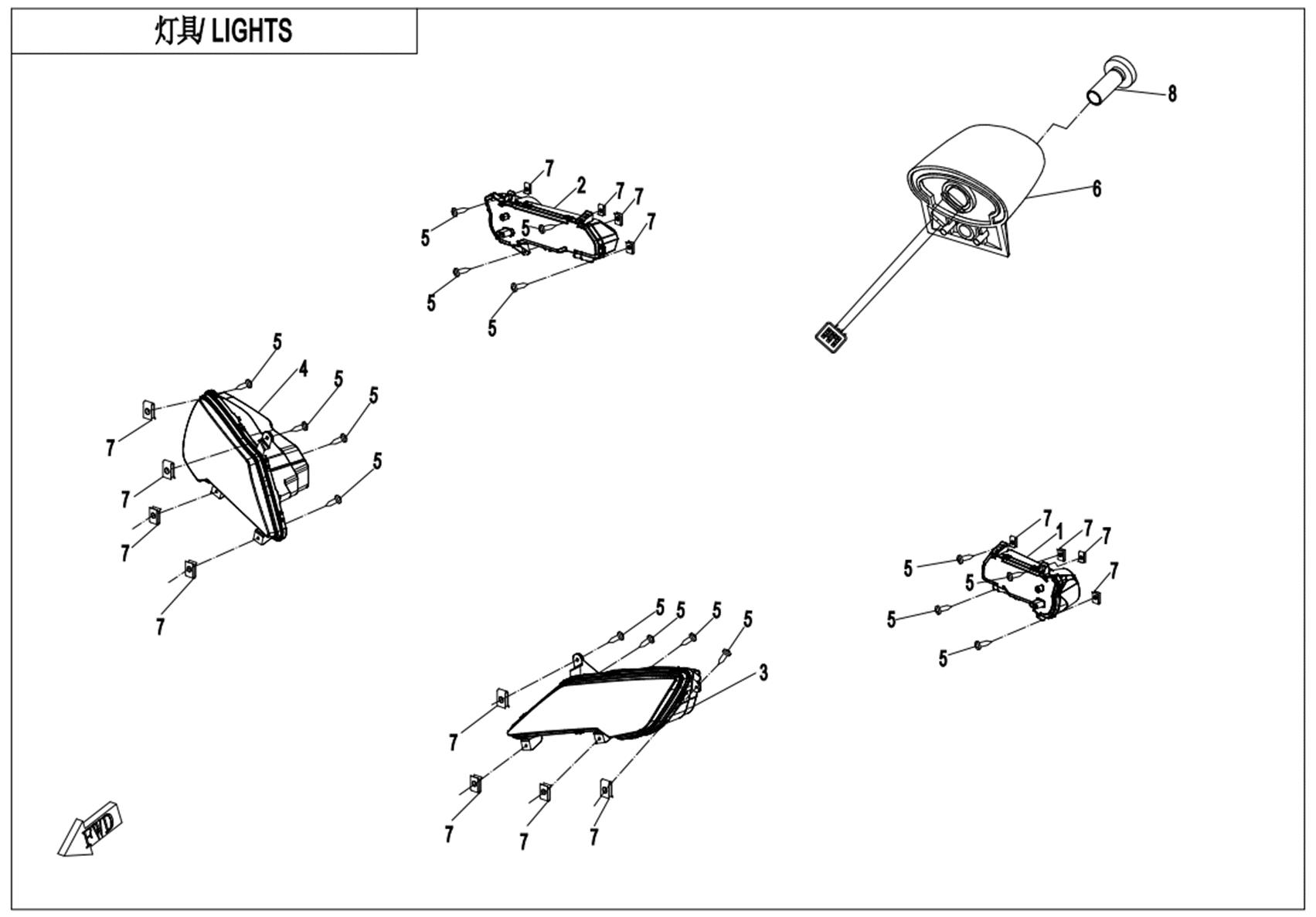

LIGHTS
F17

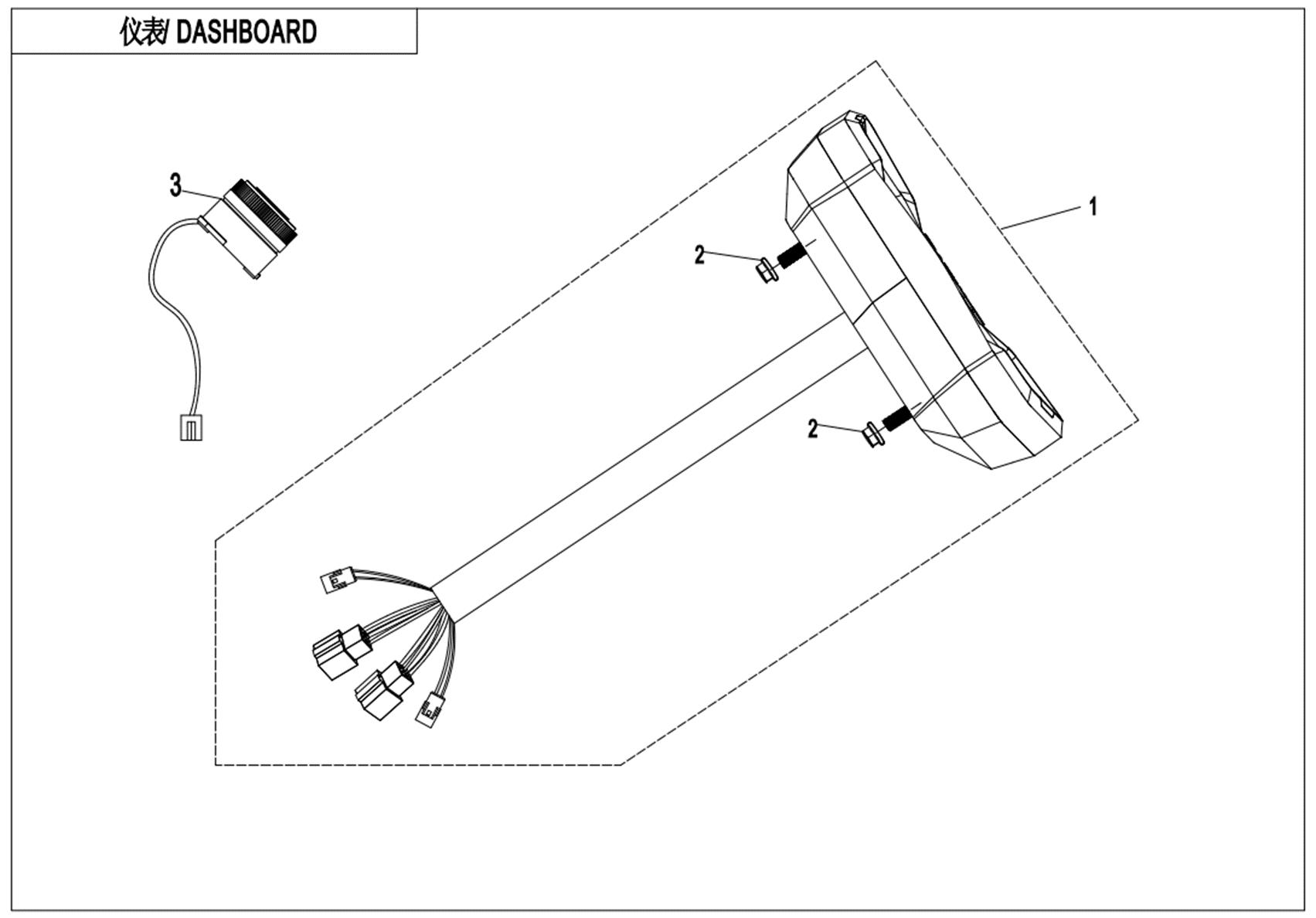

DASHBOARD
F18-V2

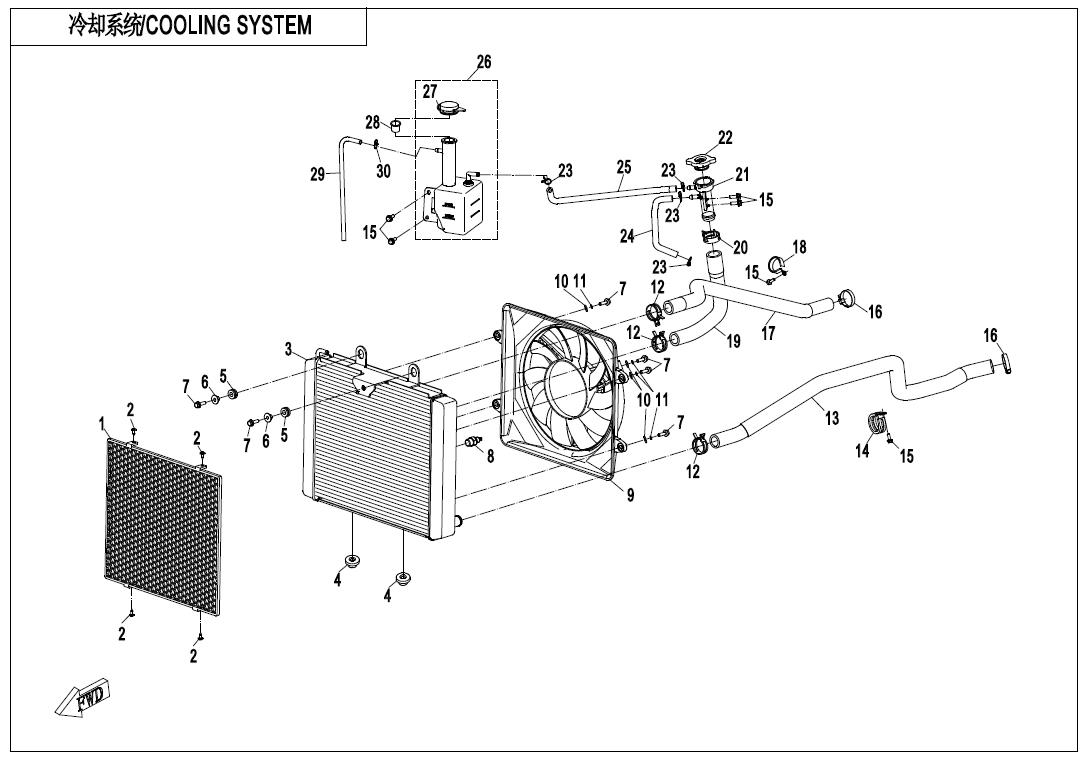

COOLING SYSTEM
F19-1-A

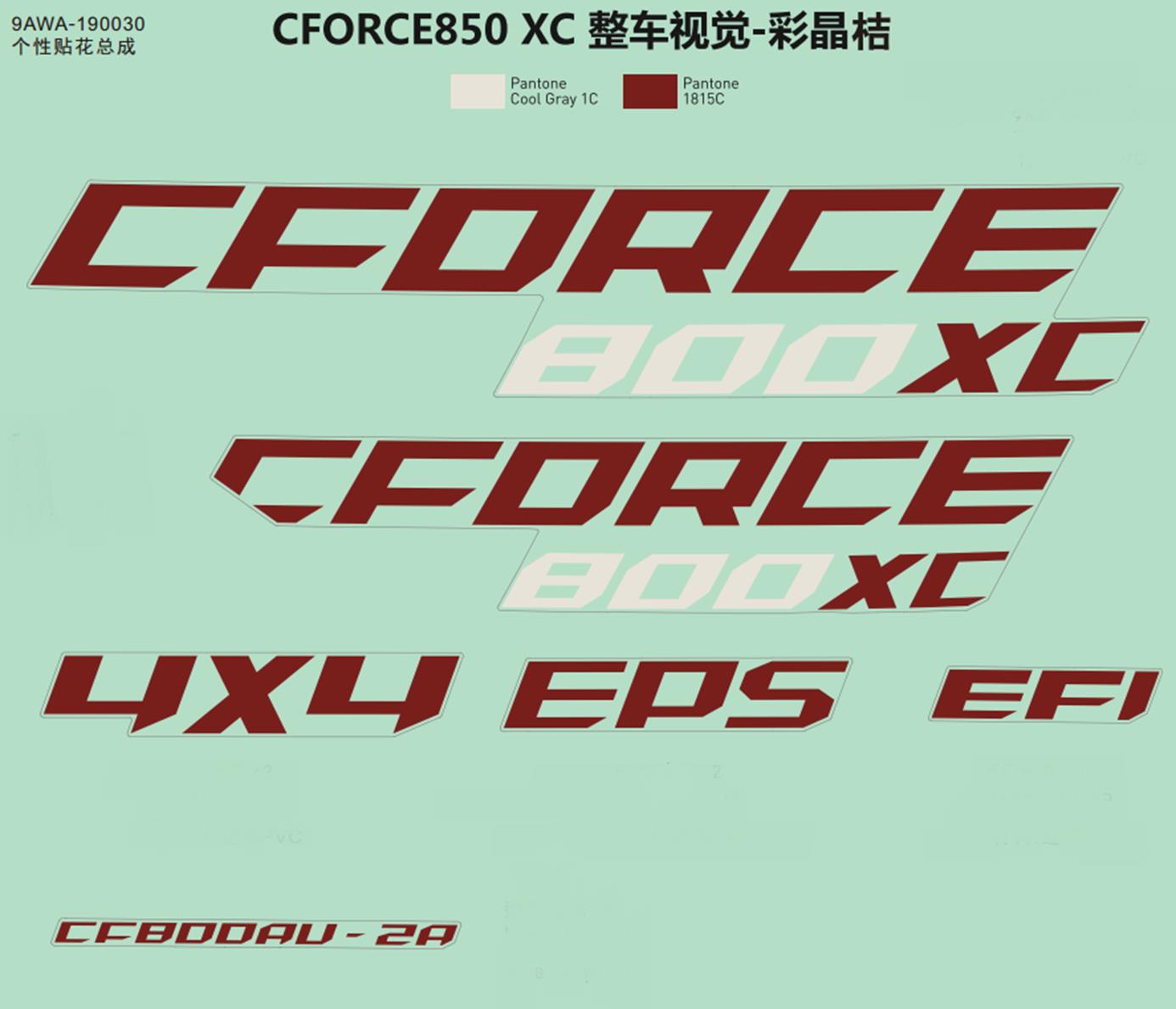

DECAL-CRYSTAL ORANGE
F19-1-B

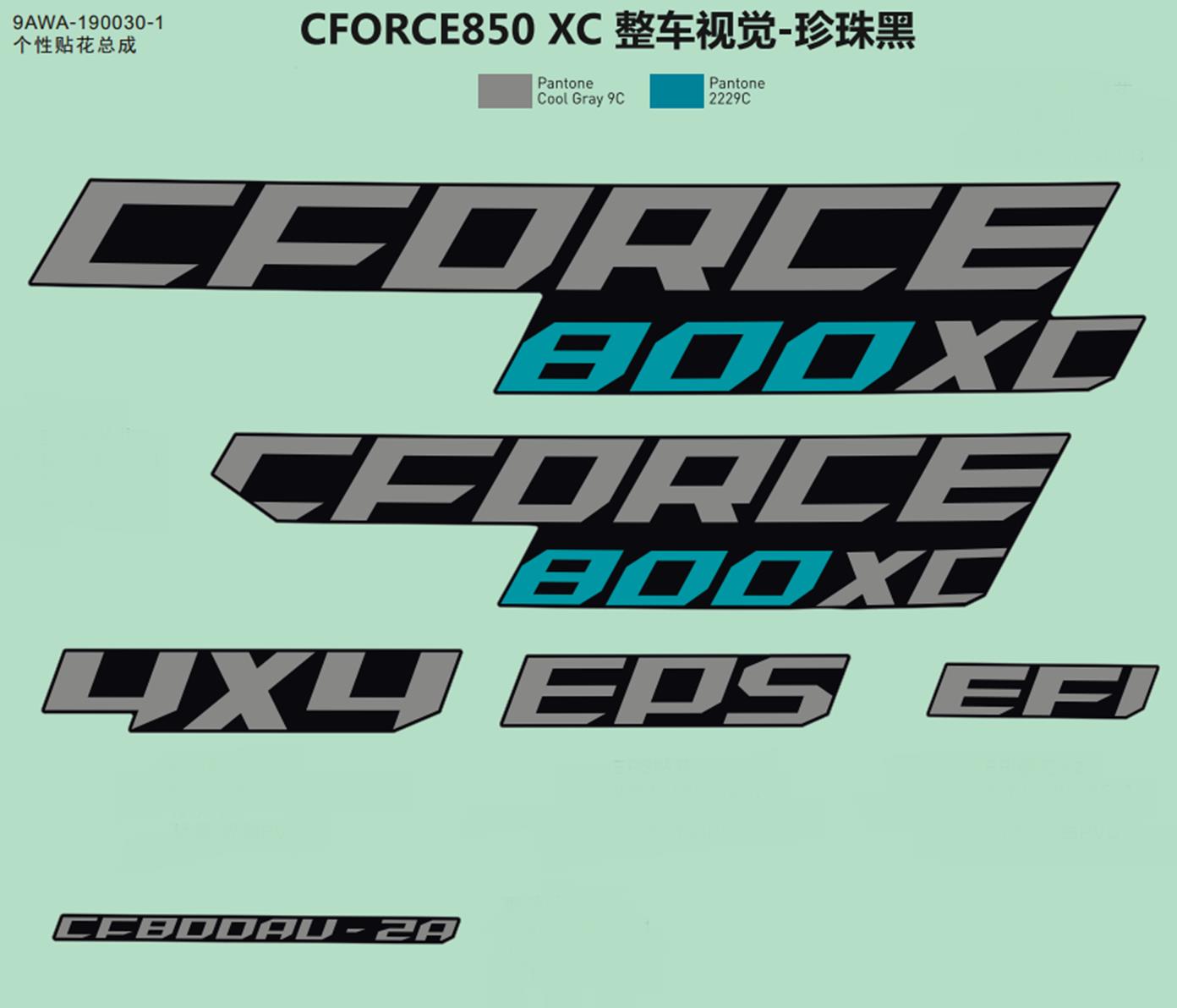

DECAL-MATTLE BLACK
F19-1-C

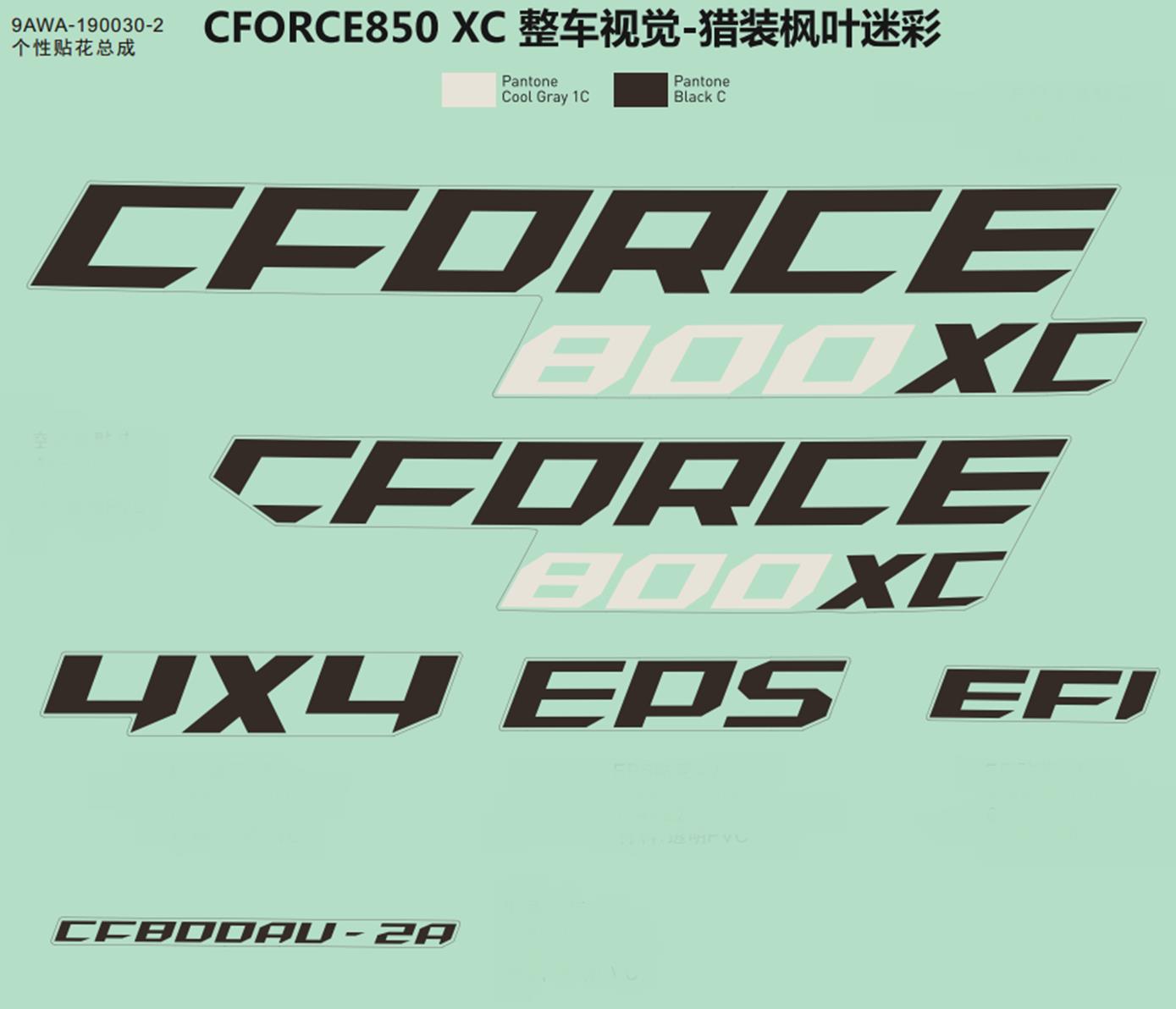

DECAL-MAPLE CAMO FOR HUNTING
F19-2-V2

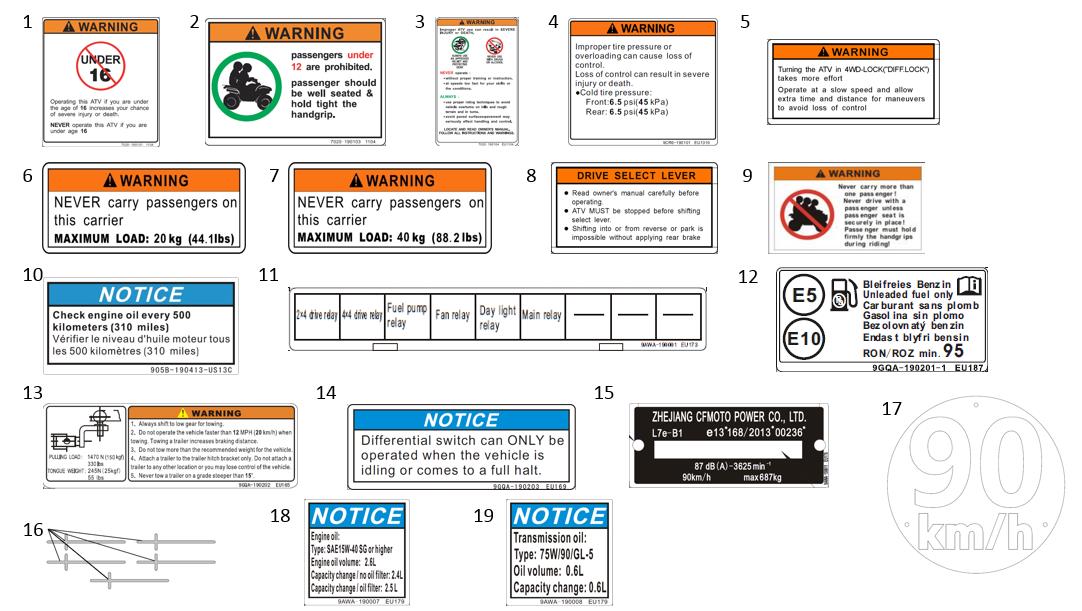

DECAL WARNING
F20-A

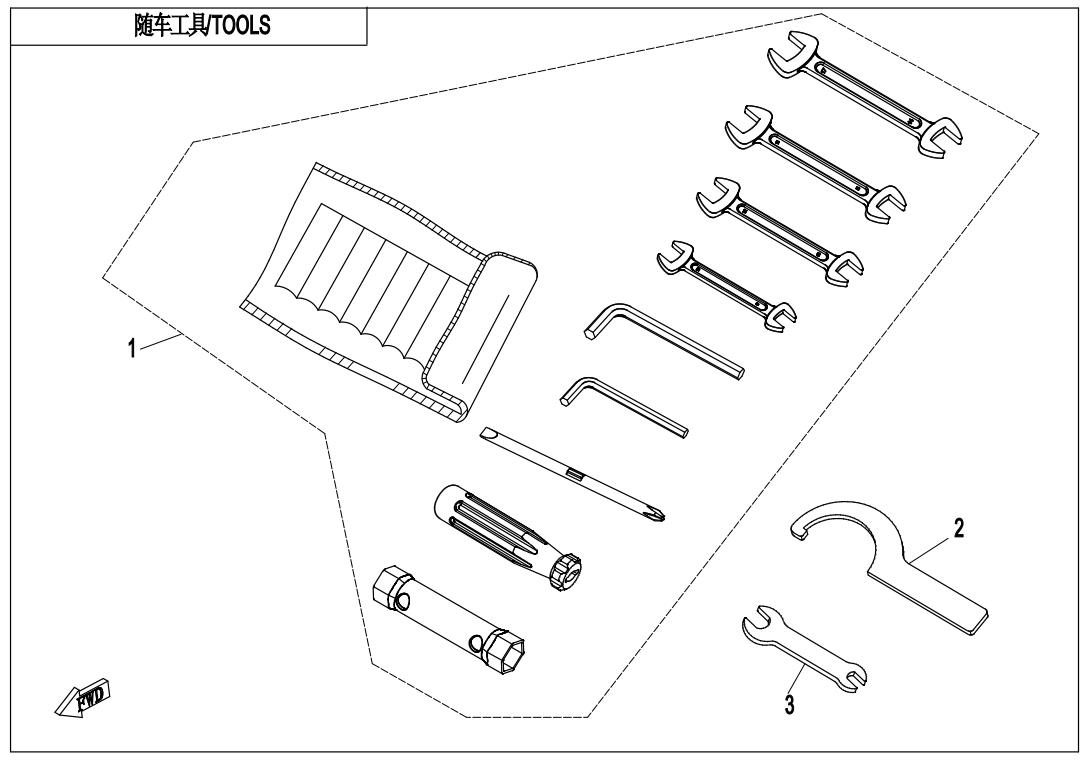

TOOLS(STANDARD)
F23-A

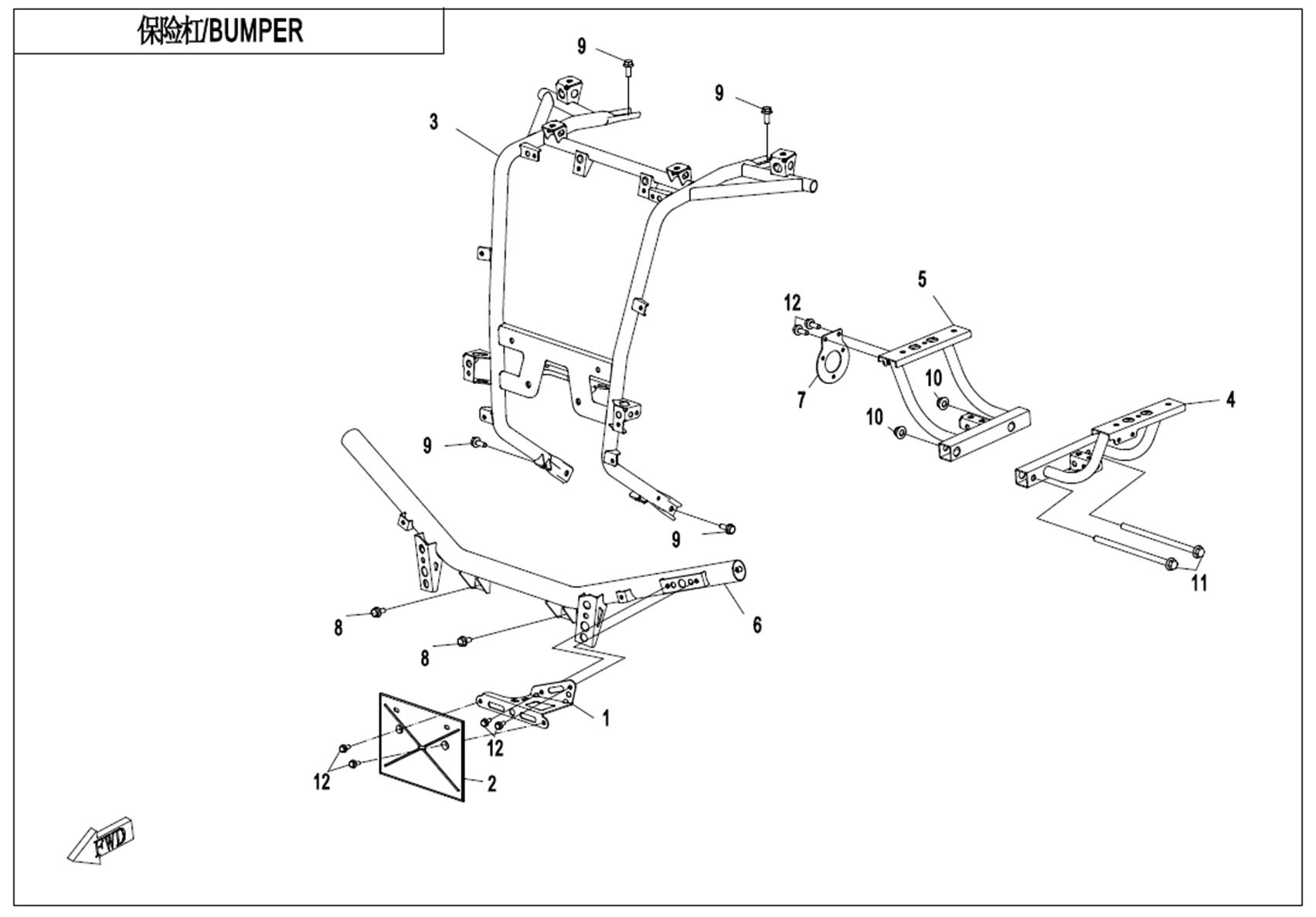

BUMPER(STANDARD)

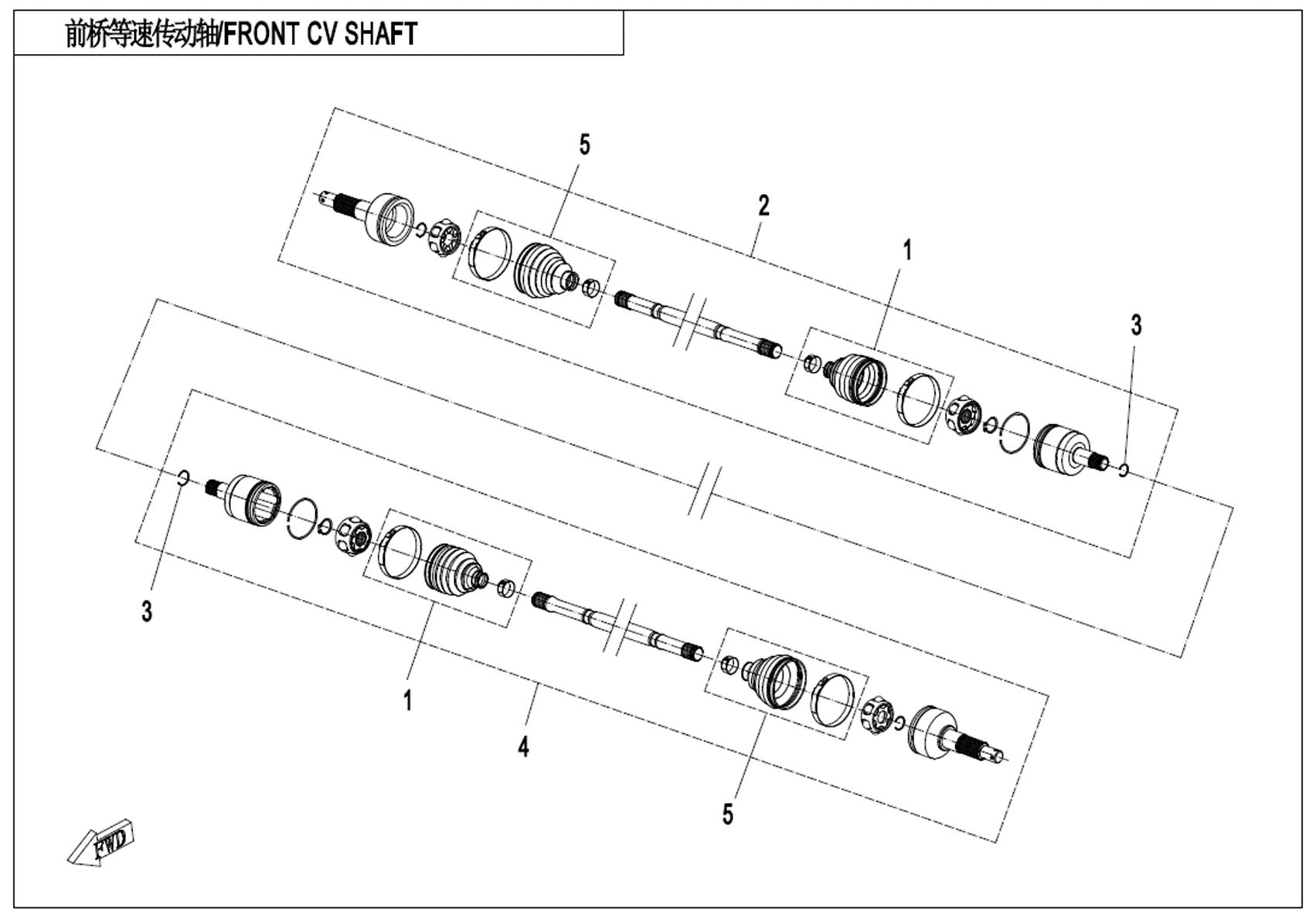

F27-V2
FRONT CV SHAFT
F28

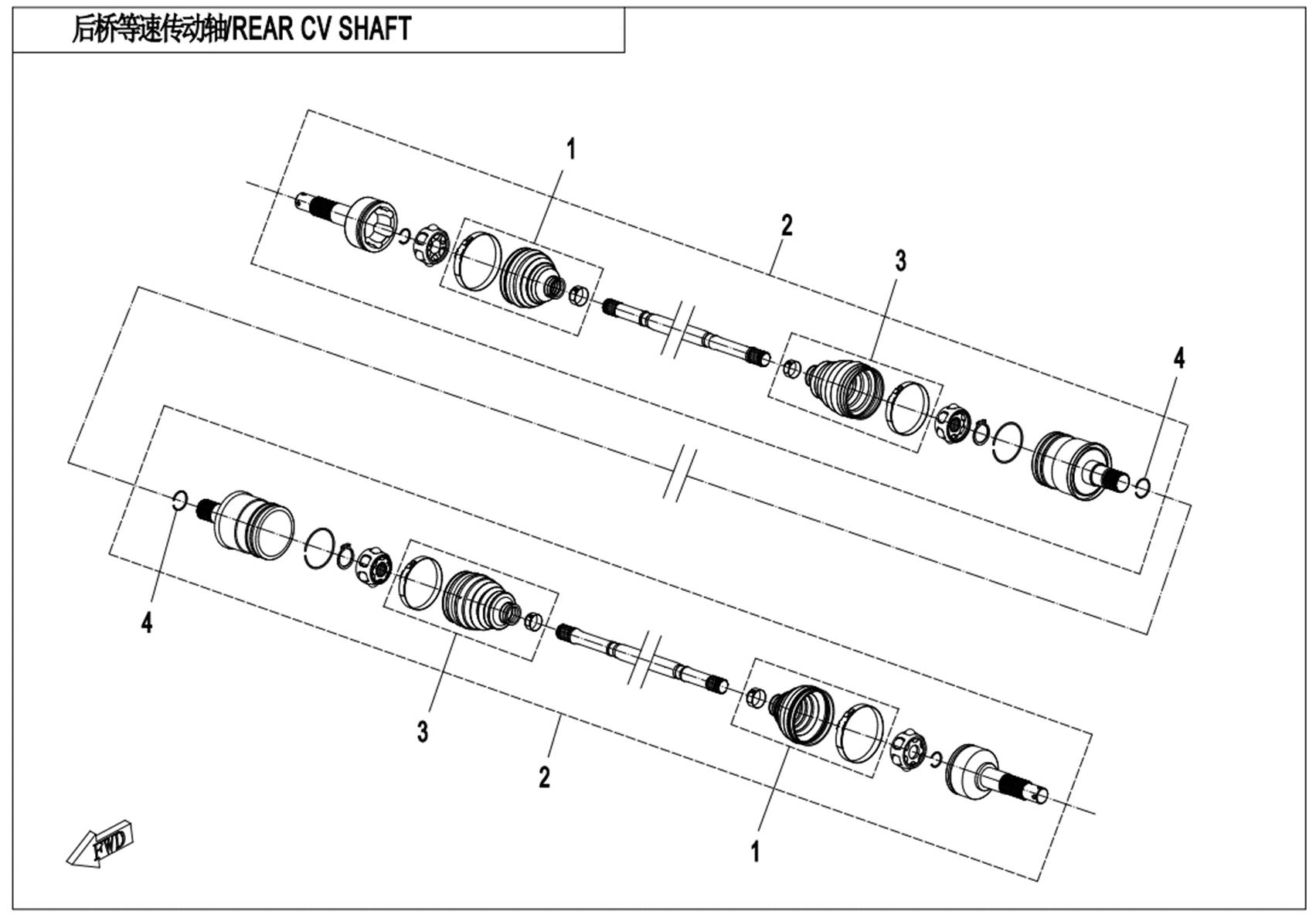

REAR CV SHAFT
F30

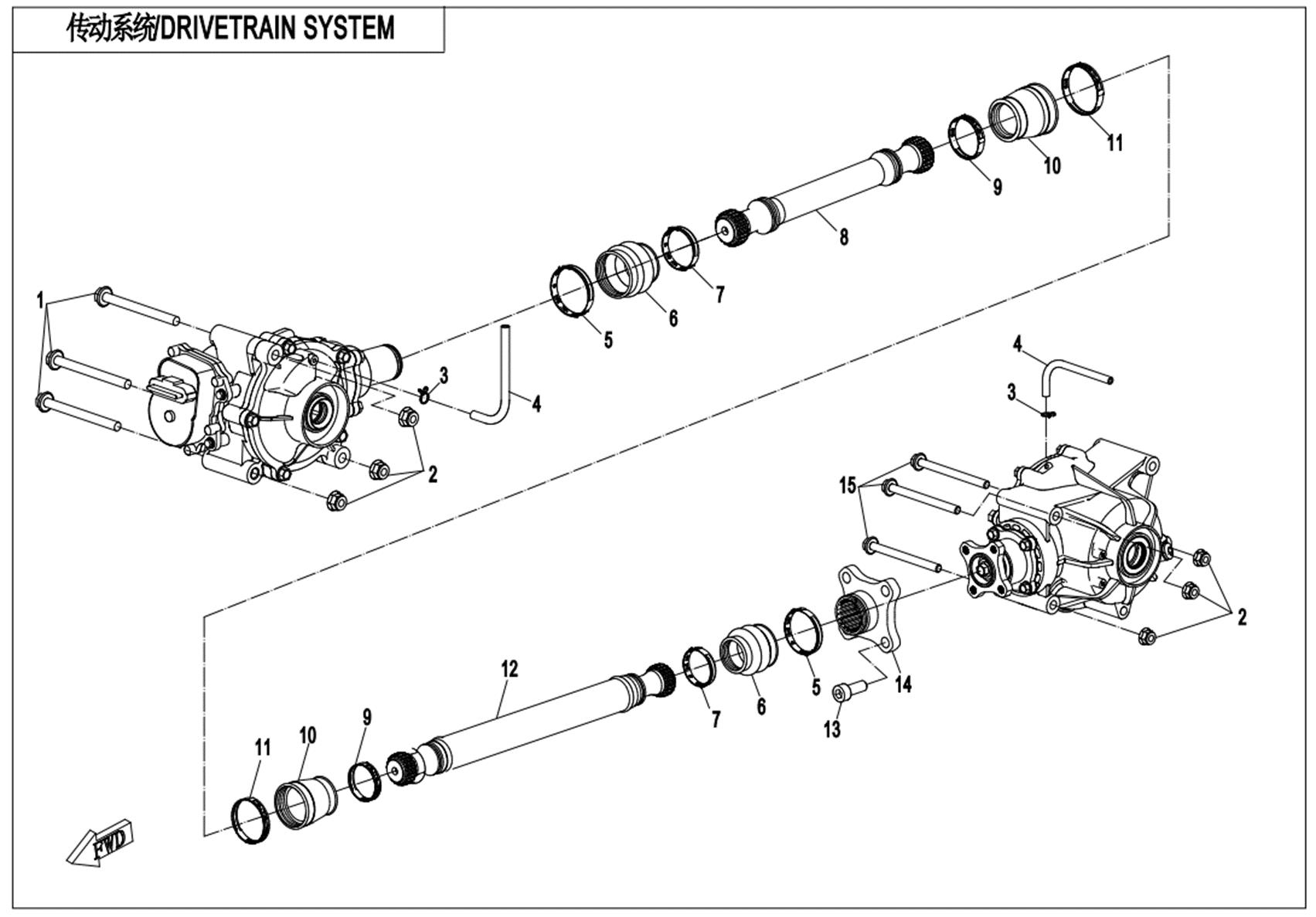

DRIVETRAIN SYSTEM
F31

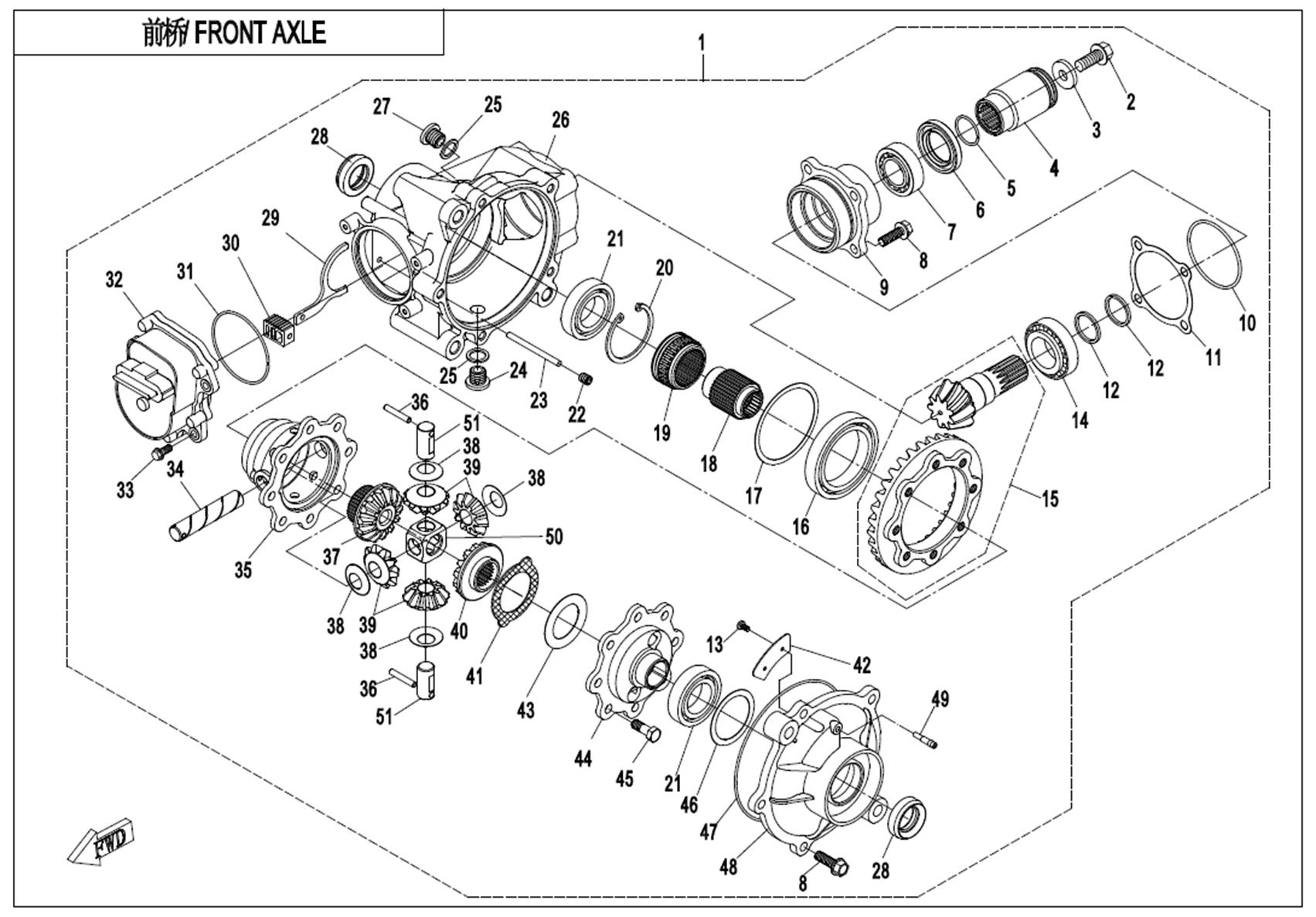

FRONT AXLE
F32

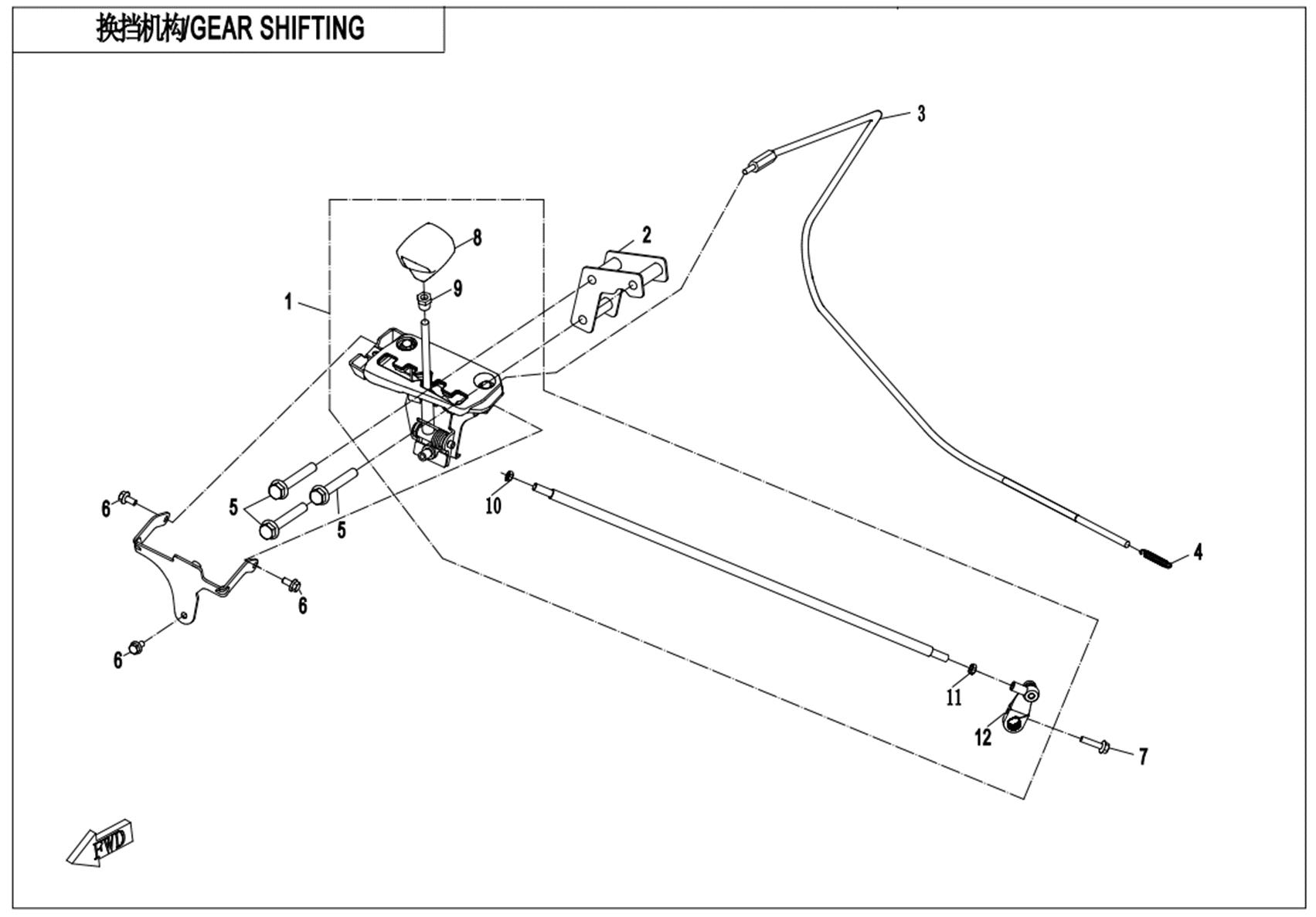

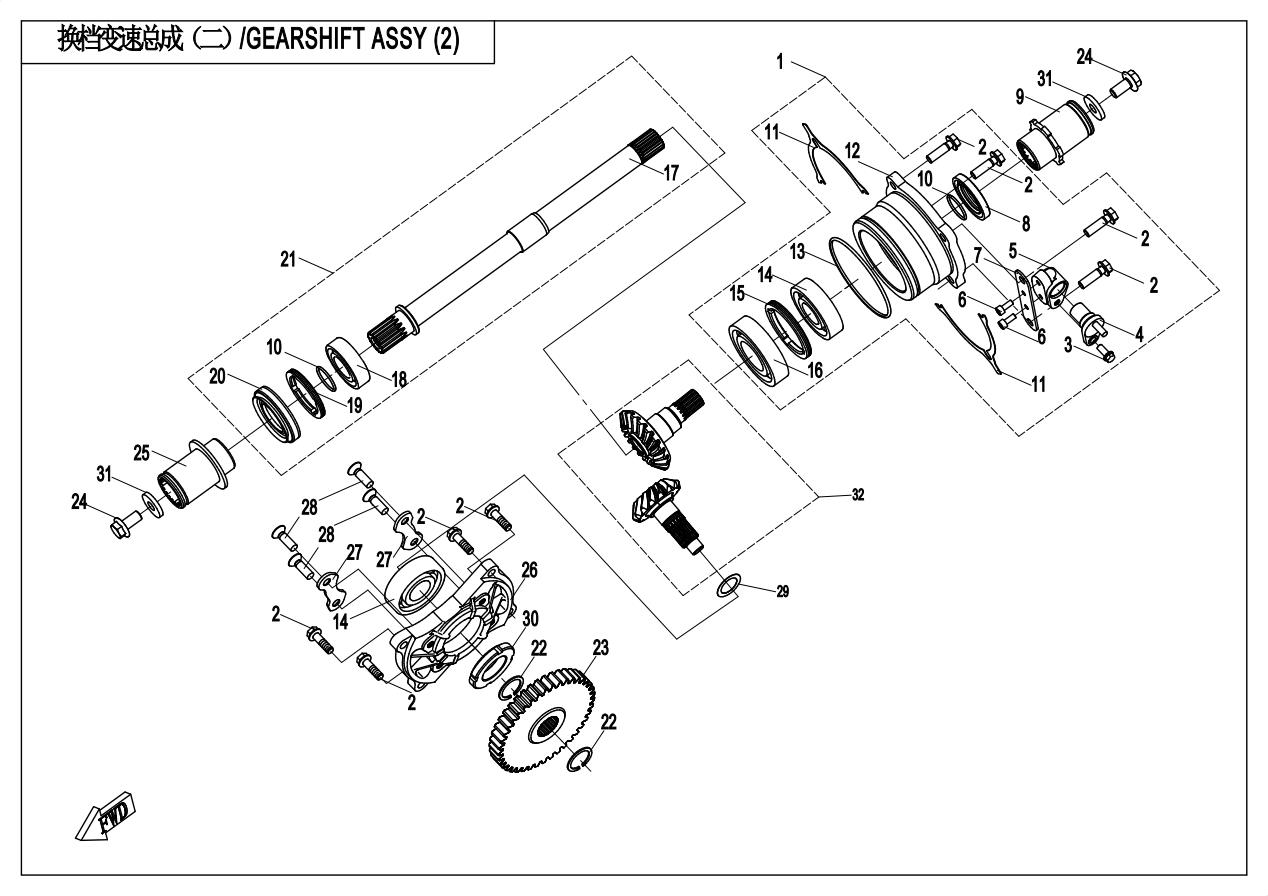

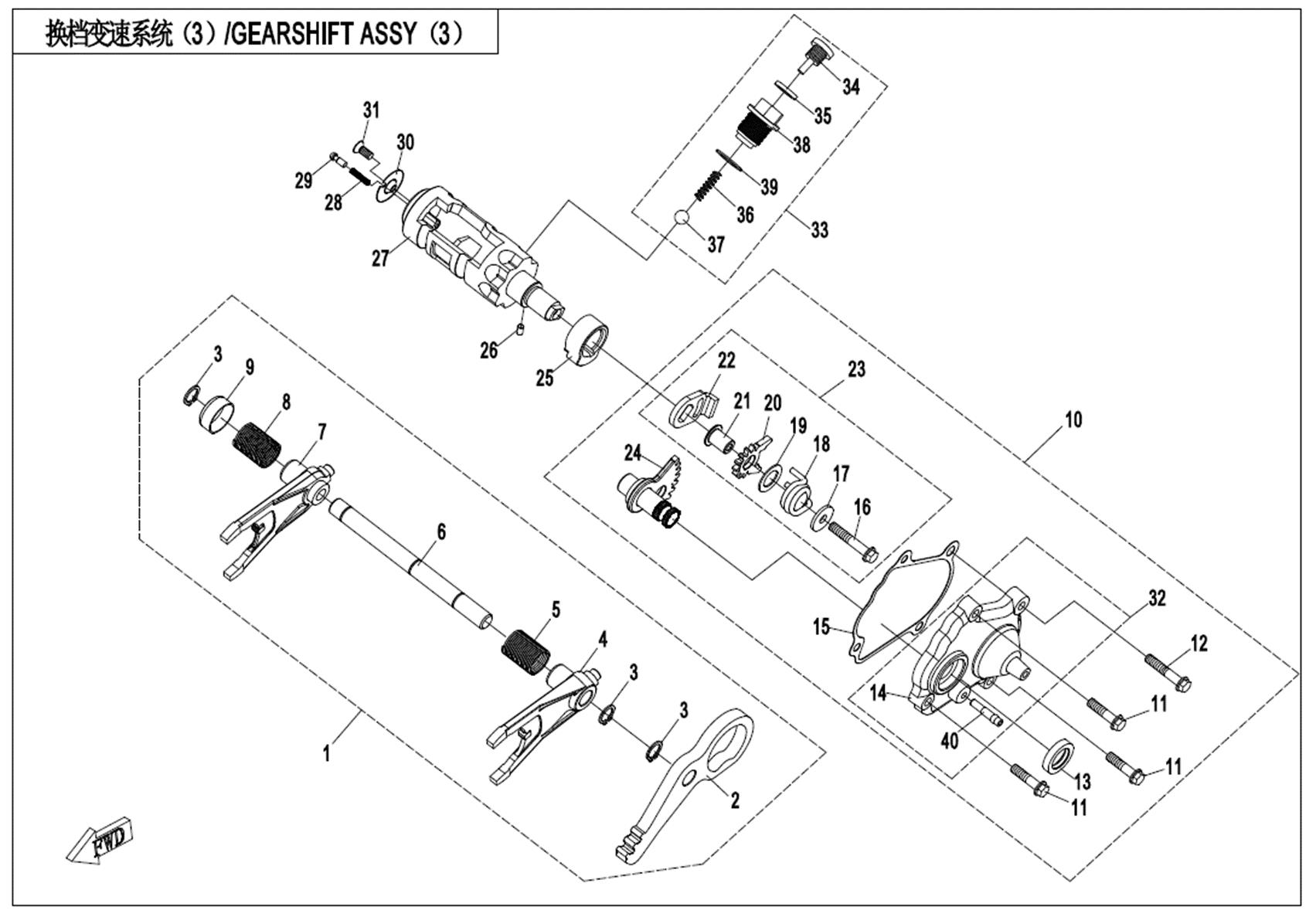

GEAR SHIFTING
F33-A

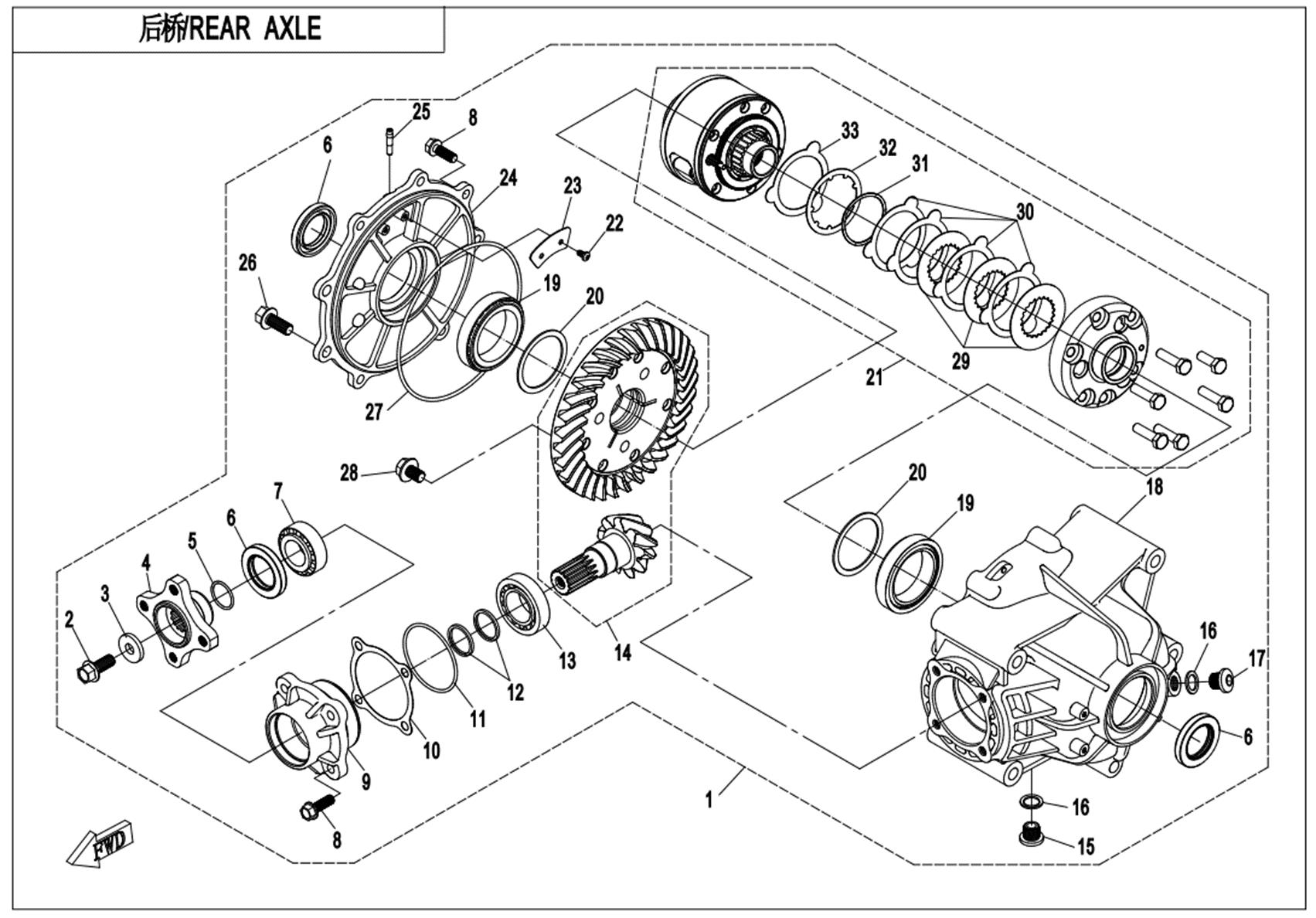

REAR AXLE(WITH AUTOMATIC DIFFERENTIAL LOCK)
F38
OWNER'S MANUAL

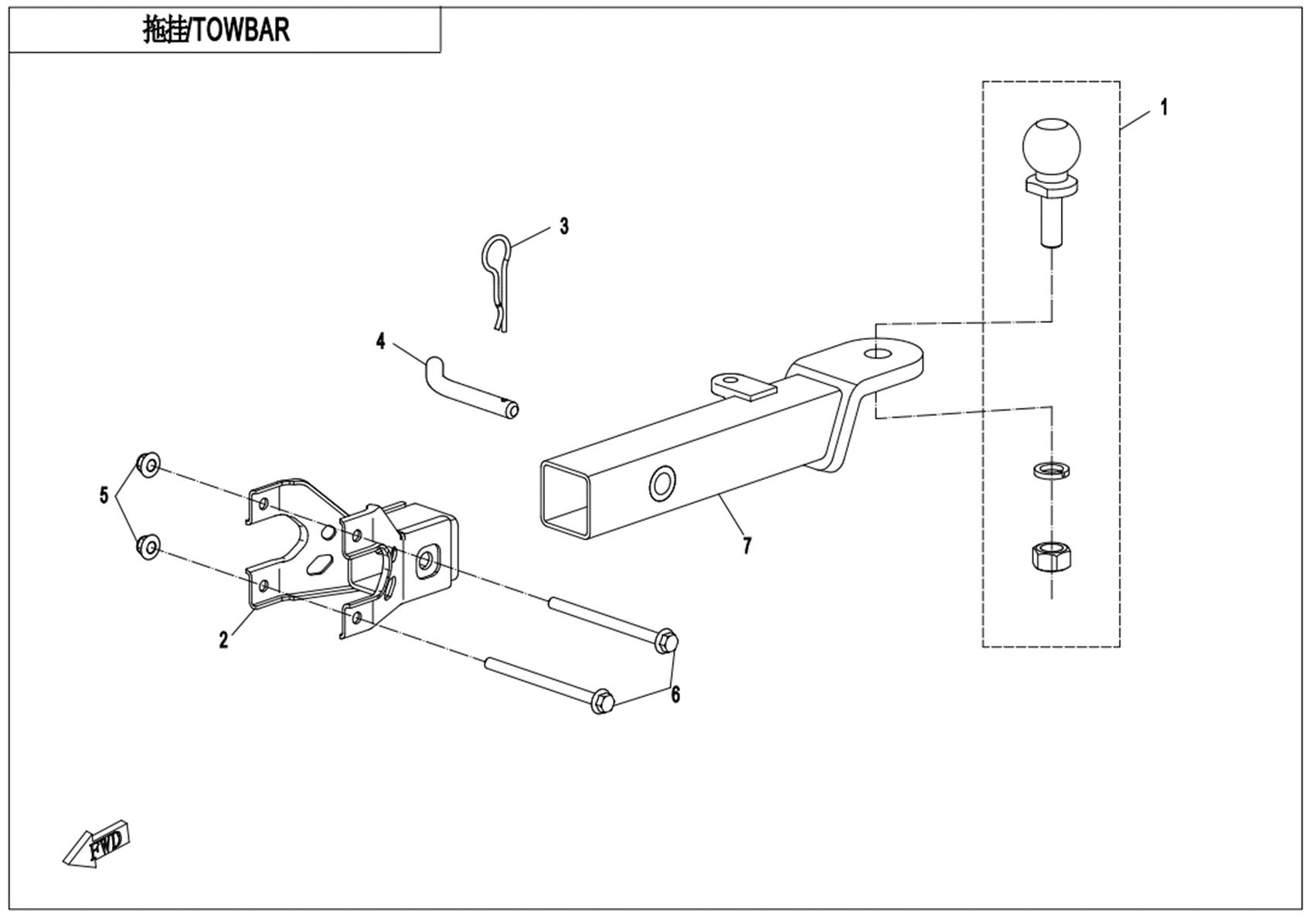

F40
TOWBAR
F41
