Genuine Parts Diagrams for 2019 CFORCE 850 EPS - CF800AU-2AChange Model
Showing 73 parts diagrams.
F00-V2

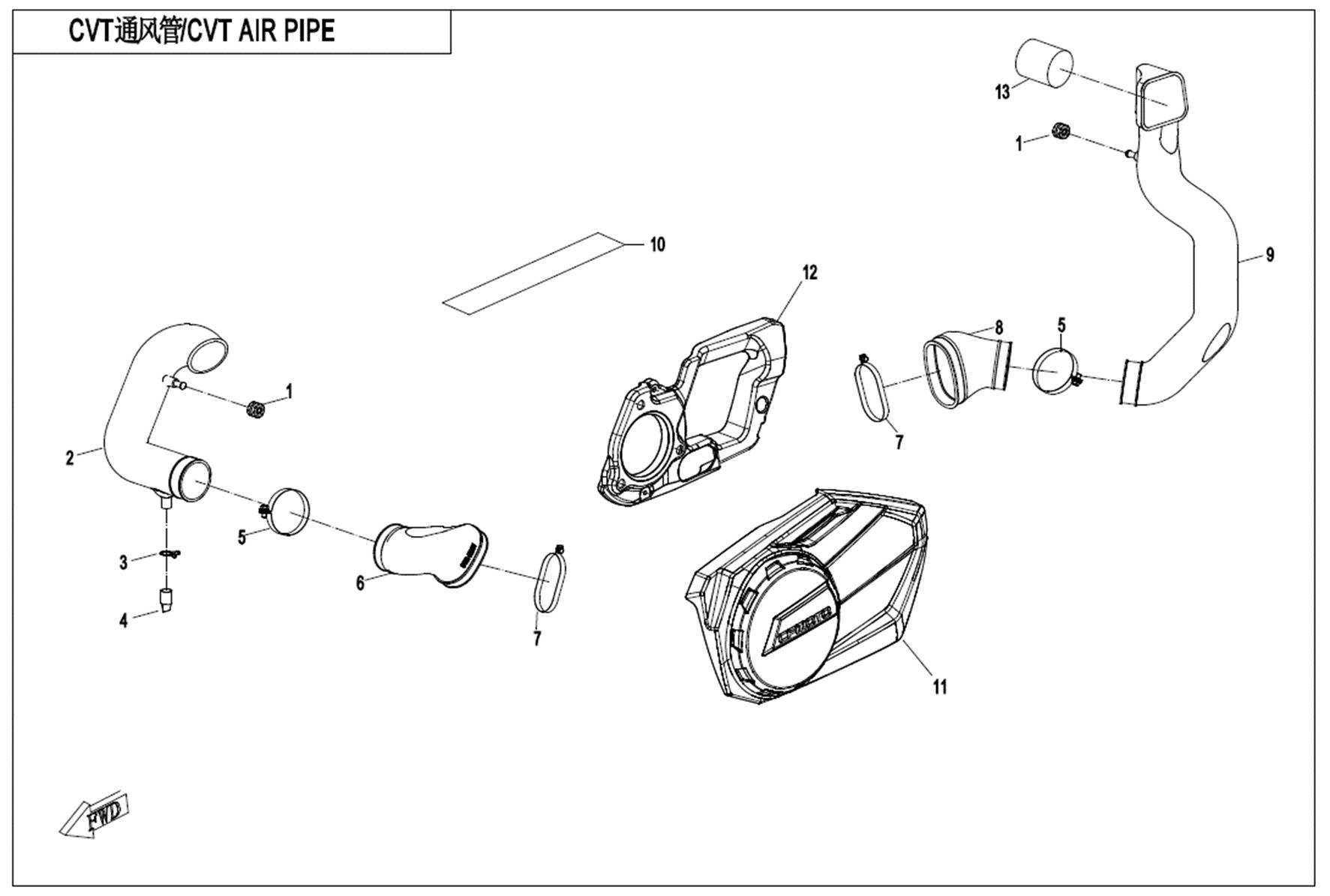

CVT AIR PIPE

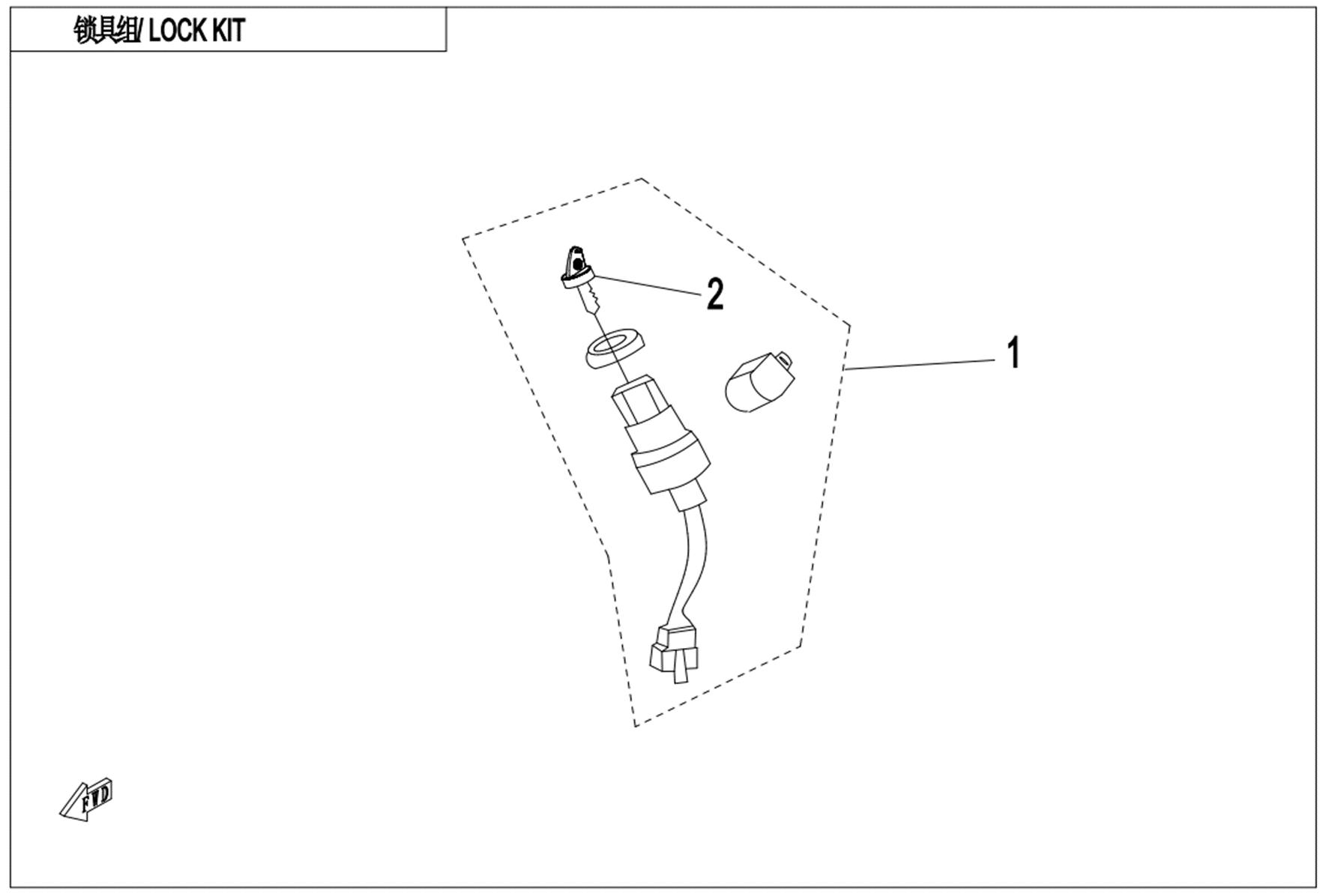

F01
LOCK KIT
F02-1-A

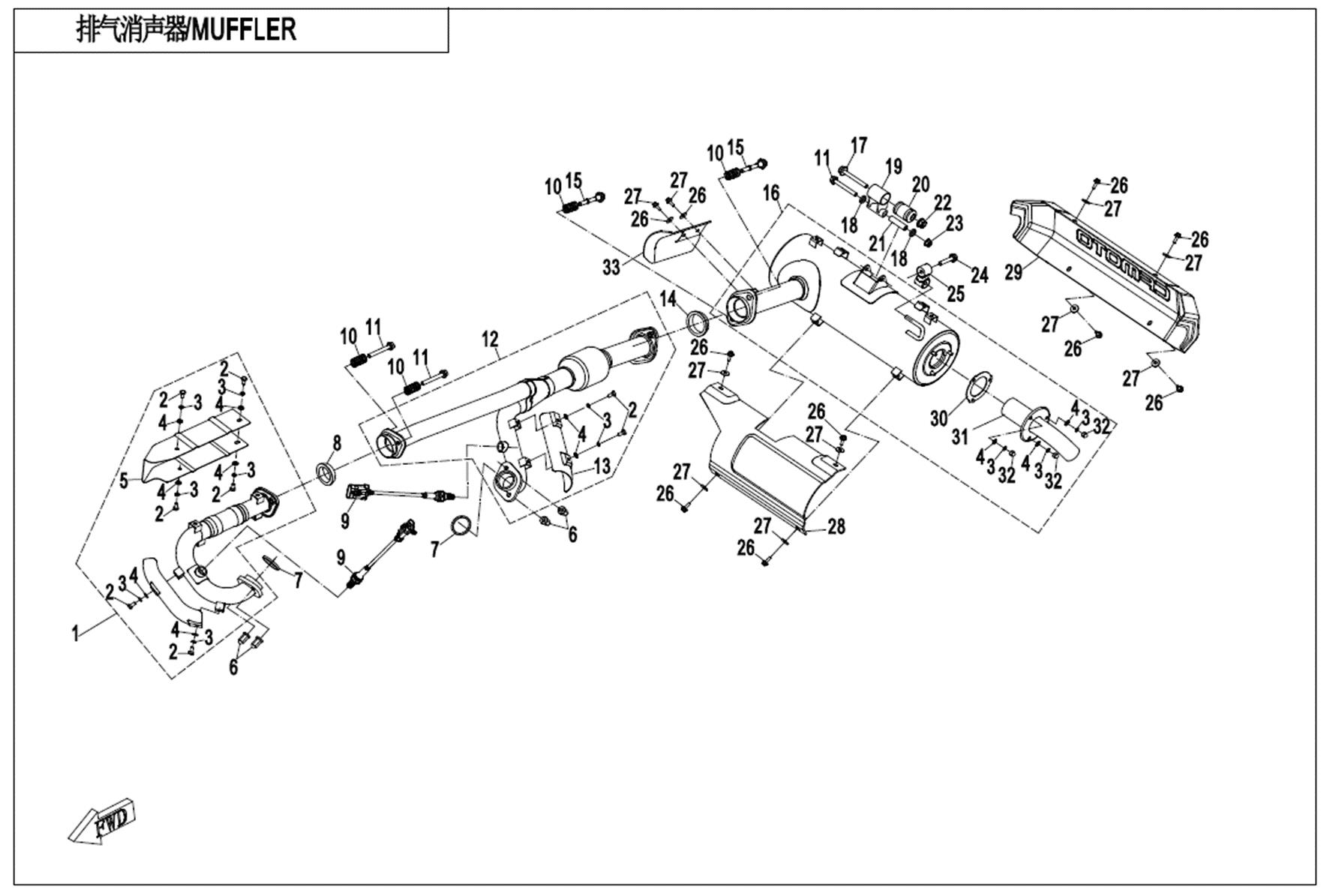

MUFFLER(168&LOF)
F02-2-V2

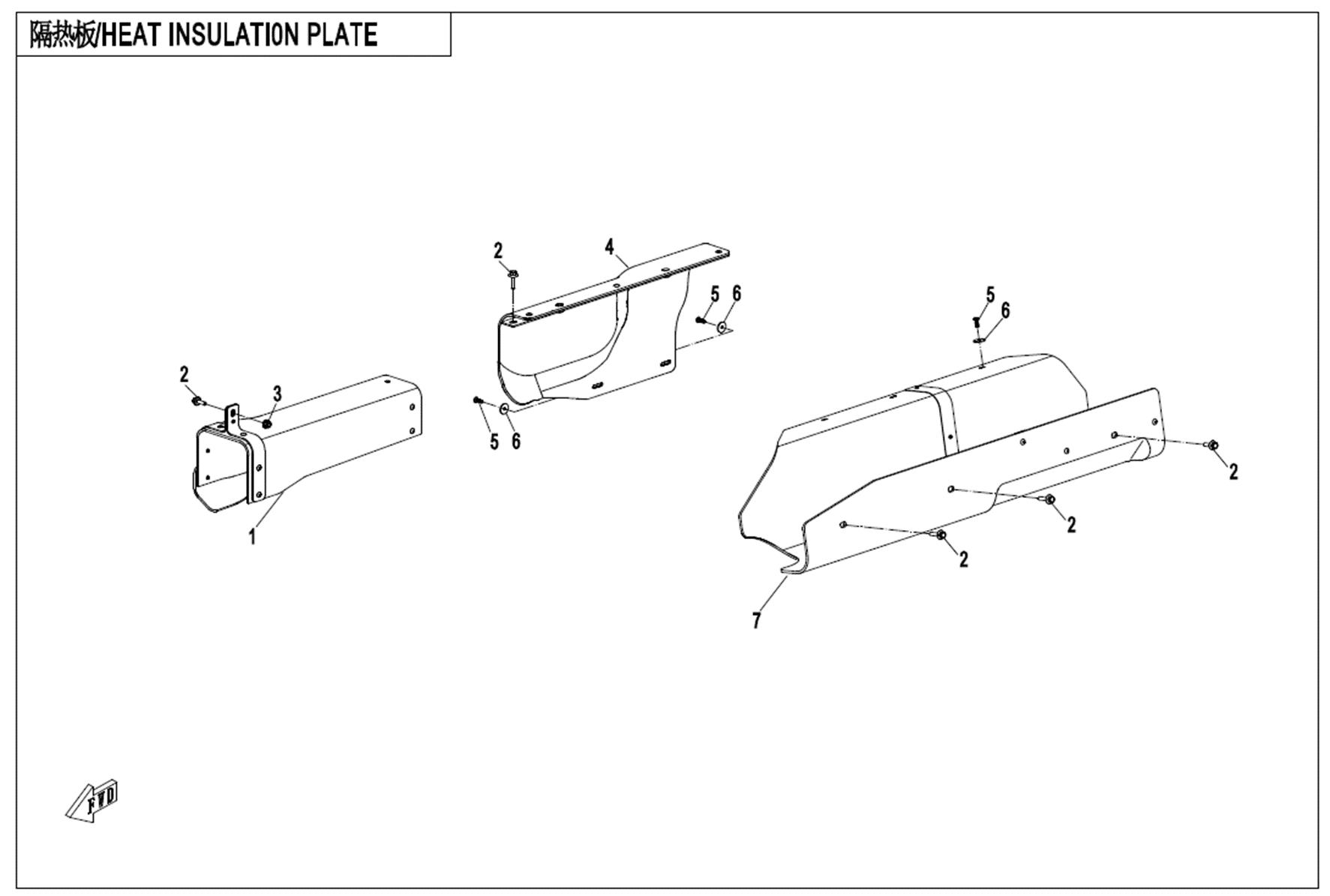

HEAT INSULATION PLATE
F03-V3

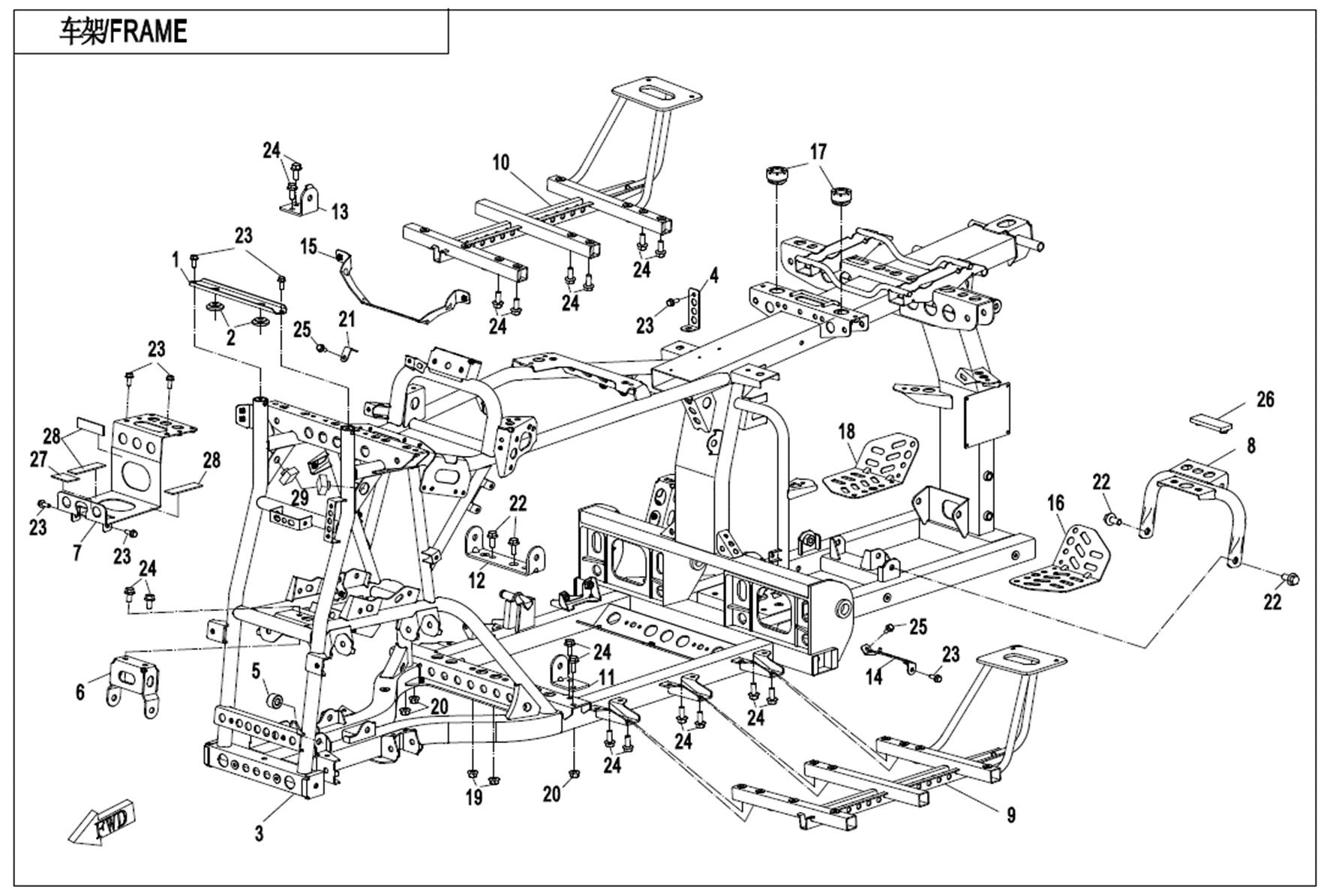

FRAME
F04-1-B

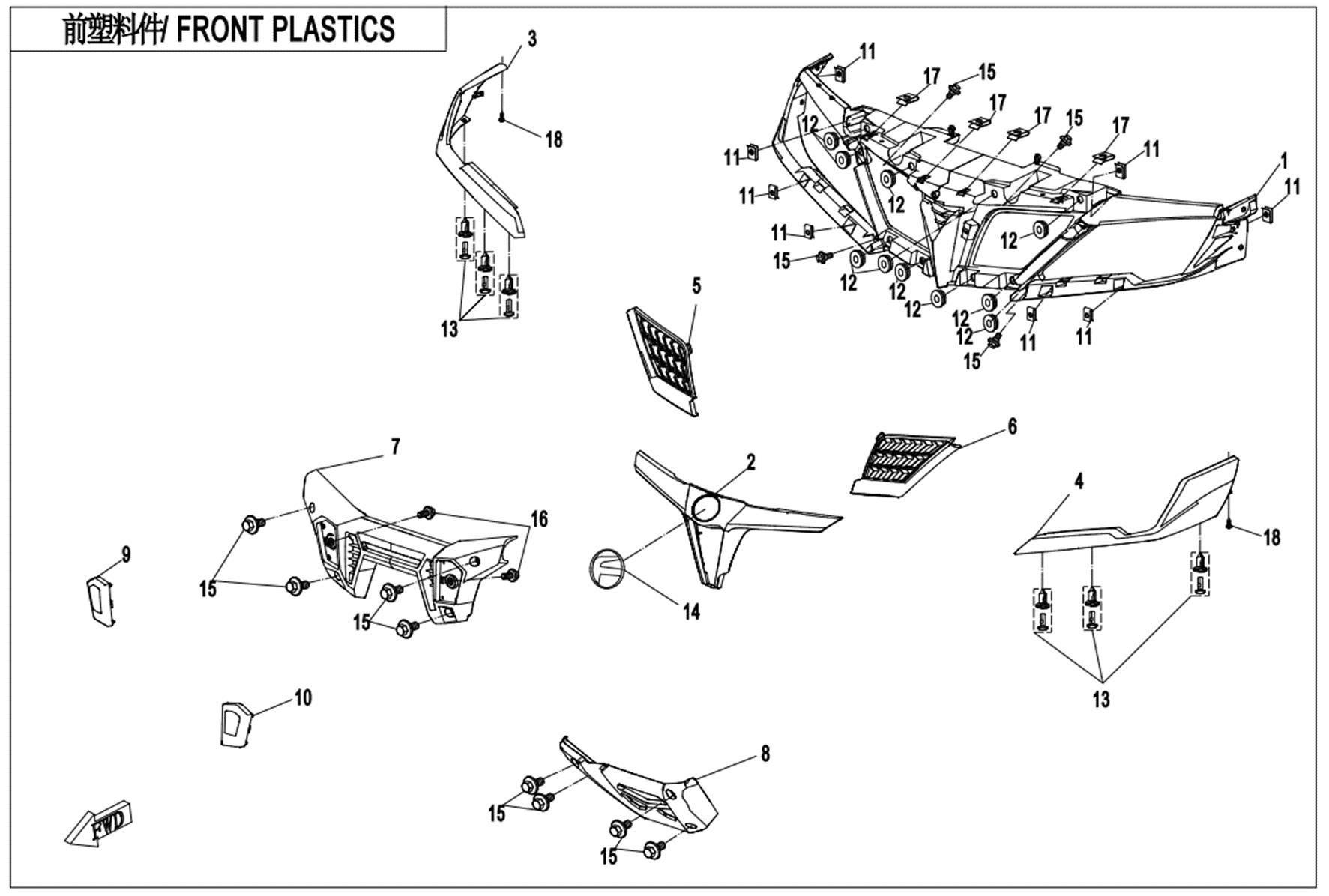

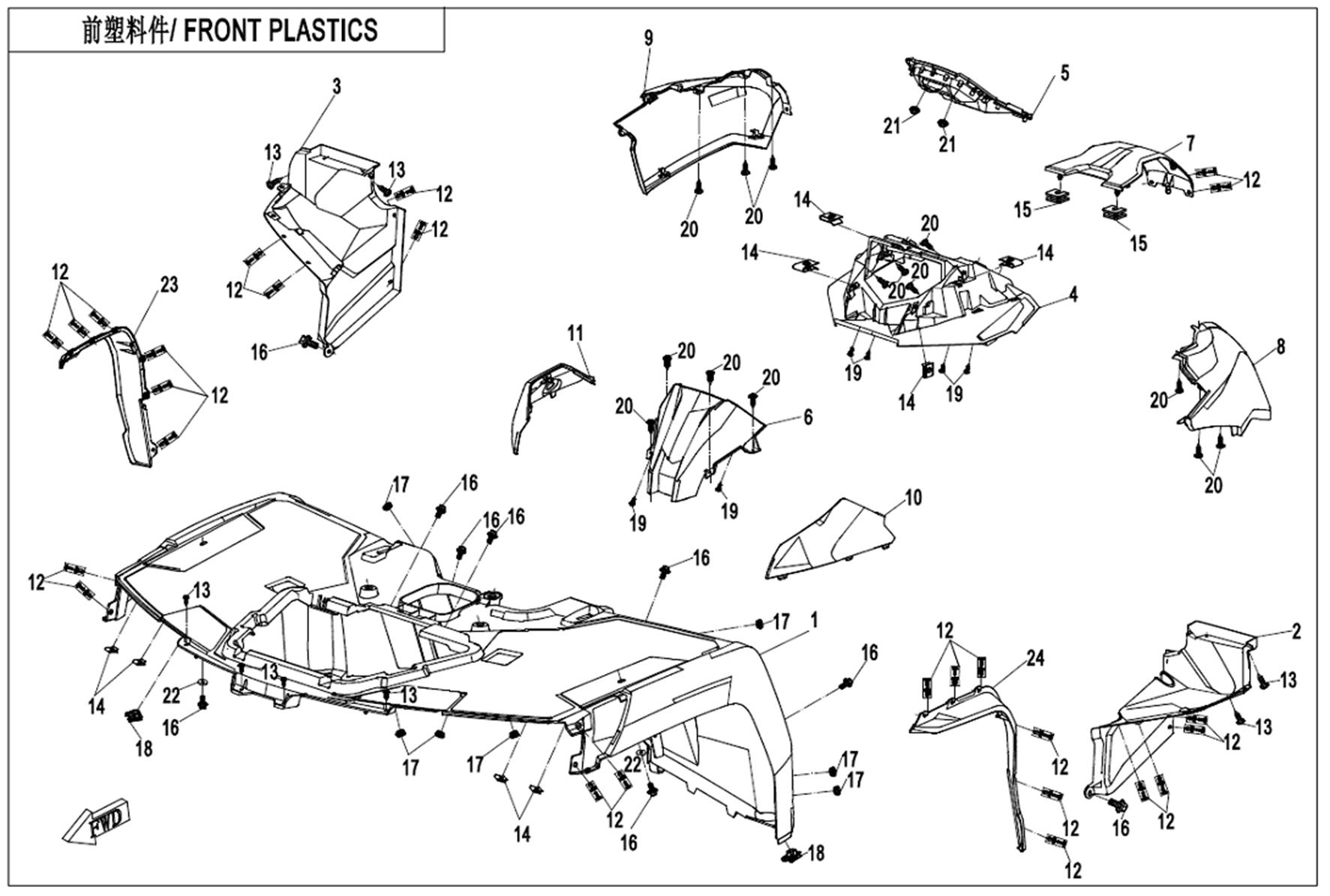

FRONT PLASTICS-TRUE TIMBER CAMO
F04-1-C
FRONT PLASTICS-CRYSTAL ORANGE
F04-2-B
FRONT PLASTICS-TRUE TIMBER CAMO
F04-2-C
FRONT PLASTICS-CRYSTAL ORANGE
F04-3-B-V2

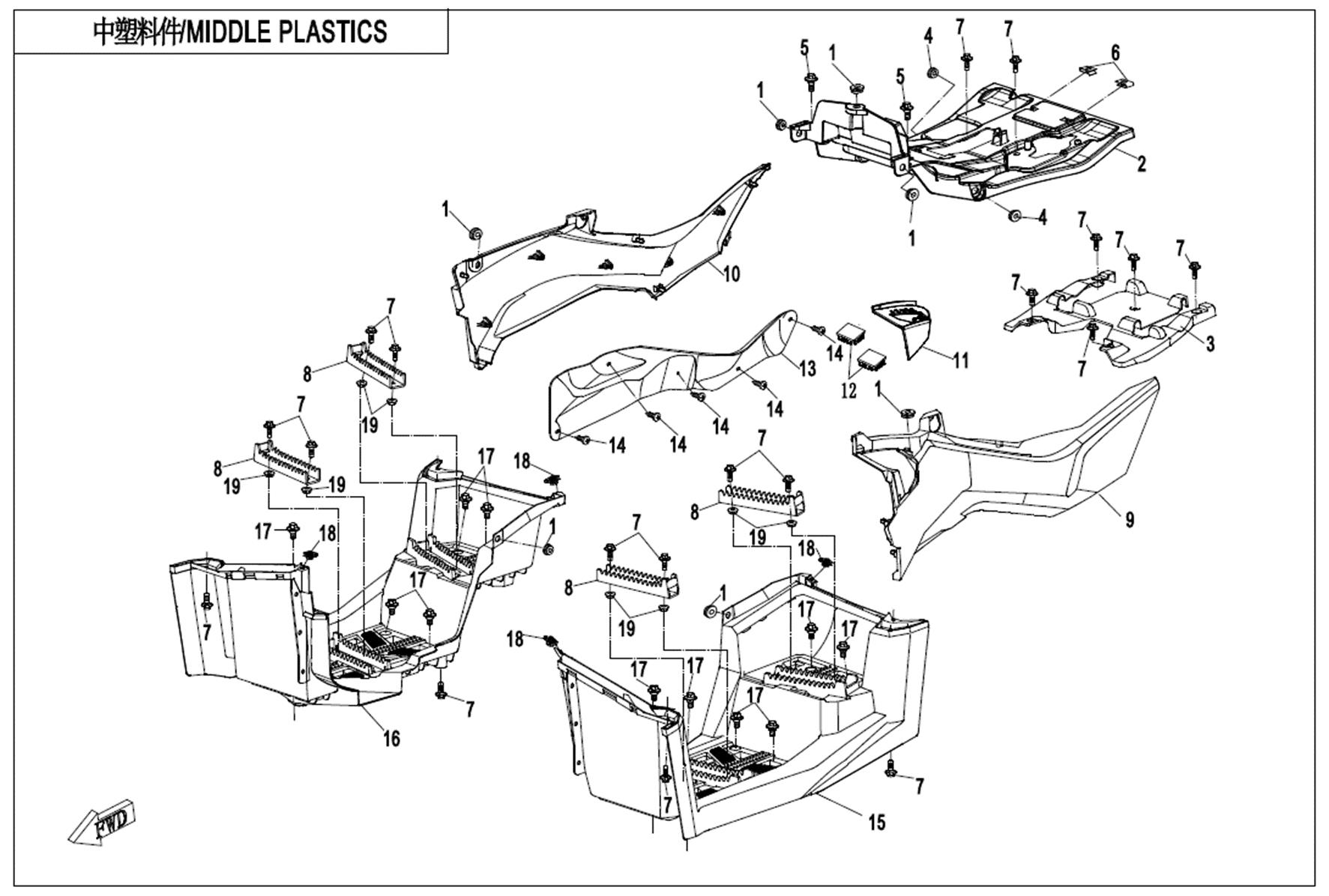

MIDDLE PLASTICS-TRUE TIMBER CAMO
F04-3-C-V2
MIDDLE PLASTICS-CRYSTAL ORANGE

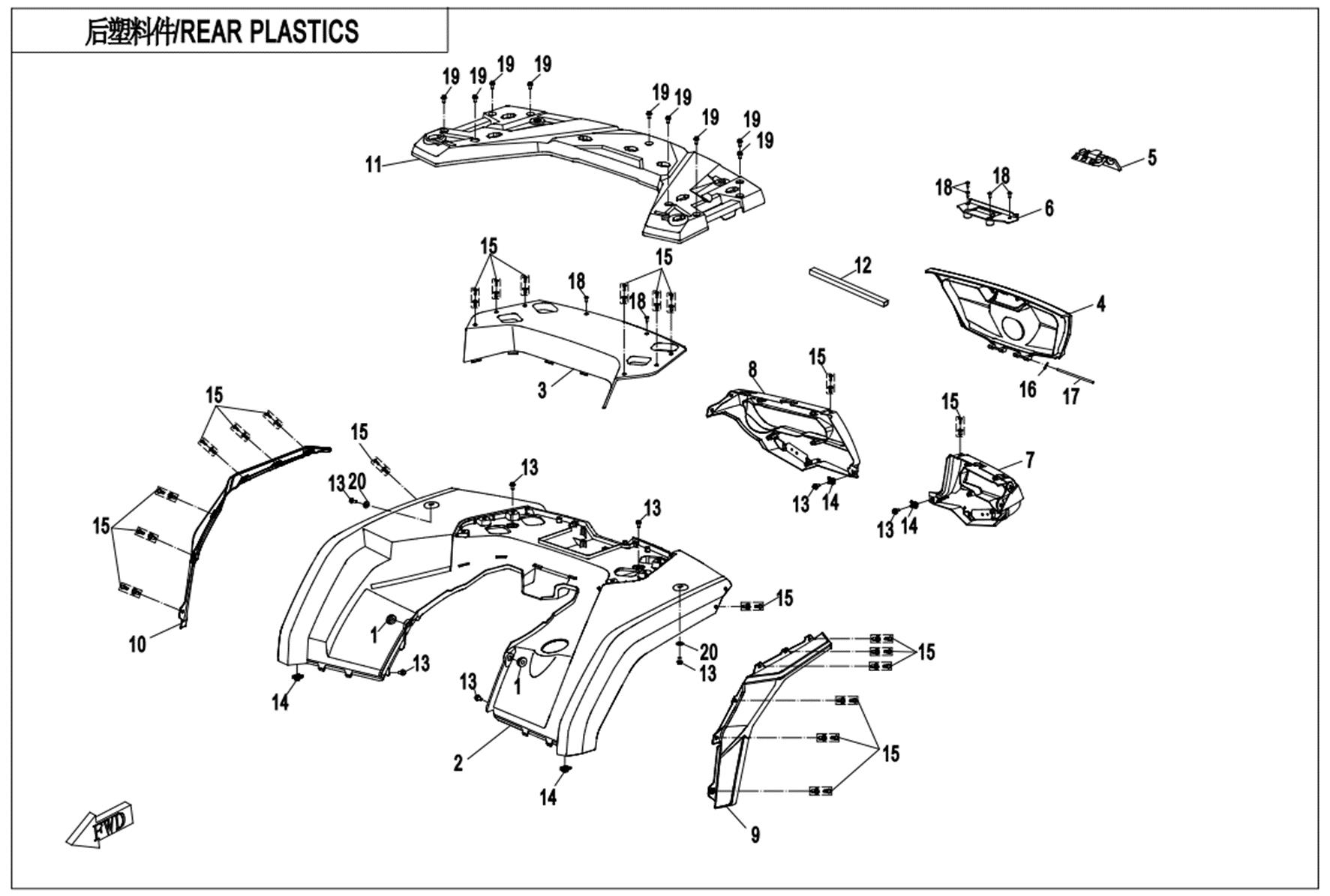

F04-4-B
REAR PLASTICS -TRUE TIMBER CAMO
F04-4-C
REAR PLASTICS -CRYSTAL ORANGE
F04-5

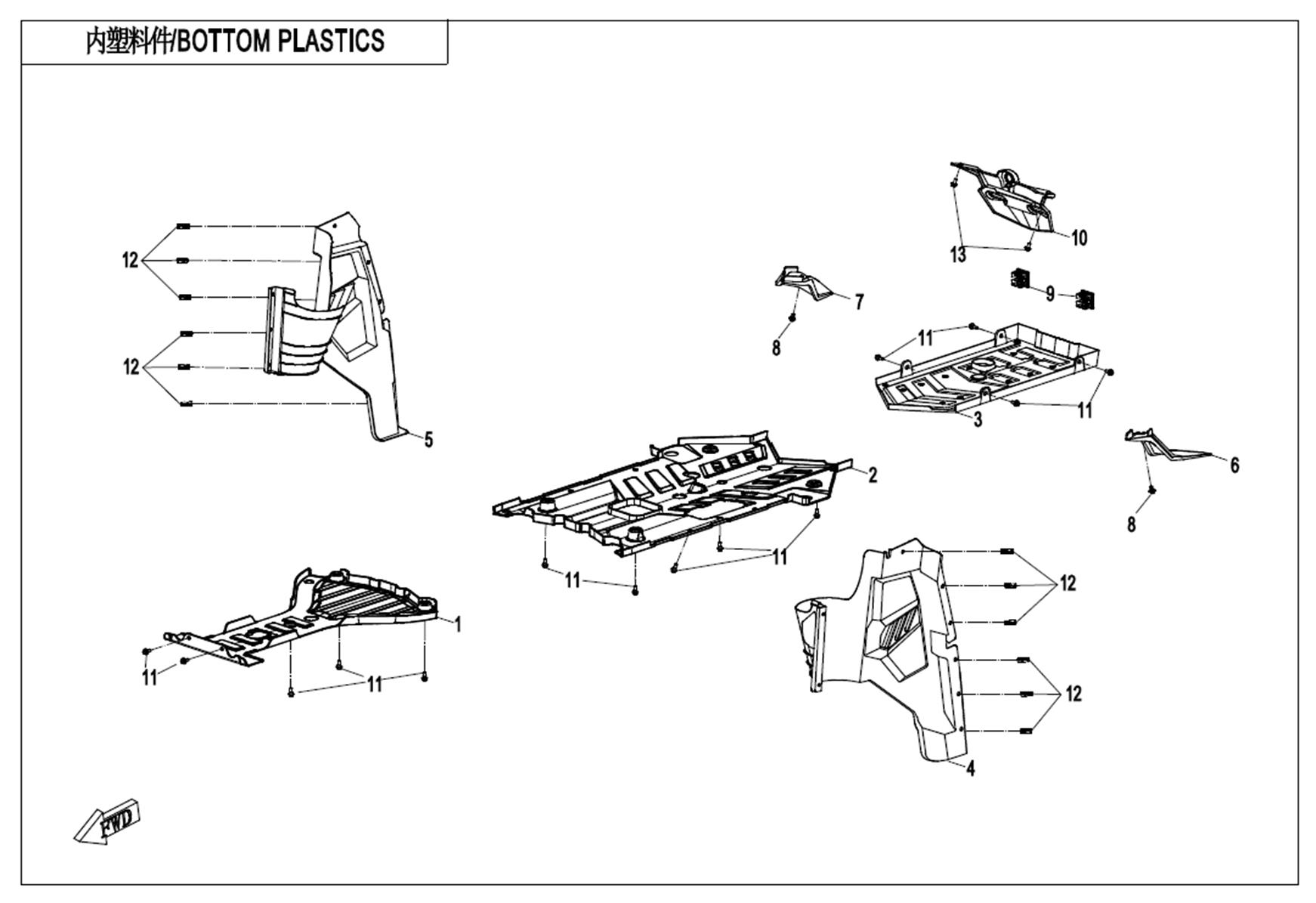

BOTTOM PLASTICS
F04-6-A

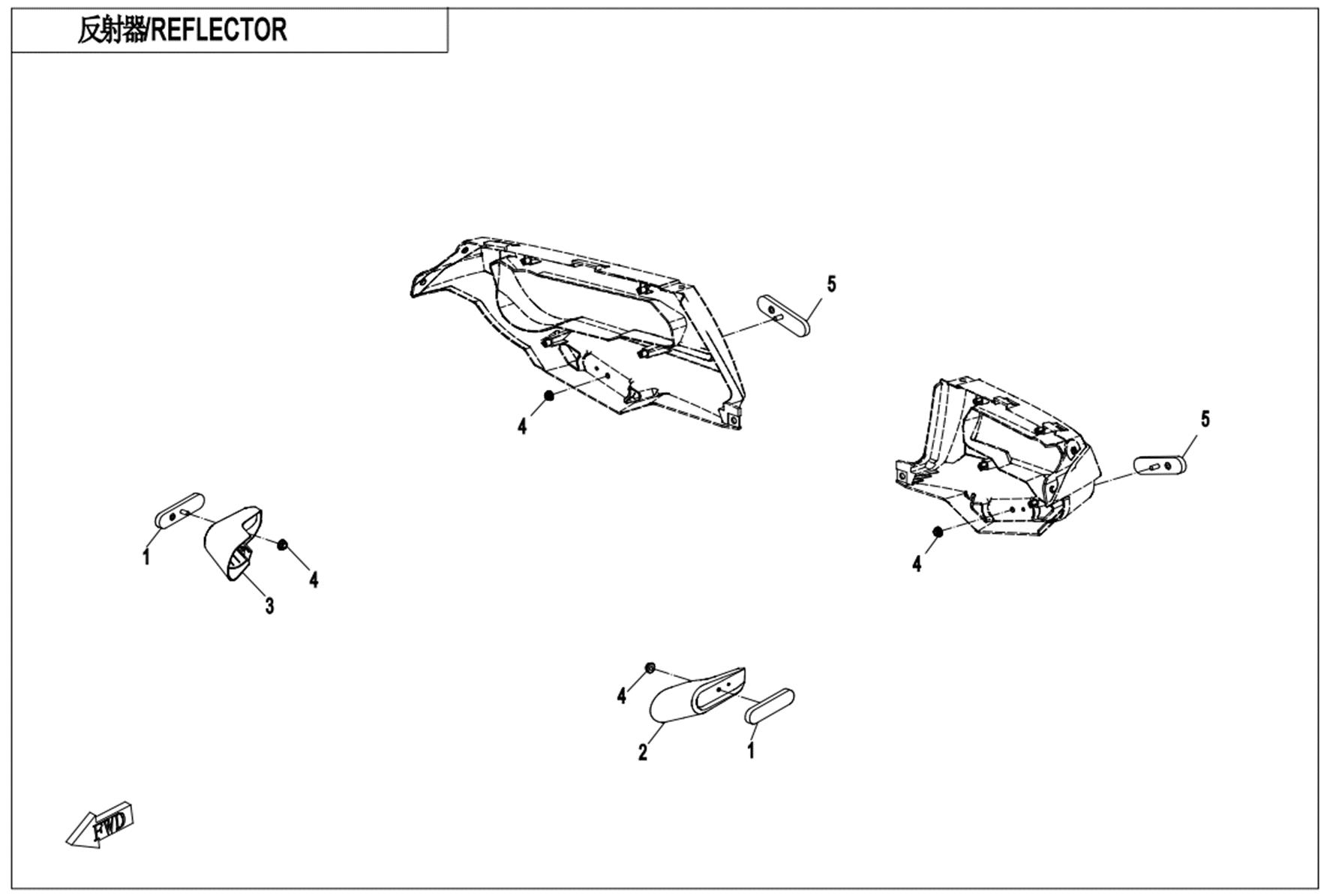

REFLECTOR
F05-1

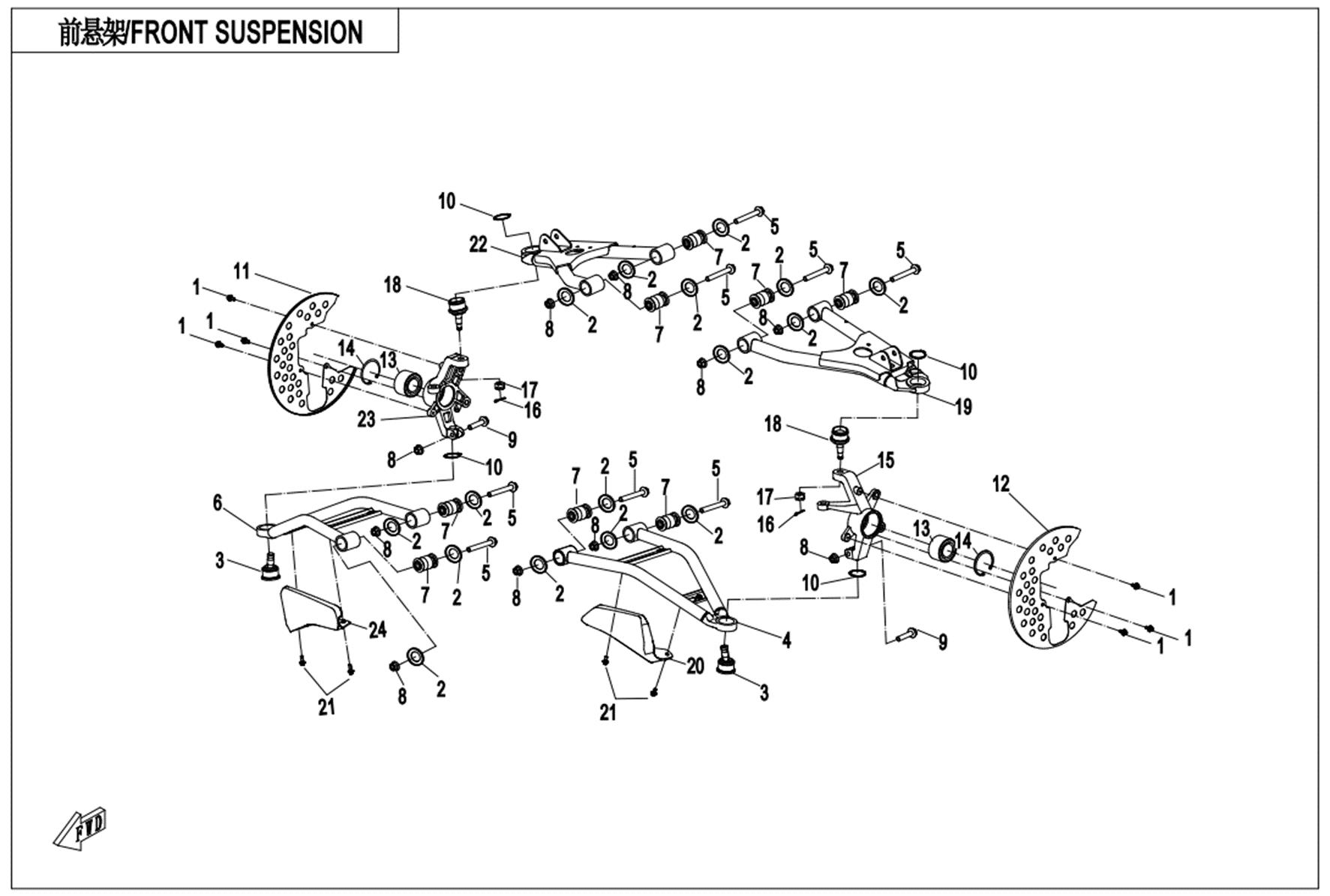

FRONT SUSPENSION
F05-2-A

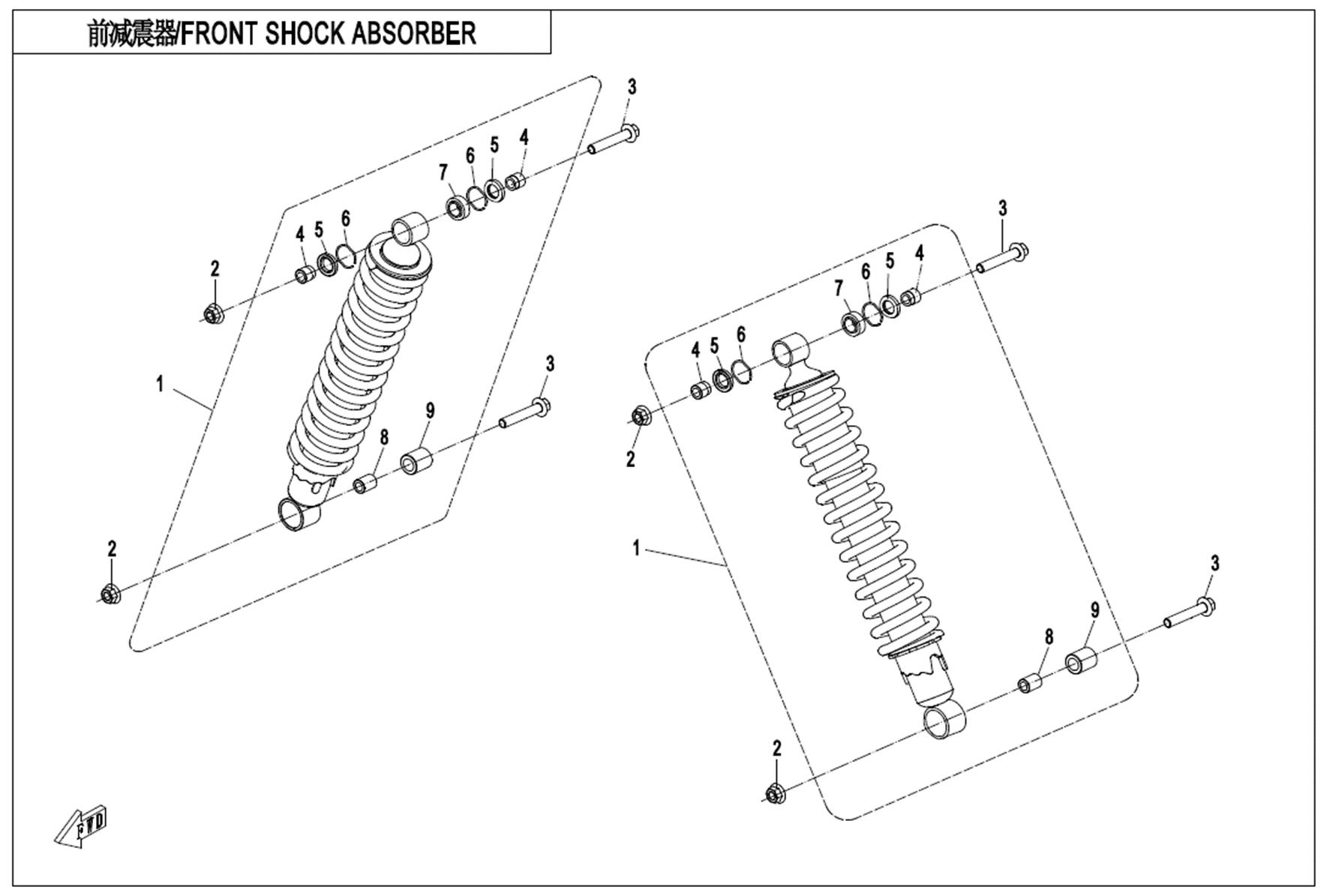

FRONT SHOCK ABSORBER-OIL

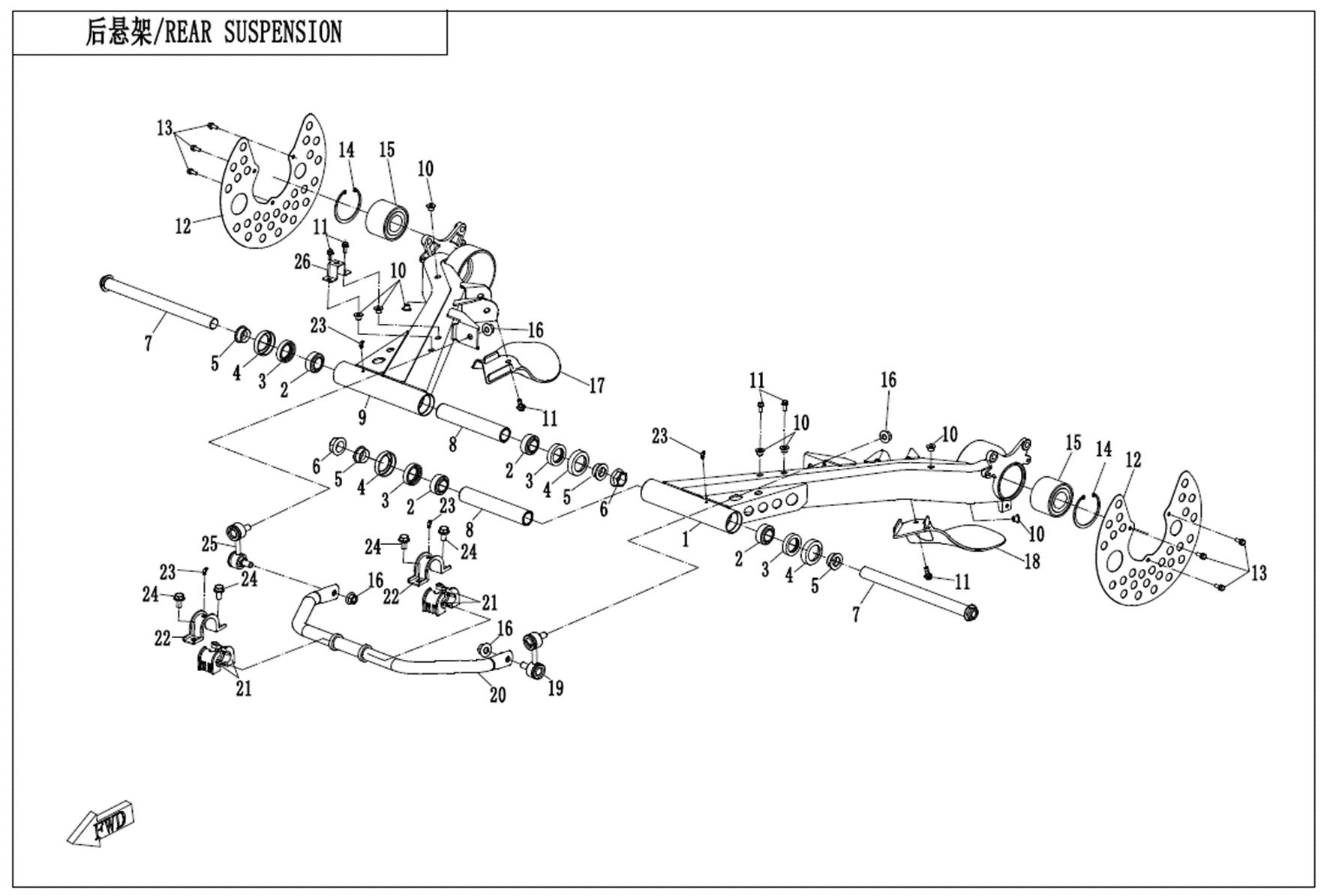

F06-1-V2
REAR SUSPENSION
F06-2-A

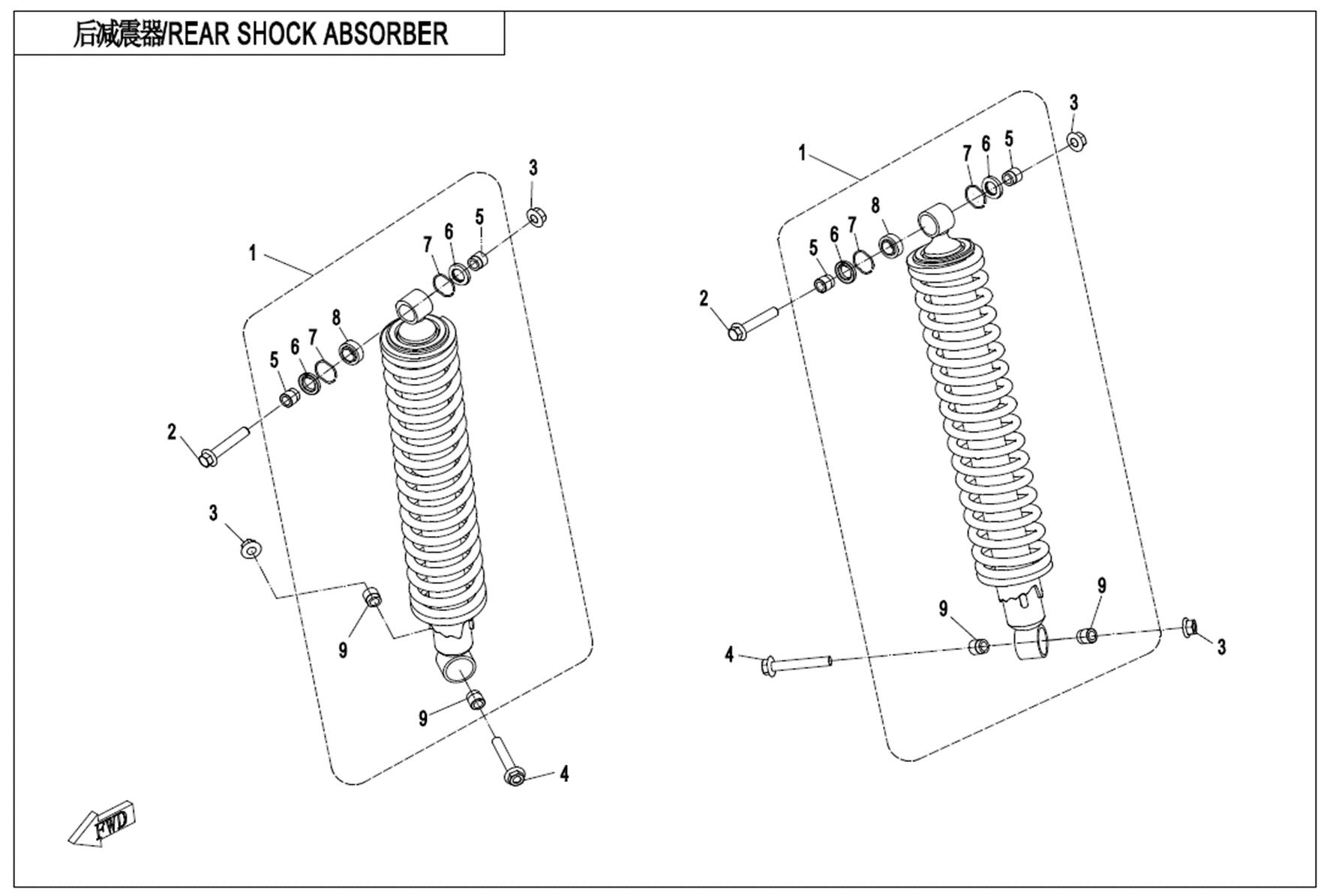

REAR SHOCK ABSORBER(OIL)
F07

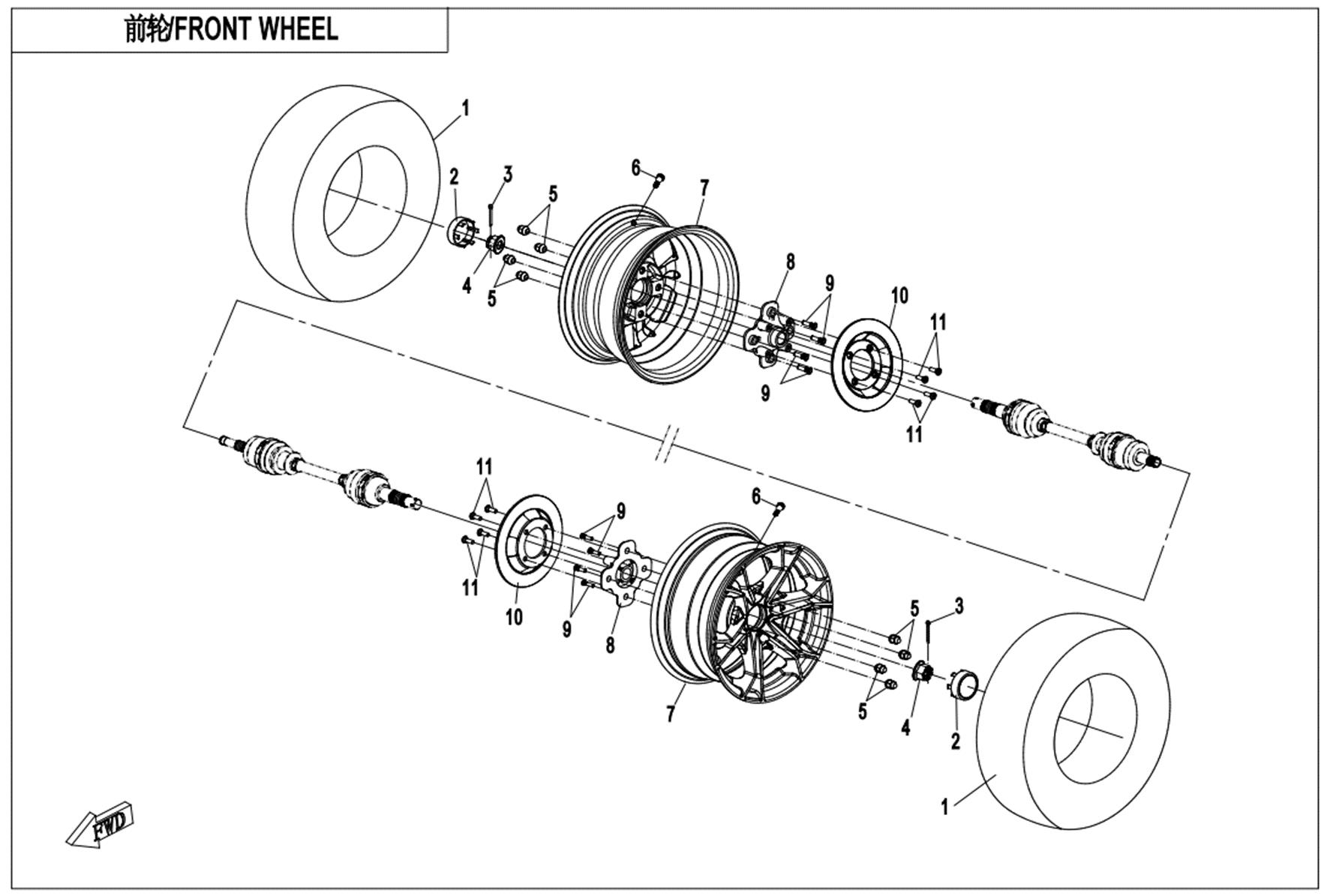

FRONT WHEEL

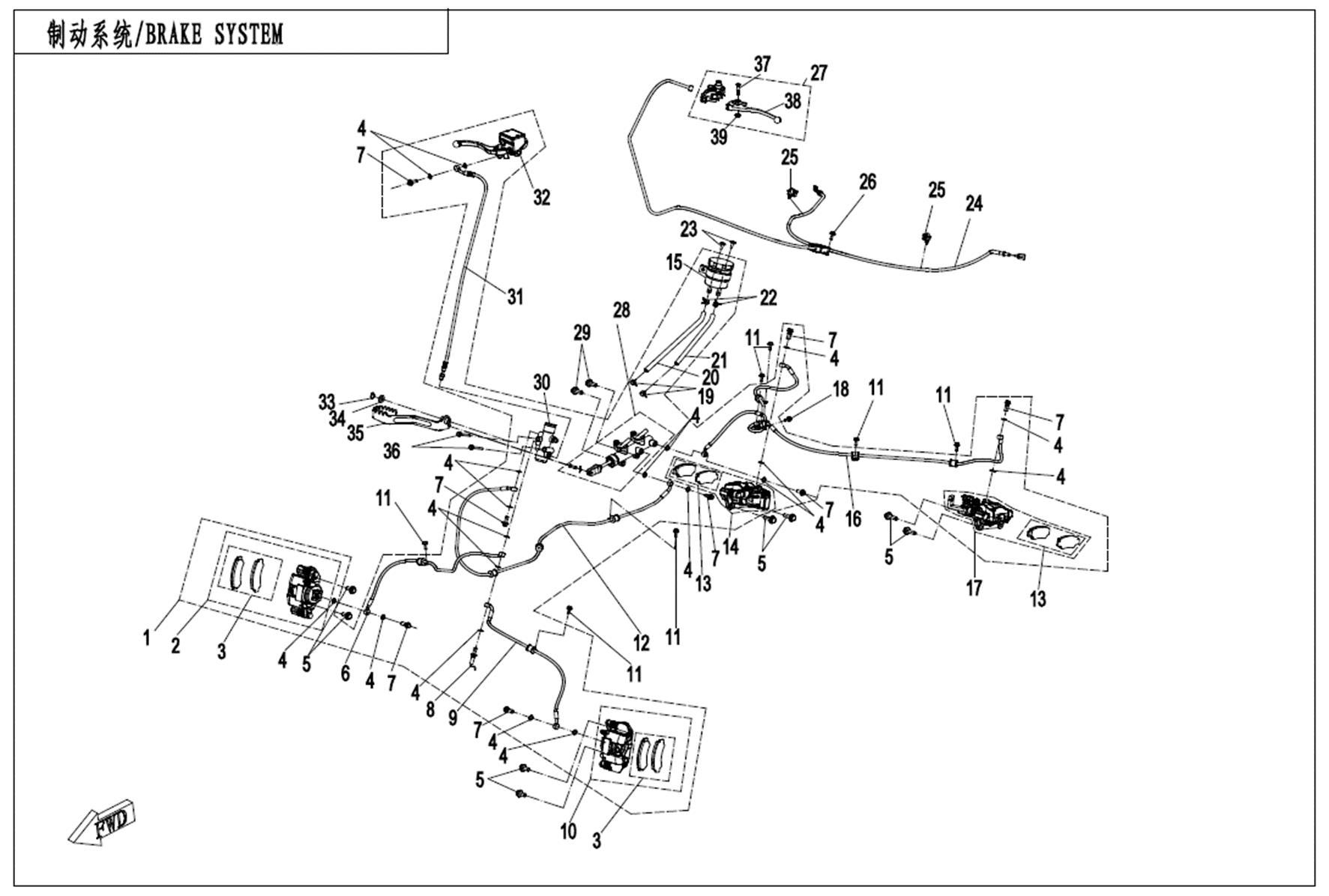

F08-A

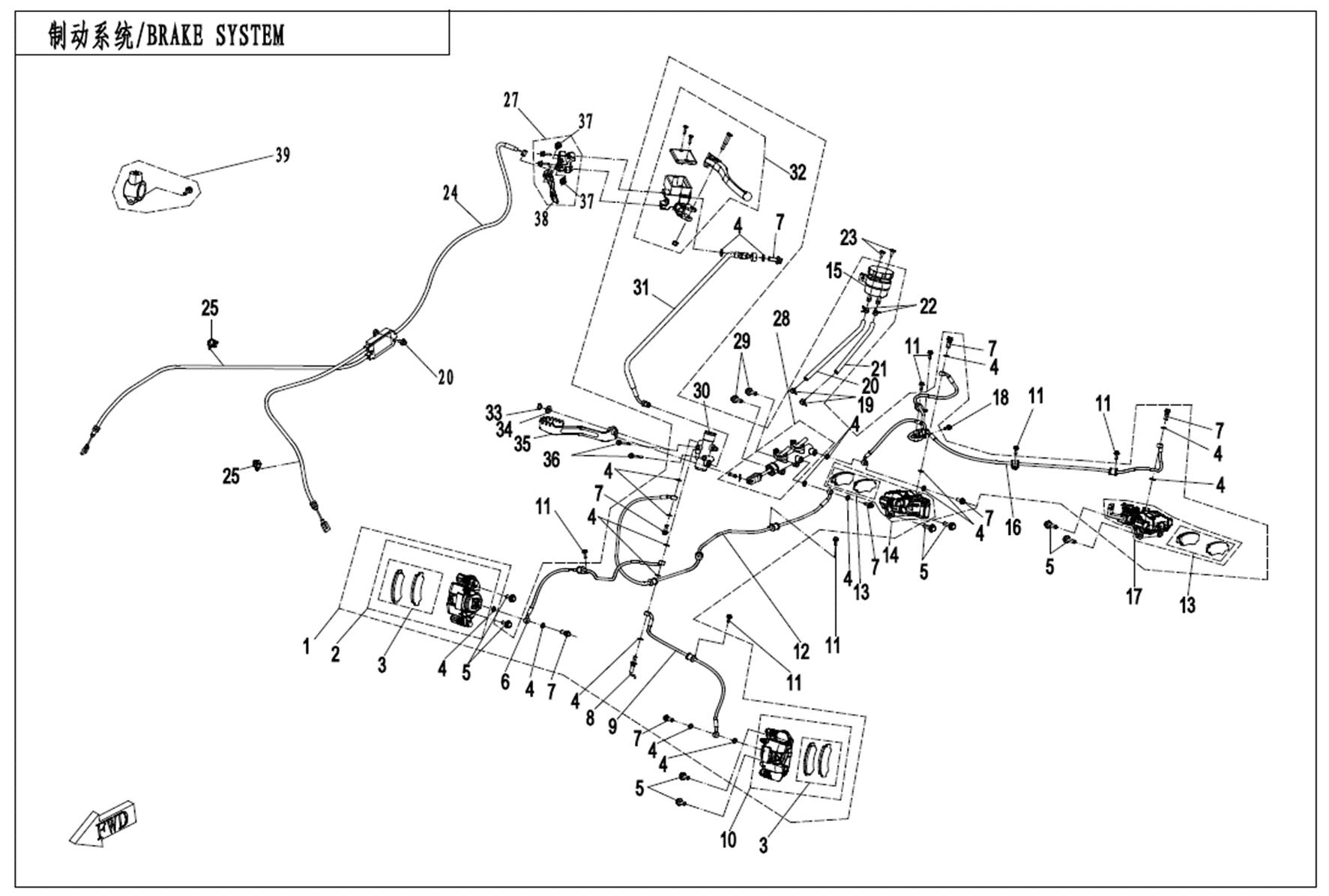

BRAKE SYSTEM-LH,PARKING
F08-B
BRAKE SYSTEM-RH,PARKING
F10-1-B-V2

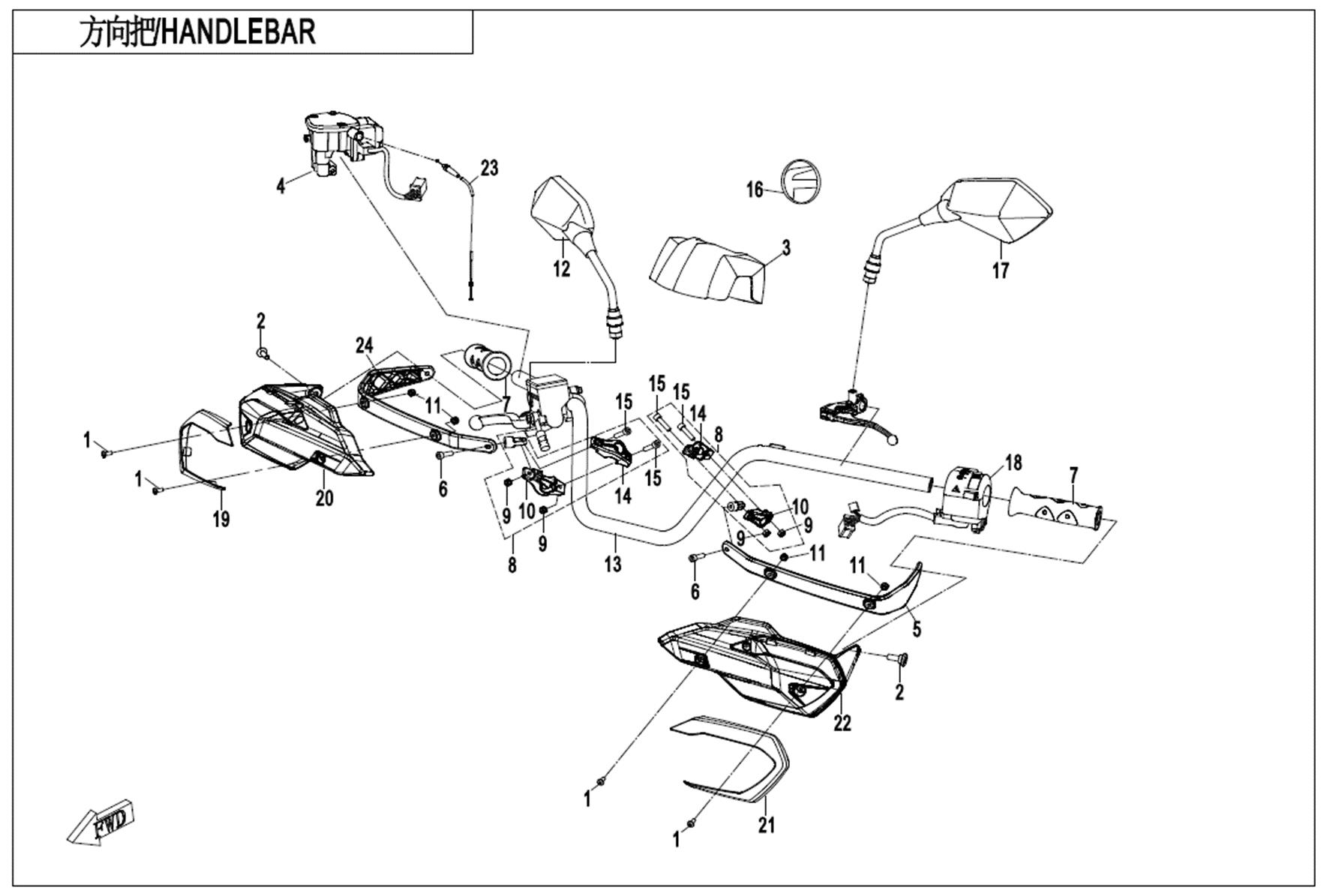

HANDLEBAR-TRUE TIMBER CAMO
F10-1-C-V2
HANDLEBAR-CRYSTAL ORANGE
F10-2-C-V2

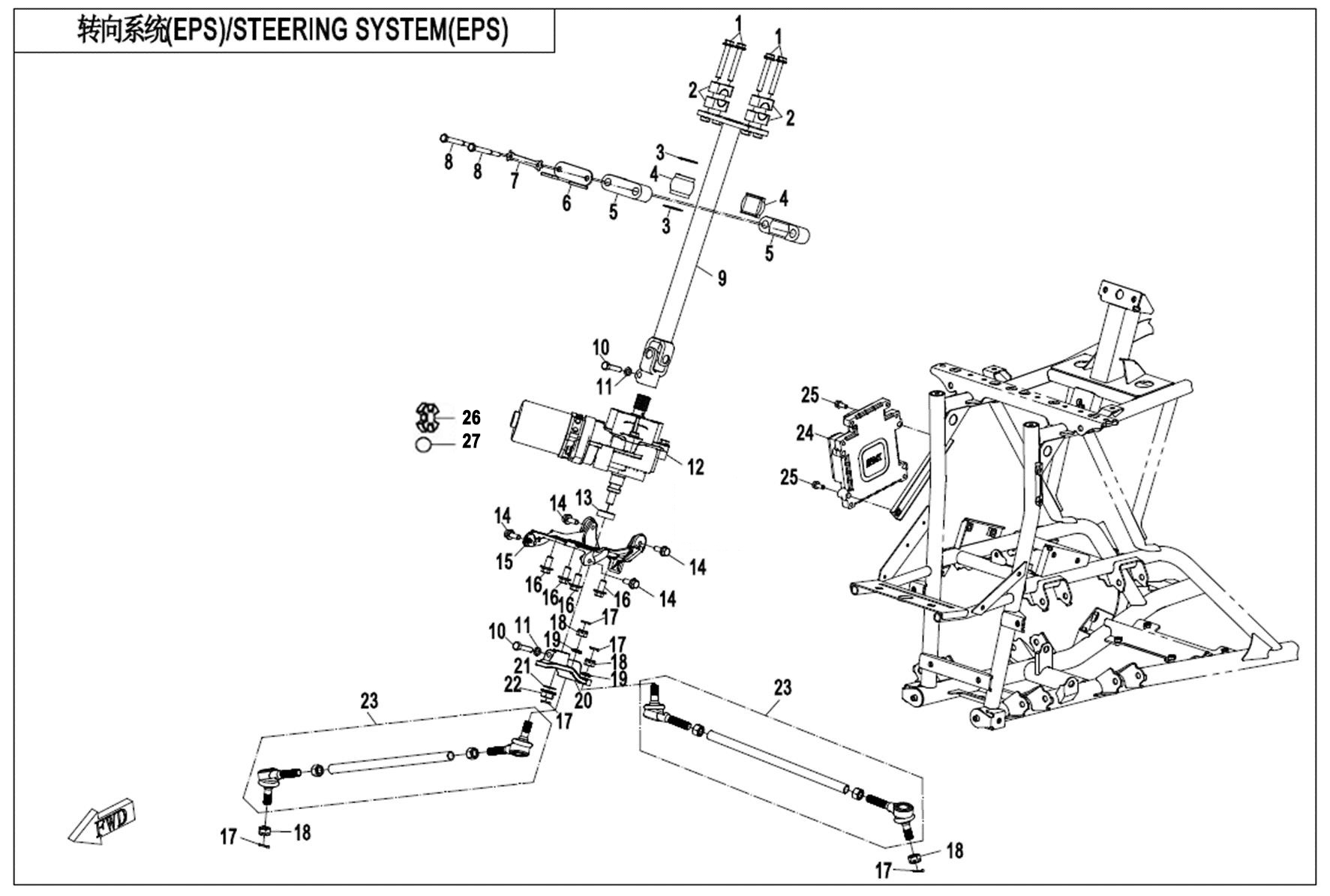

STEERING SYSTEM(EPS,ACDELCO)
F11

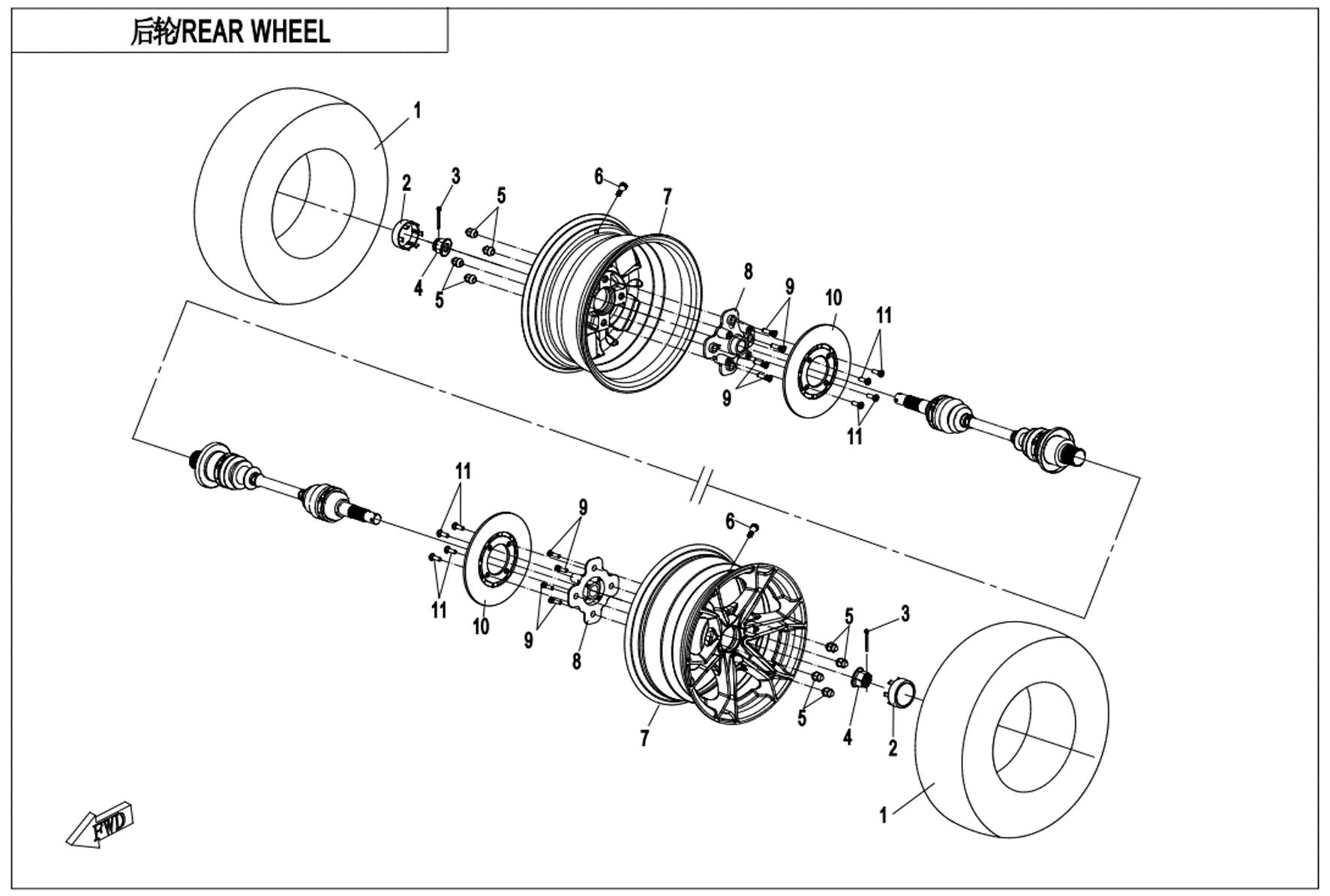

REAR WHEEL
F12-A

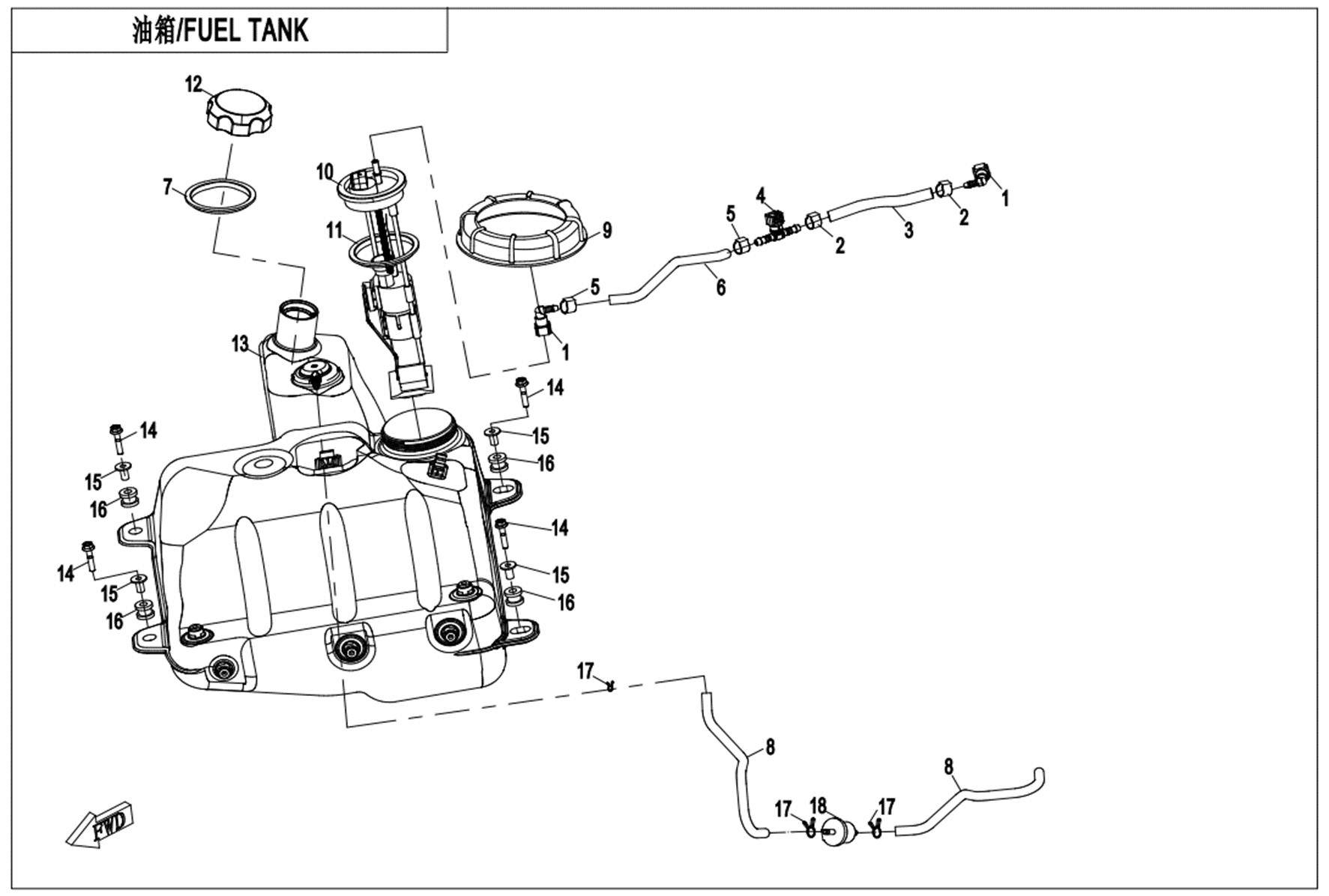

FUEL TANK(168&LOF)
F13-A

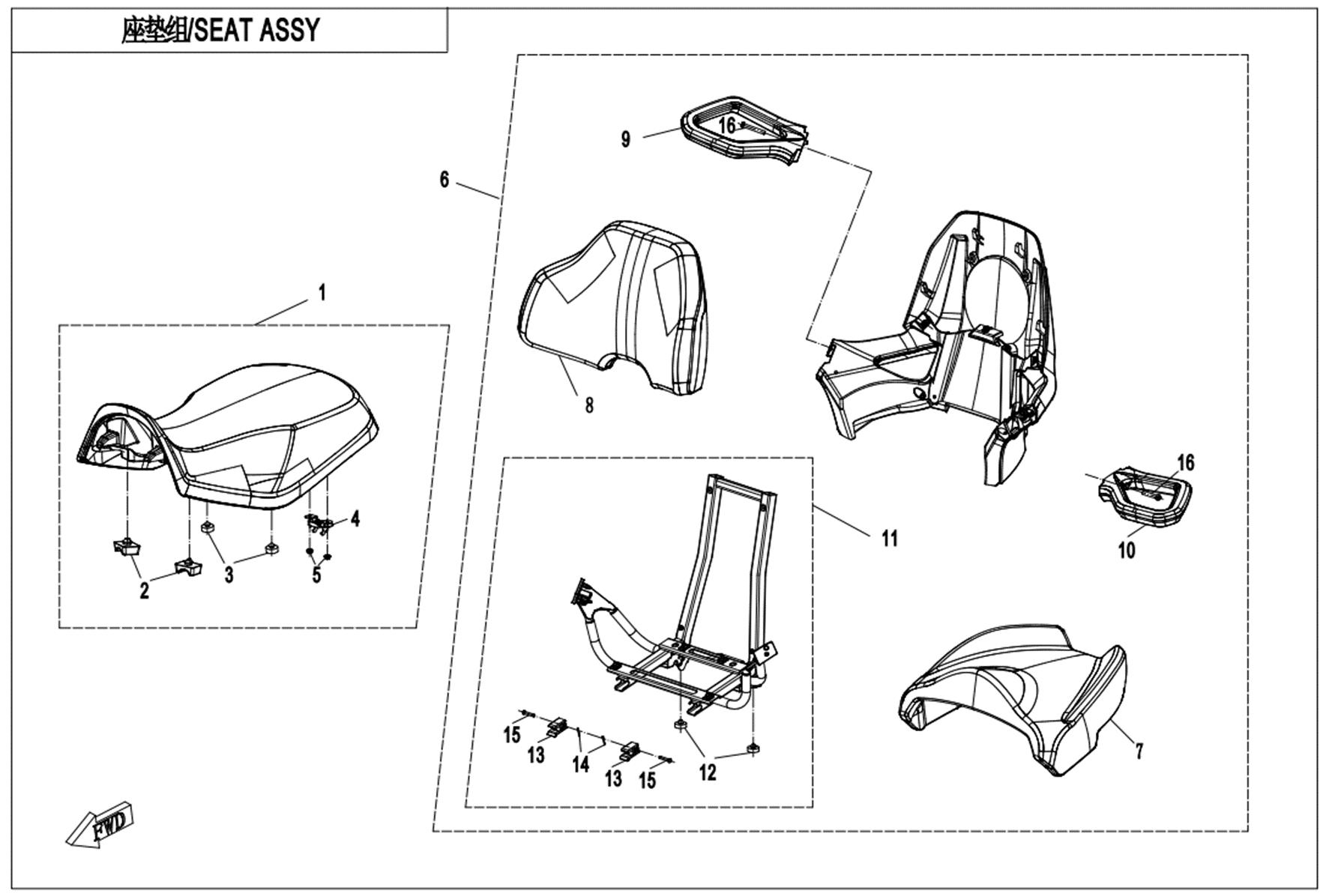

SEAT -BLACK
F14-A

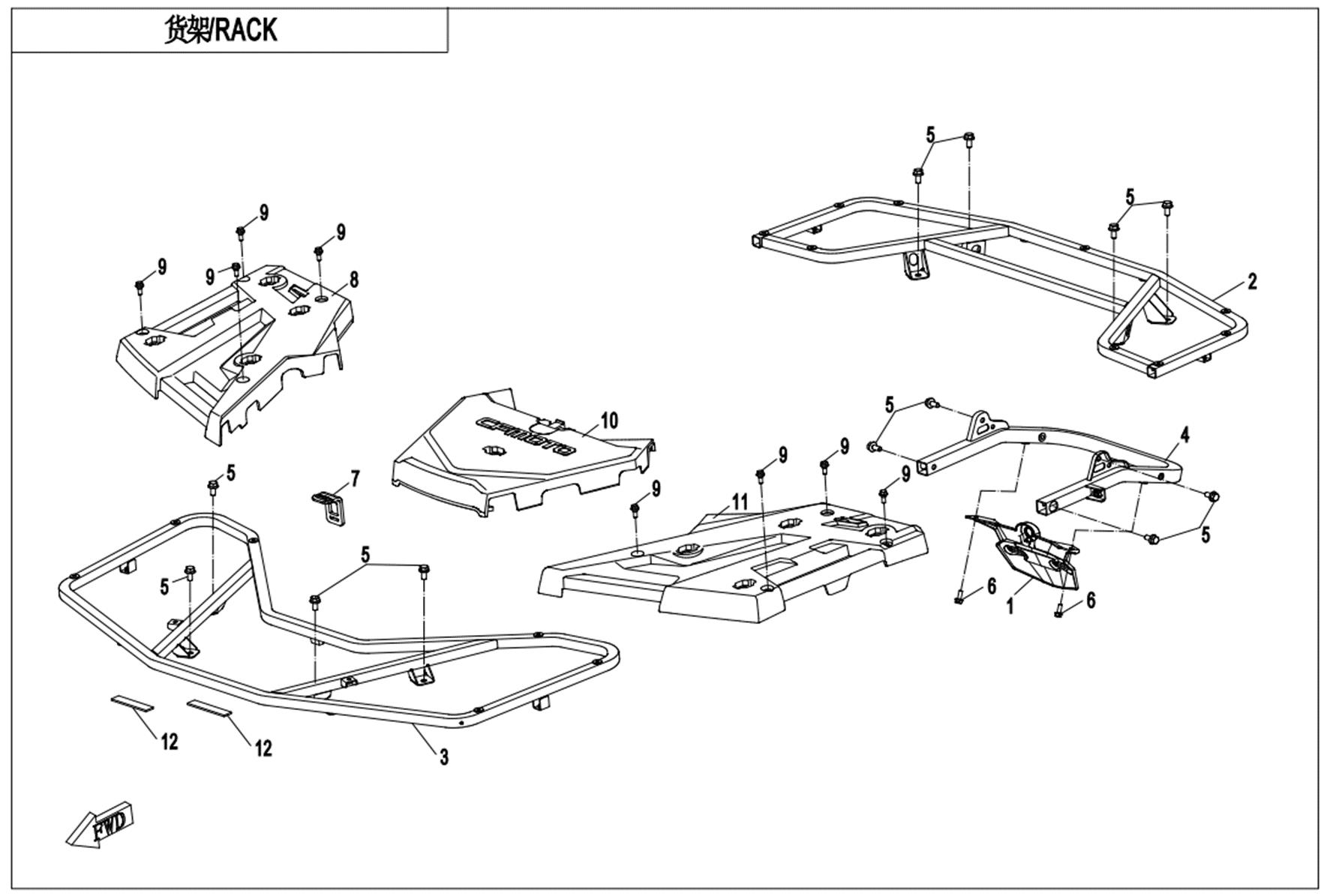

RACK(STANDARD)
F15-1-B-V2

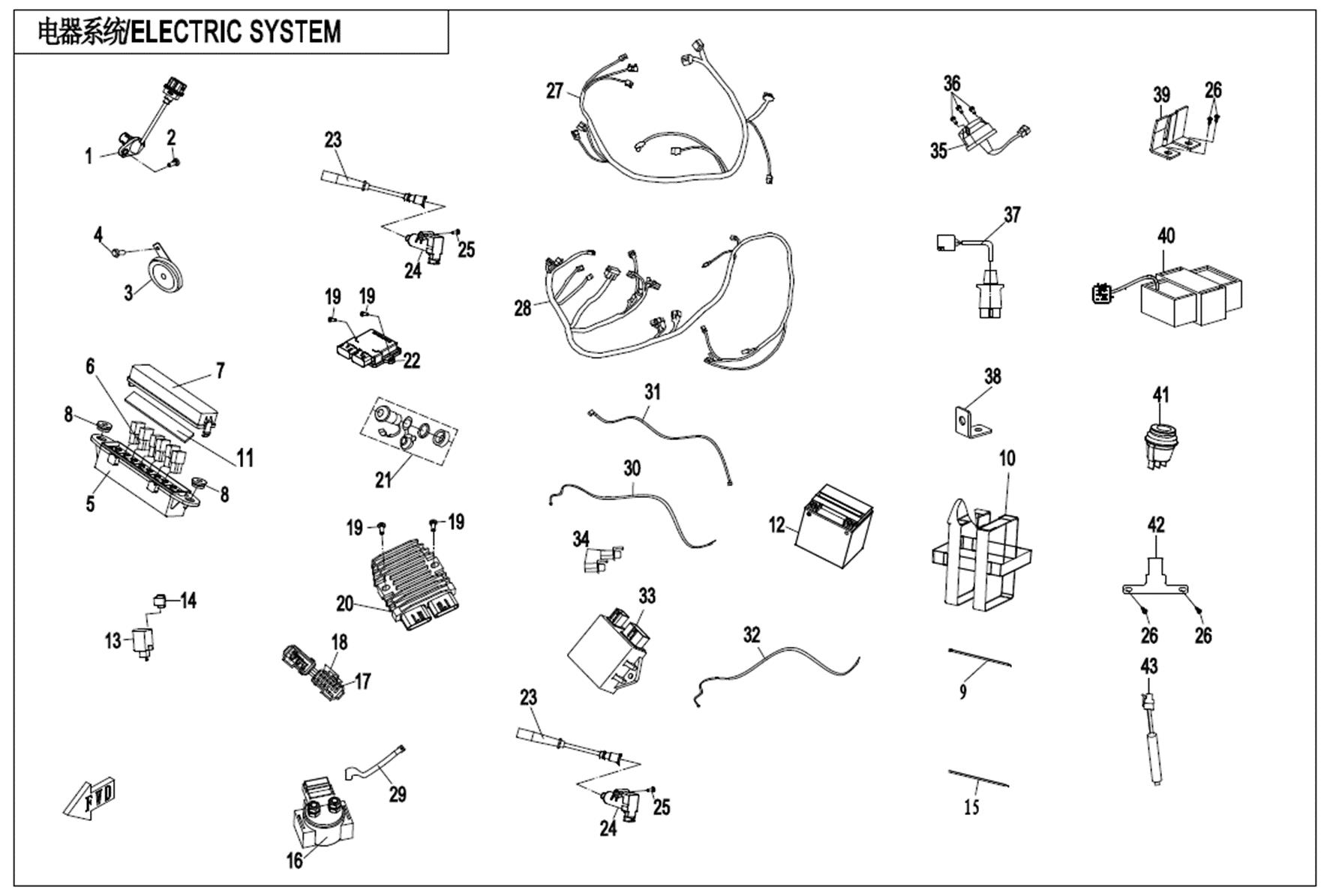

ELECTRIC SYSTEM(HIGH POWER)

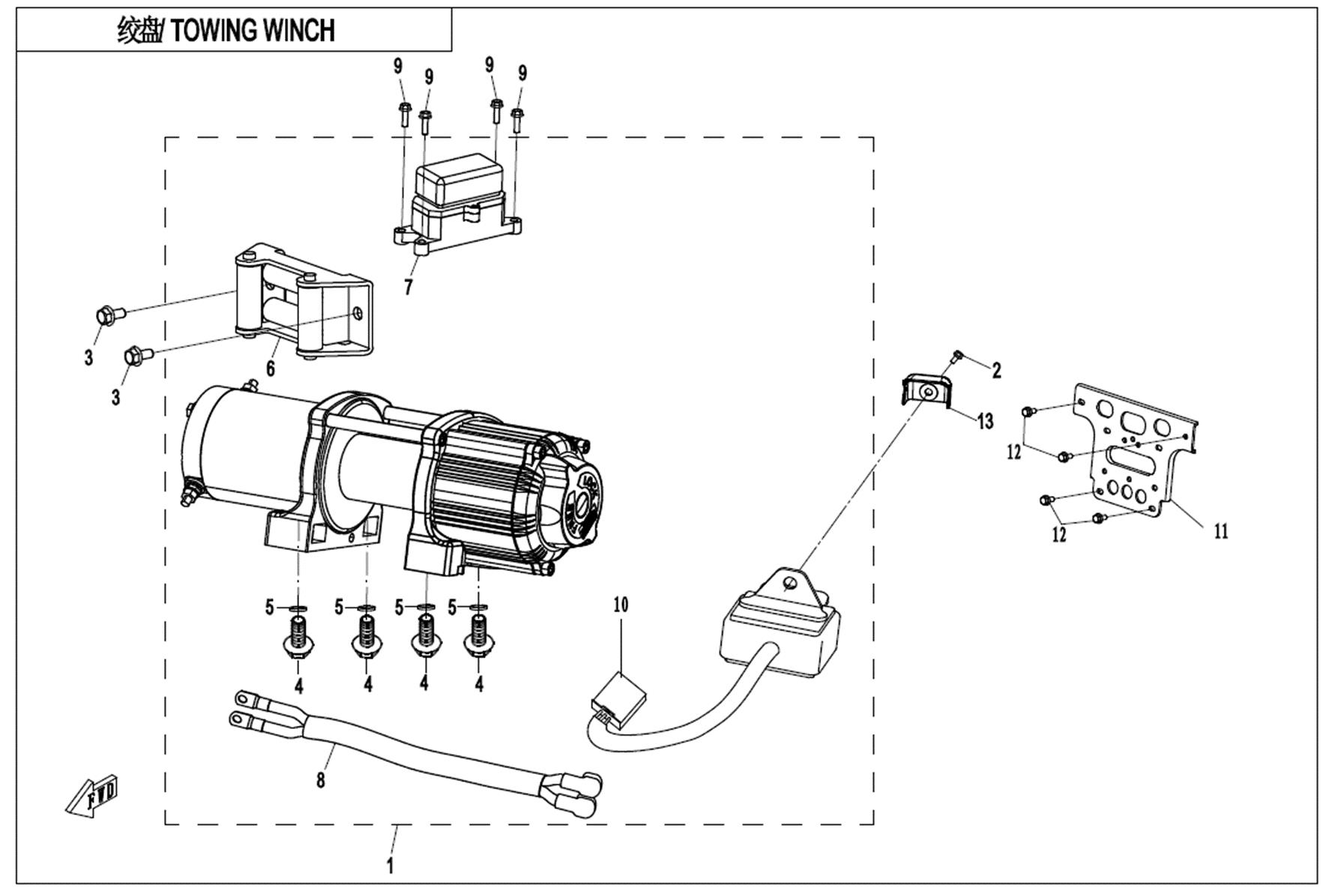

F15-2-V2
TOWING WINCH
F15-3-A

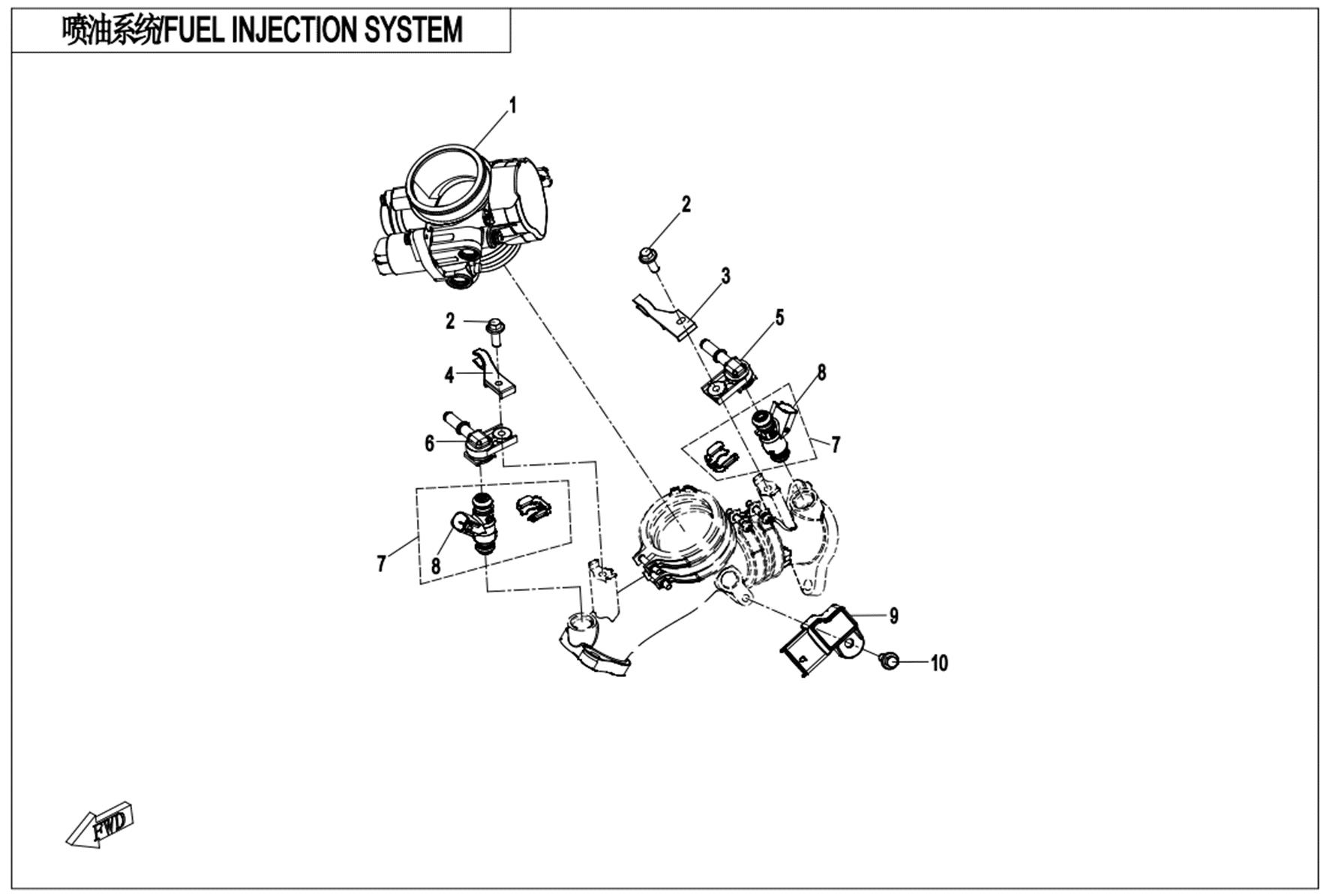

FUEL INJECTION SYSTEM-NO FUEL VAPORIZATION SYSTEM
F16-A

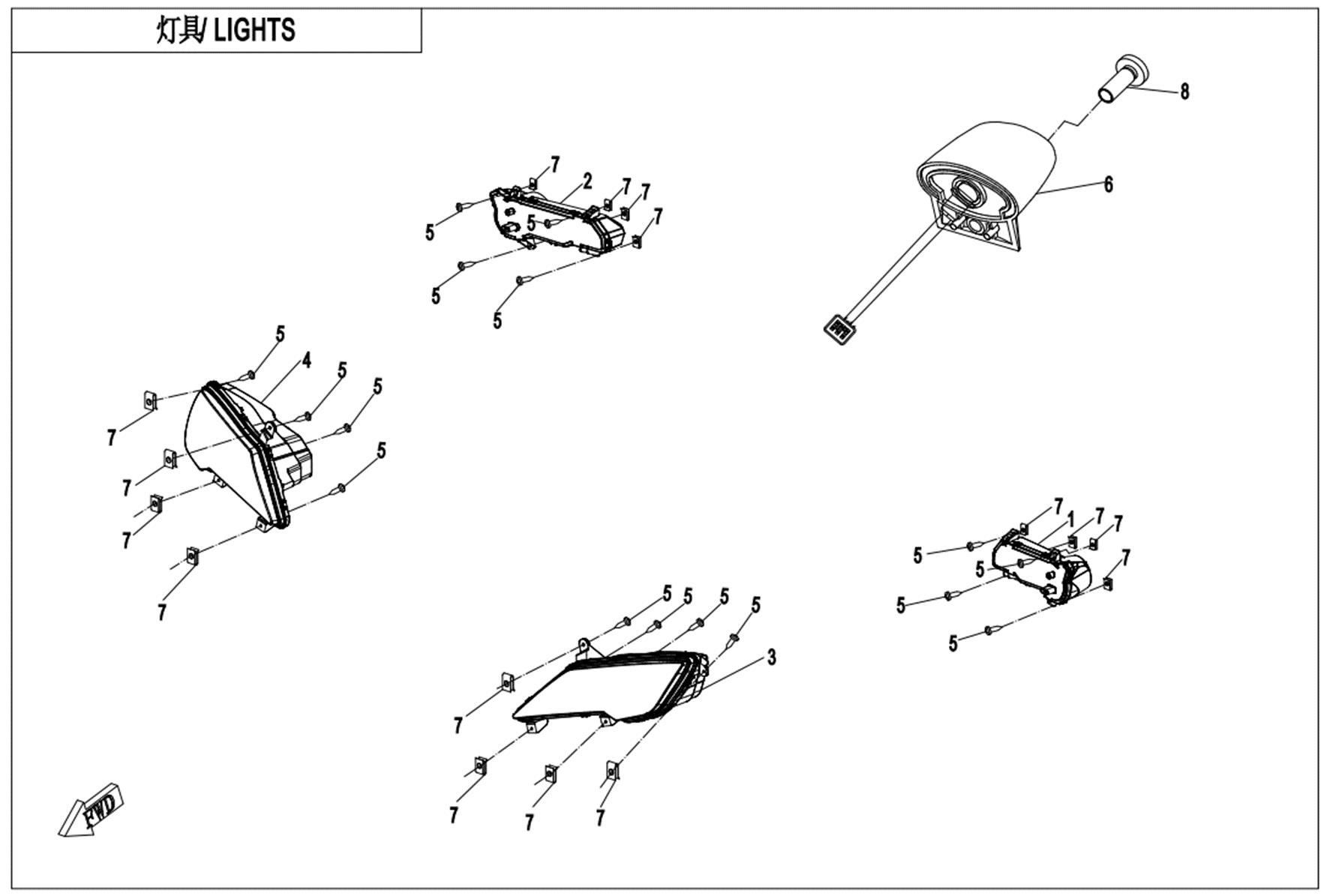

LIGHTS(EURO)

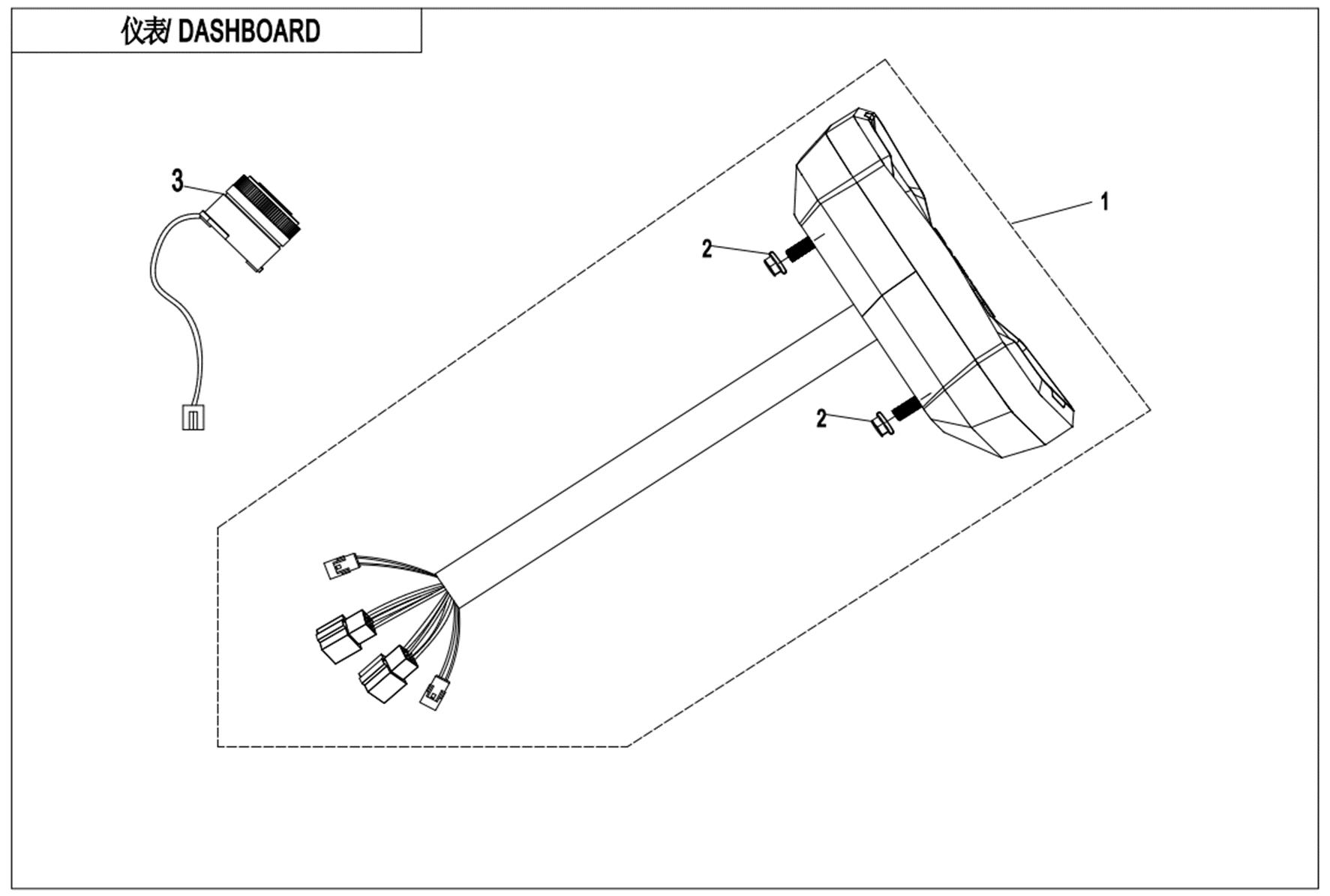

F17
DASHBOARD
F18-V2
COOLING SYSTEM
F19-1-D
DECAL,2019,USA(CRYSTAL ORANGE)
F19-1-F
DECAL,2019,USA(TRUE TIMBER CAMO)
F19-2-V2
DECAL WARNING
F20-A-V3

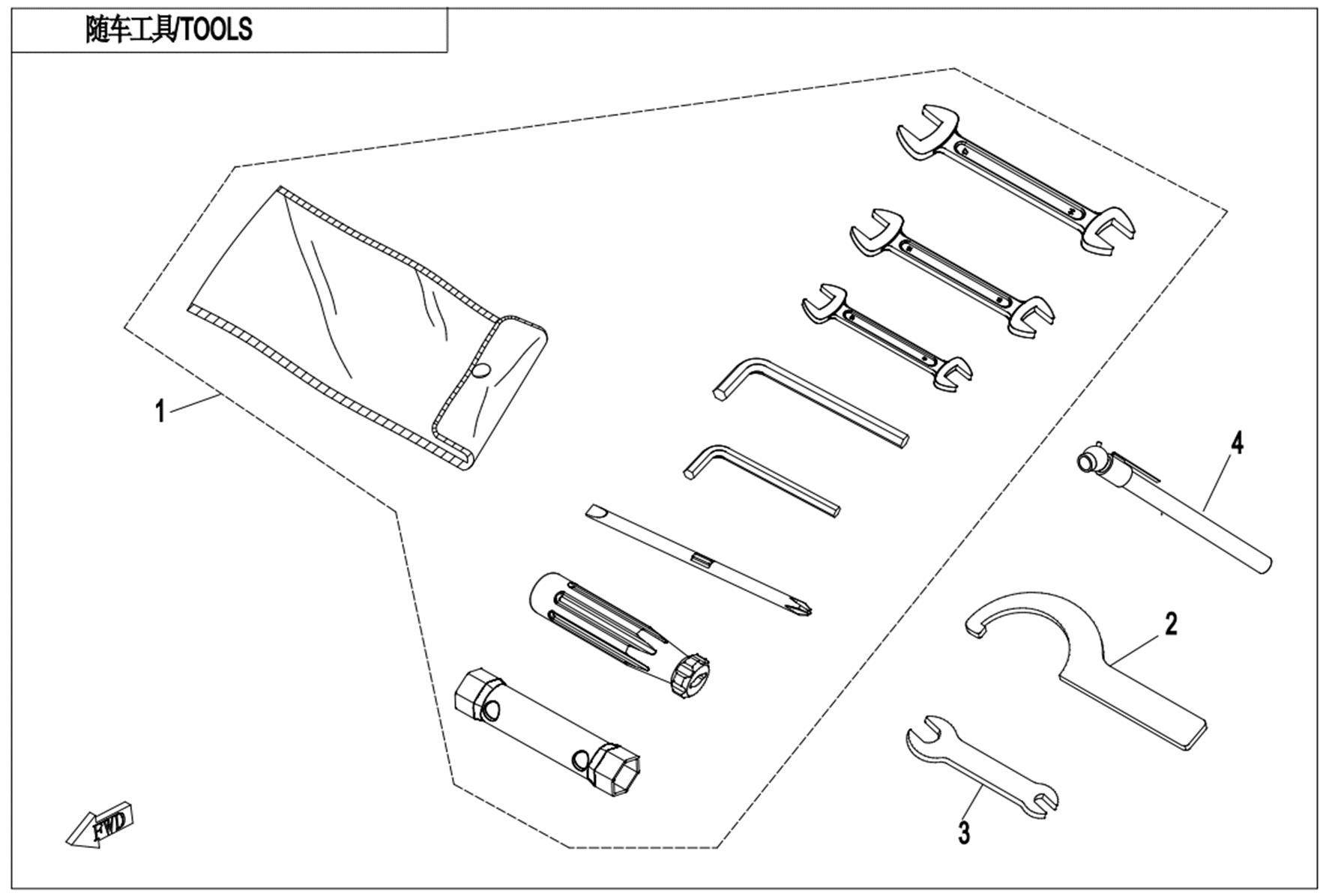

TOOLS(168&LOF)
F23-A

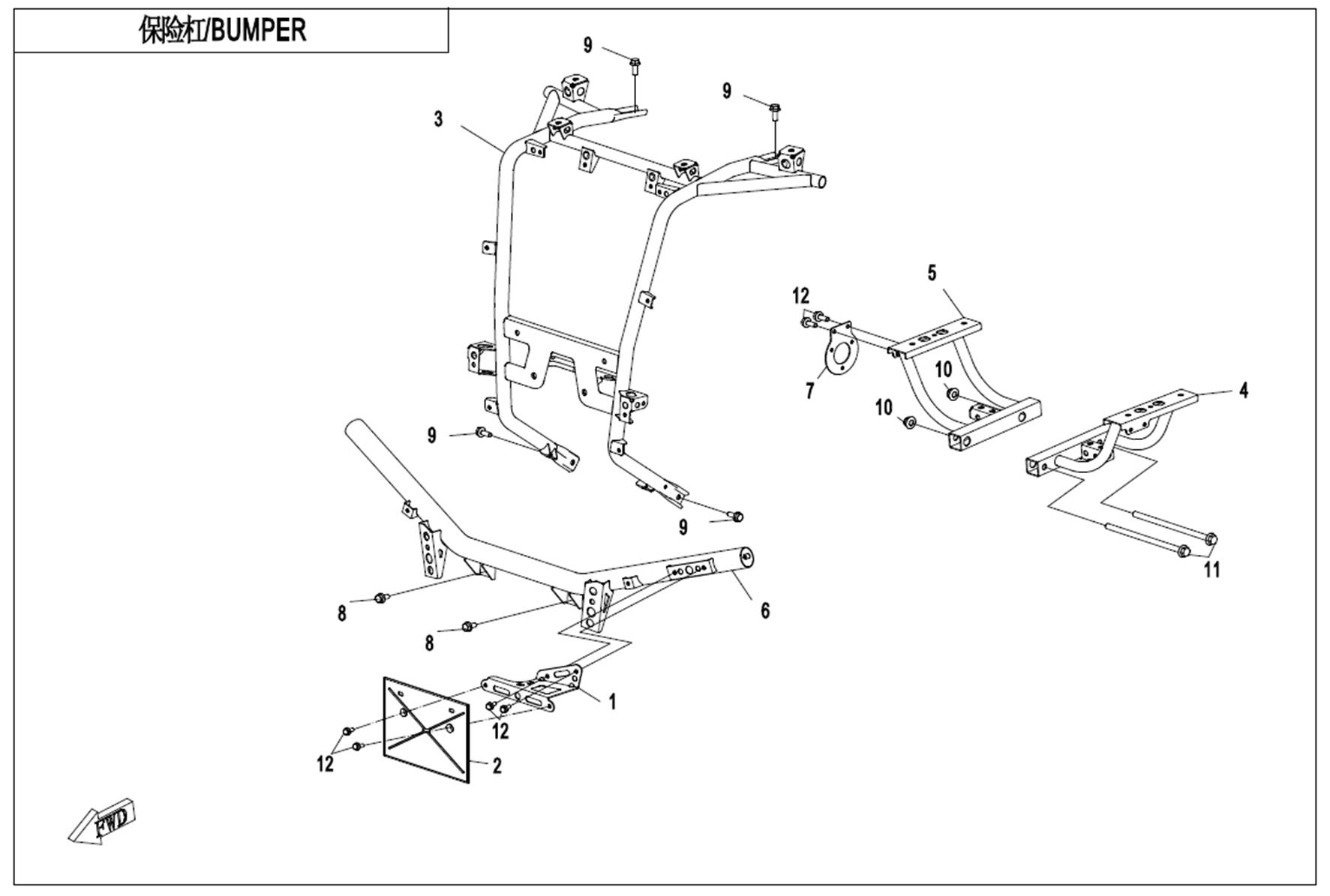

BUMPER(168&LOF)
F27-V2

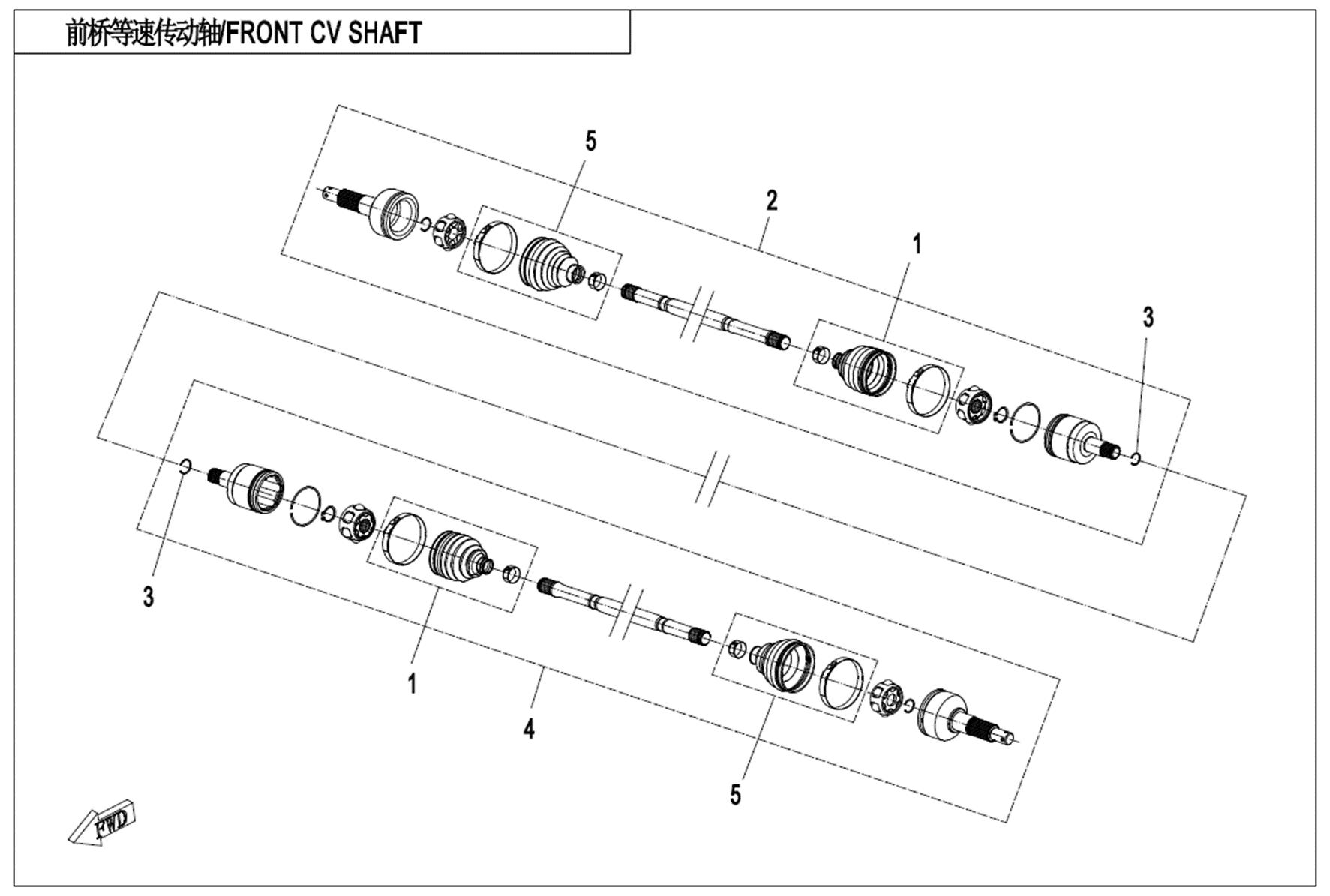

FRONT CV SHAFT
F28

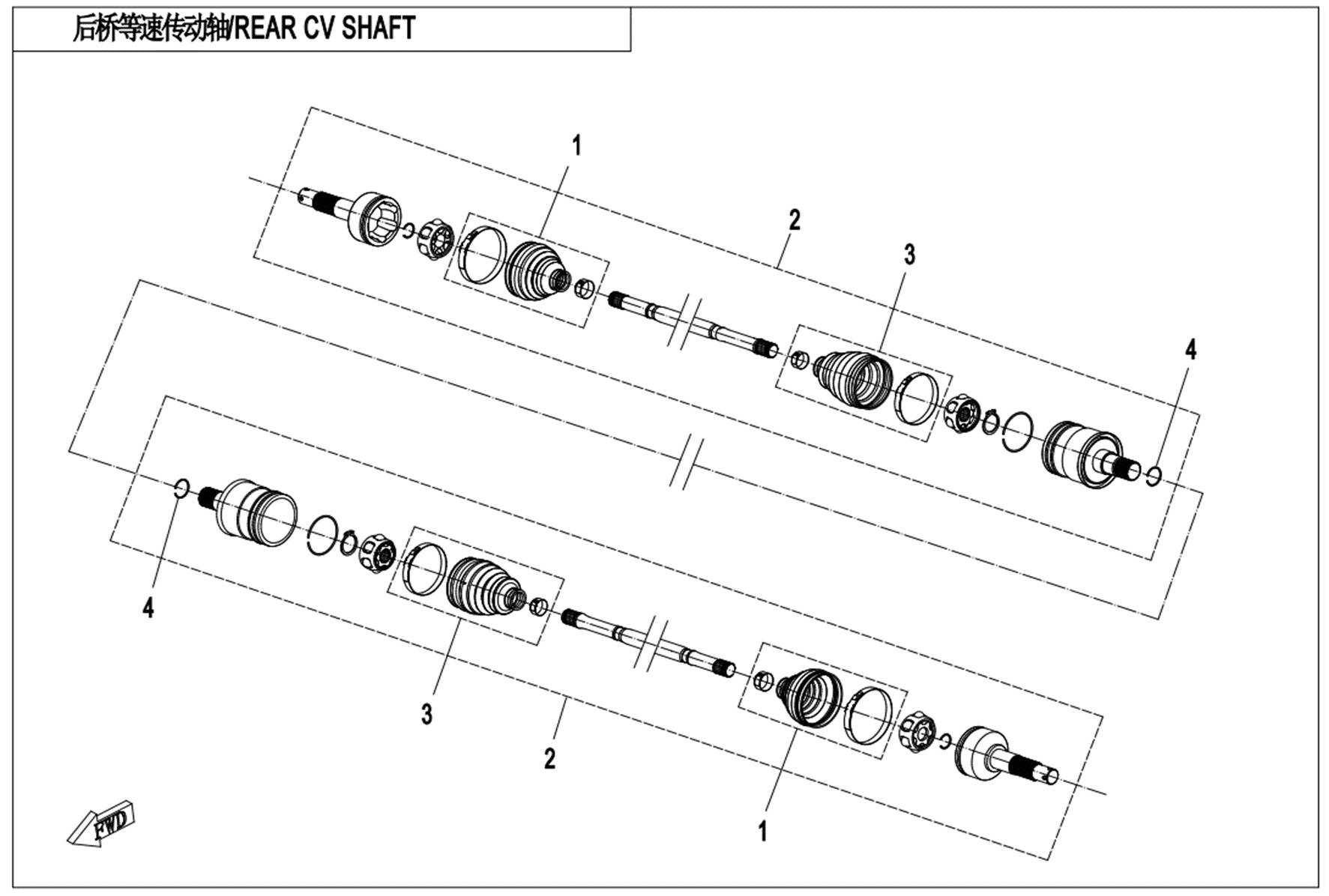

REAR CV SHAFT
F30
DRIVETRAIN SYSTEM
F31

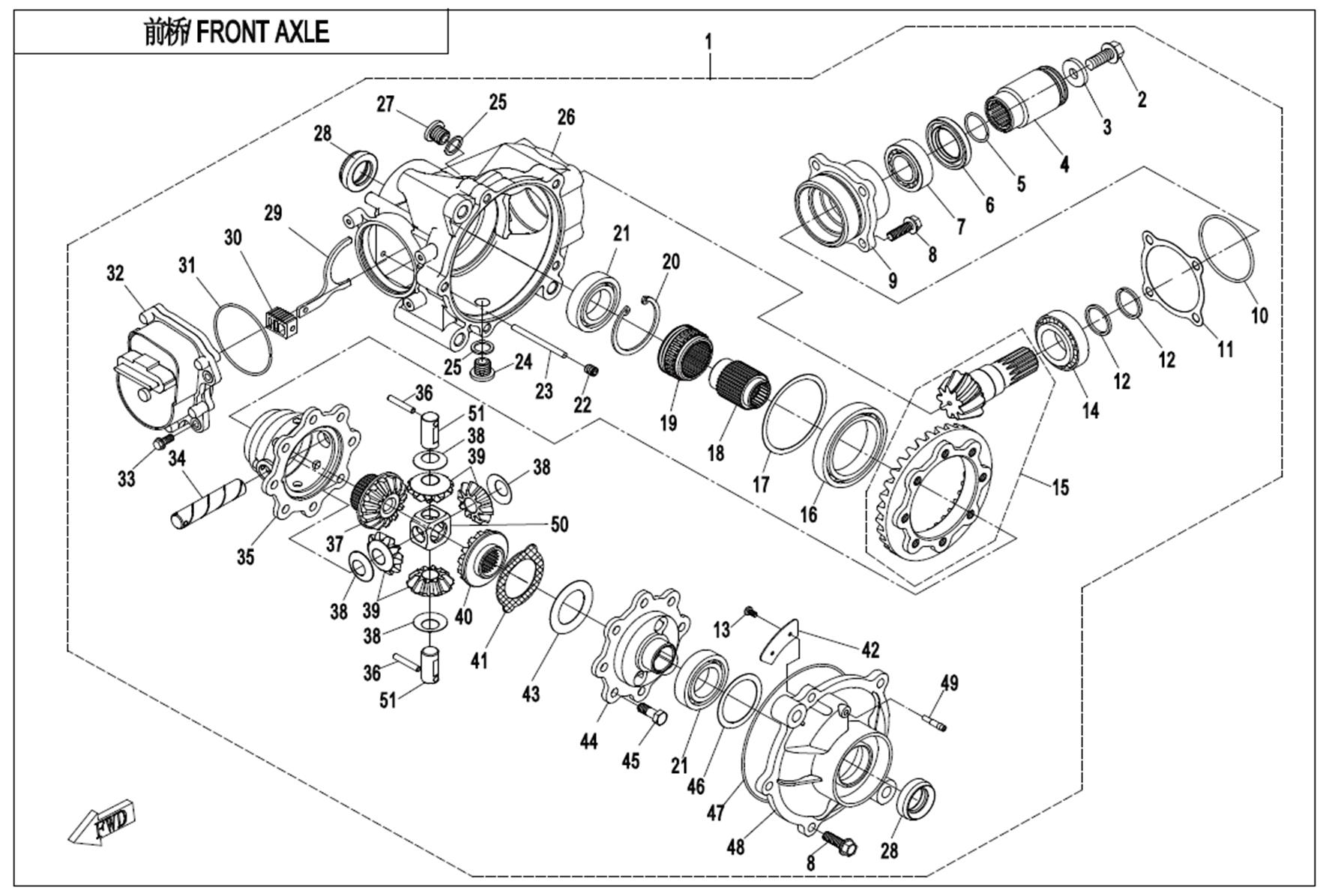

FRONT AXLE
F32

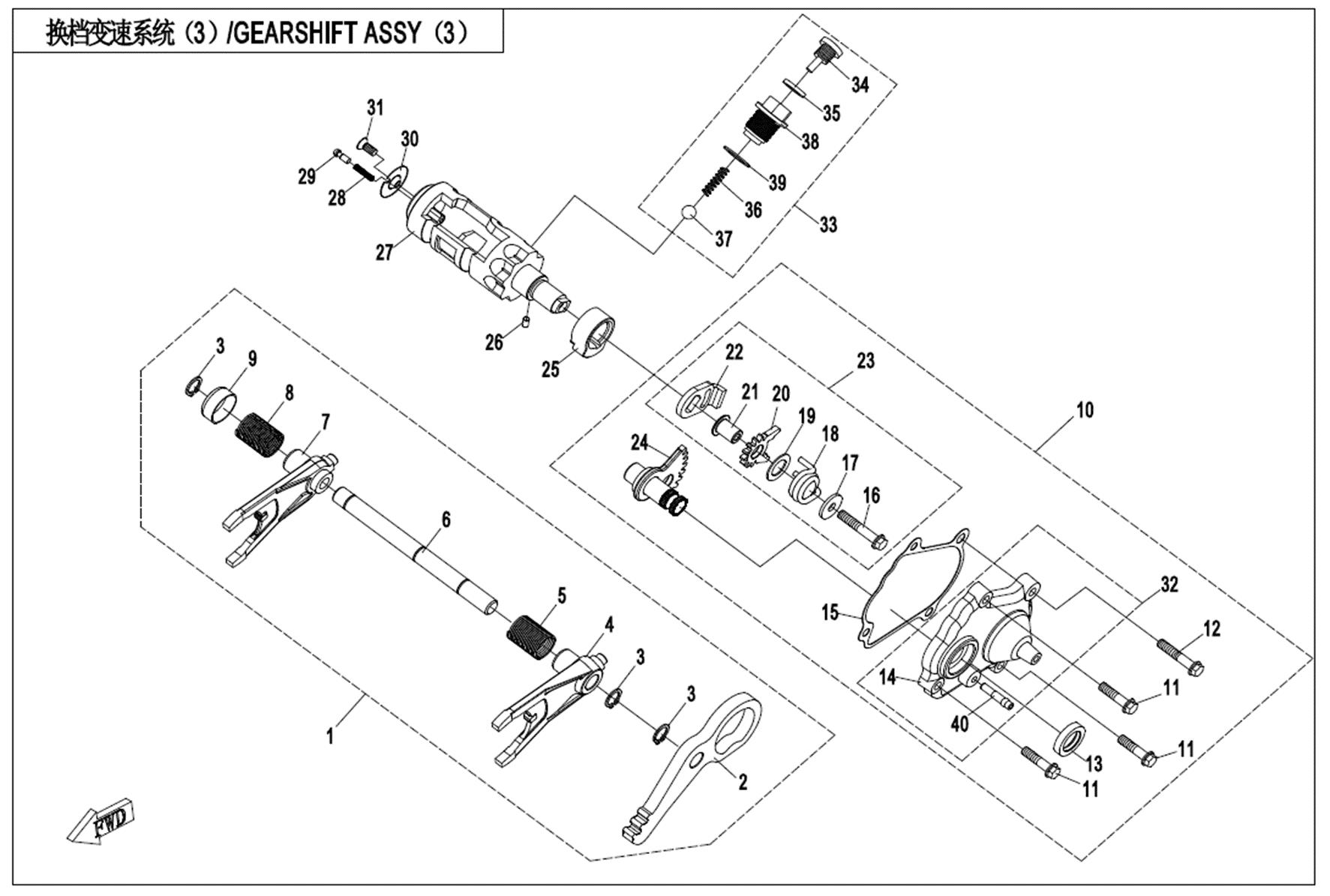

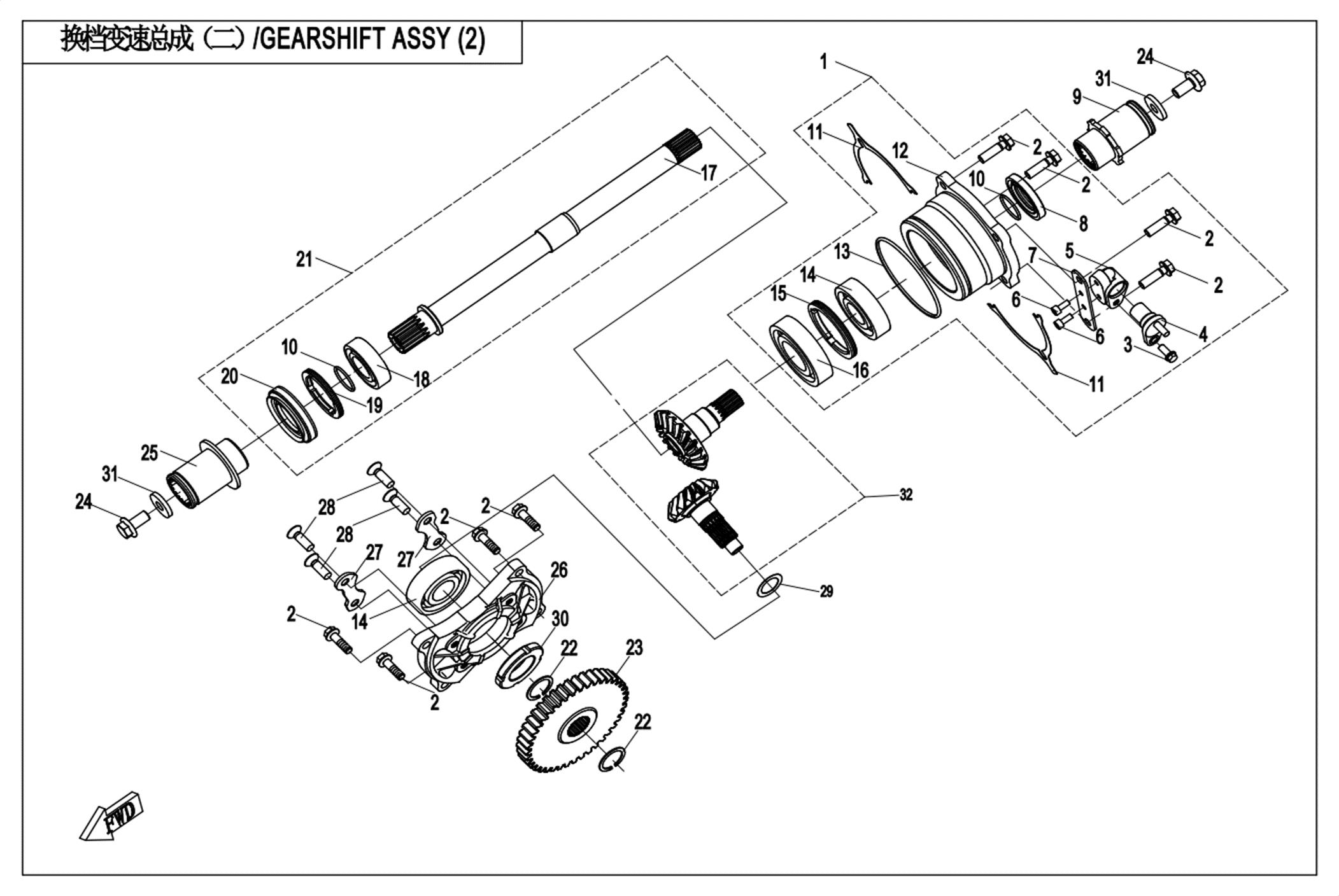

GEAR SHIFTING
F33-A

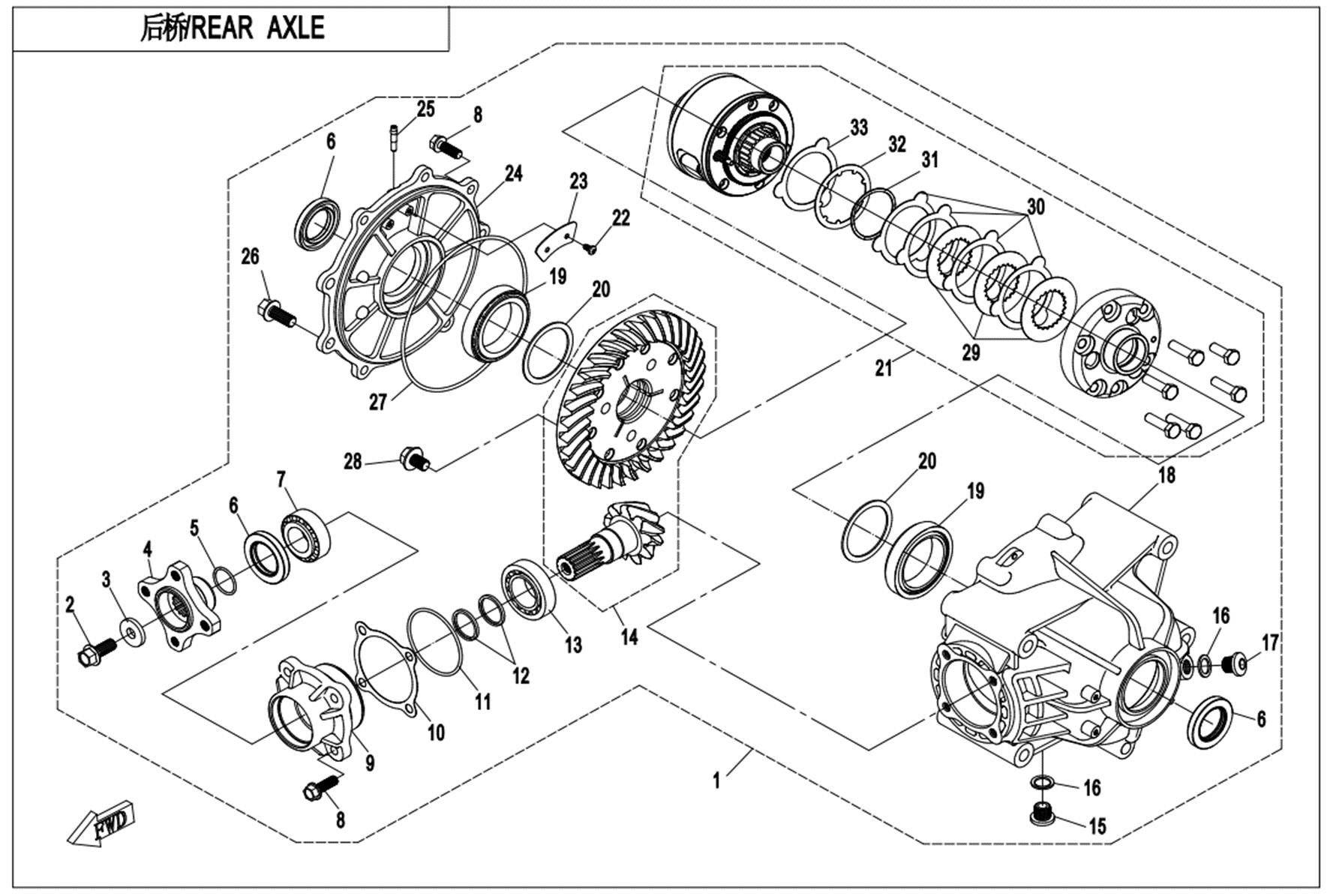

REAR AXLE(WITH AUTOMATIC DIFFERENTIAL LOCK)
F38
OWNER'S MANUAL
F40-V2

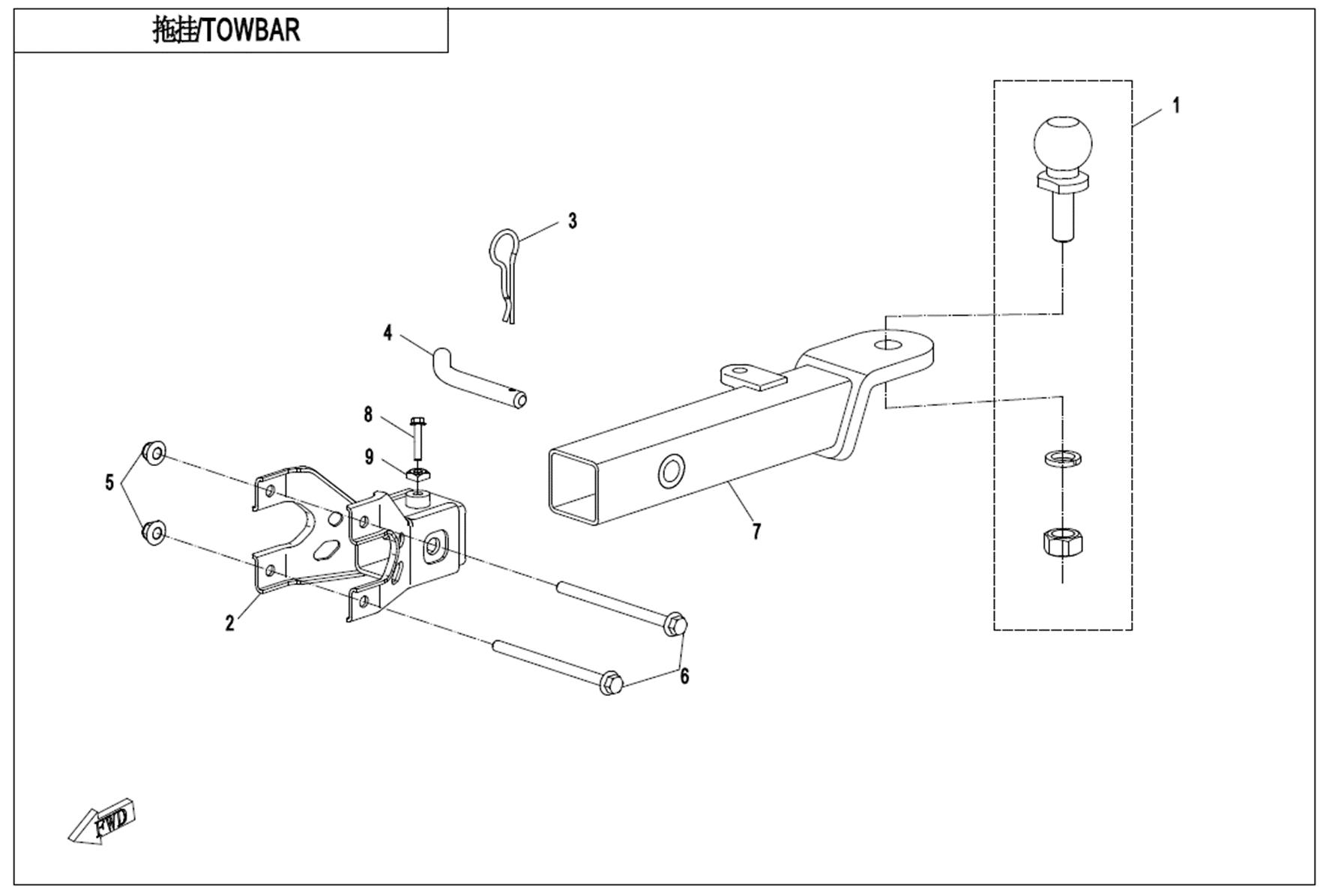

TOWBAR
F41-V3

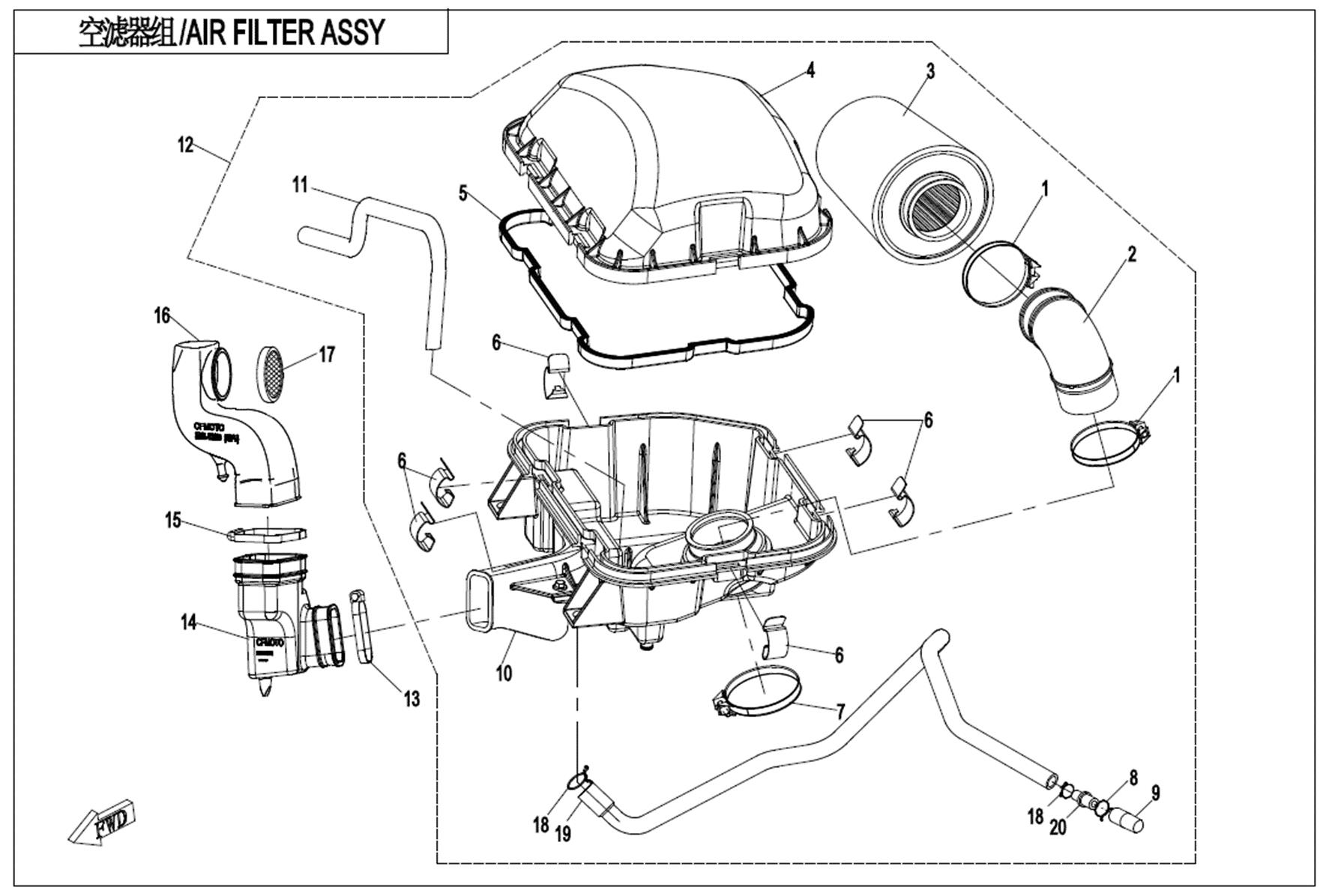

AIR FILTER ASSY.
E00
LONG BLOCK
E01

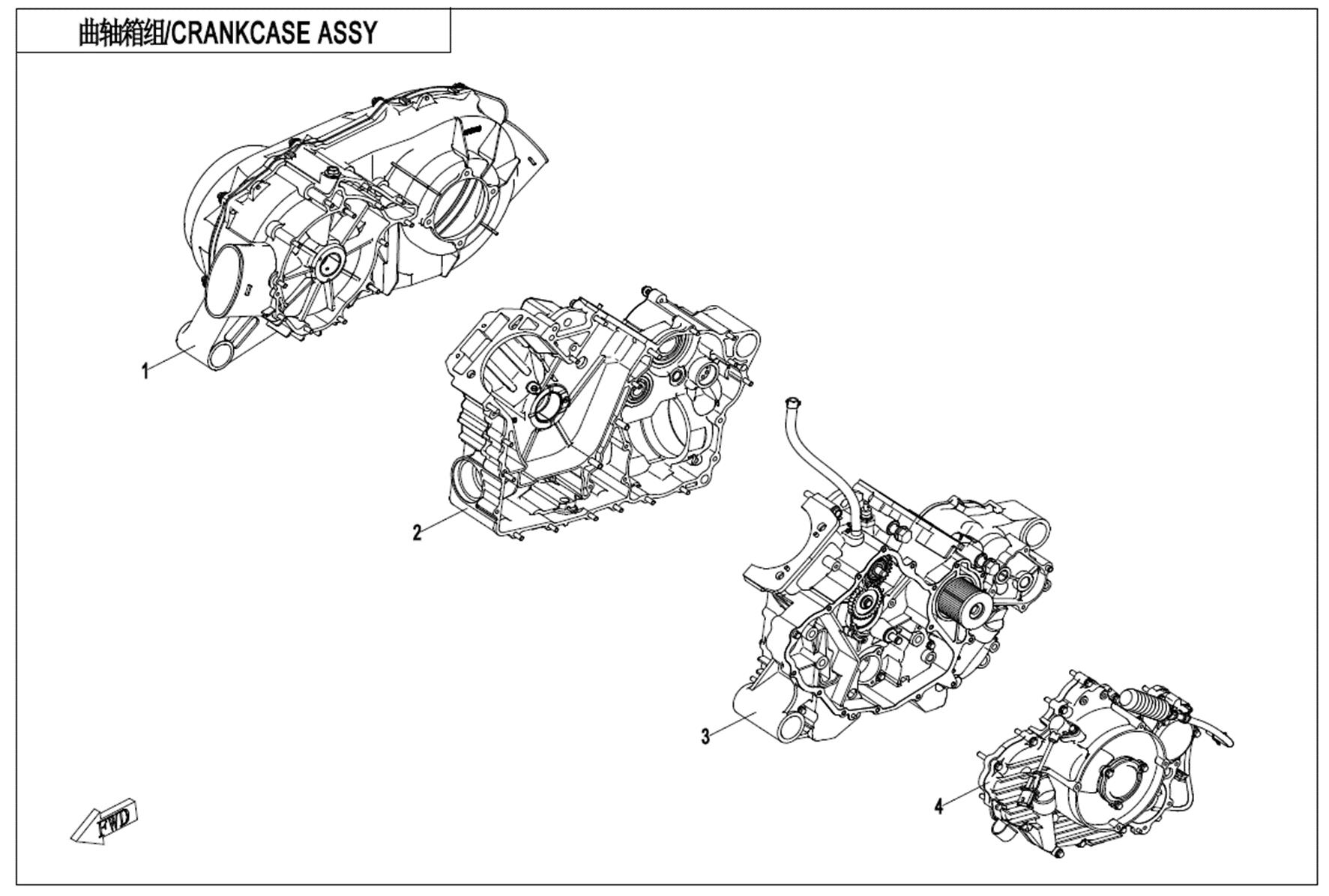

CRANKCASE ASSY
E01-1-V2

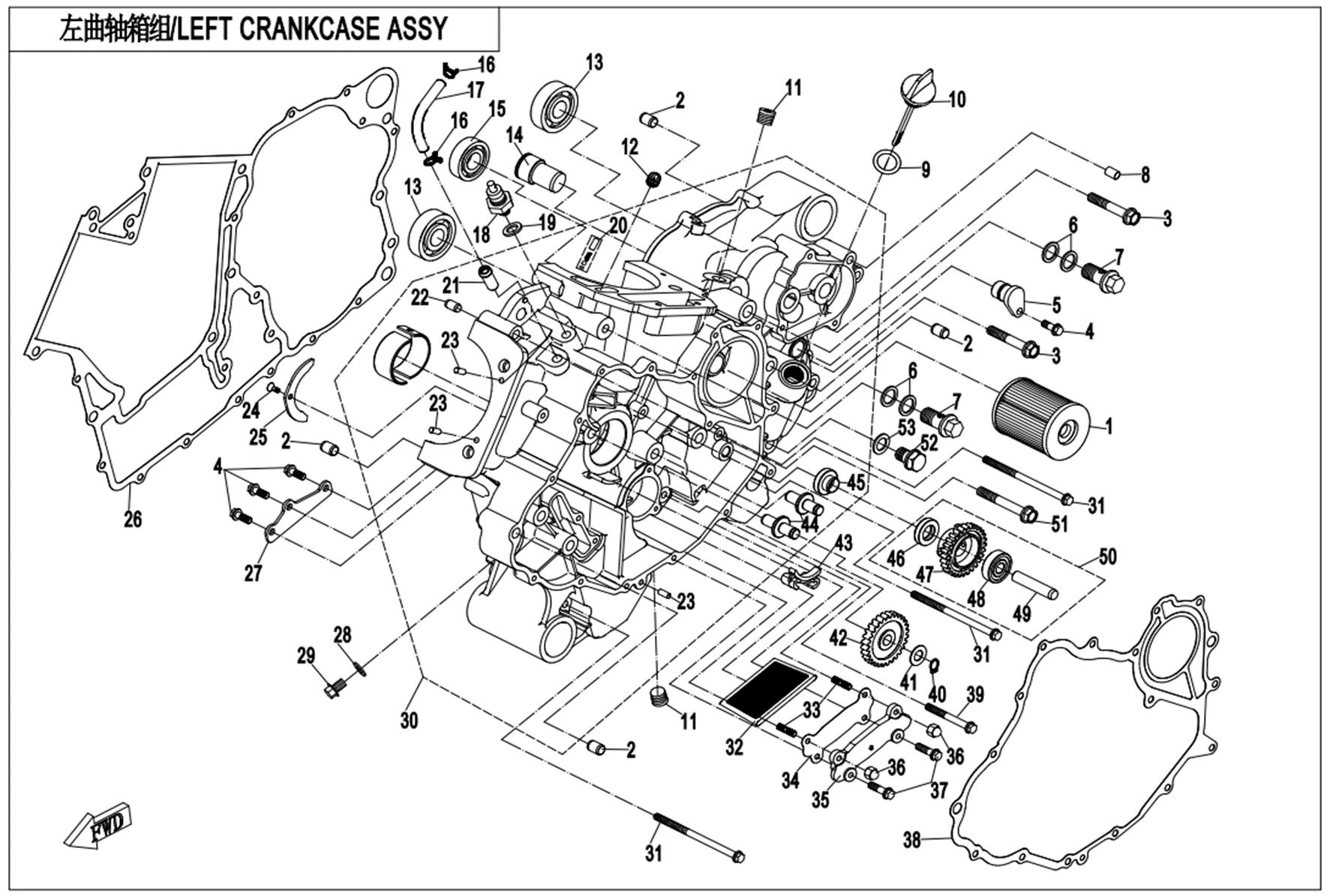

LEFT CRANKCASE ASSY
E01-2-V5

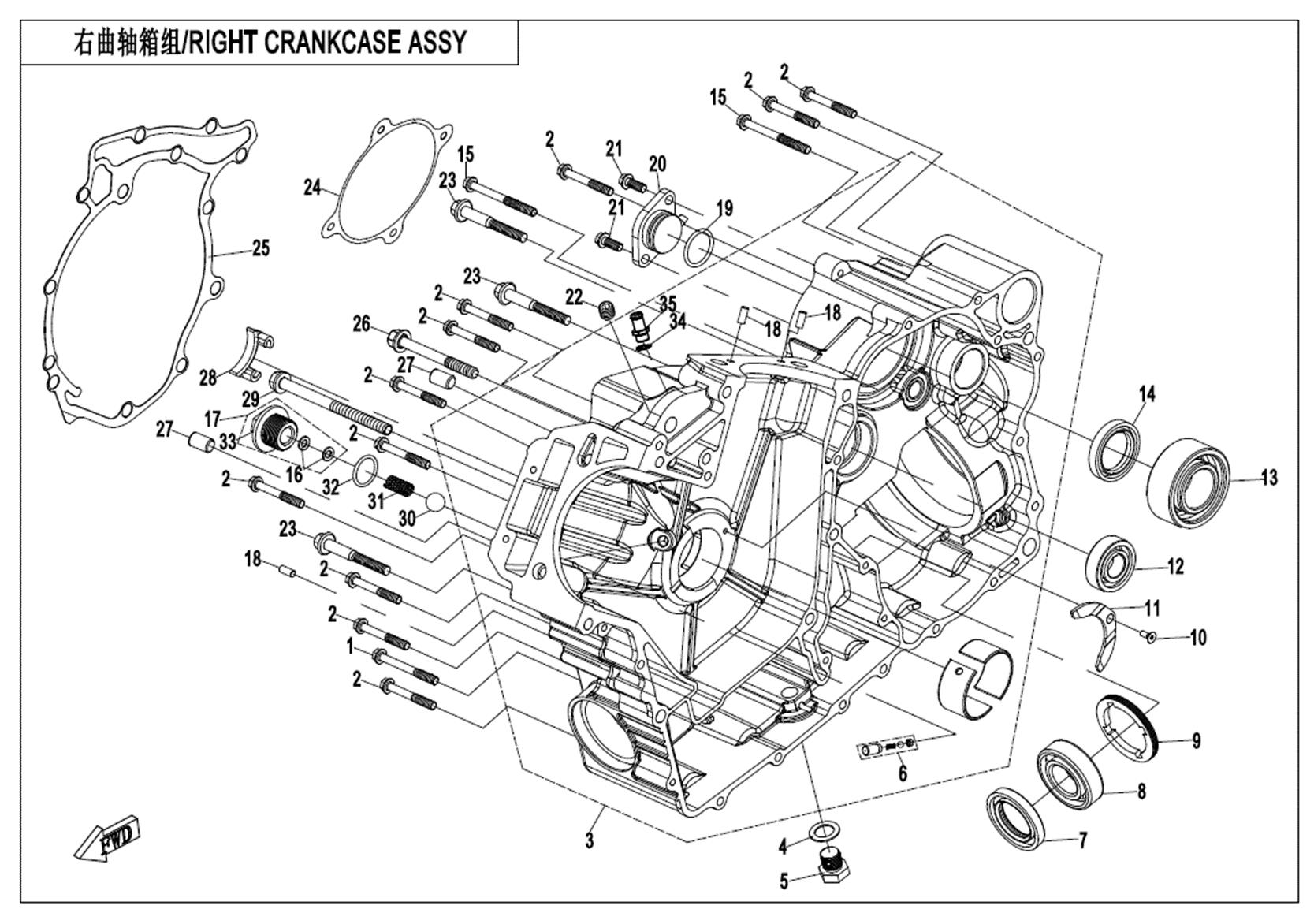

RIGHT CRANKCASE ASSY
E01-3-V2

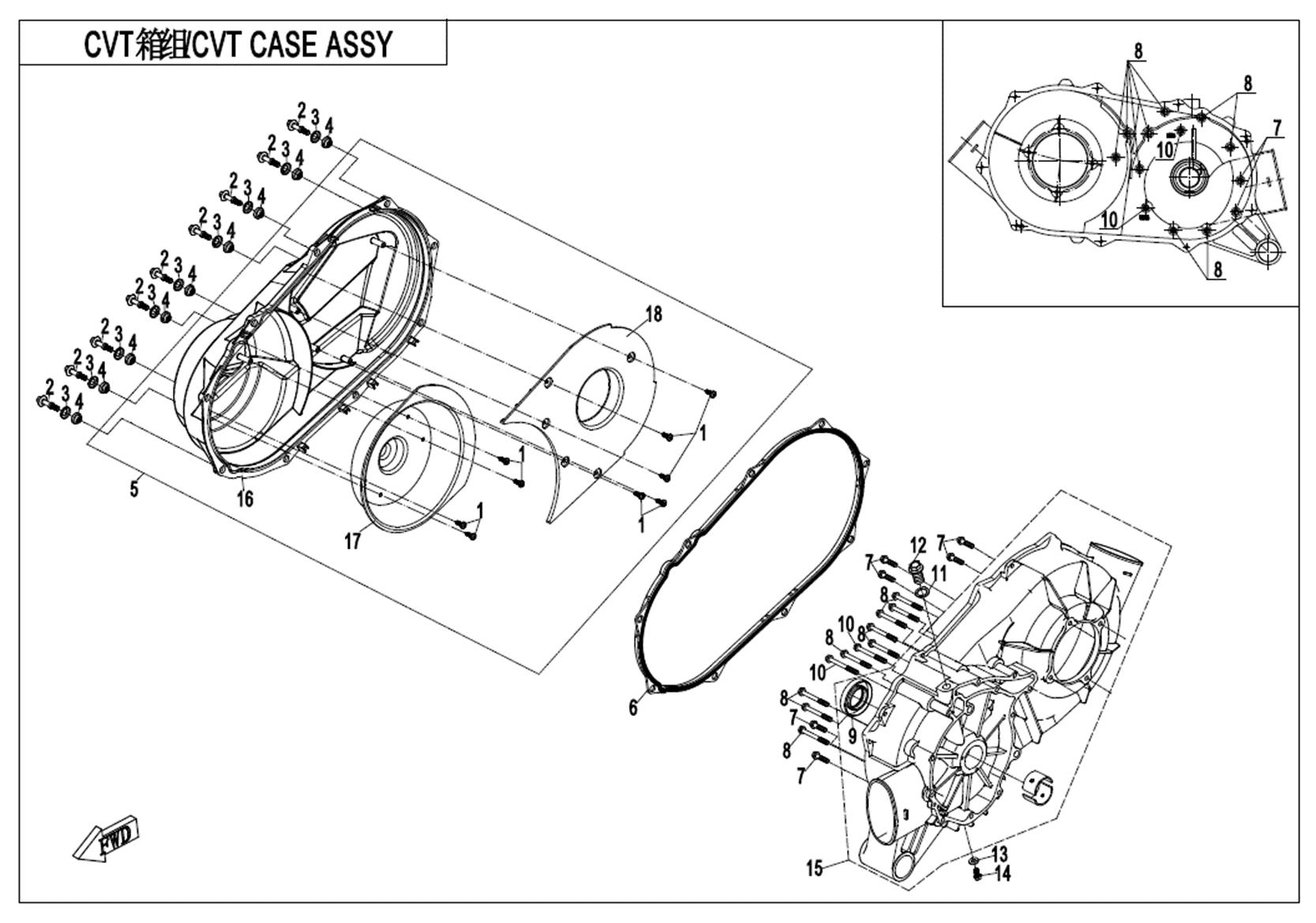

CVT CASE ASSY
E01-4

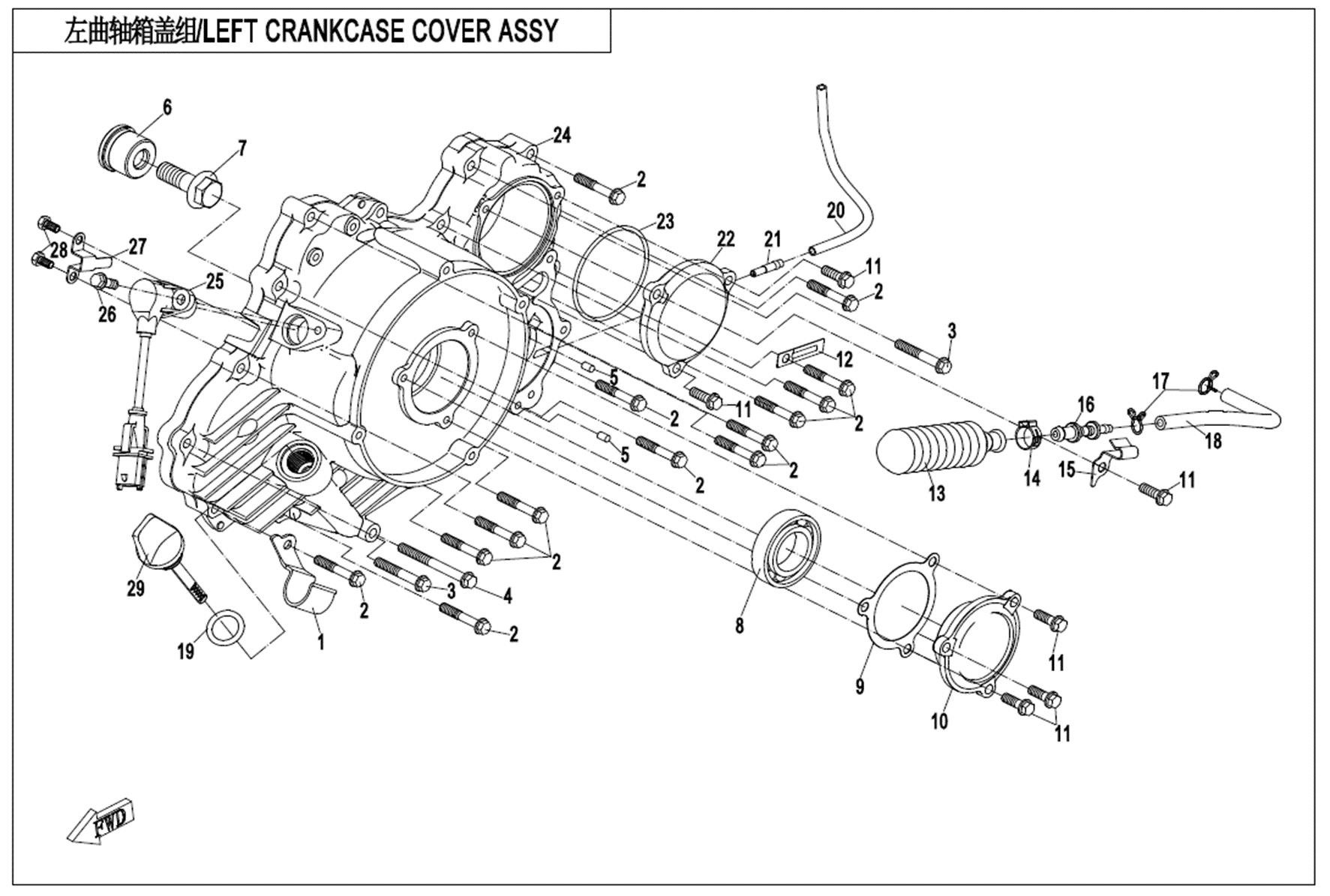

LEFT CRANKCASE COVER ASSY

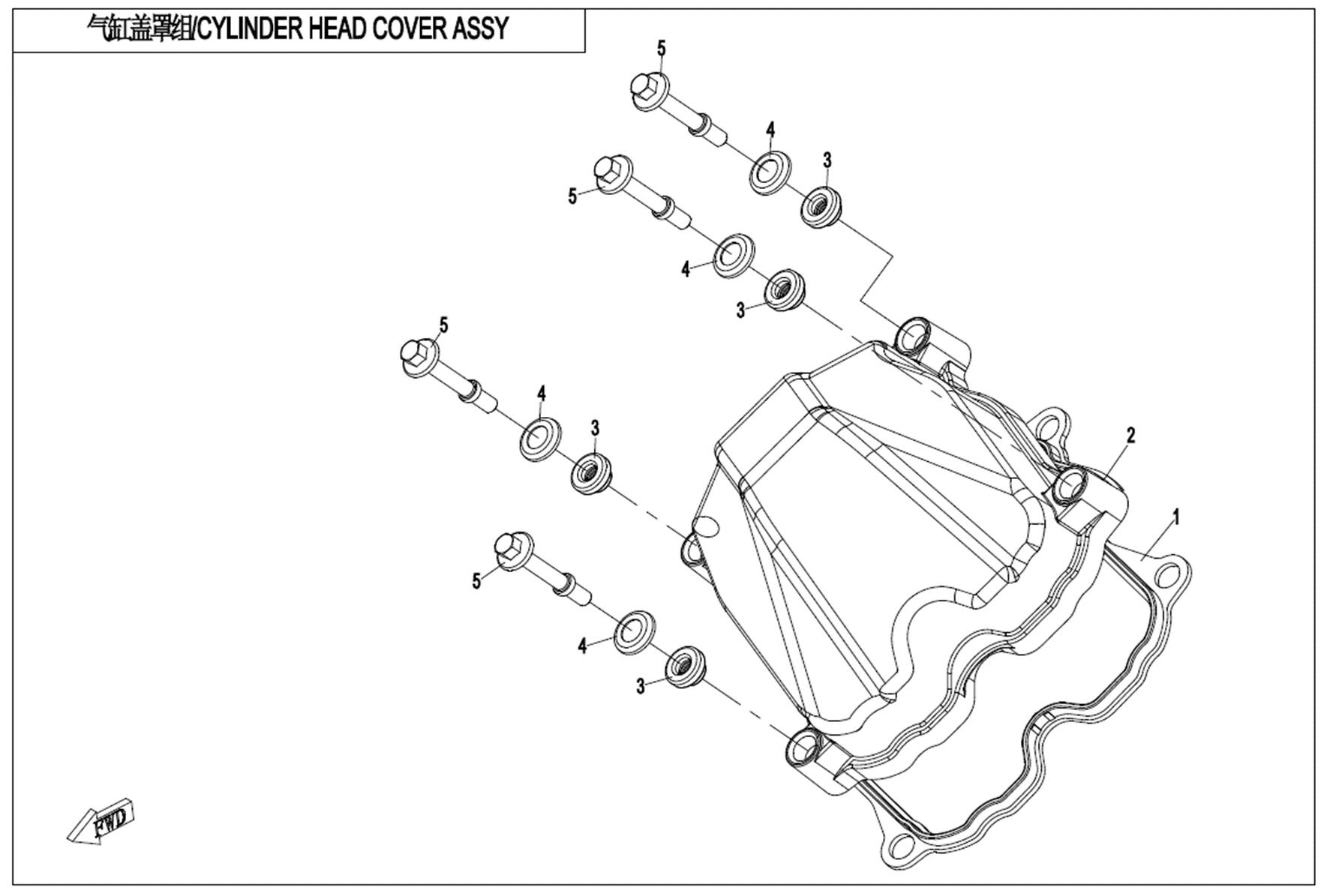

E02-1
CYLINDER HEAD COVER ASSY
E02-2-V2

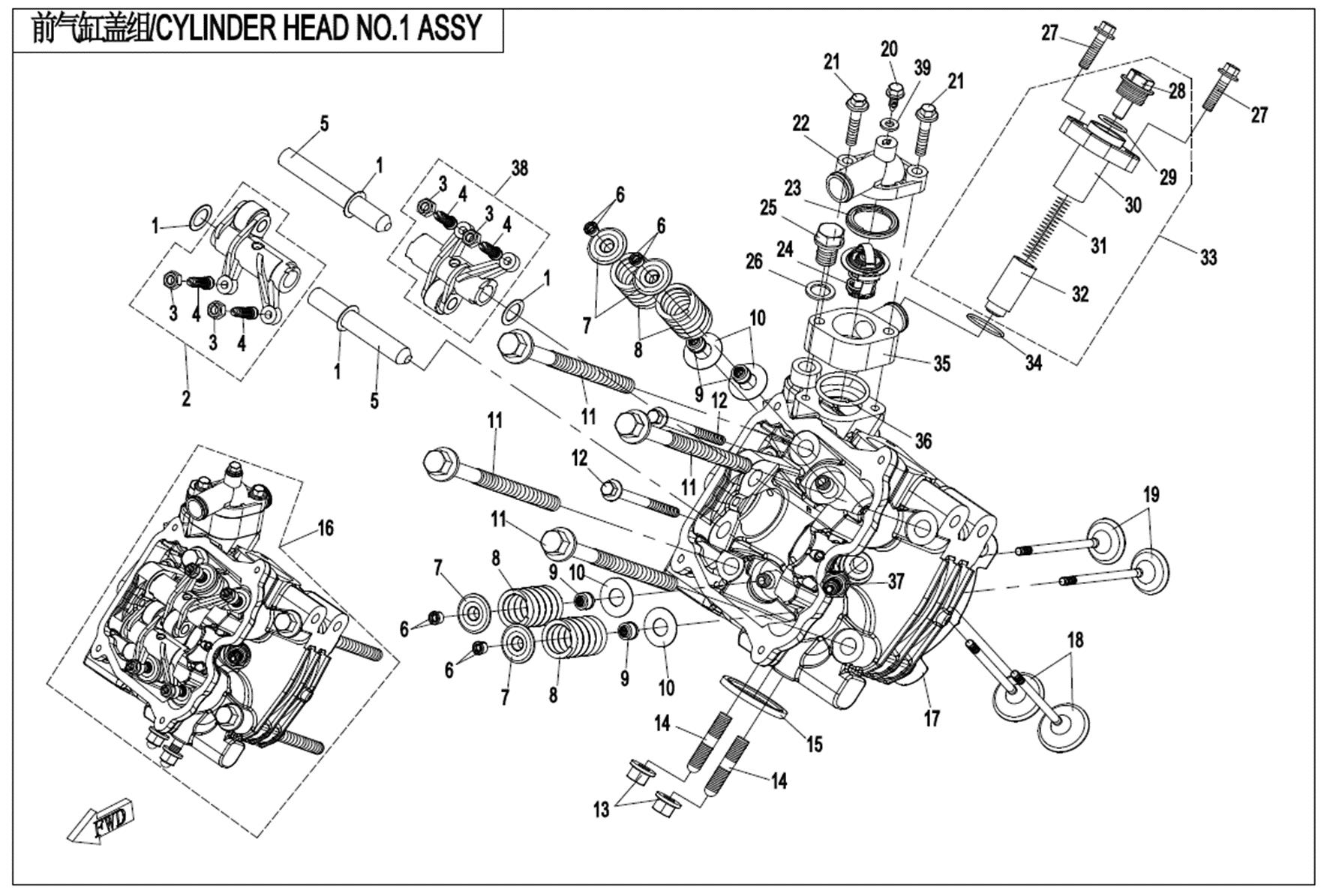

CYLINDER HEAD NO.1 ASSY
E02-3

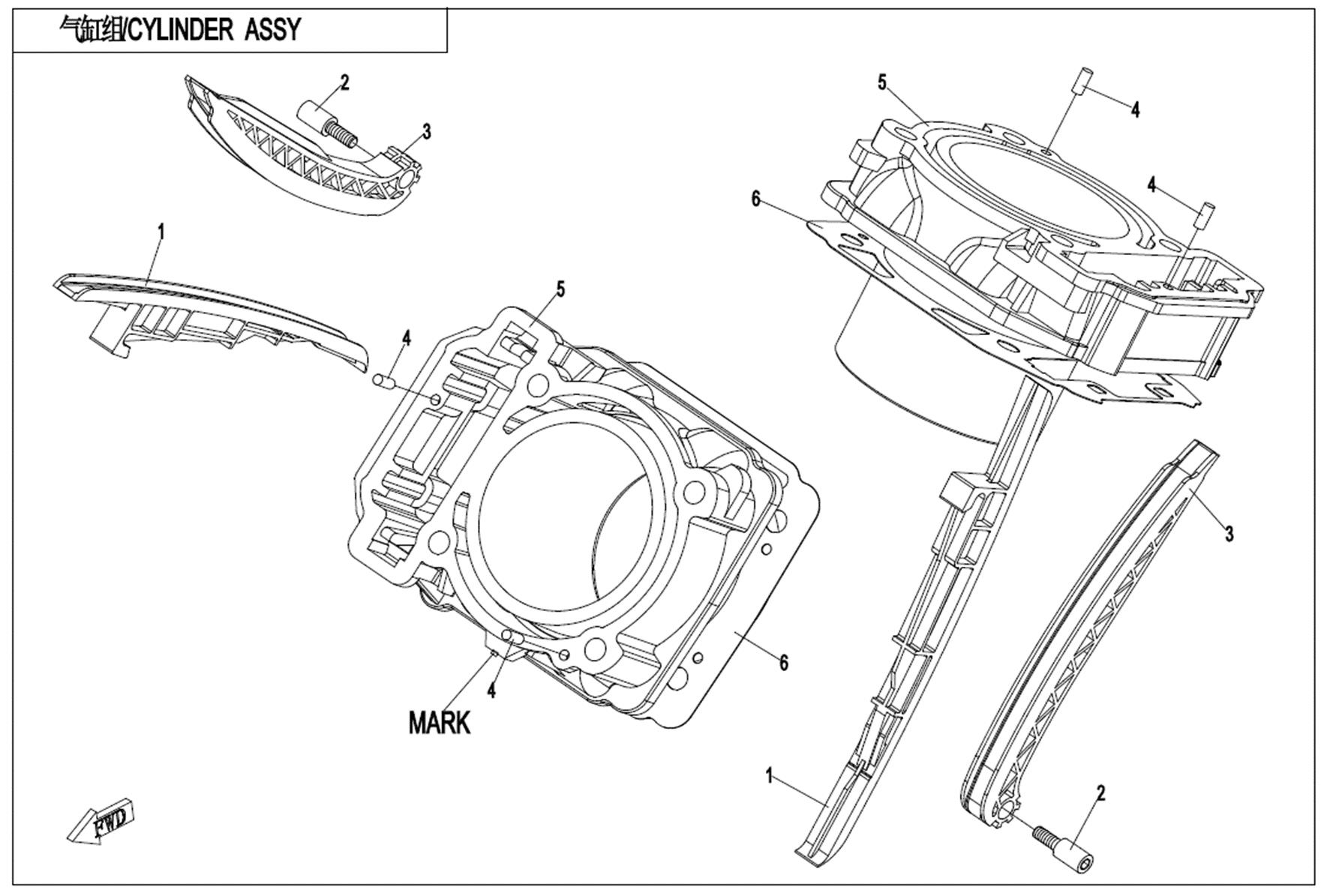

CYLINDER BODY
E02-4

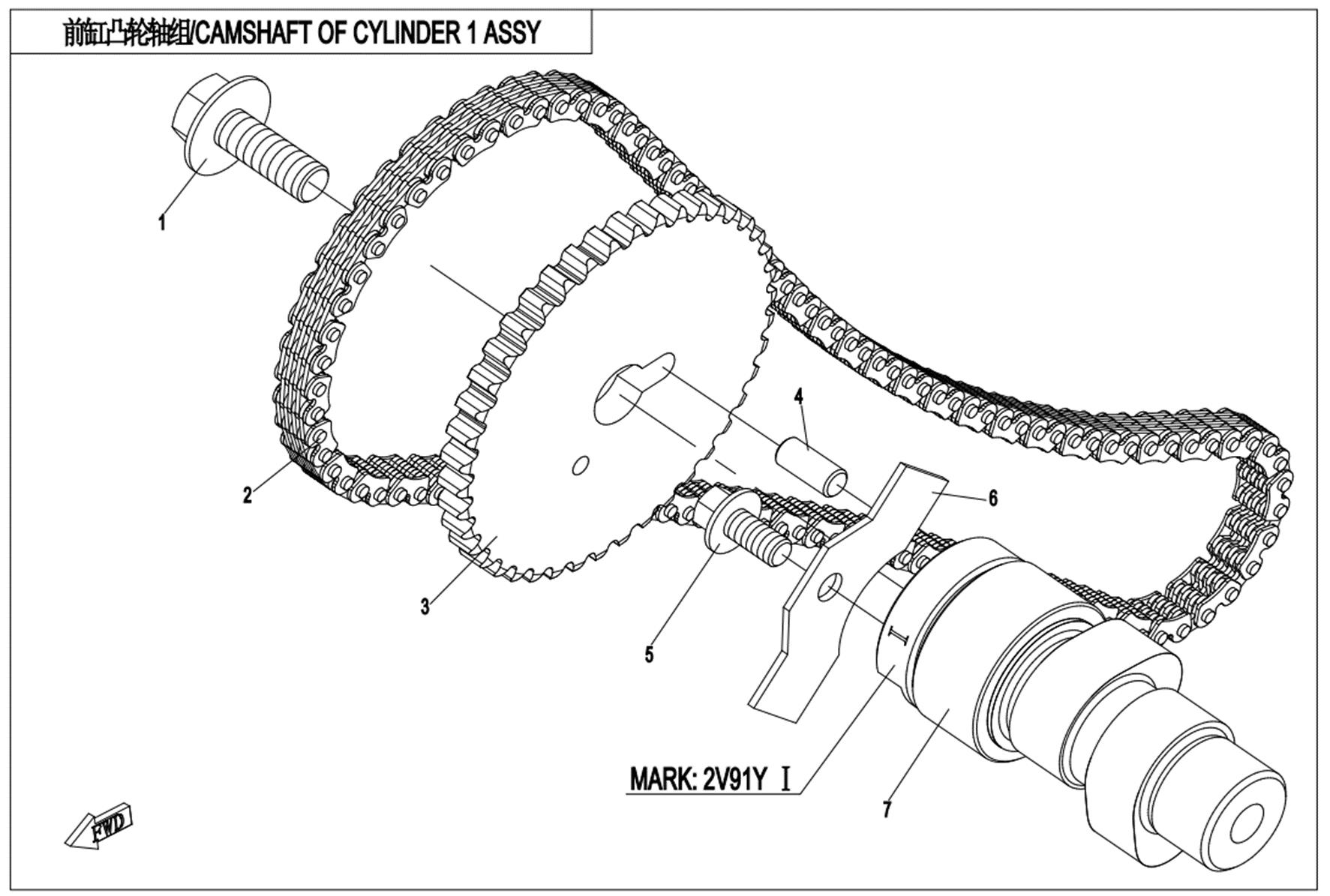

CAMSHAFT OF CYLINDER 1 ASSY
E02-5

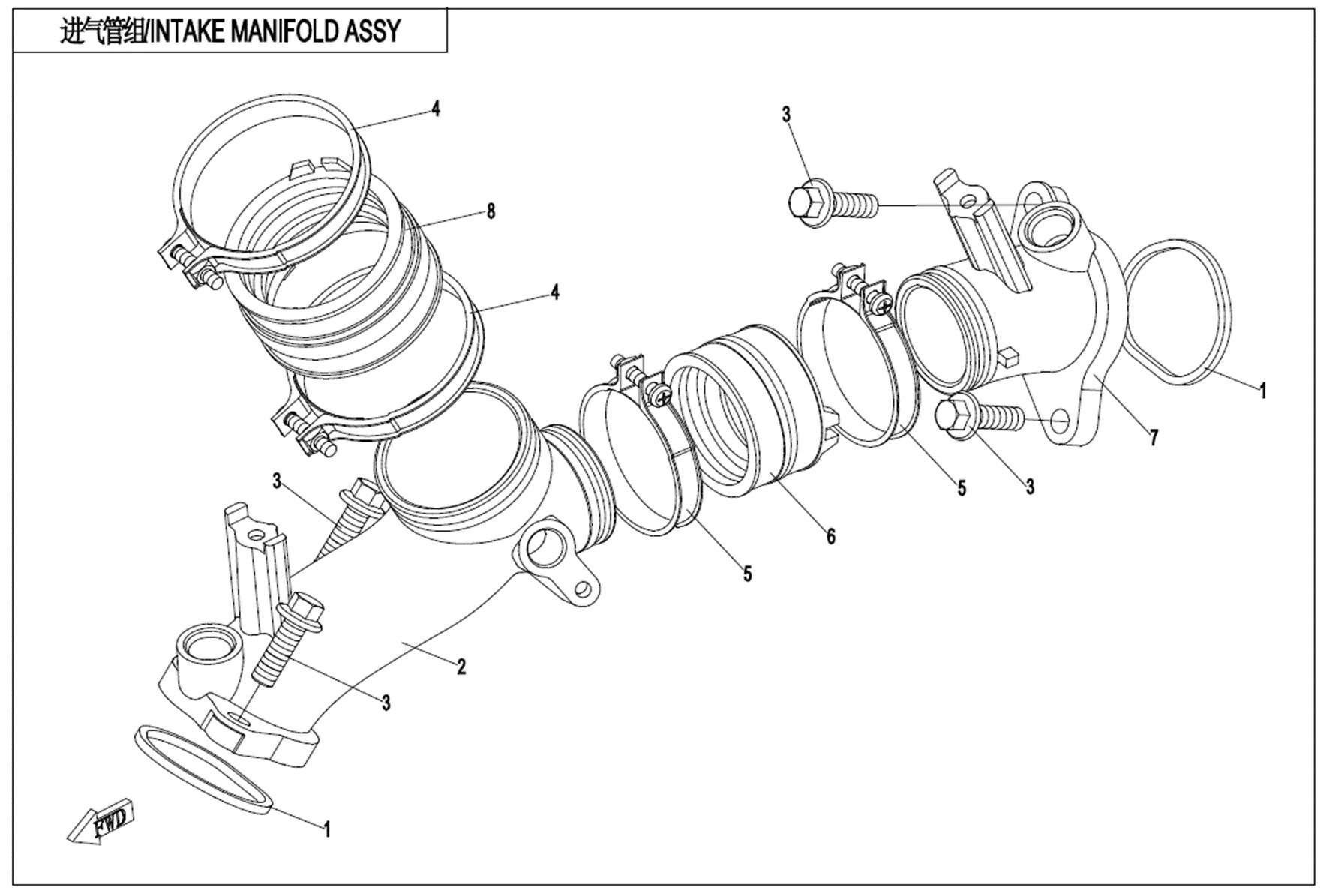

INTAKE MANIFOLD ASSY
E02-6-V3

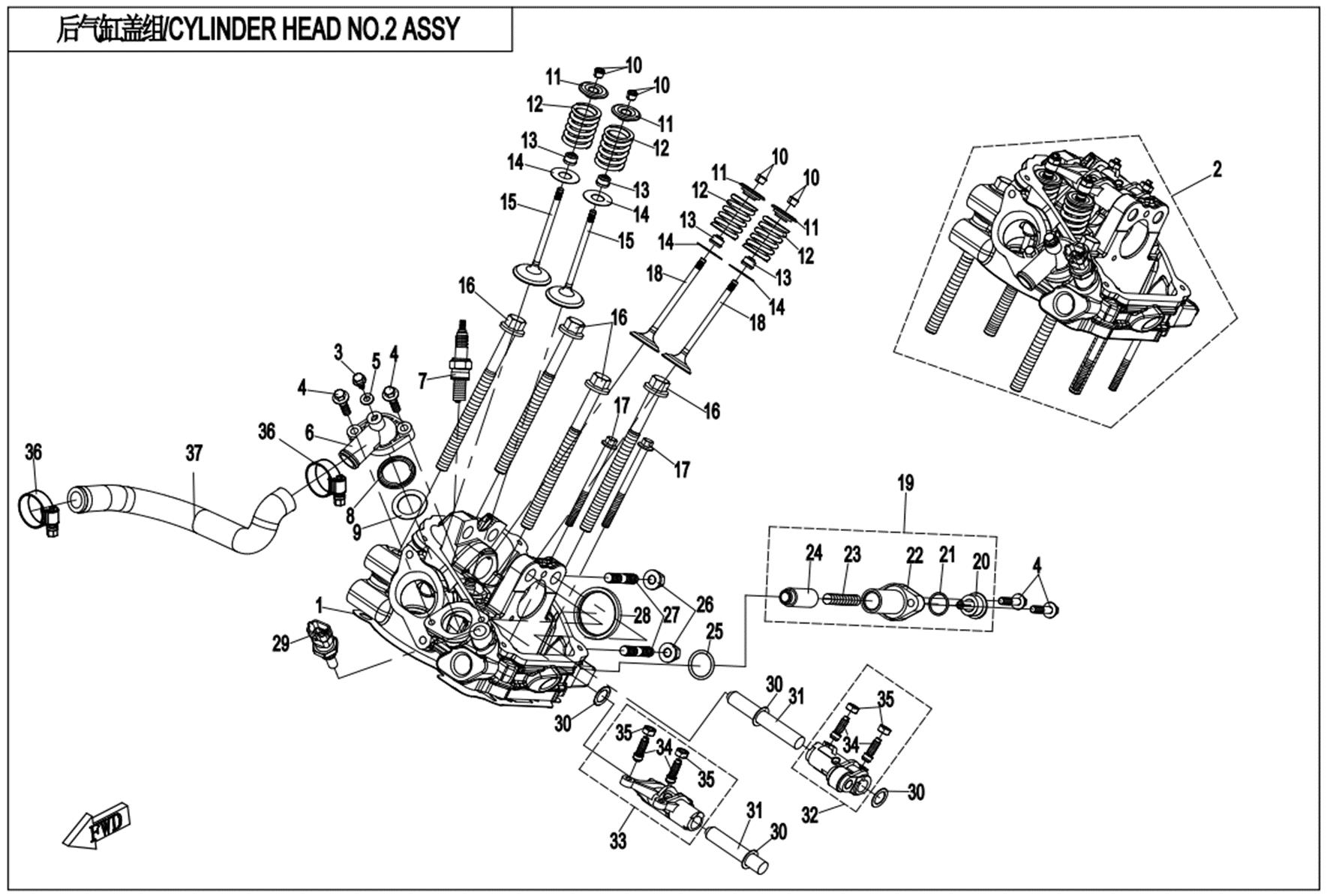

CYLINDER HEAD NO.2 ASSY
E02-7
CAMSHAFT OF CYLINDER 2 ASSY
E03-B

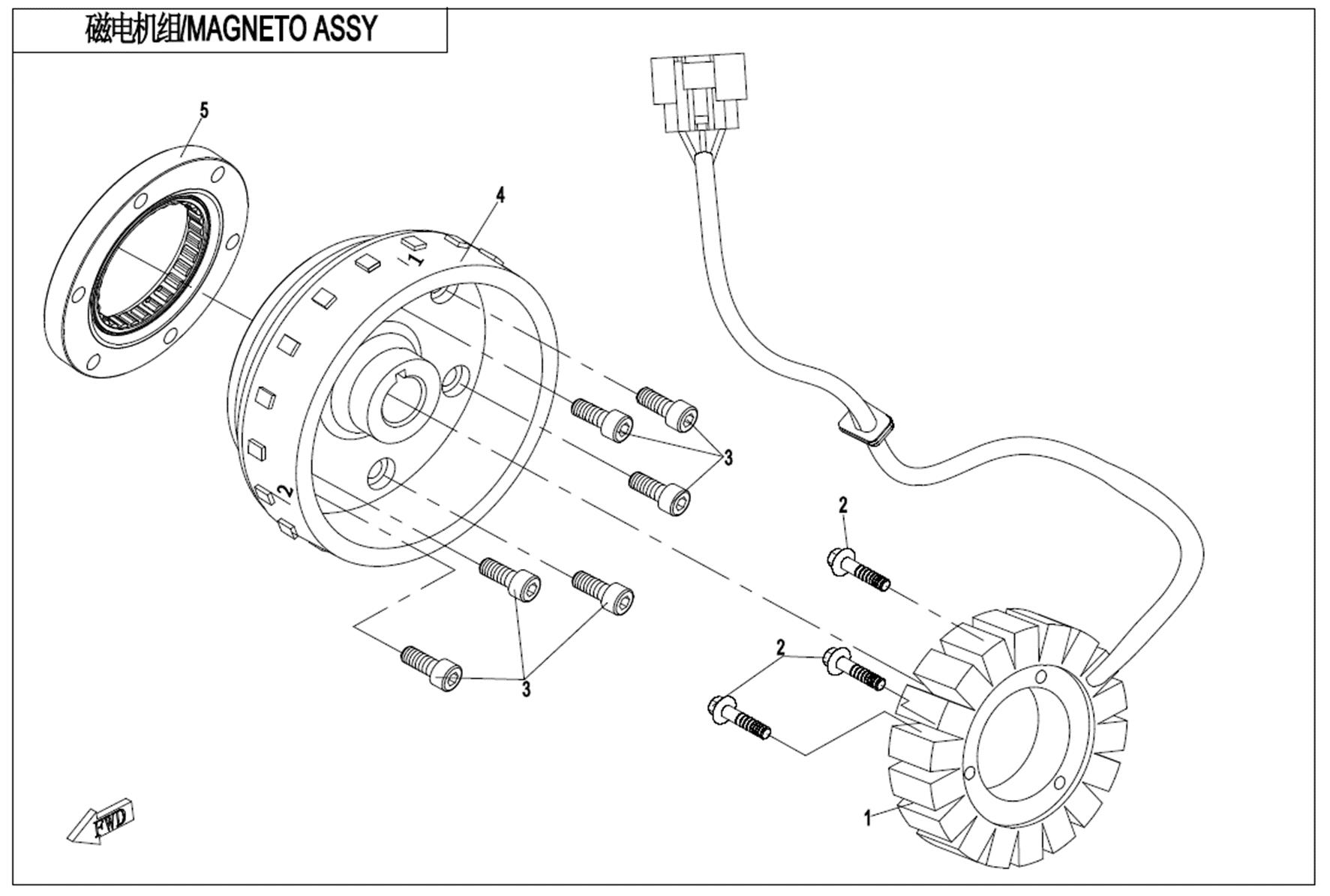

MAGNETO ASSY.(FOR EPS)
E04

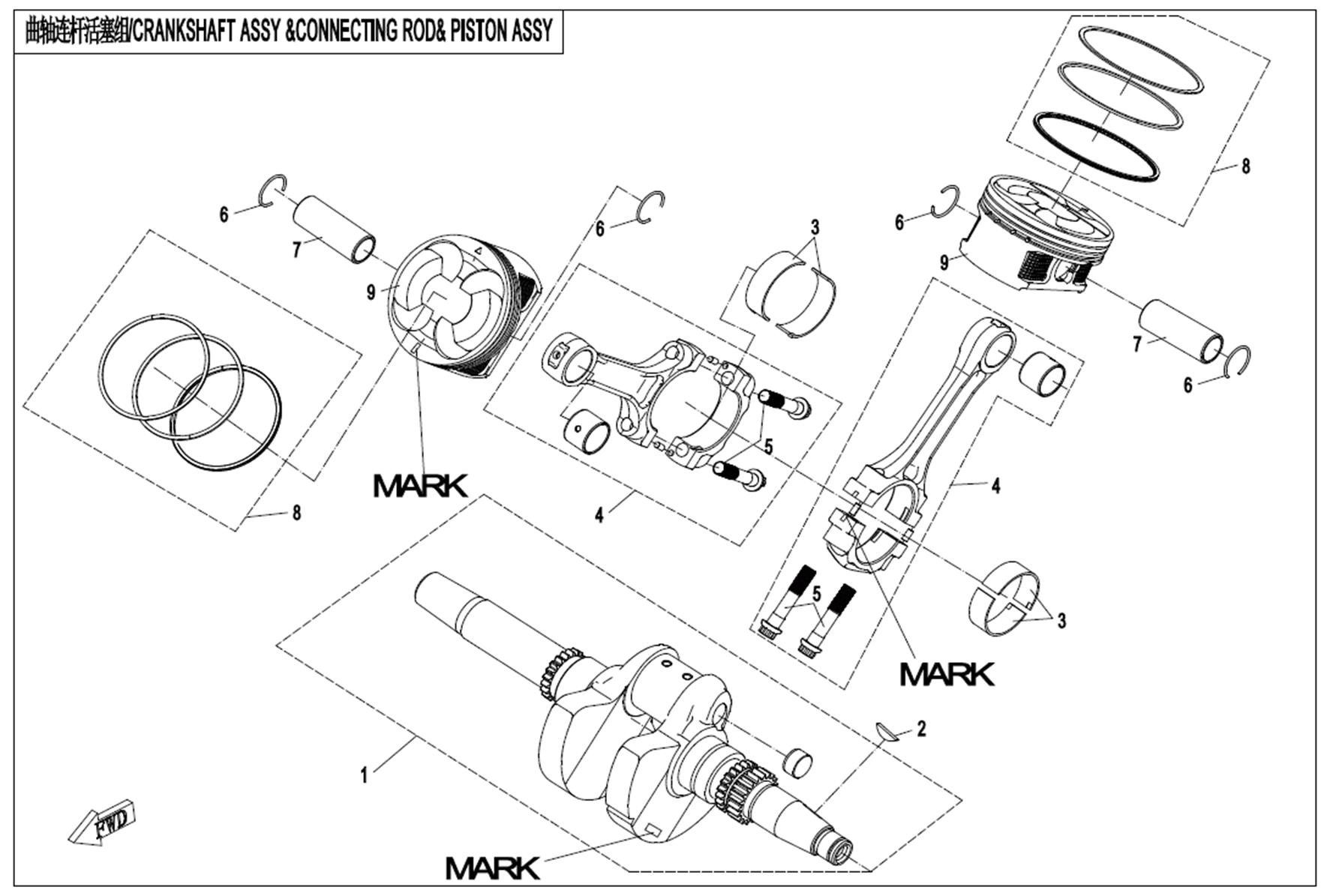

CRANKSHAFT?CONNECTING ROD?PISTON ASSY
E05-B

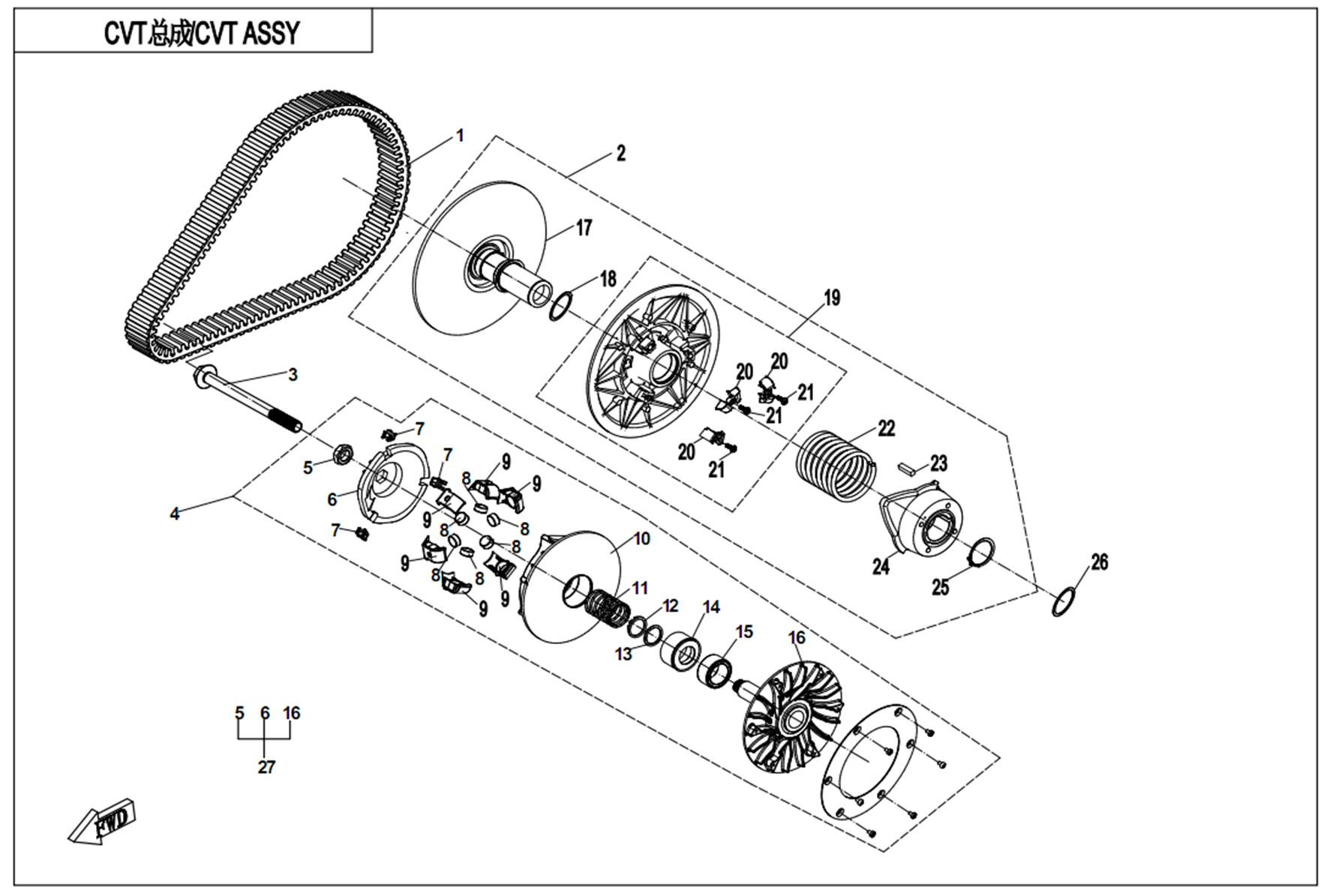

CVT ASSY
E06-1

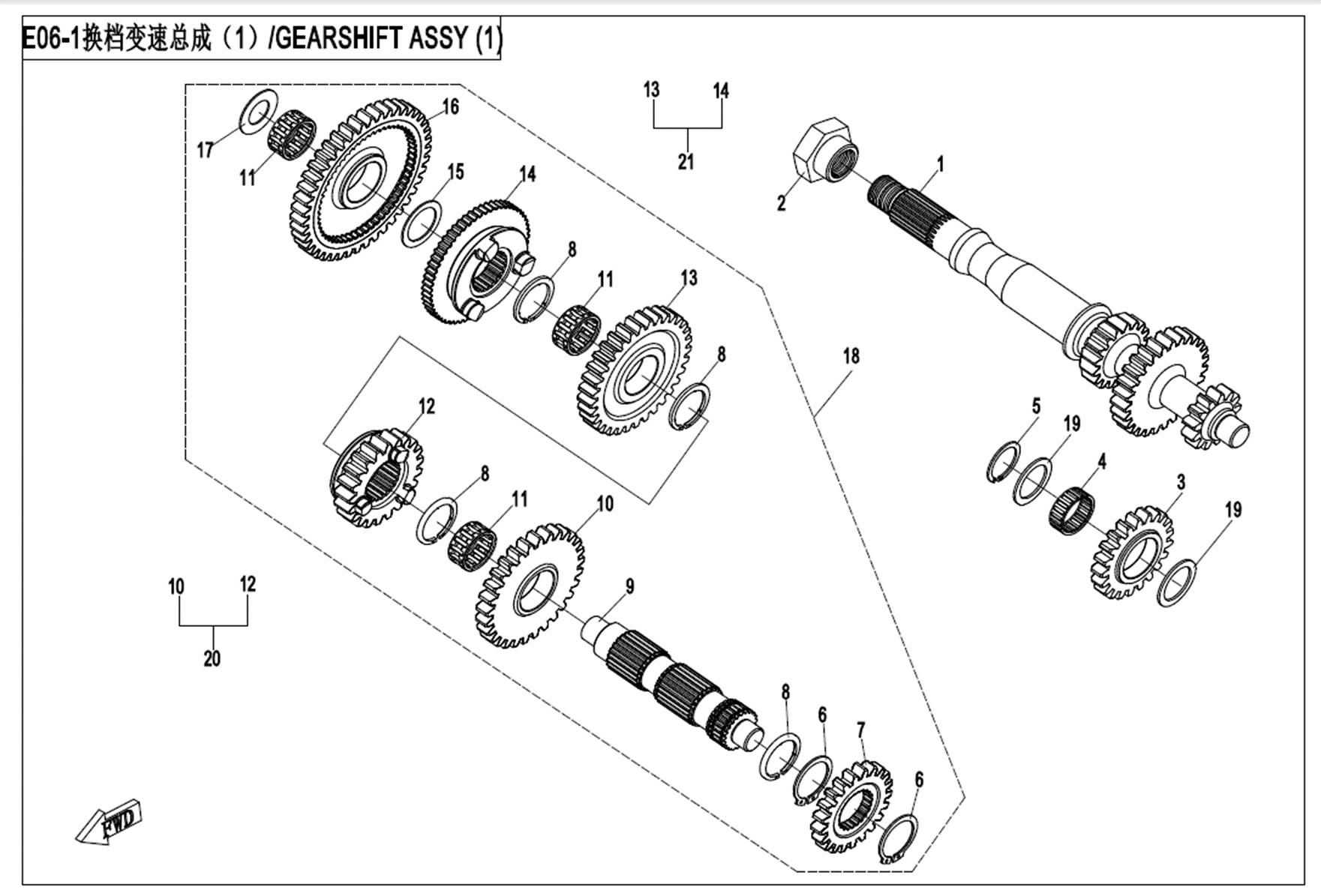

TRANSMISSION SYSTEM(?)
E06-2-V3
TRANSMISSION SYSTEM(?)
E06-3
TRANSMISSION SYSTEM(?)
E07-1

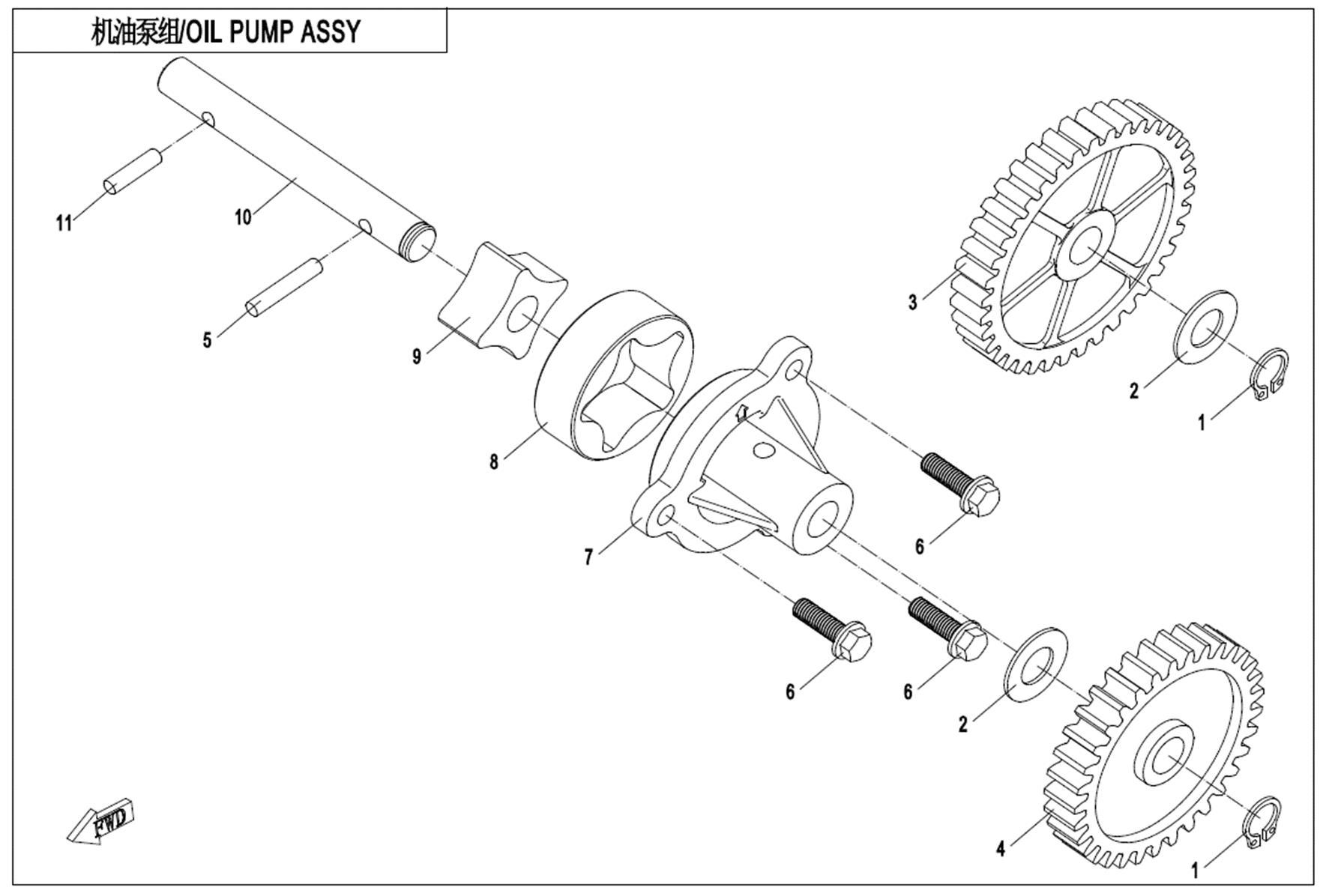

OIL PUMP ASSY
E07-2-V3
OIL COOLING SYSTEM.
E08

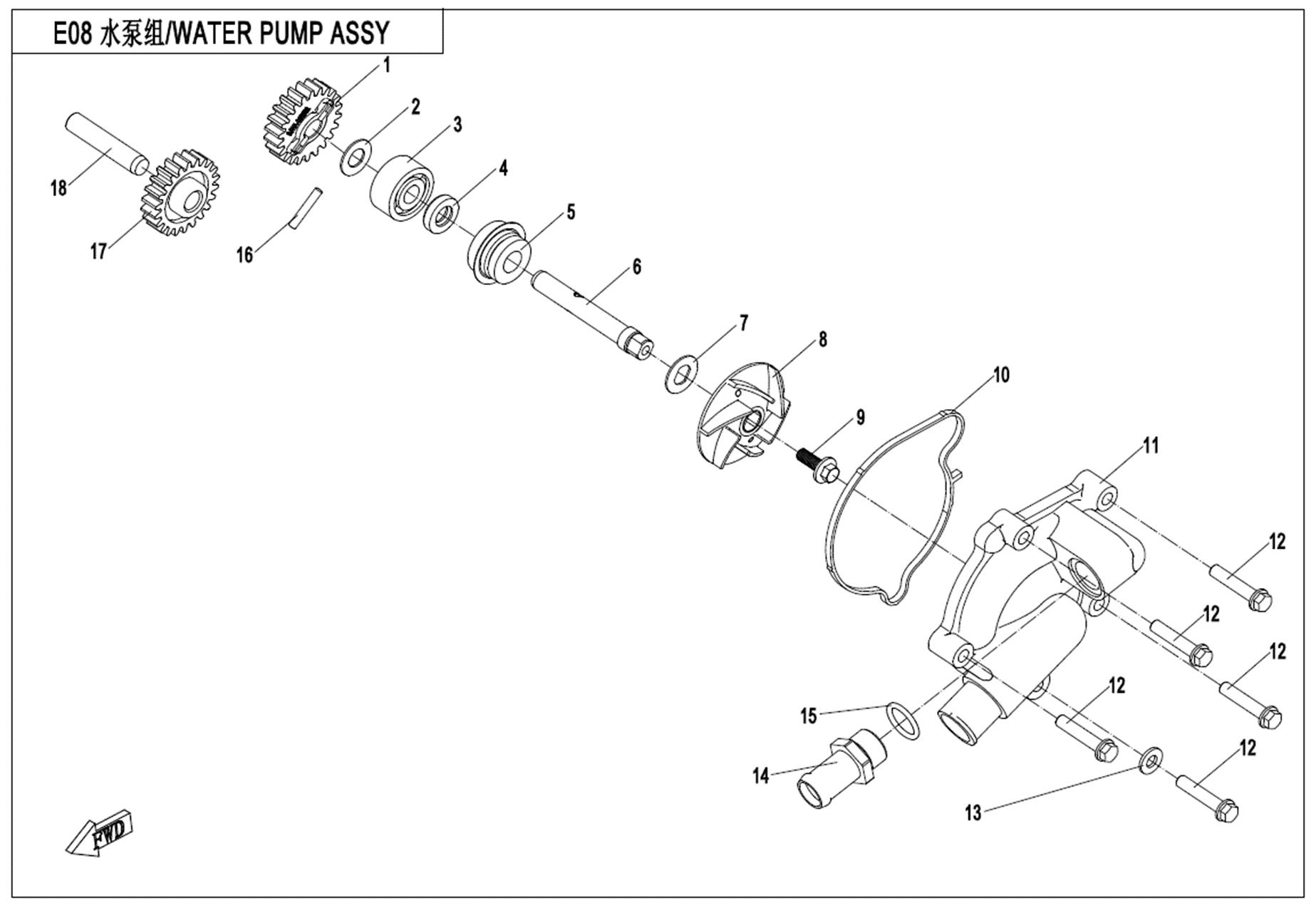

WATER PUMP ASSY.

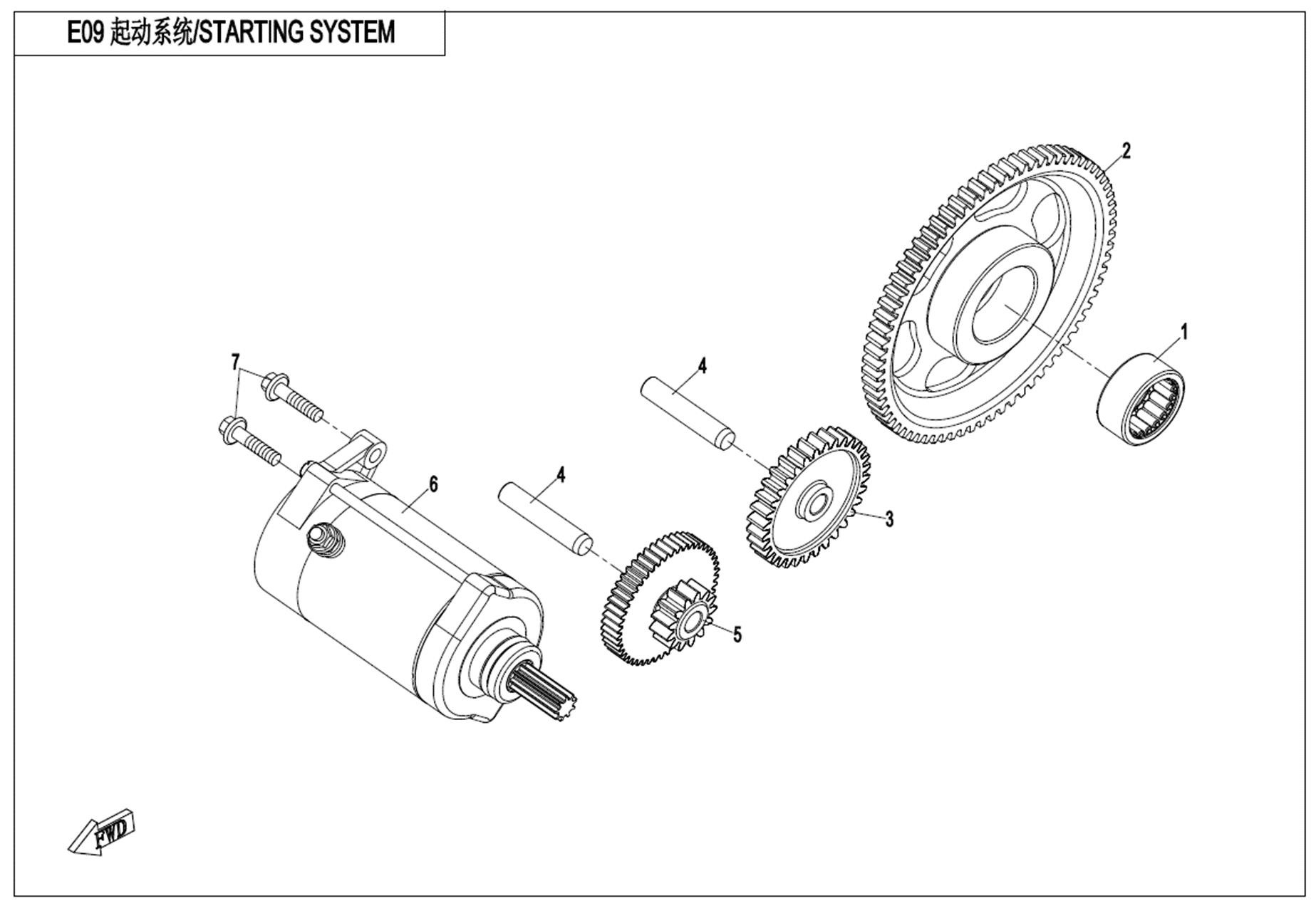

E09
STARTING SYSTEM

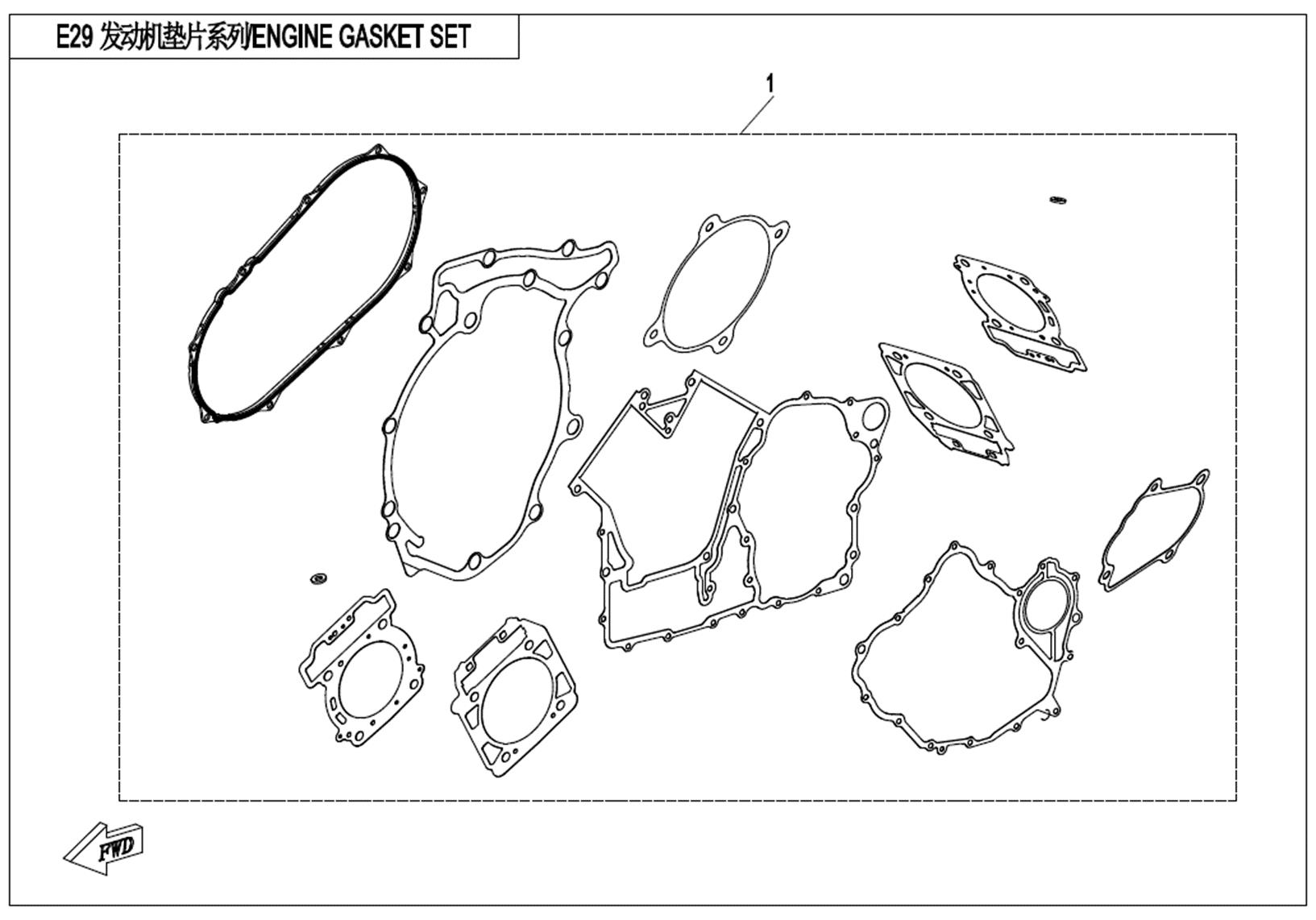

E29
