Genuine Parts Diagrams for 2020 CFORCE 1000 EPS - CF1000AUChange Model
Showing 65 parts diagrams.
F00-1

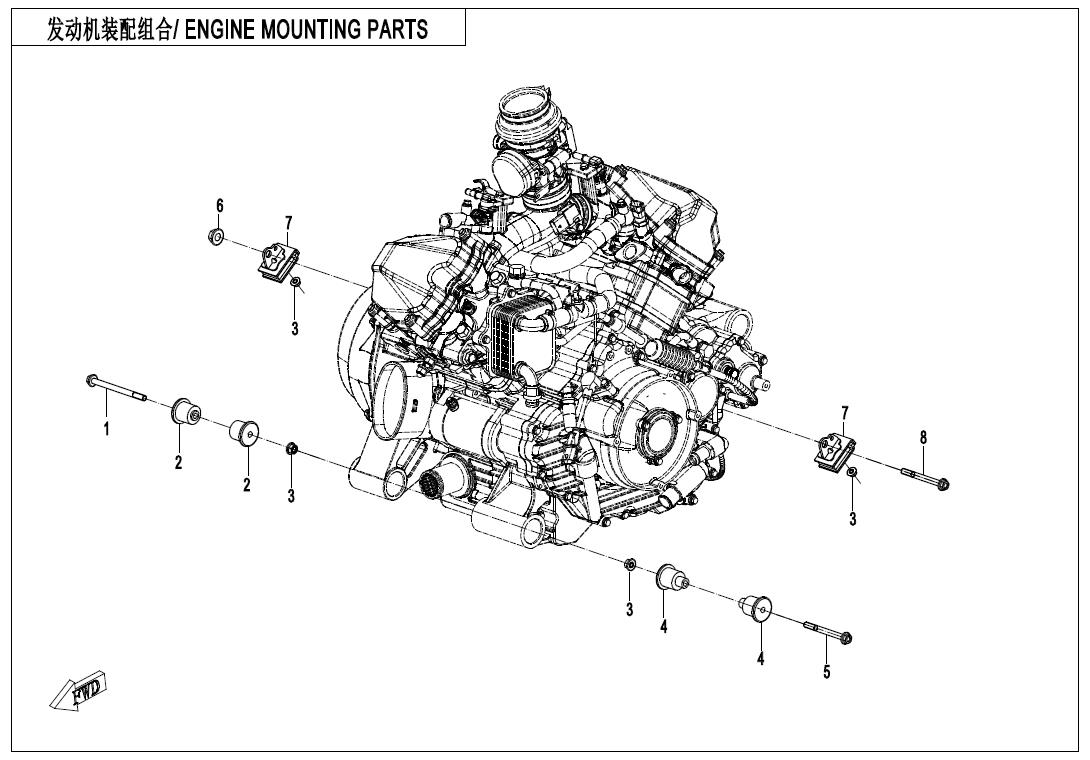

ENGINE MOUNTING PARTS
F00-2-V2

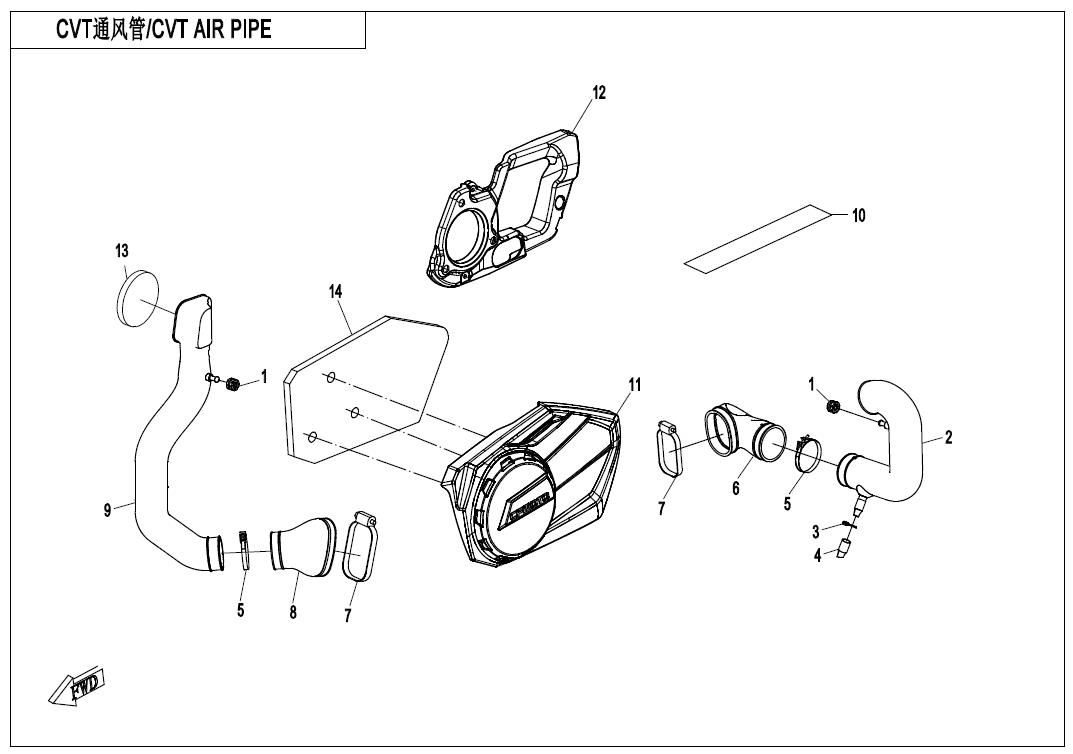

CVT AIR PIPE
F01-A

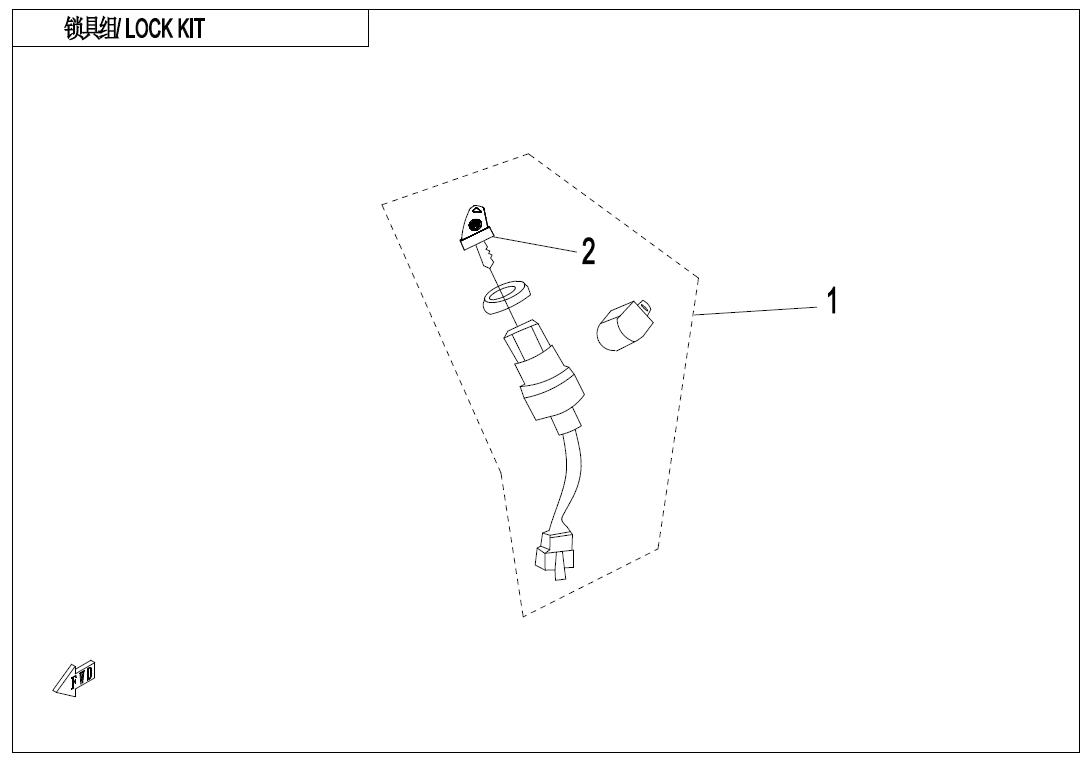

LOCK KIT
F02-1-B-V3

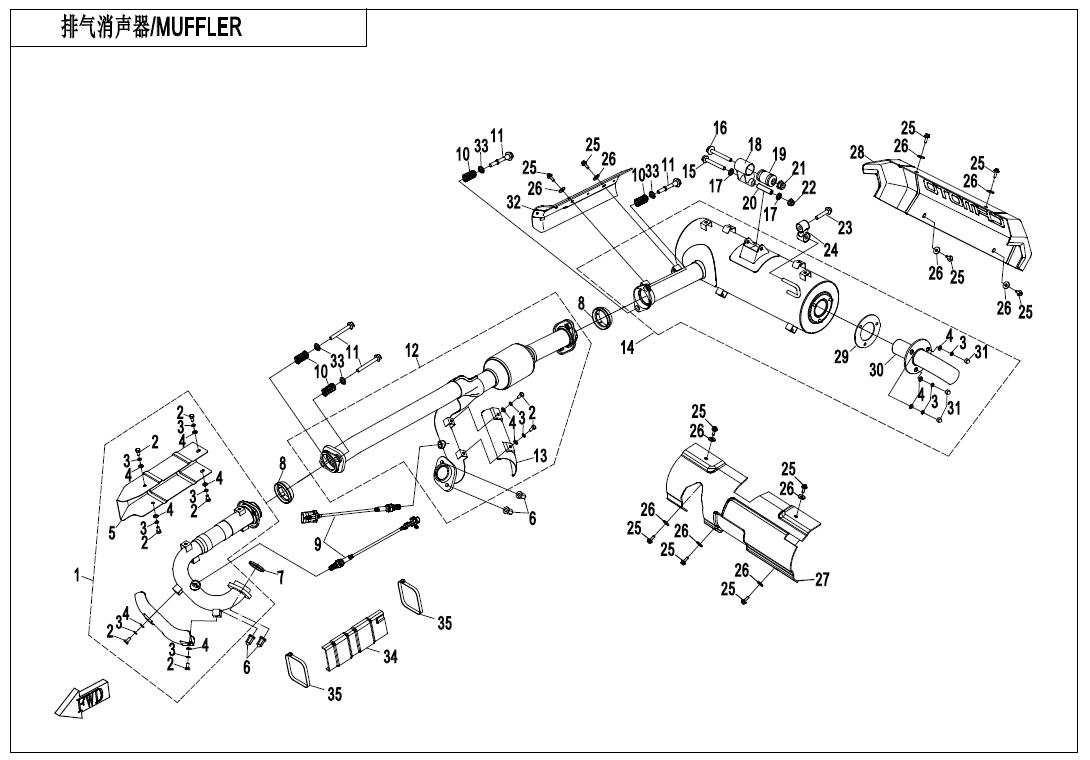

MUFFLER(NA)
F02-2

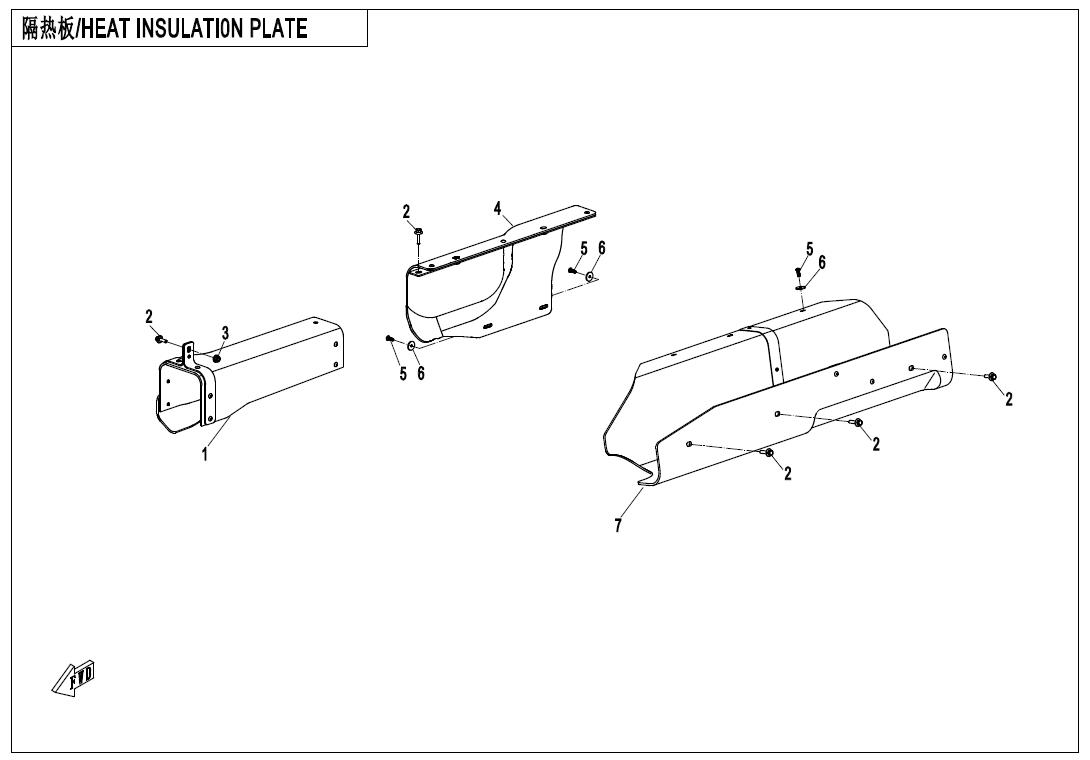

HEAT INSULATION PLATE

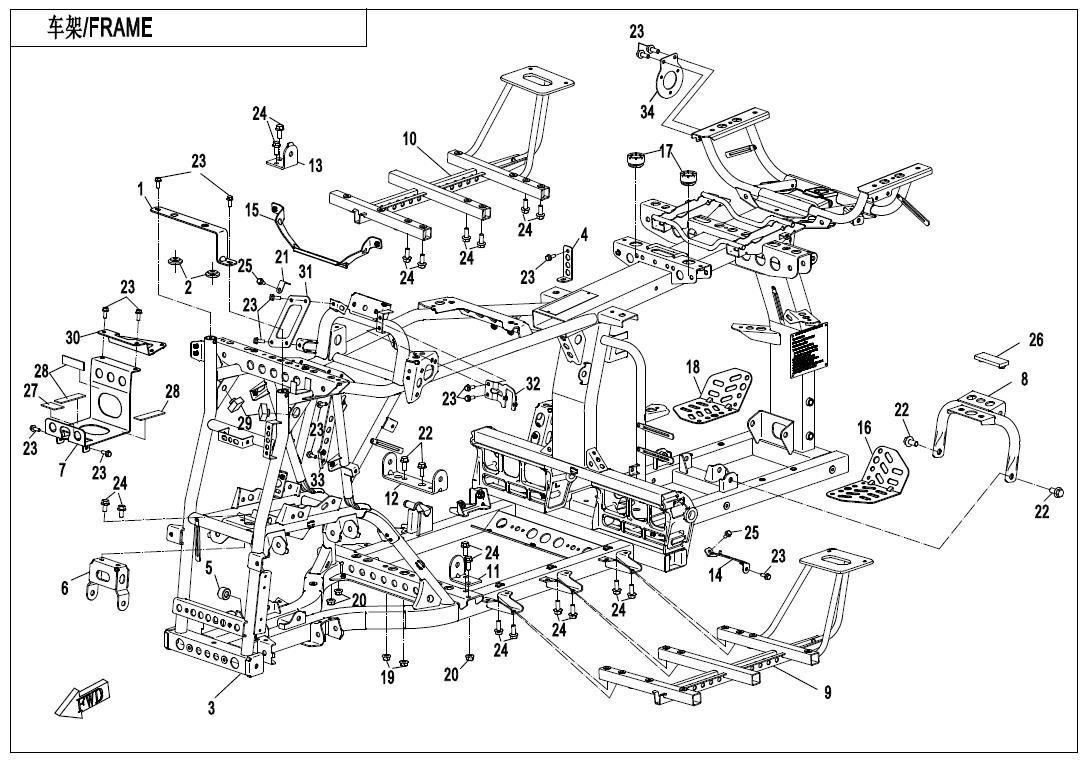

F03-V4
FRAME
F04-1

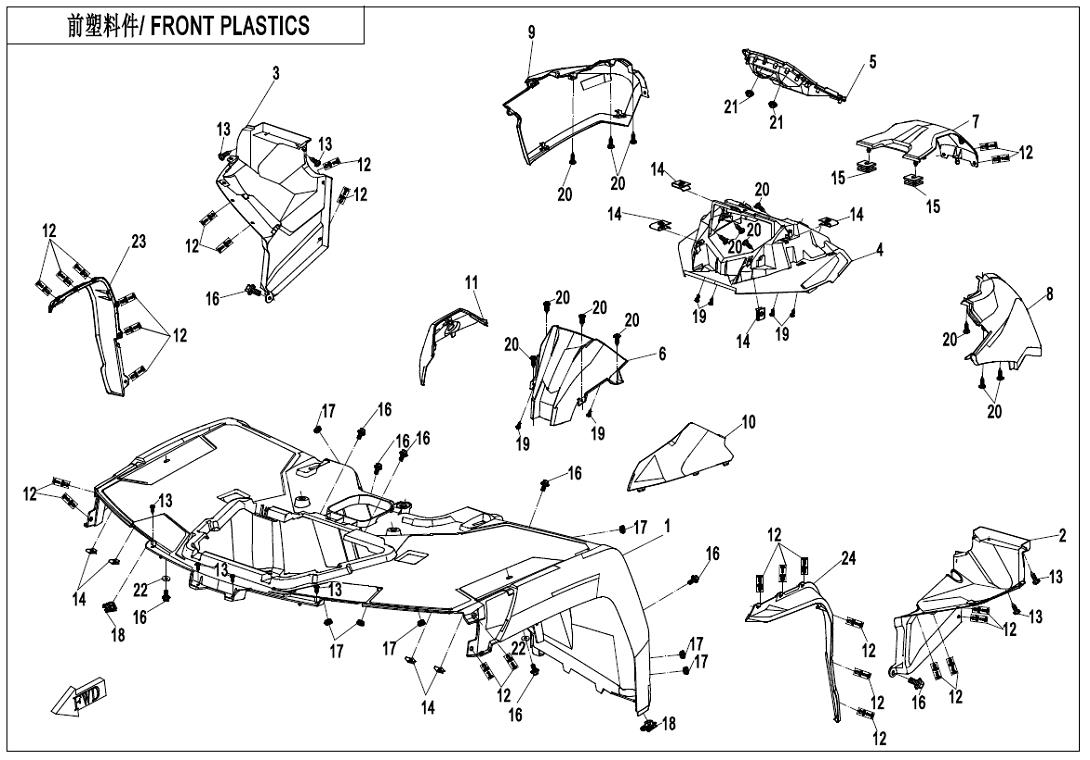

FRONT PLASTICS
F04-2

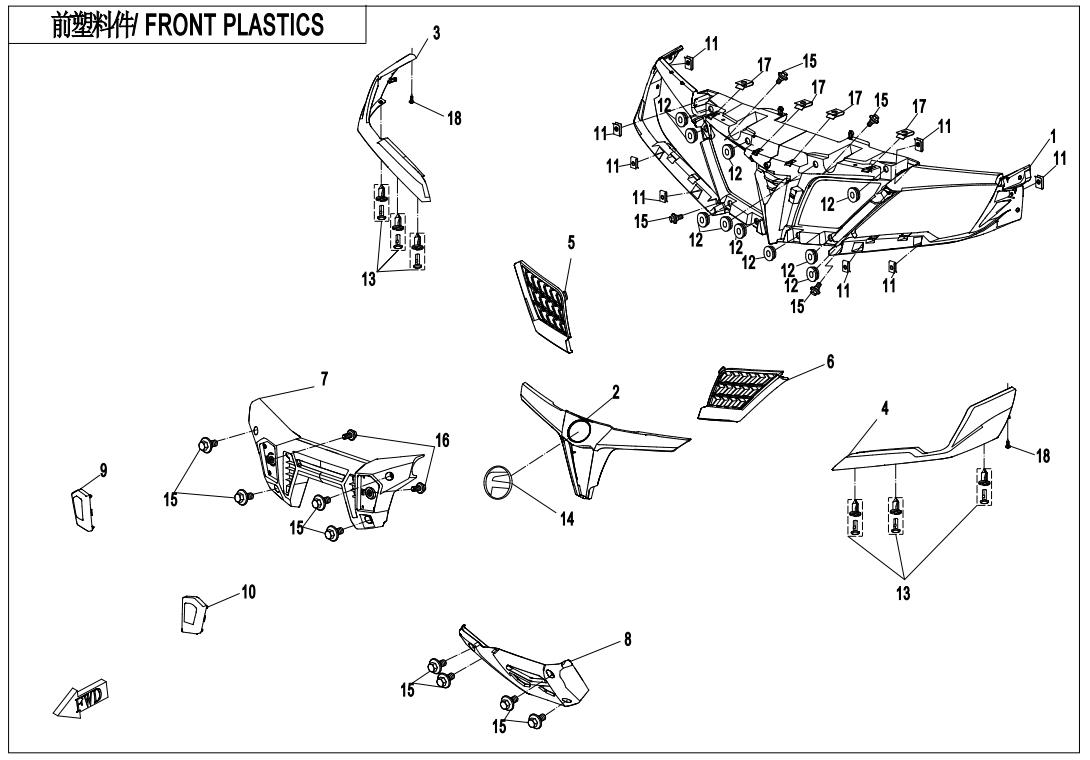

FRONT PLASTICS
F04-3-A-V3

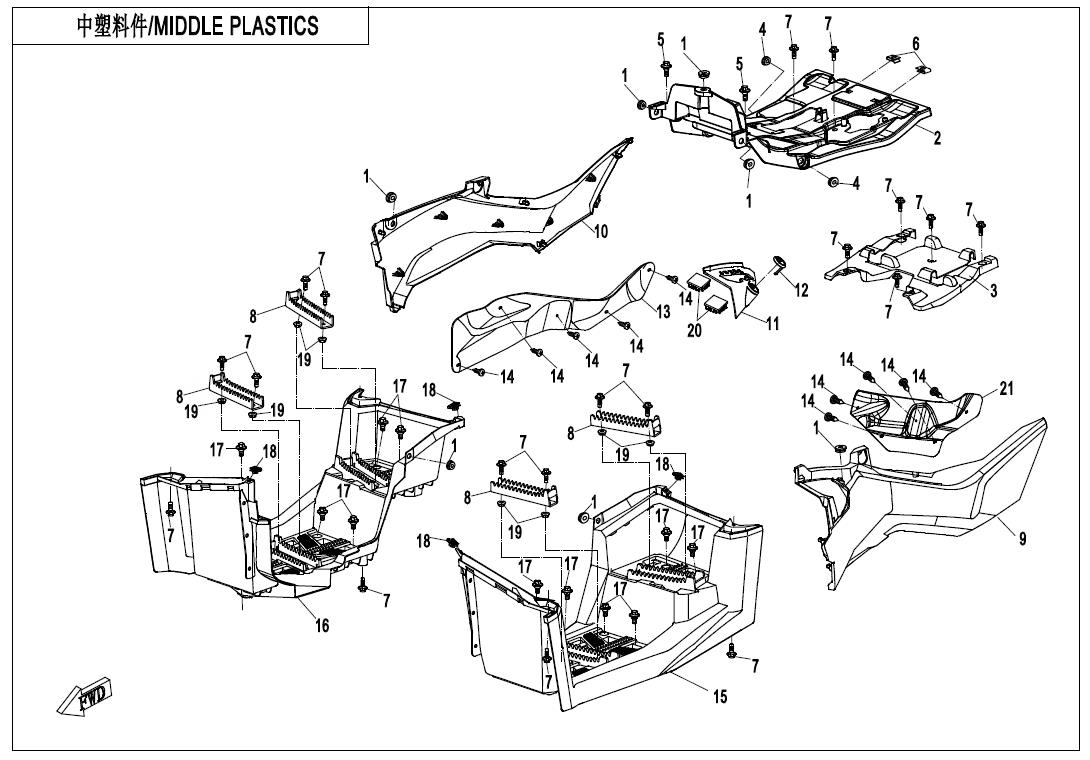

MIDDLE PLASTICS
F04-4

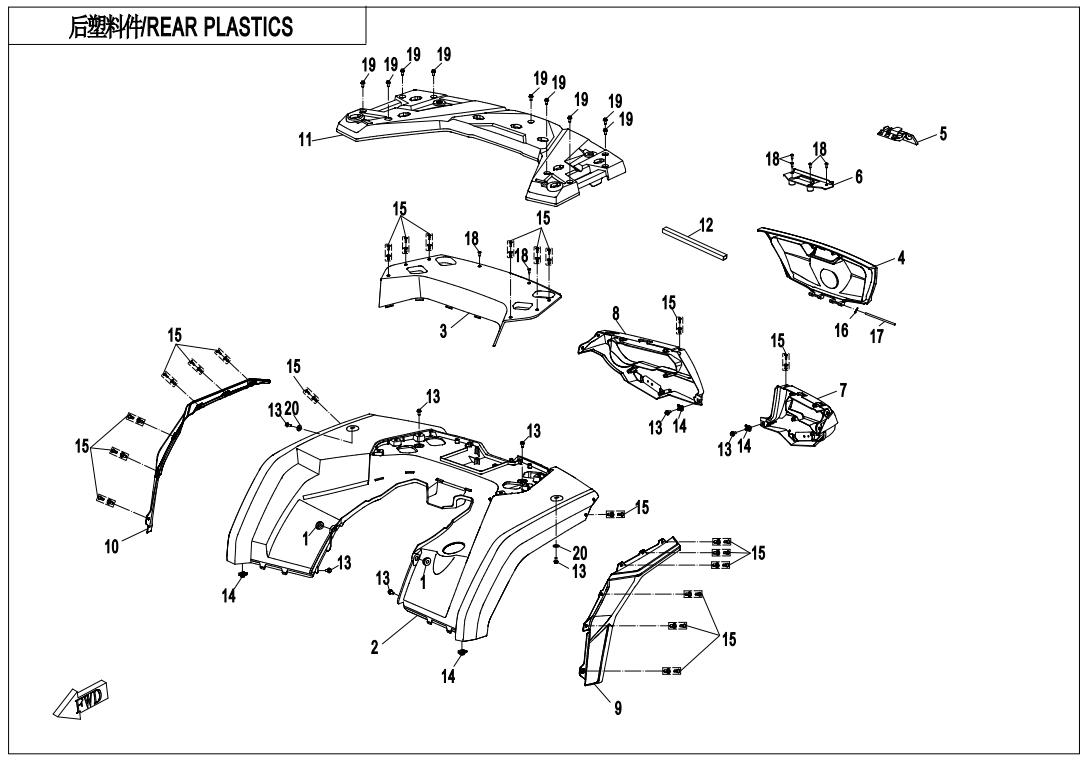

REAR PLASTICS
F04-5

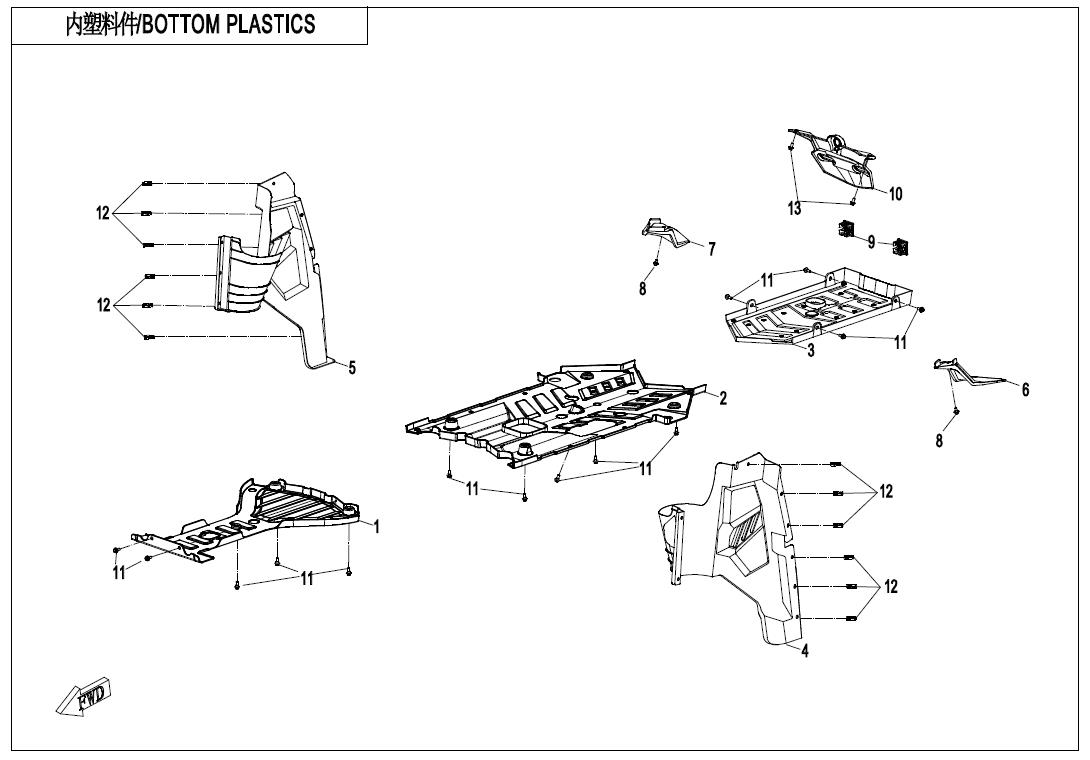

BOTTOM PLASTICS
F04-6-A

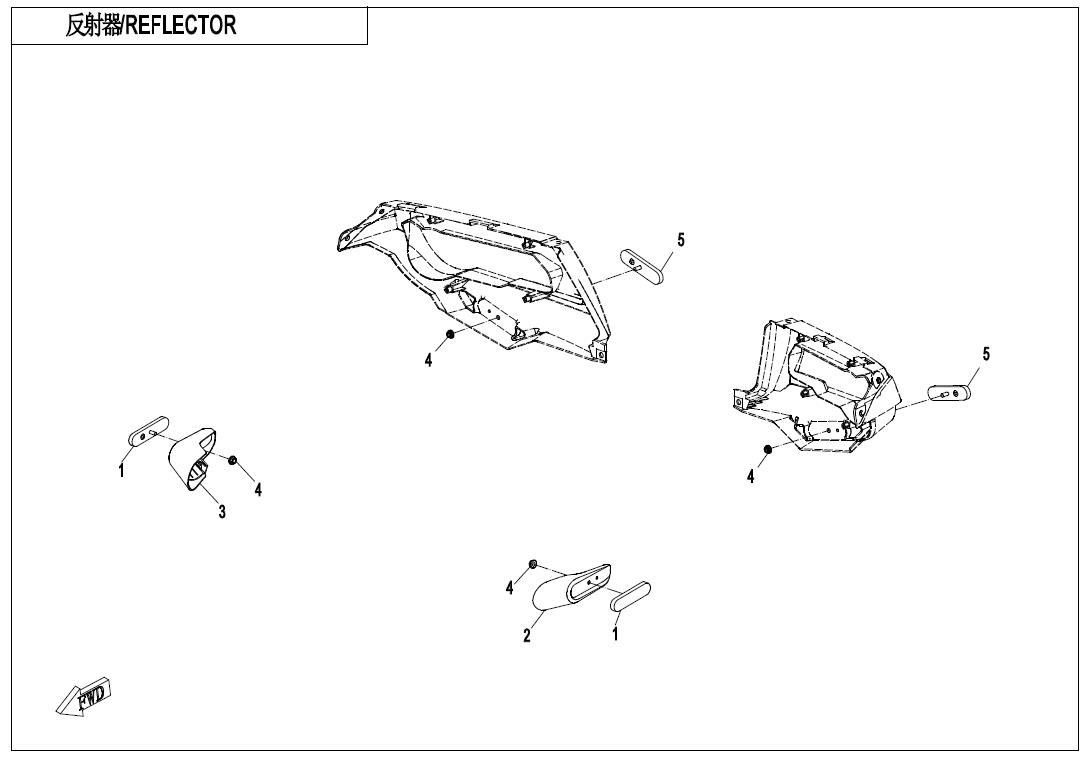

REFLECTOR
F05-1

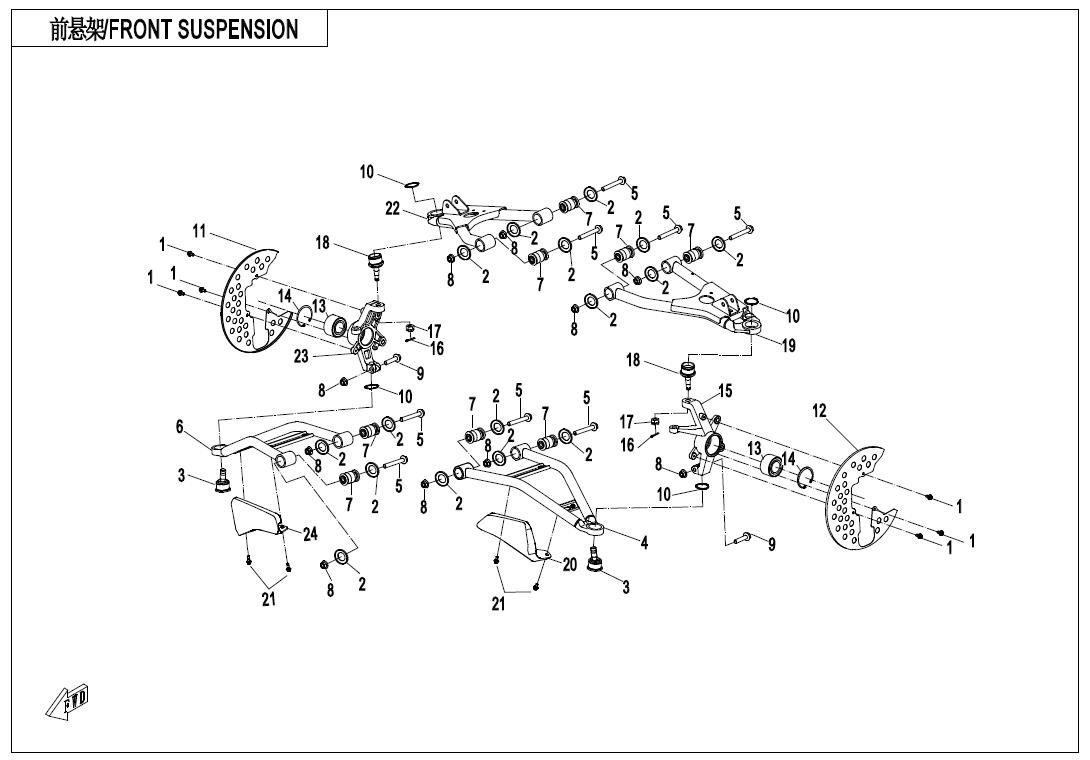

FRONT SUSPENSION

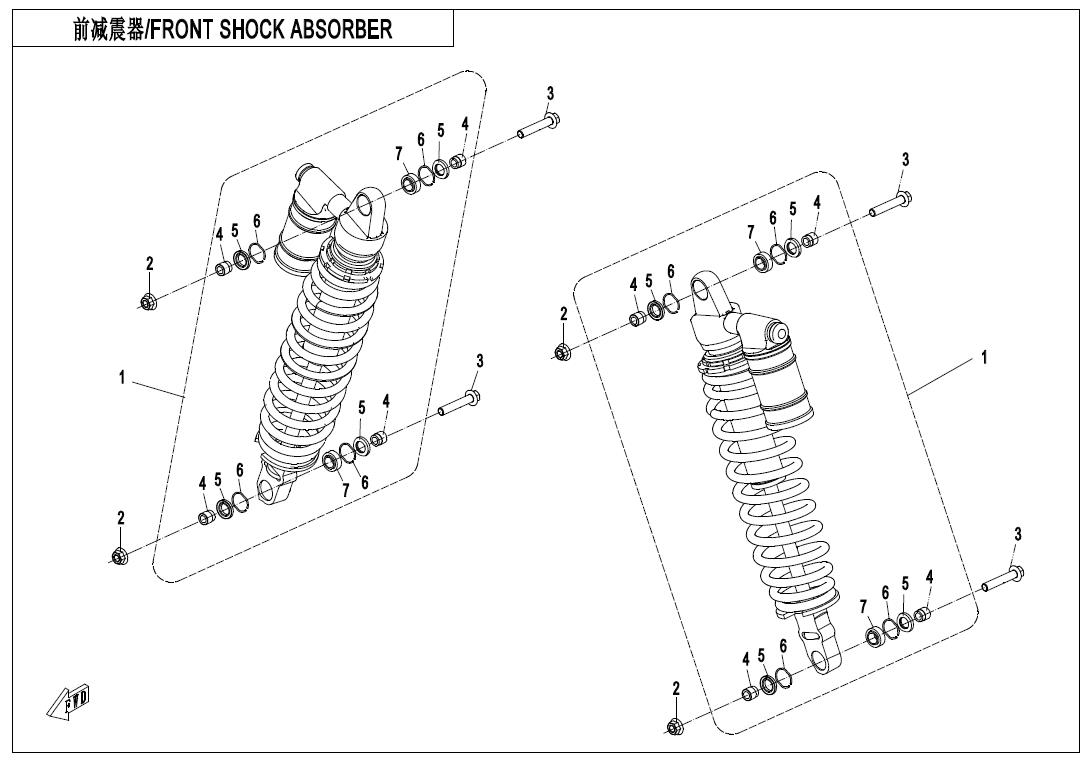

F05-2-B
FRONT SHOCK ABSORBER(GAS)
F06-1-B

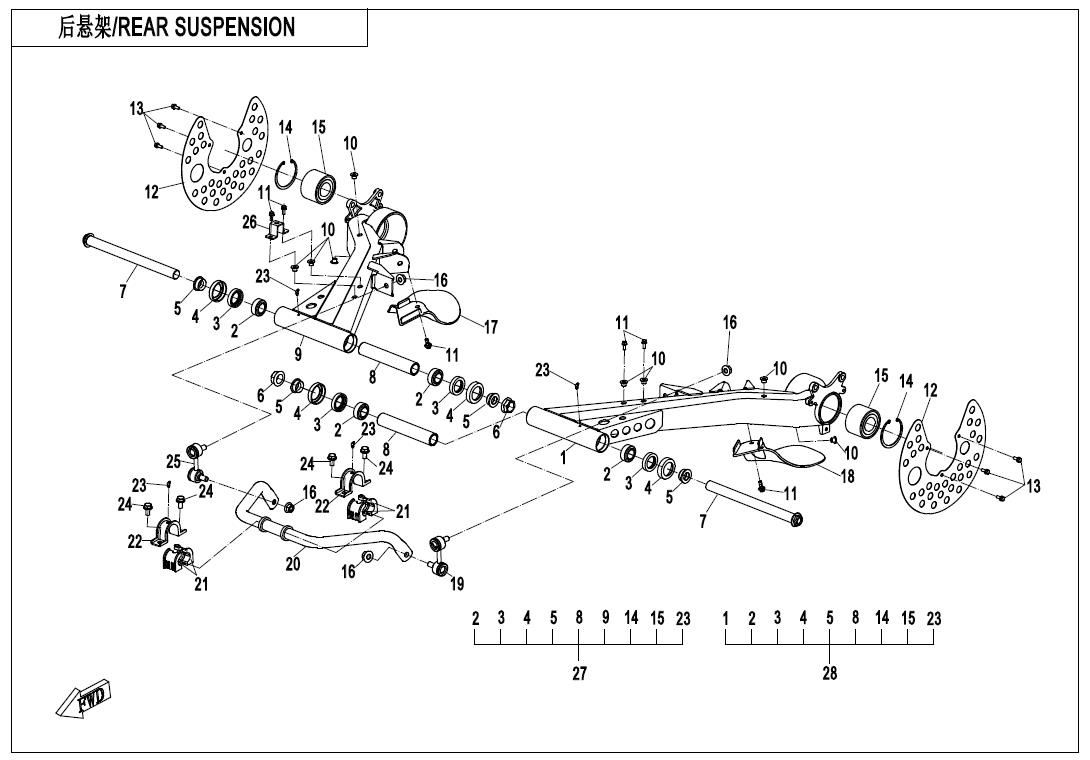

REAR SUSPENSION(CASTING)
F06-2-B
REAR SHOCK ABSORBER(GAS)
F07

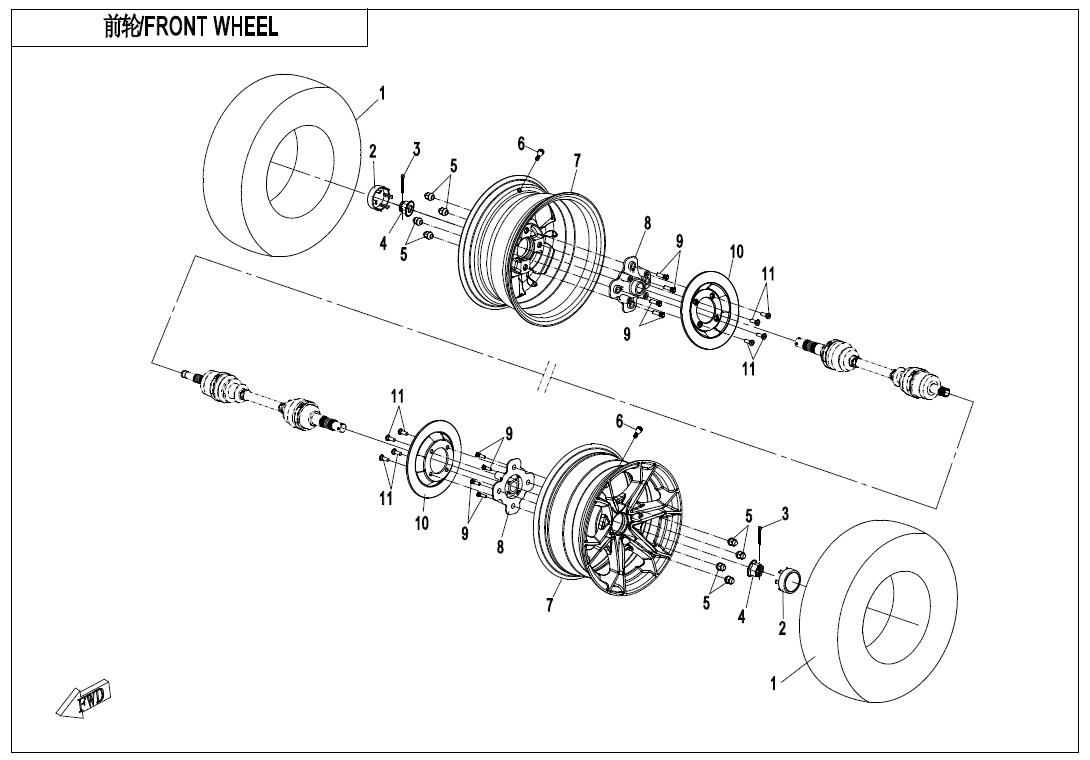

FRONT WHEEL
F08-B

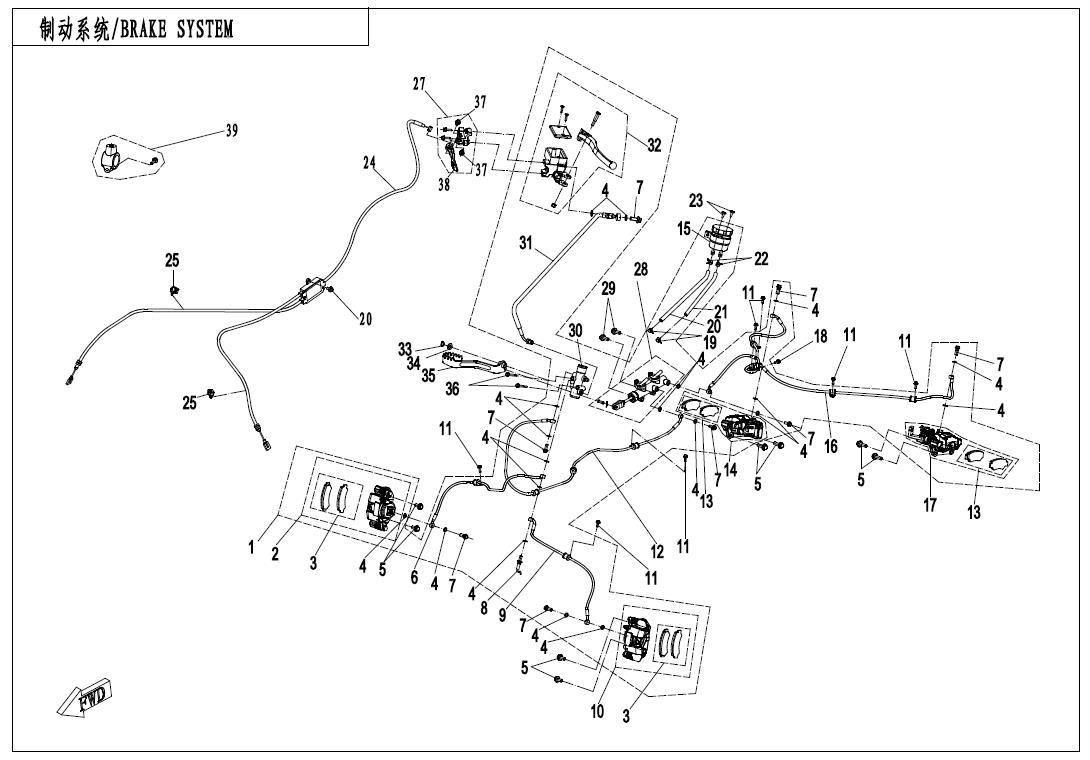

BRAKE SYSTEM-RH,PARKING
F10-1-A-V4

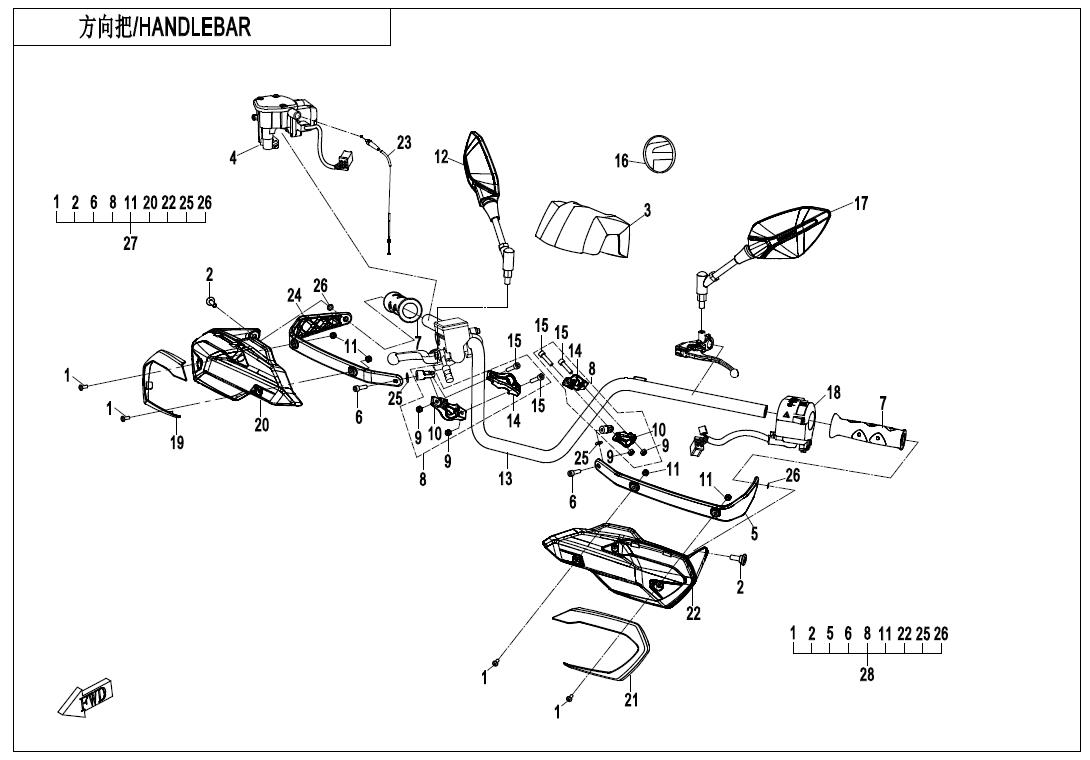

HANDLEBAR
F10-2-C-V3

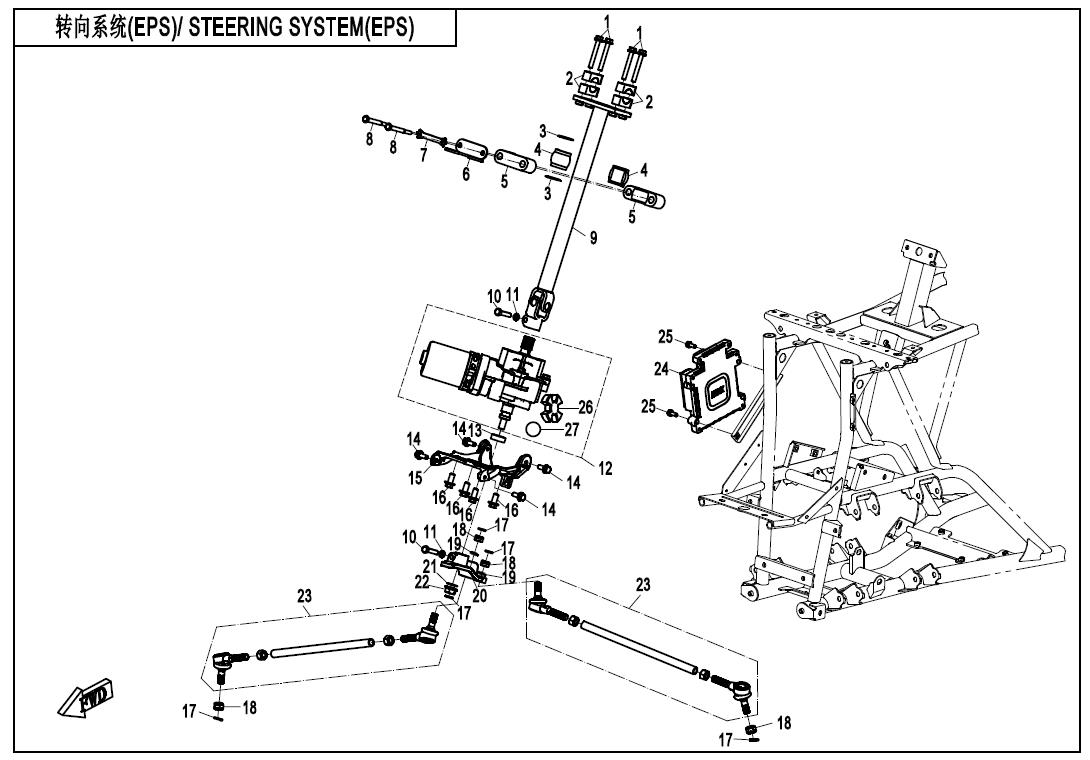

STEERING SYSTEM(EPS,ACDELCO)
F11

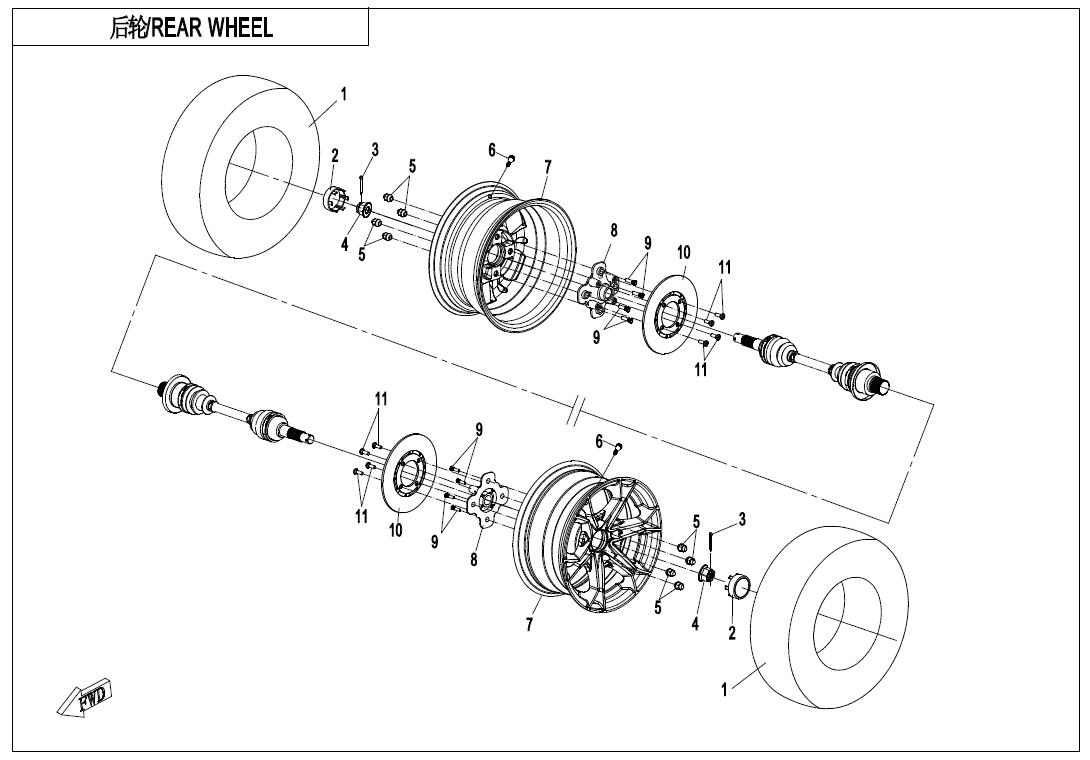

REAR WHEEL

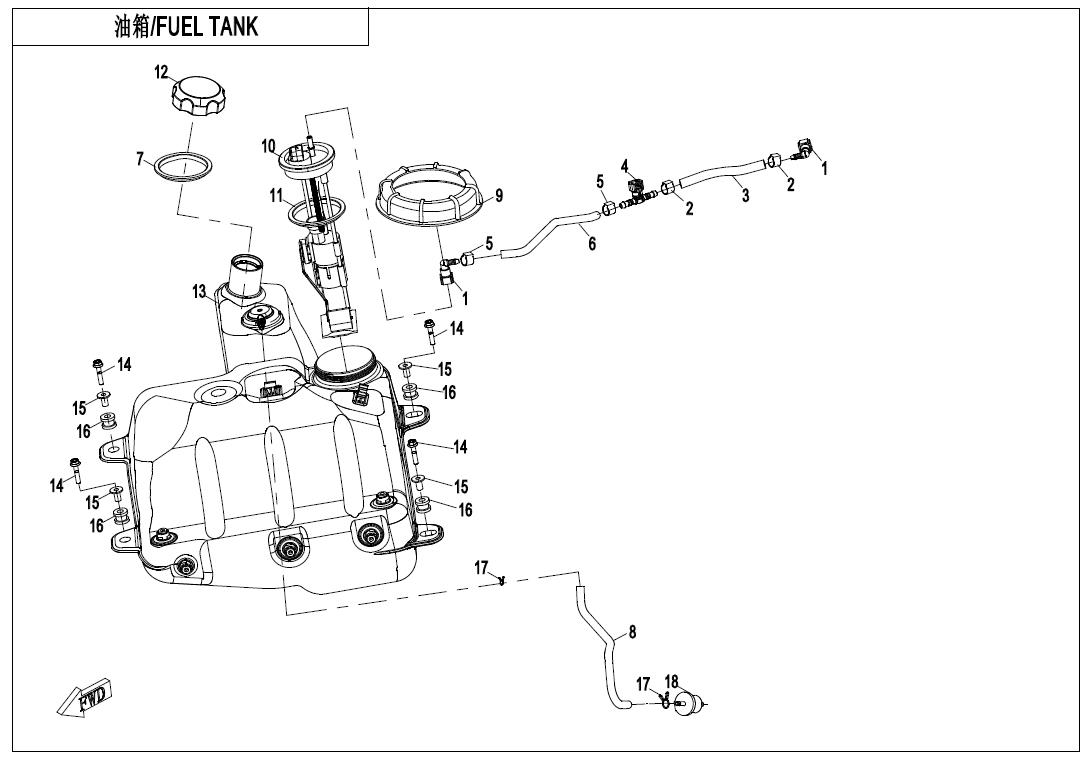

F12-B
FUEL TANK(USA)

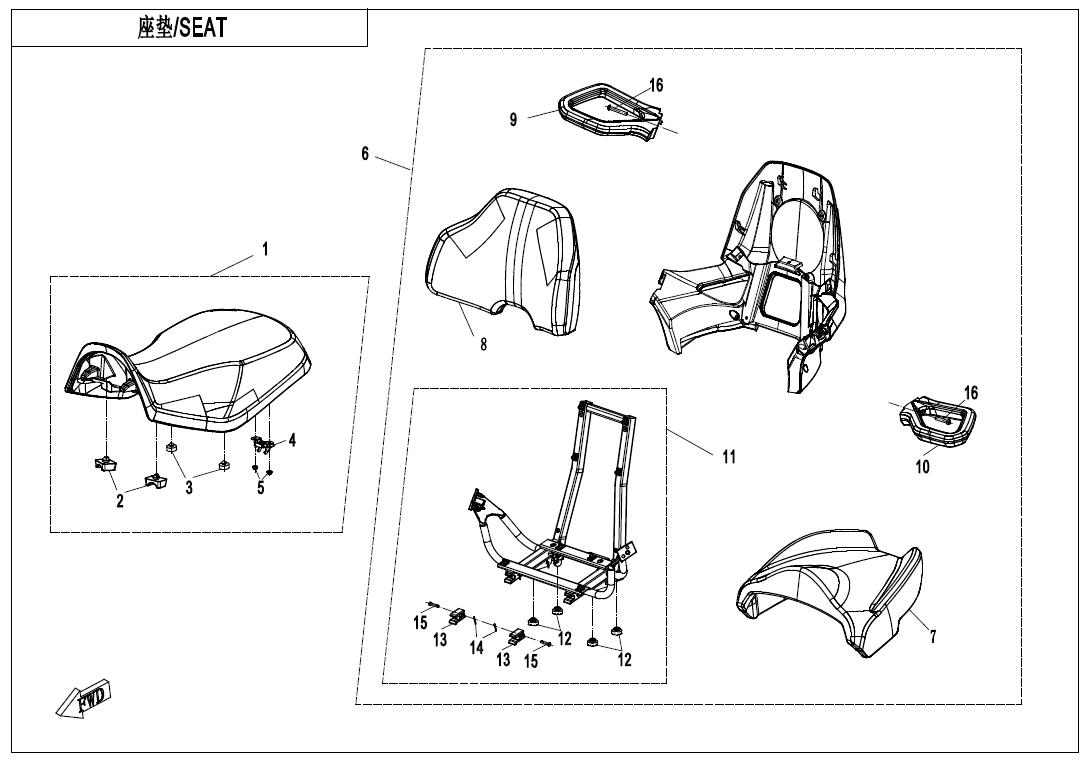

F13-B-V2
SEAT -BLACK AND GRAY
F14-A-V1

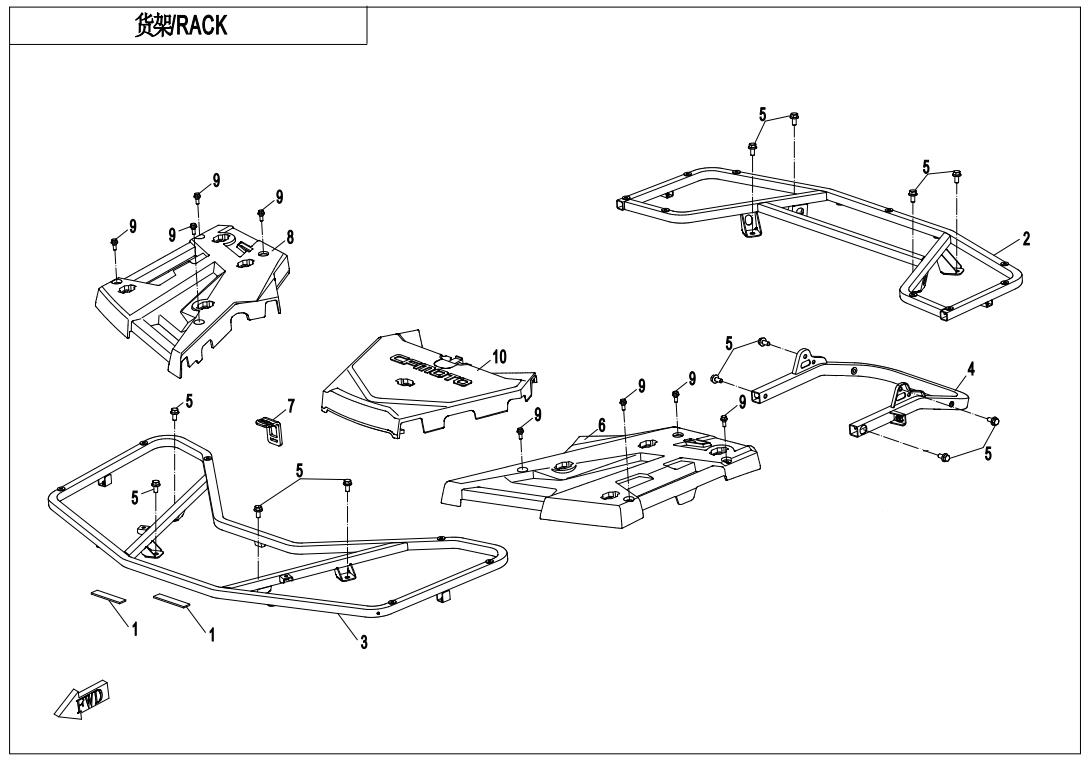

RACK(STANDARD)
F15-1-V7

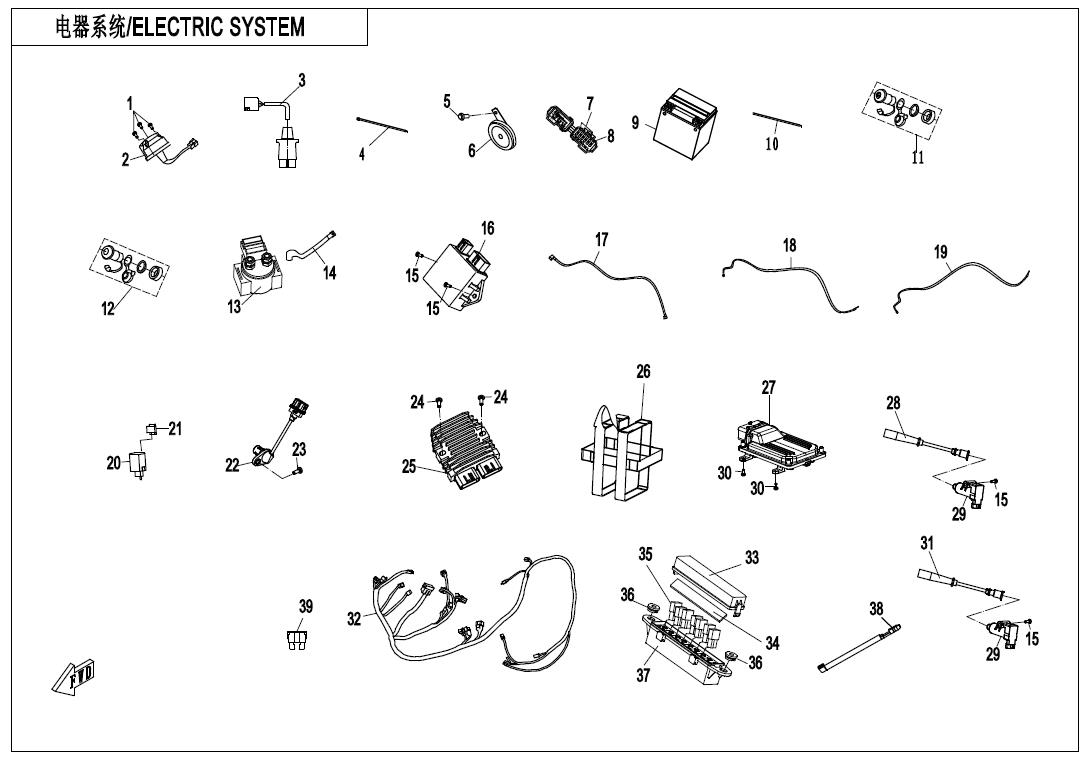

ELECTRIC SYSTEM
F15-2-V3

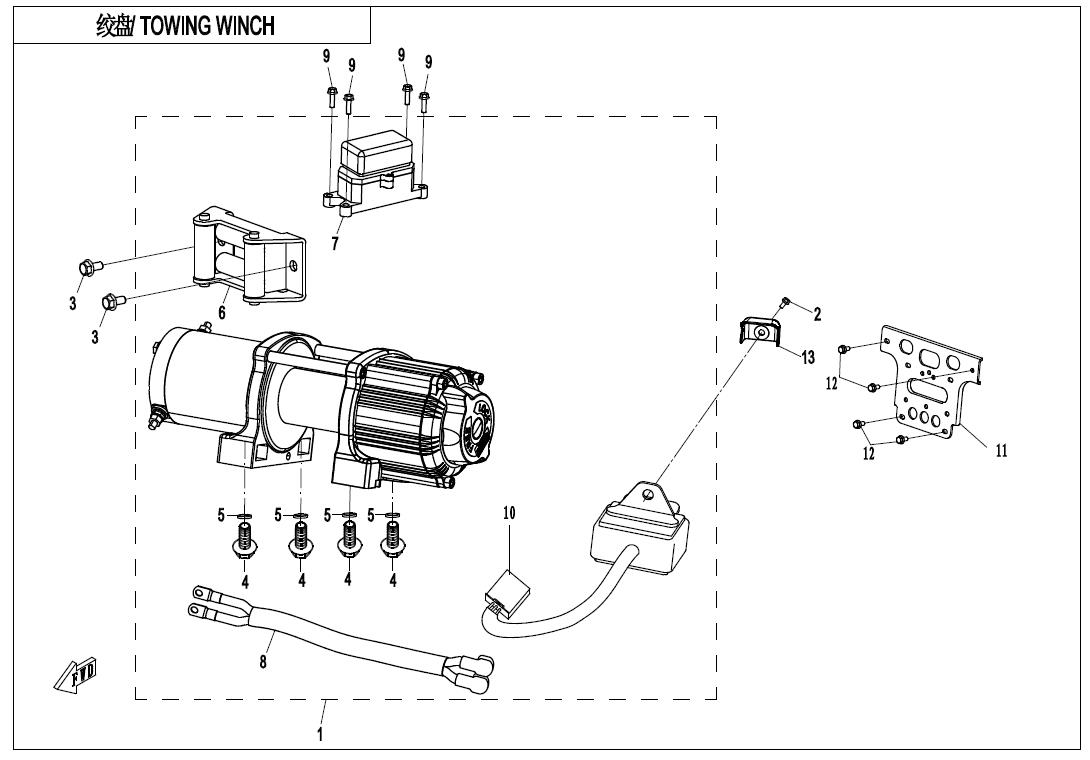

TOWING WINCH
F15-3-A

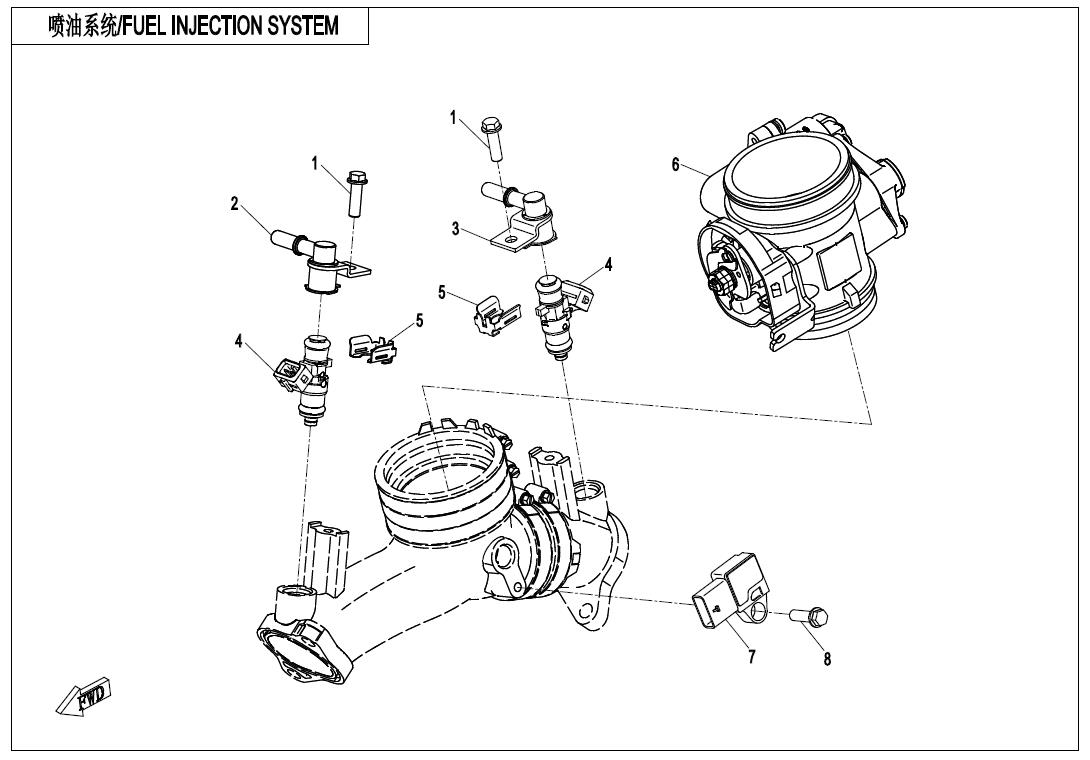

FUEL INJECTION SYSTEM(NO FUEL VAPORIZATION SYSTEM)
F16-A-V2

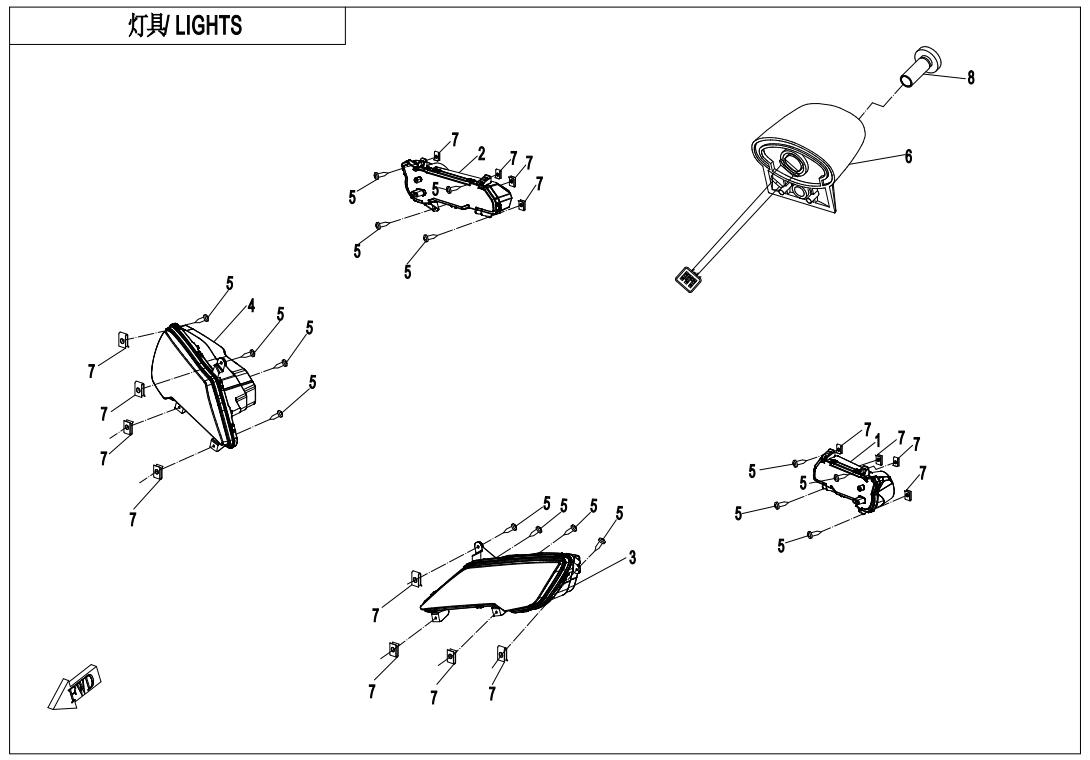

LIGHTS(EURO)
F17

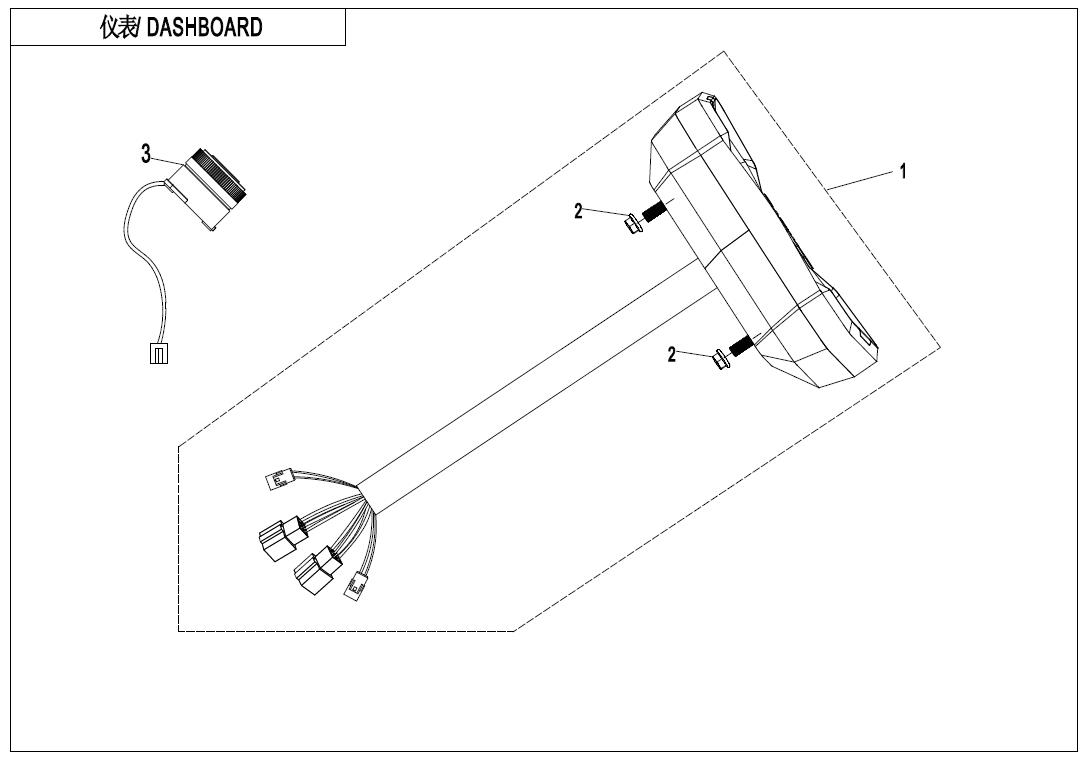

DASHBOARD
F18-V2

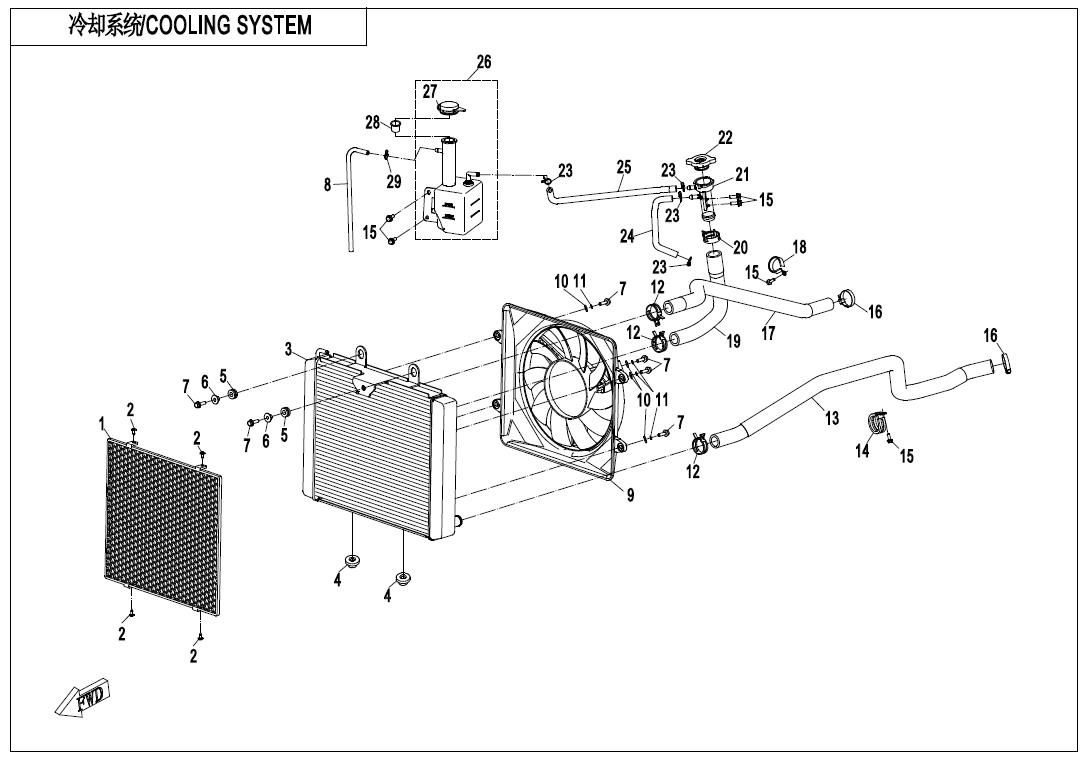

COOLING SYSTEM
F19-1-A
DECAL,2020,NA(CRYSTAL ORANGE/GHOST GREY)
F20-B-V2

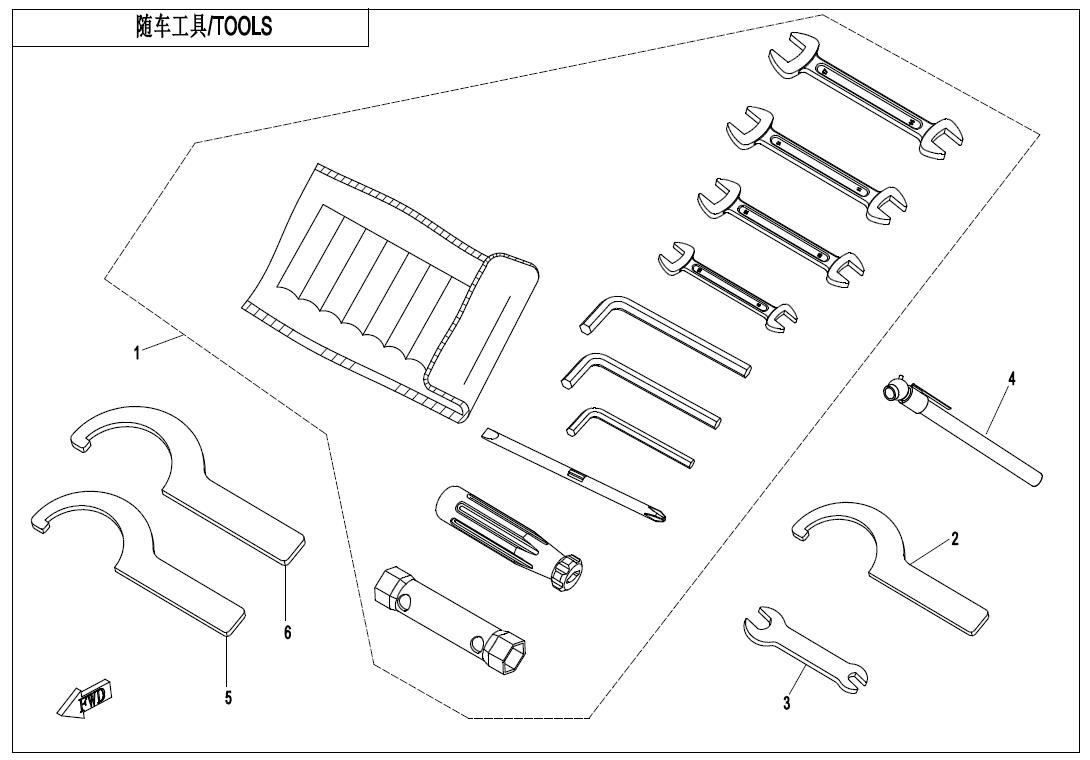

TOOLS(NA)
F23-B-V2

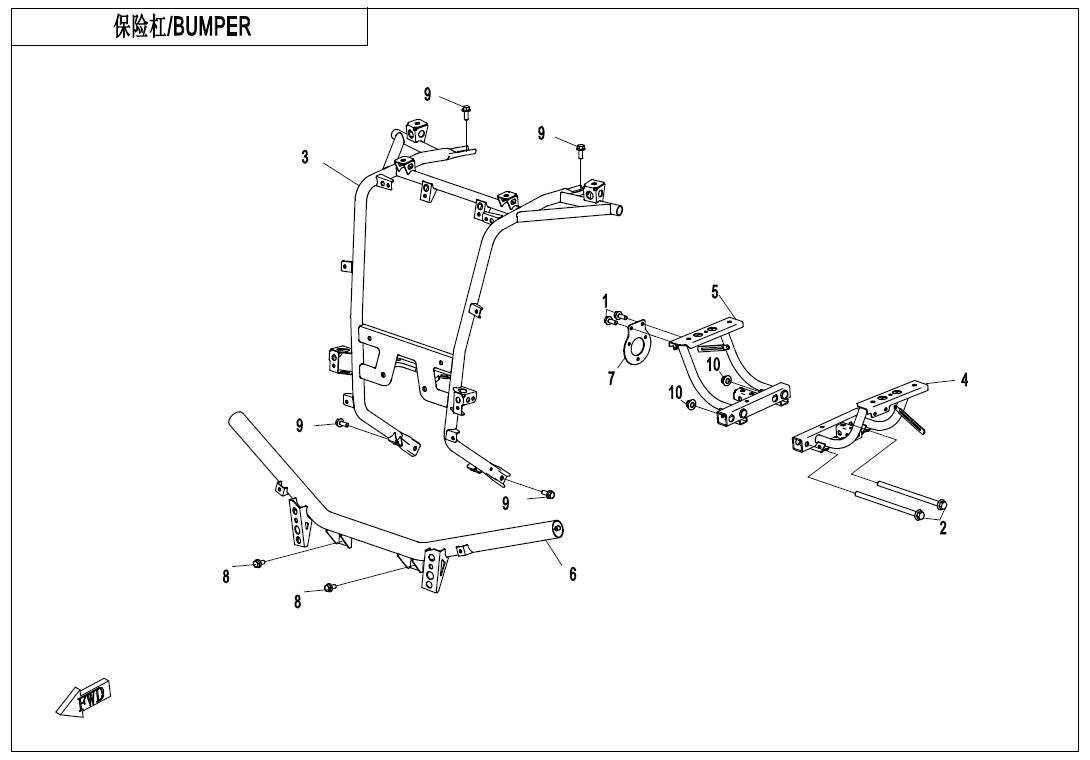

BUMPER(NA)
F27

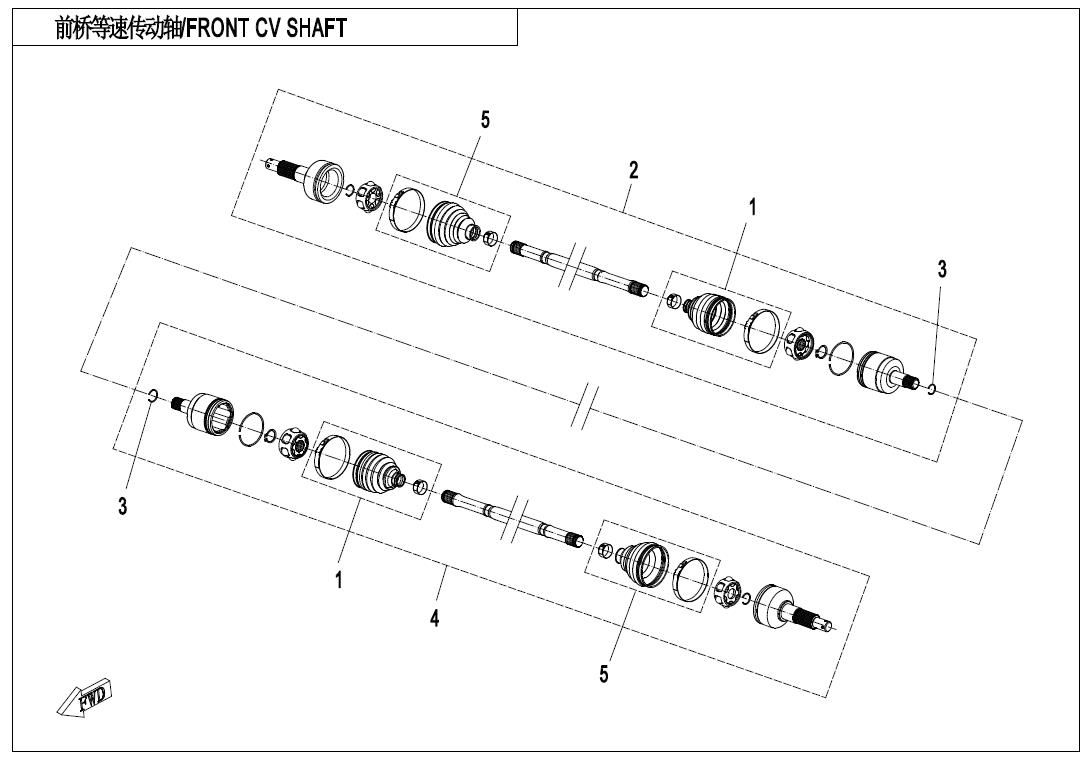

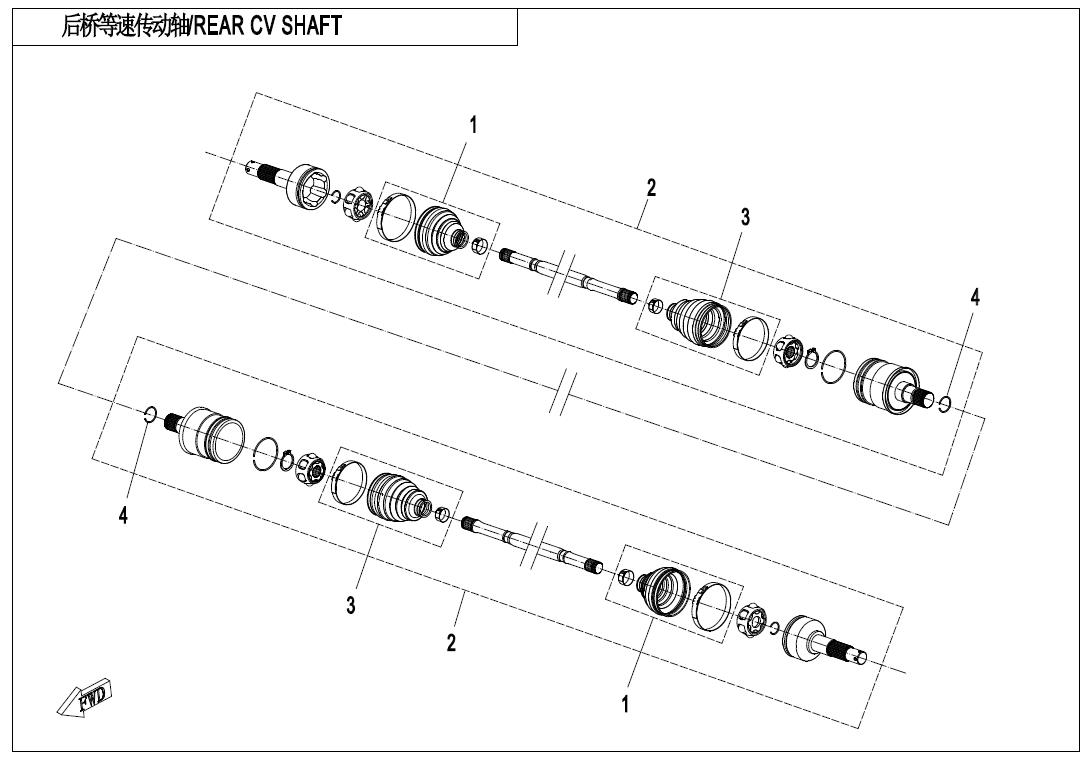

FRONT CV SHAFT
F28
REAR CV SHAFT
F30-V2
DRIVETRAIN SYSTEM
F31-V3

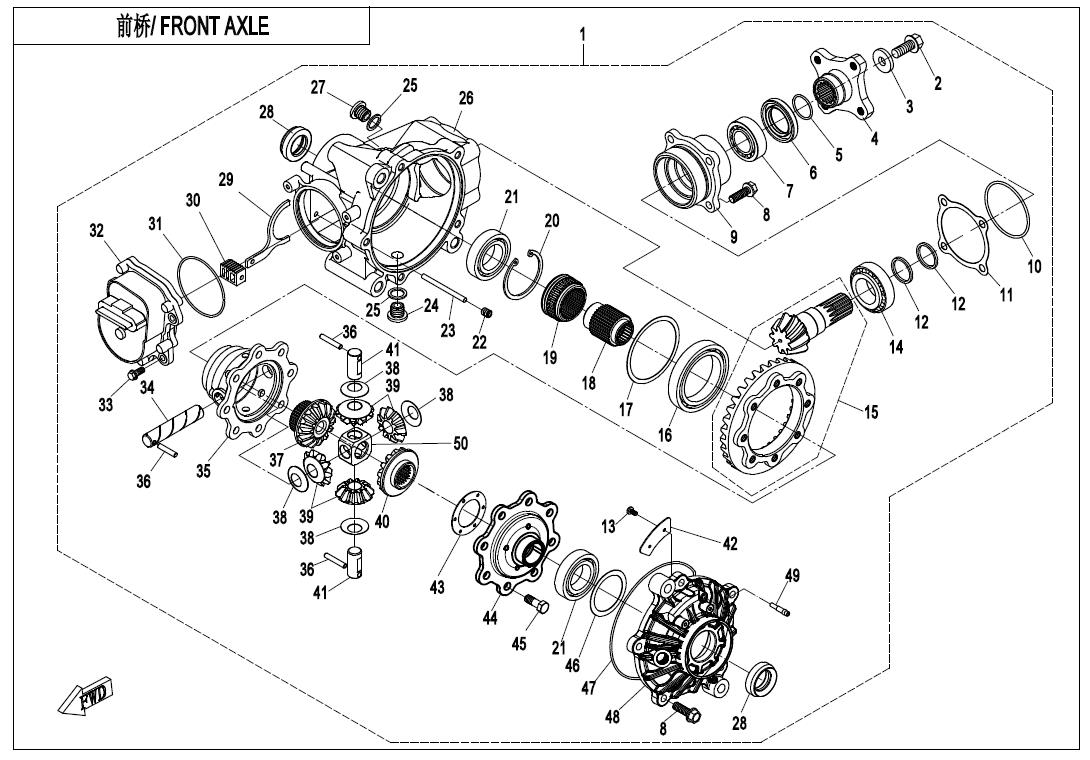

FRONT AXLE
F32-V2

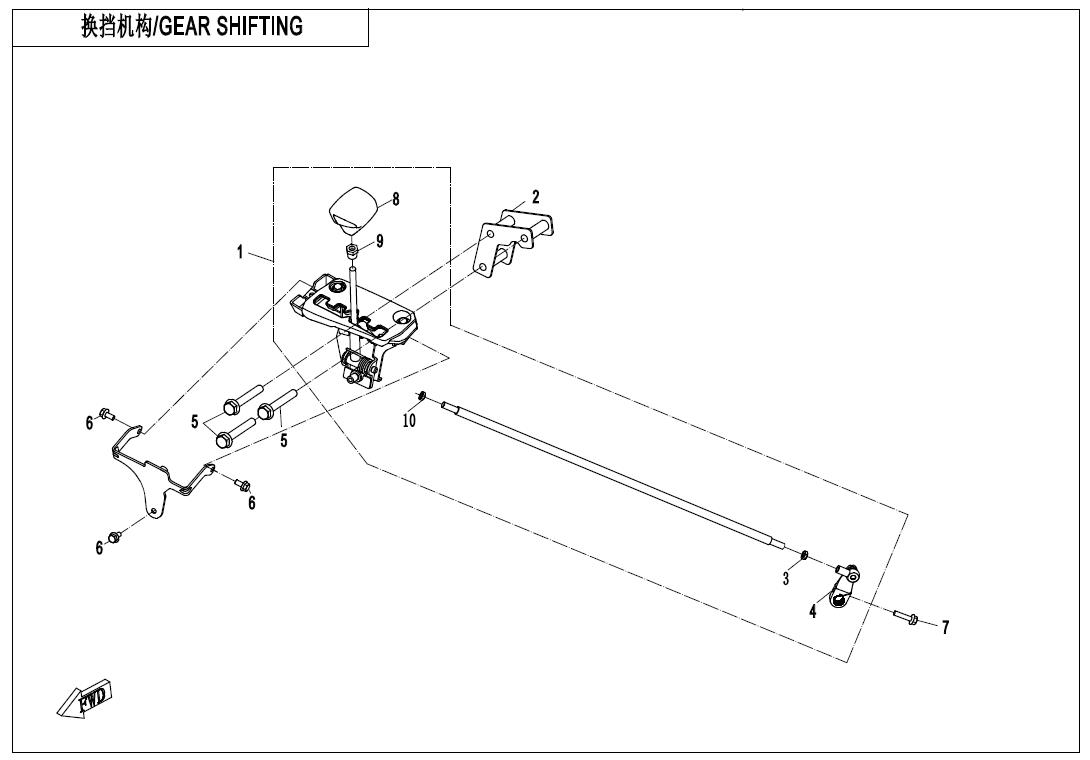

GEAR SHIFTING
F33-C-V2

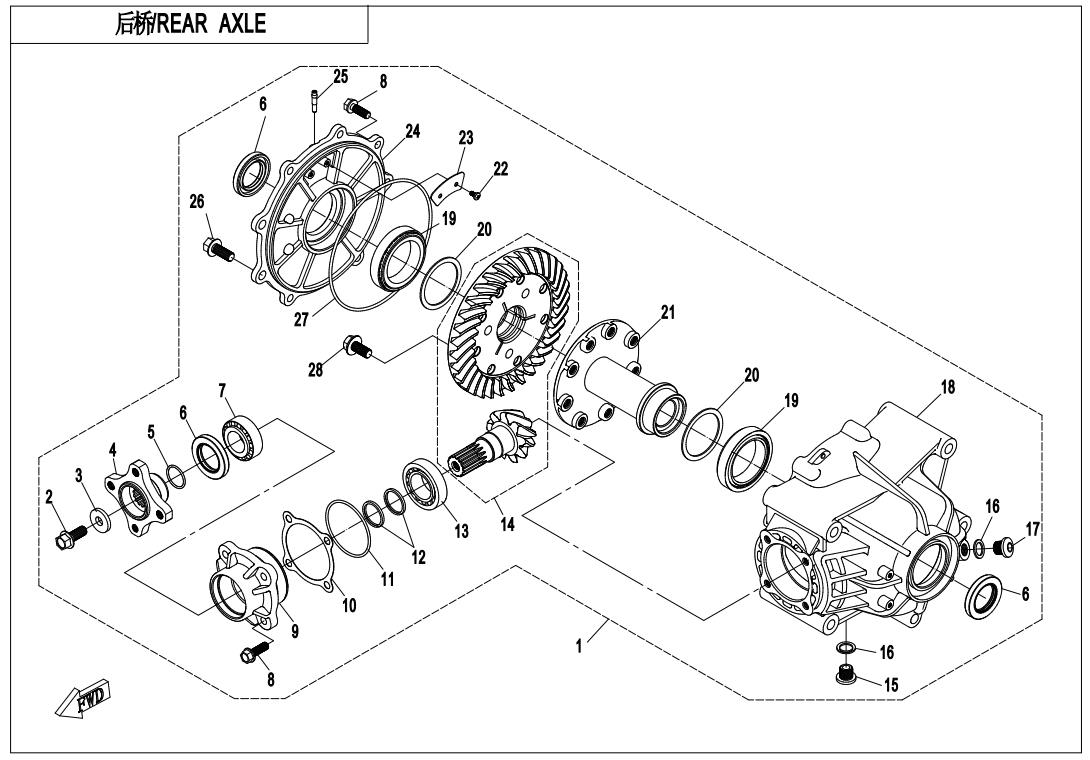

REAR AXLE(NO DIFFERENTIAL)
F38-A-V2
OWNER'S MANUAL(NA)
F40

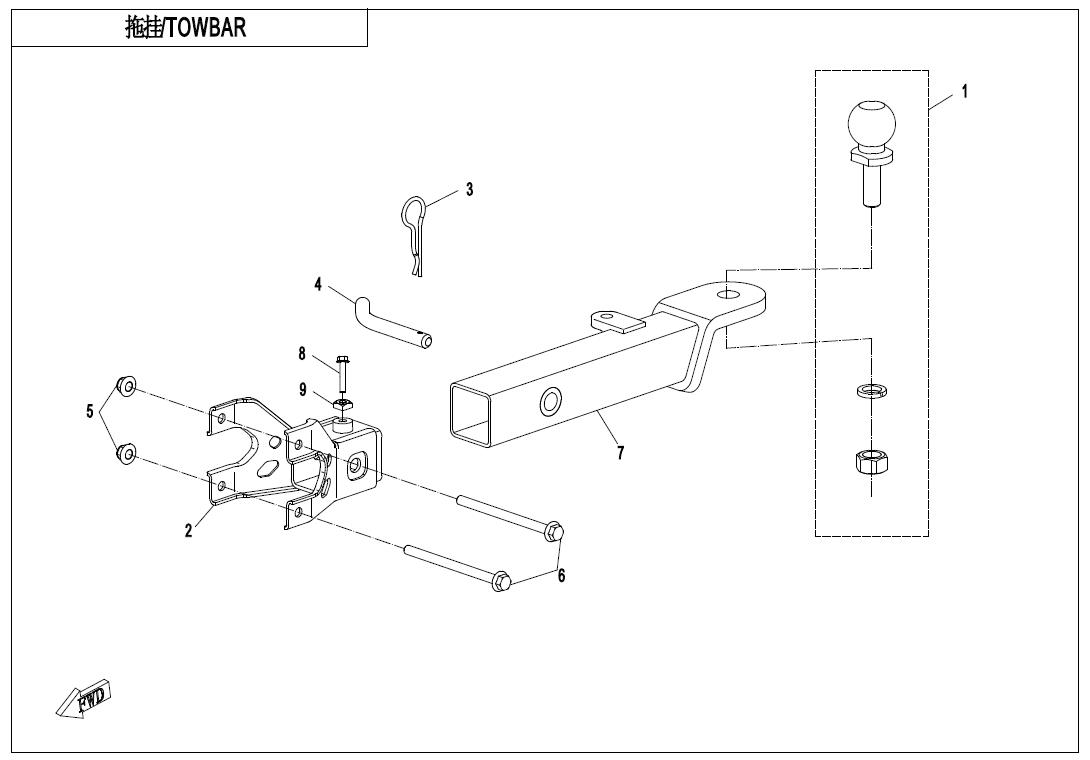

TOWBAR
F41-V3

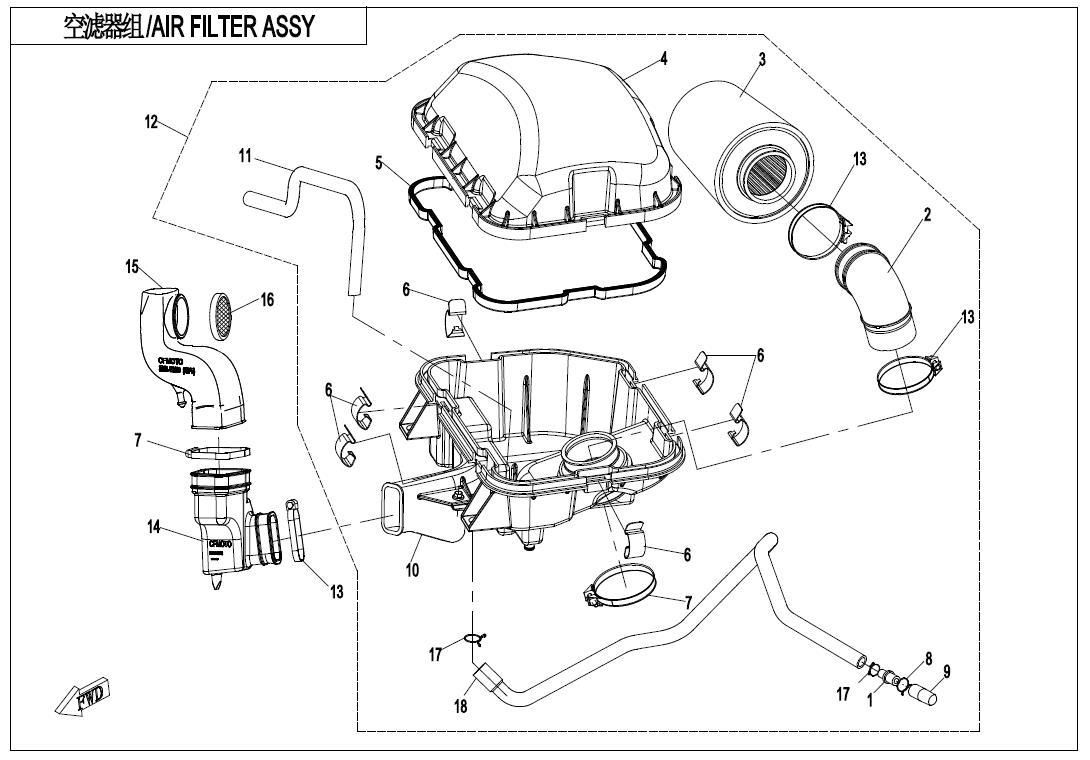

AIR FILTER ASSY.
E01-1-V2

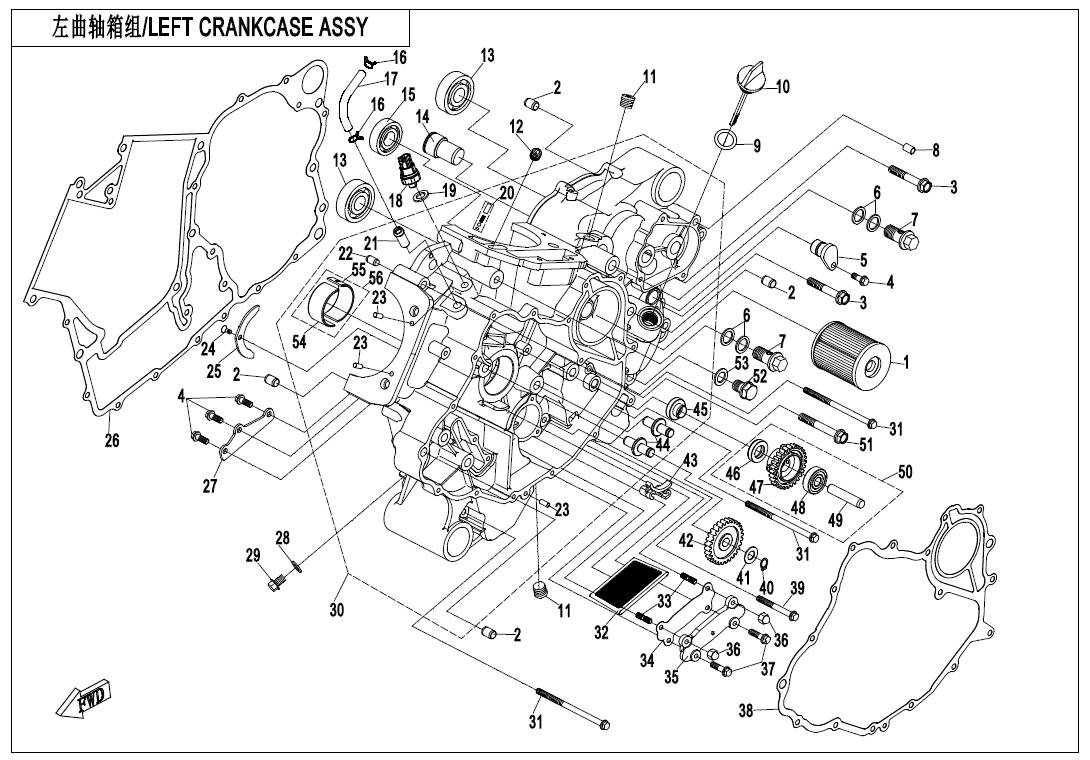

LEFT CRANKCASE ASSY
E01-2-V3

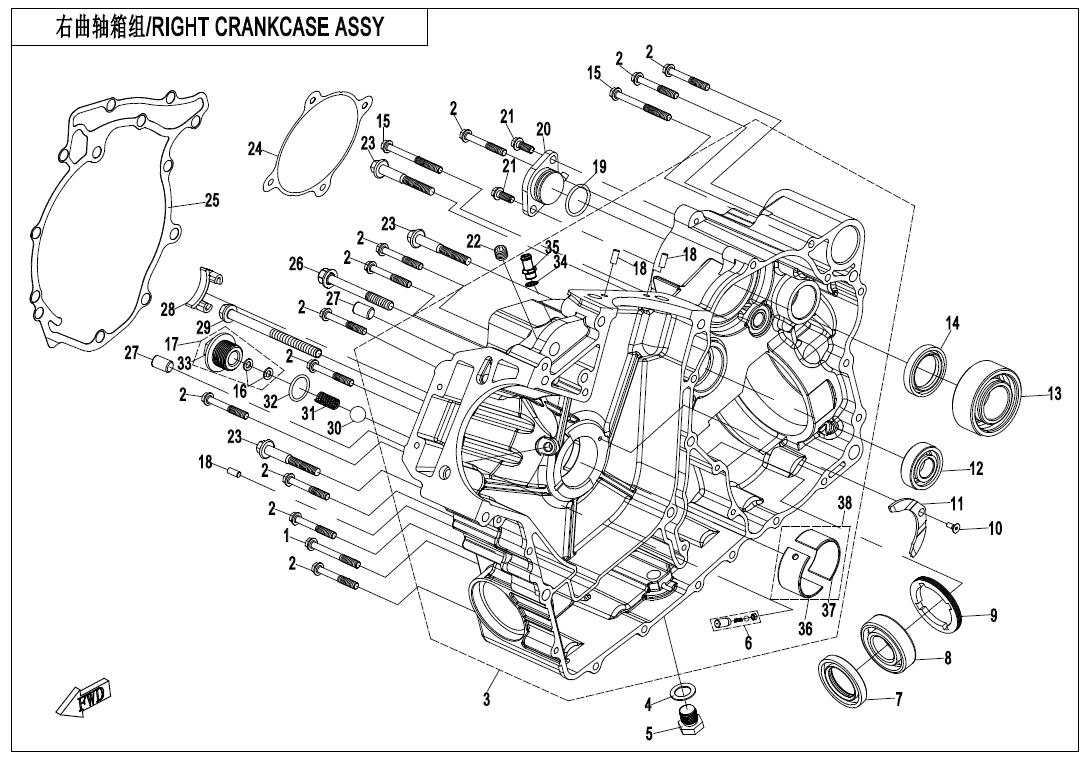

RIGHT CRANKCASE ASSY
E01-3-V2

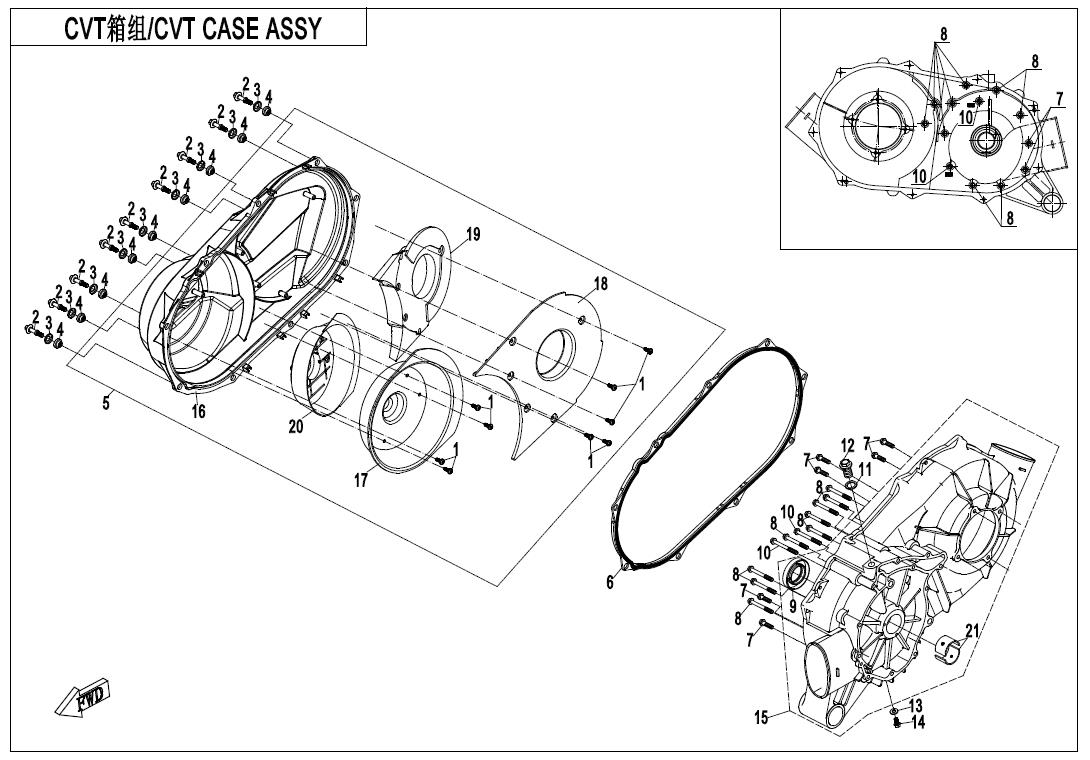

CVT CASE ASSY
E01-4

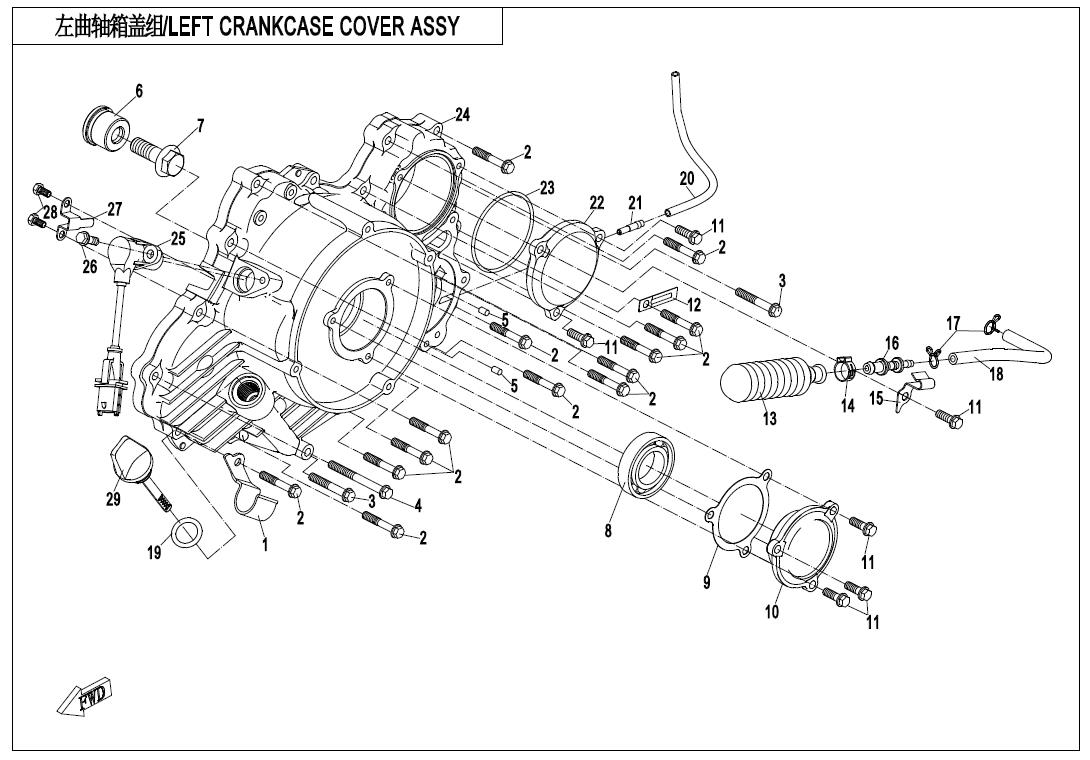

LEFT CRANKCASE COVER ASSY
E02-1

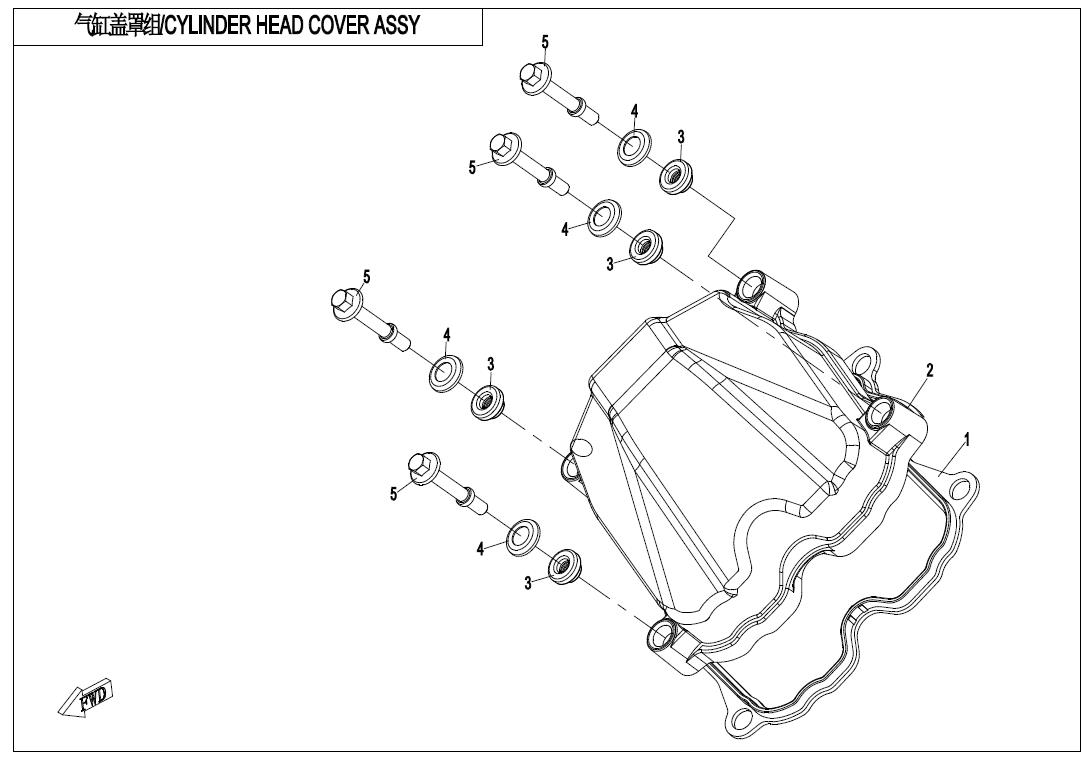

CYLINDER HEAD COVER ASSY
E02-2-V2

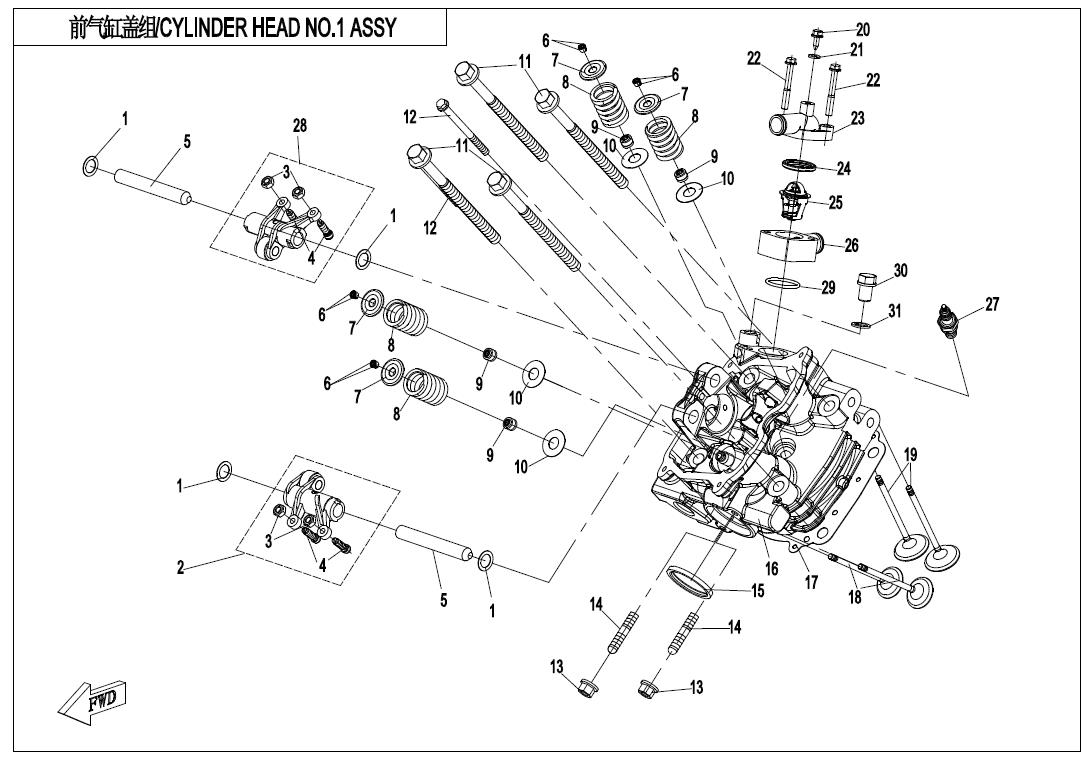

CYLINDER HEAD NO.1 ASSY
E02-3

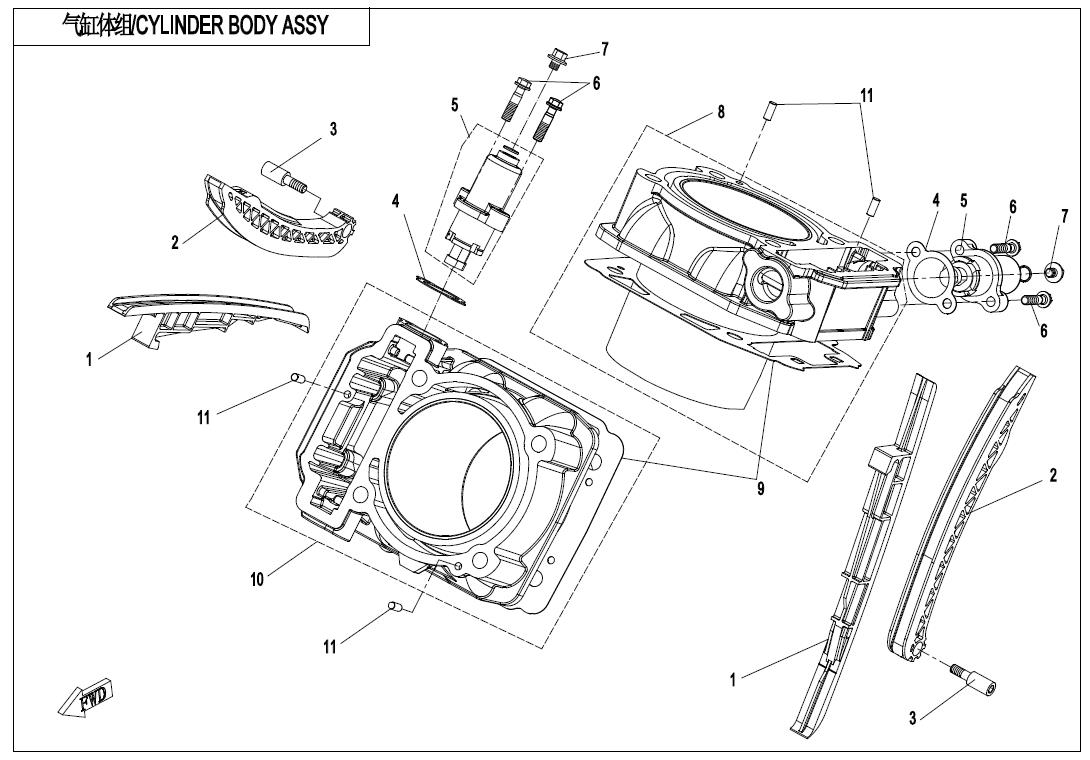

CYLINDER BODY
E02-4

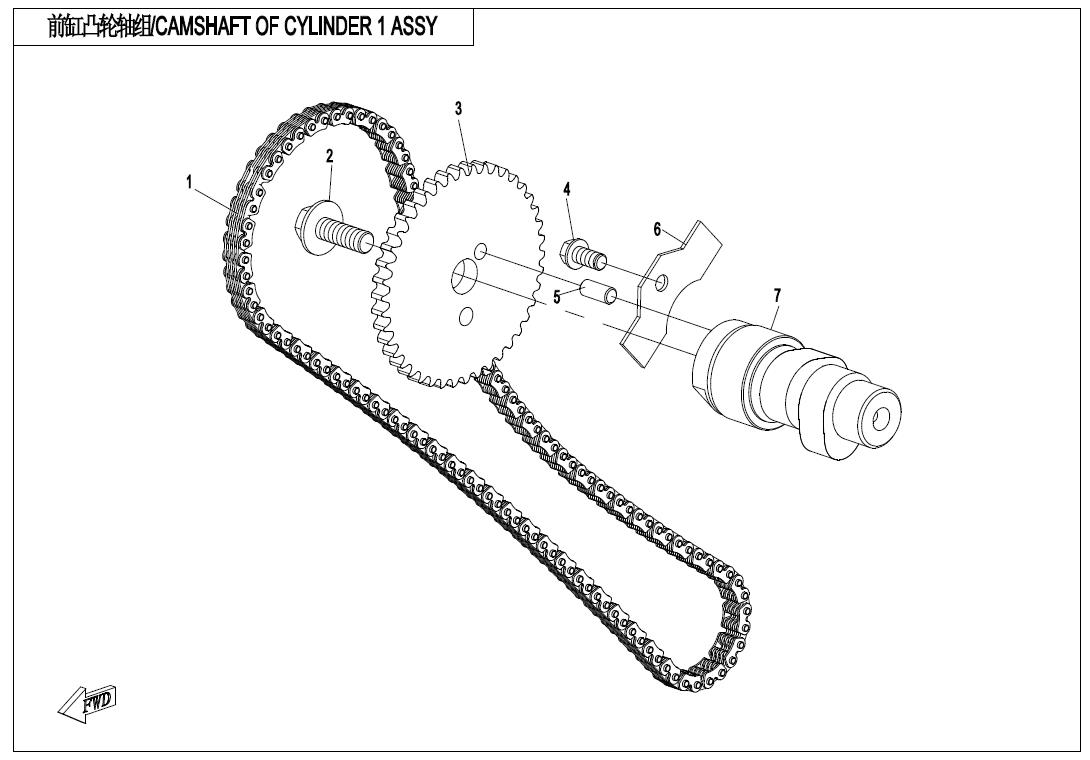

CAMSHAFT OF CYLINDER 1 ASSY
E02-5

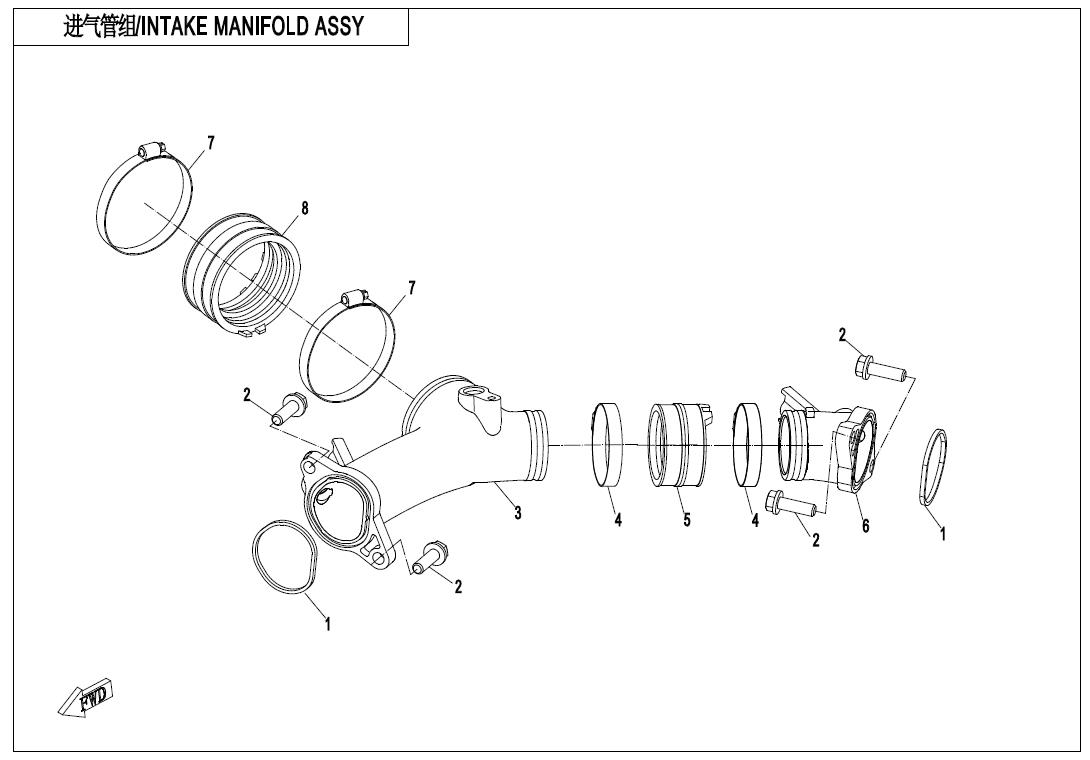

INTAKE MANIFOLD ASSY
E02-6-V2

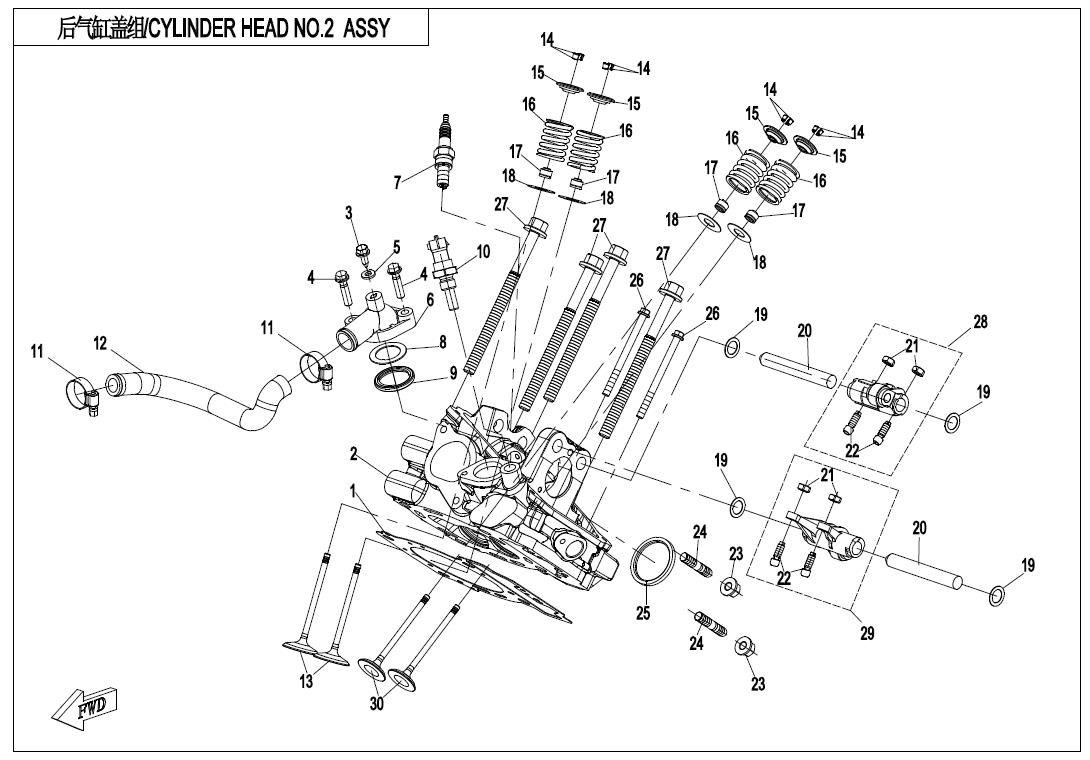

CYLINDER HEAD NO.2 ASSY
E02-7

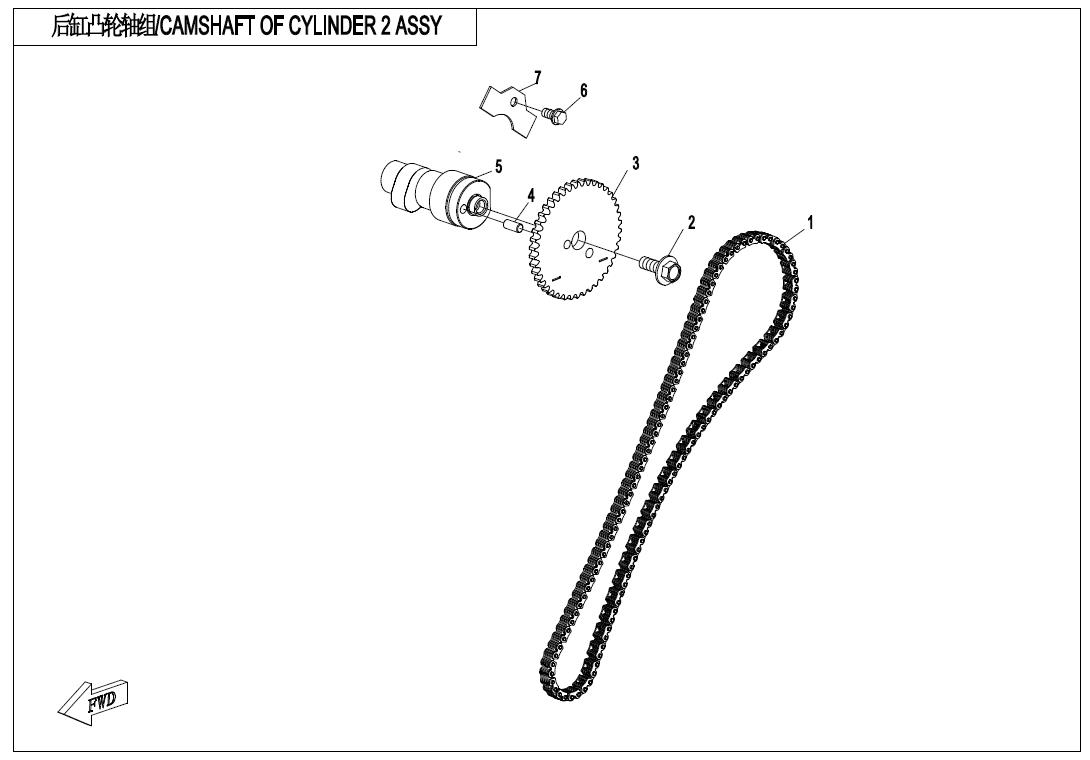

CAMSHAFT OF CYLINDER 2 ASSY
E03-V2

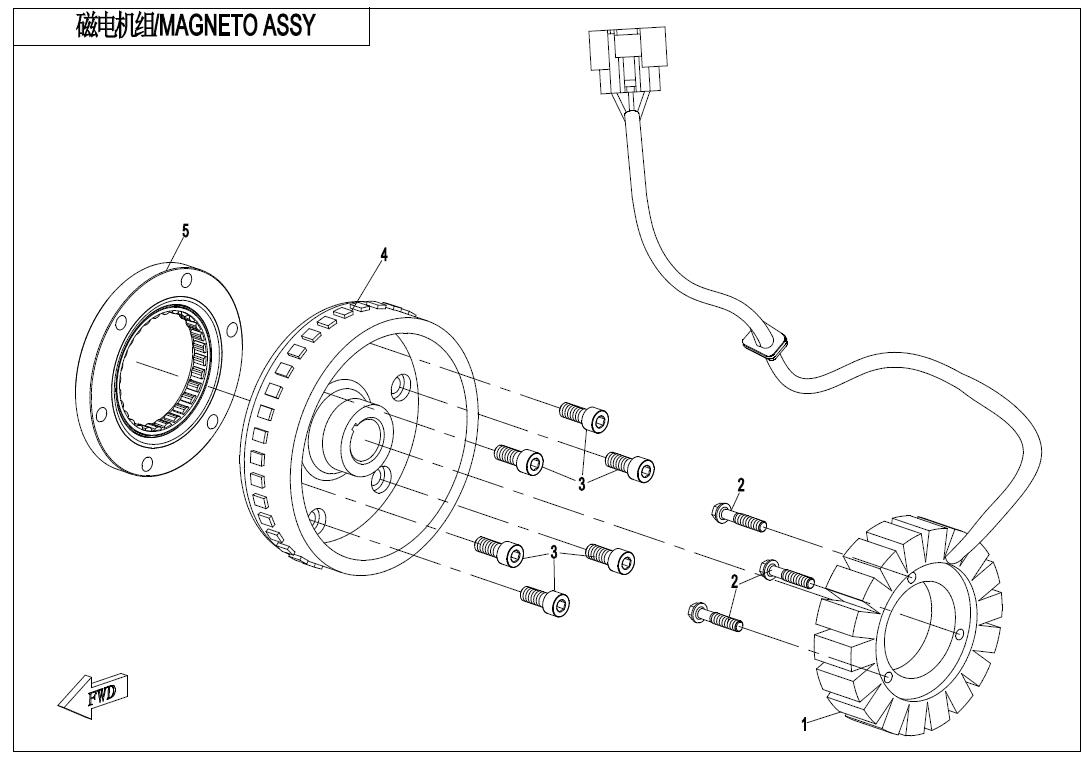

MAGNETO ASSY.
E04

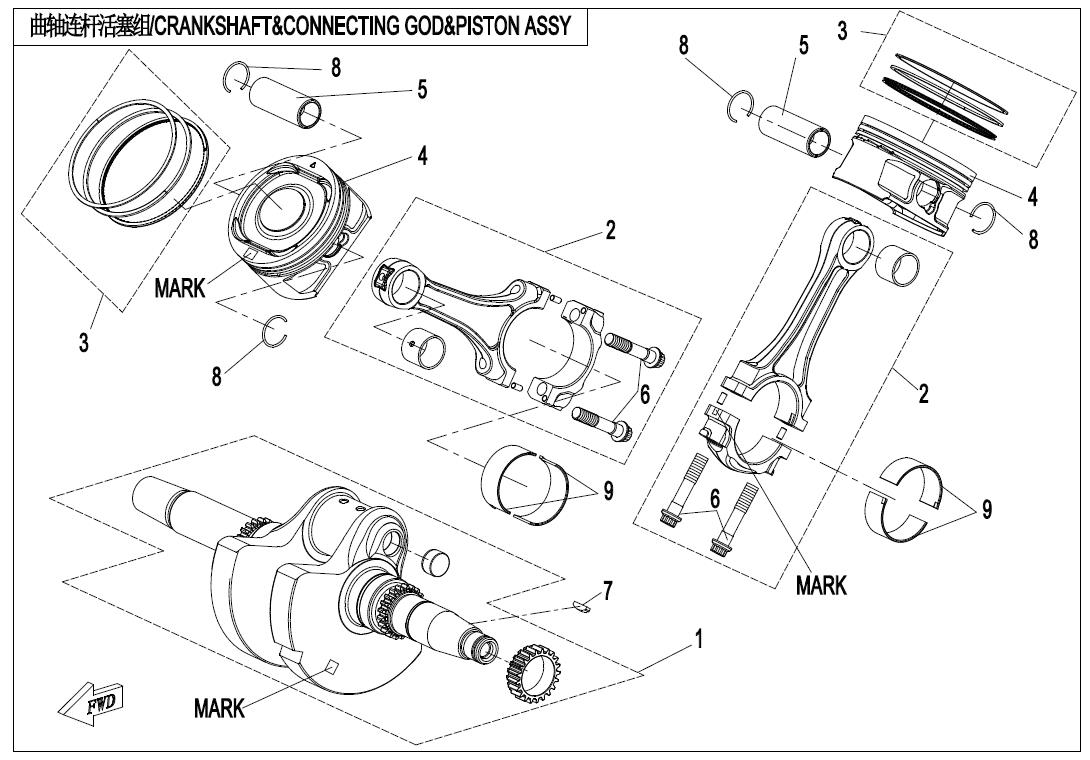

CRANKSHAFT?CONNECTING ROD?PISTON ASSY
E05-A-V3

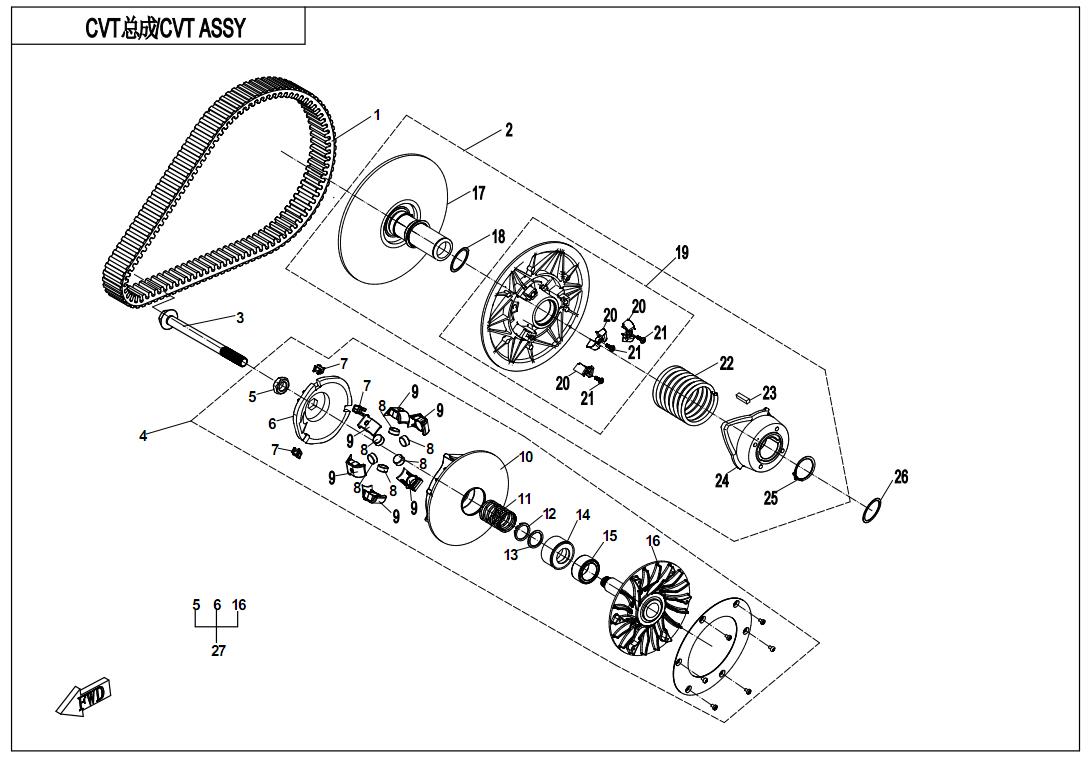

CVT ASSY(NO SPEED LIMITED,16g WEIGHT ROLLER)
E06-1-V2

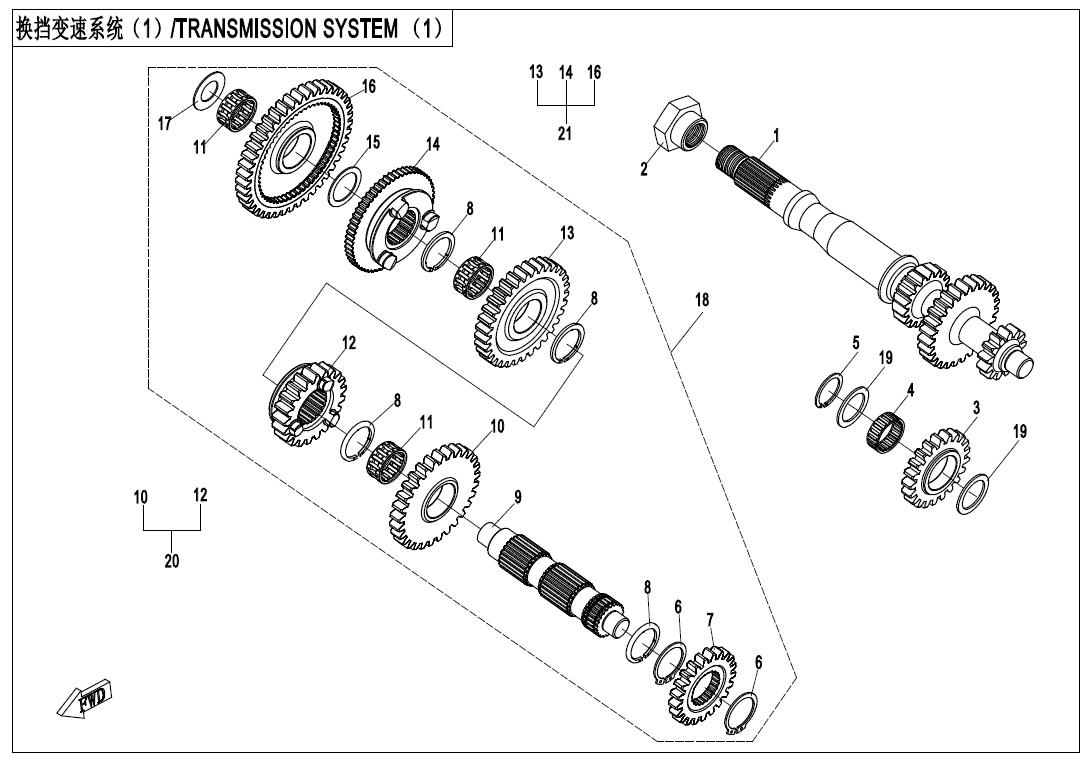

TRANSMISSION SYSTEM(1)
E06-2
TRANSMISSION SYSTEM(2)
E06-3-V4
TRANSMISSION SYSTEM(3)
E07-1

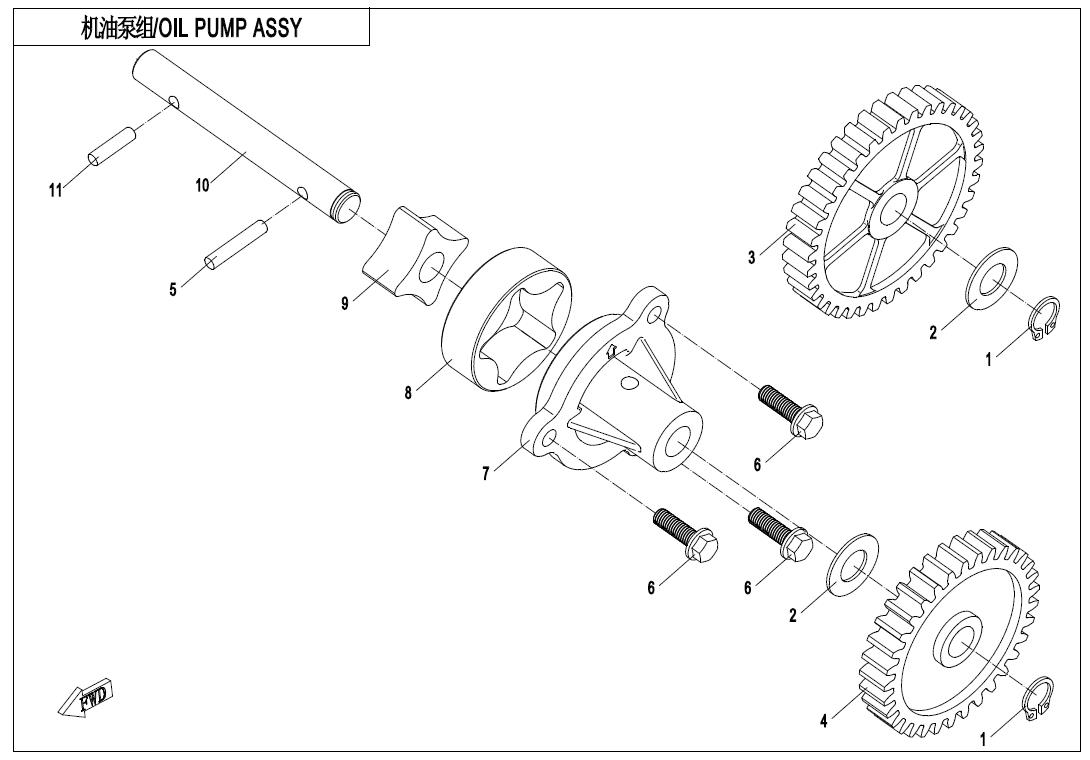

OIL PUMP ASSY
E07-2

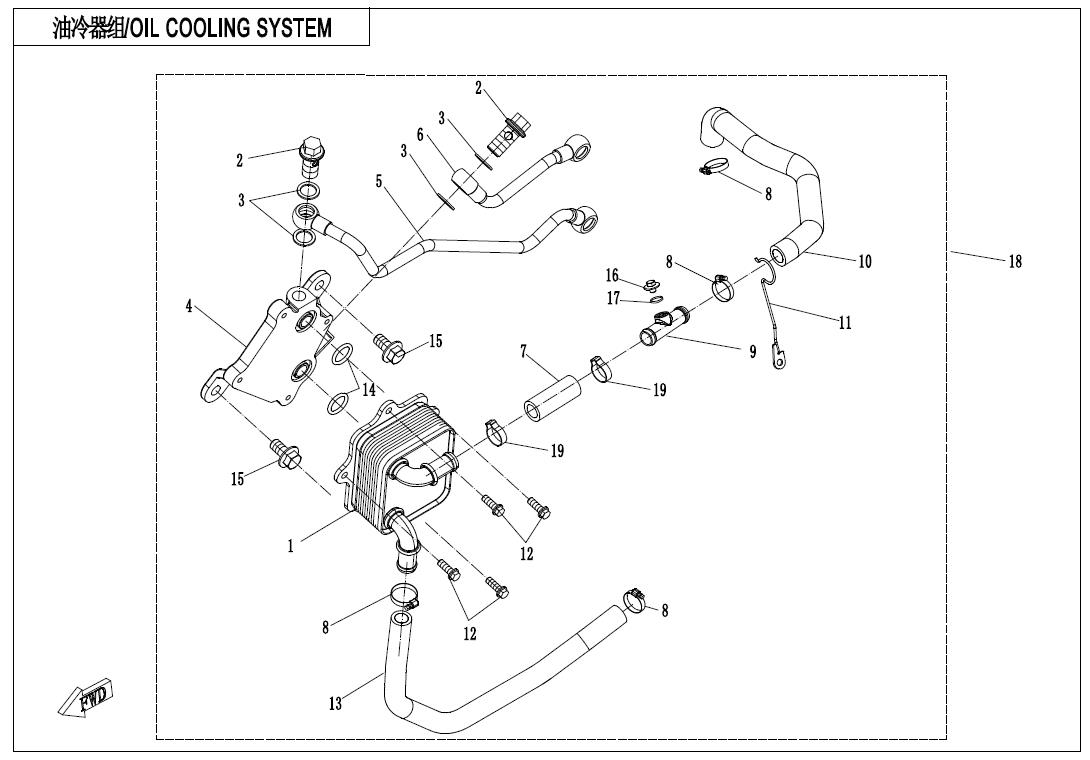

OIL COOLING SYSTEM.
E08

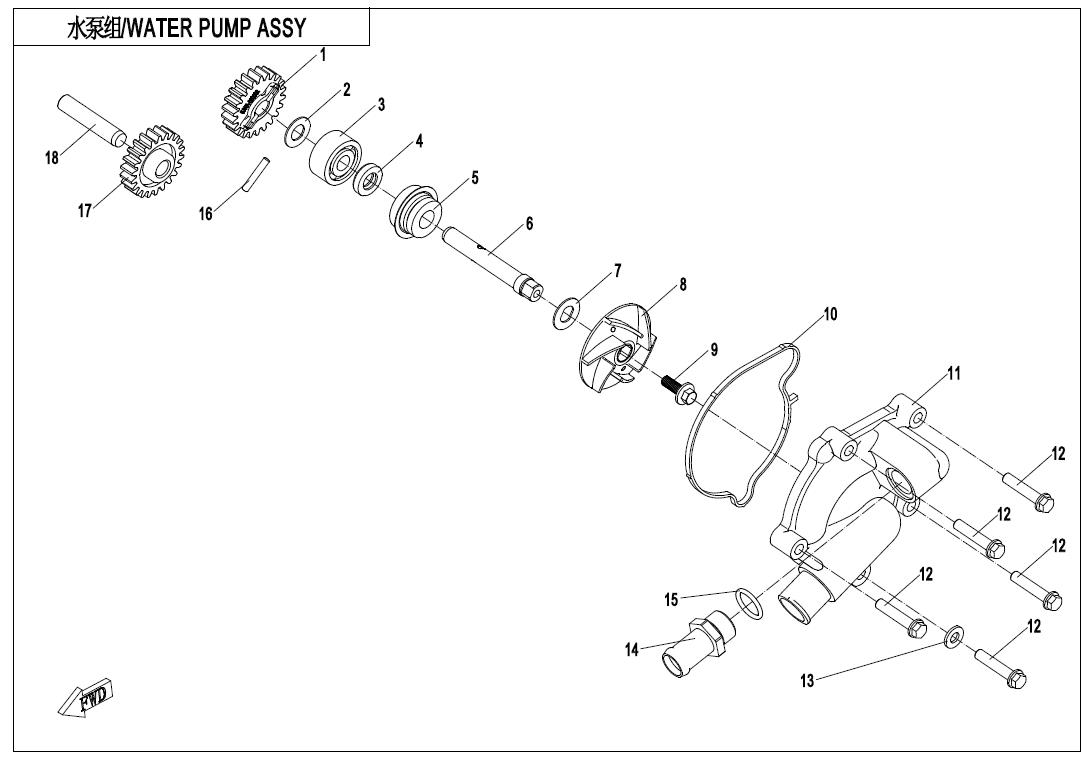

WATER PUMP ASSY.
E09

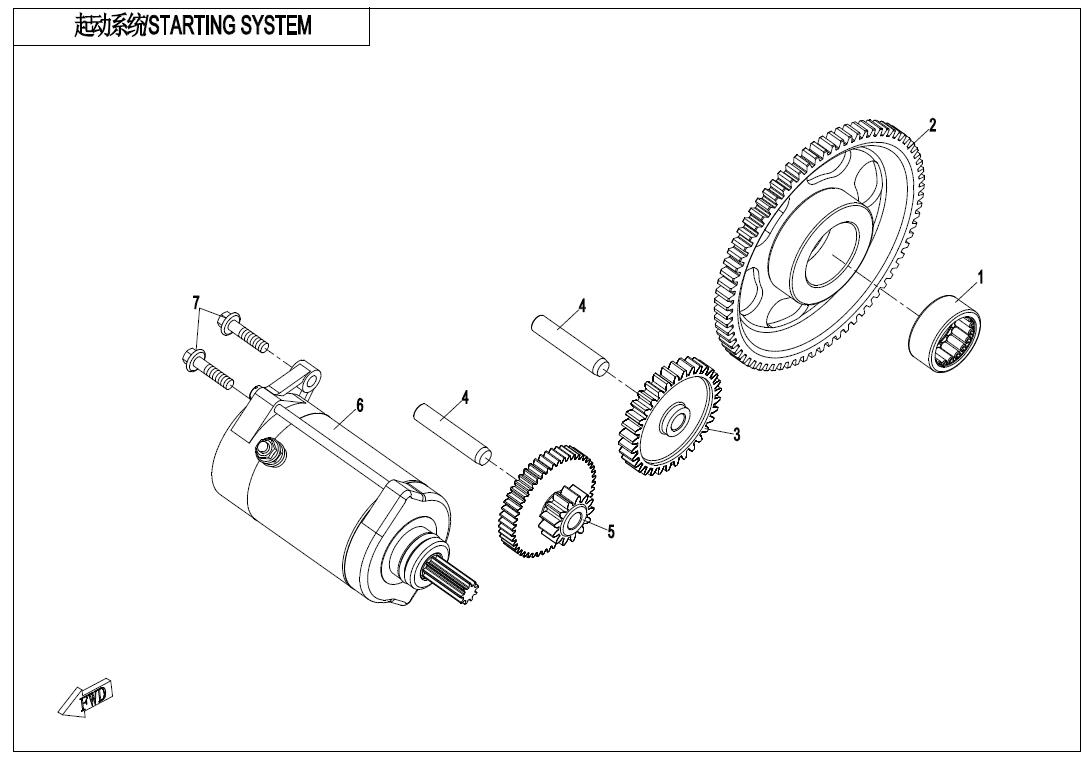

STARTING SYSTEM
E29

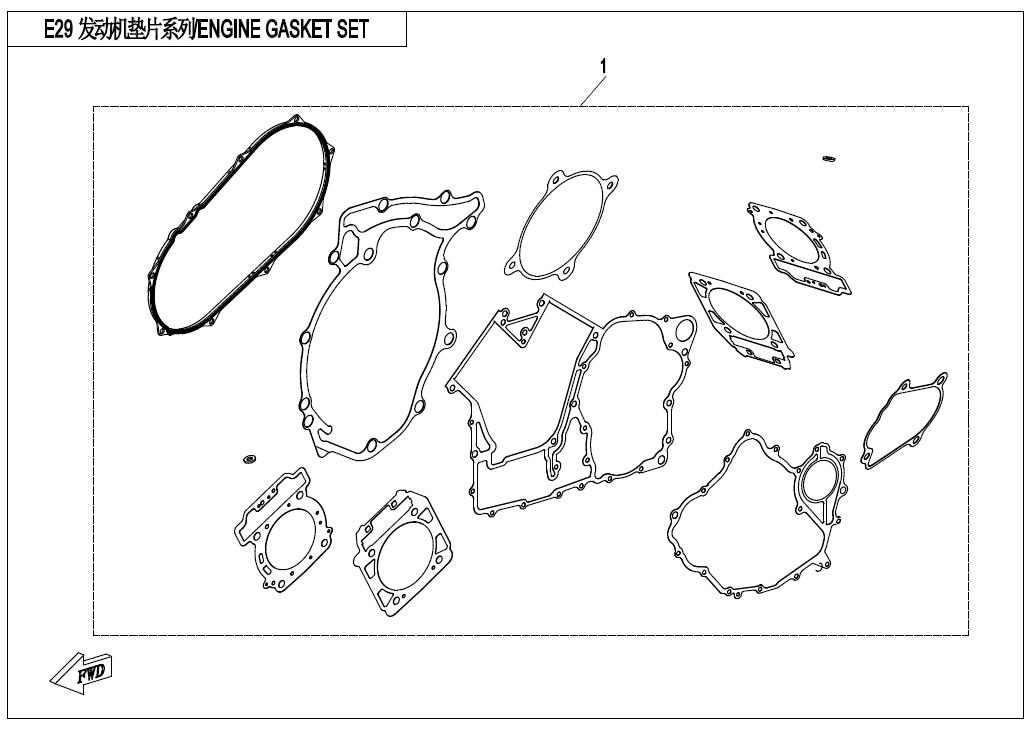

ENGINE GASKET SET
