Genuine Parts Diagrams for 2019 CFORCE 600 EPS - CF600AU-LChange Model
Showing 97 parts diagrams.
E00

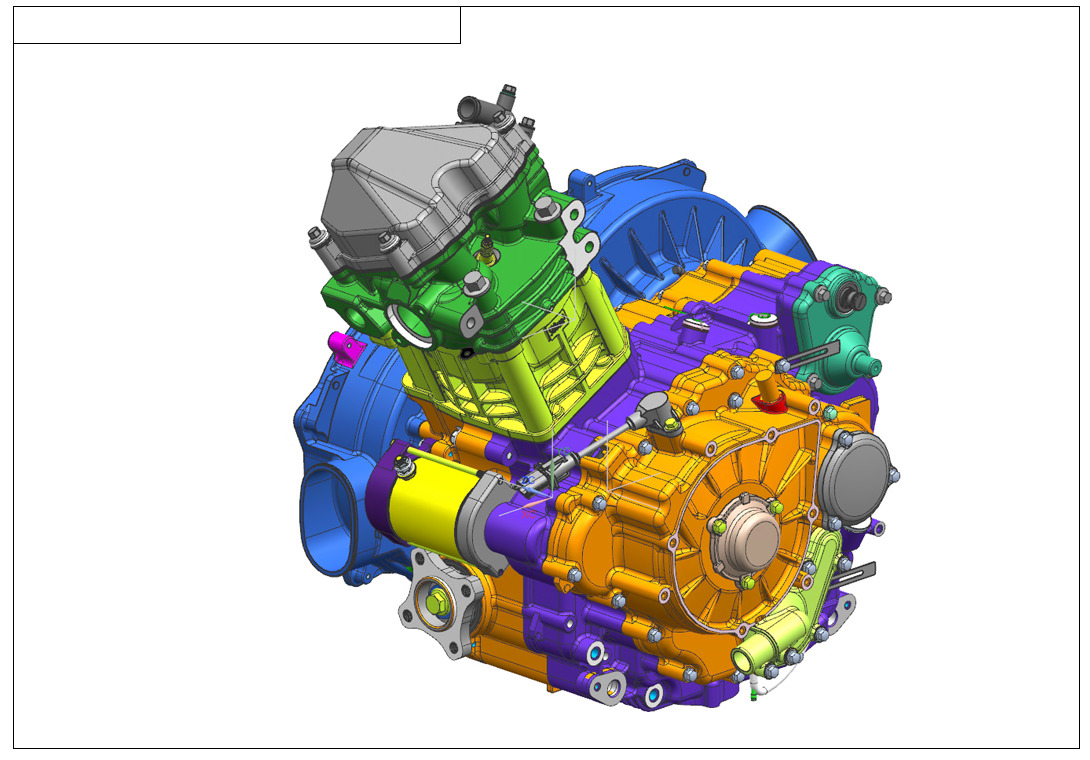

191S ENGINE
E01-1-V2

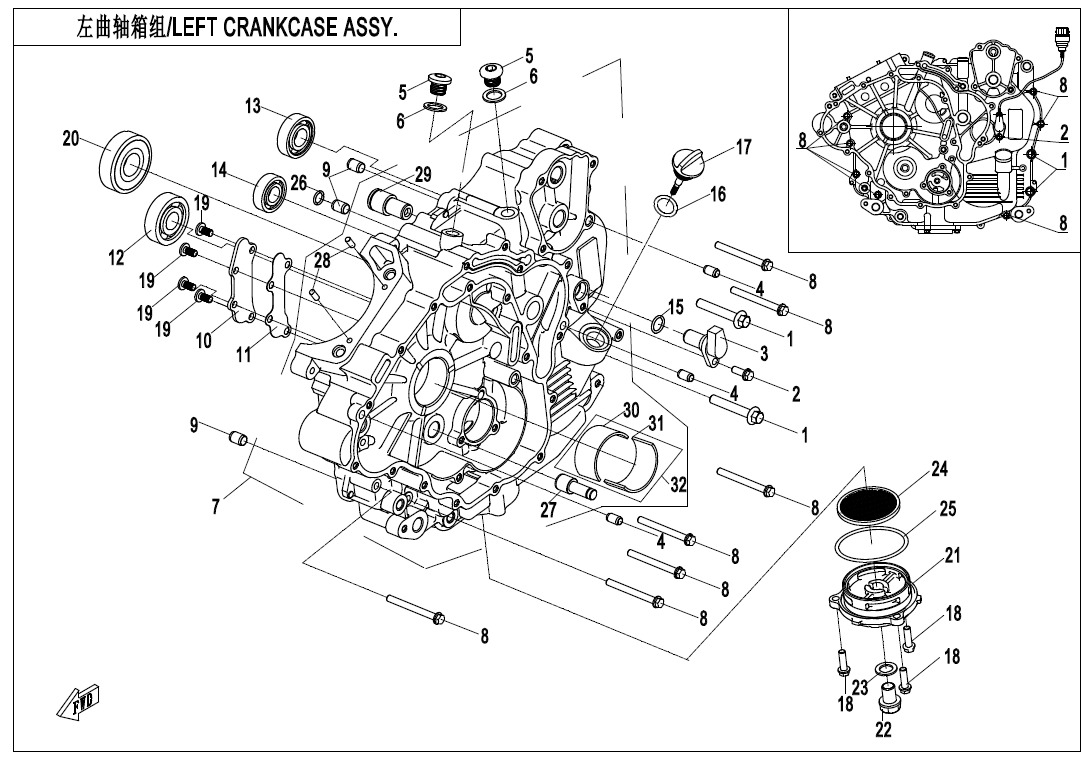

LEFT CRANKCASE ASSY
E01-2-V2

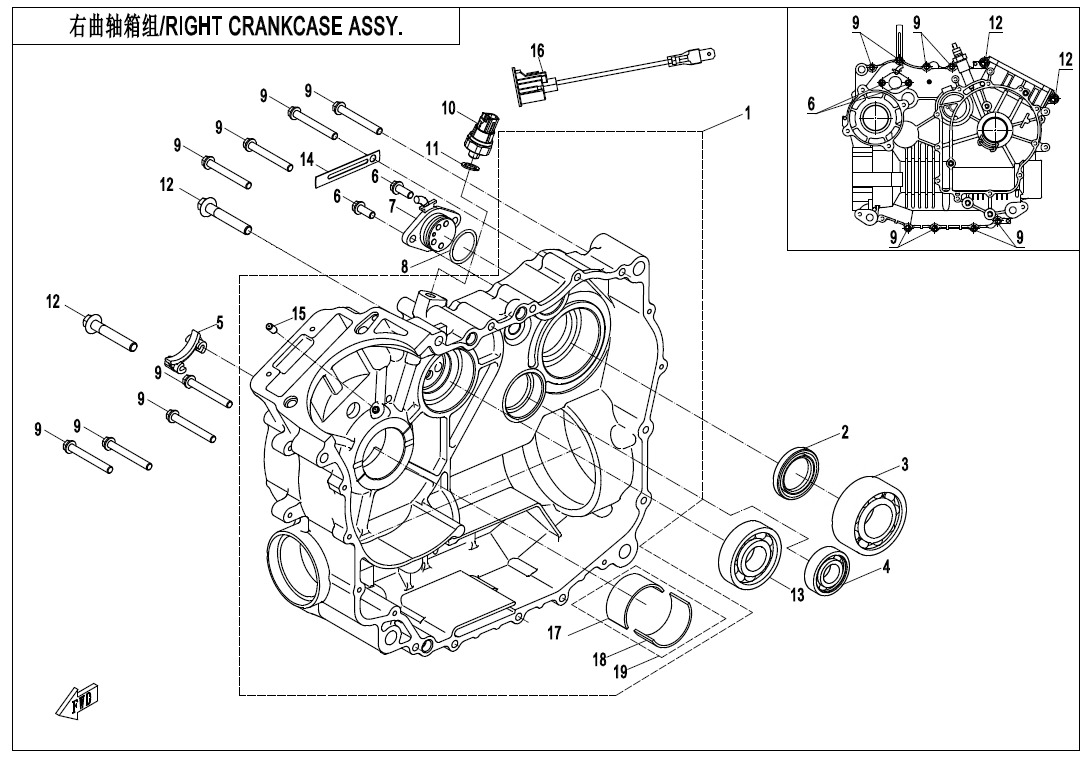

RIGHT CRANKCASE ASSY

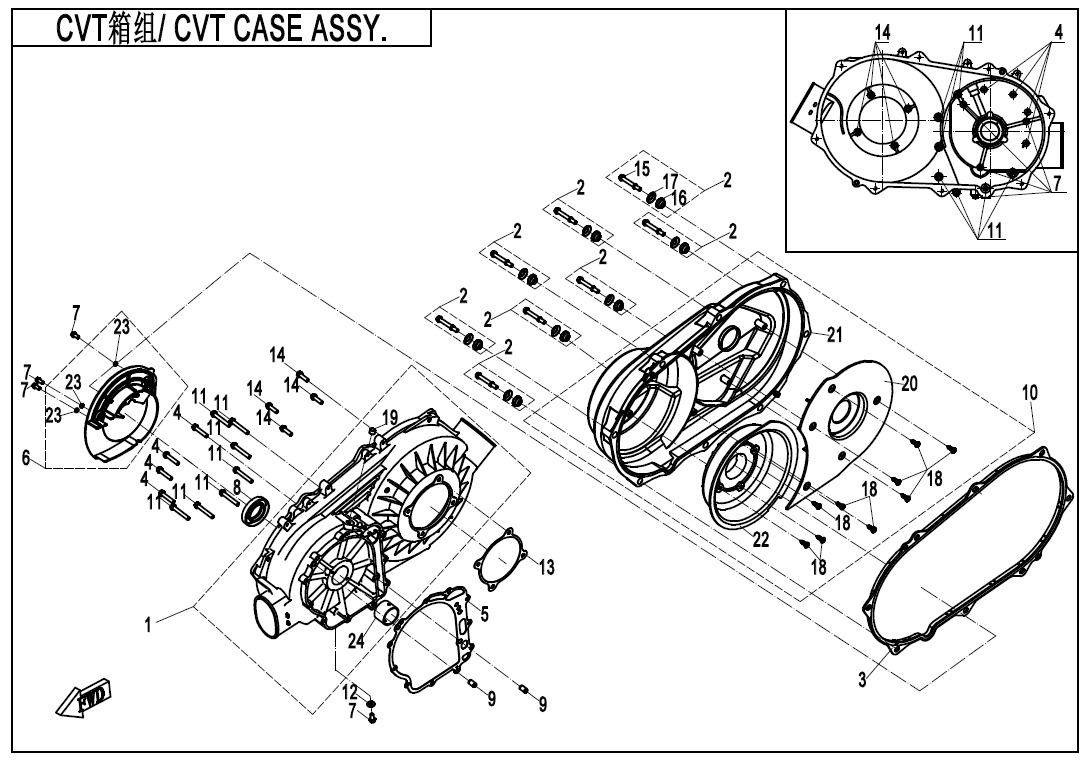

E01-3-V2
CVT CASE ASSY.

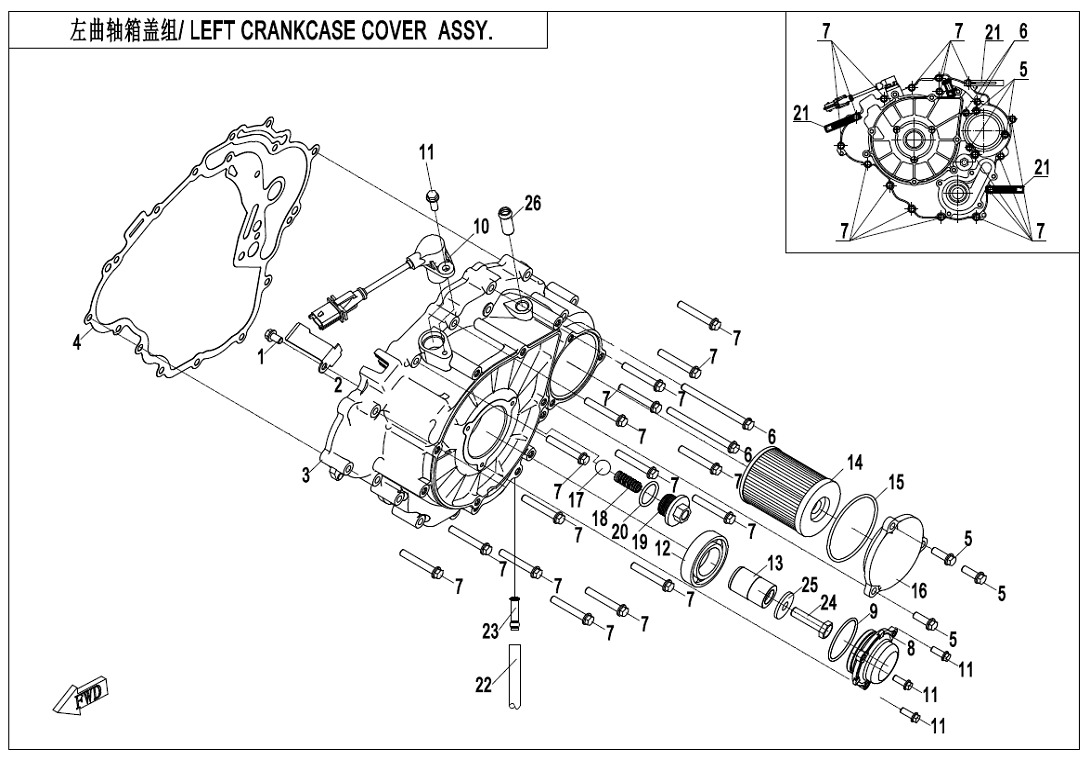

E01-4
LEFT CRANKCASE COVER ASSY.
E02-1

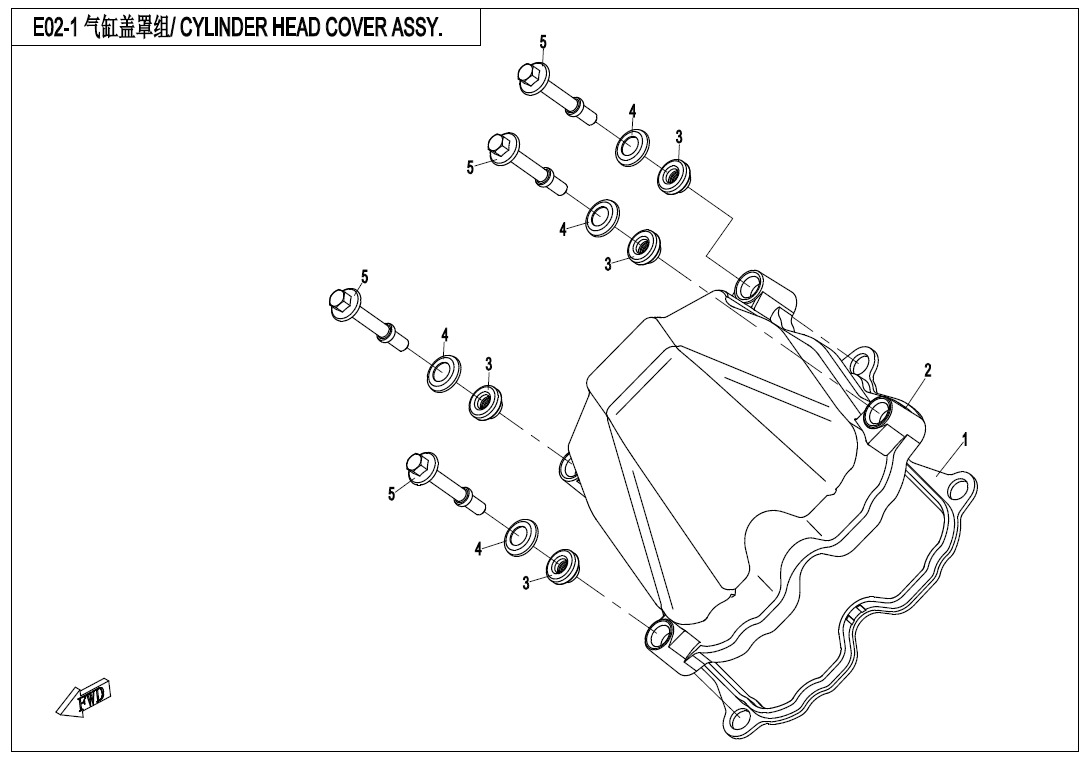

CYLINDER HEAD COVER ASSY
E02-2

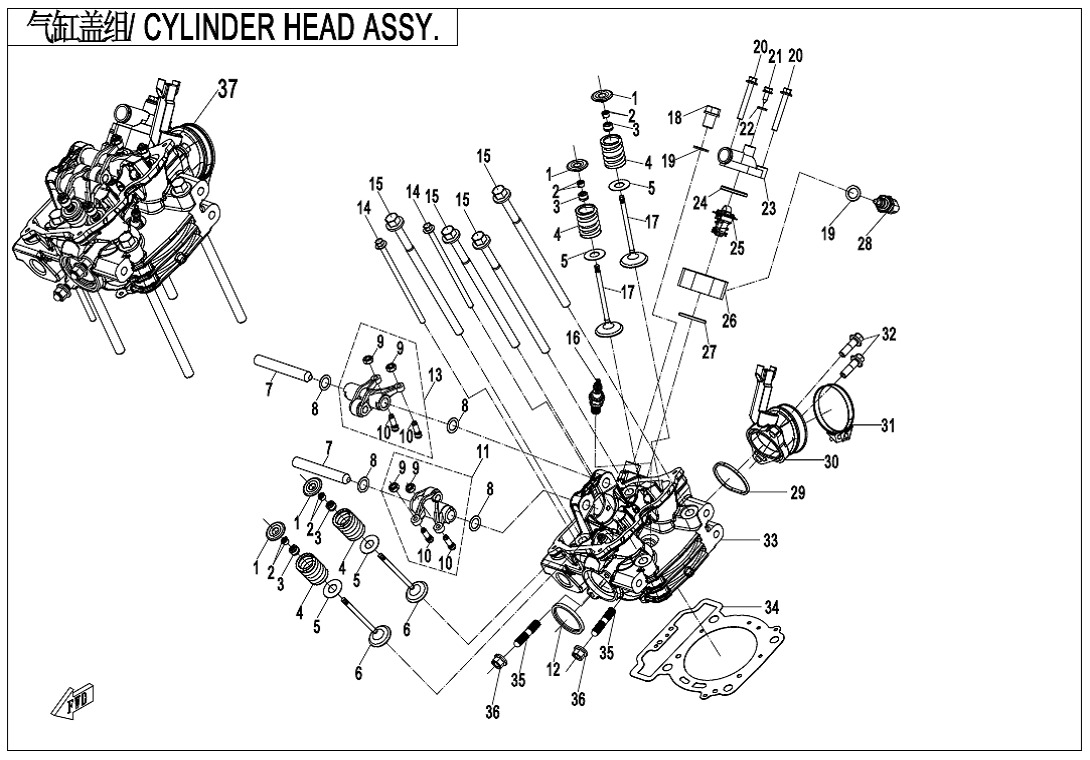

CYLINDER HEAD ASSY.
E02-3

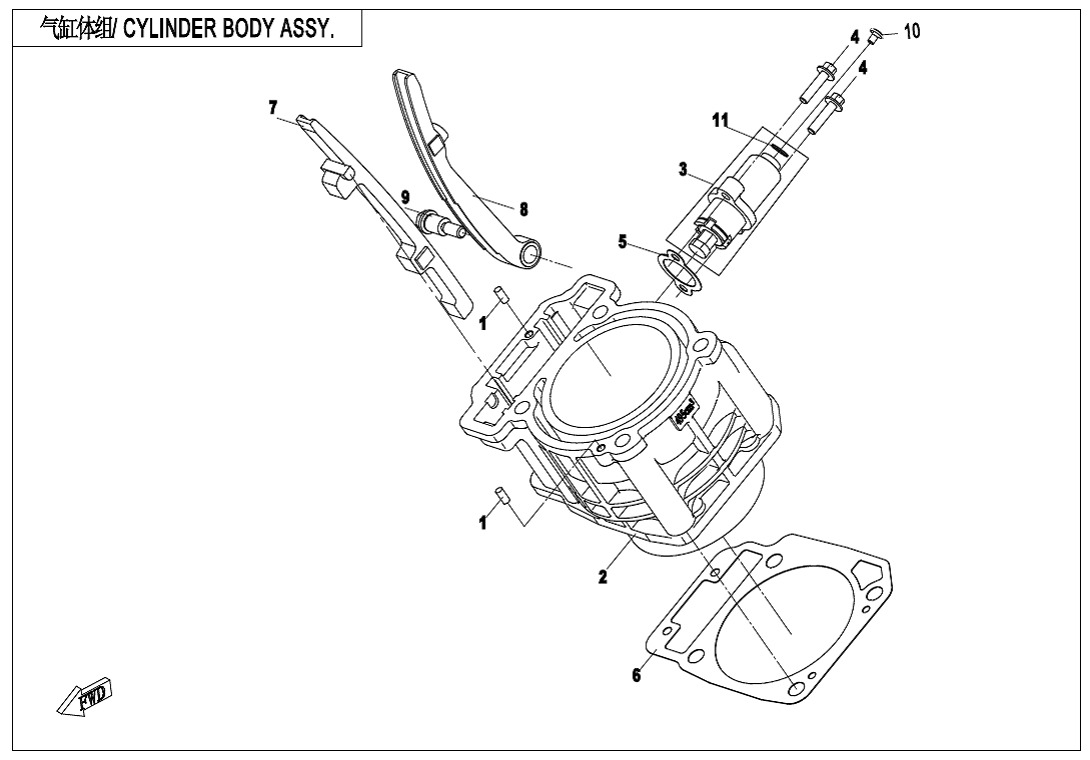

CYLINDER BODY ASSY.
E02-4

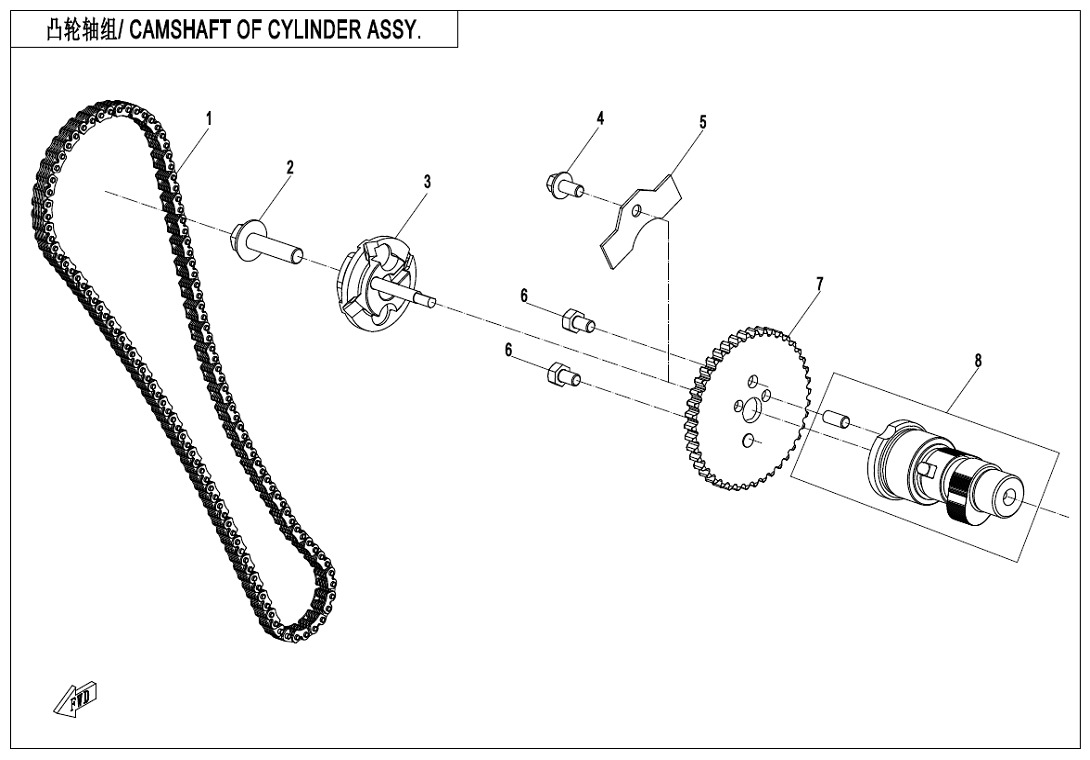

CAMSHAFT OF CYLINDER ASSY.

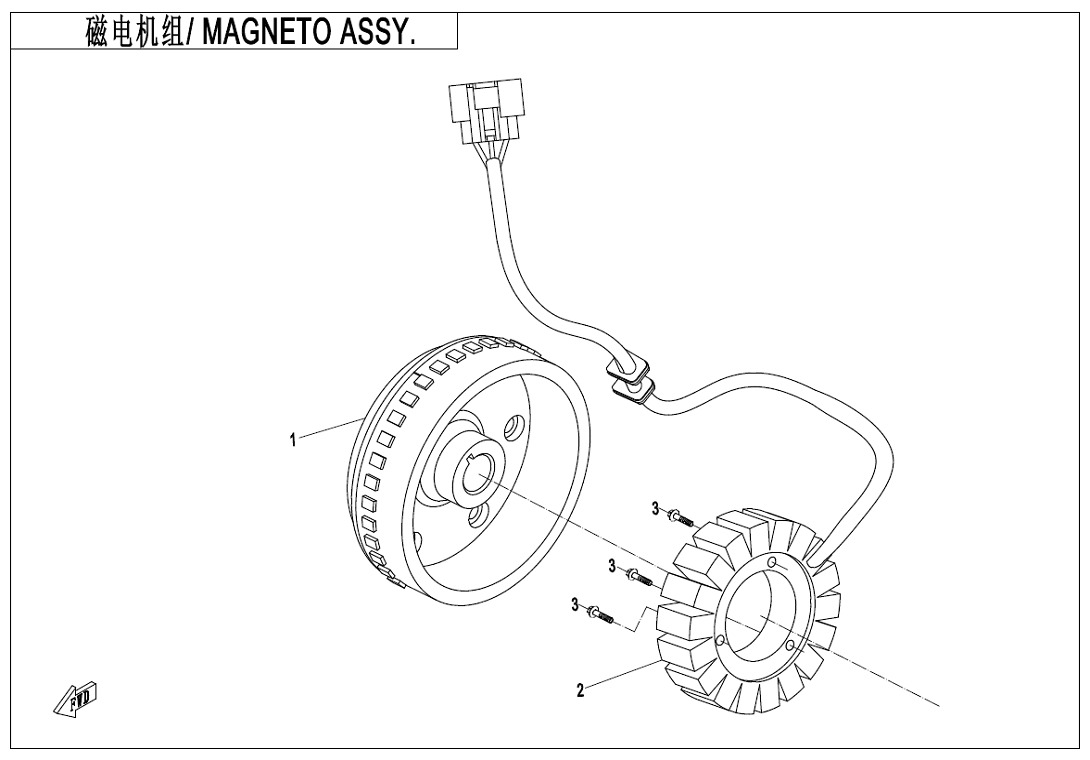

E03
MAGNETO ASSY.
E04-V1

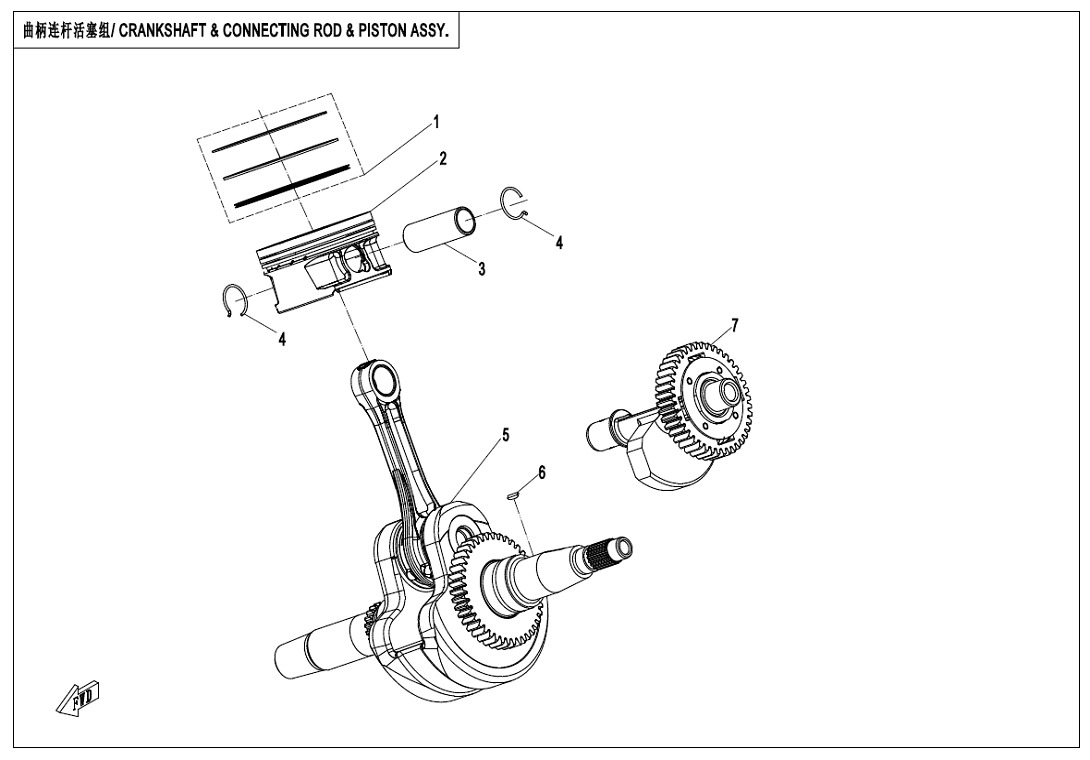

CRANKSHAFT & CONNECTING ROD & PISTON ASSY.
E04-V2
CRANKSHAFT & CONNECTING ROD & PISTON ASSY.

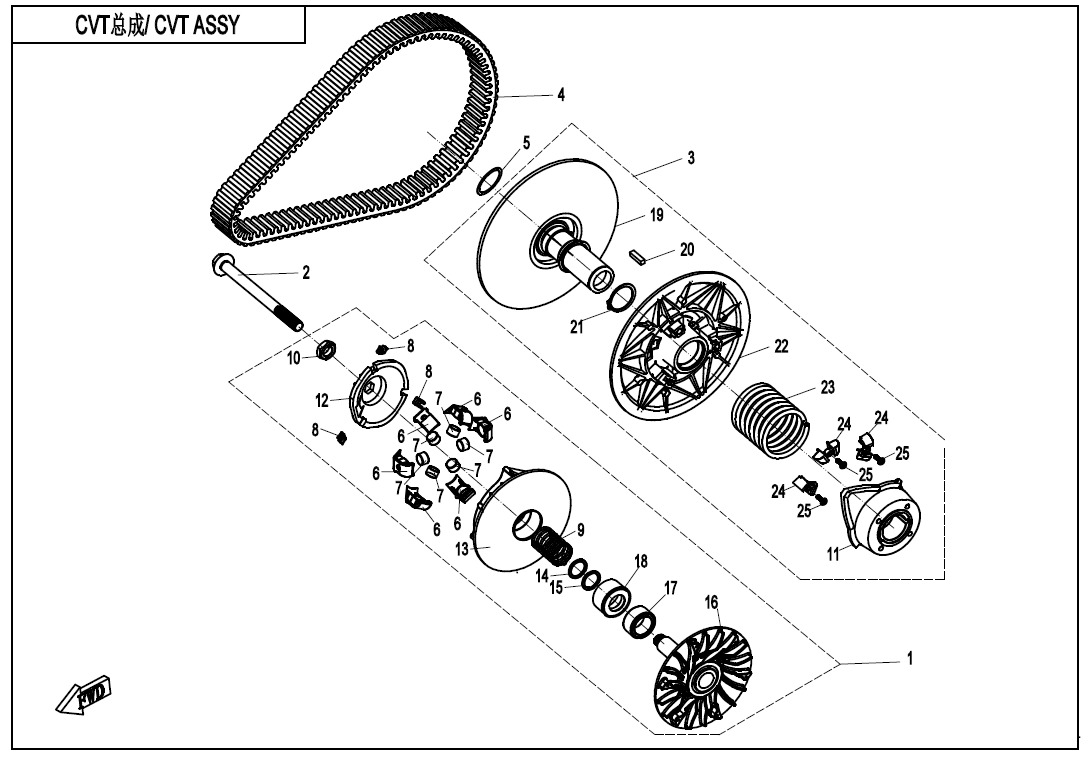

E05
CLUTCH & CVT ASSY.
E06-1

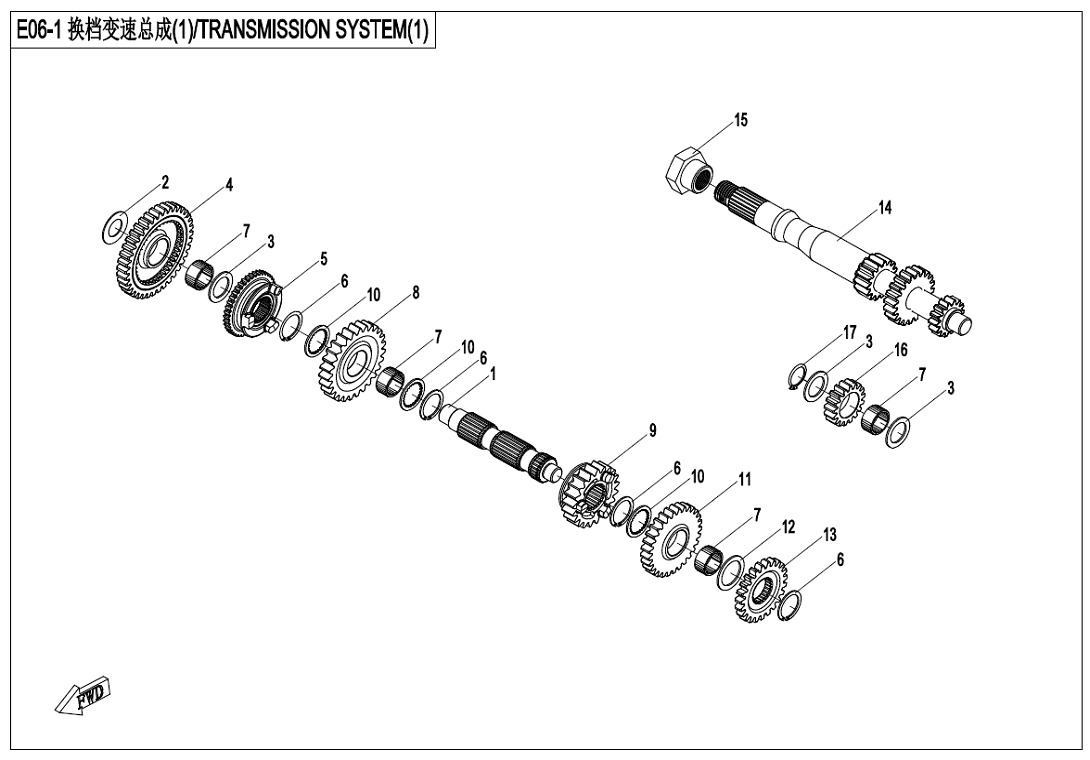

TRANSMISSION SYSTEM(1)

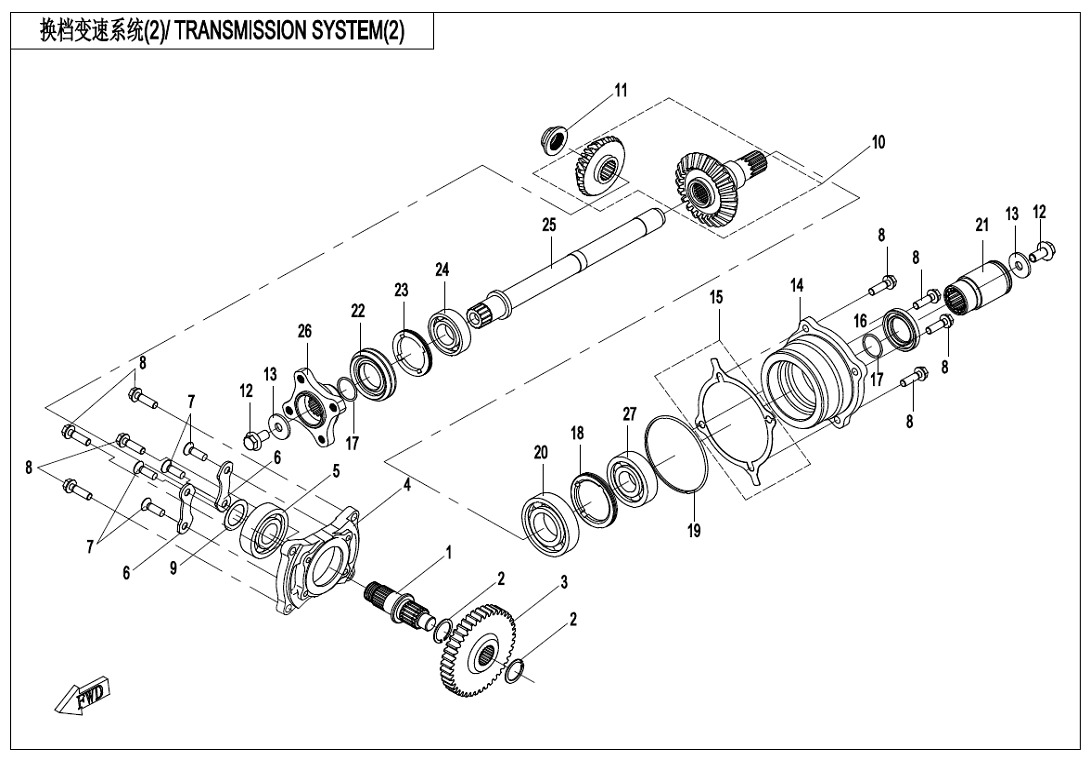

E06-2
TRANSMISSION SYSTEM(2)
E06-3

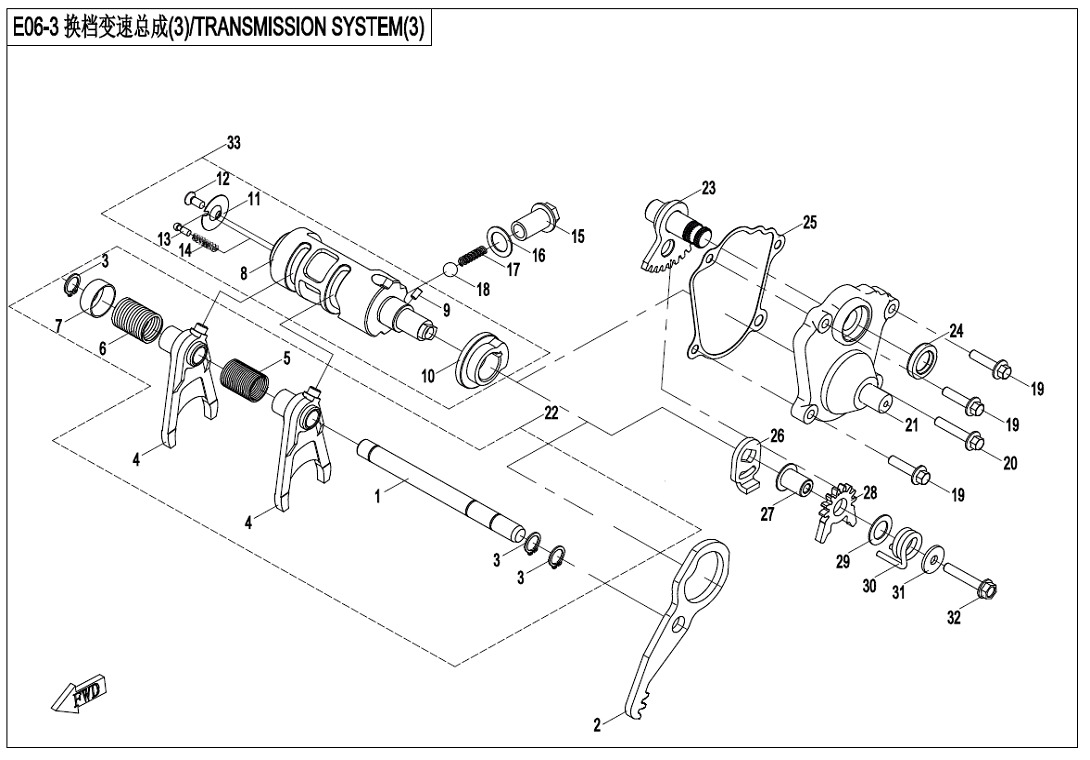

TRANSMISSION SYSTEM(3)

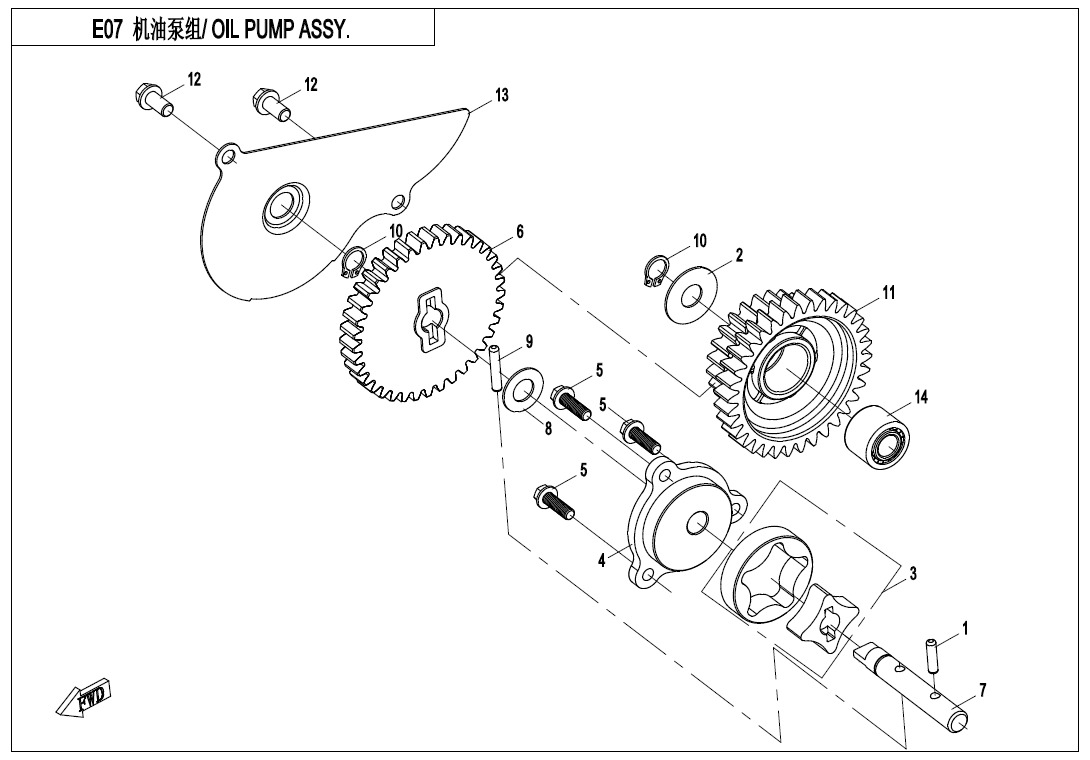

E07
OIL PUMP ASSY

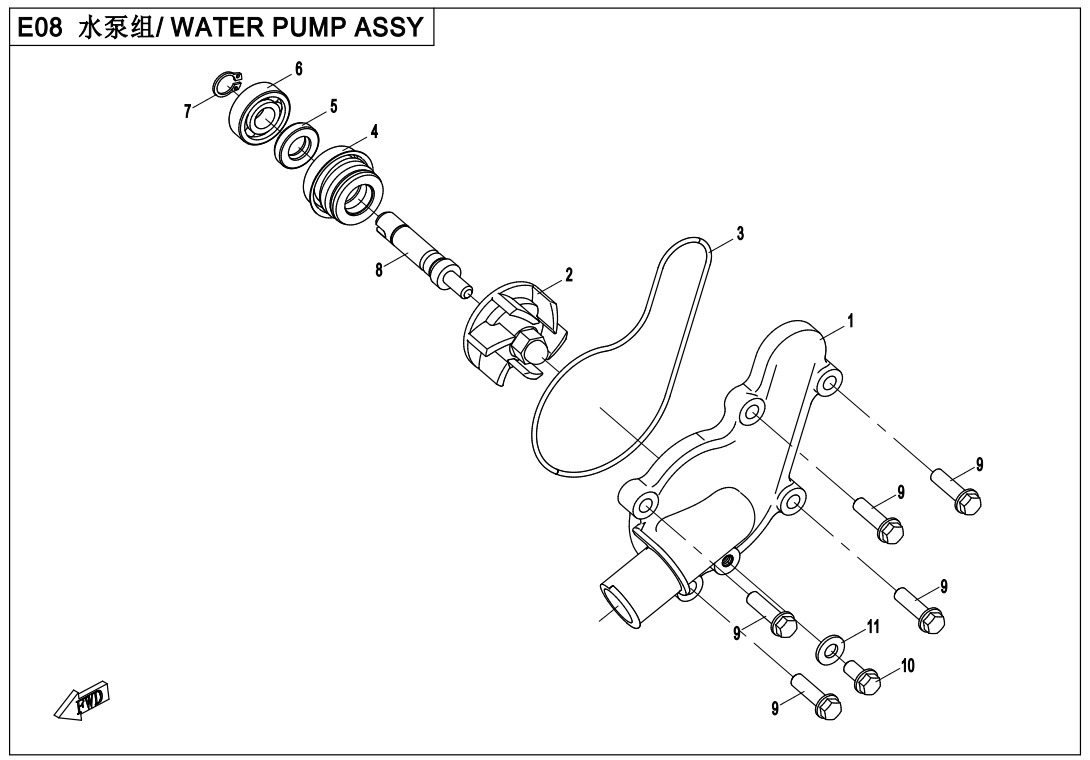

E08
WATER PUMP ASSY
E09

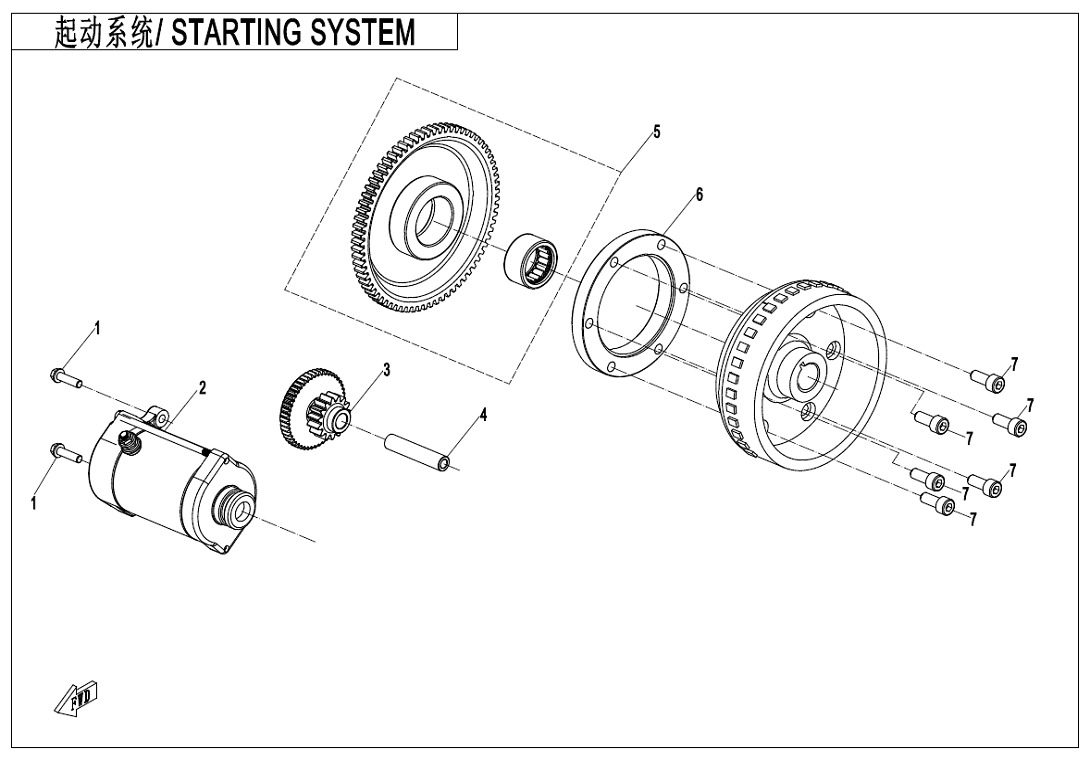

STARTING SYSTEM

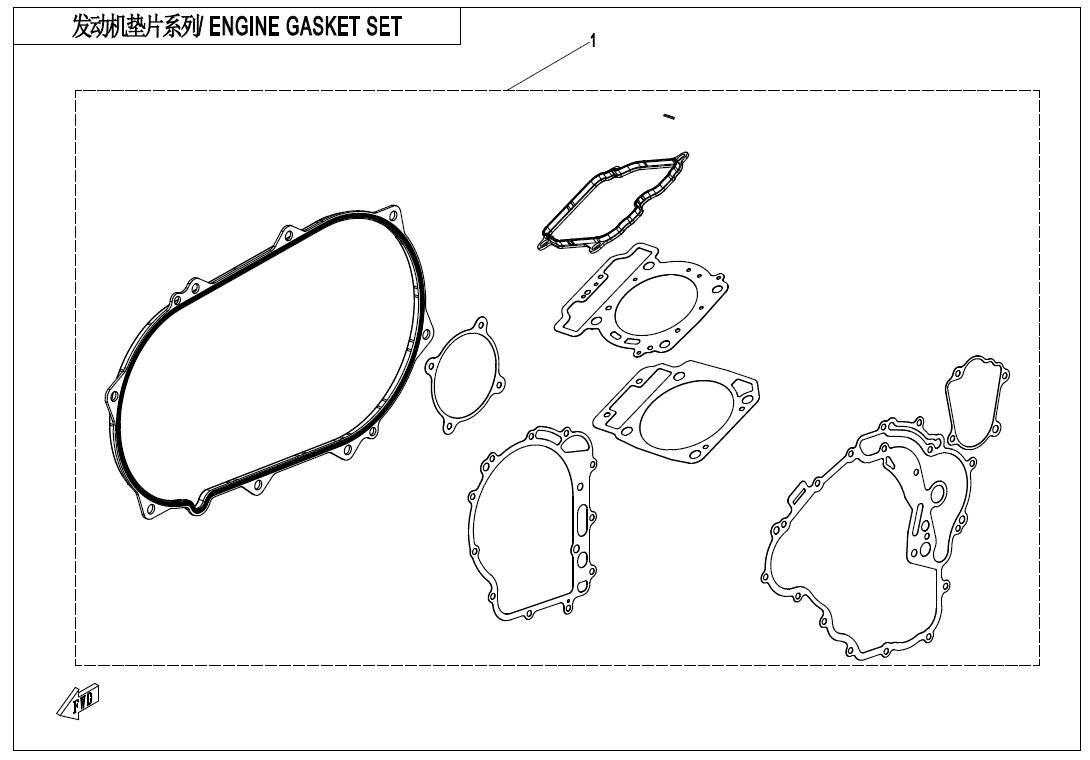

E29
ENGINE GASKET KIT
E30

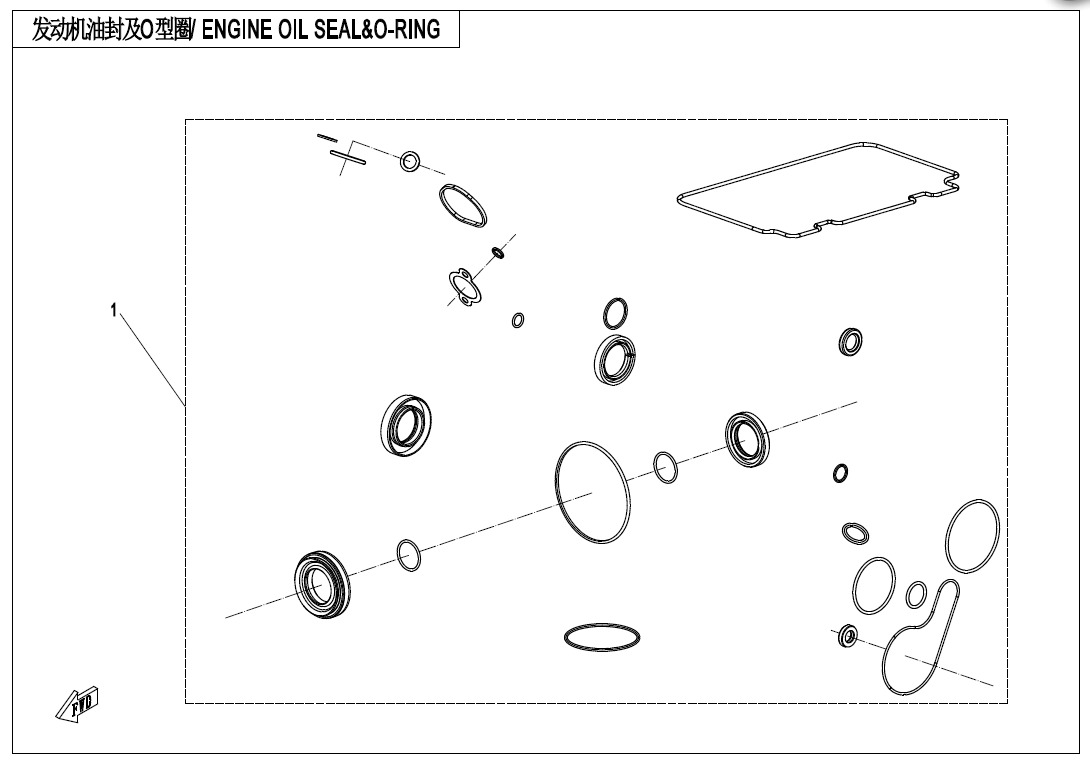

ENGINE OIL SEAL &O-RING
F00-2
CVT AIR PIPE@^SIDE COVER
F01
LOCK KIT
F02-A
MUFFLER
F02-B
MUFFLER(FOR 168 ONLY)
F03-V1
FRAME
F03-V2
FRAME
F04-1
FRONT PLASTICS
F04-2
MIDDLE PLASTICS
F04-3
REAR PLASTICS
F04-4-V1
BOTTOM PLASTICS
F04-4-V2
BOTTOM PLASTICS
F04-4-V3
BOTTOM PLASTICS
F05
FRONT SUSPENSION
F06-V2
REAR SUSPENSION
F06-V3
REAR SUSPENSION
F07
FRONT WHEEL(FRONT BRAKE DISC WITHOUT HEAT RADIATION HOLE)
F08-A
BRAKE SYSTEM(LH,ORDINARY PLUG)
F08-B
BRAKE SYSTEM(LH,SUMITOMO PLUG)
F08-C
BRAKE SYSTEM(LH,BUNDY TUBE)
F08-D
BRAKE SYSTEM(RH,BUNDY TUBE)
F08-E
BRAKE SYSTEM(RH,ORDINARY PLUG)
F08-F
BRAKE SYSTEM(RH,SUMITOMO PLUG)
F10-1-V1
HANDLEBAR
F10-1-V2
HANDLEBAR
F10-2-A
STEERING SYSTEM
F10-2-B-V1
STEERING SYSTEM( EPS)
F10-2-B-V2
STEERING SYSTEM( EPS)
F11
REAR WHEEL
F12-V1
FUEL TANK
F12-V2
FUEL TANK
F12-V3
FUEL TANK
F12-V4
FUEL TANK
F12-V5
FUEL TANK
F13
SEAT
F14-A
RACK(STEEL)
F14-B
RACK(PLASTIC)
F15-1-A
V1
F15-1-A-V2
ELECTRIC SYSTEM
F15-1-A-V3
ELECTRIC SYSTEM
F15-1-B
ELECTRIC SYSTEM(LOF)
F15-2 -V2
TOWING WINCH
F15-2-V1
TOWING WINCH
F15-3
FUEL INJECTION SYSTEM
F16
LIGHT
F17
DASHBOARD
F18
COOLING SYSTEM
F19-1-A
DECAL KITS(30th ANNIVERSARY, FOR NEBULA BLACK VEHICLE)
F19-1-B
DECAL KITS(30th ANNIVERSARY, FOR PAINTED ULTRA SILVER VEHICLE)
F19-1-C
DECAL KITS(30th ANNIVERSARY, CRYSTAL ORANGE VEHICLE)
F19-1-D
DECAL KITS(30th ANNIVERSARY, FOR INJECTED PEARL BLUE VEHICLE)
F19-1-E
DECAL KITS(30th ANNIVERSARY, FOR TRUE TIMBER CAMO VEHICLE)
F19-1-F
DECAL KITS(CRYSTAL ORANGE/ROYAL BLUE)
F19-1-G
DECAL KITS(NEBULA BLACK)
F19-1-H
DECAL KITS(PAINTED ULTRA SILVER)
F19-1-I
DECAL KITS(TRUE TIMBER CAMO)
F19-2
DECAL KITS(WARNING)
F20-V1
TOOLS
F20-V2
TOOLS
F23
BUMPER(WITH REFLECTOR MOUNTING BRACKETS)
F27
FRONT CV SHAFT
F28
REAR CV SHAFT
F30
DRIVETRAIN SYSTEM
F31-A
FRONT AXLE
F31-B
FRONT AXLE
F32
GEAR SHIFTING
F33
REAR AXLE
F38-A-V1
OWNER'S MANUAL
F38-A-V2
OWNER'S MANUAL
F38-B
OWNER'S MANUAL(GERMAN)
F38-C
OWNER'S MANUAL(FRENCH)
F40-A
TOWBAR
F40-B
TOWBAR(LOF)
F40-V2
TOWBAR
F41-V1
AIR FILTER ASSY.
F41-V2
AIR FILTER ASSY.
