Genuine Parts Diagrams for 2024 CFORCE 850 EPS TOURING - CF800AZ-3Change Model
Showing 130 parts diagrams.

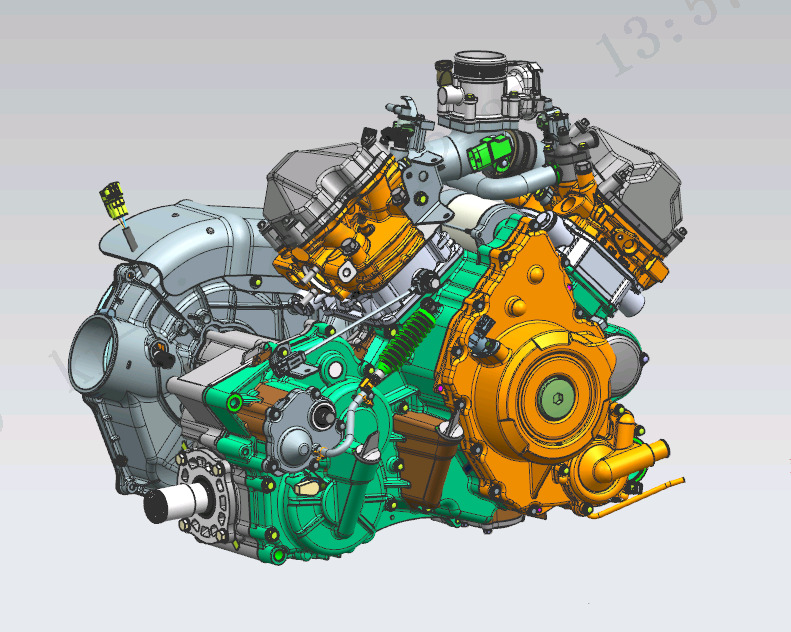

E00
LONG BLOCK

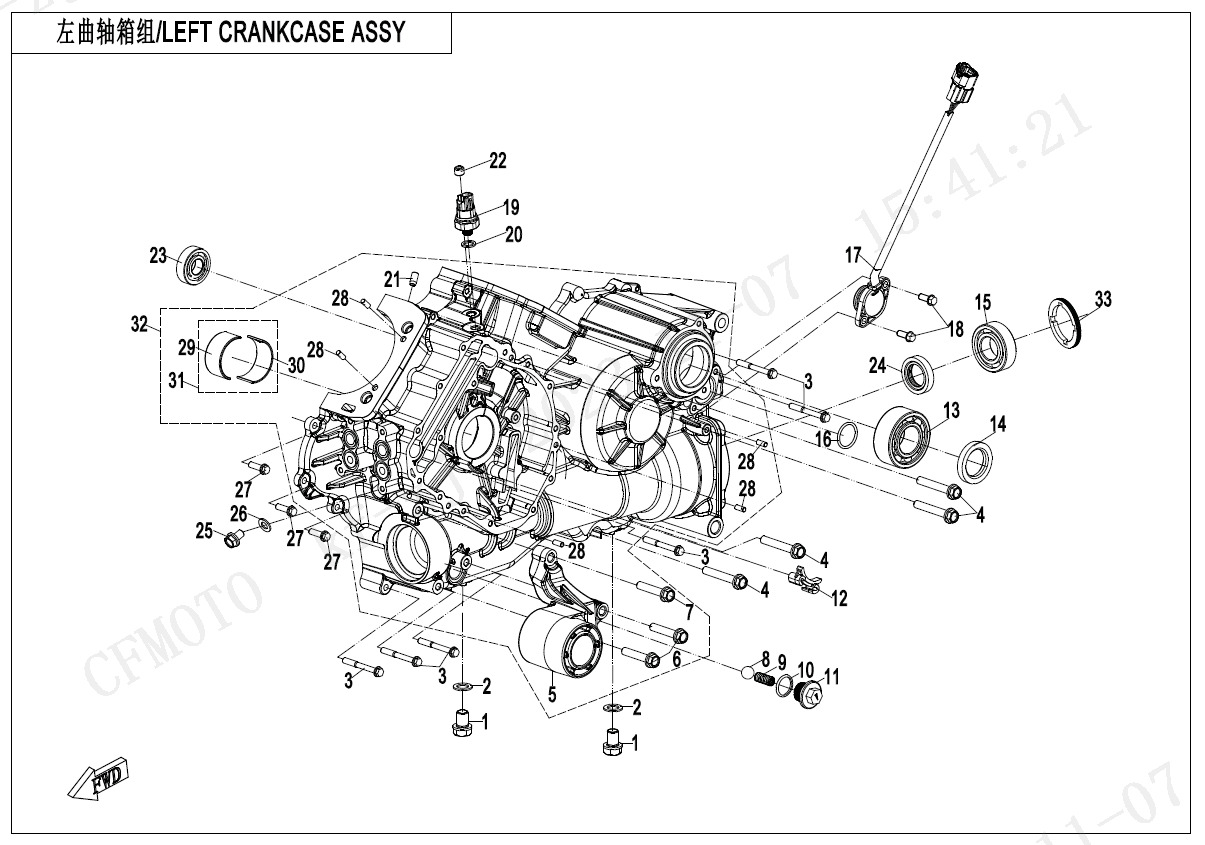

E01-1
LEFT CRANKCASE ASSY
E01-2

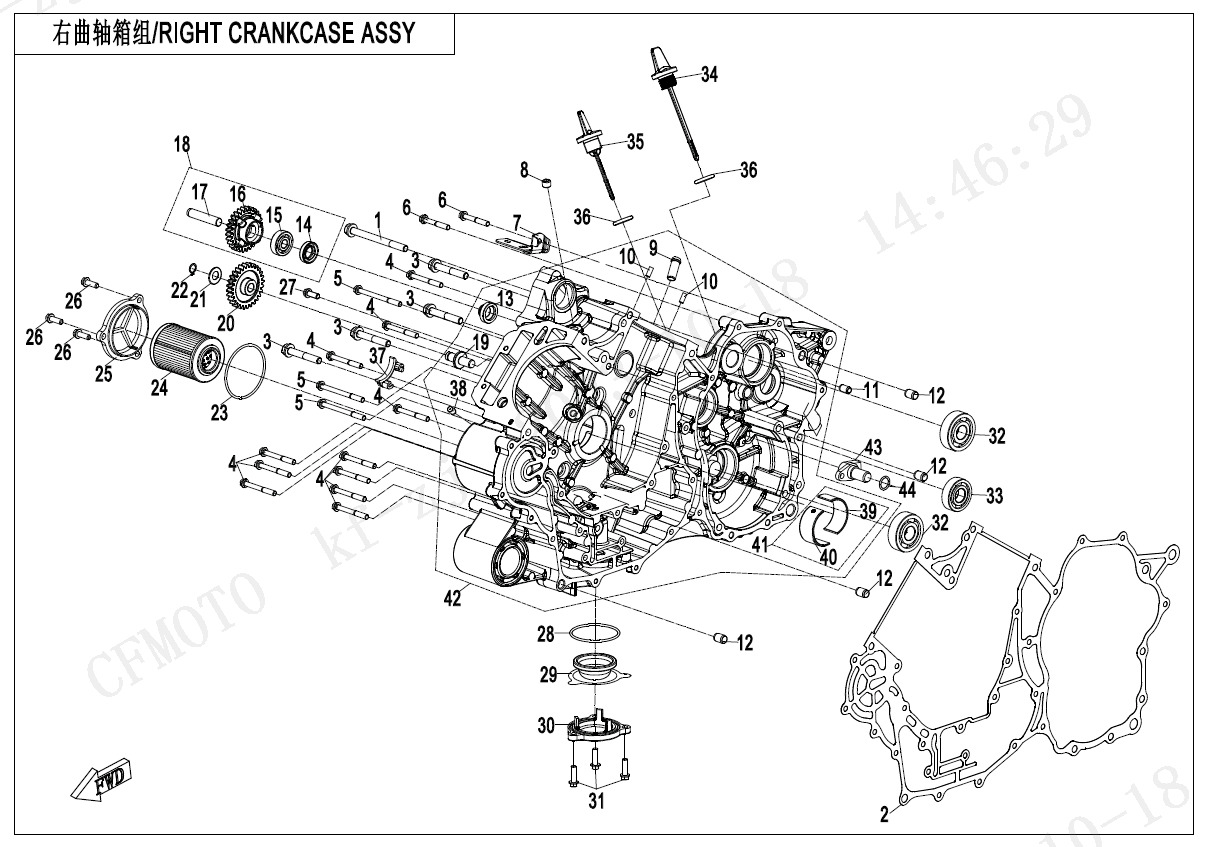

RIGHT CRANKCASE ASSY
E01-3

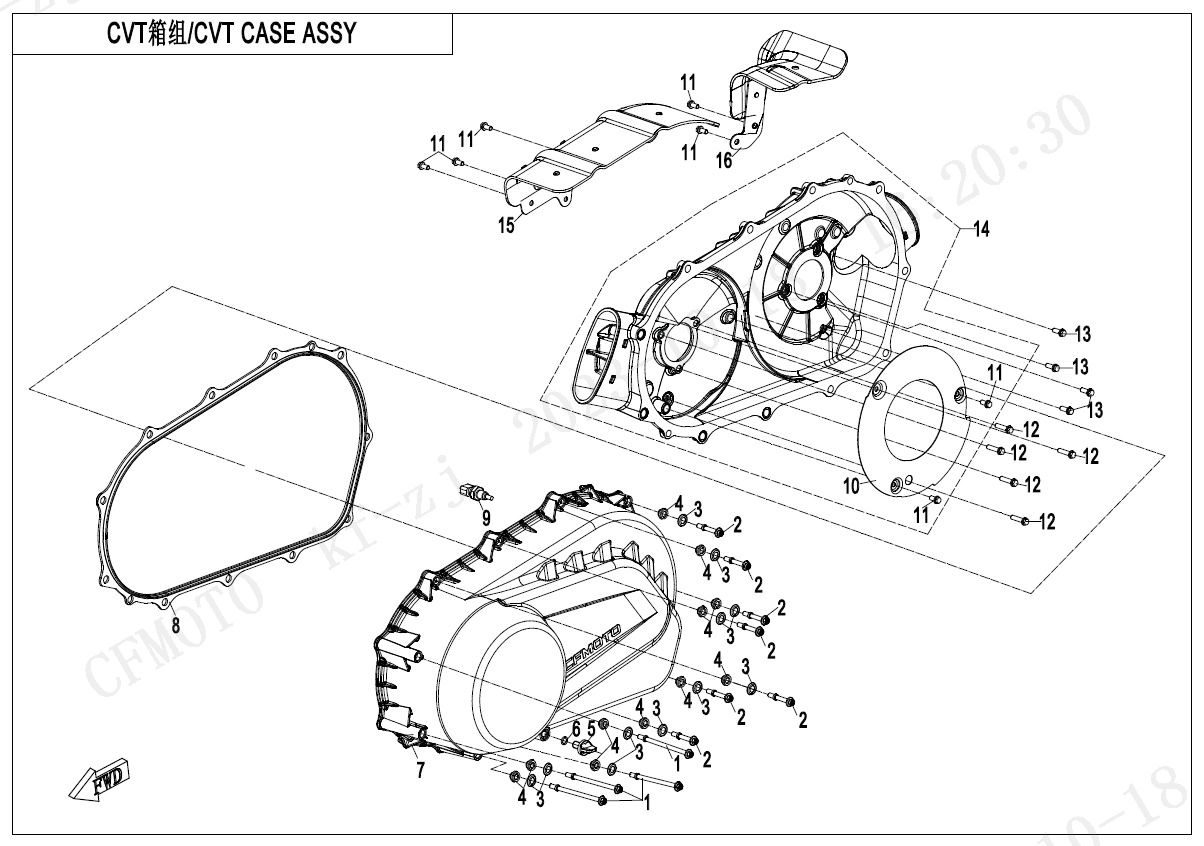

CVT CASE ASSY
E01-4

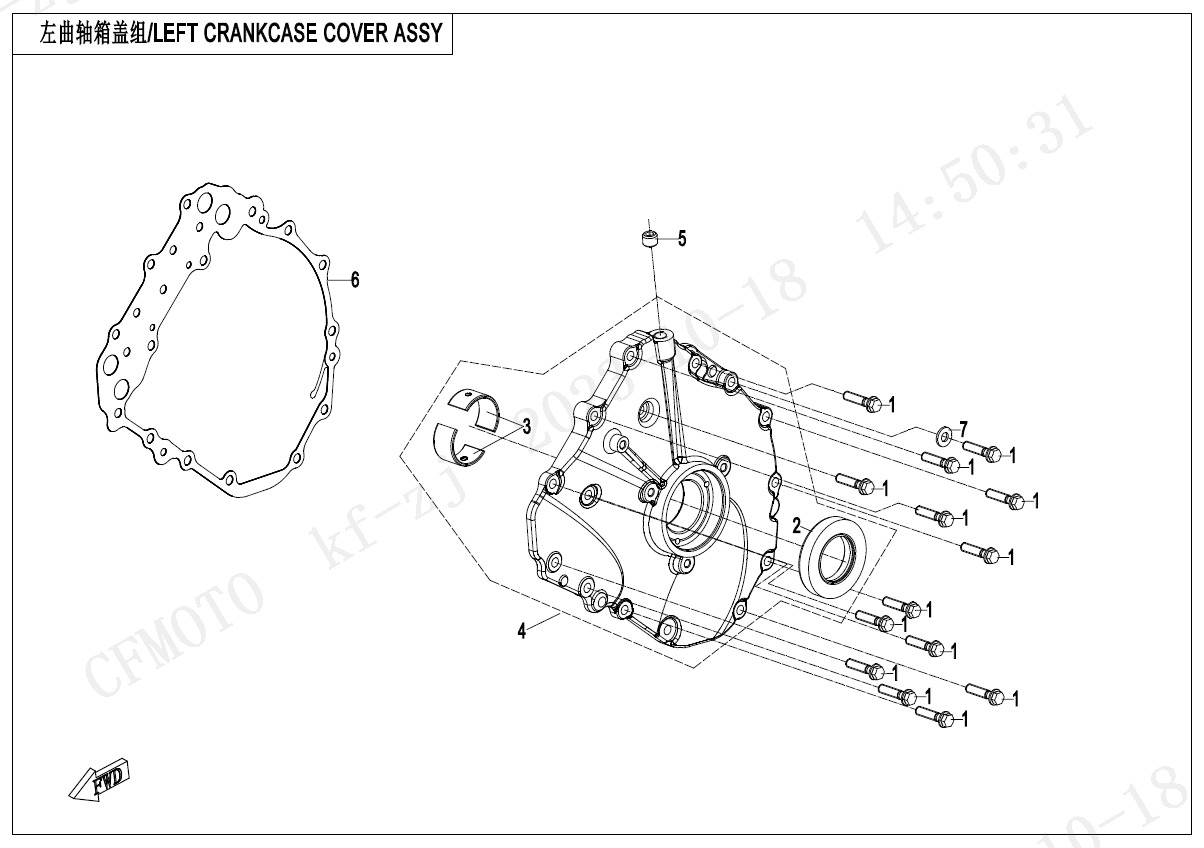

LEFT CRANKCASE COVER ASSY
E01-5

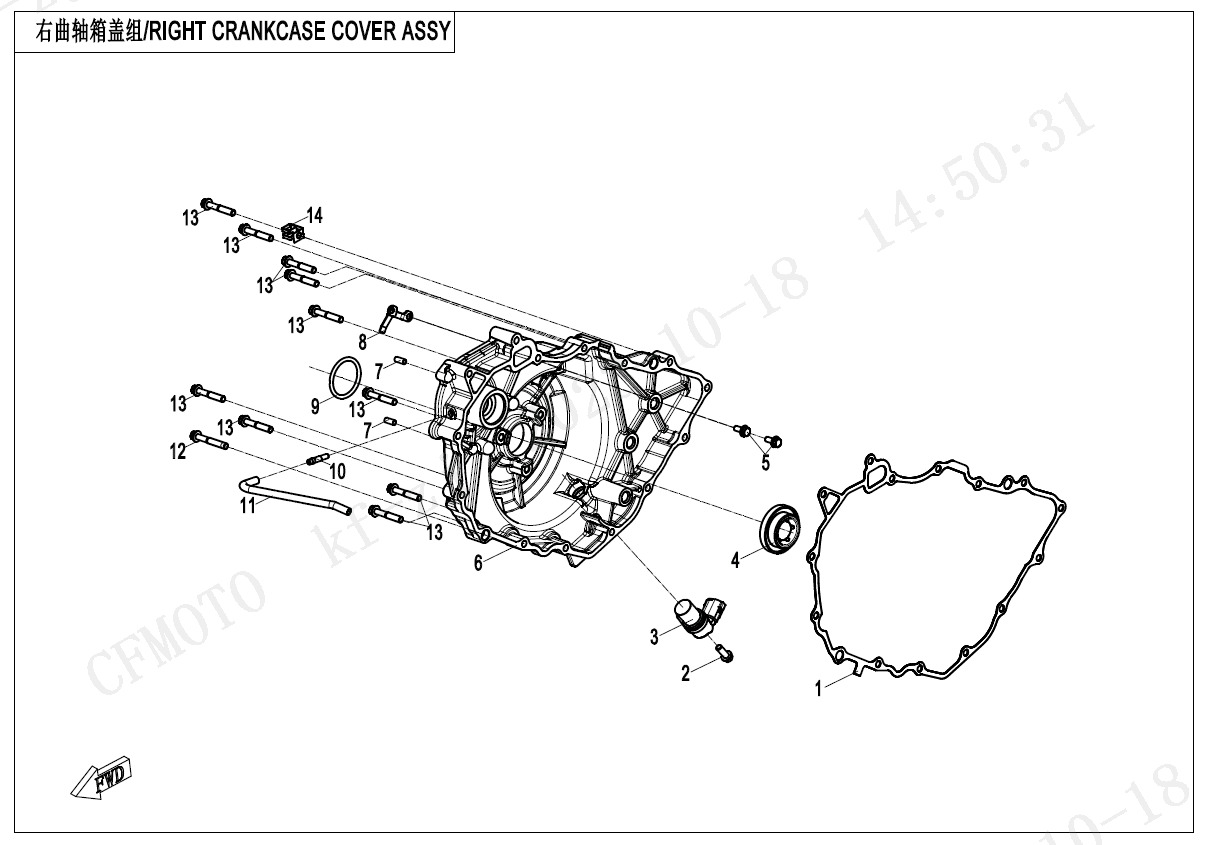

RIGHT CRANKCASE COVER ASSY
E02-1

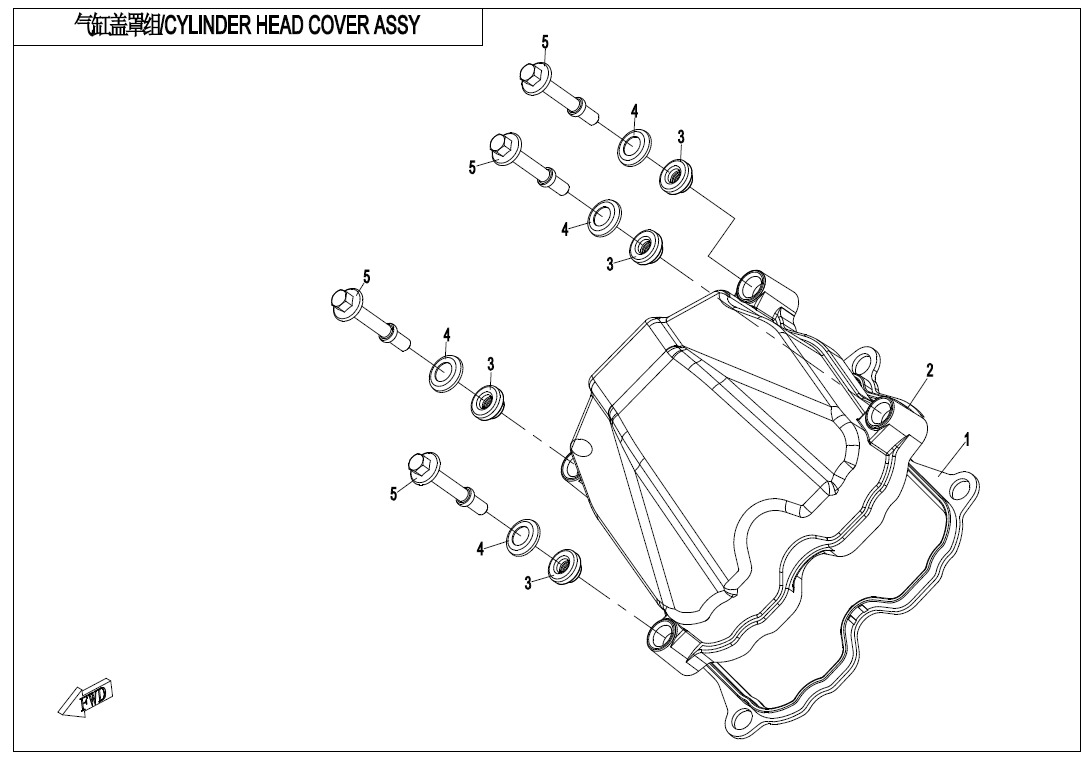

CYLINDER HEAD COVER ASSY
E02-2

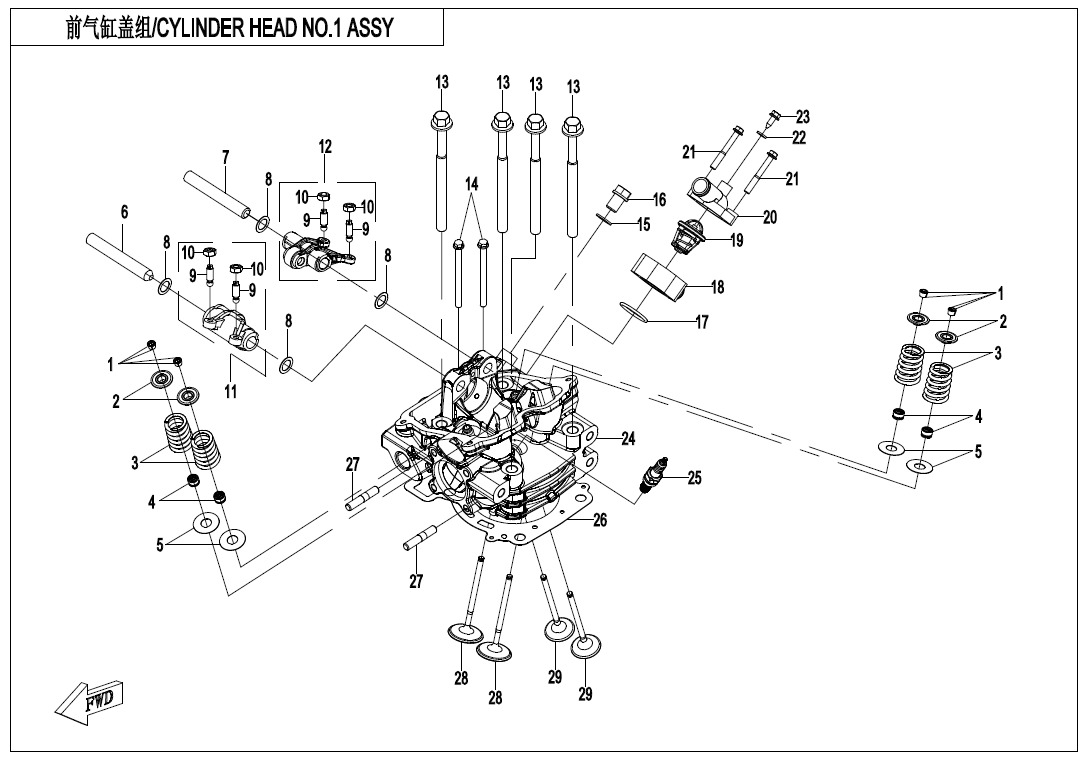

CYLINDER HEAD NO.1 ASSY
E02-3

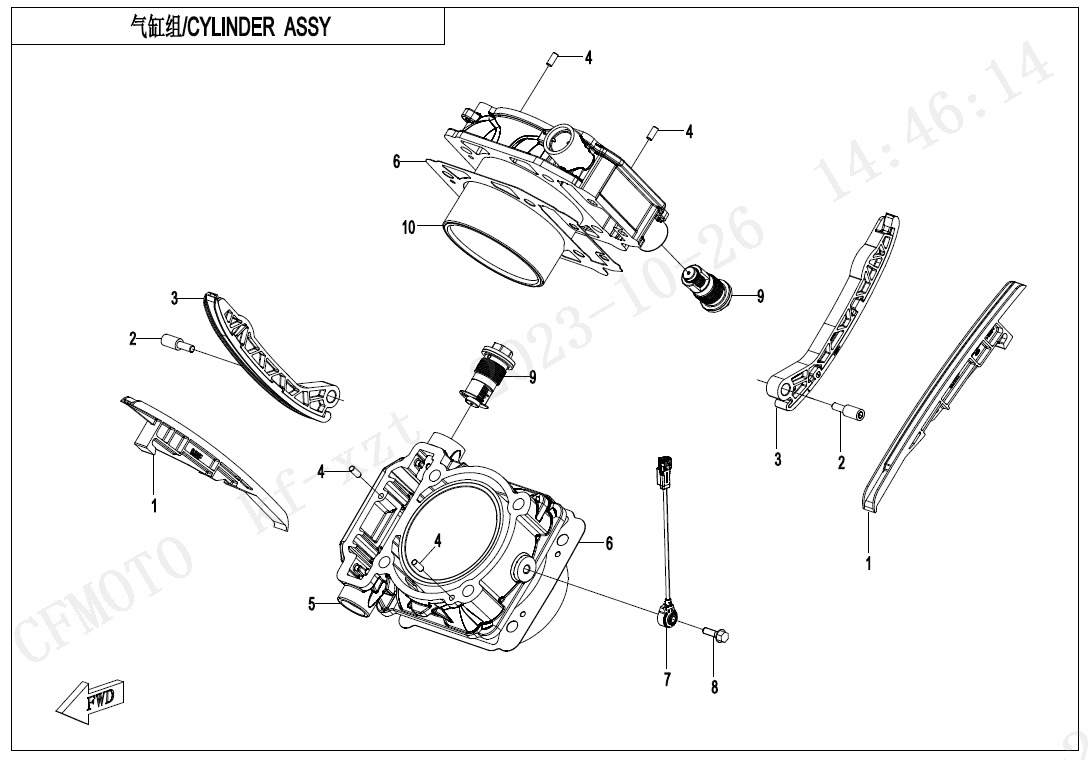

CYLINDER BODY
E02-4

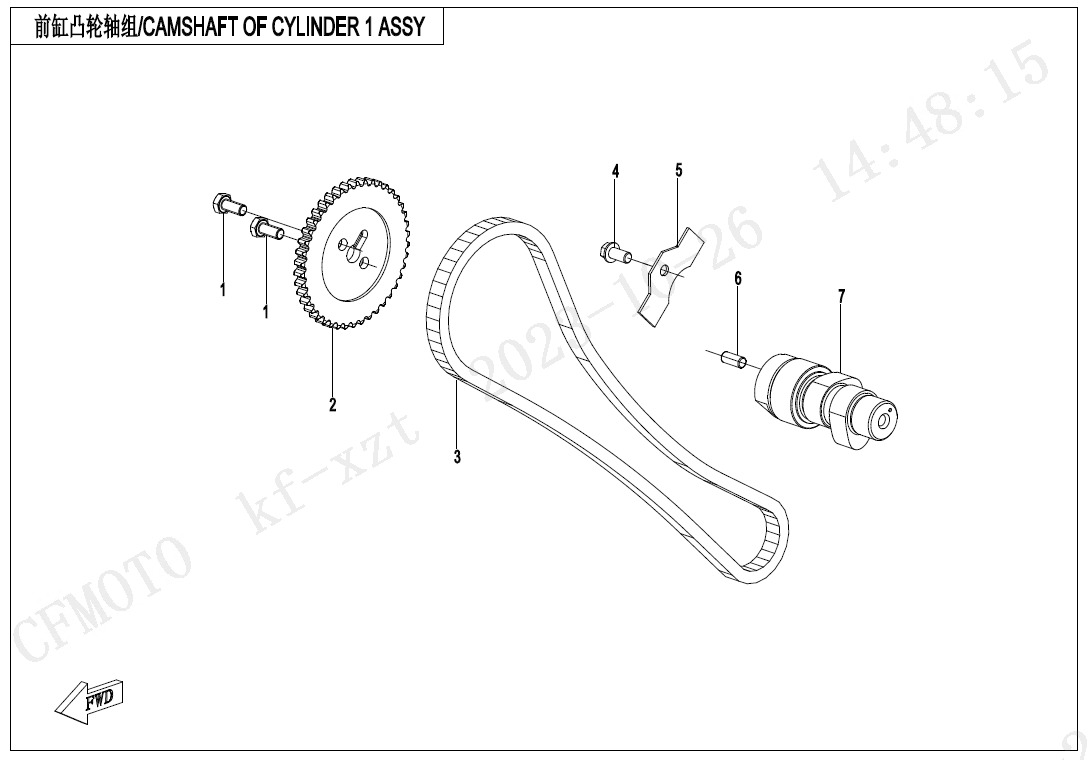

CAMSHAFT OF CYLINDER 1 ASSY
E02-5

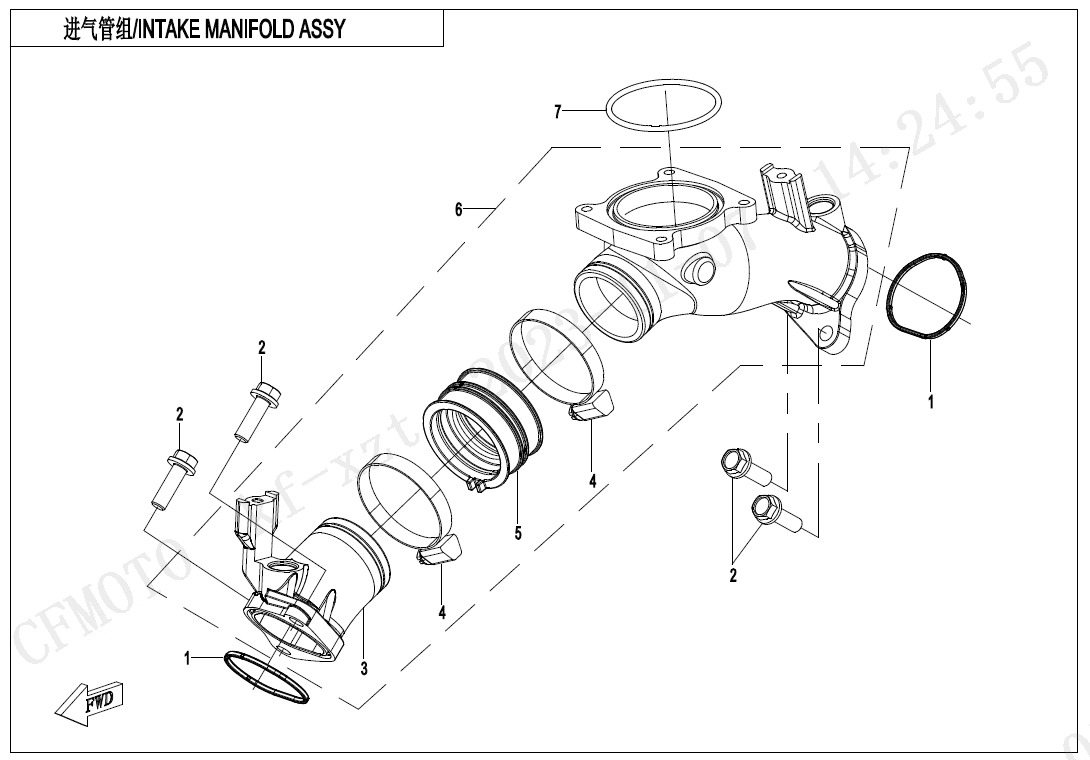

INTAKE MANIFOLD ASSY
E02-6

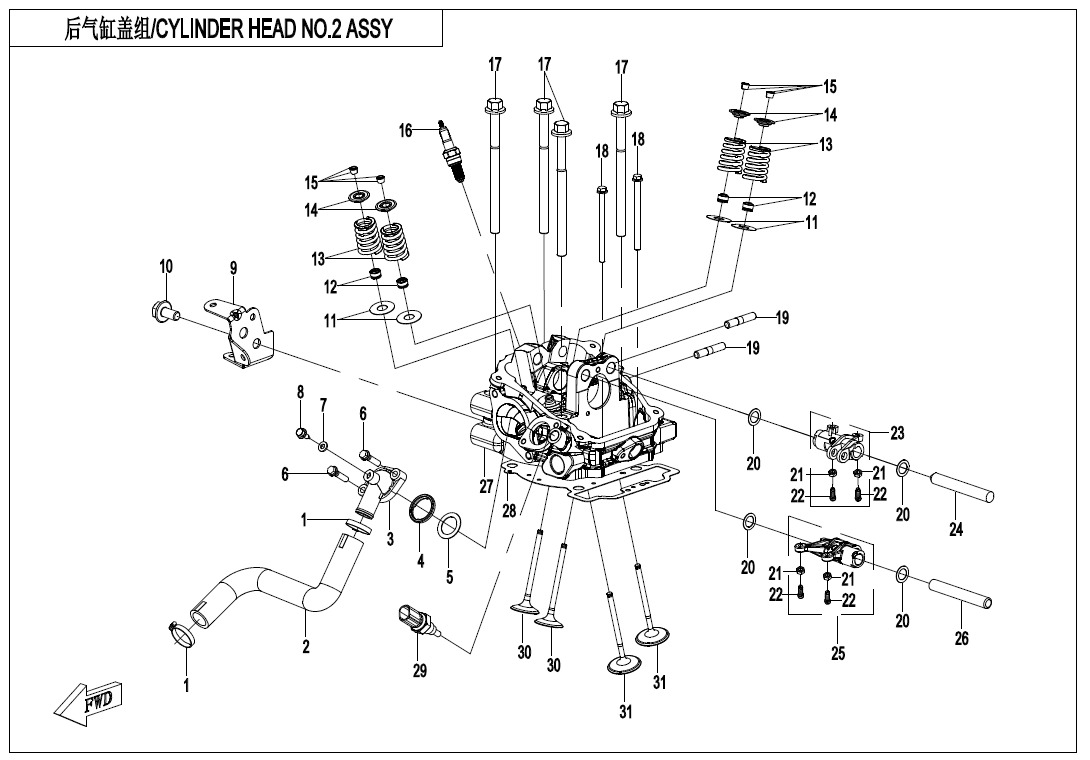

CYLINDER HEAD NO.2 ASSY
E02-7

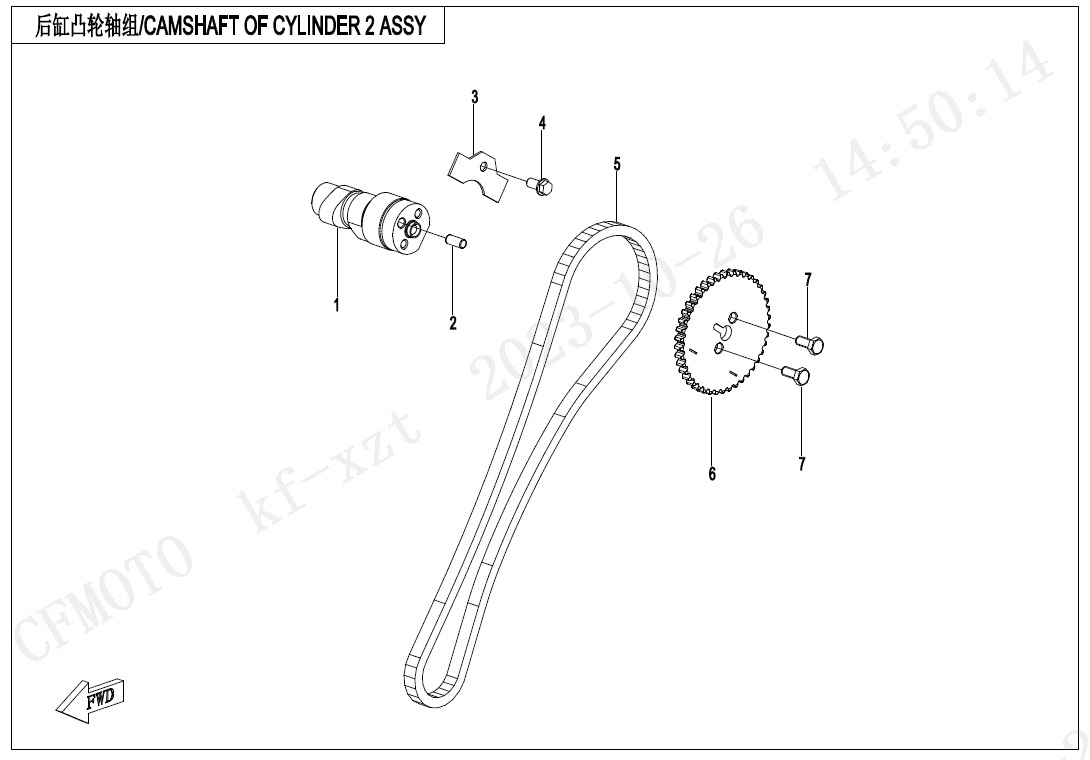

CAMSHAFT OF CYLINDER 2 ASSY
E03

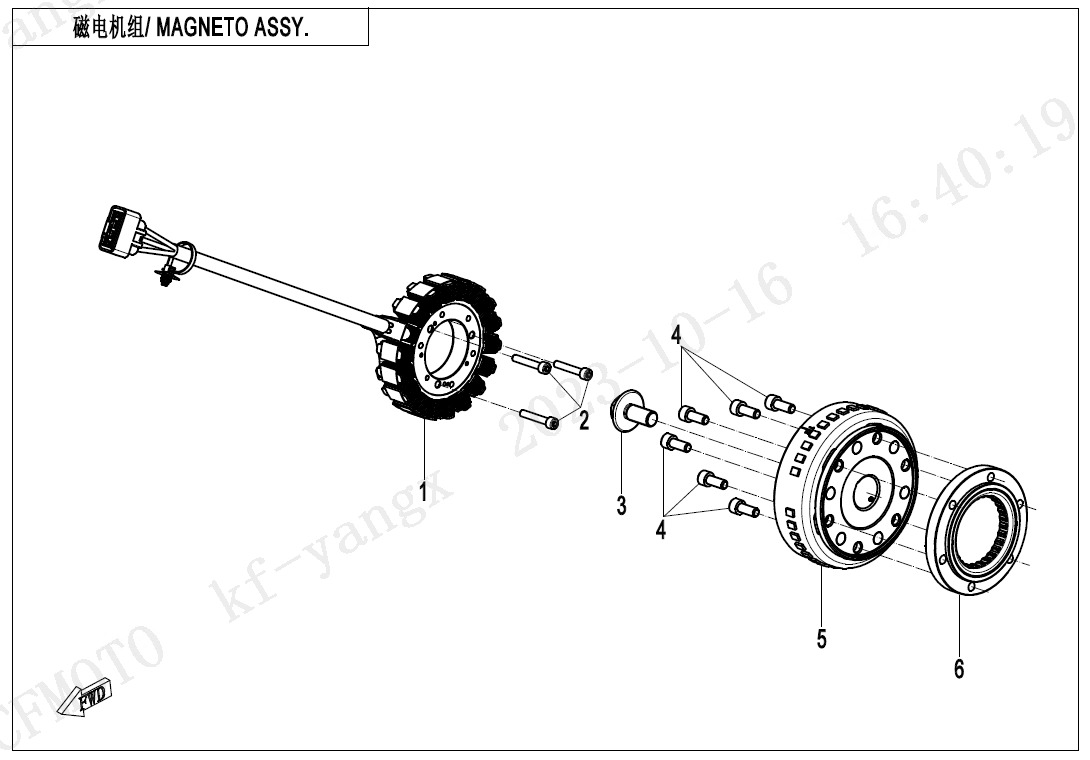

MAGNETO ASSY.
E04

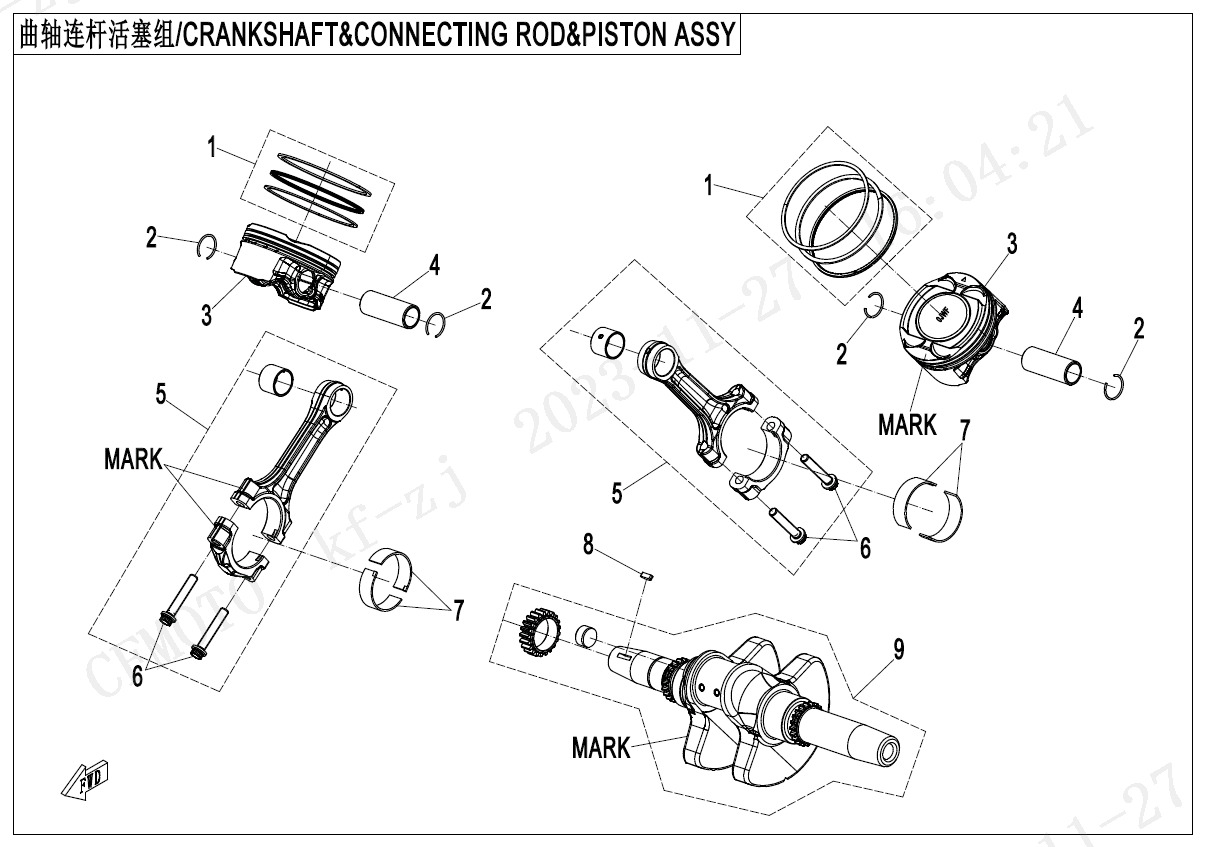

CRANKSHAFT、CONNECTING ROD、PISTON ASSY

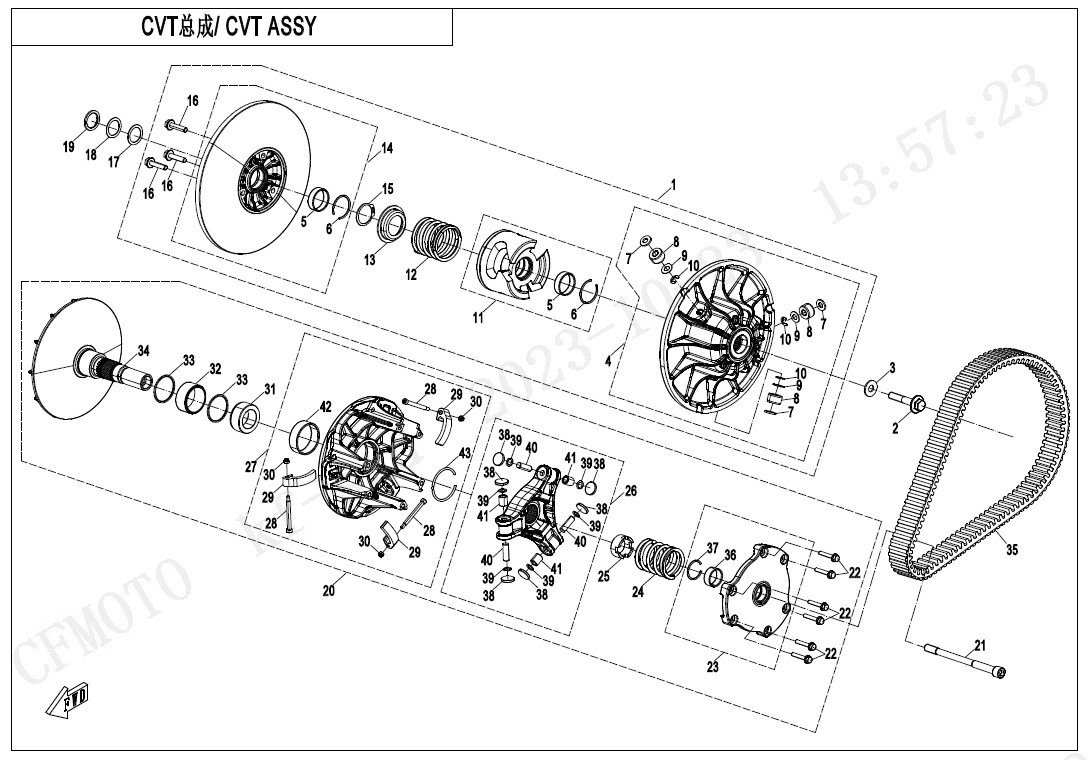

E05
CVT ASSY

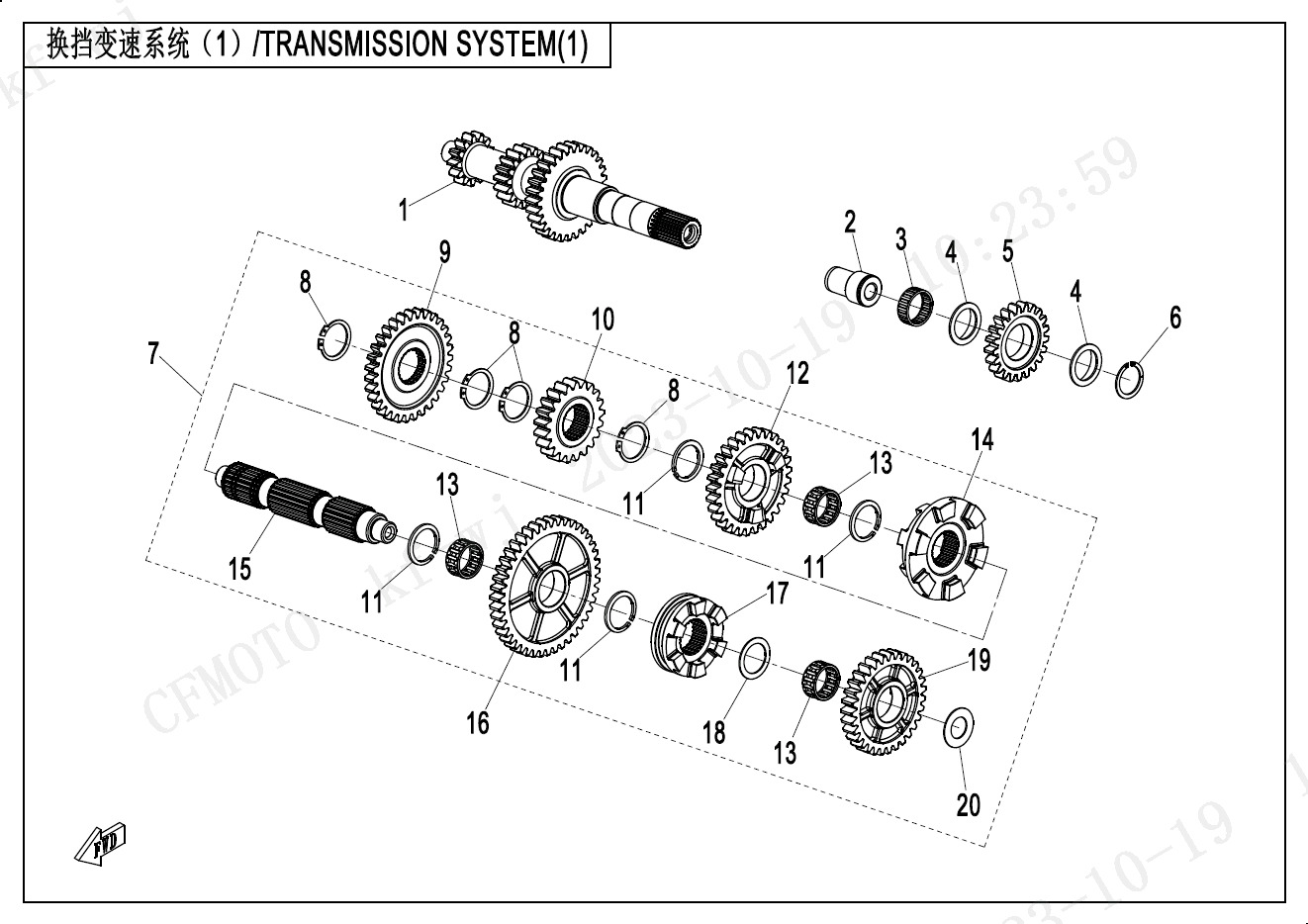

E06-1
TRANSMISSION SYSTEM(1)
E06-2

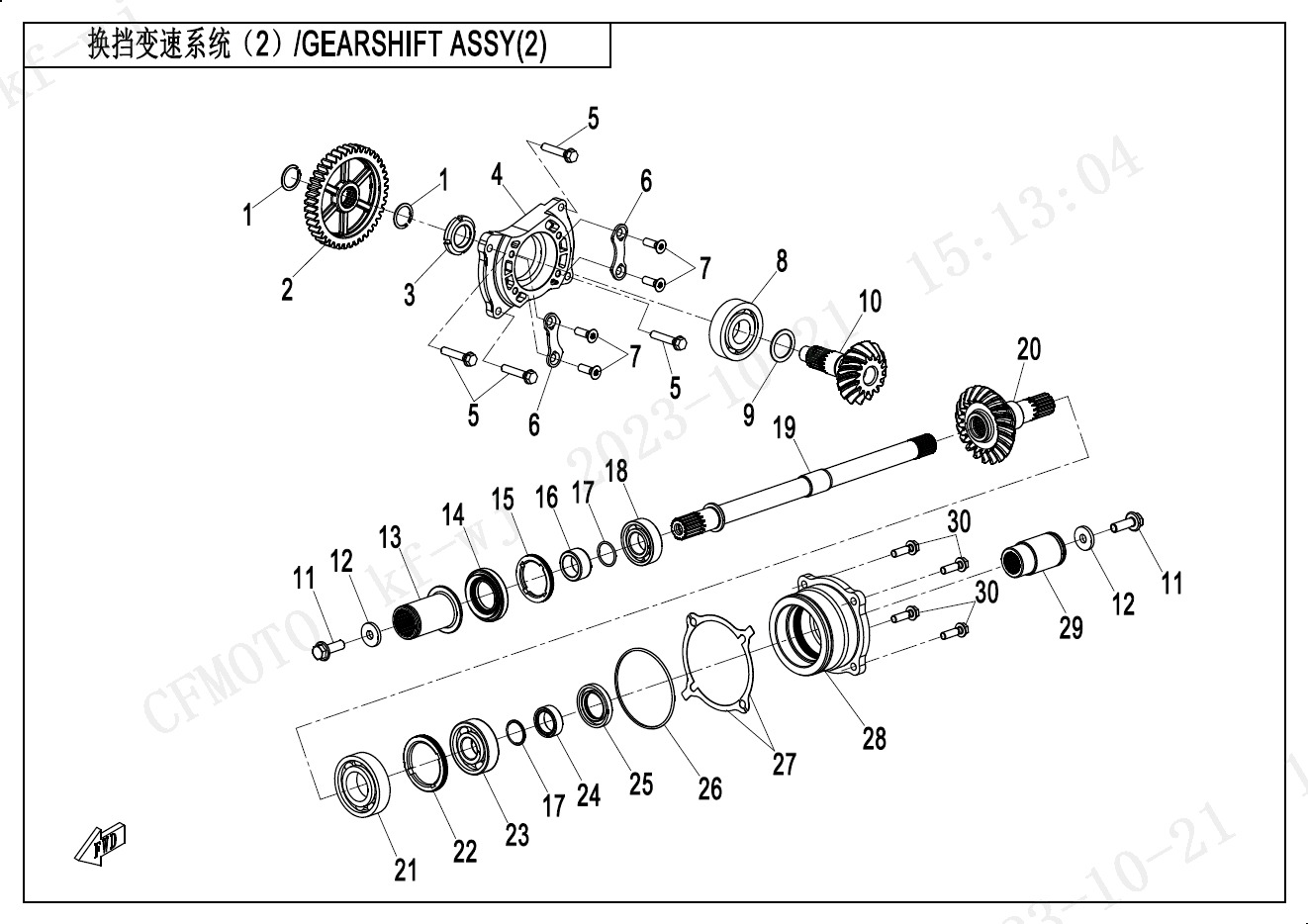

TRANSMISSION SYSTEM(2)

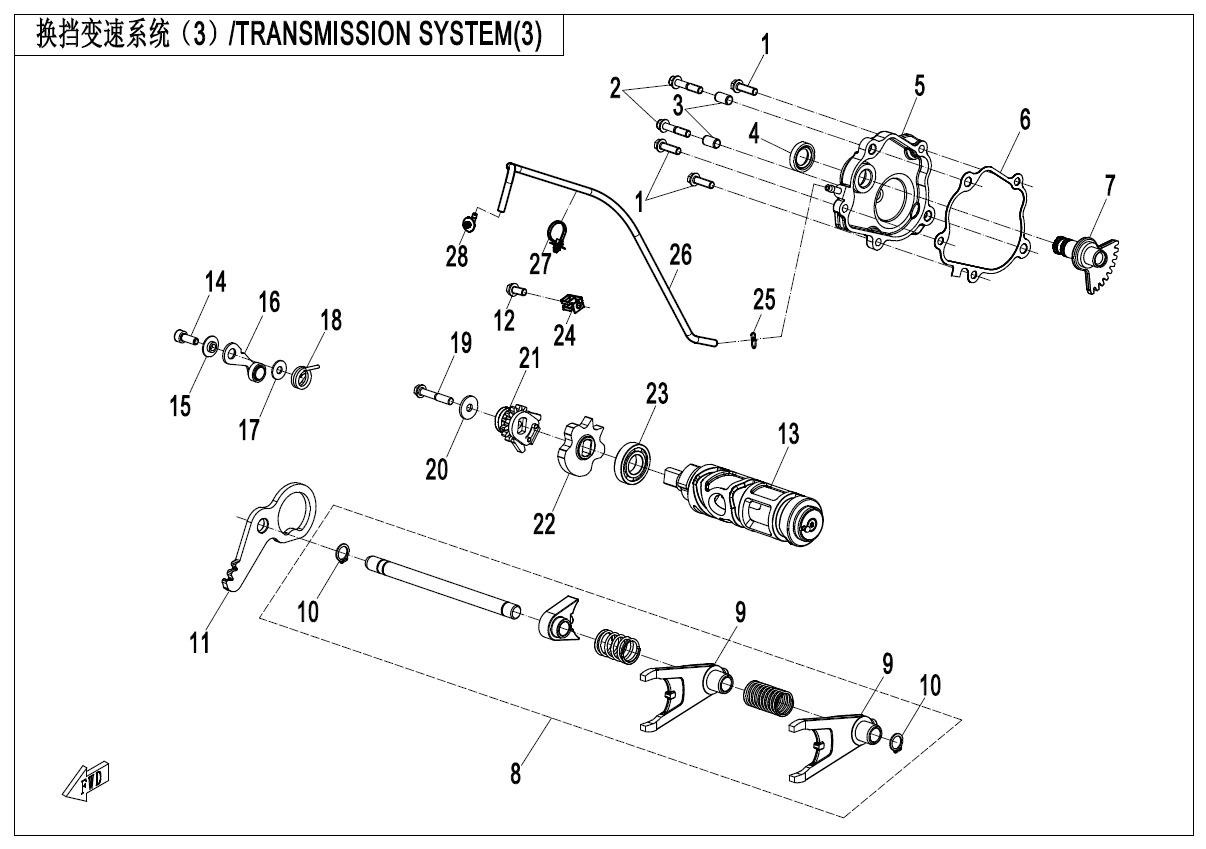

E06-3-V1

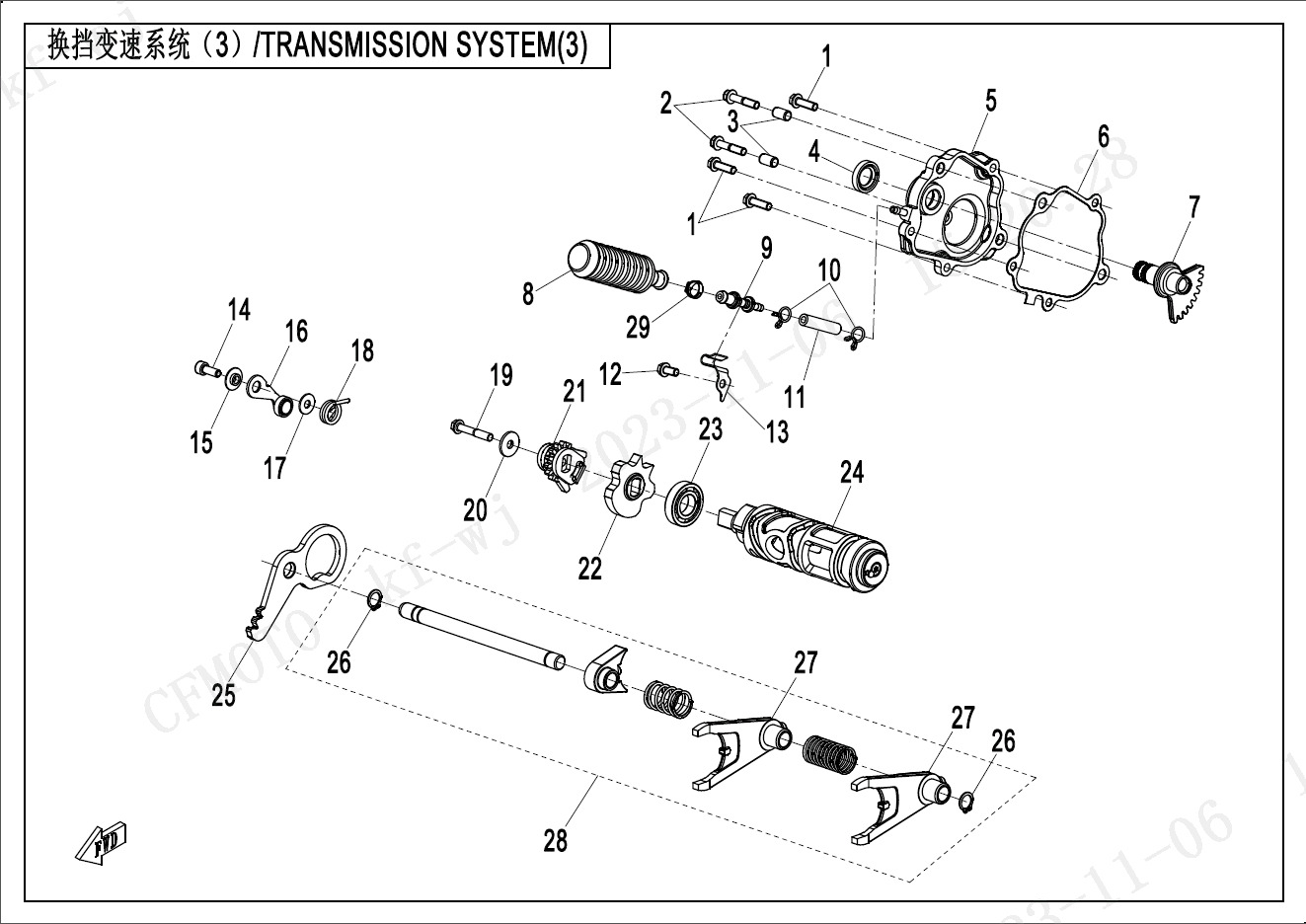

TRANSMISSION SYSTEM(3)
E06-3-V2
TRANSMISSION SYSTEM(3)
E07-1

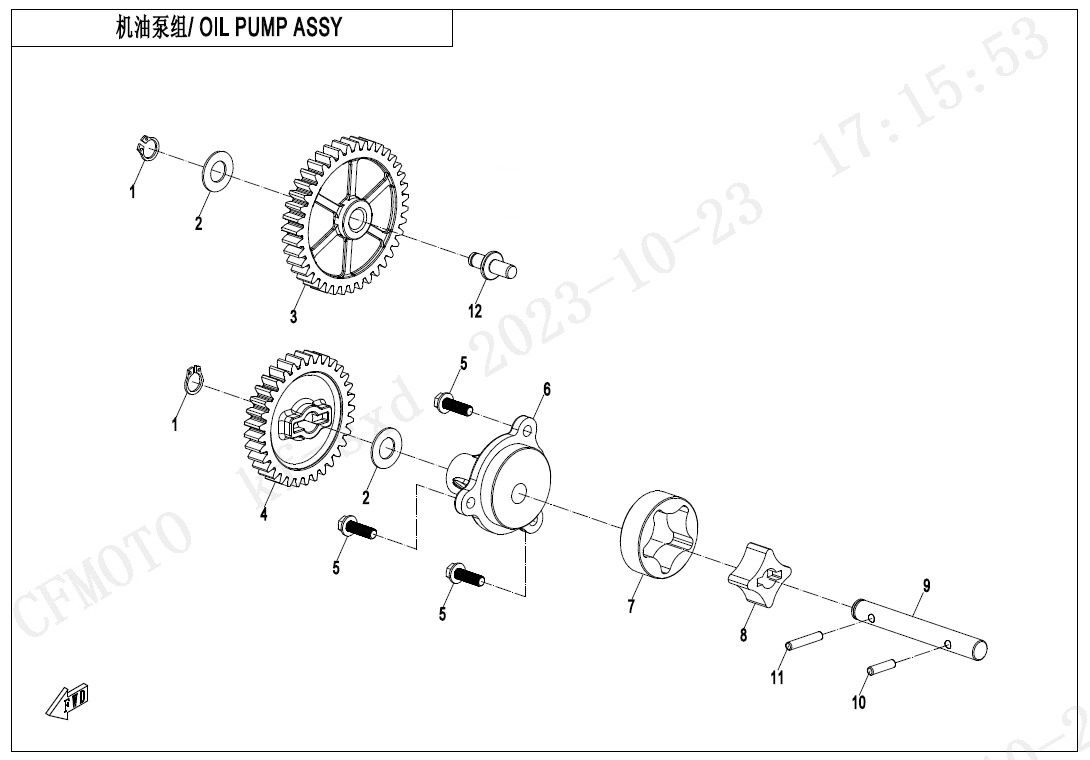

OIL PUMP ASSY
E07-2

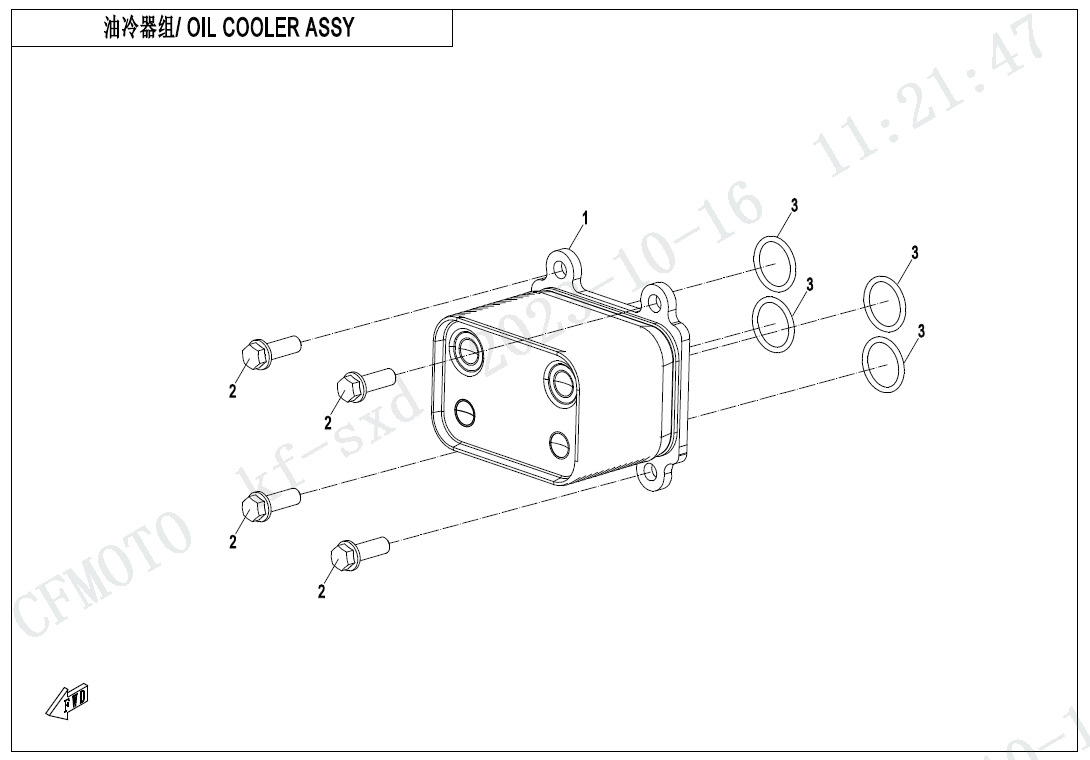

OIL COOLING SYSTEM

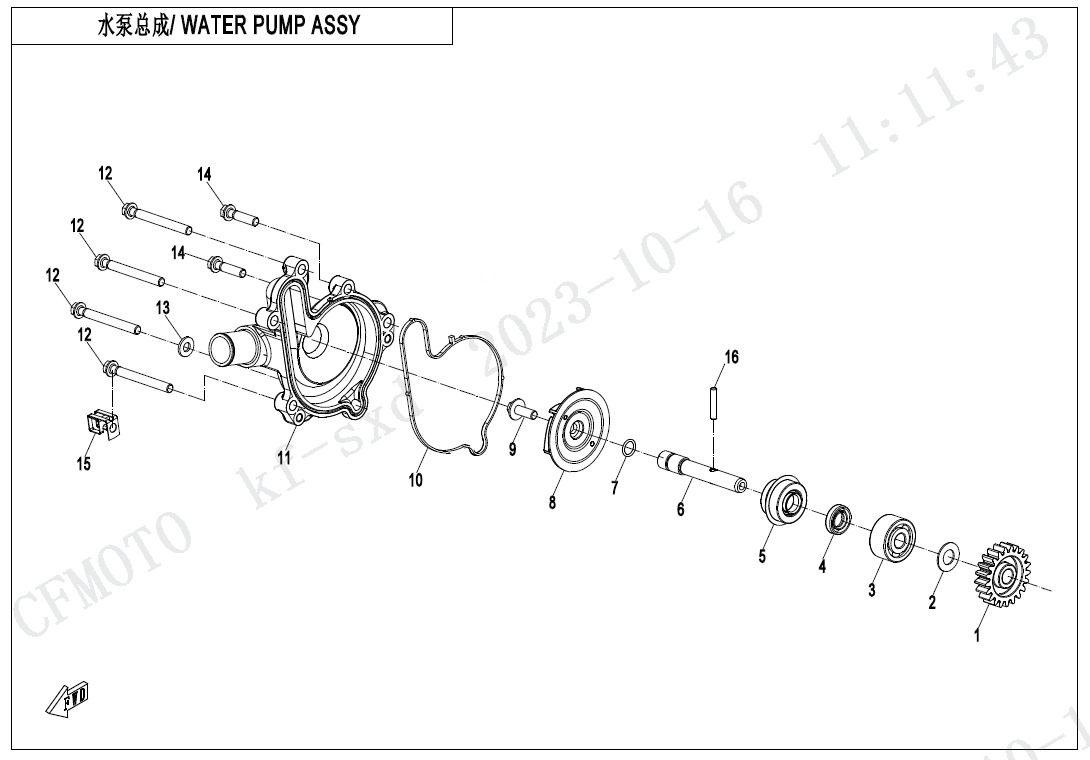

E08
WATER PUMP ASSY
E09
STARTING SYSTEM

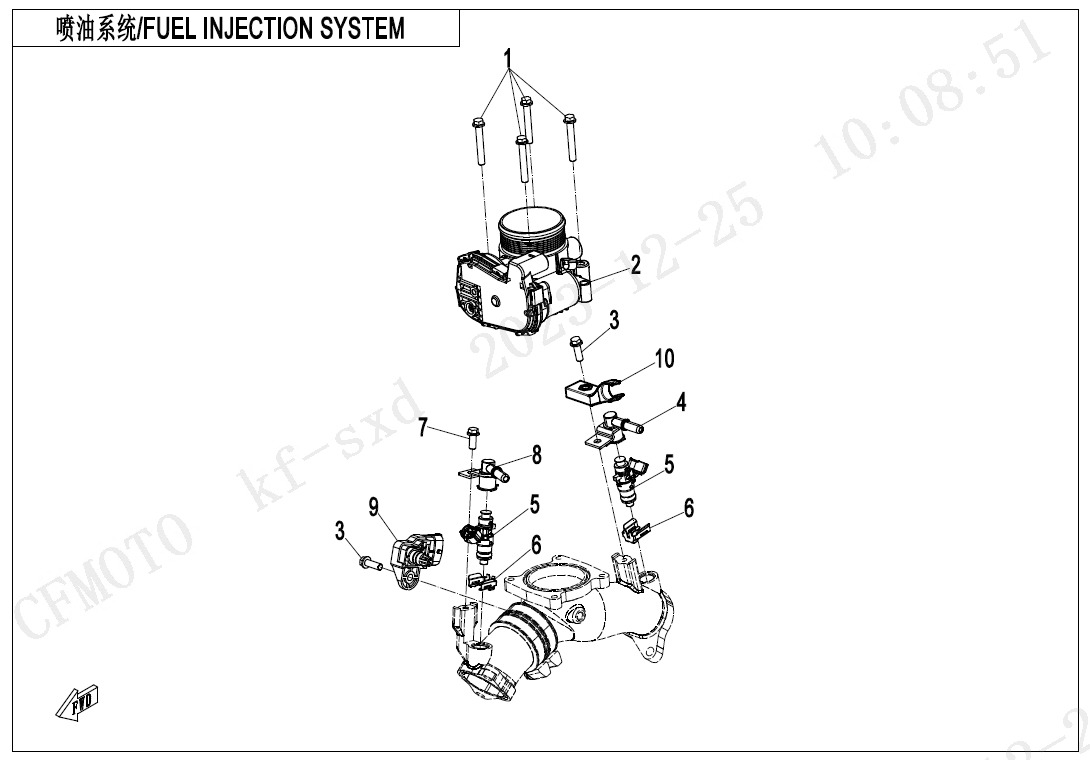

E17
FUEL INJECTION SYSTEM

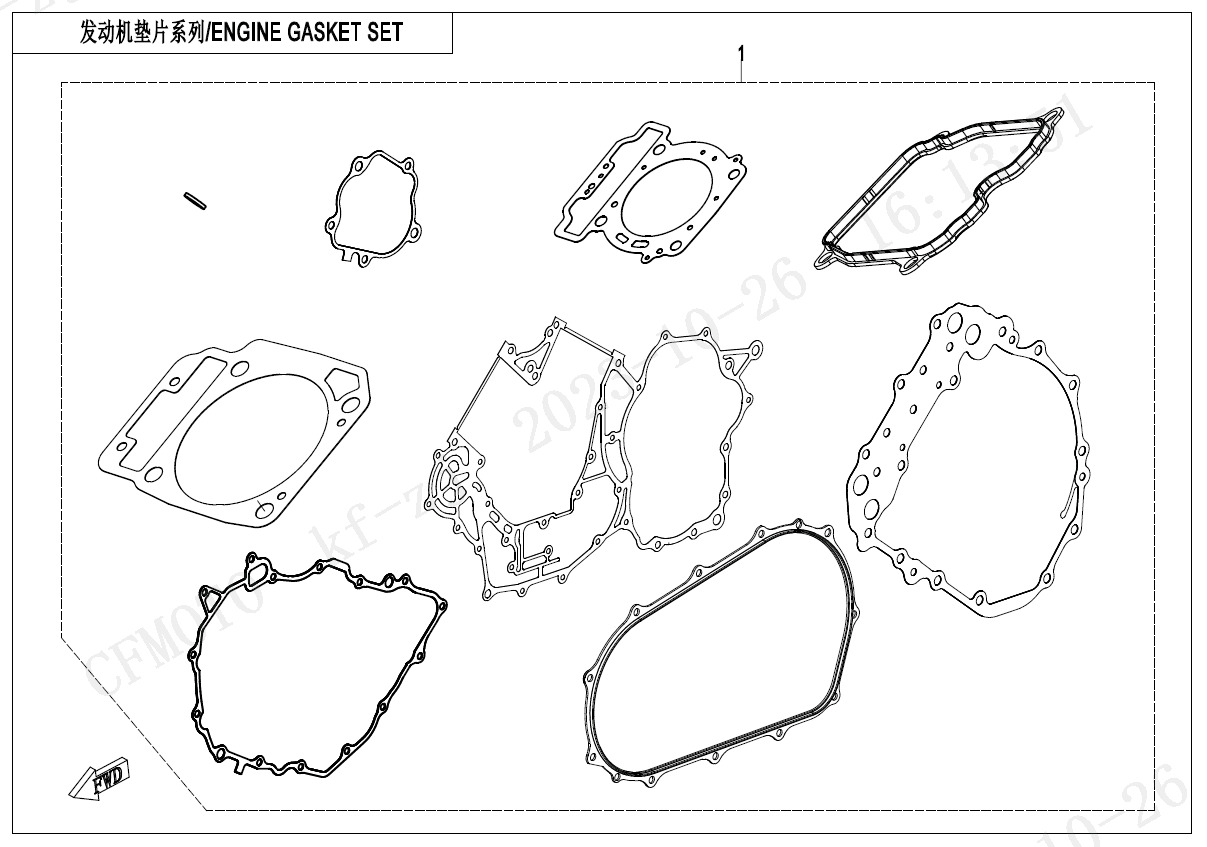

E29
ENGINE GASKET SET
E30

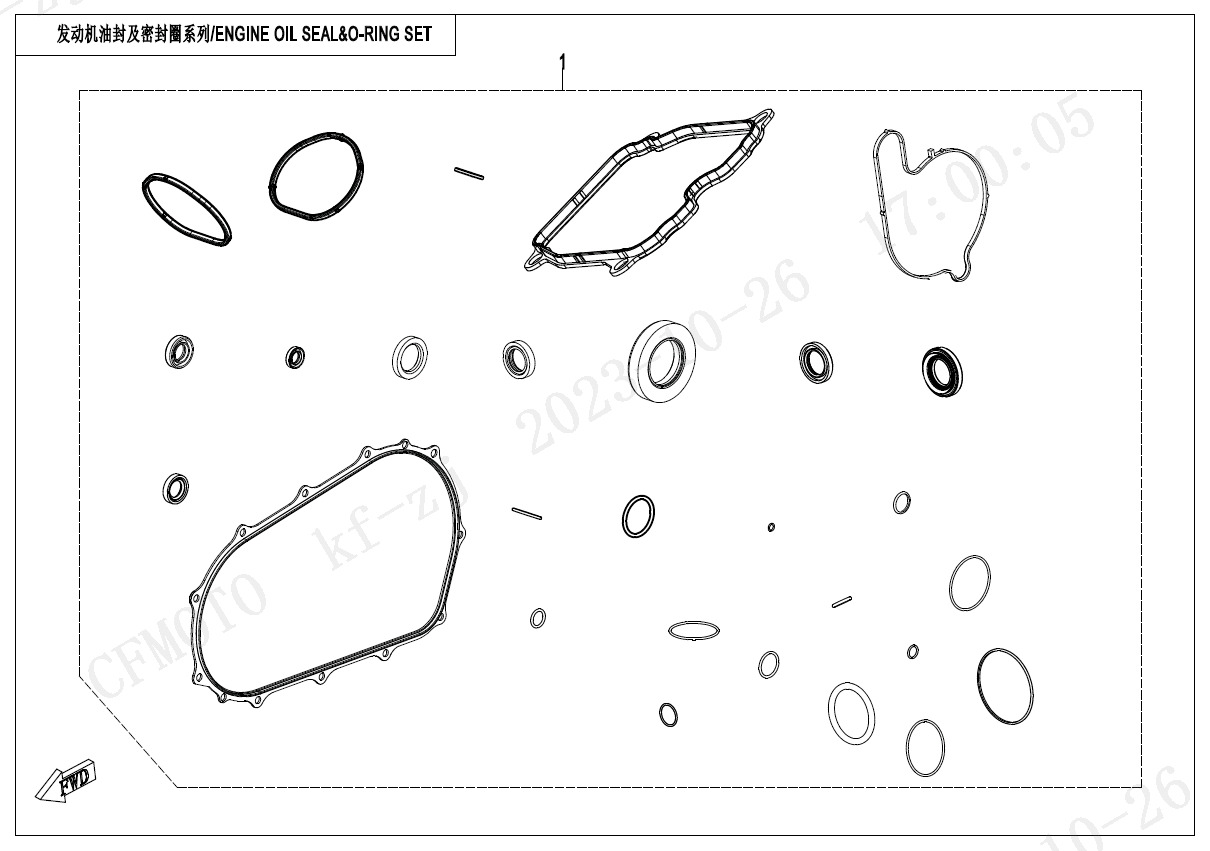

ENGINE OIL SEAL @^O-RING
F00-1

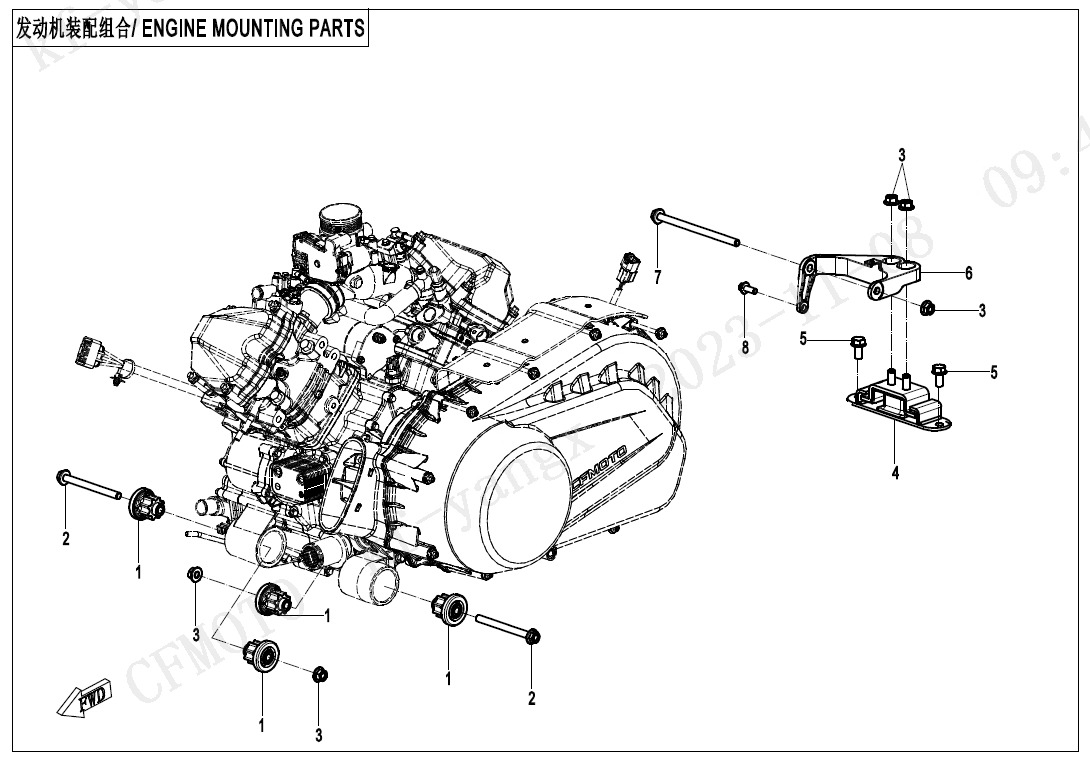

ENGINE MOUNTING PARTS
F00-2

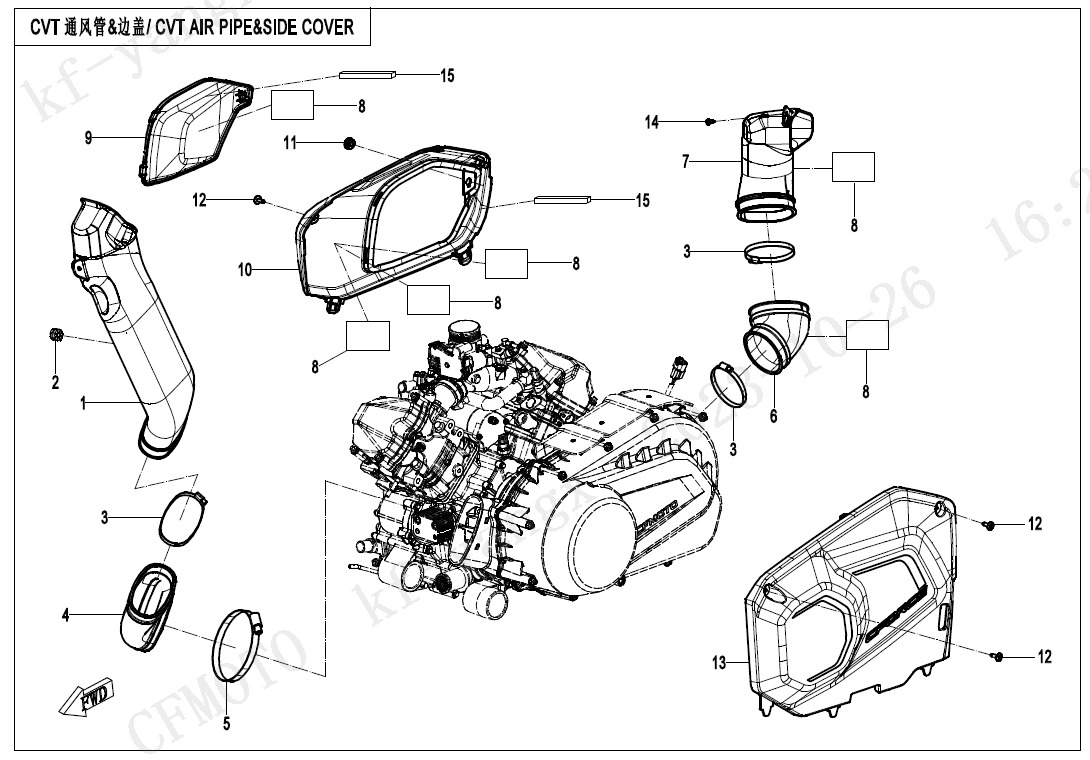

CVT AIR PIPE@^SIDE COVER
F01

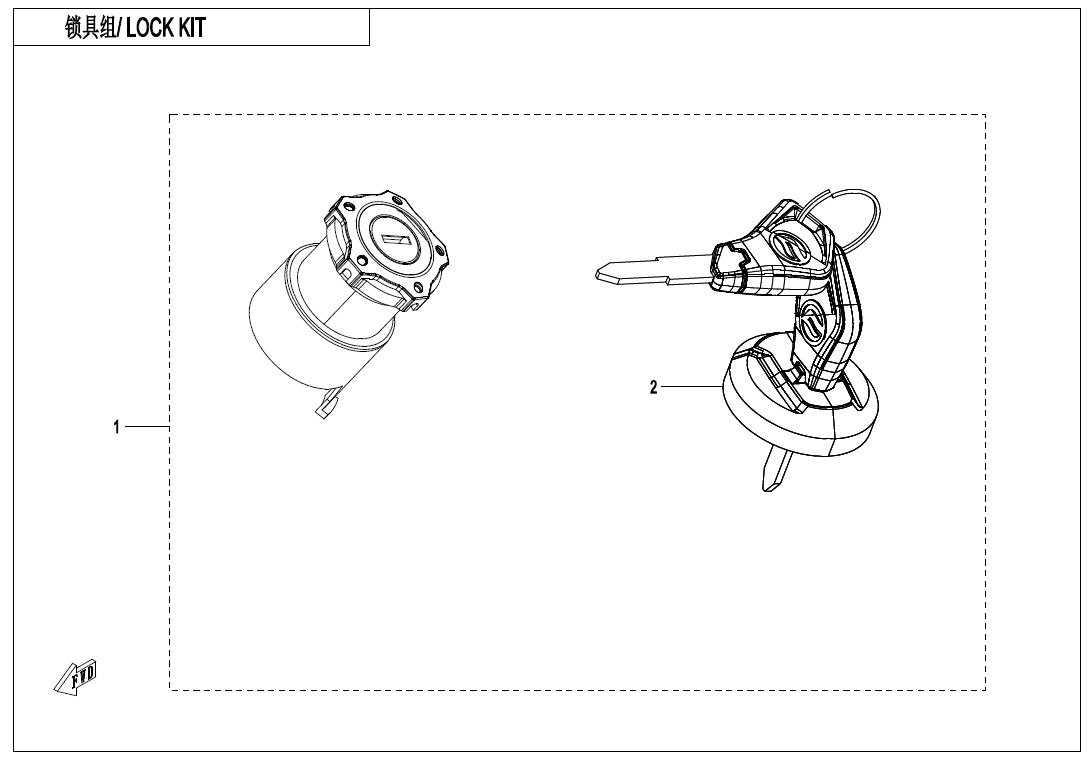

LOCK KIT(WITHOUT GEARSHIFT LOCK)
F02-1

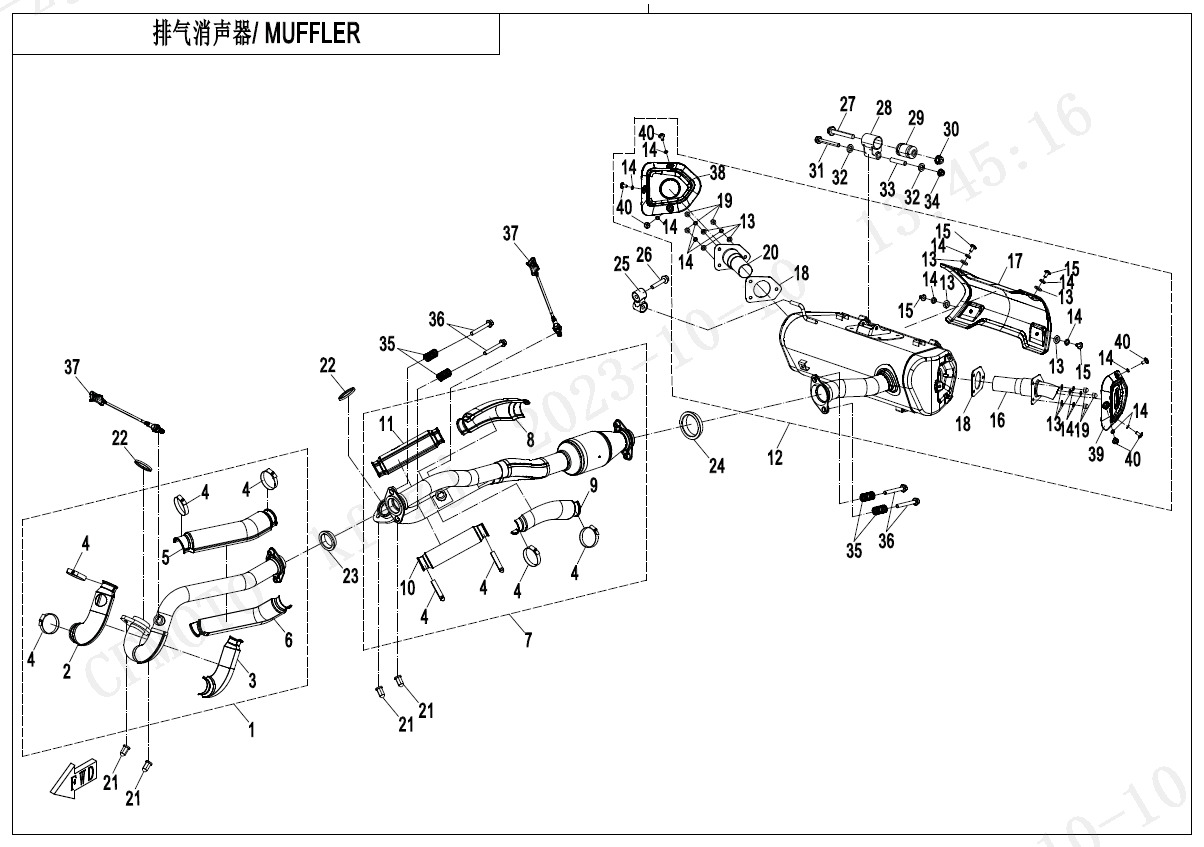

MUFFLER
F02-2-V1

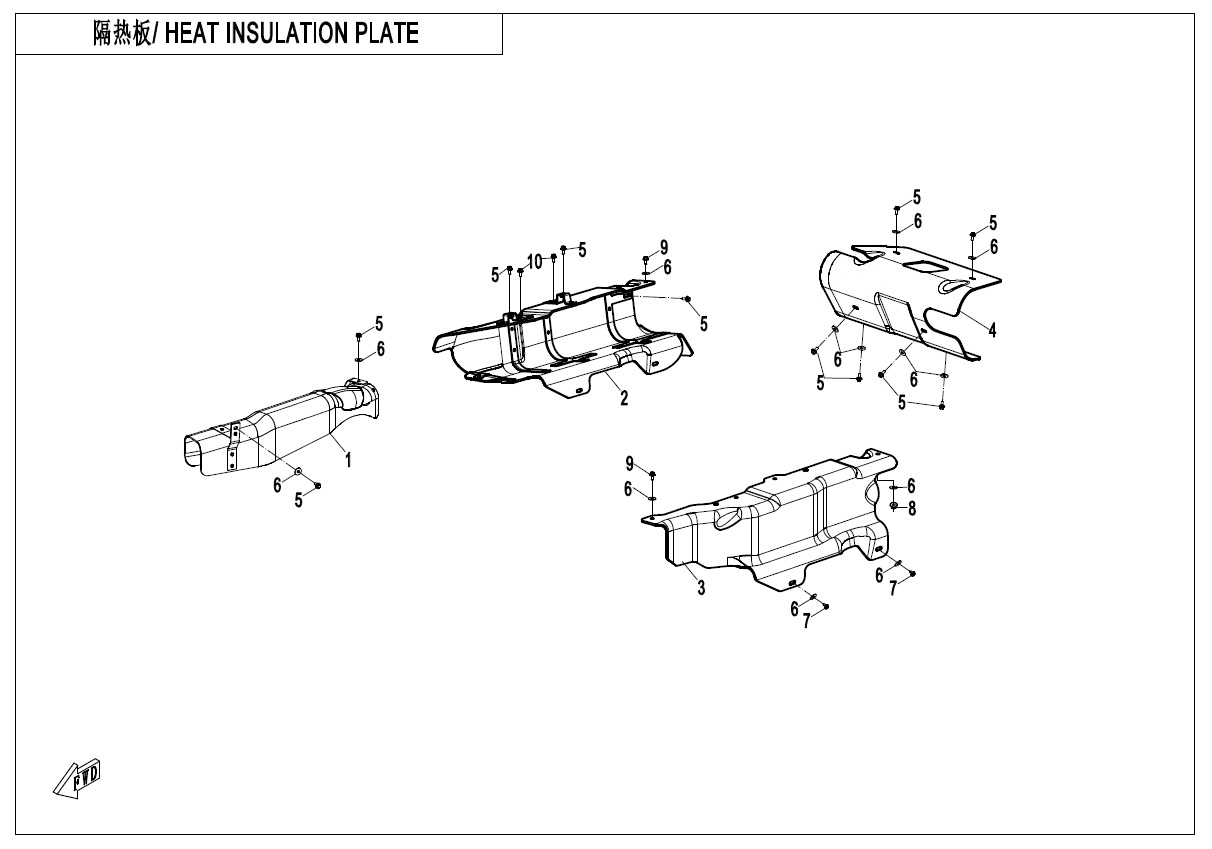

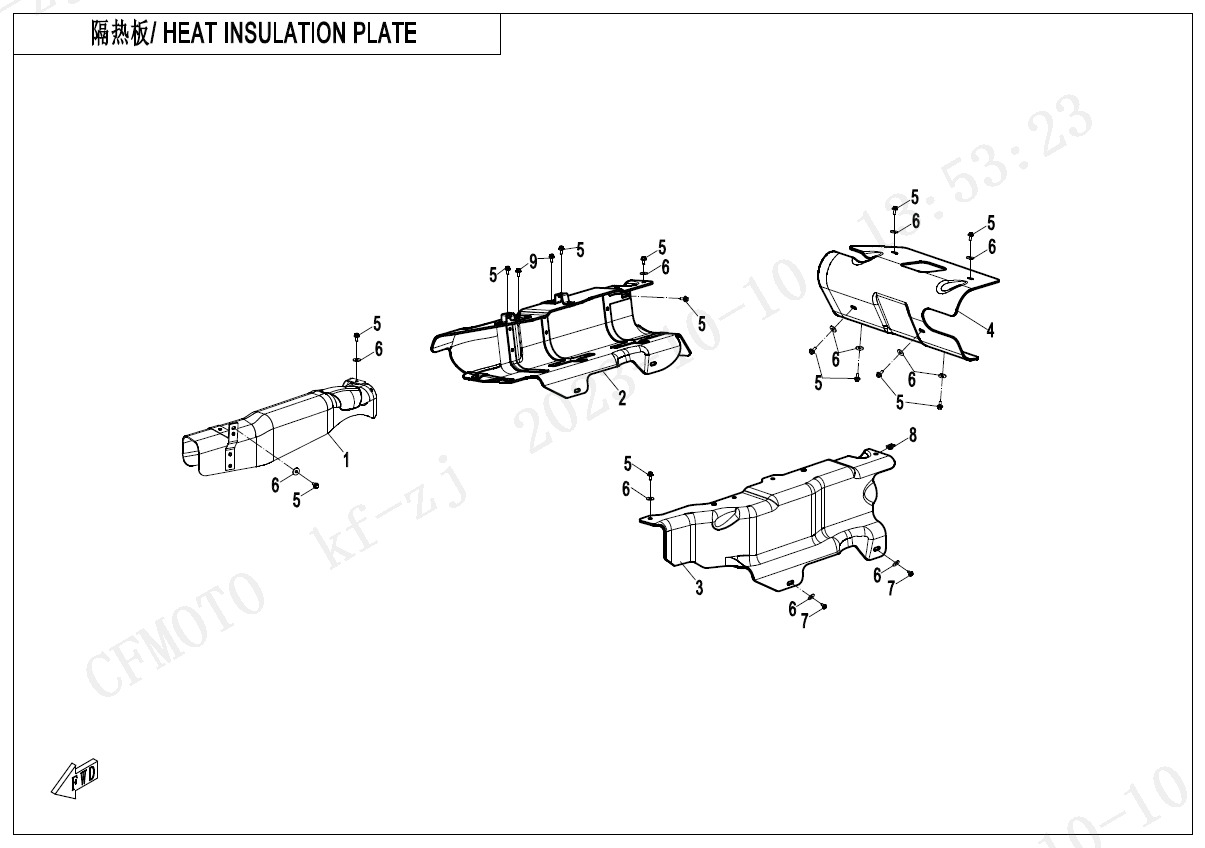

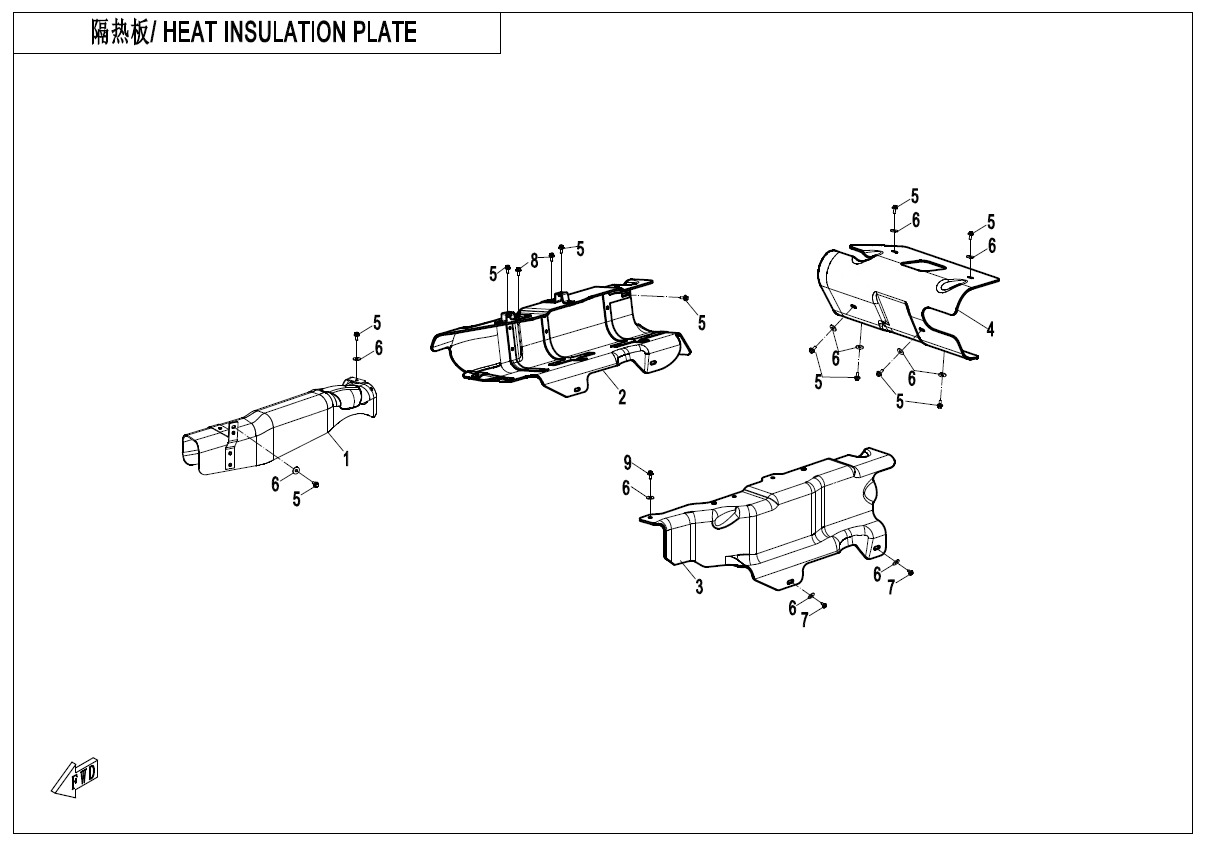

HEAT INSULATION PLATE
F02-2-V2
HEAT INSULATION PLATE
F02-2-V3
HEAT INSULATION PLATE
F03

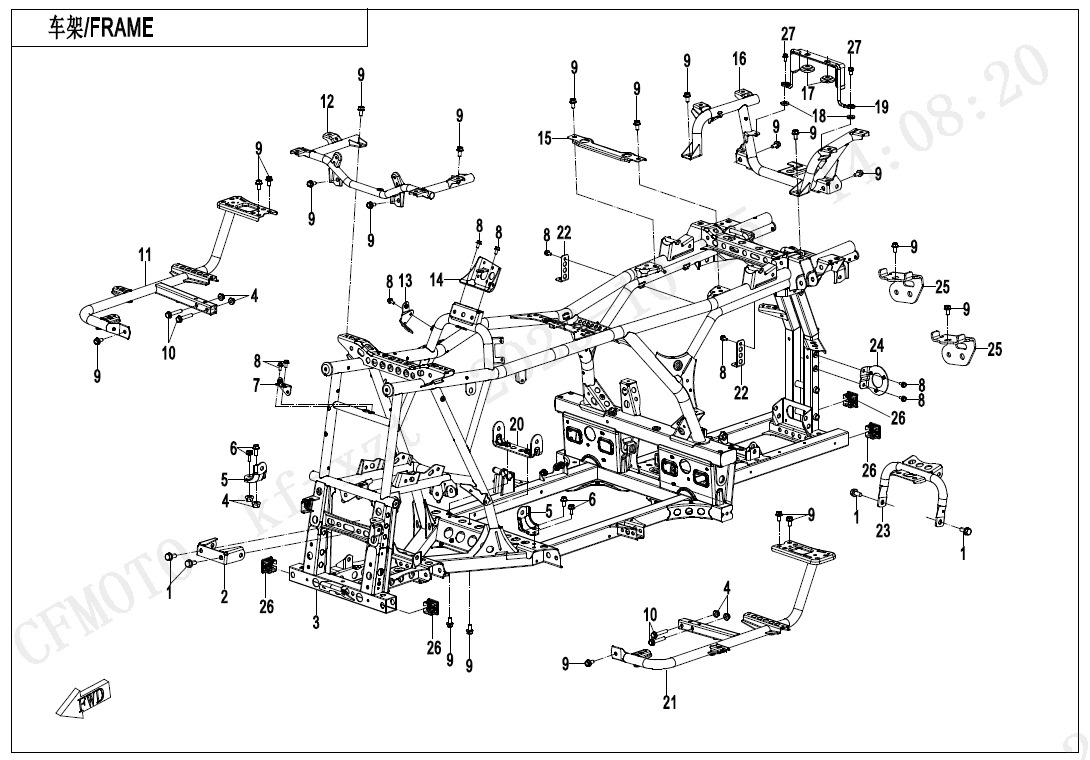

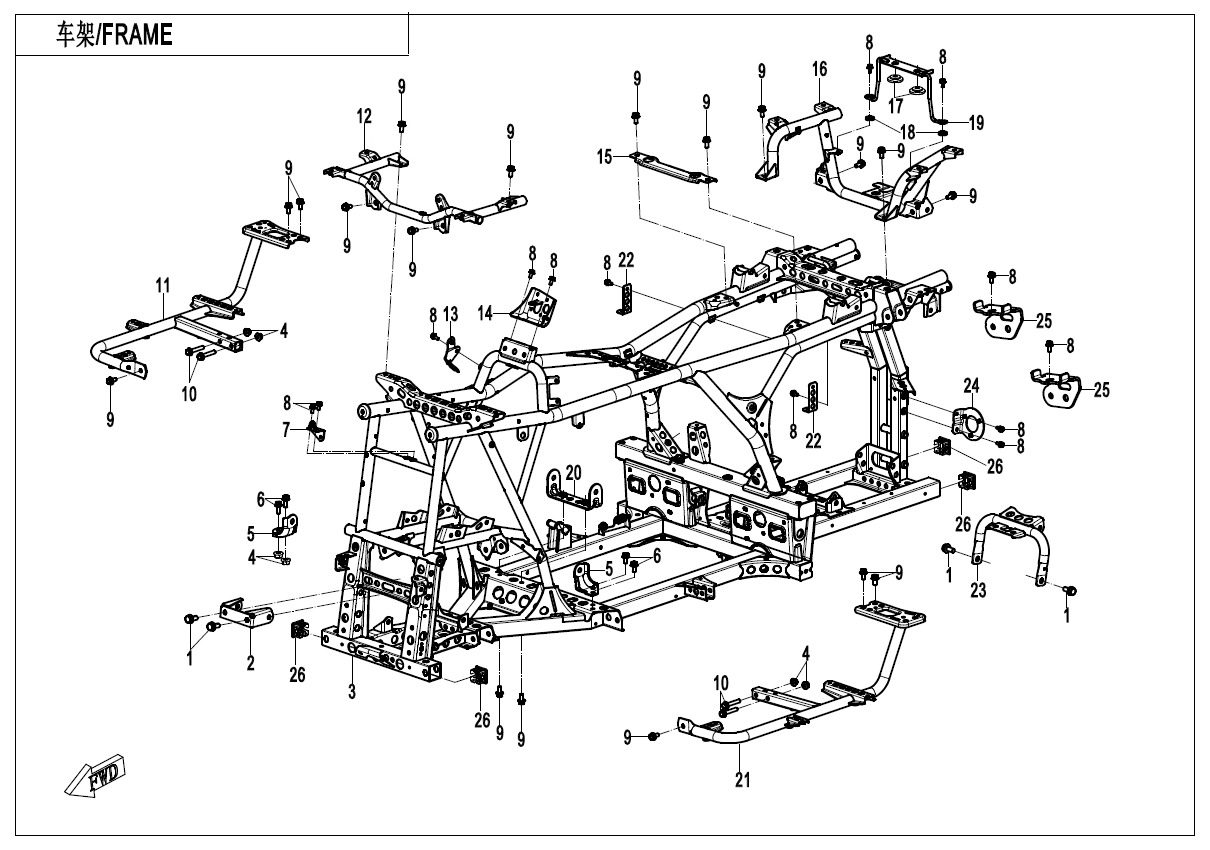

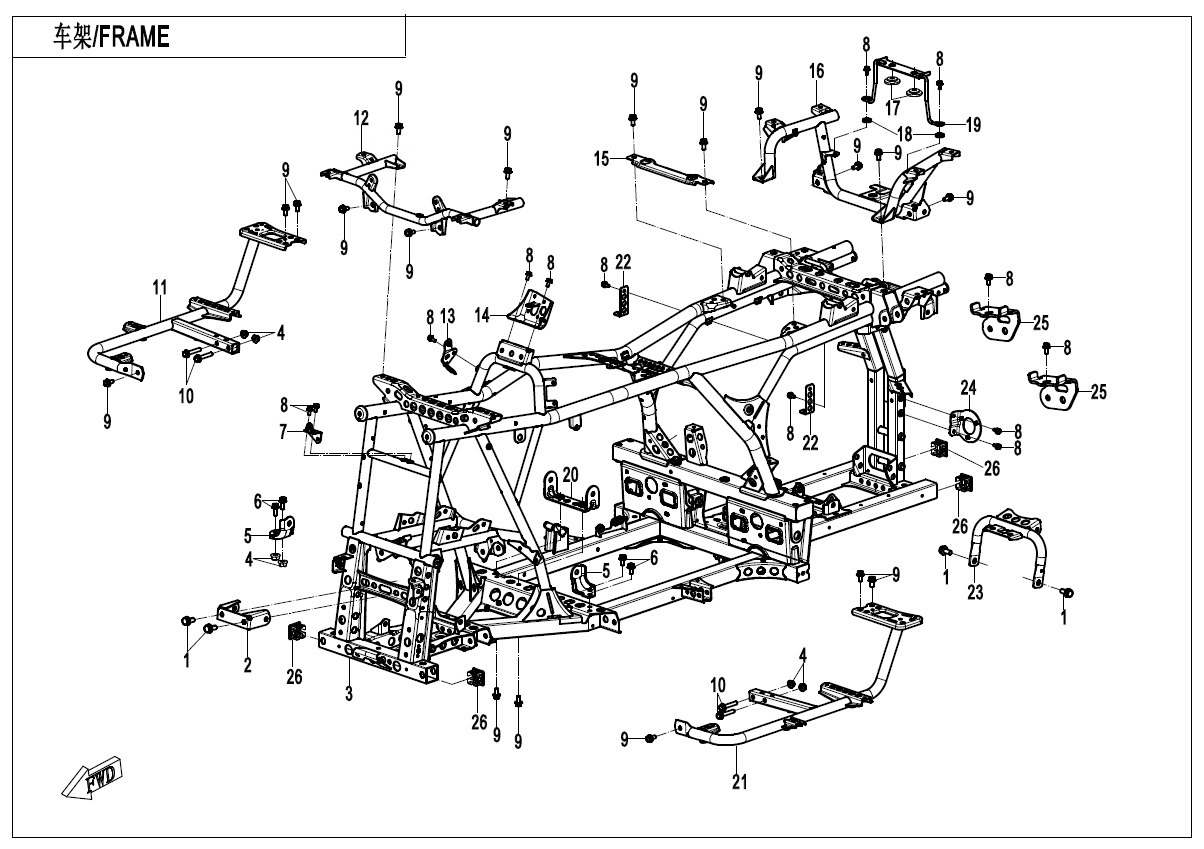

FRAME
F03-V1
FRAME
F03-V2
FRAME
F03-V3
FRAME
F03-V4
FRAME

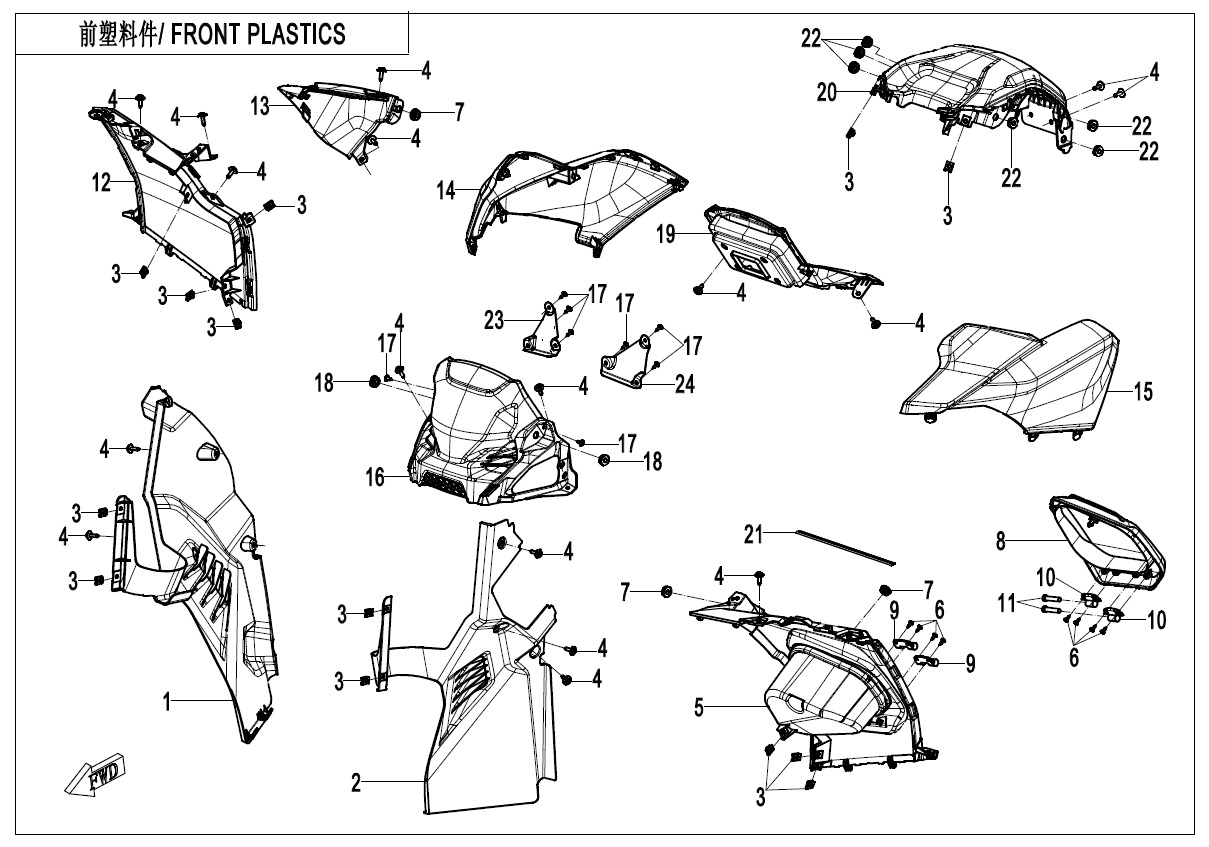

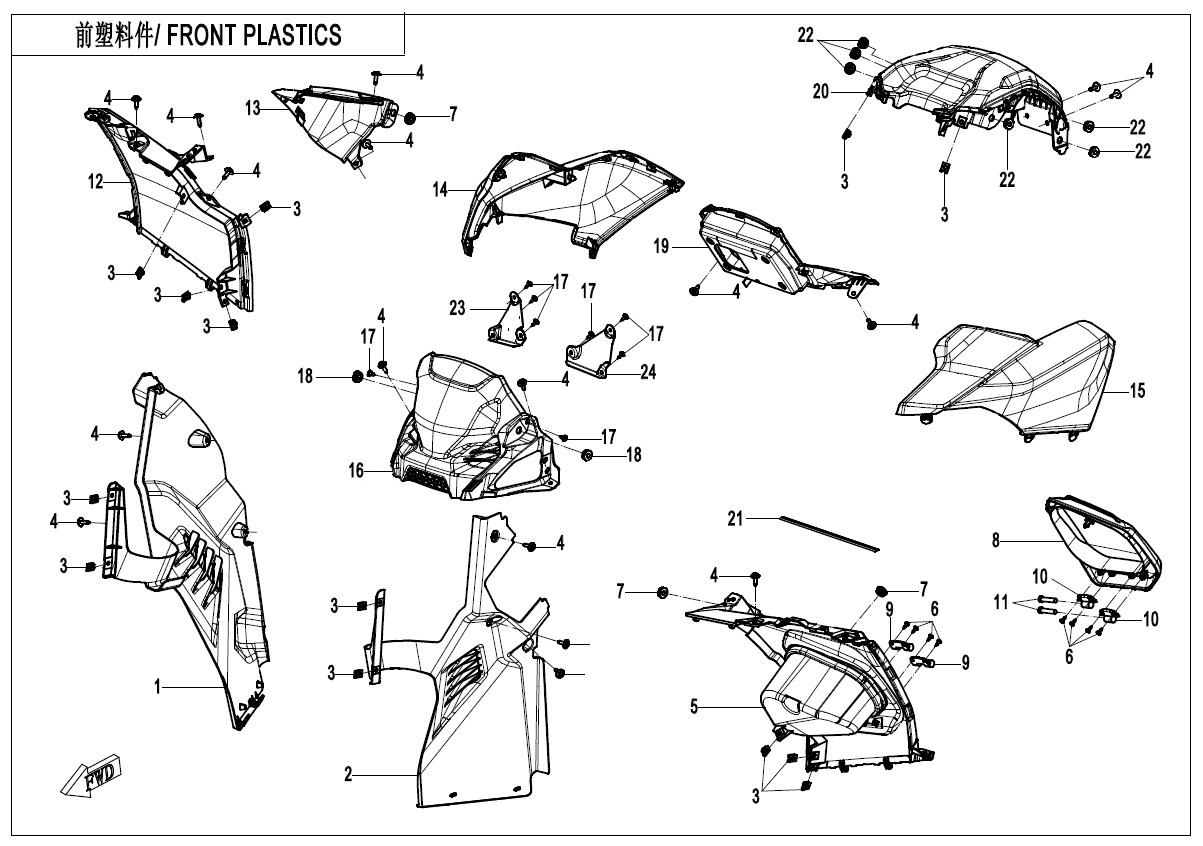

F04-1

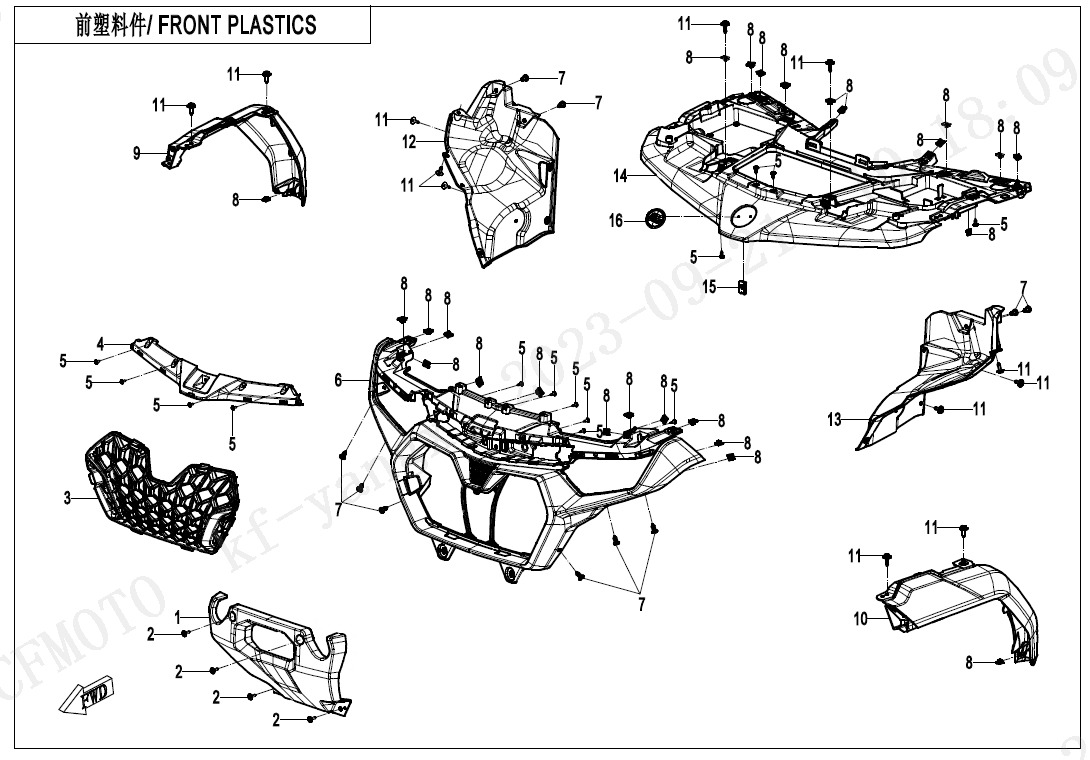

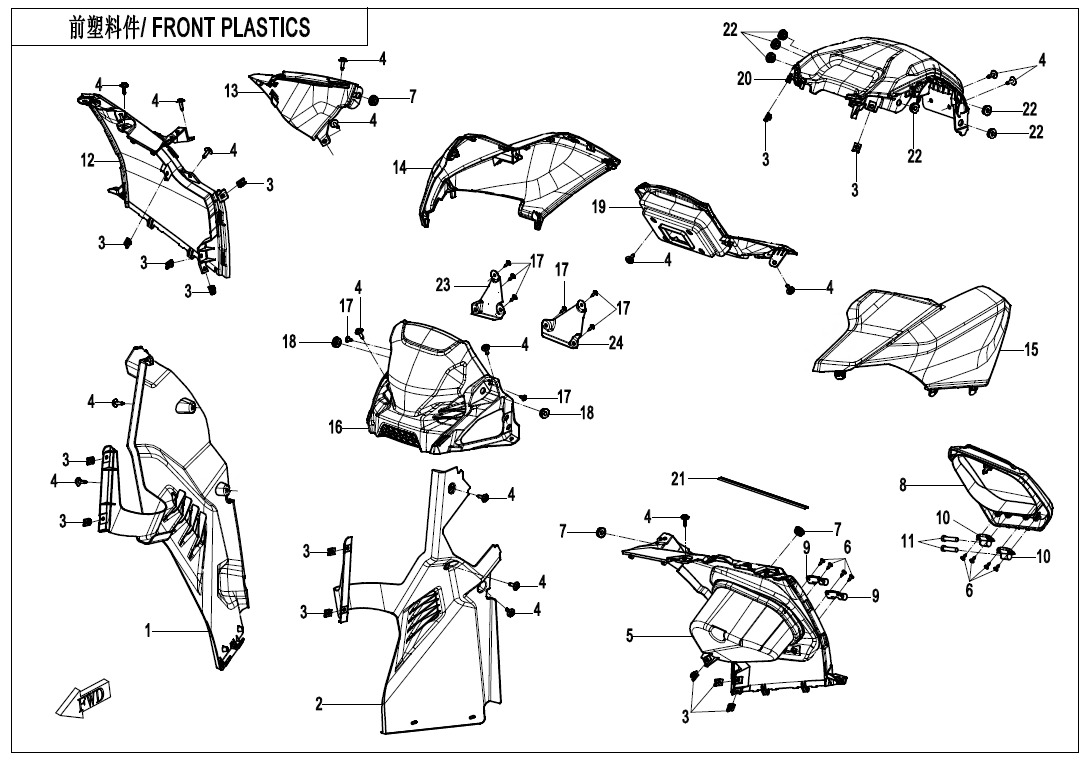

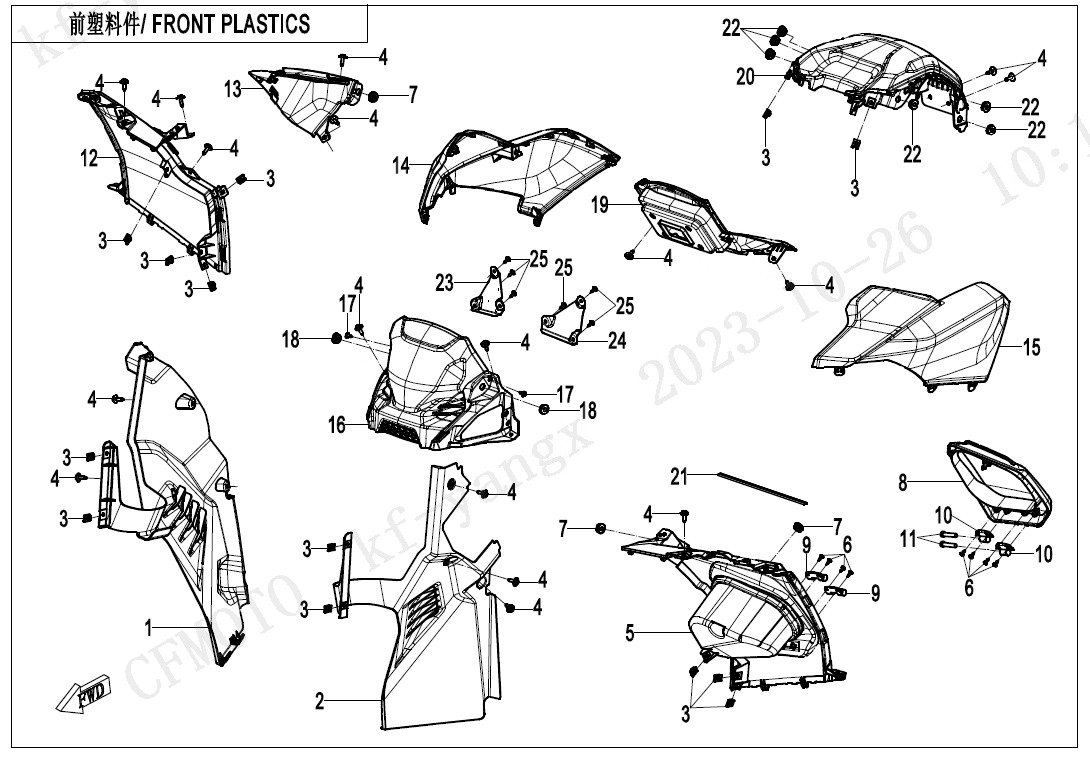

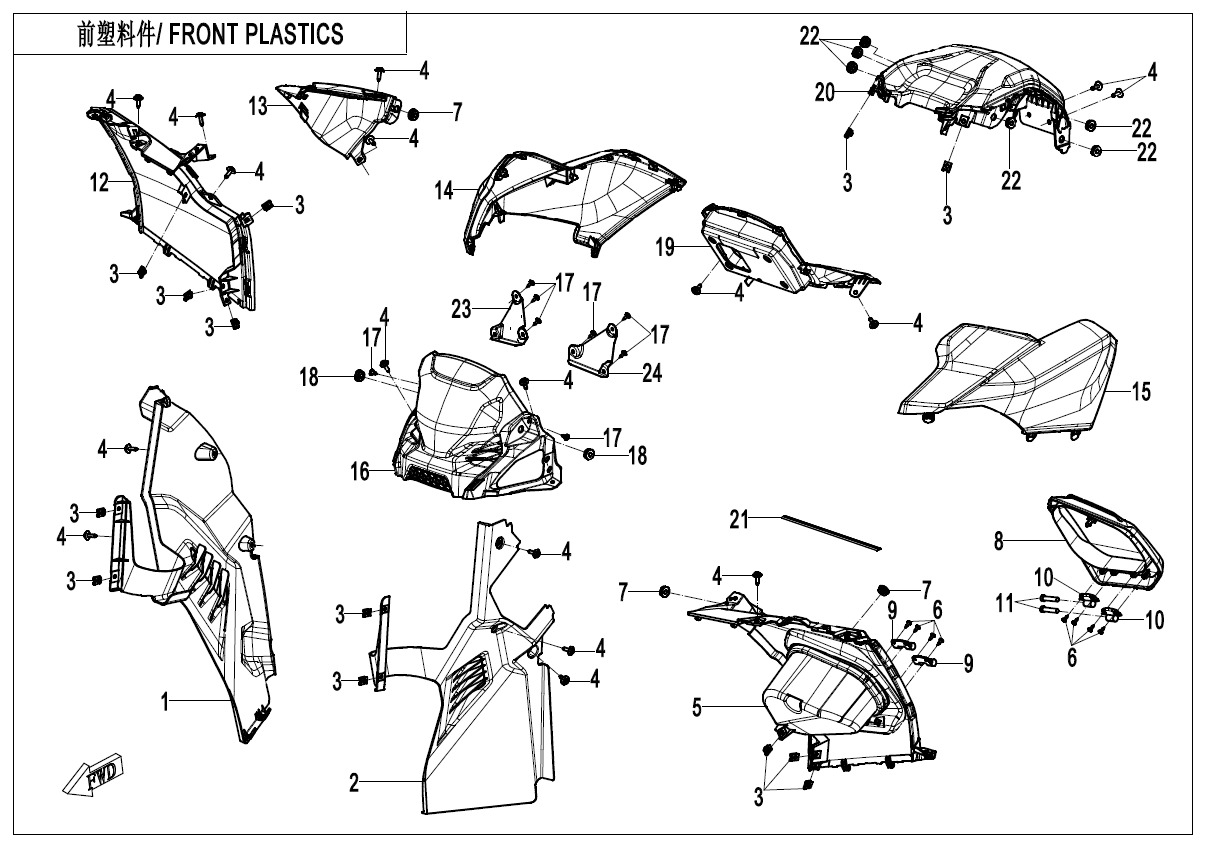

FRONT PLASTICS
F04-2-A-V1
FRONT PLASTICS(7\'\' DASHBOARD)
F04-2-A-V2
FRONT PLASTICS(7\'\' DASHBOARD)
F04-2-A-V3
FRONT PLASTICS(7\'\' DASHBOARD)
F04-2-B-V1
FRONT PLASTICS(8\'\' DASHBOARD)
F04-2-B-V2
FRONT PLASTICS(8\'\' DASHBOARD)
F04-2-B-V3
FRONT PLASTICS(8\'\' DASHBOARD)

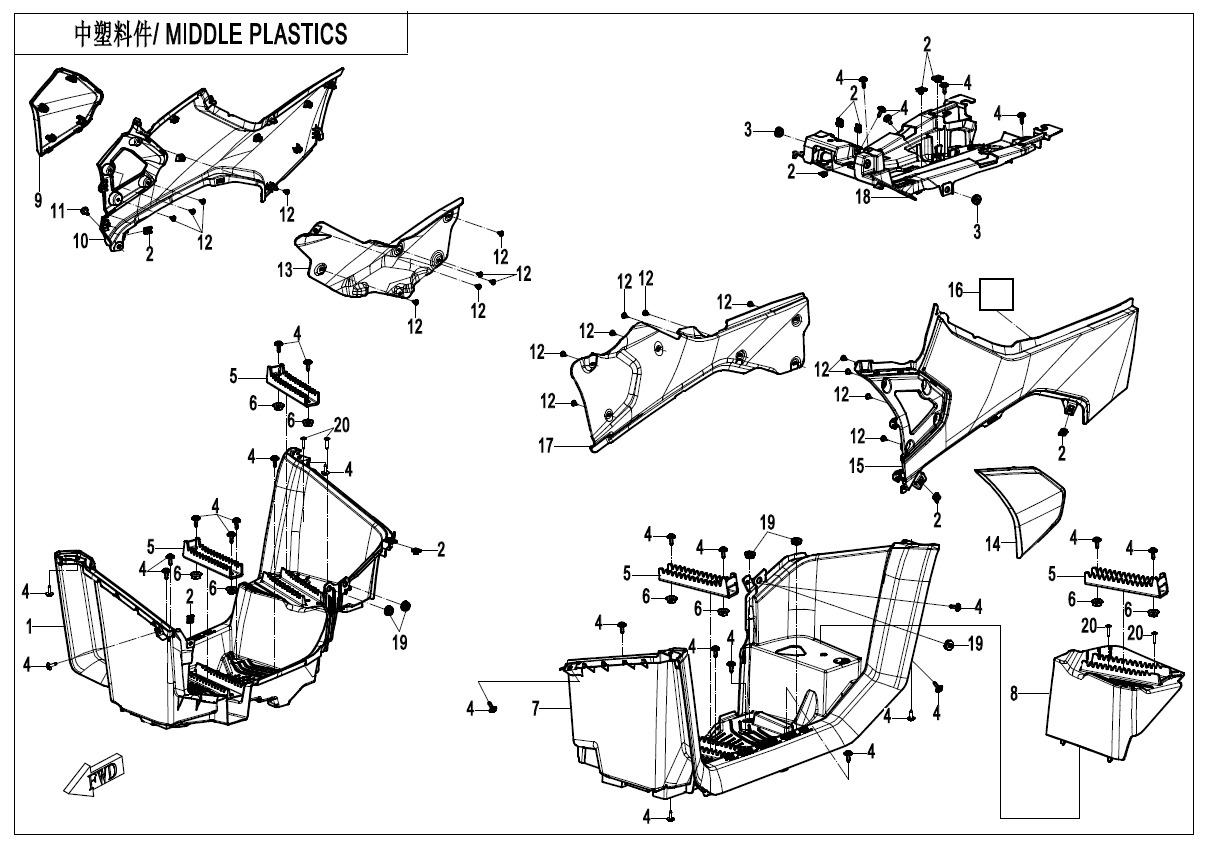

F04-3

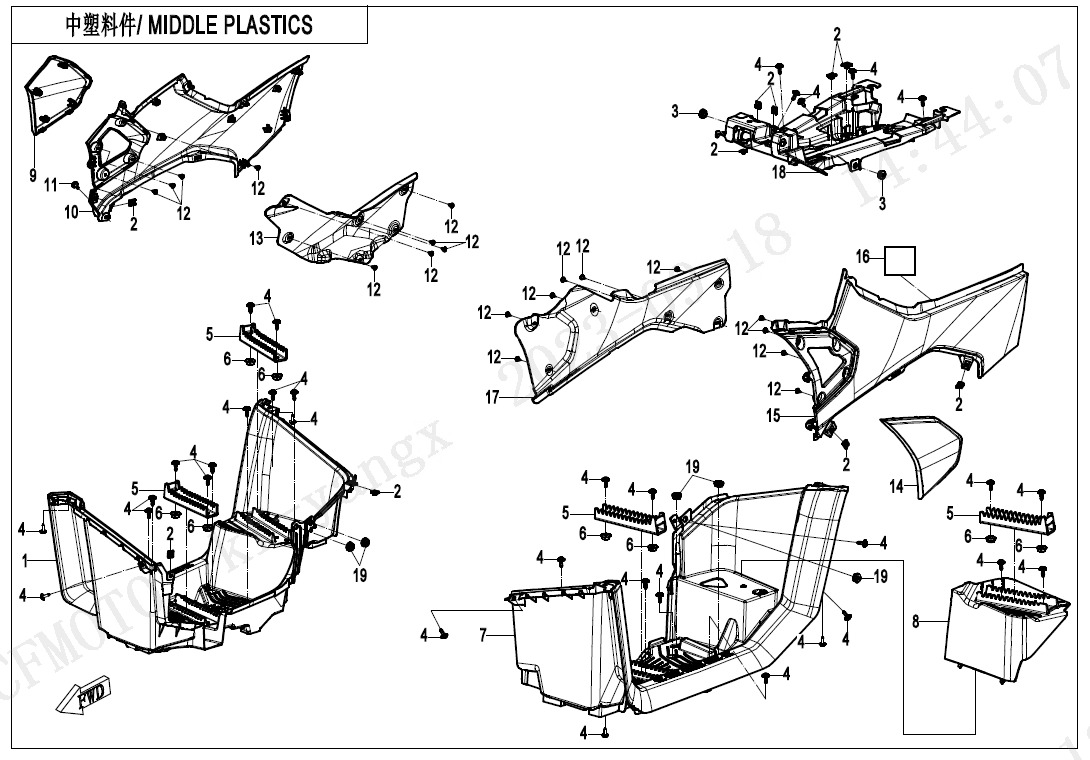

MIDDLE PLASTICS
F04-3-V1
MIDDLE PLASTICS
F04-3-V2
MIDDLE PLASTICS
F04-4-V1

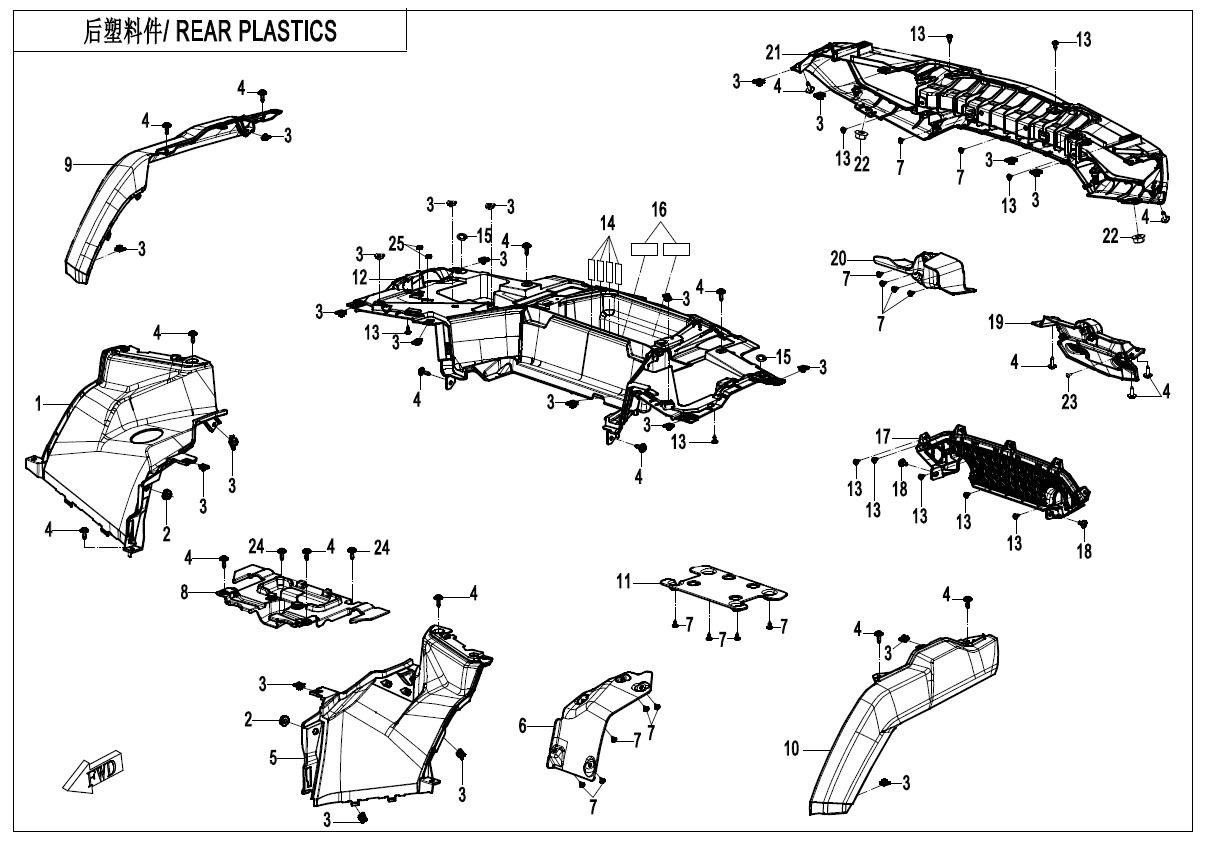

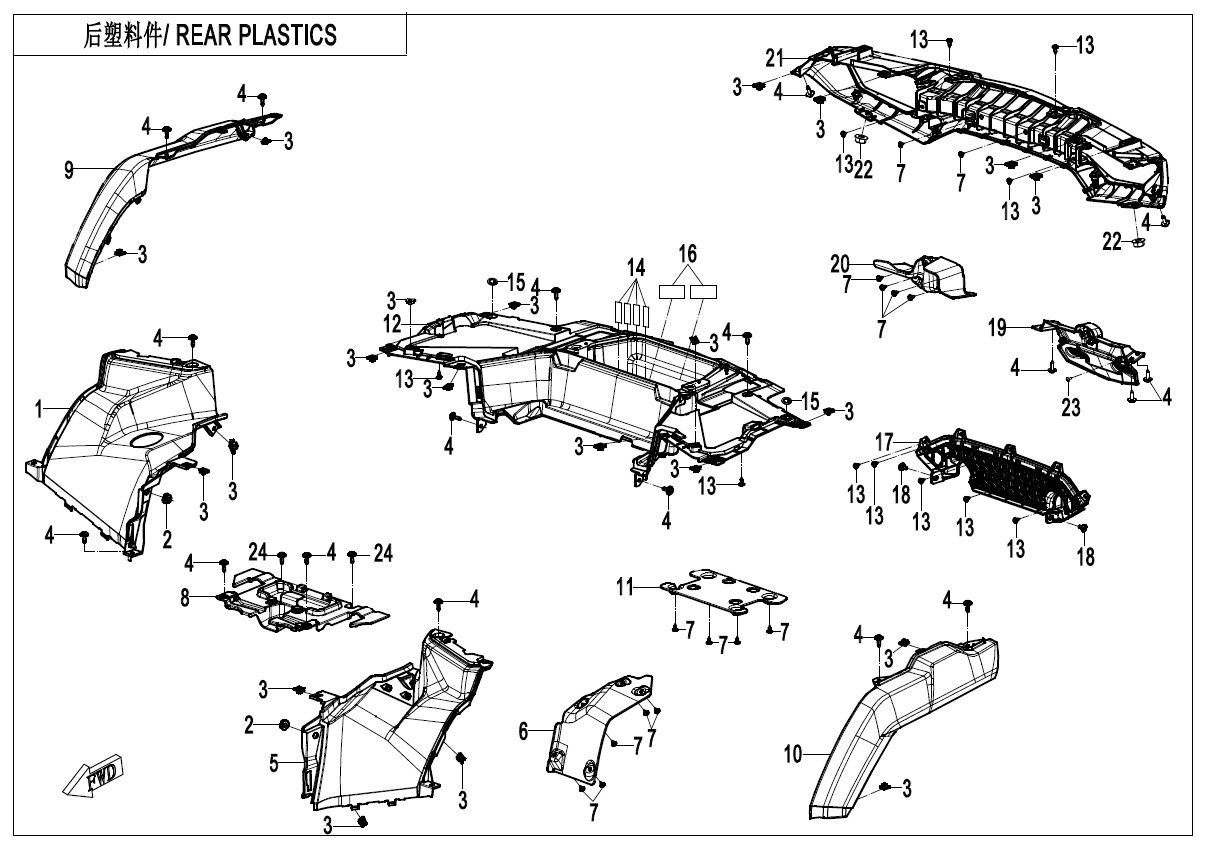

REAR PLASTICS
F04-4-V2
REAR PLASTICS
F04-4-V3
REAR PLASTICS
F04-5

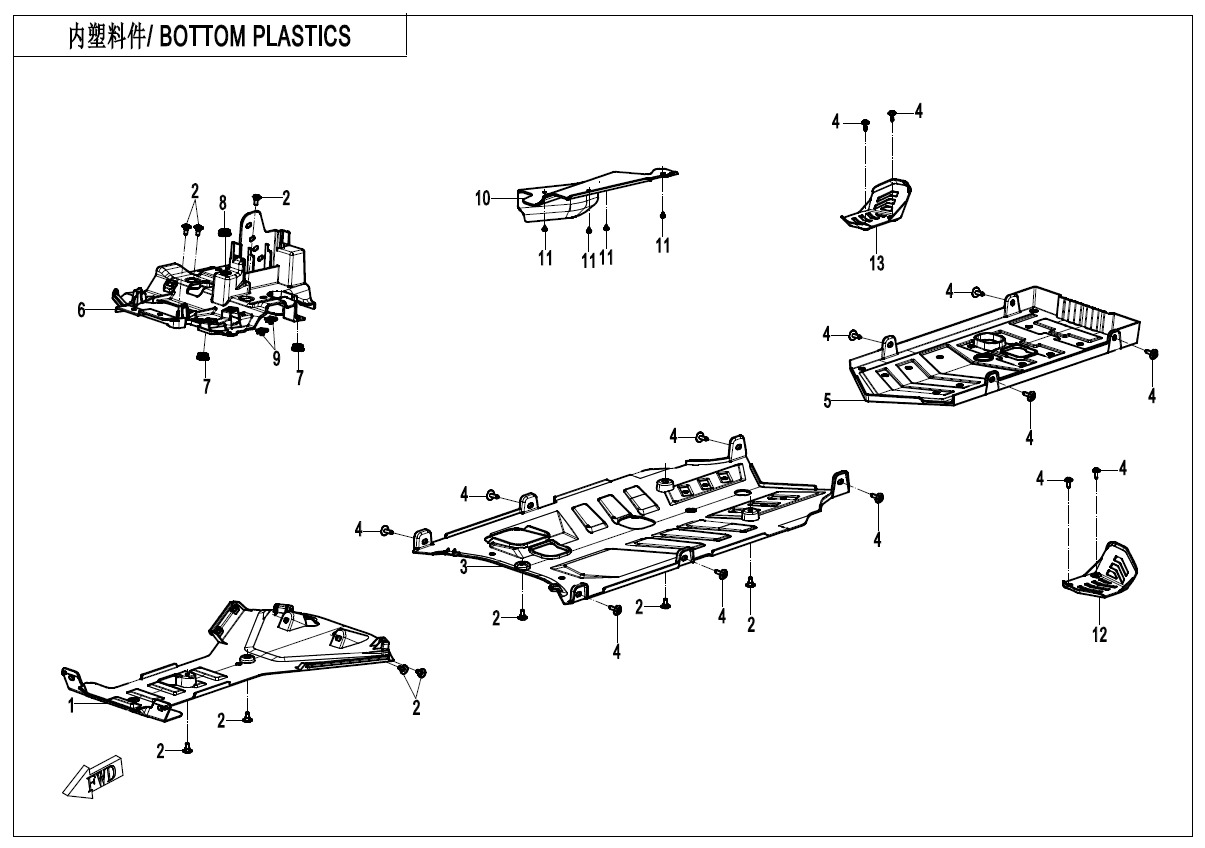

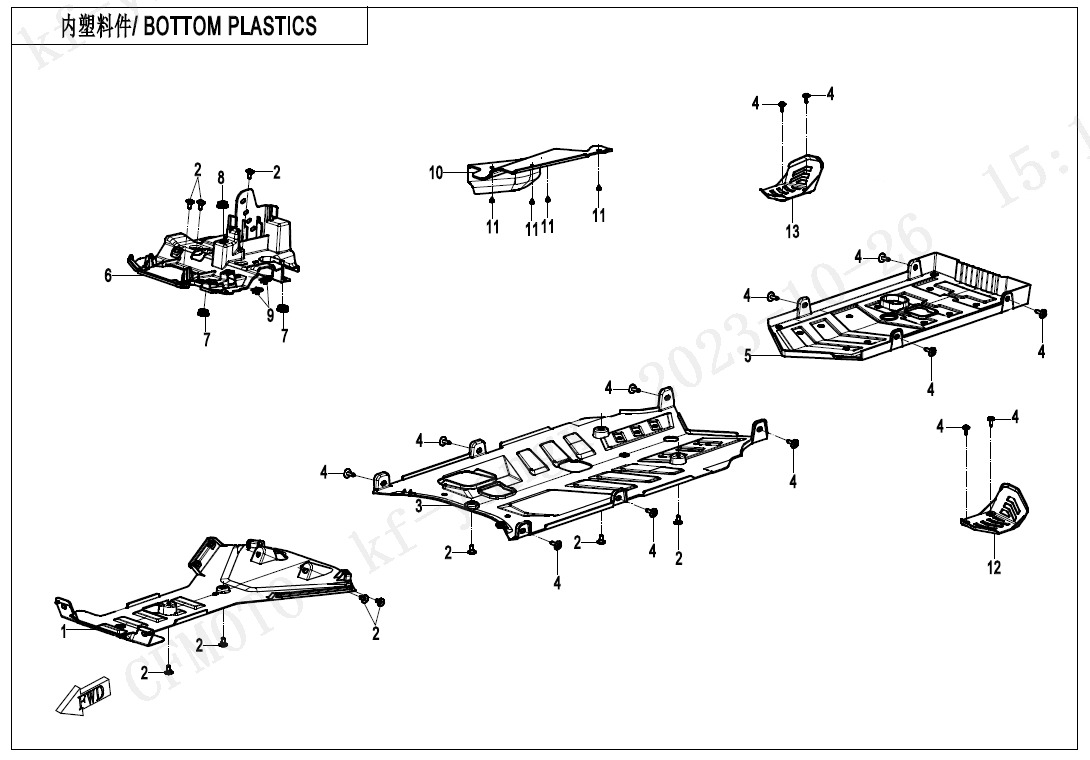

BOTTOM PLASTICS
F04-5-V1
BOTTOM PLASTICS
F04-5-V2
BOTTOM PLASTICS
F05-1

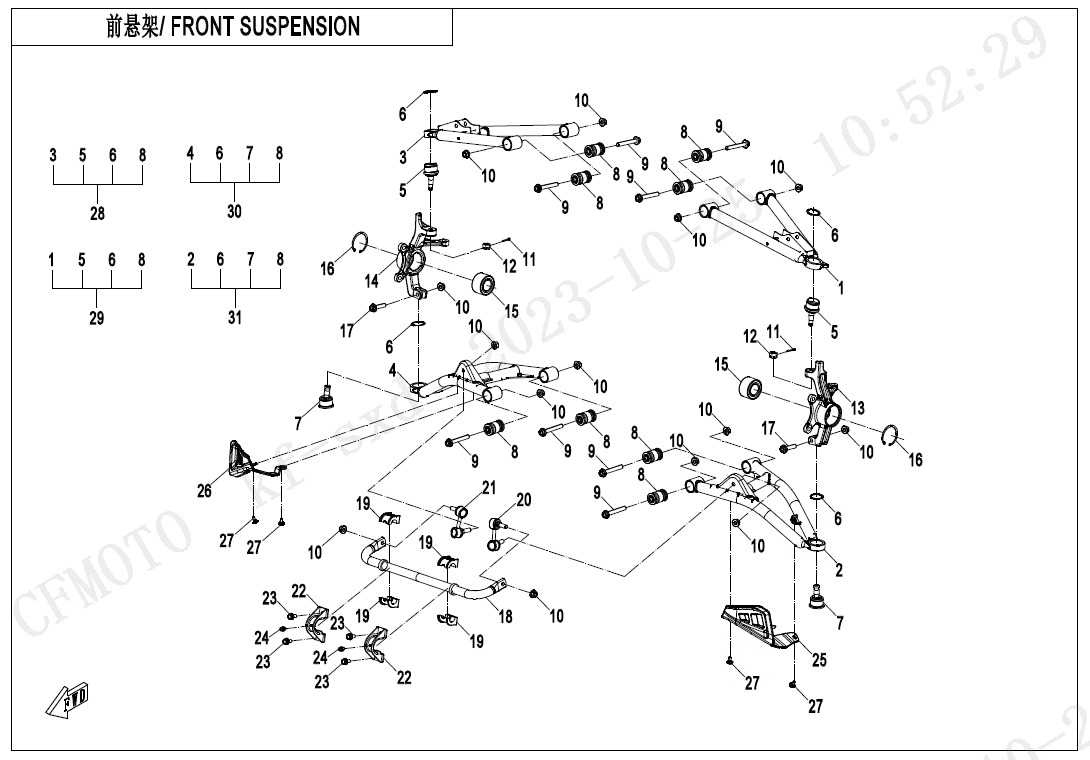

FRONT SUSPENSION
F05-2-A

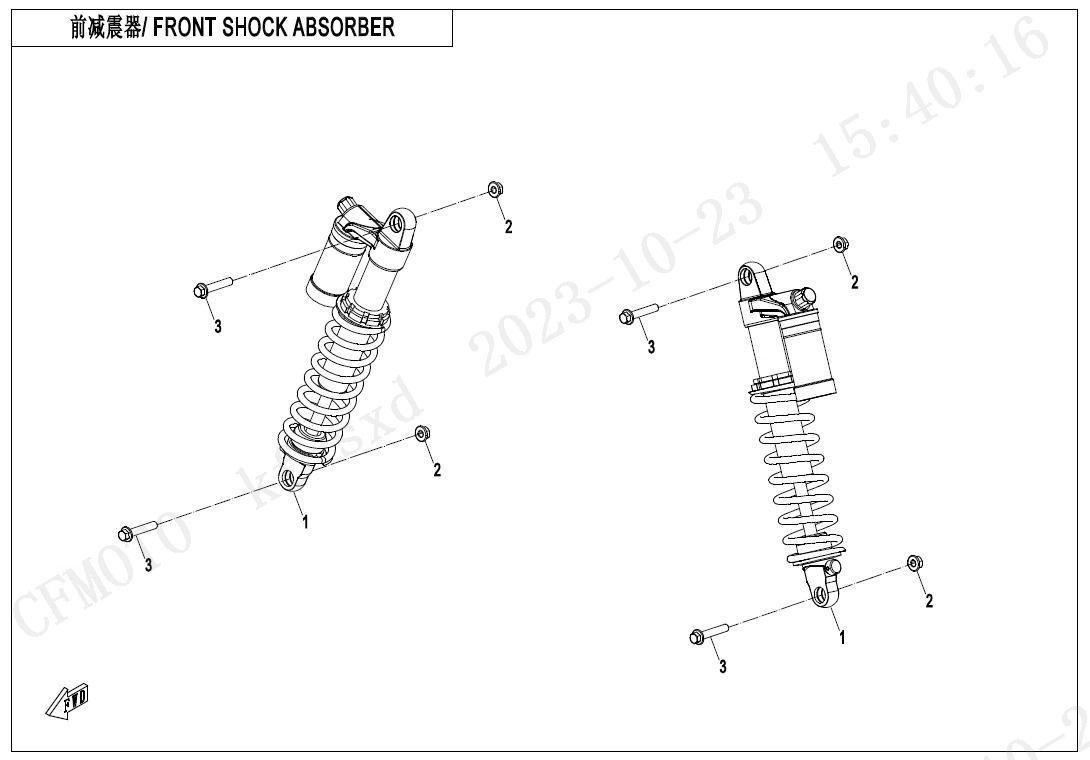

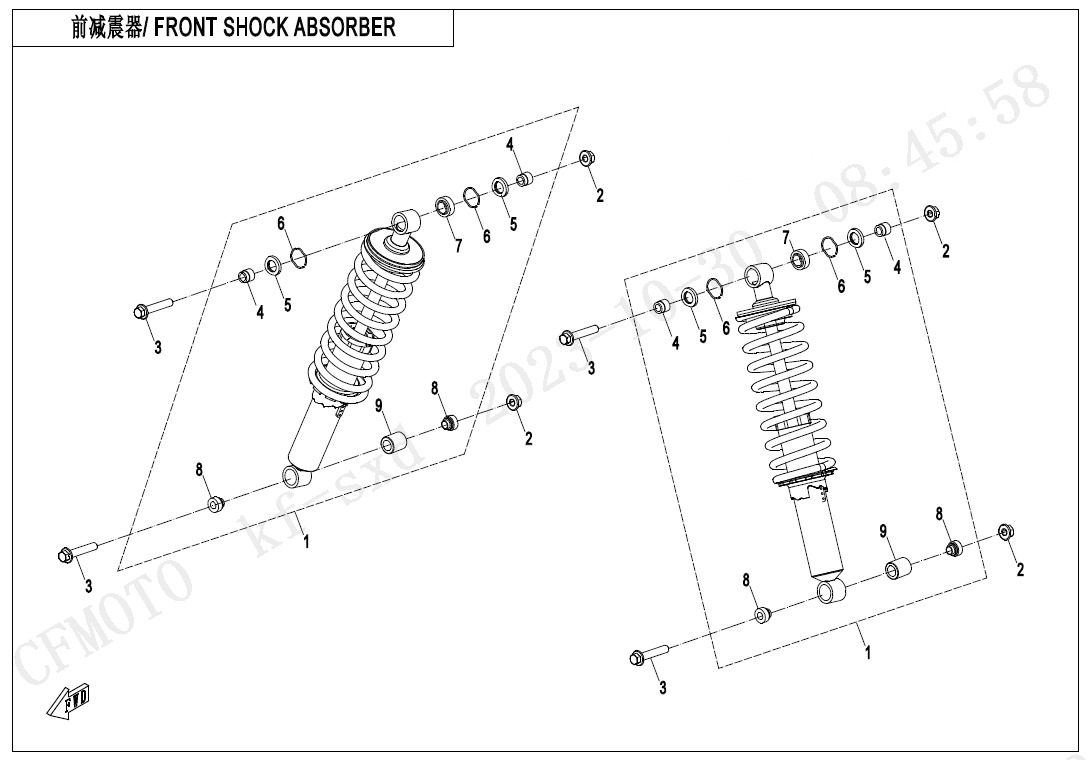

FRONT SHOCK ABSORBER(GAS)
F05-2-B

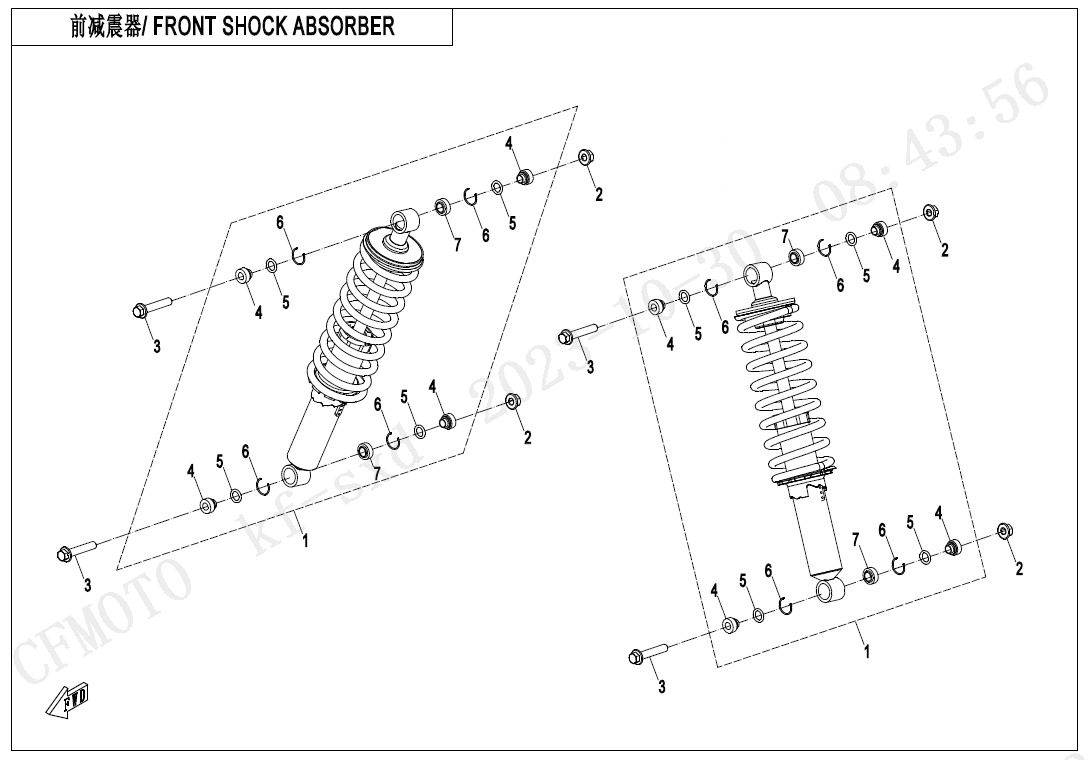

FRONT SHOCK ABSORBER(GAS)
F05-2-D
FRONT SHOCK ABSORBER(OIL)
F05-2-E
FRONT SHOCK ABSORBER(OIL)
F06-1

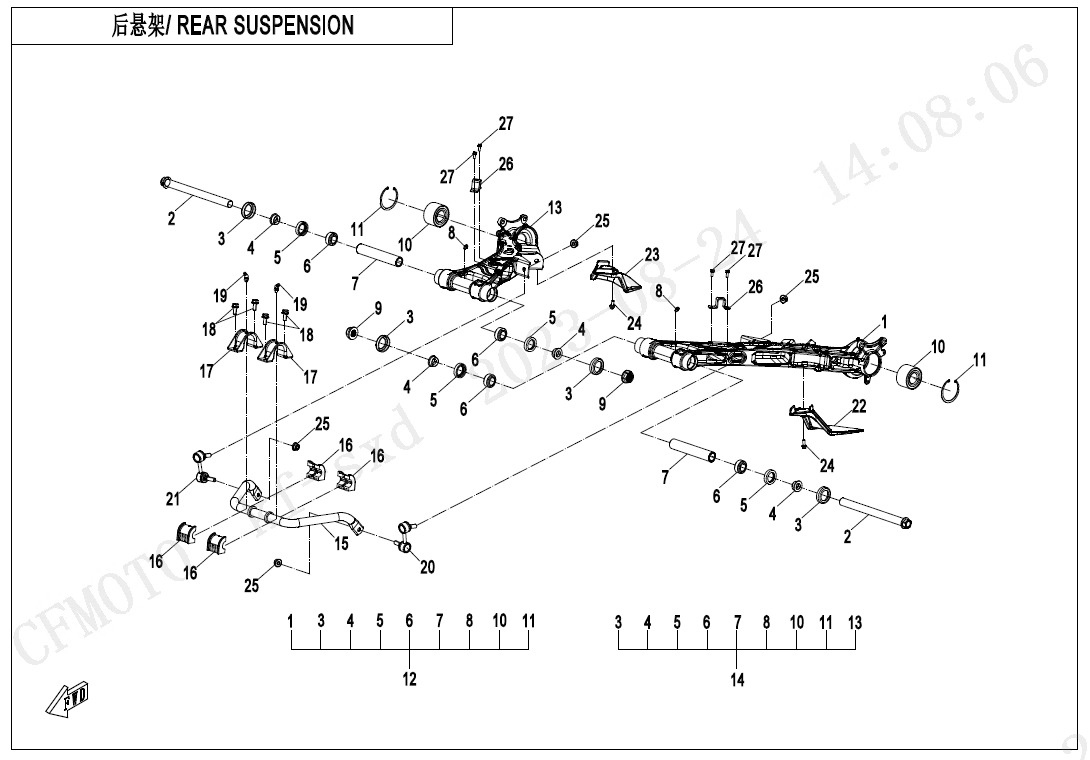

REAR SUSPENSION

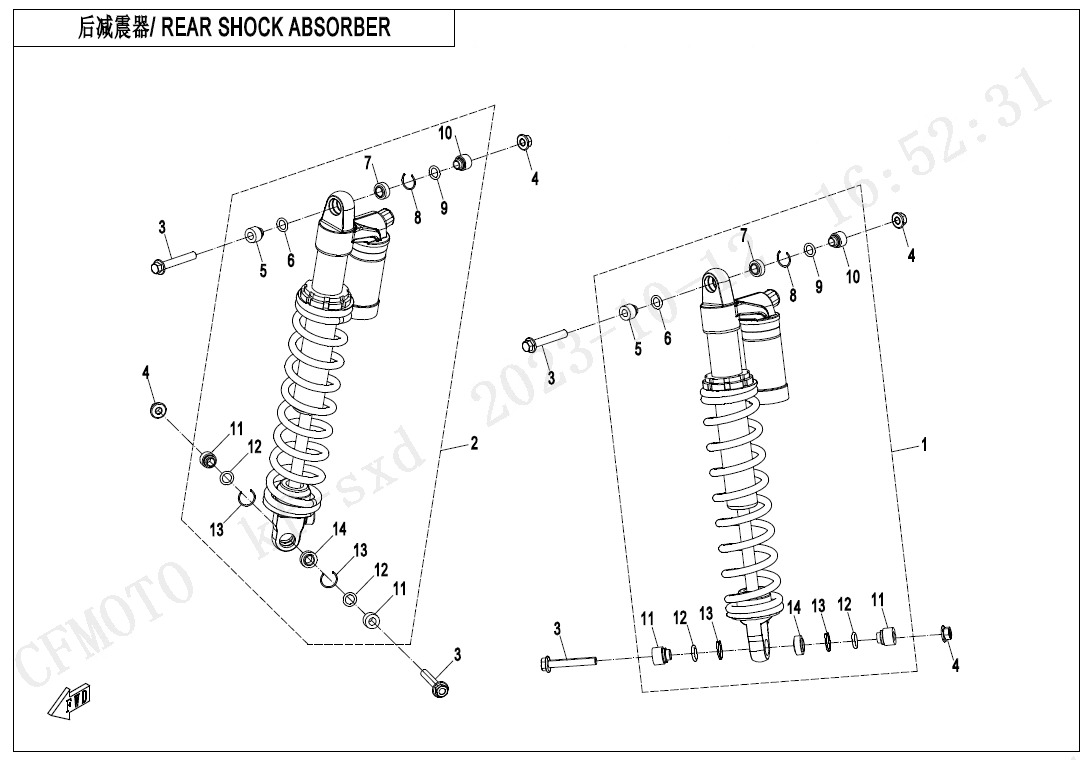

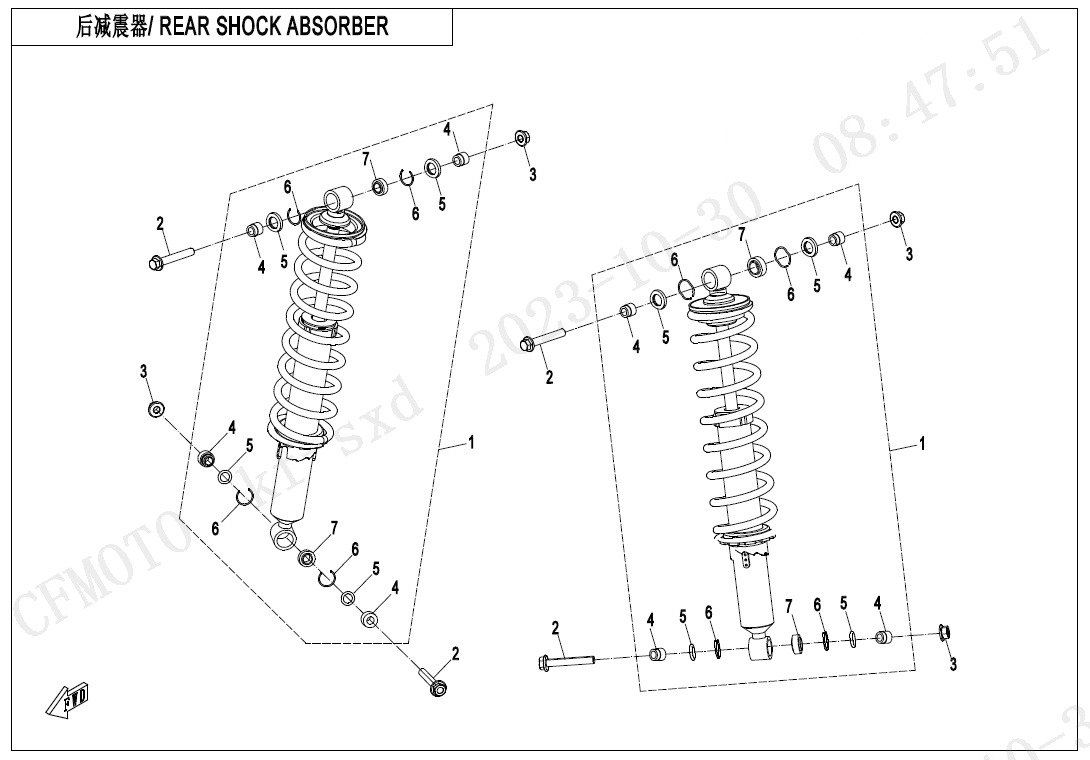

F06-2-A

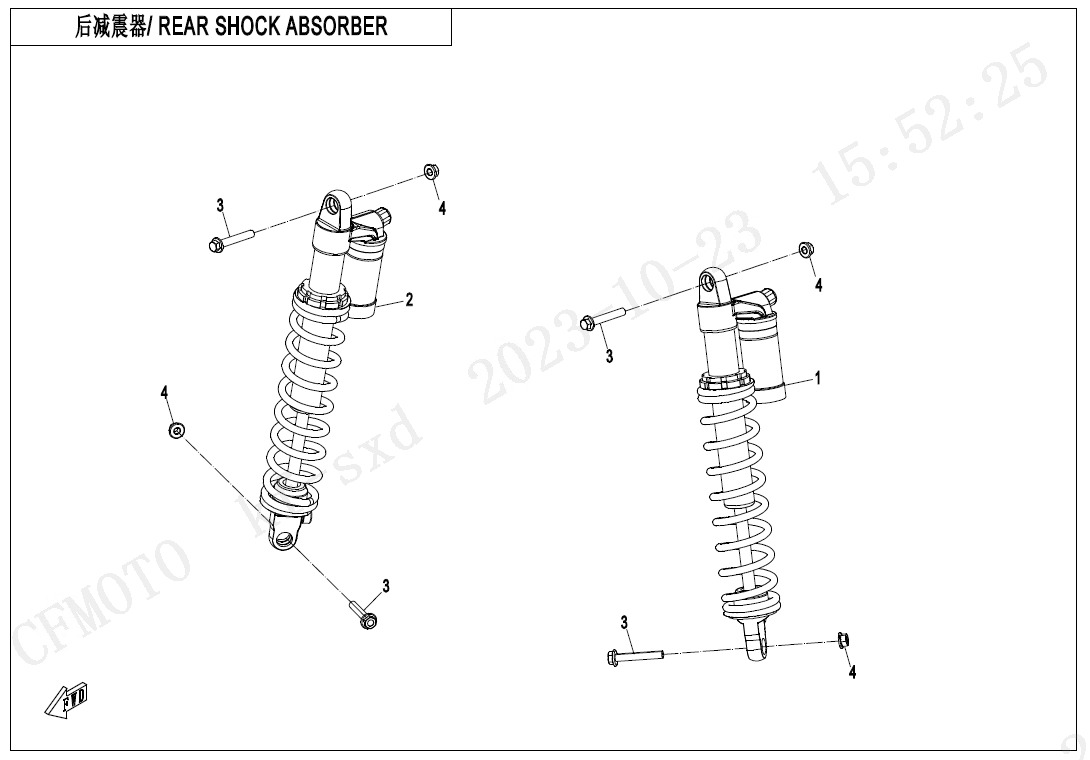

REAR SHOCK ABSORBER(GAS)
F06-2-B
REAR SHOCK ABSORBER(GAS)
F06-2-D
REAR SHOCK ABSORBER(OIL)
F06-2-E
REAR SHOCK ABSORBER(OIL)
F07-A

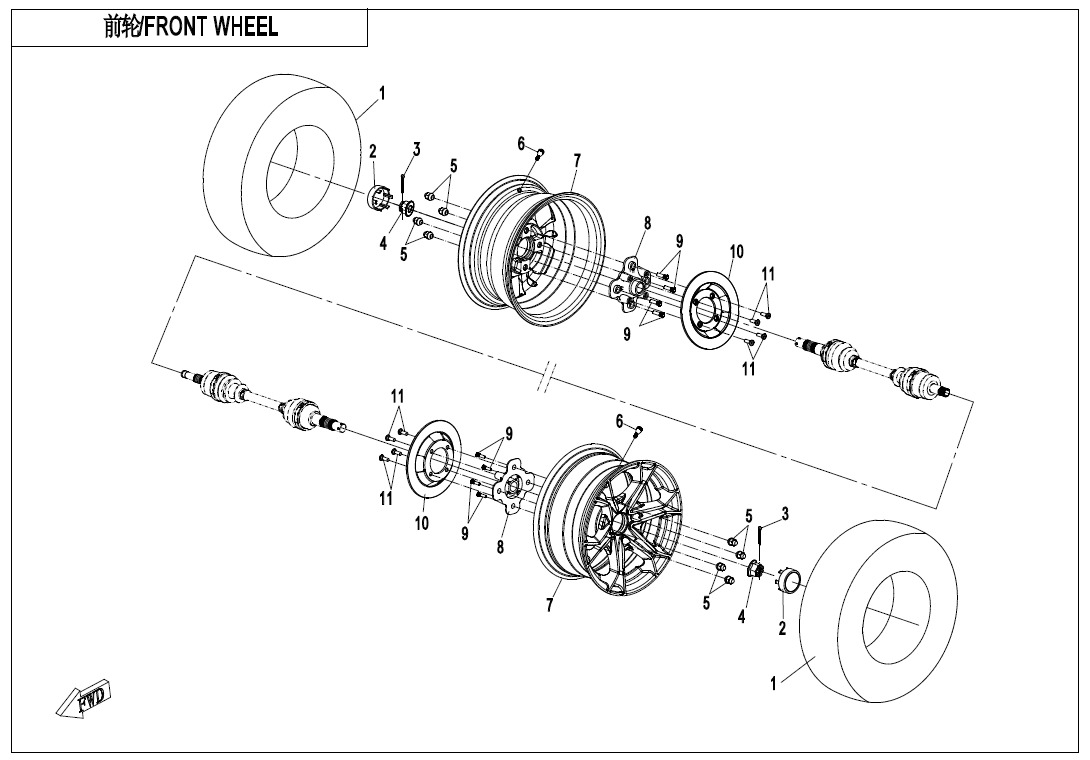

FRONT WHEEL

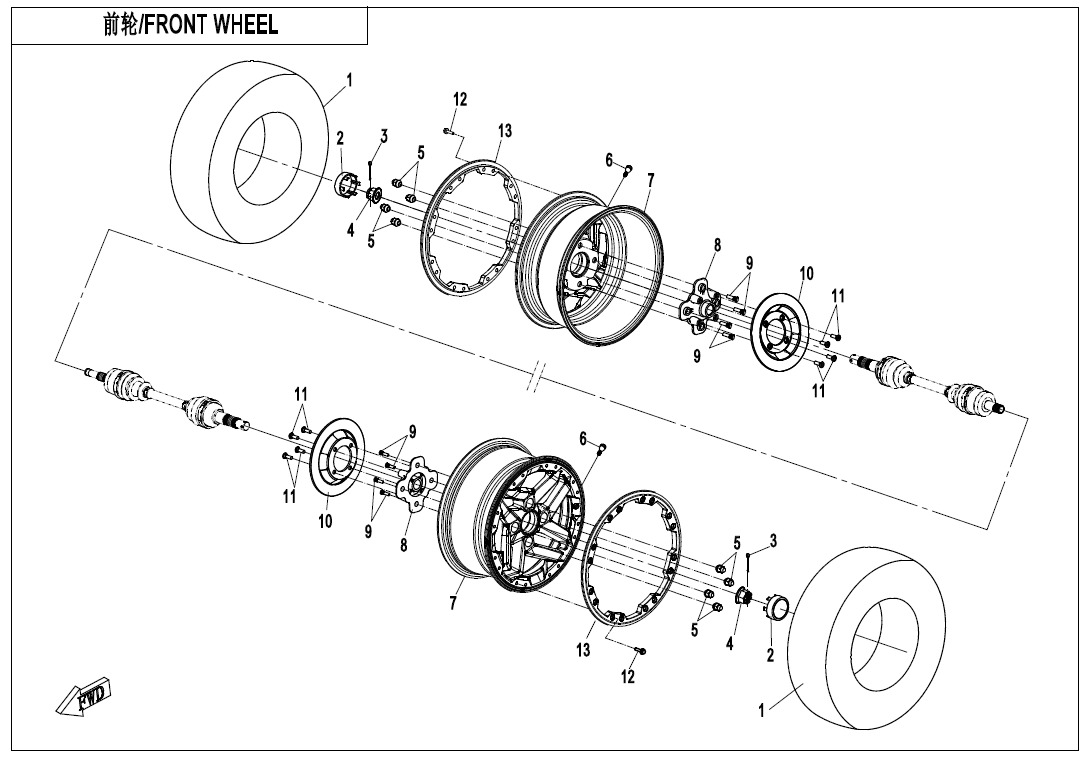

F07-B
FRONT WHEEL(WITH LOCK RING)
F08-A

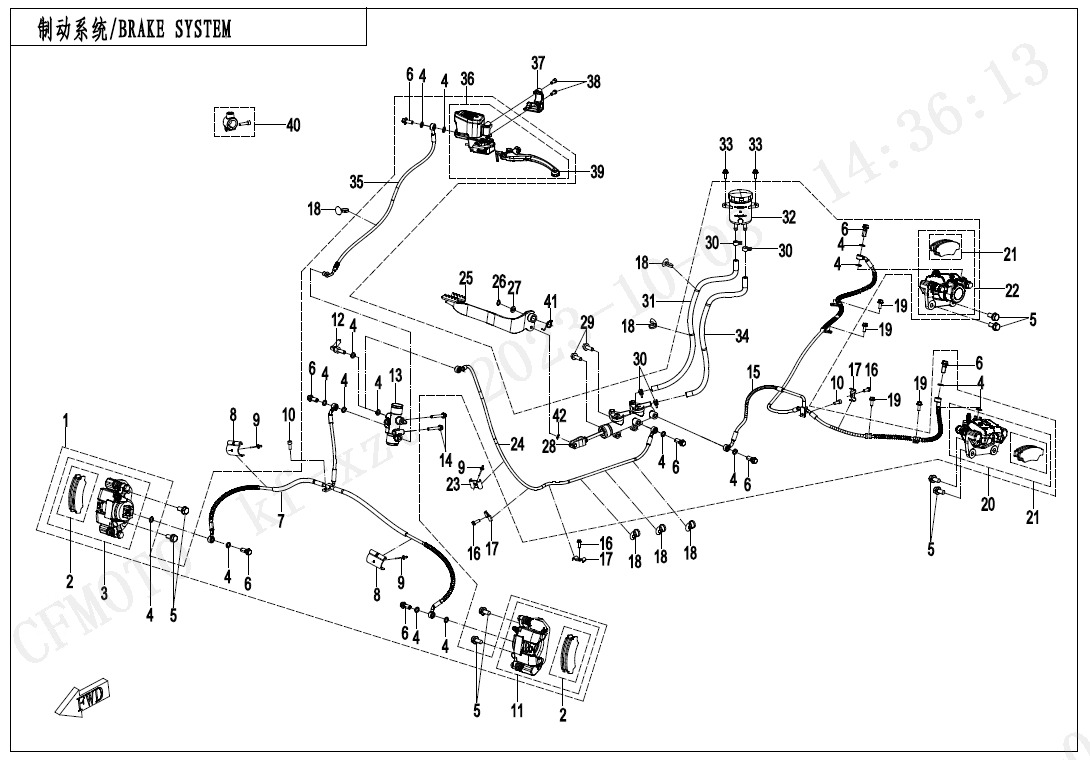

BRAKE SYSTEM-RH
F08-B
BRAKE SYSTEM-RH(RUSSIA)

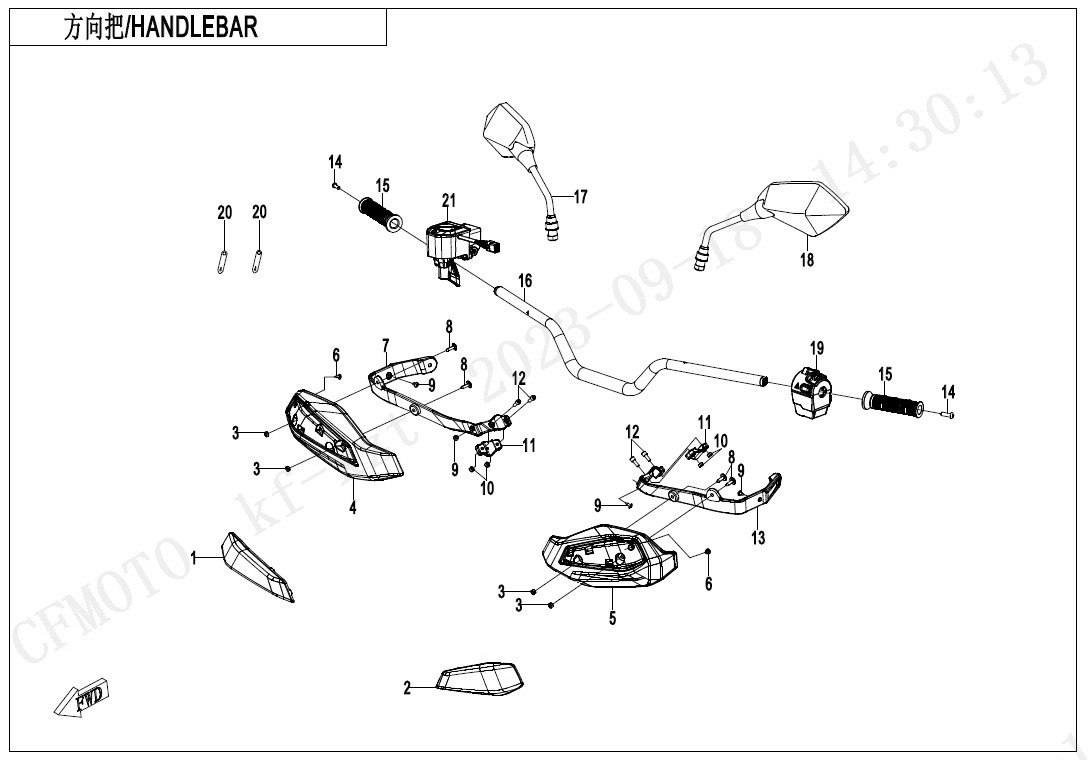

F10-1-V1

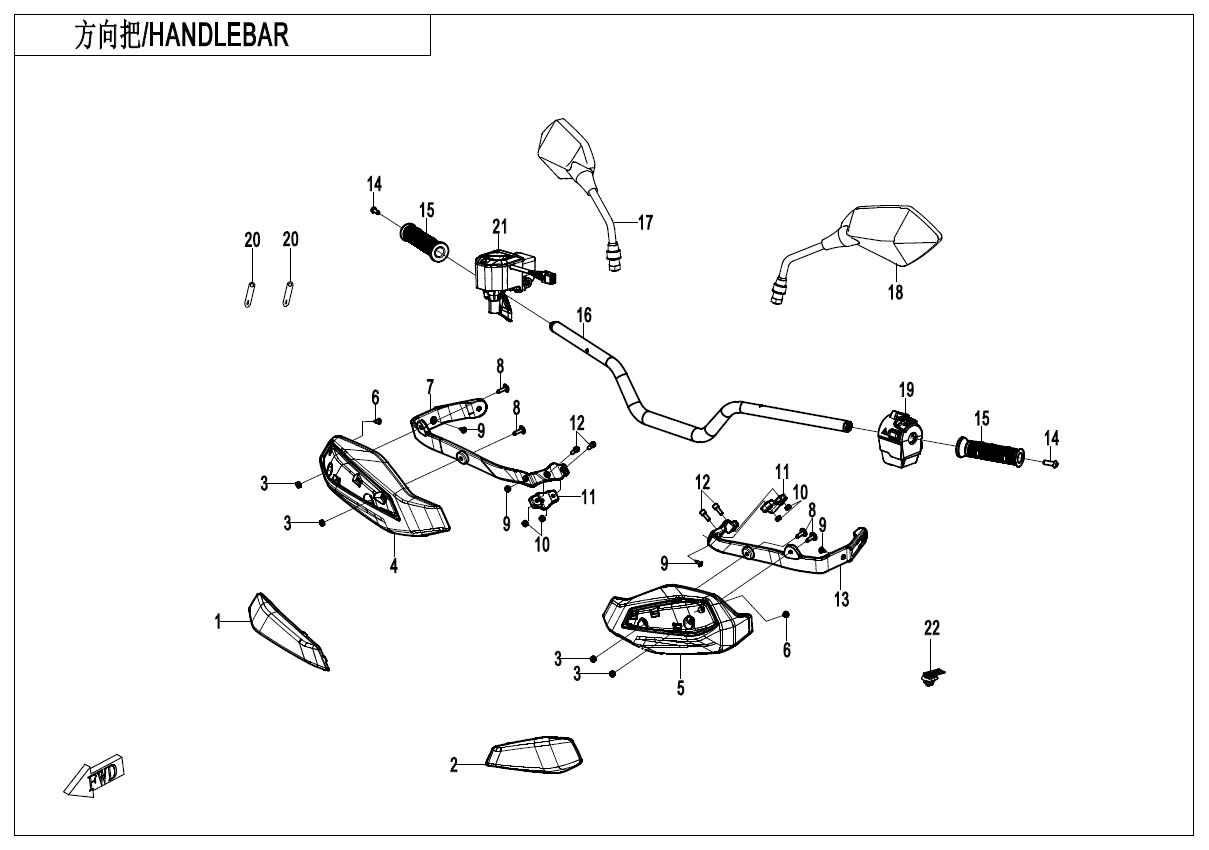

HANDLEBAR
F10-1-V2
HANDLEBAR
F10-2

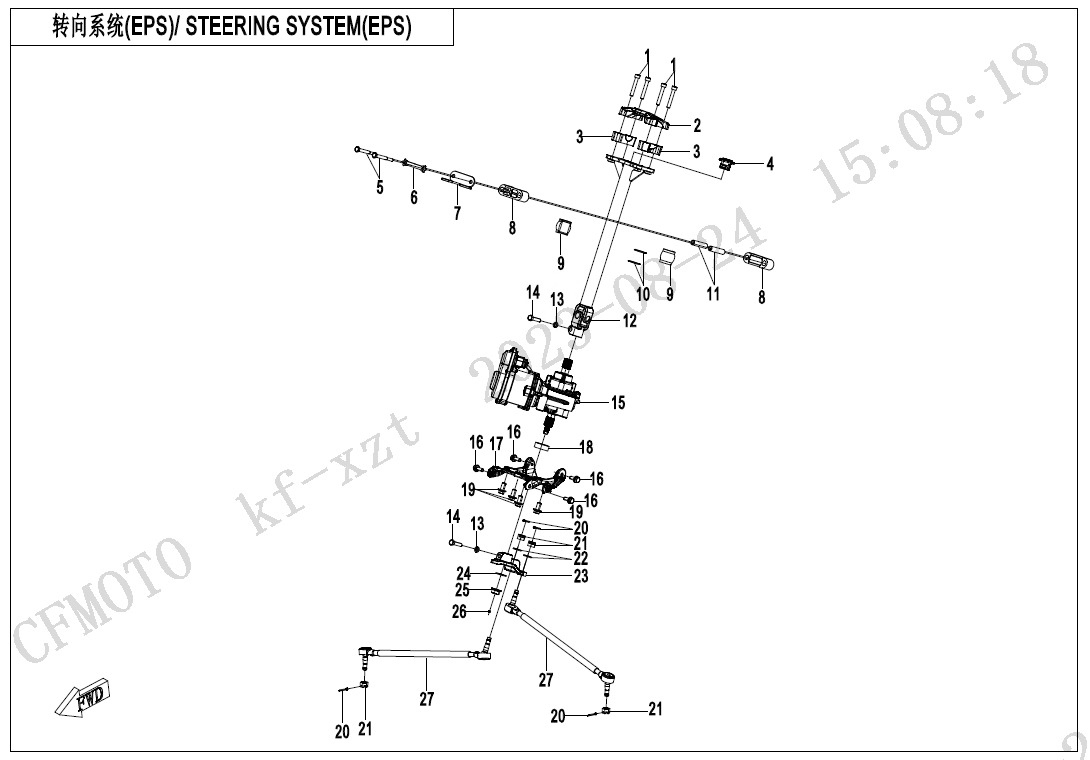

STEERING SYSTEM(EPS)
F11-A

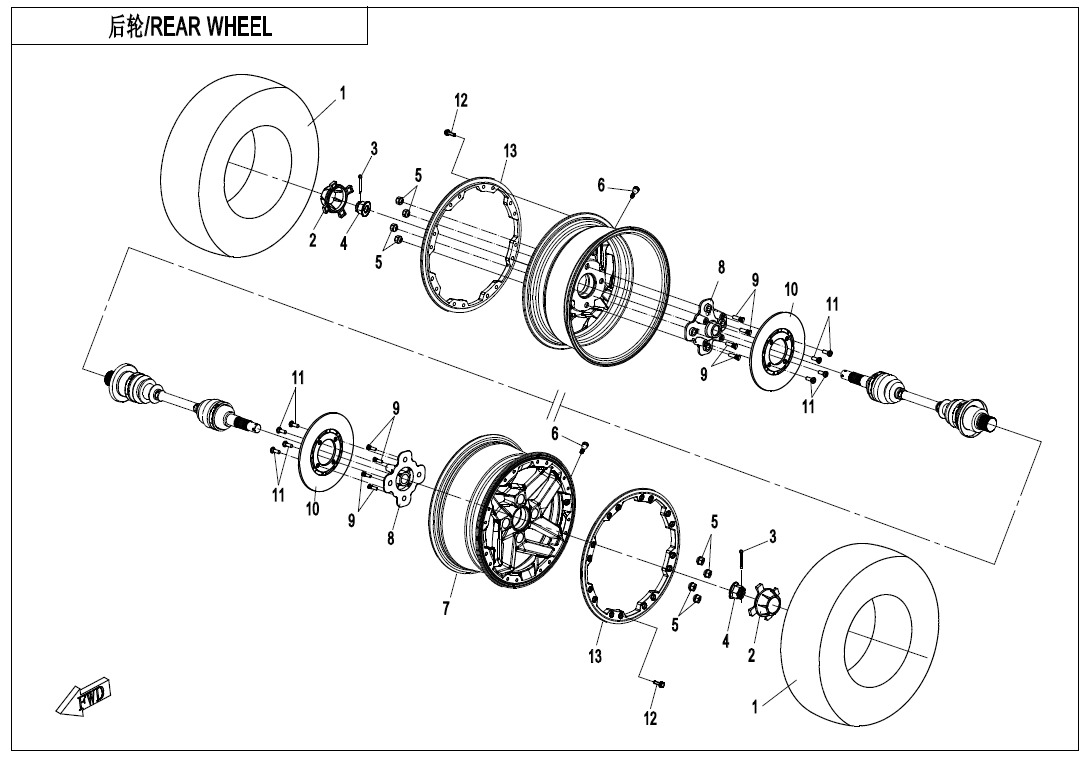

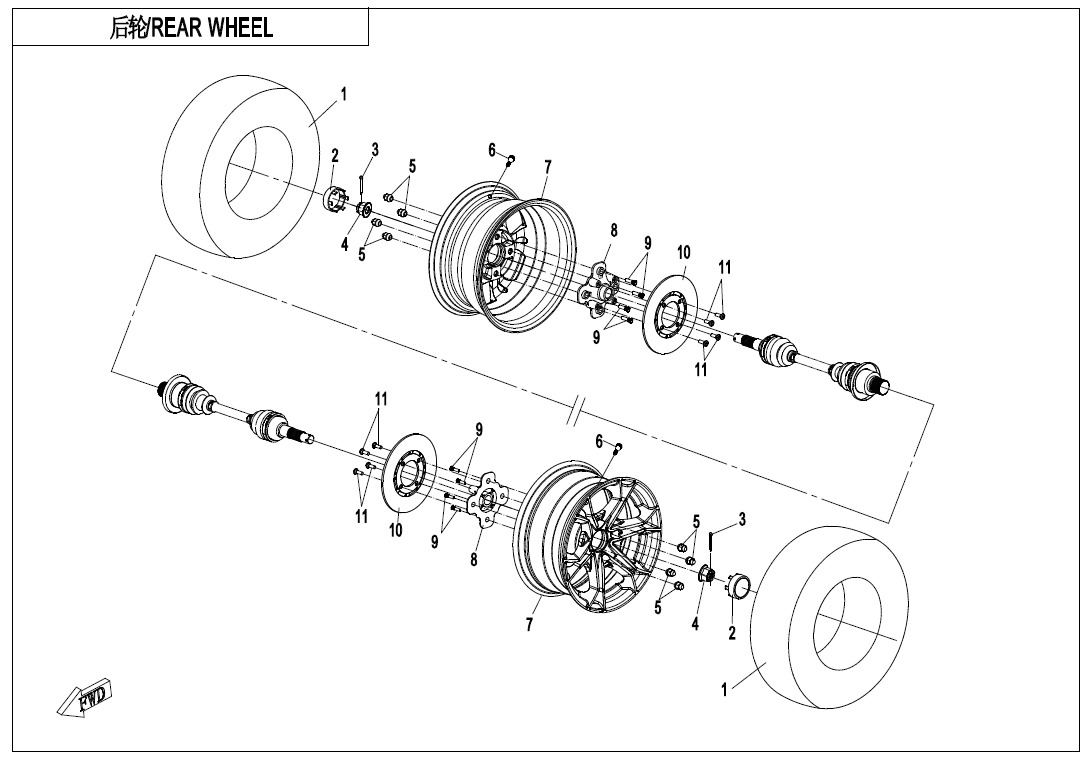

REAR WHEEL
F11-B
REAR WHEE(WITH LOCK RING)
F12

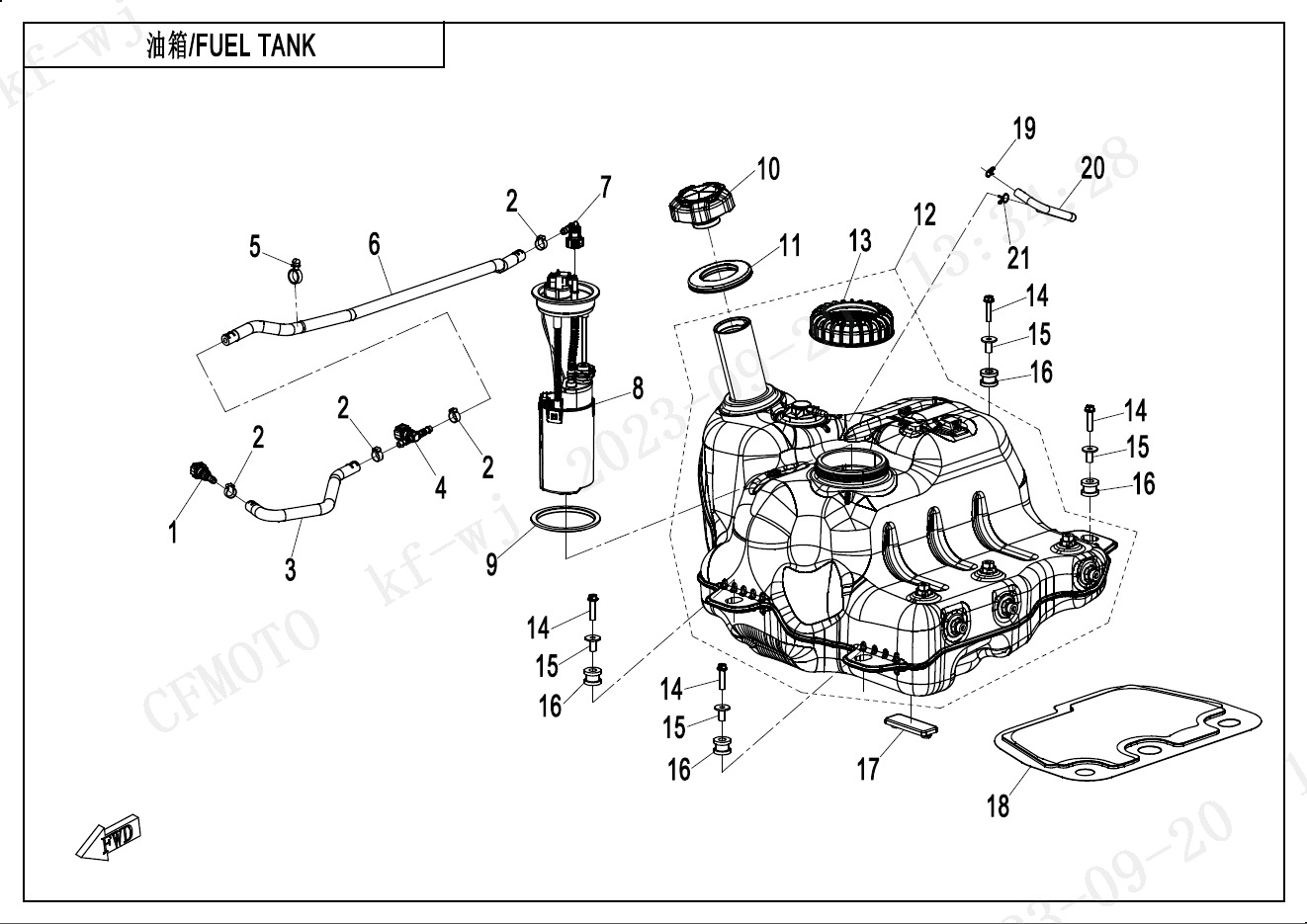

FUEL TANK
F13-A

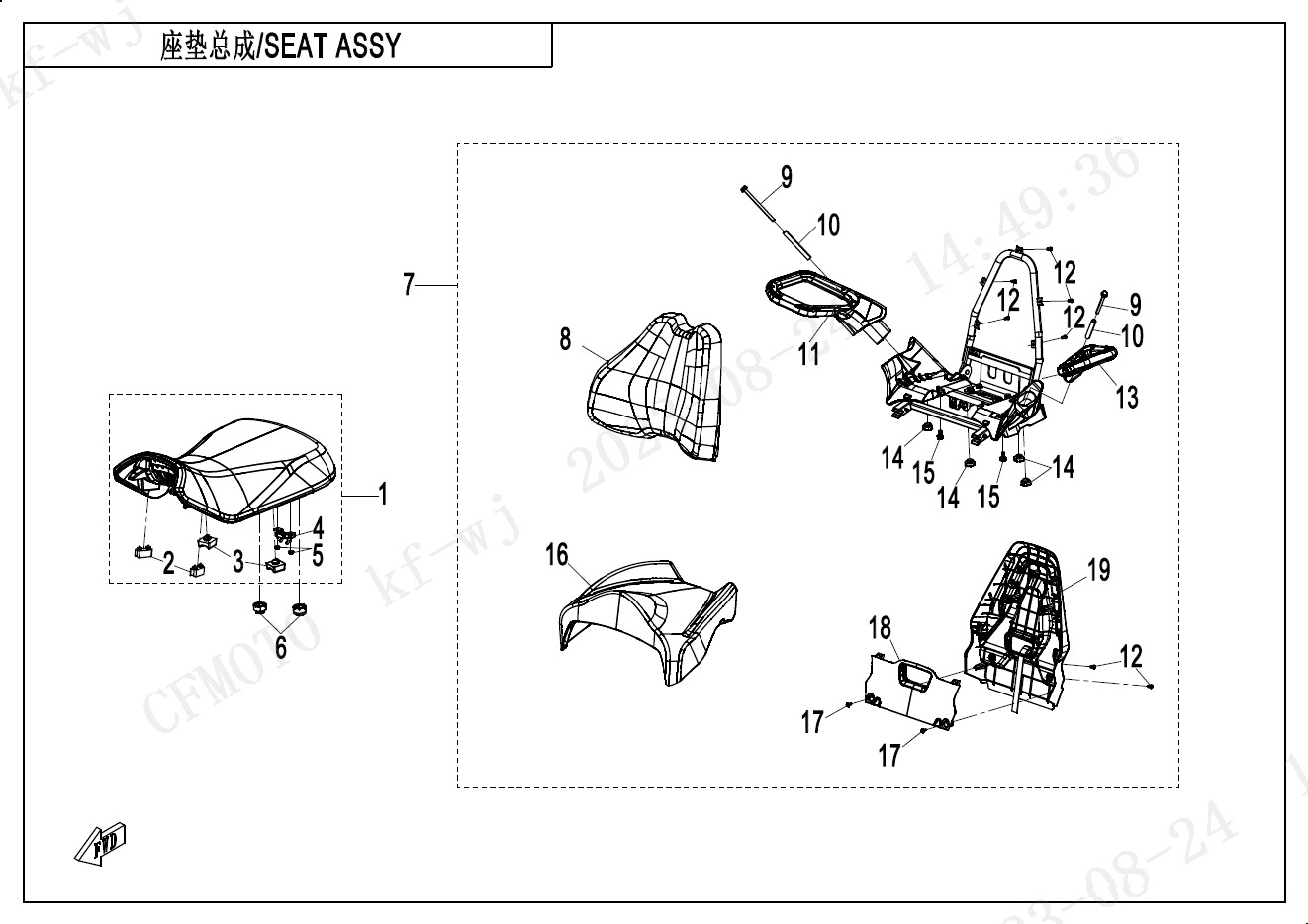

SEAT(STANDARD)
F13-B
SEAT(DELUXE)
F14-1

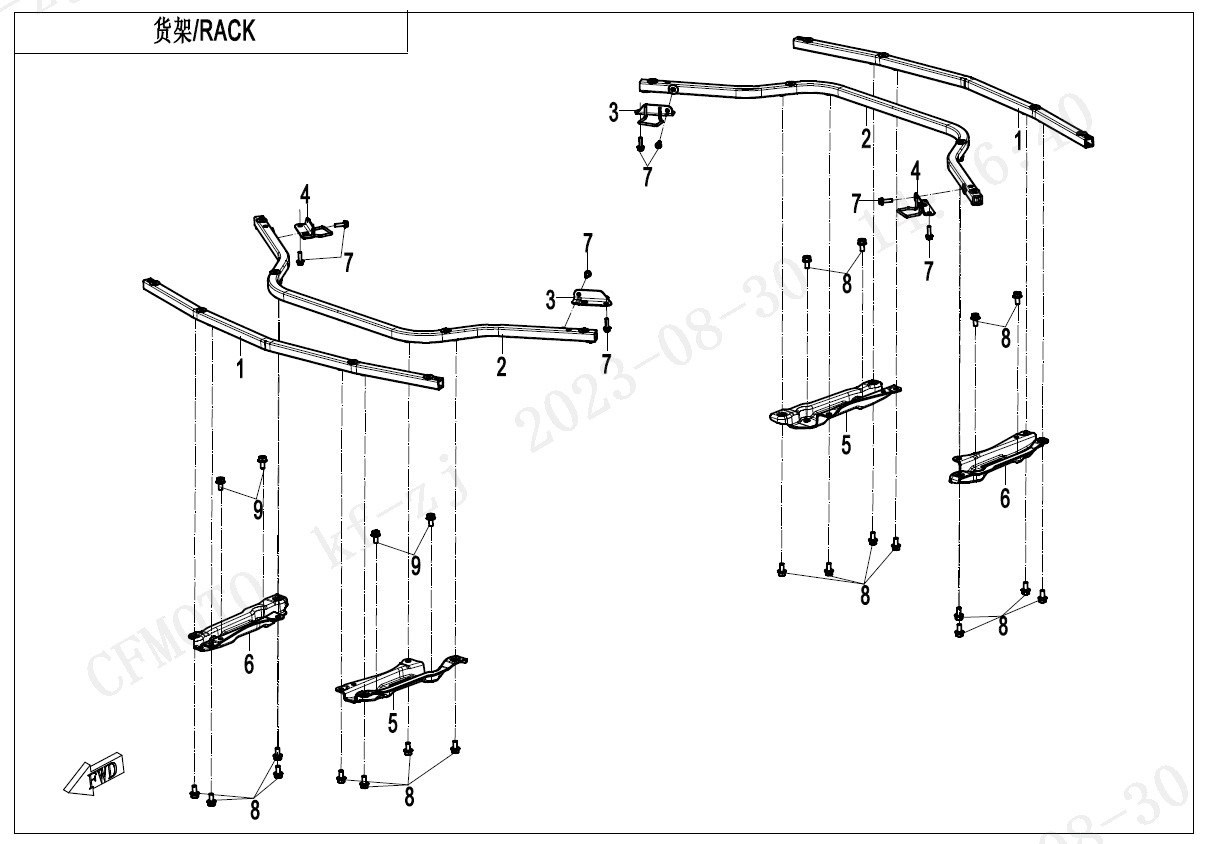

RACK

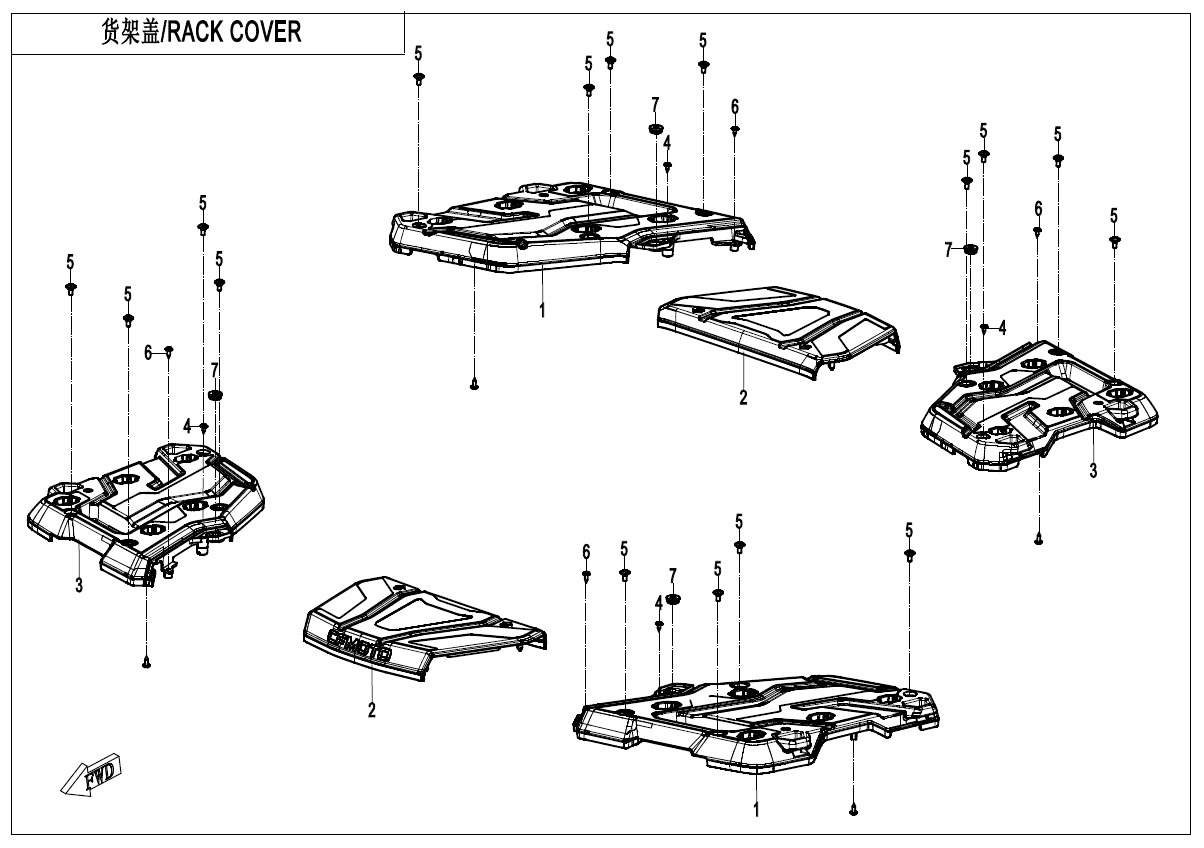

F14-2
RACK COVER

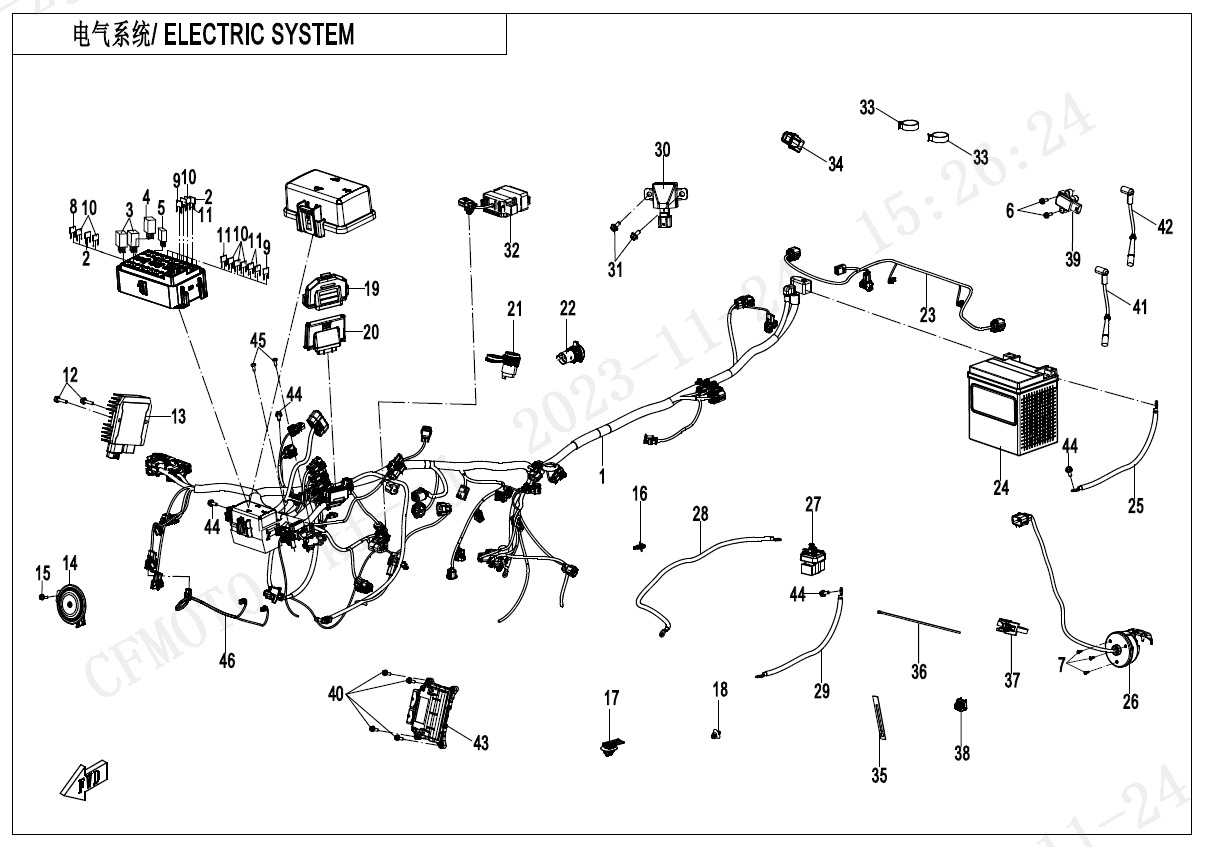

F15-1
ELECTRIC SYSTEM
F15-2

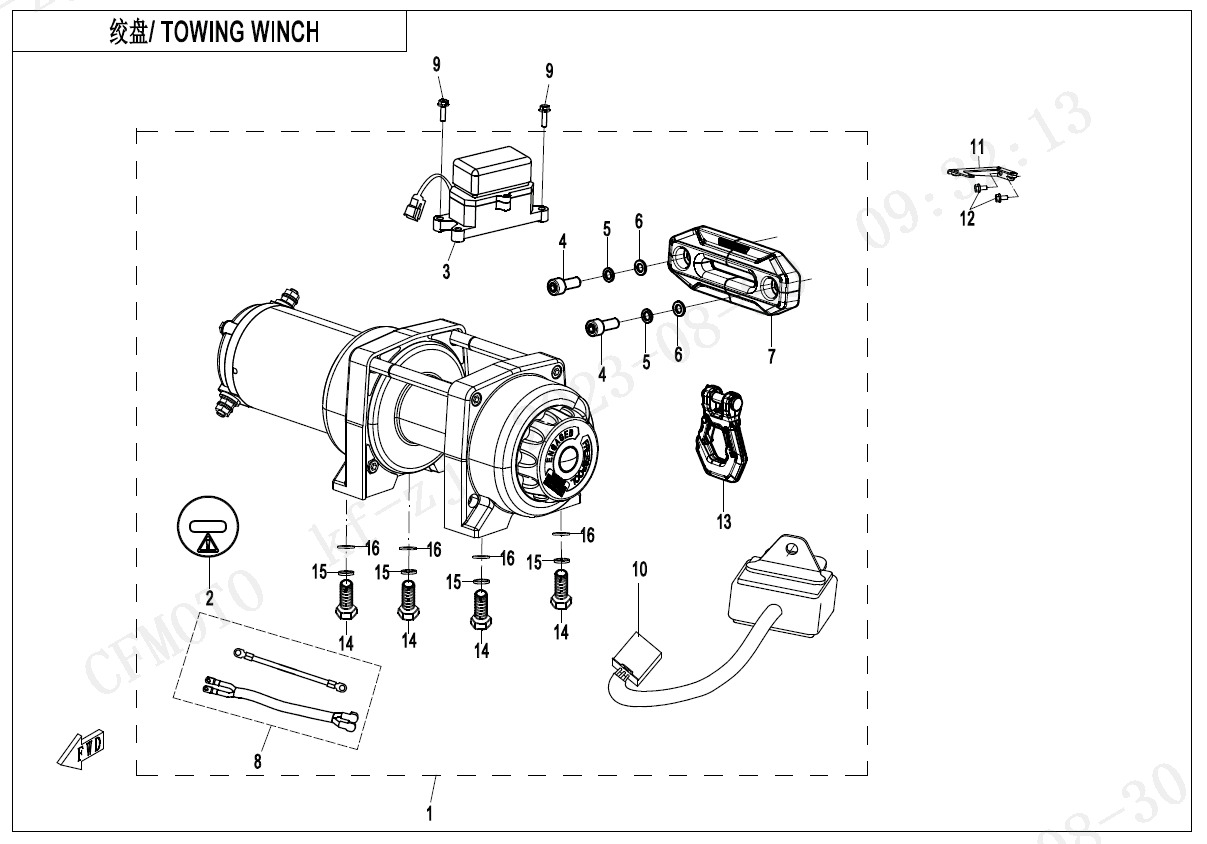

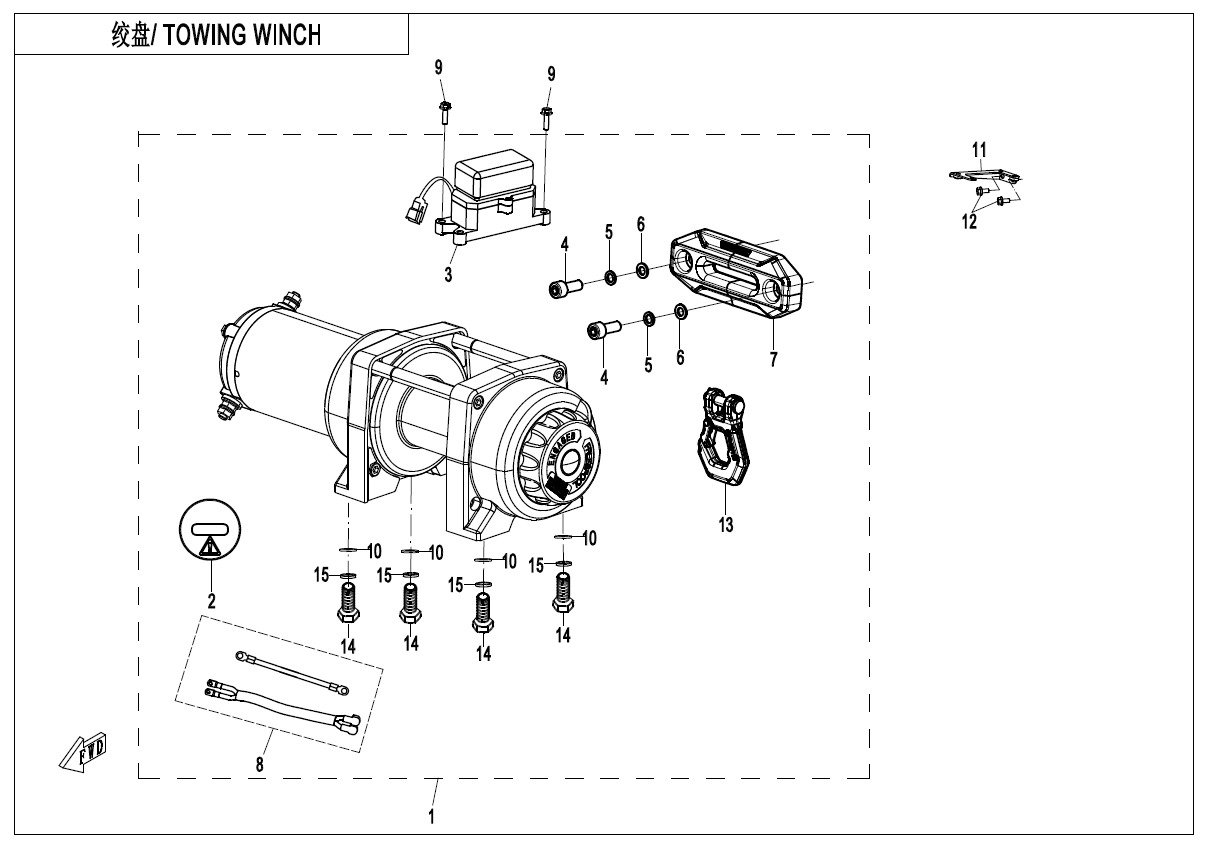

TOWING WINCH
F15-2-A
TOWING WINCH
F15-2-B
TOWING WINCH(WITHOUT WINCH CONTROL SWITCH)

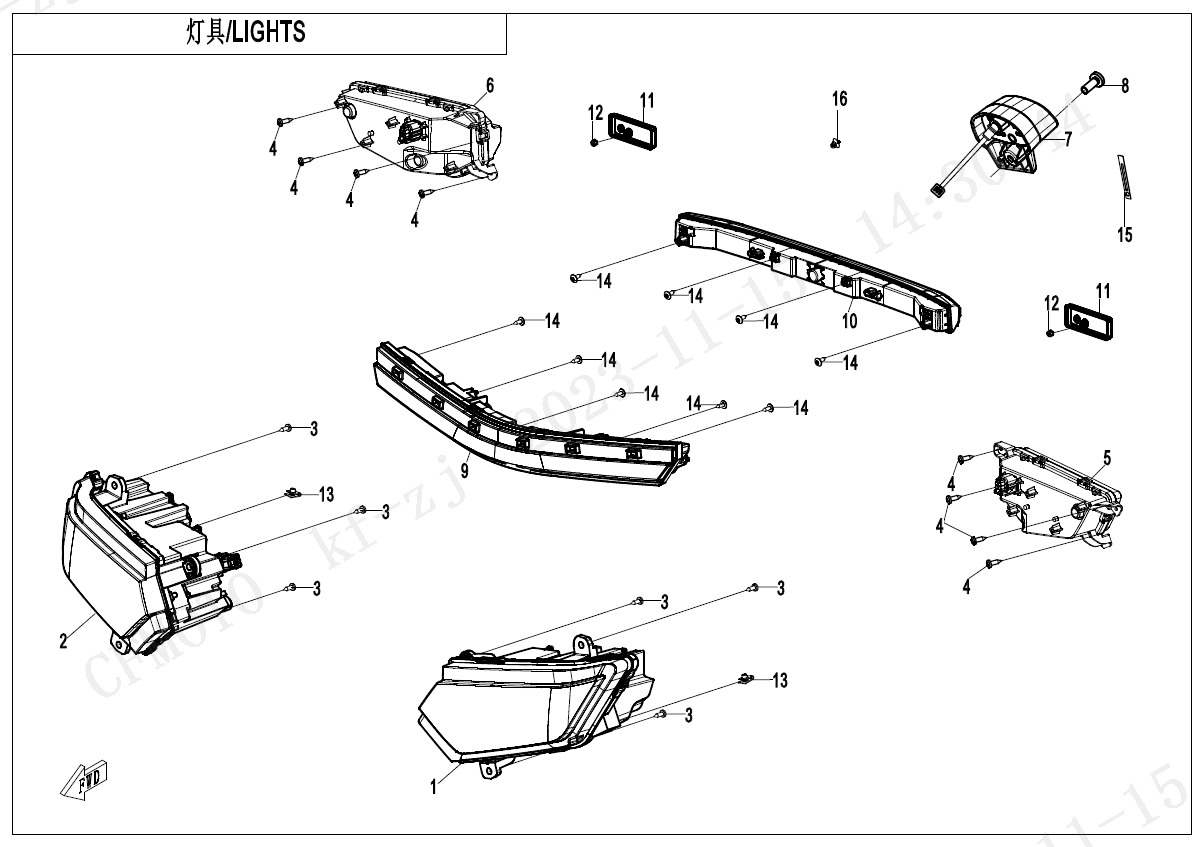

F16
LIGHTS

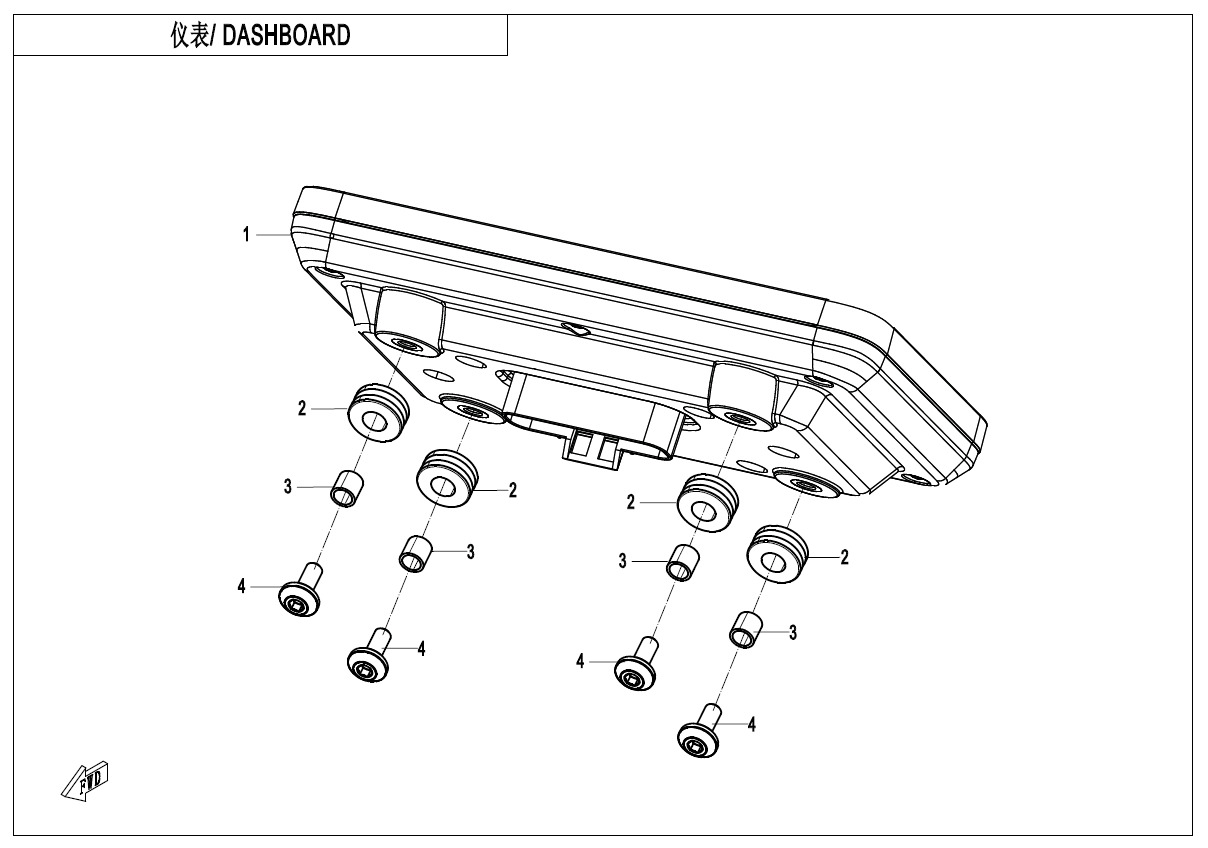

F17-A

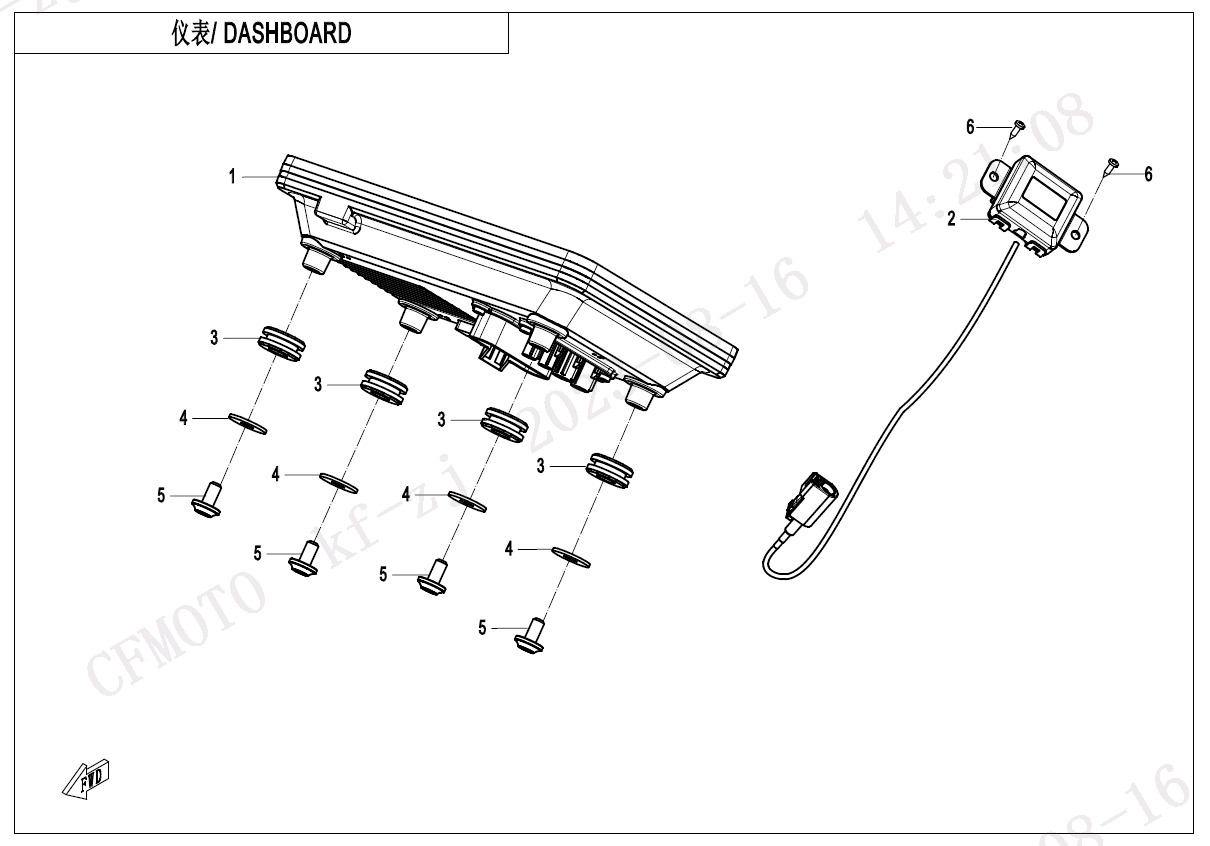

DASHBOARD(7 INCH)
F17-B
DASHBOARD(8 INCH)
F18

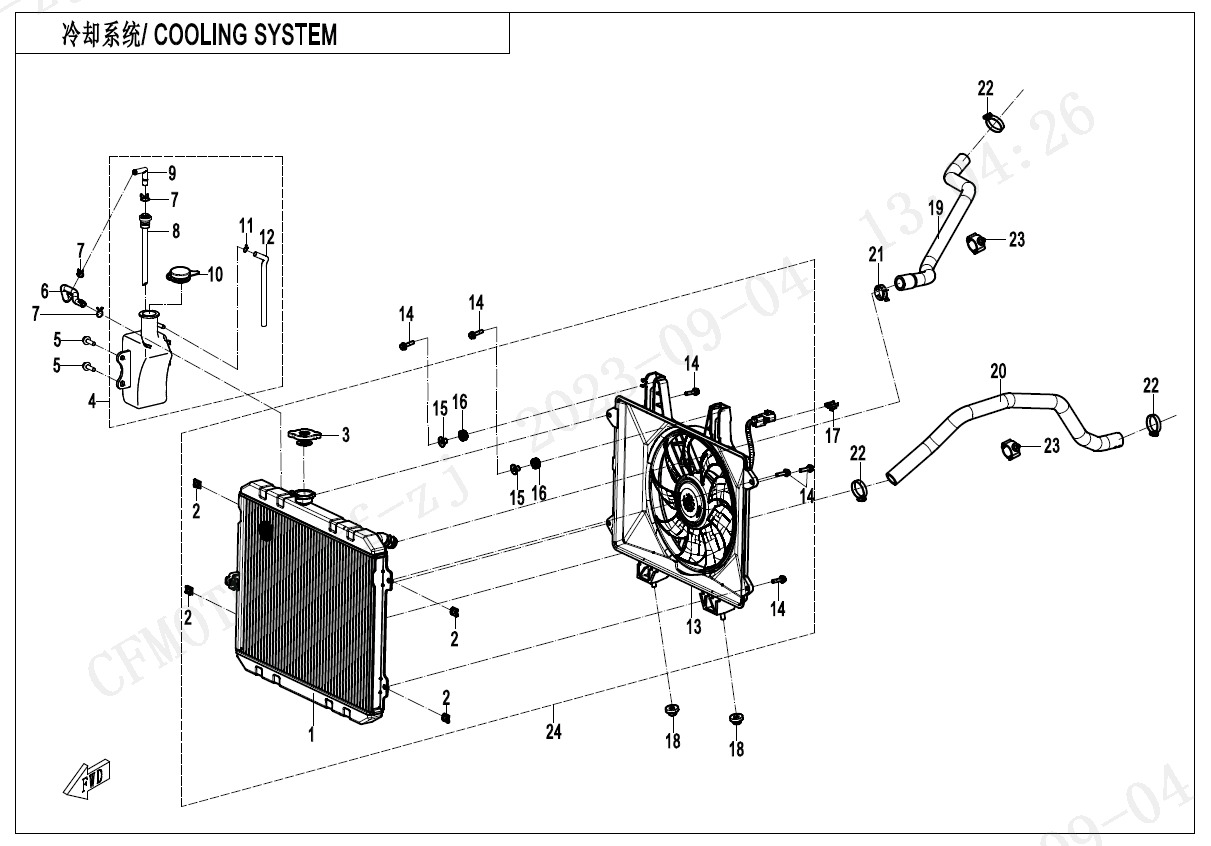

COOLING SYSTEM

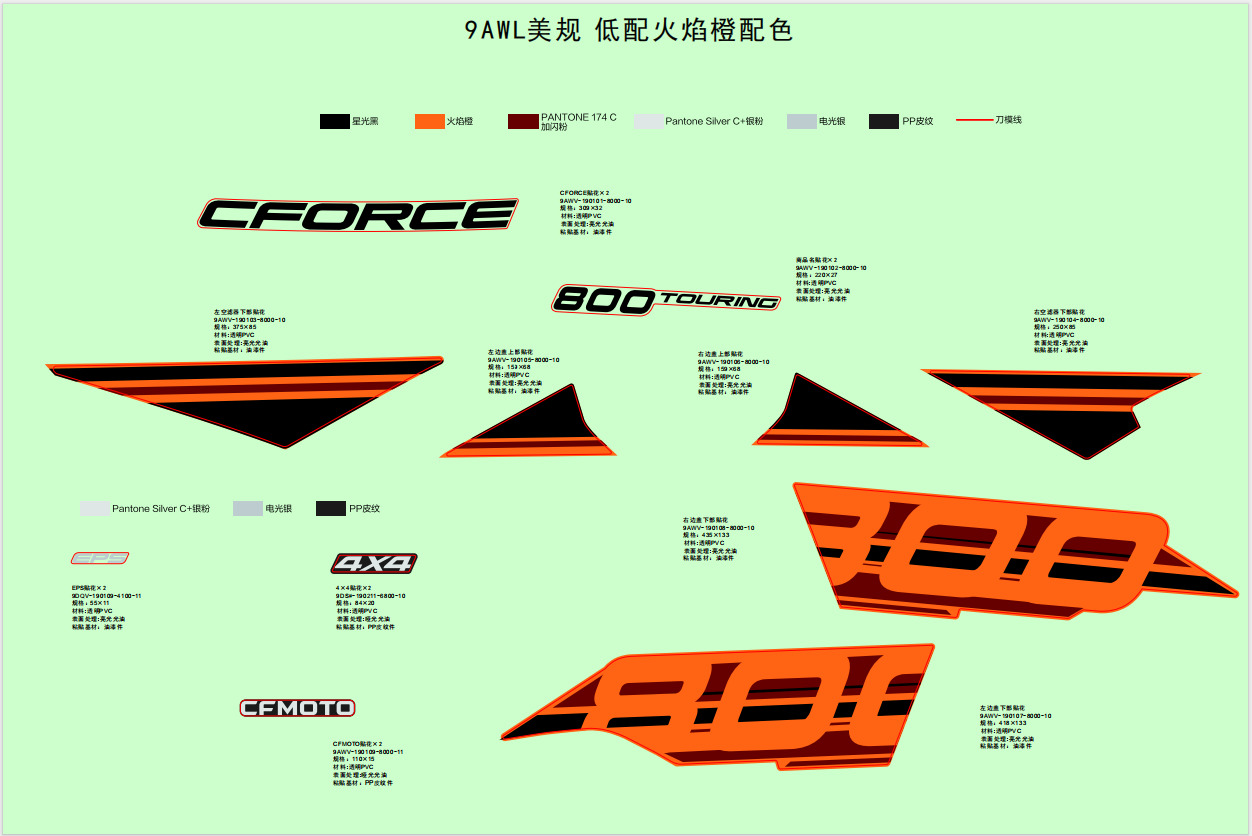

F19-1-A
DECAL,2024,NA(STANDARD,LAVA ORANGE)
F19-1-B
DECAL,2024,NA(STANDARD,TUNDRA GREY)

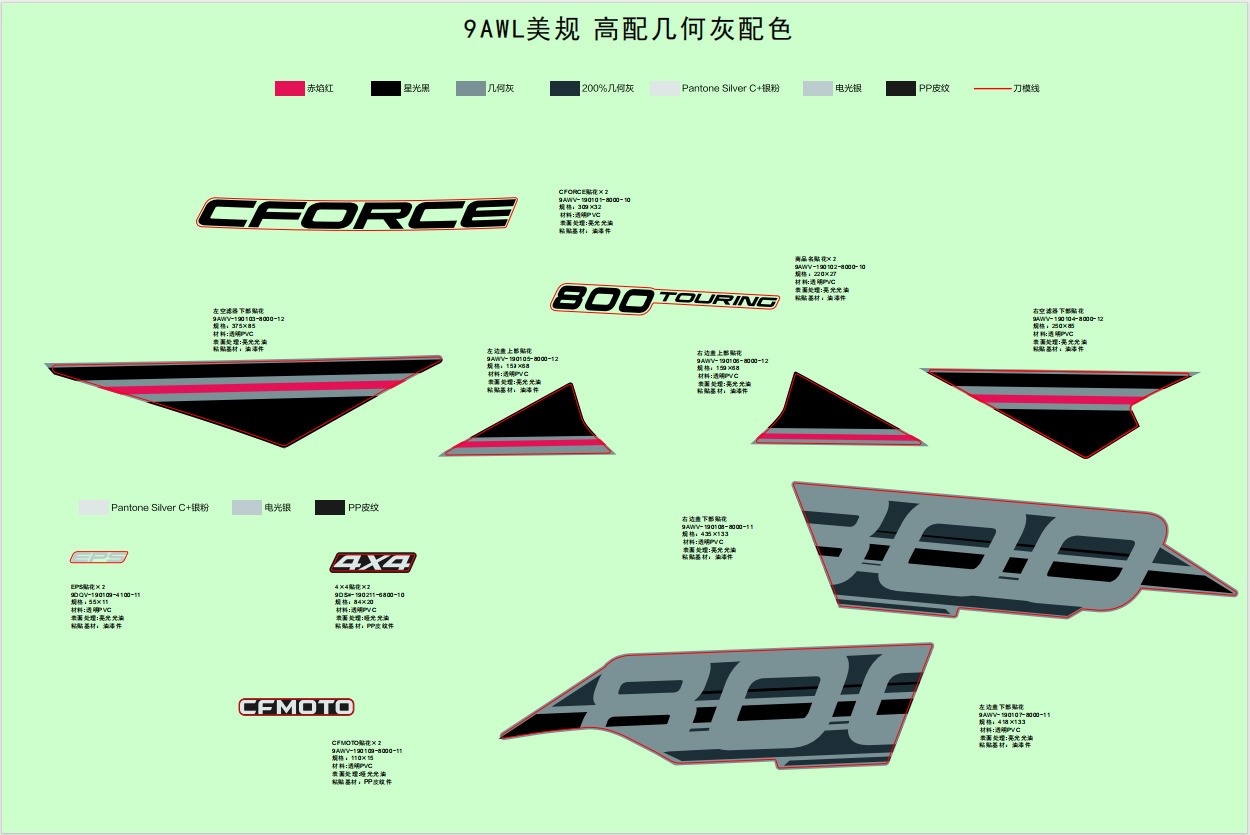

F19-1-C
DECAL,2024,NA(DELUXE,TUNDRA GREY)
F19-1-D

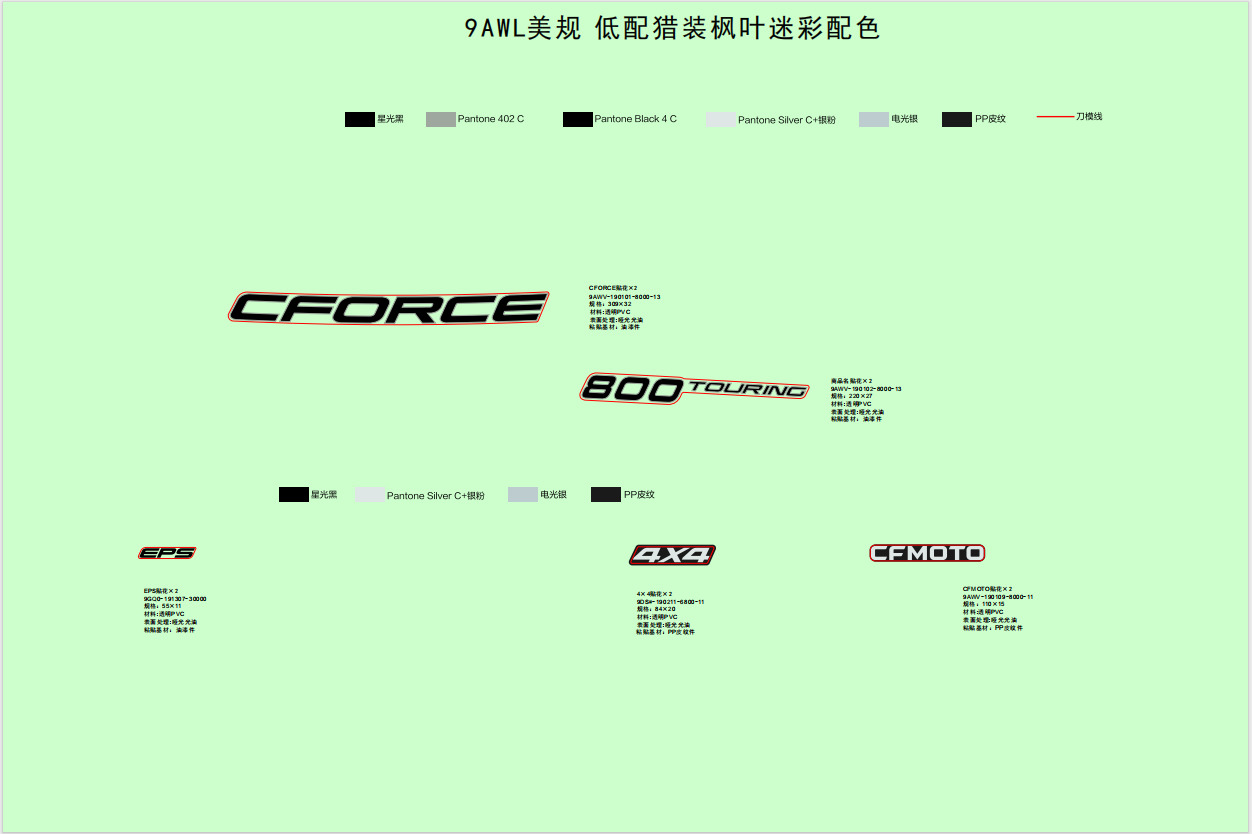

DECAL,2024,NA(STANDARD,TRUE TIMBER CAMO)
F19-1-E
DECAL,2024,EU@^INTERNATIONAL(STANDARD,LAVA ORANGE)
F19-1-F

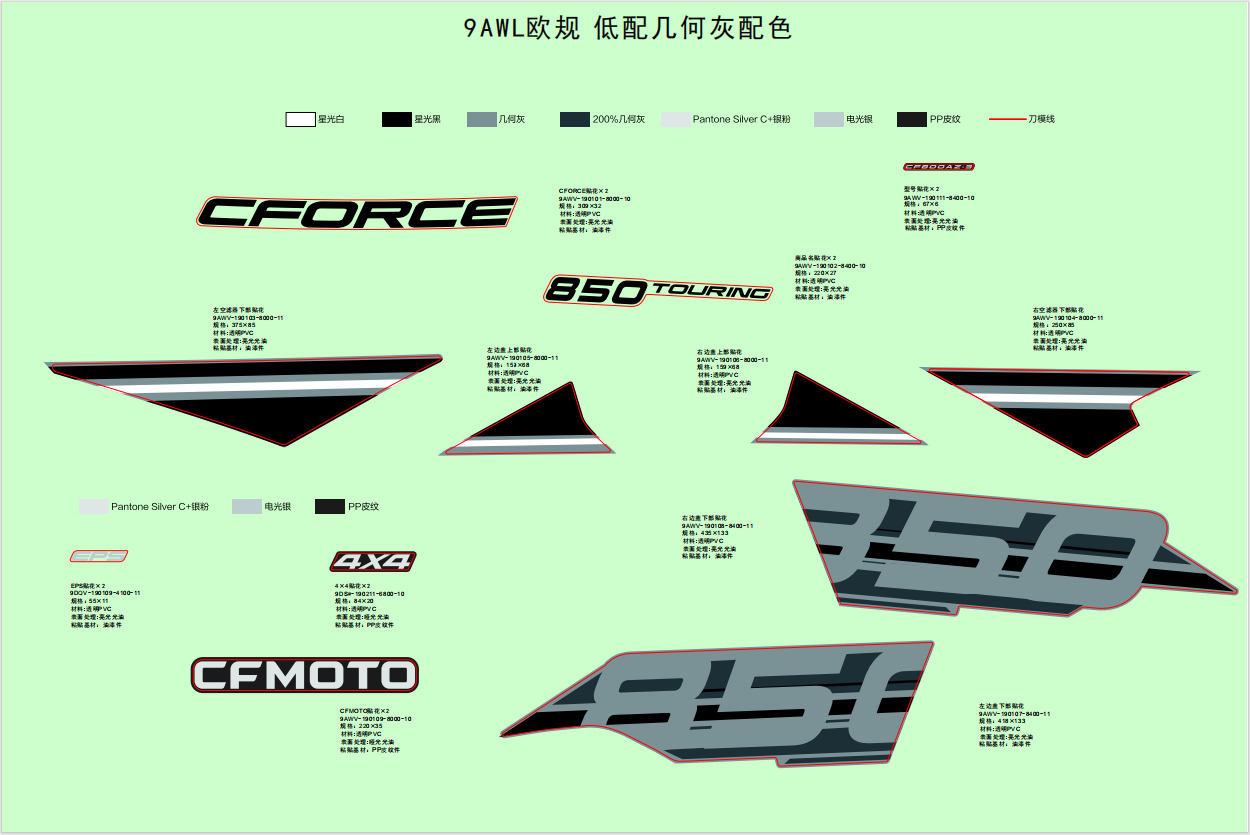

DECAL,2024,EU@^INTERNATIONAL(STANDARD,TUNDRA GREY)

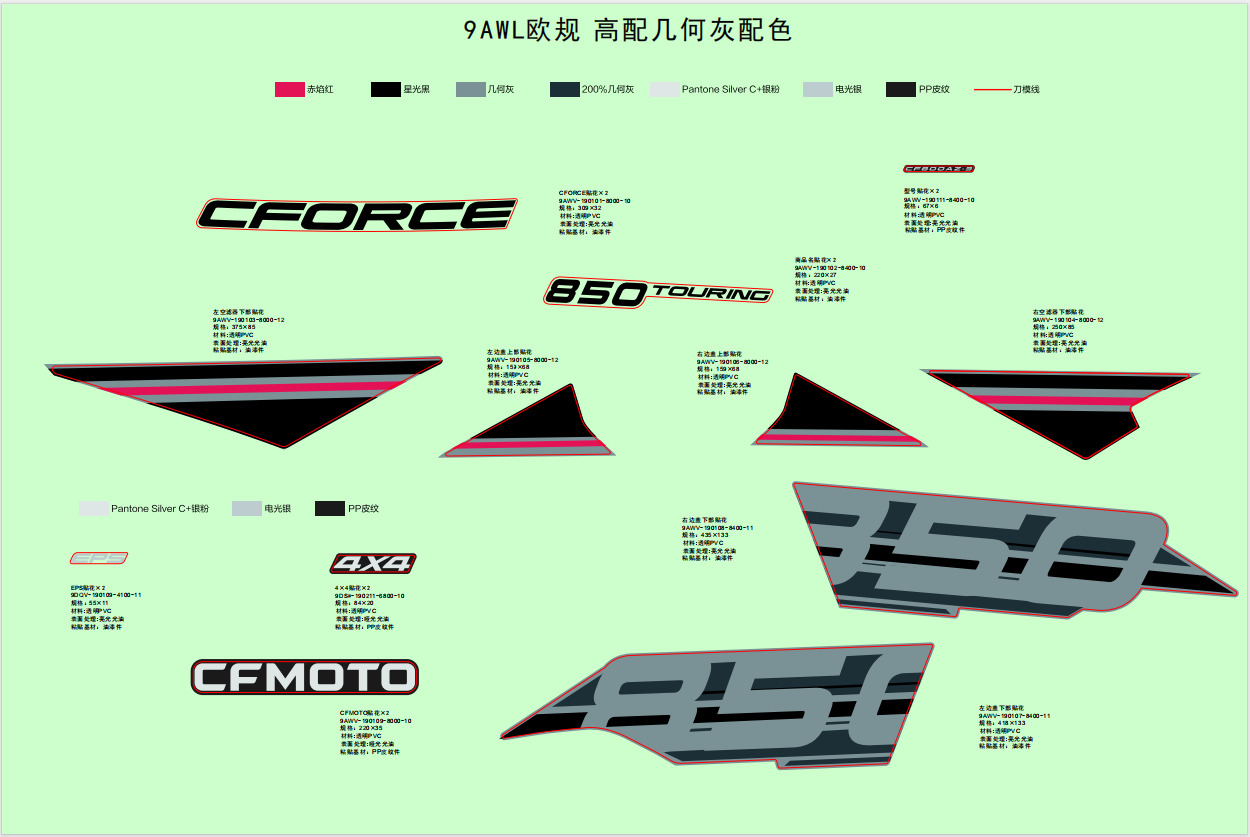

F19-1-G
DECAL,2024,EU@^INTERNATIONAL(DELUXE,TUNDRA GREY)

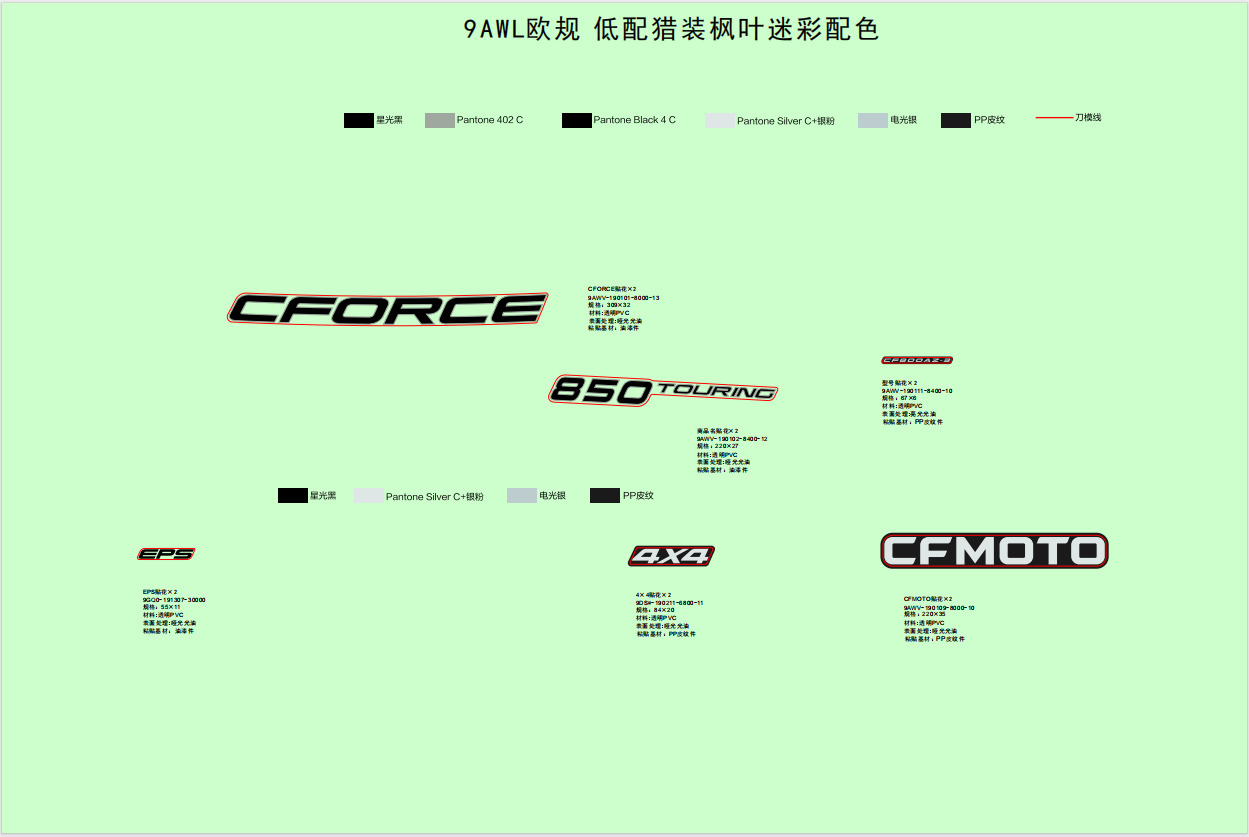

F19-1-H
DECAL,2024,EU@^INTERNATIONAL(STANDARD,TRUE TIMBER CAMO)

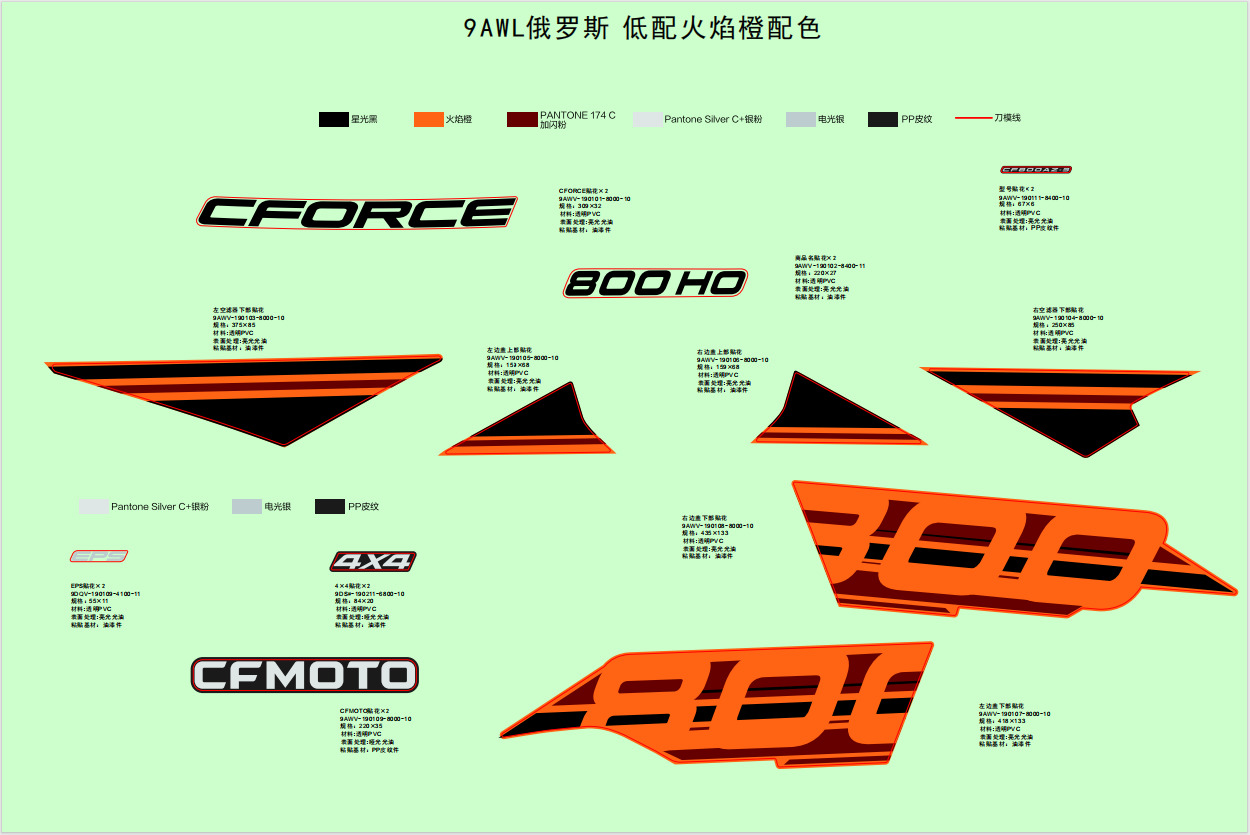

F19-1-I
DECAL,2024,RU(STANDARD,LAVA ORANGE)
F19-1-J
DECAL,2024,RU(STANDARD,TUNDRA GREY)
F19-1-K
DECAL,2024,RU(DELUXE,TUNDRA GREY)

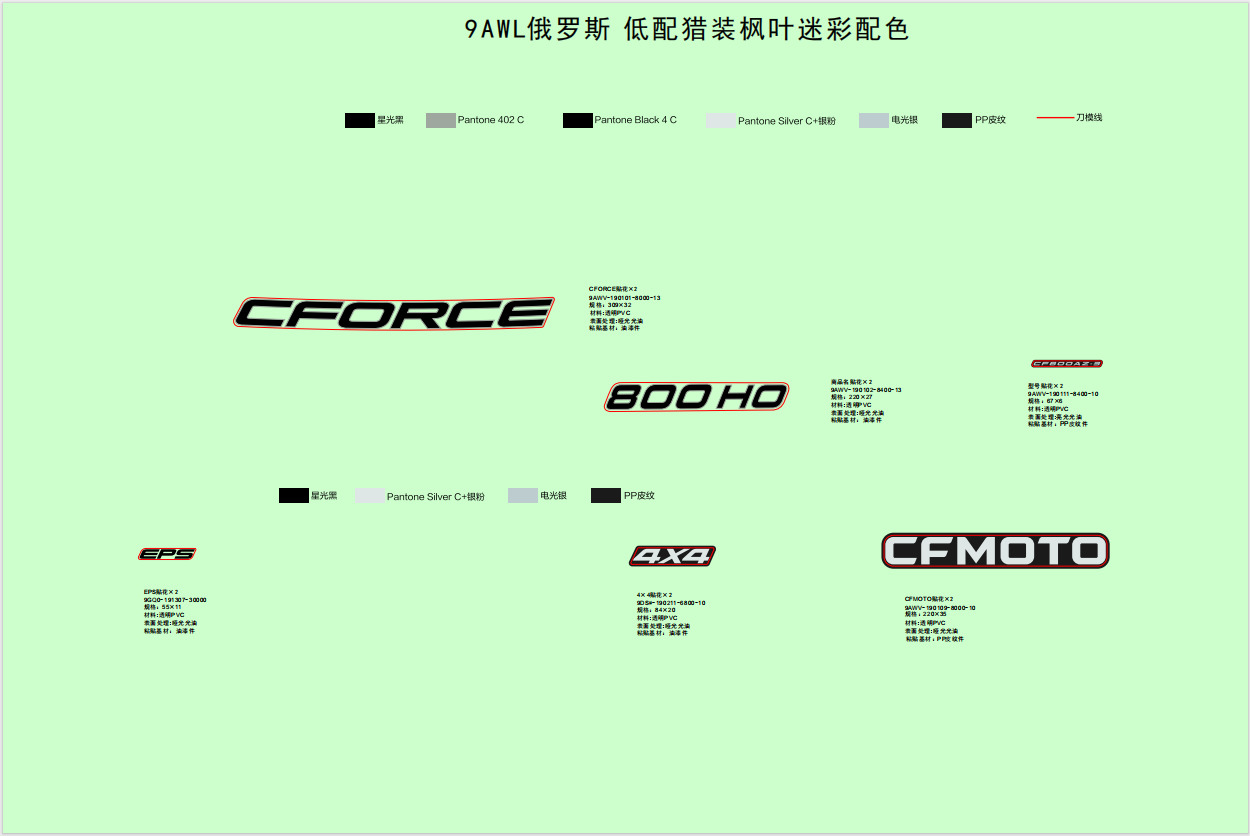

F19-1-L
DECAL,2024,RU(STANDARD,TRUE TIMBER CAMO)
F19-2-A

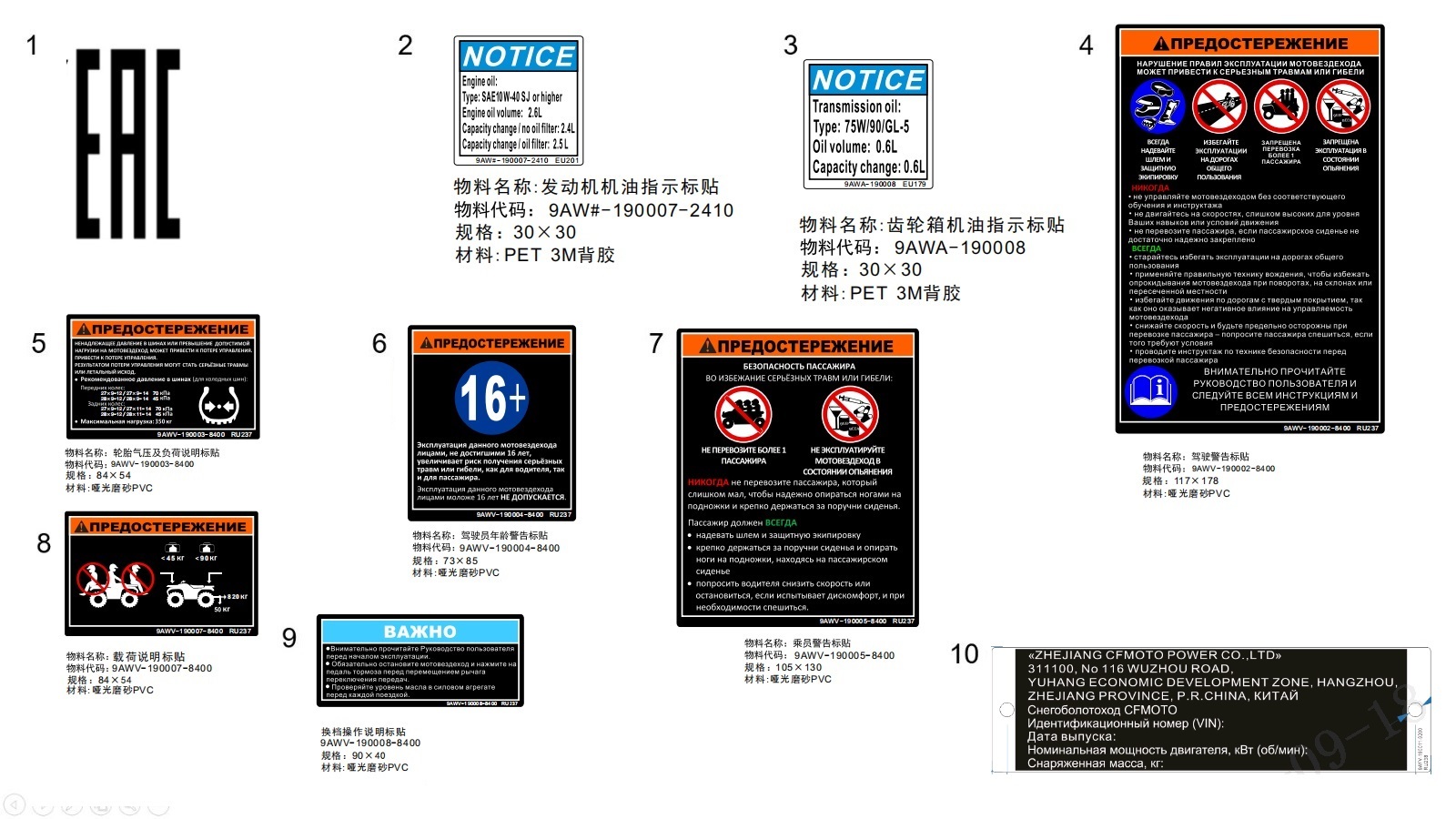

DECAL WARNING(RUSSIA)

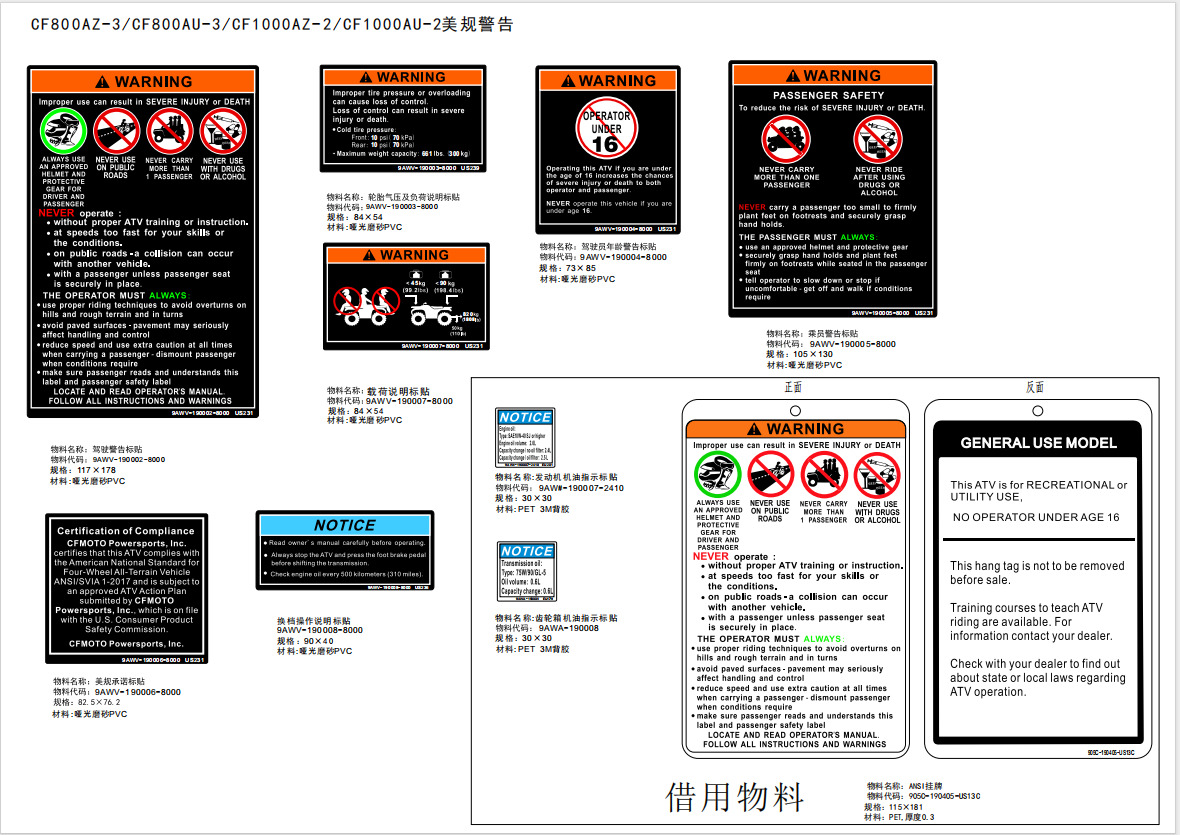

F19-2-B

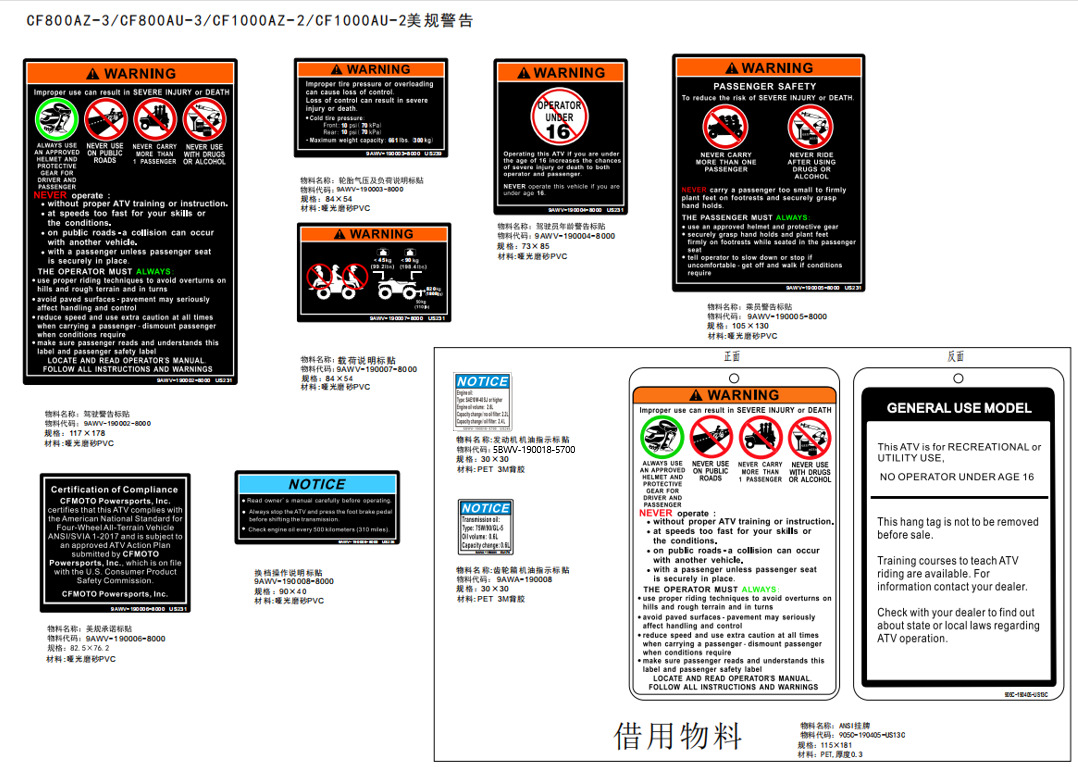

DECAL WARNING(NA)
F19-2-B-V1
DECAL WARNING(NA)
F19-2-B-V2
DECAL WARNING(NA)

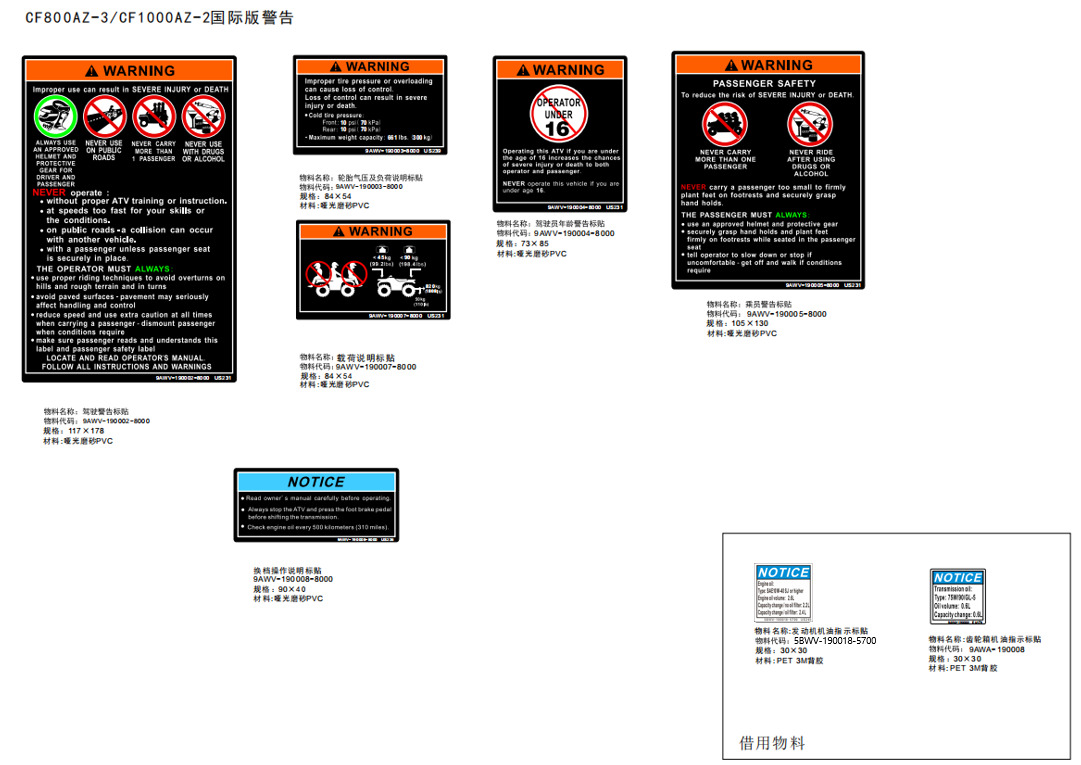

F19-2-C

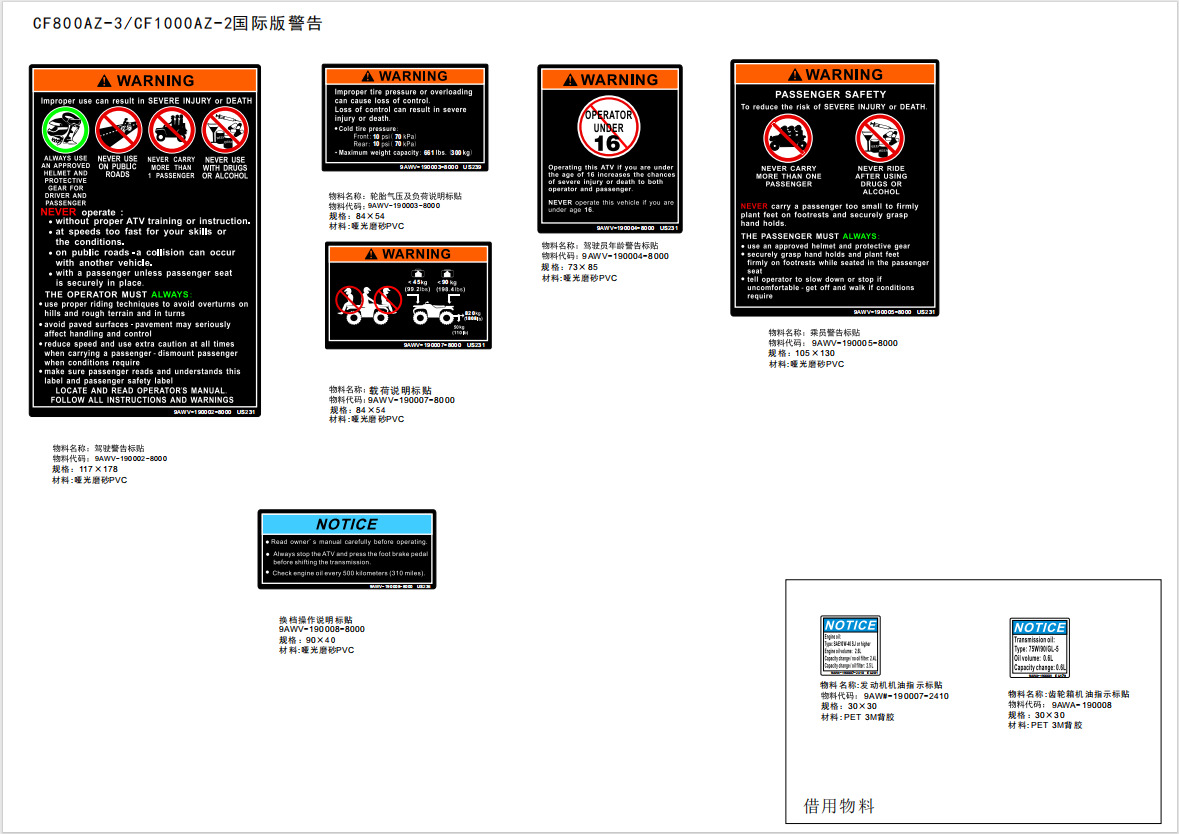

DECAL WARNING(INTERNATIONAL)
F19-2-C-V1
DECAL WARNING(INTERNATIONAL)
F19-2-C-V2
DECAL WARNING(INTERNATIONAL)

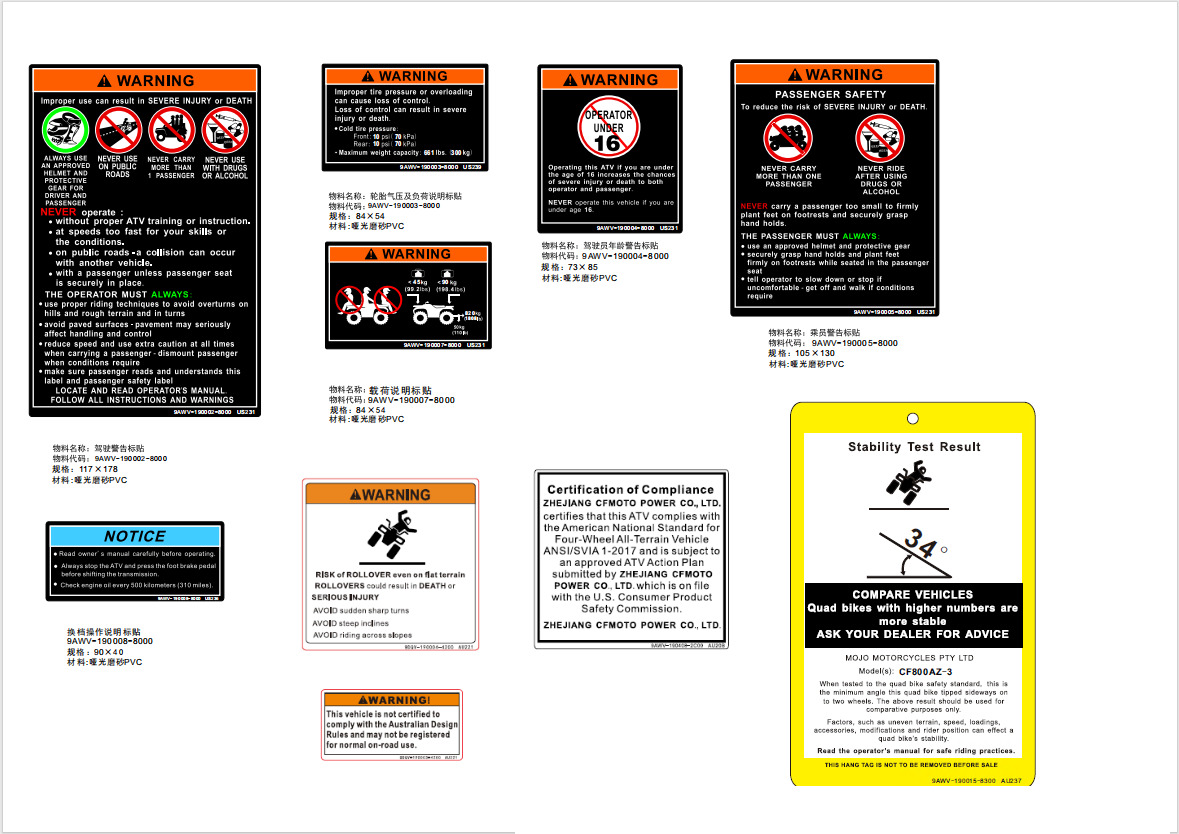

F19-2-D
DECAL WARNING(AU)

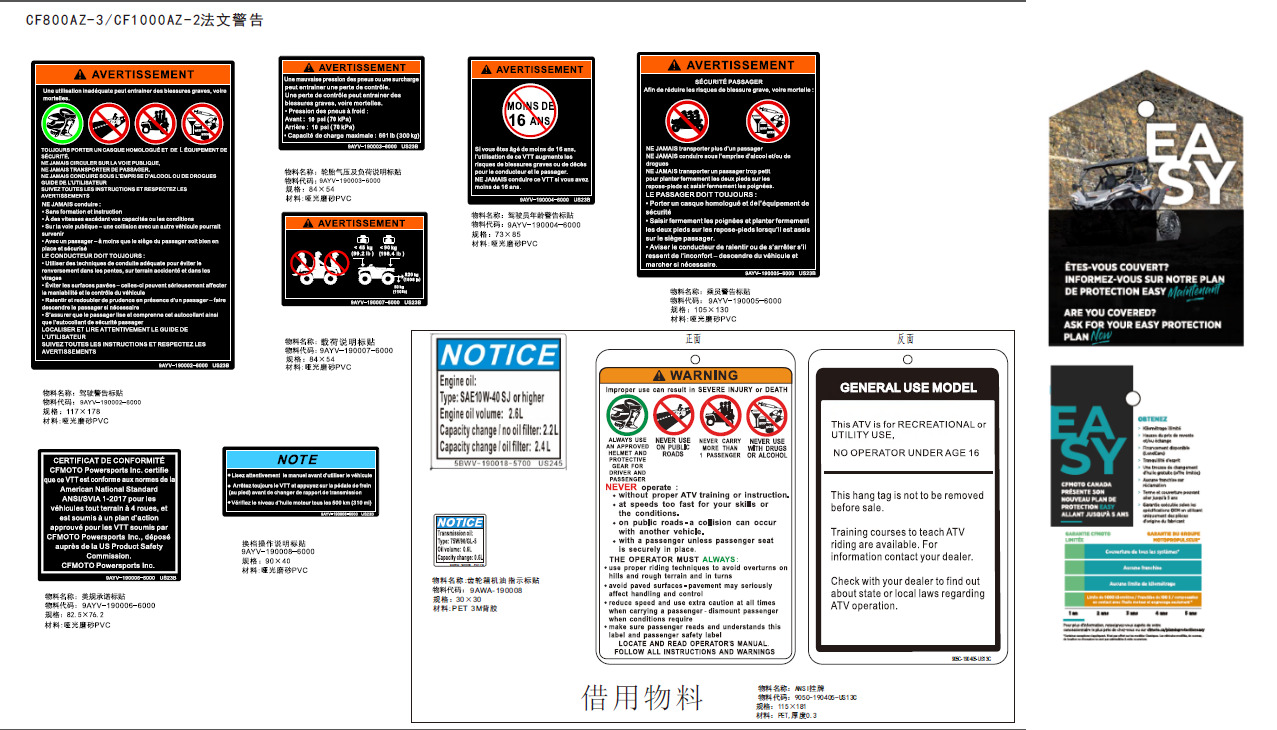

F19-2-E
DECAL WARNING(CA)

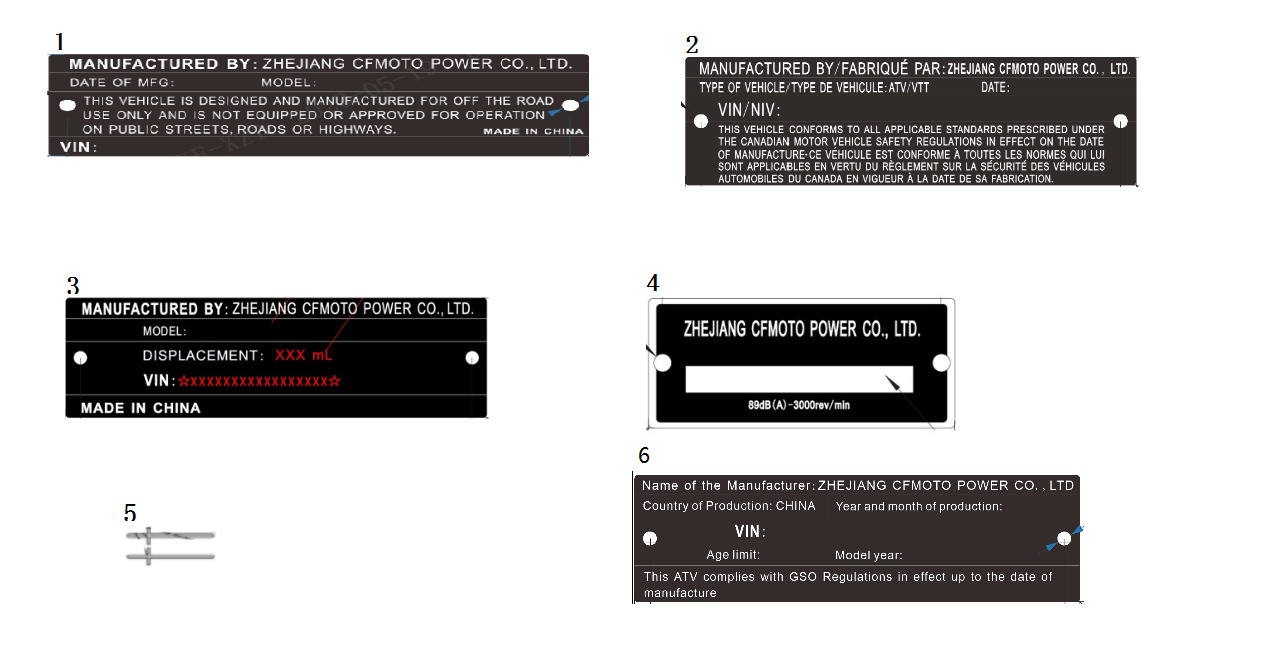

F19-3-V1

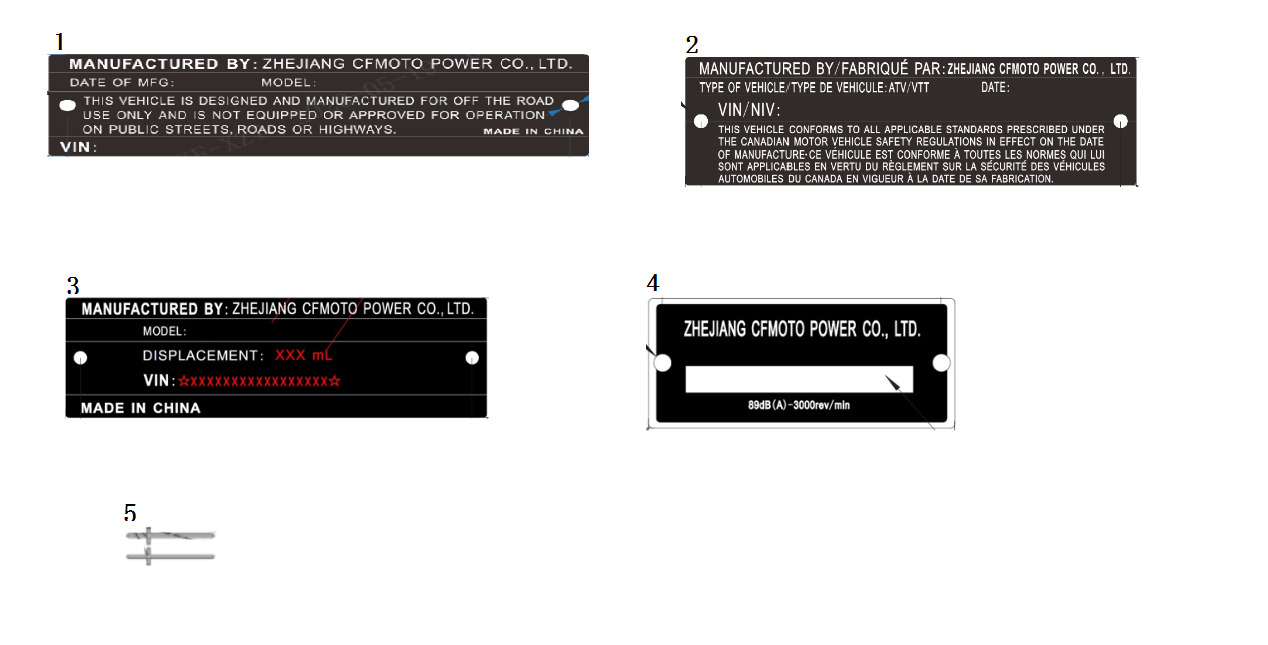

VEHICLE PLATE
F19-3-V2
VEHICLE PLATE
F19-3-V3
VEHICLE PLATE
F19-4
REFLECTIVE STICKER

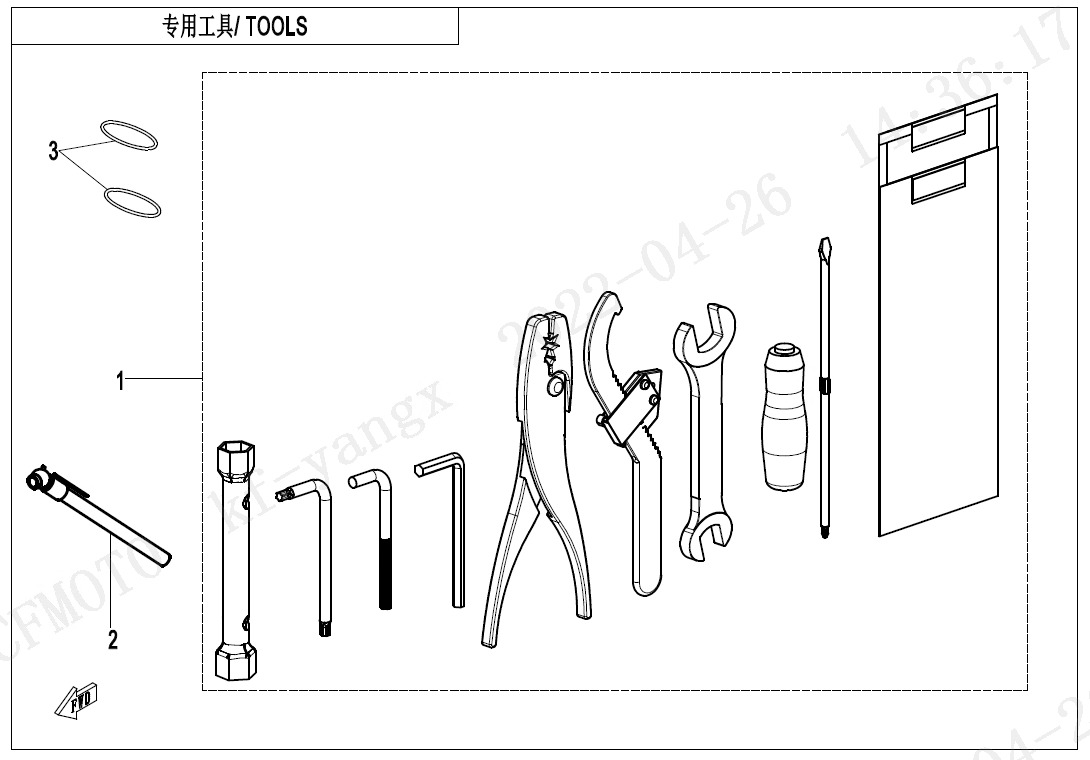

F20
TOOLS

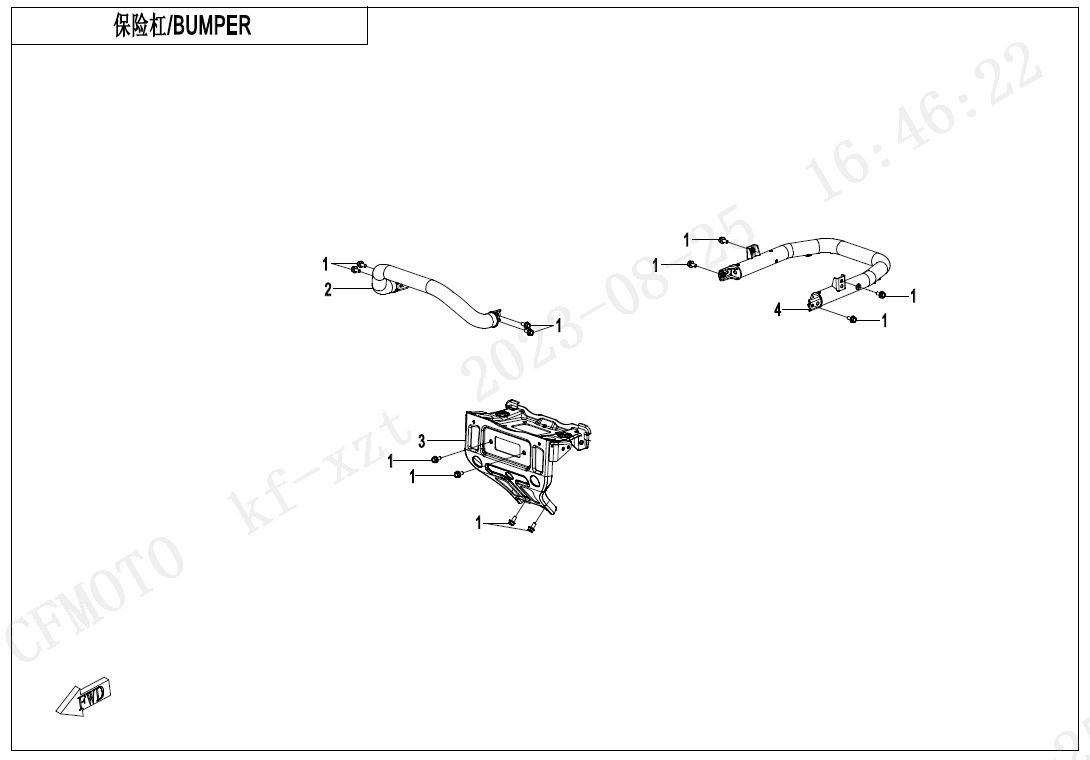

F23
BUMPER

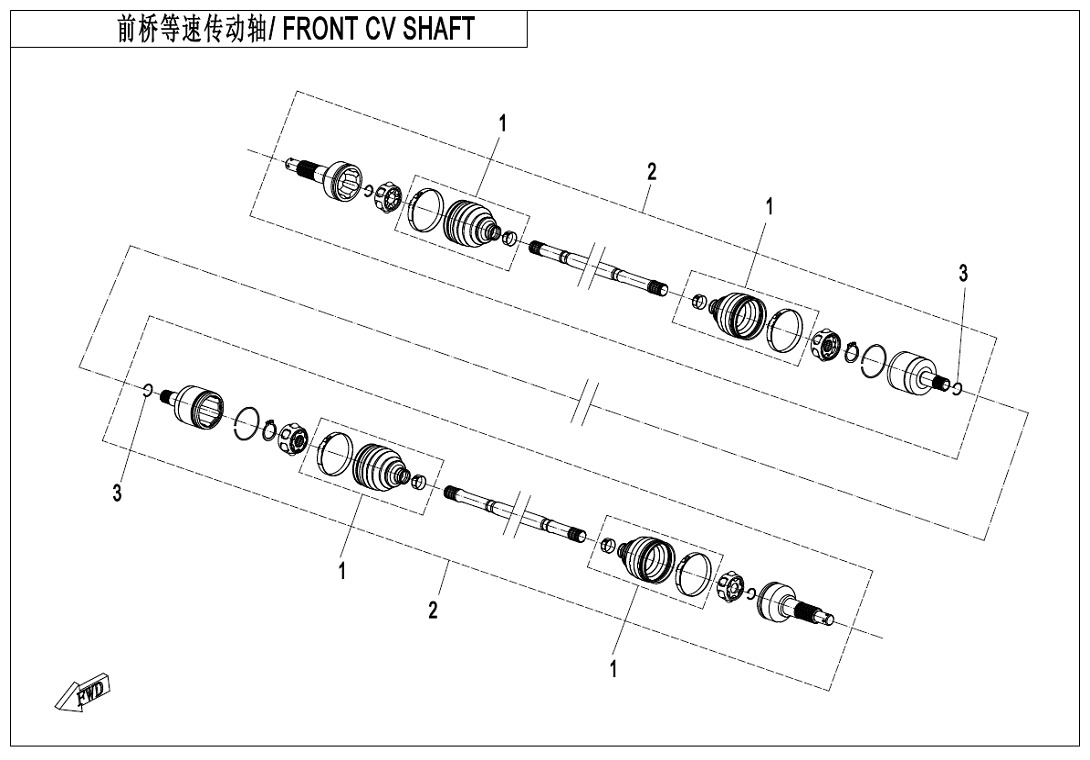

F27
FRONT CV SHAFT
F28

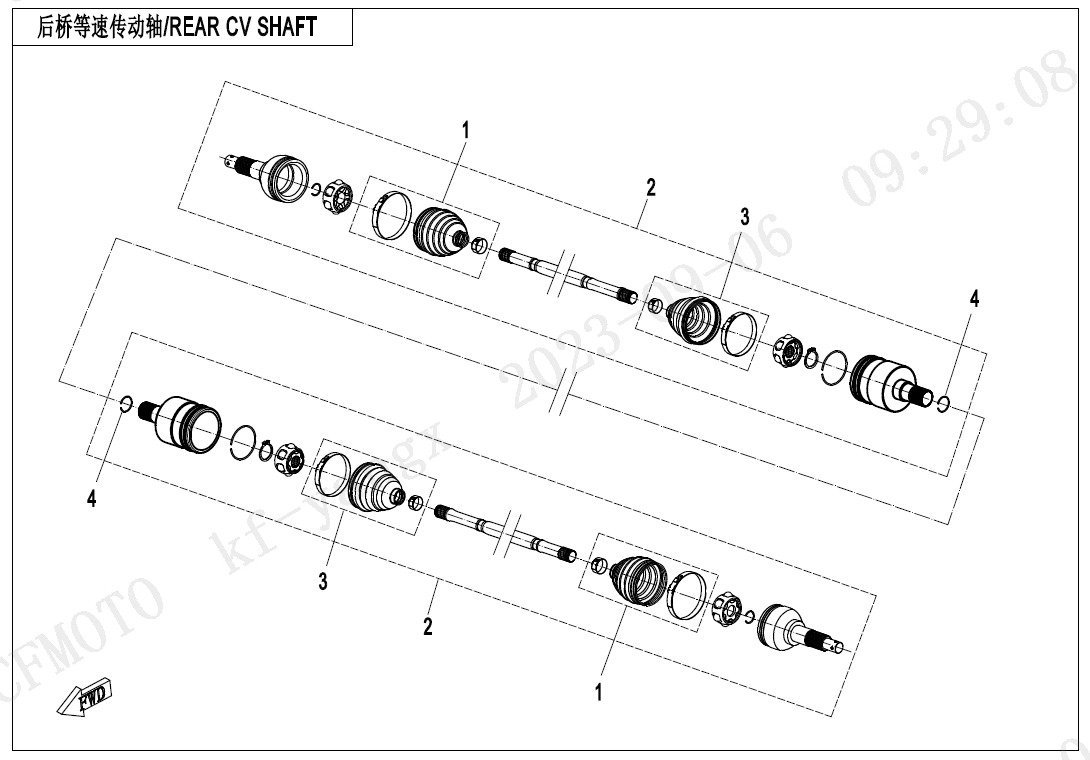

REAR CV SHAFT

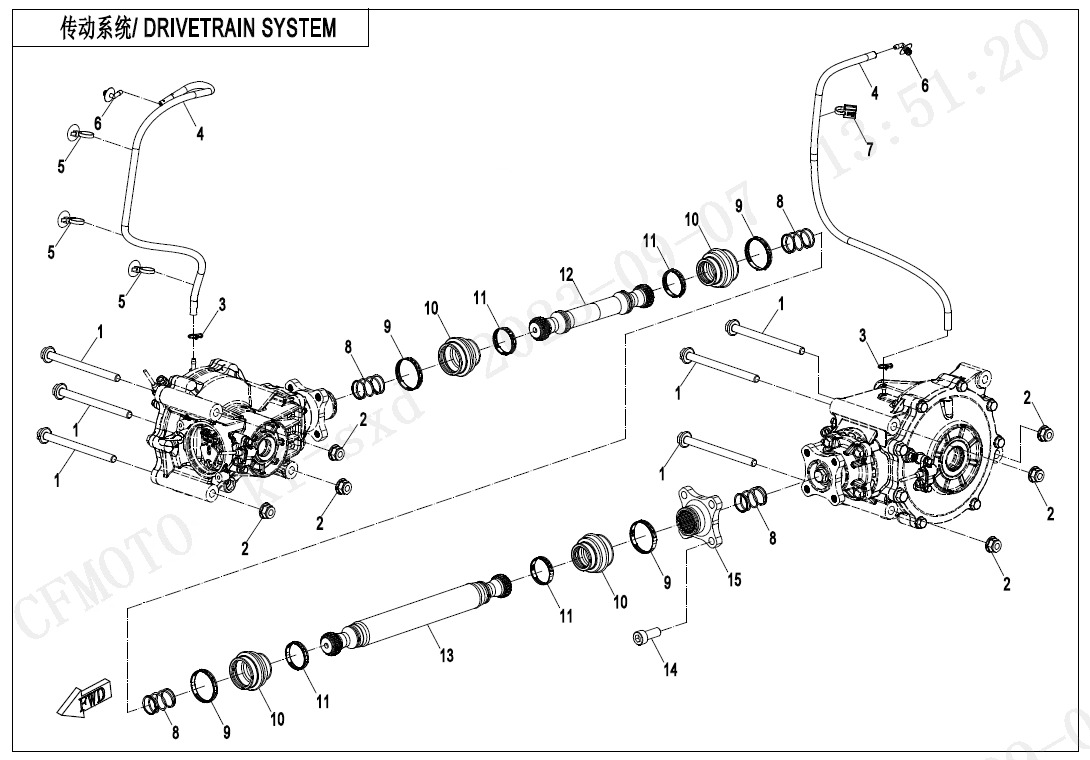

F30
DRIVETRAIN SYSTEM
F31

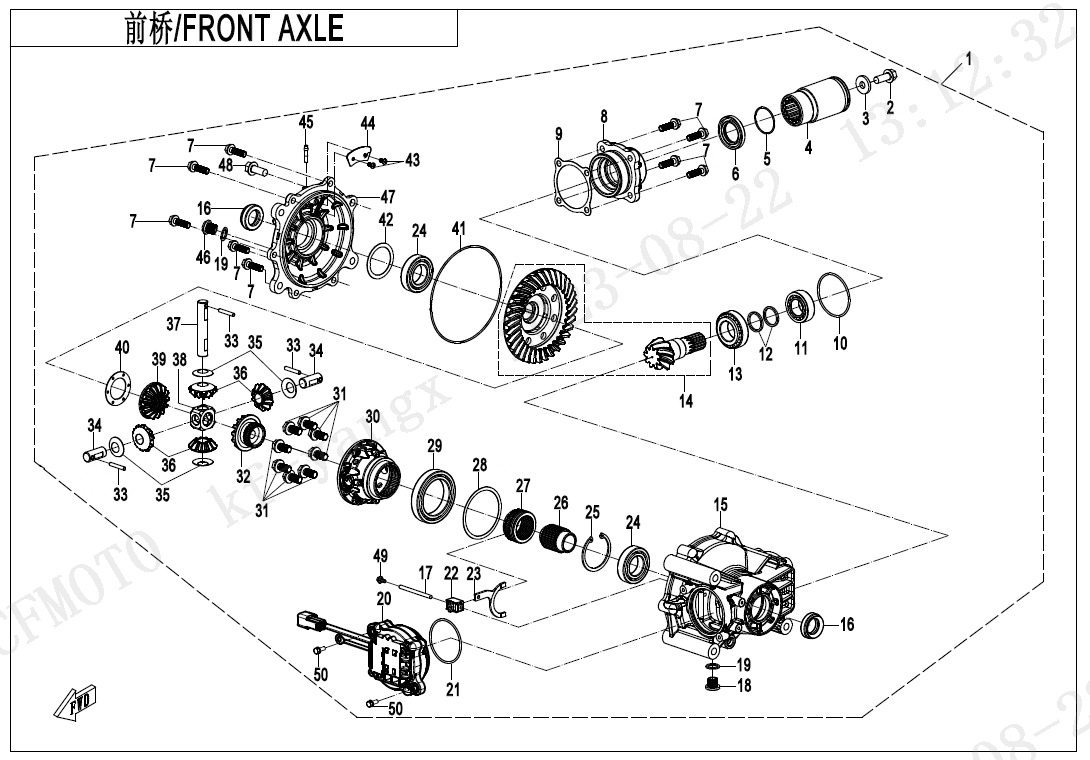

FRONT AXLE
F32

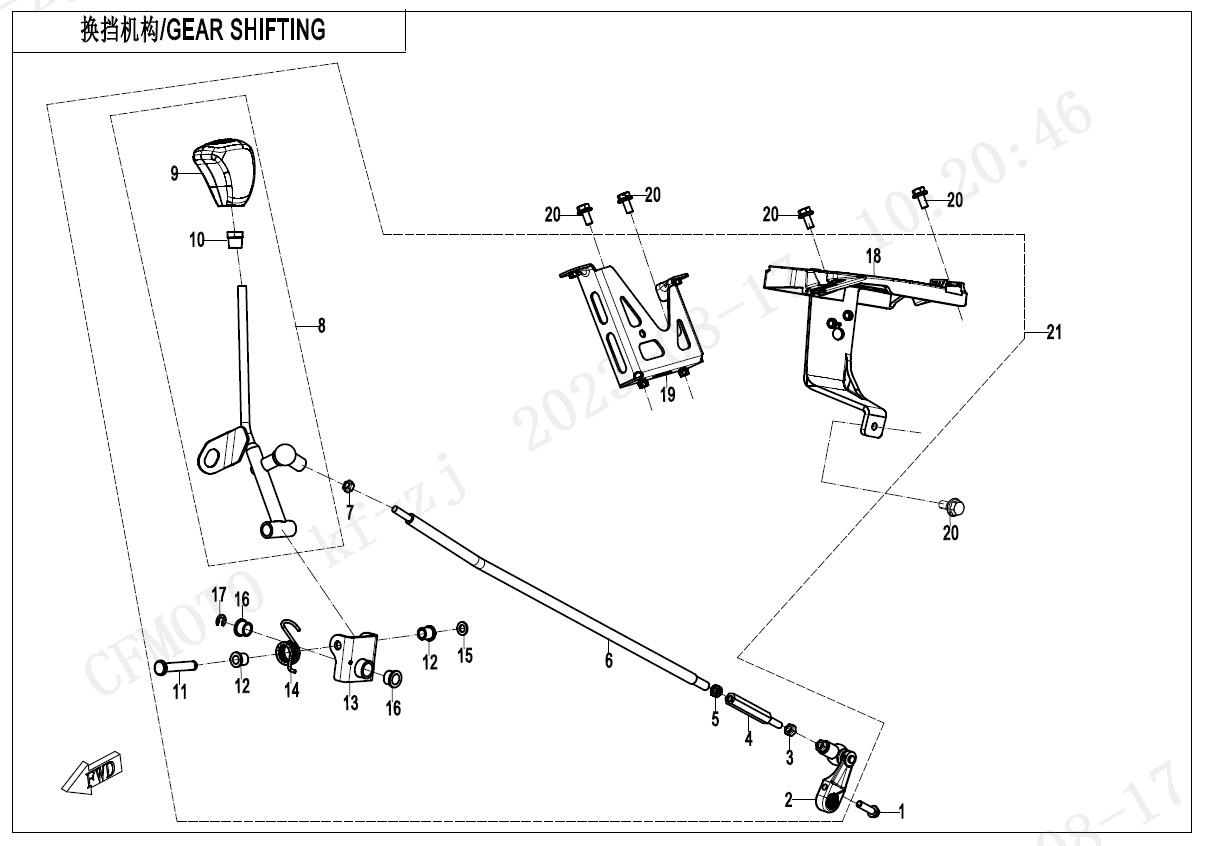

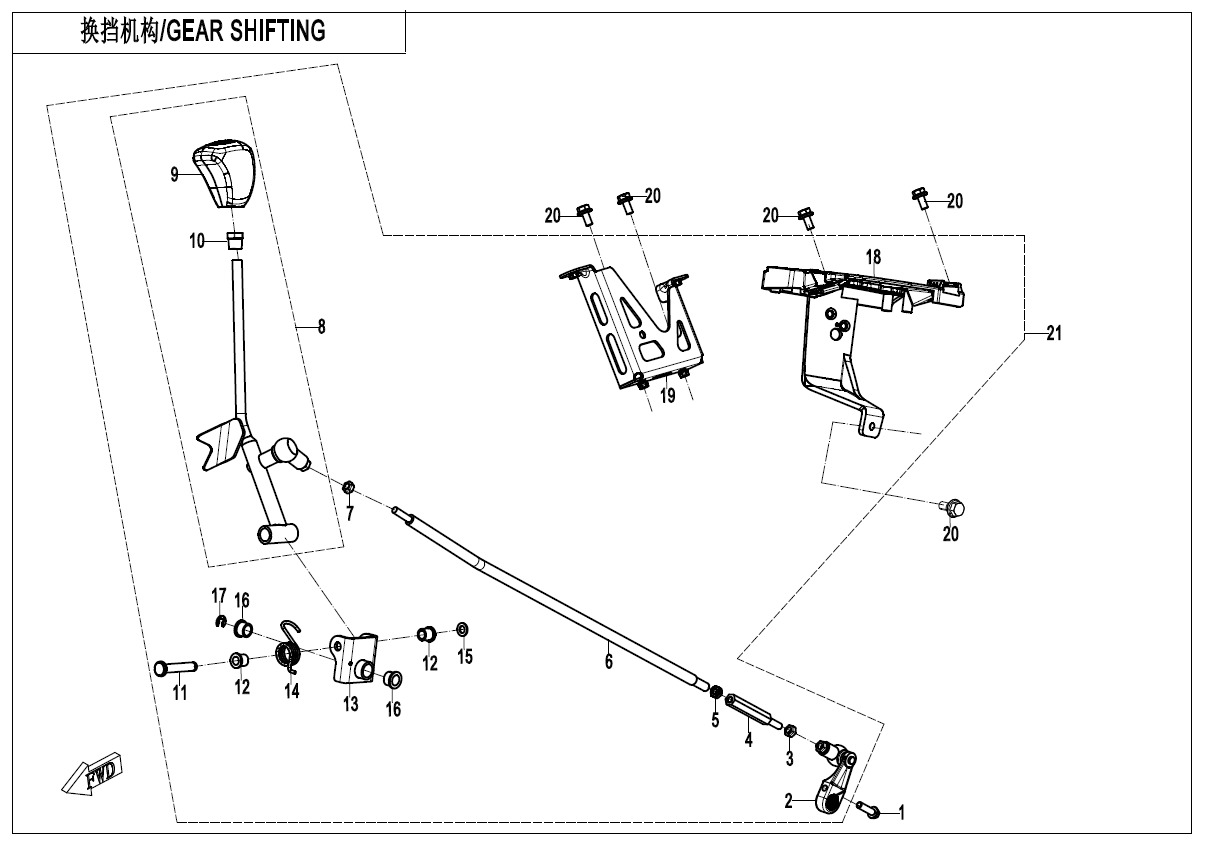

GEAR SHIFTING
F32-V1
GEAR SHIFTING
F32-V2
GEAR SHIFTING
F33-A

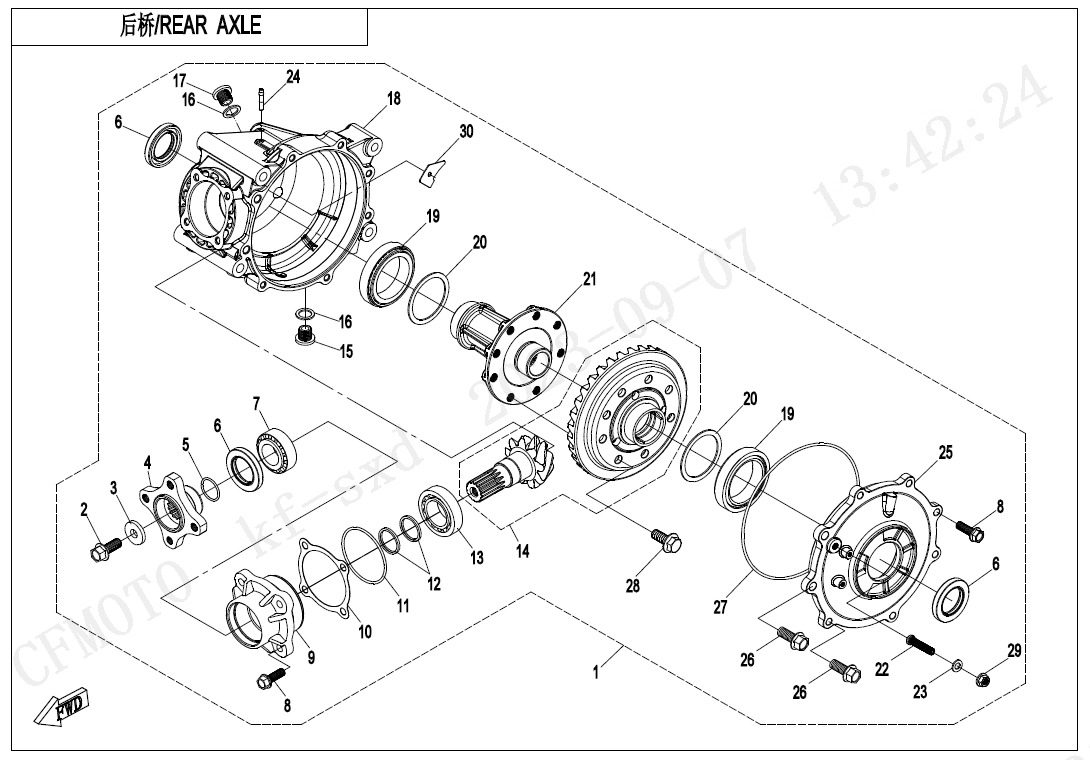

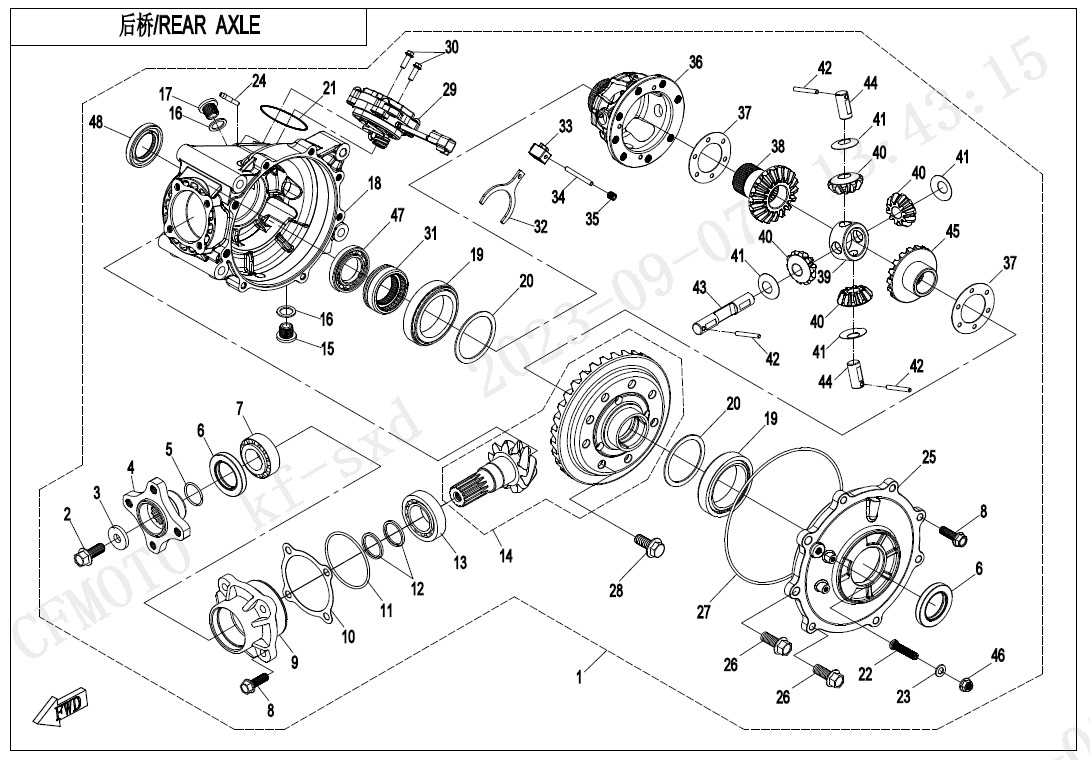

REAR AXLE(ON CAMMAND)
F33-B
REAR AXLE(NO DIFFERENTIAL)
F38-A
OWNER\'S MANUAL(NA)
F38-B
OWNER\'S MANUAL(CHINESE)
F38-C
OWNER\'S MANUAL(RUSSIA)

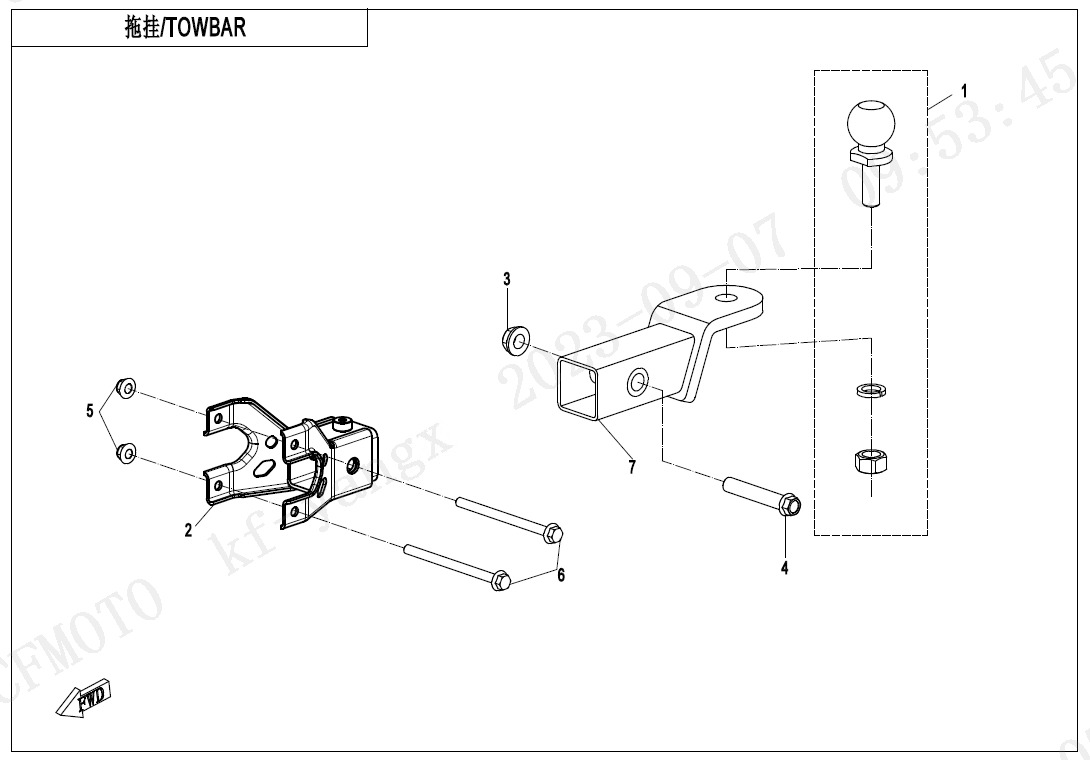

F40-A

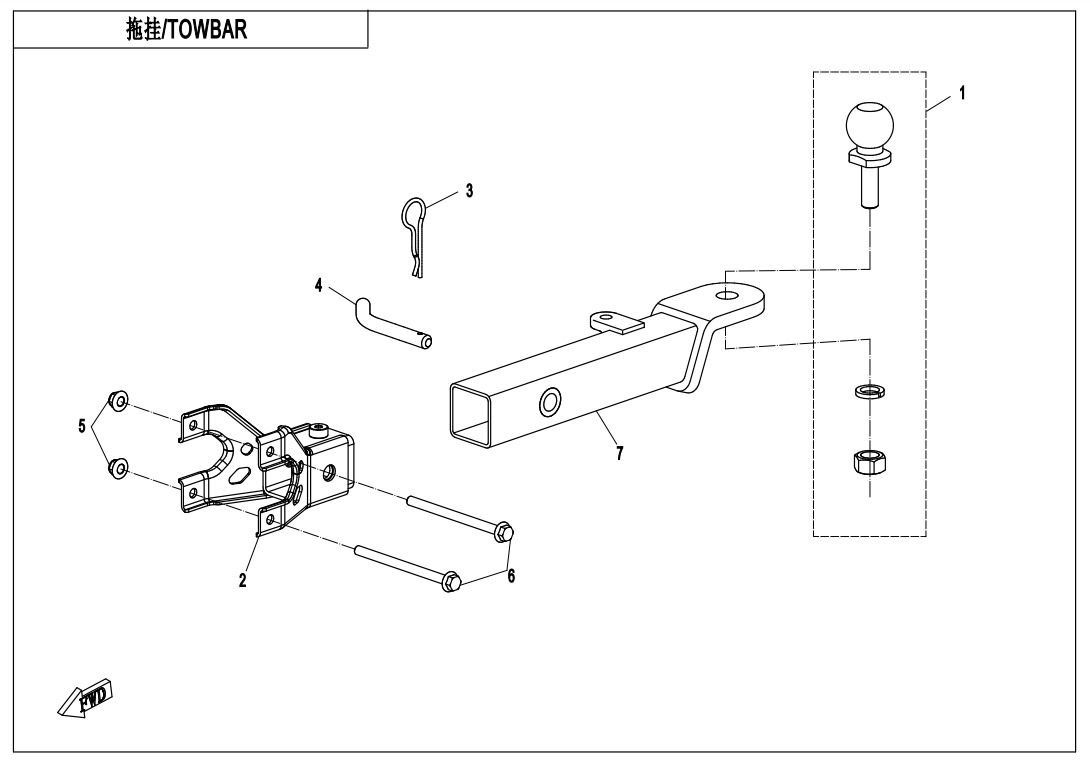

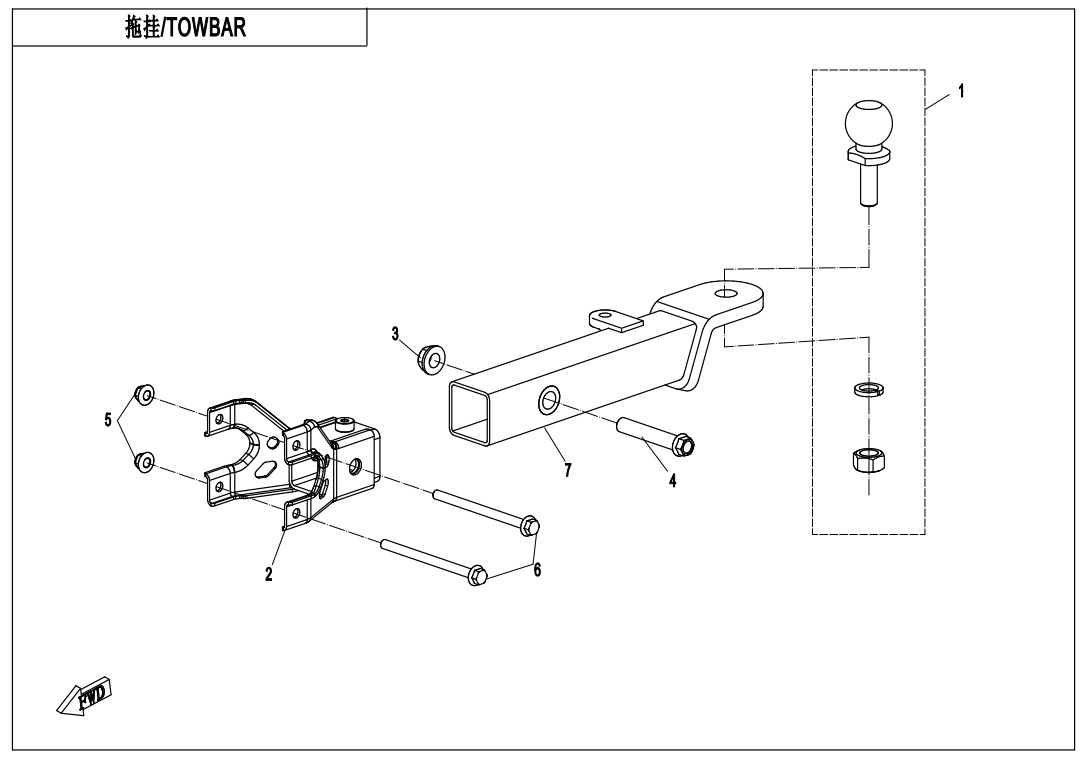

TOWBAR(PIN SHAFT CONNECTION)
F40-B
TOWBAR(BOLT CONNECTION)
F40-C
TOWBAR(AU, BOLT CONNECTION)
