Genuine Parts Diagrams for 2025 CFORCE 1000 EPS MUD - CF1000AZ-3Change Model
Showing 76 parts diagrams.
F00-1

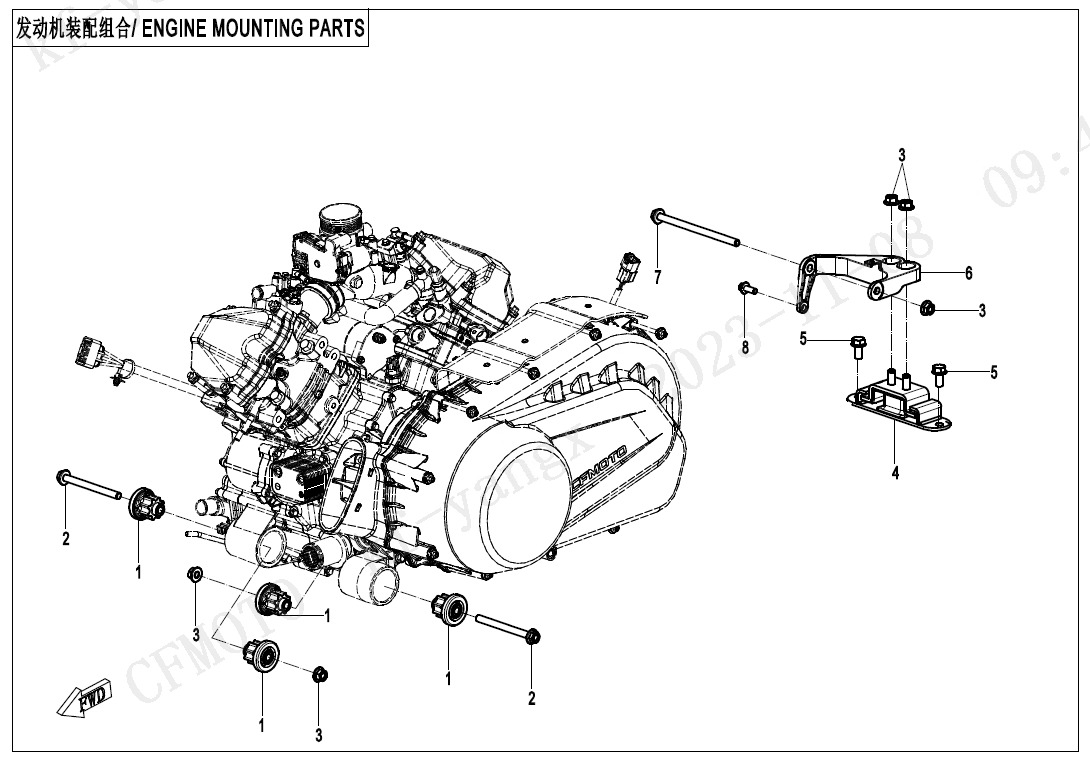

ENGINE MOUNTING PARTS
F00-2

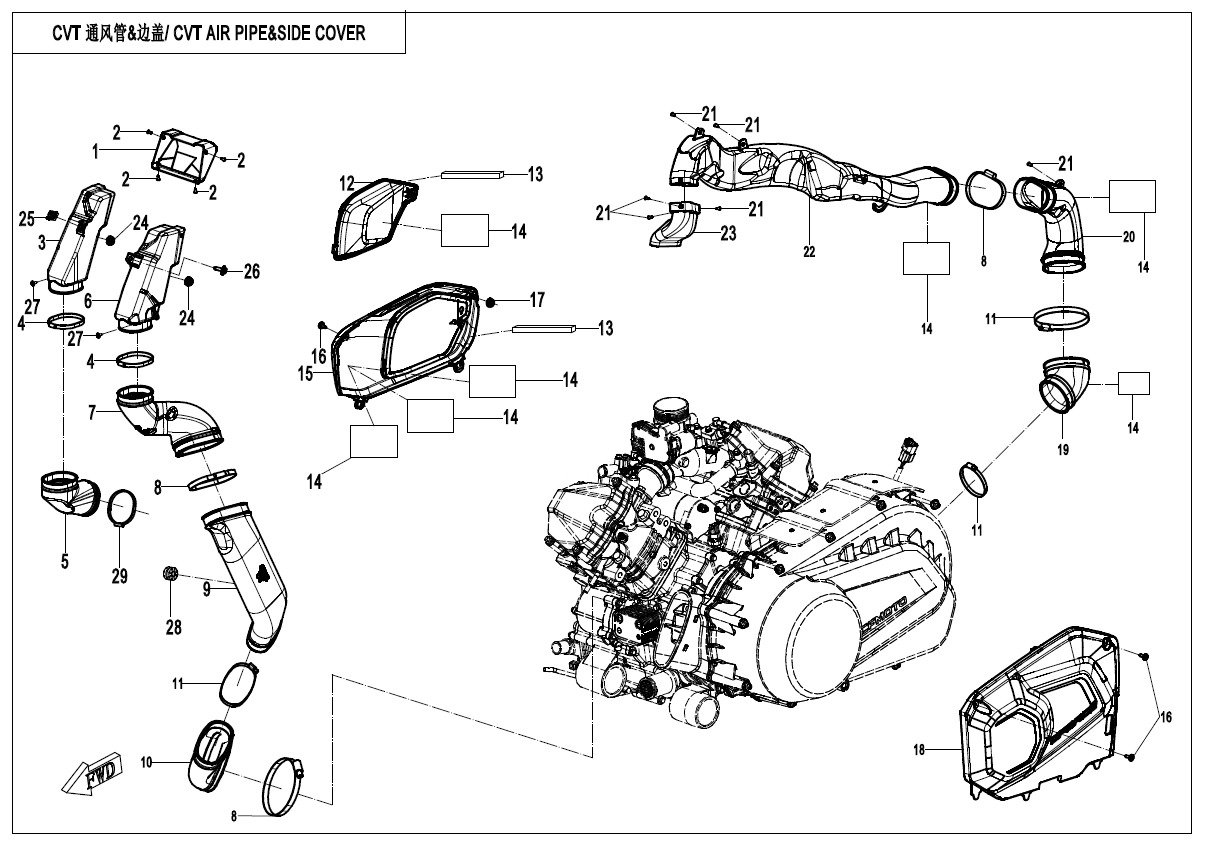

CVT AIR PIPE@^SIDE COVER
F01

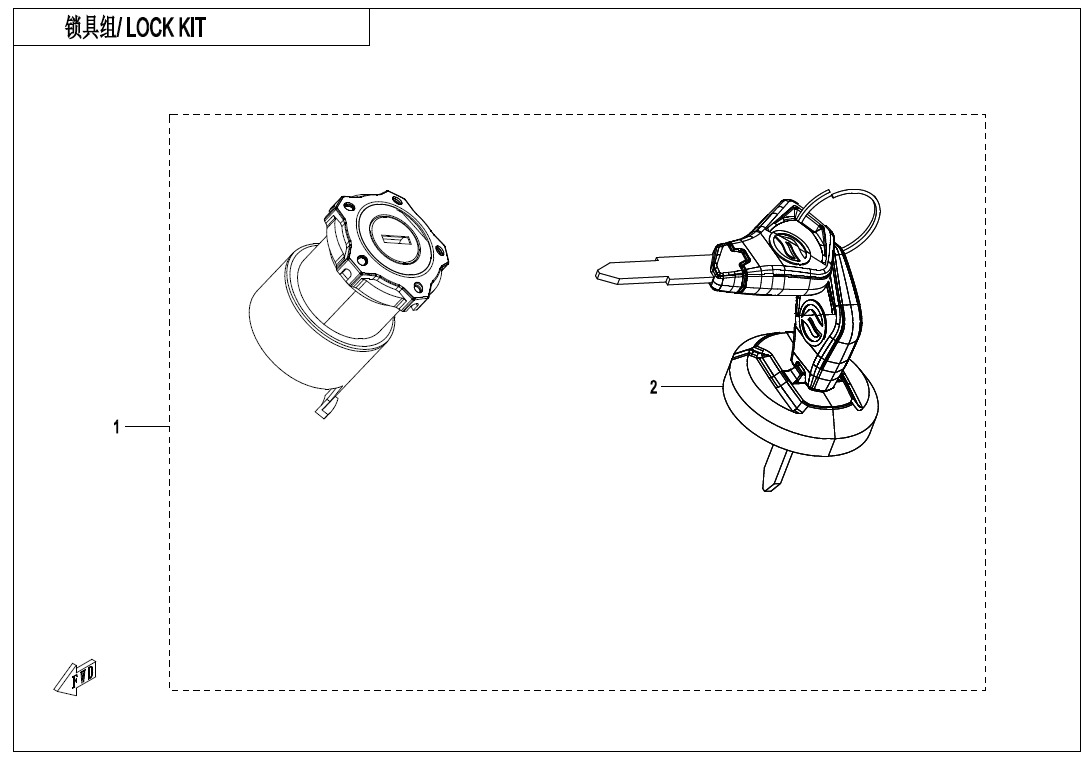

LOCK KIT(WITHOUT GEARSHIFT LOCK)
F02-1

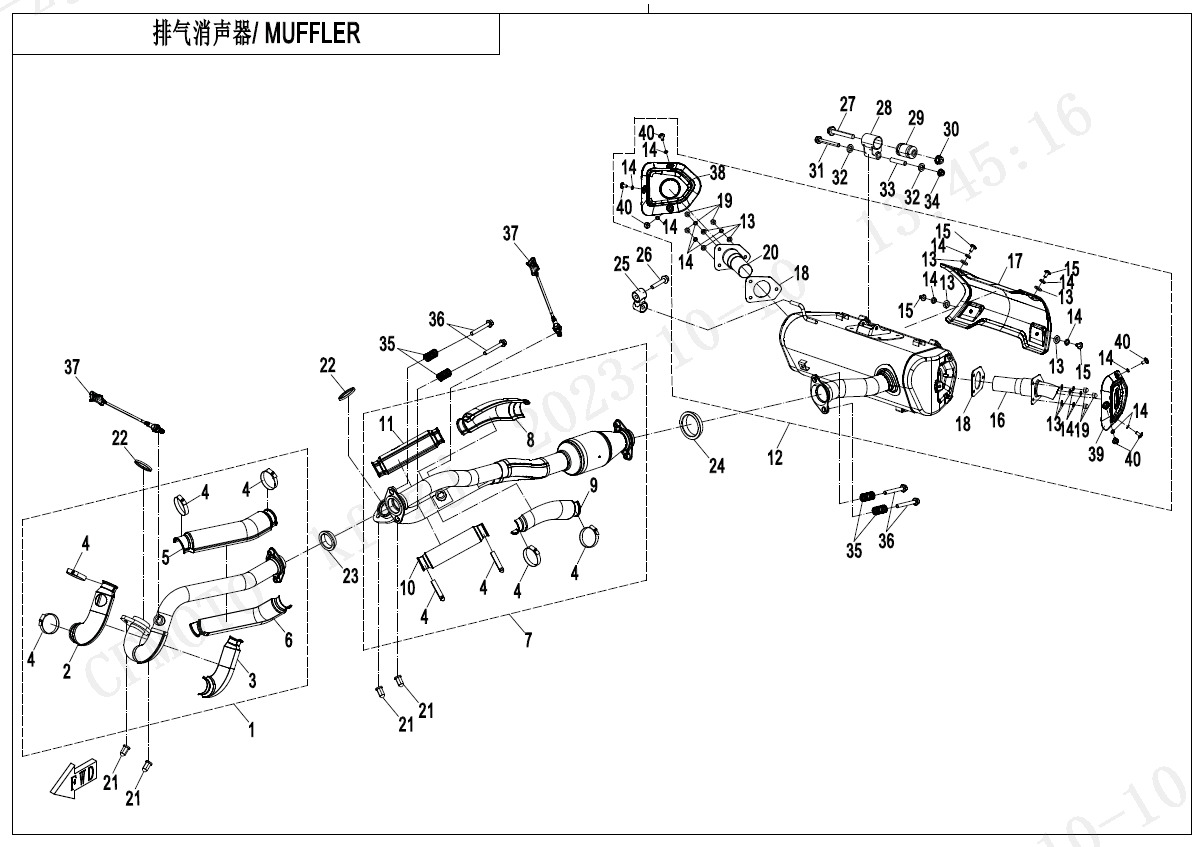

MUFFLER
F02-2-V3

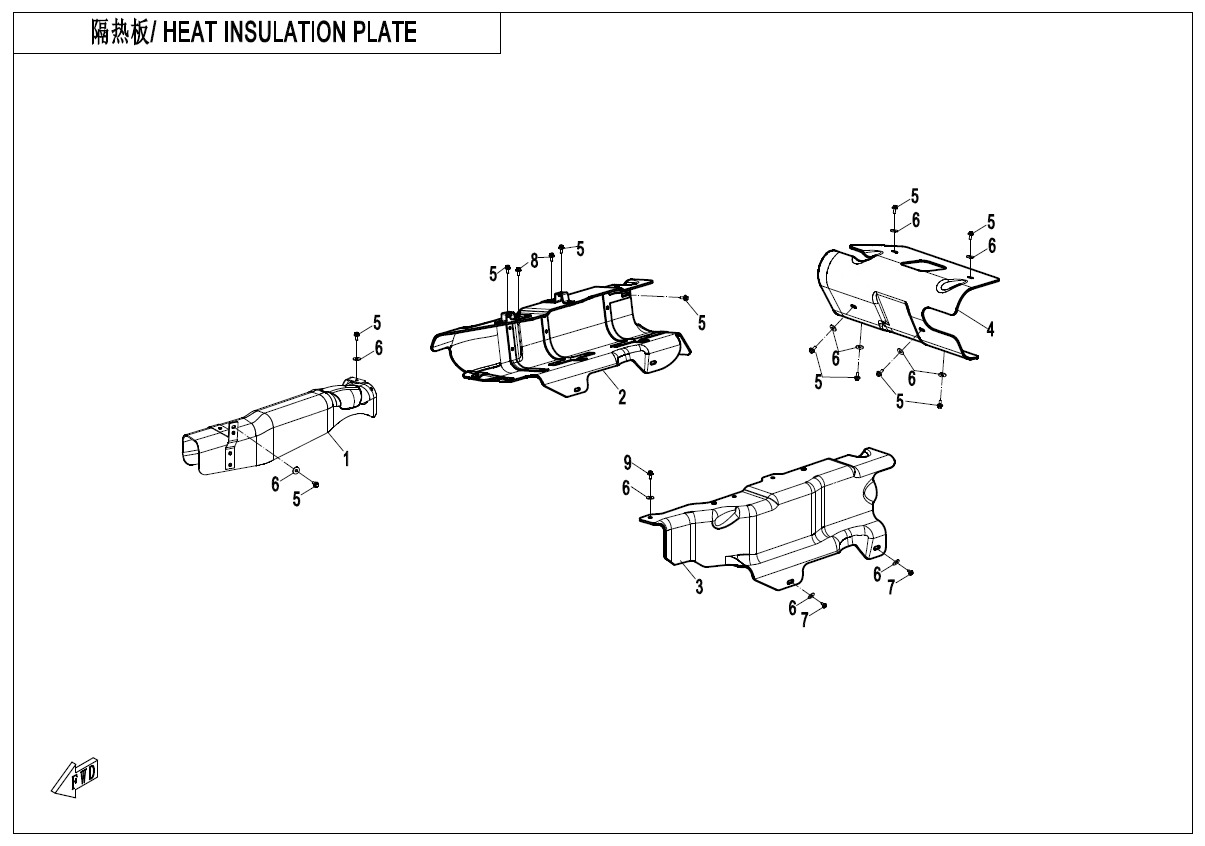

HEAT INSULATION PLATE
F03

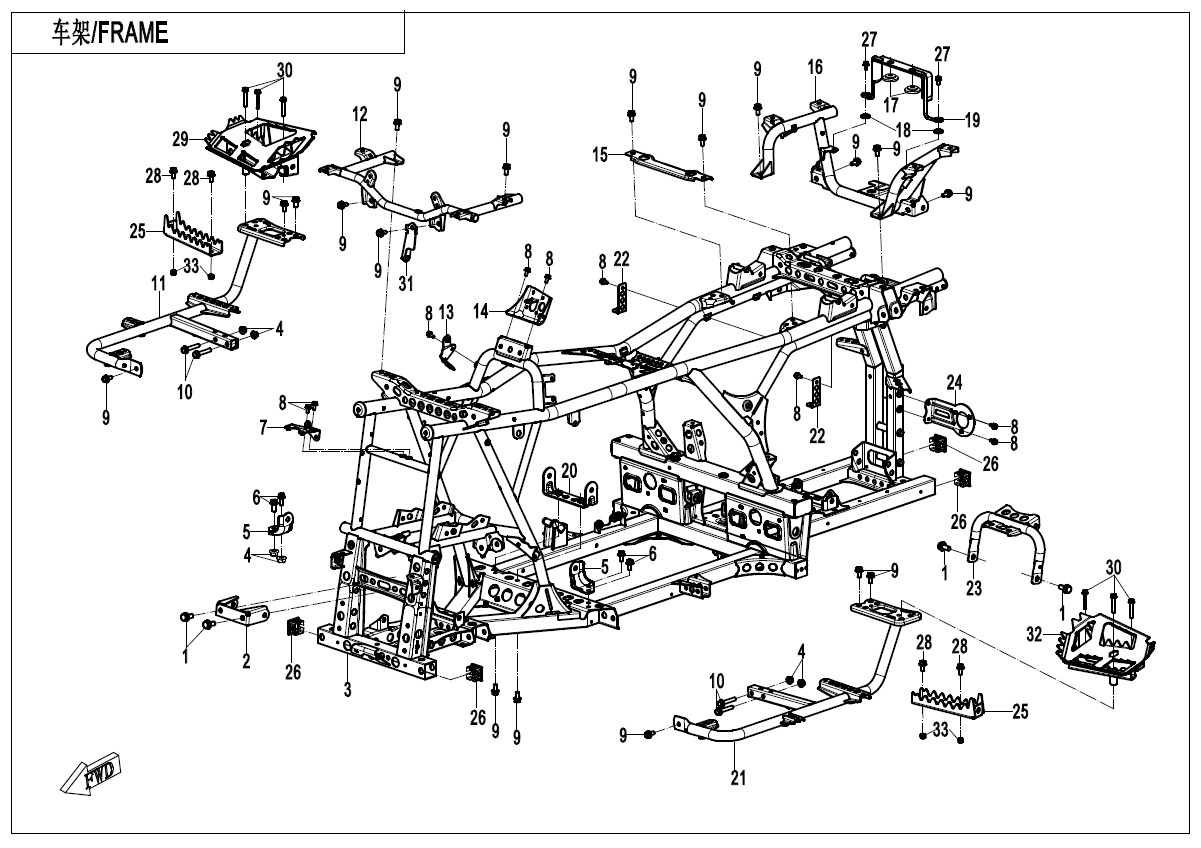

FRAME
F04-1

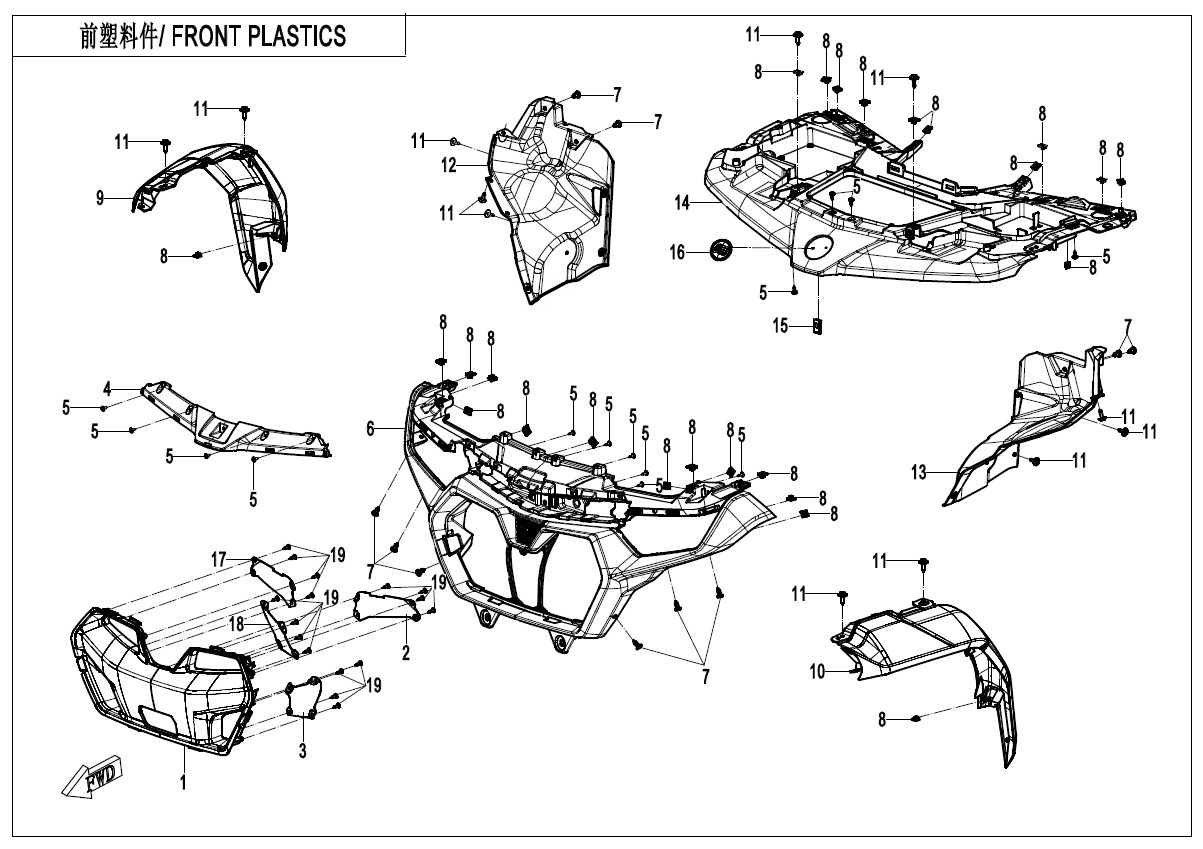

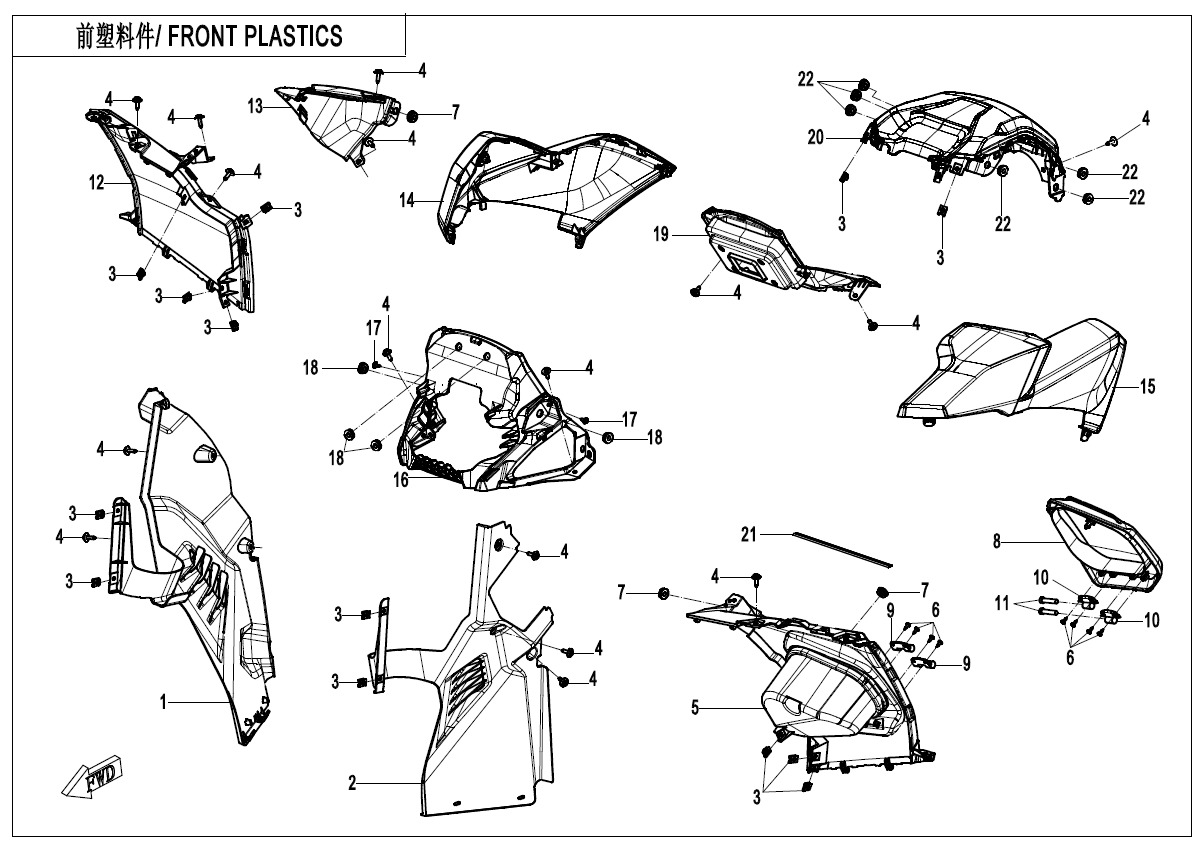

FRONT PLASTICS(MUD)
F04-2-A
FRONT PLASTICS(7\'\' DASHBOARD)(MUD)

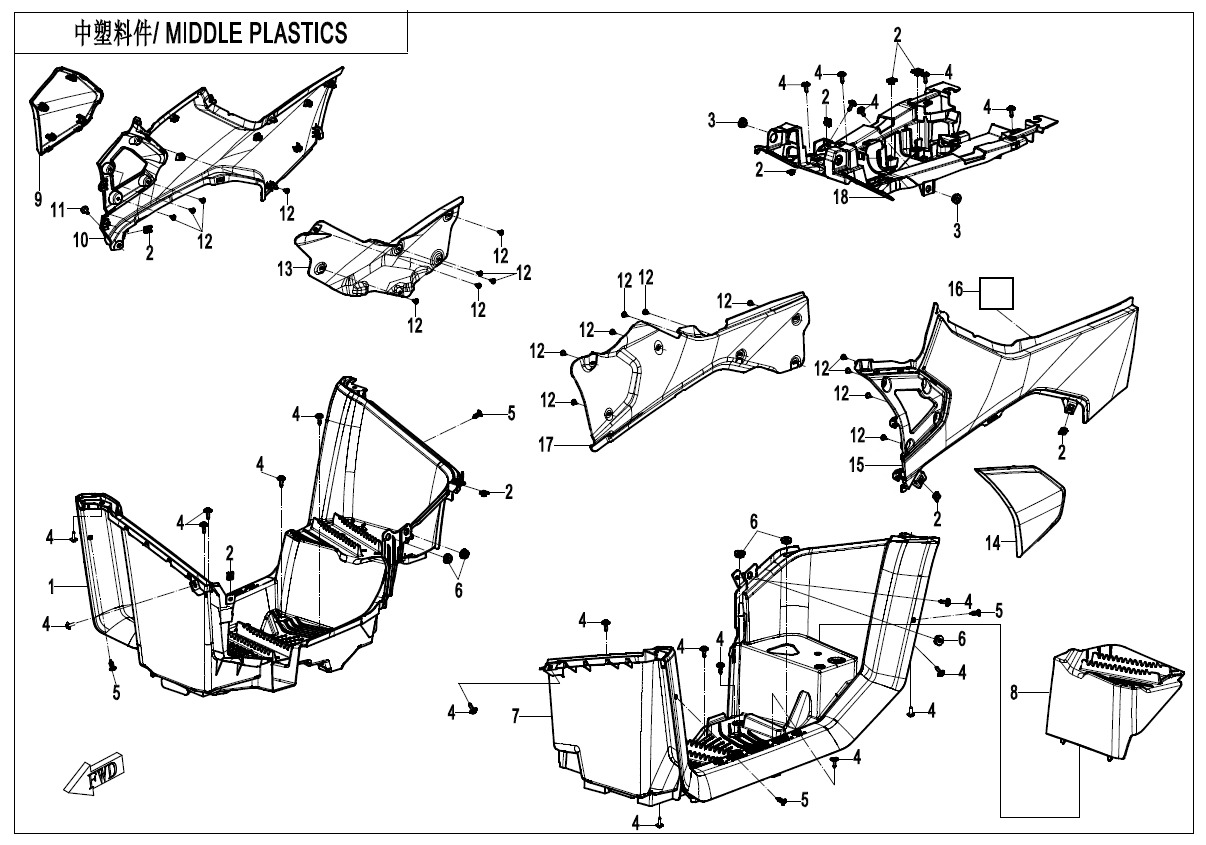

F04-3
MIDDLE PLASTICS(MUD)
F04-4

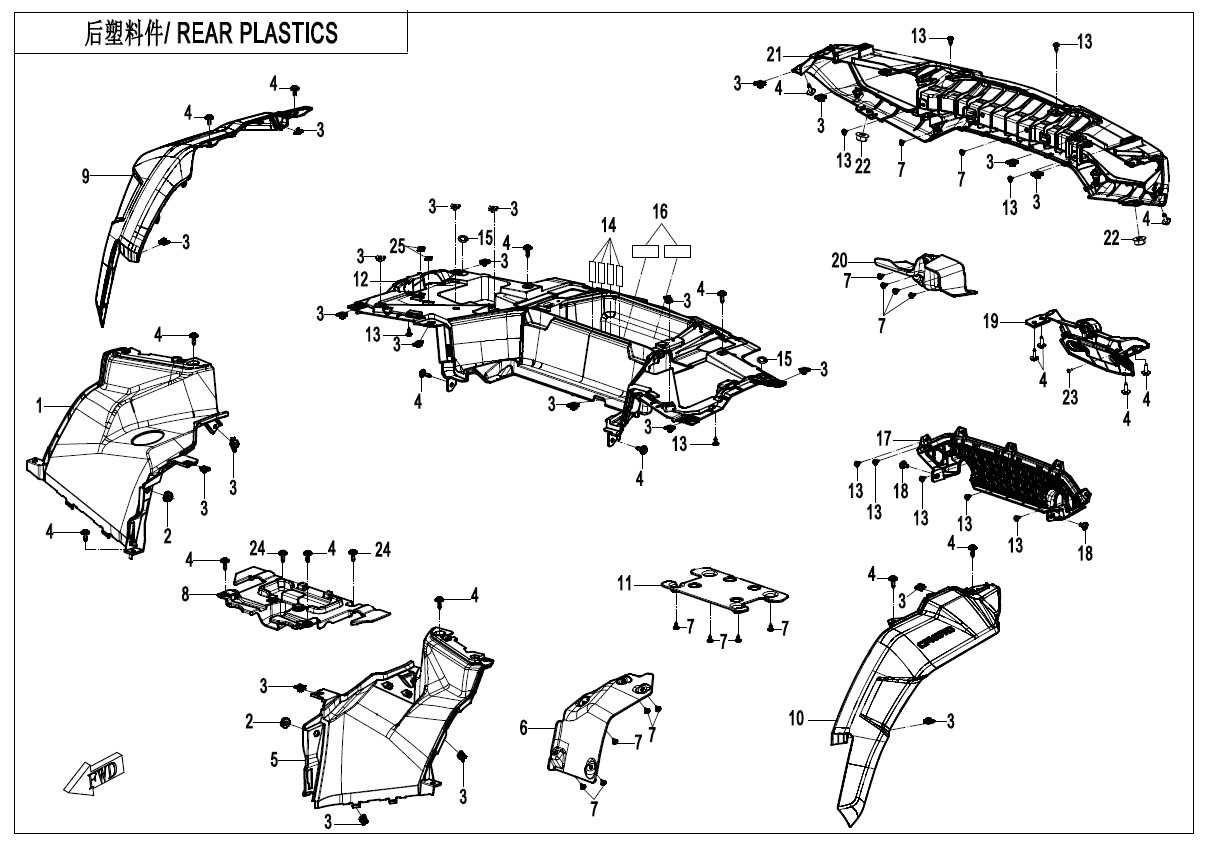

REAR PLASTICS(MUD)

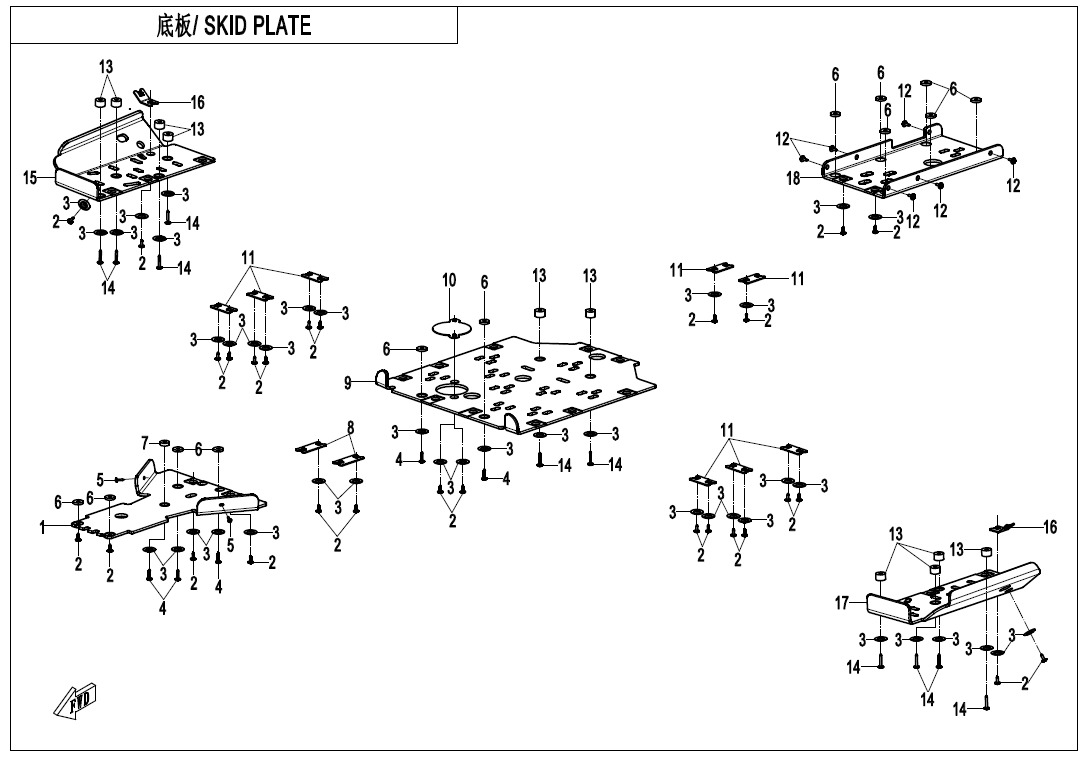

F04-5

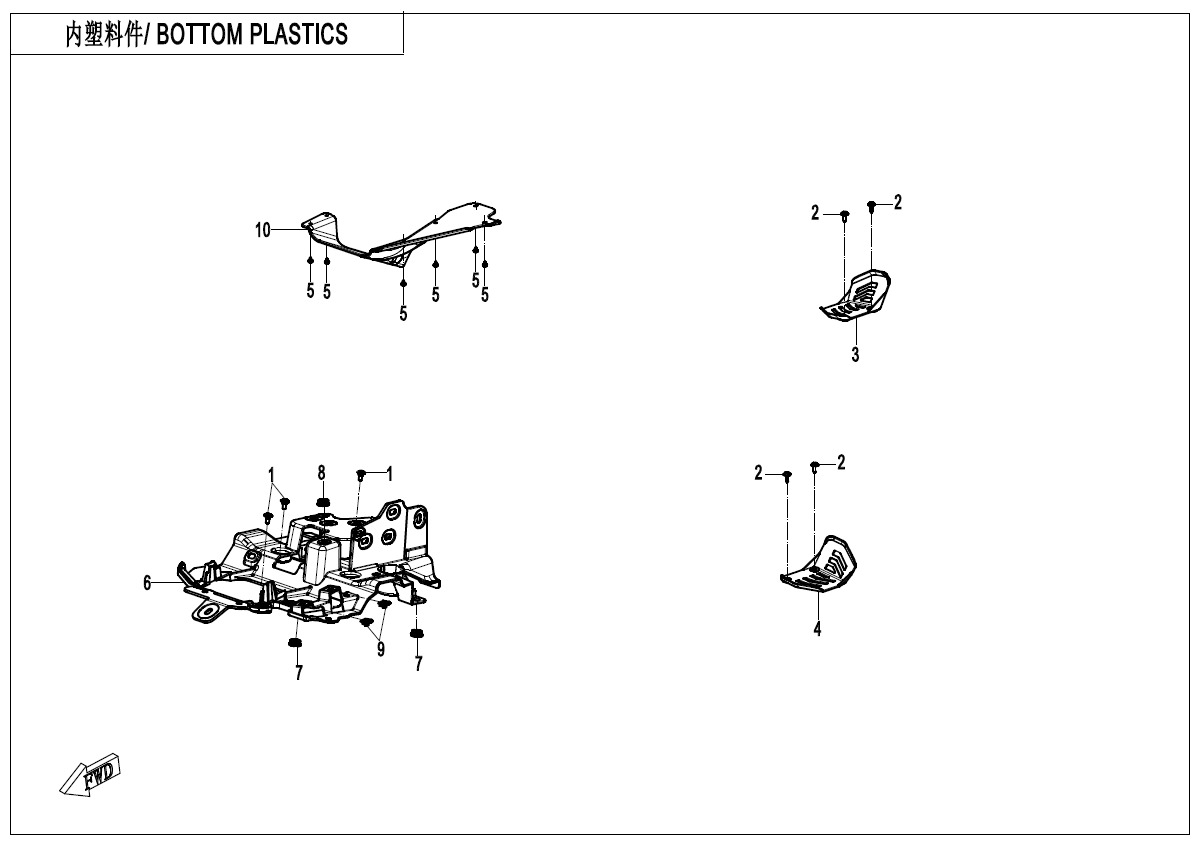

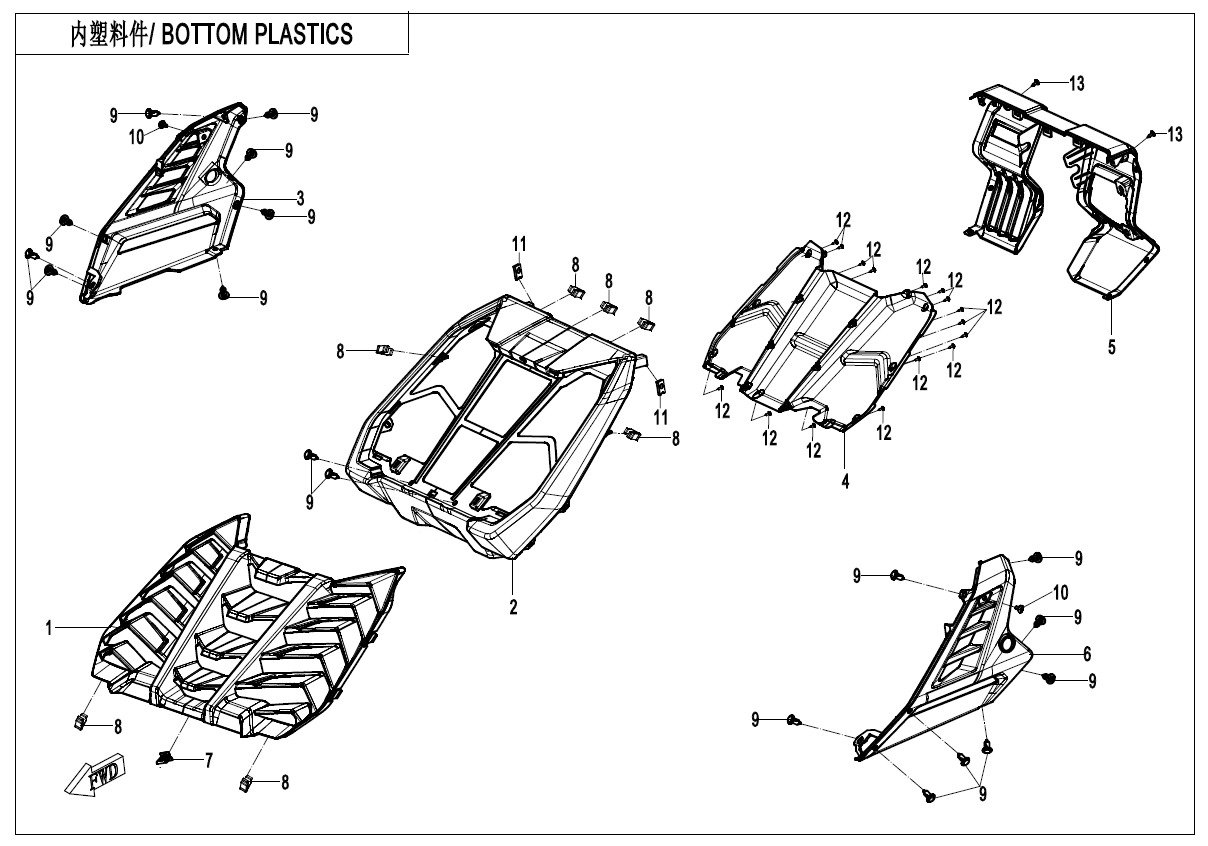

BOTTOM PLASTICS(MUD)
F04-6
BOTTOM PLASTICS(MUD)
F05-1

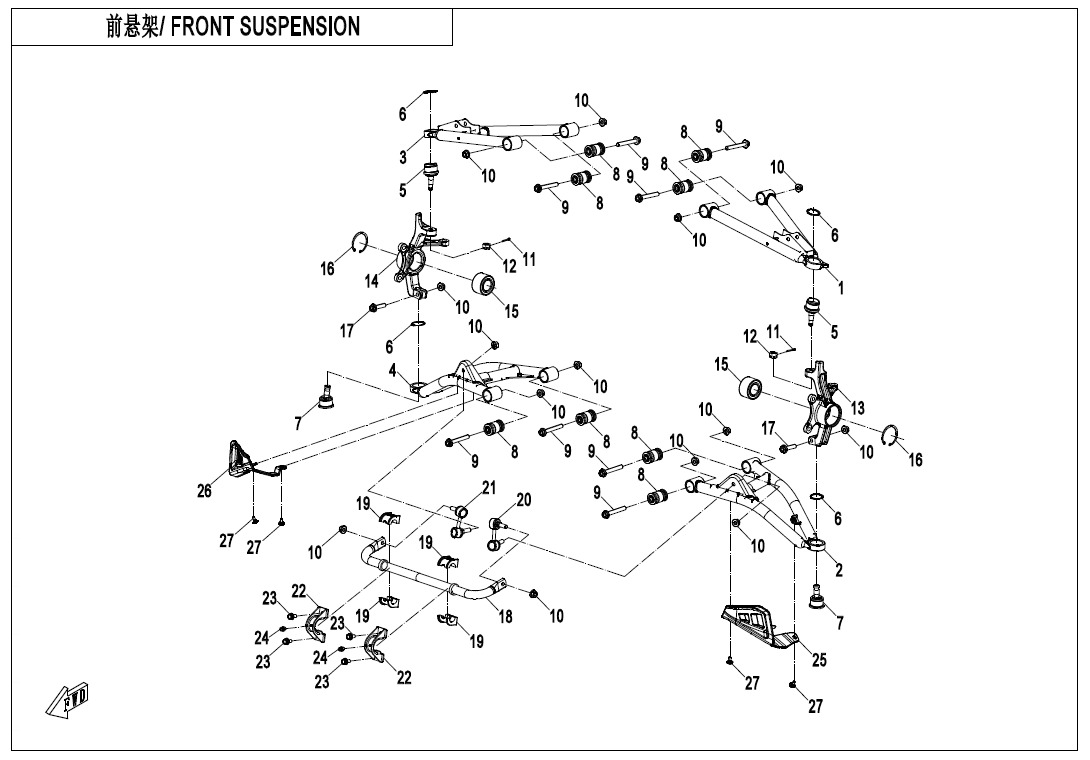

FRONT SUSPENSION
F05-2-B

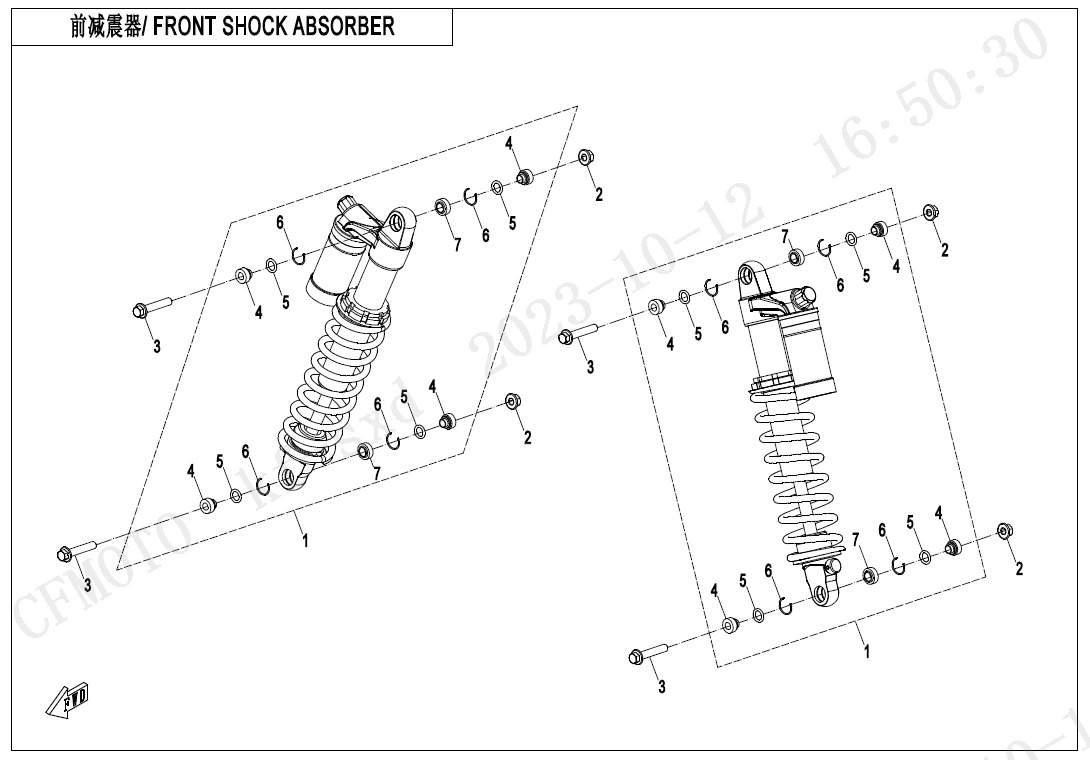

FRONT SHOCK ABSORBER(GAS ,YiTong)
F06-1
REAR SUSPENSION
F06-2-B

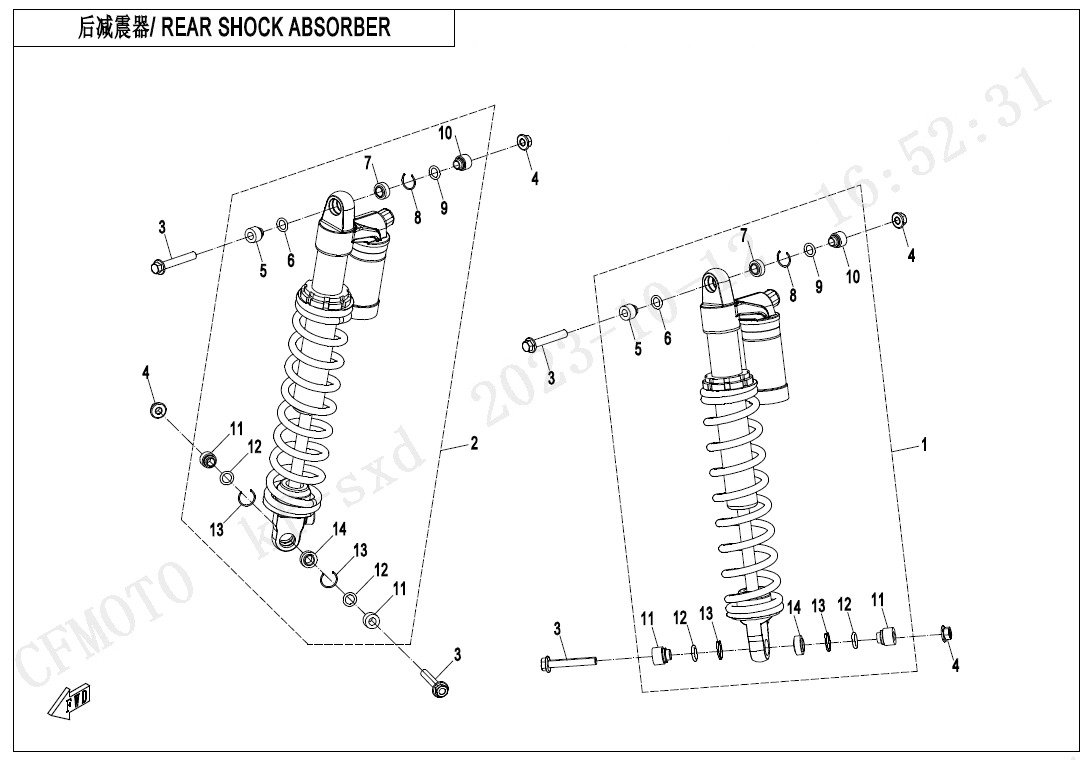

REAR SHOCK ABSORBER(GAS ,YiTong)
F07
FRONT WHEEL
F08-A

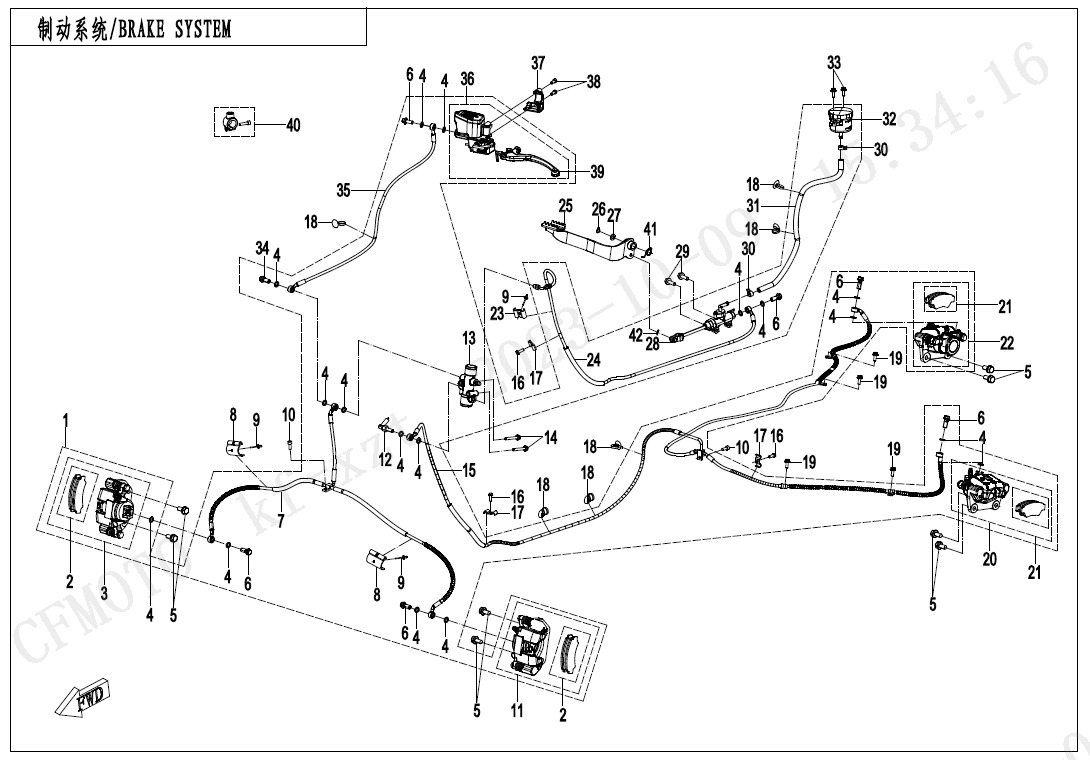

BRAKE SYSTEM-RH
F10-1

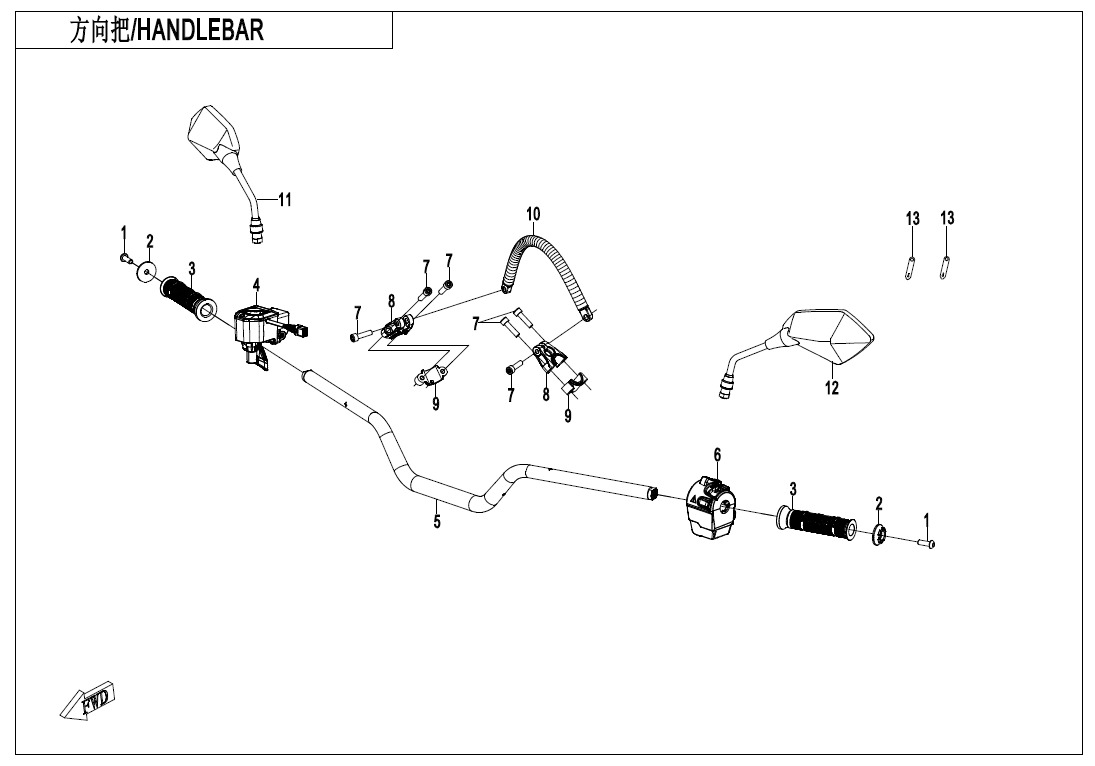

HANDLEBAR
F10-2

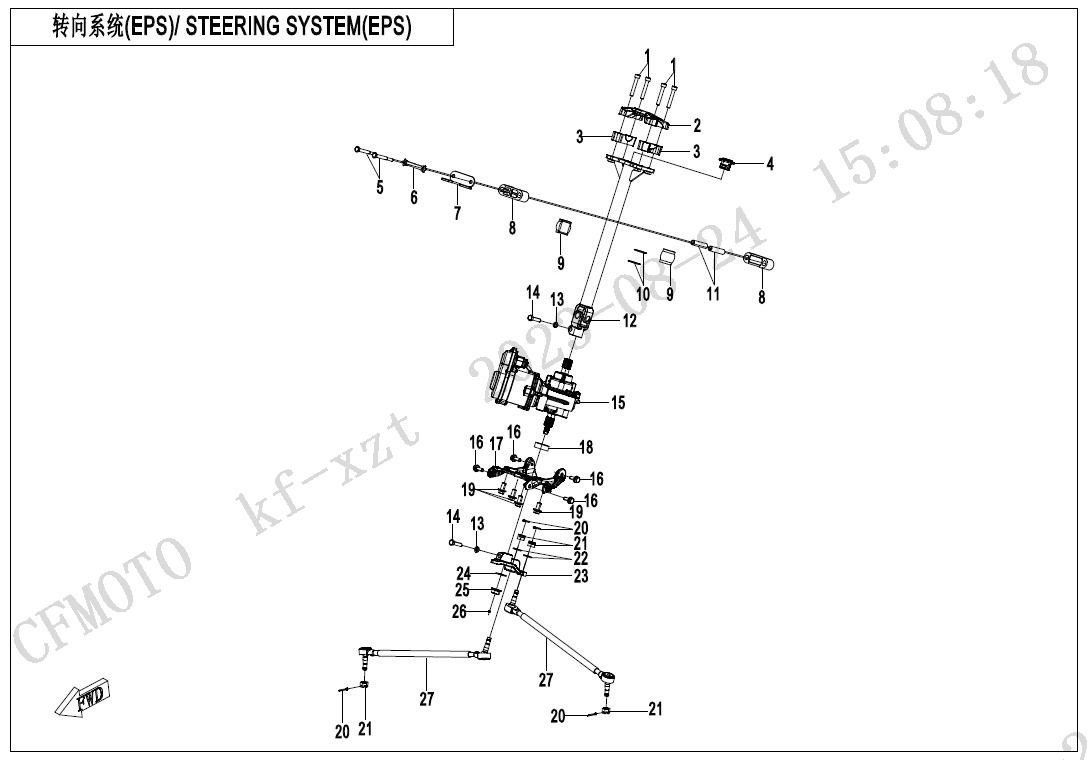

STEERING SYSTEM(EPS)
F11

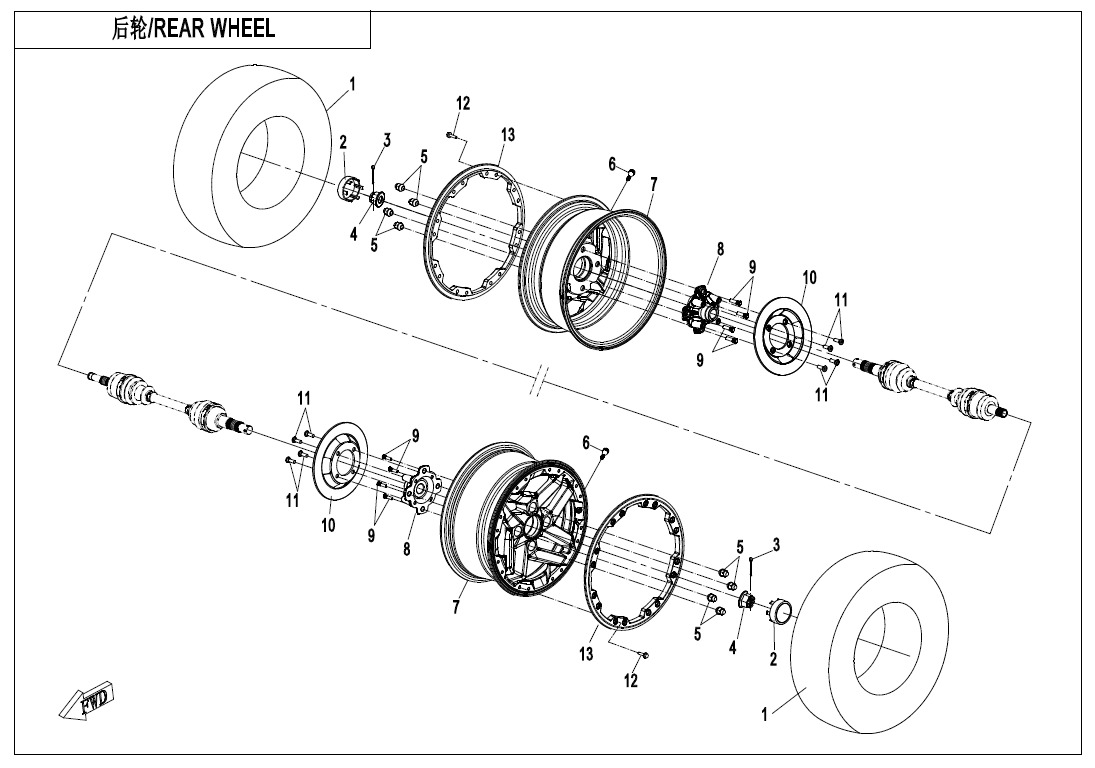

REAR WHEE
F12

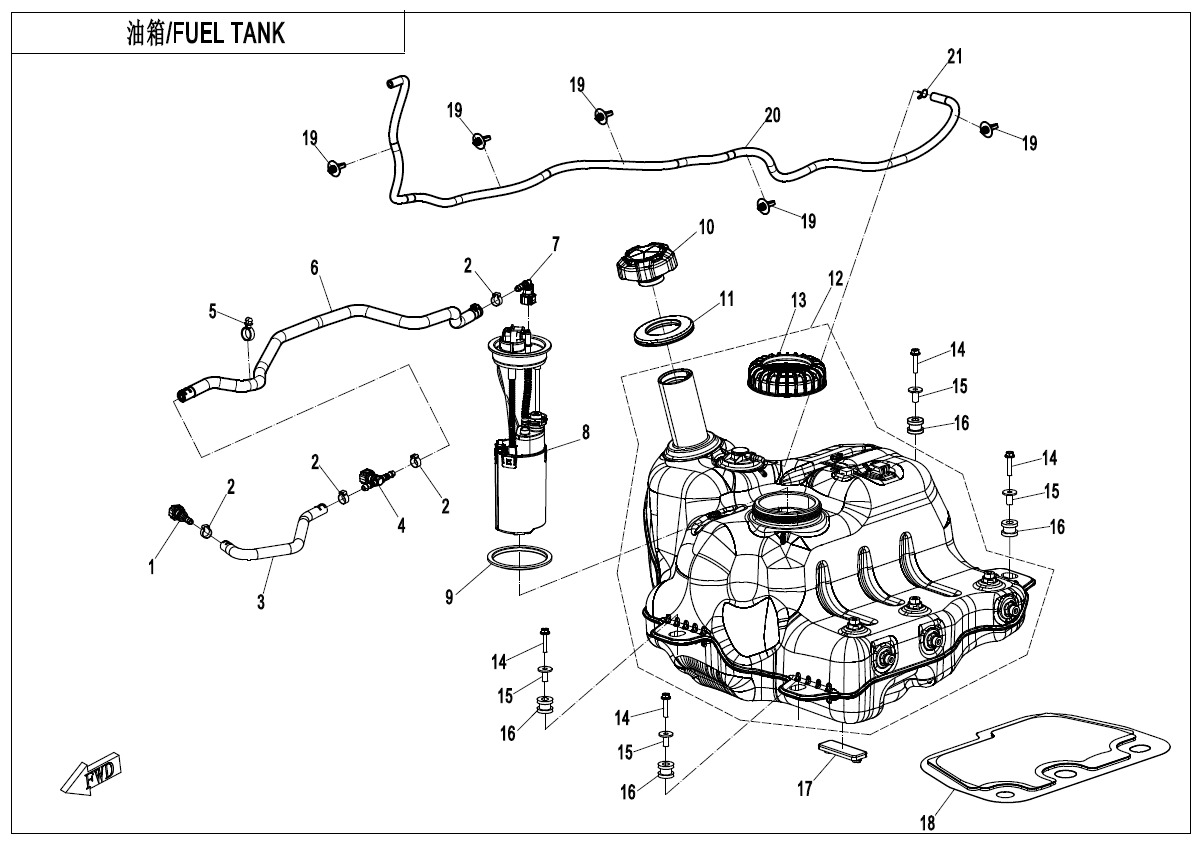

FUEL TANK
F13

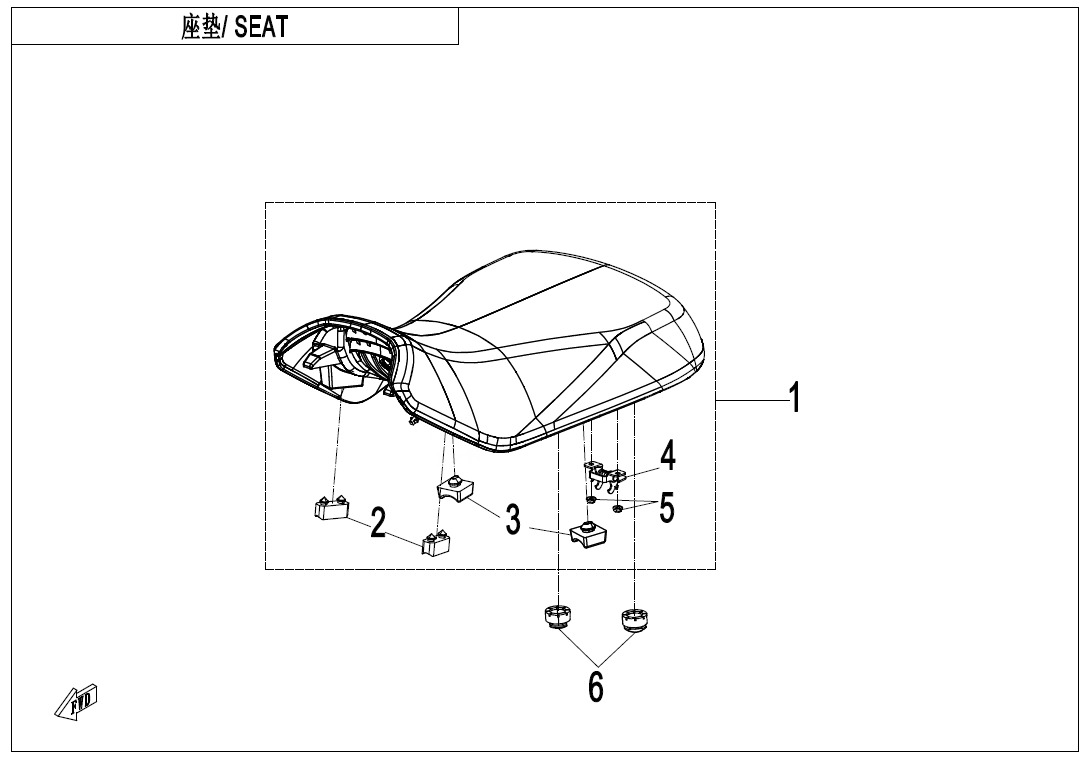

SEAT
F14-1

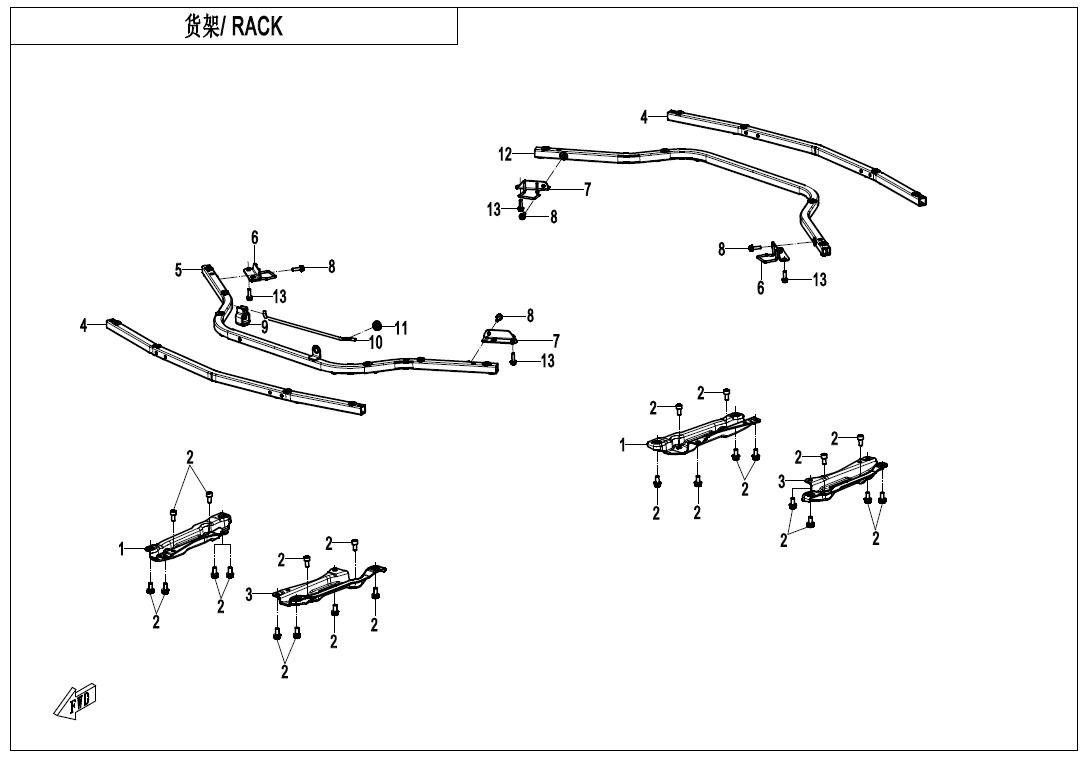

RACK
F14-2

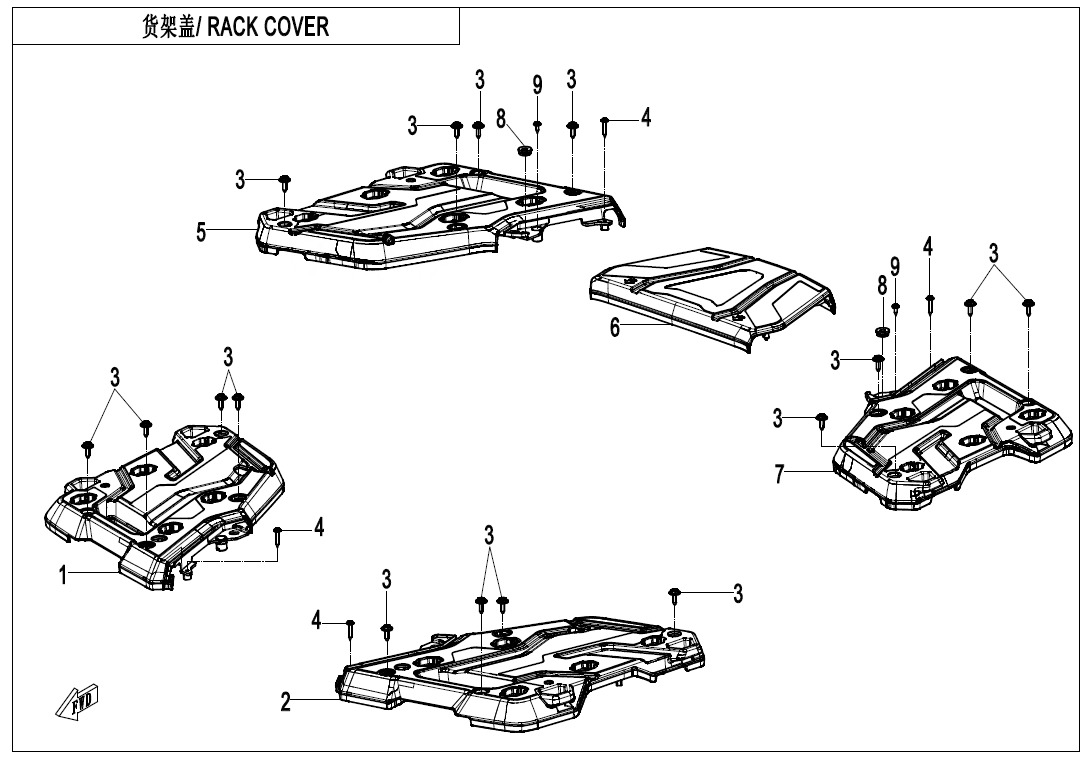

RACK COVER
F15-1

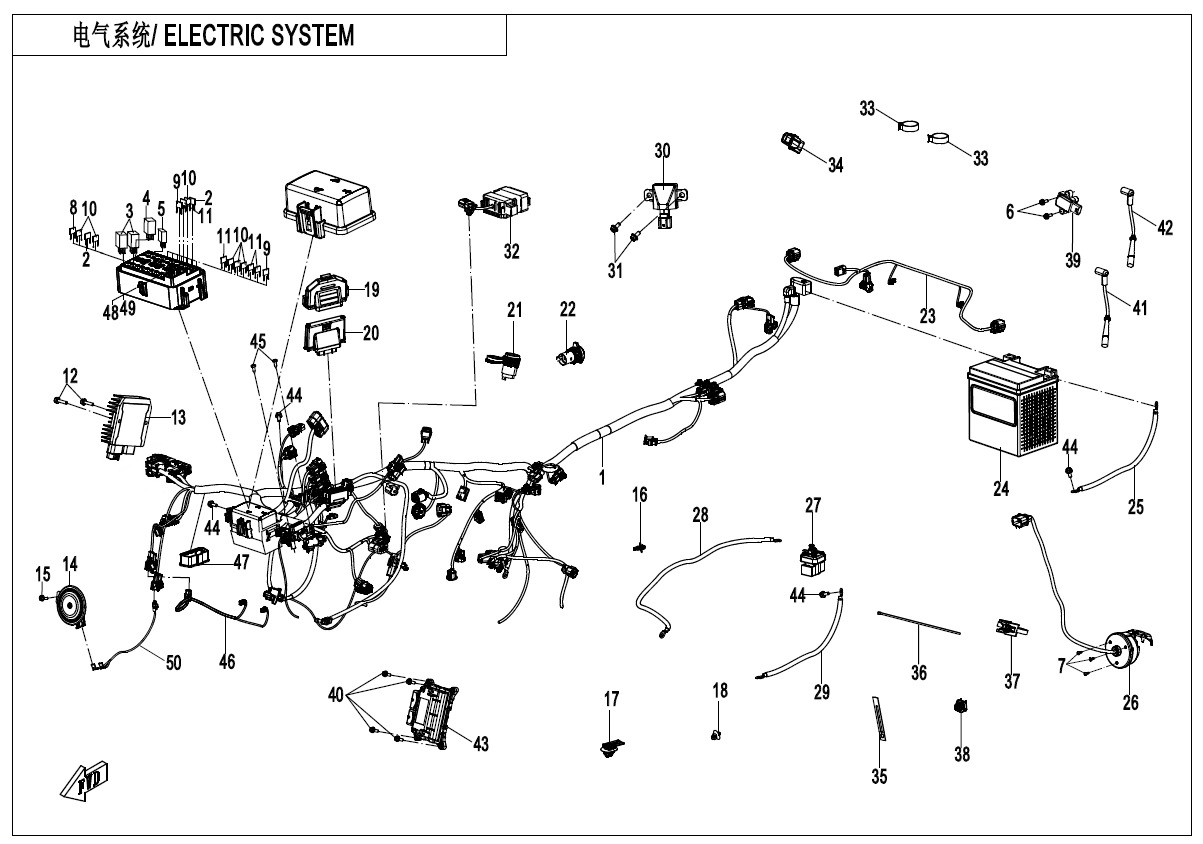

ELECTRIC SYSTEM
F15-2-B
TOWING WINCH(WITHOUT WINCH CONTROL SWITCH)
F16

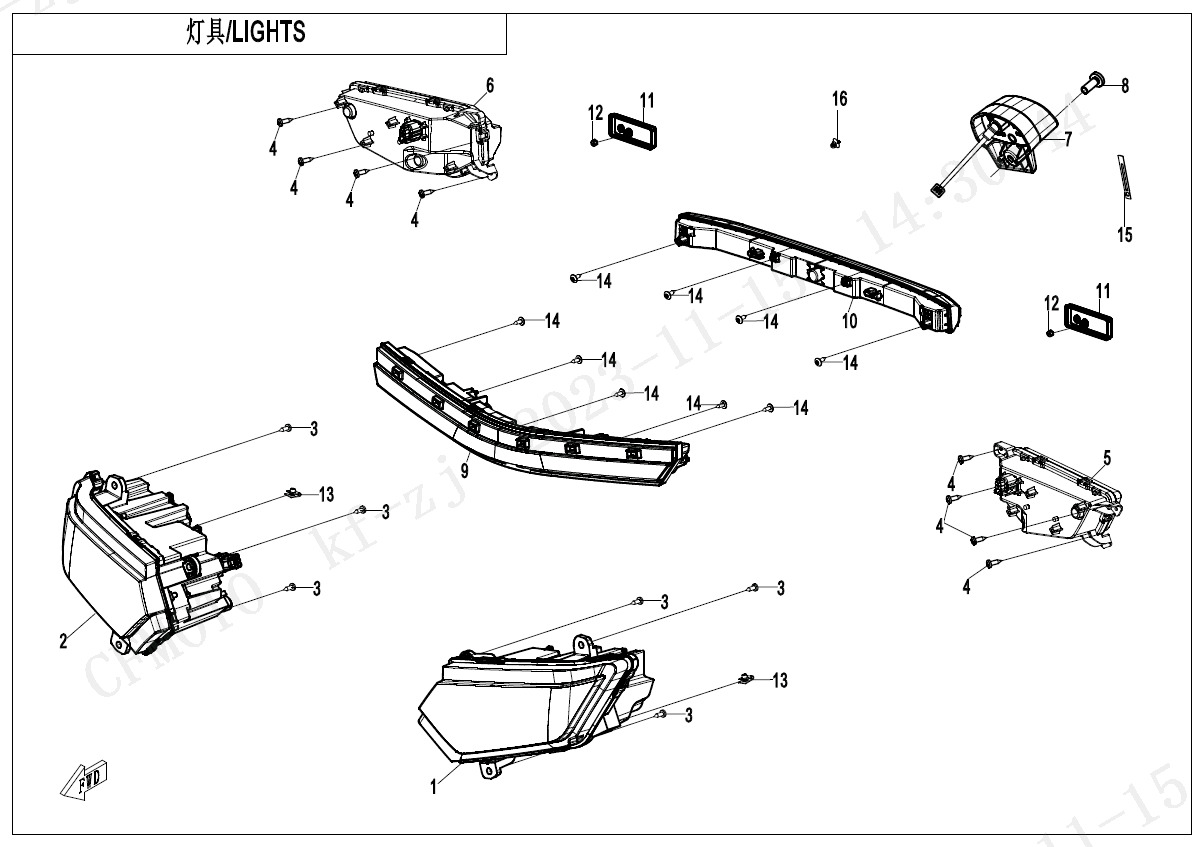

LIGHTS
F17-A

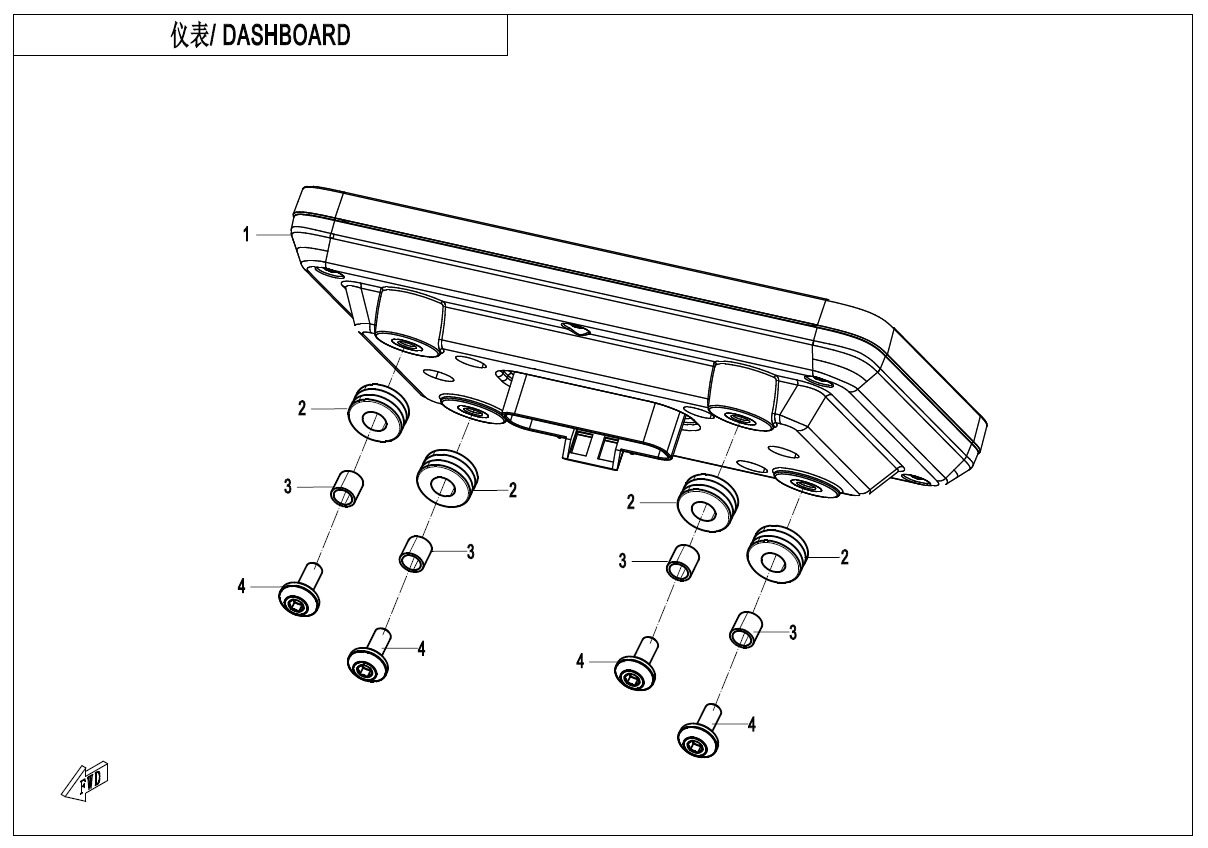

DASHBOARD(7 INCH)

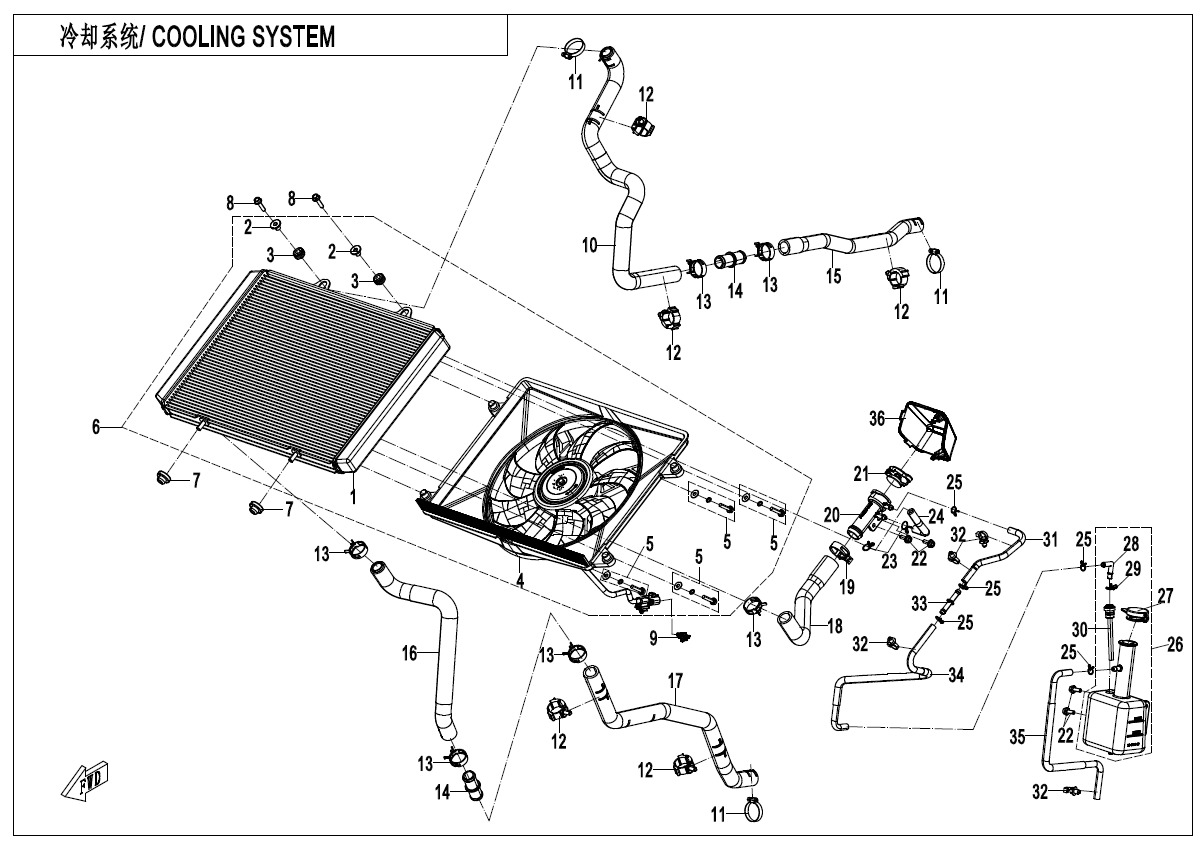

F18
COOLING SYSTEM

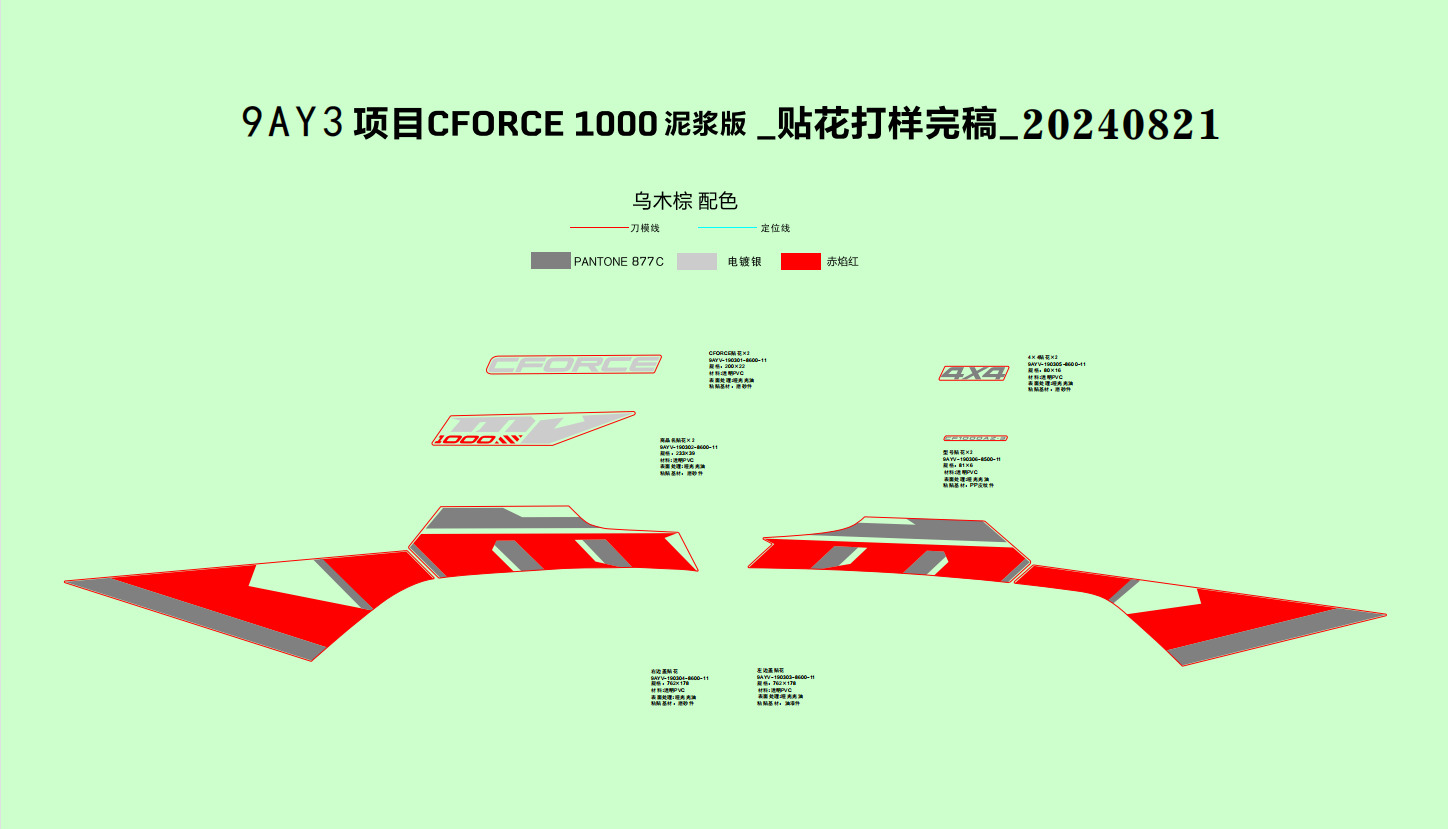

F19-1-B
DECAL(GRANITE RIDGE)

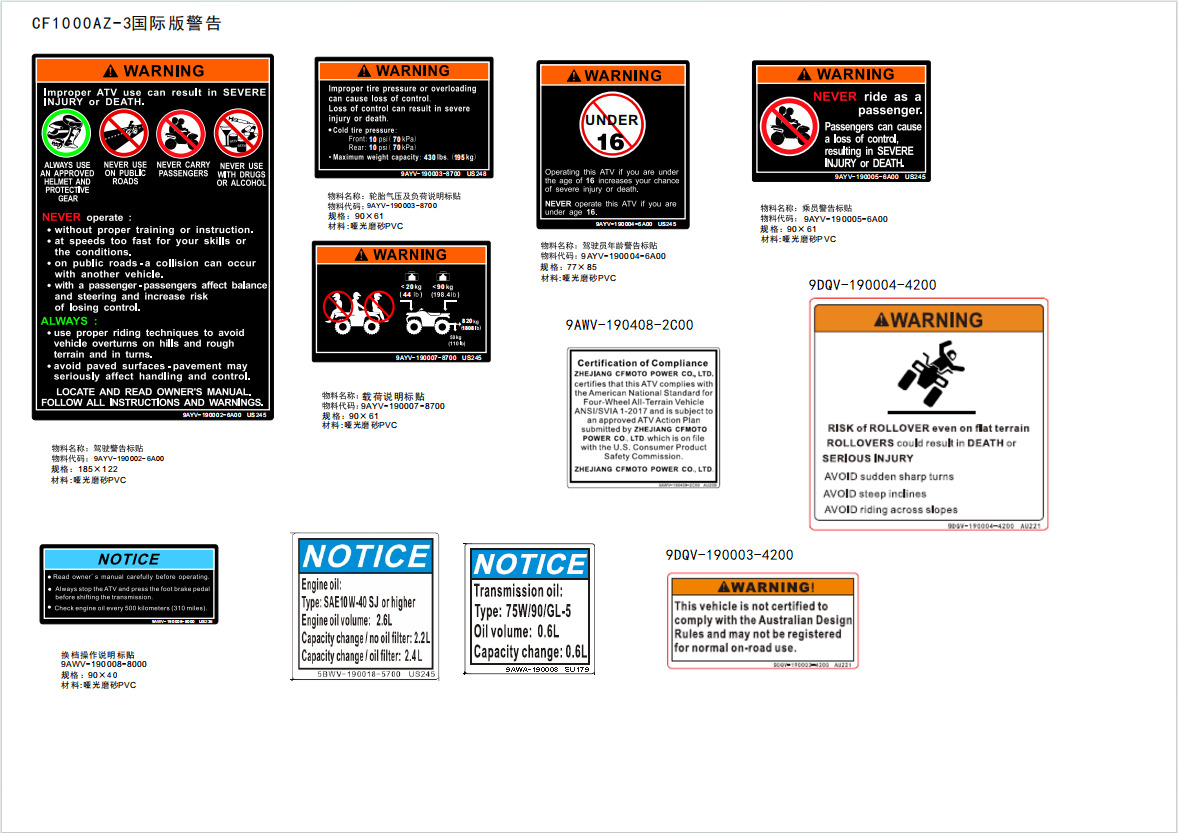

F19-2-F
DECAL WARNING(AU)

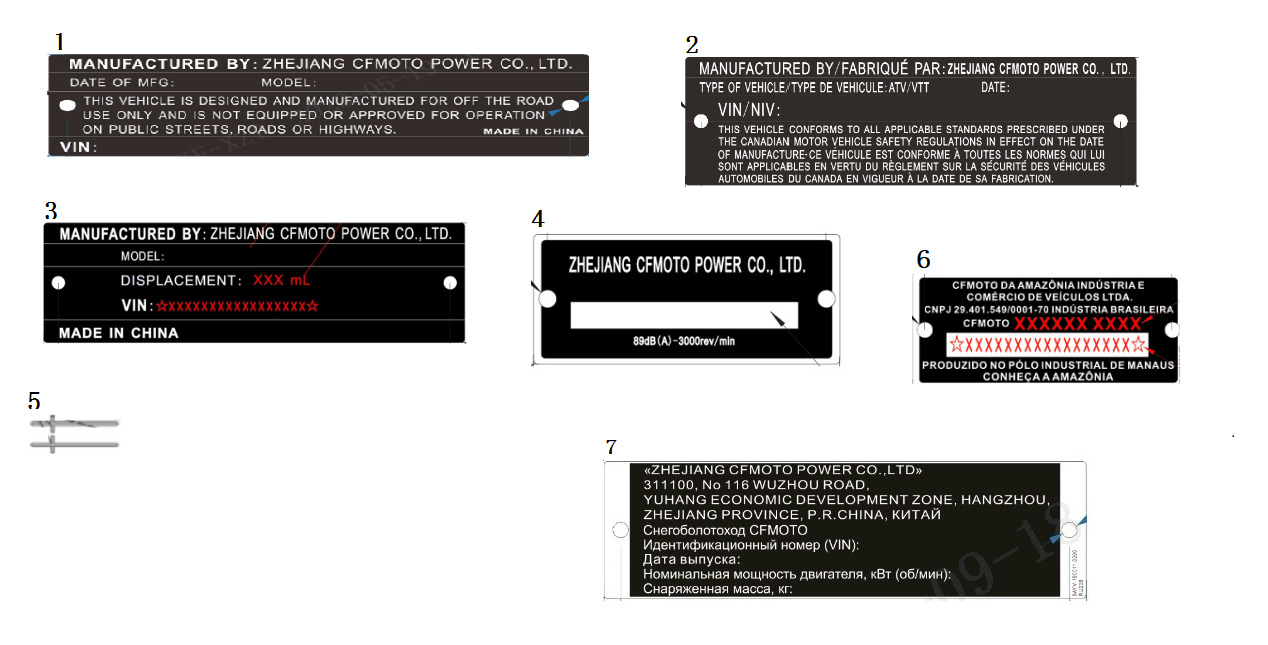

F19-3
VEHICLE PLATE
F20

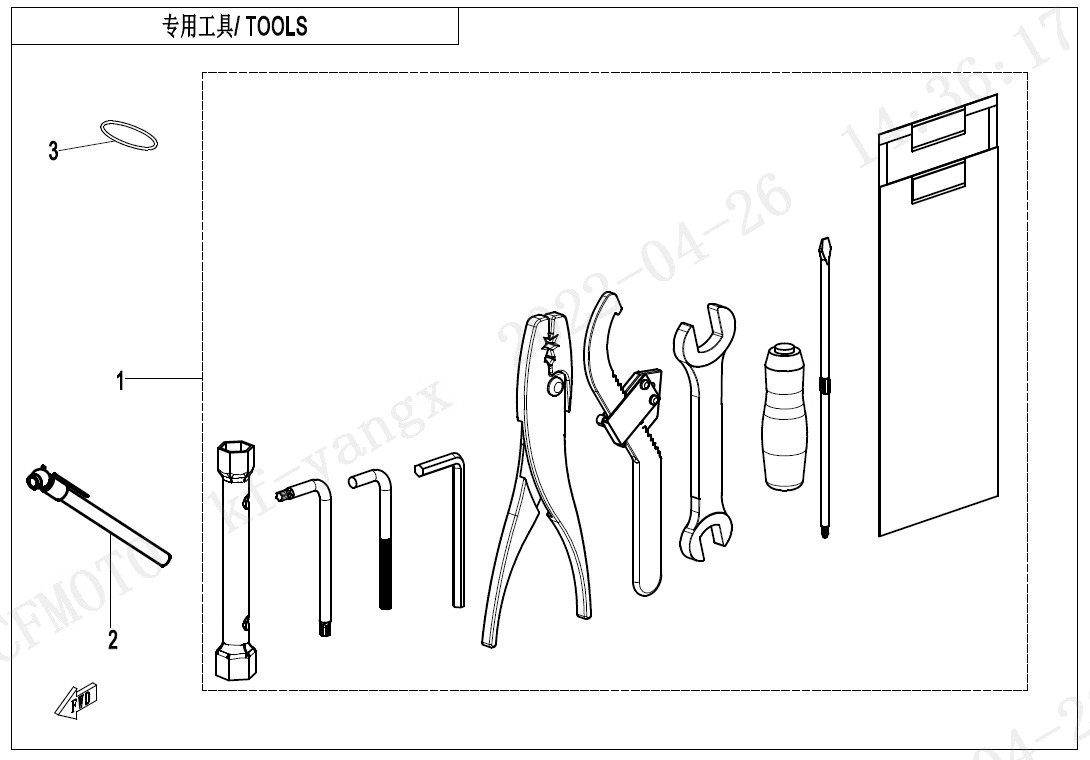

TOOLS
F23

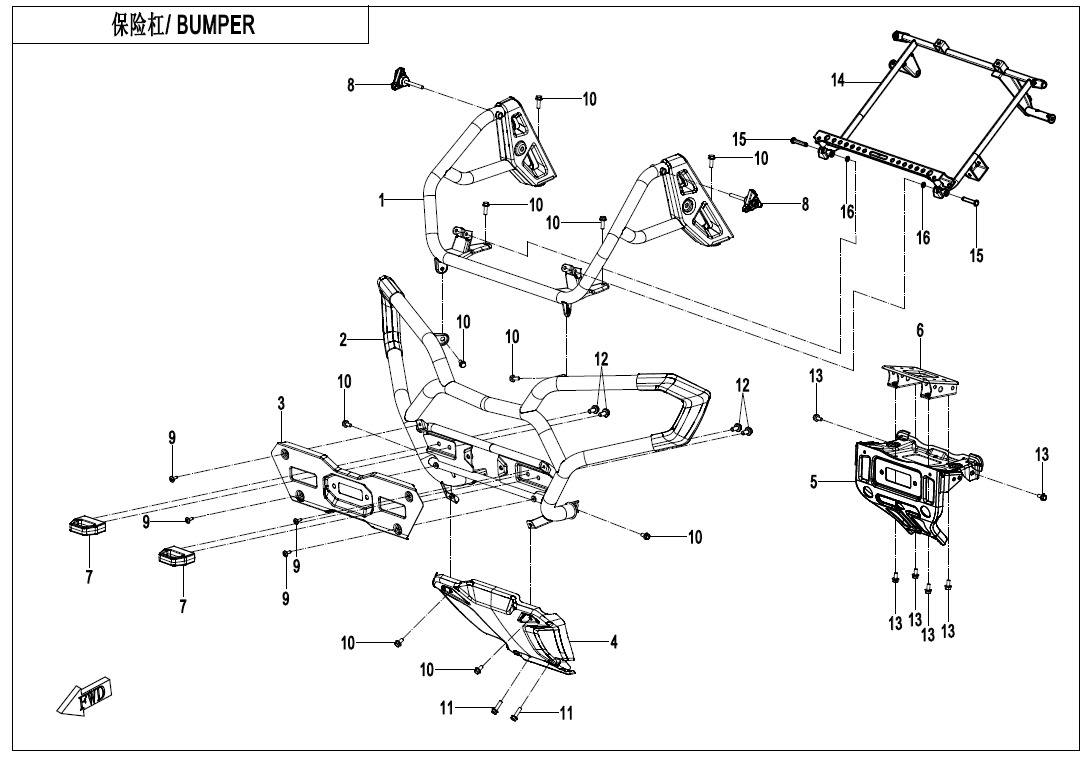

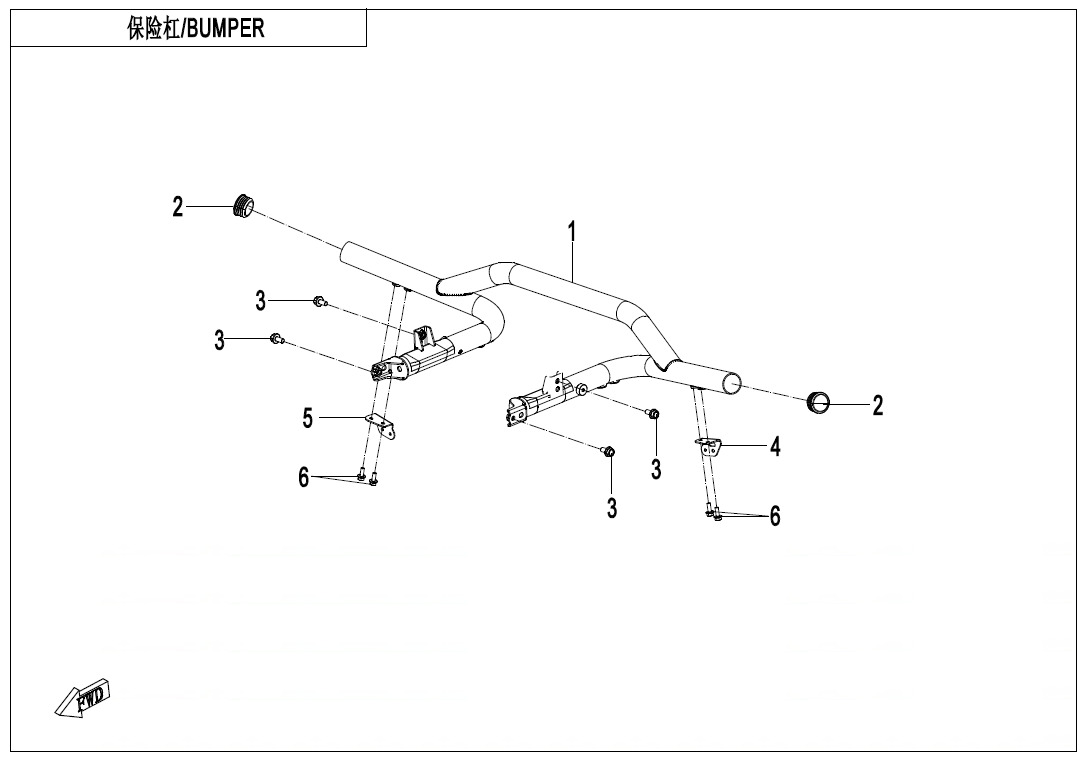

BUMPER
F27

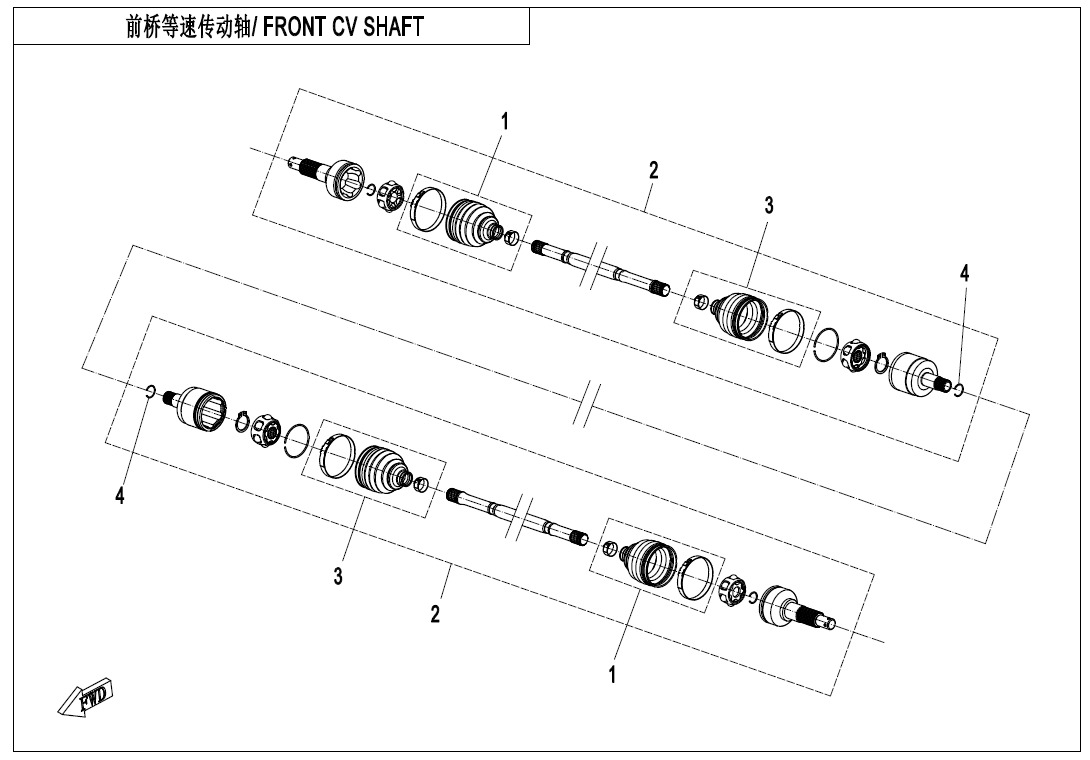

FRONT CV SHAFT

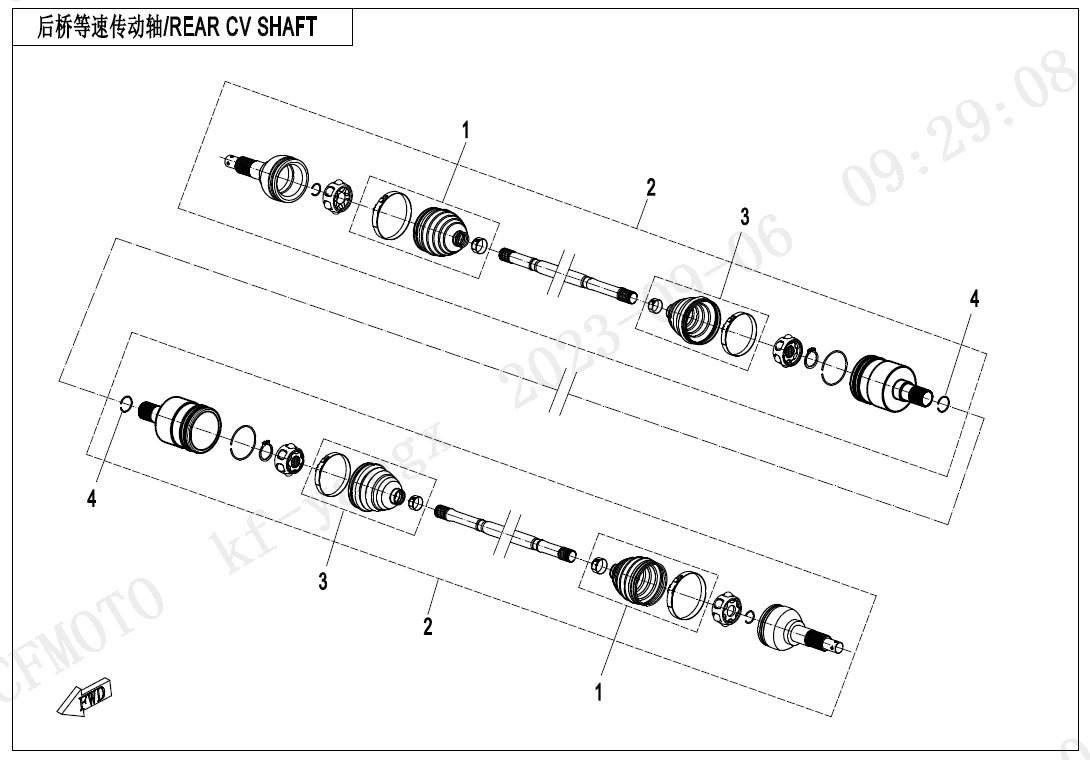

F28
REAR CV SHAFT
F30

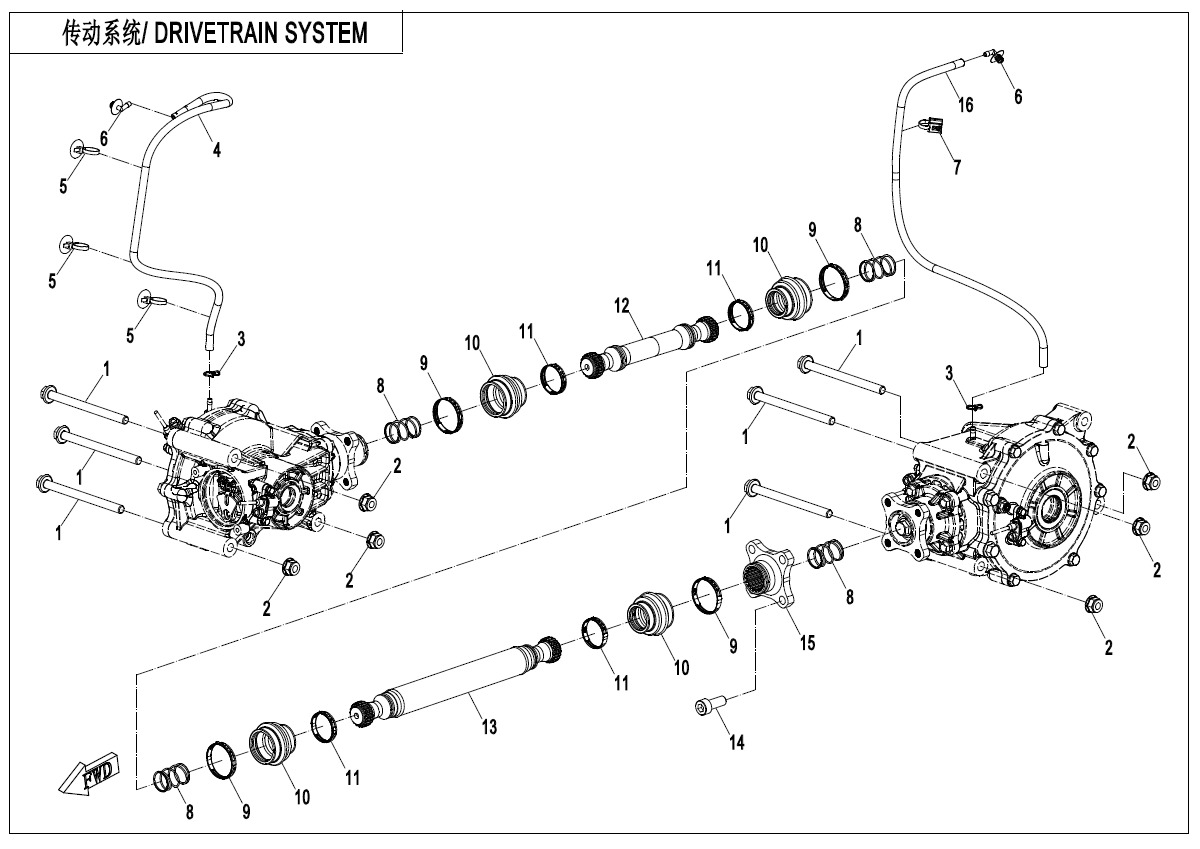

DRIVETRAIN SYSTEM
F31
FRONT AXLE
F32-V2

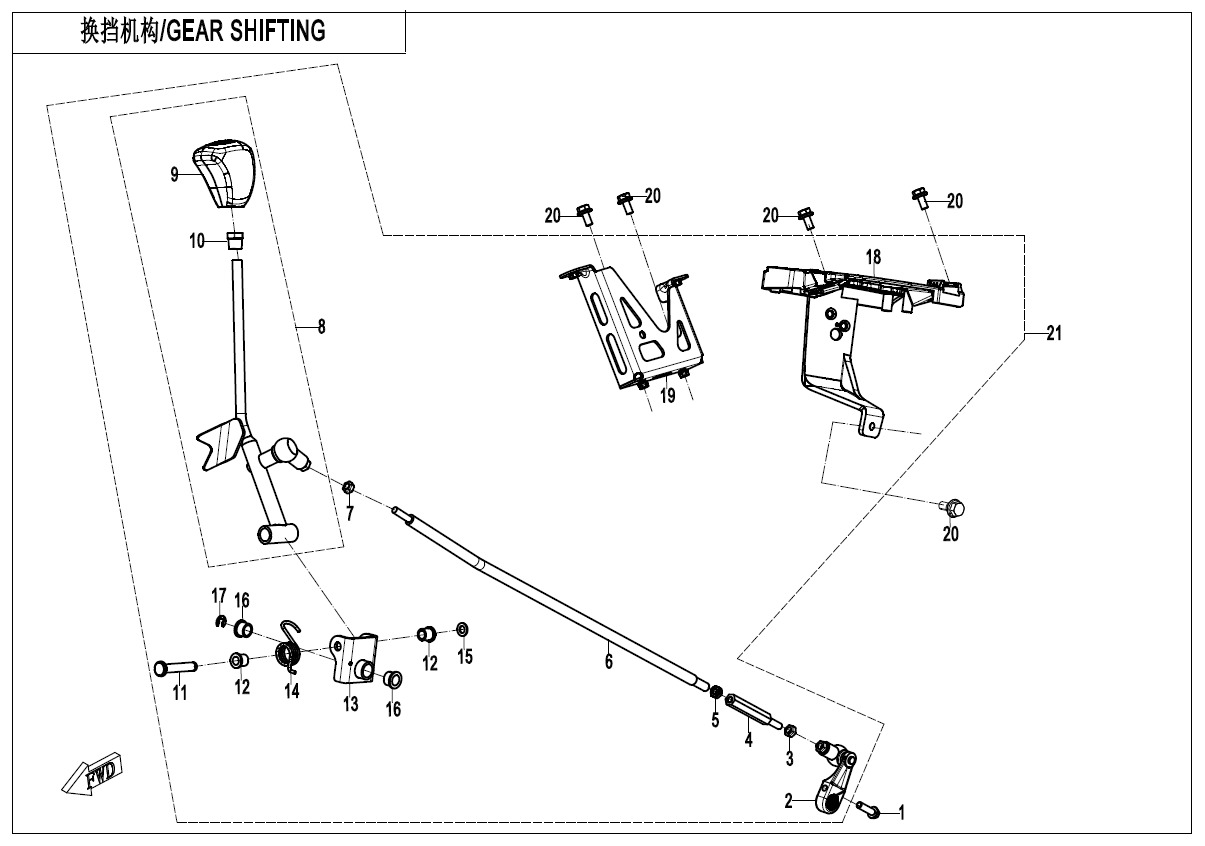

GEAR SHIFTING

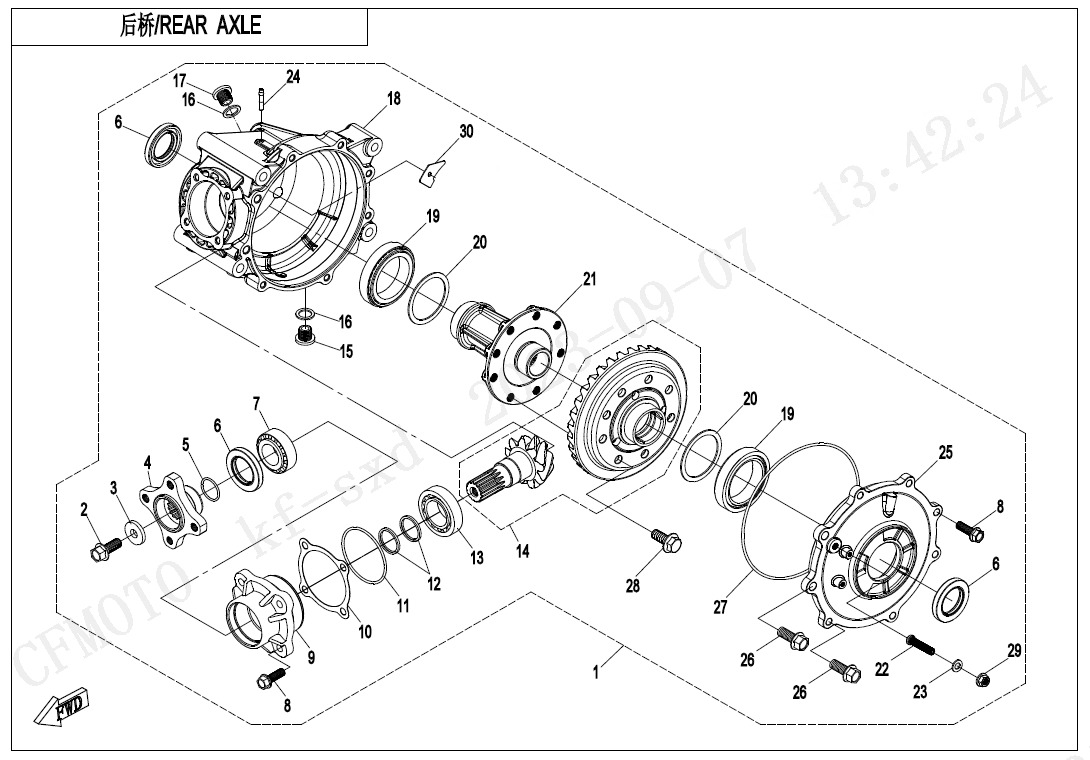

F33-B
REAR AXLE(NO DIFFERENTIAL)
F38-A
OWNER\'S MANUAL(NA)
F40-C

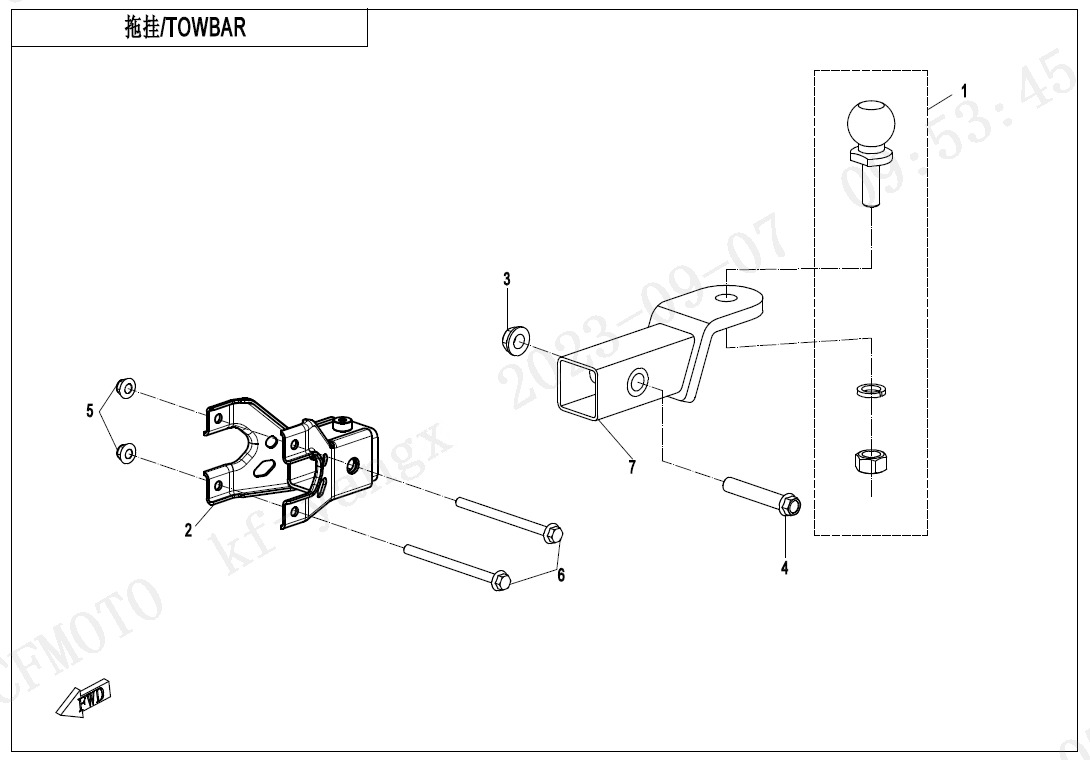

TOWBAR(AU, BOLT CONNECTION)
F41

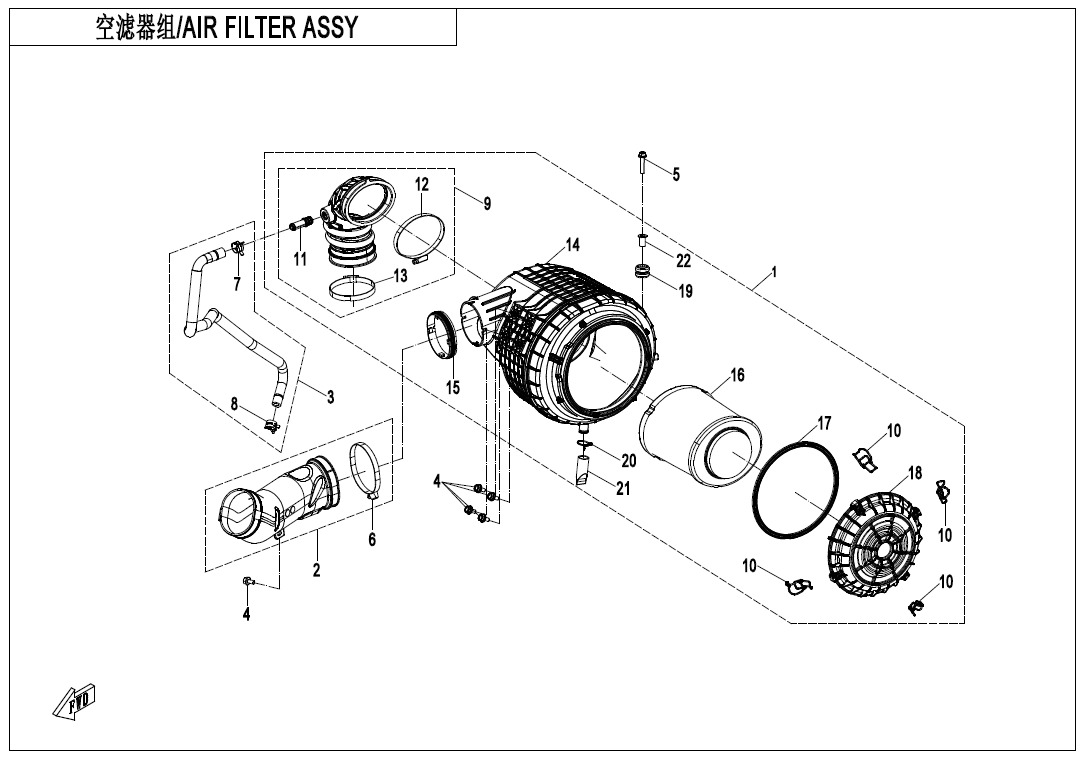

AIR FILTER ASSY(MUD)
F80-2-A
BUMPER(MUD INTERNATIONAL VERSION)
F80-4
PANEL(MUD)
F80-5

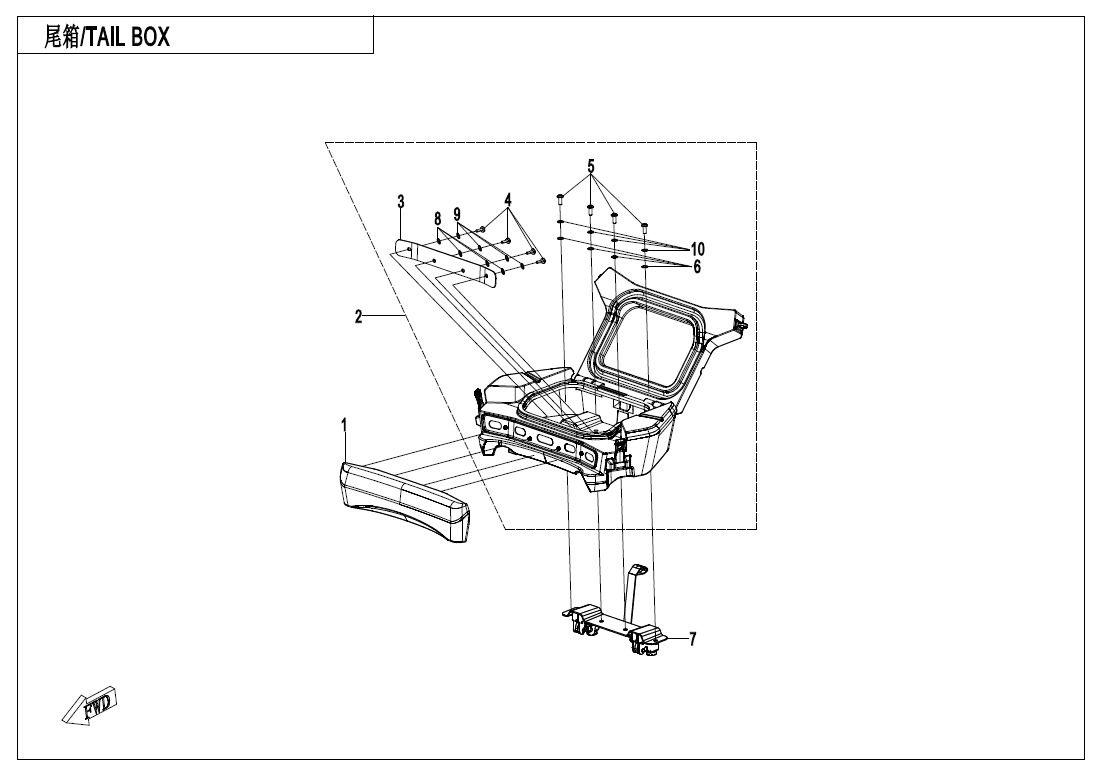

TAIL BOX(MUD)
E00
LONG BLOCK
E01-1
LEFT CRANKCASE ASSY
E01-2
RIGHT CRANKCASE ASSY
E01-3
CVT CASE ASSY
E01-4
LEFT CRANKCASE COVER ASSY
E01-5
RIGHT CRANKCASE COVER ASSY
E02-1
CYLINDER HEAD COVER ASSY
E02-2
CYLINDER HEAD NO.1 ASSY
E02-3-V2
CYLINDER BODY
E02-4
CAMSHAFT OF CYLINDER 1 ASSY
E02-5-A-V2
INTAKE MANIFOLD ASSY
E02-6
CYLINDER HEAD NO.2 ASSY
E02-7
CAMSHAFT OF CYLINDER 2 ASSY
E03
MAGNETO ASSY.
E04
CRANKSHAFT、CONNECTING ROD、PISTON ASSY
E05-A-V1
CVT ASSY
E05-A-V2
CVT ASSY
E05-B
CVT ASSY(MUD)
E06-1
TRANSMISSION SYSTEM(1)
E06-2
TRANSMISSION SYSTEM(2)
E06-3-V2
TRANSMISSION SYSTEM(3)
E07-1
OIL PUMP ASSY
E07-2
OIL COOLING SYSTEM
E08
WATER PUMP ASSY
E09
STARTING SYSTEM
E14
AIR INJECTED SYSTEM
E17
FUEL INJECTION SYSTEM
E29
ENGINE GASKET SET
E30
