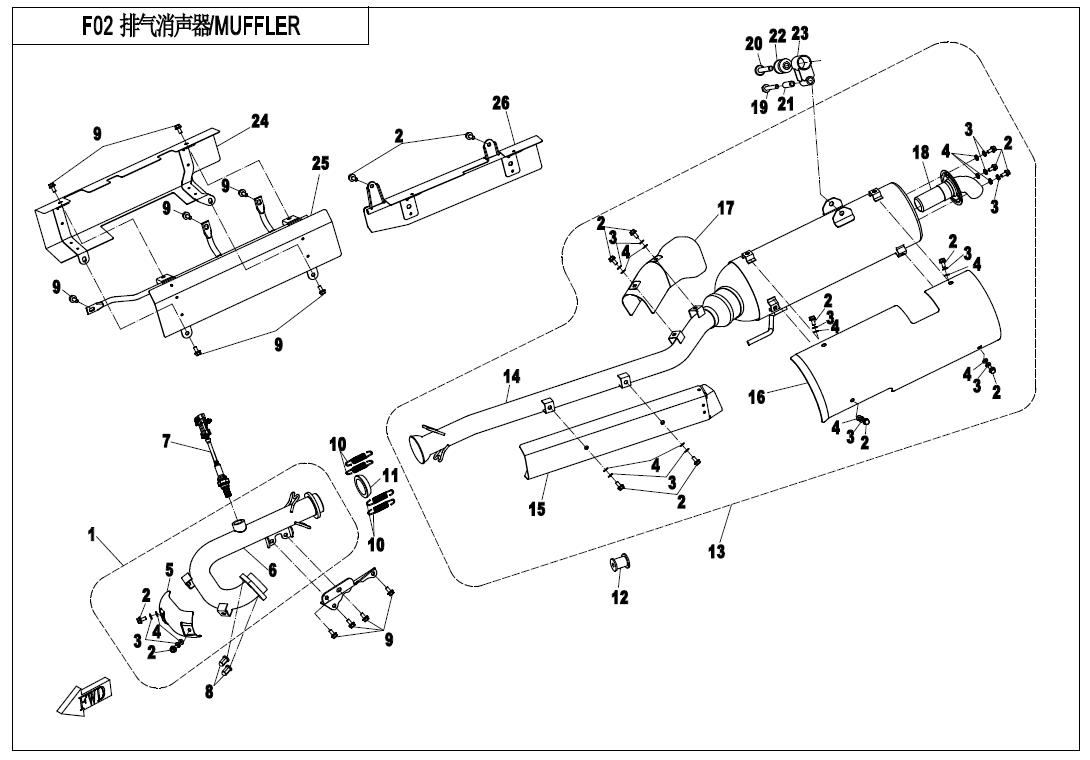

F02 - MUFFLER
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9GQL-021100 | EXHAUST PIPE ASSY | 1 | 0 in warehouse | $149.90 | ||
| 2 | 30000-060010700 | BOLT M6X10 | 15 | 0 in warehouse | $2.90 | ||
| 3 | 30306-060800 | WASHER M6 | 13 | 0 in warehouse | $5.90 | ||
| 4 | 30303-060900 | WASHER | 13 | 0 in warehouse | $1.90 | ||
| 5 | 9GQ0-021101 | FRONT HEAT INSULATOR, EXHAUST PIPE | 1 | 0 in warehouse | $88.90 | ||
| 6 | 9GQL-021110 | EXHAUST PIPE | 1 | 0 in warehouse | $89.90 | ||
| 7 | 018B-176000 | OXYGEN SENSOR | 1 | 2 in warehouse | $276.90 | ||
| 8 | 8010-020001 | NUT M8 | 1 | 6 in warehouse | $1.90 | ||
| 9 | 30006-060016810 | BOLT M6X16 | 8 | 10+ in warehouse | $2.90 | ||
| 10 | 9CR6-020002 | DRAG SPRING, MUFFLER | 4 | 0 in warehouse | $7.90 | ||
| 11 | 7030-021001 | SMALL GRAPHITE RING | 1 | 0 in warehouse | $50.90 | ||
| 12 | 9GQ0-020002 | RUBBER BUSHING ,MUFFLEF | 1 | 0 in warehouse | $11.90 | ||
| 13 | 9GQL-021200-00001 | MUFFLER ASSY | 1 | 0 in warehouse | $551.90 | ||
| 14 | 9GQL-021210-10000 | MUFFLER ASSY | 1 | 0 in warehouse | $874.90 | ||
| 15 | 9GQL-021220 | HEAT INSULATION PLATE, MUFFLER | 1 | 0 in warehouse | $81.90 | ||
| 16 | 9GQ0-021201-10000 | HEAT INSULATOR, MUFFLER BODY | 1 | 0 in warehouse | $81.90 | ||
| 17 | 9GQL-021202 | HEAT SHIELD,CATALYST | 1 | 0 in warehouse | $73.90 | ||
| 18 | 9GQ0-021320 | SPARK ARRESTOR | 1 | 0 in warehouse | $67.90 | ||
| 19 | 30006-080065840 | BOLT M8X65 | 1 | 0 in warehouse | $3.90 | ||
| 20 | 30006-102070840 | BOLT M10X1.25X70 | 1 | 0 in warehouse | $6.90 | ||
| 21 | 7020-020001 | LINER, MUFFLER | 1 | 0 in warehouse | $8.90 | ||
| 22 | 9010-050500 | CUSHION SLEEVE | 1 | 10+ in warehouse | $8.90 | ||
| 23 | 7020-022000 | MOUNT ASSY, MUFFLER | 1 | 0 in warehouse | $19.90 | ||
| 24 | 9GQL-002200 | OUTER COVER 1,EXHAUST PIPE | 1 | 0 in warehouse | $58.90 | ||
| 25 | 9GQL-002100 | INNER COVER,EXHAUST PIPE | 1 | 0 in warehouse | $78.90 | ||
| 26 | 9GQL-002300 | OUTER COVER,EXHAUST PIPE | 1 | 0 in warehouse | $84.90 | ||
