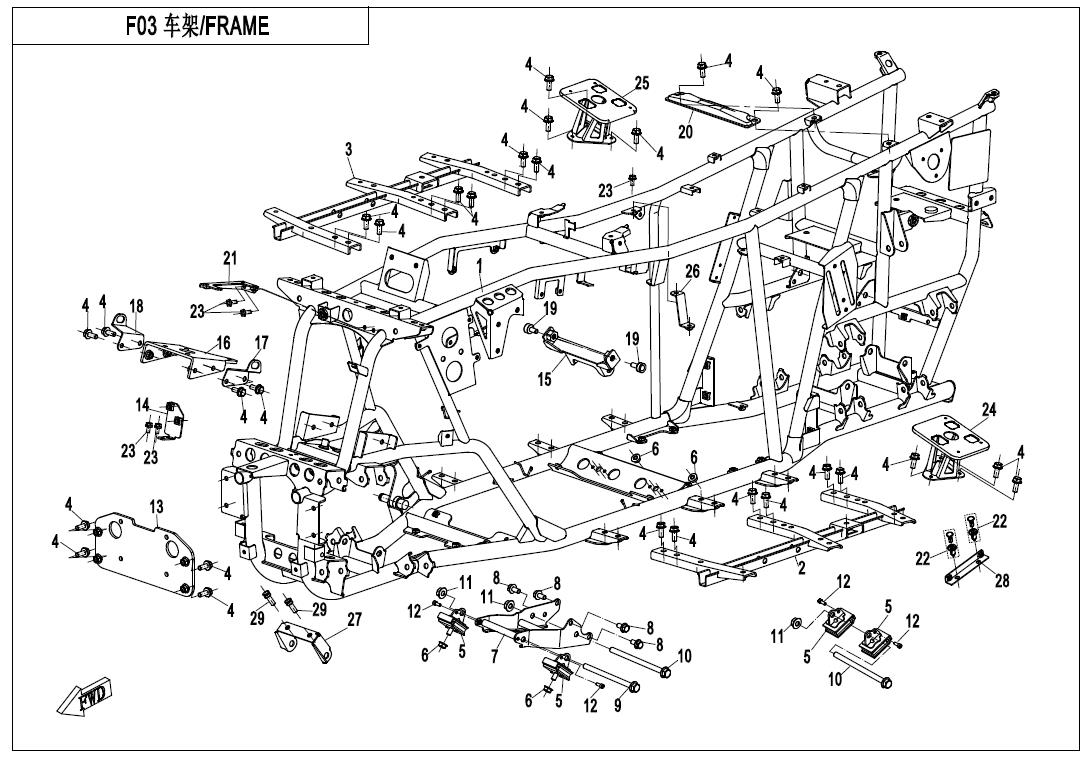

F03 - FRAME
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9GQL-031000-10000 | FRAME ASSY | 1 | 0 in warehouse | $2603.90 | ||
| 2 | 9GQL-039100 | FOOT PEDAL,LH | 1 | 0 in warehouse | $94.90 | ||
| 3 | 9GQL-039200 | FOOT PEDAL,RH | 1 | 0 in warehouse | $94.90 | ||
| 4 | 30006-080020810 | BOLT M8X20 | 26 | 0 in warehouse | $1.90 | ||
| 5 | 401B-000200 | DAMPER | 4 | 0 in warehouse | $54.90 | ||
| 6 | 30204-102810 | NUT M10X1.25 | 4 | 10+ in warehouse | $1.90 | ||
| 7 | 9CR6-001100-20000 | FRONT BRACKET, ENGINE ELECTROPHORESIS BLACK | 1 | 0 in warehouse | $67.90 | ||
| 8 | 30006-100020810 | BOLT M10X20 | 4 | 0 in warehouse | $4.90 | ||
| 9 | 30006-122170810 | BOLT M12X1.25X170 | 1 | 0 in warehouse | $22.90 | ||
| 10 | 30006-122180810 | BOLT M12X1.25X180 | 2 | 0 in warehouse | $22.90 | ||
| 11 | 30204-122810 | NUT M12X1.25 | 3 | 0 in warehouse | $1.90 | ||
| 12 | 30102-060016810 | SCREW M6X16 | 4 | 0 in warehouse | $1.90 | ||
| 13 | 9GQ0-030090 | INSTALLING BRACKET, WINCH | 1 | 0 in warehouse | $71.90 | ||
| 14 | 9GQ0-030030 | BRACKET,OIL HOSE | 1 | 0 in warehouse | $6.90 | ||
| 15 | 9GQ0-030070-10000 | UPPER LINK SEAT,REAR AXLE | 1 | 0 in warehouse | $54.90 | ||
| 16 | 9GQ0-030040 | EPS MOUNTING PLATE | 1 | 0 in warehouse | $49.90 | ||
| 17 | 9GQ0-030004 | BRACKET,INNER FENDER (LH) | 1 | 0 in warehouse | $11.90 | ||
| 18 | 9GQ0-030005 | BRACKET,INNER FENDER (RH) | 1 | 0 in warehouse | $11.90 | ||
| 19 | 30102-102020810 | SCREW M10X1.25X20 | 1 | 0 in warehouse | $4.90 | ||
| 20 | 9GQ0-030010 | FIXING BRACKET, SEAT | 1 | 0 in warehouse | $18.90 | ||
| 21 | 9GQ0-030020 | BRACKET,WINCH CONTROL RELAY | 1 | 0 in warehouse | $13.90 | ||
| 22 | 9060-040310 | PLASTIC CLIPS | 2 | 10+ in warehouse | $1.90 | ||
| 23 | 30006-060012830 | BOLT | 5 | 0 in warehouse | $1.90 | ||
| 24 | 9GQL-039300 | LH BRACKET,FOOT PEDAL | 1 | 0 in warehouse | $68.90 | ||
| 25 | 9GQL-039400 | RH BRACKET,FOOT PEDAL | 1 | 0 in warehouse | $81.90 | ||
| 26 | 9GQ0-030080 | LINKING BRACKET, AIR FILTER | 1 | 0 in warehouse | $8.90 | ||
| 27 | 9GQ0-030050 | UPPER BRACKET,FRONT AXLE | 1 | 0 in warehouse | $24.90 | ||
| 28 | 9GQ0-030060 | MOUNTING PLATE ASSY, ECU | 1 | 0 in warehouse | $8.90 | ||
| 29 | 30102-080020140 | INNER HEX SCREW, M8X20 | 2 | 0 in warehouse | $1.90 | ||
