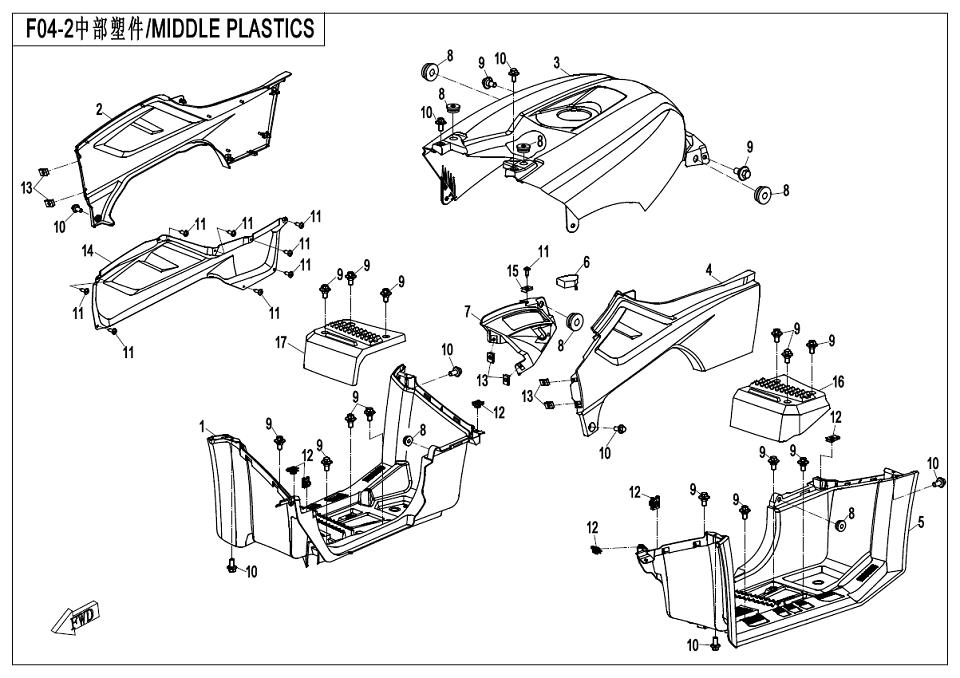

F04-2 - MIDDLE PLASTICS
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9GQL-042032 | FOOT PEDAL,RH | 1 | 0 in warehouse | $160.90 | ||
| 2 | 9GQL-042022-0P600 | SIDE COVER, RH, INJECTED PEARL BLACK | 1 | 0 in warehouse | $87.90 | ||
| 3 | 9GQL-042011-0P600 | FUEL TANK UPPER PANEL INJECTED PEARL BLACK | 1 | 0 in warehouse | $90.90 | ||
| 4 | 9GQL-042021-0P600 | SIDE COVER, LH, INJECTED PEARL BLACK | 1 | 0 in warehouse | $87.90 | ||
| 5 | 9GQL-042031 | FOOT PEDAL,LH | 1 | 0 in warehouse | $155.90 | ||
| 6 | 9GQ0-042025 | COVER, LOCK | 1 | 0 in warehouse | $15.90 | ||
| 7 | 9GQL-042023-0P600 | DECO COVER, GEARSHIFT, INJECTED PEARL BLACK | 3 | 0 in warehouse | $24.90 | ||
| 8 | 0180-015003 | RUBBER SLEEVE | 7 | 10+ in warehouse | $1.90 | ||
| 9 | 8010-000004 | BOLT M6X14 | 16 | 10+ in warehouse | $1.90 | ||
| 10 | 30006-060016810 | BOLT M6X16 | 8 | 10+ in warehouse | $2.90 | ||
| 11 | 30110-420130010 | SELF-TAPPING SCREW. ST4.2X13 | 9 | 0 in warehouse | $1.90 | ||
| 12 | 8030-040800 | NUT CLIP M6 | 6 | 0 in warehouse | $1.90 | ||
| 13 | 5020-040049 | CLAMP ST4.8 | 6 | 6 in warehouse | $1.90 | ||
| 14 | 9GQL-042027 | HEAT INSULATOR, SIDE PANEL(RH) | 1 | 0 in warehouse | $83.90 | ||
| 15 | 8010-000002 | CLAMP ST4.2 | 1 | 10+ in warehouse | $2.90 | ||
| 16 | 9GQL-042033 | FOOTREST, LH | 1 | 0 in warehouse | $62.90 | ||
| 17 | 9GQL-042034 | FOOTREST, RH | 1 | 0 in warehouse | $62.90 | ||
