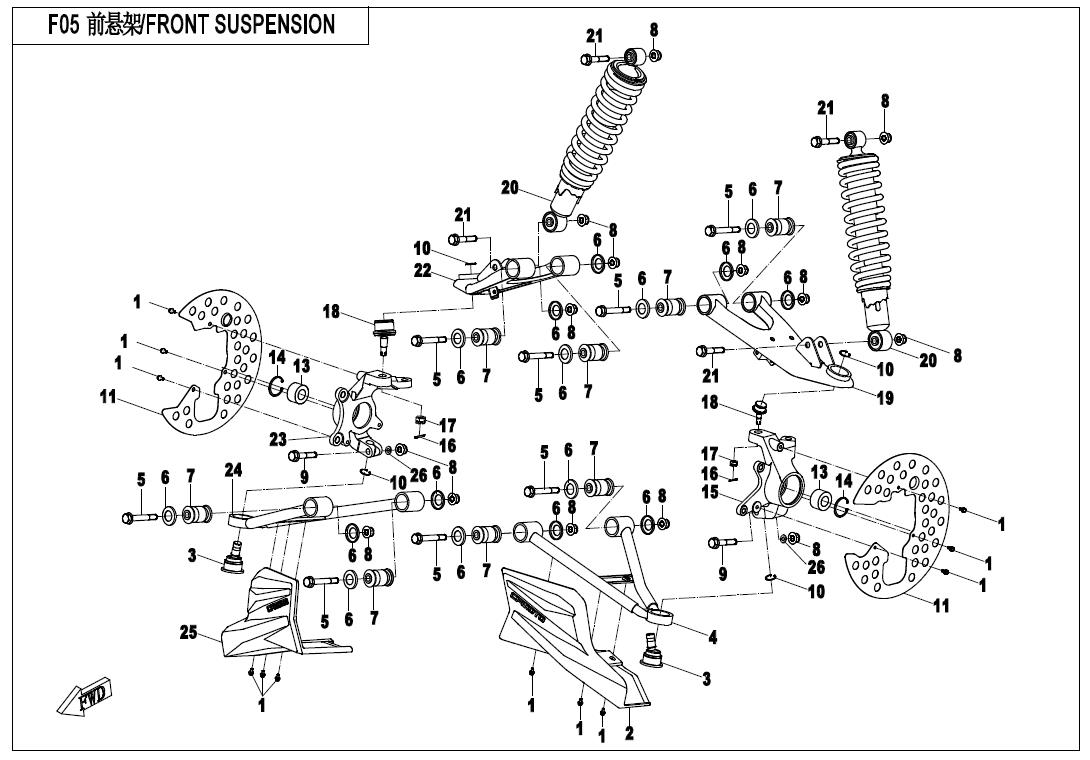

F05 - FRONT SUSPENSION
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 30006-060012810 | BOLT M6X12 | 6 | 0 in warehouse | $1.90 | ||
| 2 | 9GQ0-044041 | PANEL, LH FRONT SUSPENSION | 1 | 0 in warehouse | $31.90 | ||
| 3 | 9010-050800 | BOTTOM BALL PIN | 2 | 0 in warehouse | $67.90 | ||
| 3 | 9010-050800-1000 | LOWER BALL PIN ASSY | 2 | 0 in warehouse | $68.90 | ||
| 4 | 9GQ0-050210 | FRONT LOWER ARM LH | 1 | 2 in warehouse | $164.90 | ||
| 5 | 30006-102070840 | BOLT M10X1.25X70 | 8 | 0 in warehouse | $6.90 | ||
| 6 | 9010-050003 | CAP, BUFFERING COLLAR | 16 | 0 in warehouse | $2.90 | ||
| 7 | 9010-050500 | CUSHION SLEEVE | 8 | 10+ in warehouse | $8.90 | ||
| 8 | 30204-102840 | NUT M10X1.25 | 14 | 0 in warehouse | $1.90 | ||
| 9 | 30006-102035840 | BOLT M10X1.25X35 | 2 | 0 in warehouse | $4.90 | ||
| 10 | 30801-03405 | CIRCLIPS FOR SHAFT 34 | 4 | 10+ in warehouse | $1.90 | ||
| 11 | 9010-030008-1000 | GUARD, BRAKE DISC | 2 | 0 in warehouse | $47.90 | ||
| 13 | 30499-03080 | BEARING HUB DAC3055W | 2 | 0 in warehouse | $62.90 | ||
| 14 | 30800-05505 | CIRCLIP D55 BLACK | 2 | 10+ in warehouse | $4.90 | ||
| 15 | 9GQ0-050701 | STEERING KNUCKLE LH | 1 | 0 in warehouse | $162.90 | ||
| 16 | 30903-0201640 | COTTER PIN. 2.0X16 | 2 | 0 in warehouse | $1.90 | ||
| 17 | 30207-102840 | HEX NUT 1-TYPE M10X1.25 | 2 | 0 in warehouse | $5.90 | ||
| 18 | 9010-050700-1000 | TOP BALL PIN | 2 | 10+ in warehouse | $88.90 | ||
| 19 | 9GQ0-050110 | FRONT UPPER ARM,LH | 1 | 0 in warehouse | $130.90 | ||
| 20 | 9GQ0-050500 | FRONT SHOCK ABSORBER | 2 | 0 in warehouse | $450.90 | ||
| 21 | 30006-102055840 | BOLT M10X1.25X55 | 2 | 0 in warehouse | $5.90 | ||
| 22 | 9GQ0-050310 | FRONT UPPER ARM?RH | 1 | 0 in warehouse | $130.90 | ||
| 23 | 9GQ0-050801 | STEERING KNUCKLE,RH | 1 | 0 in warehouse | $162.90 | ||
| 24 | 9GQ0-050410 | FRONT LOWER ARM RH | 1 | 0 in warehouse | $164.90 | ||
| 25 | 9GQ0-044042 | PANEL, FRONT SUSPENSION(RH) | 1 | 0 in warehouse | $31.90 | ||
| 26 | 9010-300002 | WASHER M10 | 2 | 10+ in warehouse | $1.90 | ||
