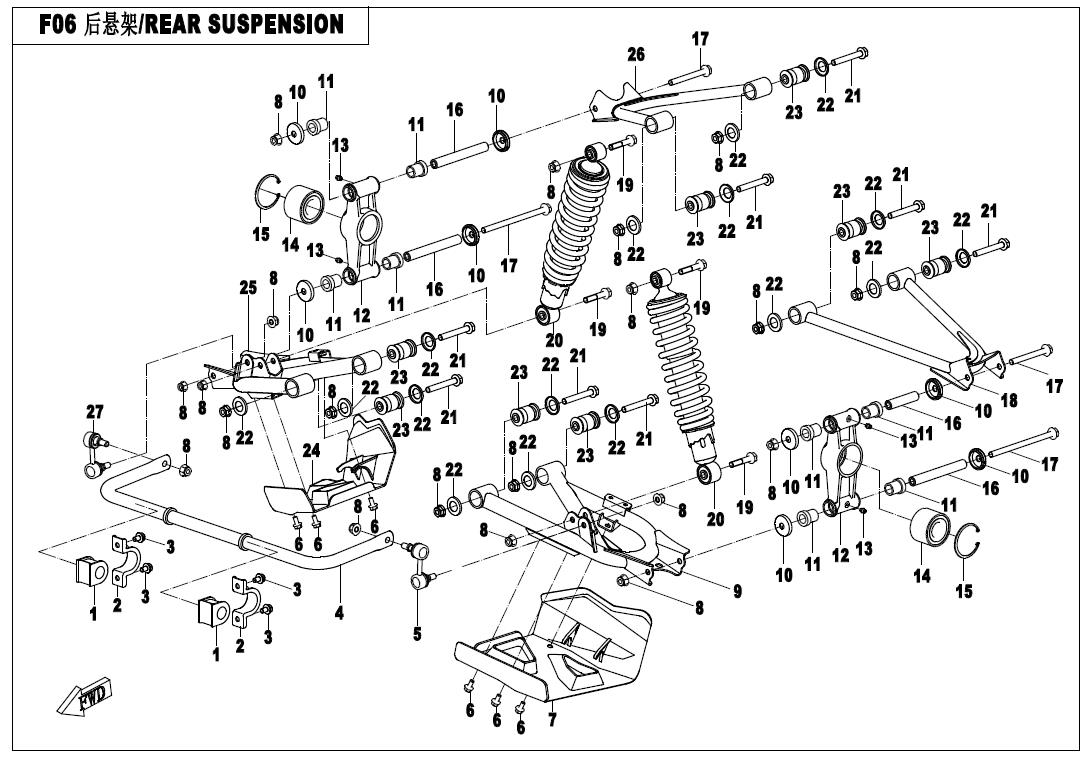

F06 - REAR SUSPENSION
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9010-060003 | RUBBER SUPPORT | 2 | 0 in warehouse | $12.90 | ||
| 2 | 9GQ0-060601 | COVER, SWAY BAR NLA USE 9GQ0-060601-00001 | 1 | 0 in warehouse | $10.90 | ||
| 2 | 9GQ0-060601-00001 | COVER, STABILIZER BAR | 1 | 0 in warehouse | $12.90 | ||
| 3 | 30006-080012840 | BOLT | 2 | 0 in warehouse | $1.90 | ||
| 4 | 9GQ0-060610 | REAR STABILIZER BAR | 1 | 0 in warehouse | $106.90 | ||
| 5 | 9010-060700-1000 | BALL PIN LH | 1 | 0 in warehouse | $90.90 | ||
| 6 | 30006-060012810 | BOLT M6X12 | 6 | 0 in warehouse | $1.90 | ||
| 7 | 9GQ0-044043 | PANEL, LH REAR SUSPENSION | 1 | 0 in warehouse | $40.90 | ||
| 8 | 30204-102840 | NUT M10X1.25 | 20 | 0 in warehouse | $1.90 | ||
| 9 | 9GQ0-060210 | REAR LOWER SWING ARM,LH NLA USE 9GQ0-060210-00002 | 1 | 0 in warehouse | $130.90 | ||
| 9 | 9GQ0-060210-00001 | REAR LOWER SWING ARM,LH | 1 | 0 in warehouse | $135.90 | ||
| 10 | 9010-060900 | ANTI-DUST CAP | 8 | 10+ in warehouse | $8.90 | ||
| 11 | 9010-060004 | BUSHING / WASHER | 8 | 10+ in warehouse | $12.90 | ||
| 12 | 9010-060001 | REAR BEARING CARRIER | 2 | 0 in warehouse | $159.90 | ||
| 13 | 3120100 | NIPPLE, GREASE | 2 | 0 in warehouse | $21.90 | ||
| 14 | 30499-03080 | BEARING HUB DAC3055W | 2 | 0 in warehouse | $62.90 | ||
| 15 | 30800-05505 | CIRCLIP D55 BLACK | 2 | 10+ in warehouse | $4.90 | ||
| 16 | 9010-060005 | MIDDLE SPACER | 4 | 10+ in warehouse | $8.90 | ||
| 17 | 30006-102100840 | BOLT M10X1.25X100 | 4 | 0 in warehouse | $8.90 | ||
| 18 | 9GQ0-060110 | REAR UPPER ARM, LH | 1 | 0 in warehouse | $143.90 | ||
| 19 | 30006-102055840 | BOLT M10X1.25X55 | 4 | 0 in warehouse | $5.90 | ||
| 20 | 9GQ0-060500 | REAR SHOCK ABSORBER | 2 | 0 in warehouse | $450.90 | ||
| 21 | 30006-102070840 | BOLT M10X1.25X70 | 8 | 0 in warehouse | $6.90 | ||
| 22 | 9010-050003 | CAP, BUFFERING COLLAR | 16 | 0 in warehouse | $2.90 | ||
| 23 | 9010-050500 | CUSHION SLEEVE | 16 | 10+ in warehouse | $8.90 | ||
| 24 | 9GQ0-044044 | PANEL, RH REAR SUSPENSION | 1 | 0 in warehouse | $40.90 | ||
| 25 | 9GQ0-060410 | REAR LOWER SWING ARM, RH NLA USE 9GQ0-060410-00002 | 1 | 0 in warehouse | $130.90 | ||
| 25 | 9GQ0-060410-00001 | REAR LOWER SWING ARM,RH | 1 | 0 in warehouse | $157.90 | ||
| 26 | 9GQ0-060310 | REAR UPPER ARM RH | 1 | 0 in warehouse | $143.90 | ||
| 27 | 9010-060800-1000 | BALL PIN RH | 1 | 0 in warehouse | $90.90 | ||
