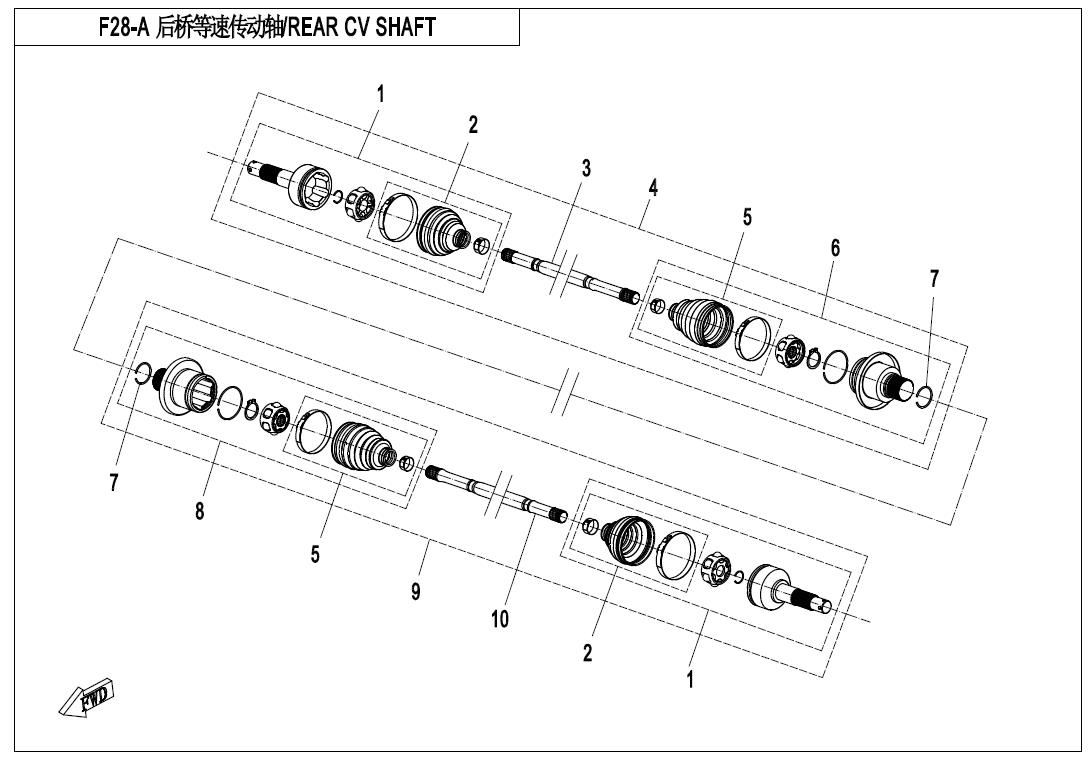

F28-A - REAR CV SHAFT (SPS)
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9CR6-280170 | JOINT, REAR FIXED END | 2 | 0 in warehouse | $205.90 | ||
| 2 | 7000-280260 | DUST BOOT, FIXED END | 2 | 0 in warehouse | $72.90 | ||
| 3 | 9GQ0-280206 | REAR SHAFT,RH | 1 | 0 in warehouse | $97.90 | ||
| 4 | 9GQ0-280200 | REAR CV DRIVE SHAFT,RH | 1 | 0 in warehouse | $442.90 | ||
| 5 | 7000-280250 | DUST BOOT, MOTION END | 2 | 0 in warehouse | $72.90 | ||
| 6 | 7000-280140 | BEARING KIT, MOTION END,LH | 1 | 0 in warehouse | $250.90 | ||
| 7 | 9010-280102-00001 | WIRE CIRCLIP | 2 | 0 in warehouse | $4.90 | ||
| 8 | 7000-280240 | BEARING KIT, MOTION END,RH | 1 | 0 in warehouse | $250.90 | ||
| 9 | 9GQ0-280100 | REAR CV DRIVE SHAFT,LH | 1 | 0 in warehouse | $442.90 | ||
| 10 | 9GQ0-280106 | REAR SHAFT,LH | 1 | 0 in warehouse | $97.90 | ||
