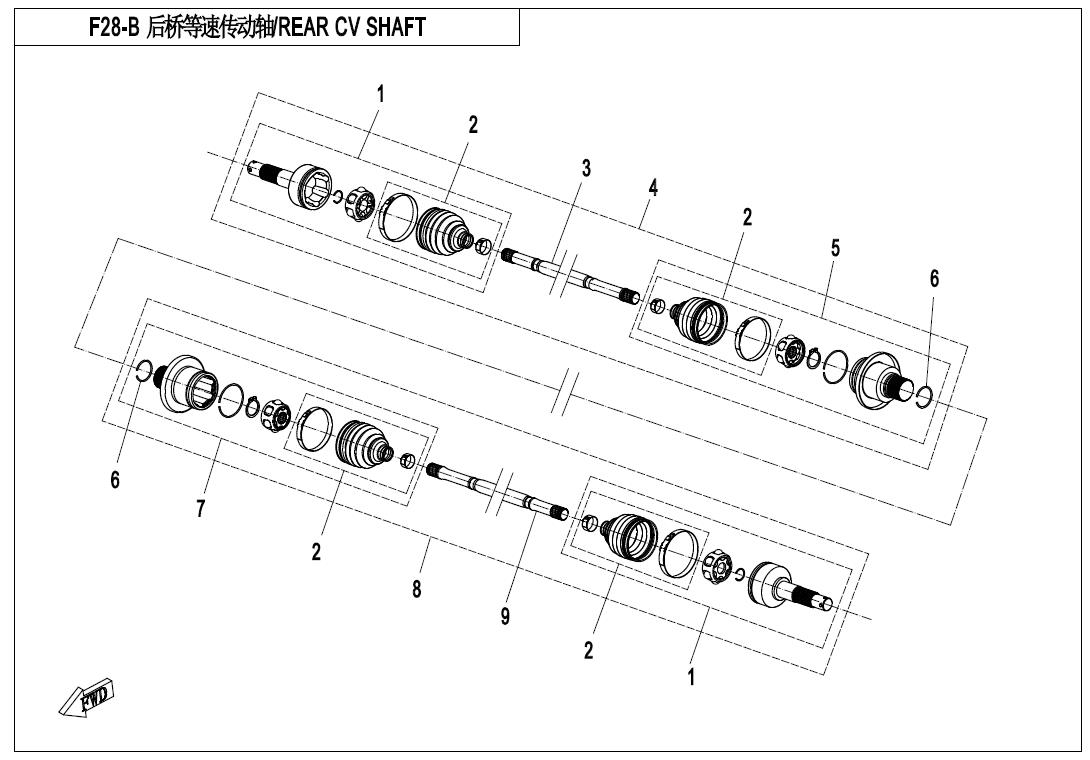

F28-B - REAR CV SHAFT (ODN)
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 9GQ0-280170 | BEARING KIT, FIXED END | 2 | 4 in warehouse | $329.90 | ||
| 2 | 9GQ0-280150 | DUST BOOT, FIXED END | 4 | 10+ in warehouse | $59.90 | ||
| 3 | 9GQ0-280206-40000 | REAR SHAFT,LH | 1 | 0 in warehouse | $87.90 | ||
| 4 | 9GQ0-280200-40000 | REAR CV DRIVE SHAFT,RH | 1 | 0 in warehouse | $420.90 | ||
| 5 | 9GQ0-280240 | BEARING KIT, REAR MOTION END(RH) | 1 | 0 in warehouse | $384.90 | ||
| 6 | 9010-280102-00001 | WIRE CIRCLIP | 2 | 0 in warehouse | $4.90 | ||
| 7 | 9GQ0-280140 | BEARING KIT, REAR LH MOTION END | 1 | 0 in warehouse | $101.90 | ||
| 8 | 9GQ0-280100-40000 | REAR CV DRIVE SHAFT,LH | 1 | 0 in warehouse | $419.90 | ||
| 9 | 9GQ0-280106-40000 | REAR SHAFT,RH | 1 | 0 in warehouse | $87.90 | ||
