Genuine Parts Diagrams for 2015 CF500 & X500 SWB - CF500-5Change Model
Showing 66 parts diagrams.
F01

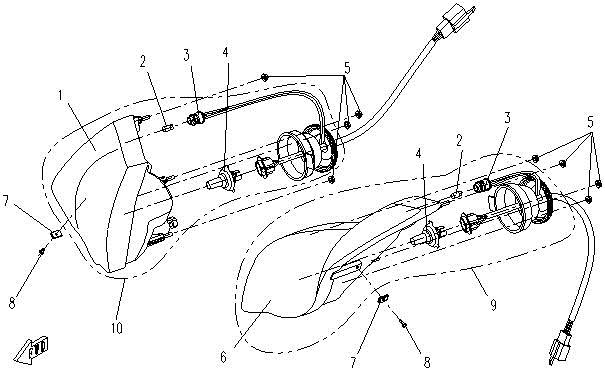

HEADLIGHT
F02-2
FRONT TURN LIGHT (BUMPER WITHOUT DECORATION COVER )
F03

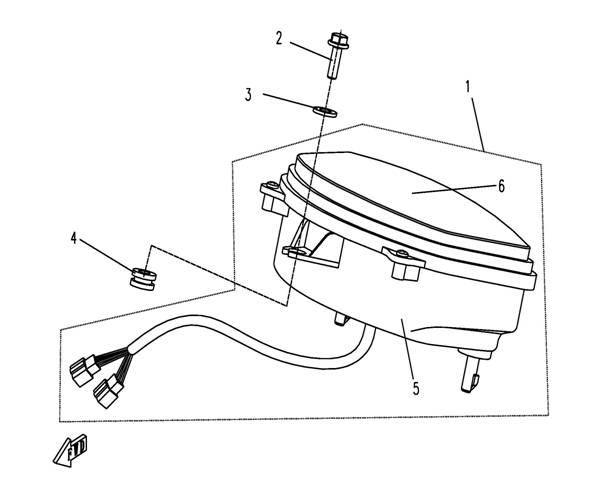

DASHBOARD
F04

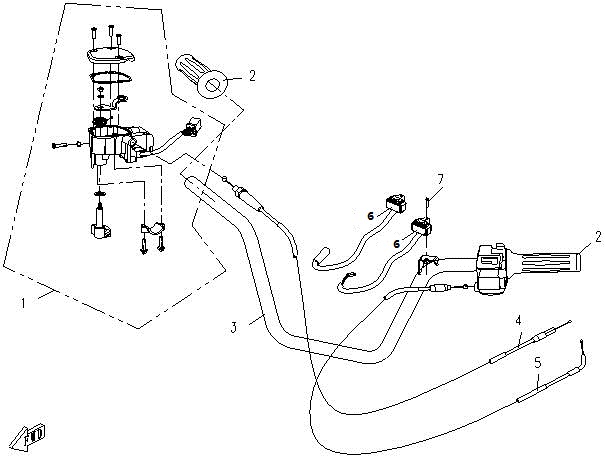

HANDLEBAR -1
F05
HANDLEBAR -2

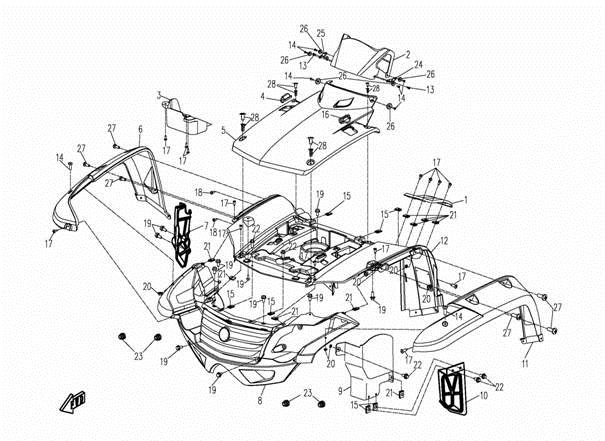

F06

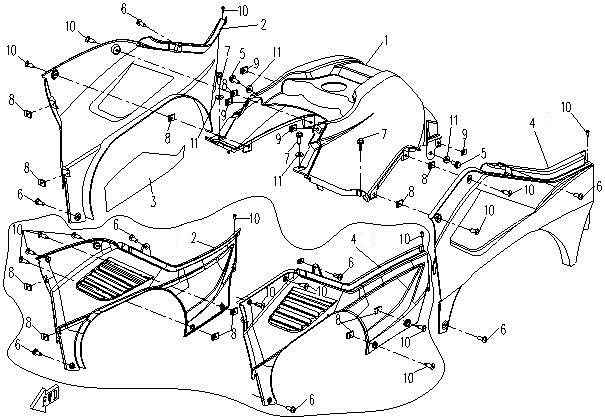

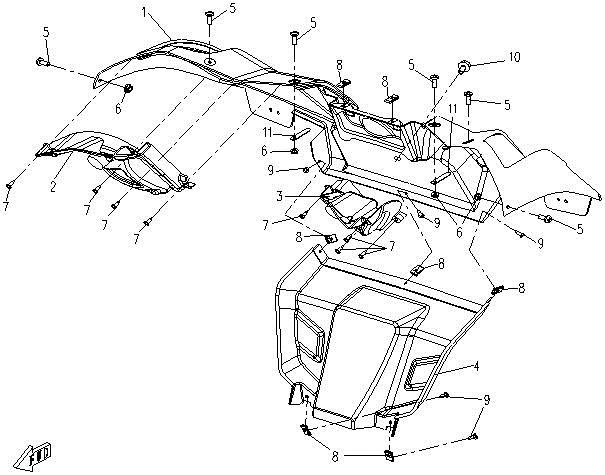

PLASTICS-1

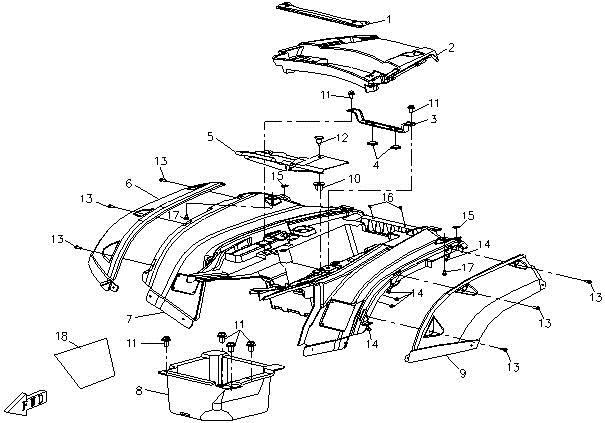

F07
PLASTICS-2
F08

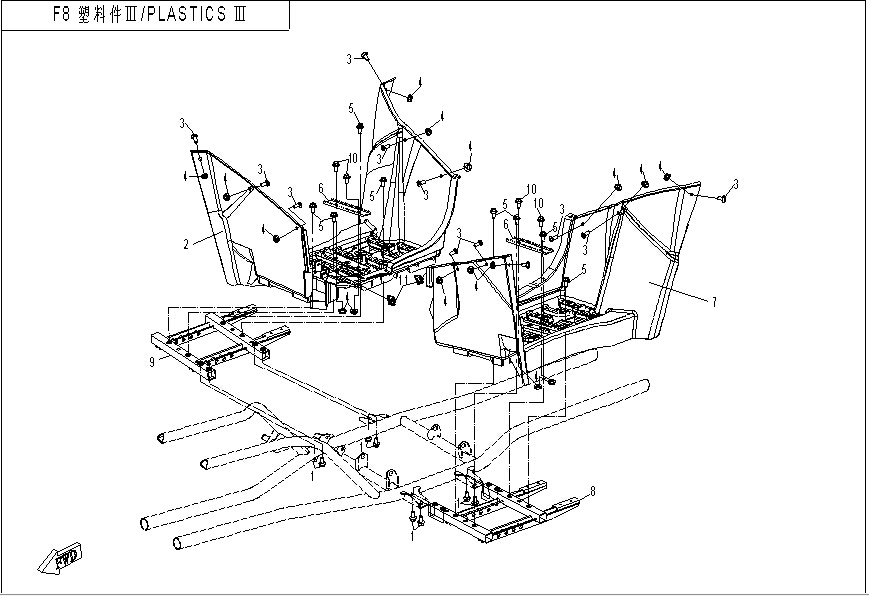

PLASTICS-3
F09
PLASTICS-4
F10
PLASTICS-5
F11-1

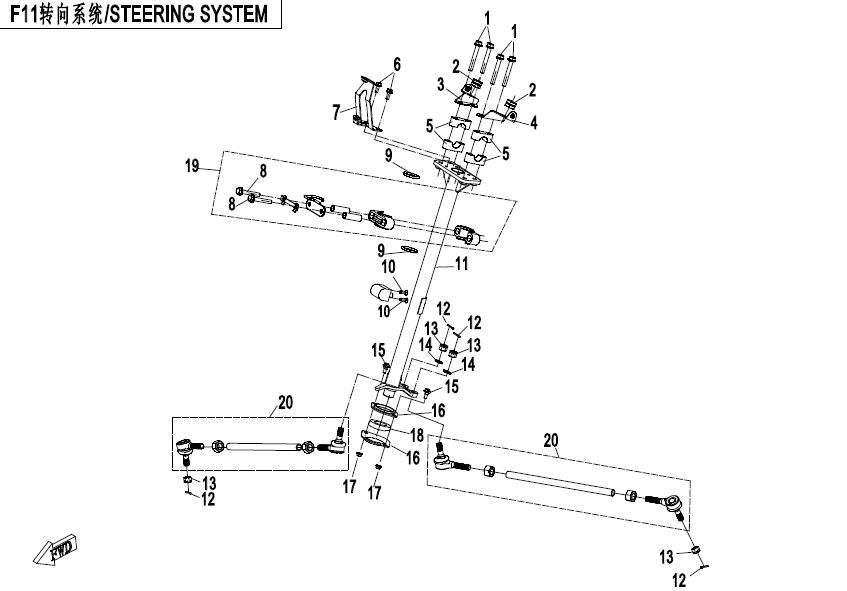

STEERING SYSTEM

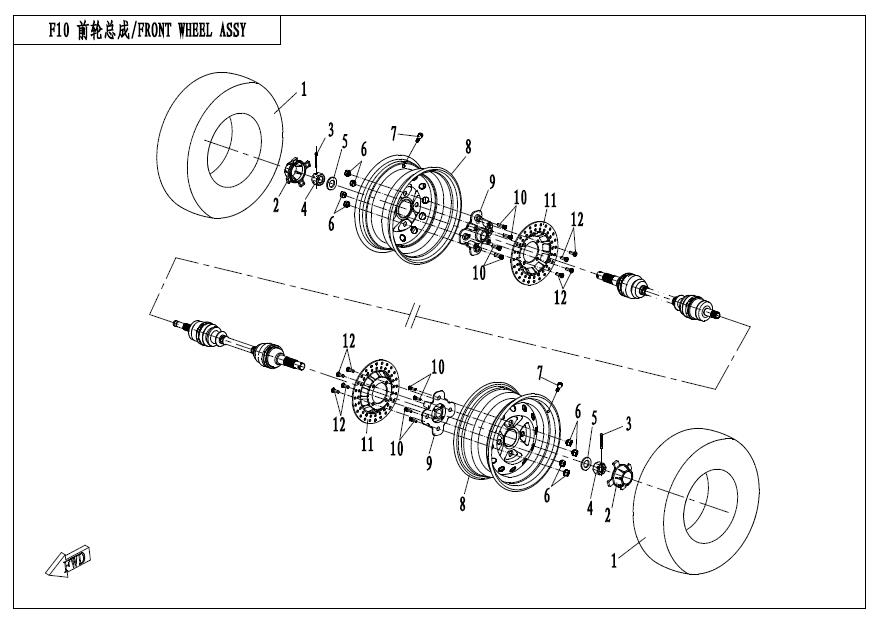

F12
FRONT WHEEL ASSY
F13
REAR WHEEL ASSY
F14

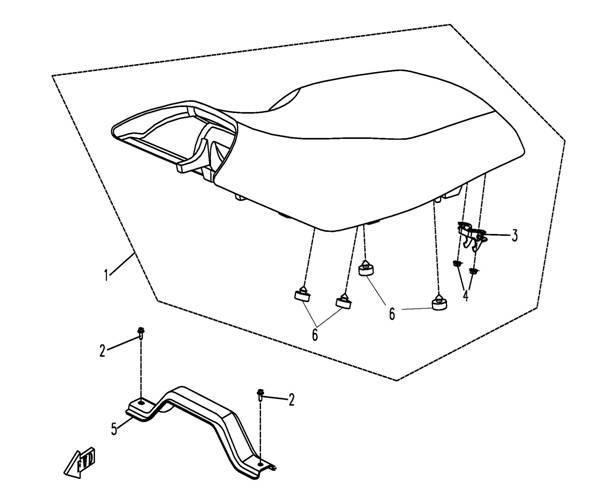

SEAT ASSY
F15

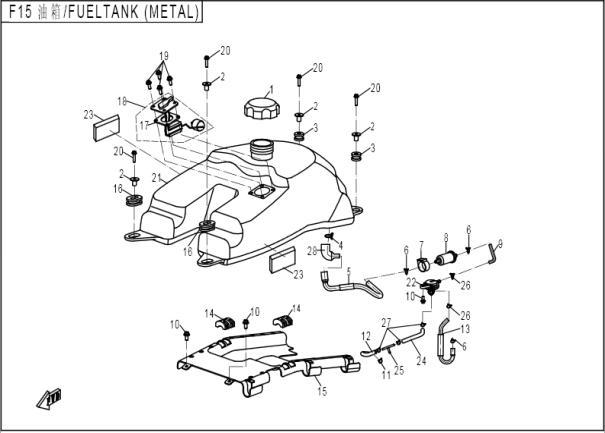

FUEL TANK

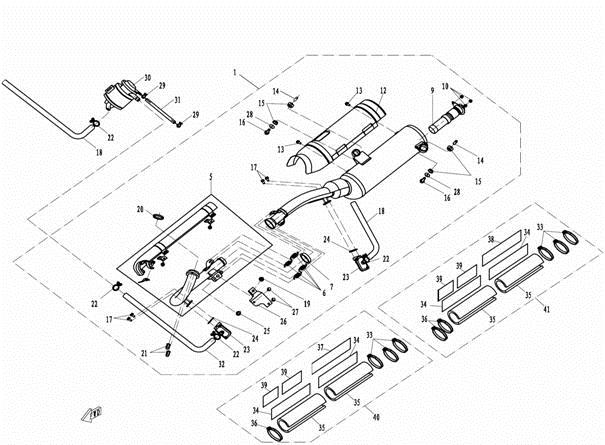

F16
MUFFLER COMP

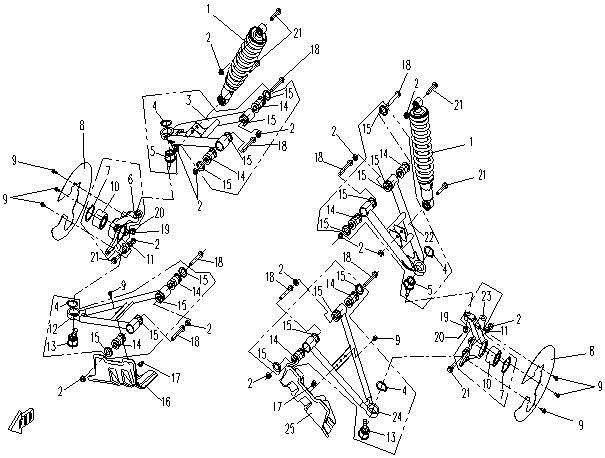

F17
FRONT SUSPENSION
F18

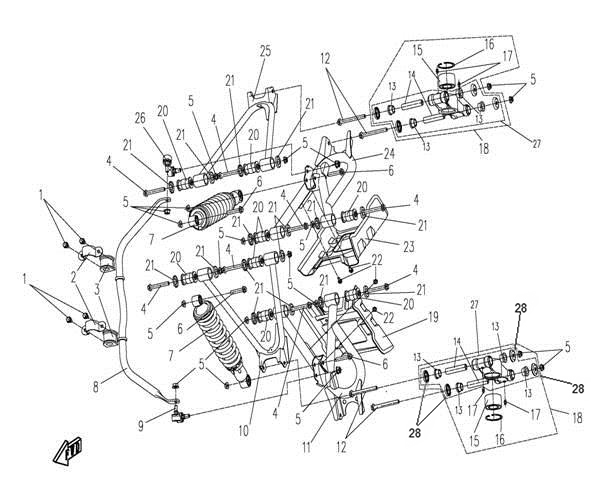

REAR SUSPENSION

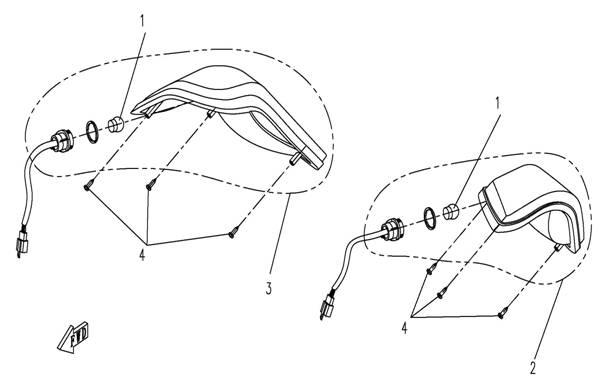

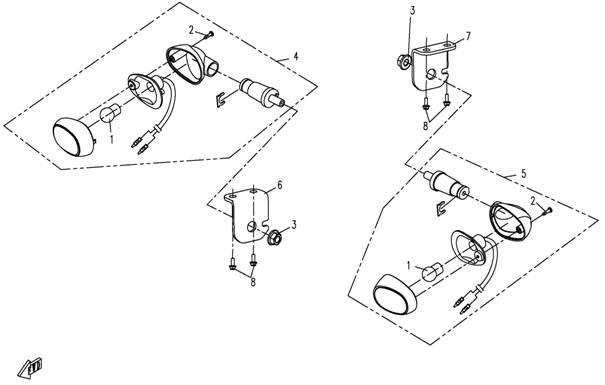

F19
REAR TURN LIGHT
F20

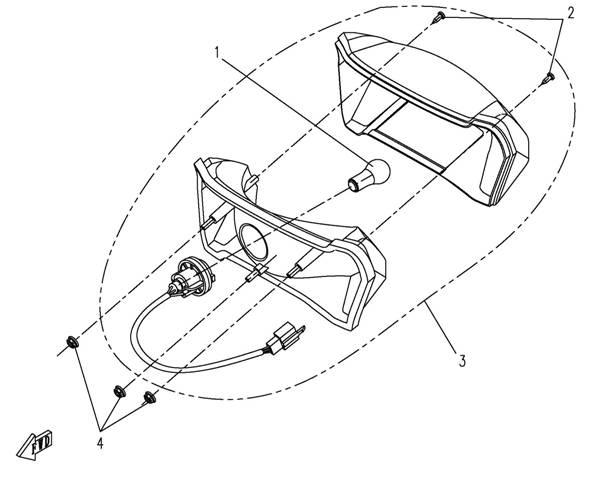

TAIL LIGHT
F21

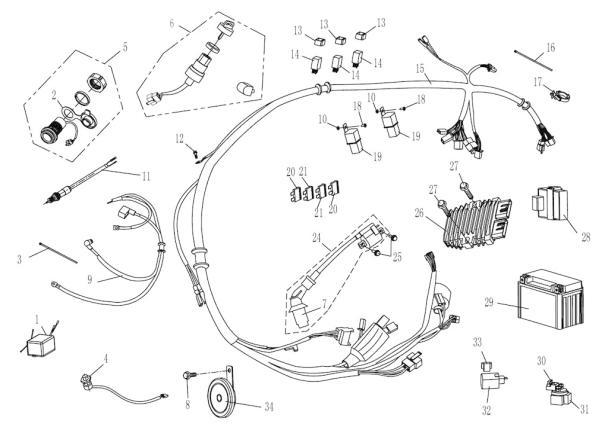

ELECTRIC SYSTEM (CARB.)
F22

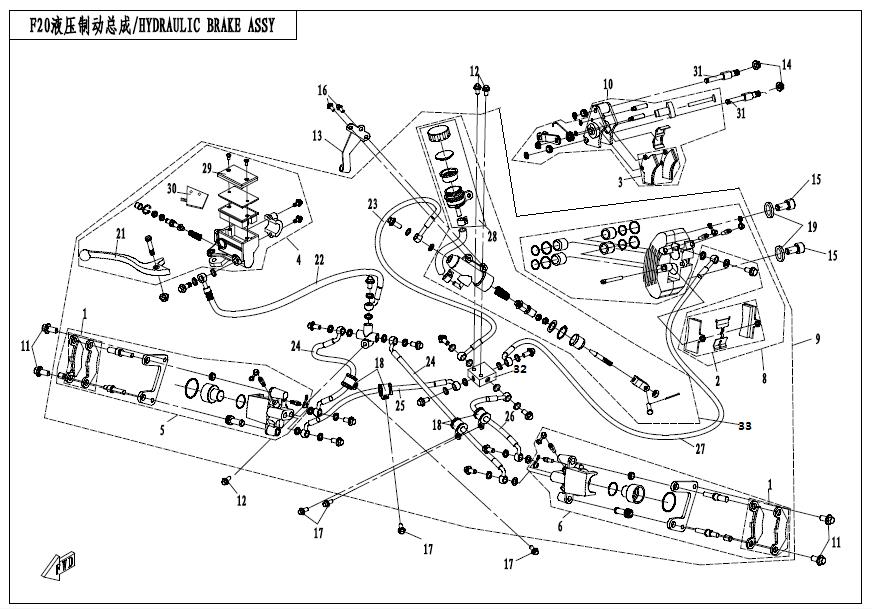

HYDRAULIC BRAKE SYSTEM
F23

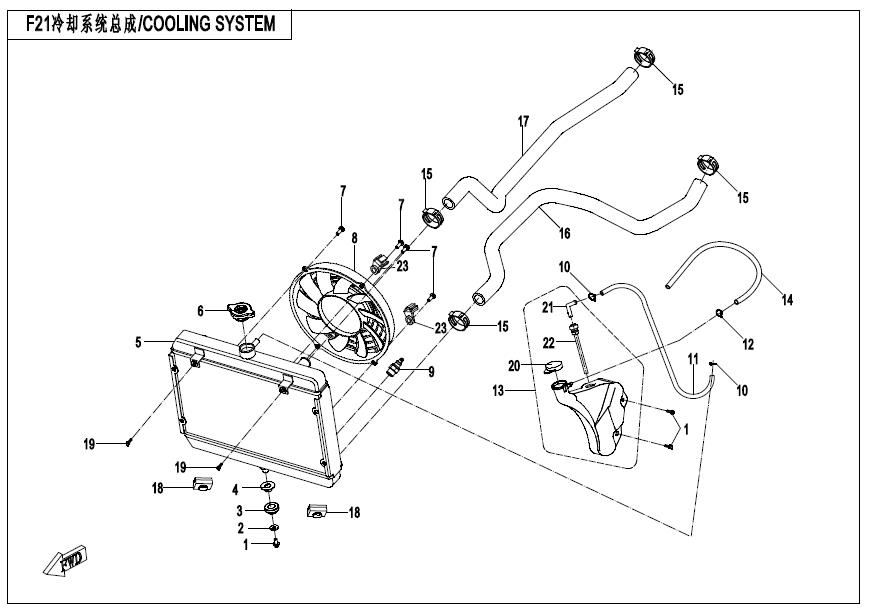

COOLING SYSTEM
F24

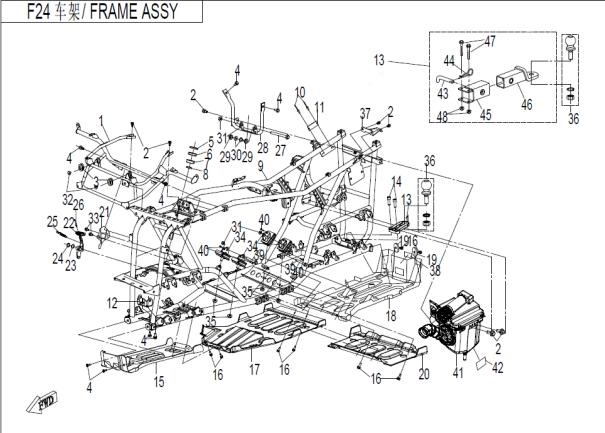

FRAME

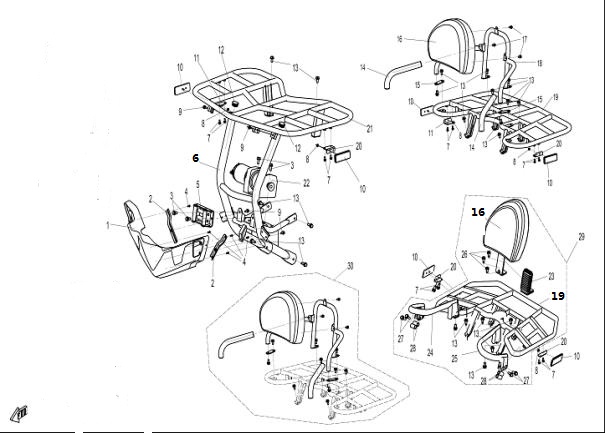

F25
RACK&BUMPER

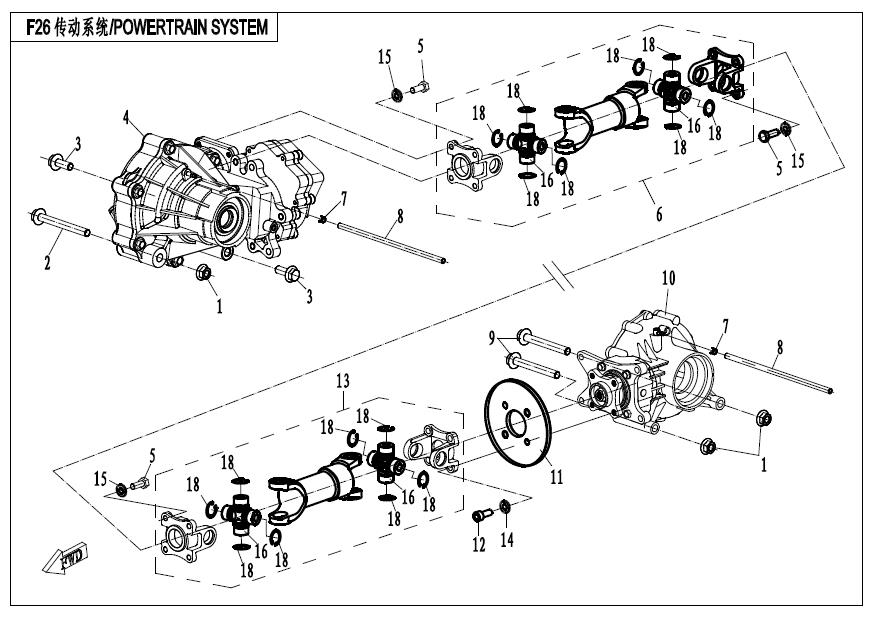

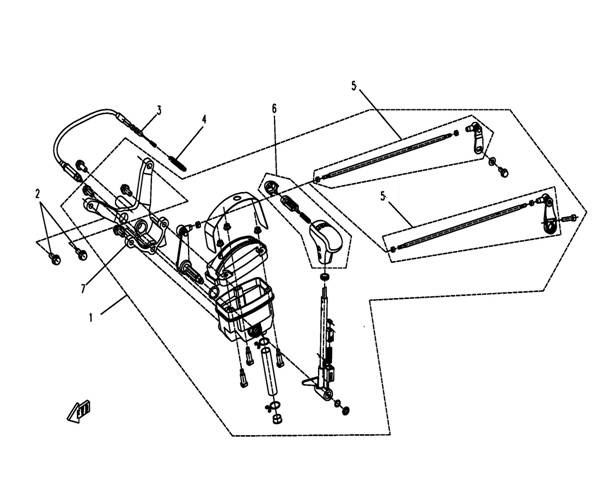

F26

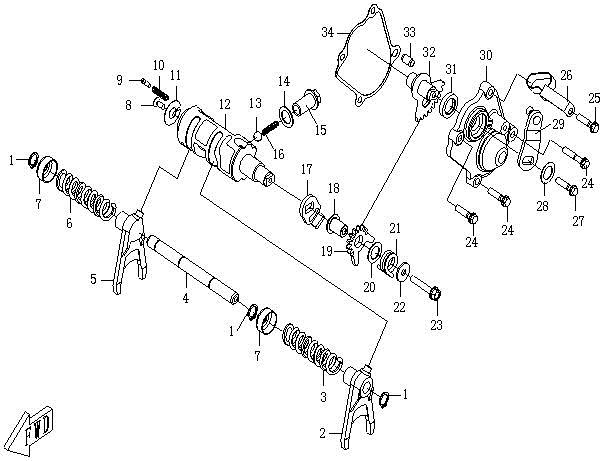

GEAR SHIFTING

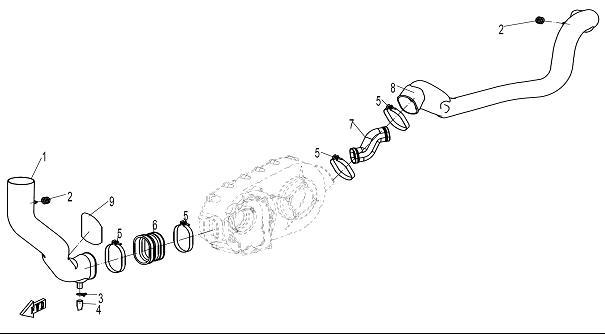

F27-1
CVT COOLING SYSTEM
F28-1
TRANSMISSION SYSTEM (OLD)
F28-2
TRANSMISSION SYSTEM (NEW)
F29

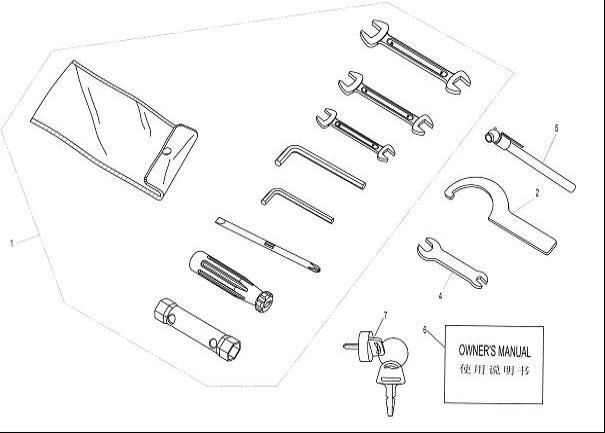

TOOLS

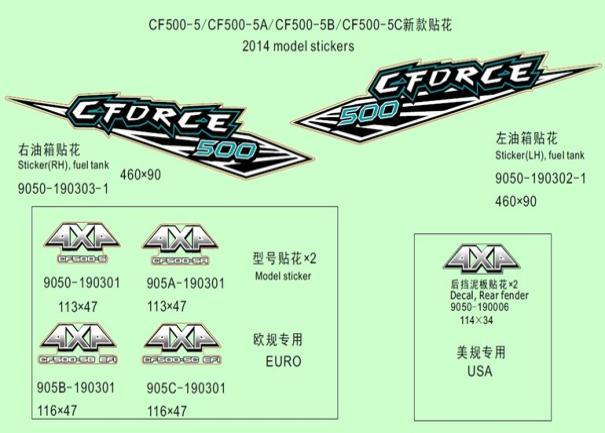

F30
STICKERS

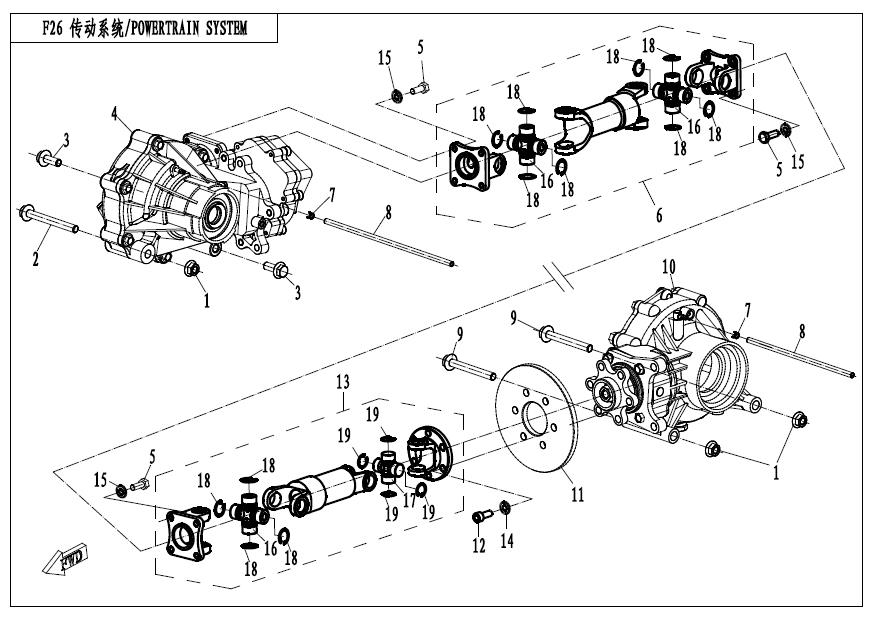

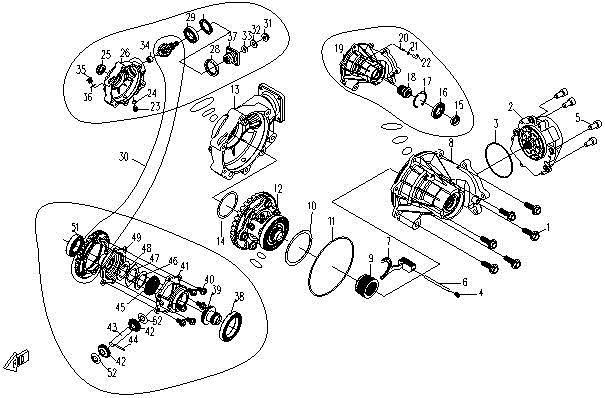

F31
FRONT AXLE
F32

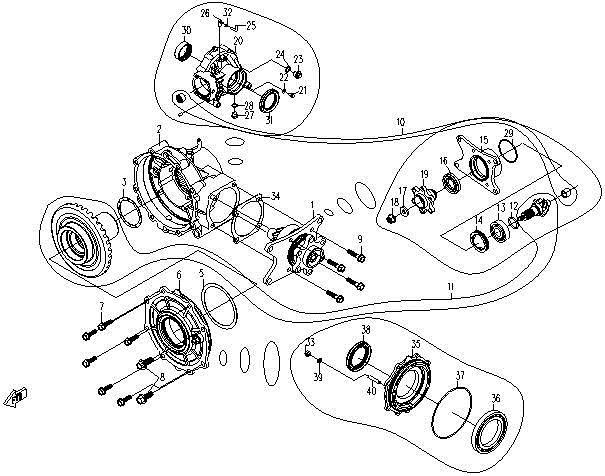

REAR AXLE

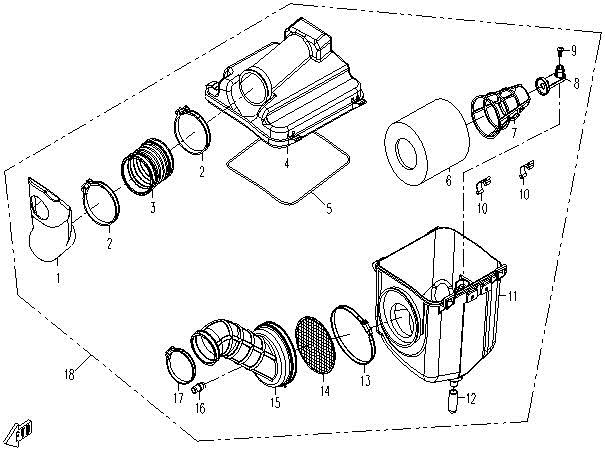

F33
AIR FILTER ASSY

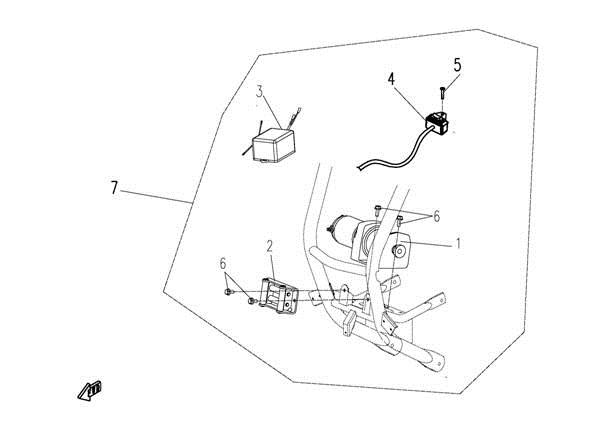

F35
WINCH ASSY
F36-1

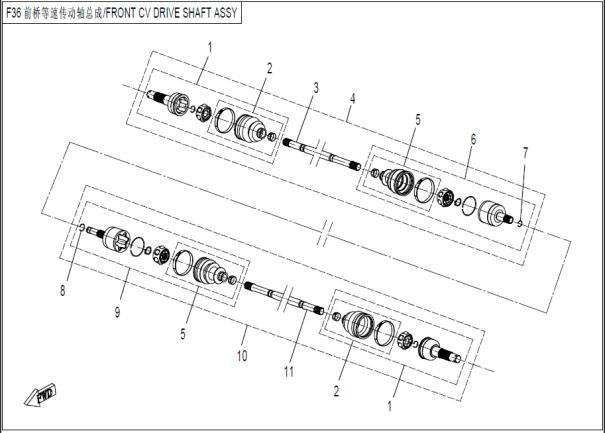

FRONT CV DRIVE SHAFT ASSY
F36-2
FRONT CV DRIVE SHAFT ASSY
F37-1

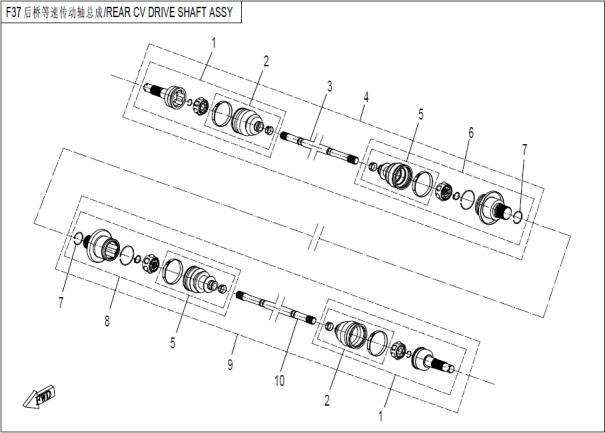

REAR CV DRIVE SHAFT ASSY
F37-2
REAR CV DRIVE SHAFT ASSY
E01

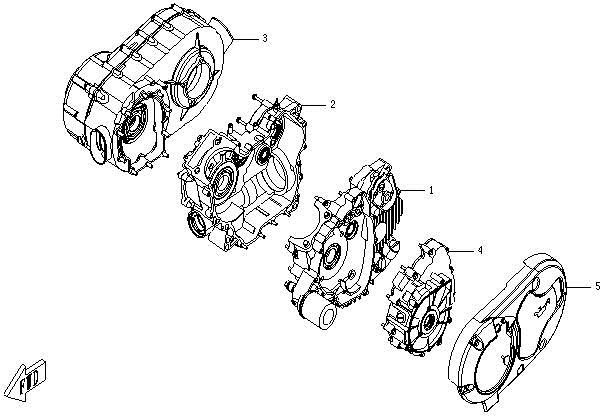

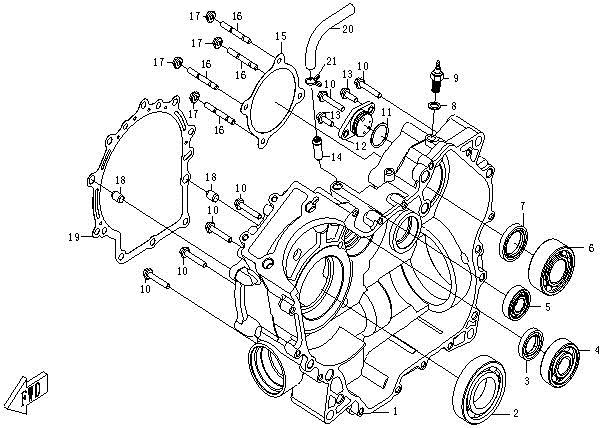

CRANKCASE ASSY
E02
LEFT CRANKCASE
E03

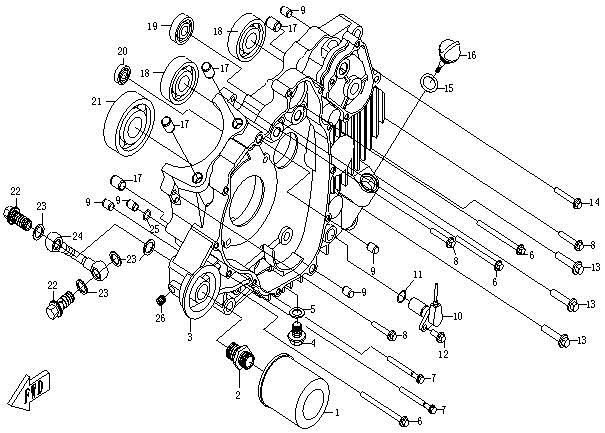

RIGHT CRANKCASE

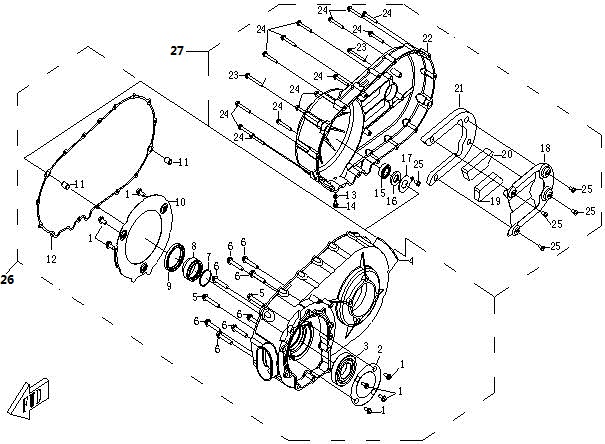

E04
CVT HOUSING
E05
CRANKCASE COVER (LEFT)

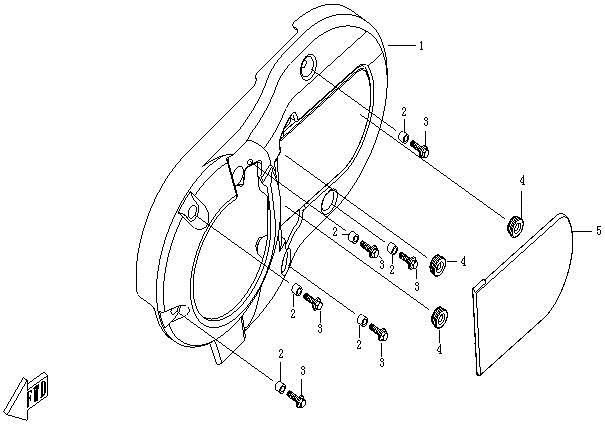

E06-1

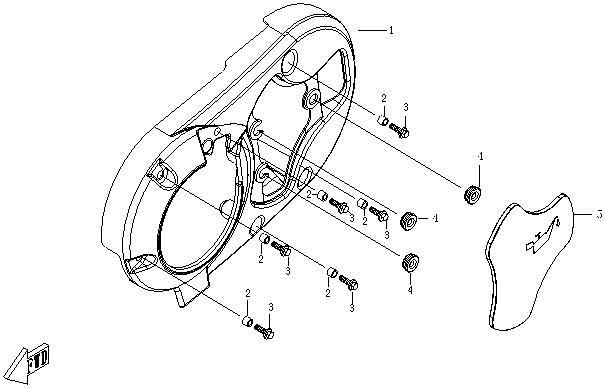

LEFT SIDE COVER ASSY
E06-2
LEFT SIDE COVER ASSY(GOES)
E07

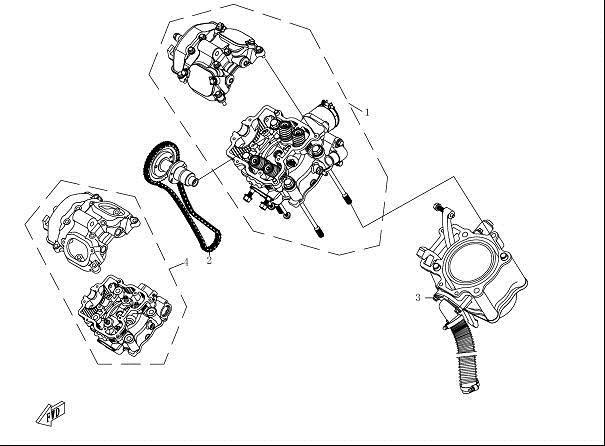

CYLINDER HEAD & CYLINDER ASSY.
E08
CYLINDER HEAD COVER

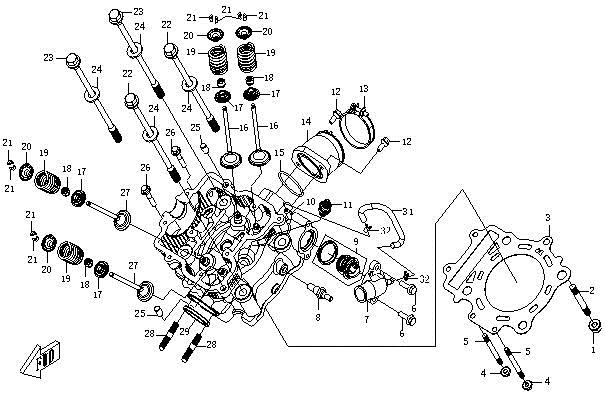

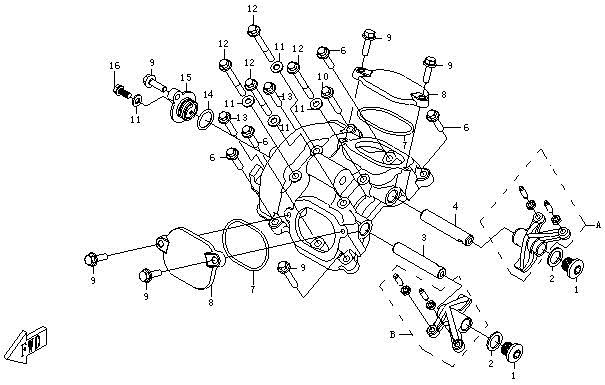

E09
CYLINDER HEAD

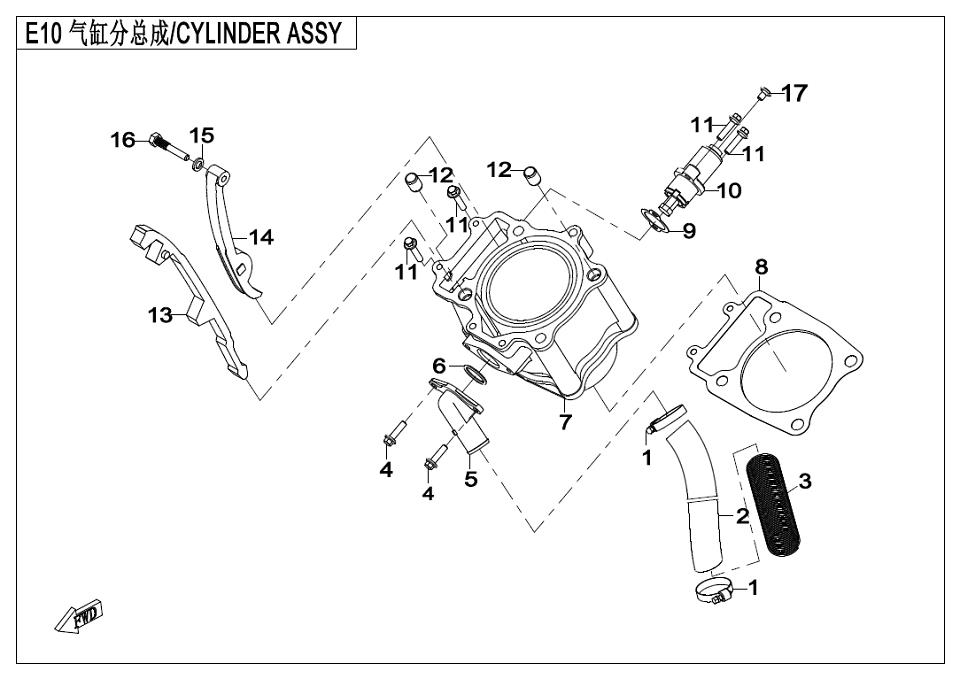

E10
CYLINDER BODY
E11

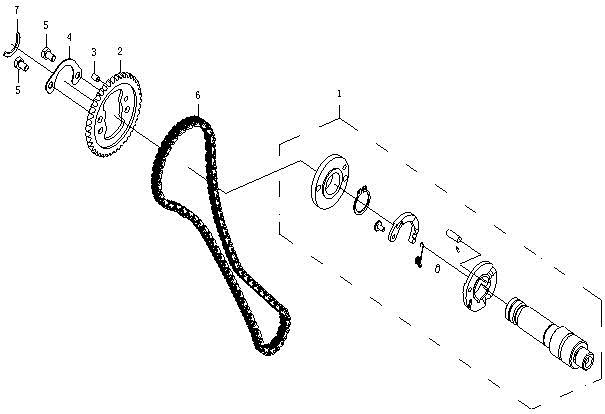

CAMSHAFT ASSY.
E12

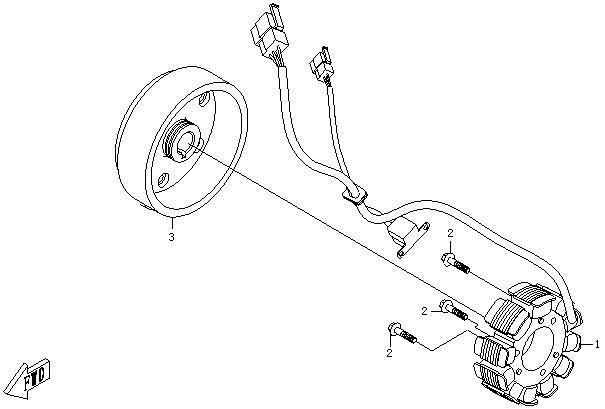

MAGNETO STATOR ASSY.
E13
CRANKSHAFT, PISTON, BALANCER

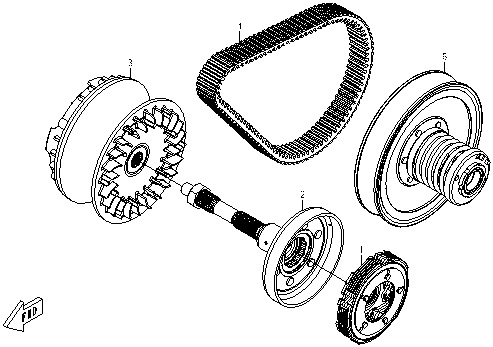

E14
CLUTCH & CVT
E15

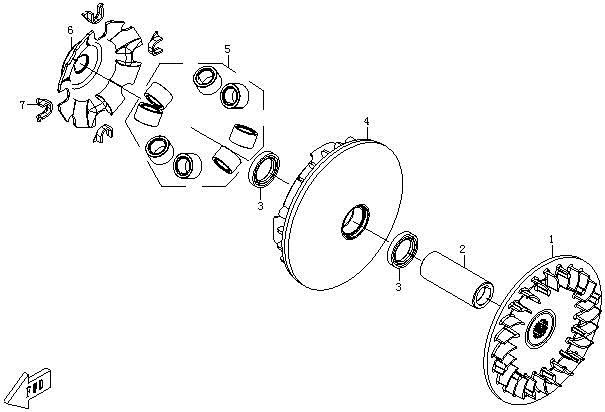

PRIMARY SHEAVE
E16
SECONDARY SHEAVE
E17

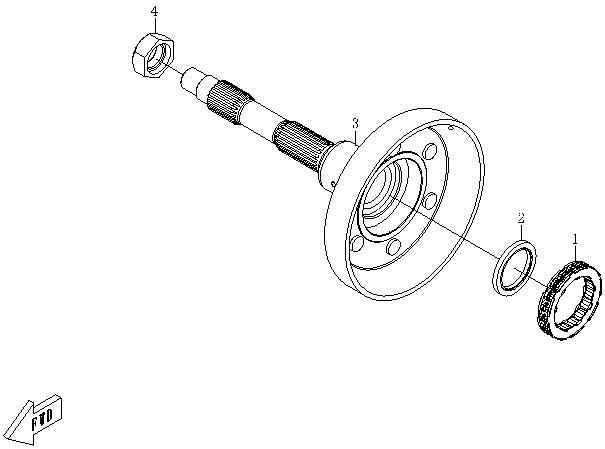

CLUTCH HOUSING

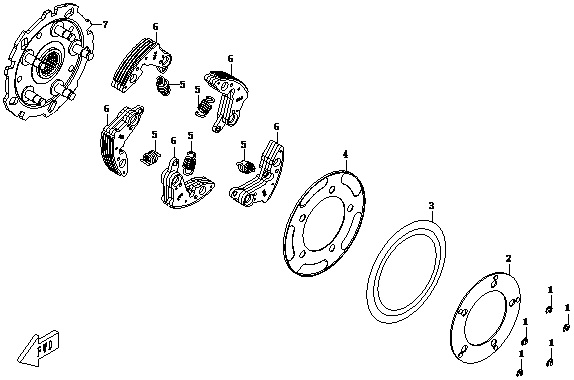

E18
CLUTCH ASSY.

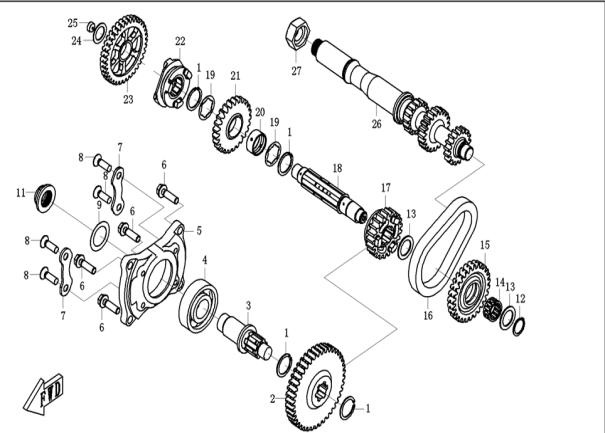

E19
TRANSMISSION I
E20
TRANSMISSION II
E21

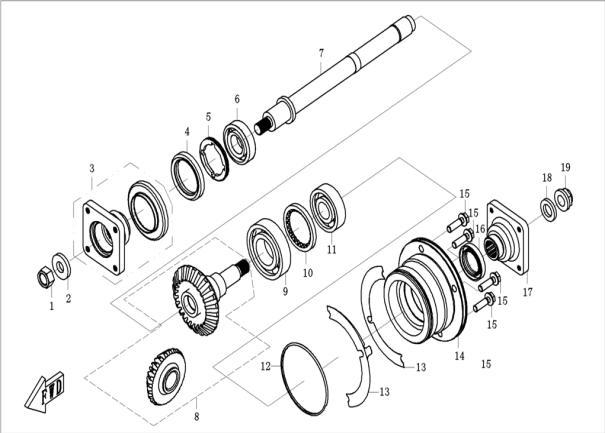

TRANSMISSION III

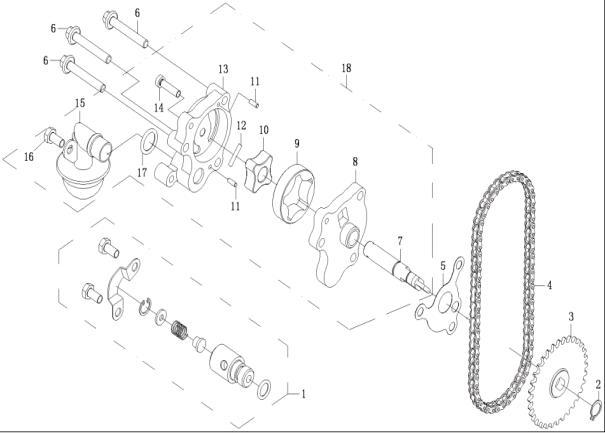

E22
OIL PUMP

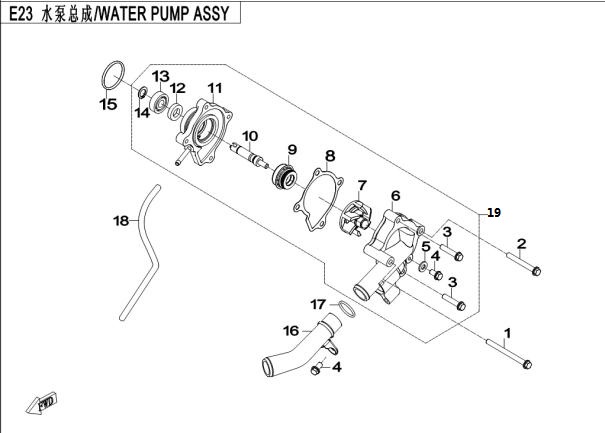

E23
WATER PUMP ASSY.

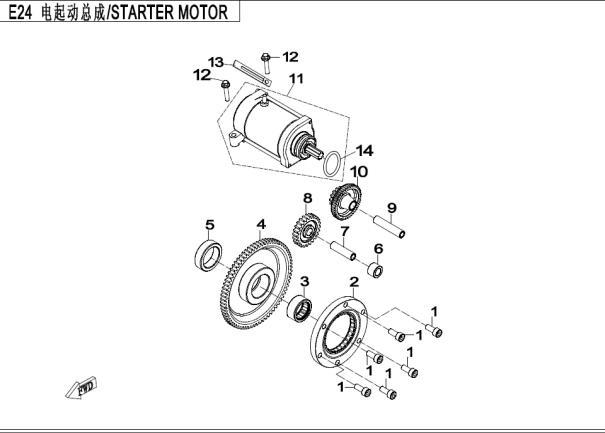

E24
STARTING MOTOR
E25

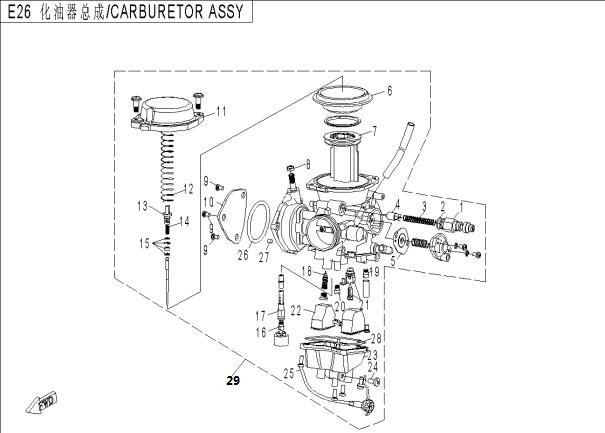

RECOIL STARTER
