Genuine Parts Diagrams for 2014 X550 EPS - CF500AU-6LChange Model
Showing 58 parts diagrams.
F00-1

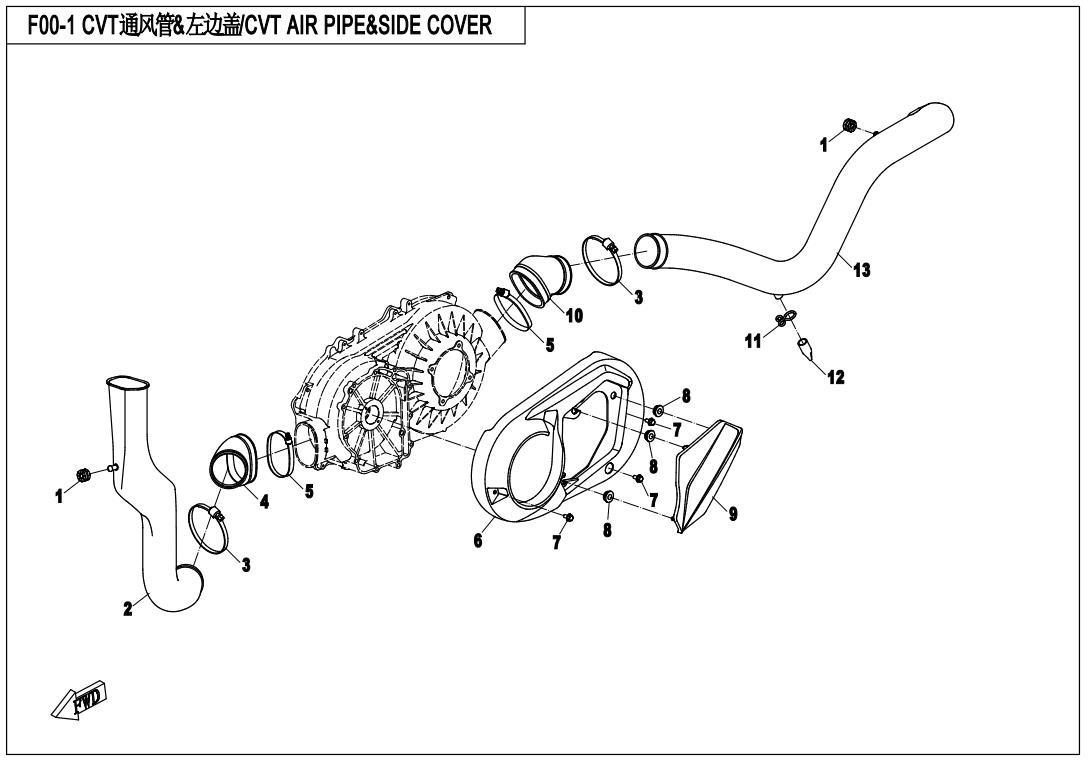

CVT AIR PIPE&SIDE COVER

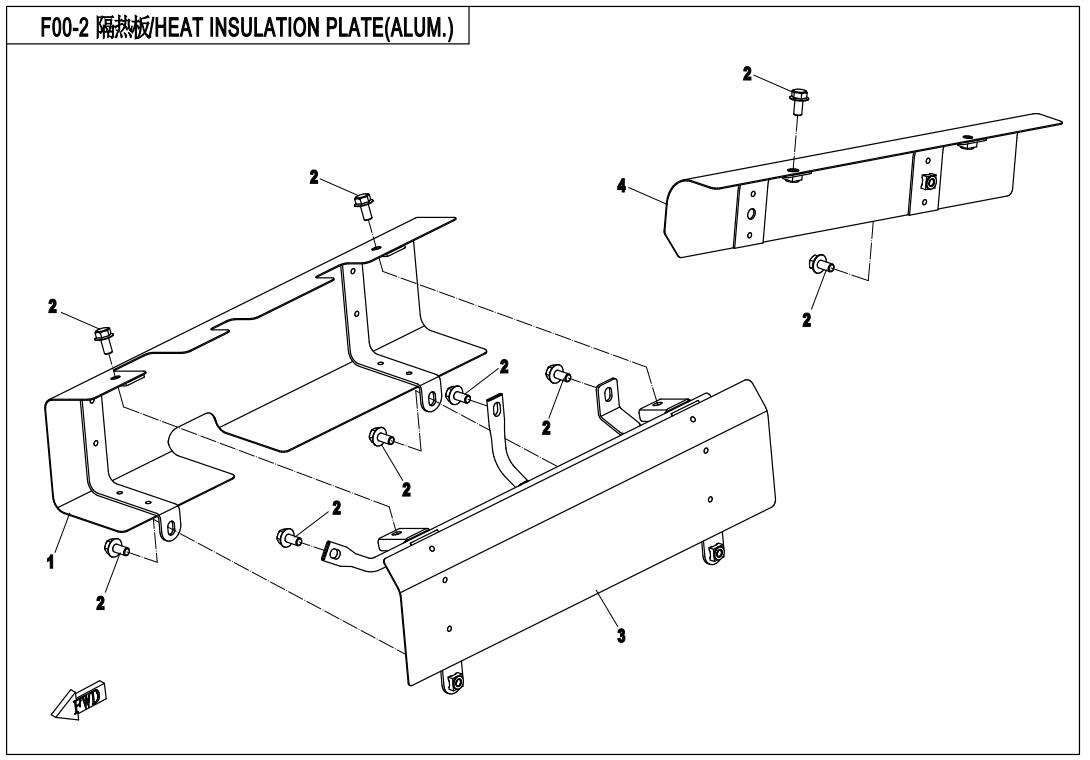

F00-2
HEAT INSULATION PLATE(ALUM.)

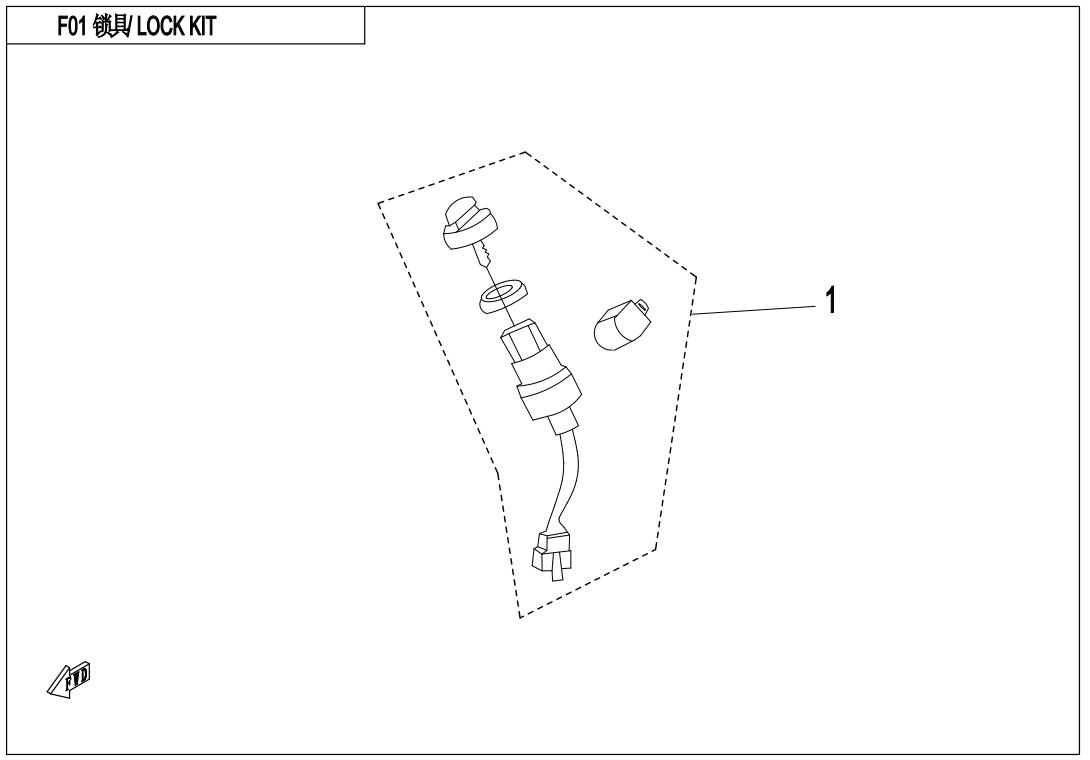

F01
LOCK KIT

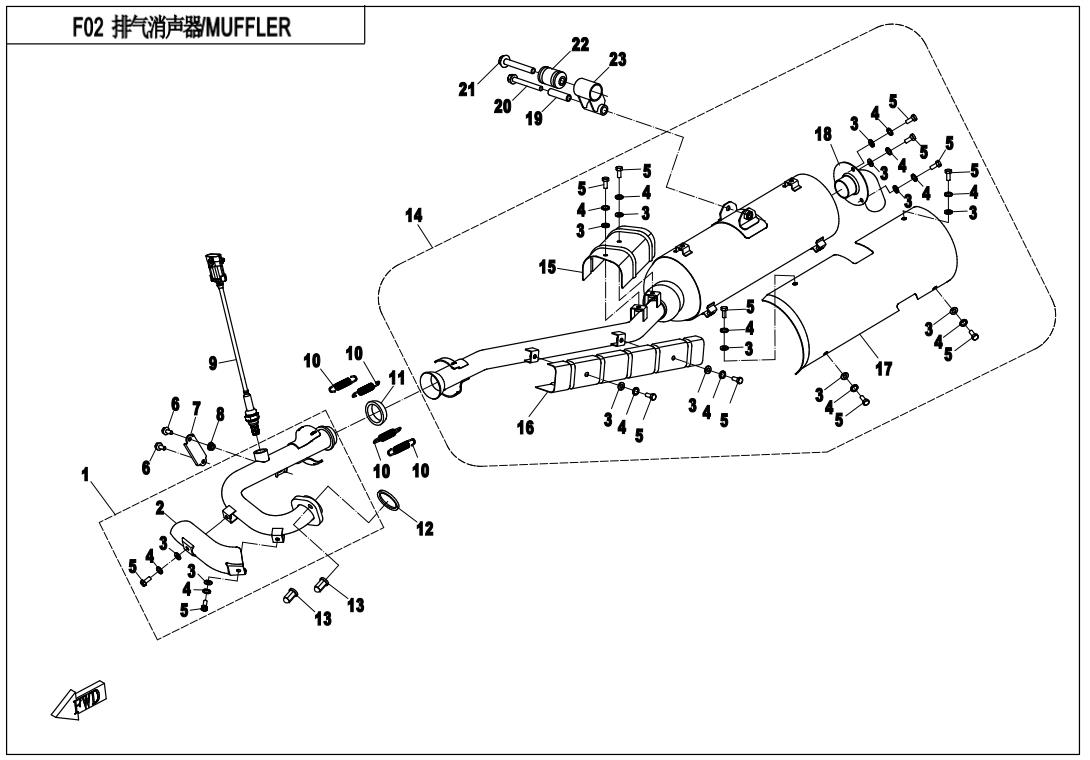

F02
MUFFLER
F03

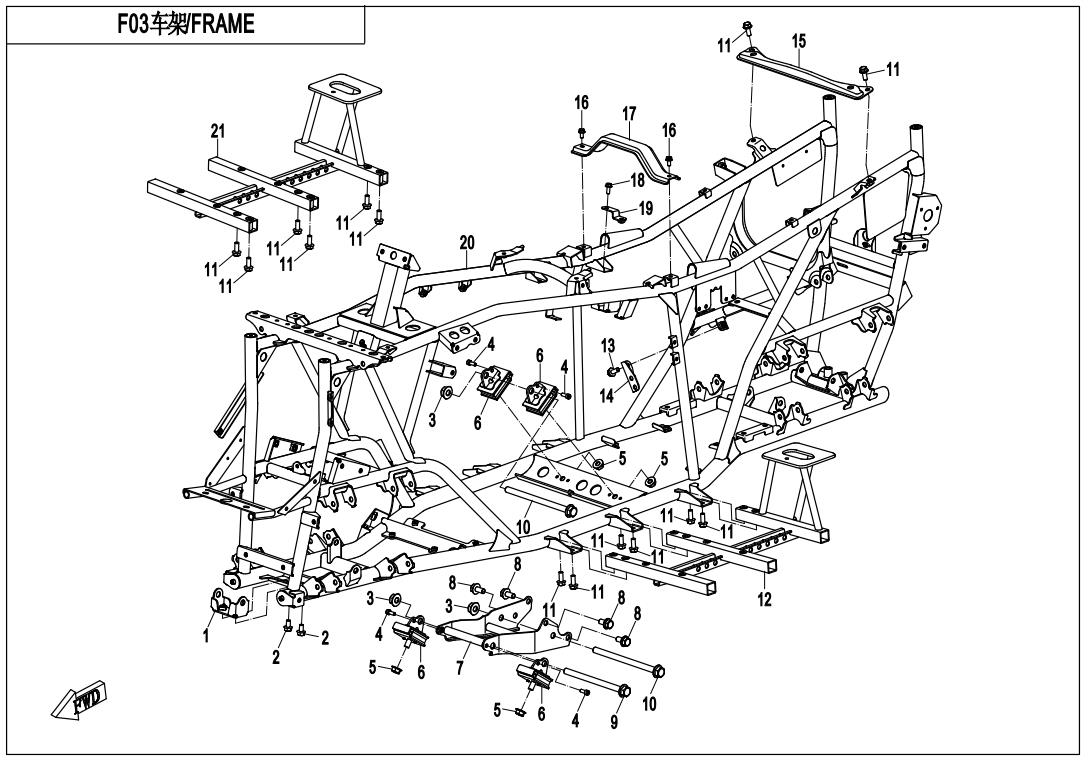

FRAME

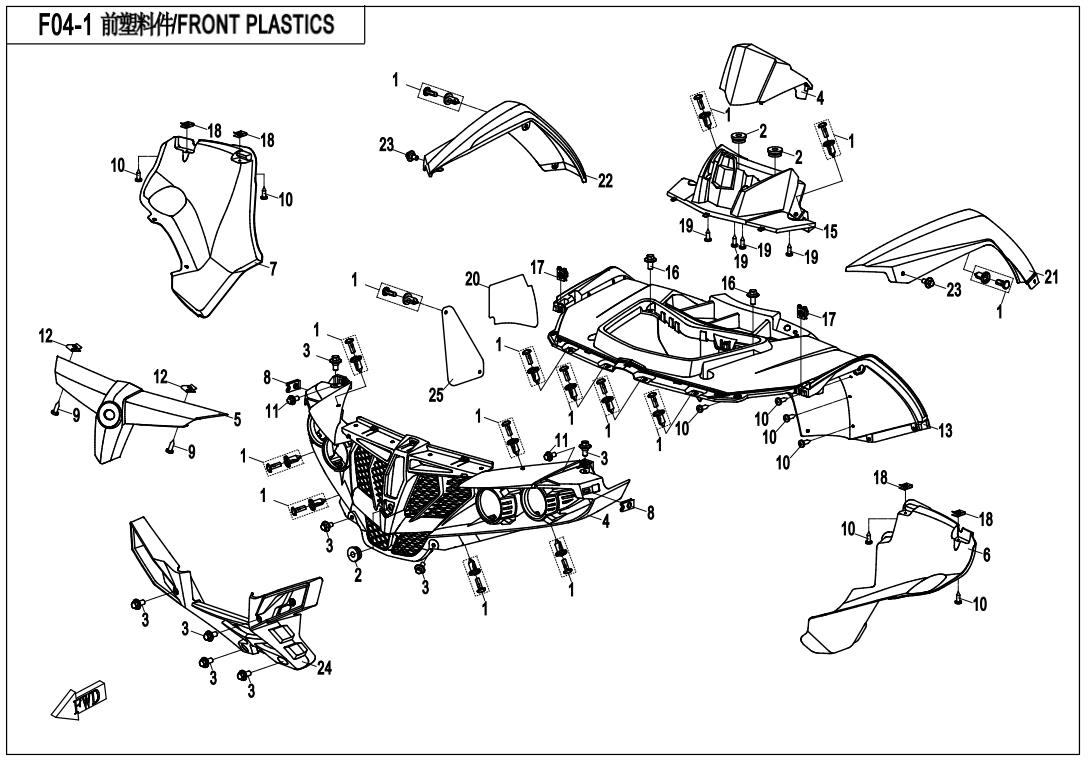

F04-1
FRONT PLASTICS
F04-2
MIDDLE PLASTICS
F04-3

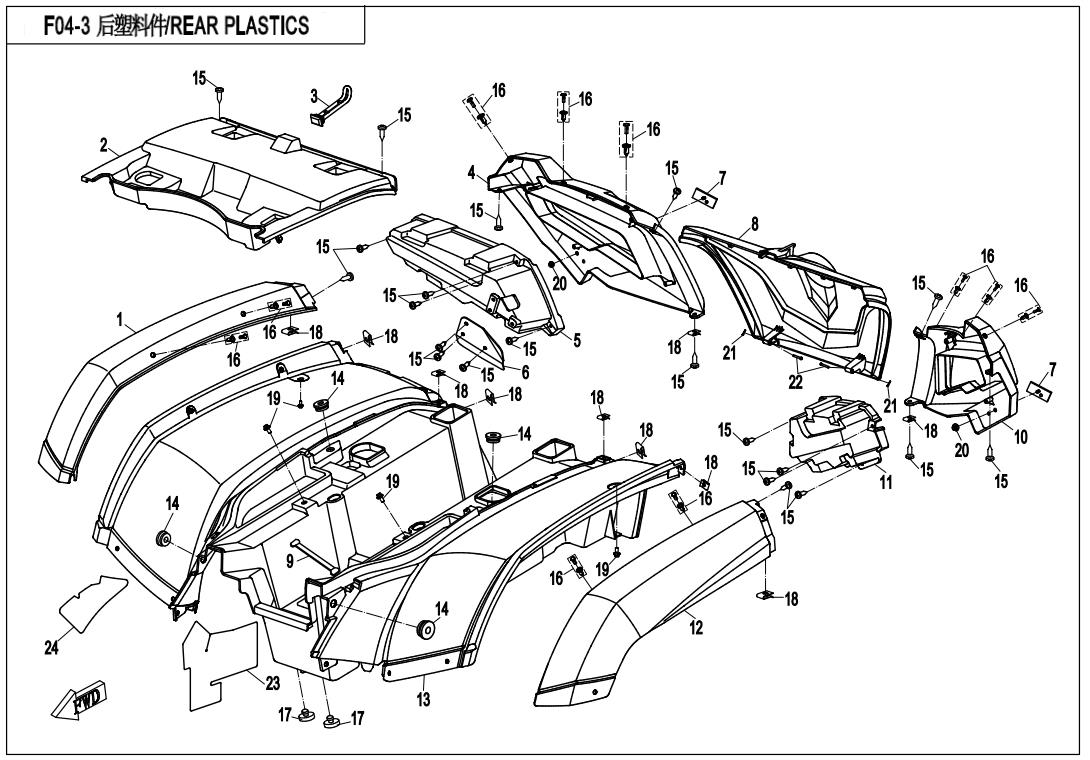

REAR PLASTICS

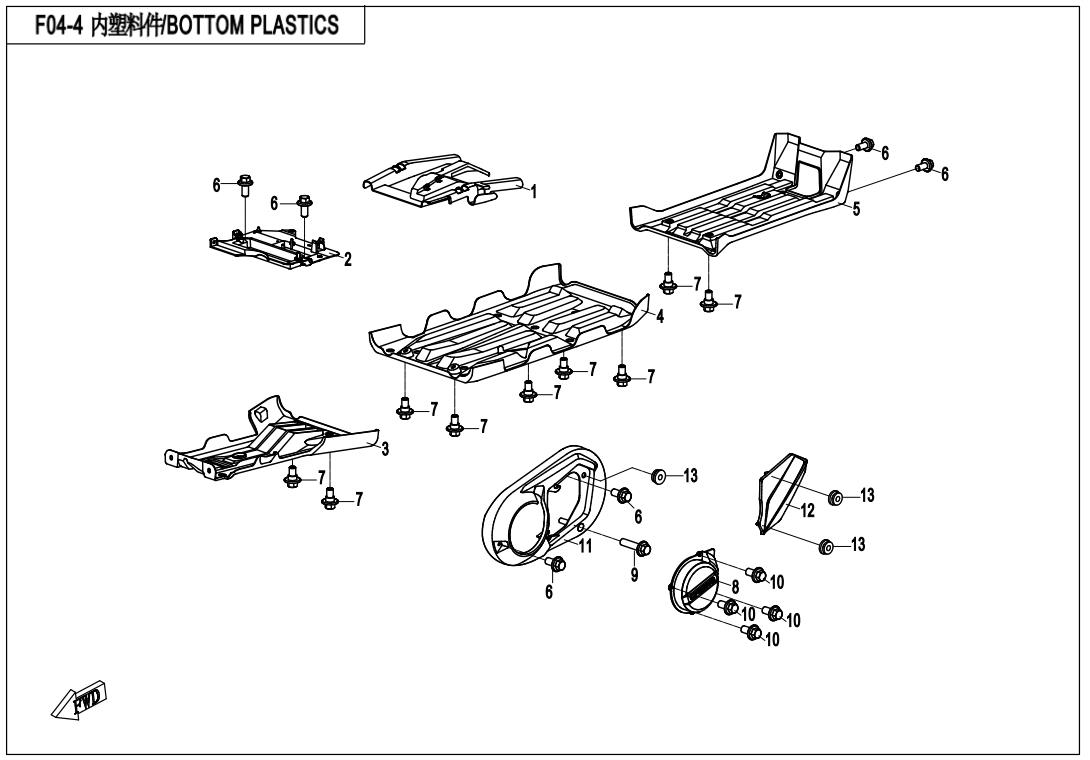

F04-4
BOTTOM PLASTICS
F05

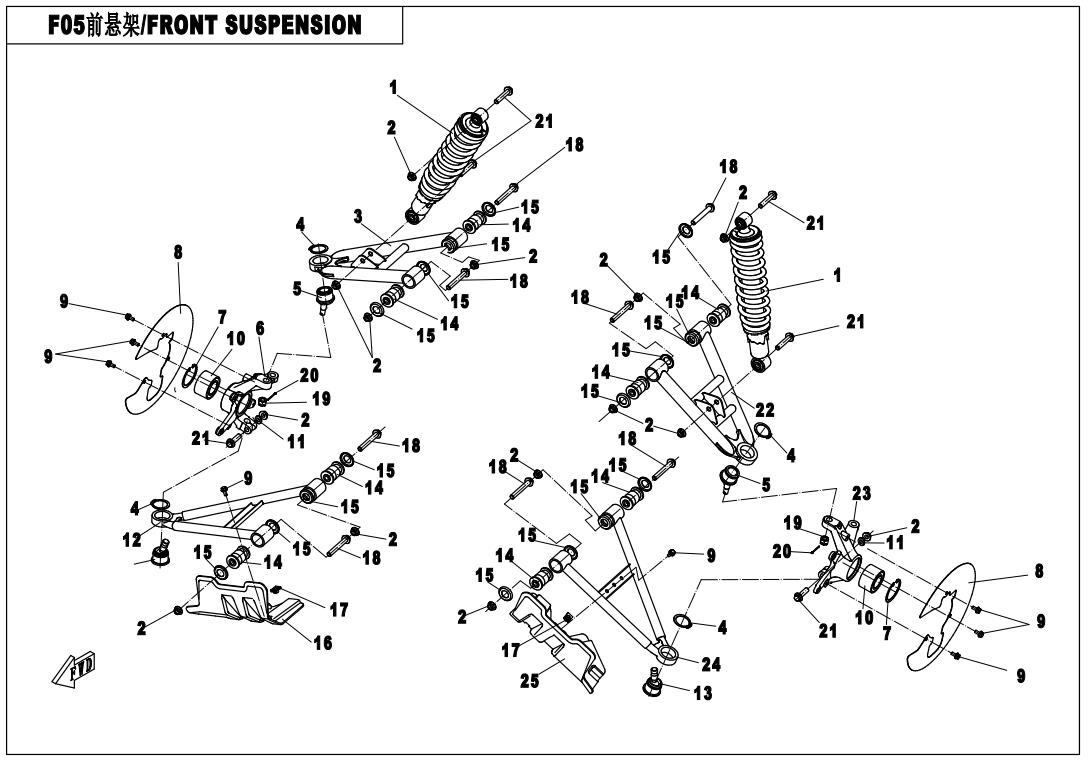

FRONT SUSPENSION

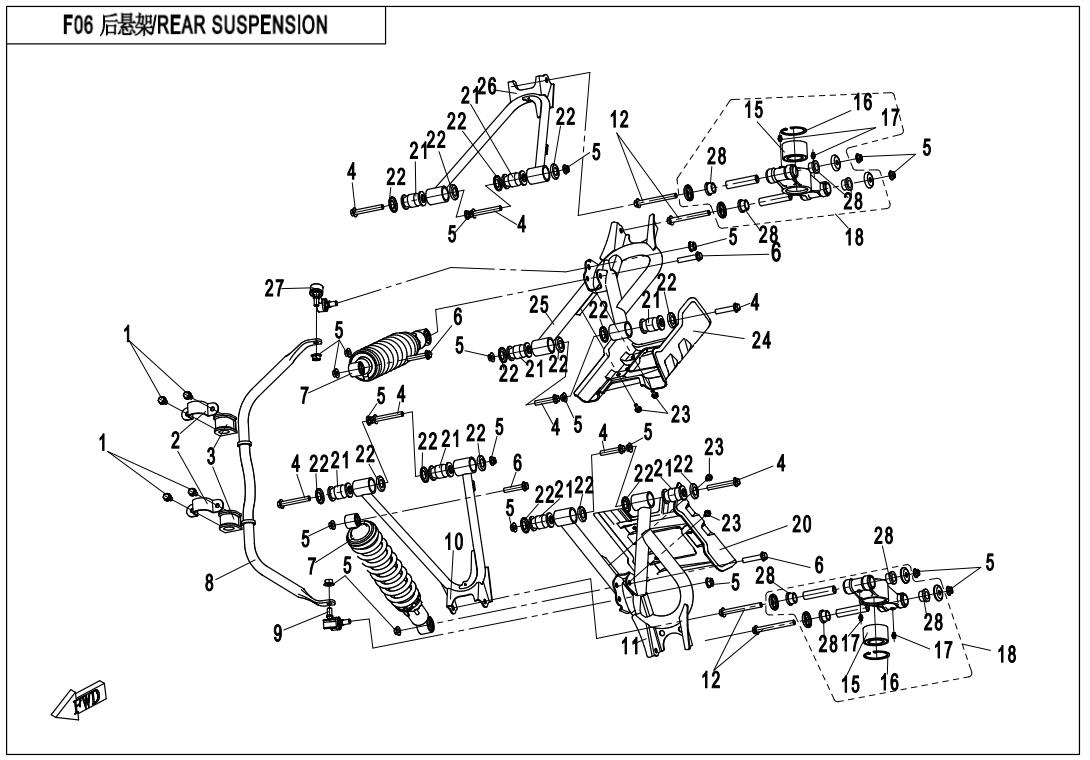

F06
REAR SUSPENSION
F07

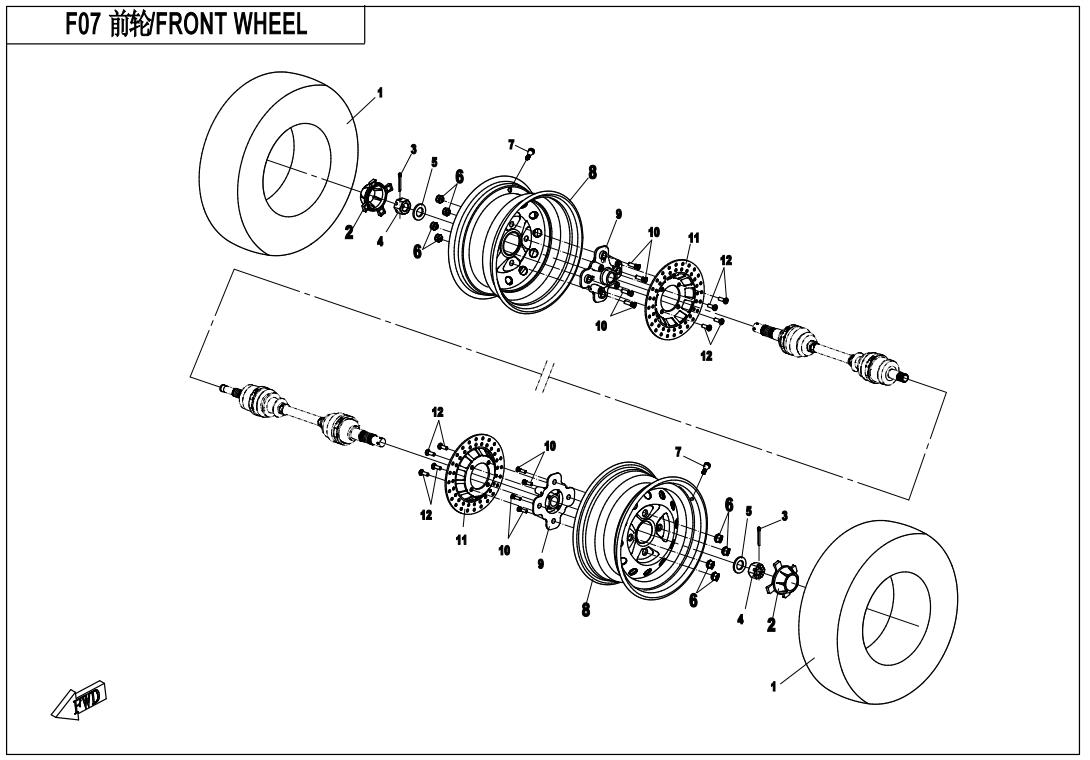

FRONT WHEEL
F08

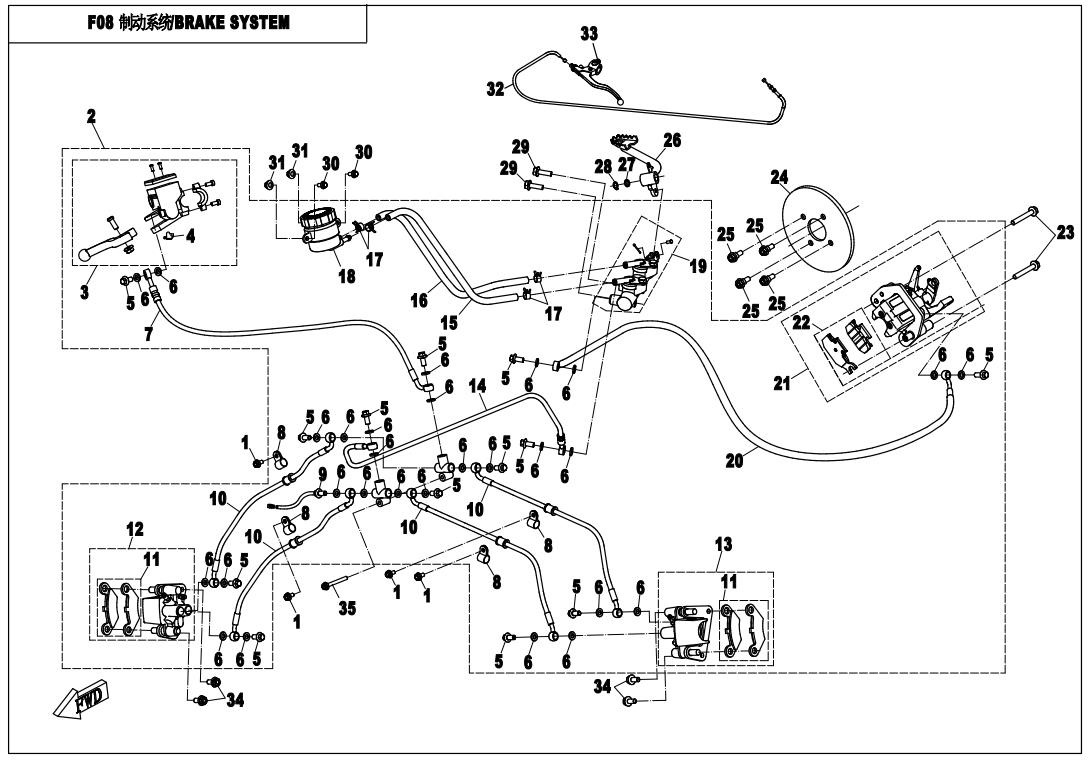

BRAKE SYSTEM
F10-1

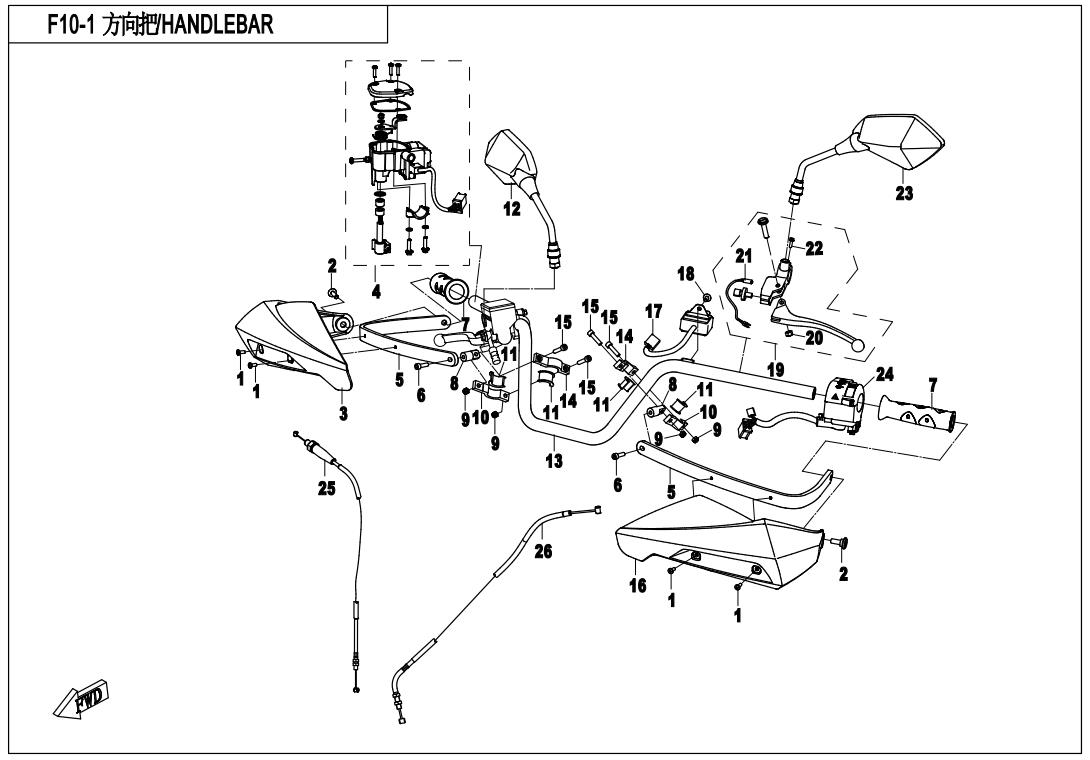

HANDLEBAR

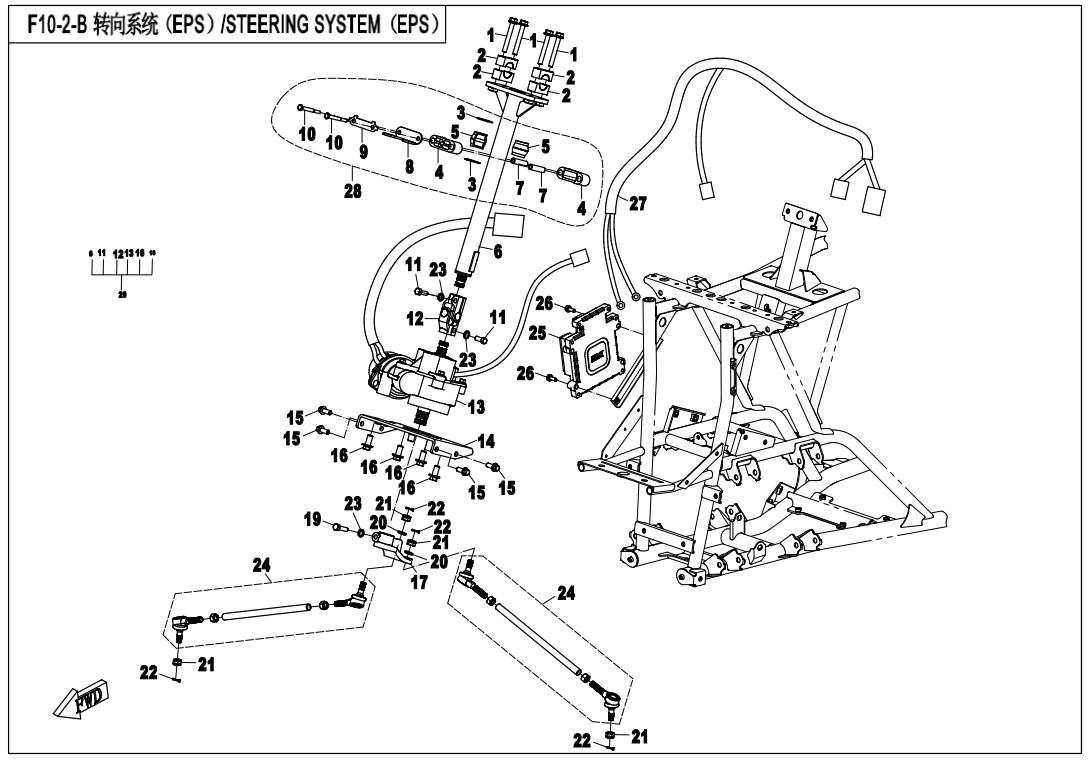

F10-2-B
STEERING SYSTEM (EPS)
F10-4

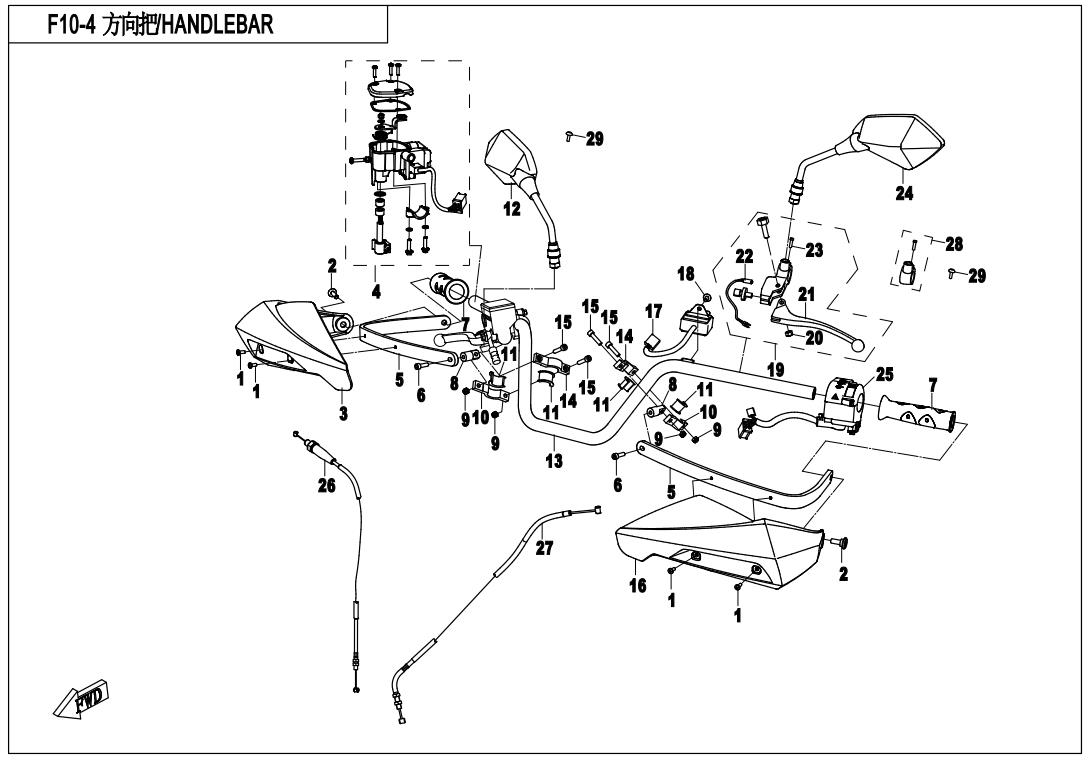

HANDLEBAR
F11

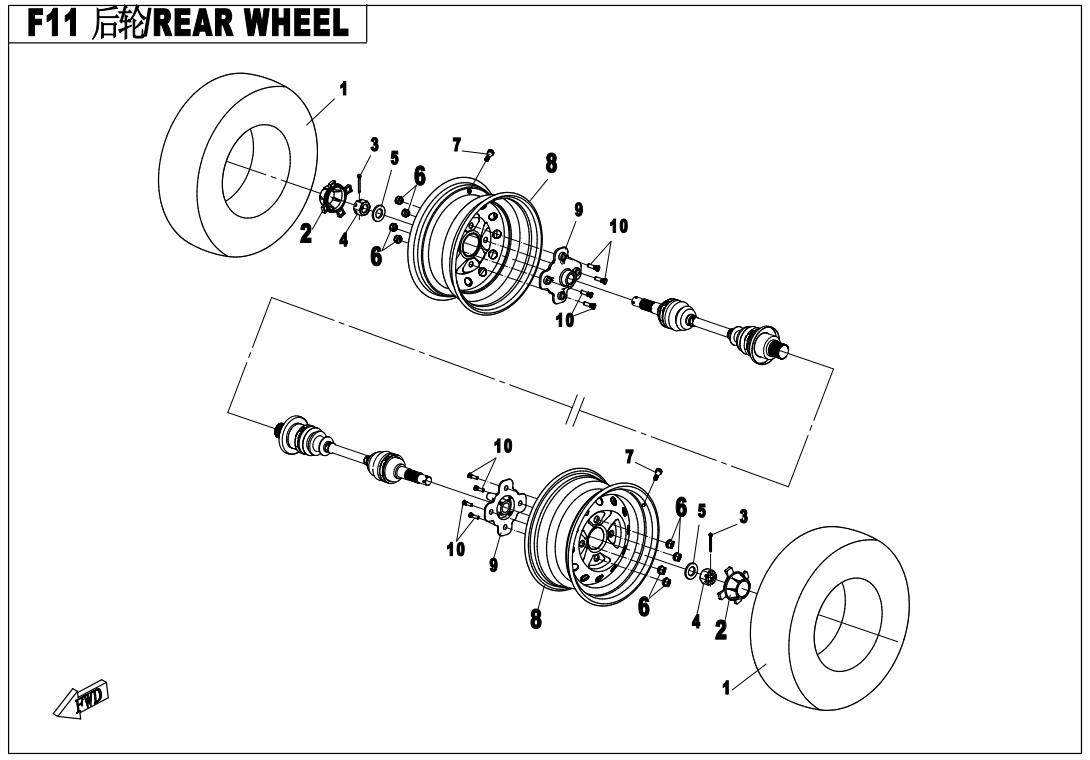

REAR WHEEL
F12

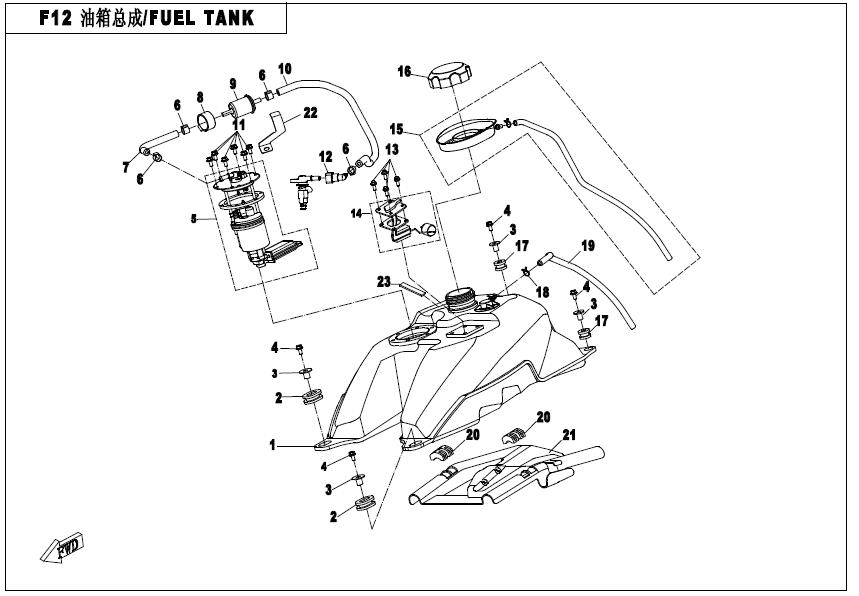

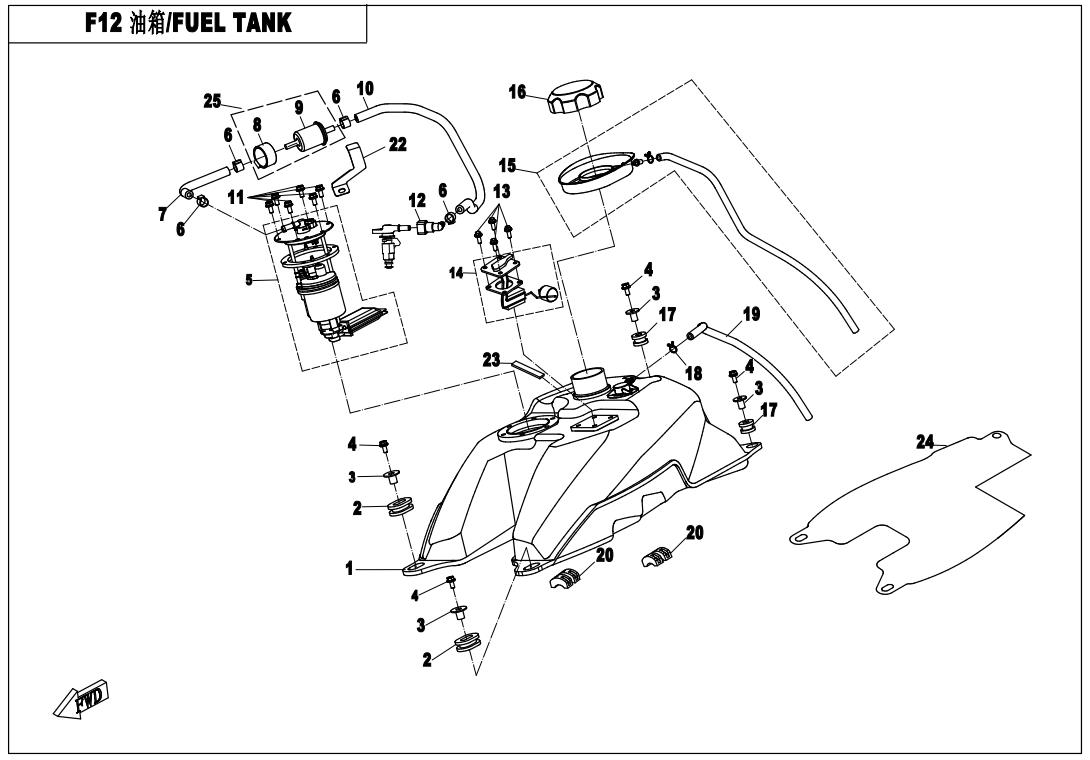

FUEL TANK (NEW)
F12-1
FUEL TANK (OLD)

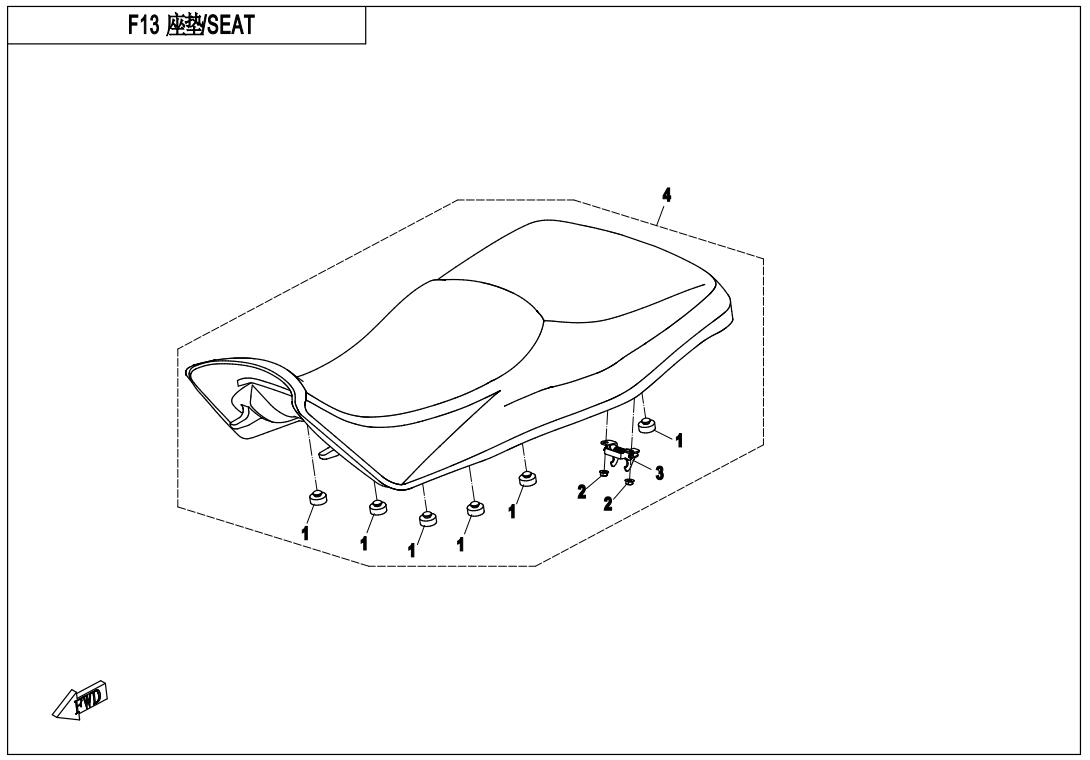

F13
SEAT
F14-A

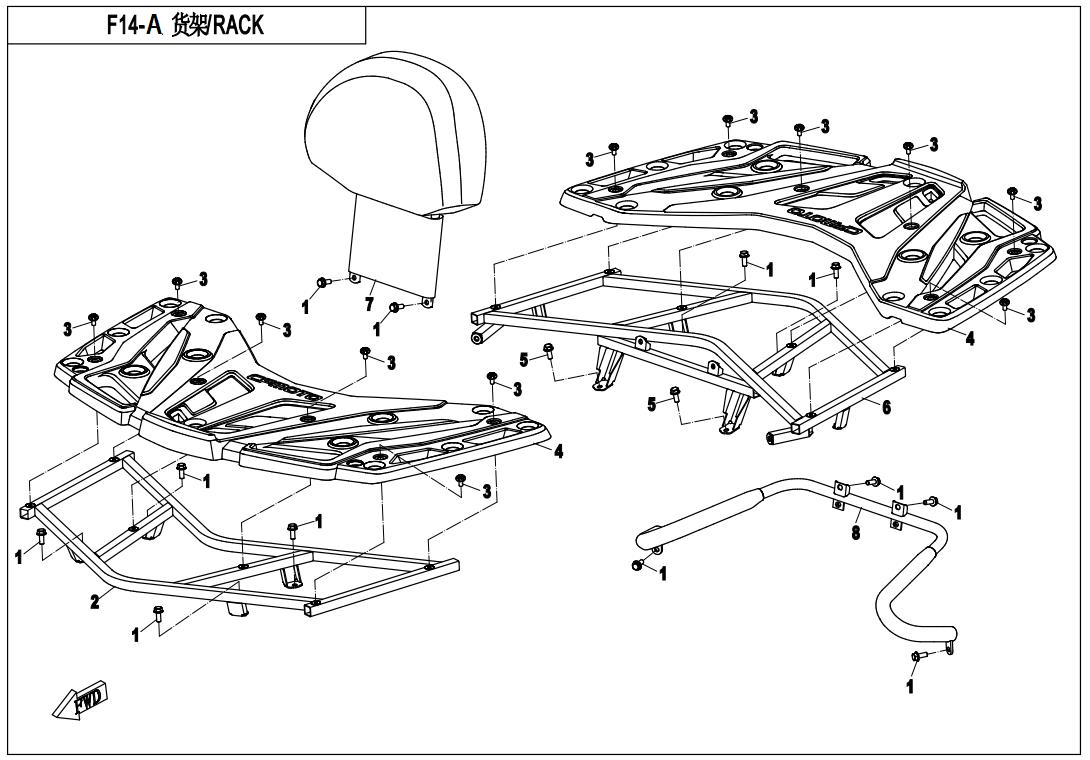

RACK (PLASTIC)
F15-1

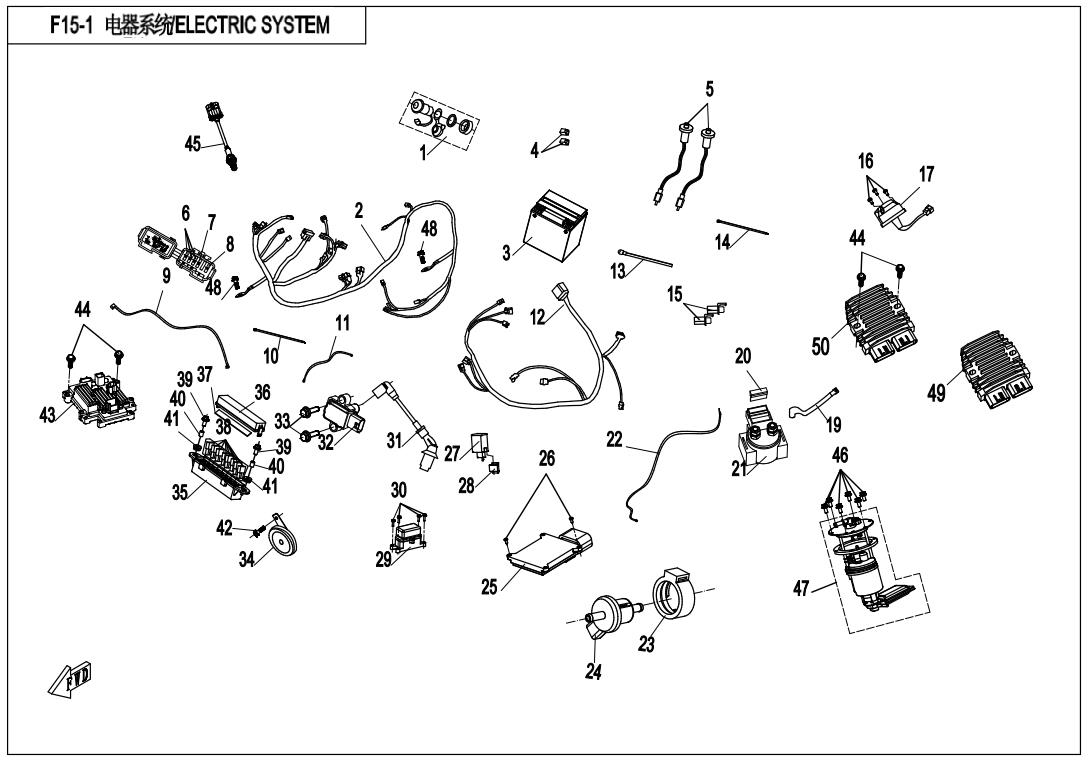

ELECTRIC SYSTEM

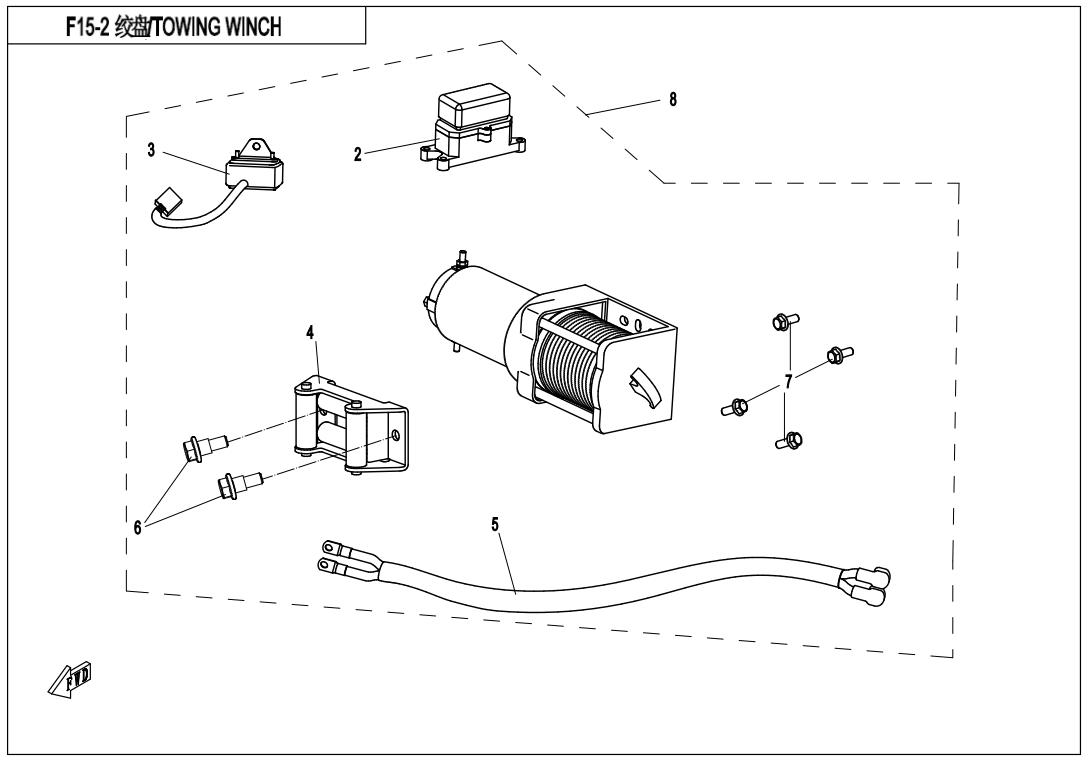

F15-2
TOWING WINCH
F16

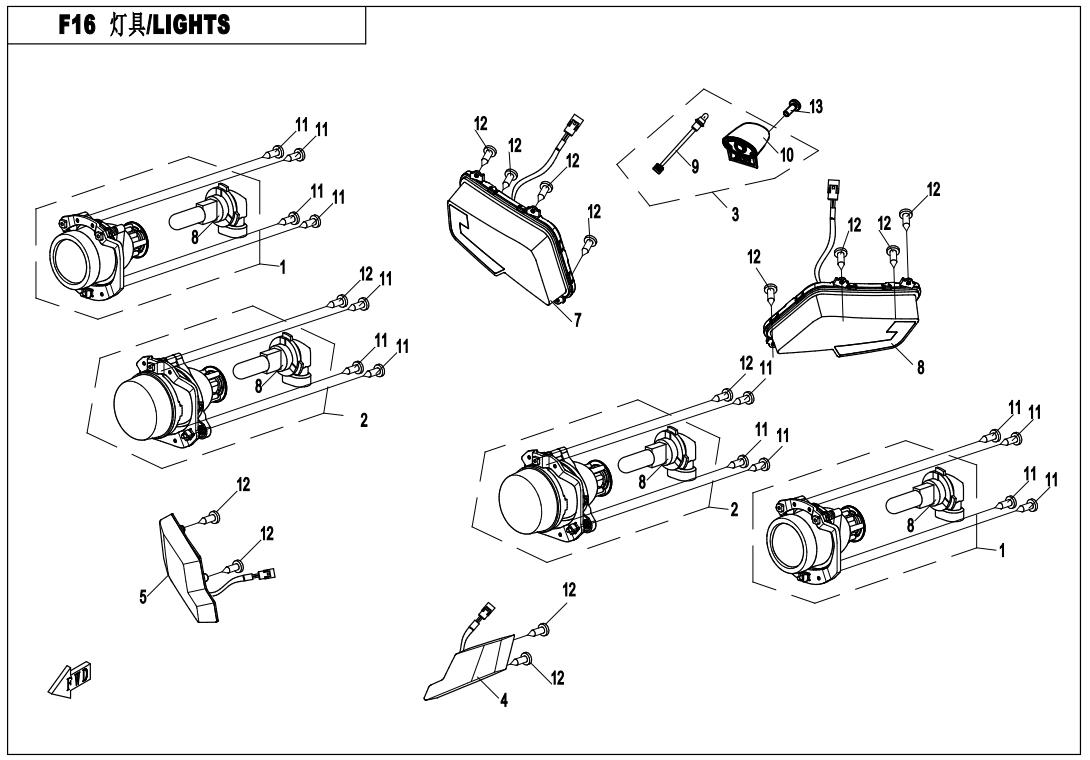

LIGHTS
F17

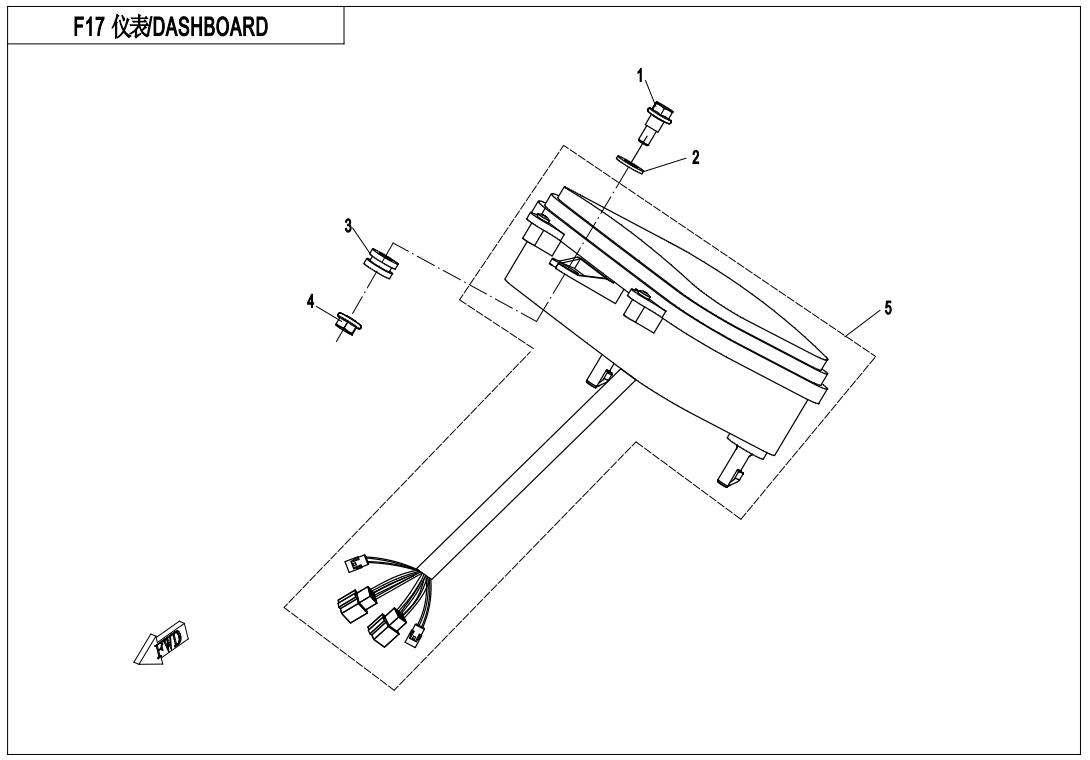

DASHBOARD
F18

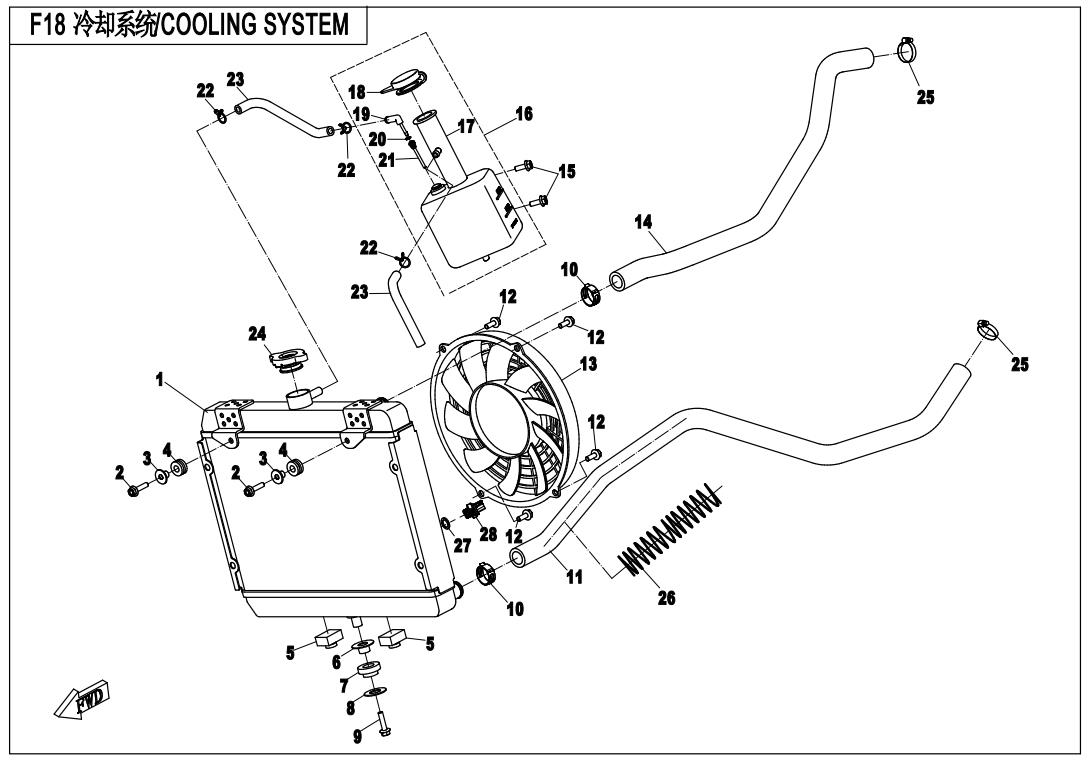

COOLING SYSTEM

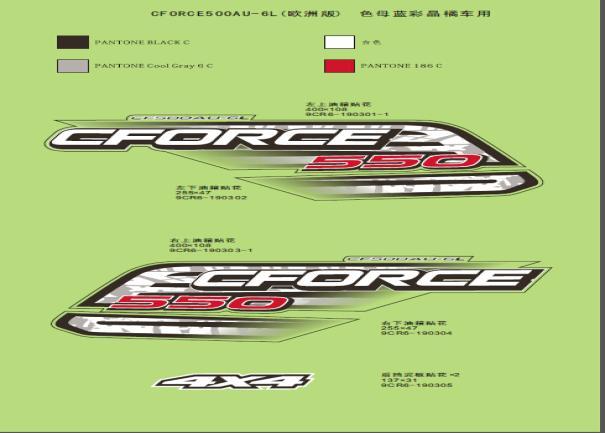

F19-1
DECAL KITS

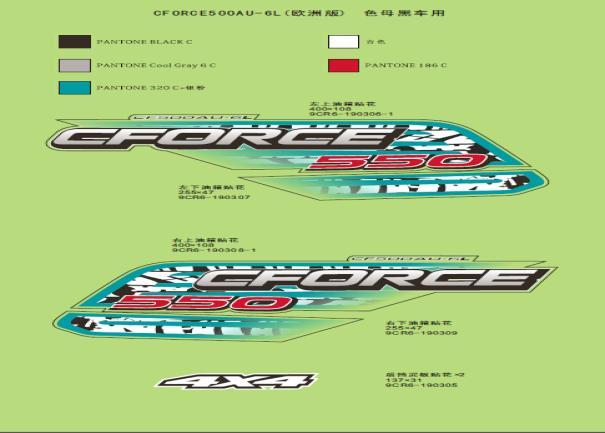

F19-2
DECAL KITS

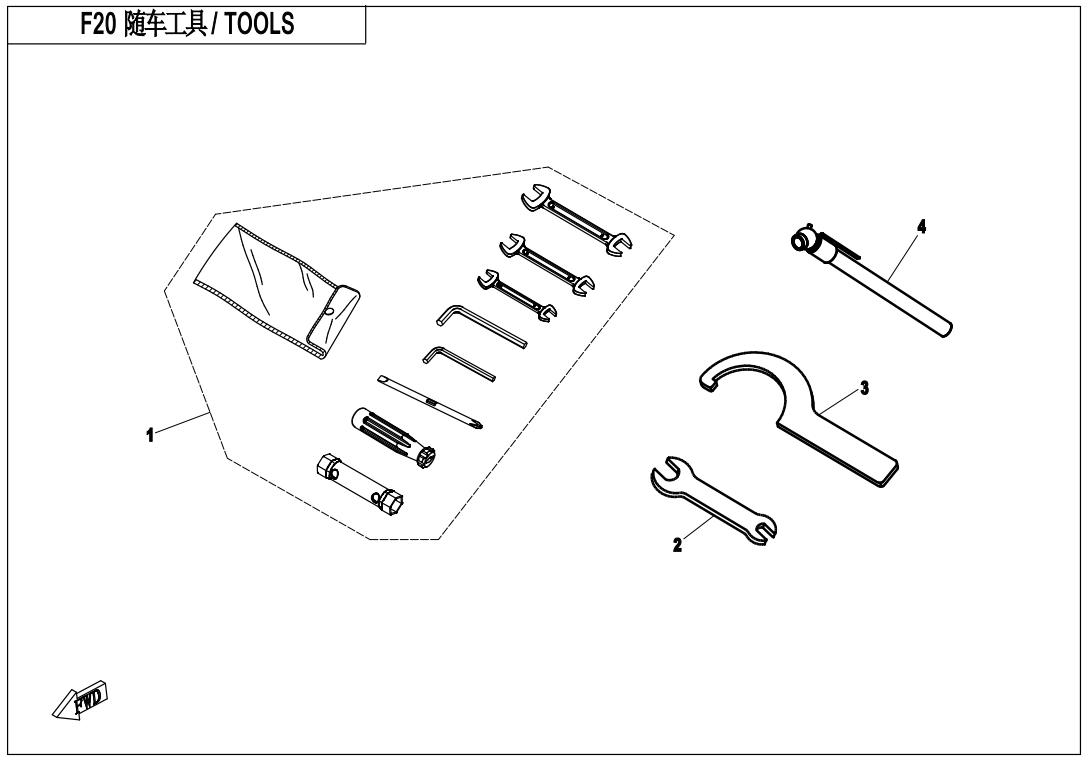

F20
TOOLS
F23

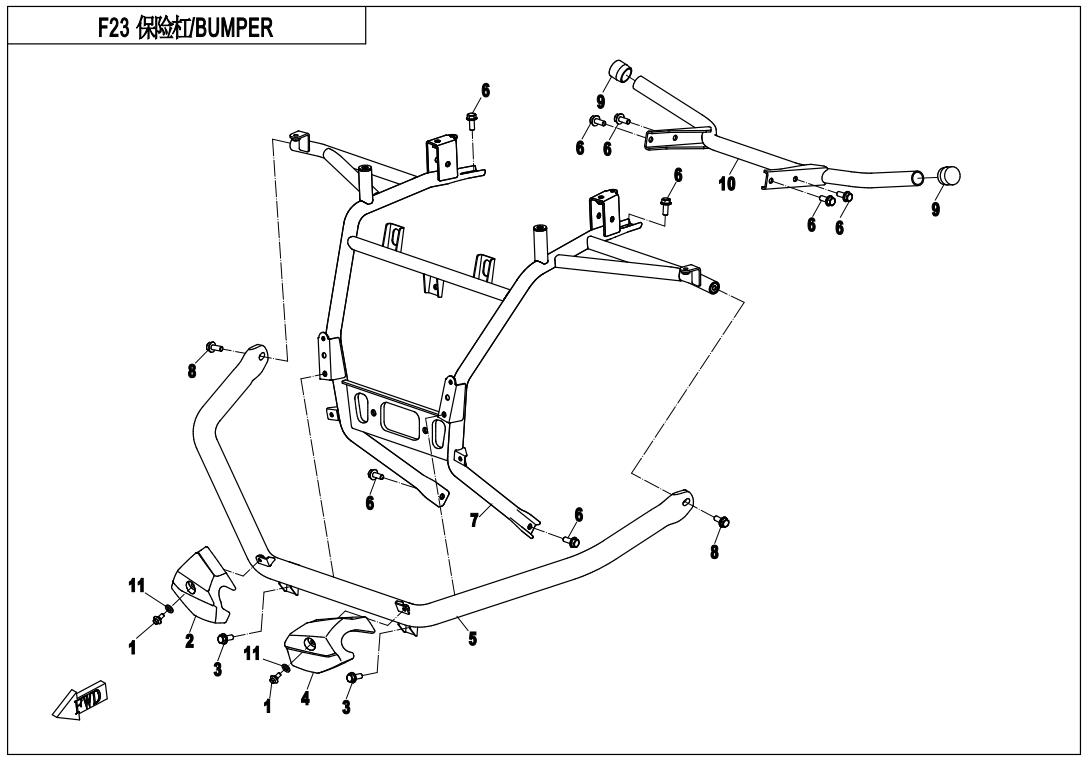

BUMPER

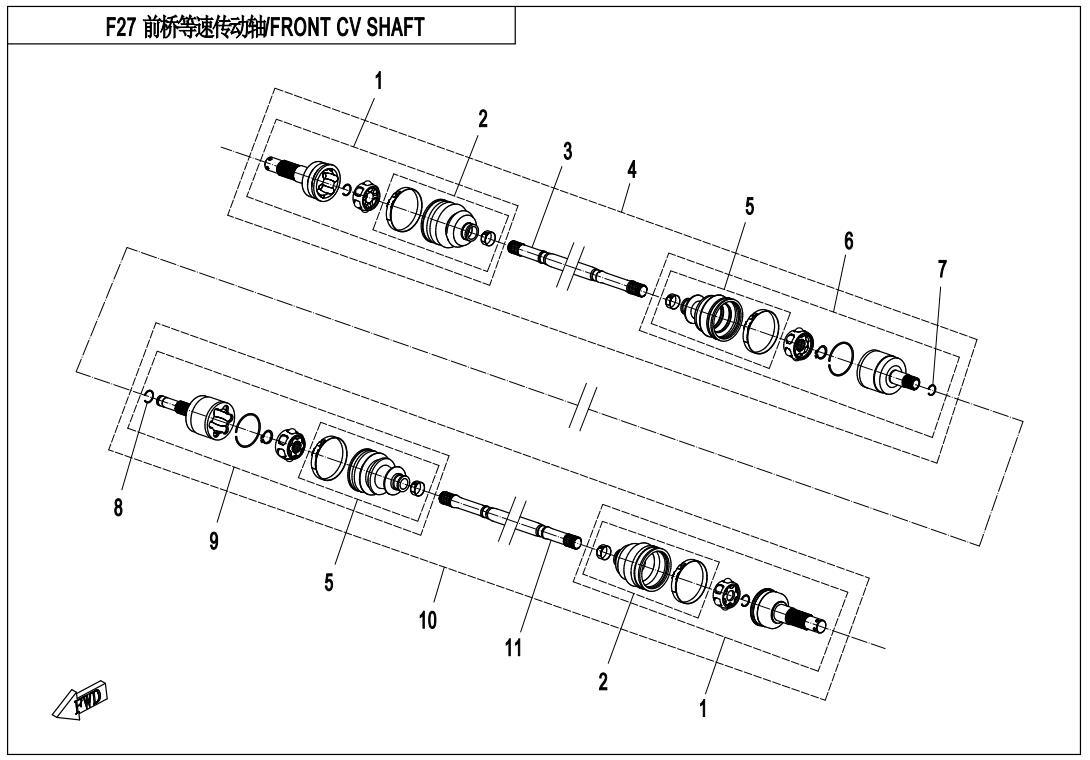

F27
FRONT CV SHAFT

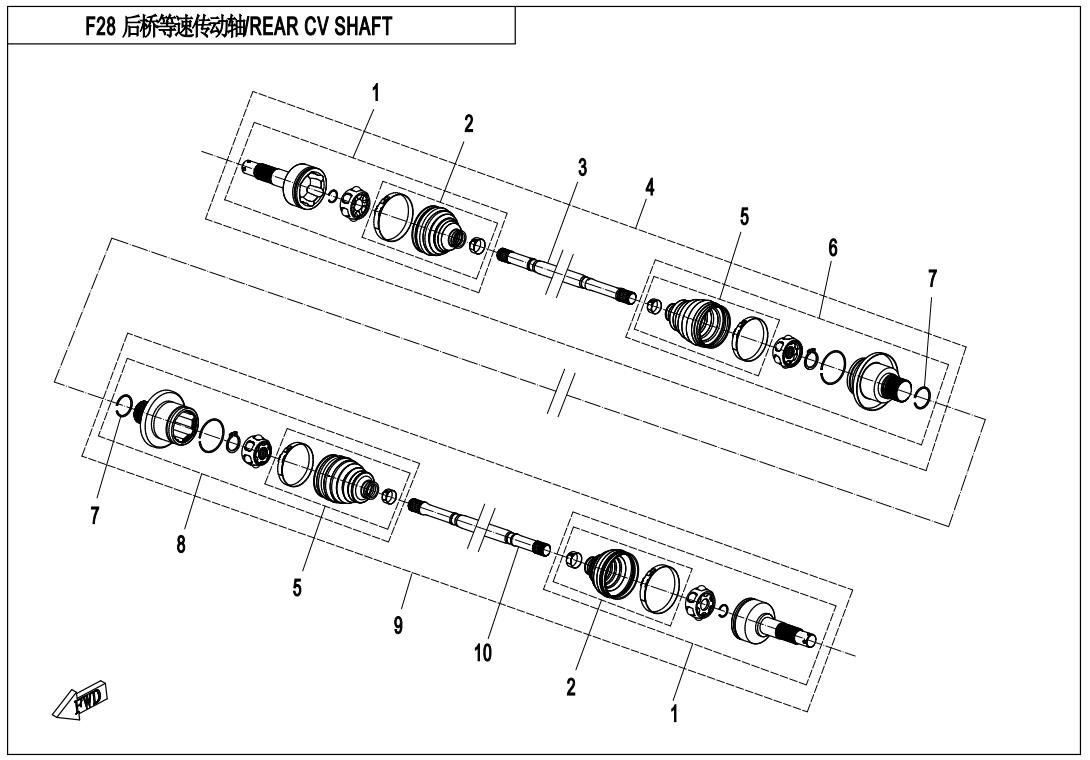

F28
REAR CV SHAFT

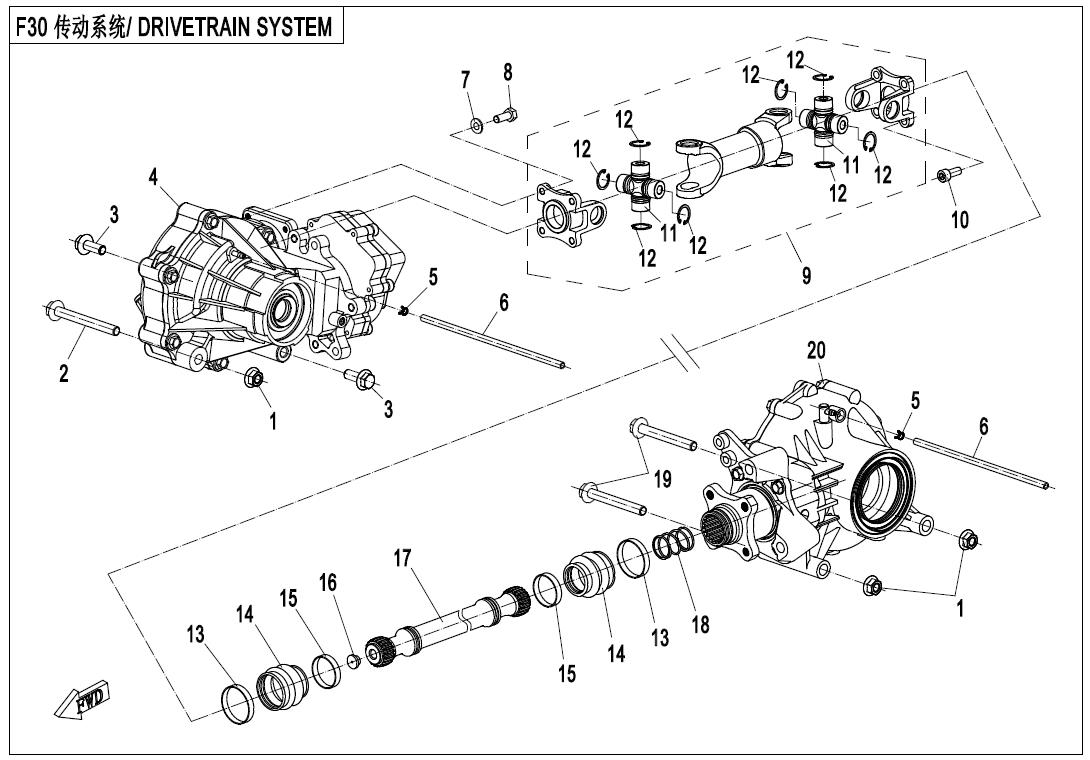

F30
DRIVETRAIN SYSTEM
F31

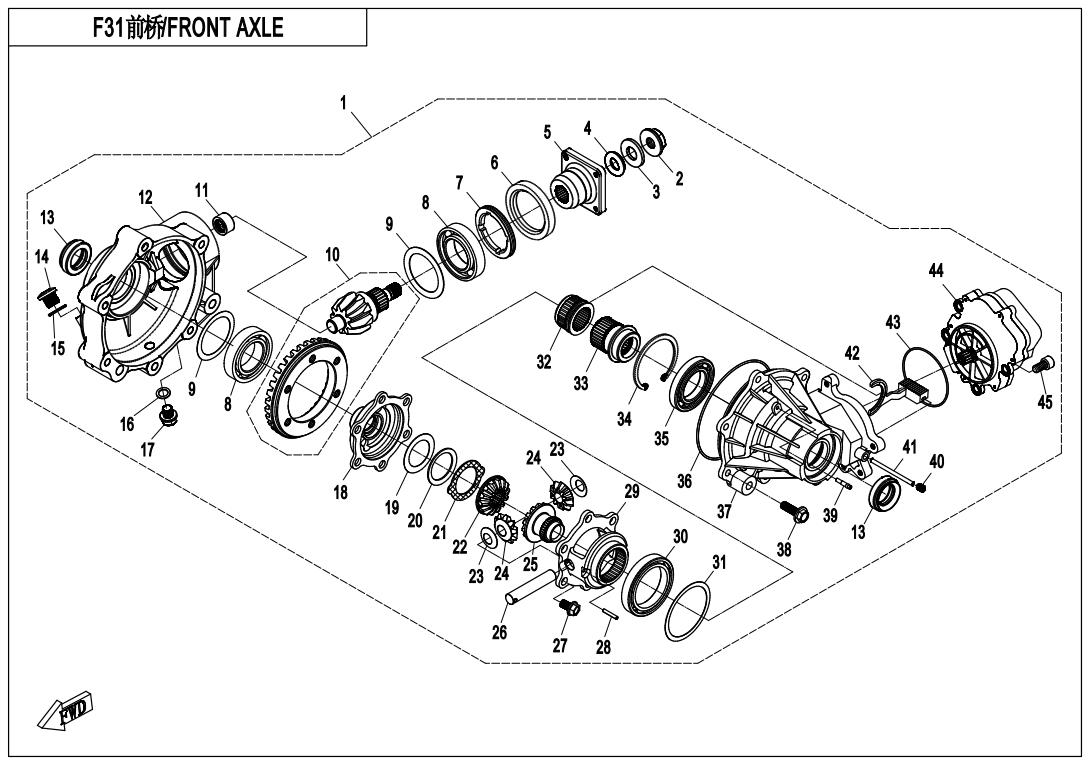

FRONT AXLE

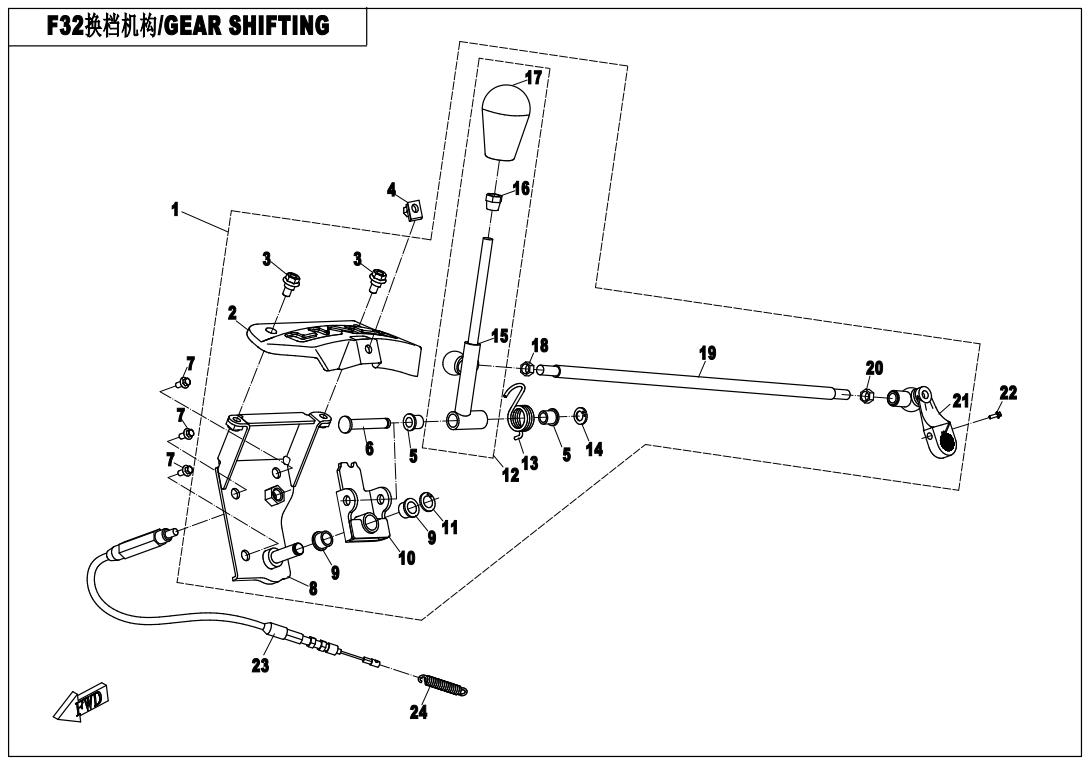

F32
GEAR SHIFTING

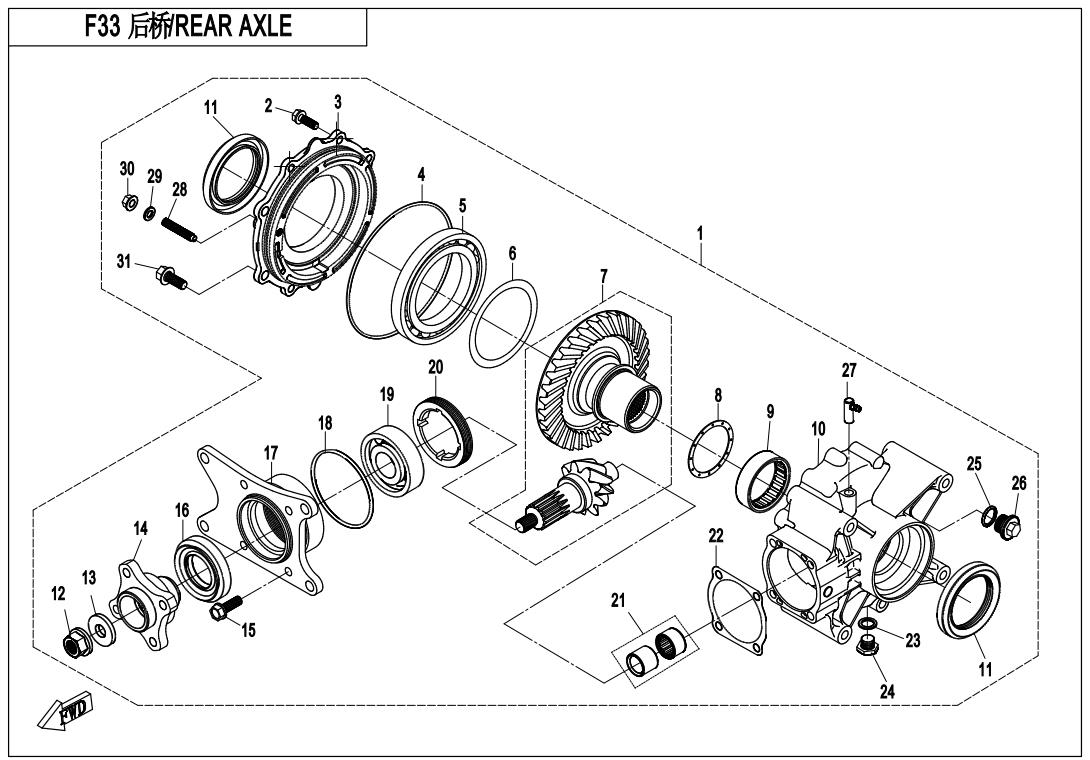

F33
REAR AXLE

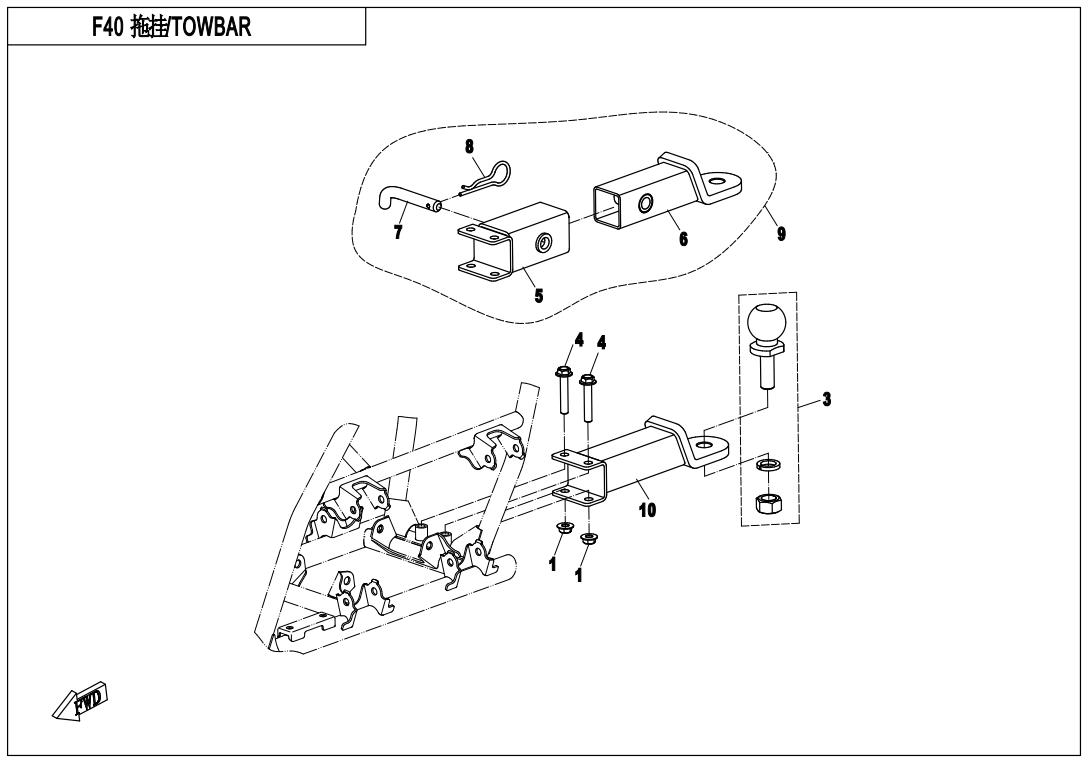

F40
TOWBAR

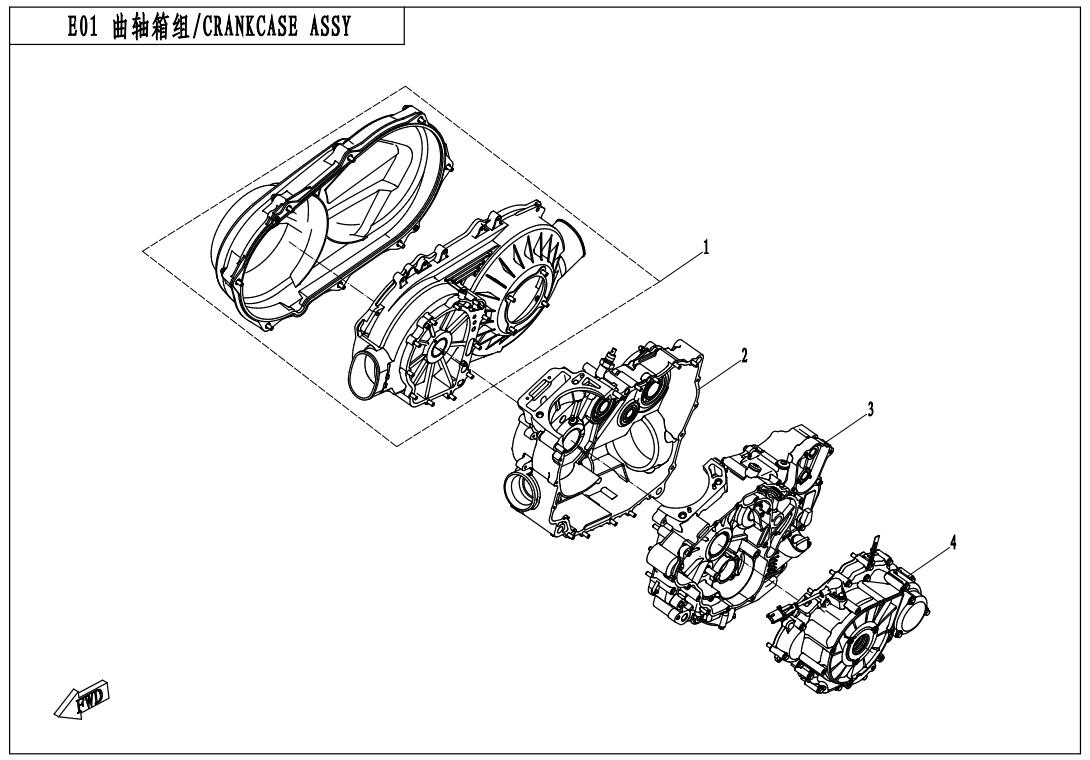

E01
CRANCKCASE ASSY.
E01-1

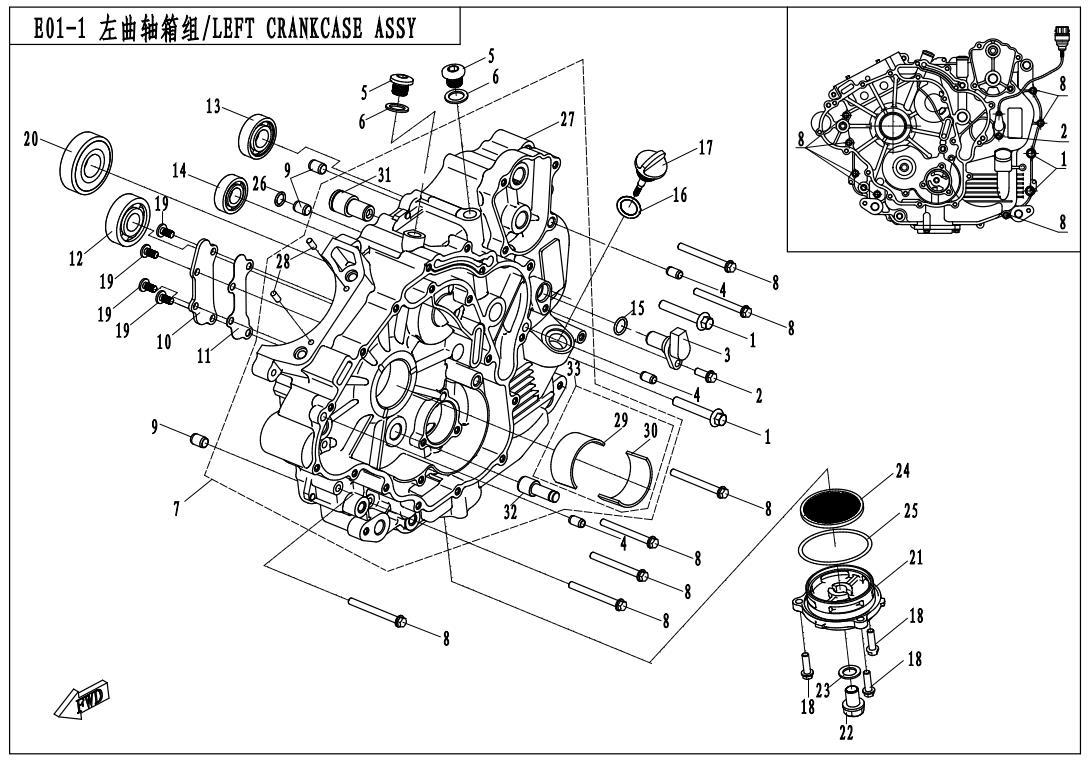

LEFT CRANKCASE ASSY
E01-2

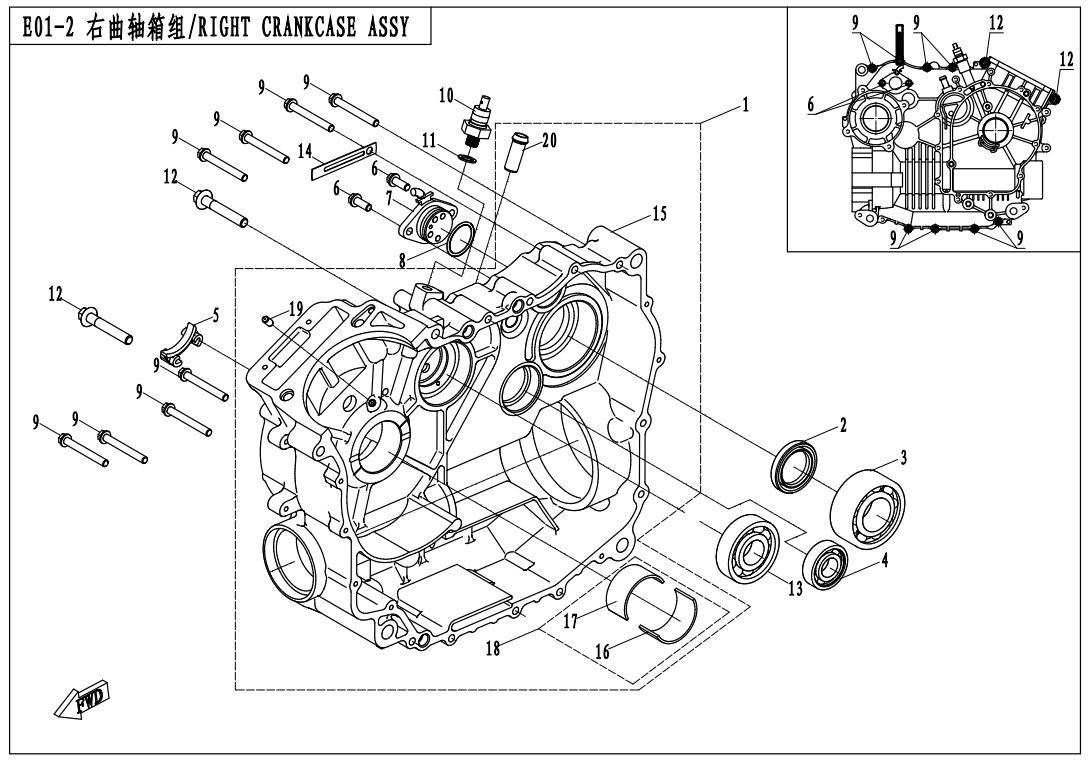

RIGHT CRANKCASE ASSY
E01-3

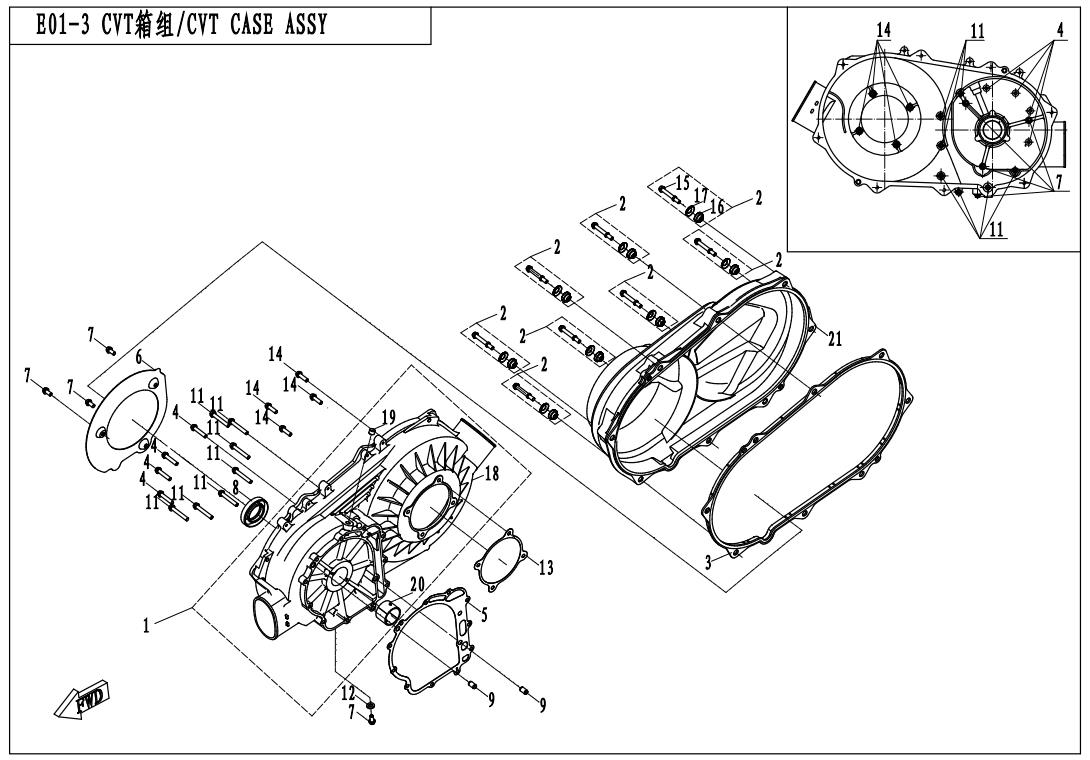

CVT CASE ASSY.
E01-4

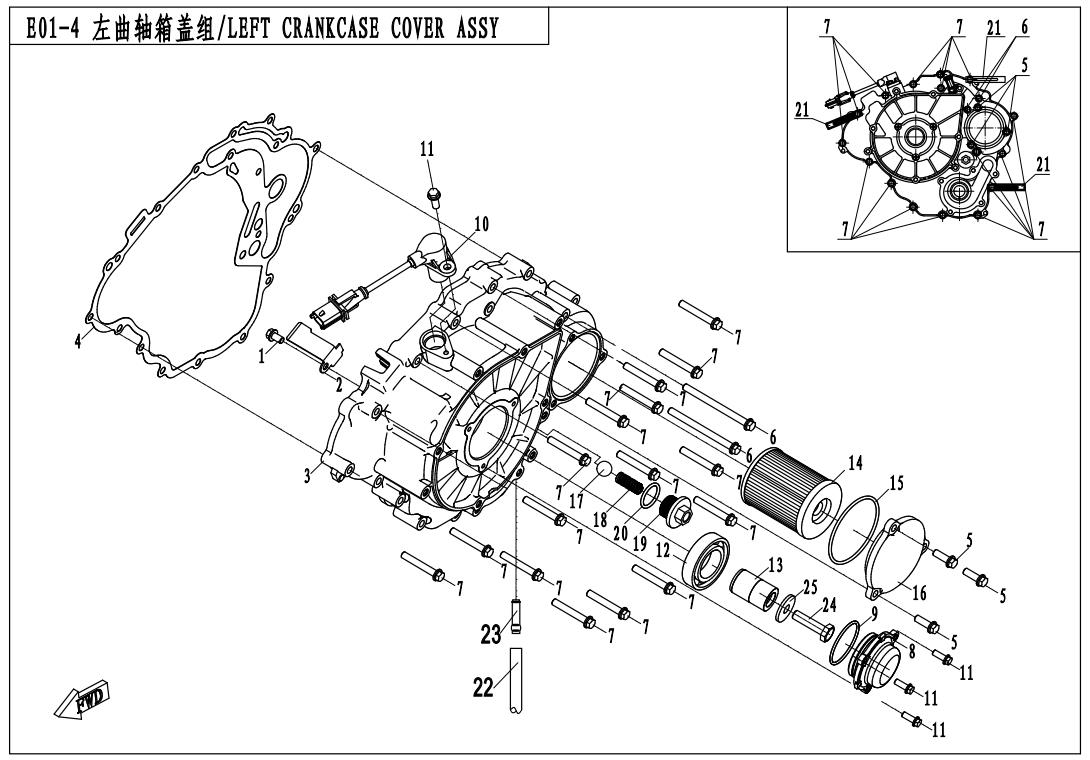

LEFT CRANKCASE COVER ASSY

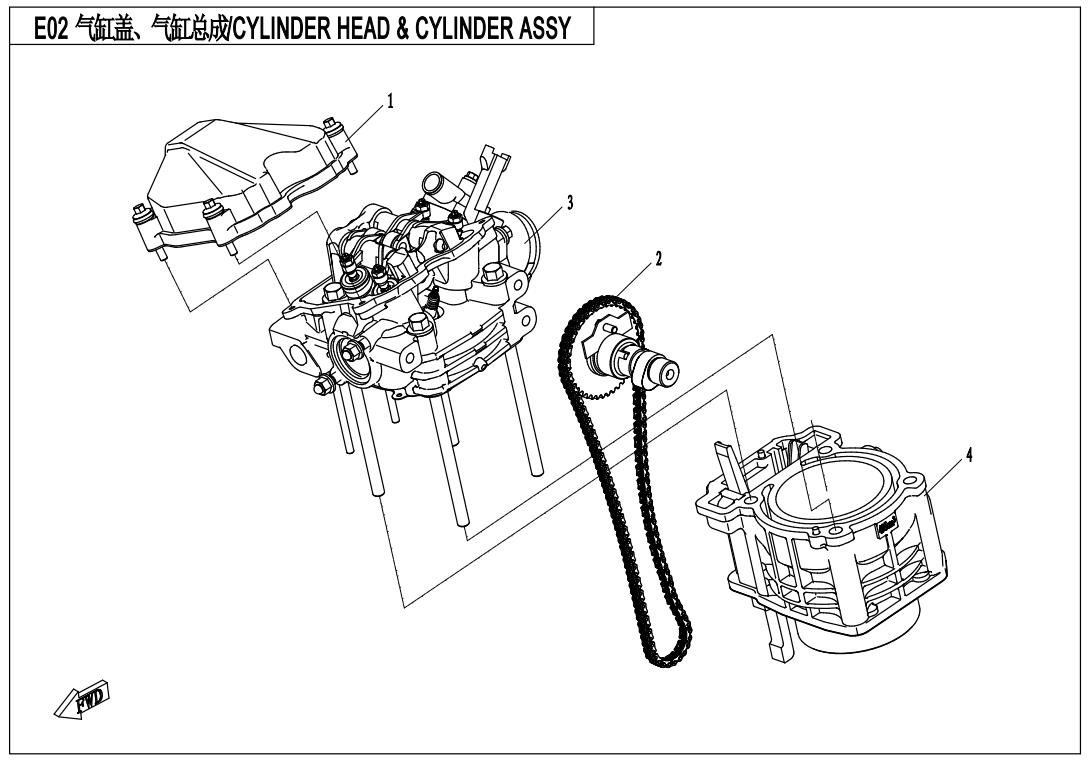

E02
CYLINDER/CYLINDER HEAD ASSY.
E02-1
CYLINDER HEAD COVER ASSY

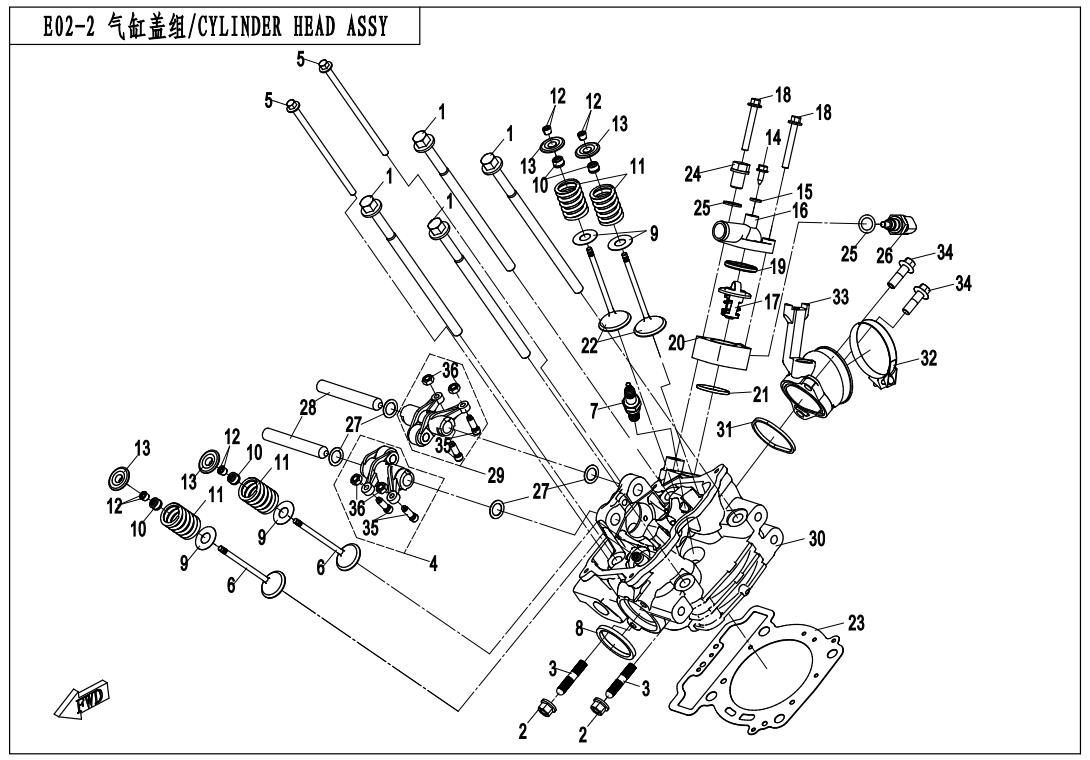

E02-2
CYLINDER HEAD ASSY
E02-3

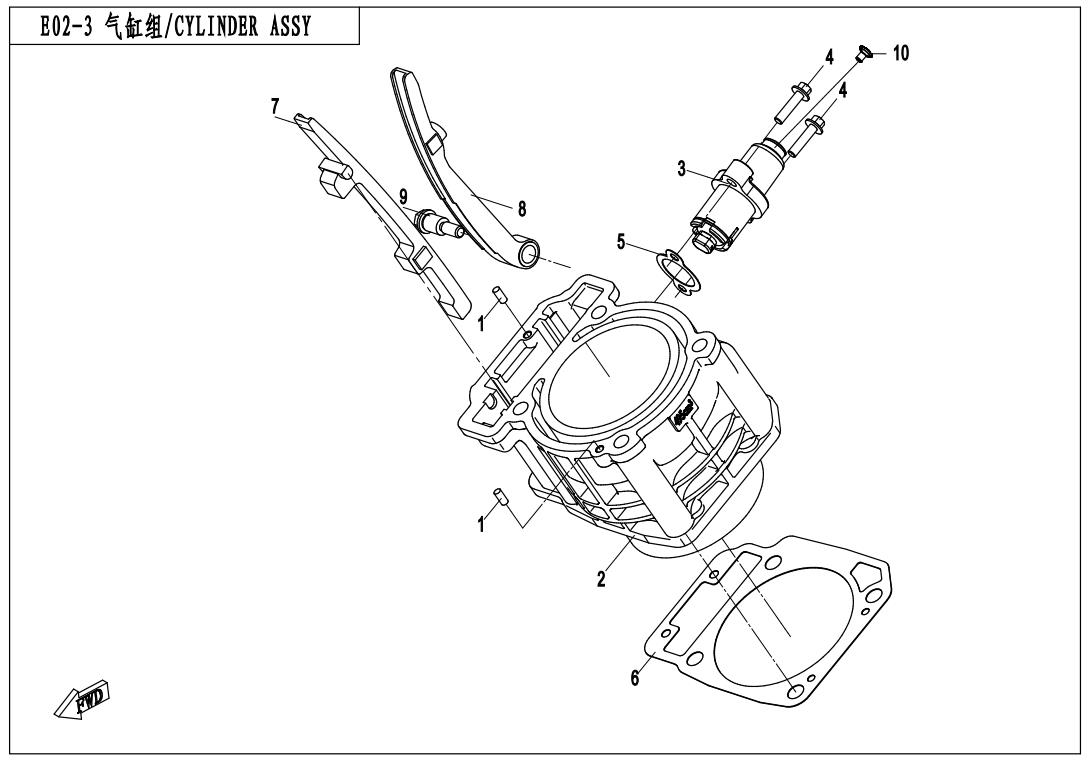

CYLINDER ASSY

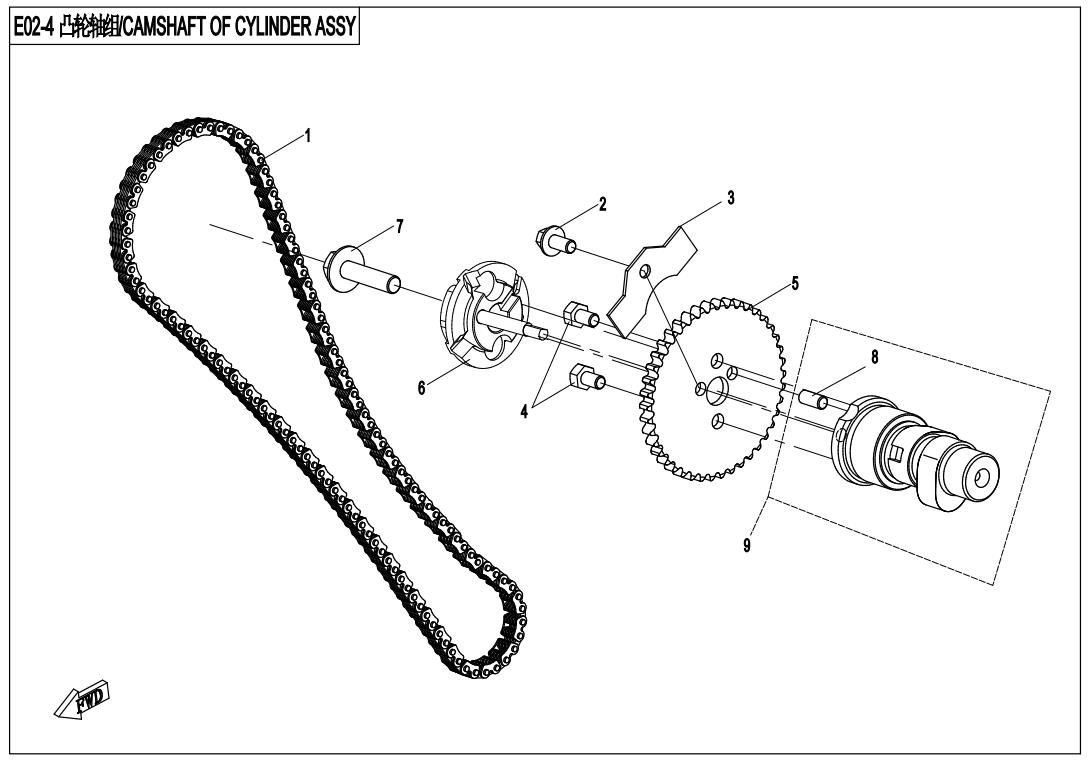

E02-4
CAMSHAFT ASSY

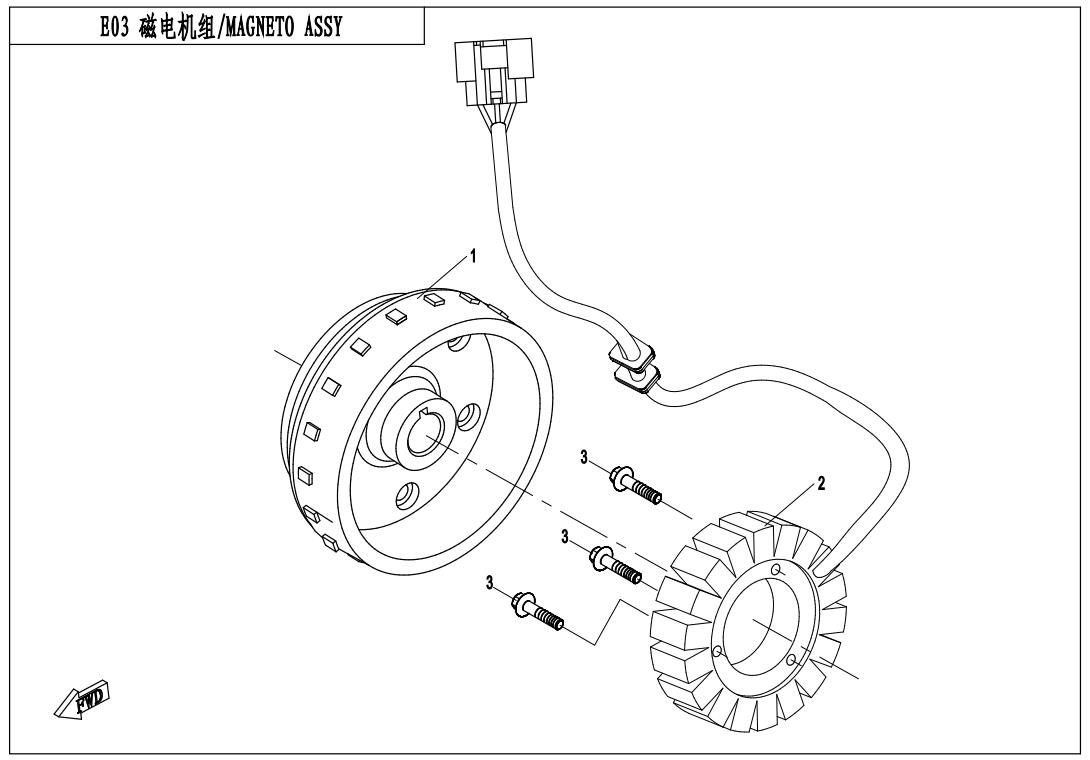

E03
MAGNETO ASSY

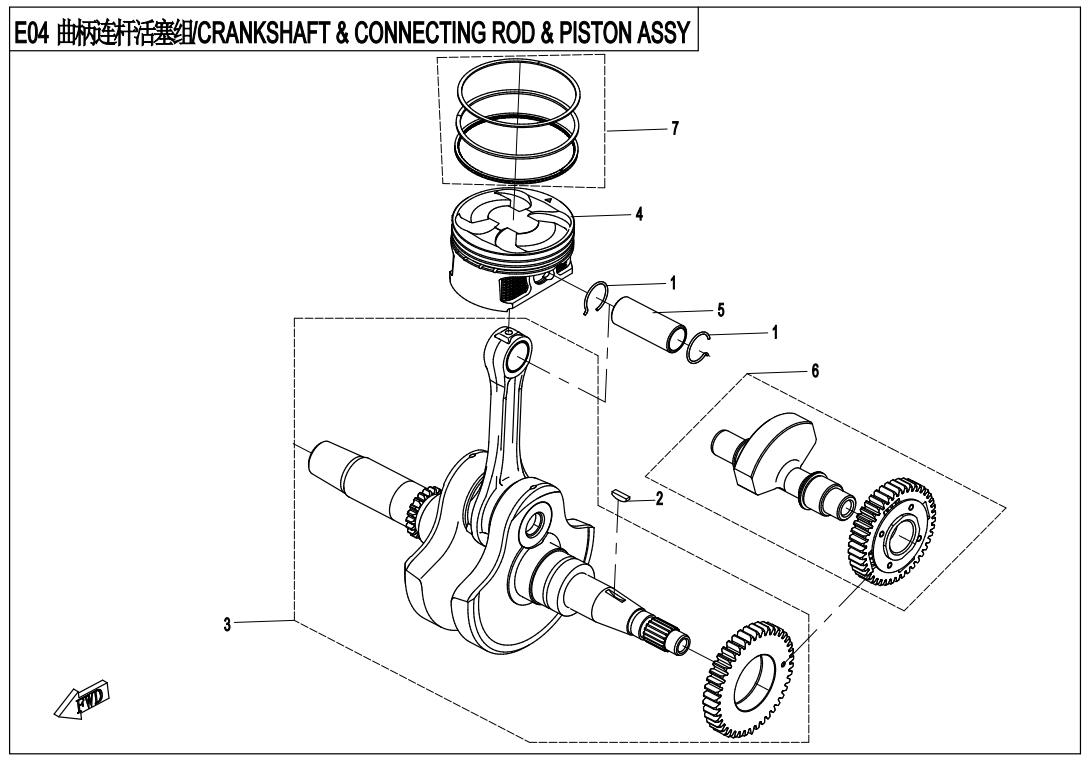

E04
CRANKSHAFT,CONNECTING ROD,PISTON ASSY.
E05

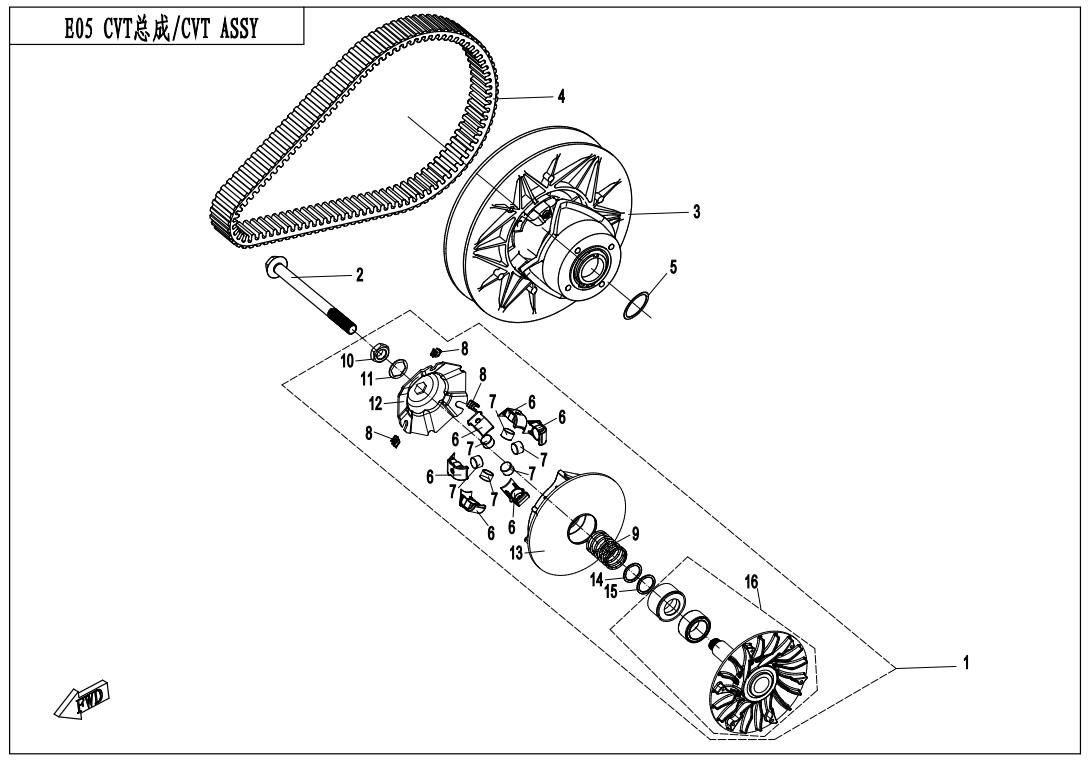

CVT ASSY
E06-1

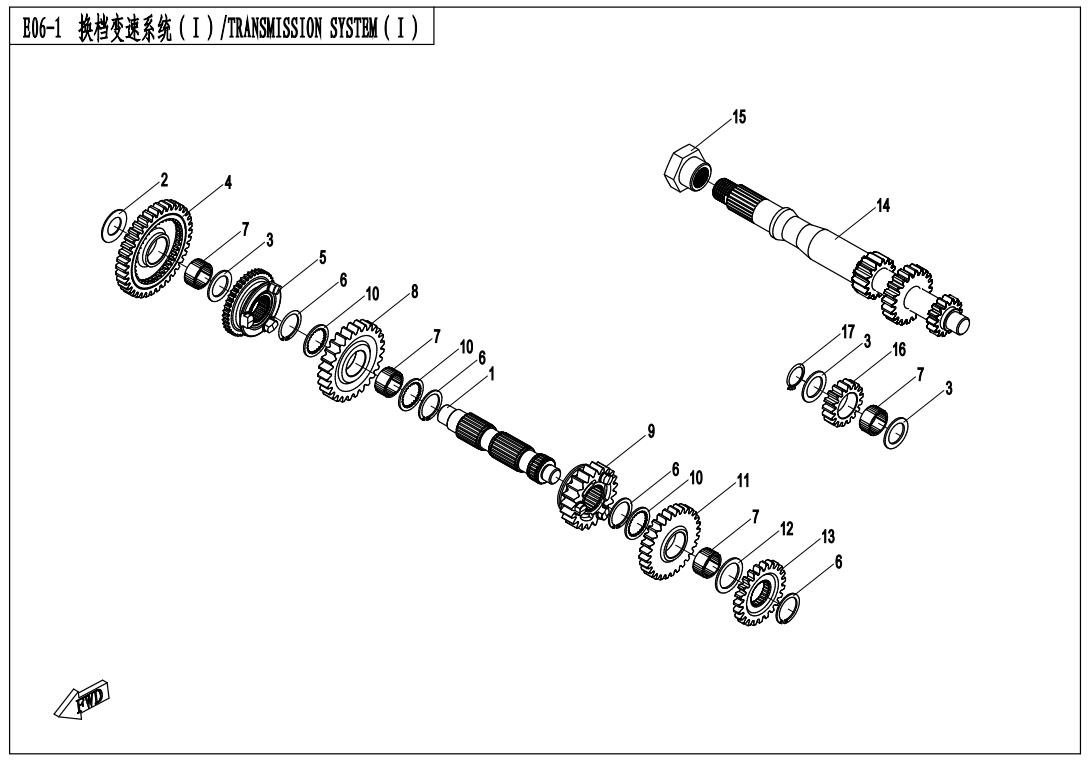

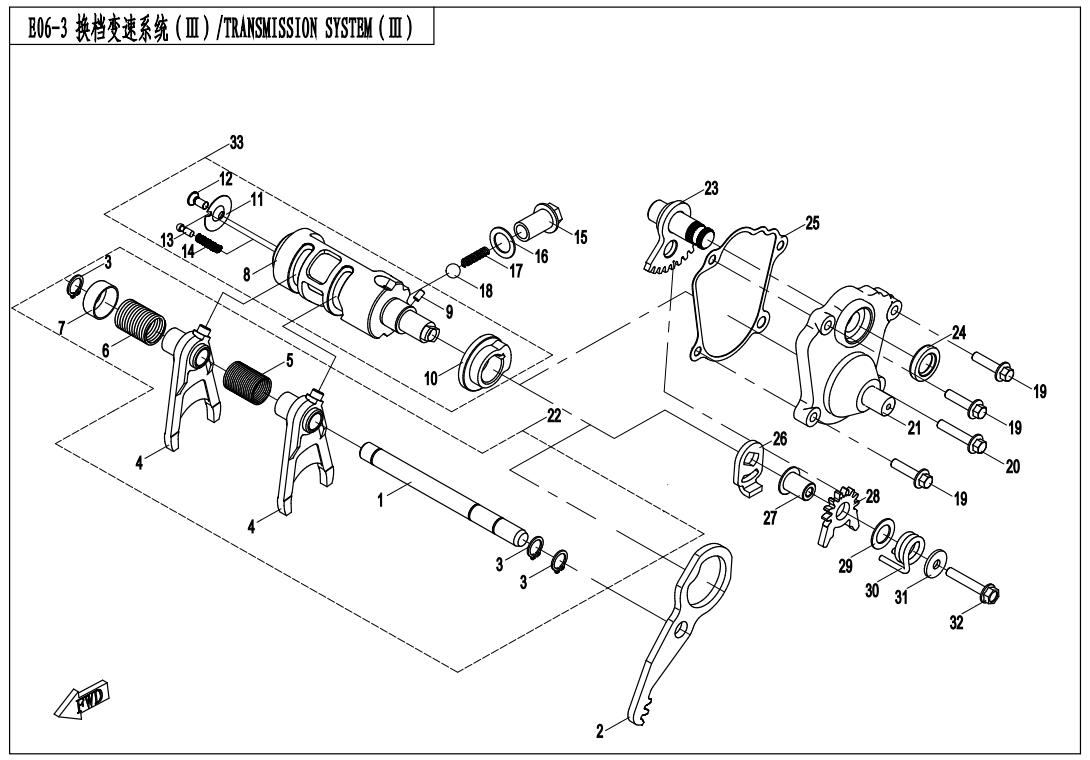

TRANSMISSION SYSTEM?

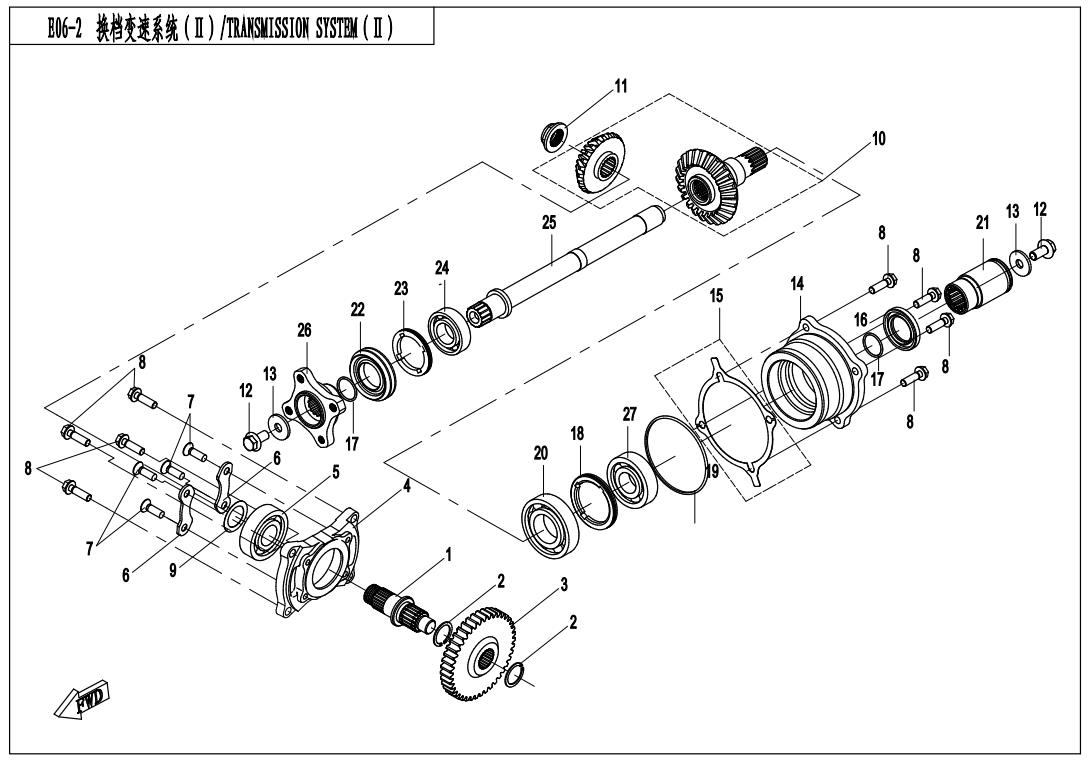

E06-2
TRANSMISSION SYSTEM ?
E06-3
TRANSMISSION SYSTEM ?

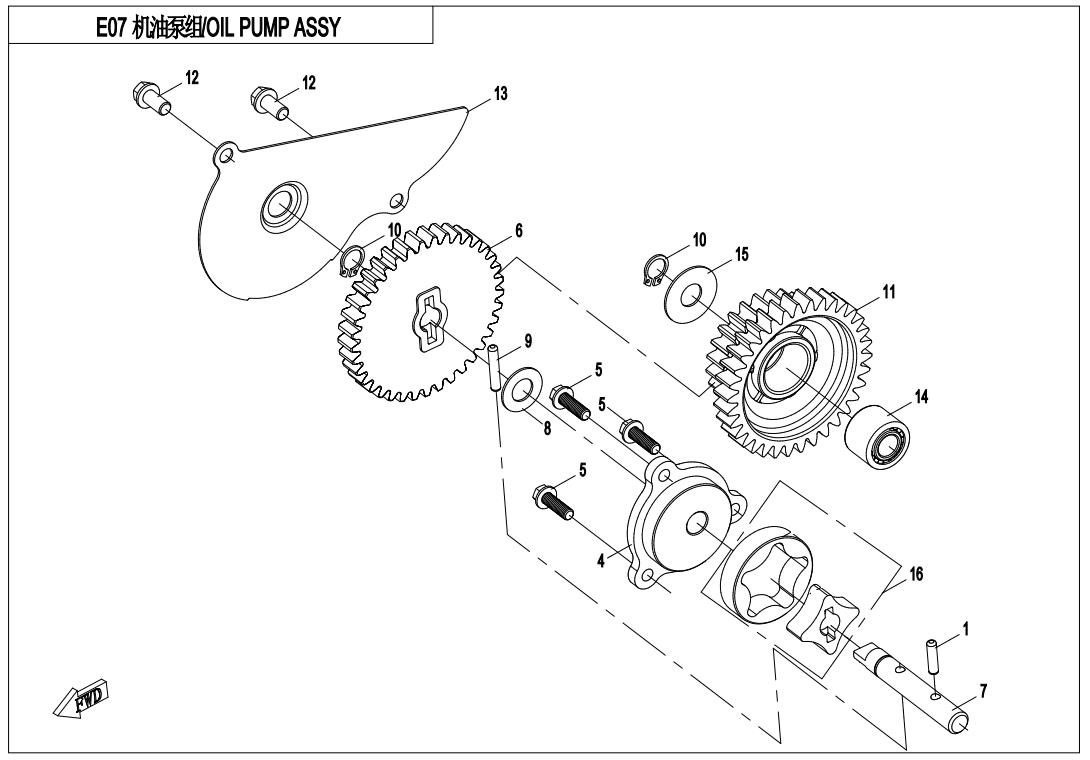

E07
OIL PUMP ASSY

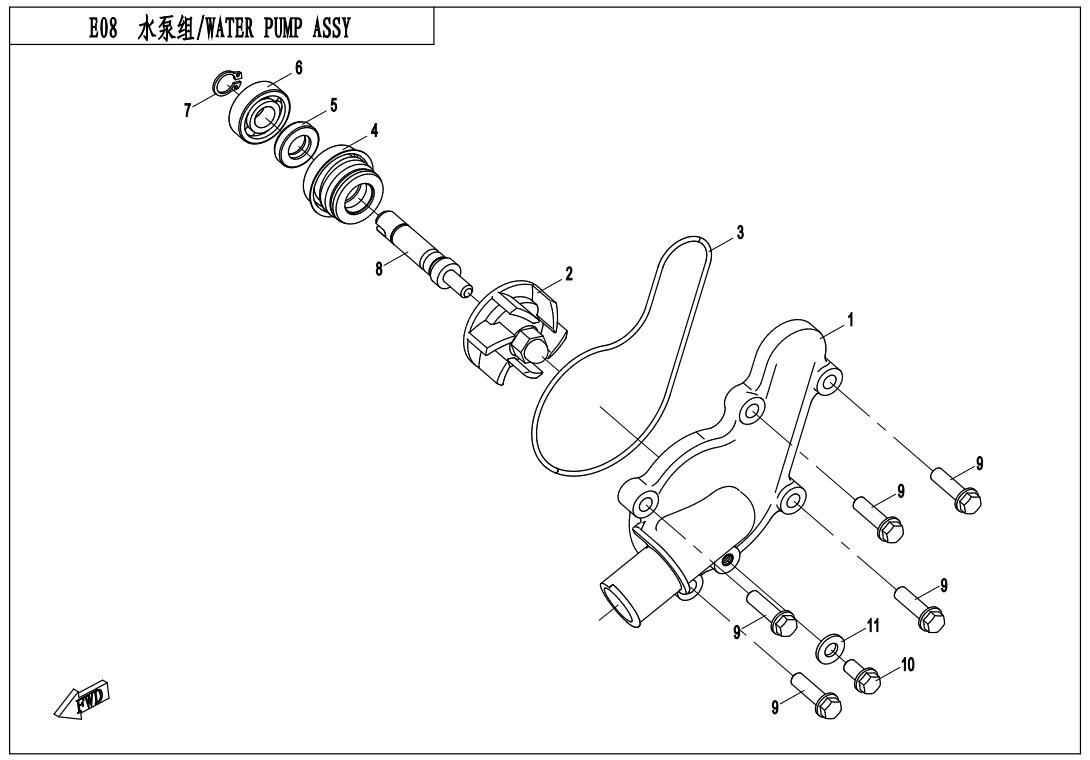

E08
WATER PUMP ASSY
E09

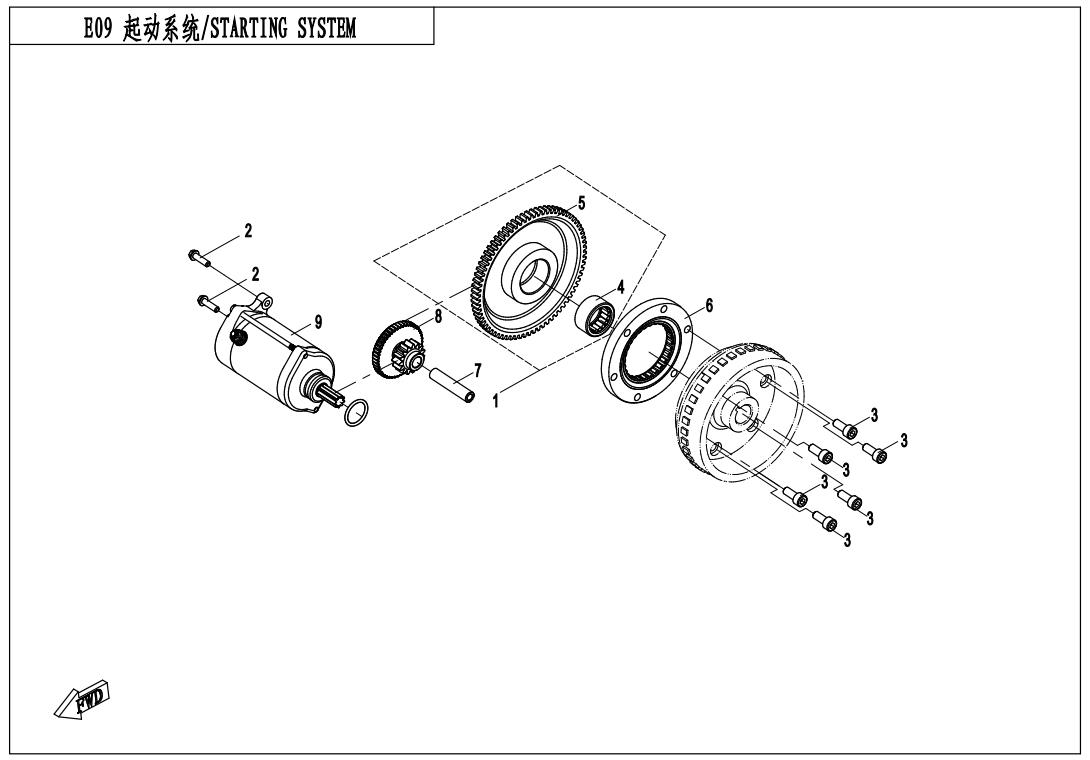

STATING SYSTEM
E10

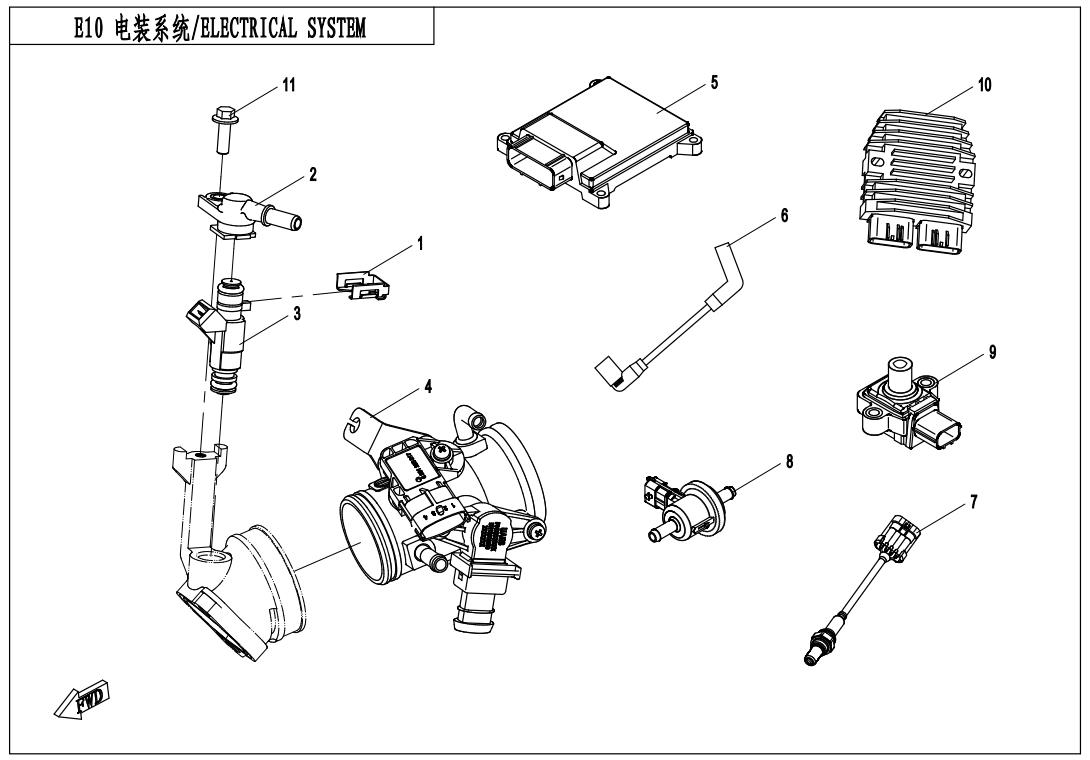

ELECTRICAL SYSTEM

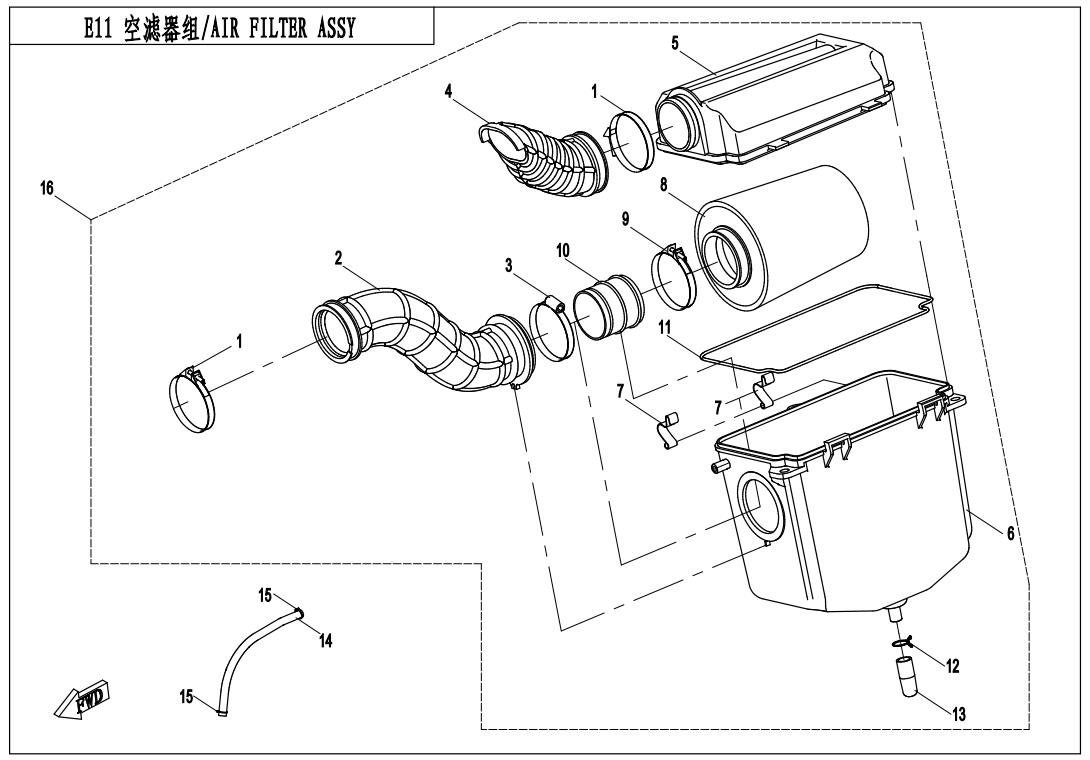

E11
