Genuine Parts Diagrams for 2017 X550 EPS - CF500AU-6LChange Model
Showing 57 parts diagrams.

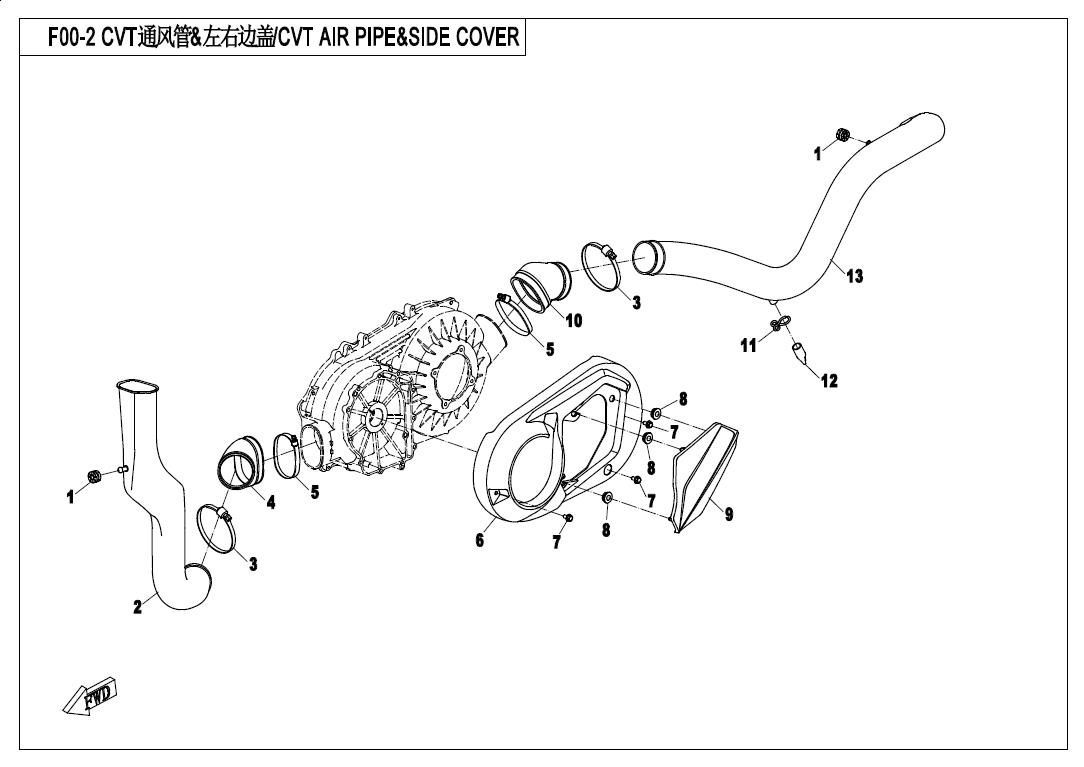

F00-2
CVT AIR PIPE&SIDE COVER

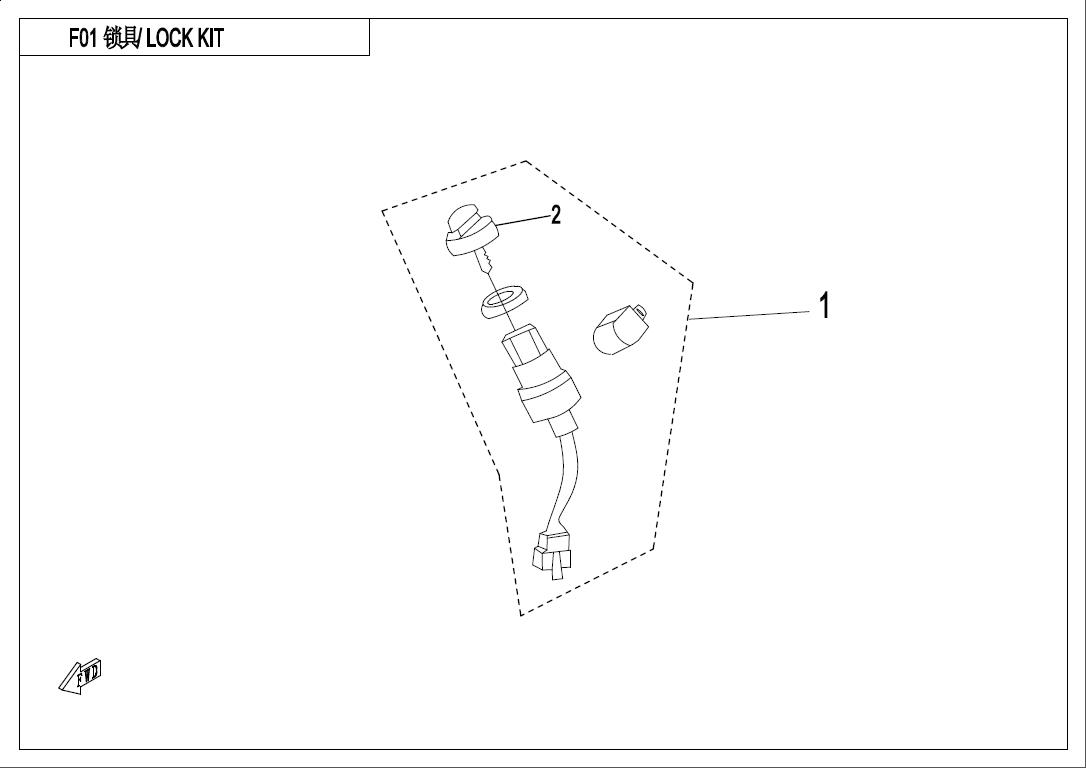

F01
LOCK KIT

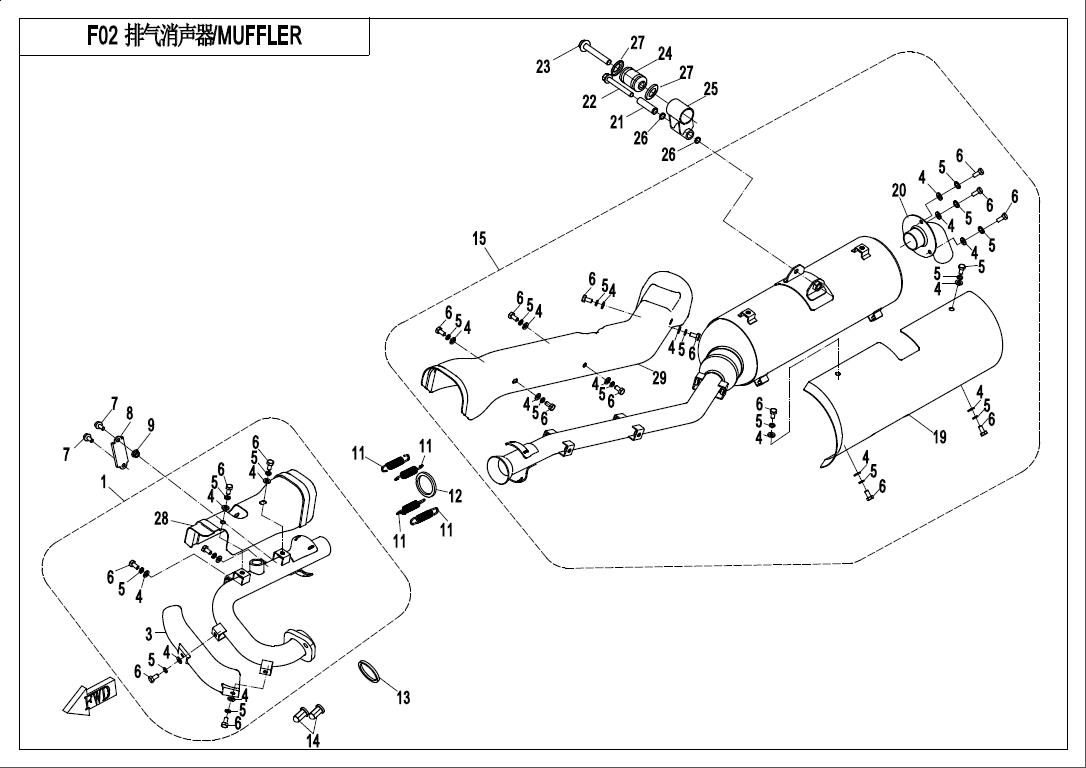

F02
MUFFLER

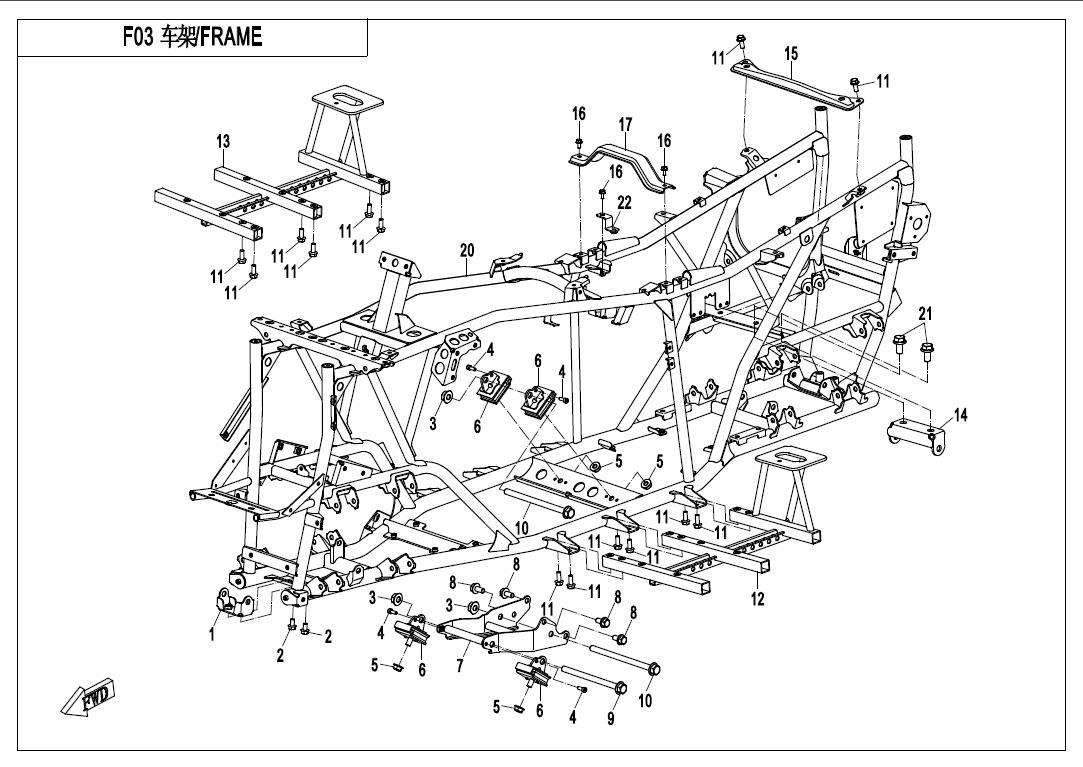

F03
FRAME
F04-1

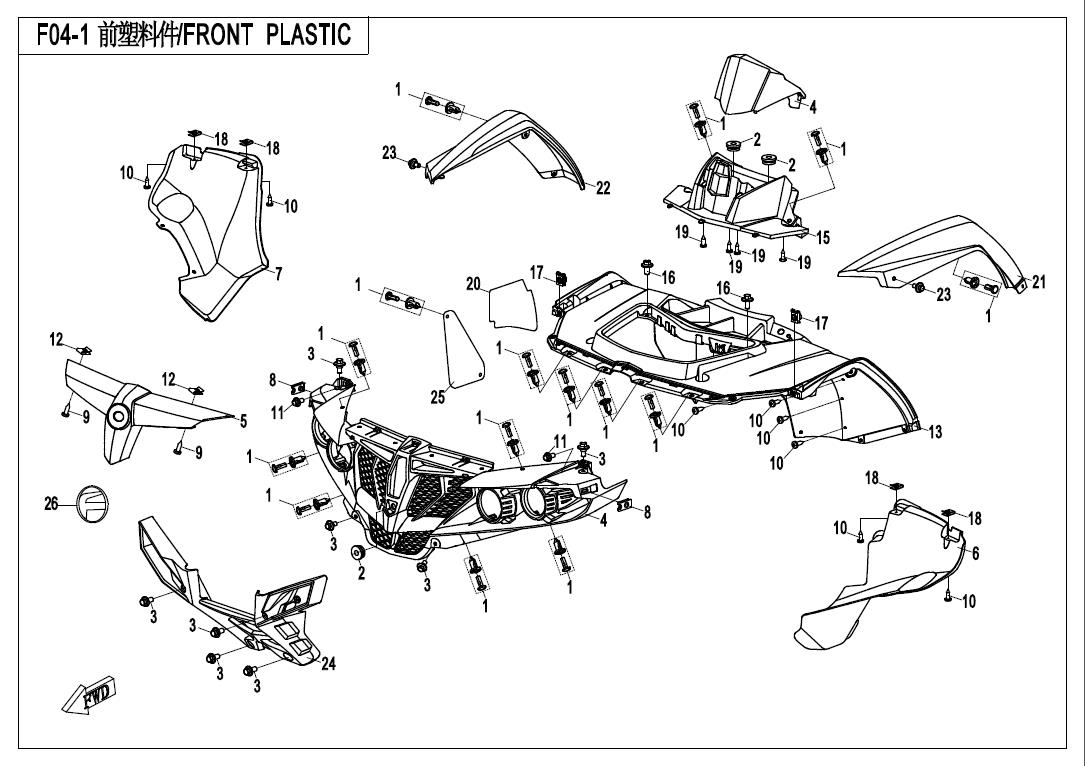

FRONT PLASTIC
F04-2

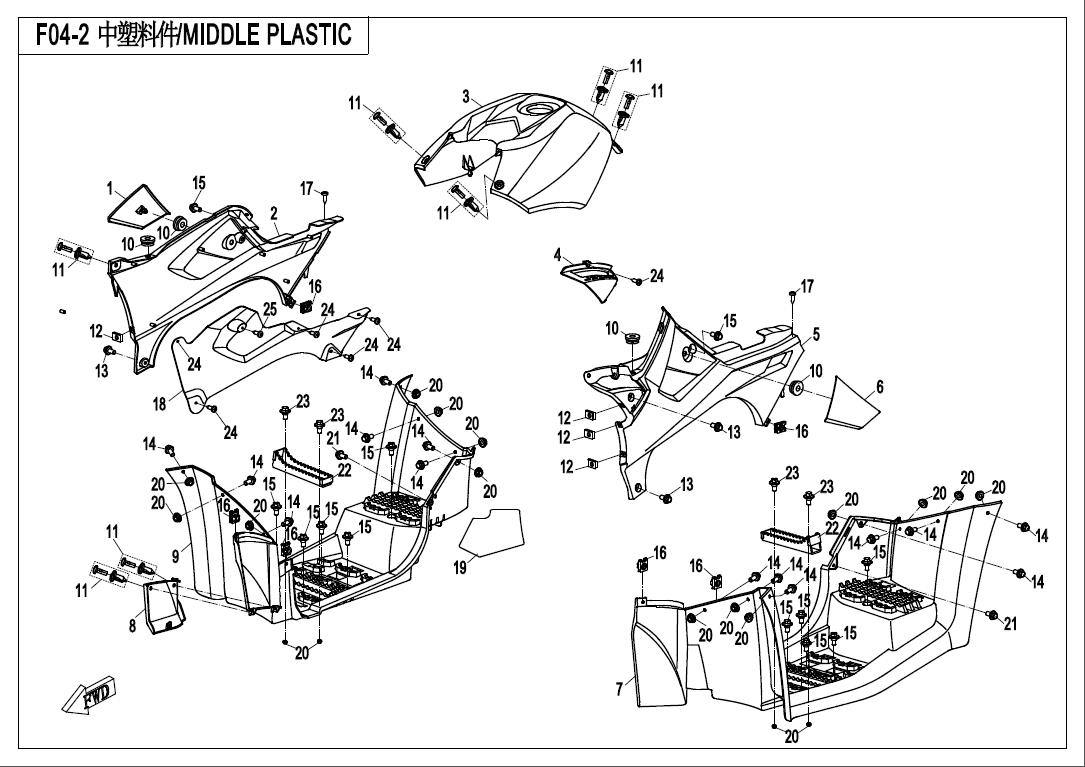

MIDDLE PLASTIC

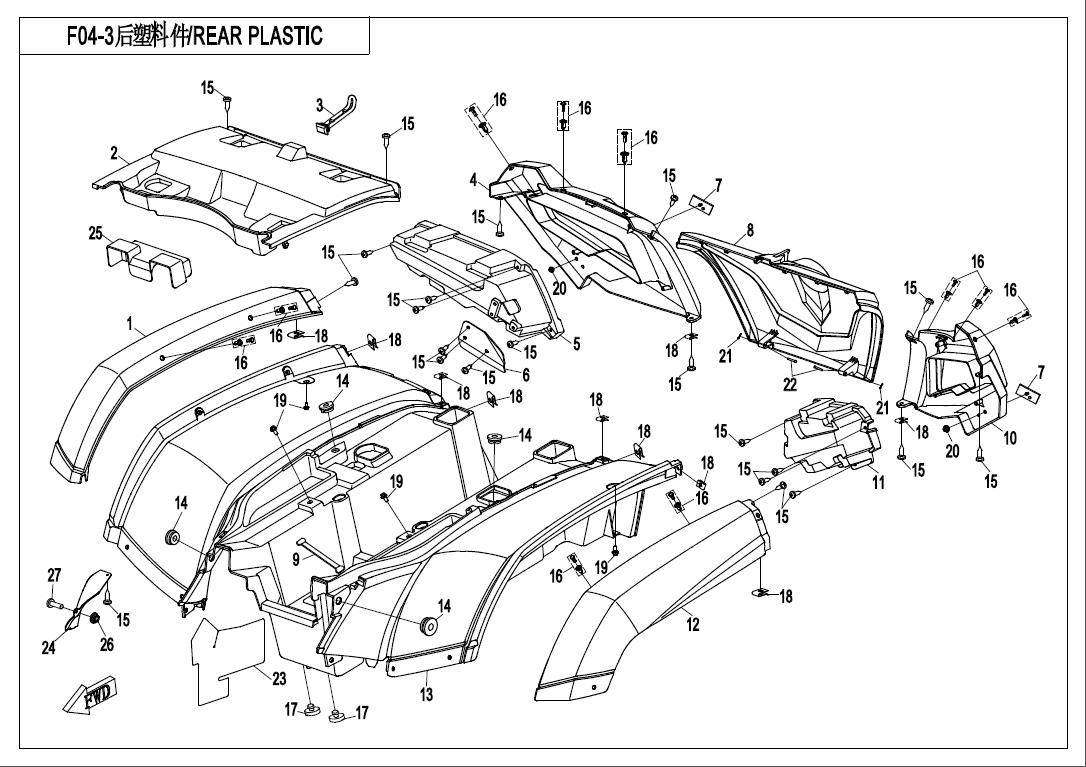

F04-3
REAR PLASTIC

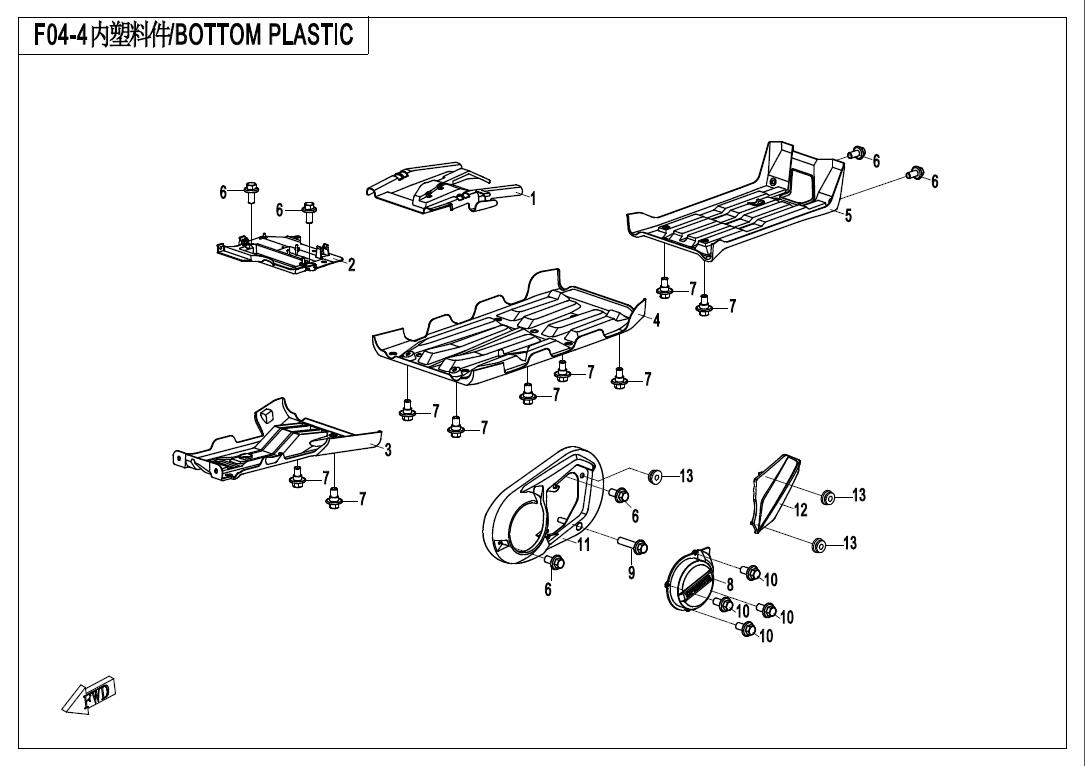

F04-4
BOTTOM PLASTIC
F05

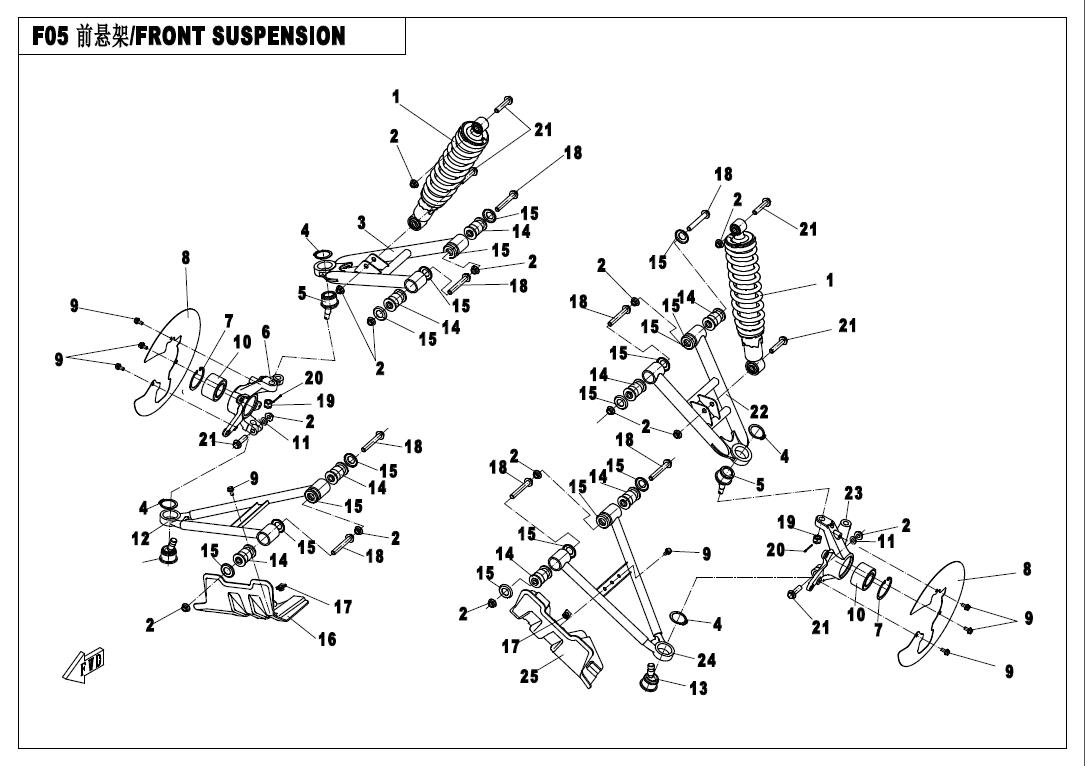

FRONT SUSPENSION

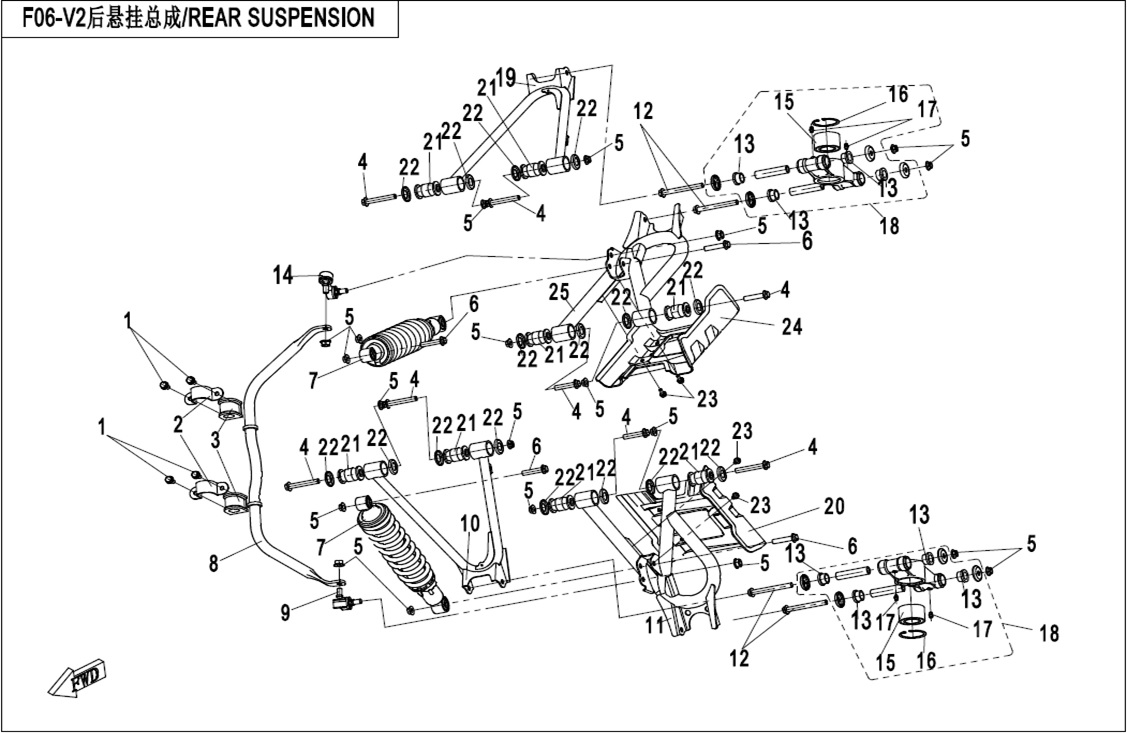

F06-V2
REAR SUSPENSION

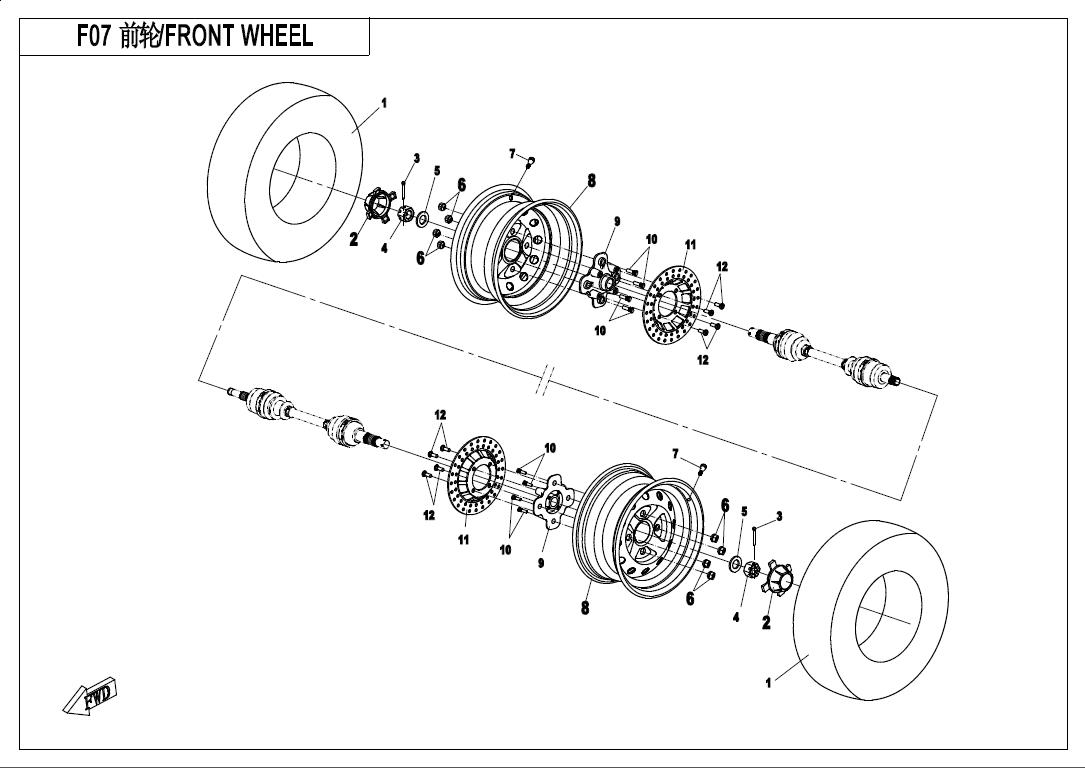

F07
FRONT WHEEL

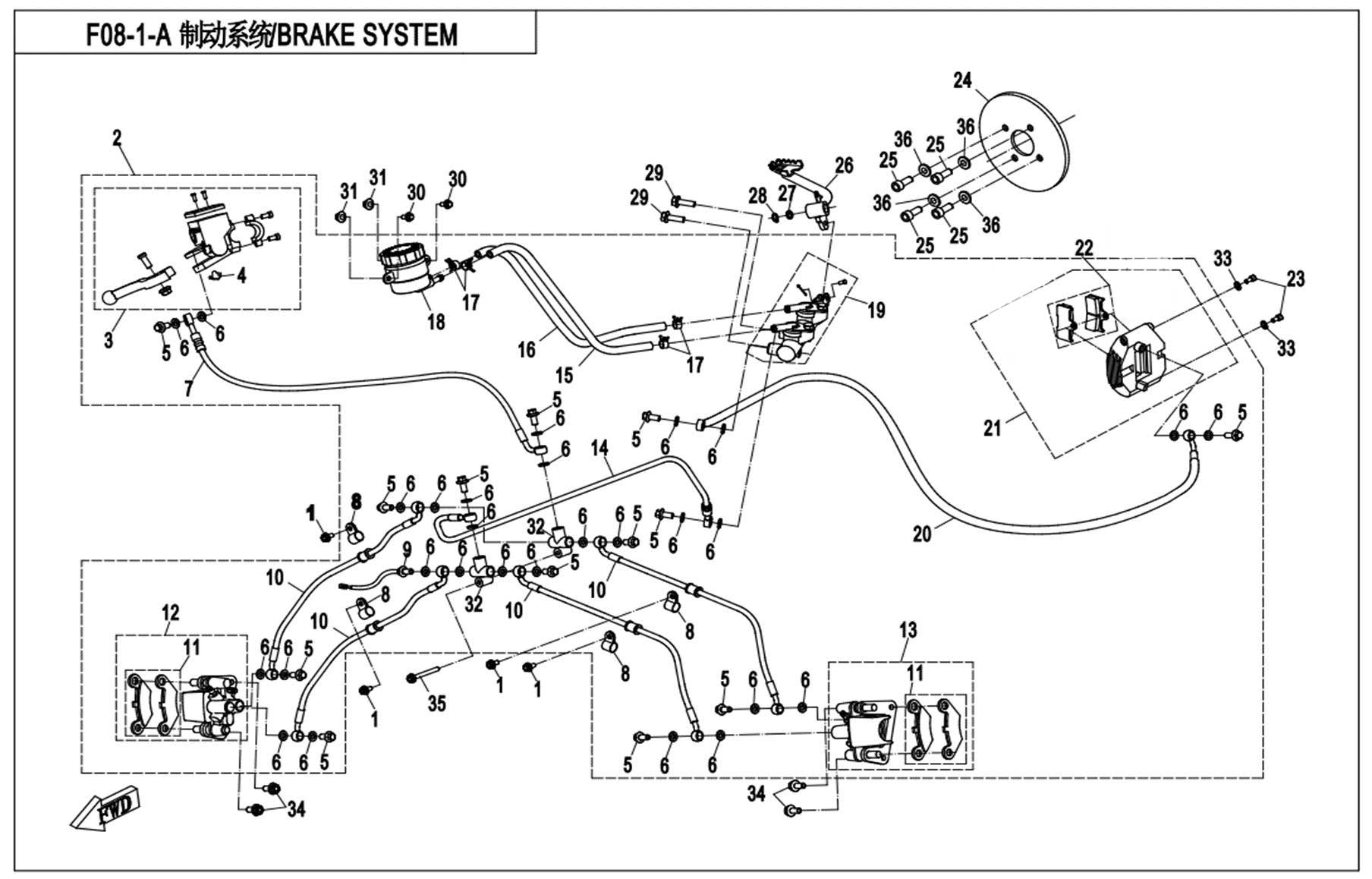

F08-1-A
BRAKE SYSTEM (WITH T-JOINT)

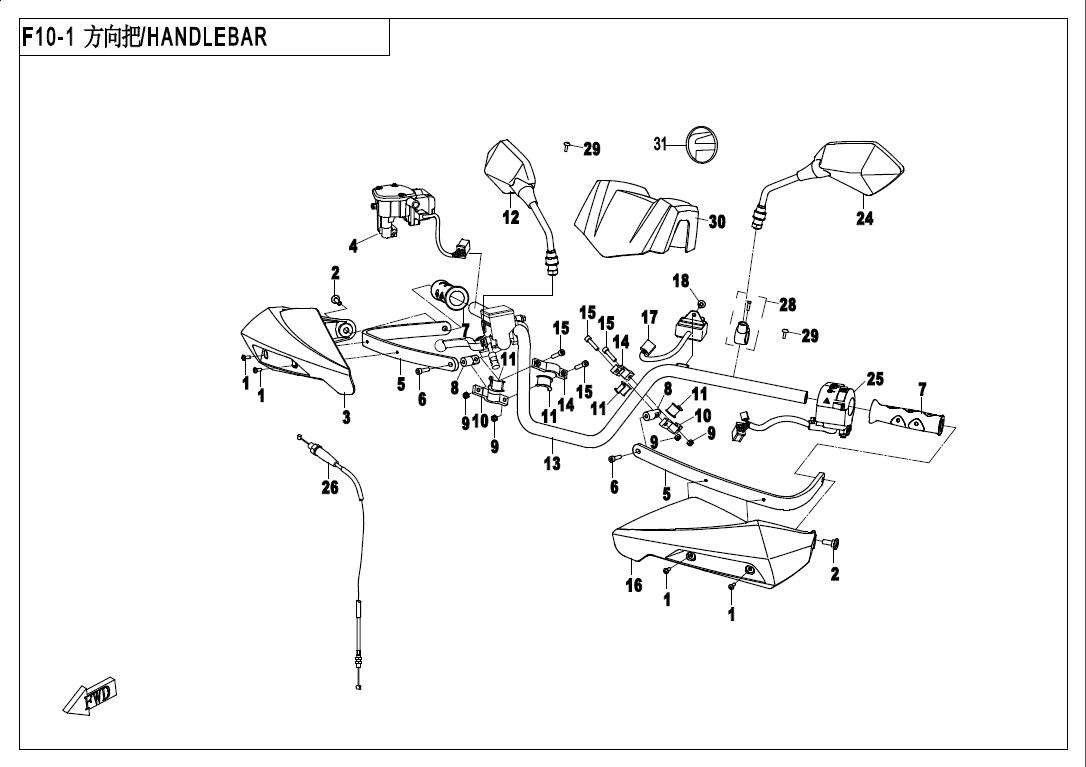

F10-1
HANDLEBAR
F10-2-B

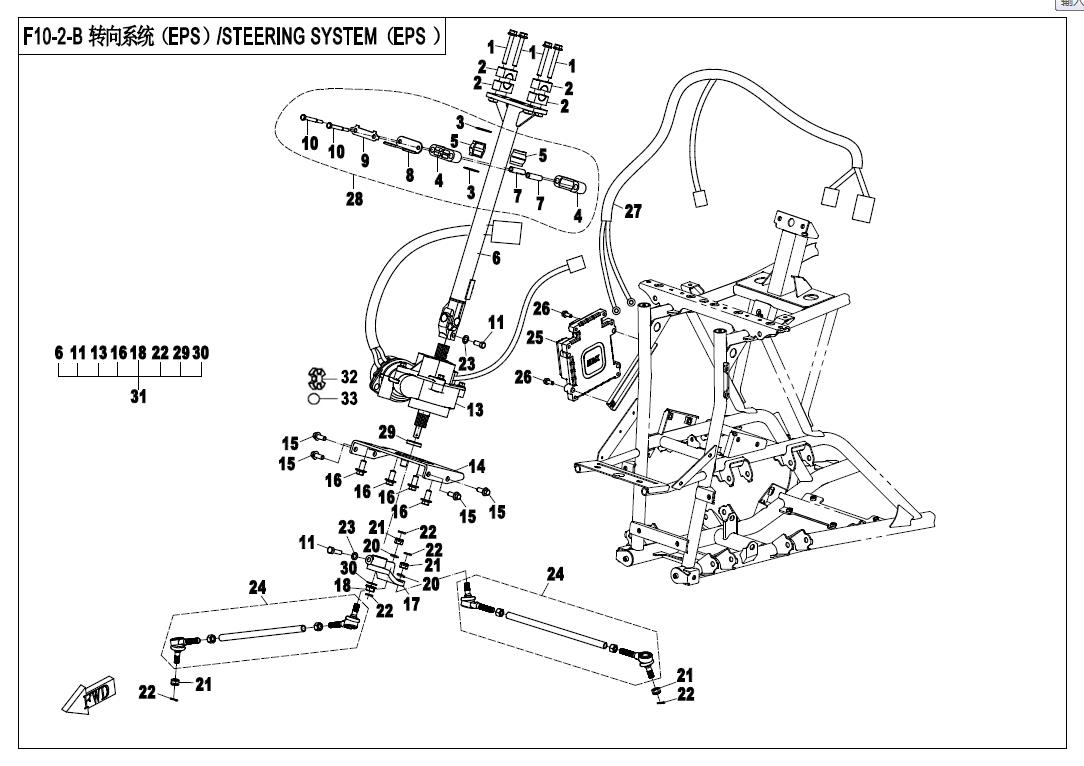

STEERING SYSTEM(EPS)
F11

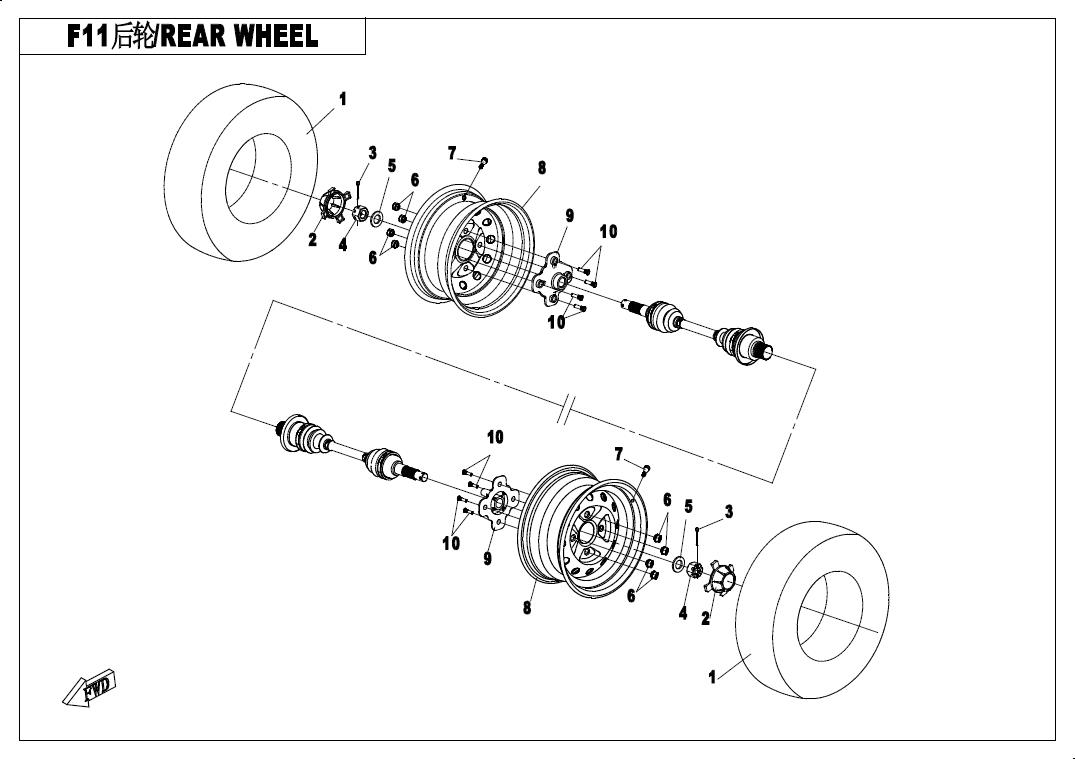

REAR WHEEL
F12

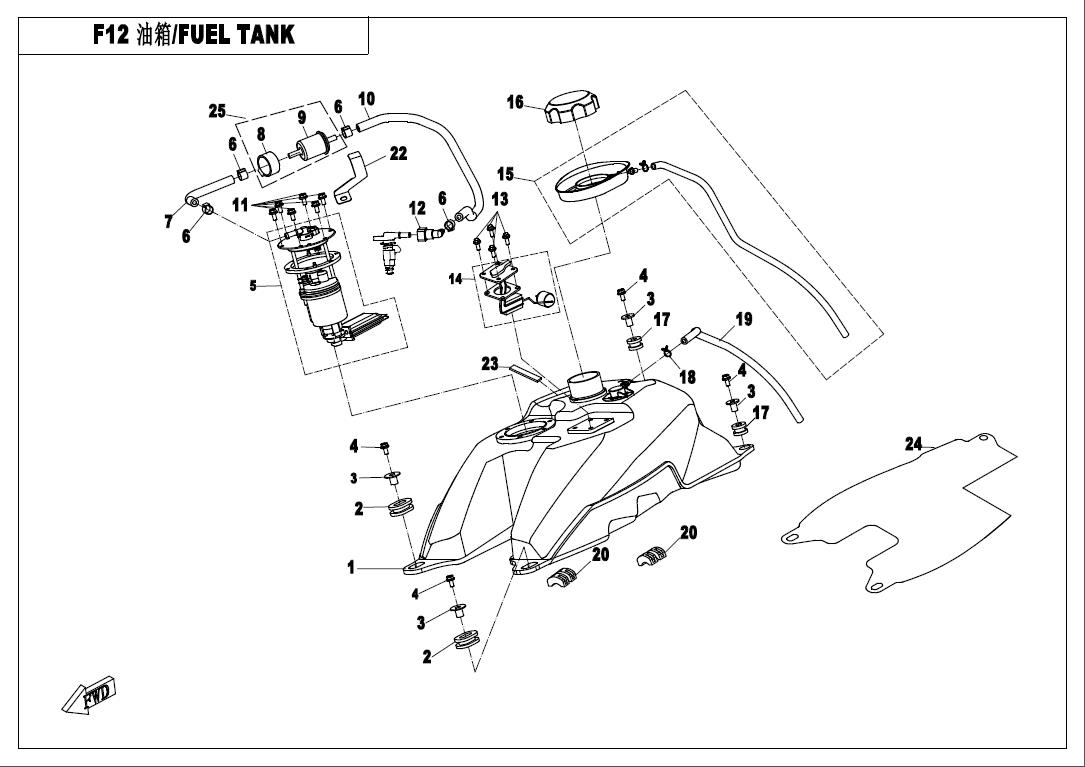

FUEL TANK

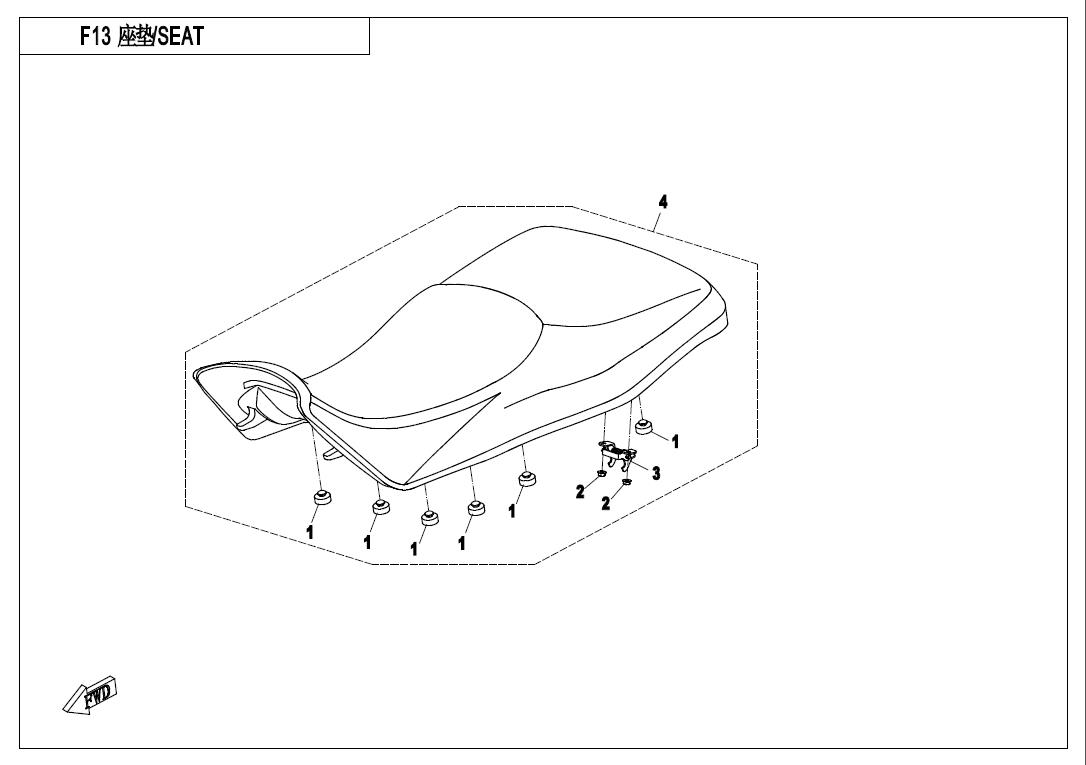

F13
SEAT
F14-A

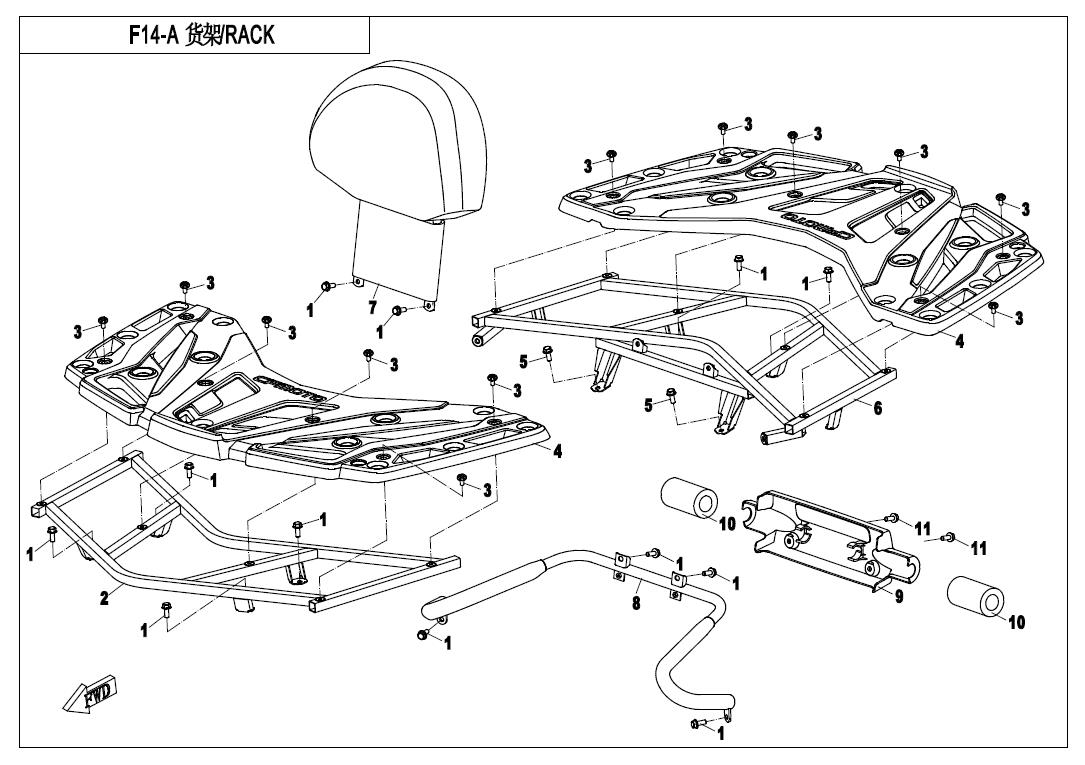

RACK (PLASTIC)
F15-1-A

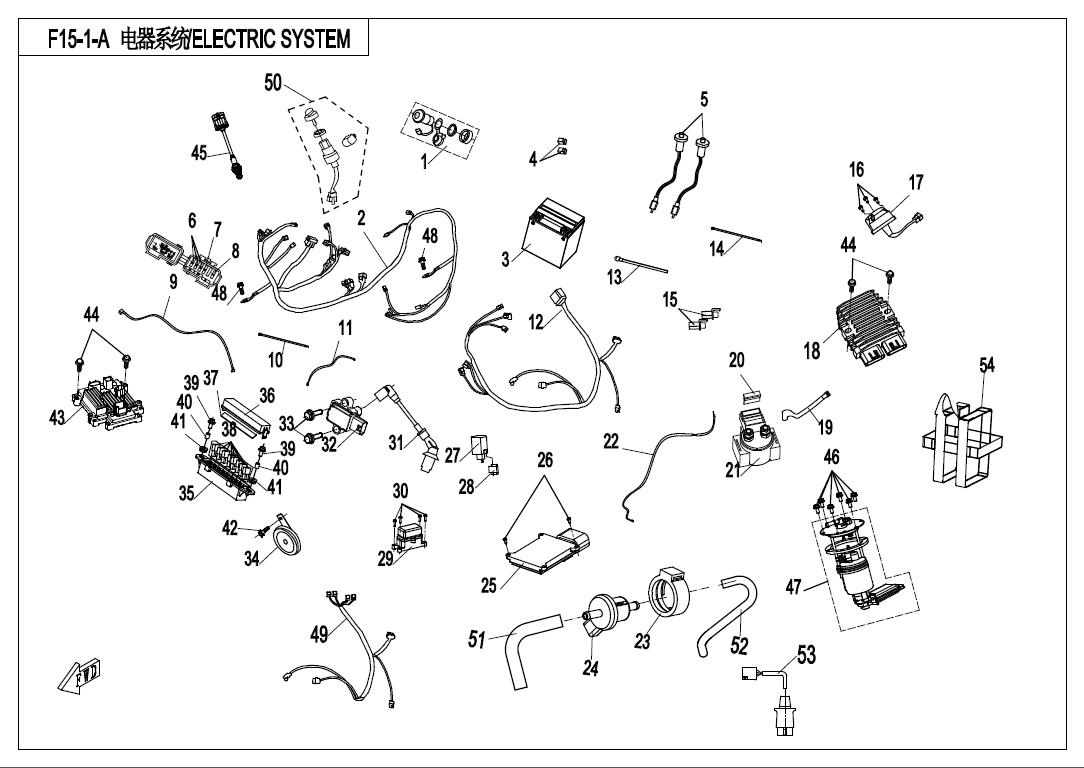

ELECTRIC SYSTEM

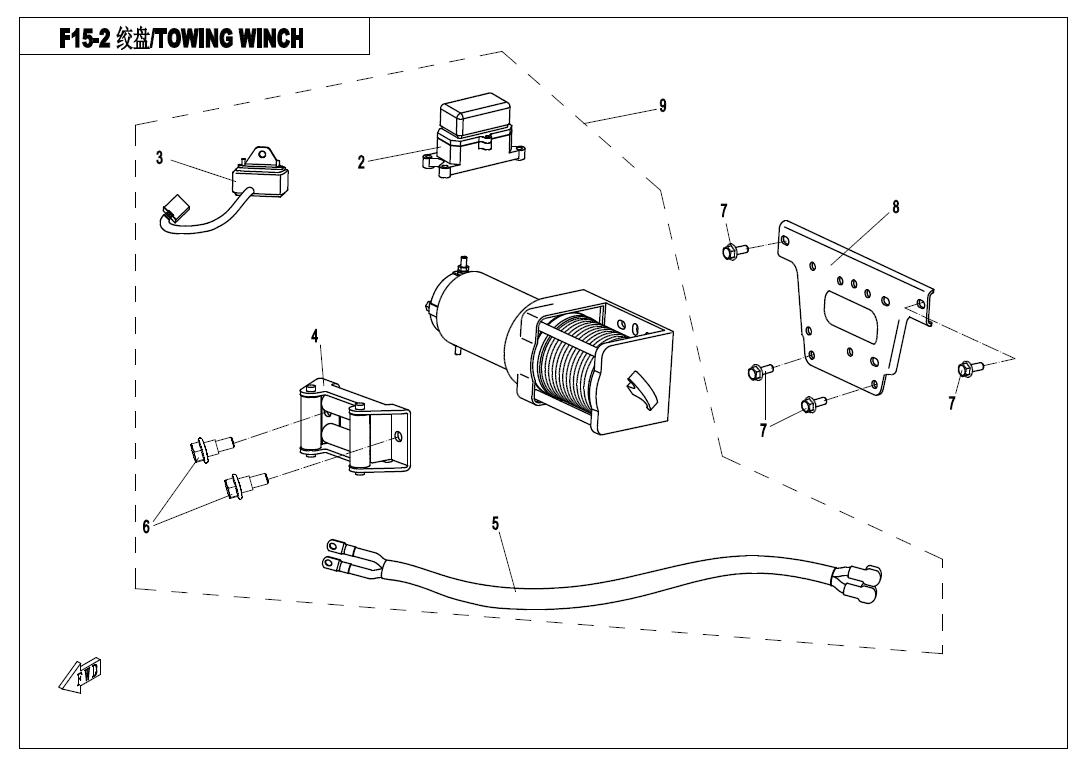

F15-2
TOWING WINCH

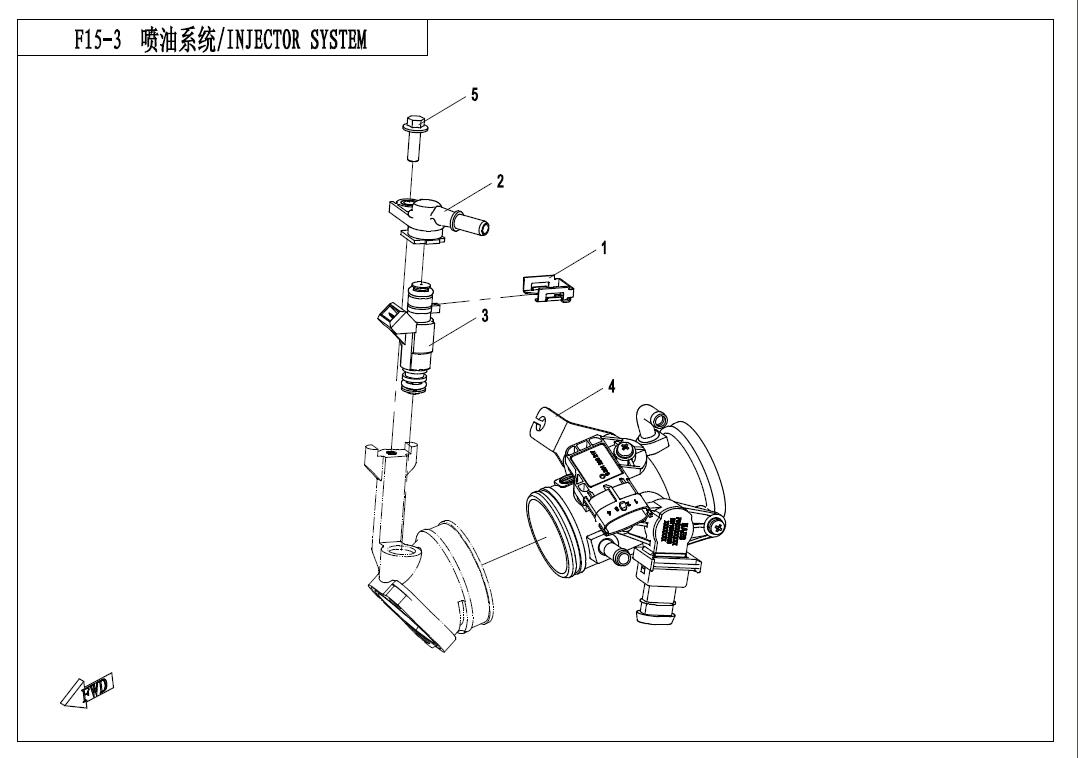

F15-3
INJECTOR SYSTEM

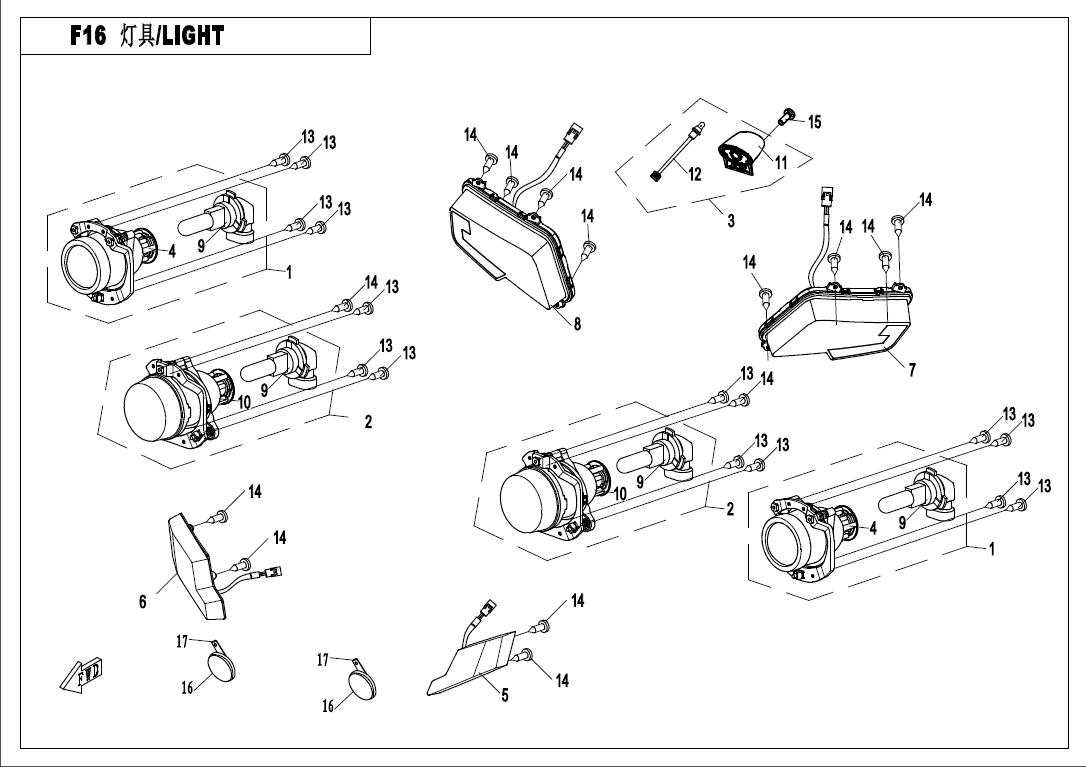

F16
LIGHT
F17

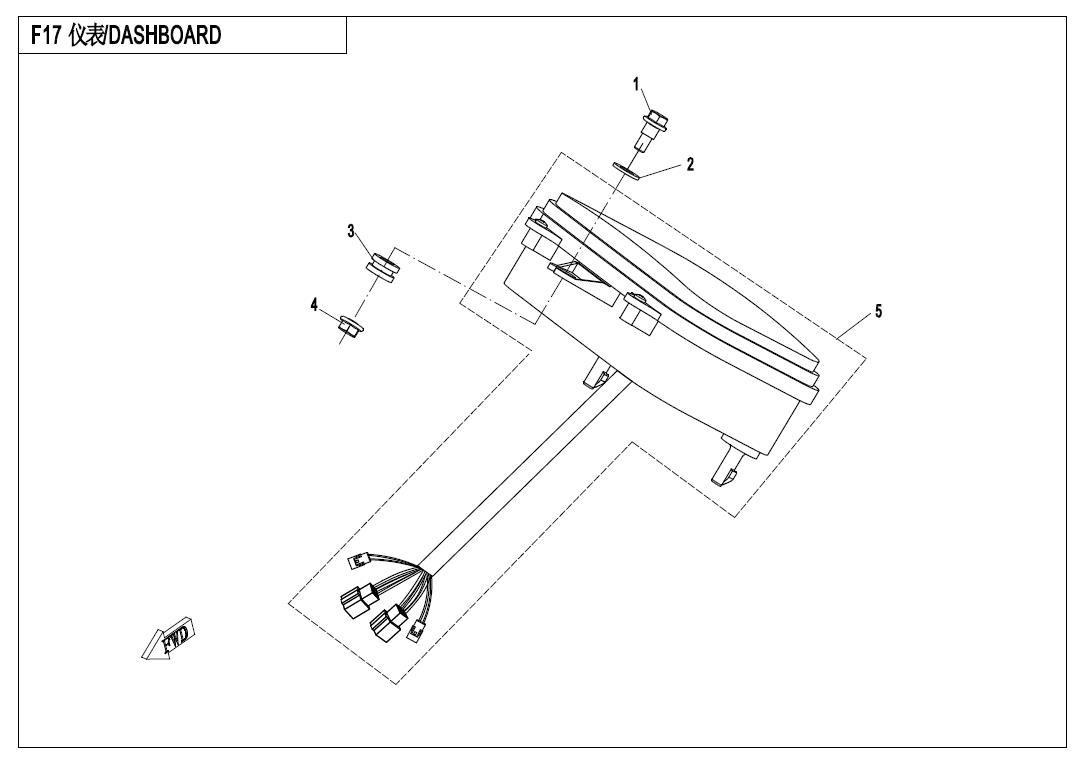

DASHBOARD
F18

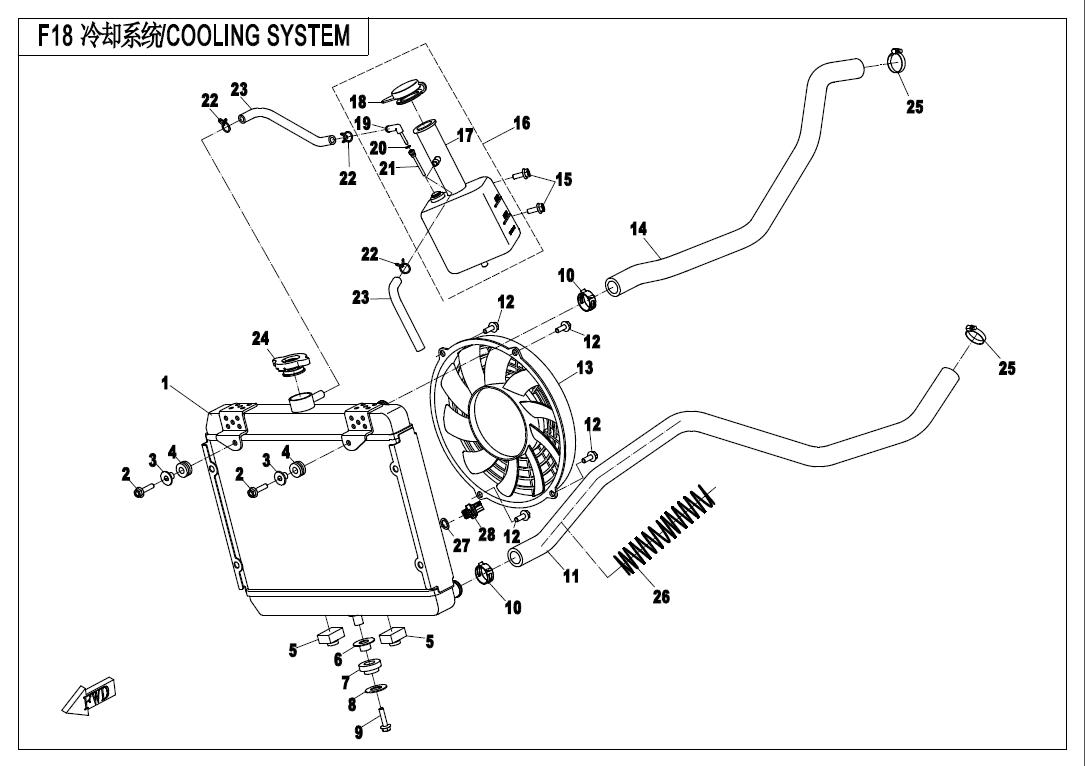

COOLING SYSTEM
F19-1-A
DECAL KITS FOR INJECTED BLUE&CRYSTAL ORANGE MODEL(EURO)
F19-1-B
DECAL KITS FOR MAPLE CAMO MODEL(EURO)
F19-2-A

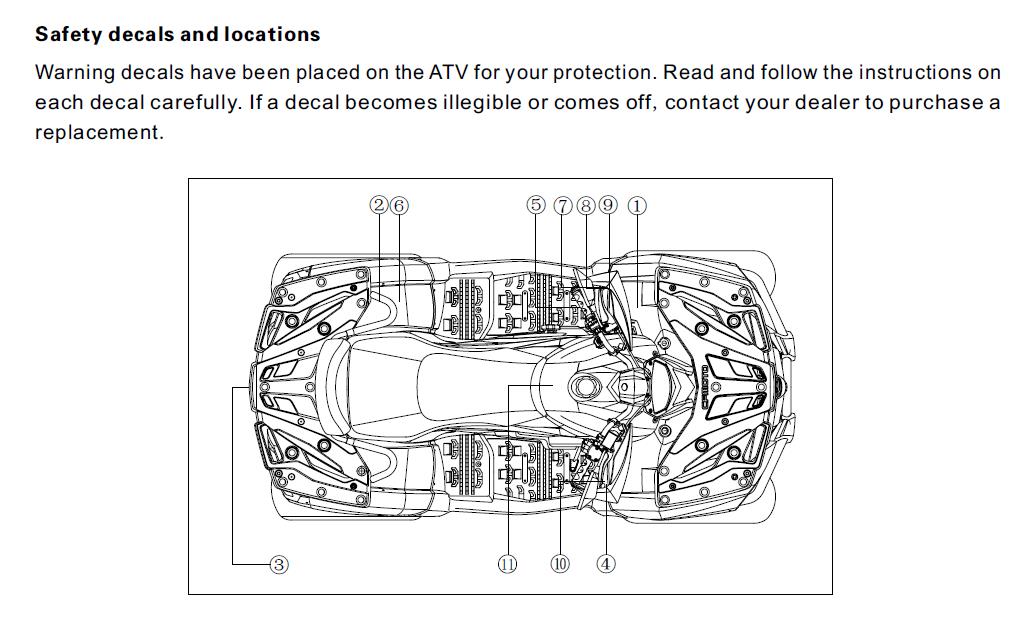

WARNING DECALS(EURO)
F20

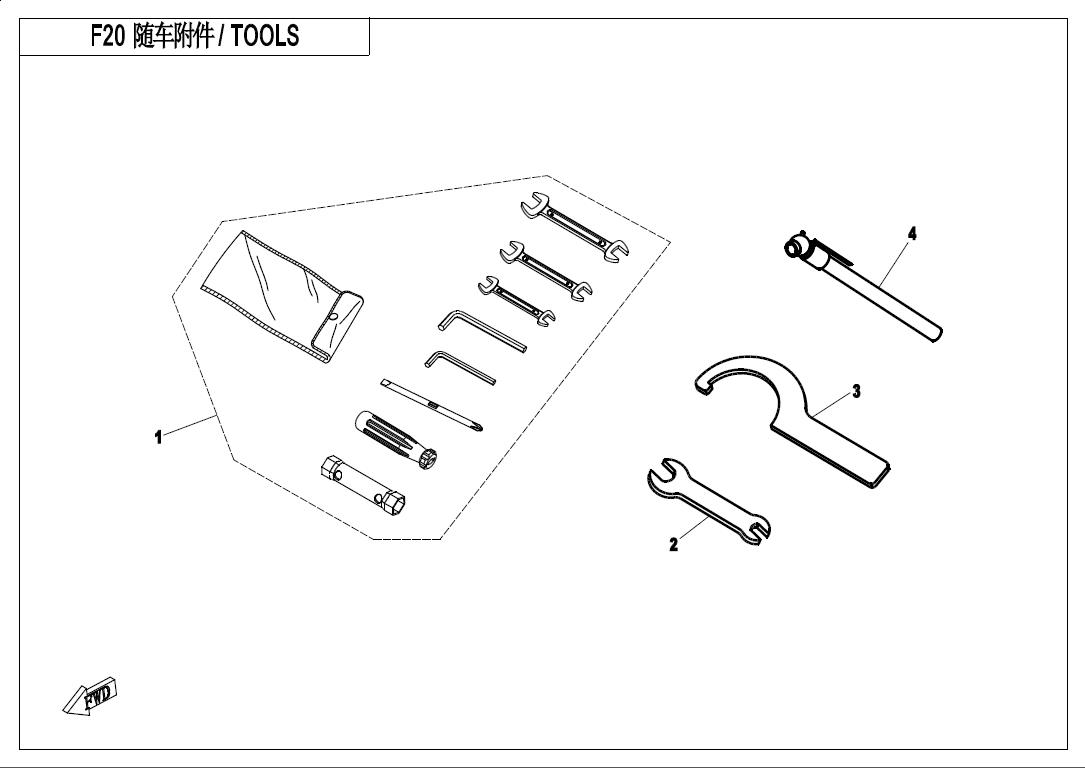

TOOLS

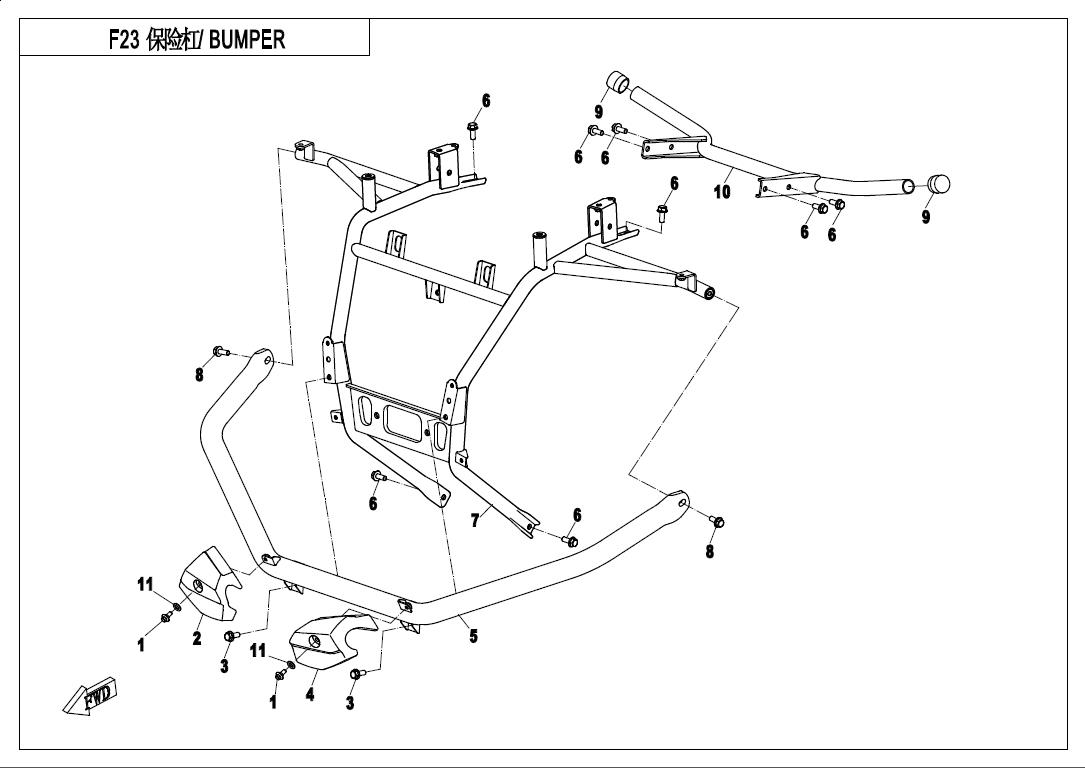

F23
BUMPER
F27-A

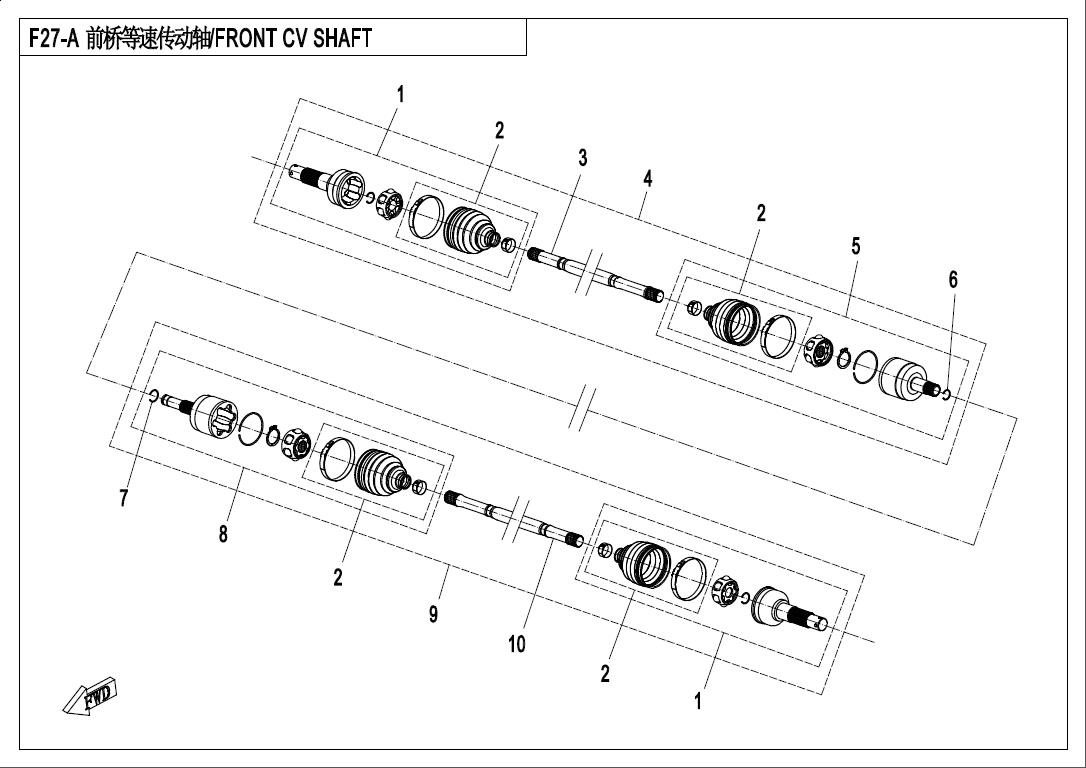

FRONT CV SHAFT (ODM)
F28-A

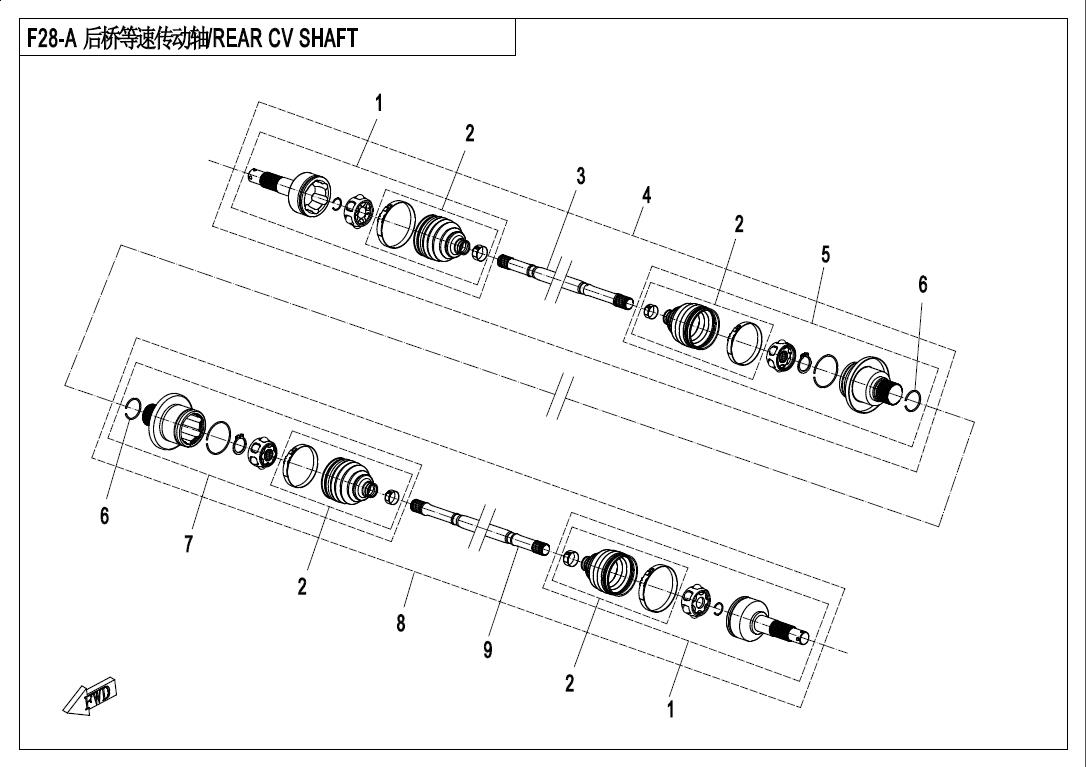

REAR CV SHAFT(ODM)

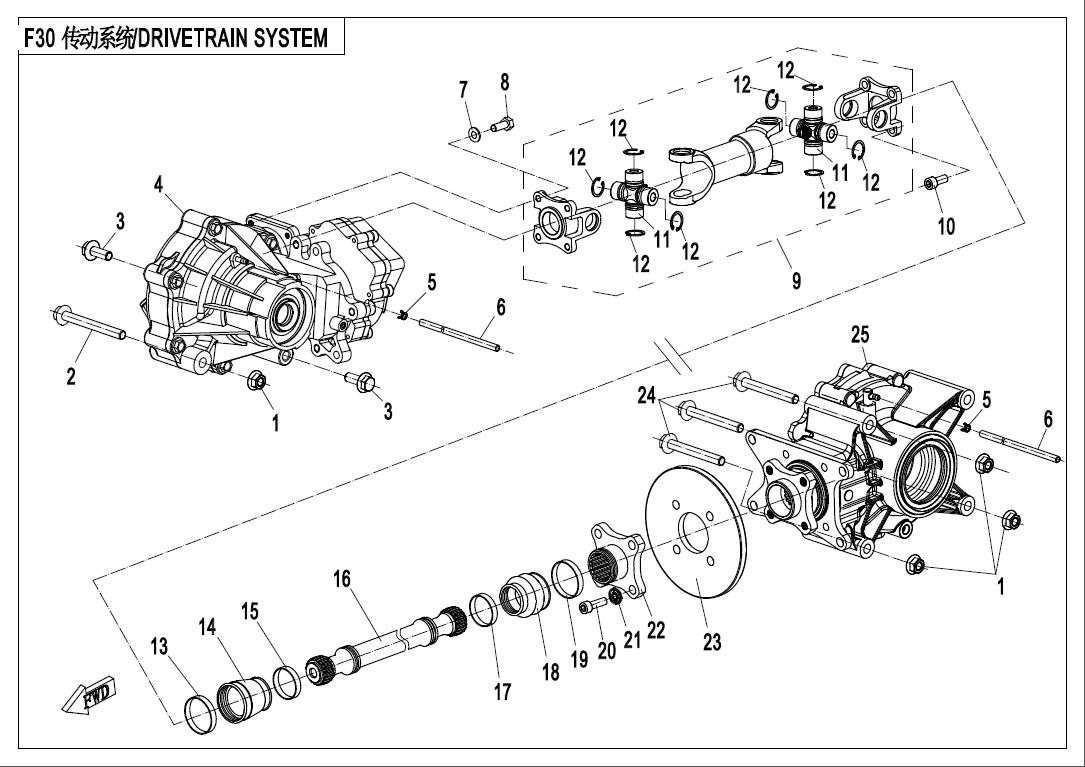

F30
DRIVETRAIN SYSTEM

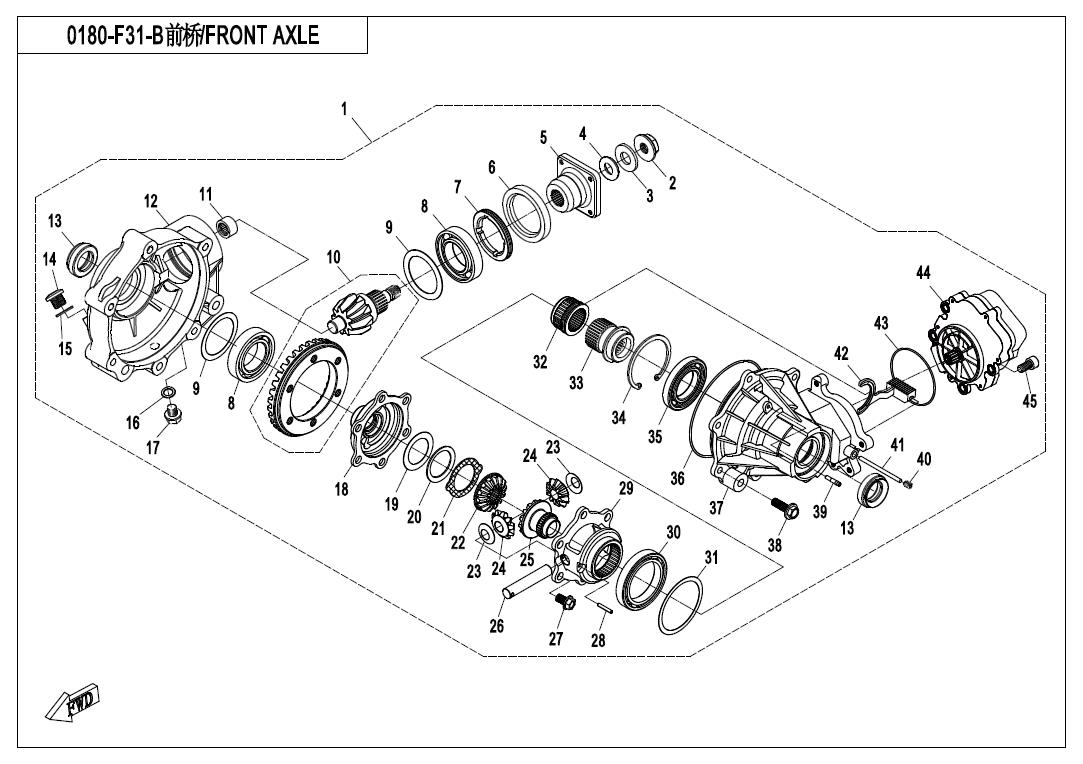

F31-B
FRONT AXLE

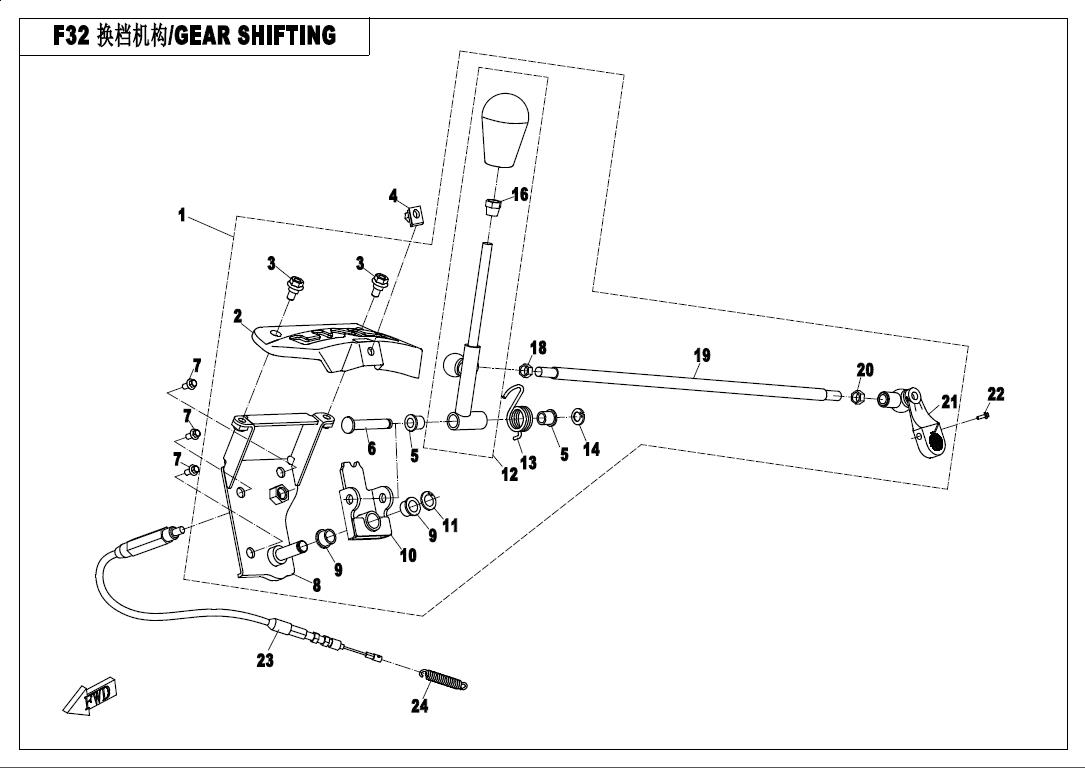

F32
GEAR SHIFTING

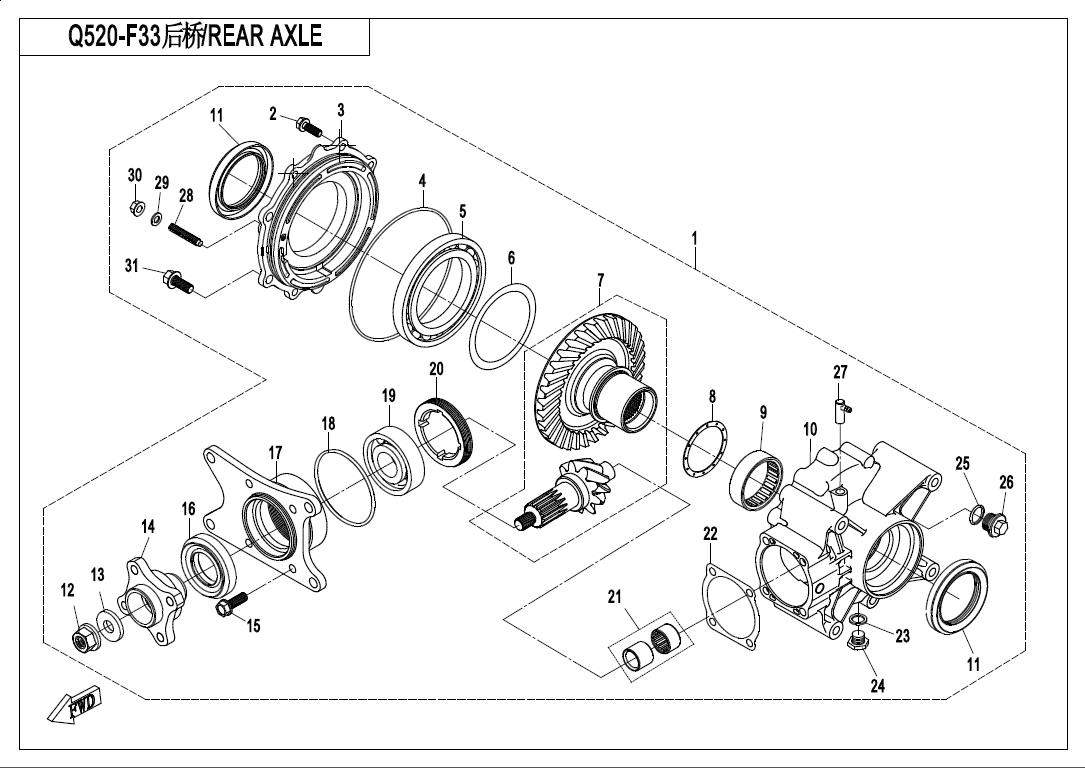

F33
REAR AXLE
F38
OWNER'S MANUAL
F40-B

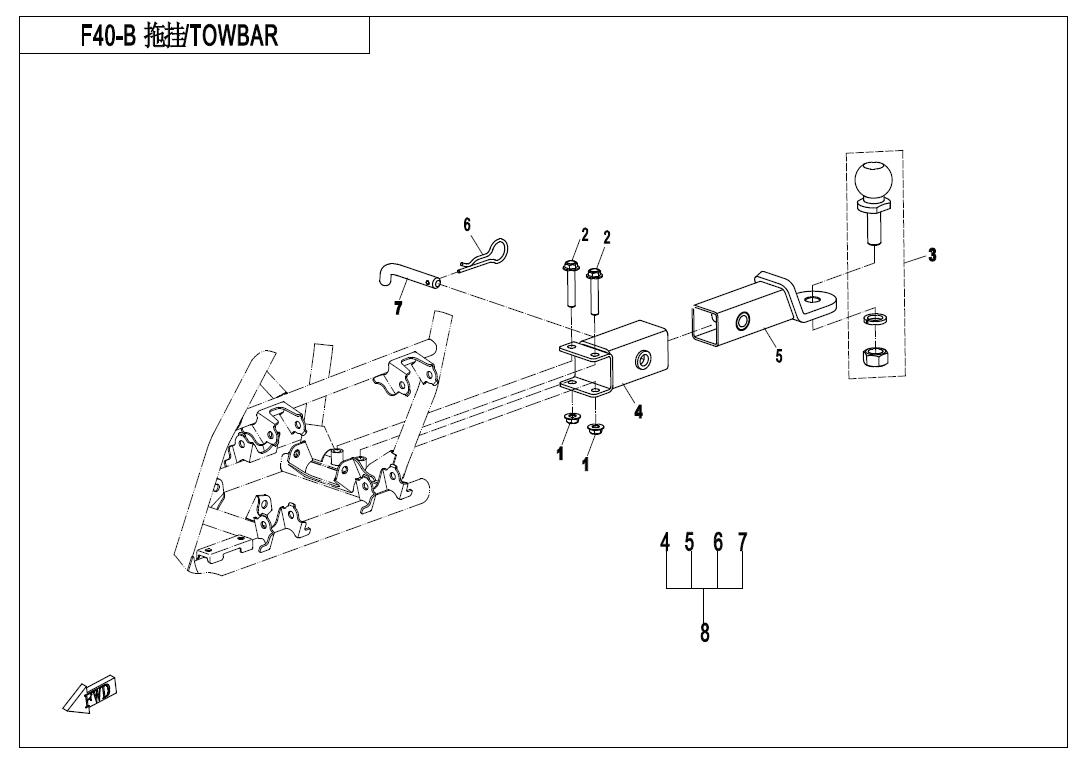

TOWBAR(SPLIT TYPE)
F41

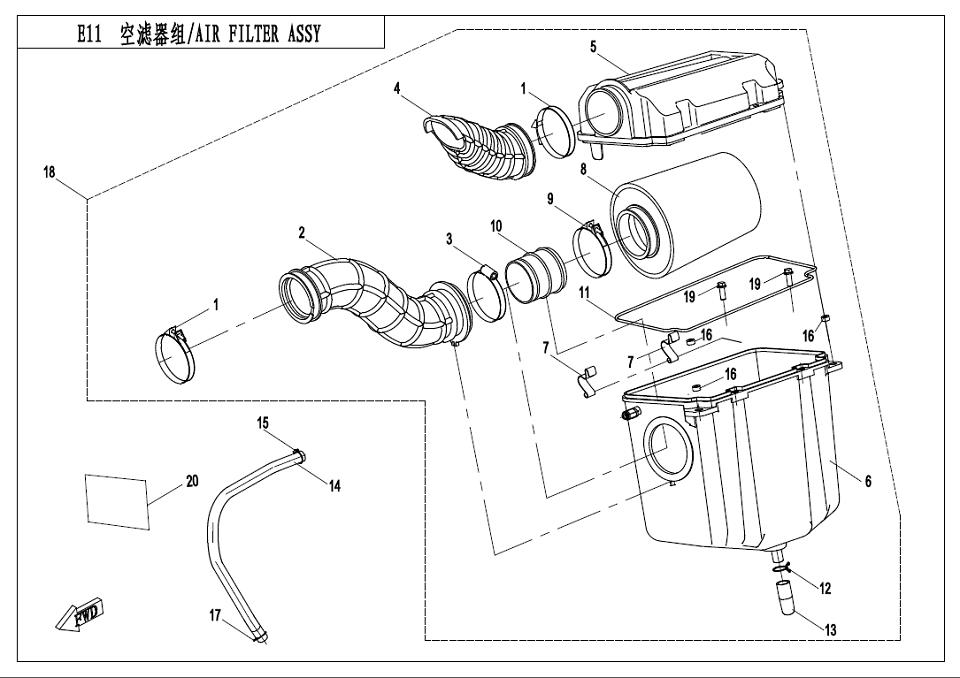

AIR FILTER ASSY
E01
CRANCKCASE ASSY.
E01-1
LEFT CRANKCASE ASSY
E01-2
RIGHT CRANKCASE ASSY
E01-3
CVT CASE ASSY
E01-4-A
LEFT CRANKCASE COVER ASSY(WITHOUT RECOIL START)
E02
CYLINDER/CYLINDER HEAD ASSY.
E02-1
CYLINDER HEAD COVER ASSY
E02-2
CYLINDER HEAD ASSY
E02-3
CYLINDER ASSY
E02-4
CAMSHAFT OF CYLINDER ASSY
E03-B
MANGETO ASSY(FOR EPS)
E04
CRANKSHAFT?CONNECTING ROD?PISTON ASSY
E05
CVT ASSY
E06-1
TRANSMISSION SYSTEM(?)
E06-2
TRANSMISSION SYSTEM(?)
E06-3
TRANSMISSION SYSTEM(?)
E07
OIL PUMP ASSY
E08
WATER PUMP ASSY
E09-A
