Genuine Parts Diagrams for 2022 CFORCE 520 EPS - CF500AU-7SChange Model
Showing 71 parts diagrams.
F00-V2

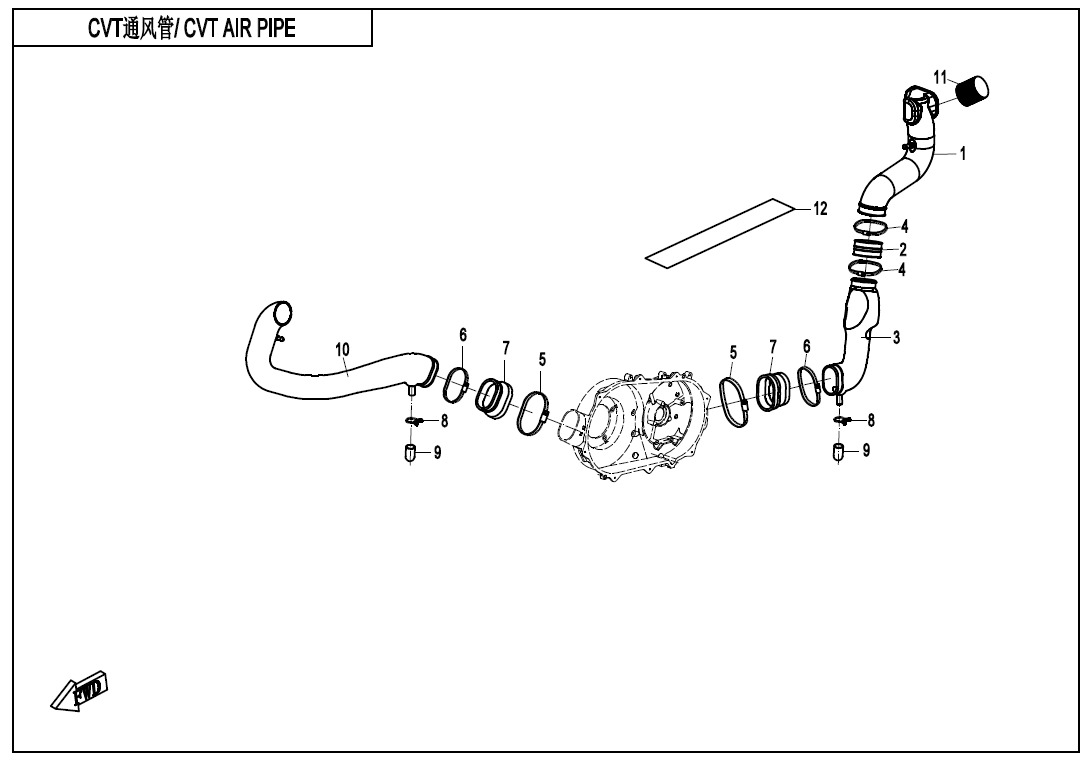

CVT AIR PIPE

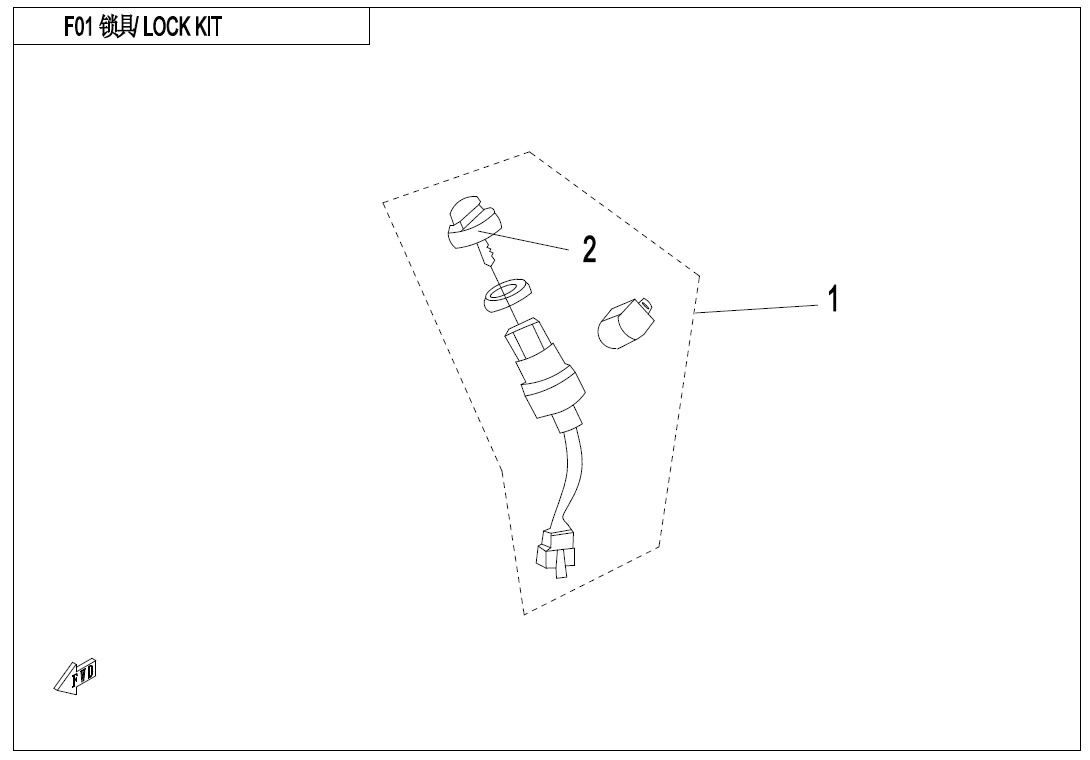

F01
LOCK KIT
F02-A-V3

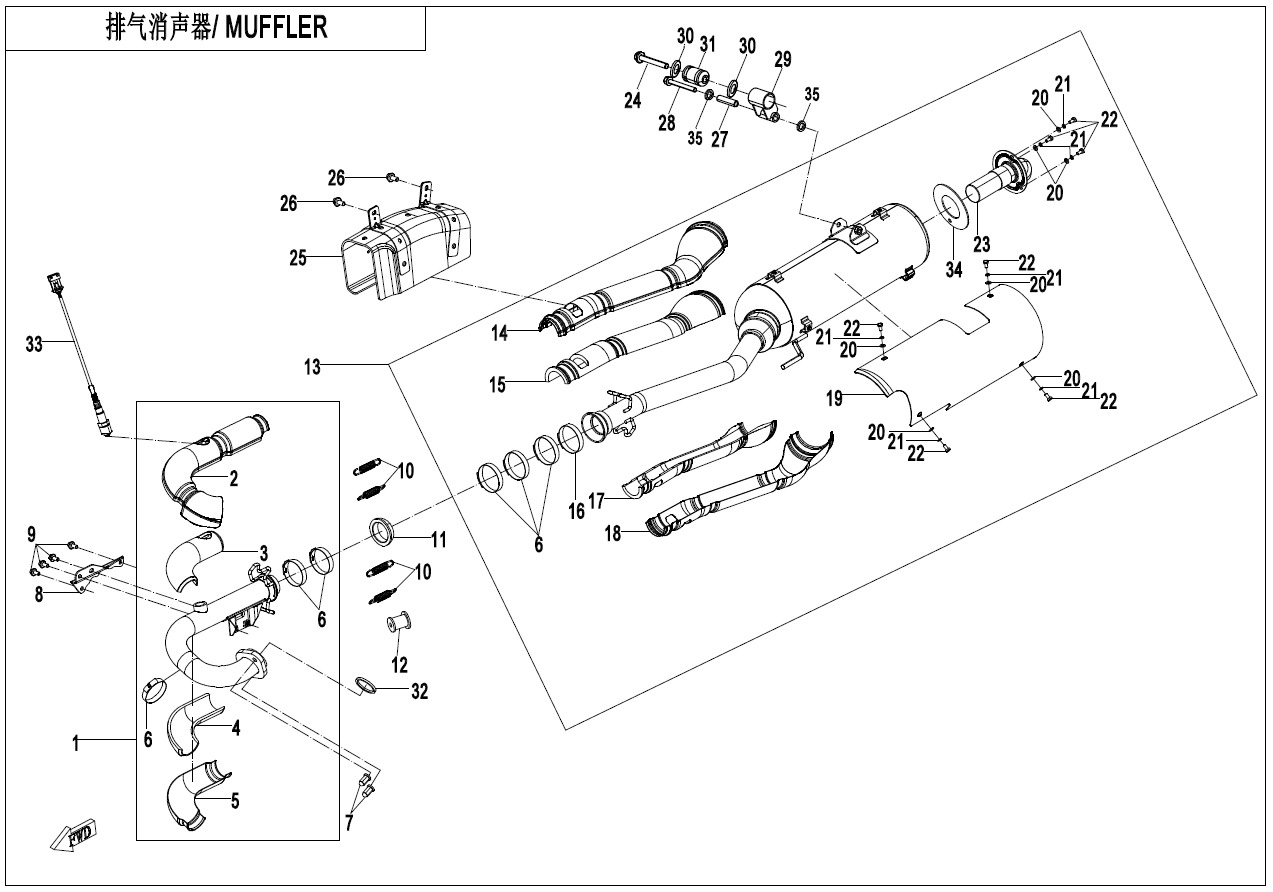

MUFFLER(INTERNATIONAL)

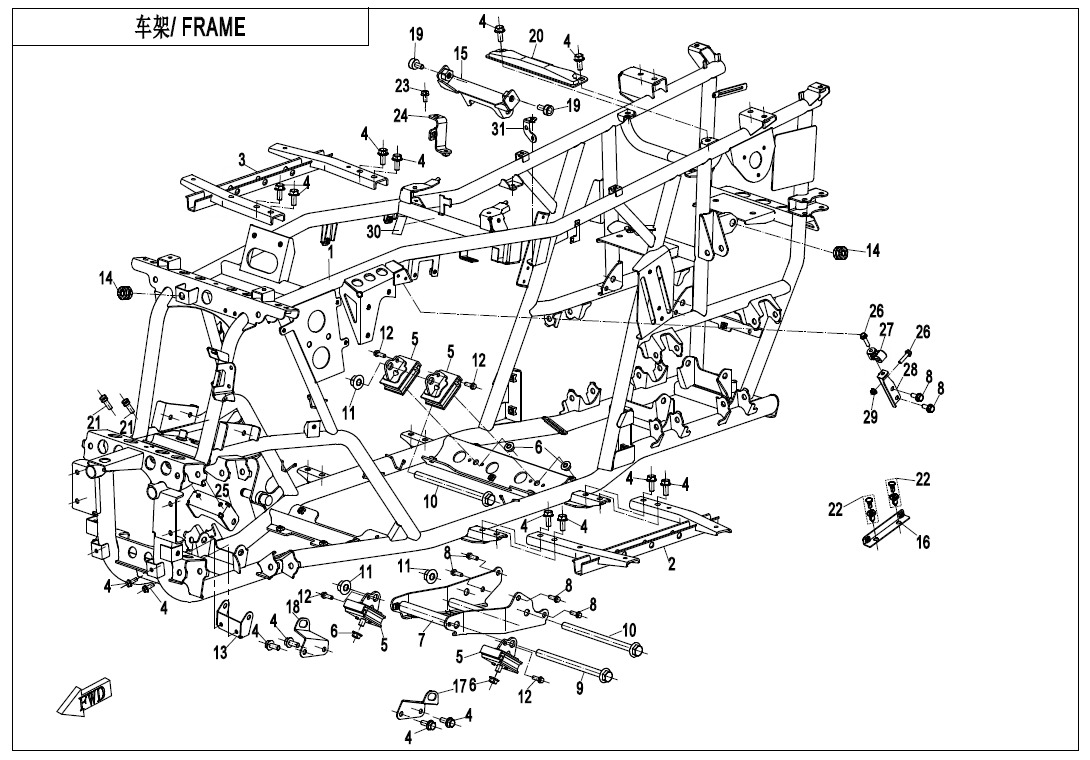

F03-A-V6
FRAME(EURO)
F04-1

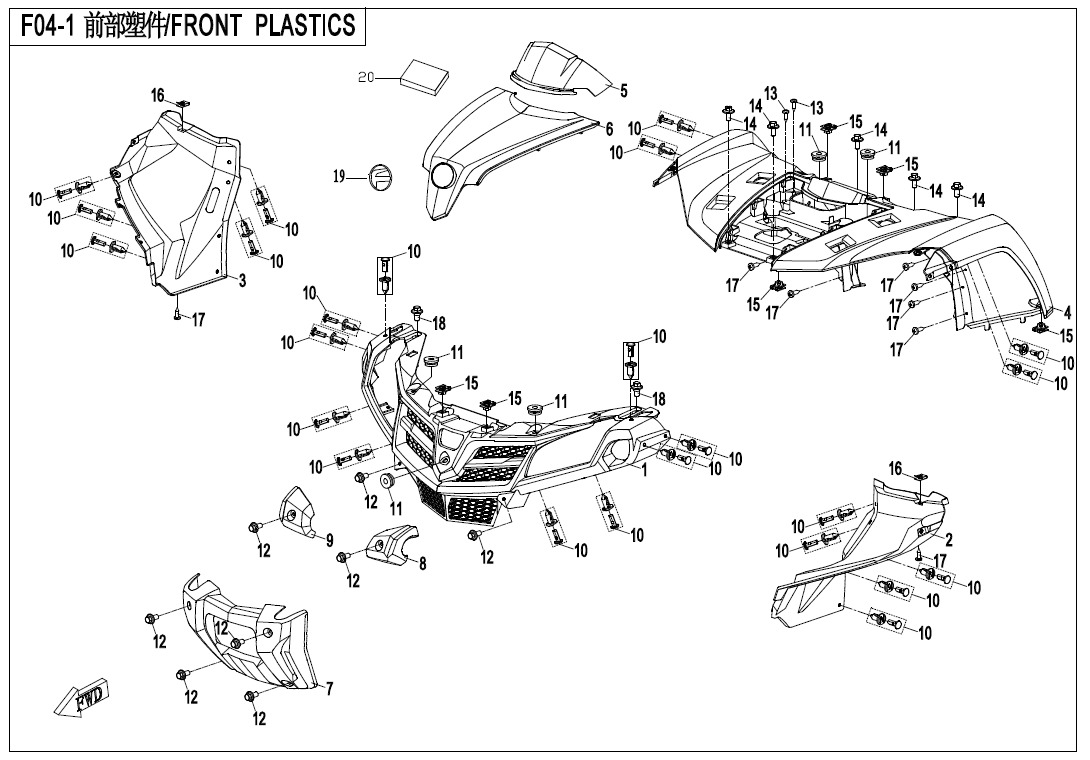

FRONT PLASTICS
F04-2

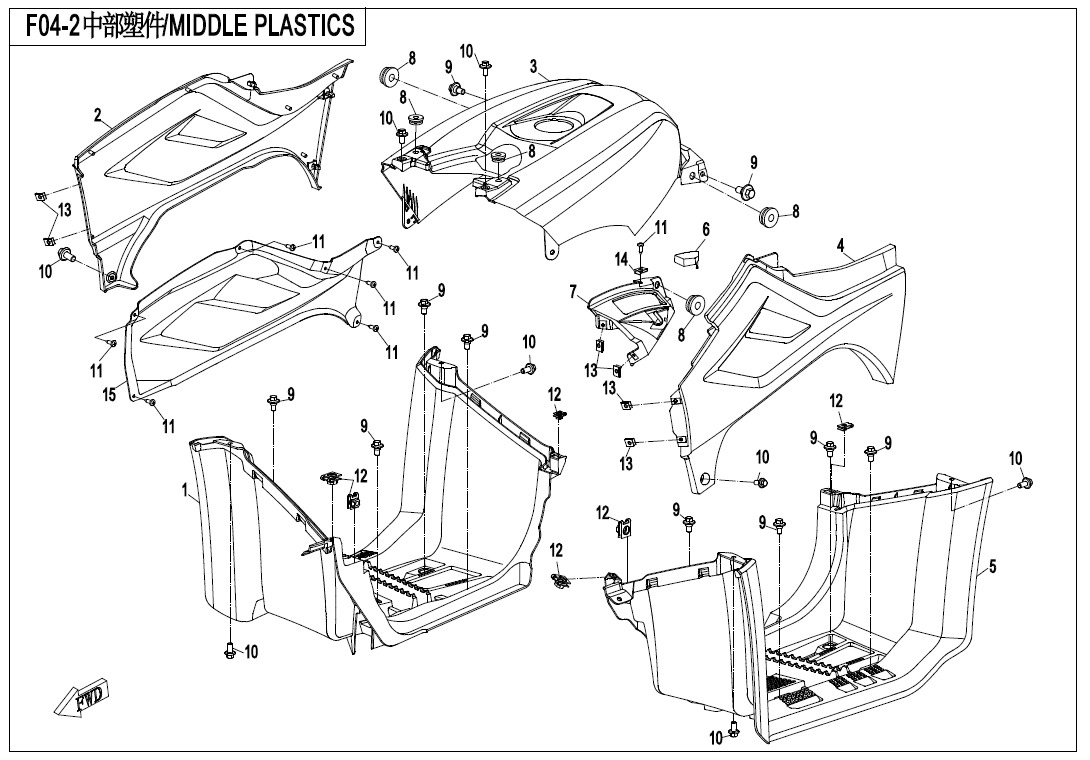

MIDDLE PLASTICS

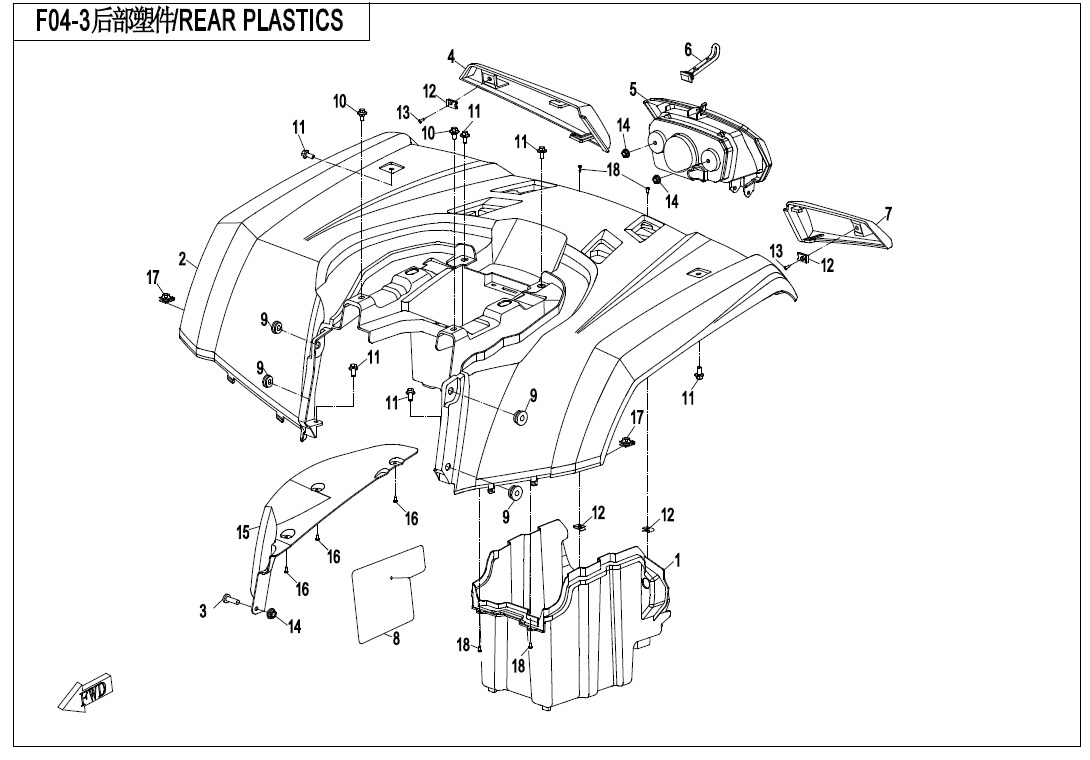

F04-3
REAR PLASTICS
F04-4-V4

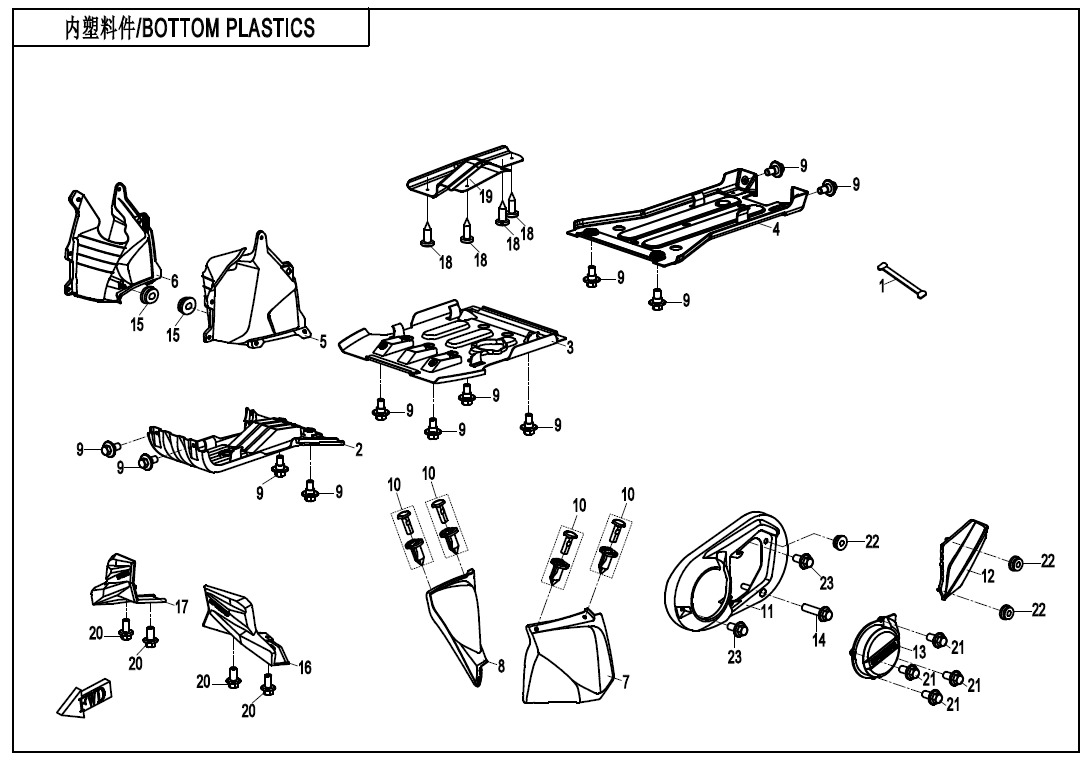

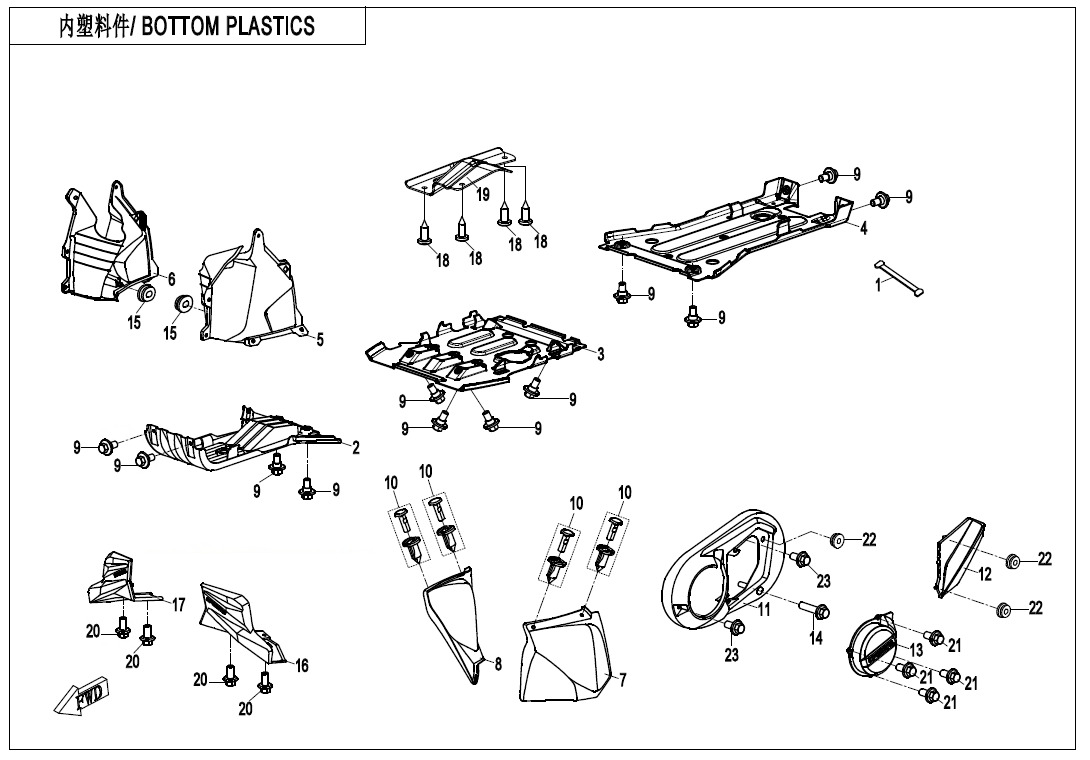

BOTTOM PLASTICS
F04-4-V5
BOTTOM PLASTICS

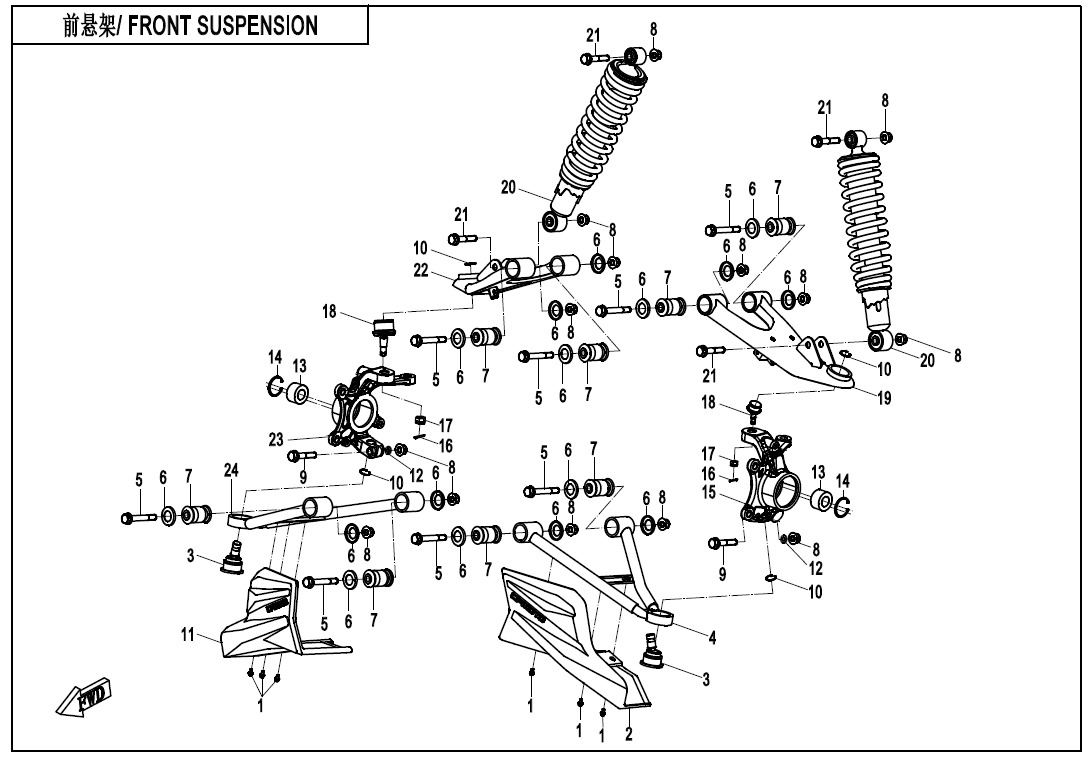

F05-B-V2
FRONT SUSPENSION(NA)

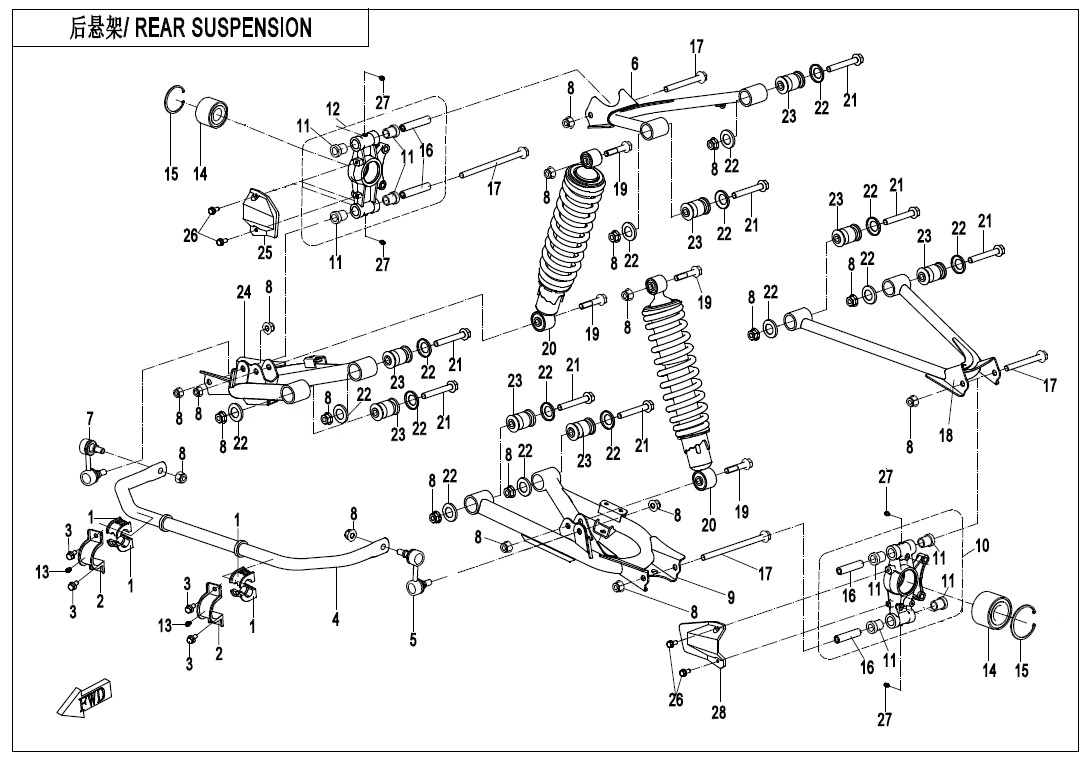

F06-V6
REAR SUSPENSION
F07-A-V2

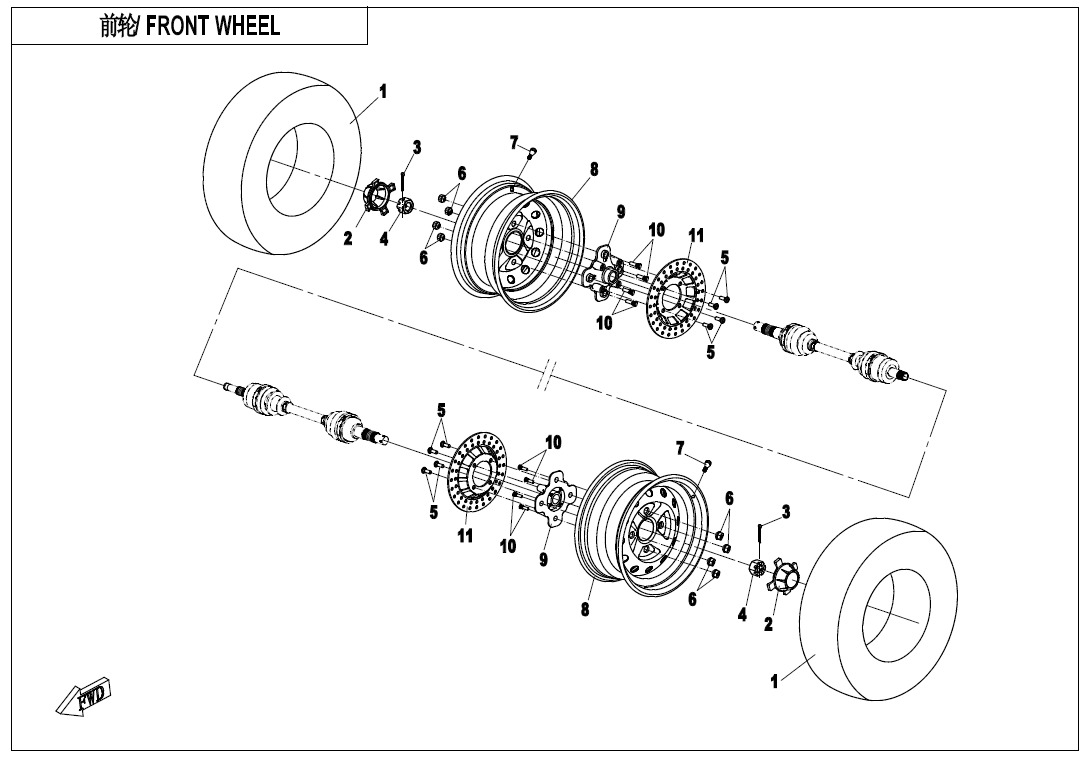

FRONT WHEEL(EURO)
F08-1-C-V3(美规)

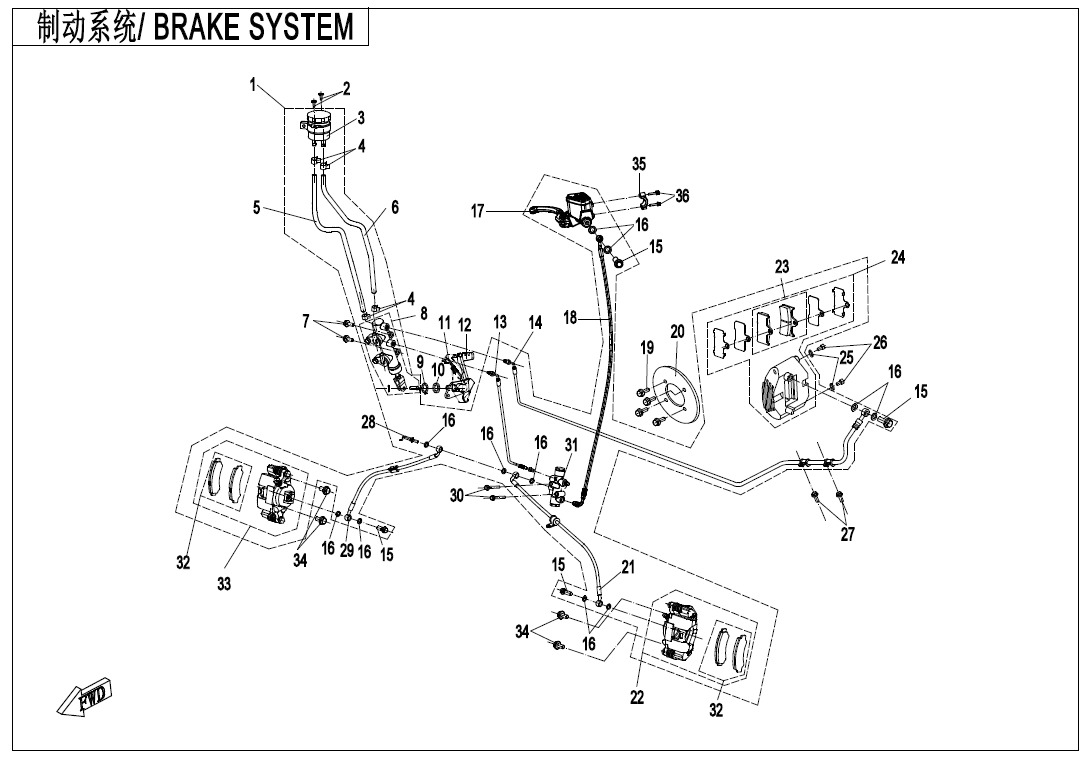

BRAKE SYSTEM
F08-2

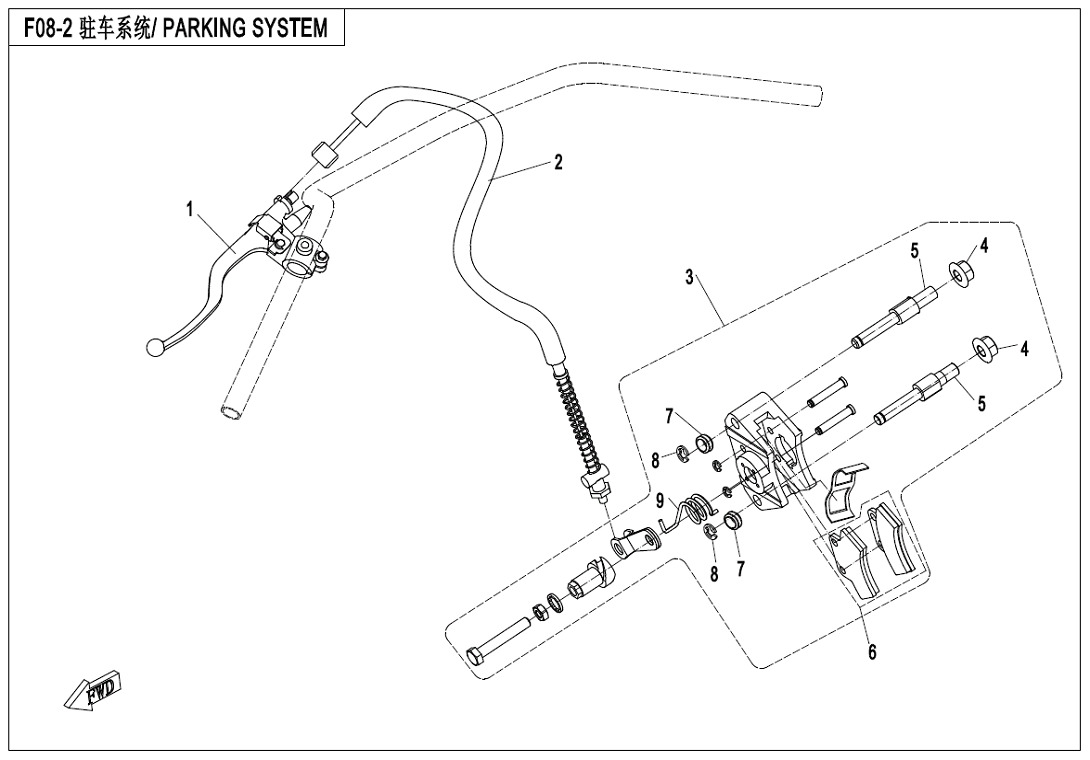

PARKING SYSTEM

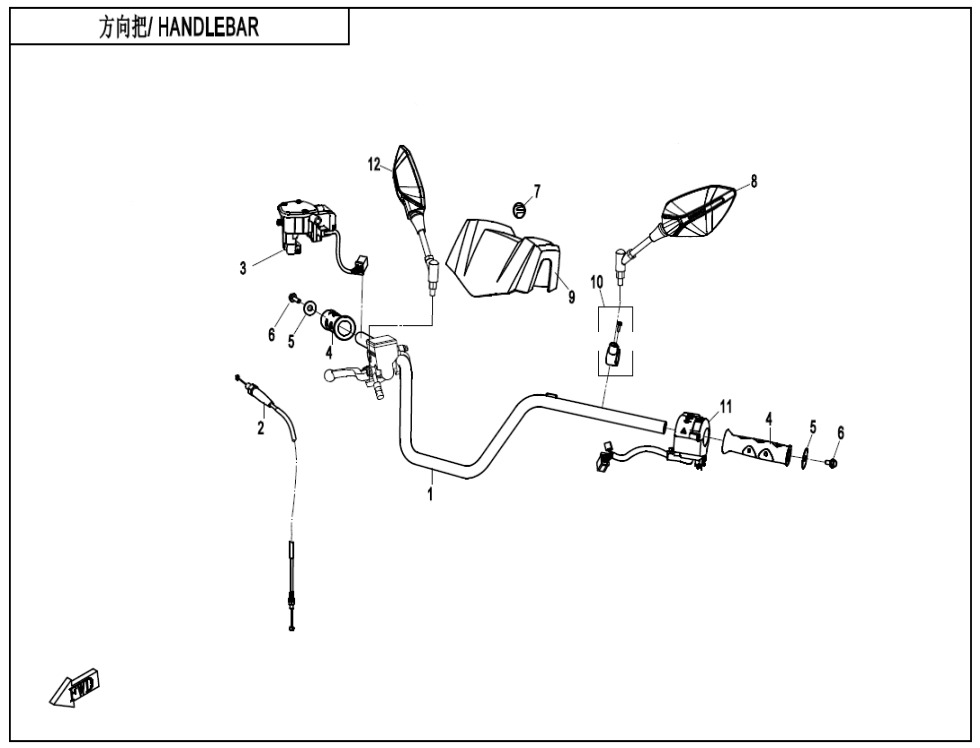

F10-1-V2
HANDLEBAR
F10-2-B-V3

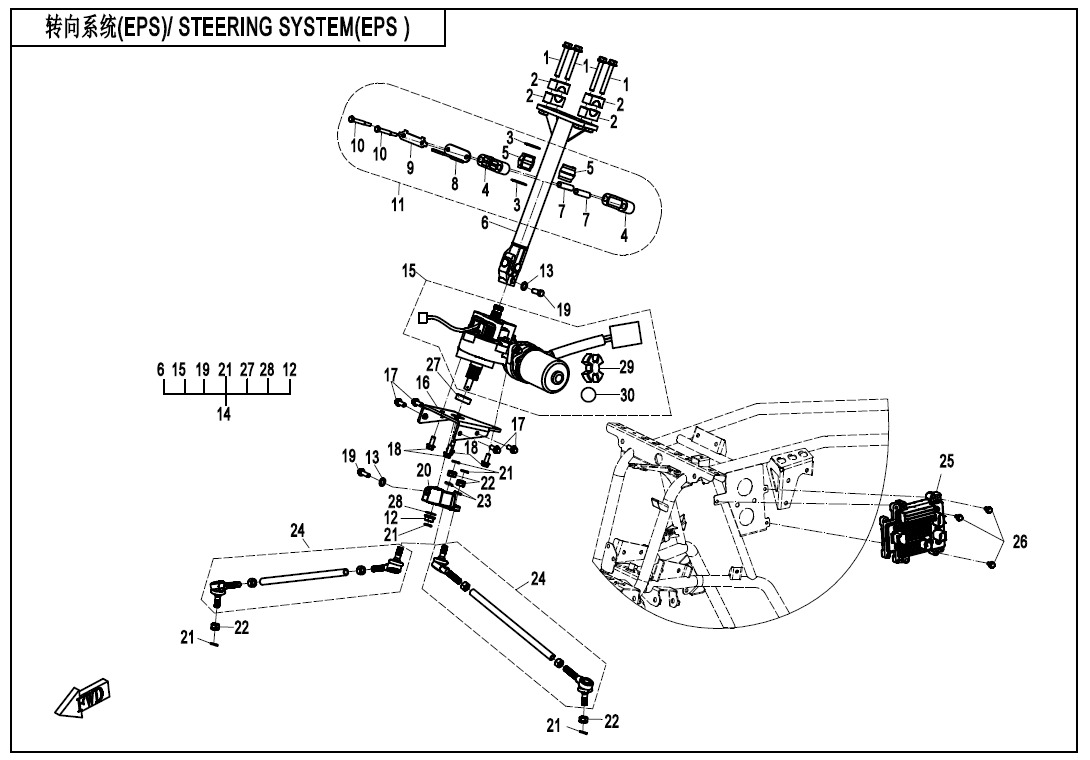

STEERING SYSTEM (EPS)

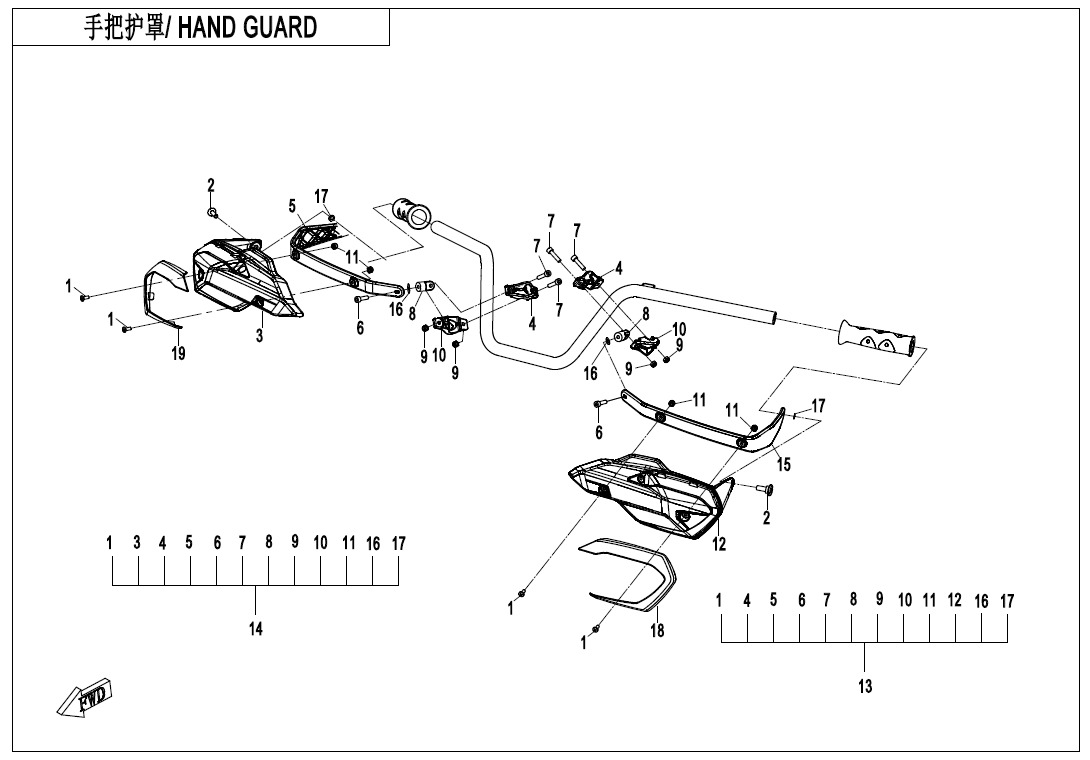

F10-3-V4
HAND GUARD
F11-A-V2
REAR WHEEL(EURO)
F12-V2

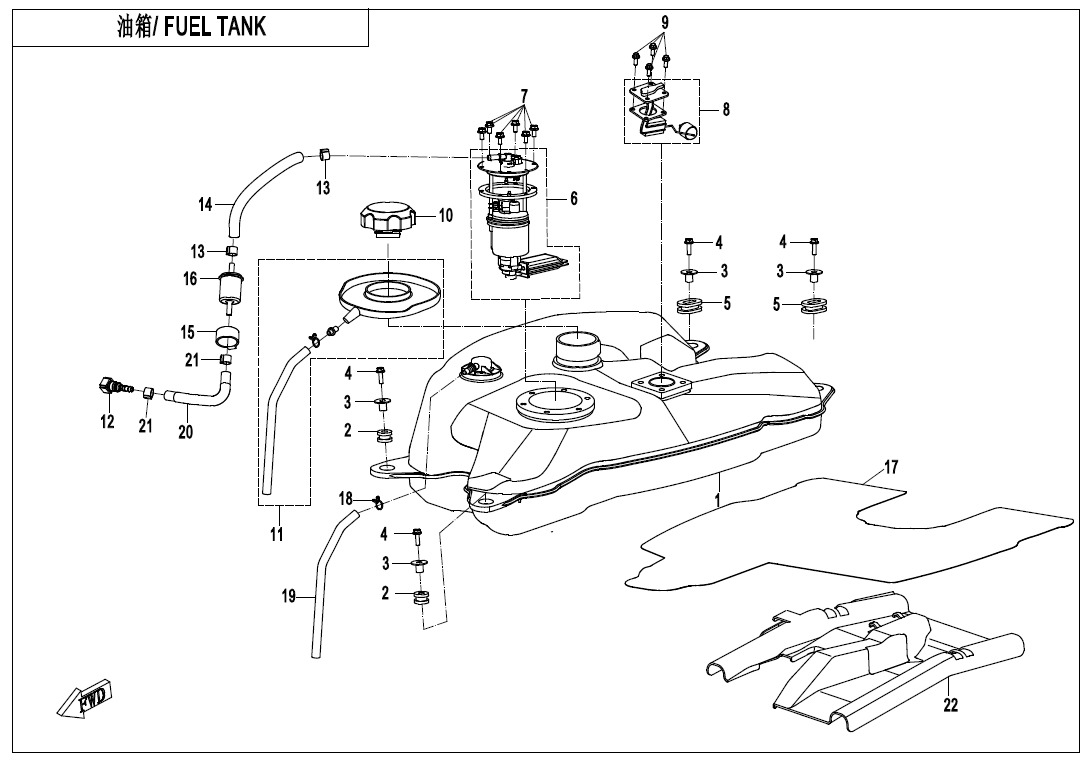

FUEL TANK
F13

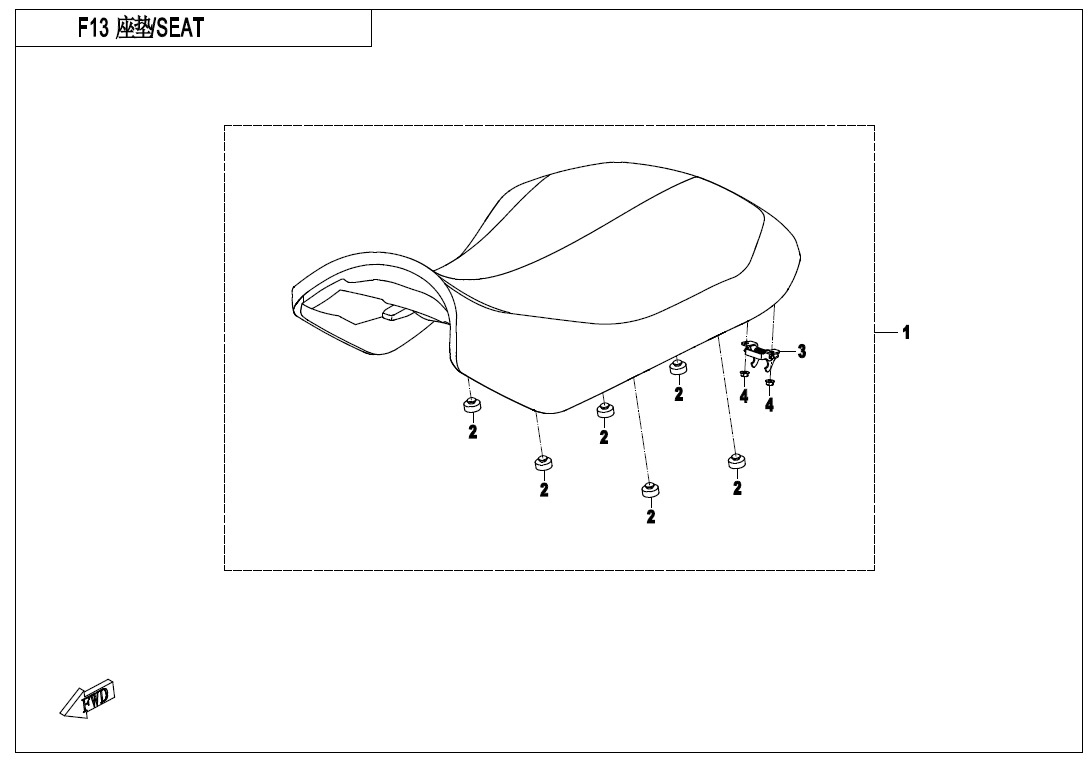

SEAT

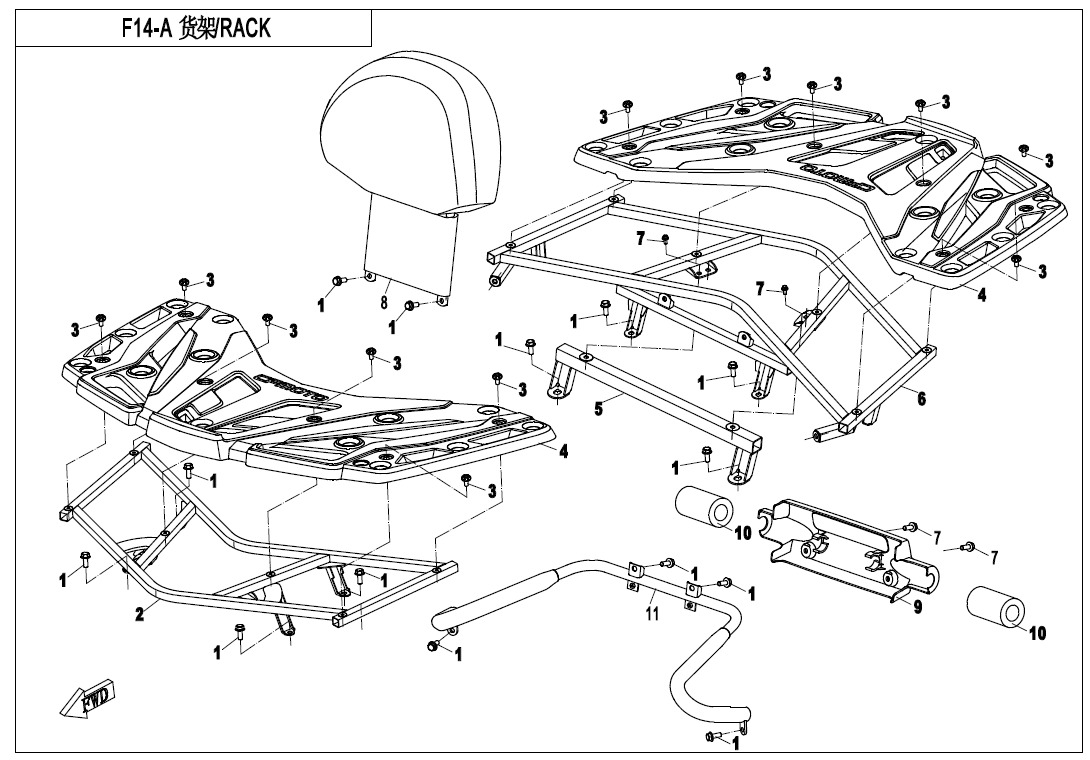

F14-A

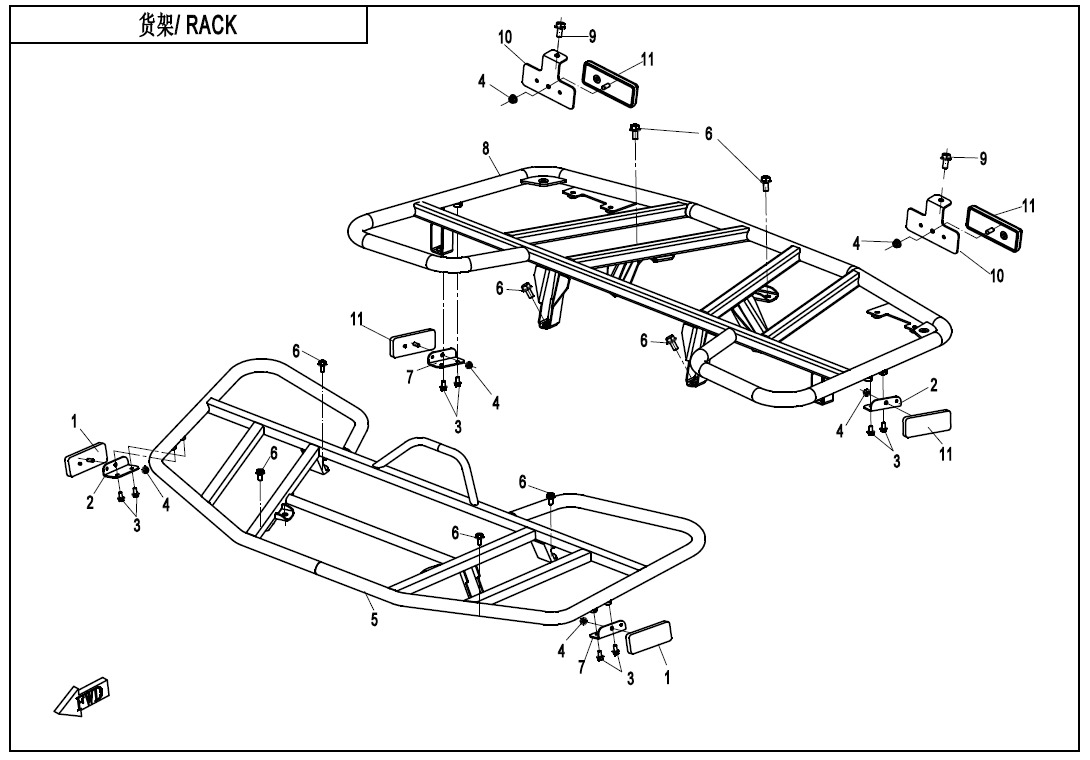

RACK(PLASTIC)
F14-B-V2
RACK(STEEL)
F15-1

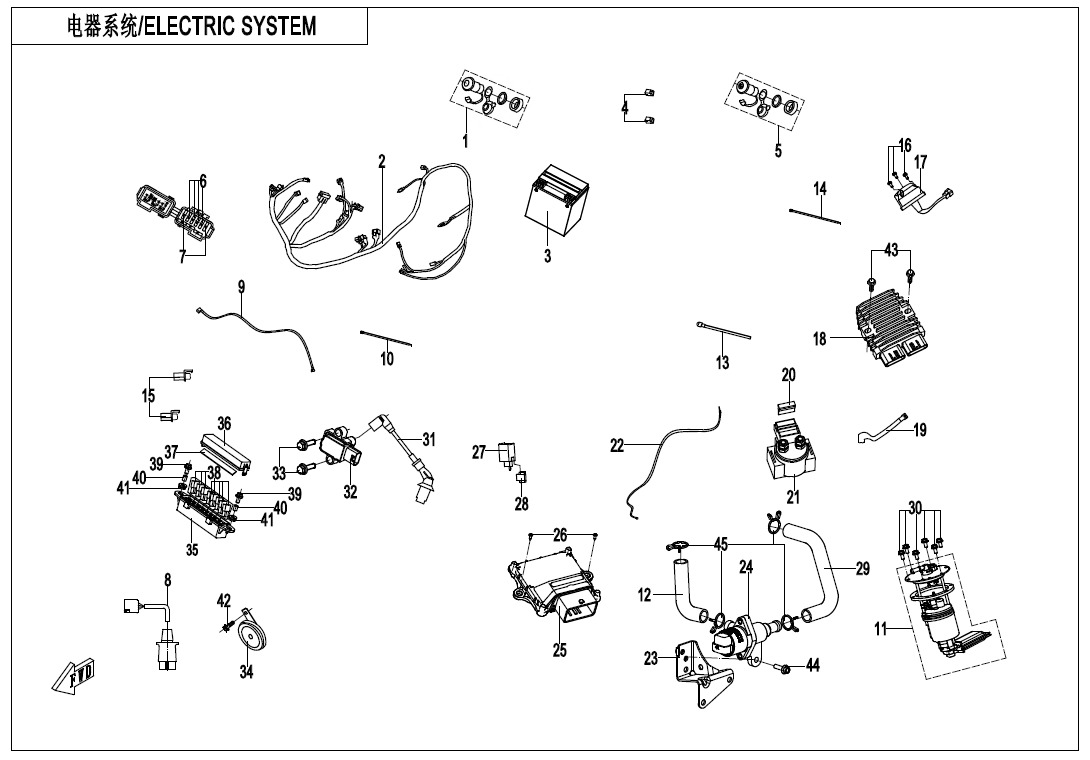

ELECTRIC SYSTEM
F15-2-V2

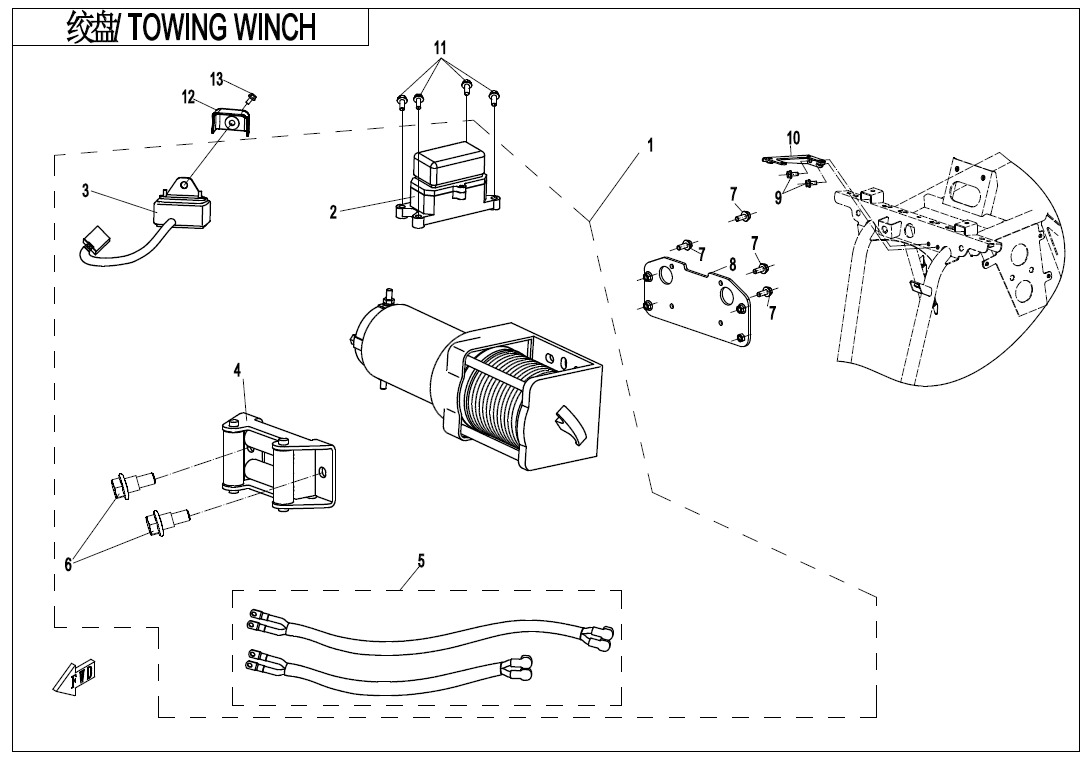

TOWING WINCH
F15-3-V2

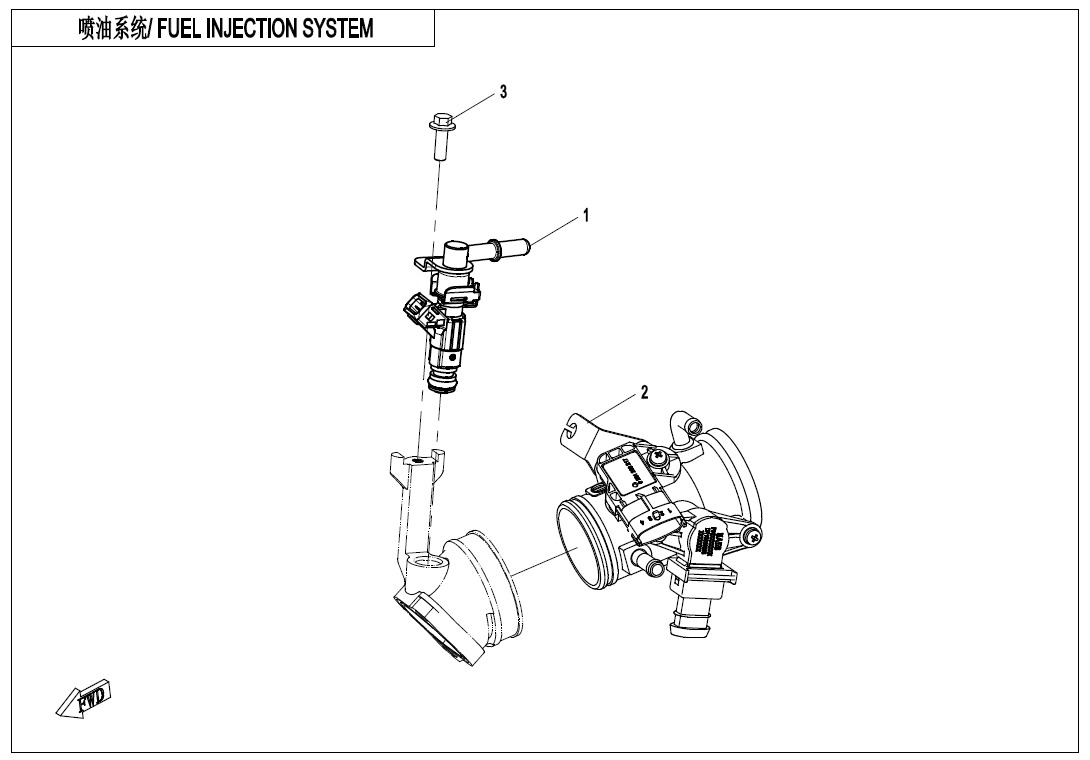

FUEL INJECTION SYSTEM

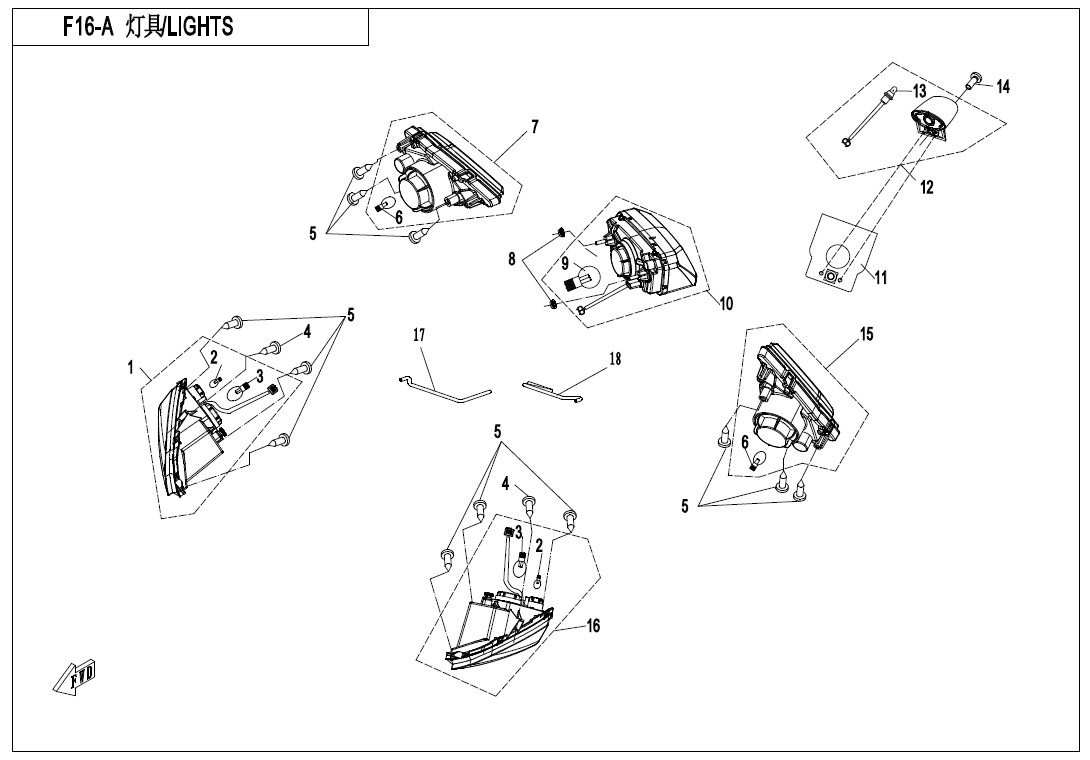

F16-A
LIGHTS(EURO)
F17

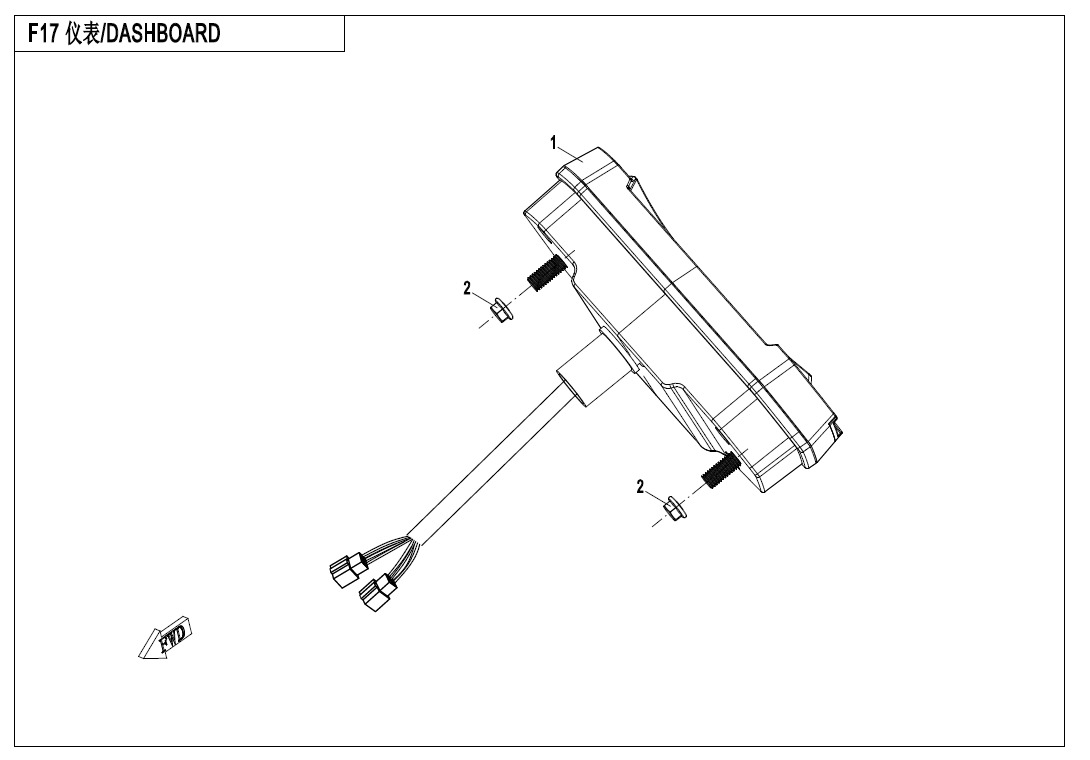

DASHBOARD
F18-A-V2

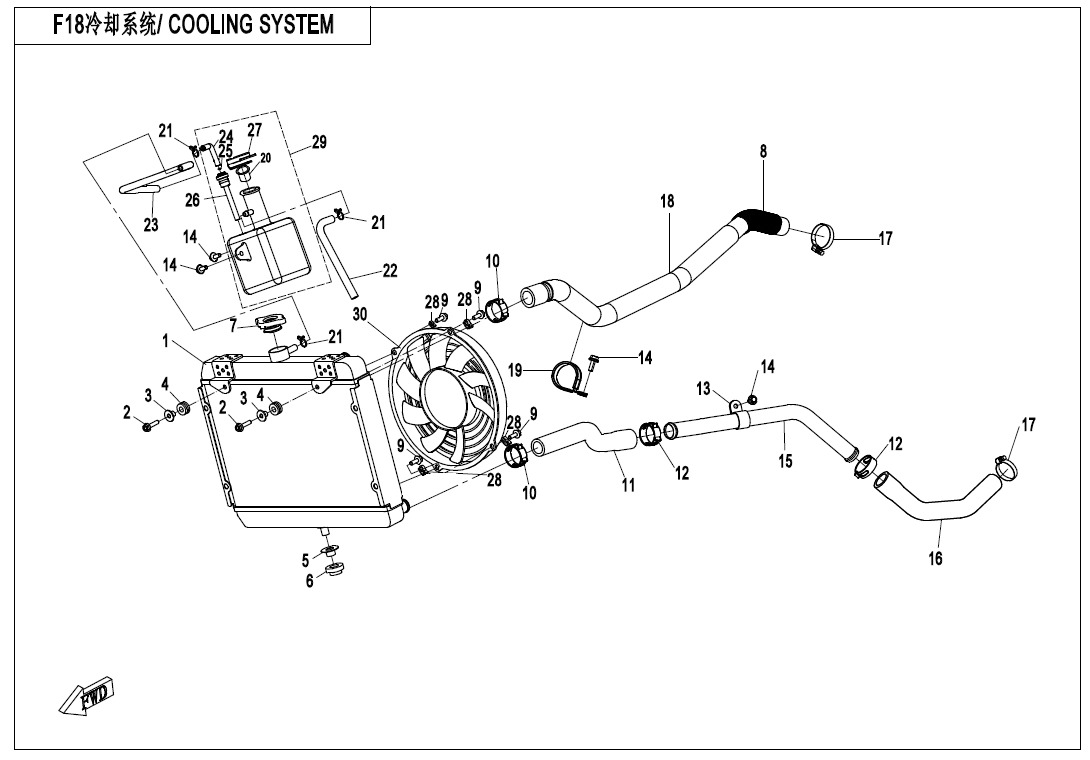

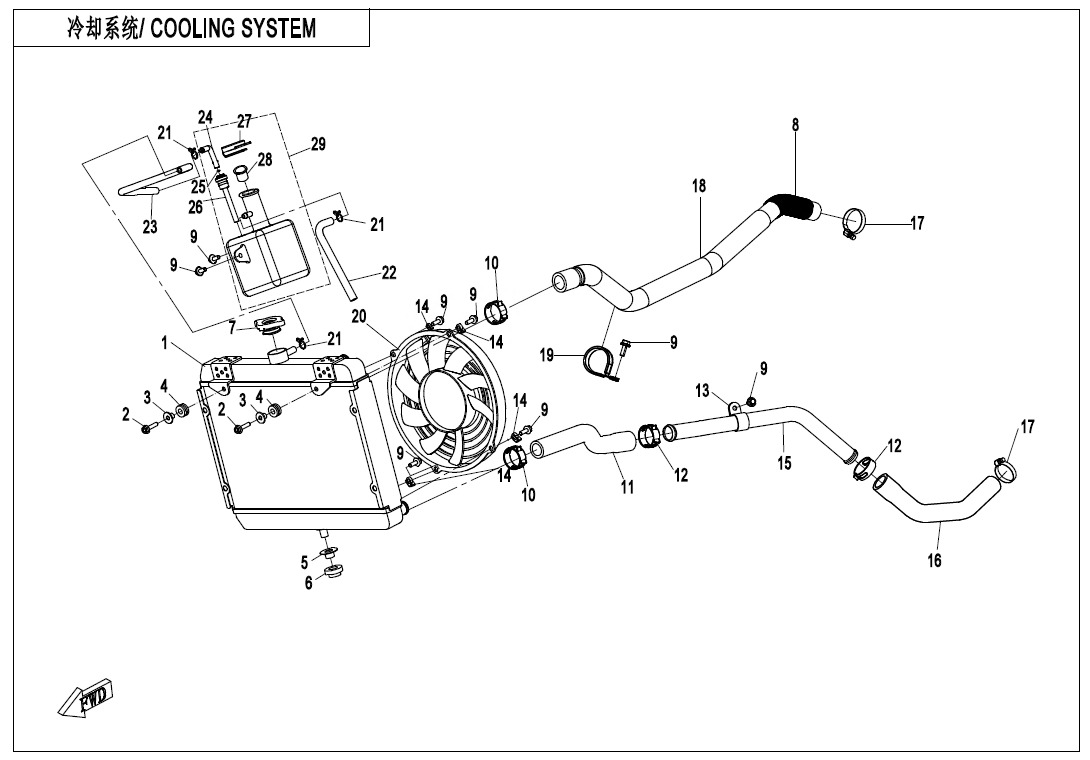

COOLING SYSTEM(OLD)
F18-B-V2
COOLING SYSTEM(NEW)

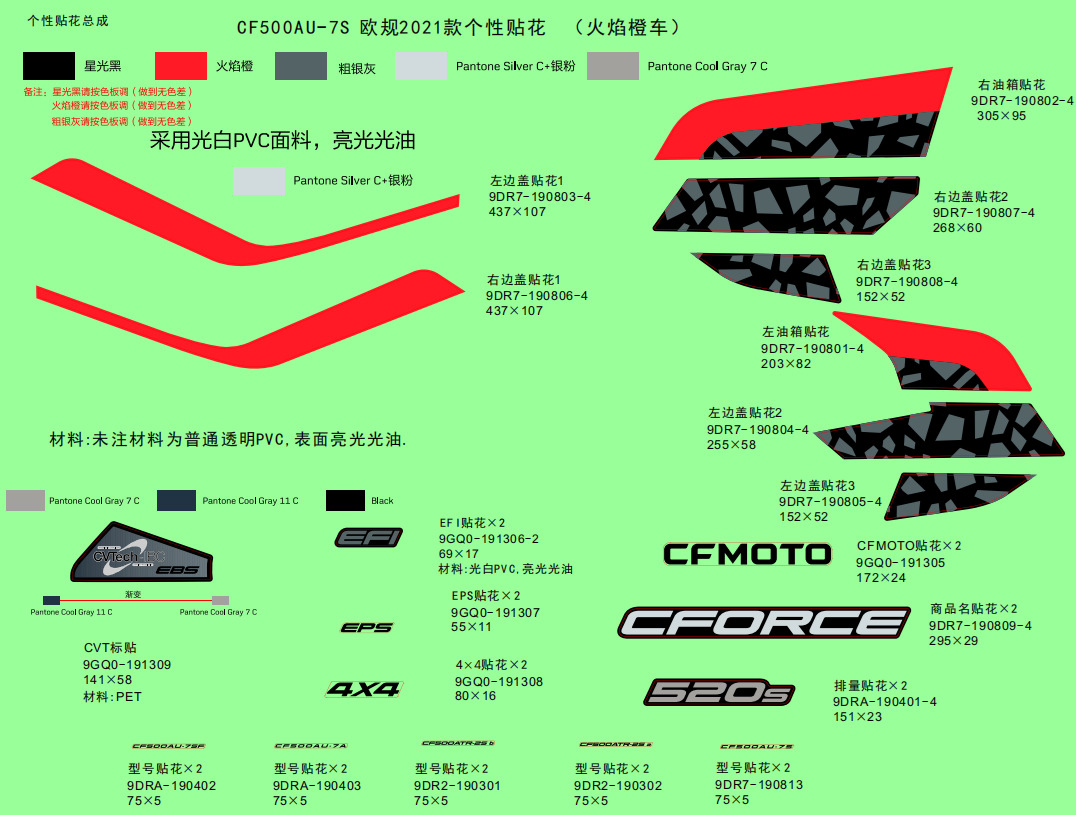

F19-1-E
DECAL(INTERNATIONAL & 2021 LAVA ORANGE)
F19-1-F

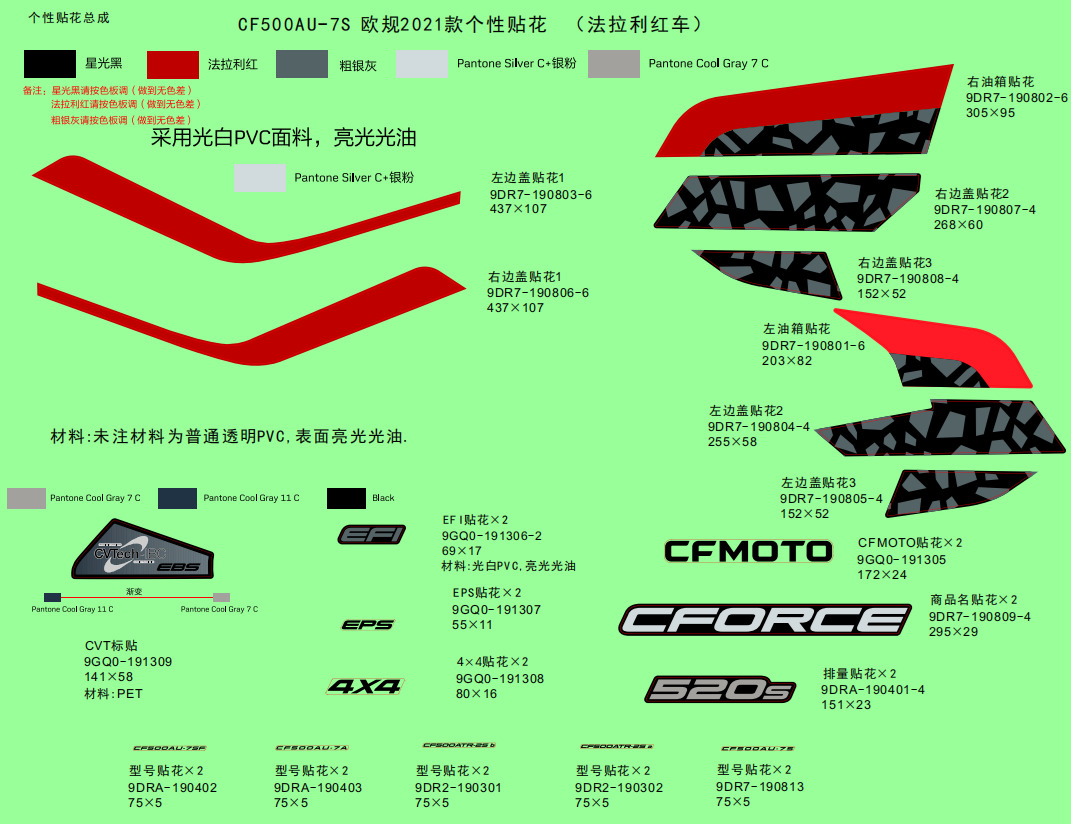

DECAL(INTERNATIONAL & 2021 FERRARI RED)
F19-1-G
DECAL(INTERNATIONAL & 2021 INJECTED PEARL BLACK)
F19-1-H

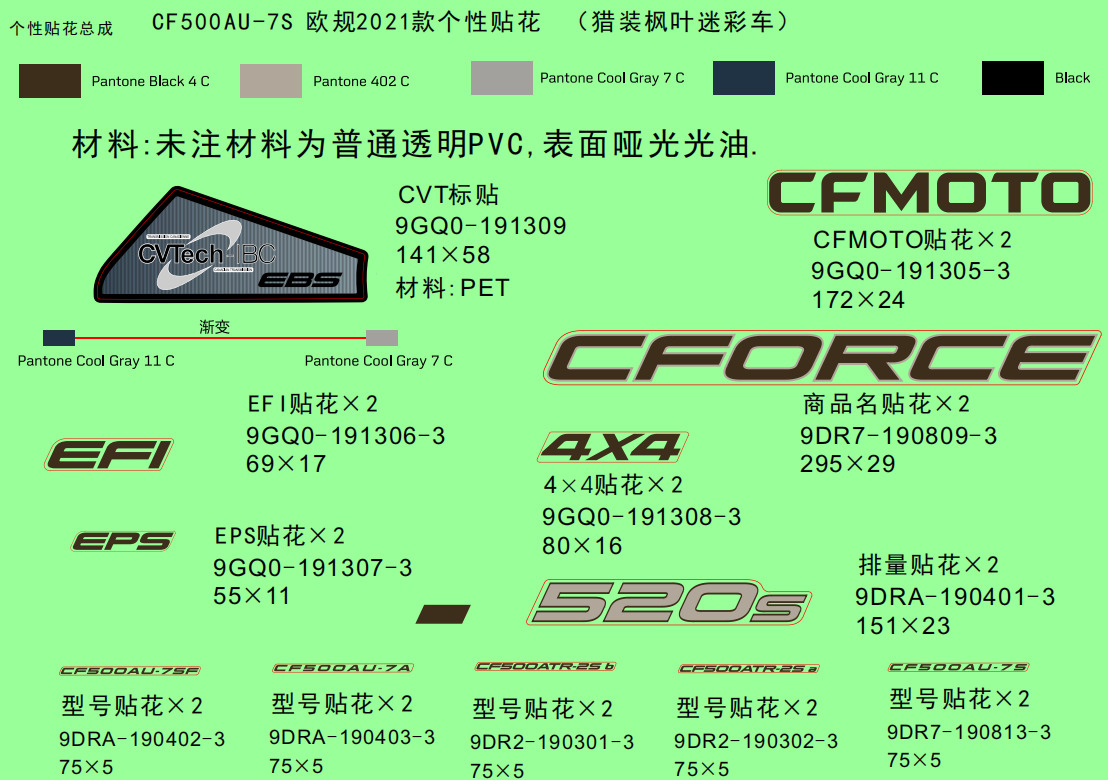

DECAL(INTERNATIONAL & 2021 TRUE TIMBER CAMO)
F19-3-C
WARNING DECAL(AUSTRALIA)

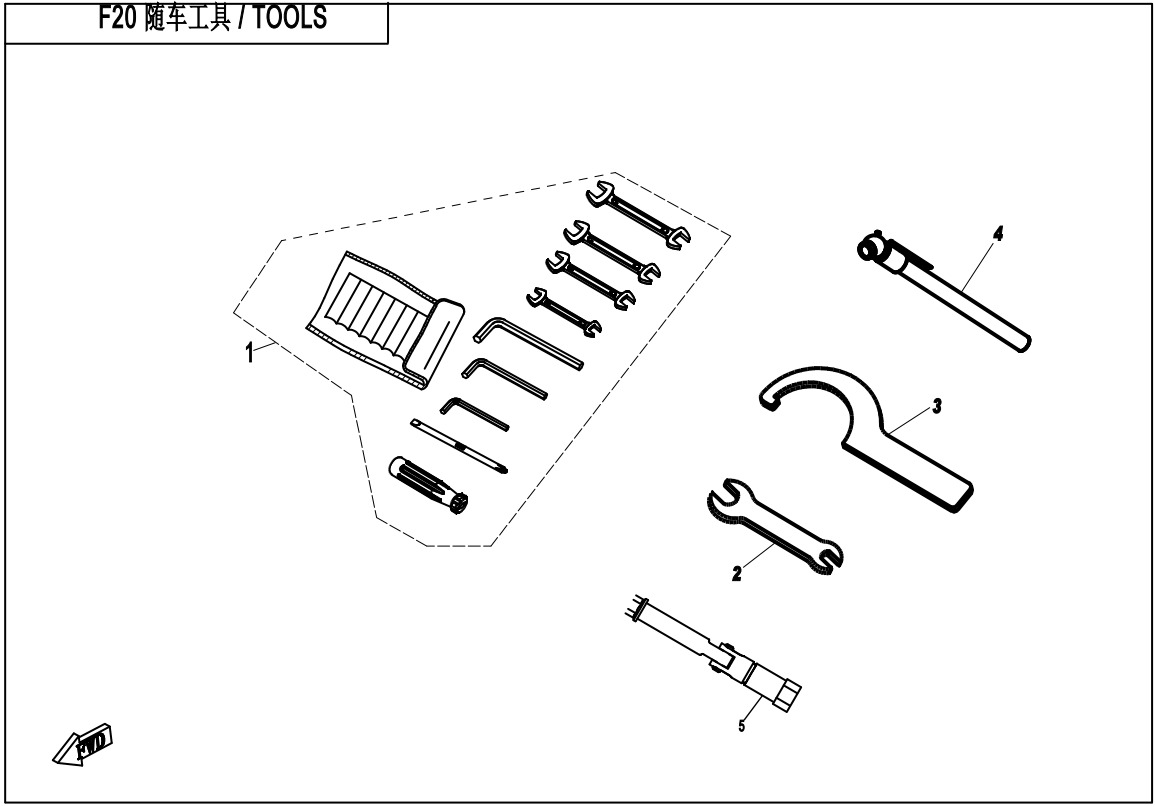

F20-V2
TOOLS
F23-A

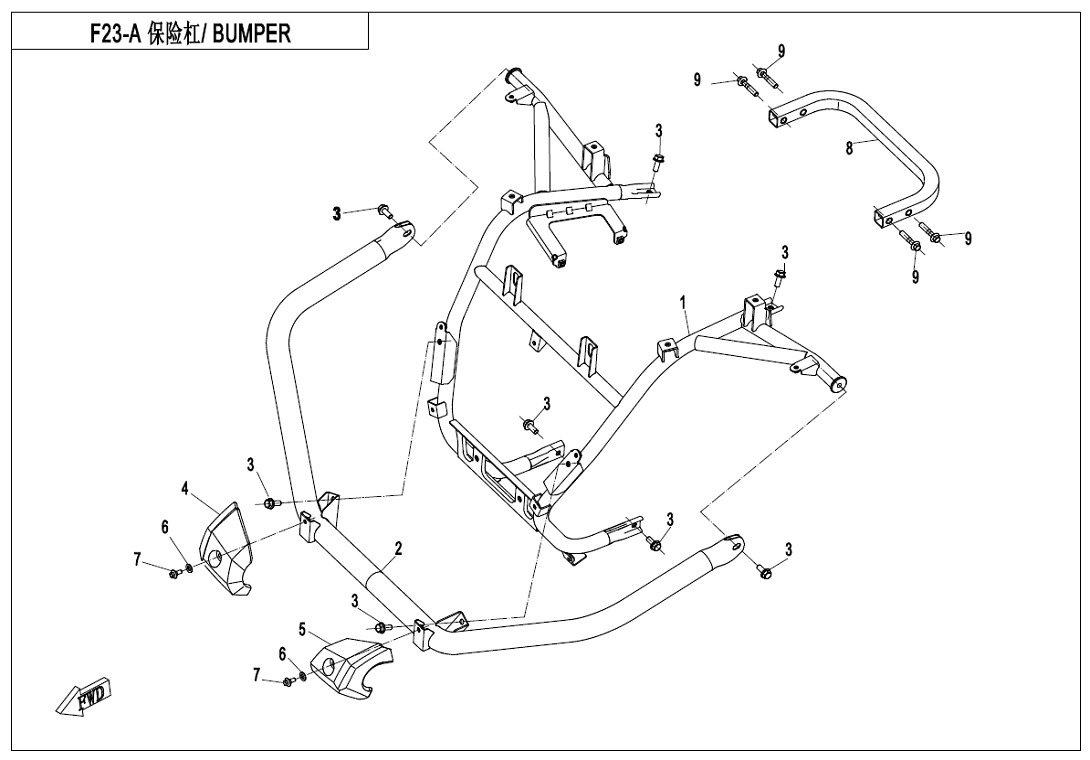

BUMPER
F27-A

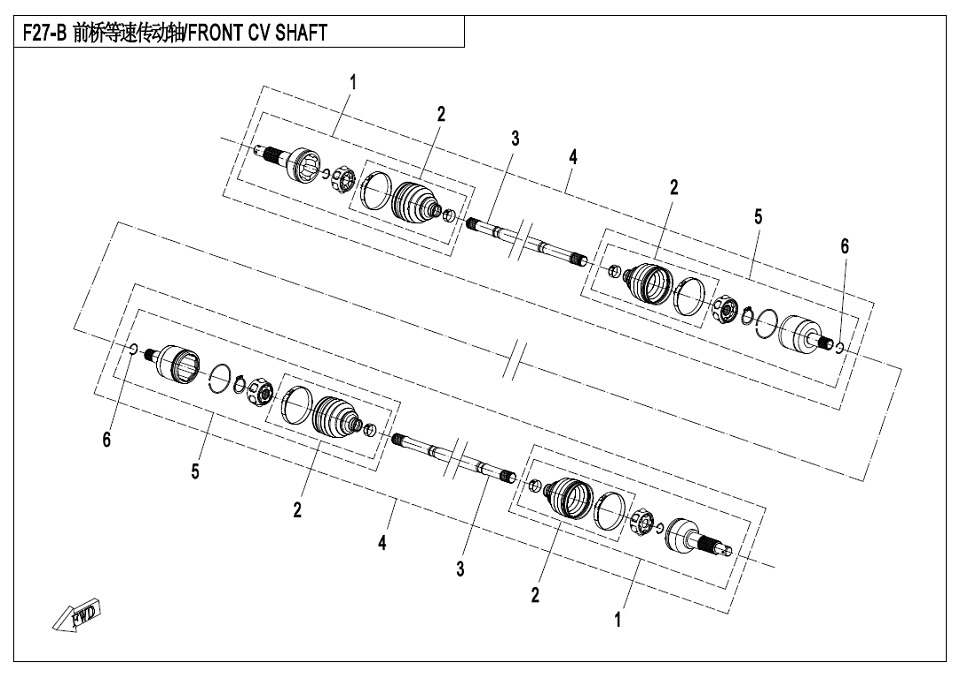

FRONT CV SHAFT(ODM)
F28-A

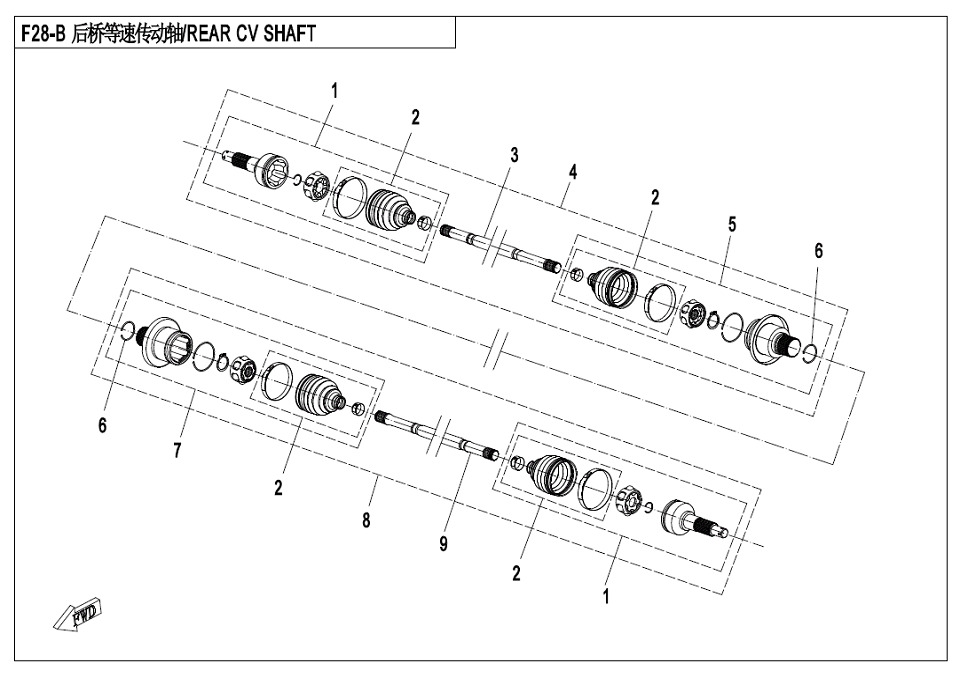

REAR CV SHAFT(ODM)
F30

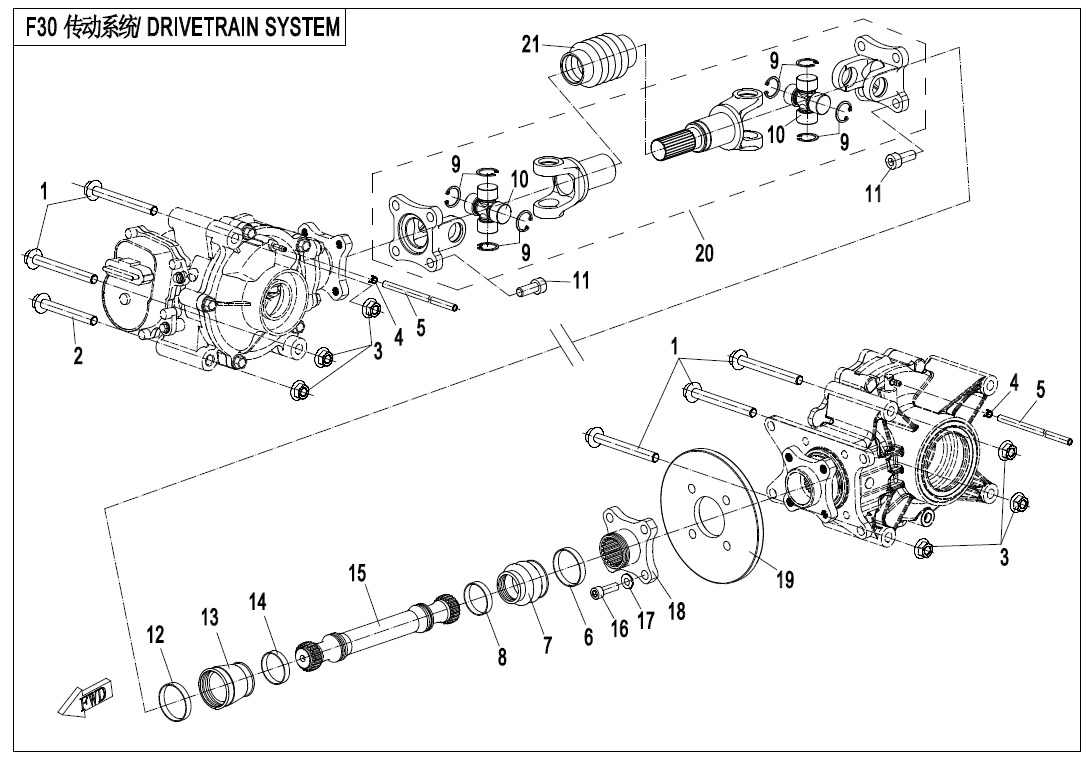

DRIVETRAIN SYSTEM
F31-B-V4

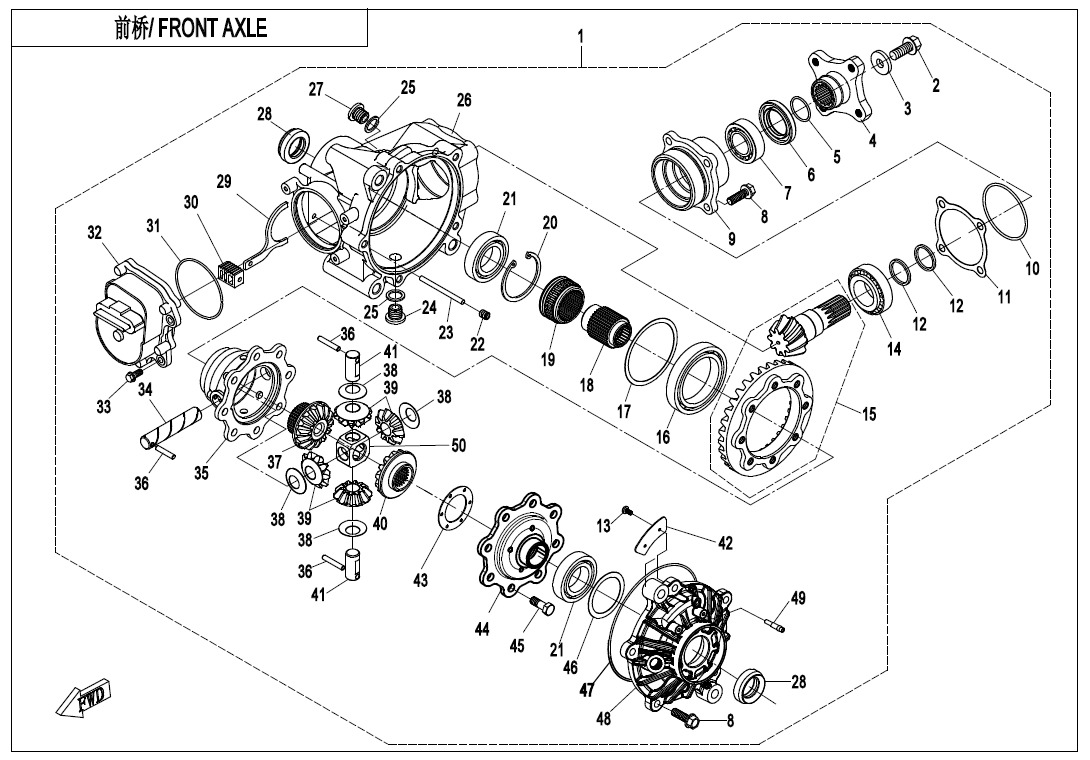

FRONT AXLE
F32

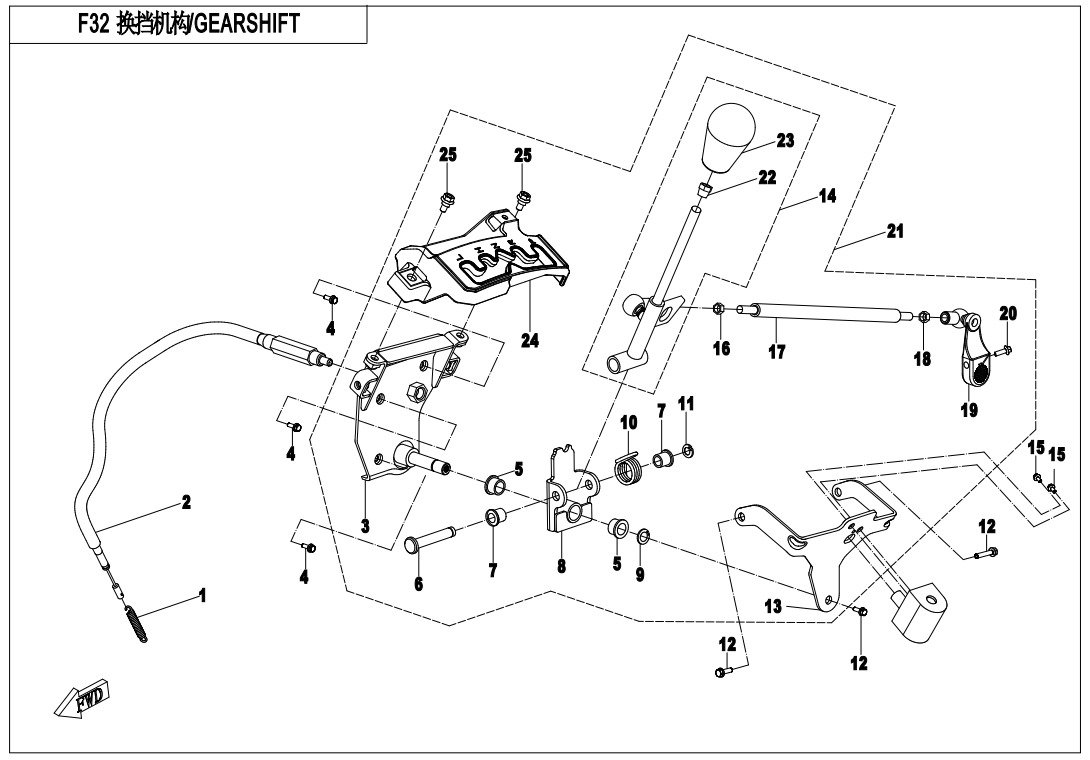

GEAR SHIFTING

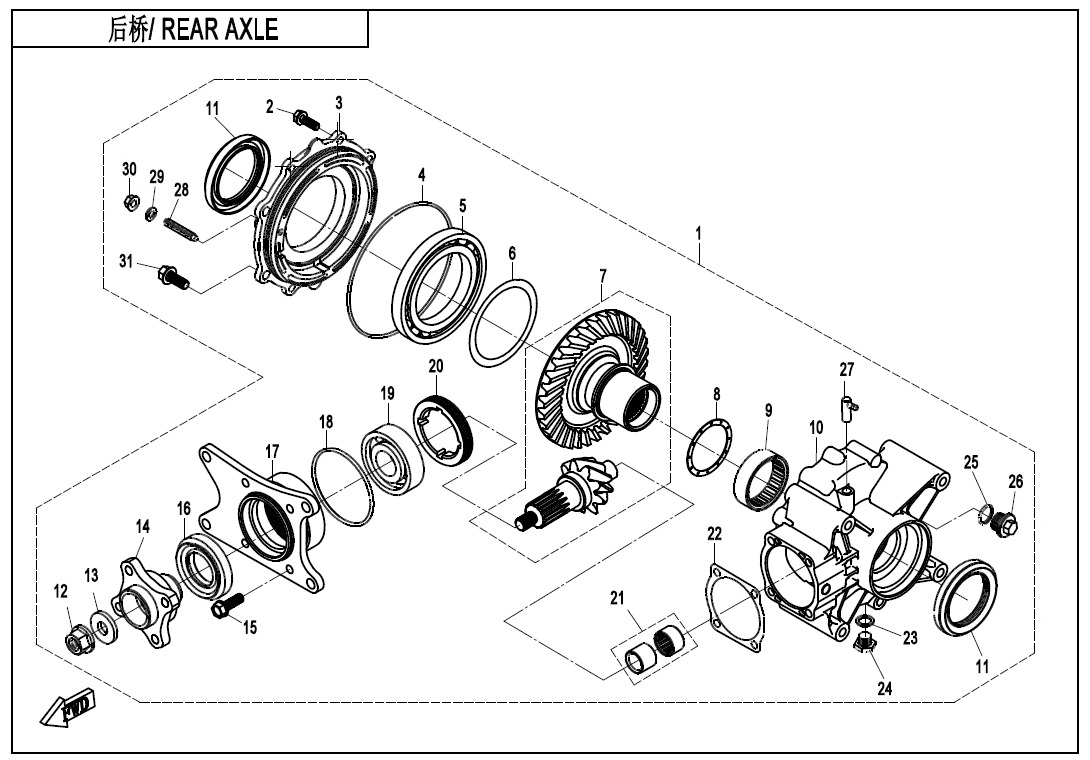

F33-V2
REAR AXLE
F38-A
OWNER‘S MANUEL(NA)
F40-A-V2

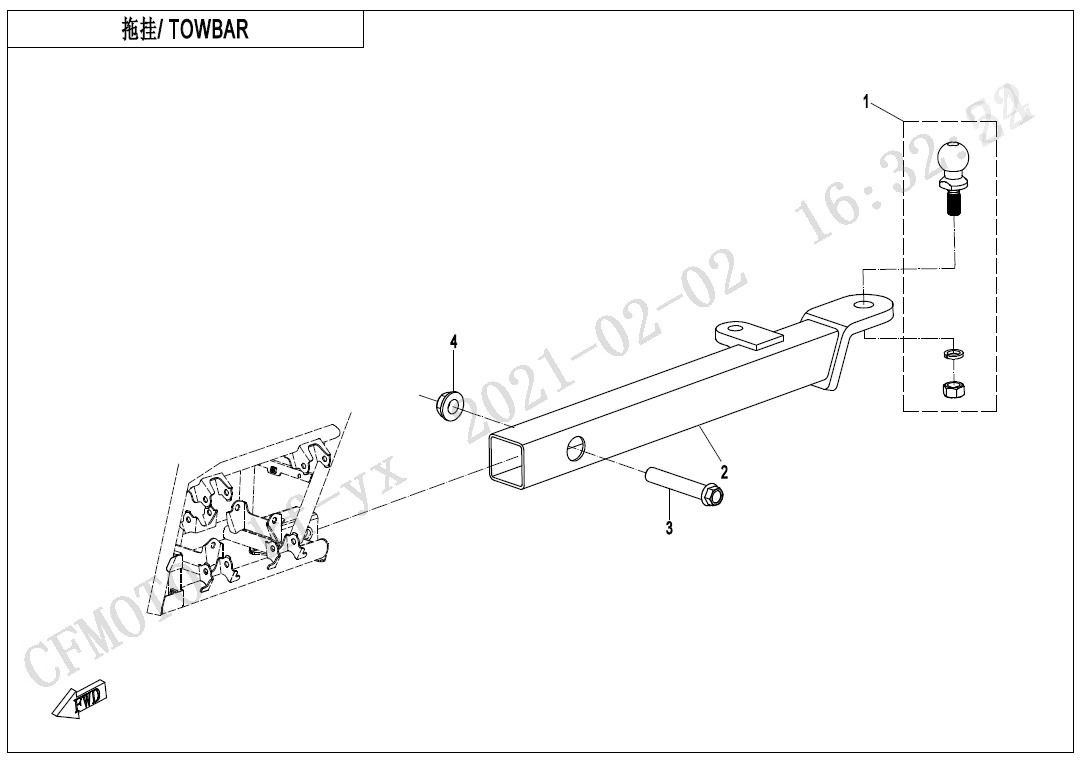

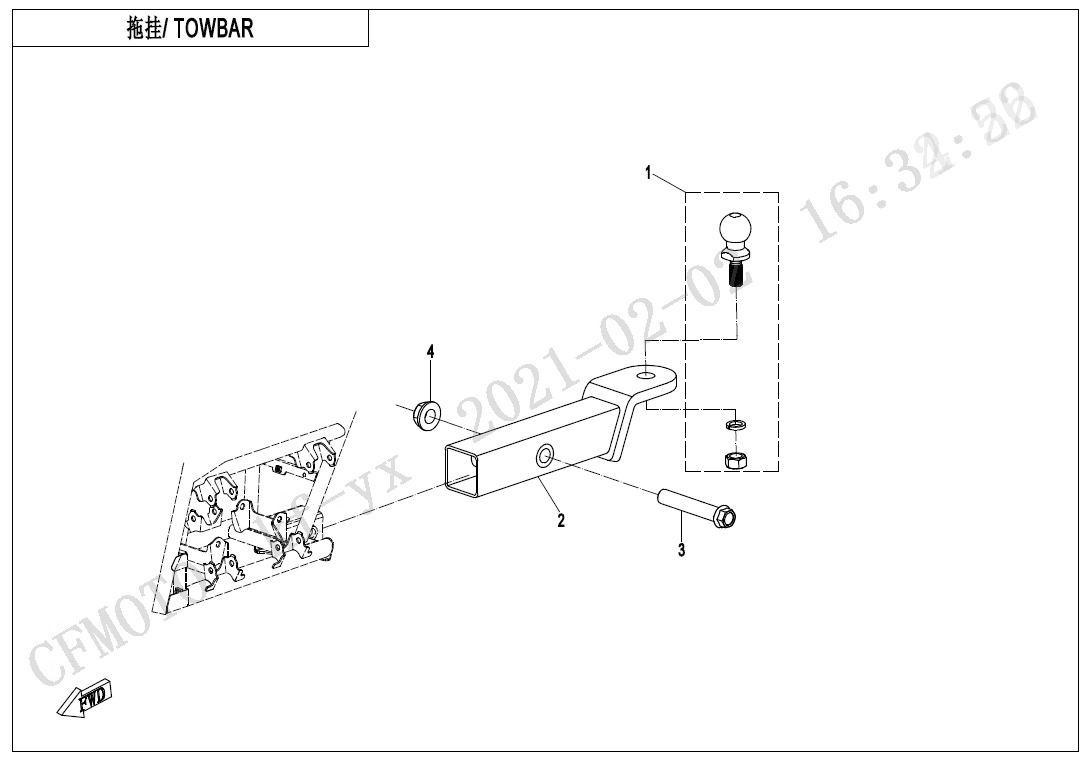

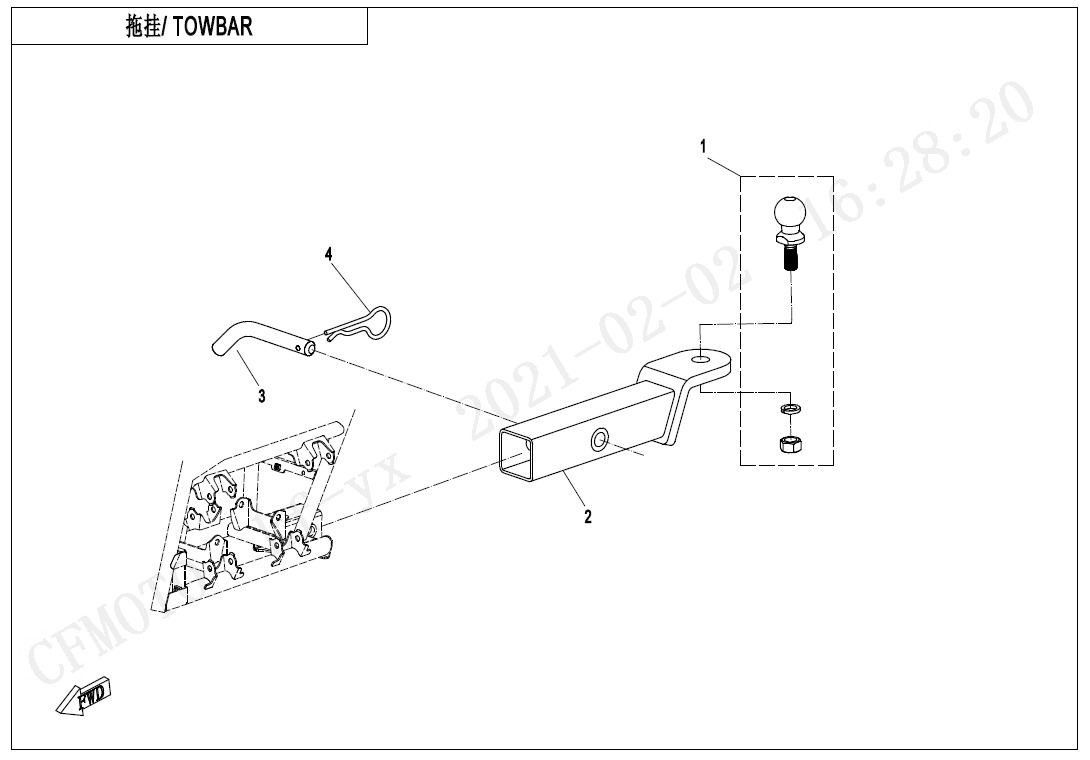

TOWBAR(LONG, PIN SHAFT CONNECTION )
F40-B
TOWBAR(SHORT, PIN SHAFT CONNECTION )
F40-C
TOWBAR(LONG, BLOT CONNECTION)
F40-D
TOWBAR(SHORT, BLOT CONNECTION)
F41-V3

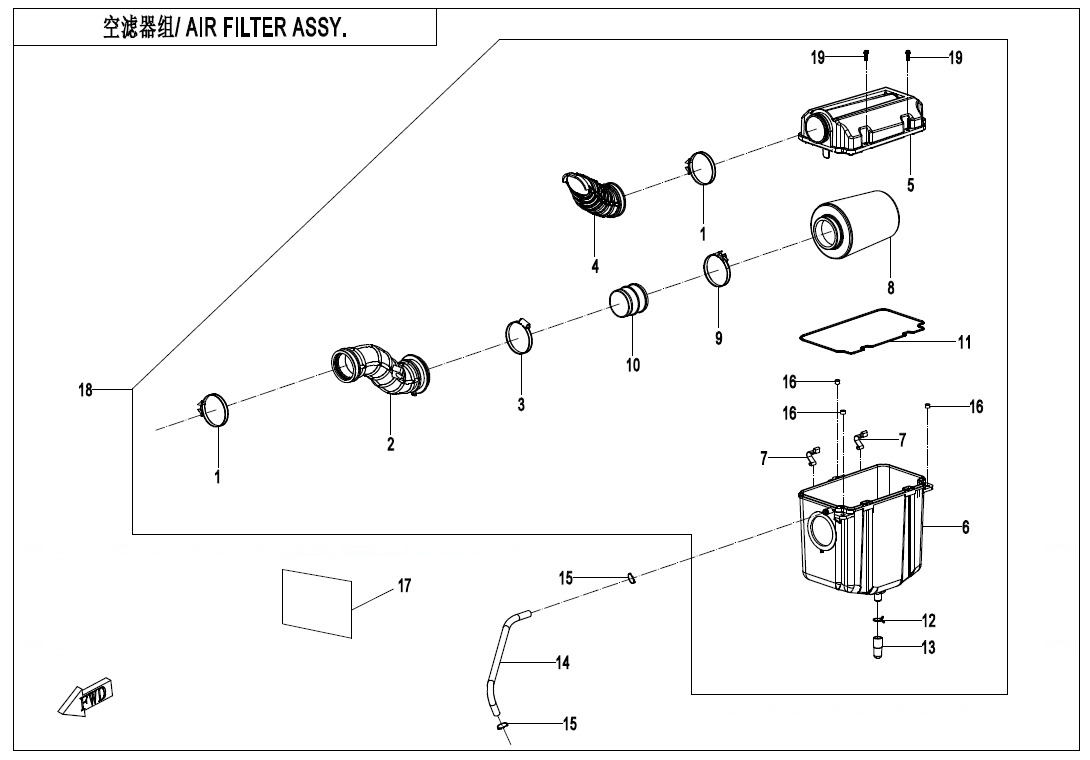

AIR FILTER ASSY.
E01-1-V2

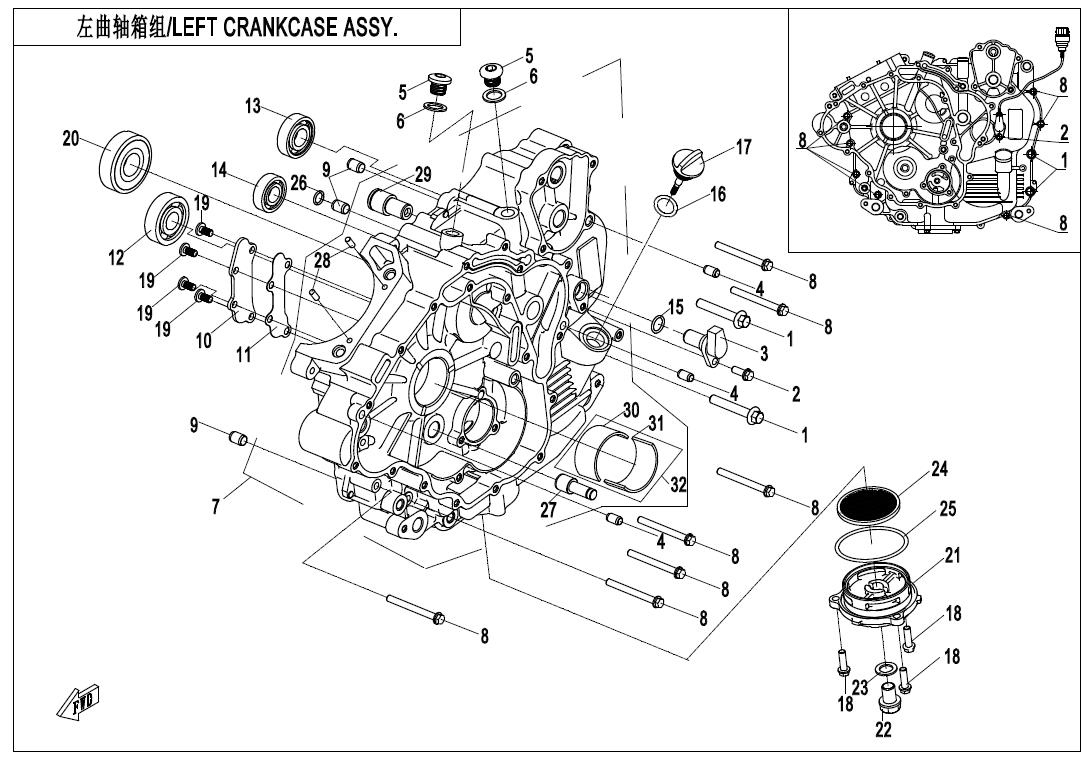

LEFT CRANKCASE ASSY
E01-2-V3

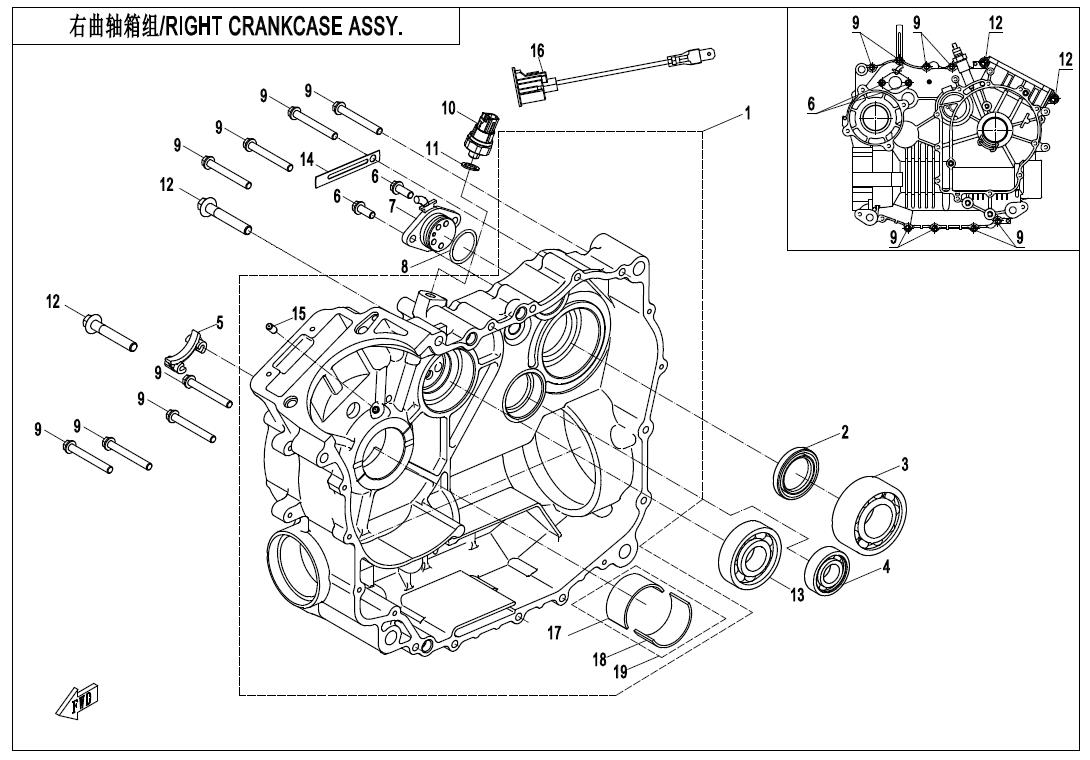

RIGHT CRANKCASE ASSY
E01-3-V3
CVT CASE ASSY

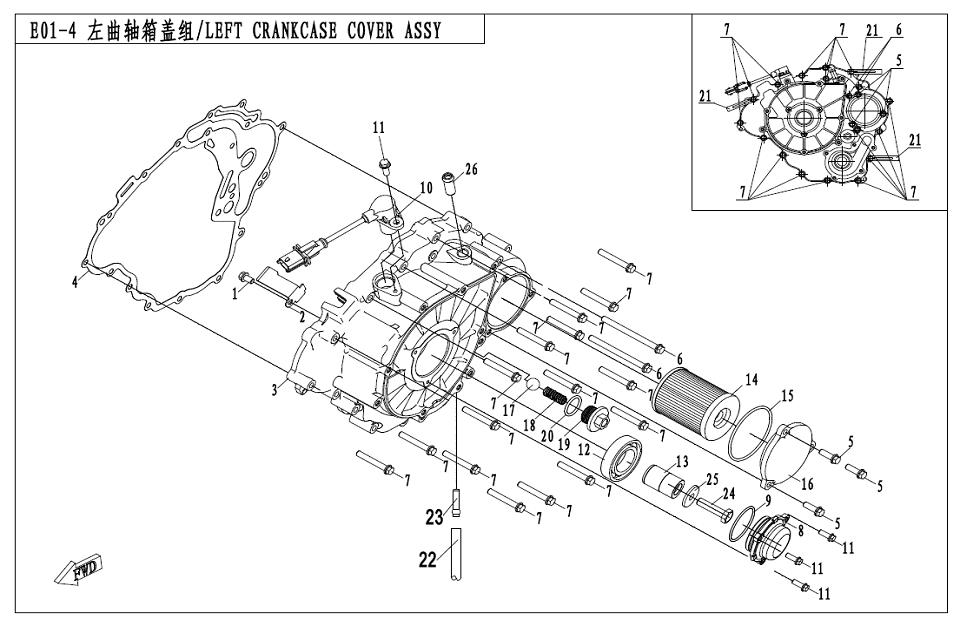

E01-4
LEFT CRANKCASE COVER ASSY
E02

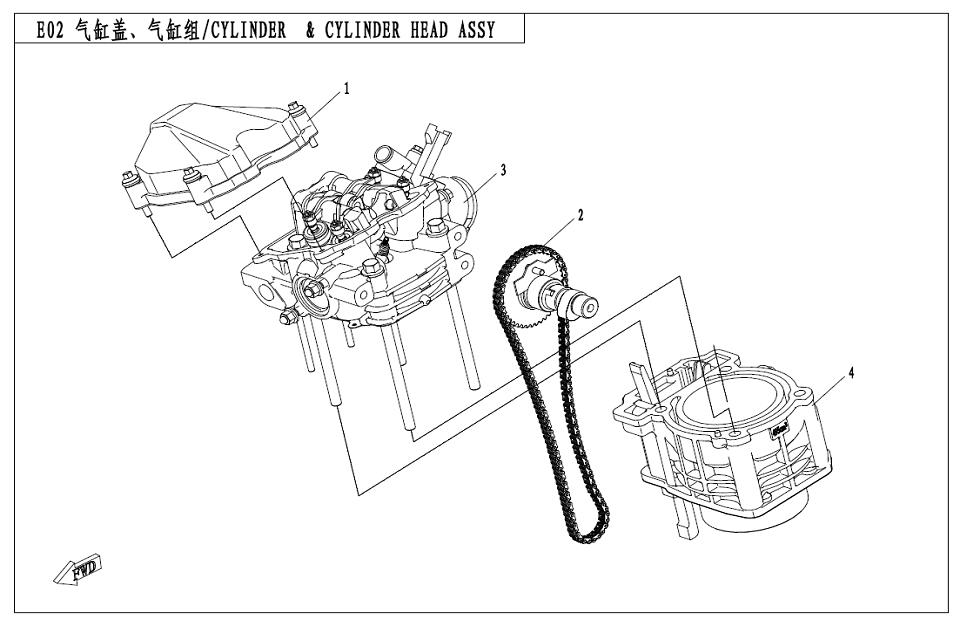

CYLINDER/CYLINDER HEAD ASSY

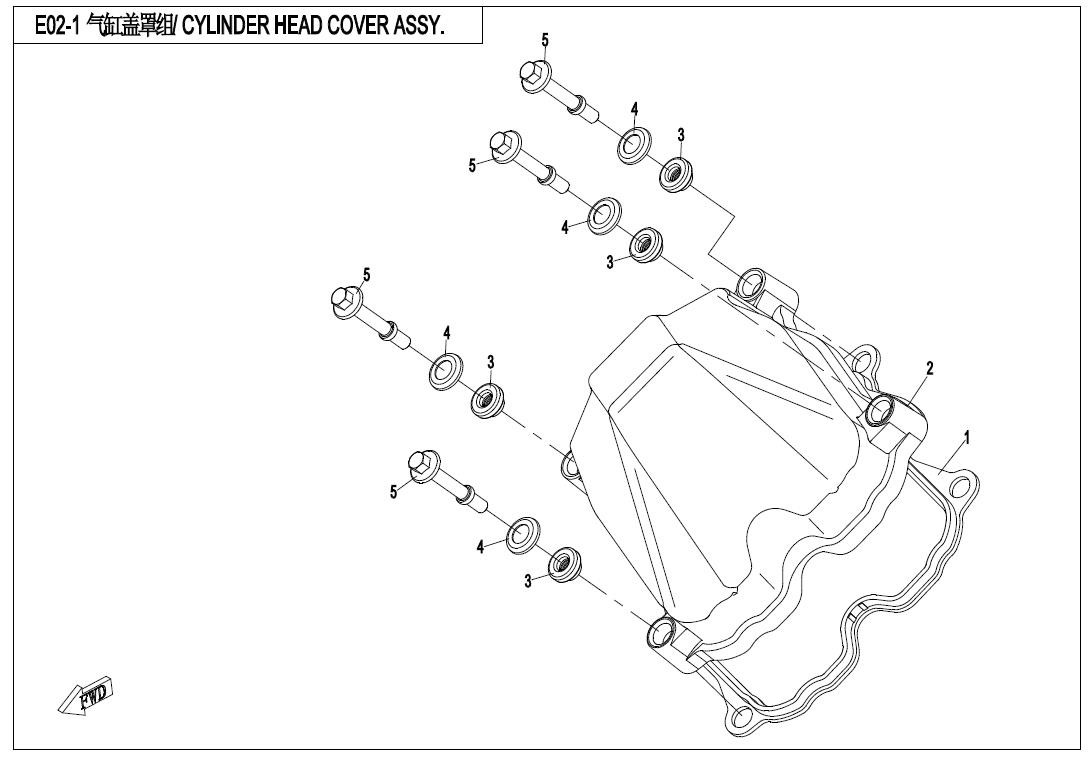

E02-1
CYLINDER HEAD COVER ASSY

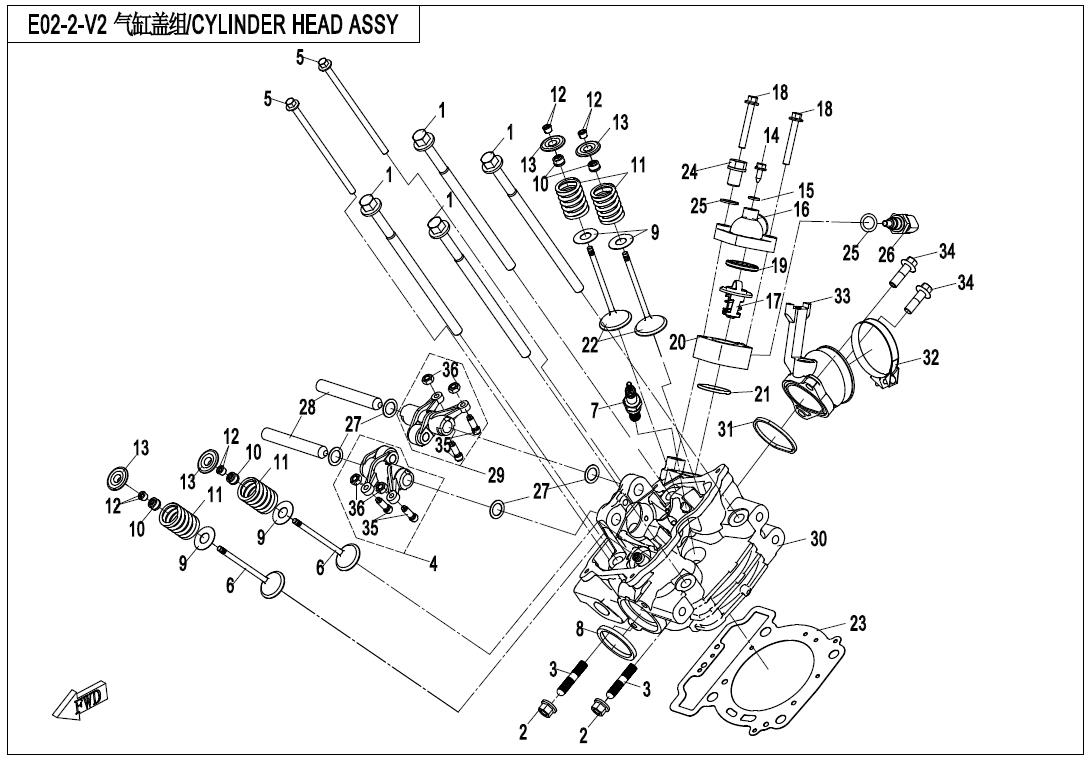

E02-2-V2
CYLINDER HEAD ASSY
E02-3

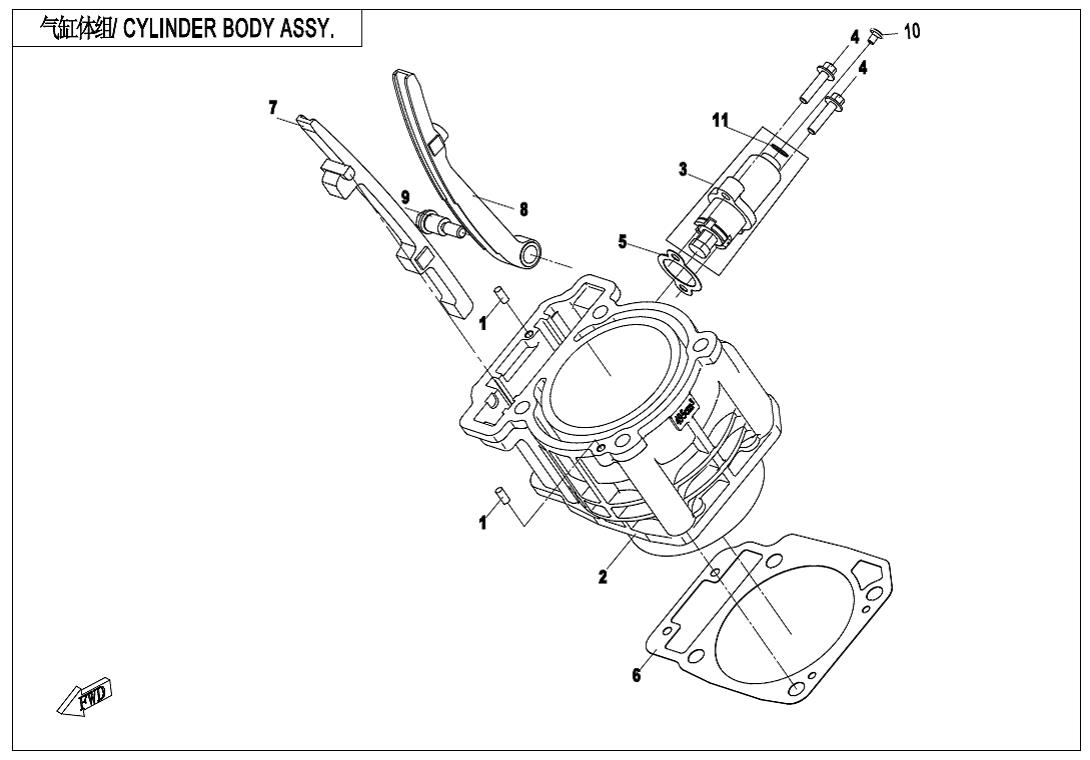

CYLINDER BODY ASSY.

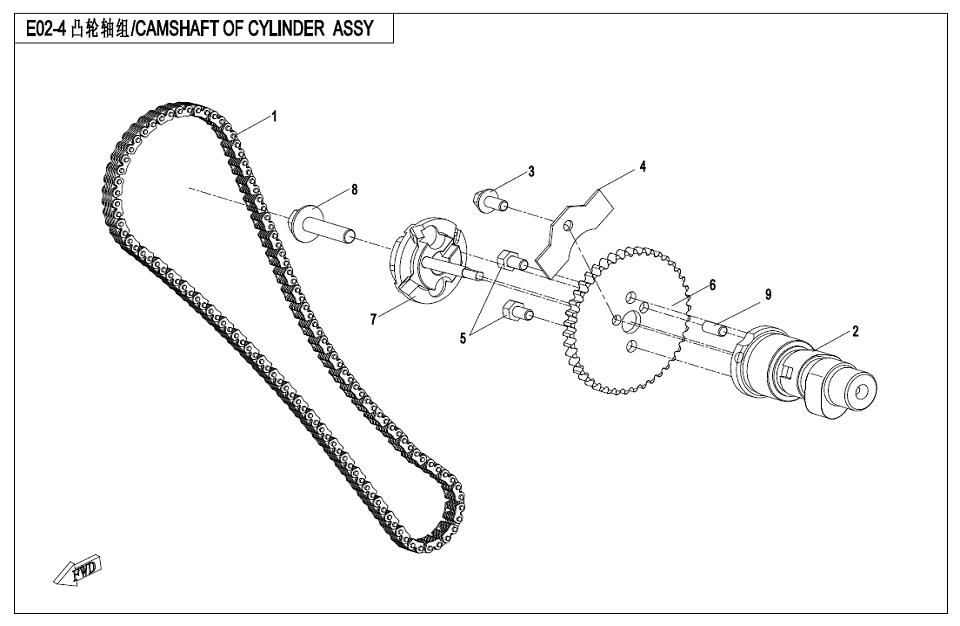

E02-4
CAMSHAFT OF CYLINDER ASSY

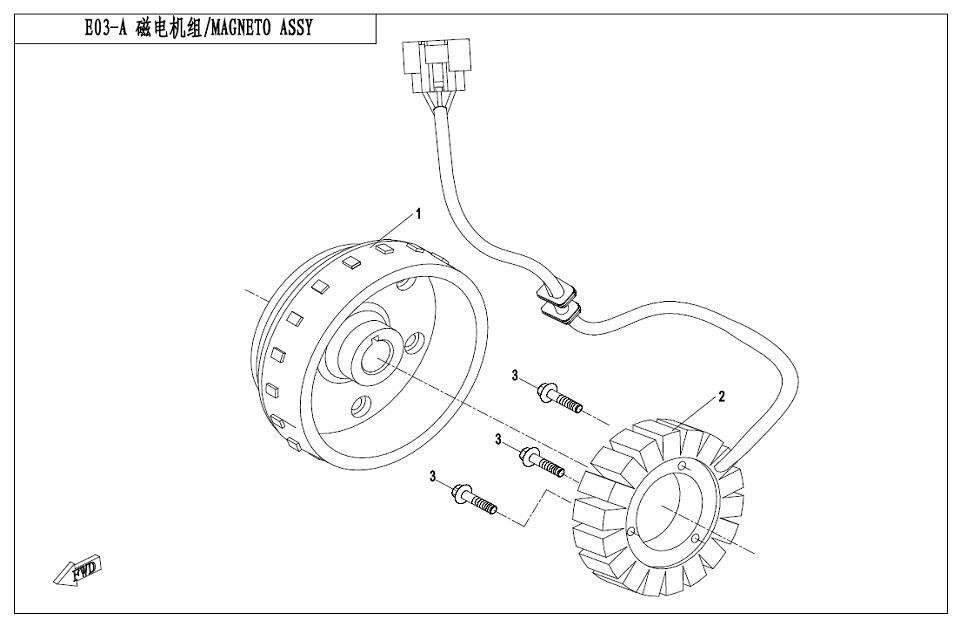

E03-A
MAGNETO ASSY
E03-B

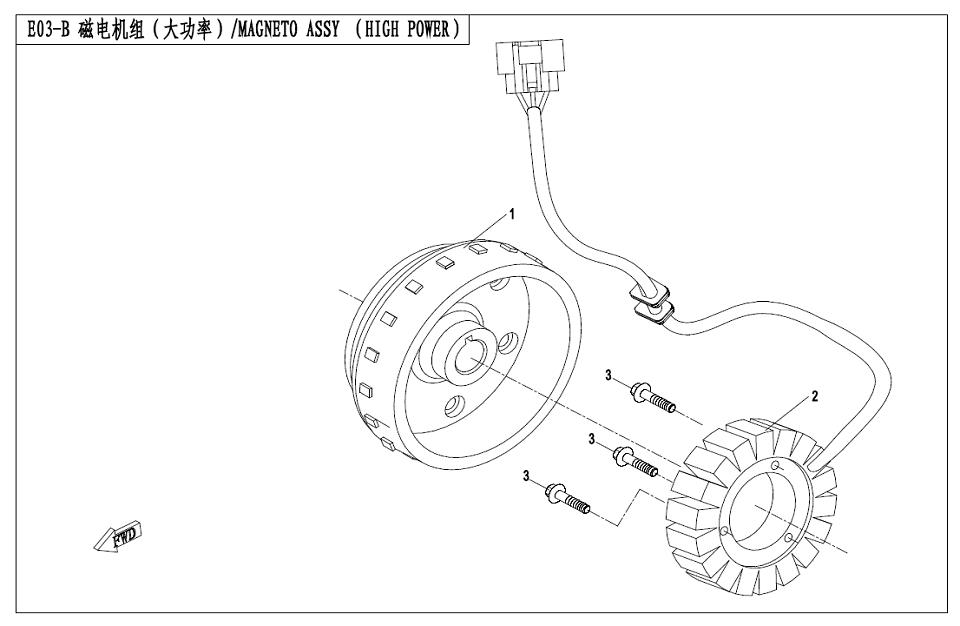

MAGNETO ASSY(HIGH-POWER)
E04

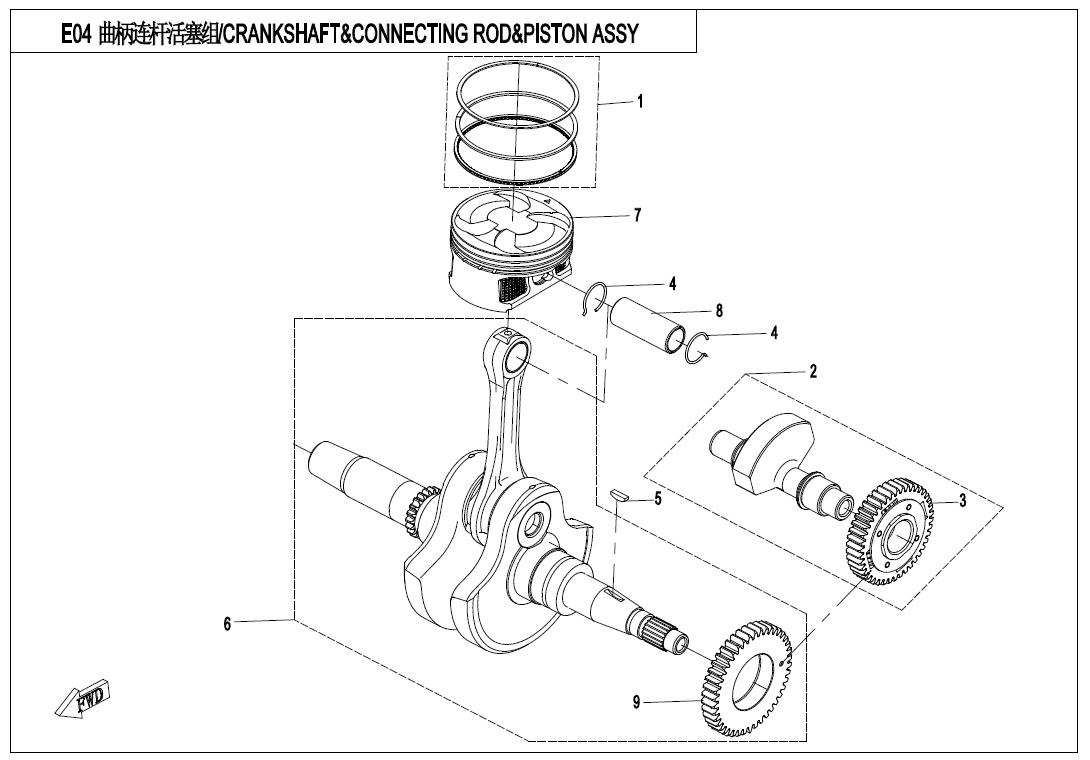

CRANKSHAFT/CONNECTING ROD/PISTON ASSY
E05-V1

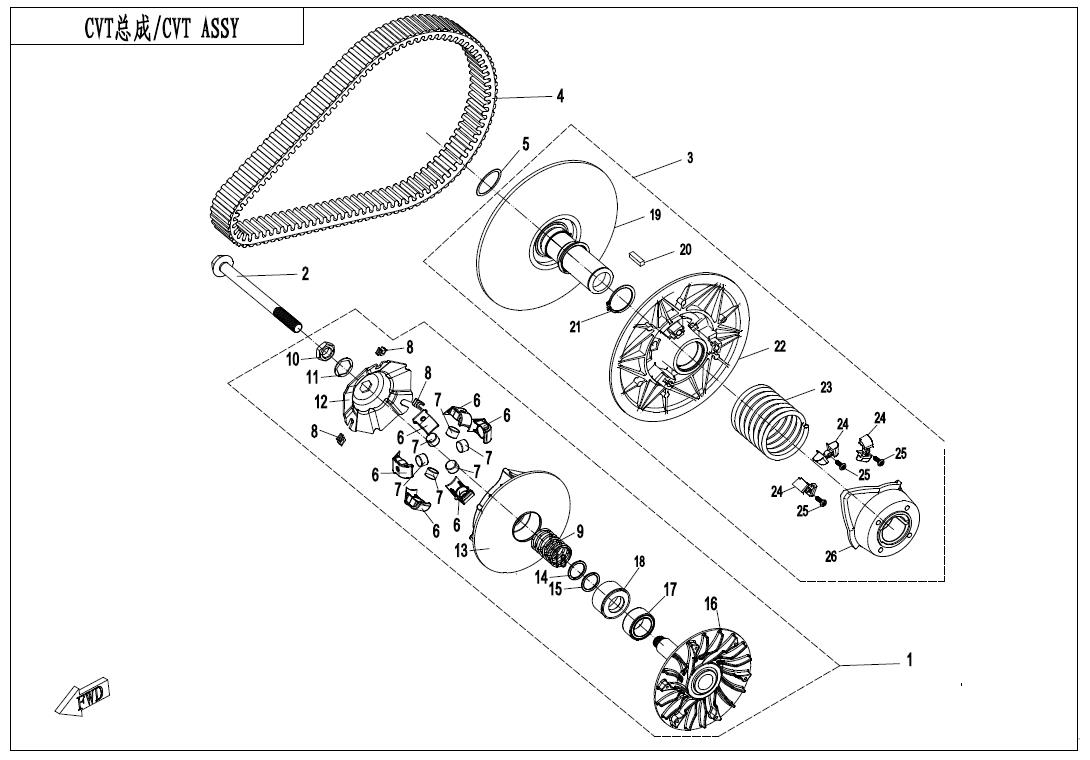

CVT ASSY
E05-V2
CVT ASSY

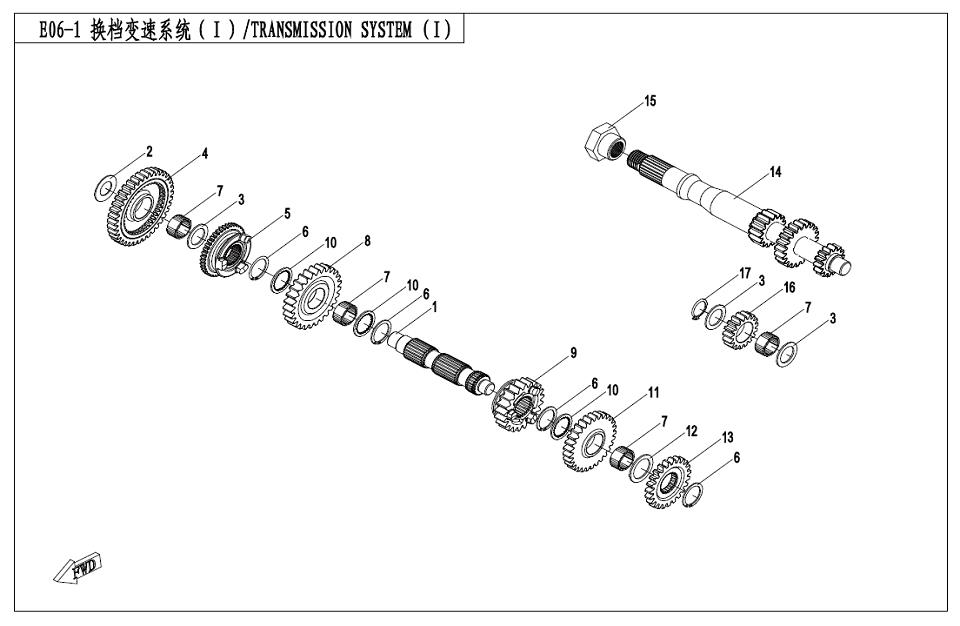

E06-1
TRANSMISSION SYSTEM(1)

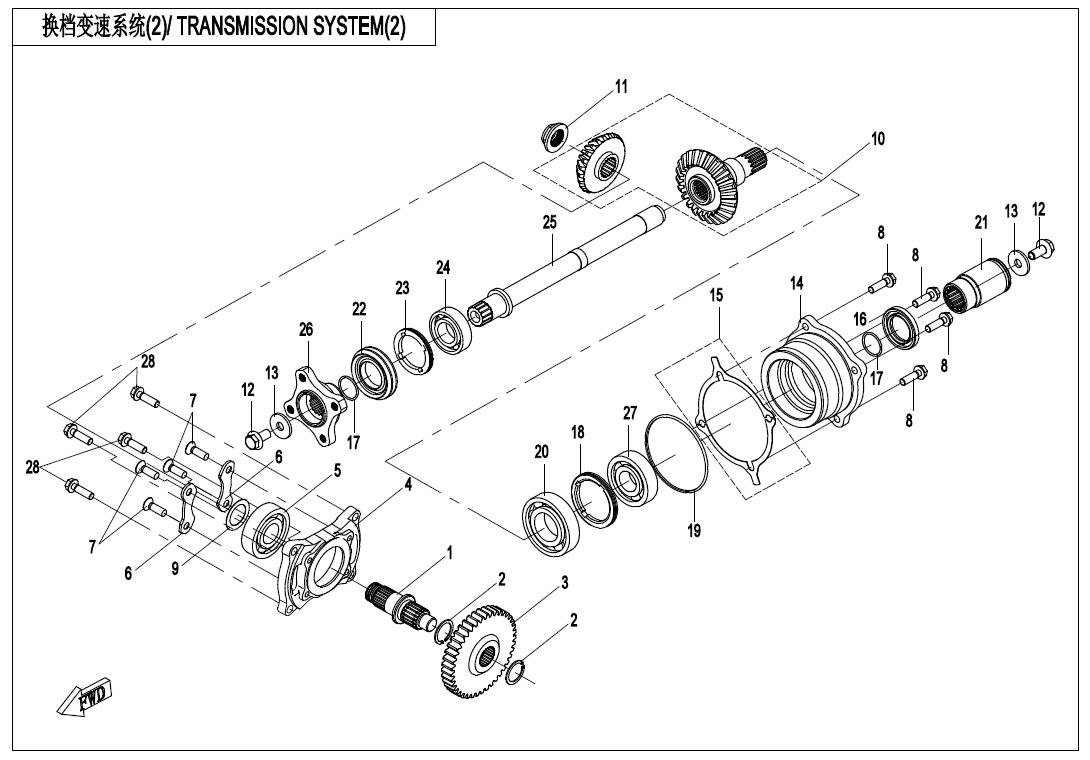

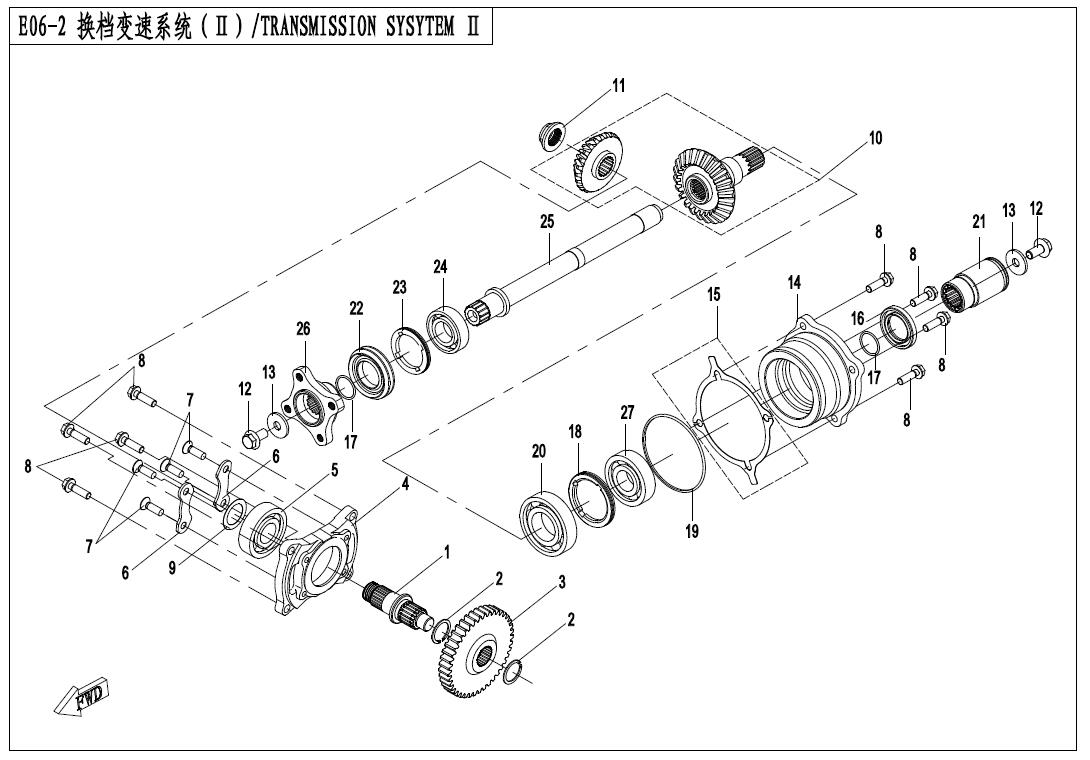

E06-2-V1
TRANSMISSION SYSTEM(2)
E06-2-V2
TRANSMISSION SYSTEM(2)

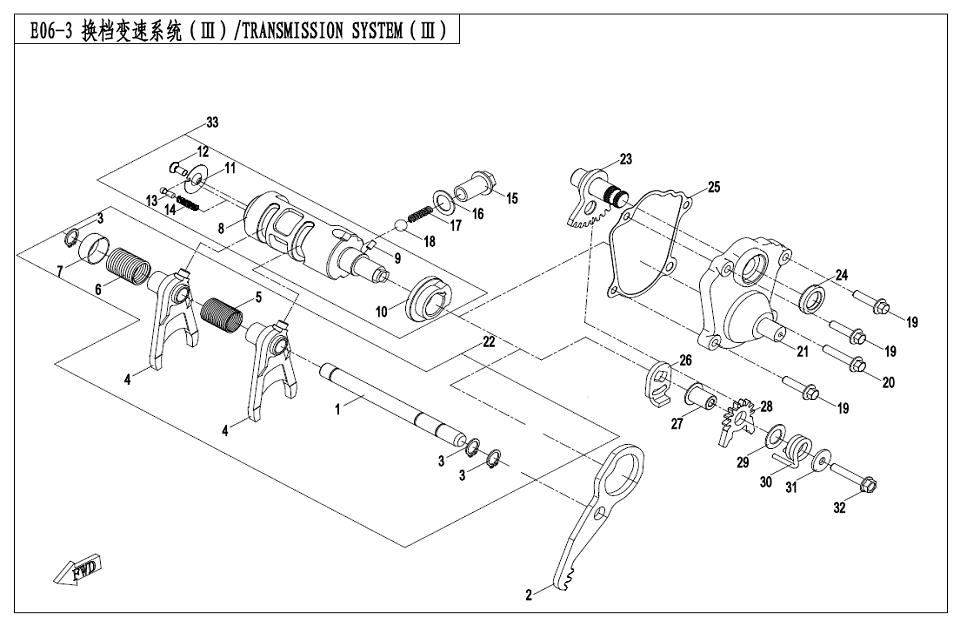

E06-3
TRANSMISSION SYSTEM(3)
E07

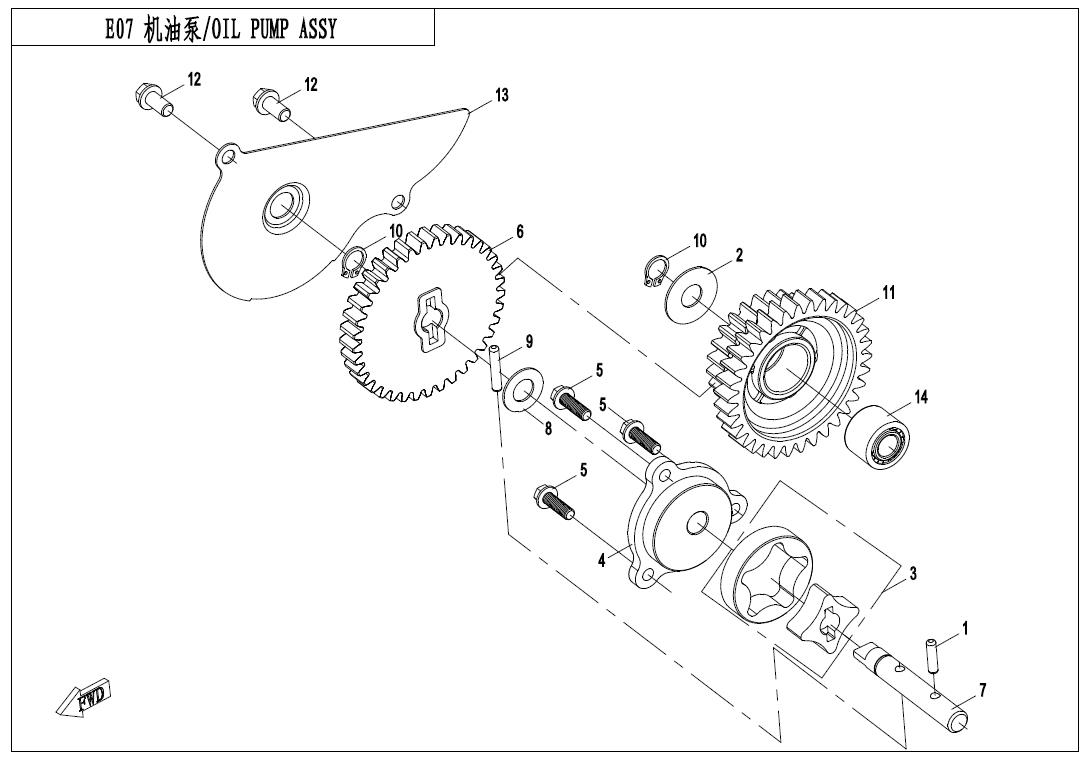

OIL PUMP ASSY
E08

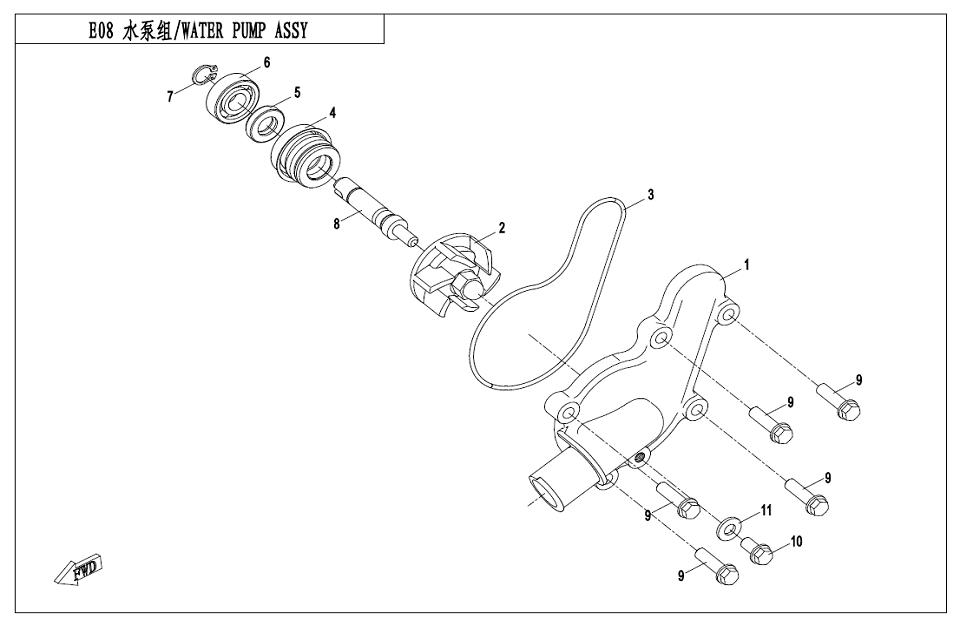

WATER PUMP ASSY
E09

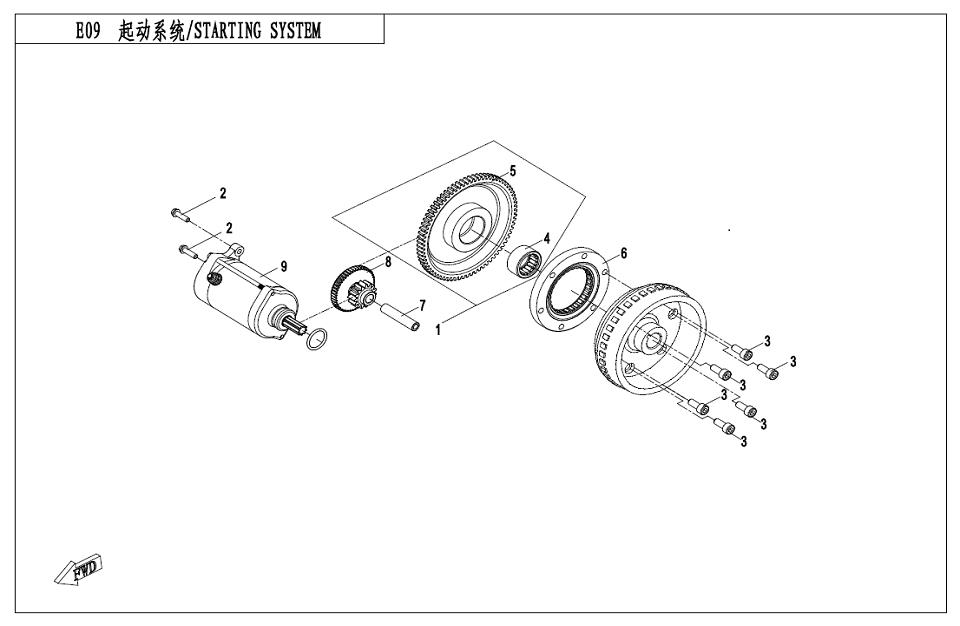

STATERING SYSTEM
E29

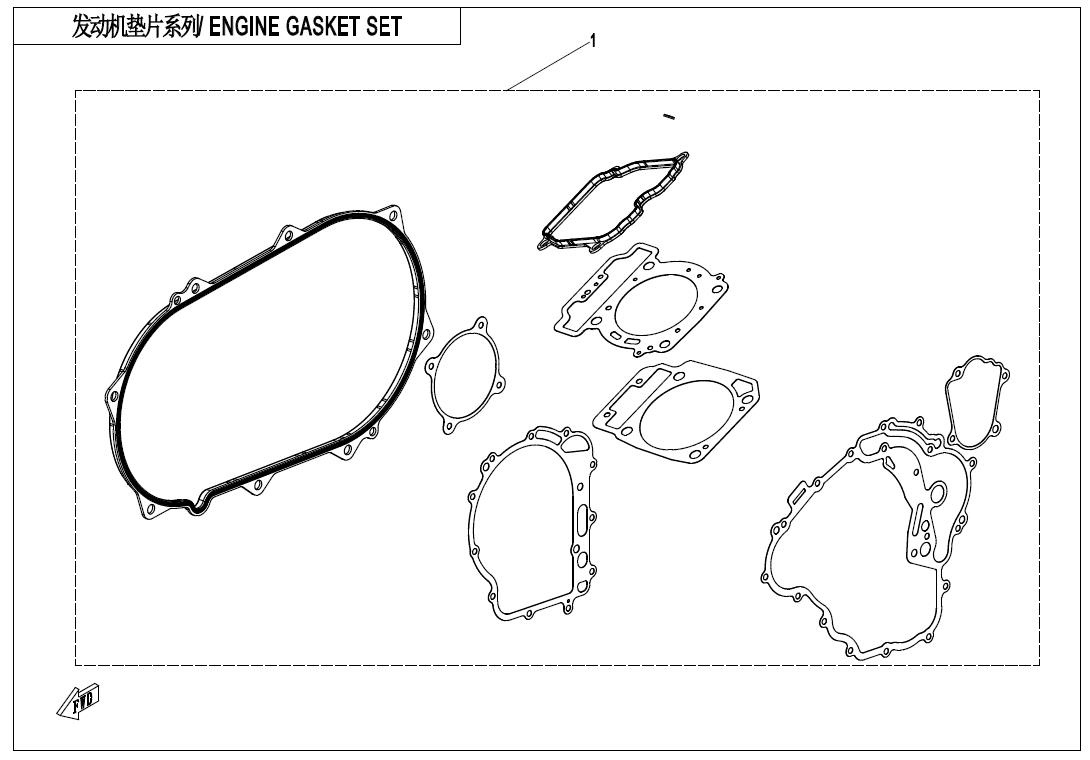

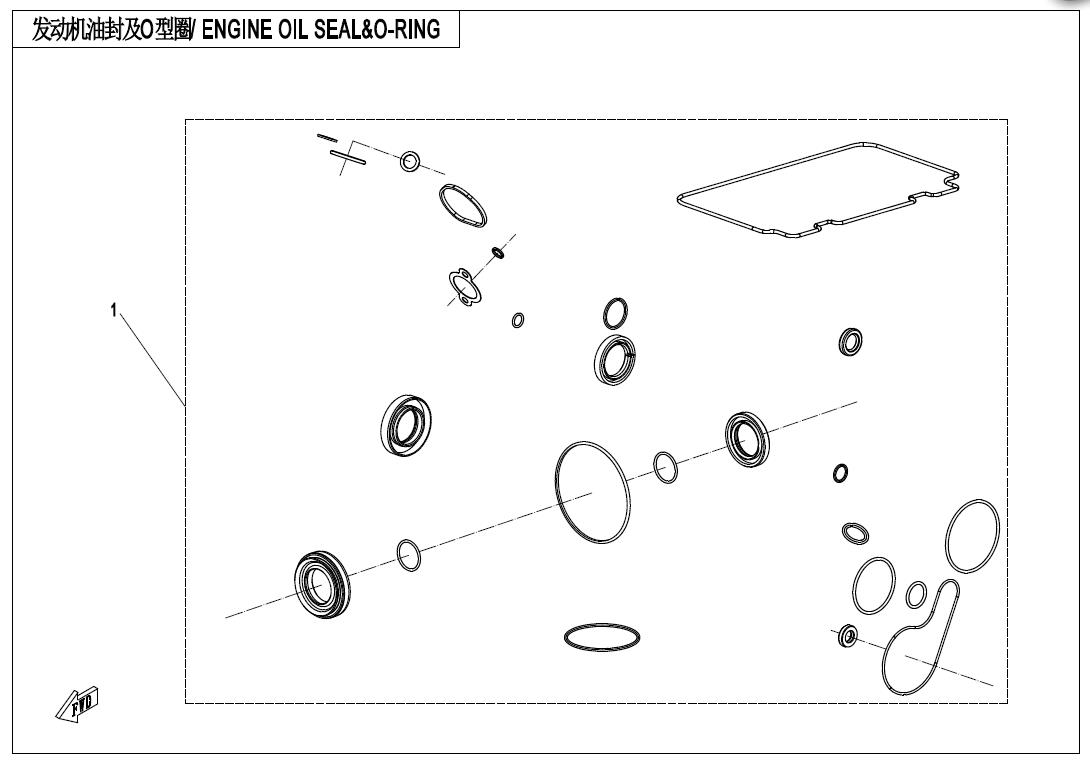

ENGINE GASKET KIT
E30
