Genuine Parts Diagrams for 2017 CFORCE 520 EPS - CF500AU-7SChange Model
Showing 56 parts diagrams.
F00

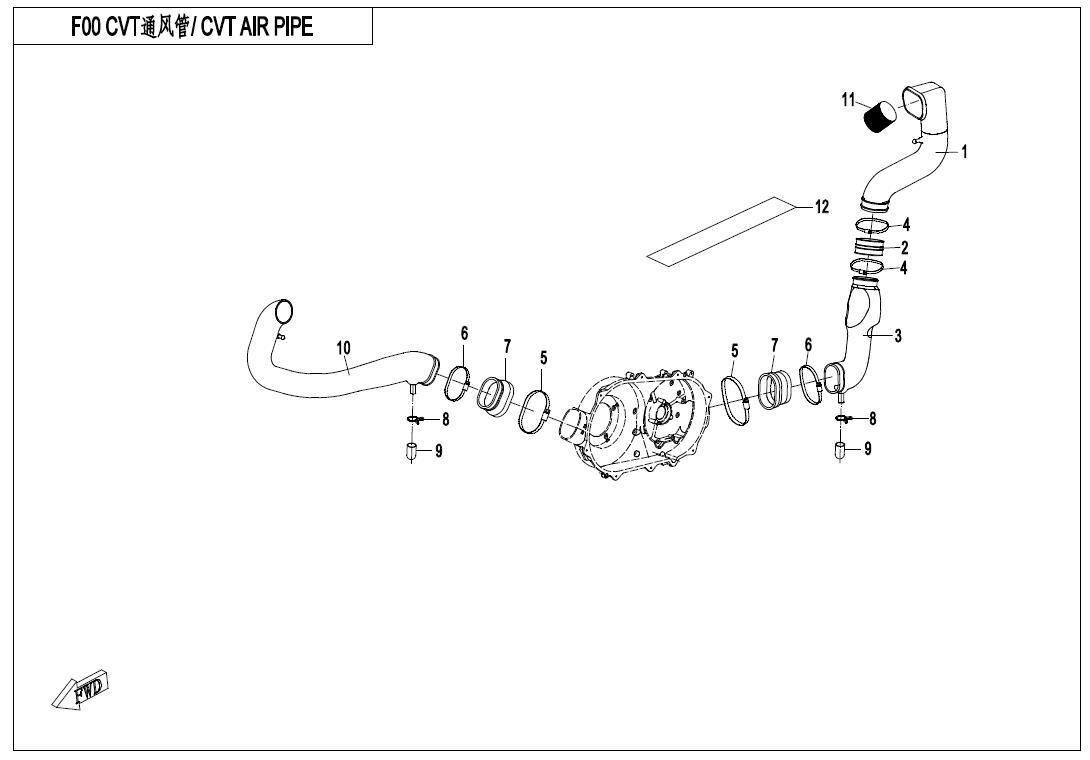

CVT AIR PIPE
F01

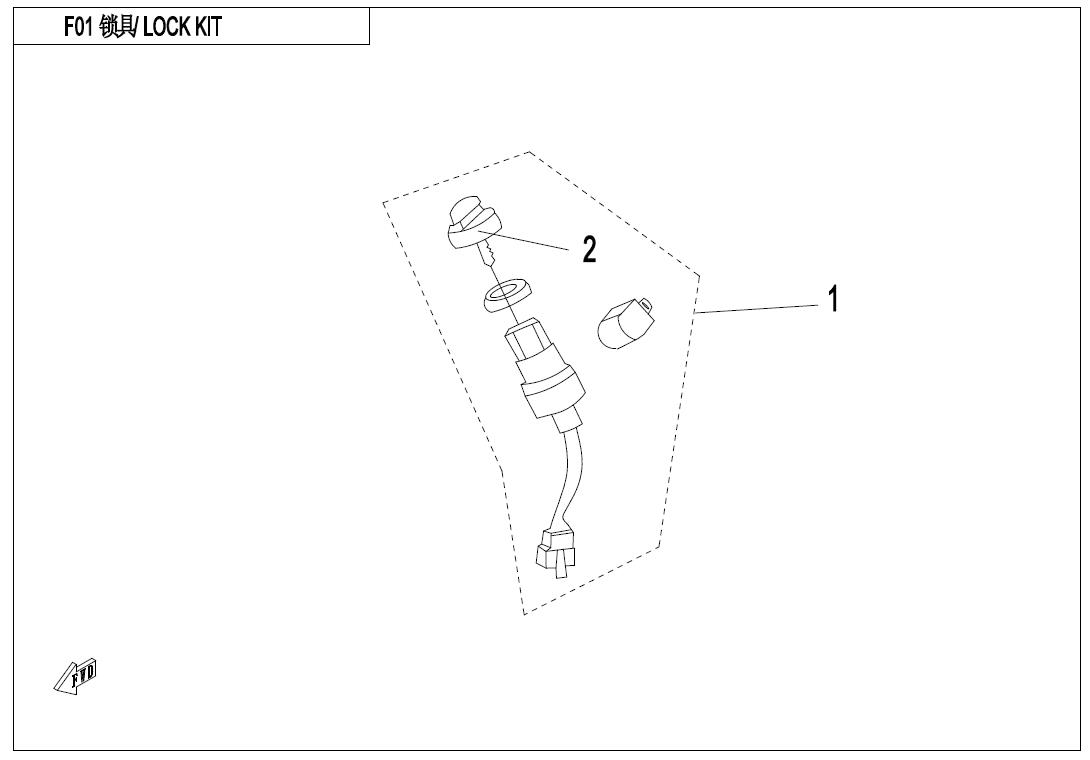

LOCK KITS
F02-A

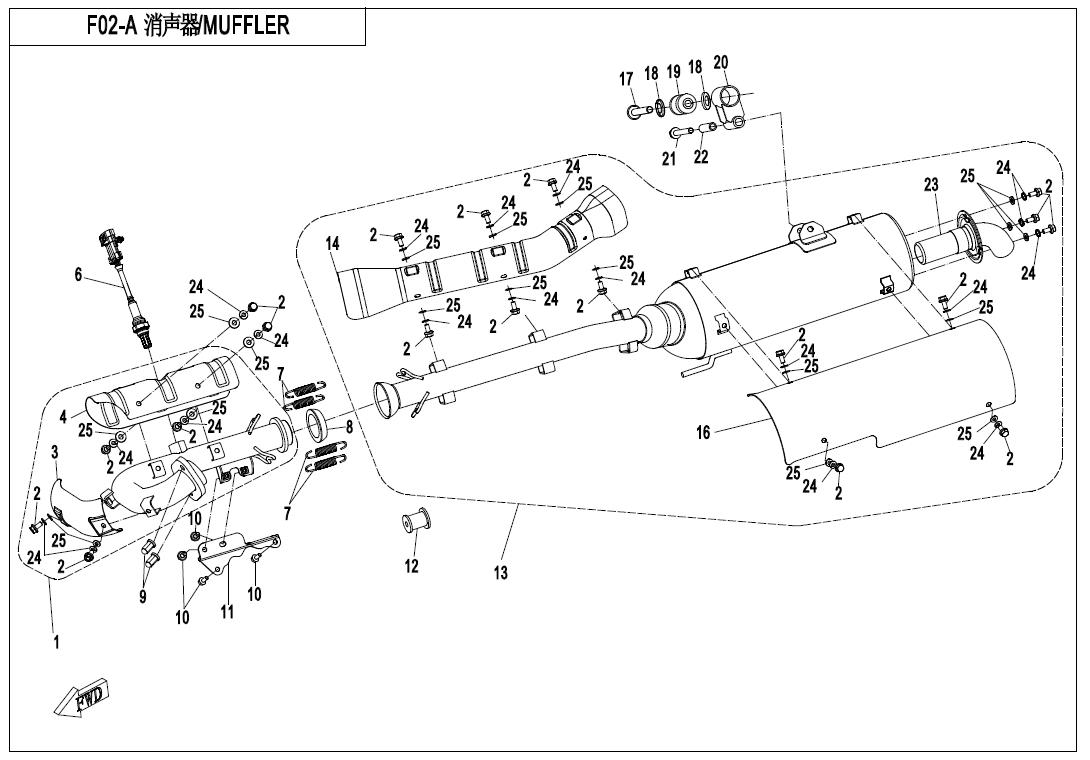

MUFFLER(EURO)
F03-A

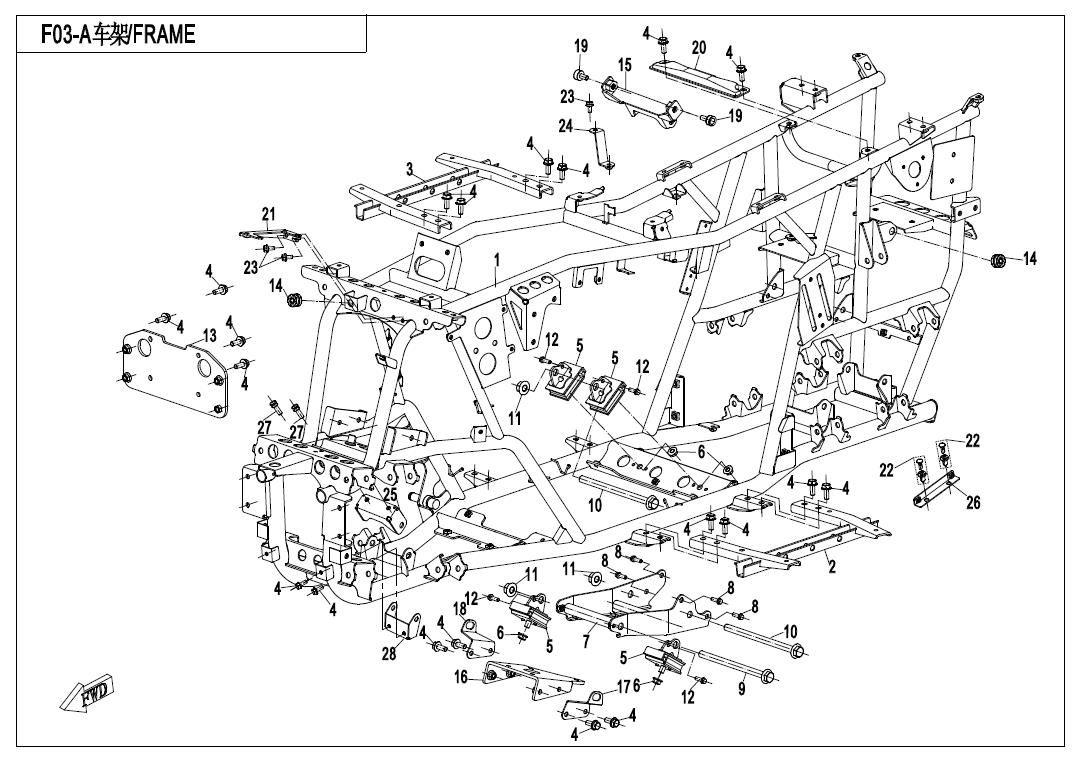

FRAME(OLD)

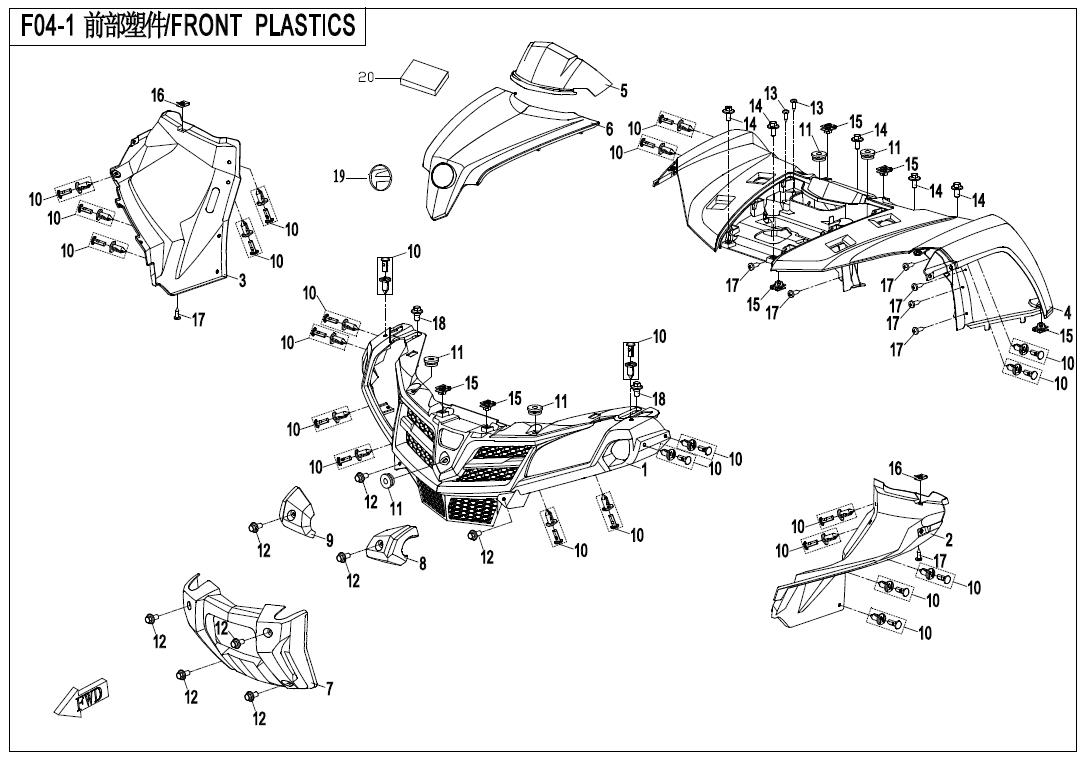

F04-1
FRONT PLASTICS
F04-2

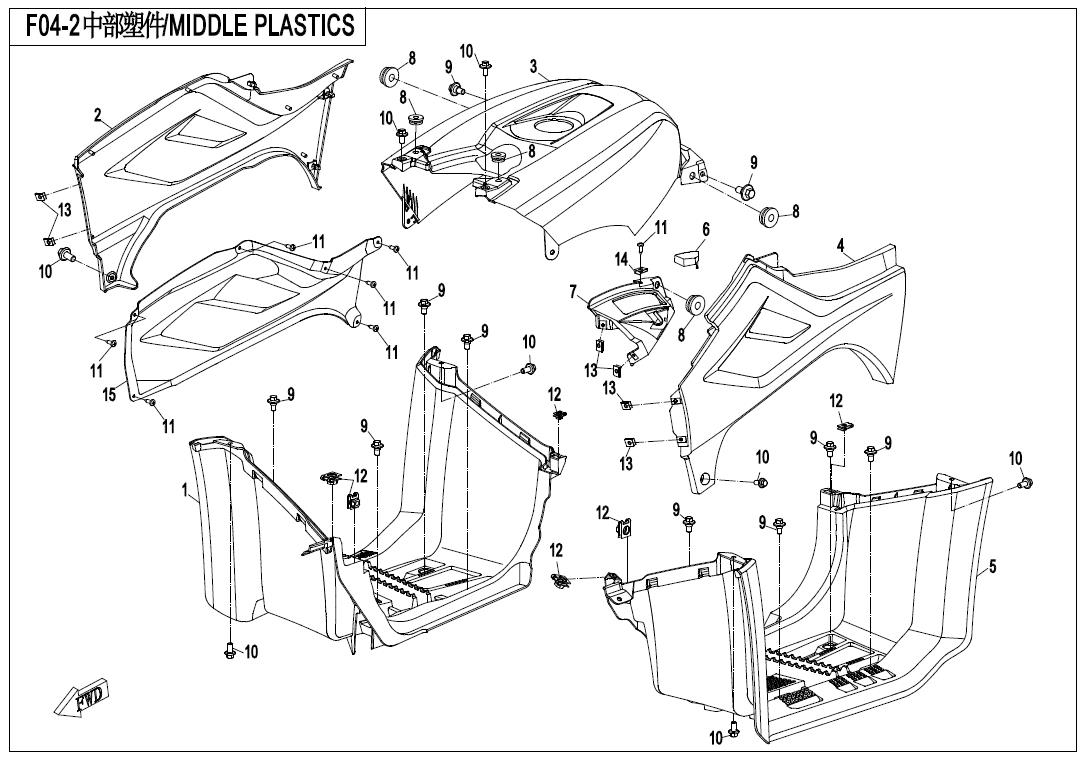

MIDDLE PLASTICS
F04-3

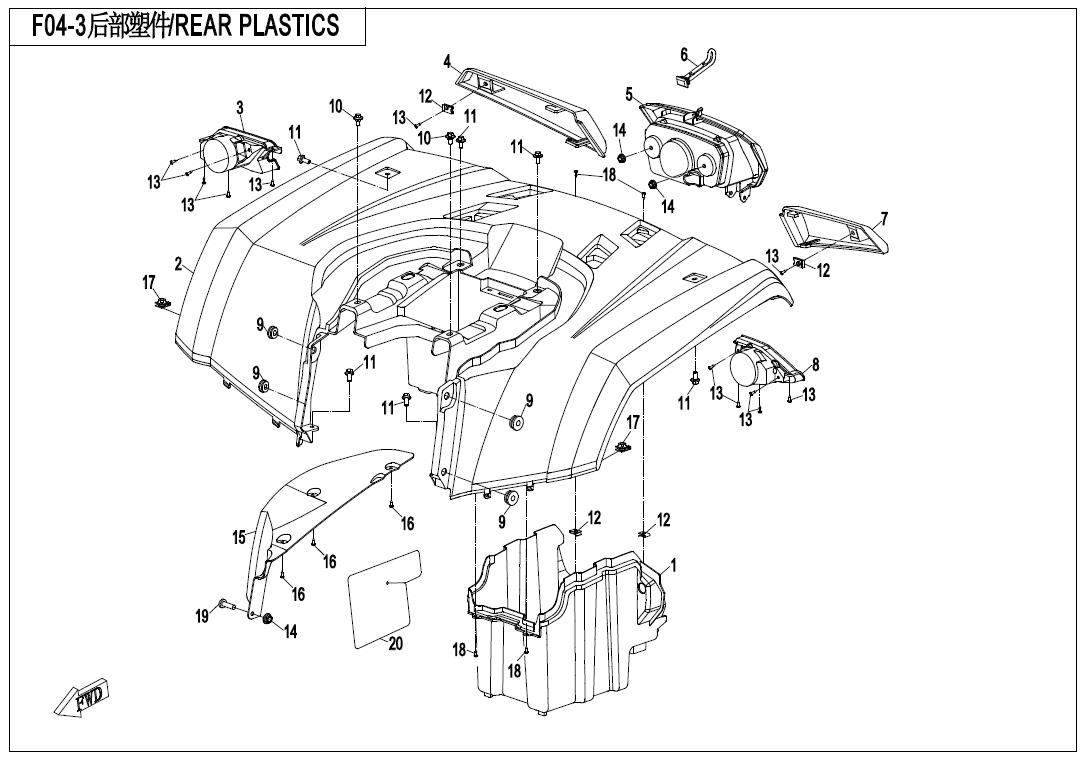

REAR PLASTICS
F04-4

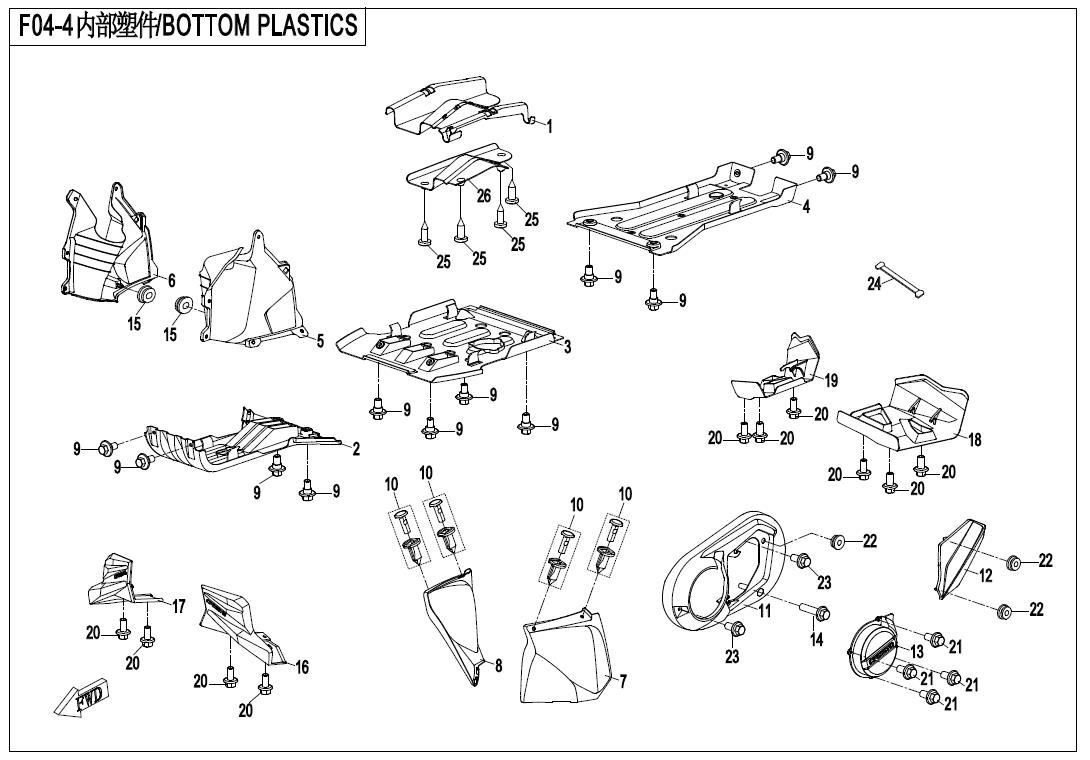

BOTTOM PLASTICS
F05

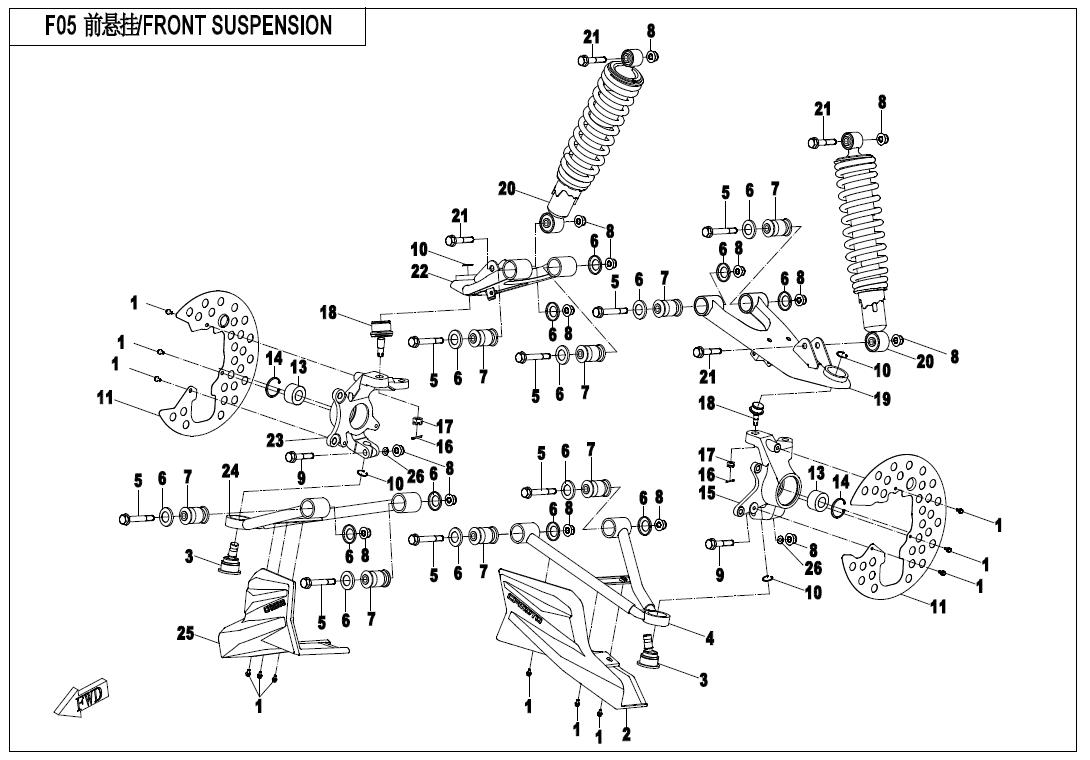

FRONT SUSPENSION

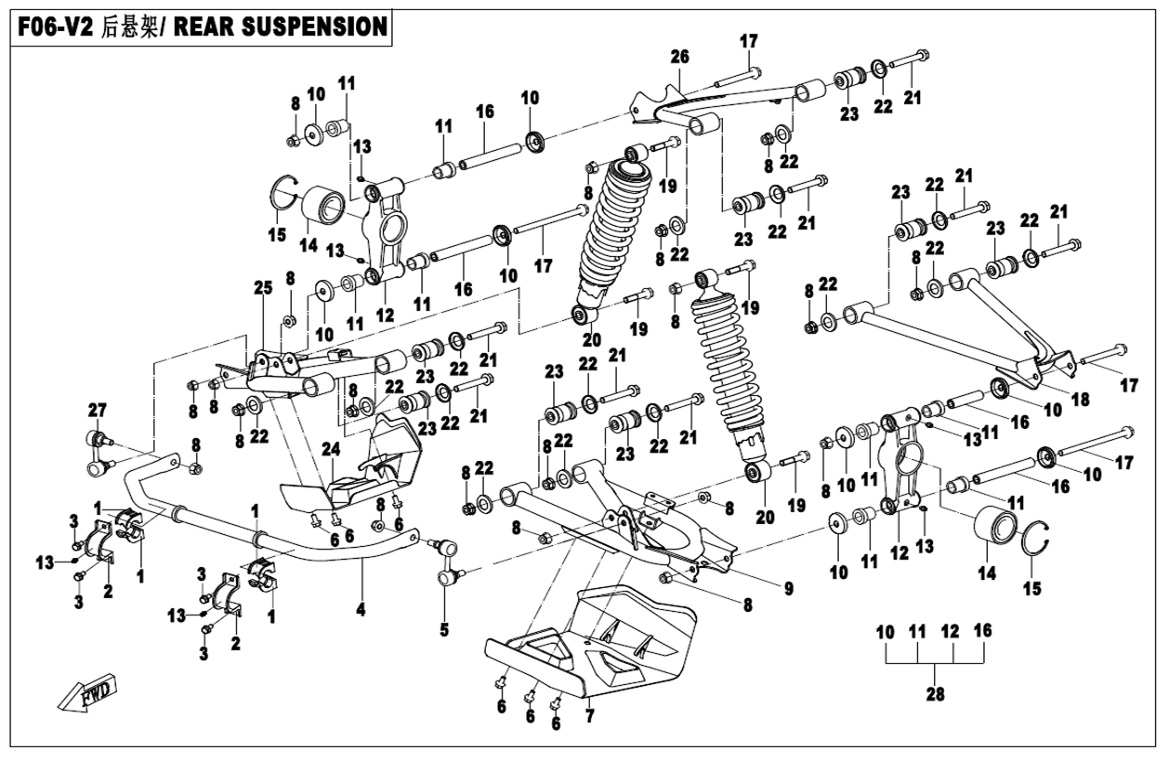

F06-V2
REAR SUSPENSION

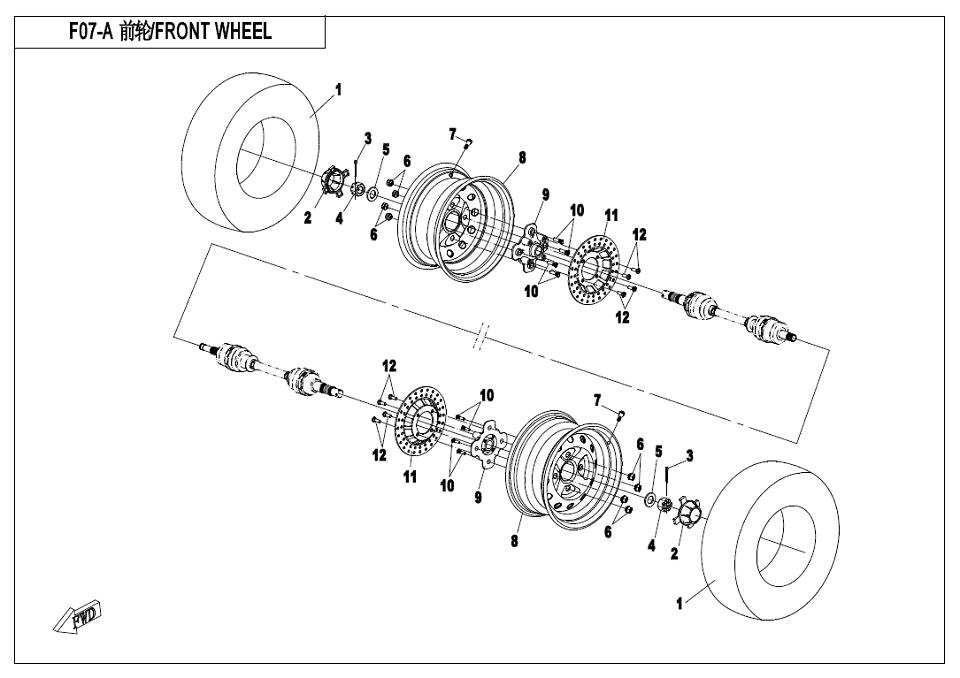

F07-A

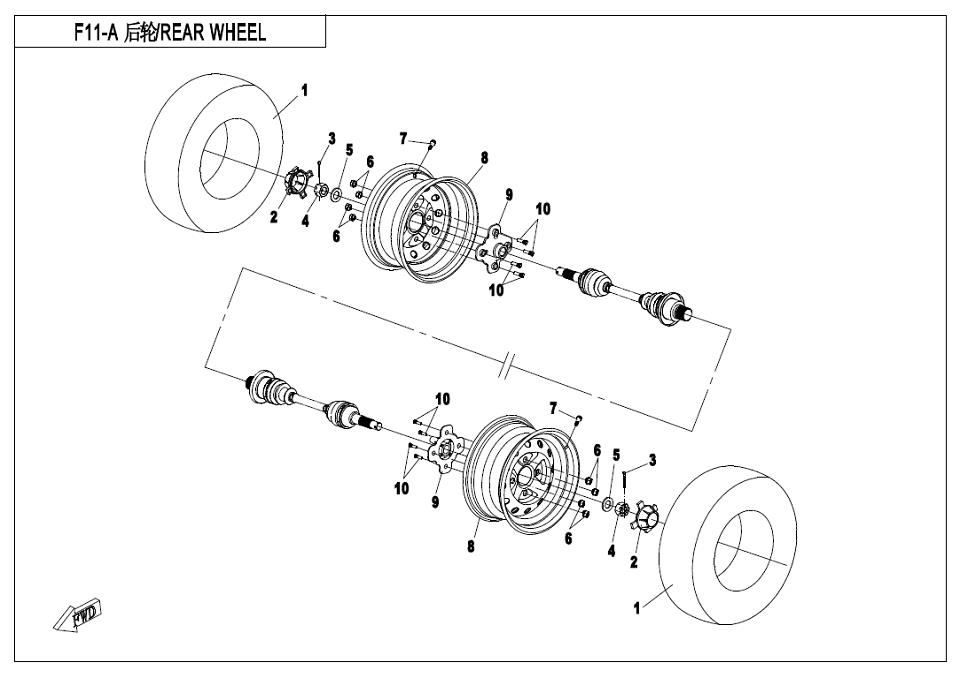

FRONT WHEEL(OLD)
F08-1

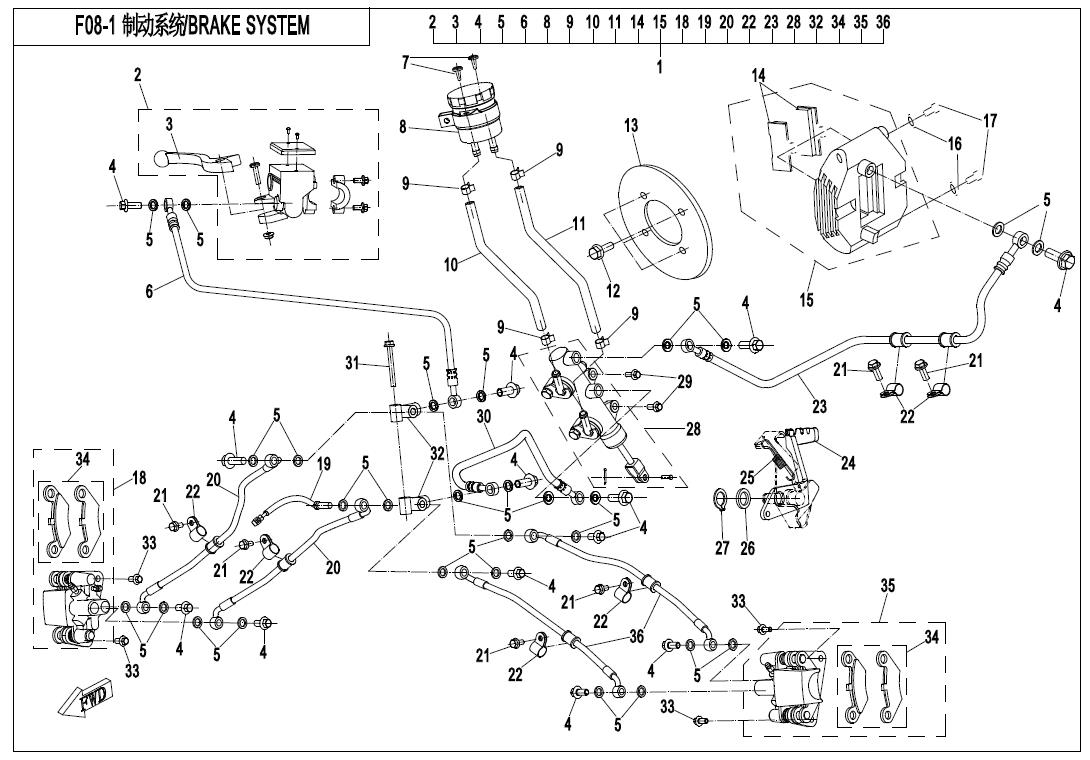

BRAKE SYSTEM
F10-1
HANDLEBAR
F10-2-B

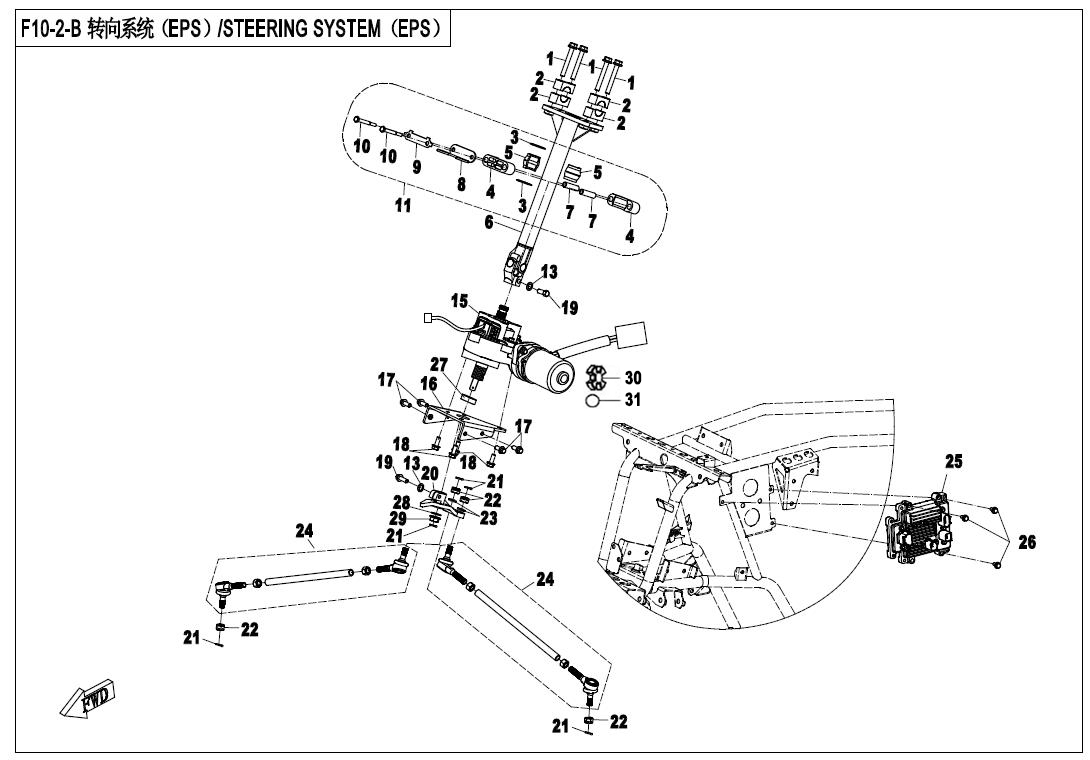

STEERING SYSTEM(EPS)
F11-A
REAR WHEEL(OLD)
F12

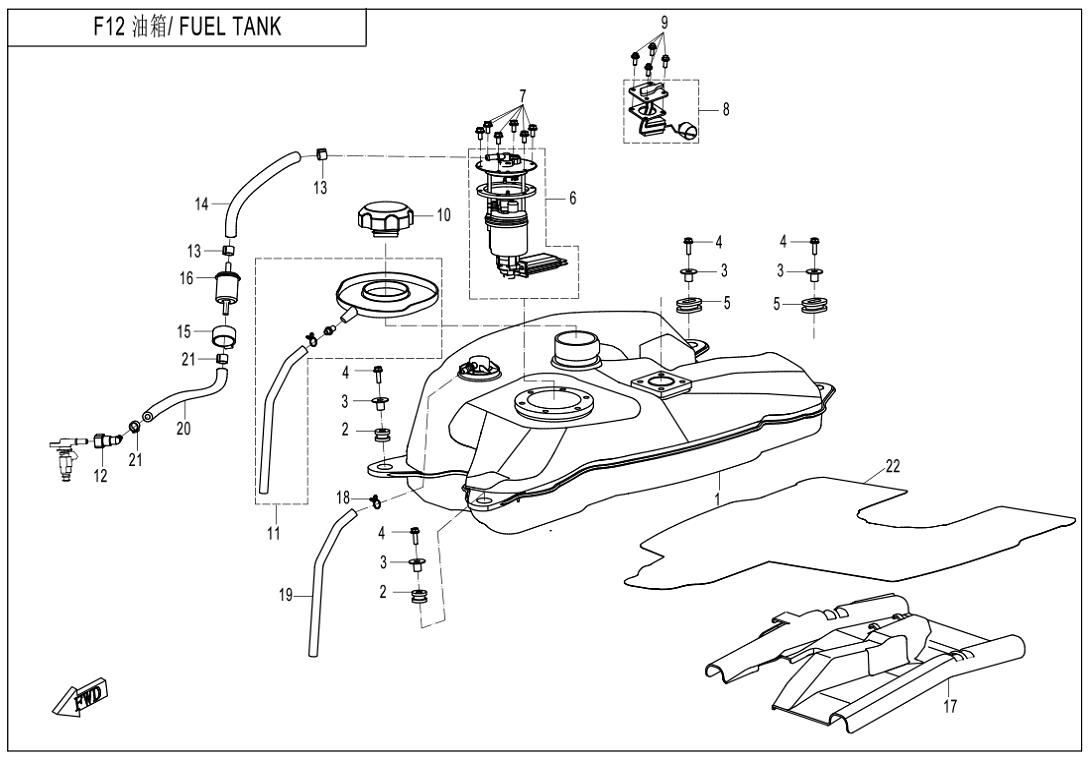

FUEL SYSTEM
F13

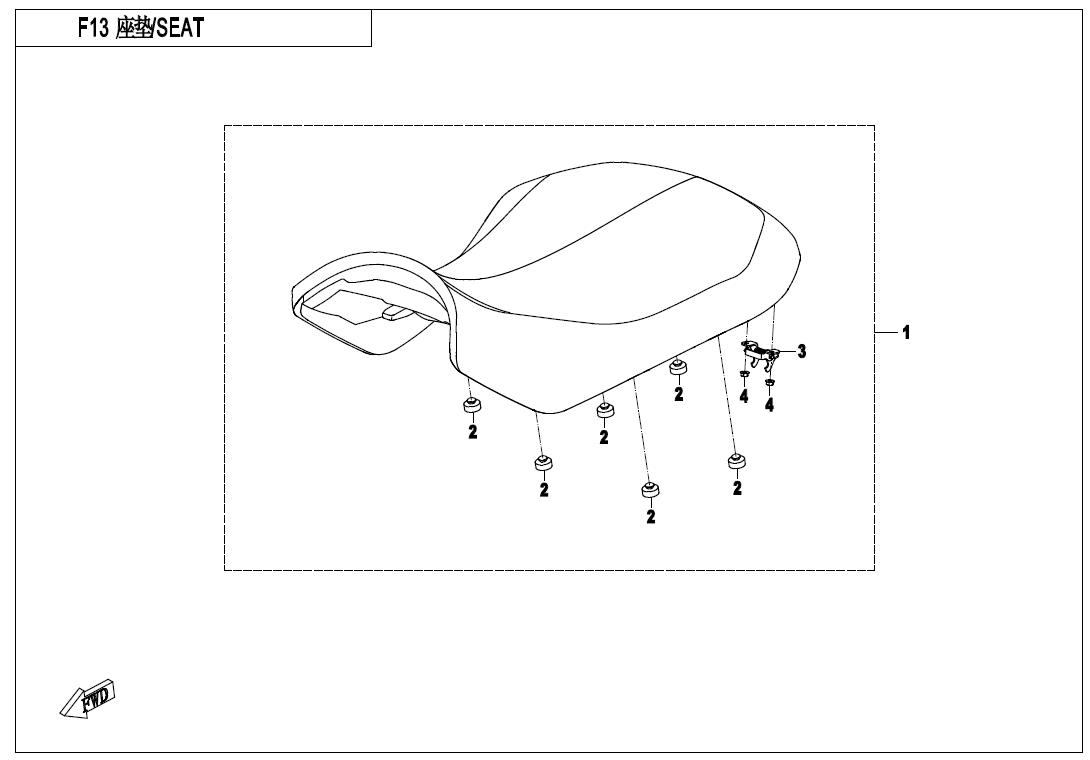

SEAT
F14-B

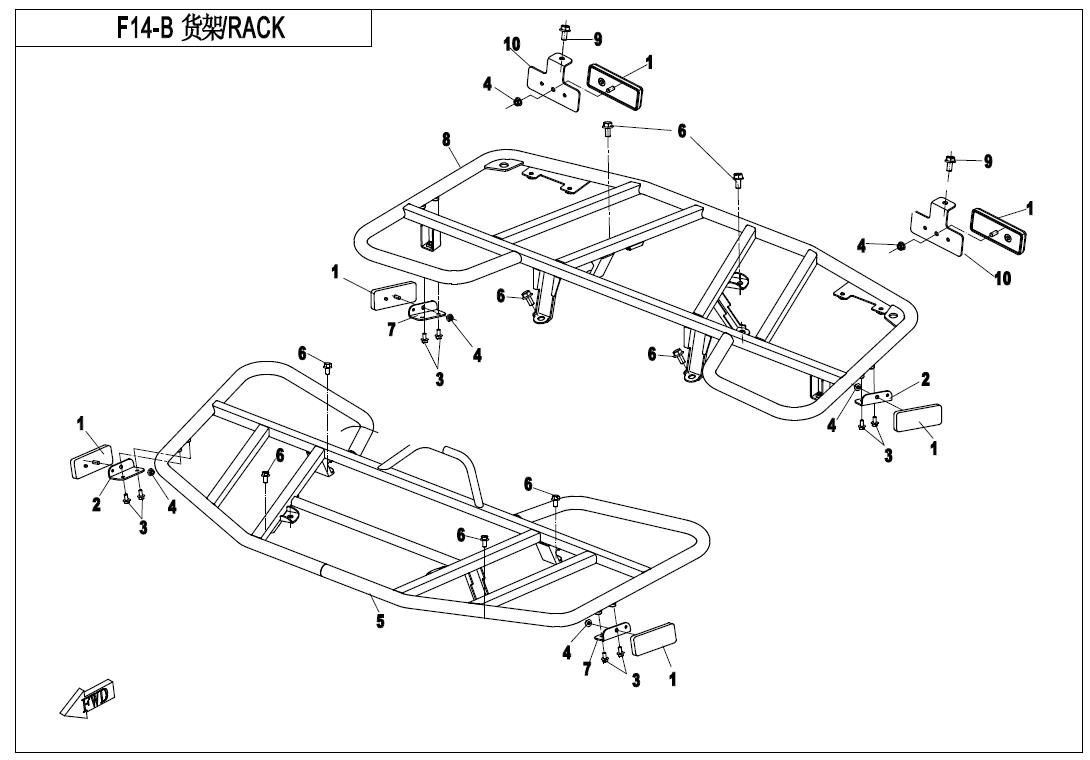

RACK(STEEL)
F15-1-A

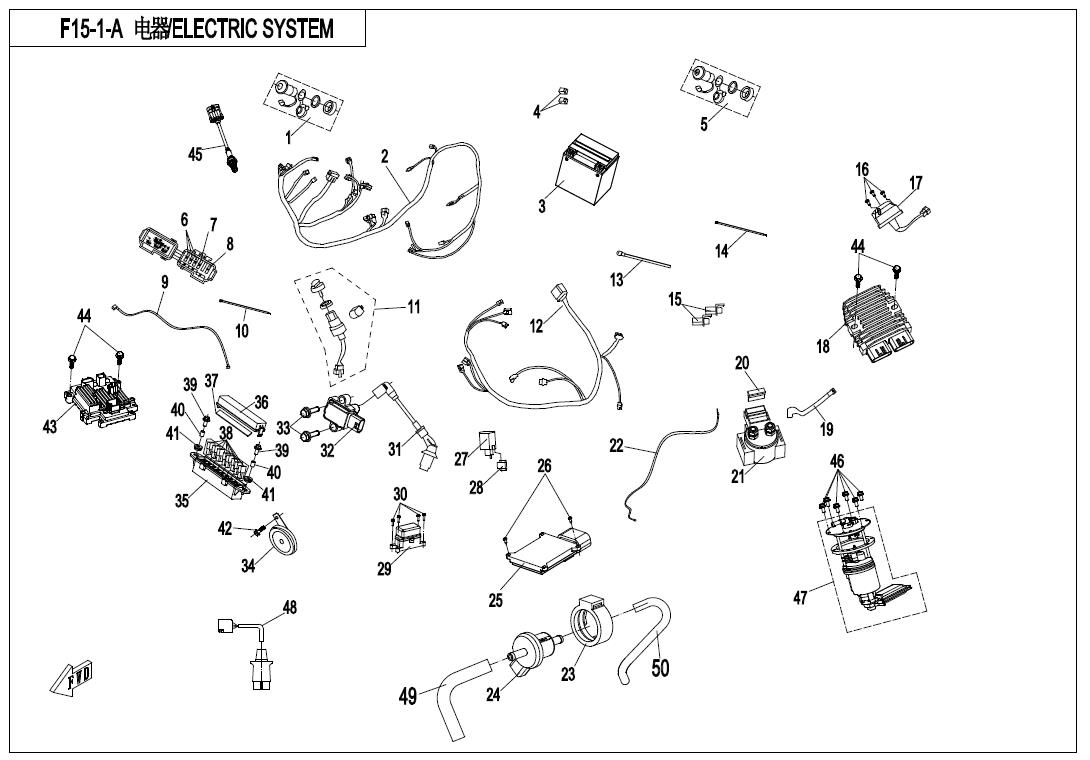

ELECTRIC SYSTEM(EURO)
F15-2

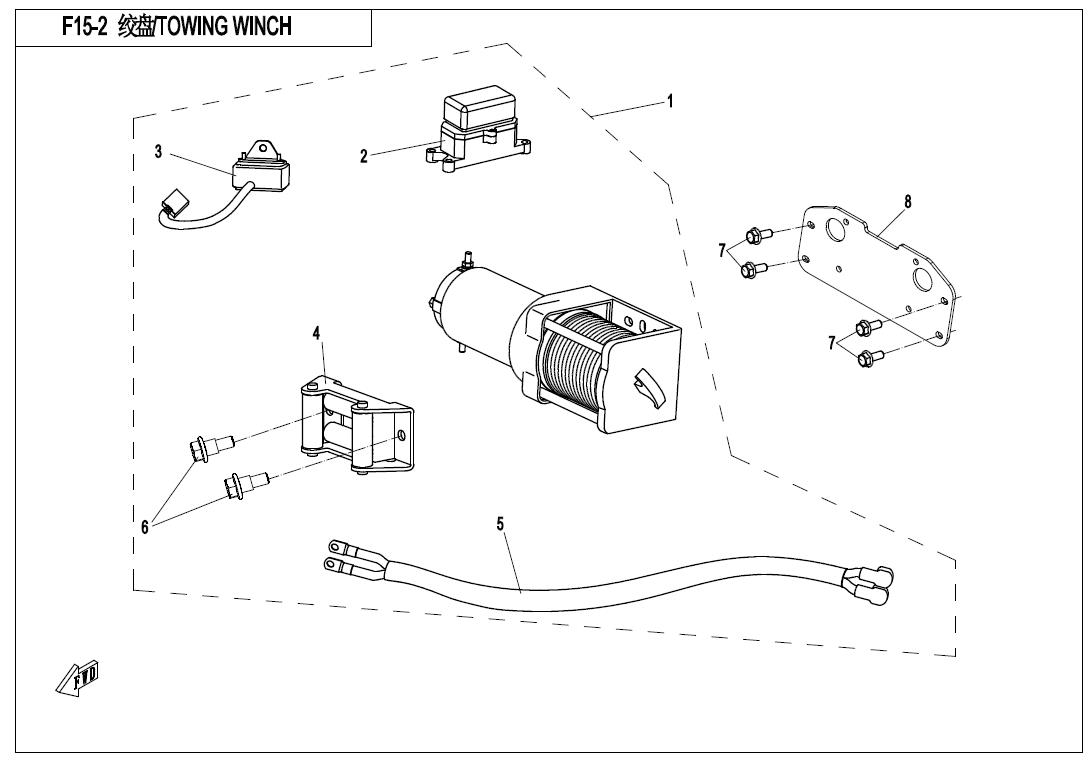

TOWING WINCH
F15-3

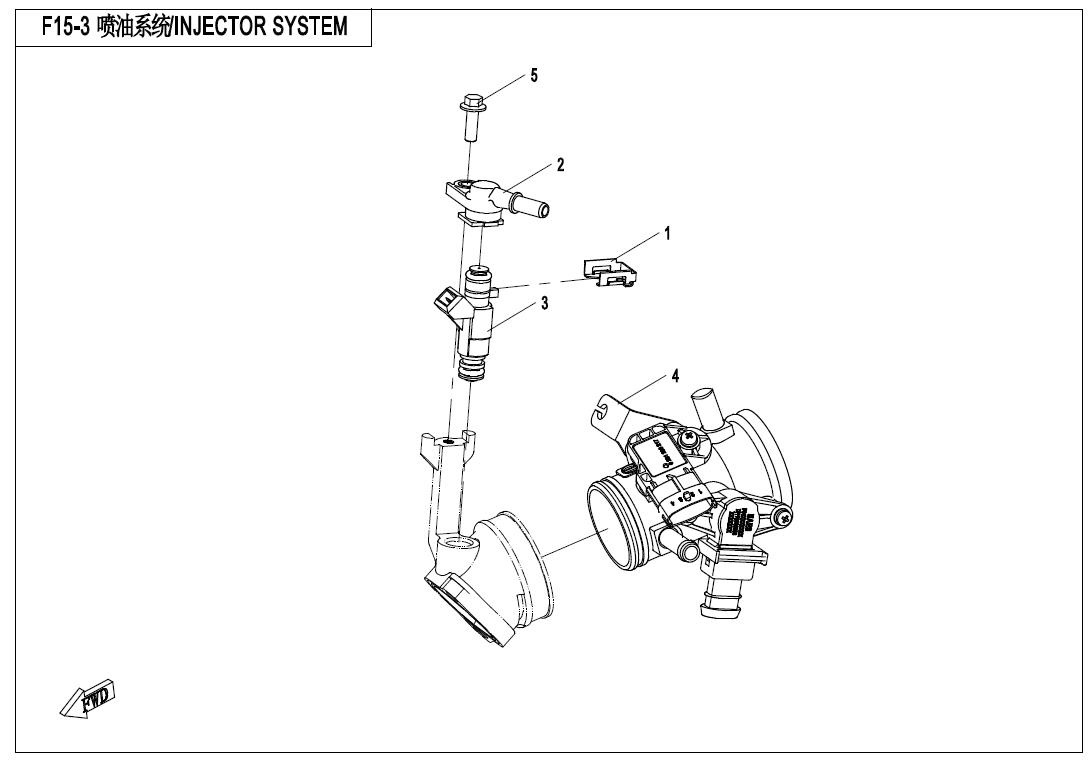

INJECTOR SYSTEM

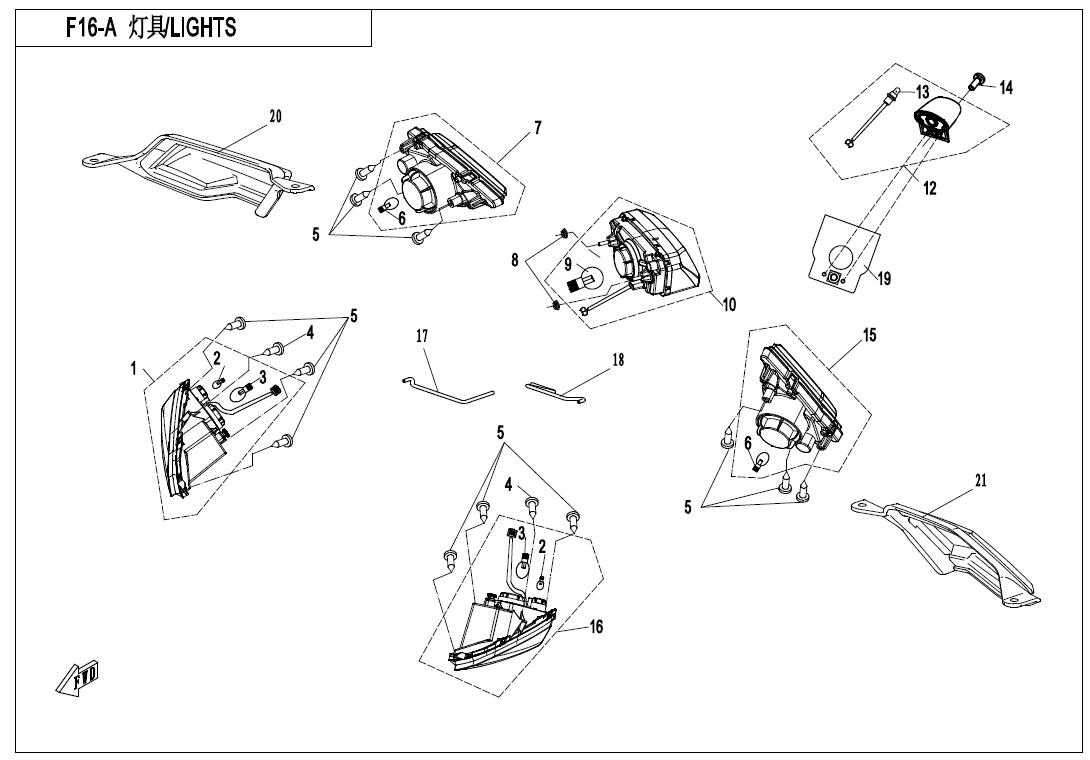

F16-A
LIGHTS(EURO)
F17

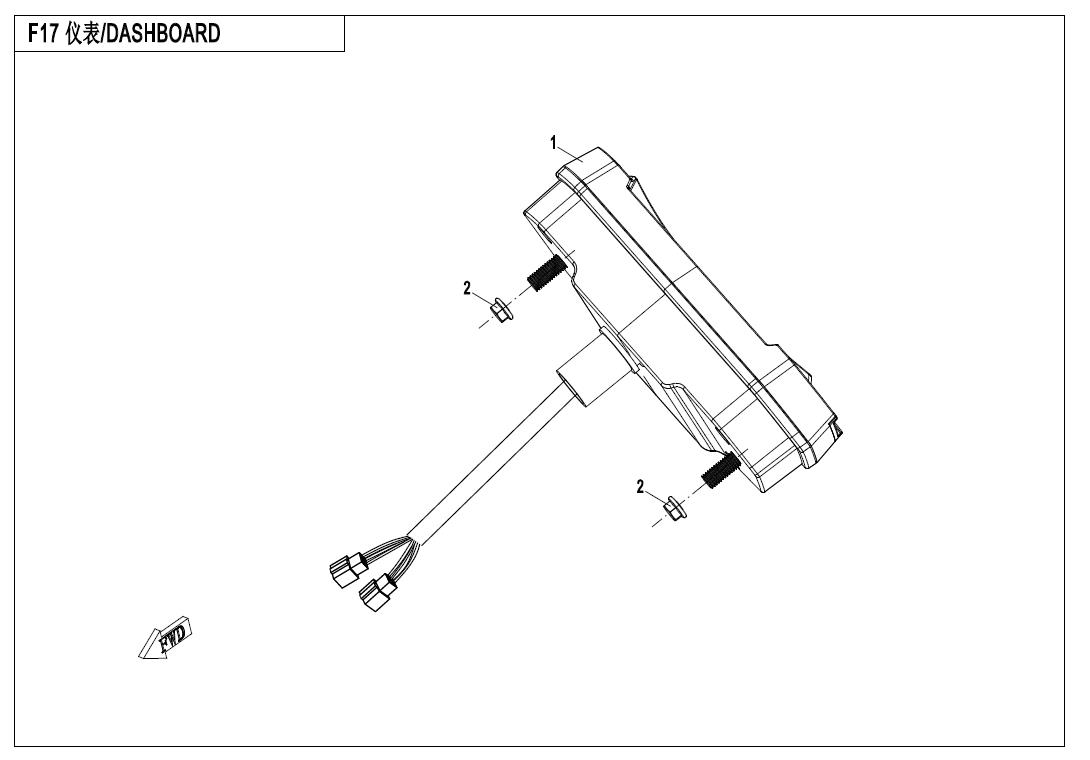

DASHBOARD
F18-A

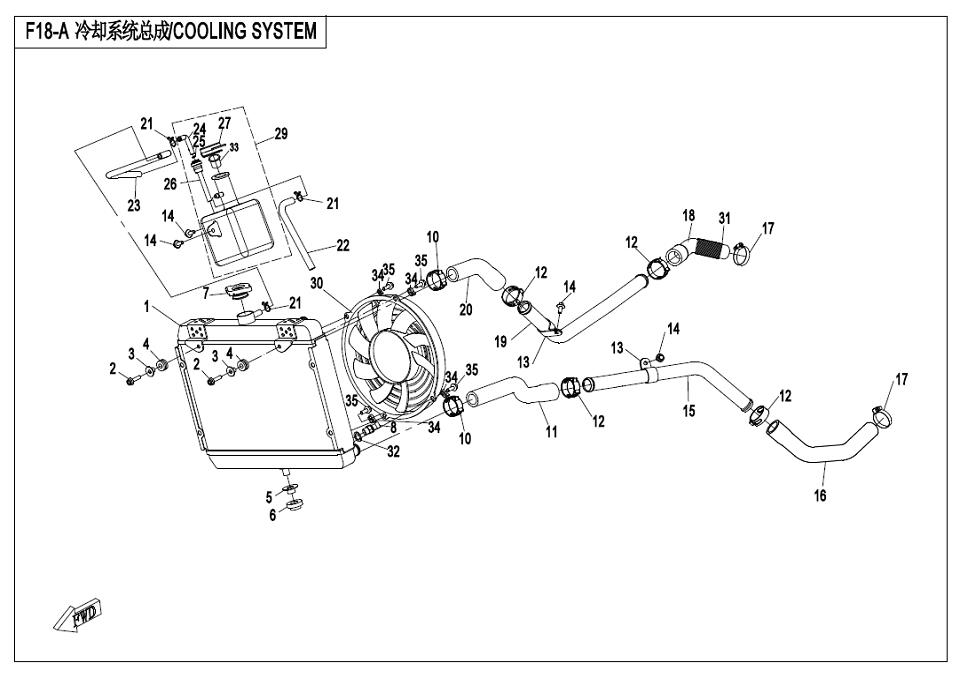

COOLING SYSTEM(OLD)
F19-1-B
DECAL(EURO,VEHICLES WITH OTHER COLORS)
F20

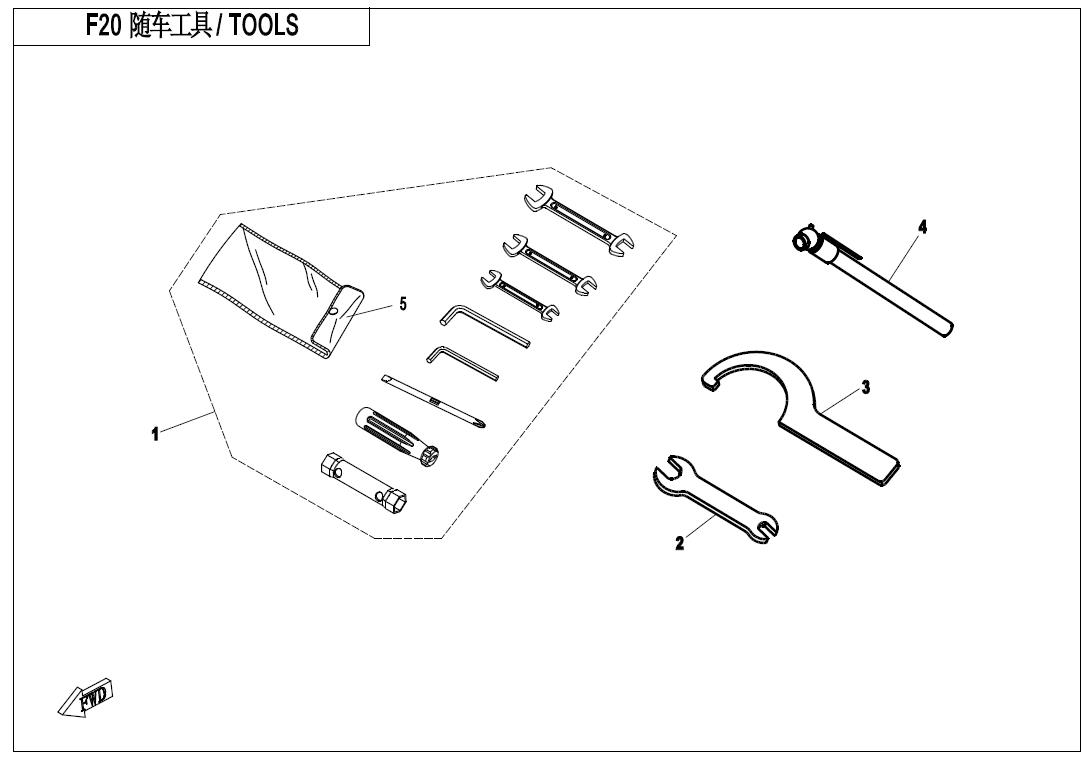

TOOLS
F23

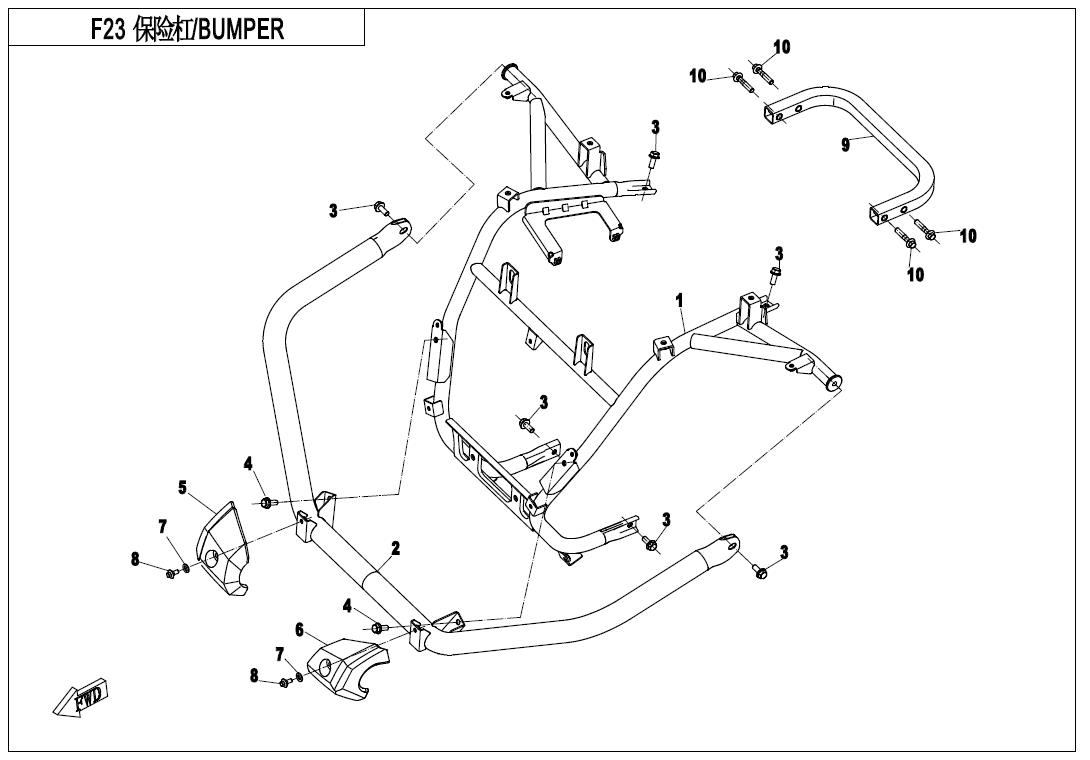

BUMPER
F27-A

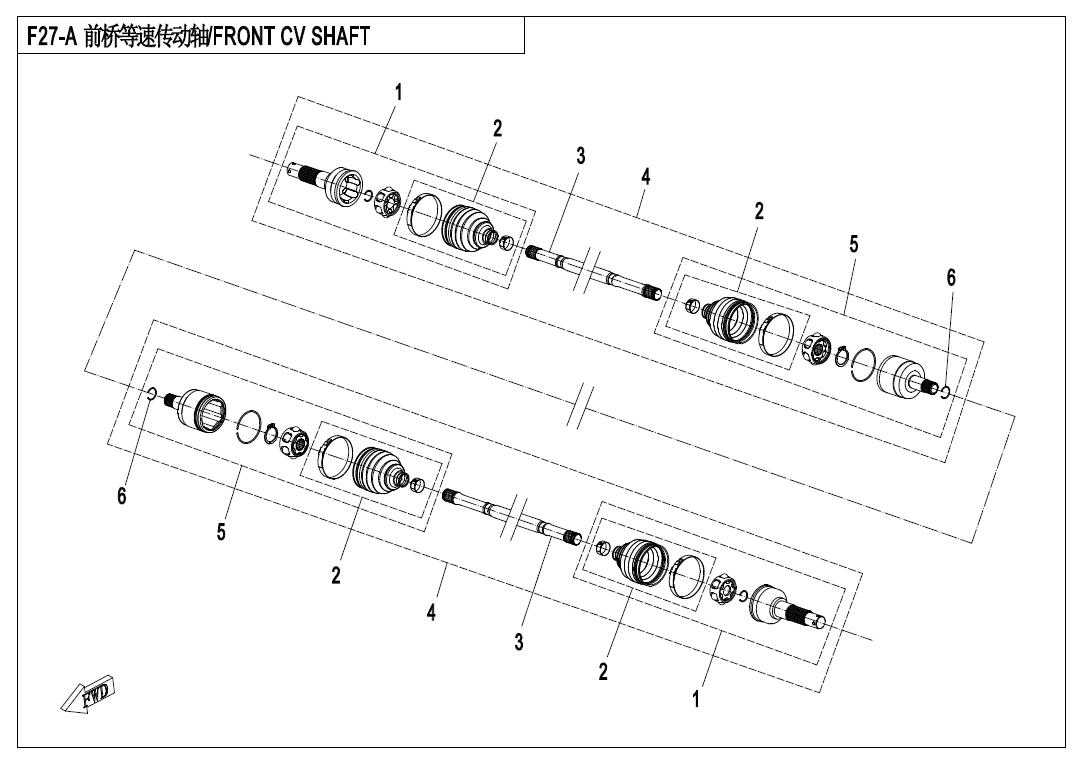

FRONT CV SHAFT(OLD)
F28-A

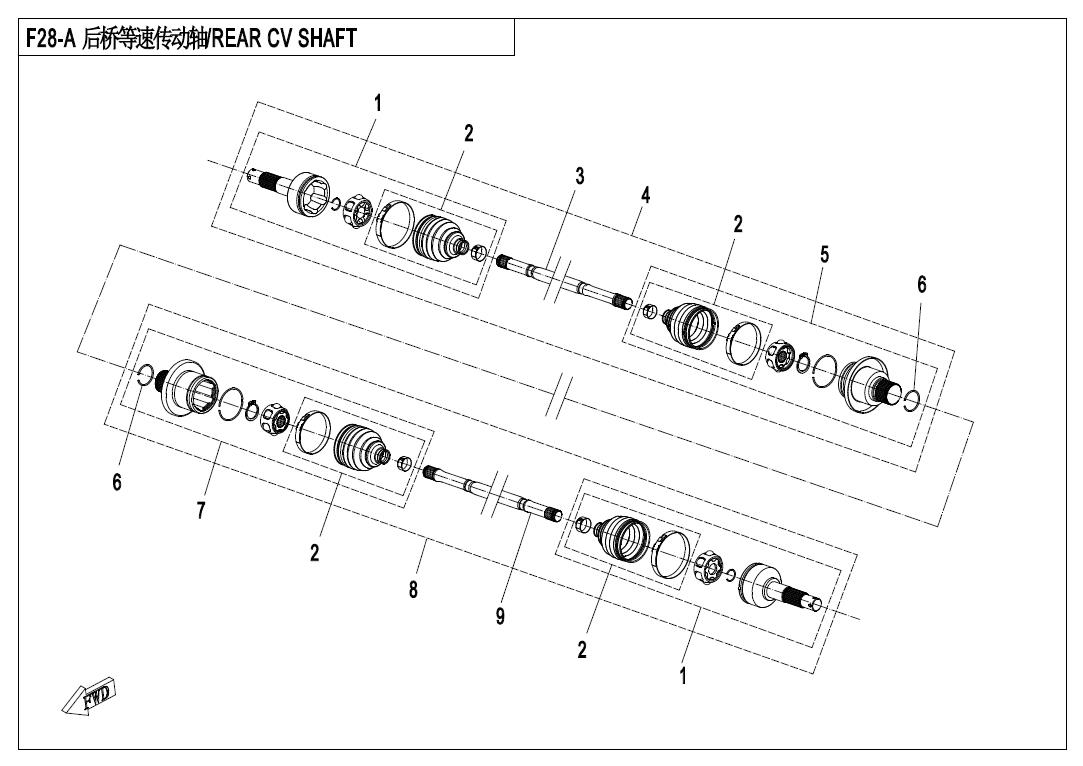

REAR CV SHAFT(OLD)
F30

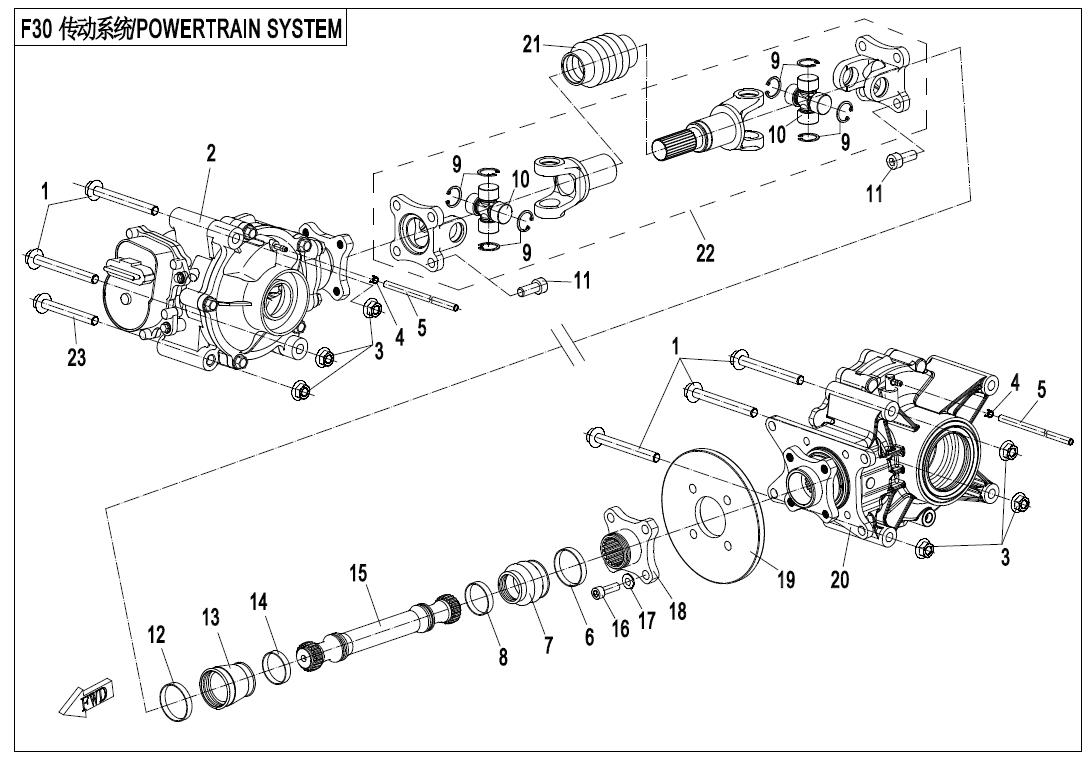

DRIVETRAIN SYSTEM

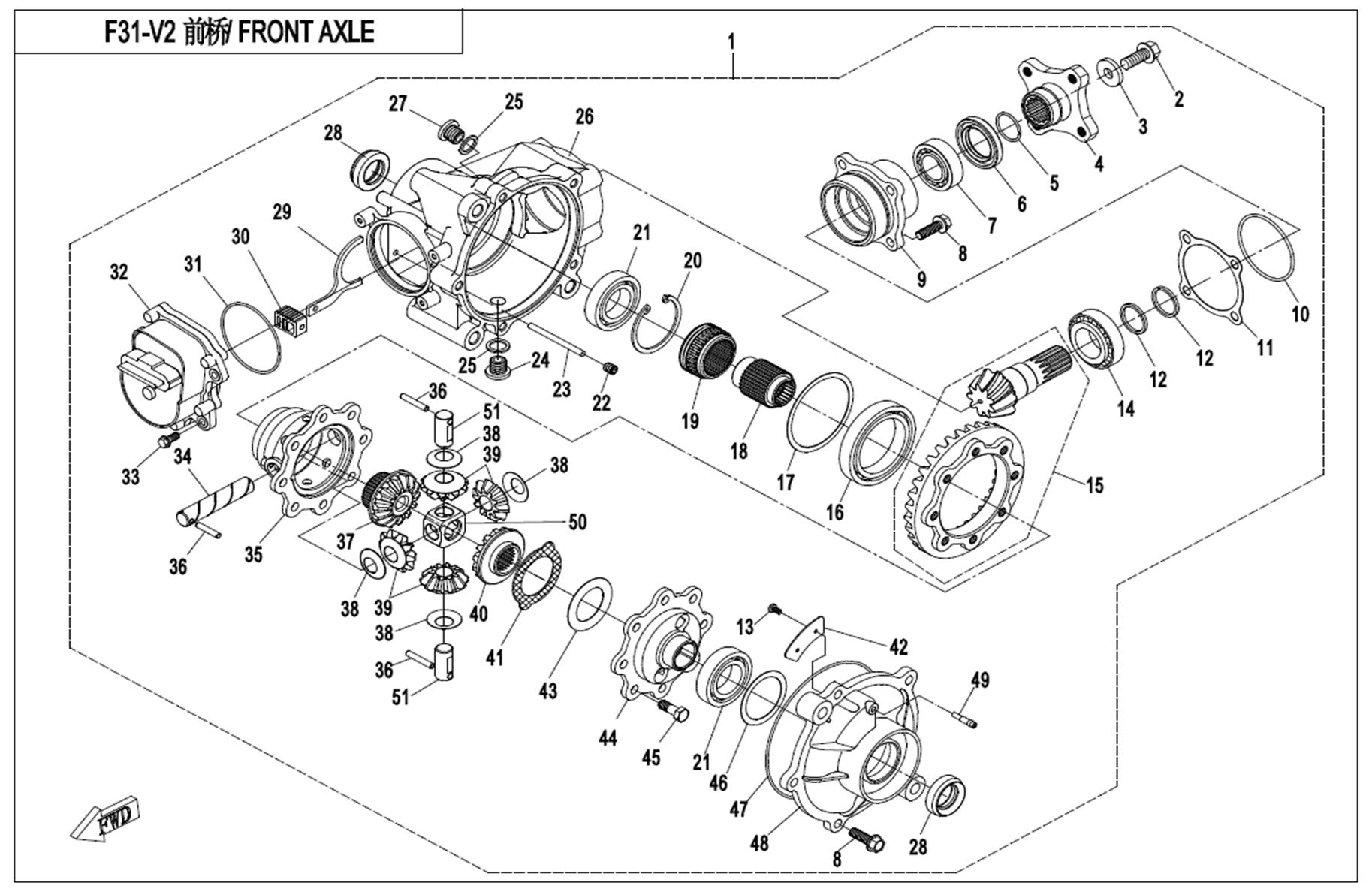

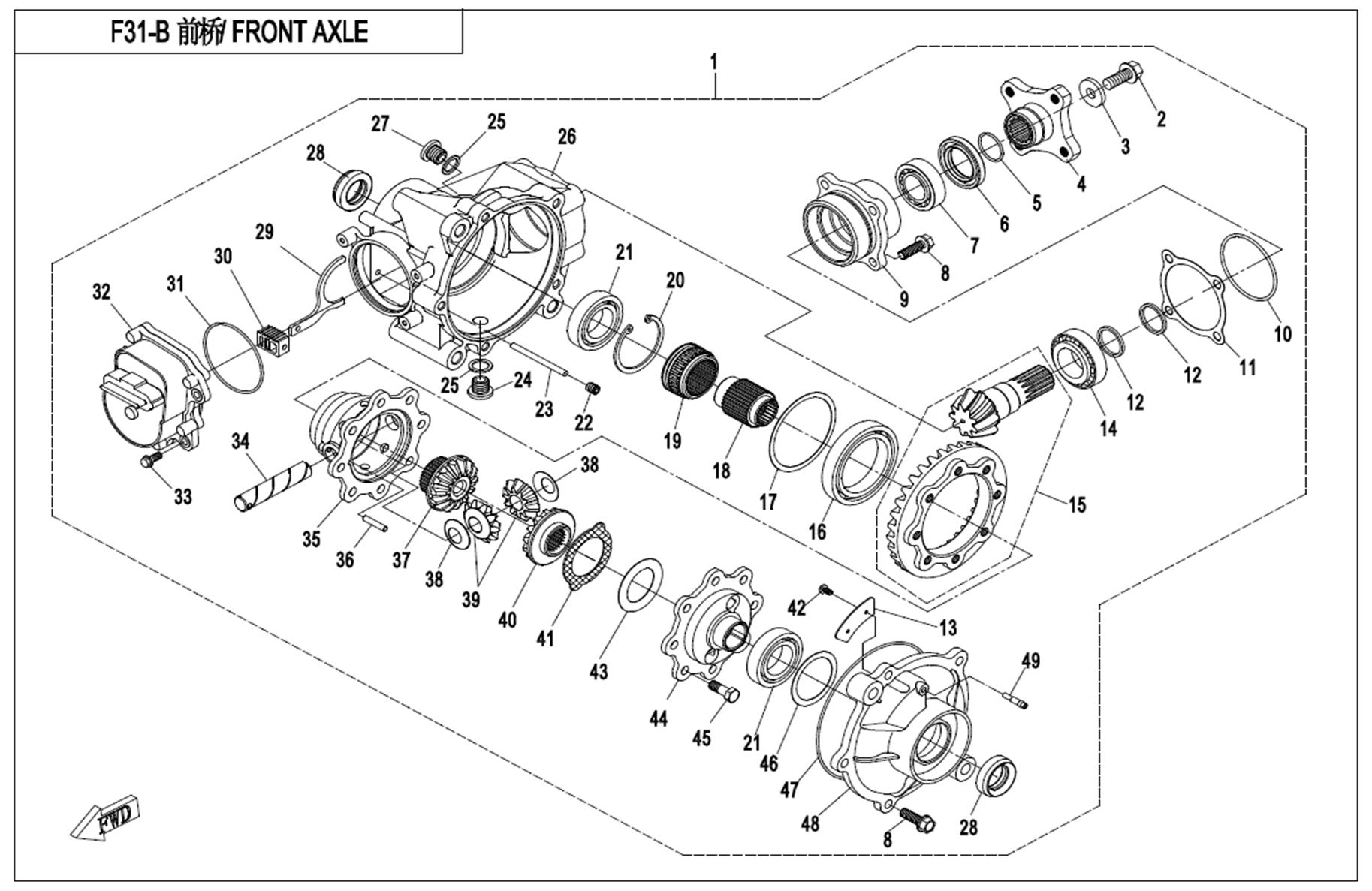

F31-B-V1- FRONT AXLE(NEW)
F31-B-V2
FRONT AXLE (NEW)
F32

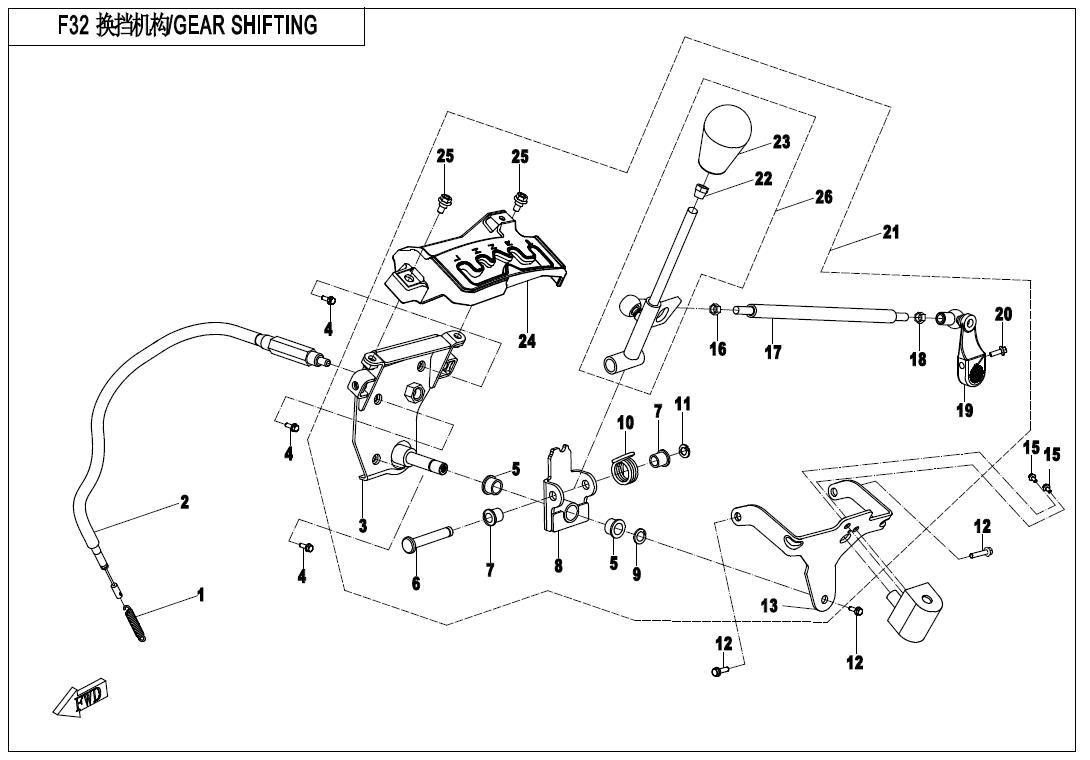

GEAR SHIFTING

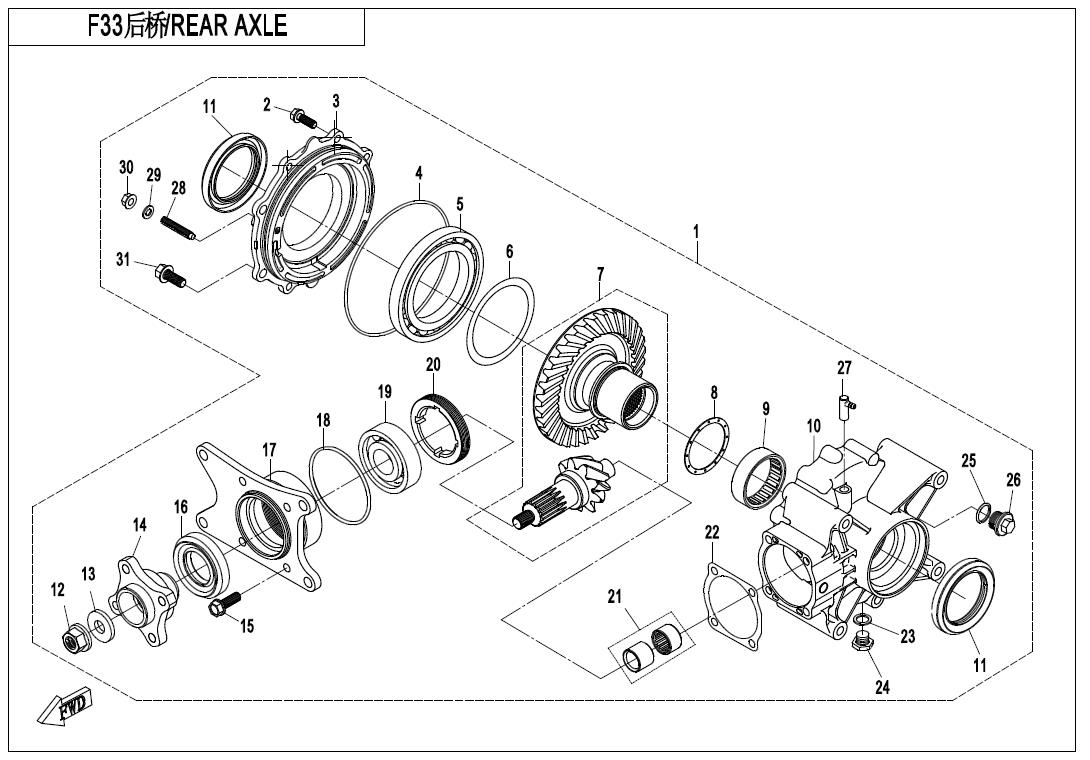

F33
REAR AXLE
F38
OWNER'S MANUAL
F40

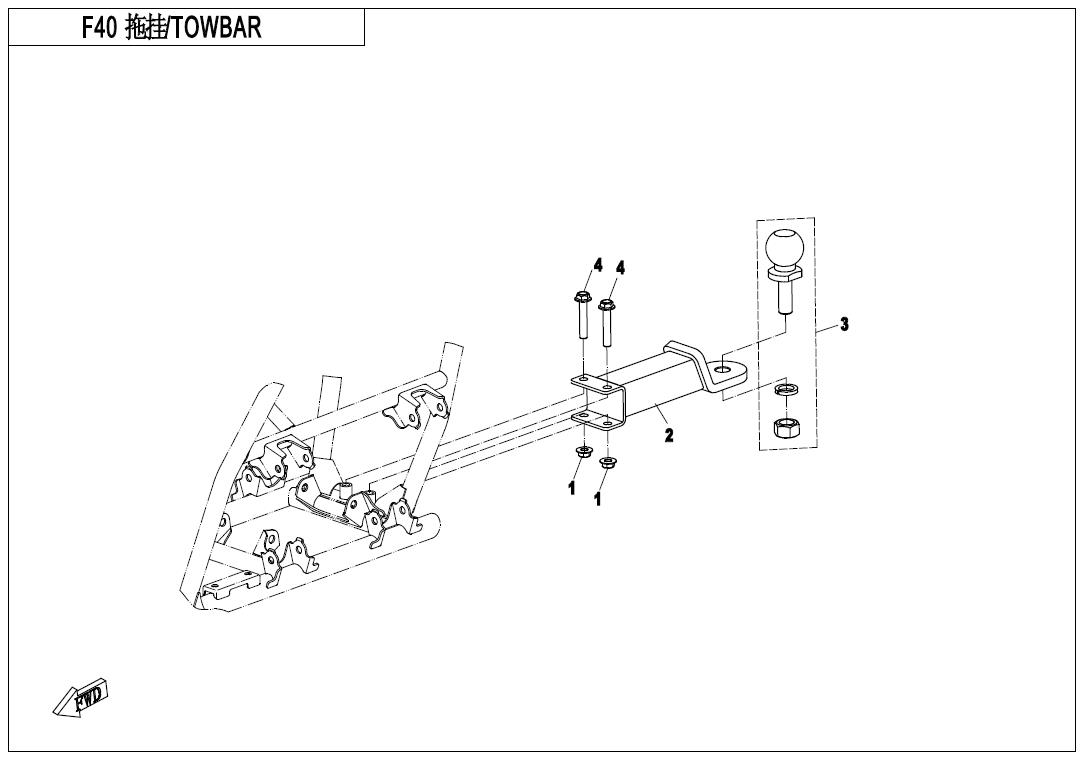

TOWBAR (SPLIT)
F41

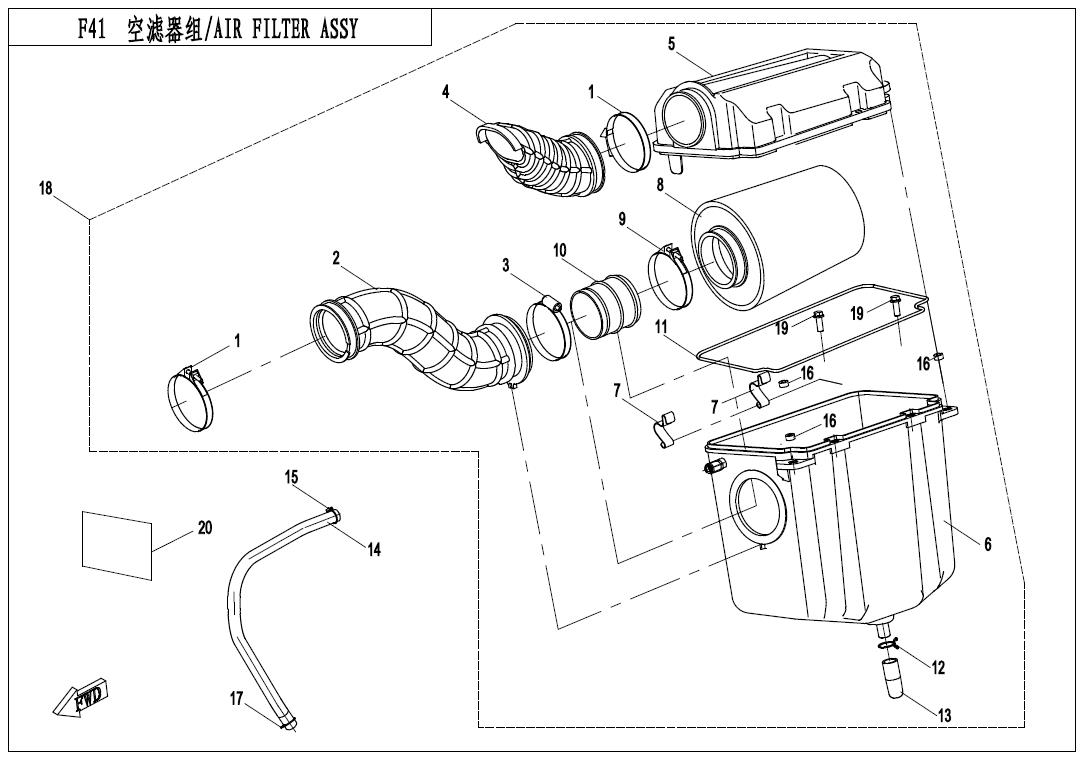

AIR FILTER ASSY
E01

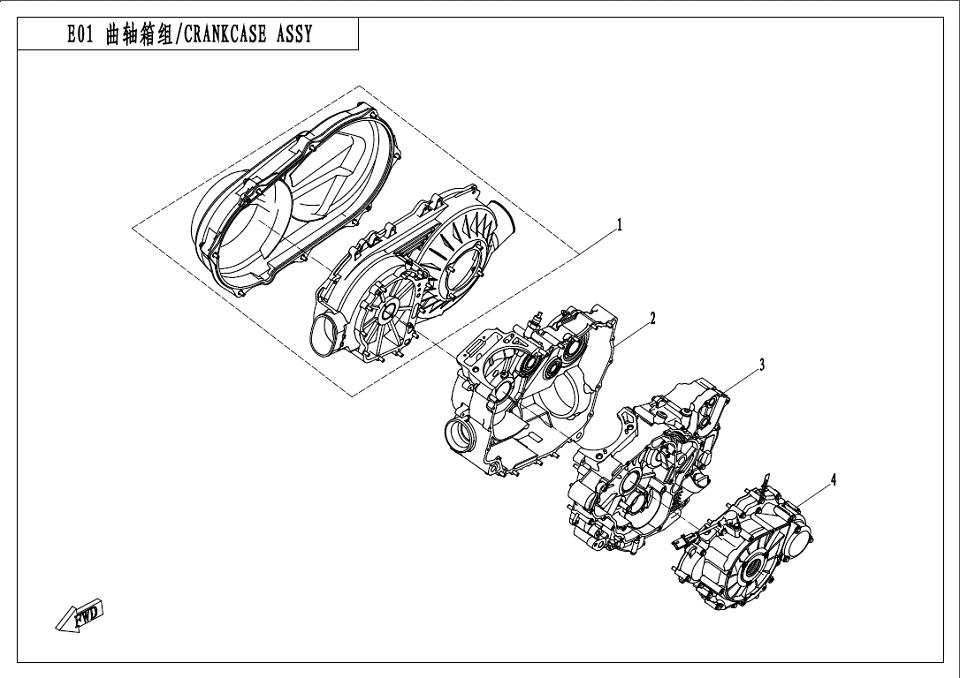

CRANCKCASE ASSY.
E01-1

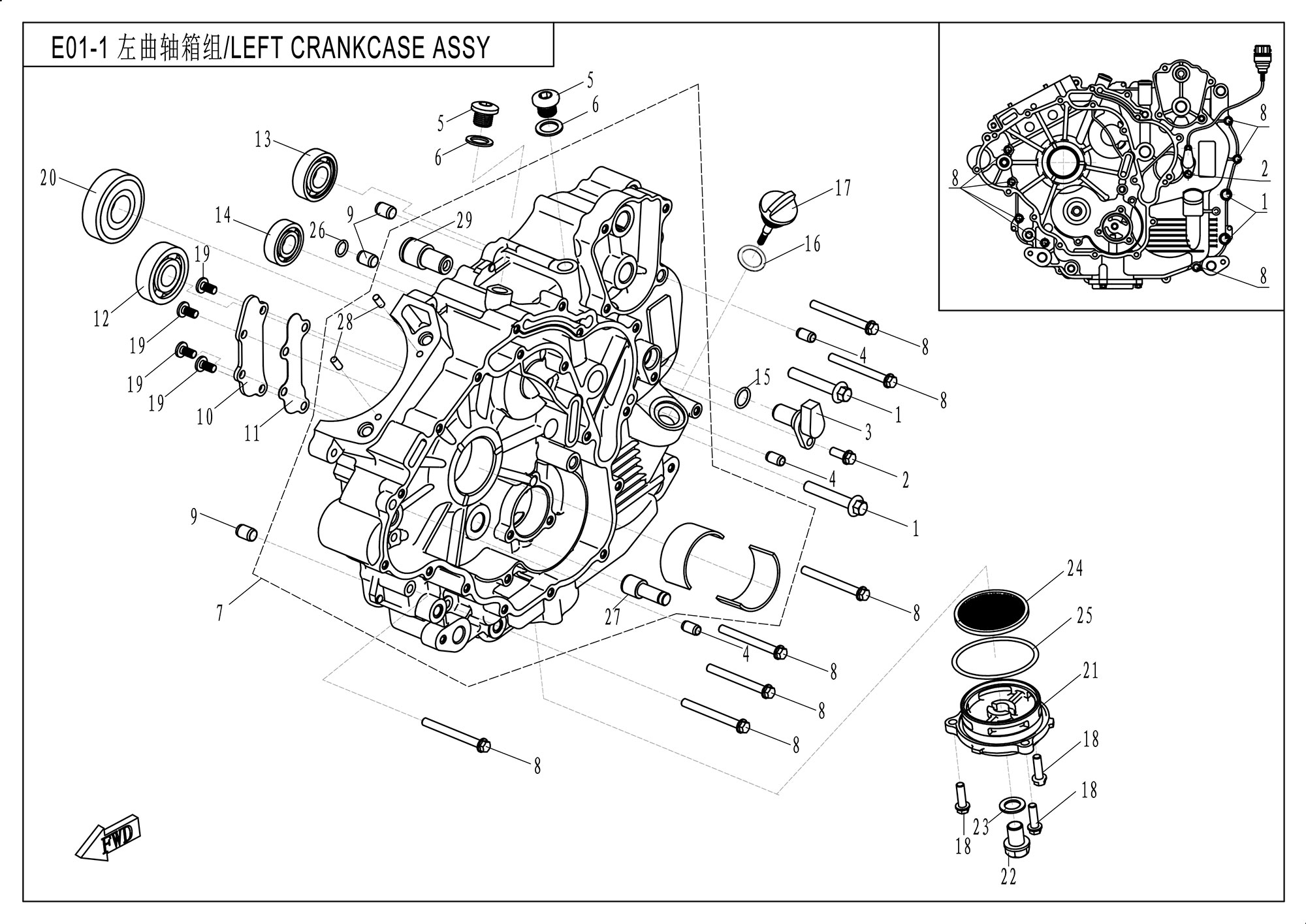

LEFT CRANKCASE ASSY
E01-2

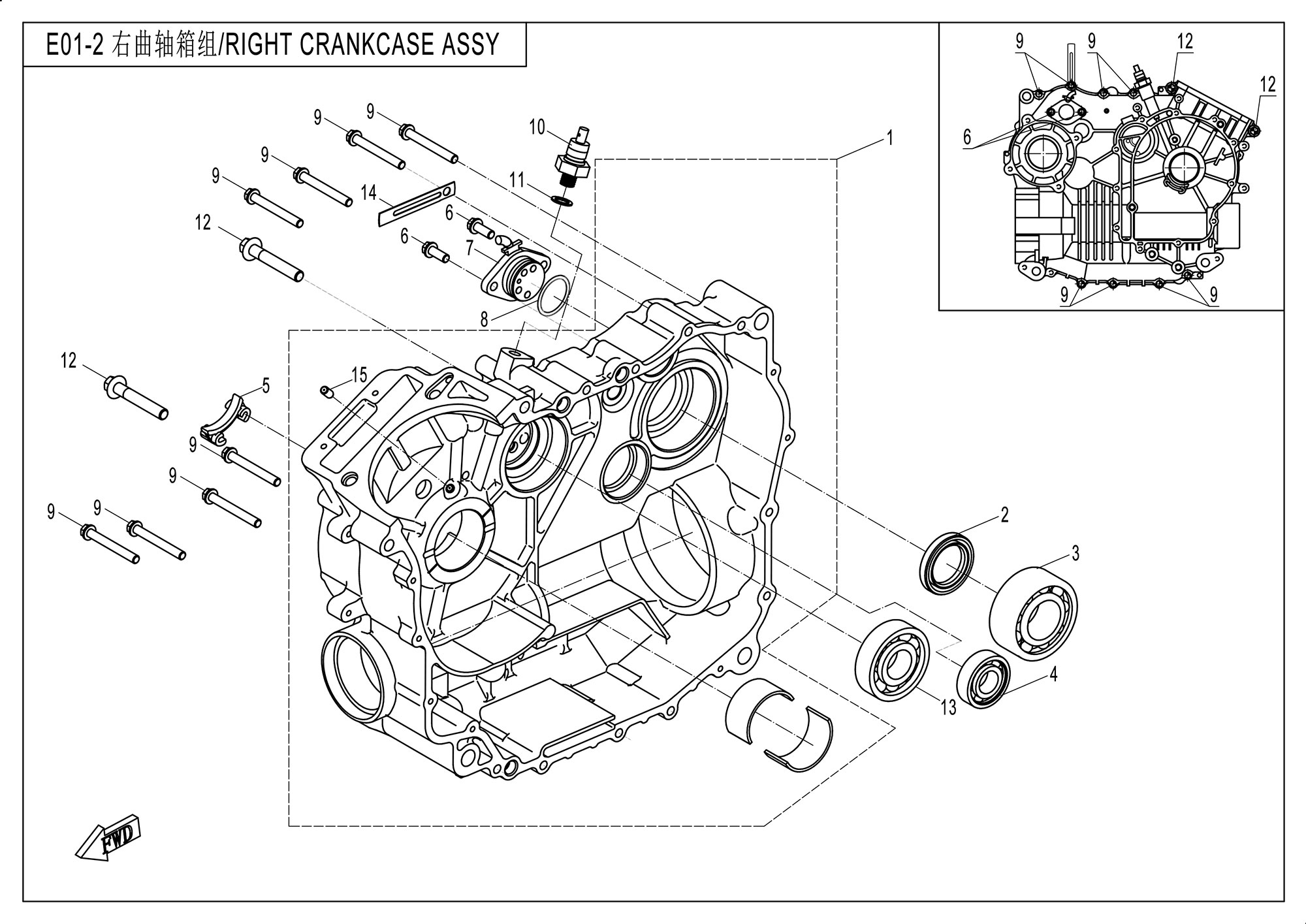

RIGHT CRANKCASE ASSY
E01-3

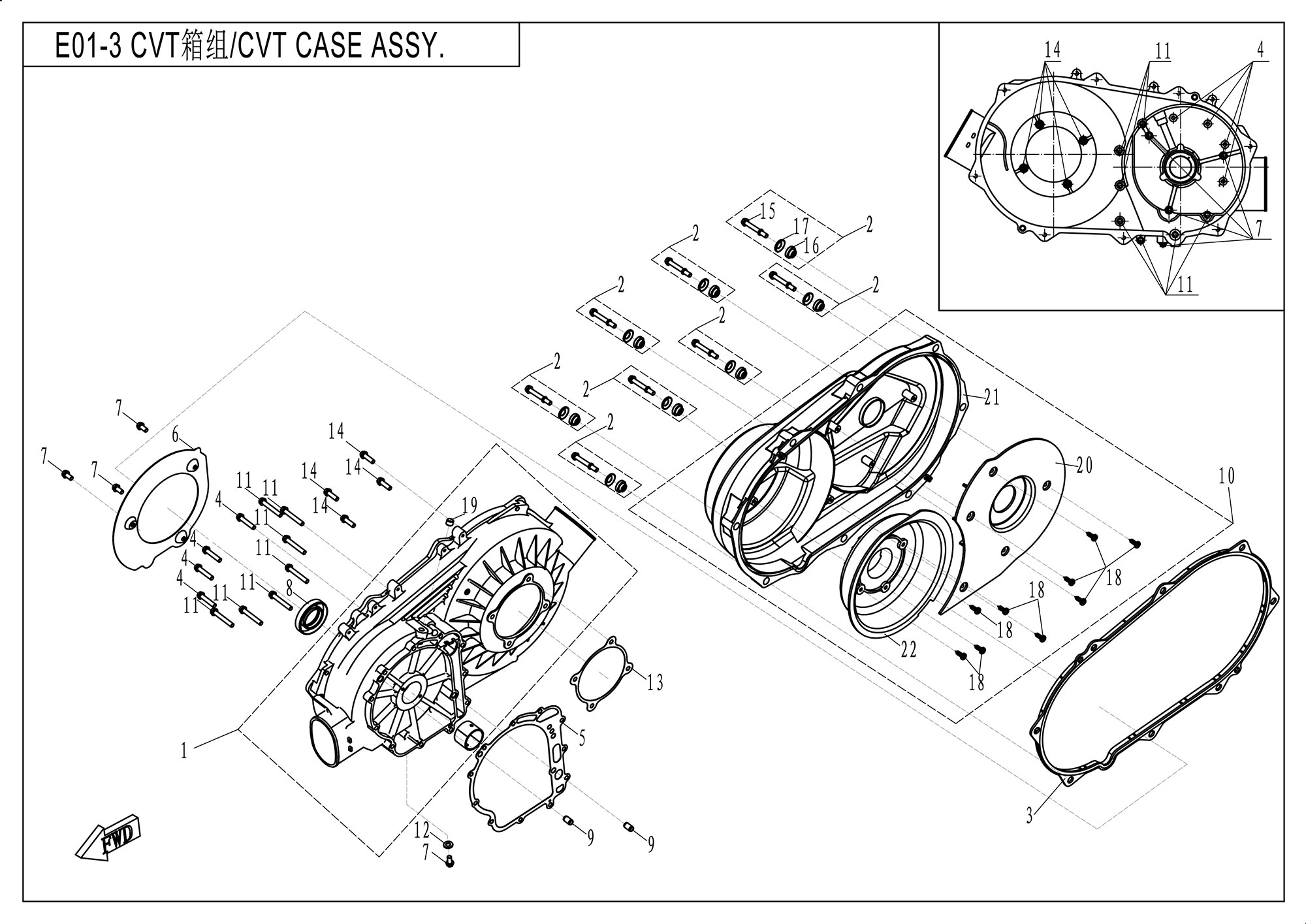

CVT CASE ASSY
E01-4-A

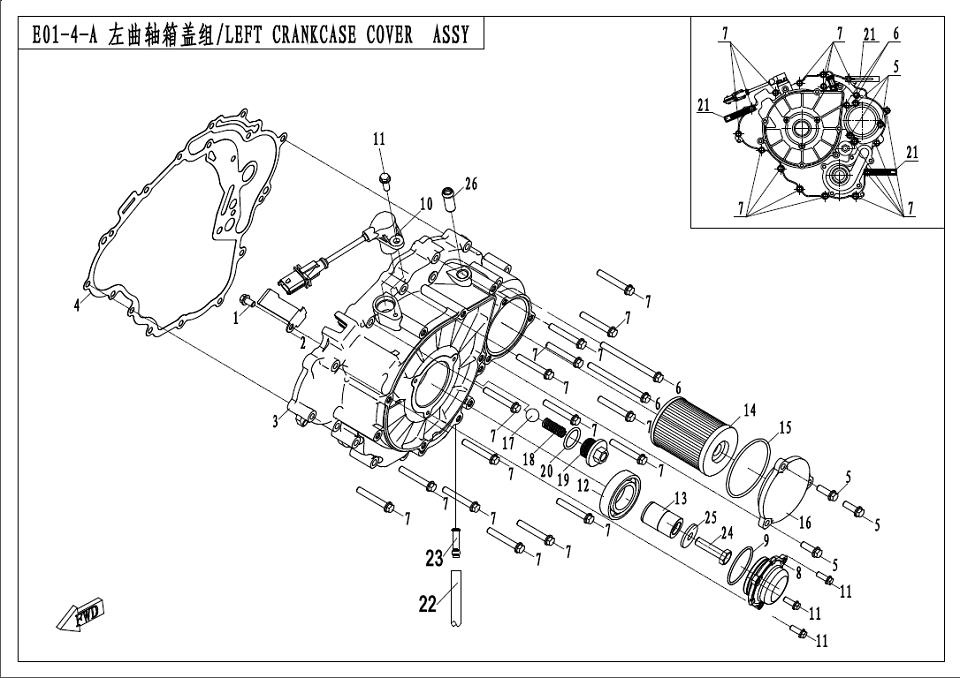

LEFT CRANKCASE COVER ASSY(WITHOUT RECOIL START)
E02

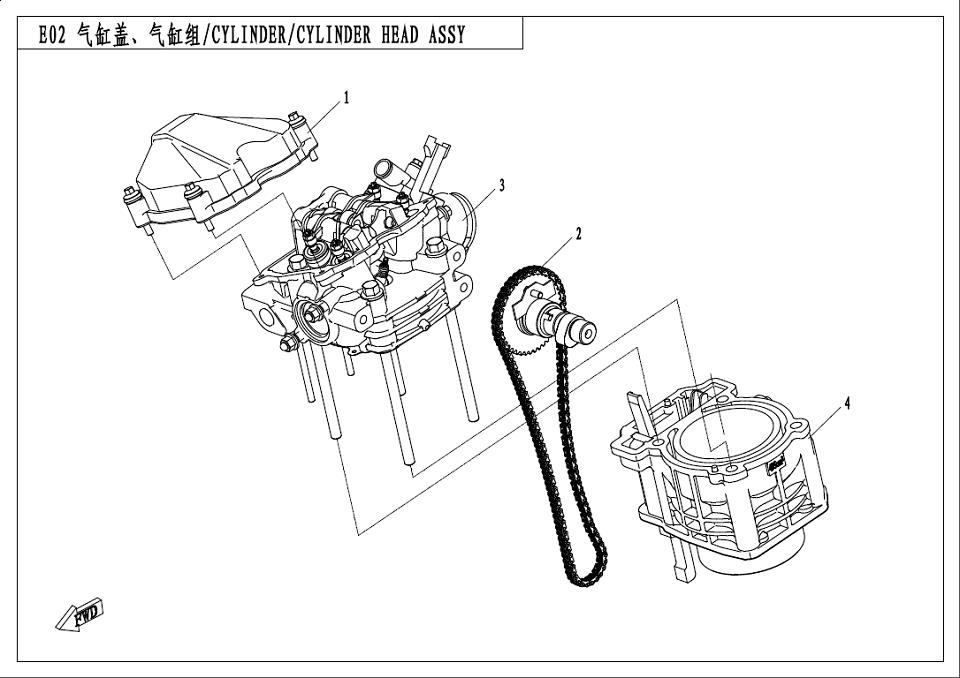

CYLINDER/CYLINDER HEAD ASSY.
E02-1

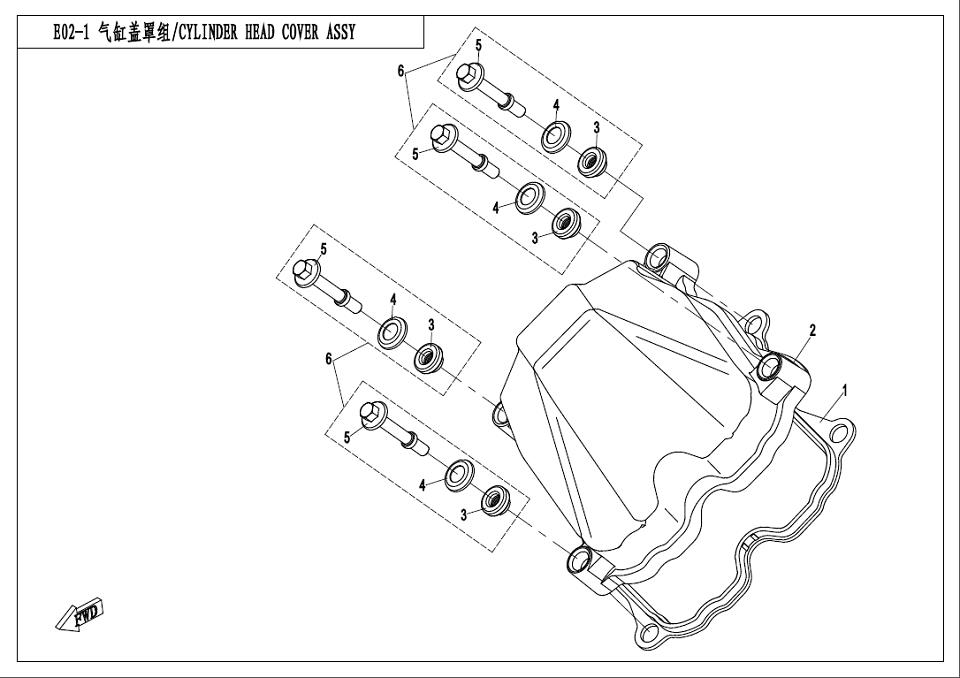

CYLINDER HEAD COVER ASSY
E02-2

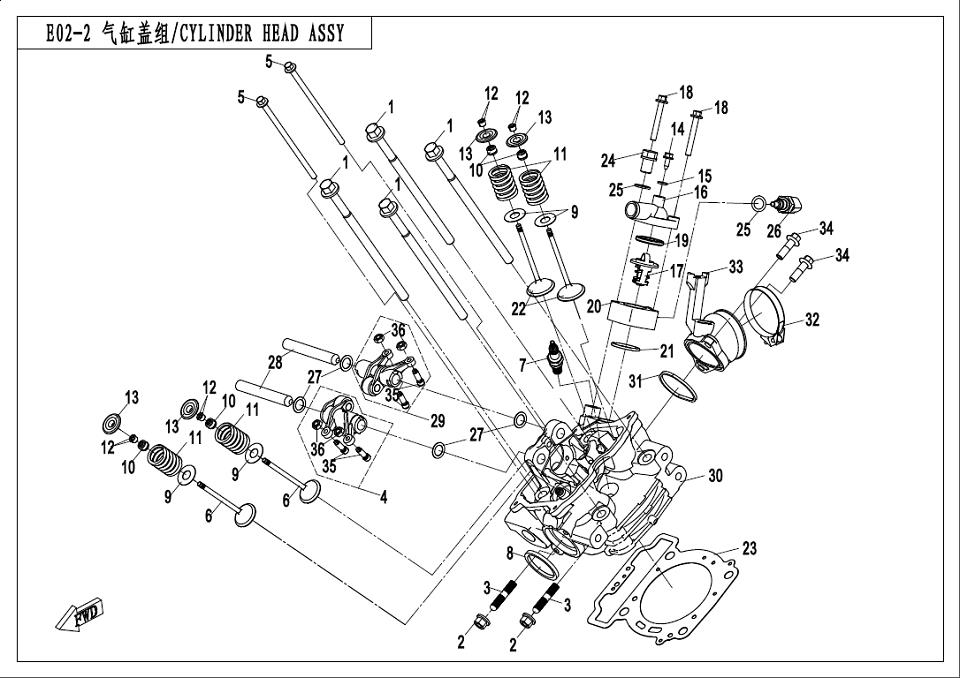

CYLINDER HEAD ASSY
E02-3

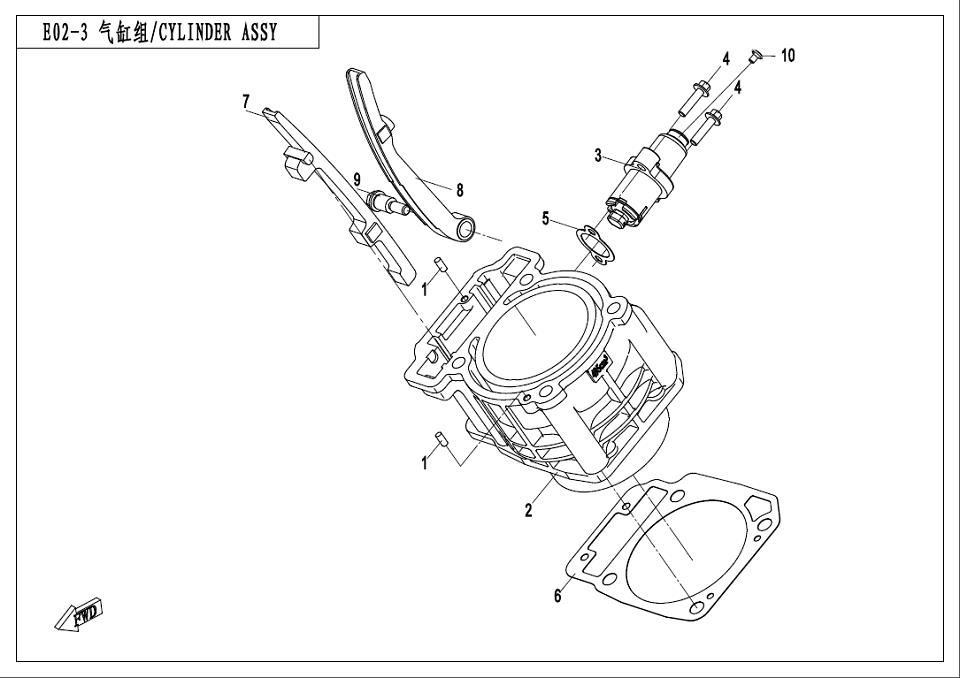

CYLINDER ASSY
E02-4

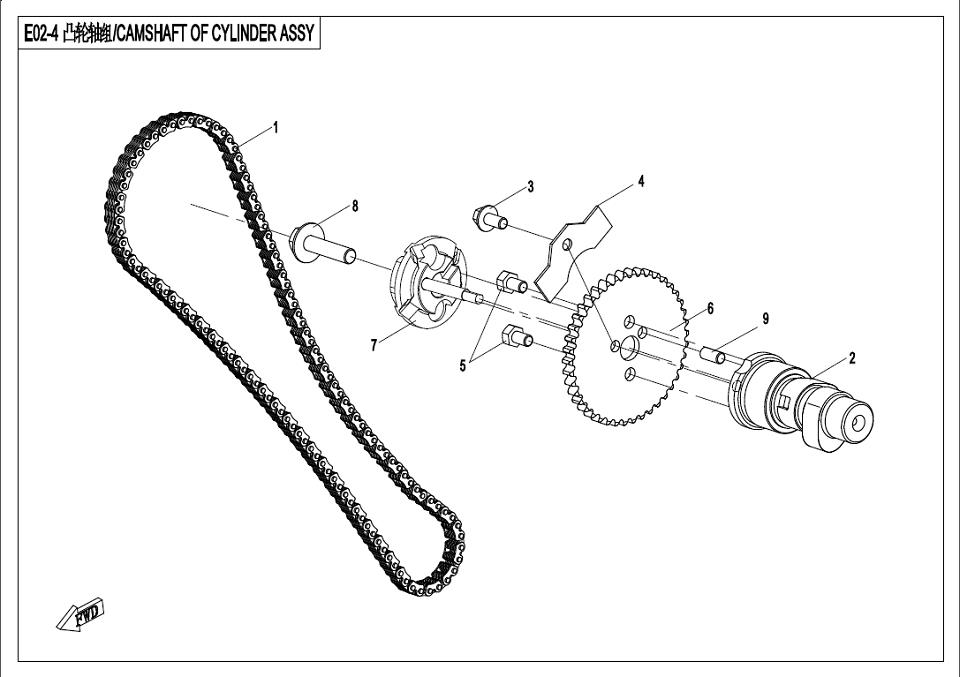

CAMSHAFT OF CYLINDER ASSY

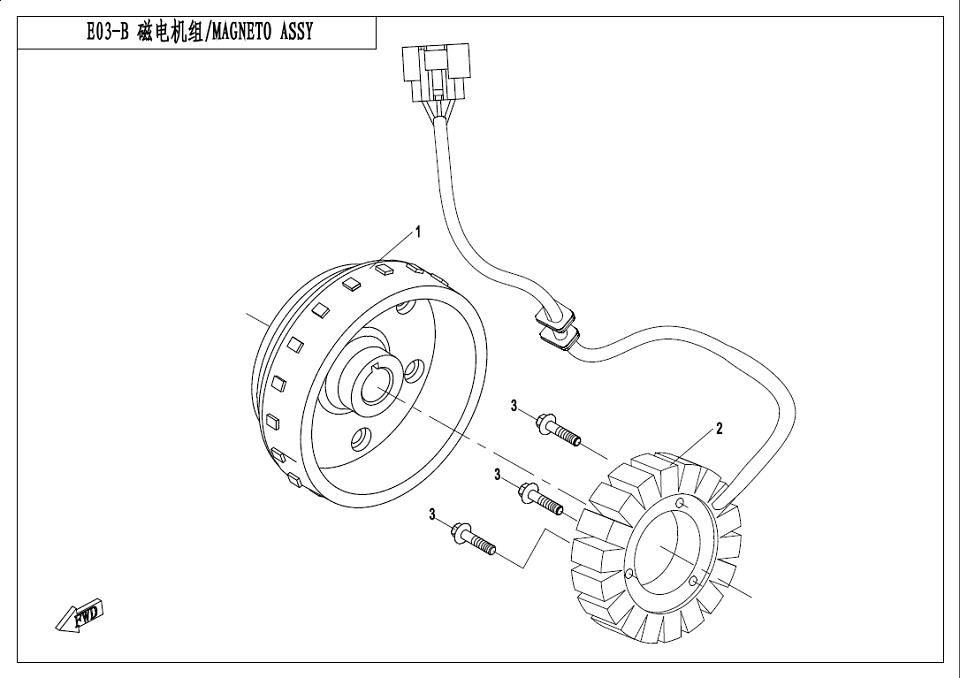

E03-B
MANGETO ASSY(FOR EPS)
E04

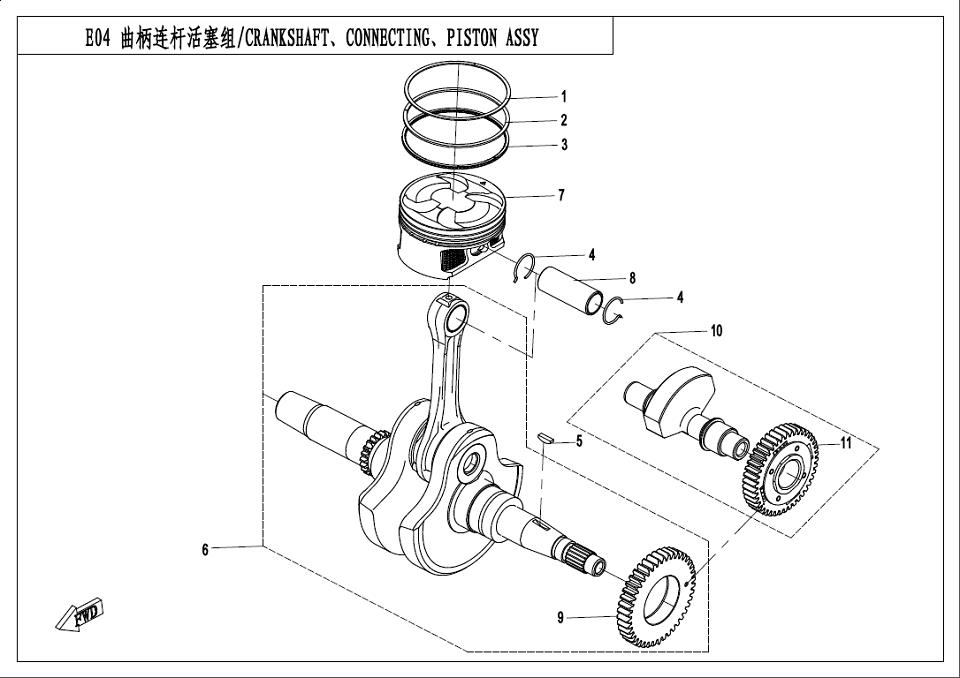

CRANKSHAFT?CONNECTING ROD?PISTON ASSY
E05
CVT ASSY
E06-1

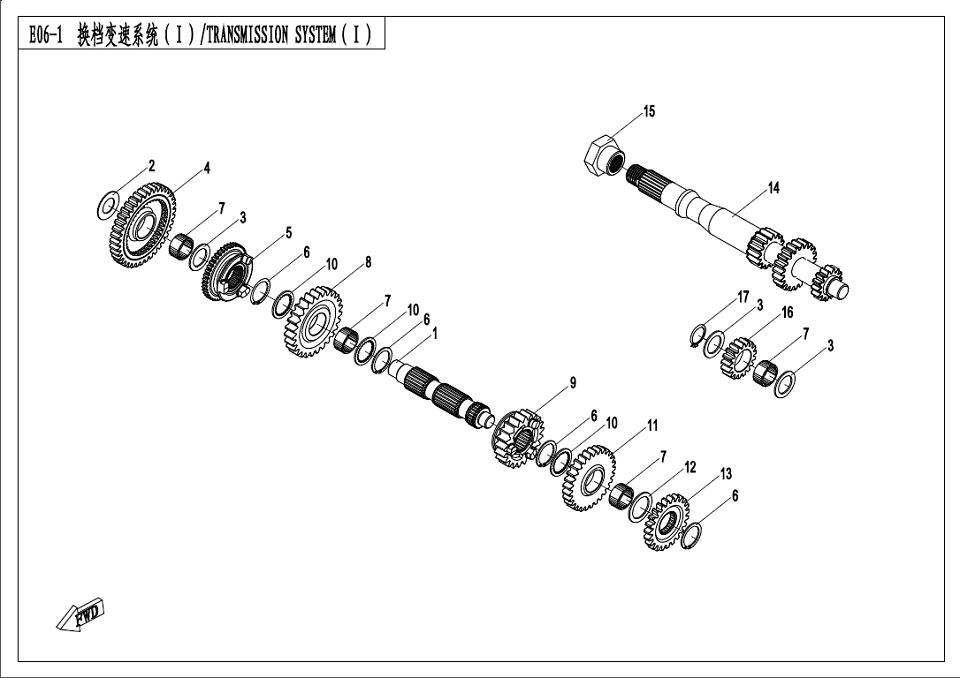

TRANSMISSION SYSTEM(?)
E06-2

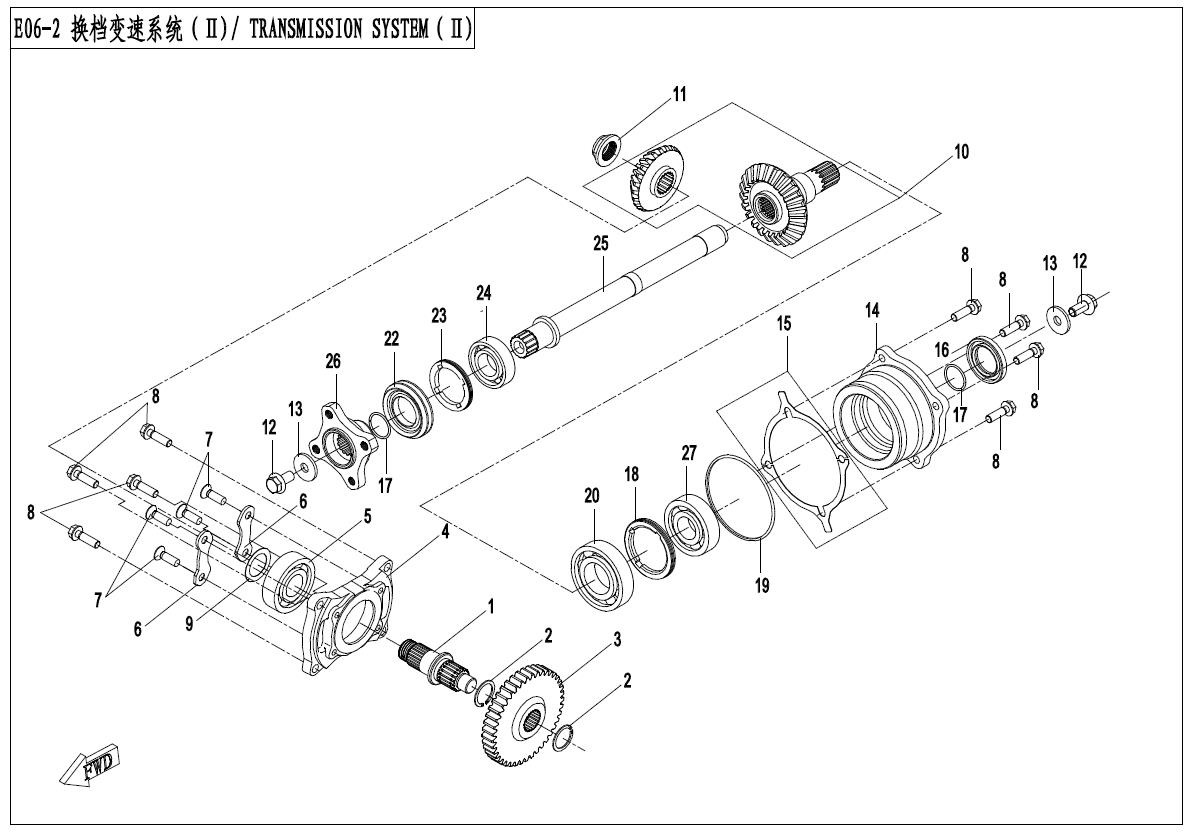

TRANSMISSION SYSTEM(?)
E06-3

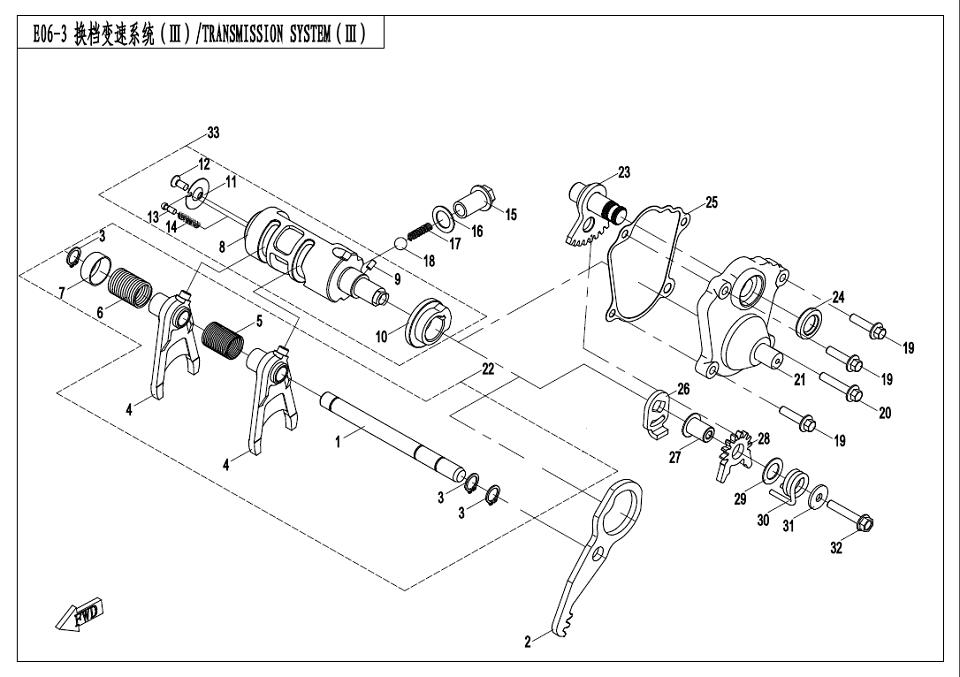

TRANSMISSION SYSTEM(?)
E07

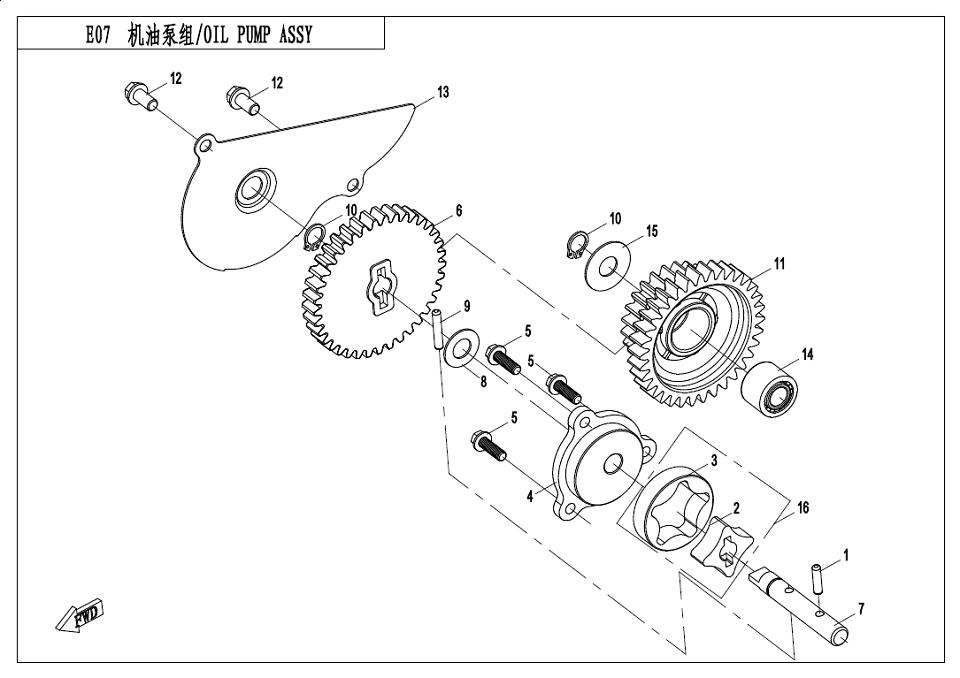

OIL PUMP ASSY
E08

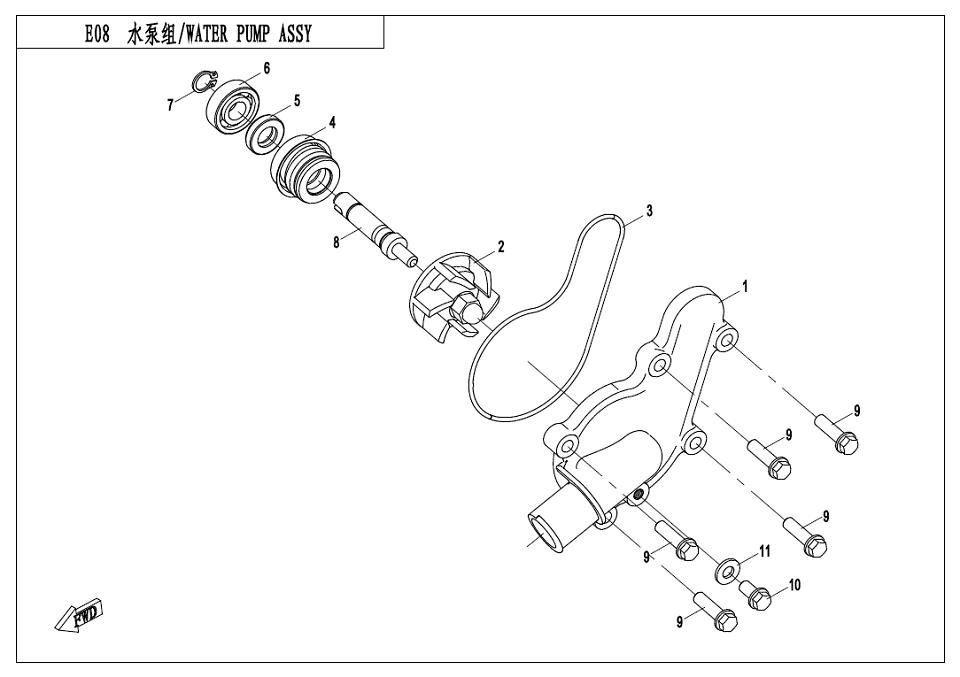

WATER PUMP ASSY

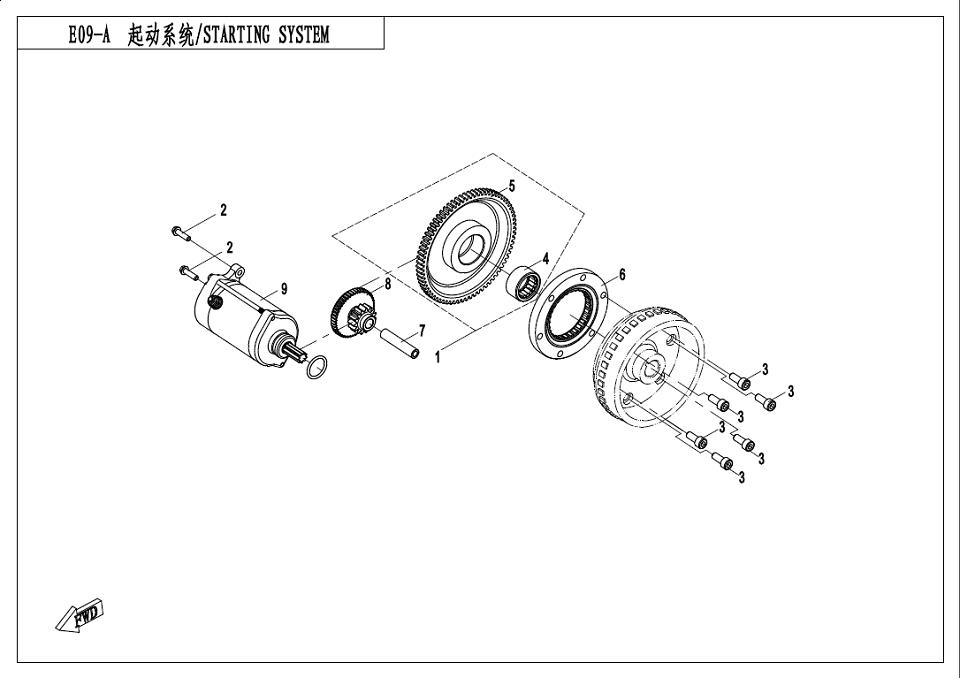

E09-A
