Genuine Parts Diagrams for 2015 UFORCE 800 EPS & U8EX - CF800UU-AChange Model
Showing 77 parts diagrams.
F00-1

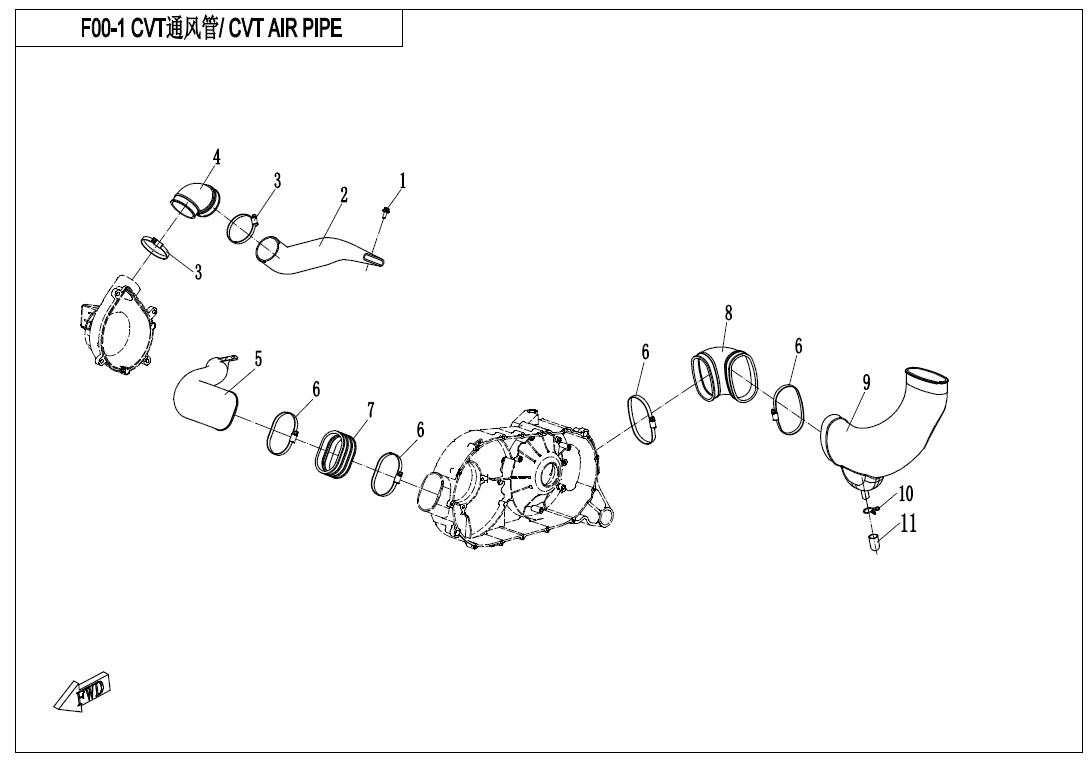

CVT AIR PIPE

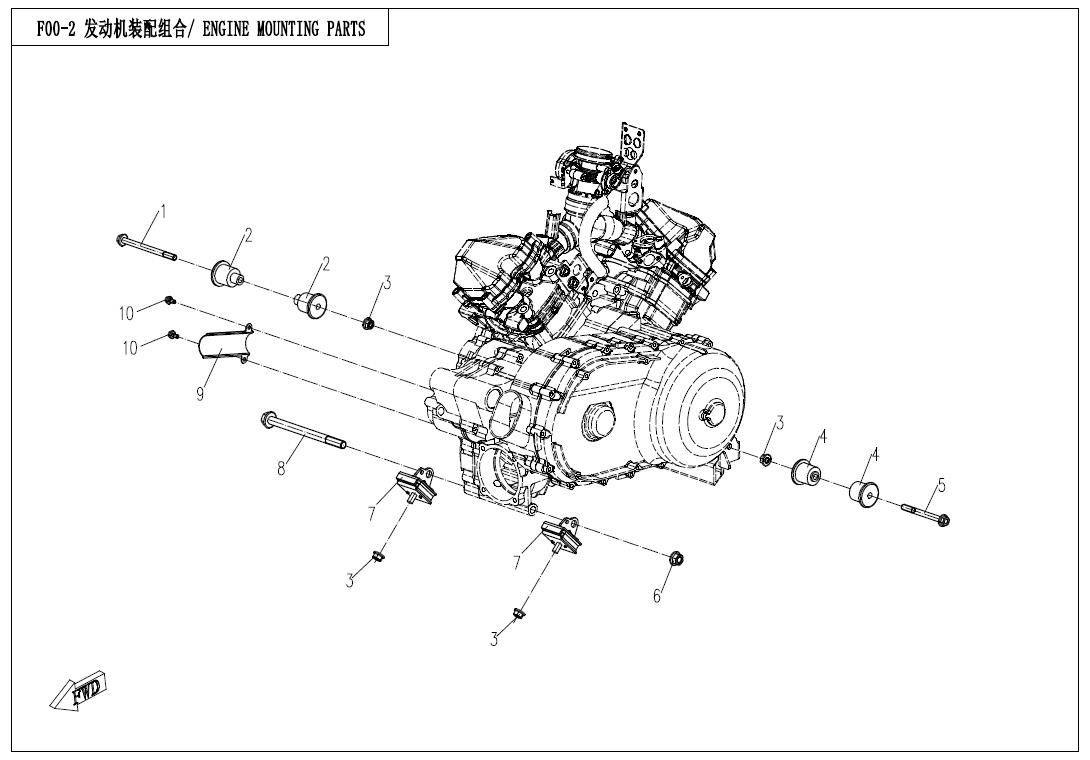

F00-2
ENGINE MOUNTING PARTS
F01

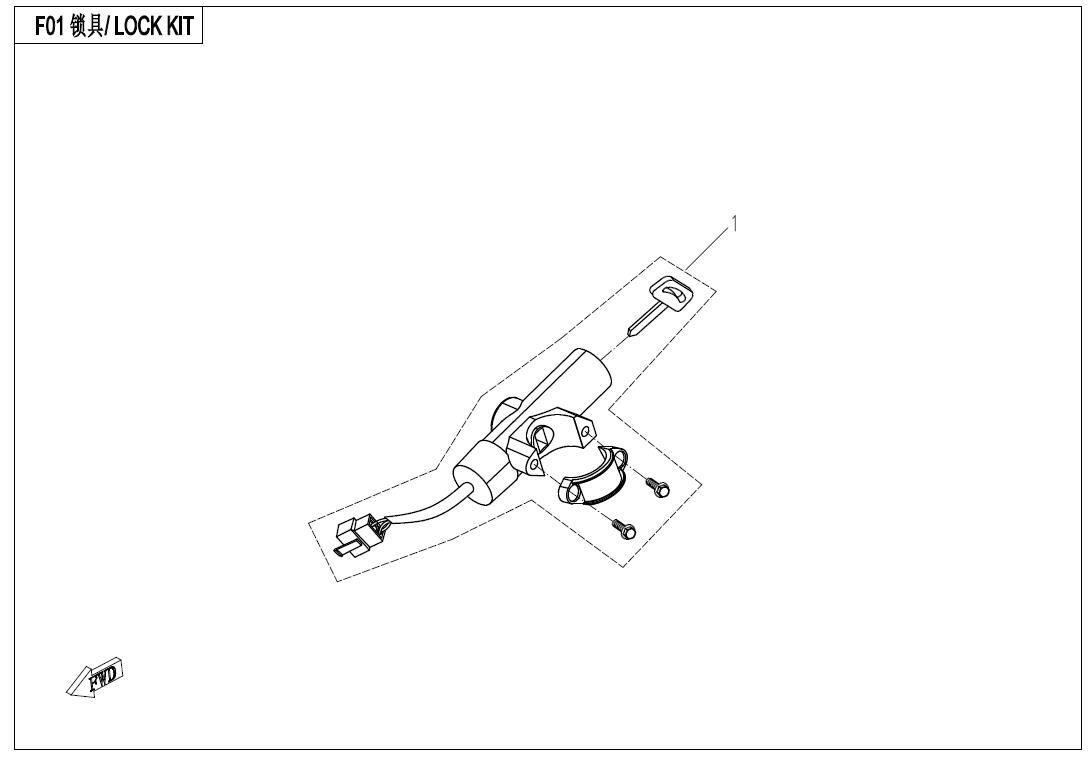

LOCK KIT
F02

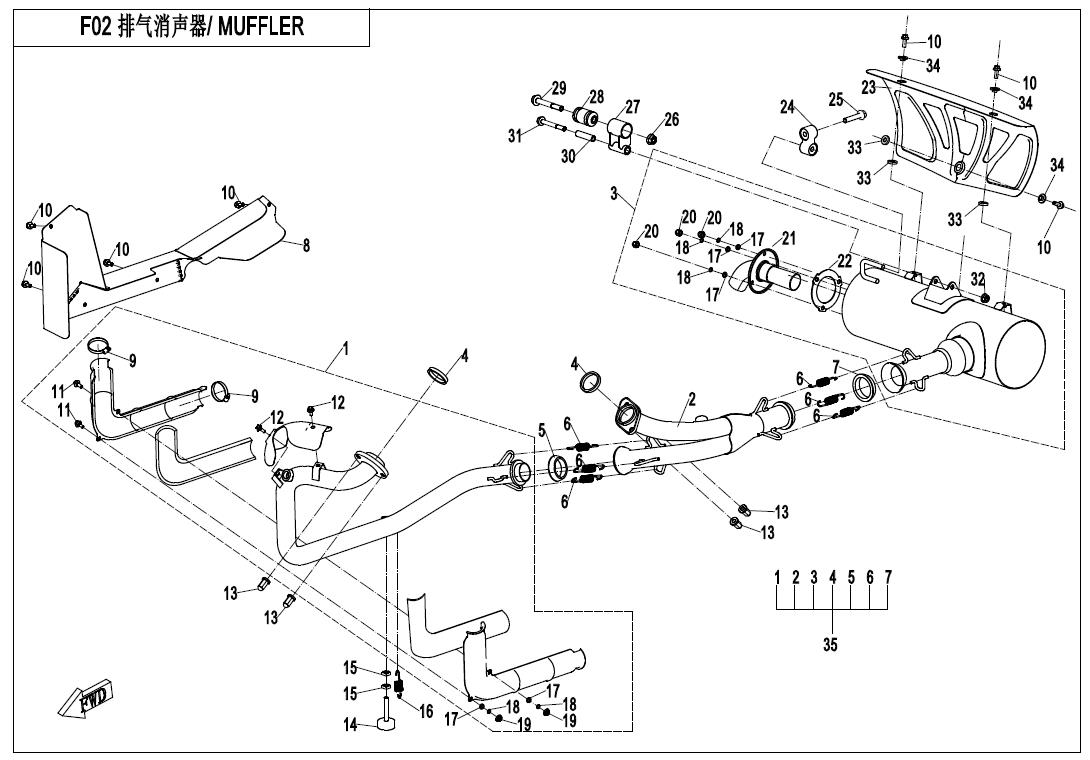

MUFFLER
F03

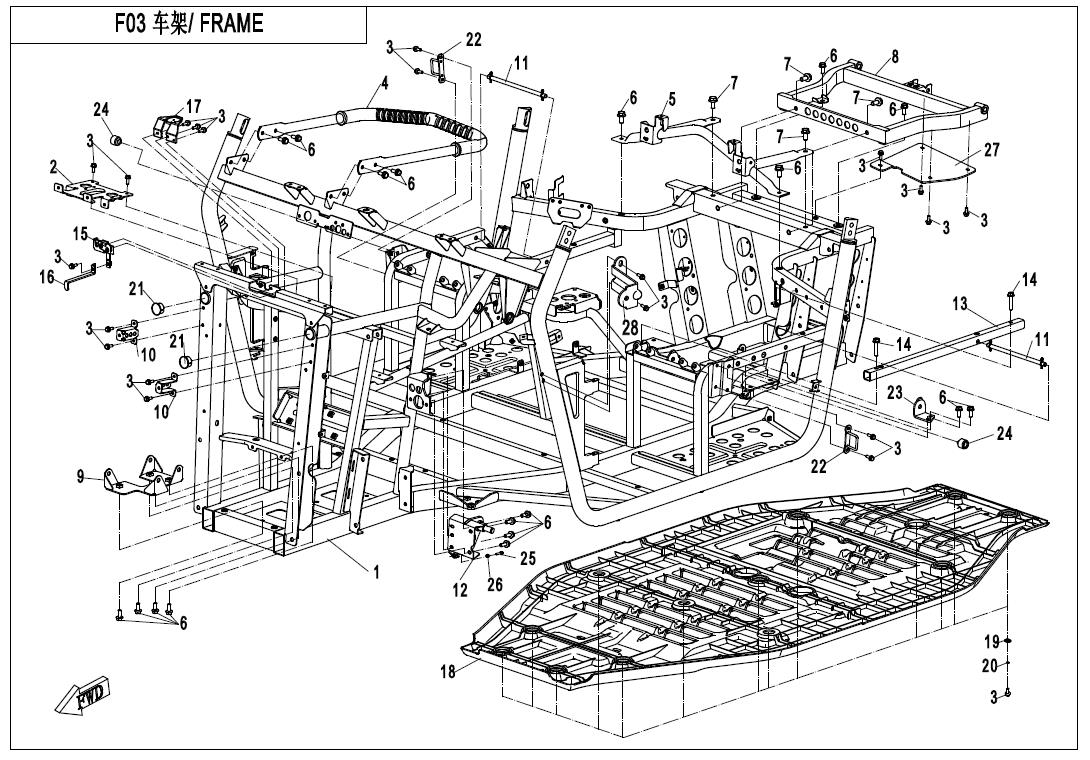

FRAME
F04-1

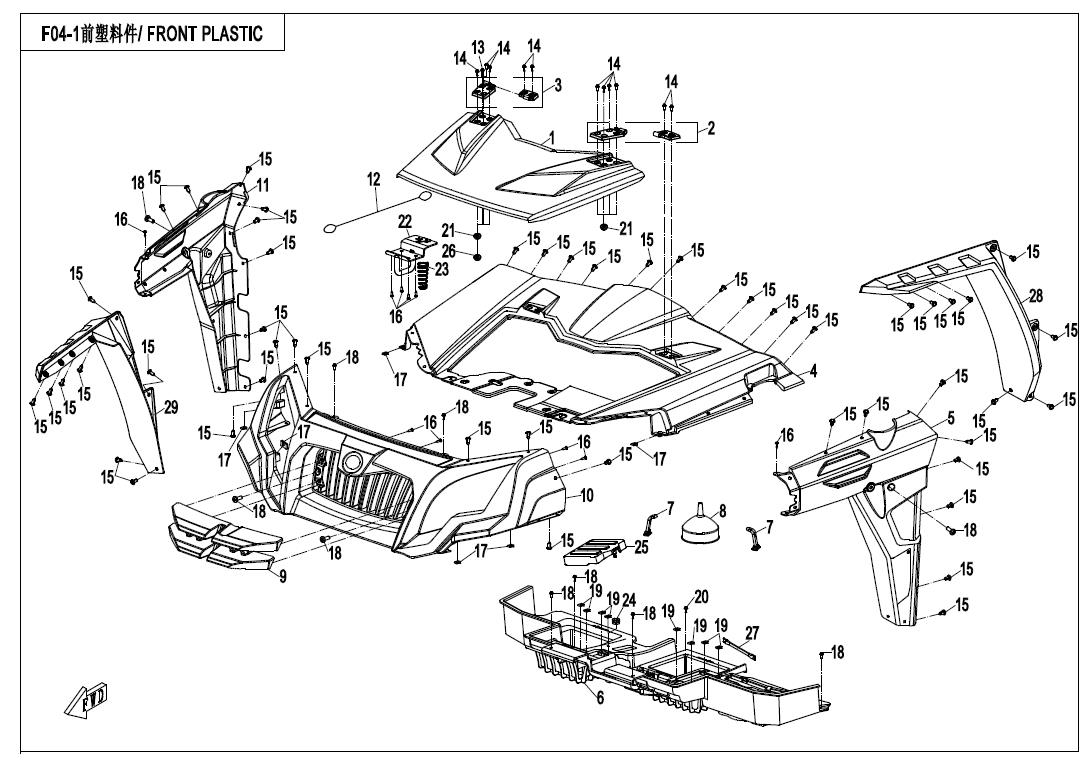

FRONT PLASTIC
F04-2

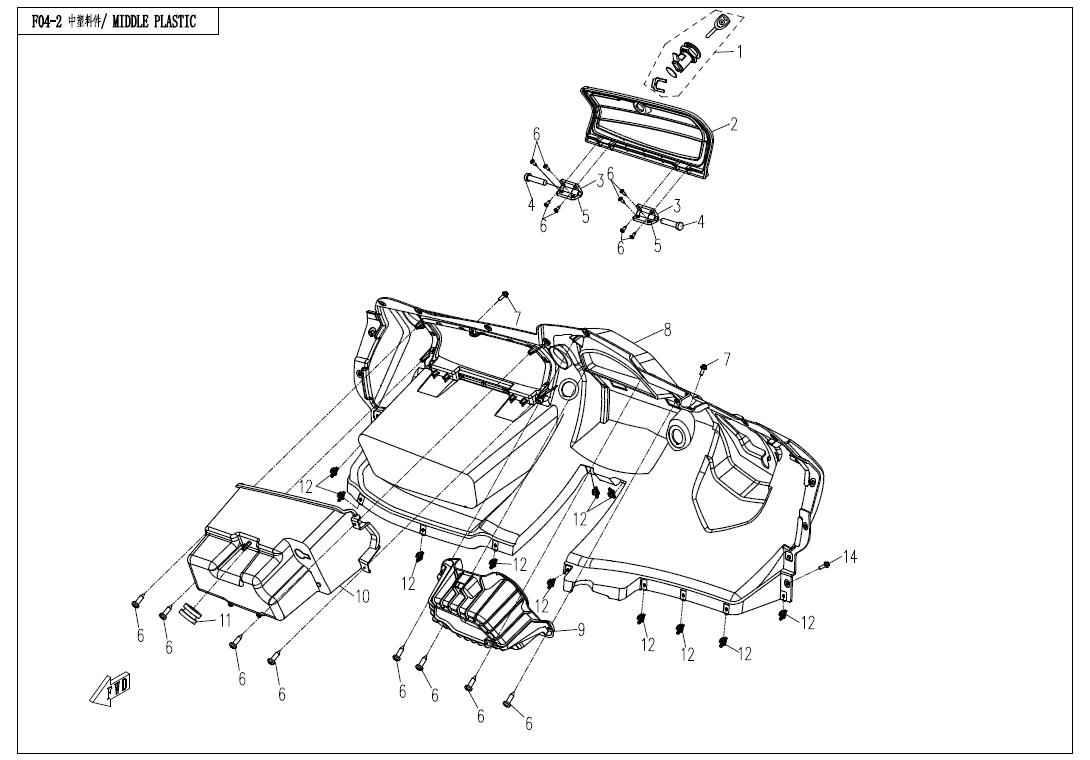

MIDDLE PLASTIC

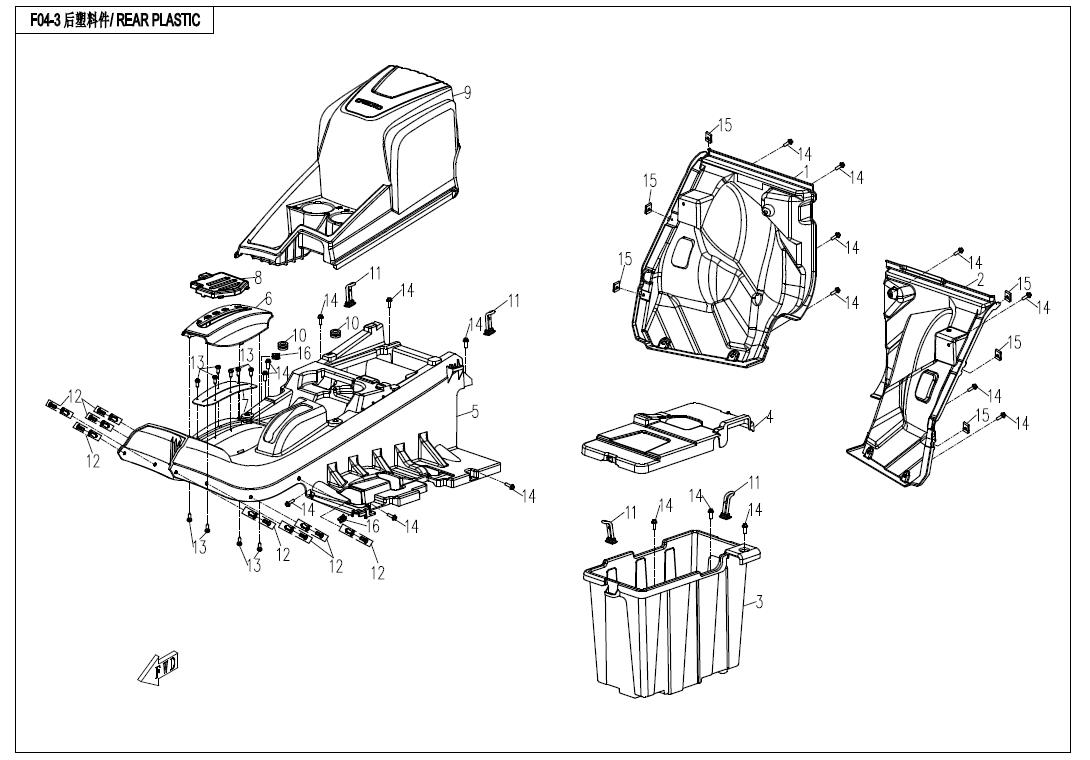

F04-3
REAR PLASTIC
F04-4

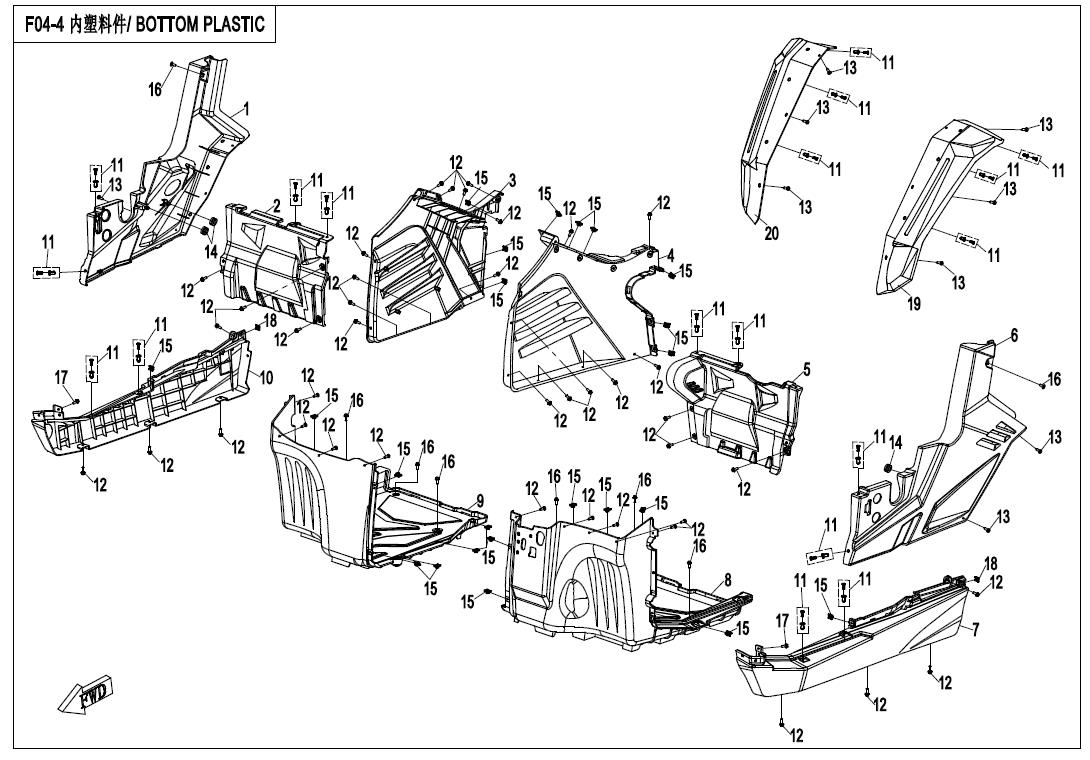

BOTTOM PLASTIC

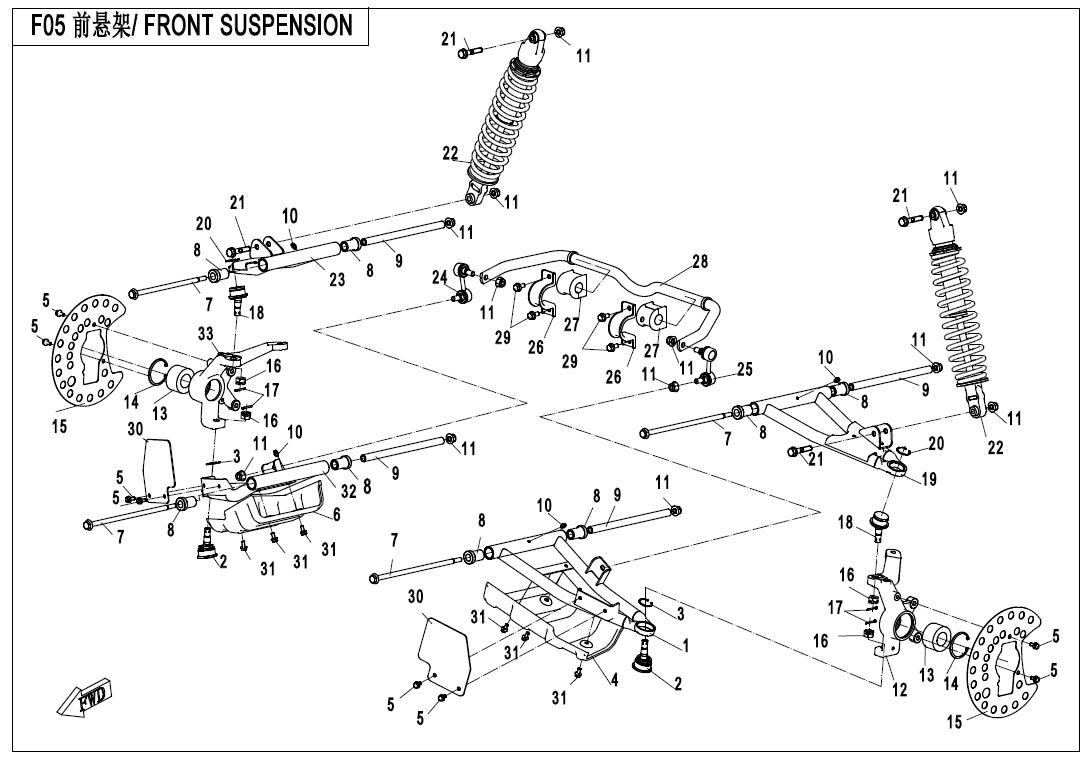

F05
FRONT SUSPENSION

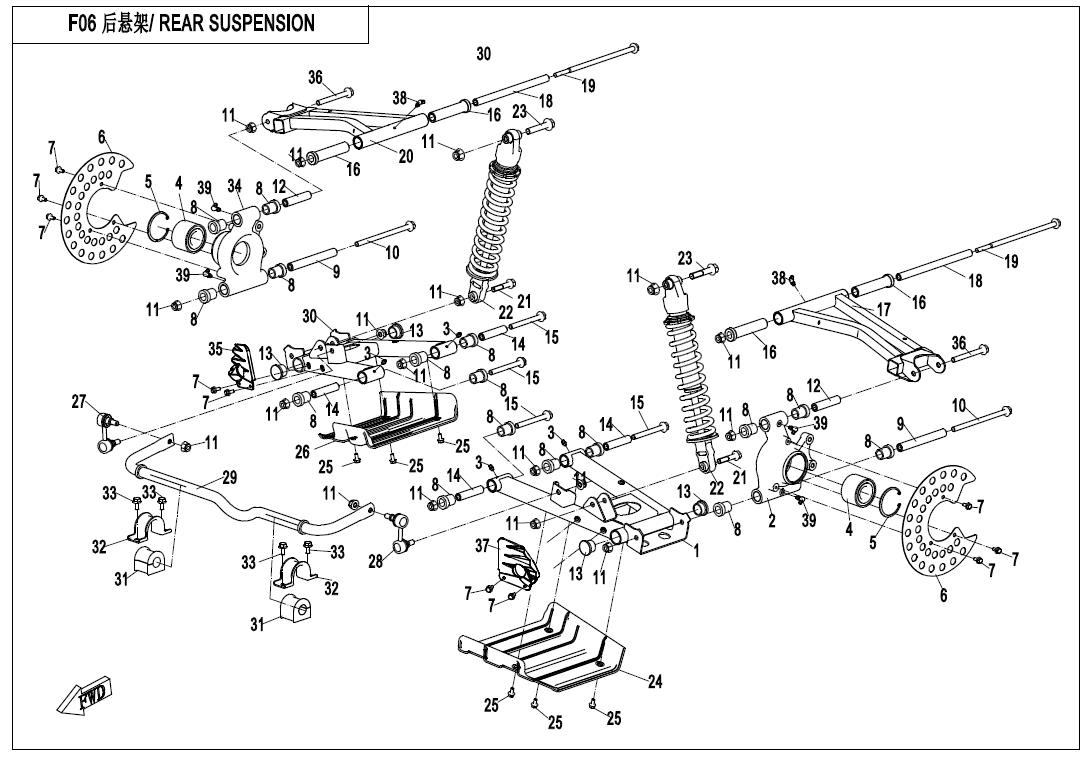

F06
REAR SUSPENSION
F07-A

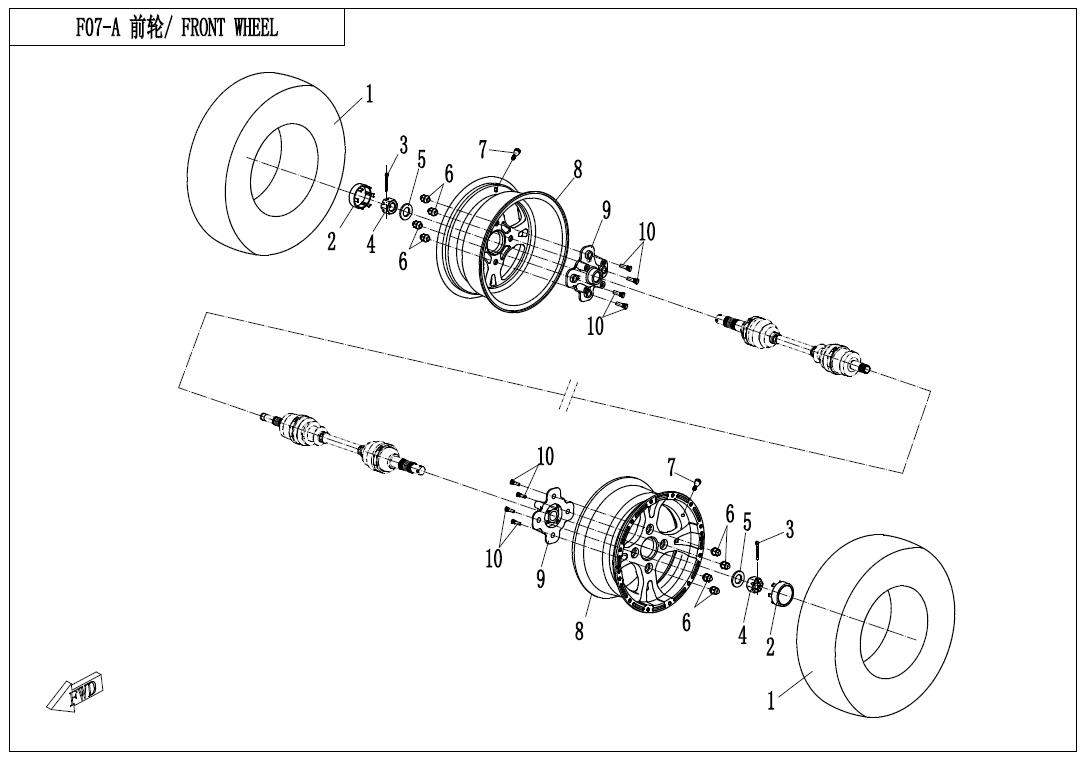

FRONT WHEEL
F08

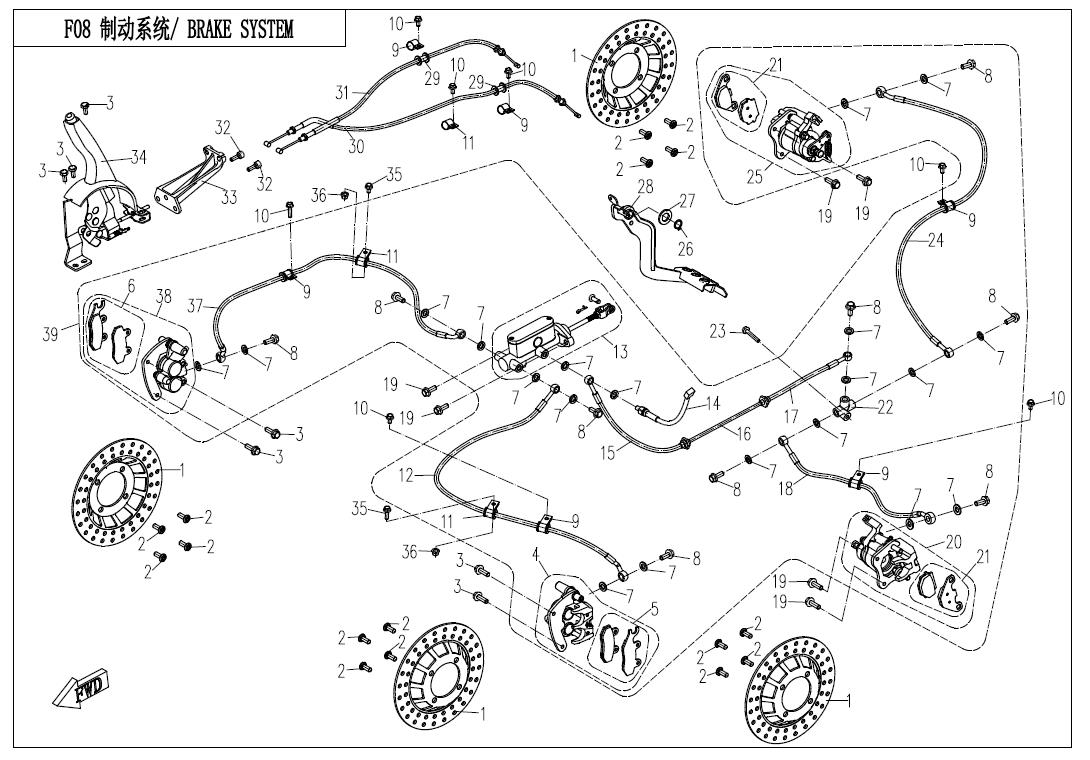

BRAKE SYSTEM
F10

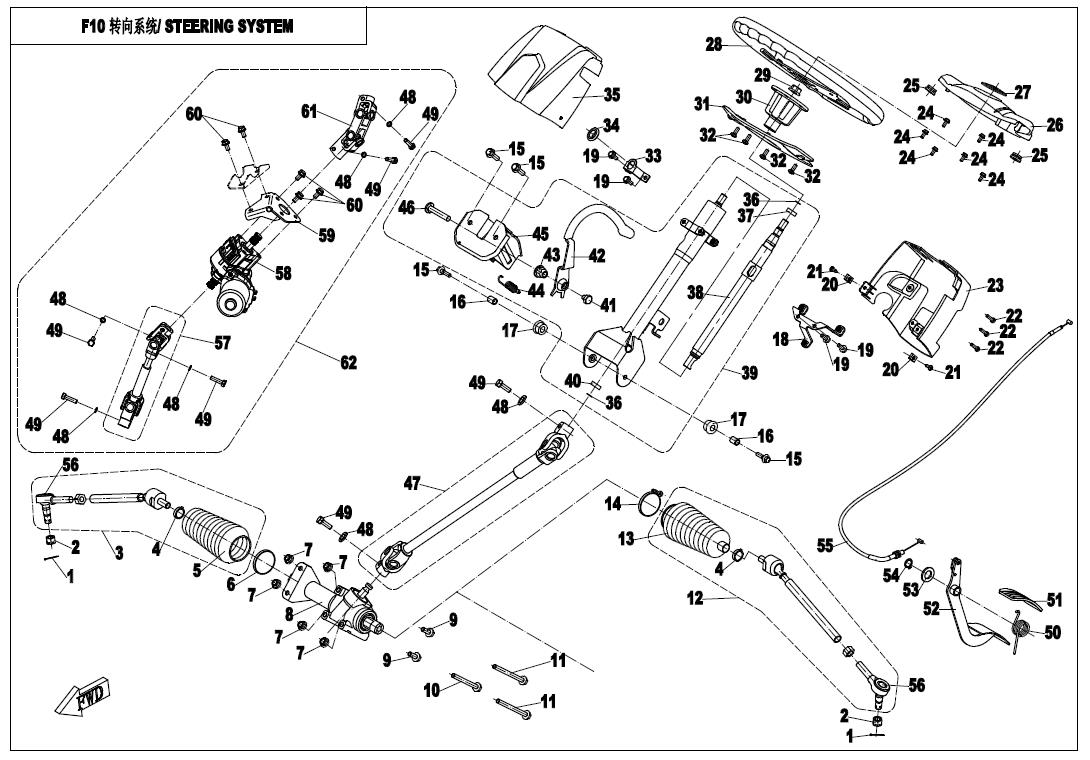

STEERING SYSTEM
F11-A

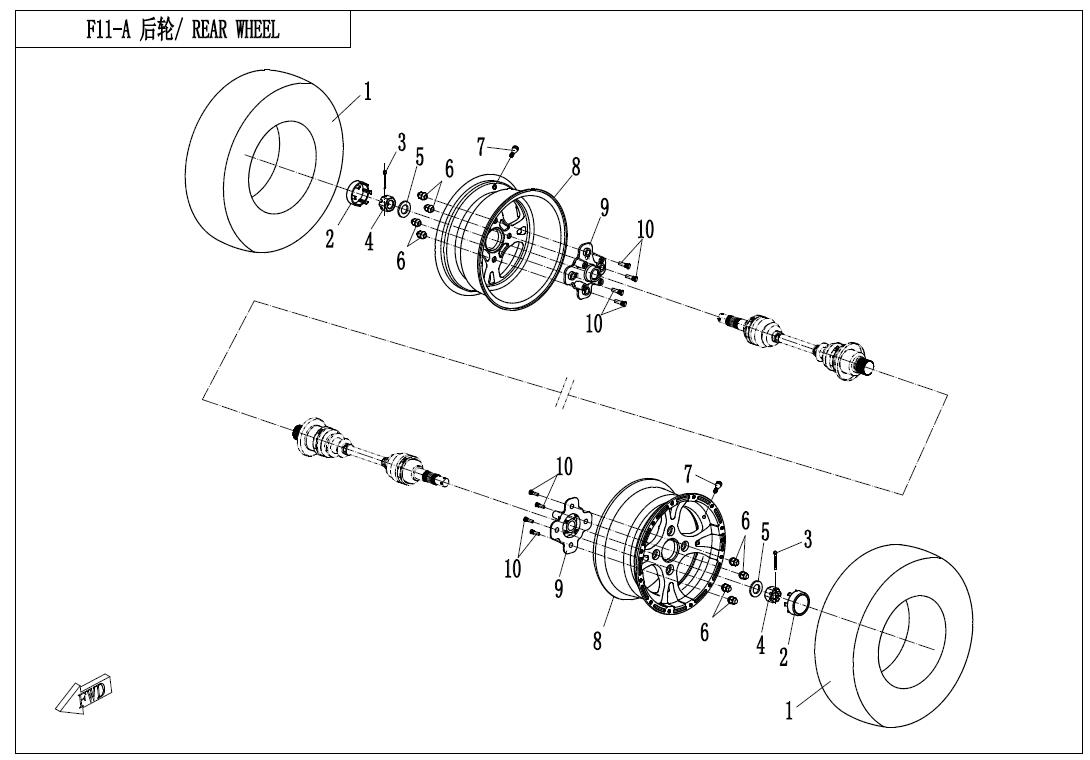

REAR WHEEL
F12

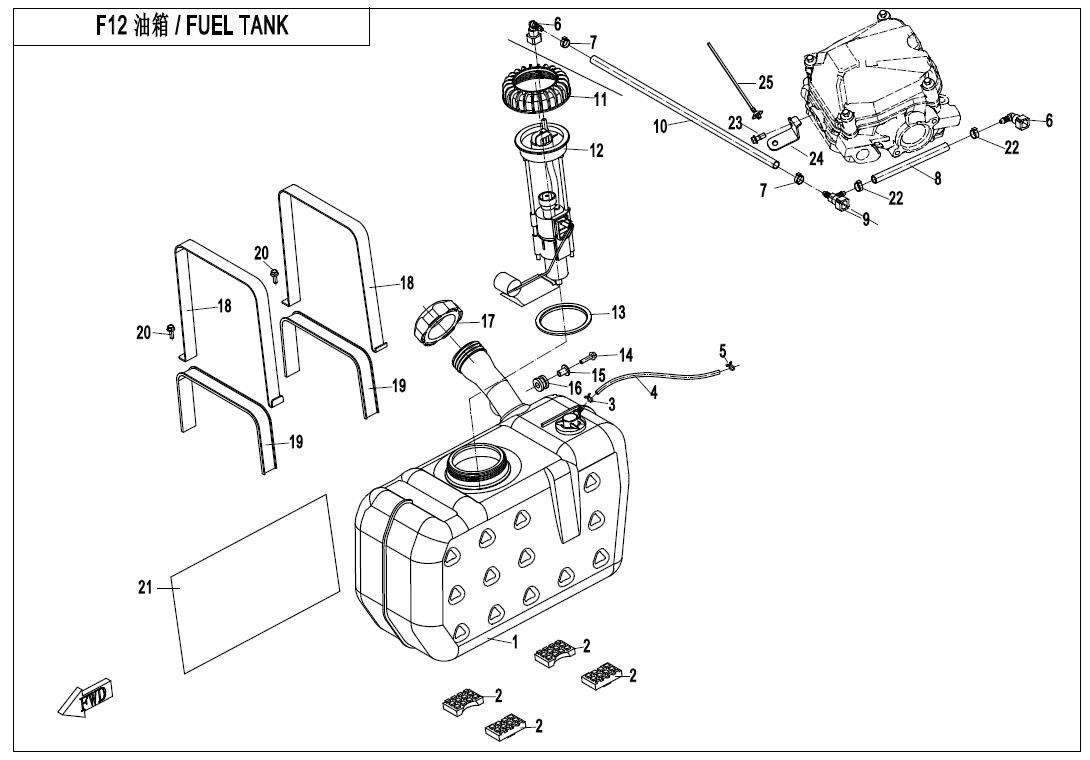

FUEL TANK
F13-A
SEAT
F15-1

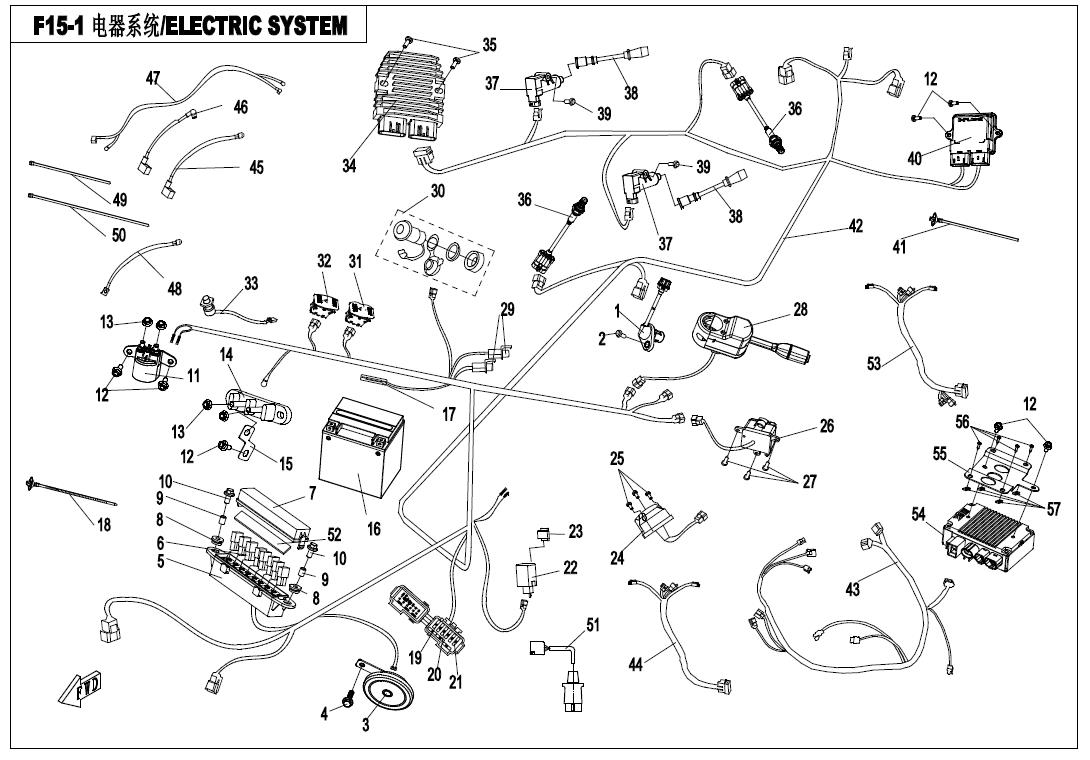

ELECTRIC SYSTEM
F15-2

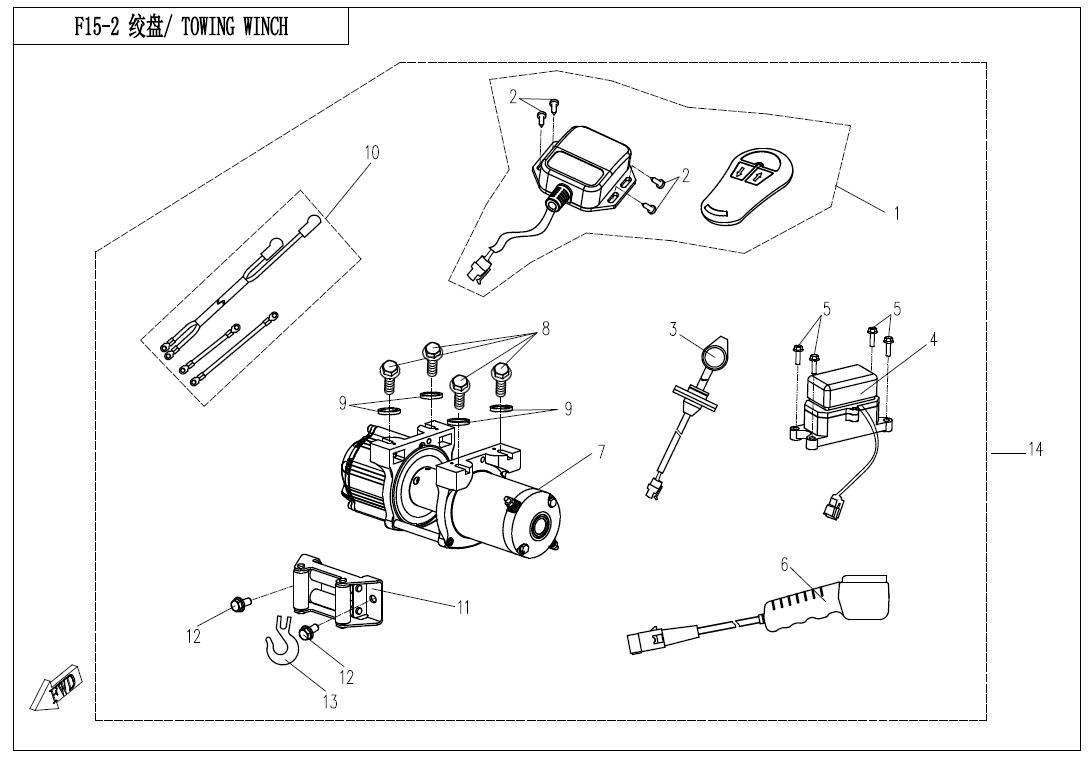

TOWING WINCH
F16

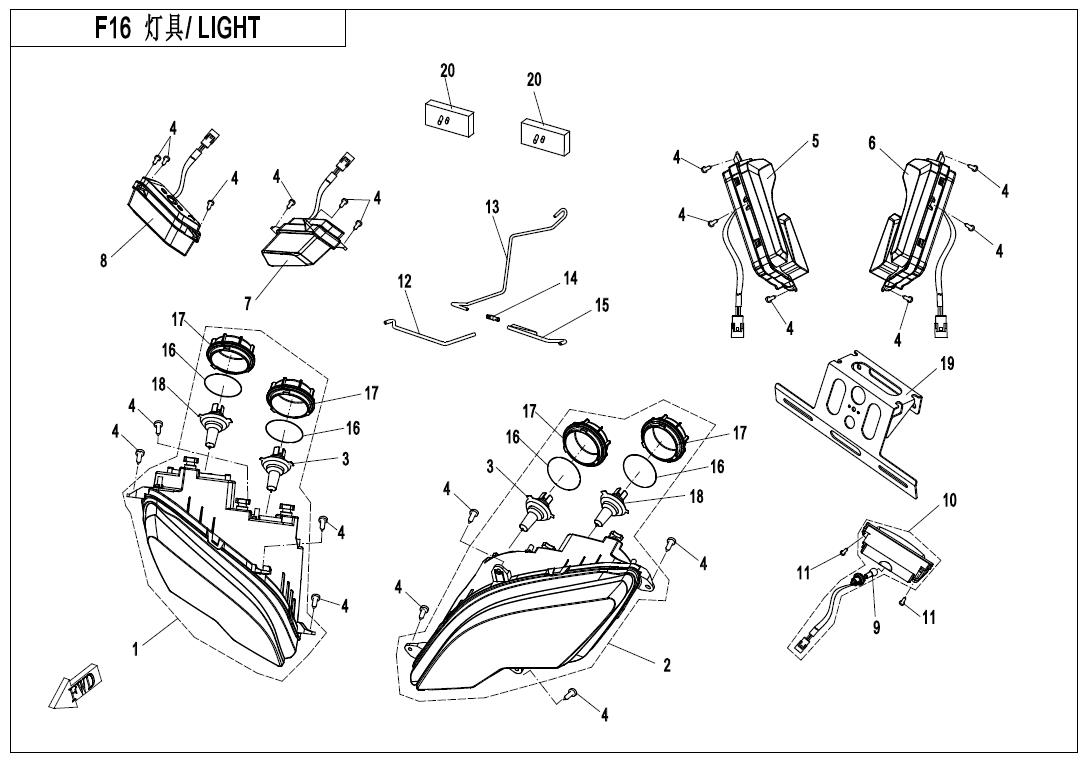

LIGHTS
F17

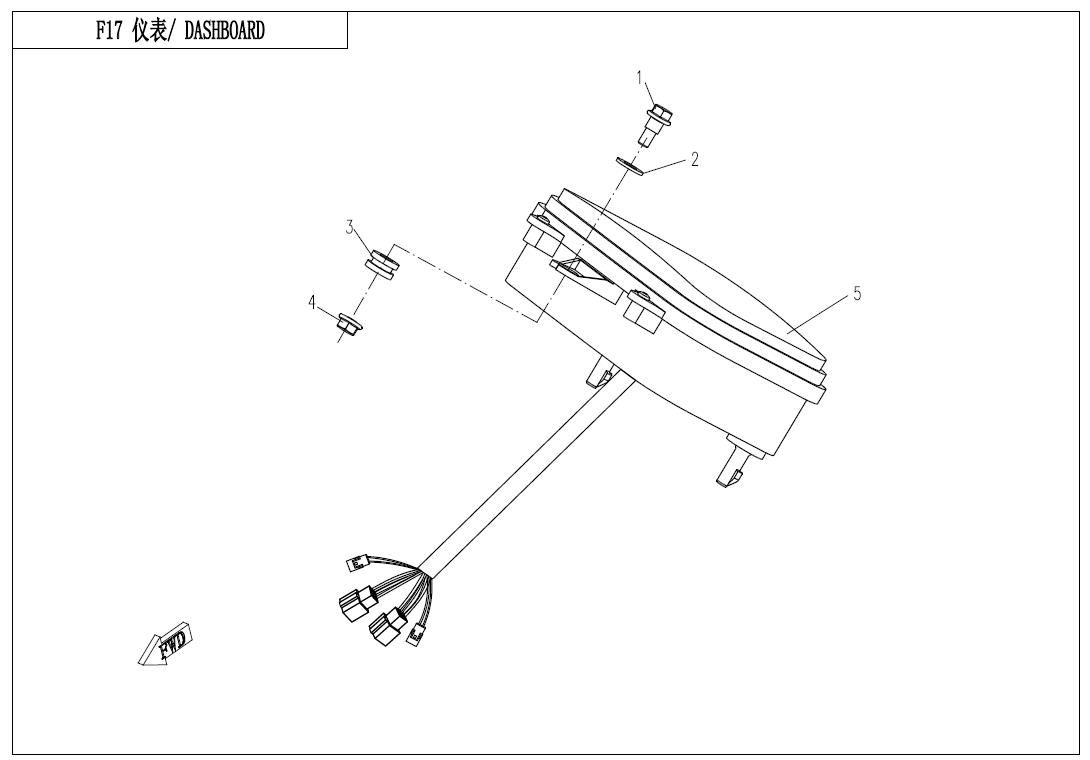

DASHBOARD

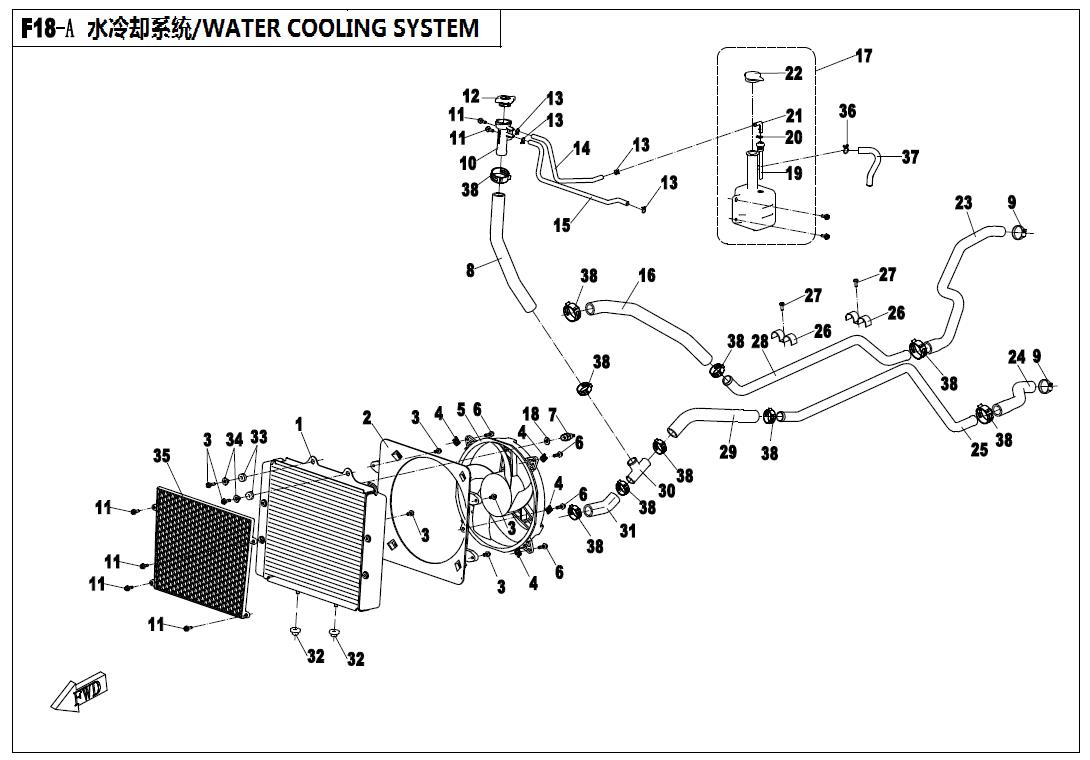

F18-A
WATER COOLING SYSTEM

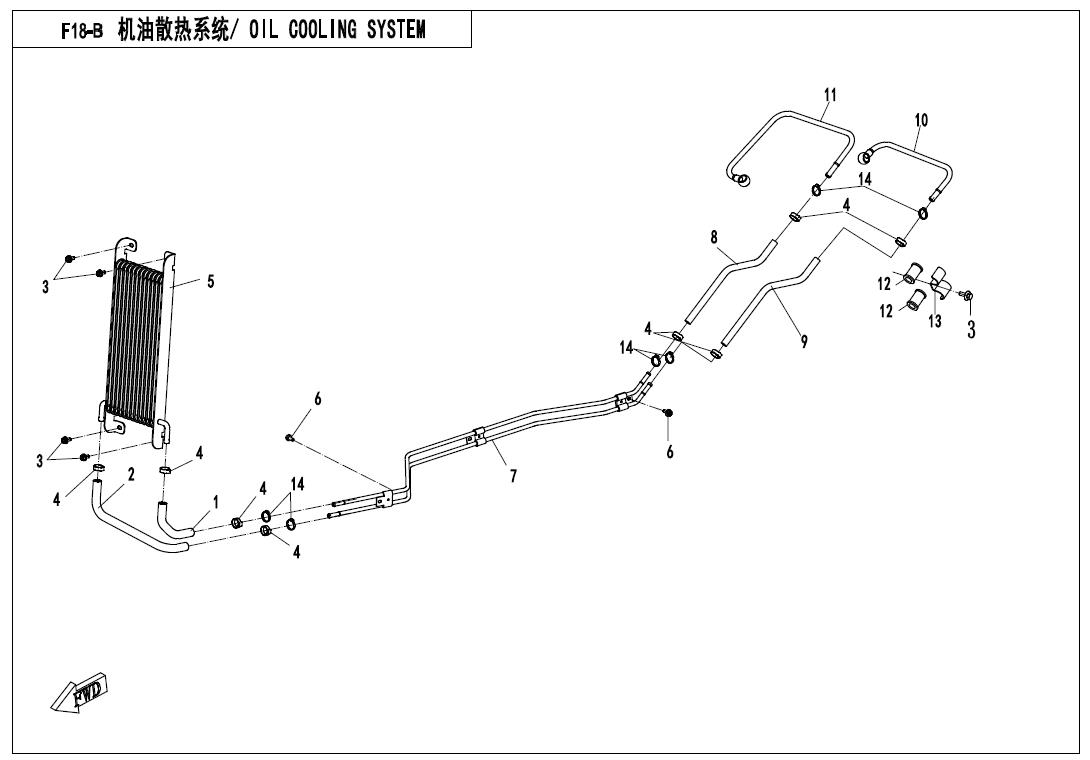

F18-B
OIL COOLING SYSTEM

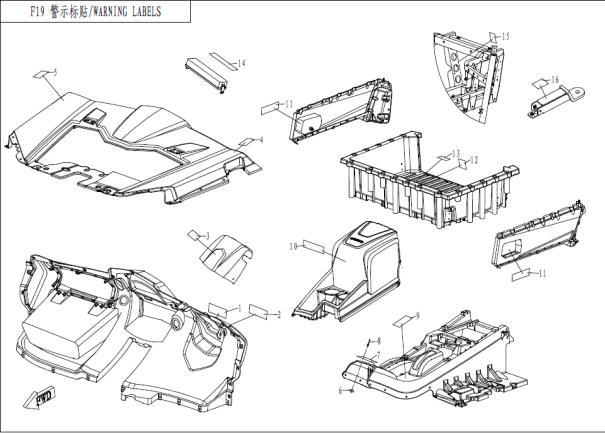

F19-1
DECAL
F19-2
DECAL

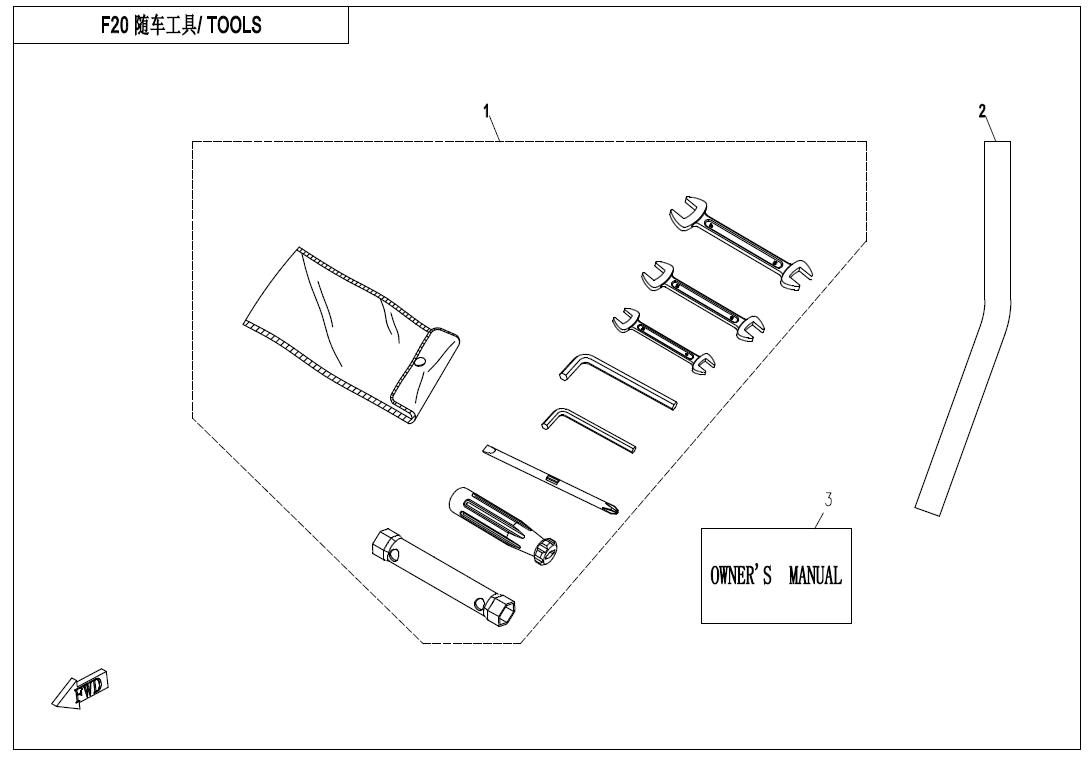

F20
TOOLS
F22-1

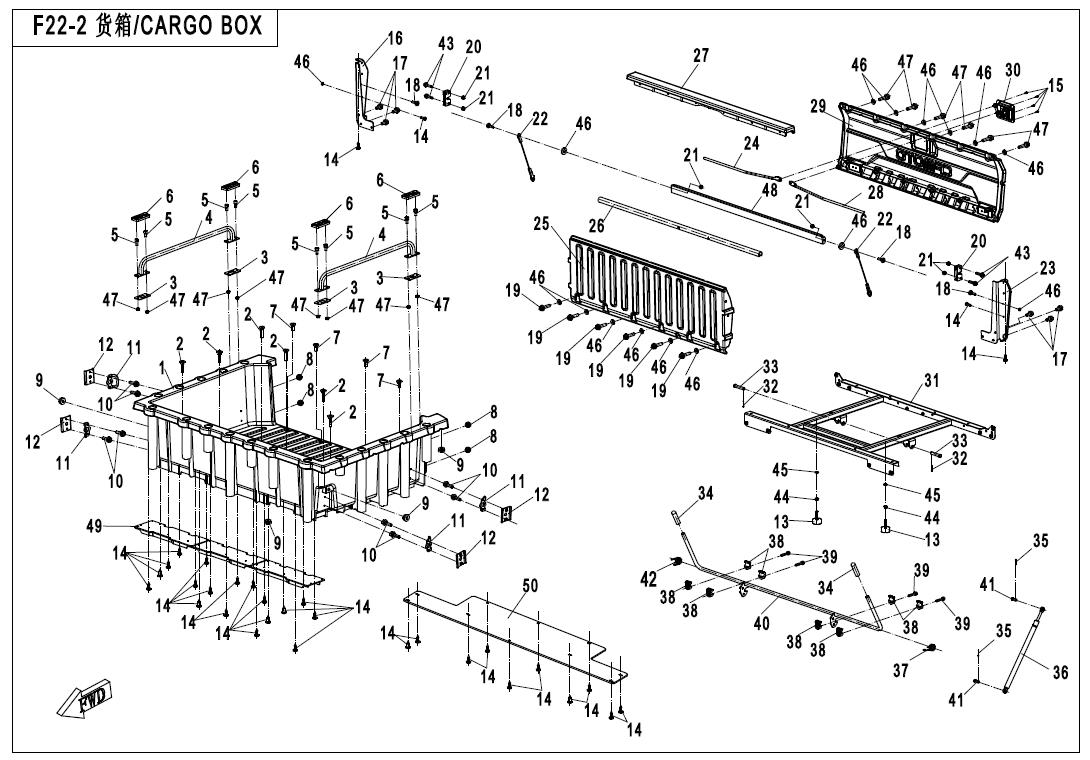

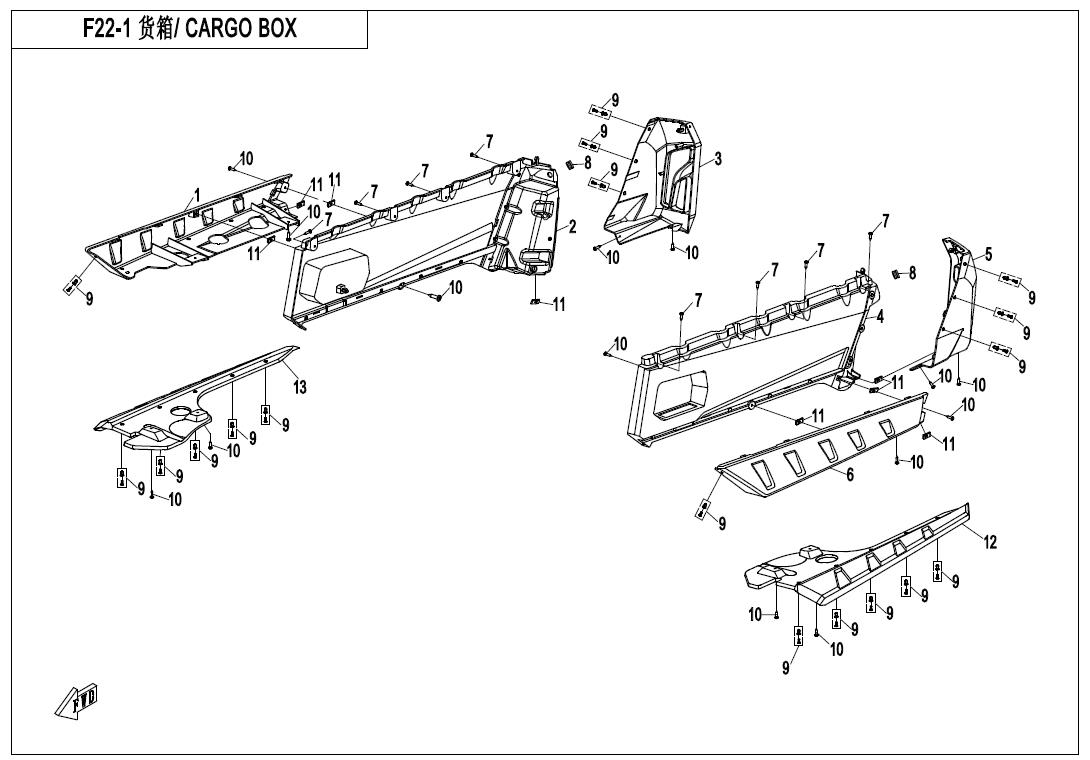

CARGO BOX
F22-2
CARGO BOX

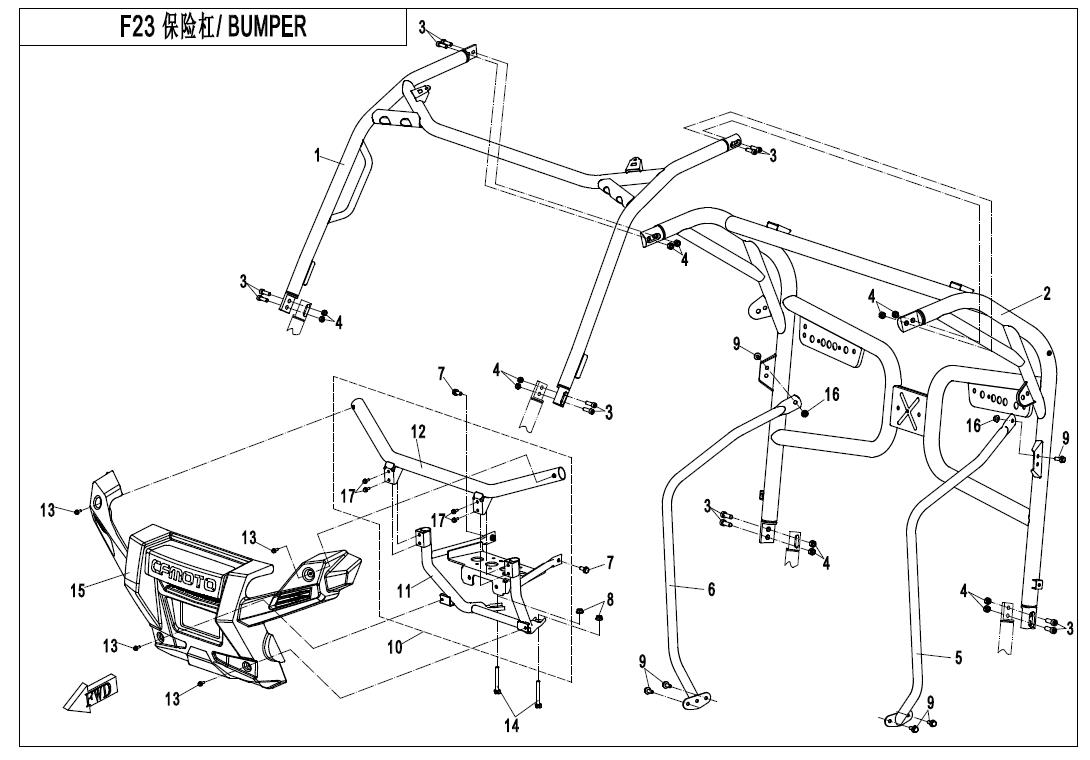

F23
BUMPER
F26-1

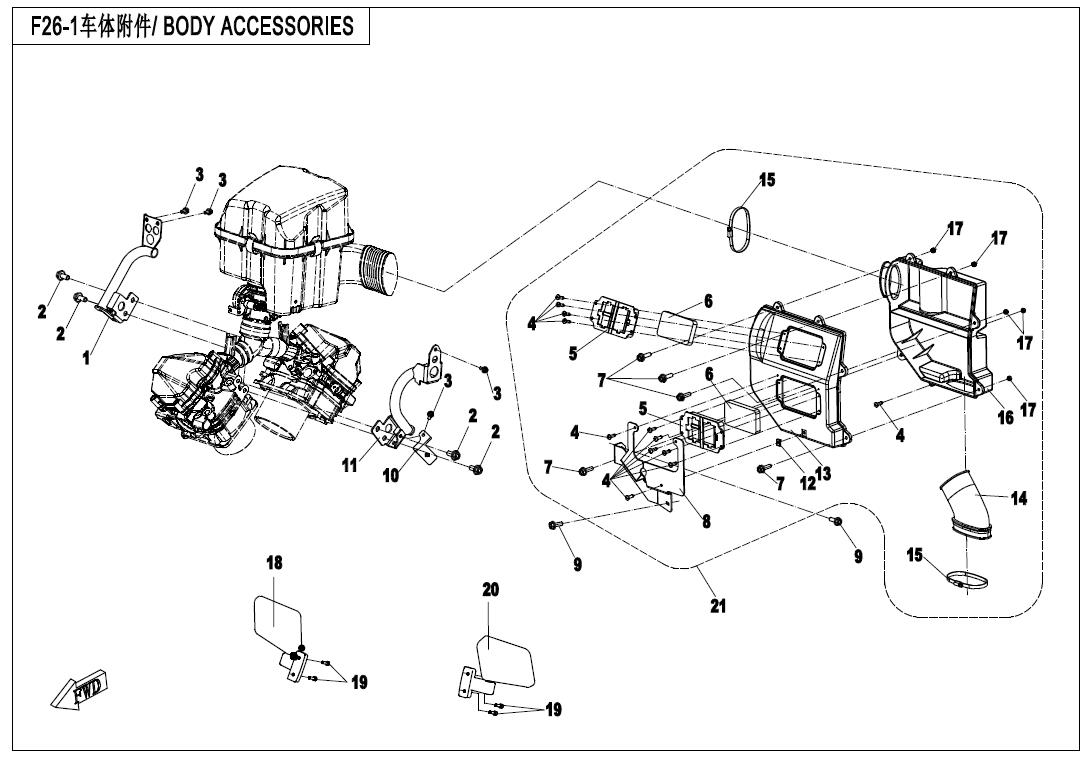

BODY ACCESSORIES
F26-2

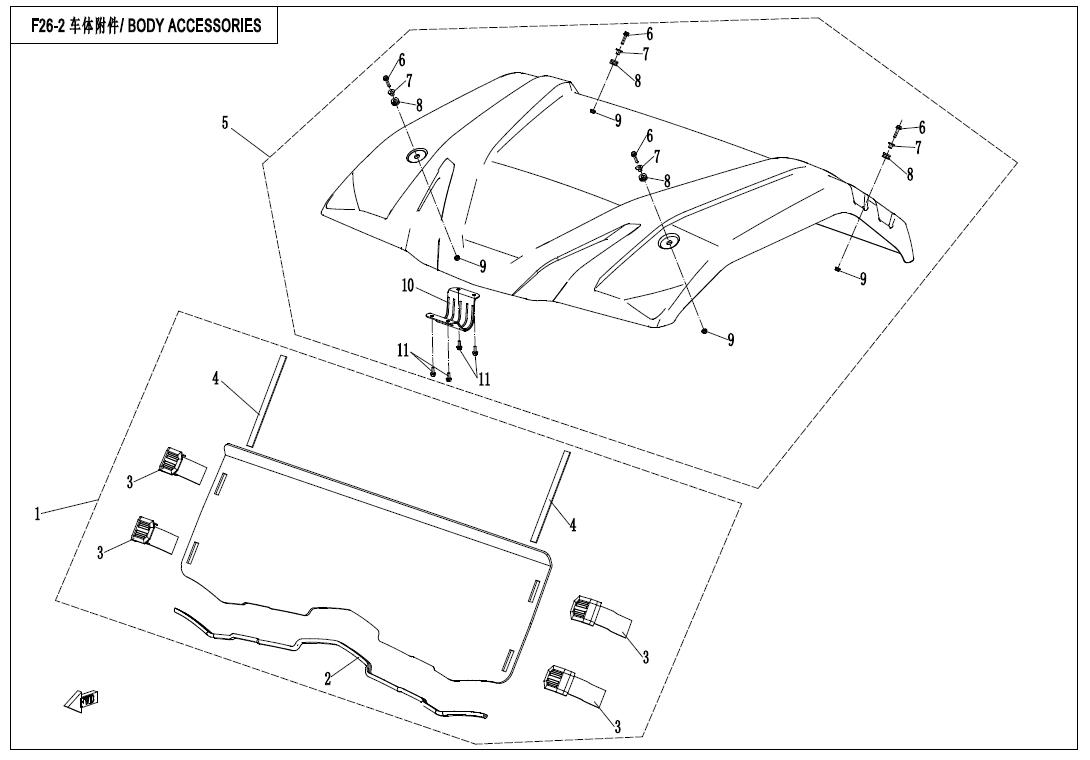

BODY ACCESSORIES
F26-3

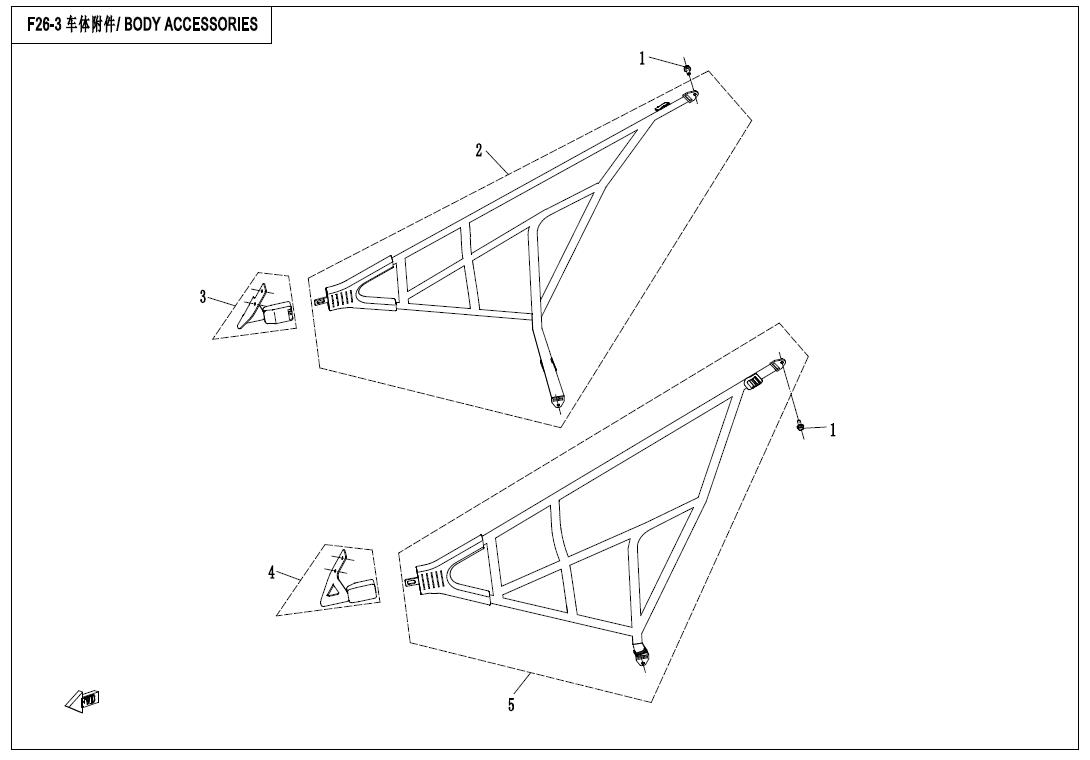

BODY ACCESSORIES
F27-A

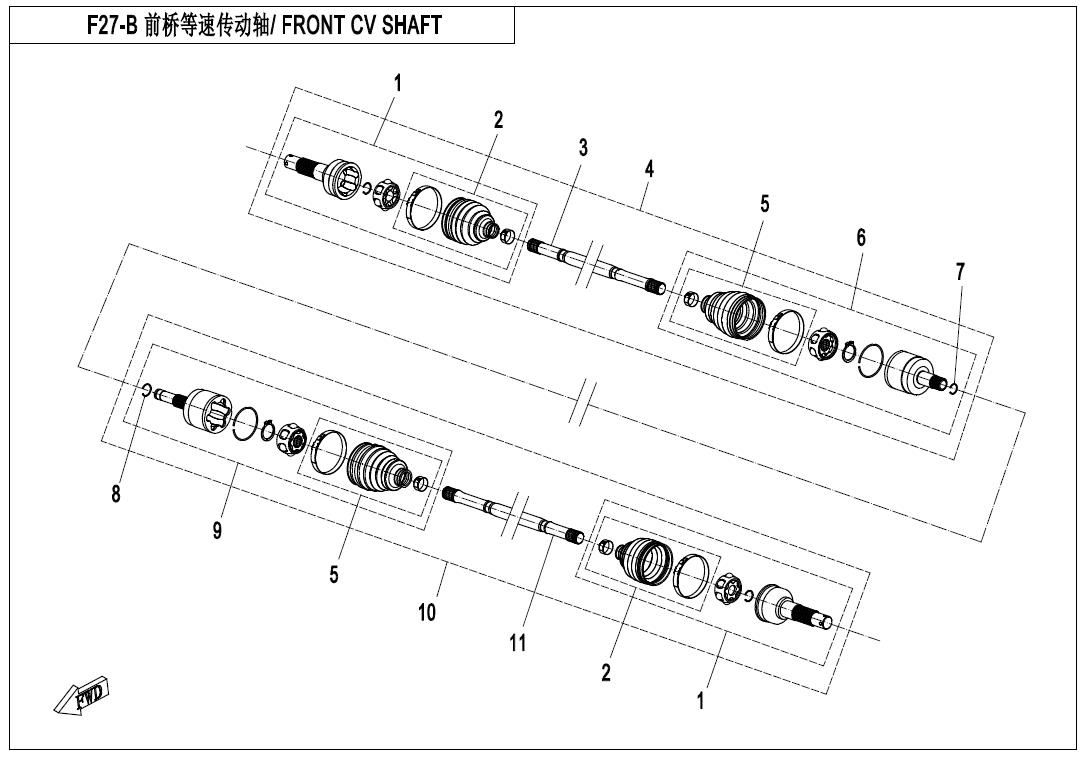

FRONT CV SHAFT
F27-B
FRONT CV SHAFT

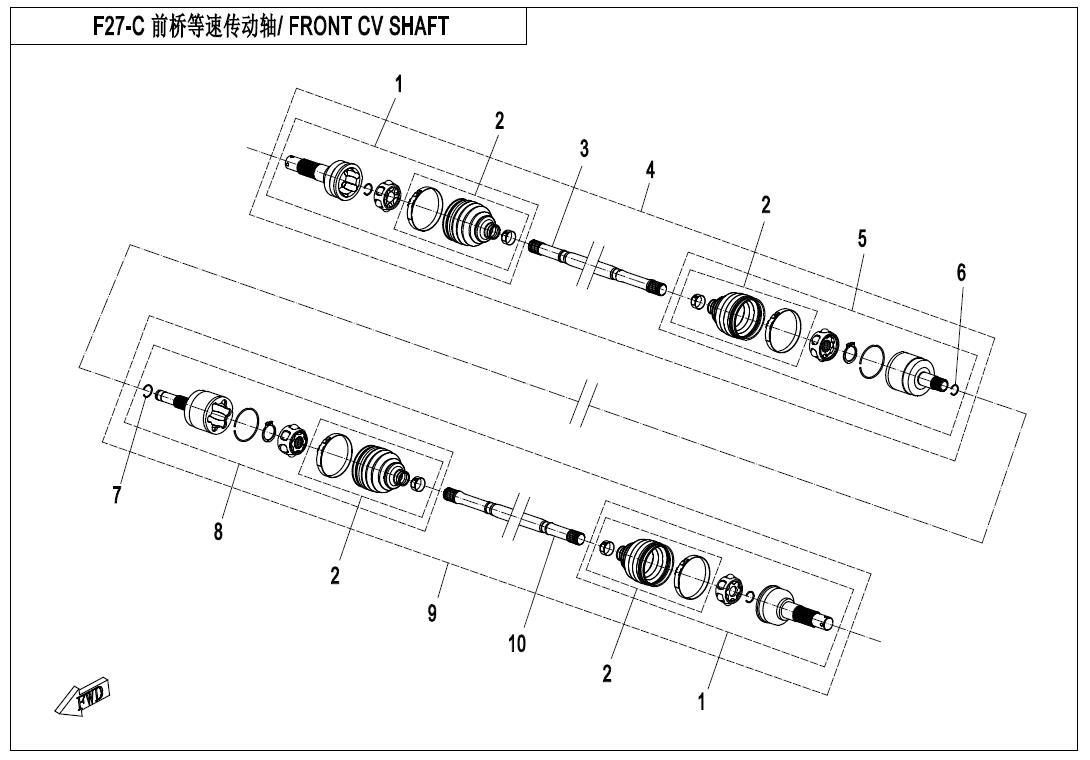

F27-C
FRONT CV SHAFT
F28-A
REAR CV SHAFT
F28-B
REAR CV SHAFT
F28-C

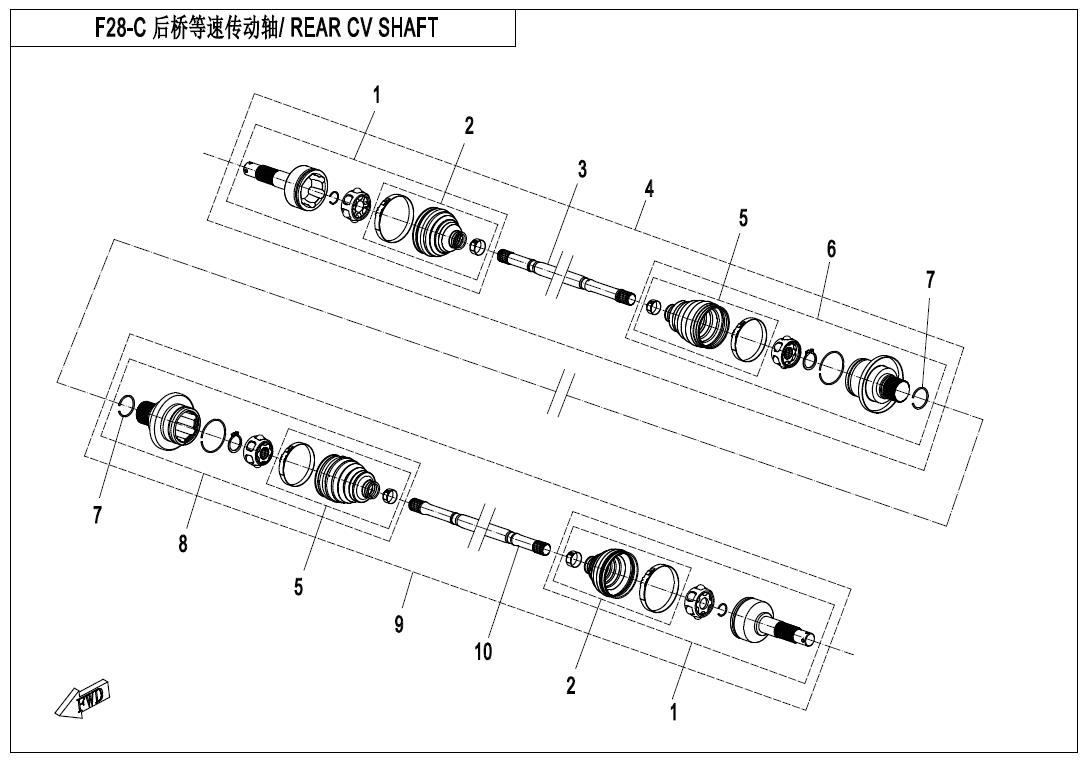

REAR CV SHAFT

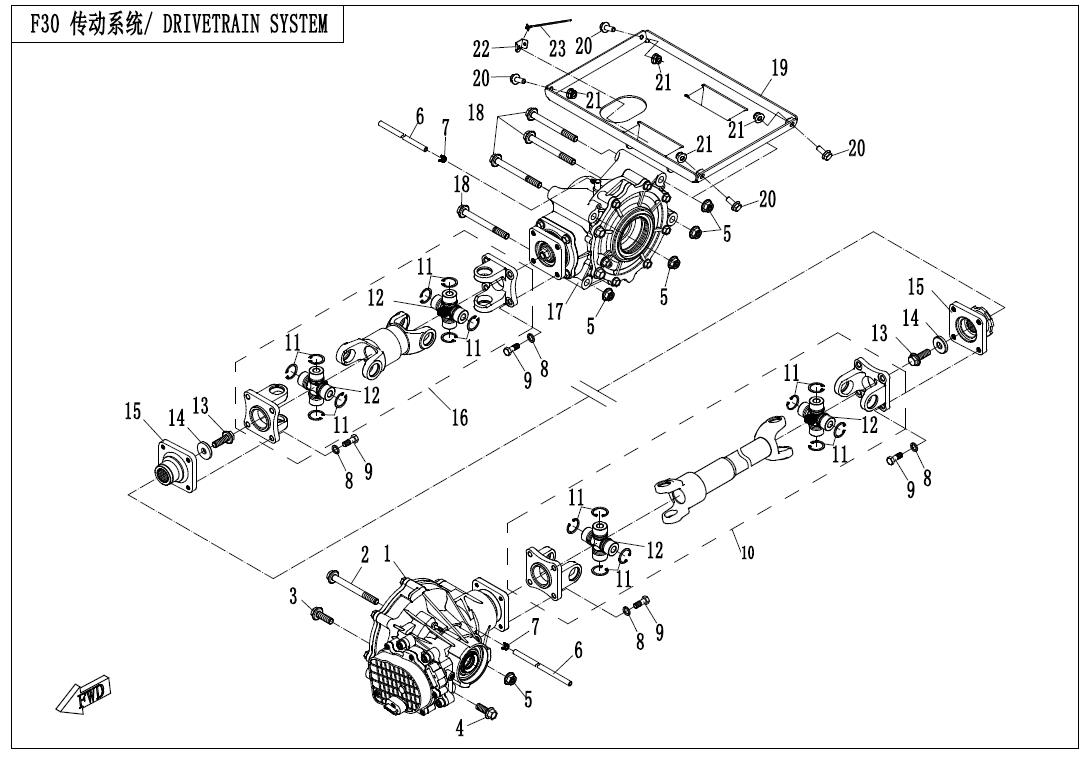

F30
DRIVETRAIN SYSTEM

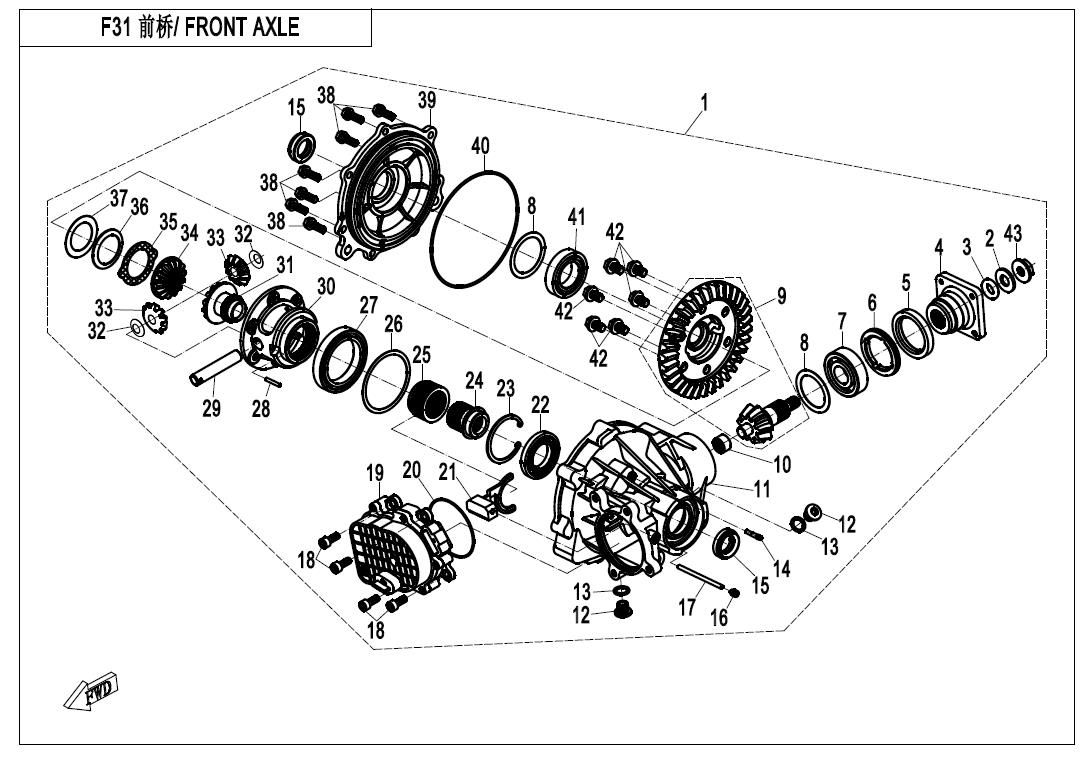

F31
FRONT AXLE
F32

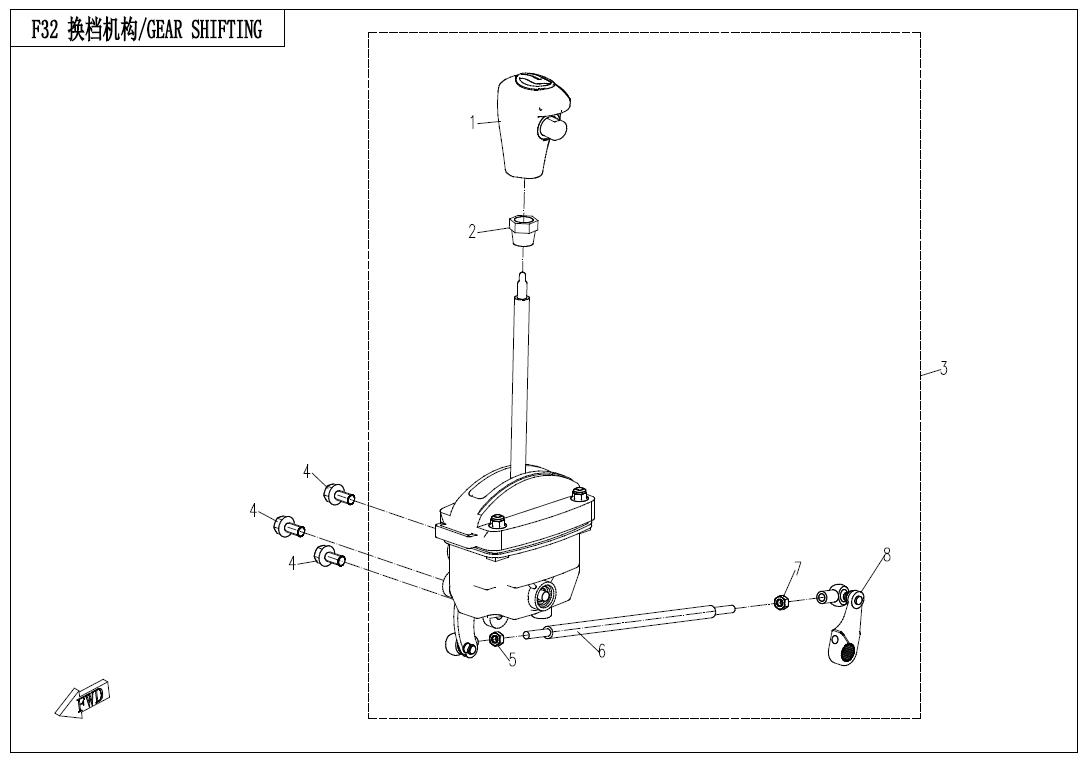

GEAR SHIFTING

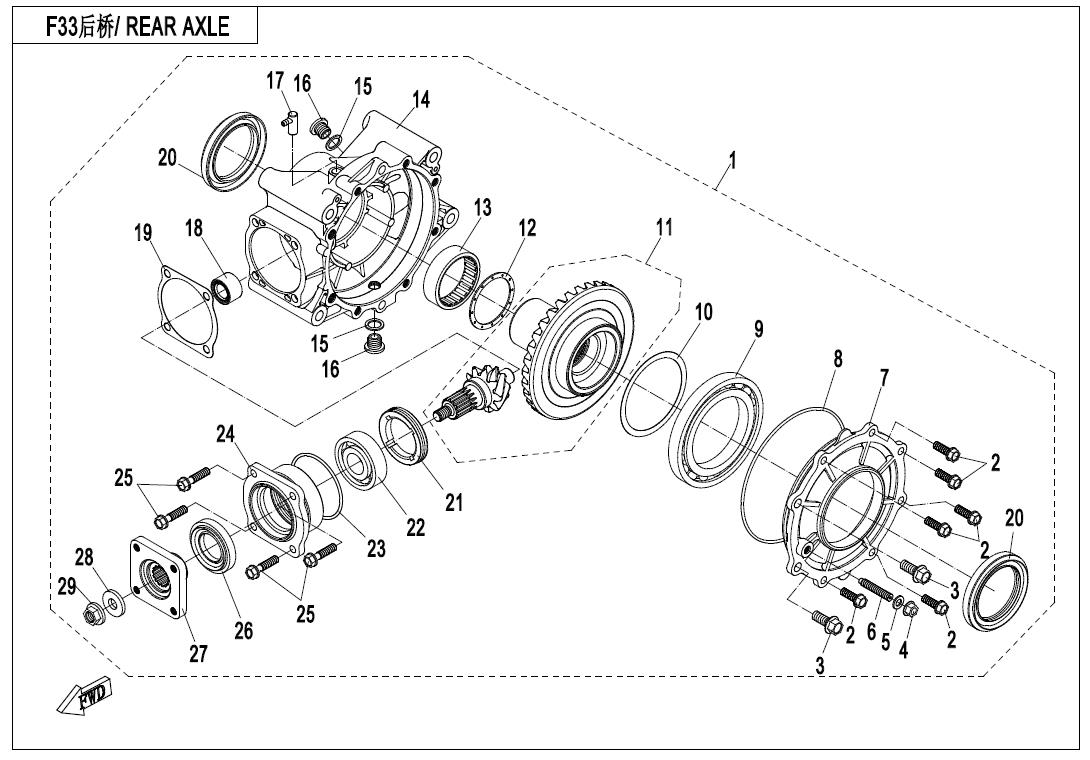

F33
REAR AXLE

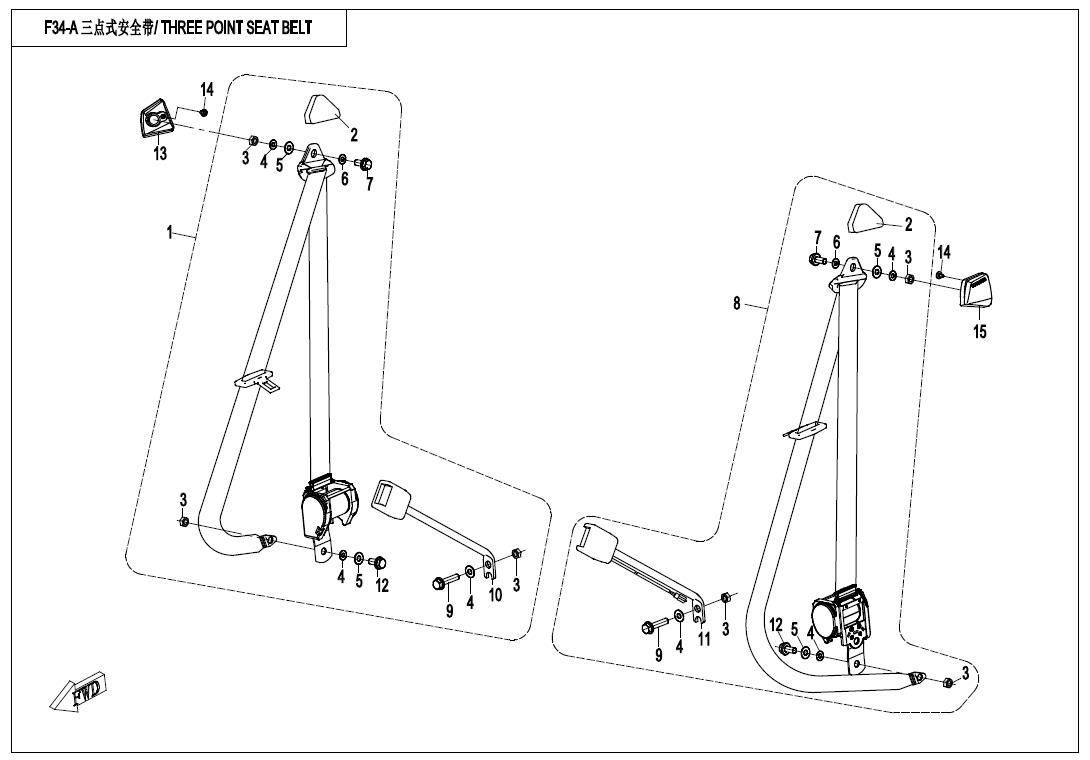

F34-A
THREE POINT SEAT BELT
F37
SIDE DOORS

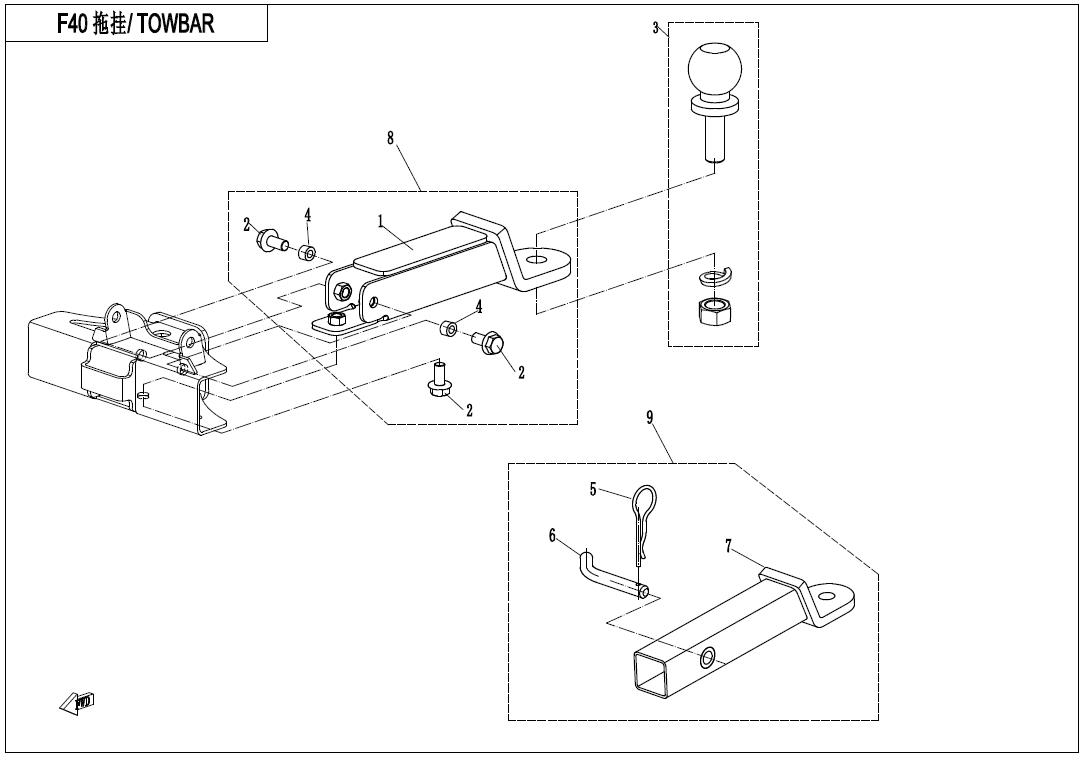

F40
TOWBAR
E00
ENGINE ASSY
E01-1

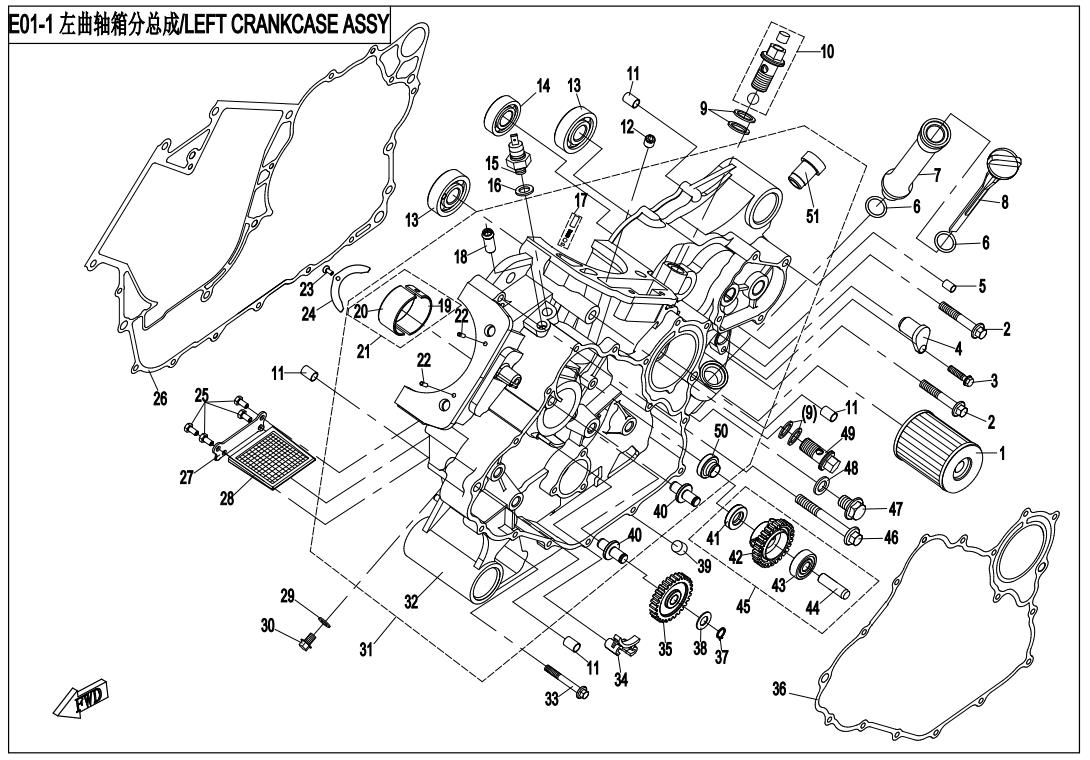

LEFT CRANKCASE ASSY
E01-2

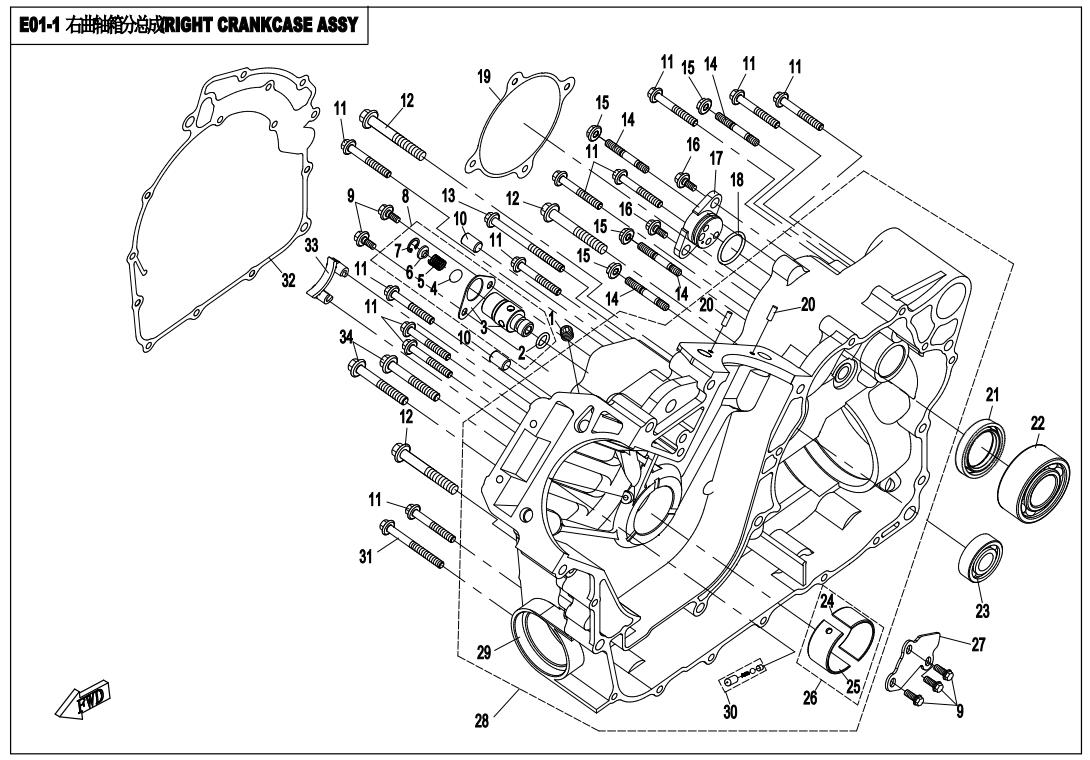

RIGHT CRANKCASE ASSY
E01-3

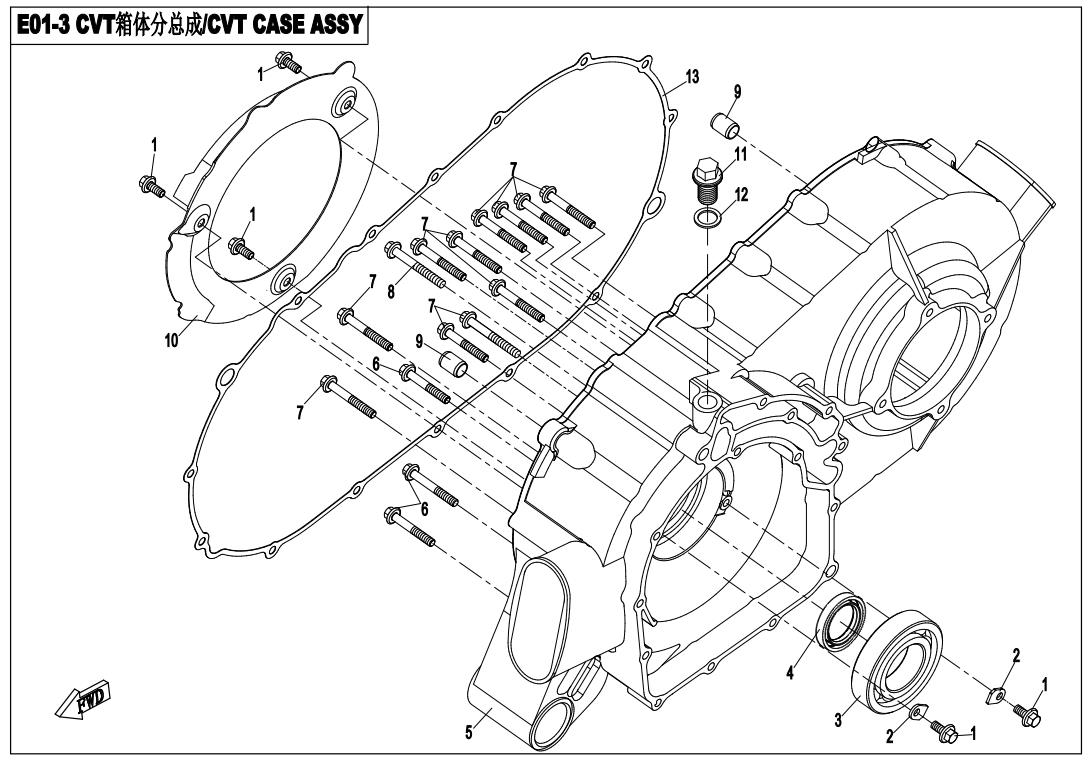

CVT CASE ASSY
E01-4

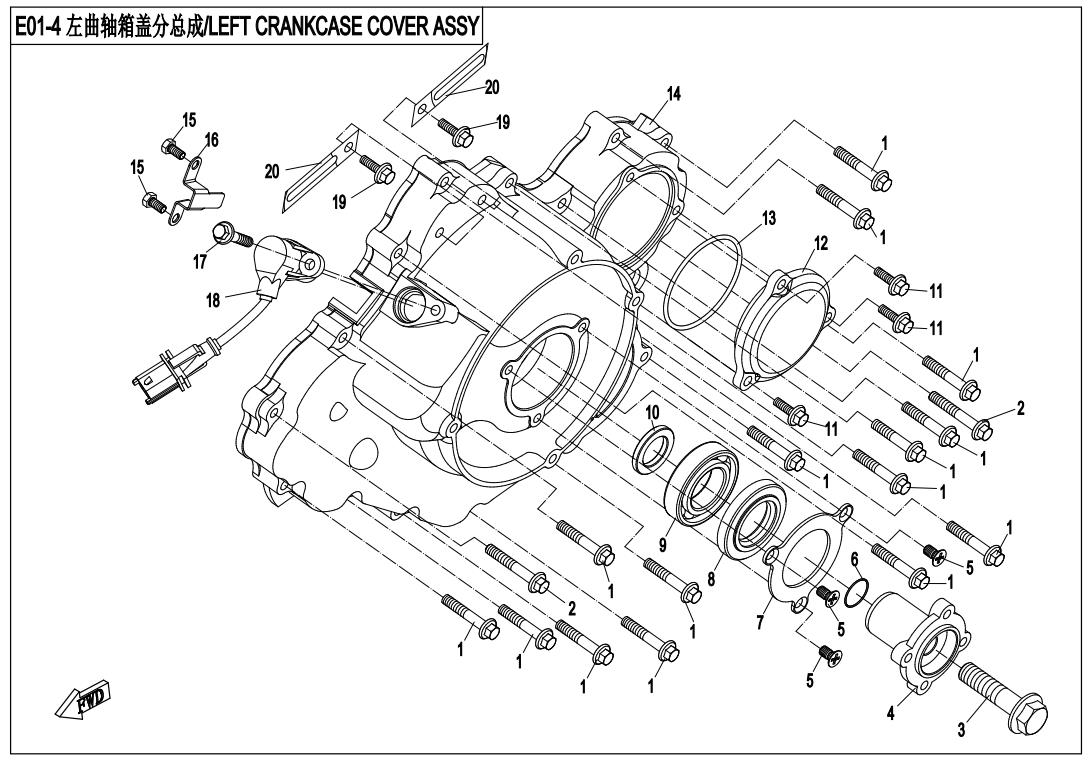

LEFT CRANKCASE COVER ASSY
E01-5

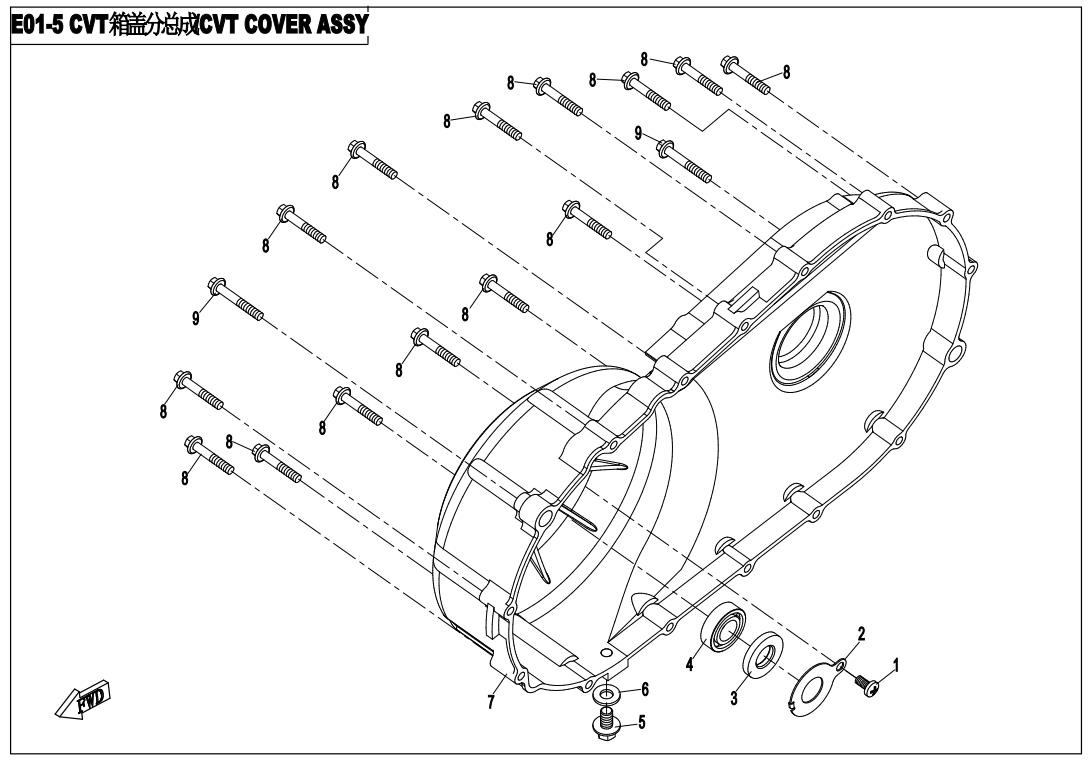

CVT COVER ASSY

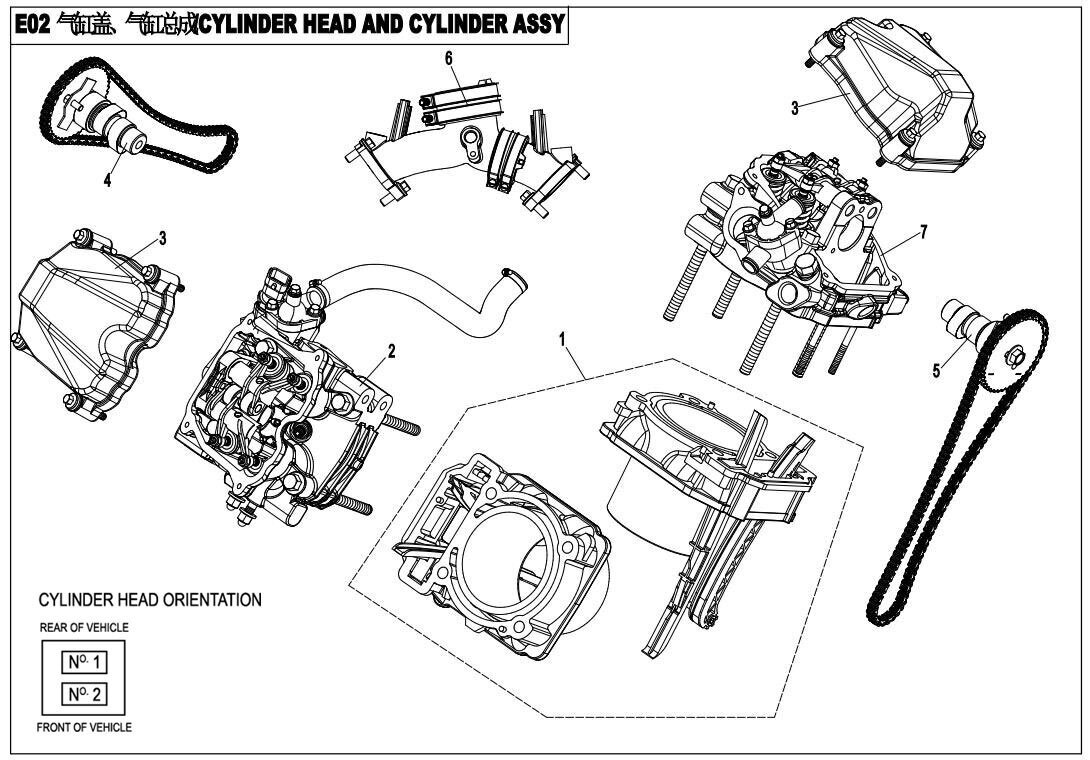

E02
CYLINDER HEAD AND CYLINDER ASSY.
E02-1

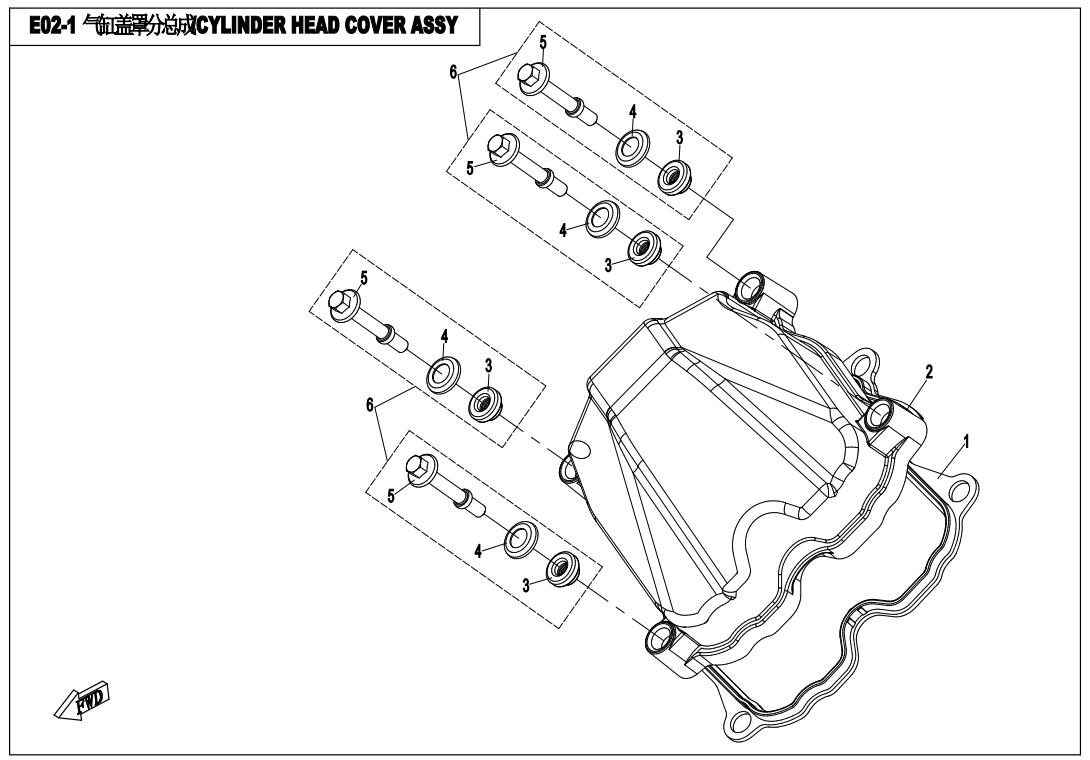

CYLINDER HEAD COVER ASSY
E02-2

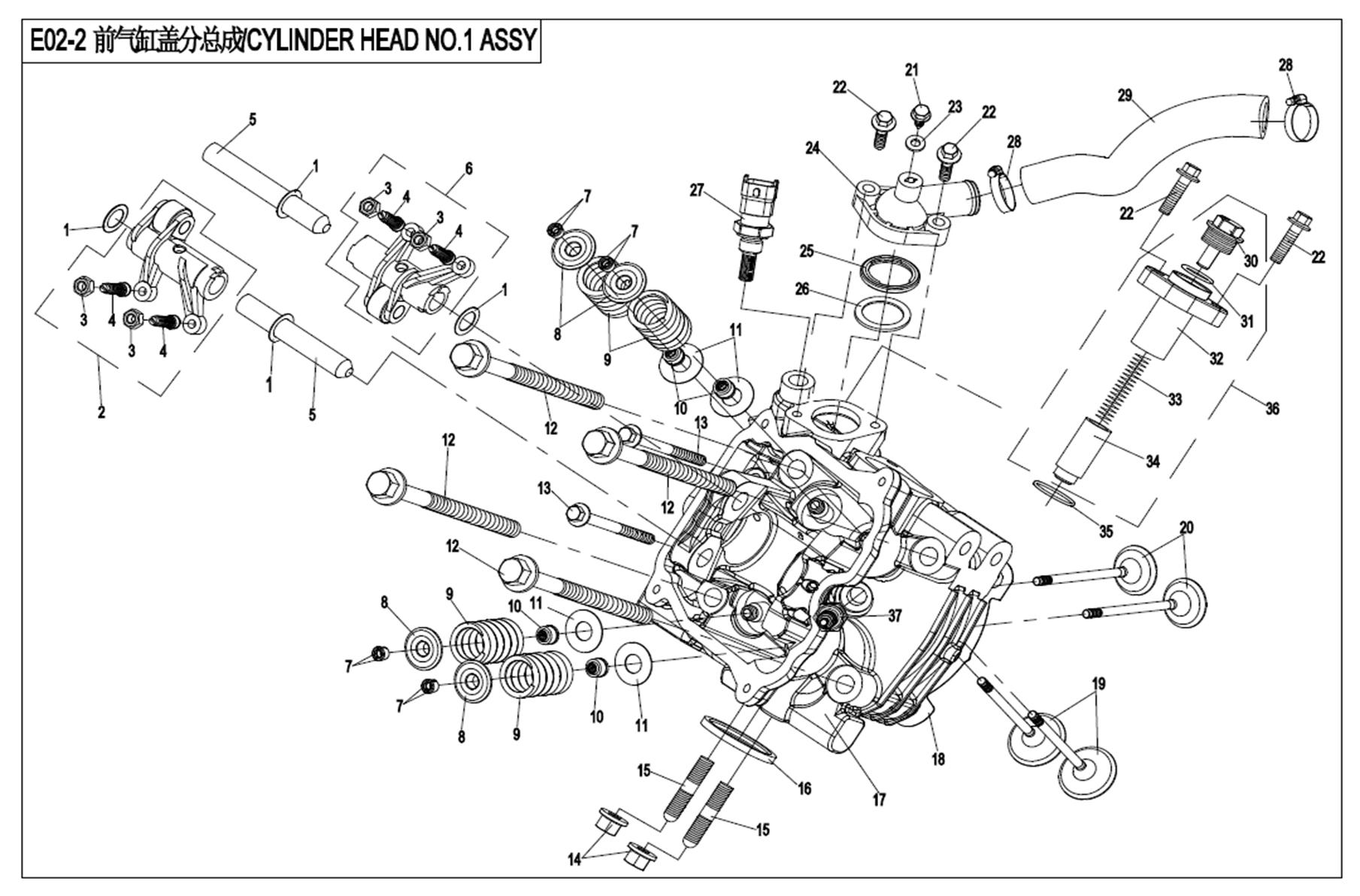

CYLINDER HEAD NO.1 ASSY.

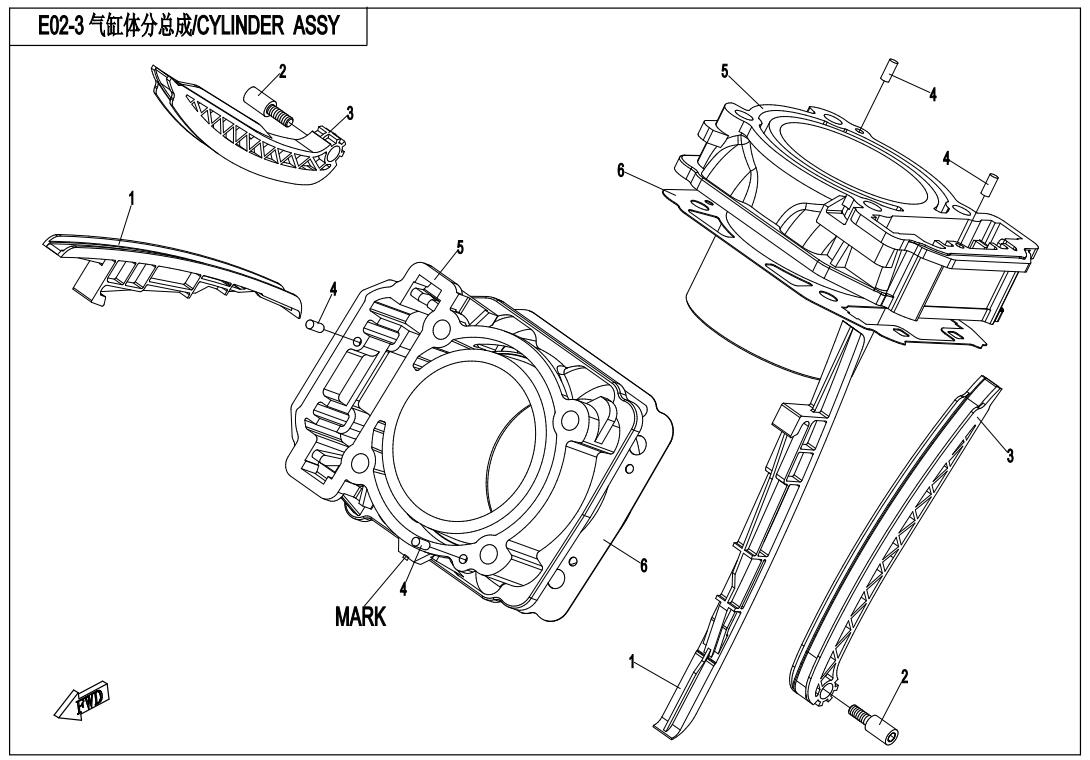

E02-3
CYLINDER ASSY.
E02-4

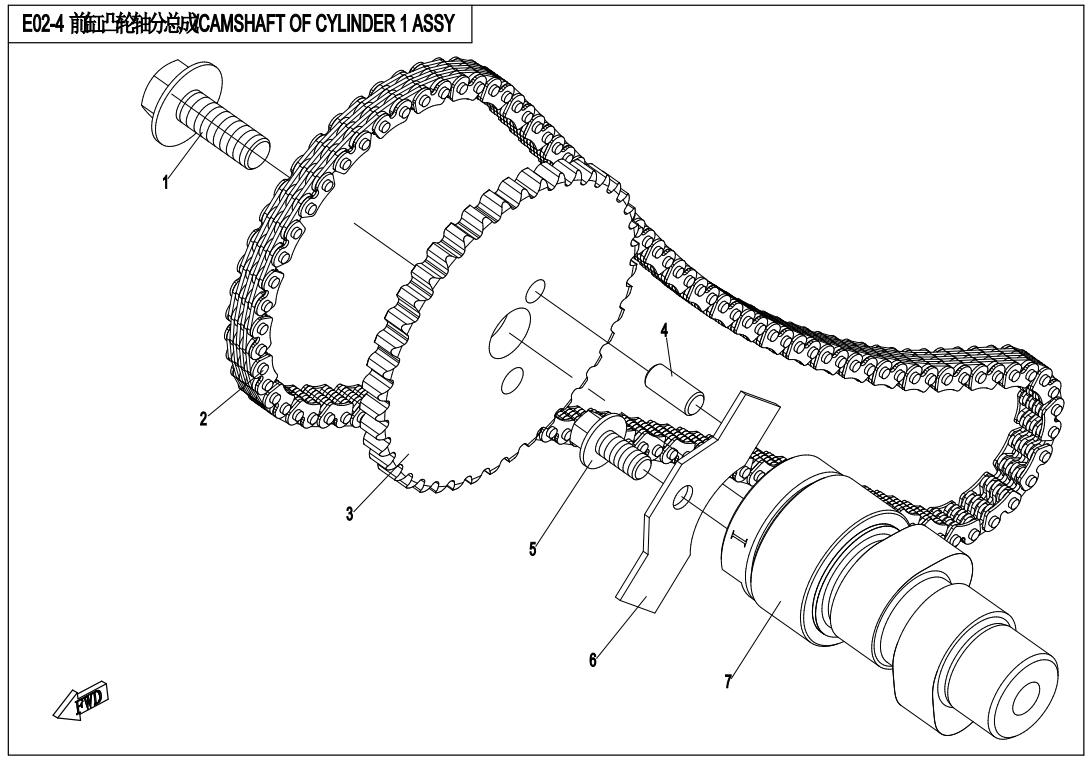

CAMSHAFT OF CYLINDER 1 ASSY.
E02-5

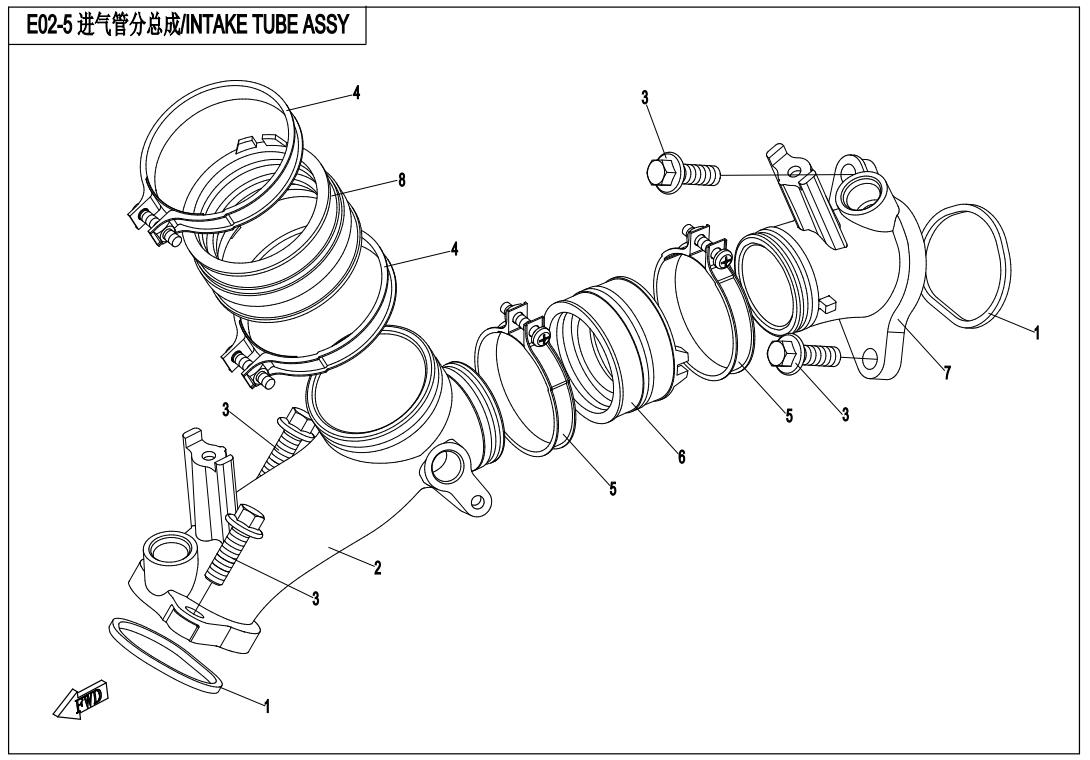

INTAKE MANIFOLD ASSY
E02-6

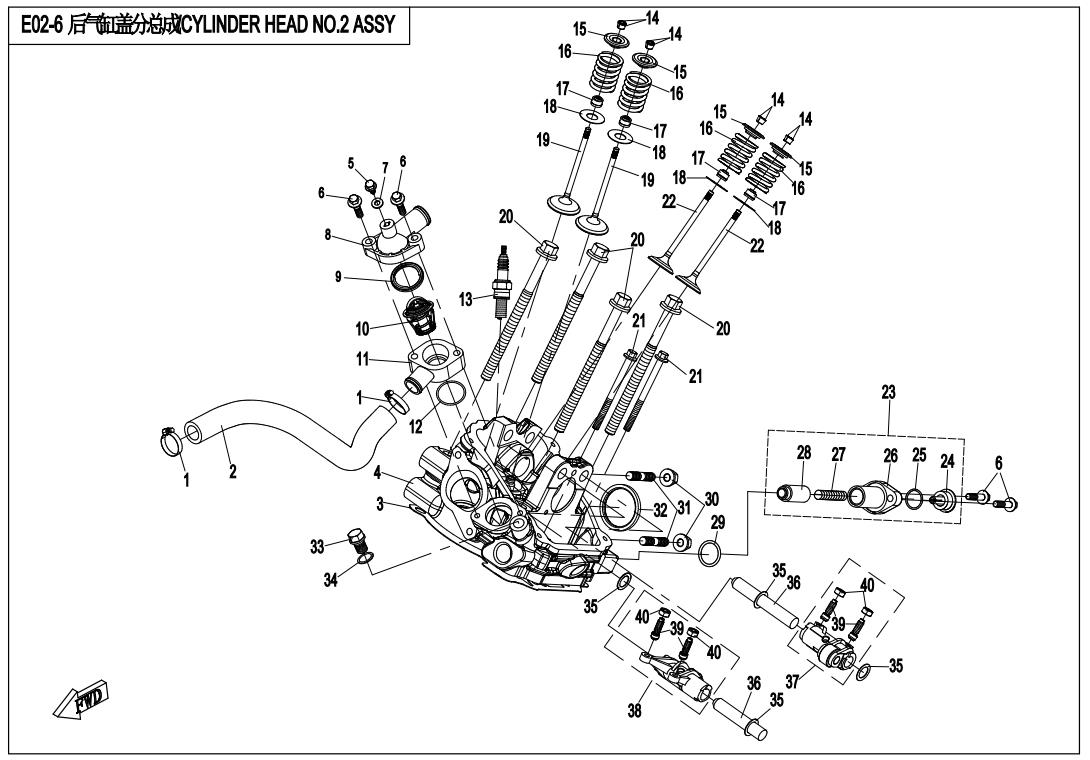

CYLINDER HEAD NO.2 ASSY.

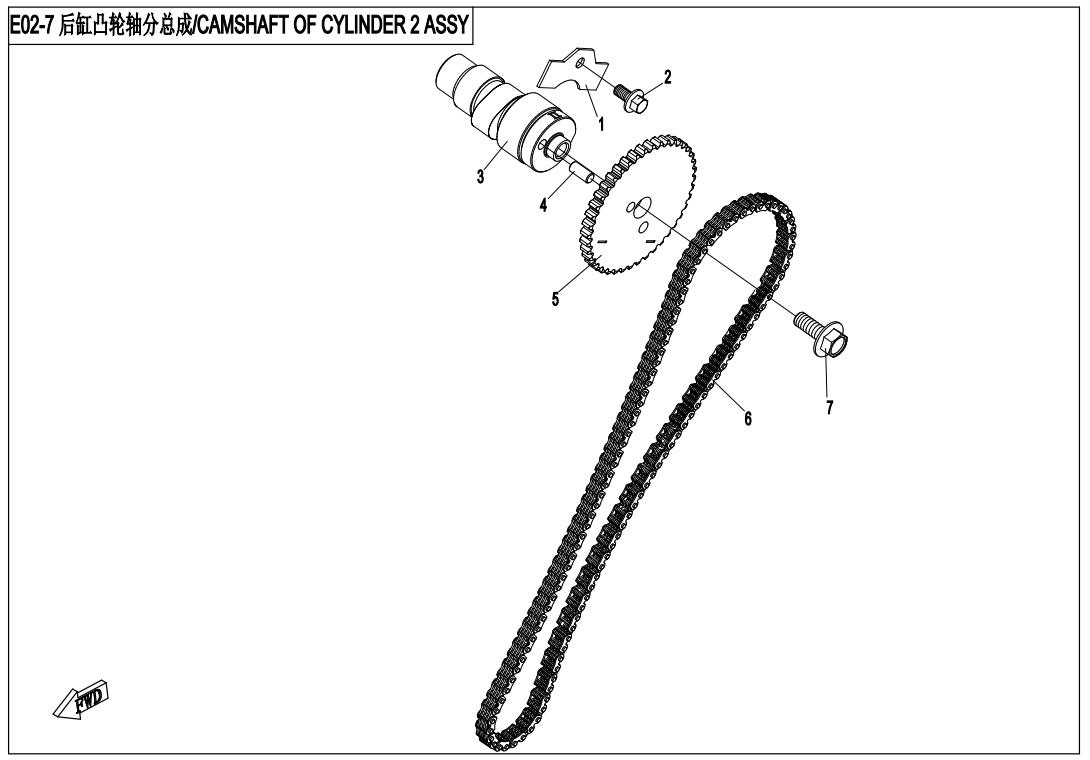

E02-7
CAMSHAFT OF CYLINDER 2 ASSY.
E03

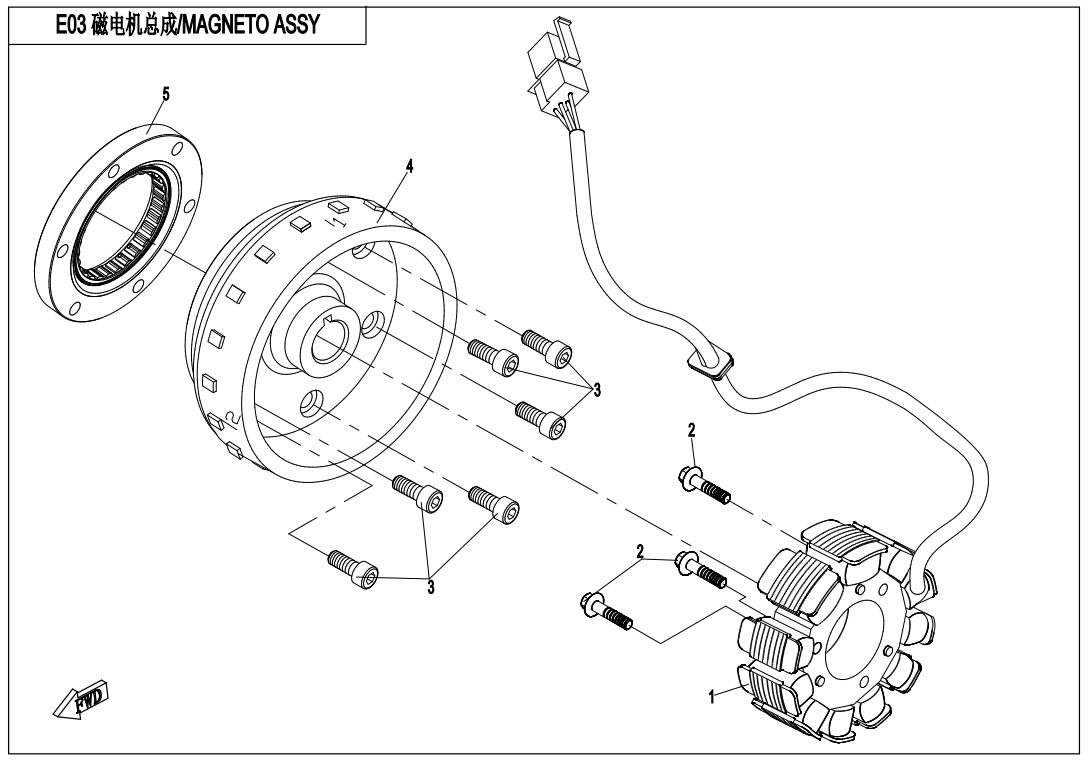

MAGNETO ASSY.
E04

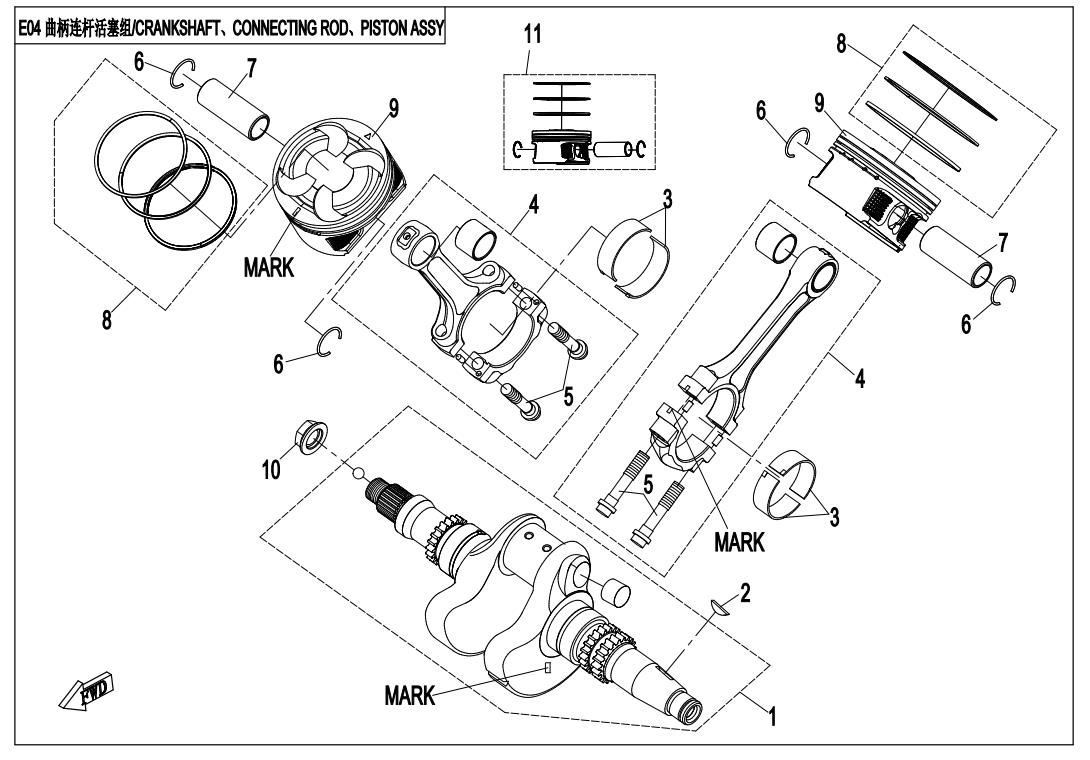

CRANKSHAFT&CONNECTING GOD& PISTON ASSY
E05

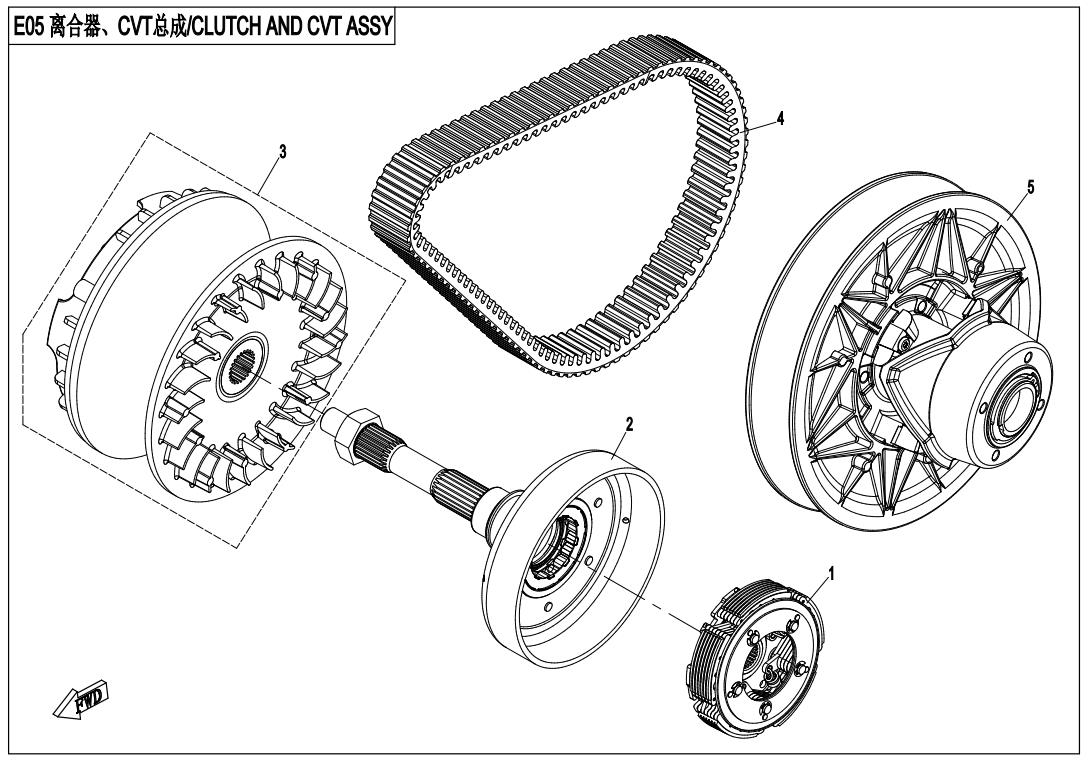

CLUTCH AND CVT ASSY
E05-1

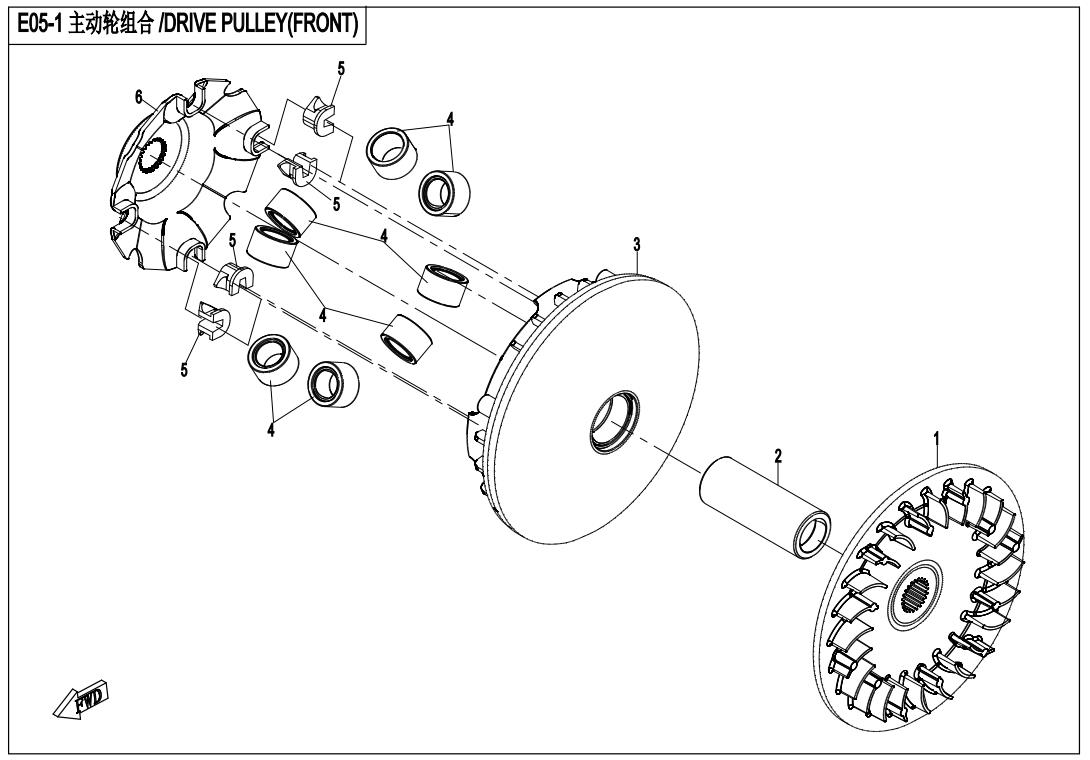

DRIVE PULLEY(FRONT)
E05-2-B

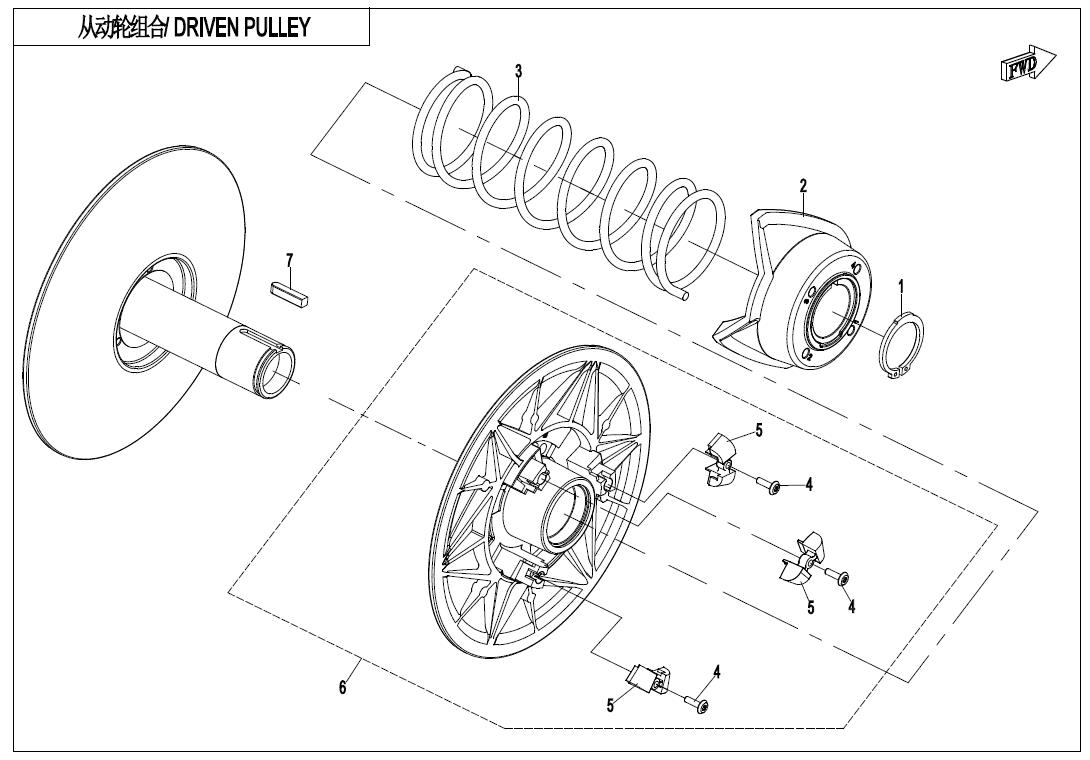

DRIVEN PULLEY (CV TECH)
E05-3

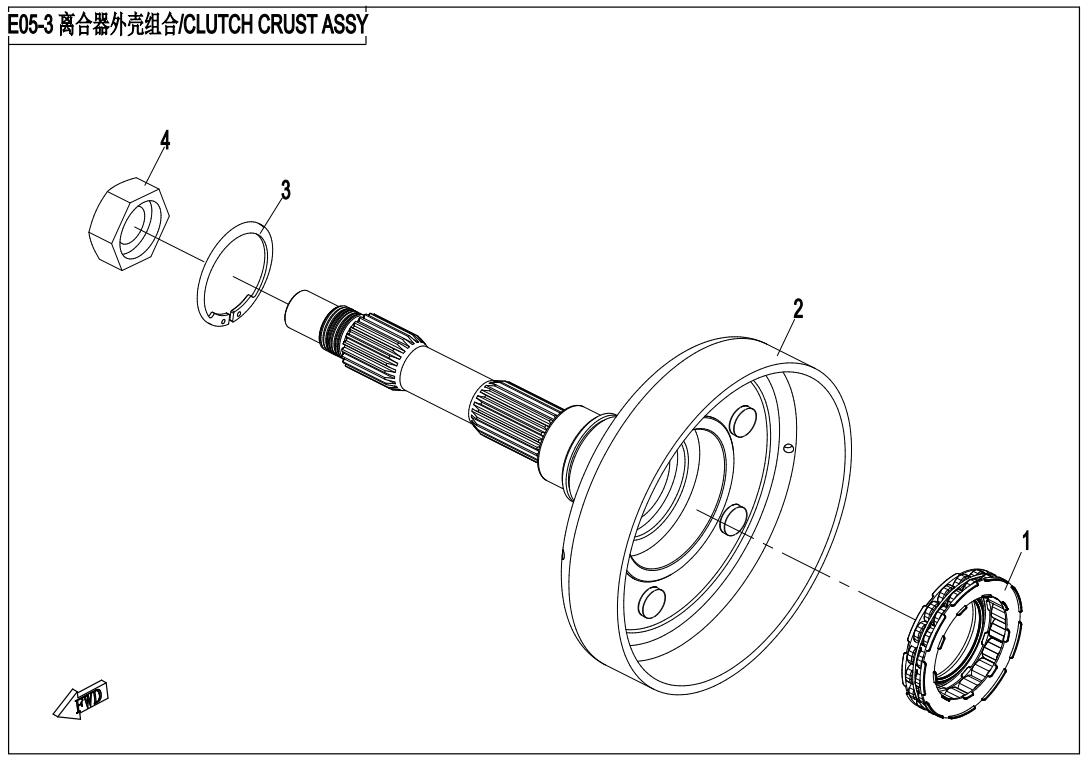

CLUTCH CRUST ASSY
E05-4

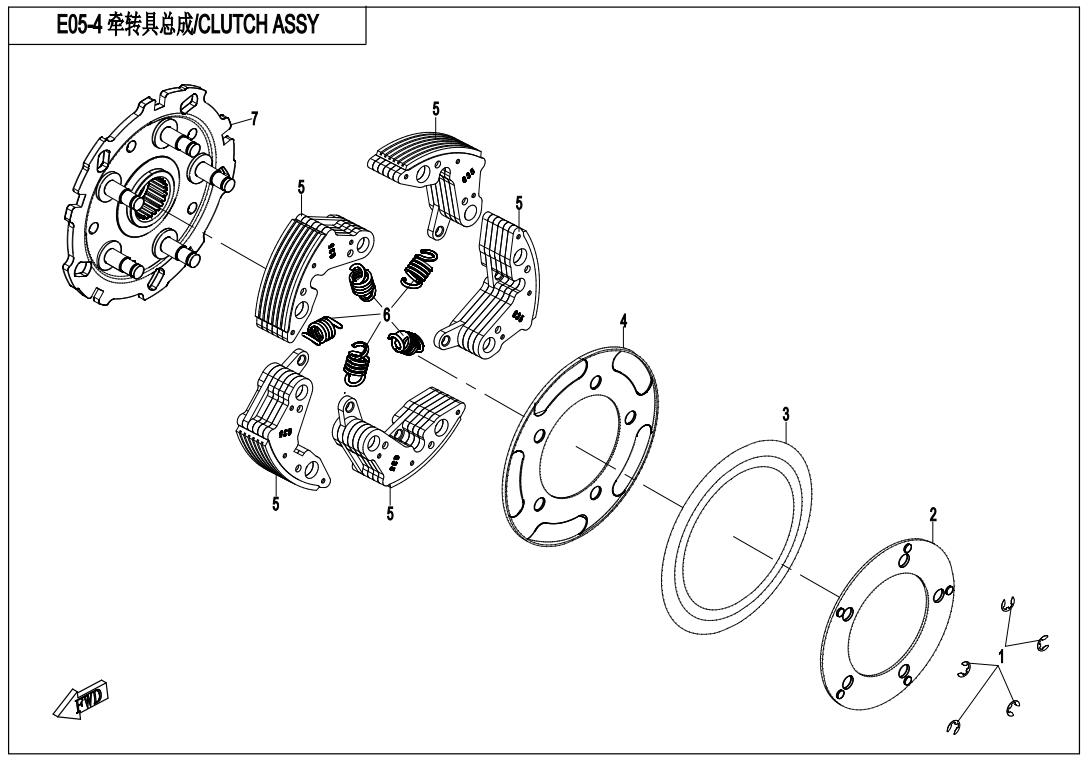

CLUTCH ASSY

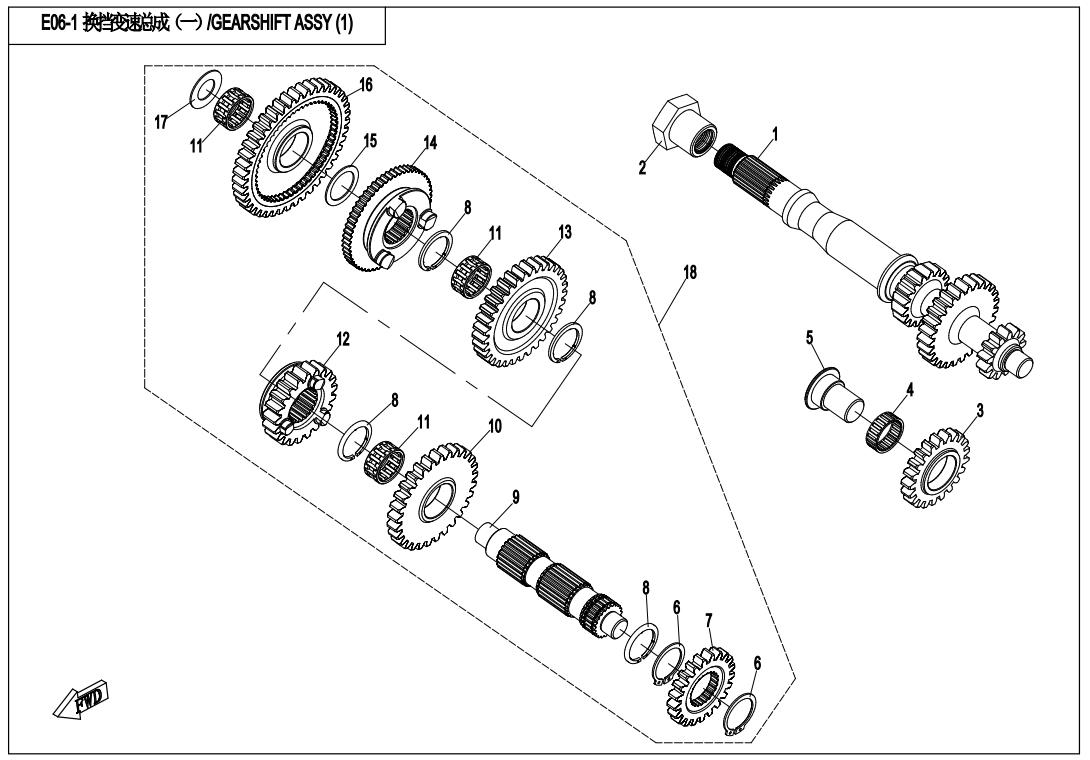

E06-1
GEARSHIFT ASSY (1)
E06-2

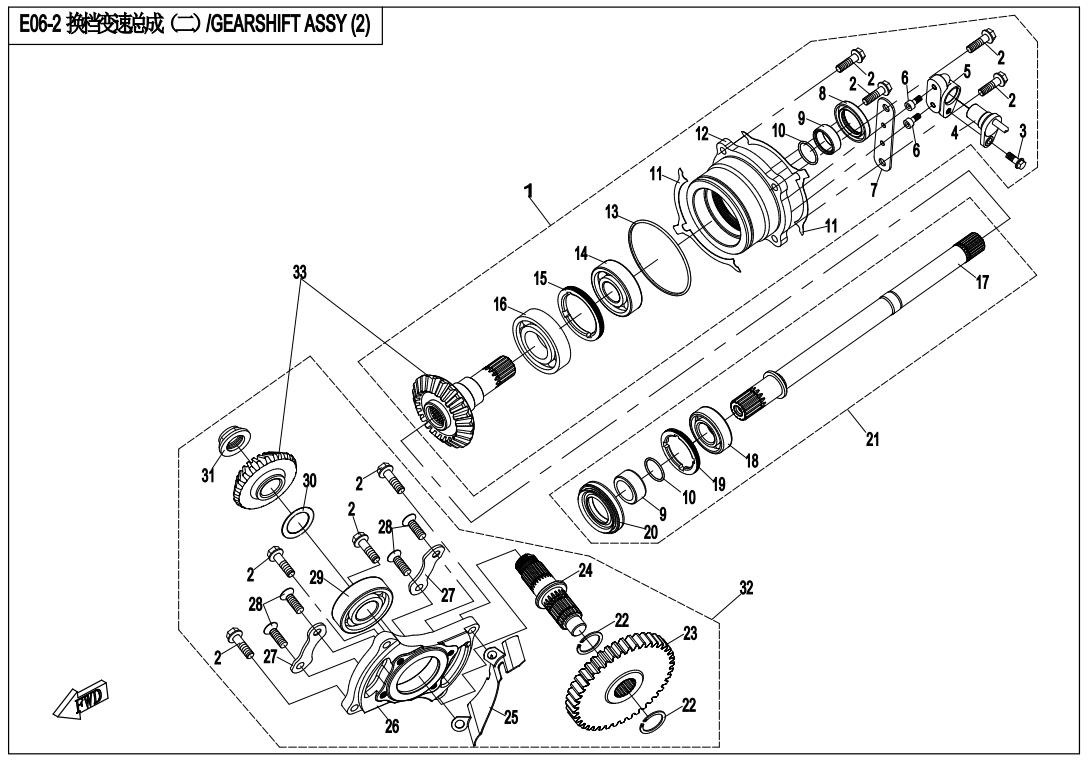

GEARSHIFT ASSY (2)
E06-3
GEARSHIFT ASSY(3)

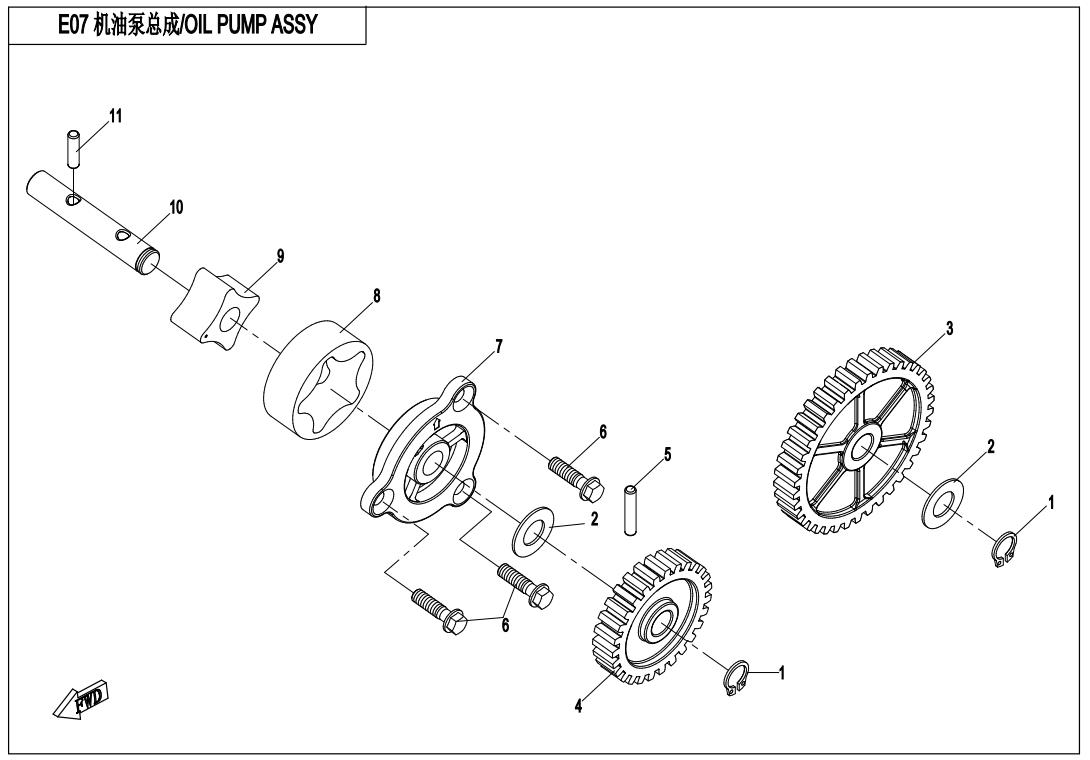

E07
OIL PUMP ASSY.
E08

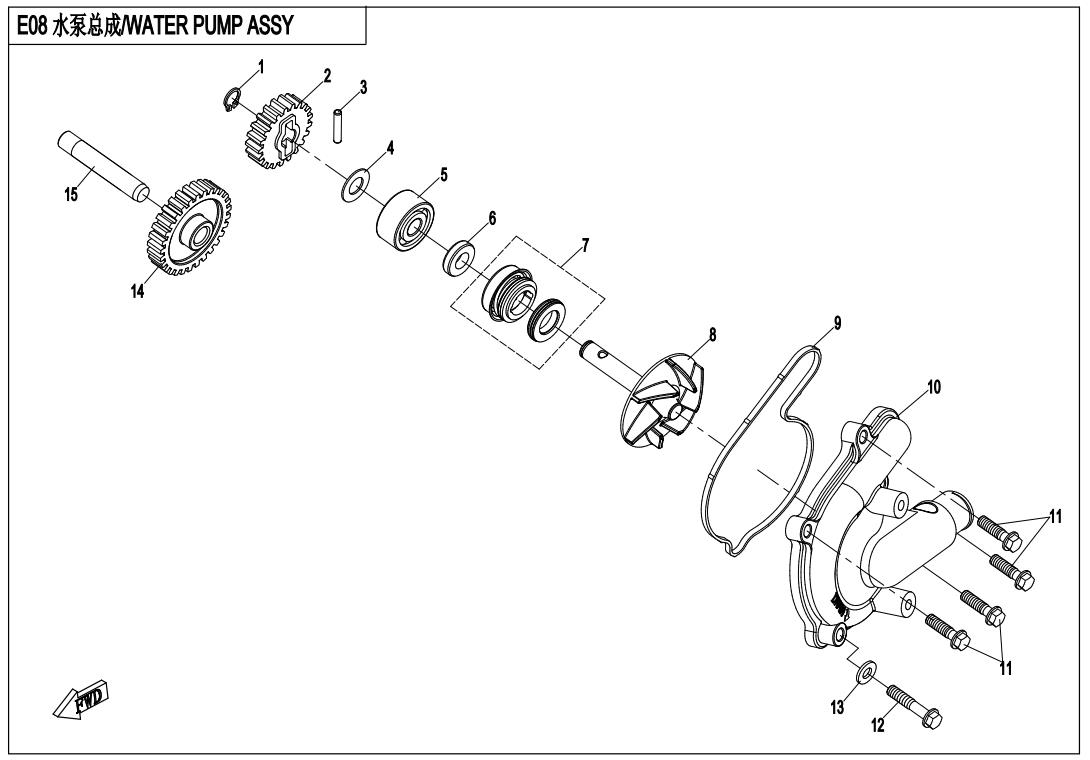

WATER PUMP ASSY.
E09

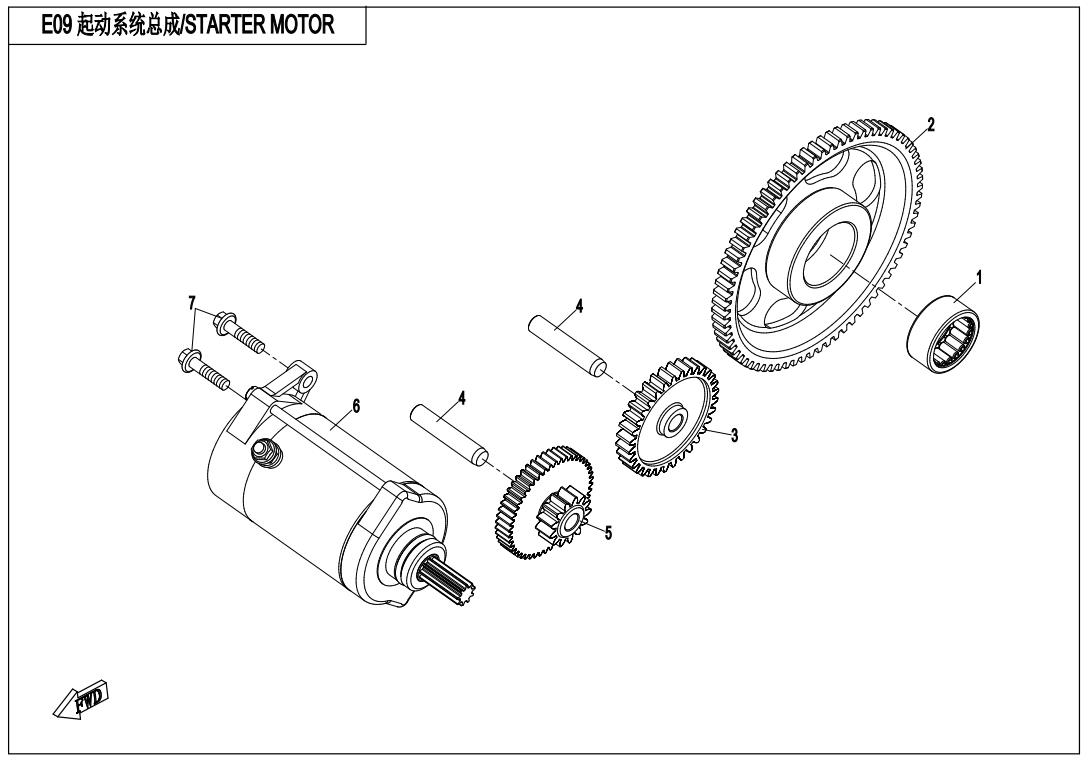

STARTER MOTOR
E11

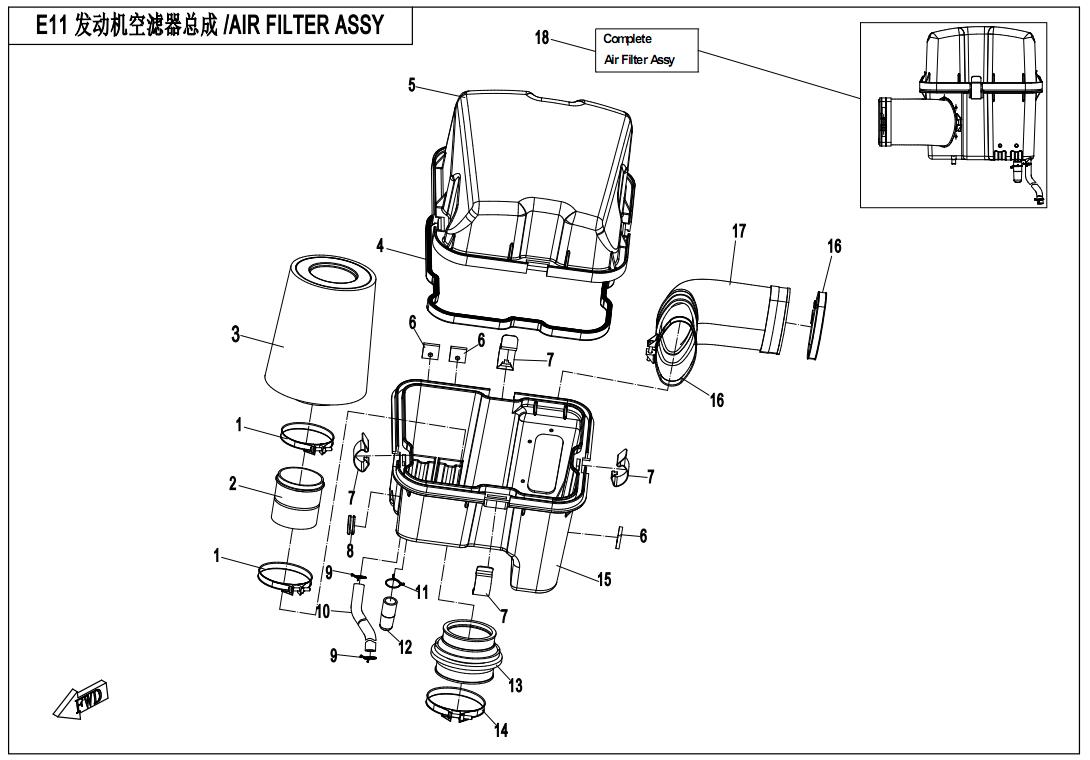

AIR FILTER ASSY.
E12

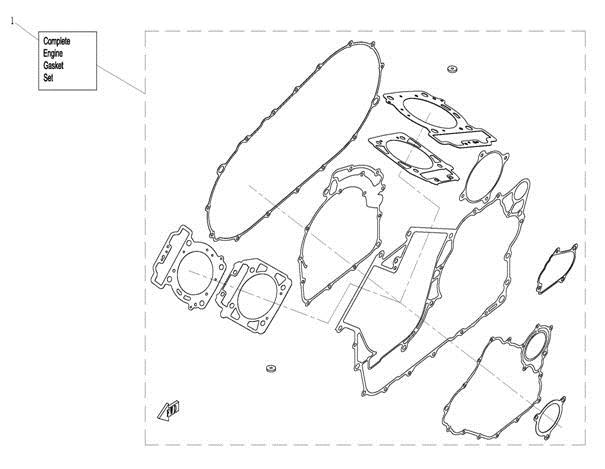

ENGINE GASKET SET

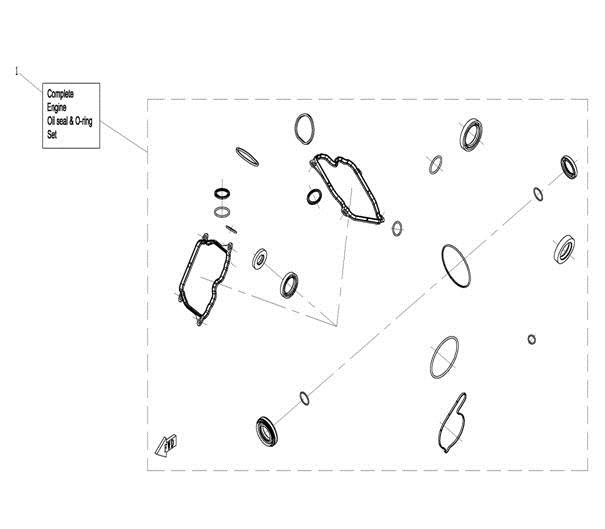

E13
ENGINE OIL SEAL &O-RING
E15

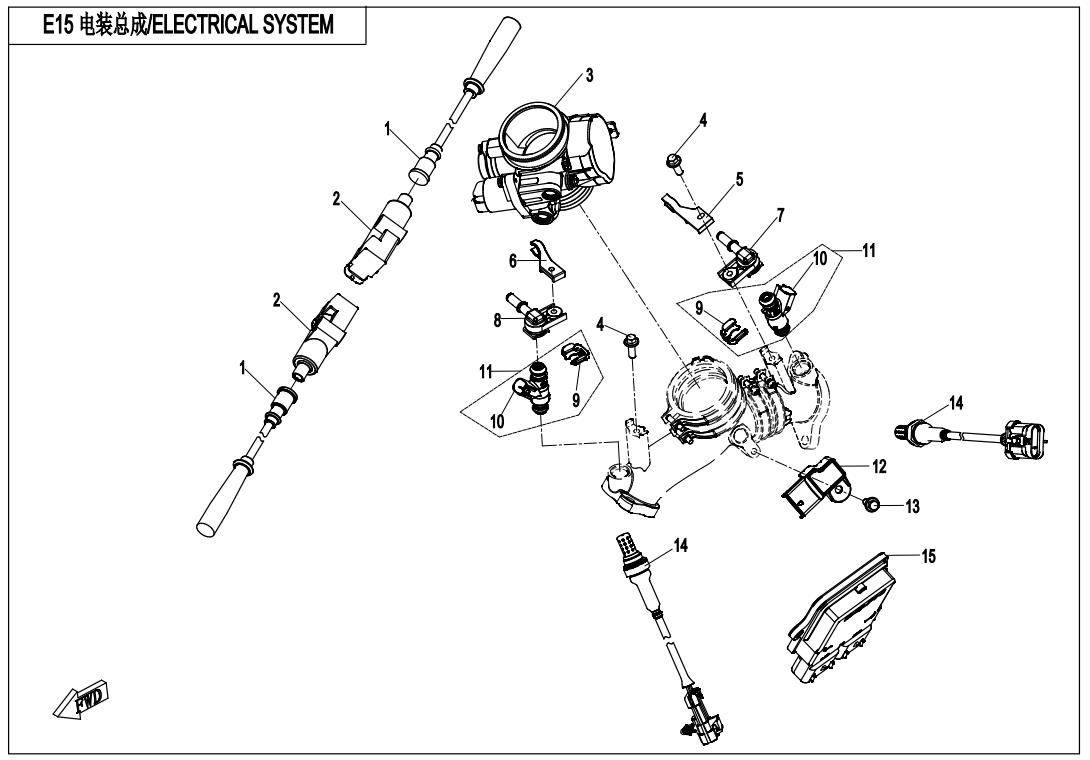

ELECTRICAL SYSTEM

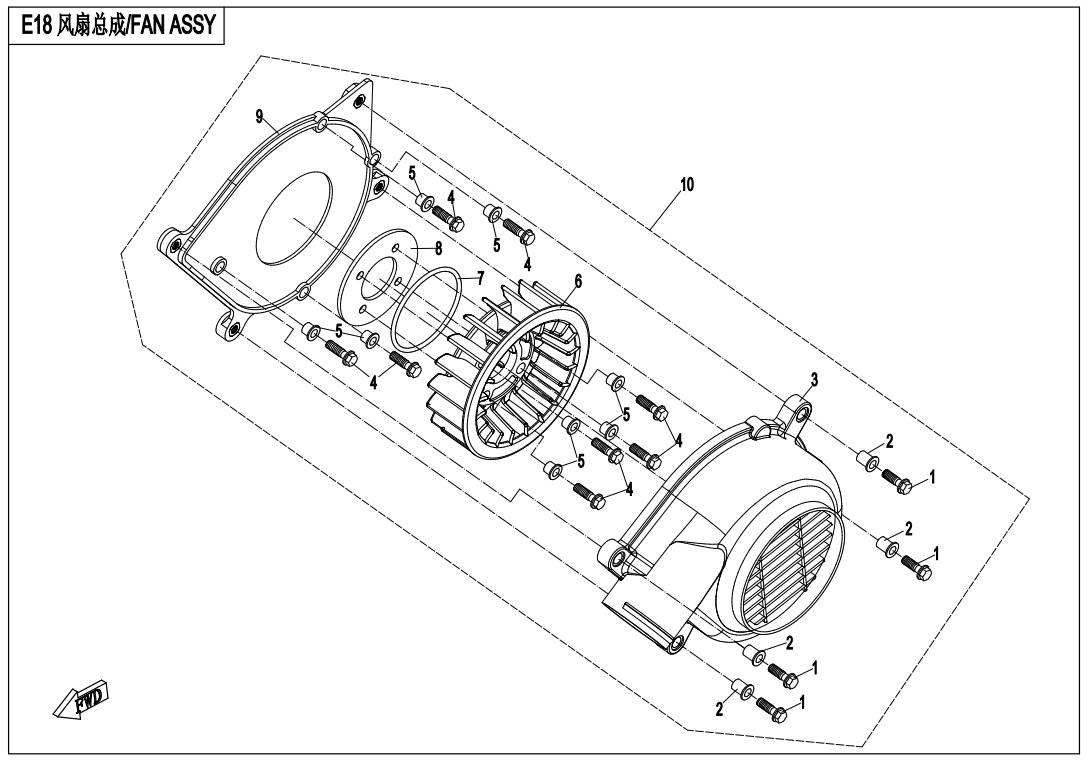

E18
