Genuine Parts Diagrams for 2023 ZFORCE 800 TRAIL - CF800SZ-2Change Model
Showing 75 parts diagrams.
F00-1
ENGINE MOUNTING PARTS
F00-2

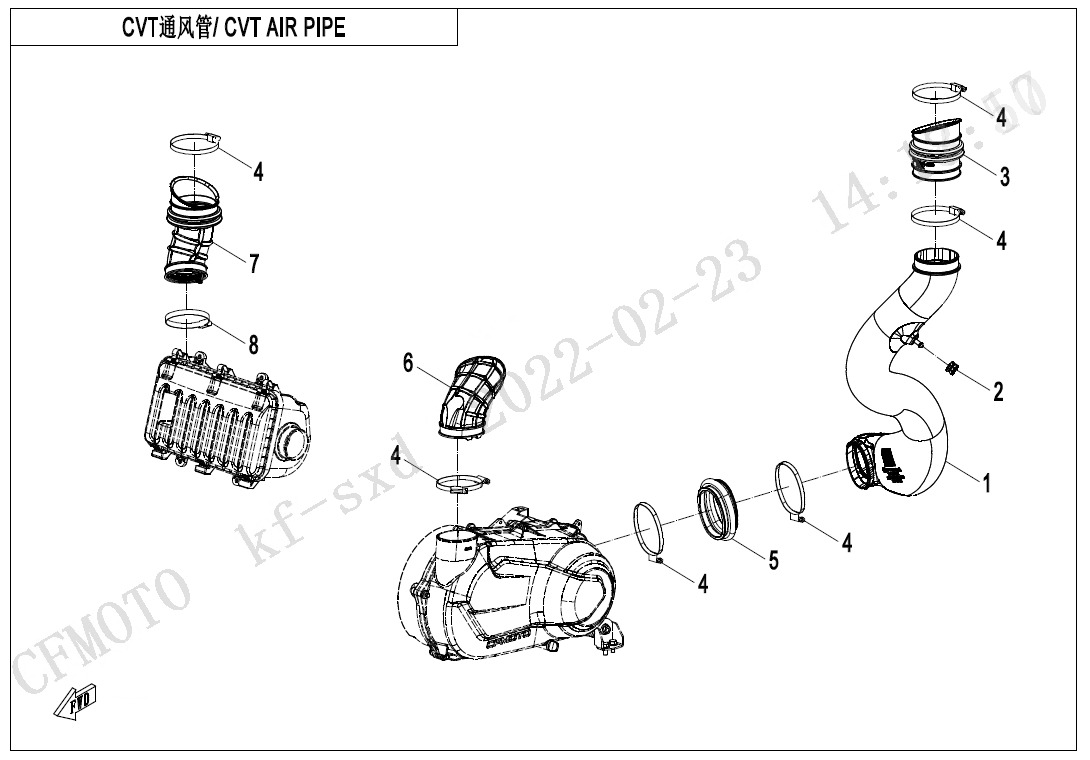

CVT AIR PIPE
F01

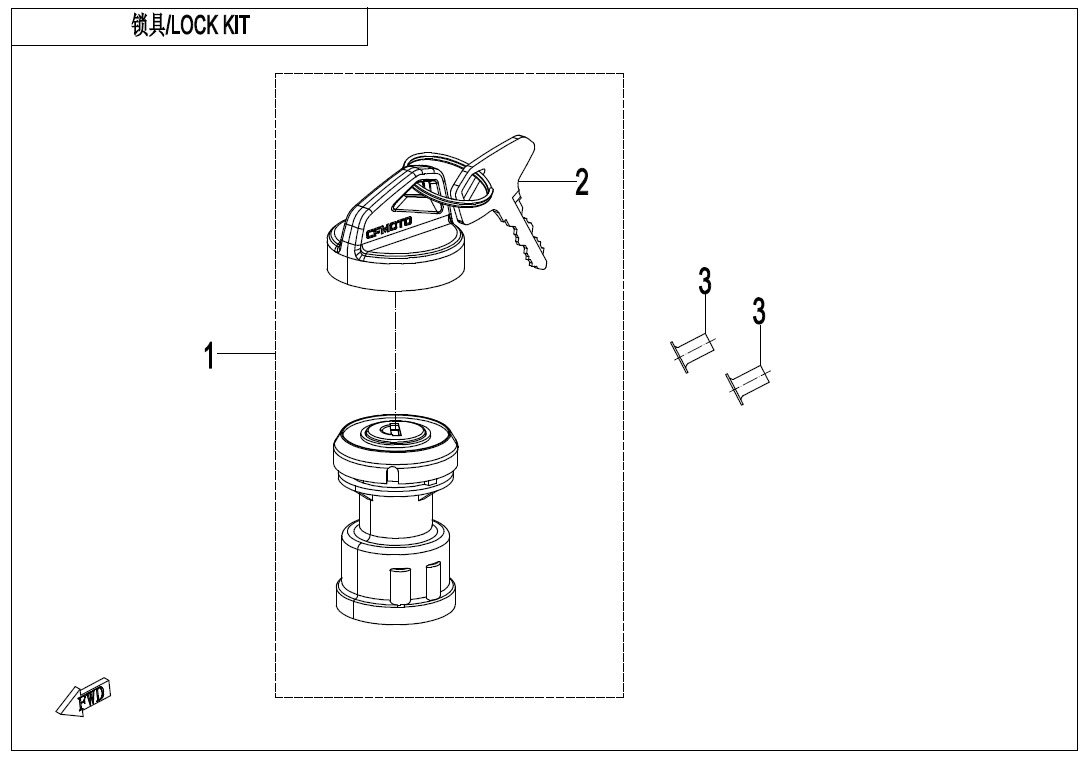

LOCK KIT
F02

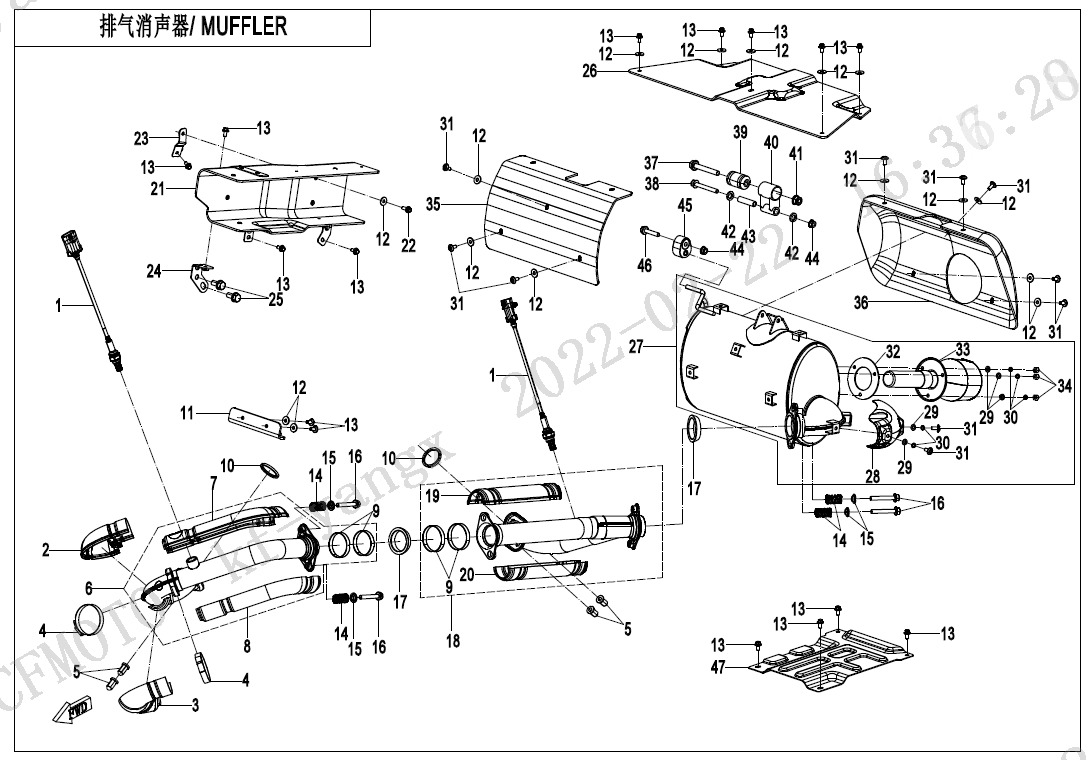

MUFFLER
F03

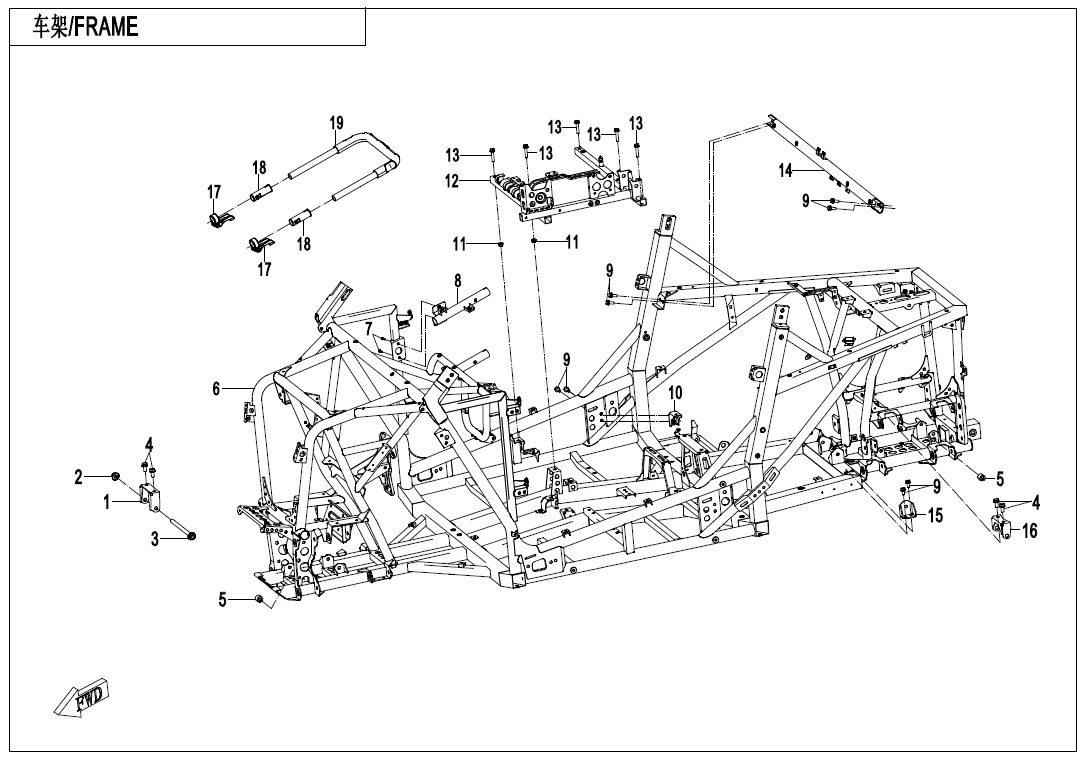

FRAM
F04-1

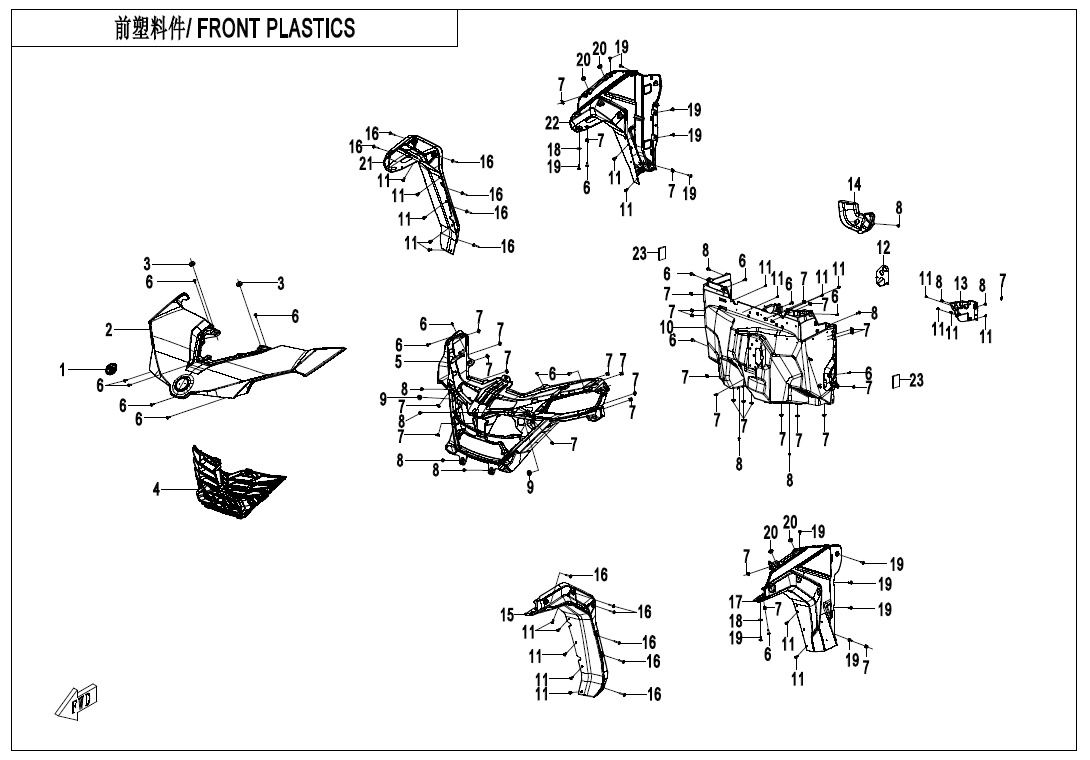

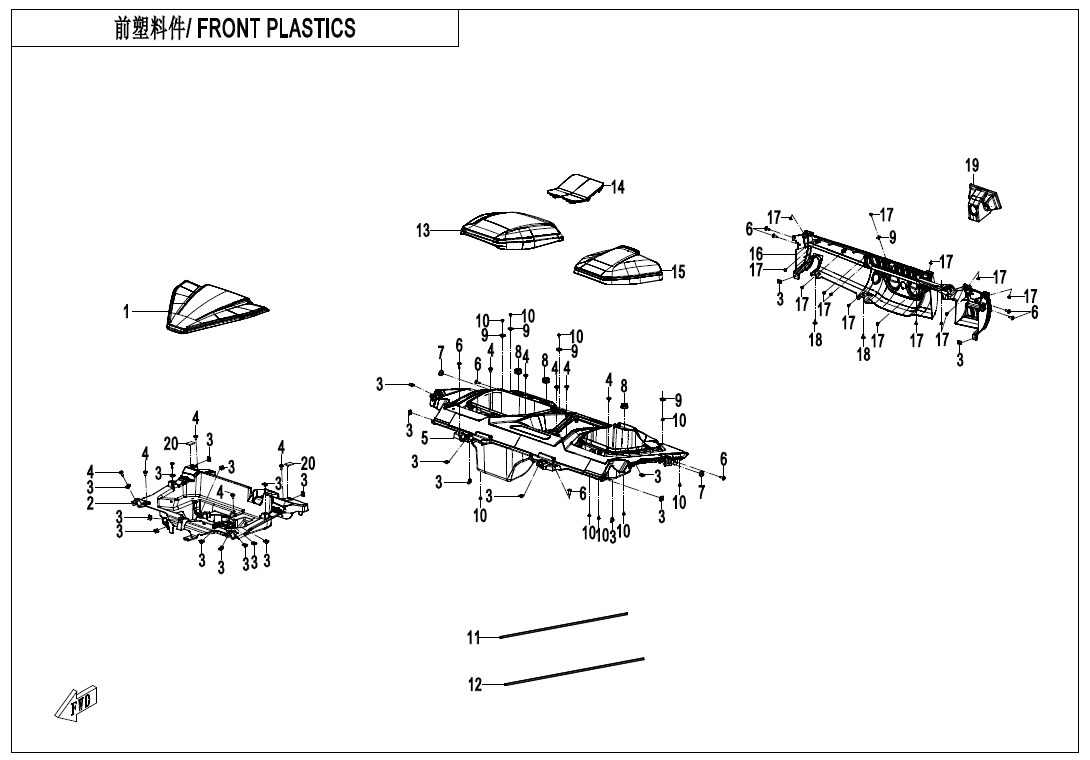

FRONT PLASTICS
F04-2
FRONT PLASTICS
F04-3

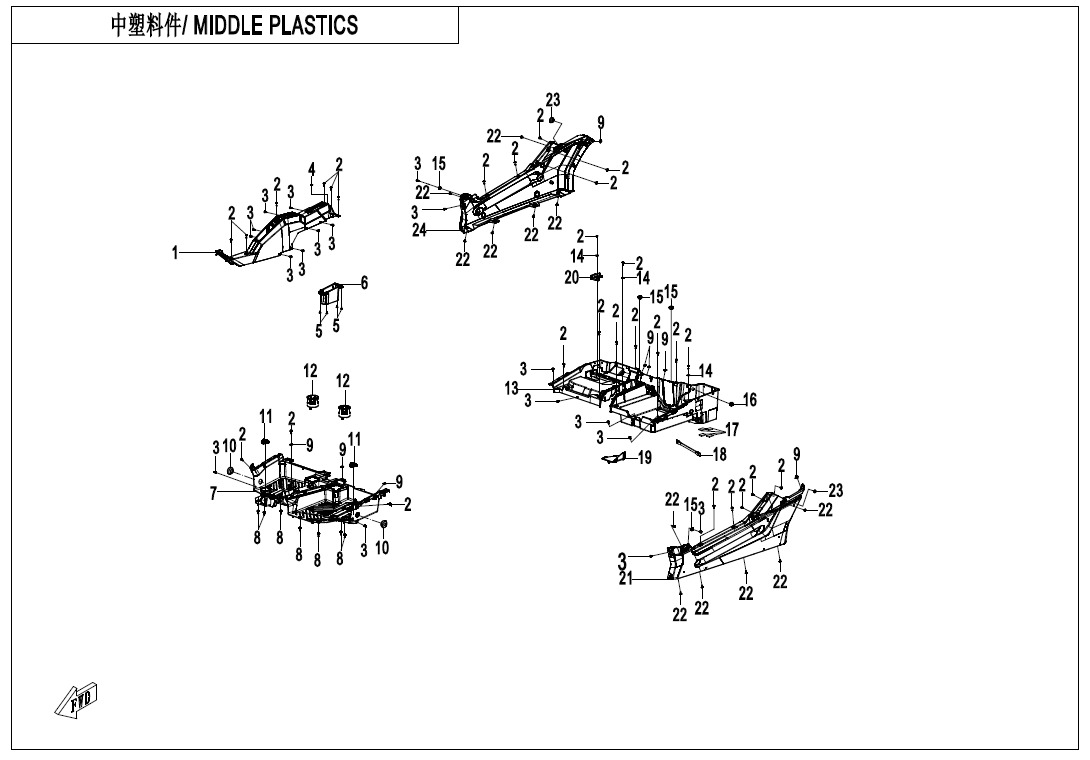

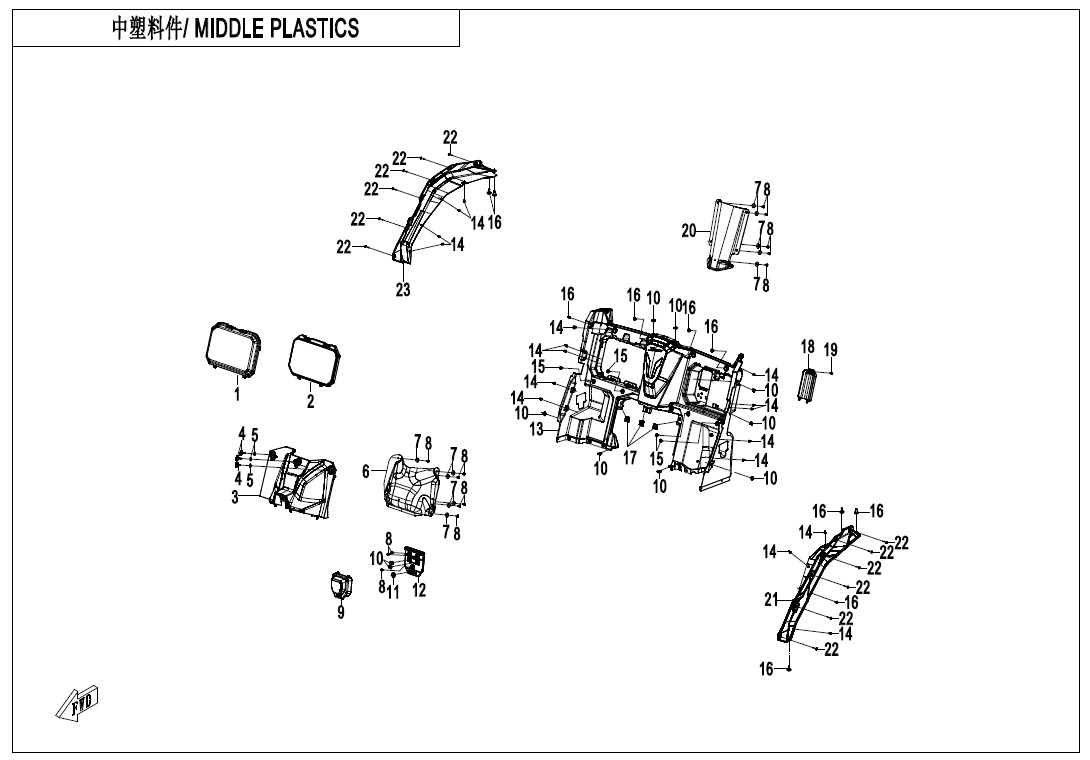

MIDDLE PLASTICS
F04-4
MIDDLE PLASTICS
F04-5

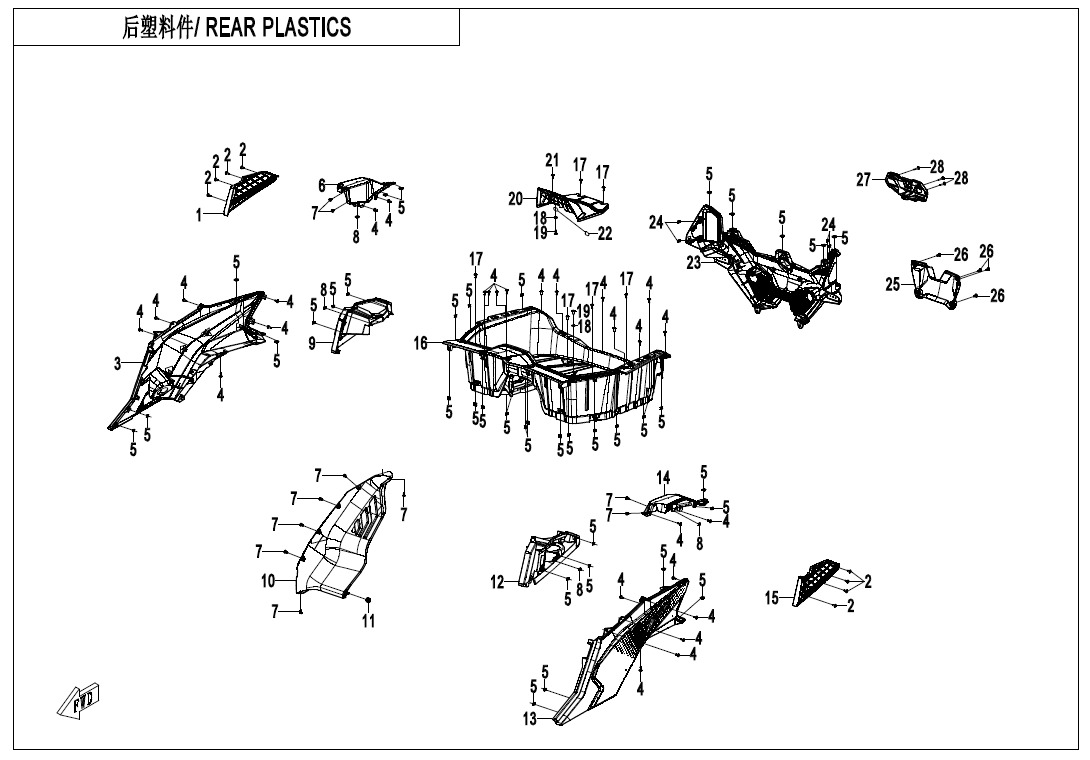

REAR PLASTICS
F04-6

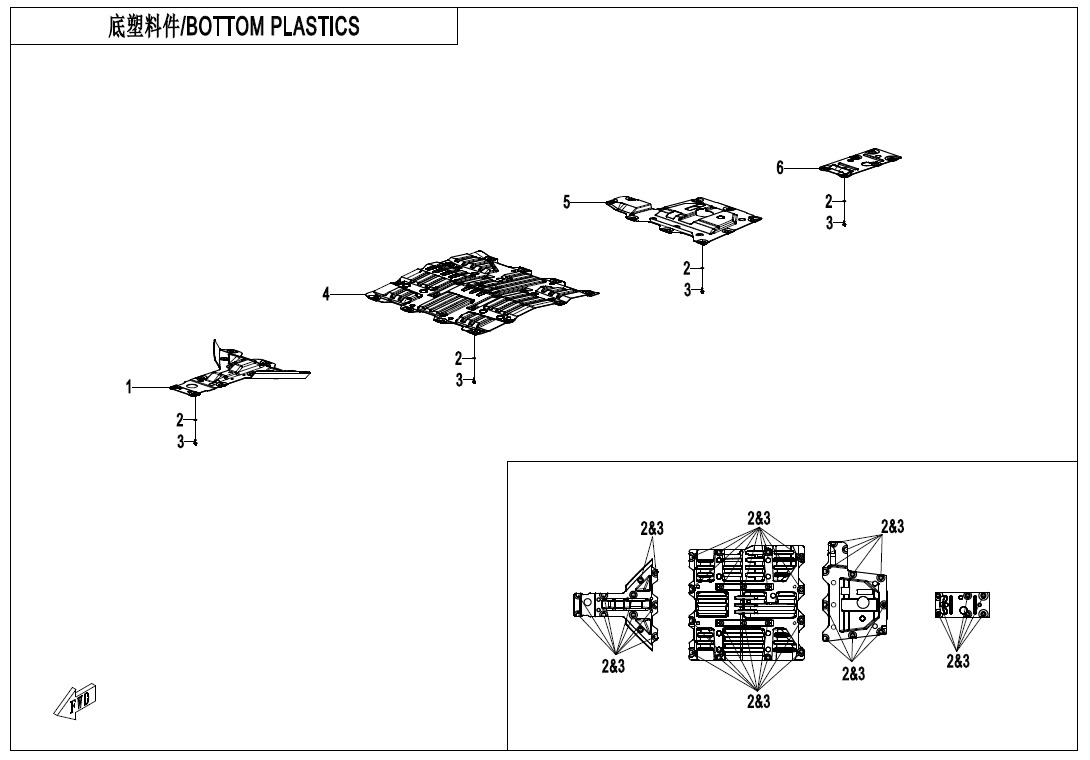

BOTTOM PLASTICS
F05-1

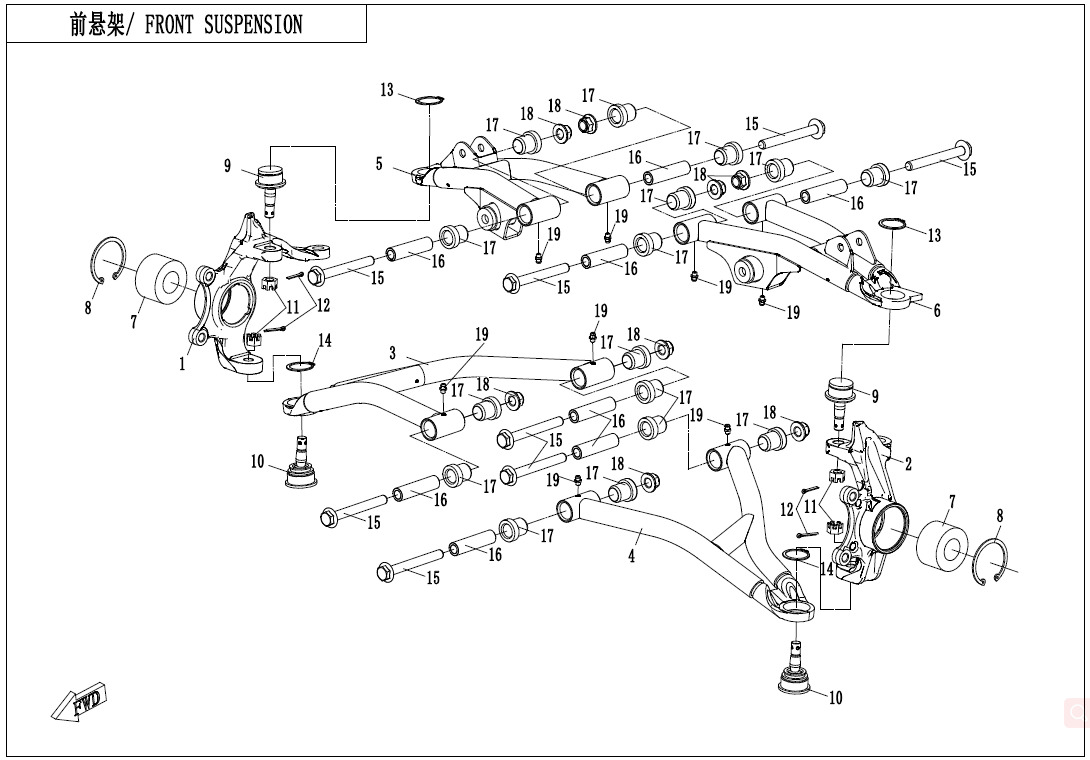

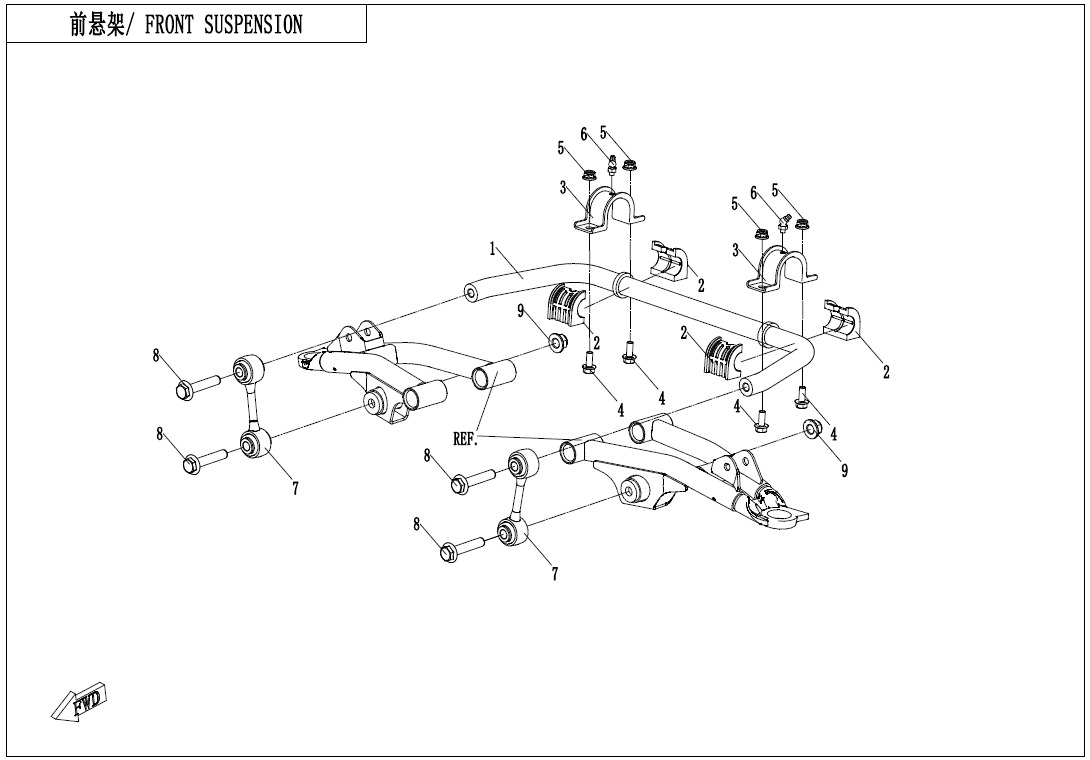

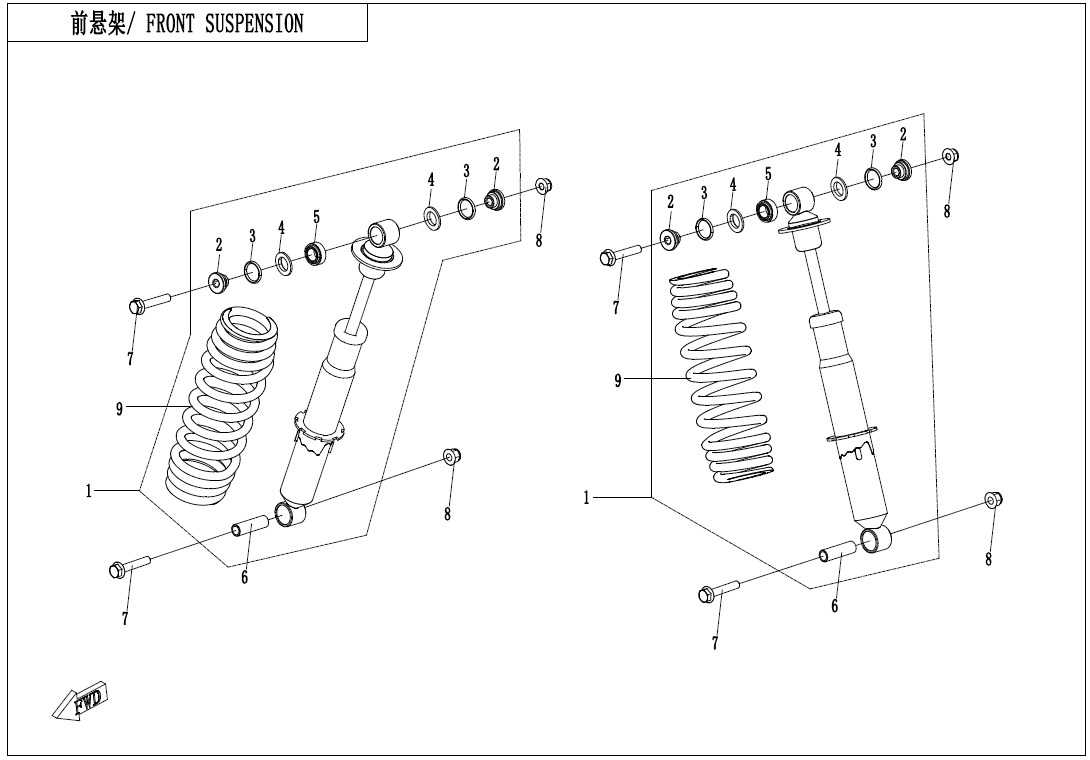

FRONT SUSPENSION
F05-2
FRONT SHOCK ABSORBER
F05-3
FRONT SUSPENSION
F06-1

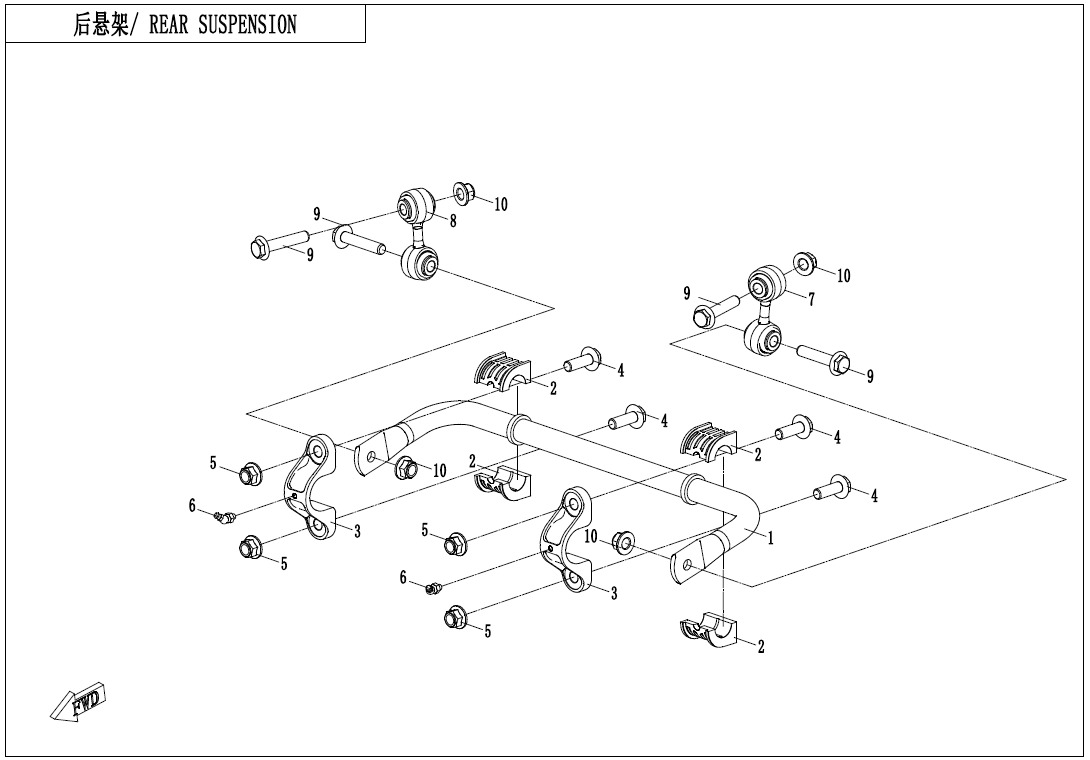

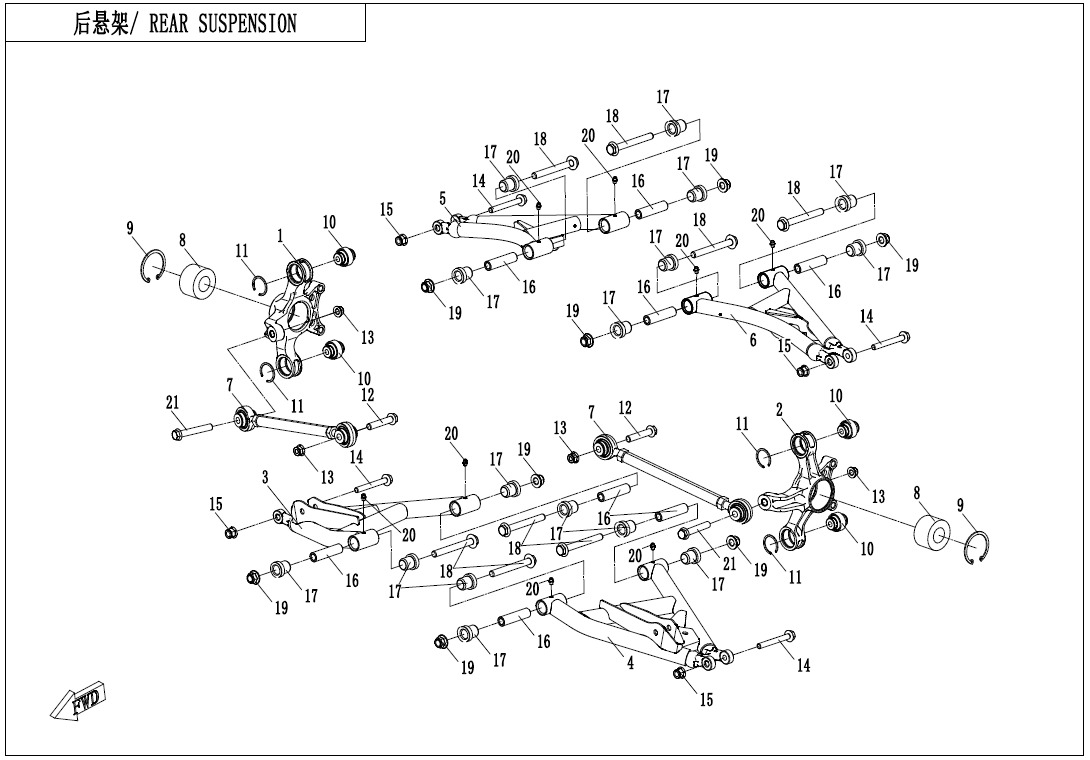

REAR SUSPENSION
F06-2
REAR SHOCK ABSORBER
F06-3
REAR SUSPENSION
F07

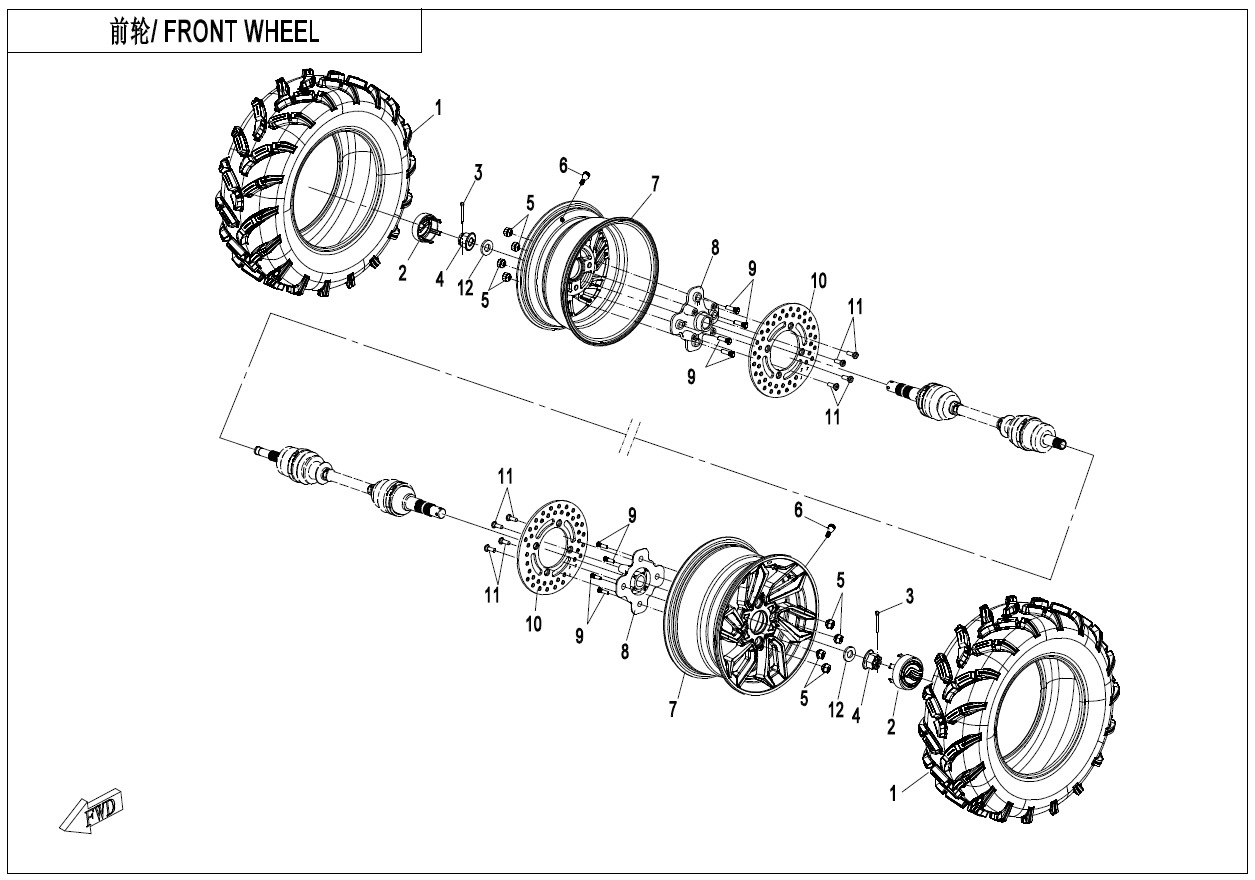

FRONT WHEEL
F08

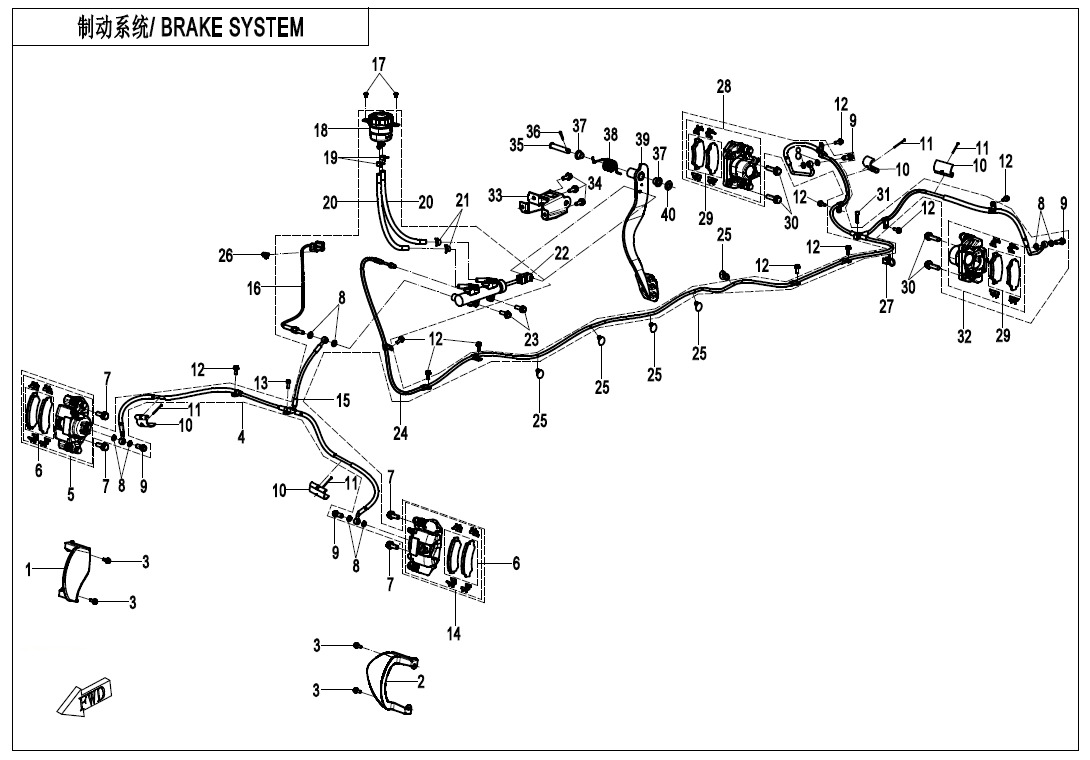

BRAKE SYSTEM
F10

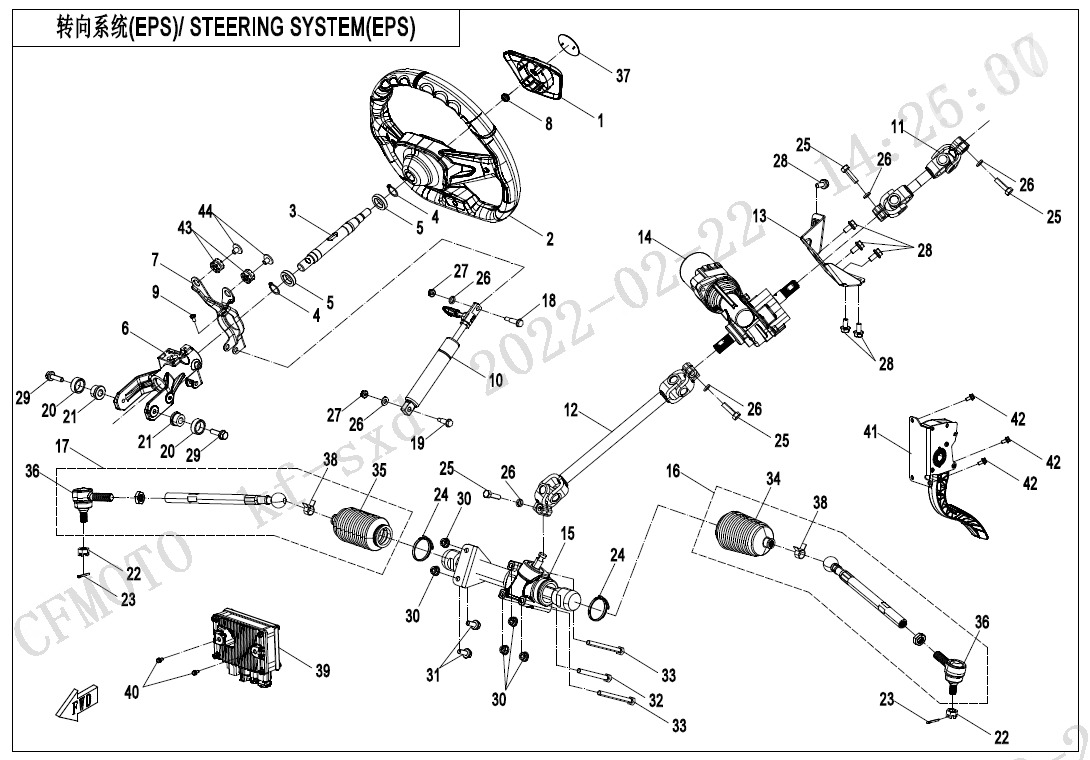

STEERING SYSTEM(EPS)
F11
REAR WHEEL
F12
FUEL TANK
F13

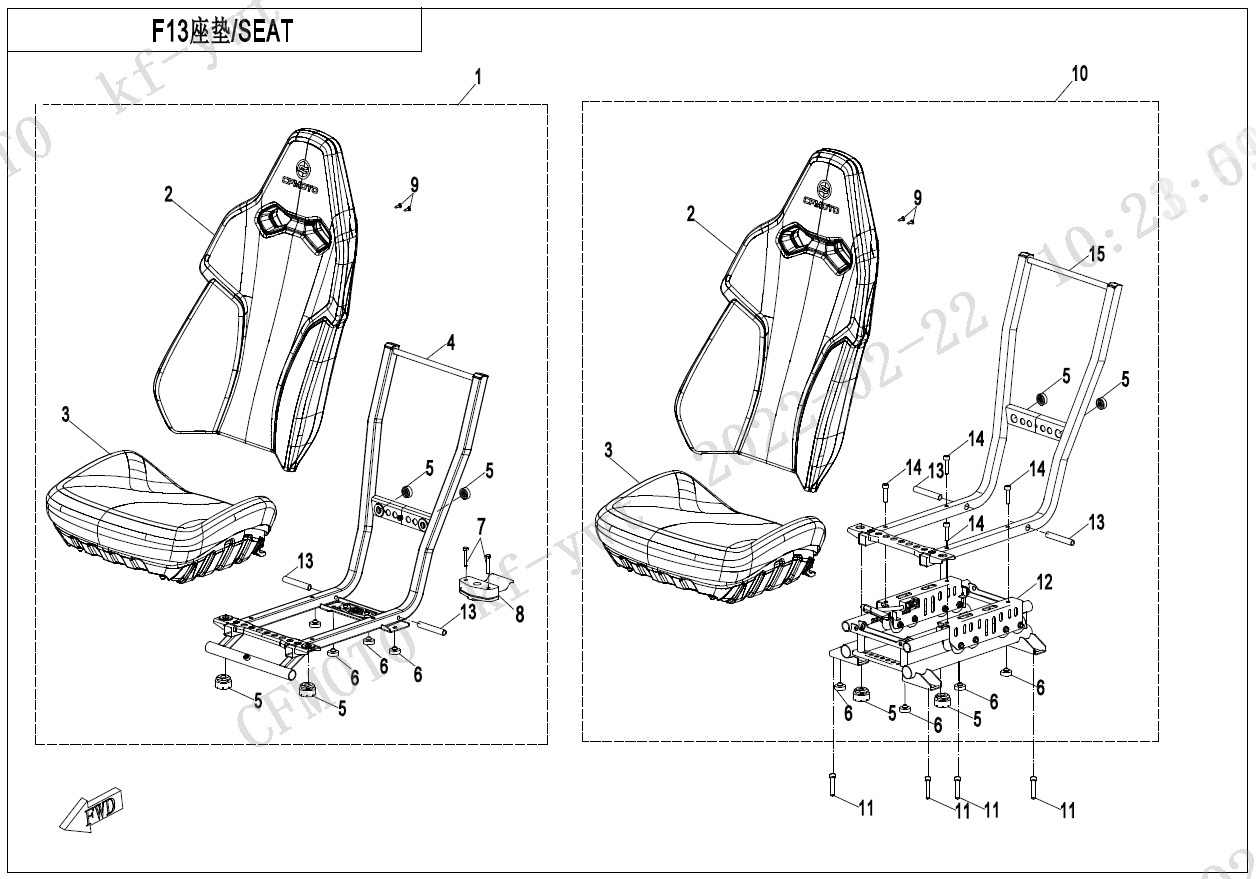

SEAT
F15-1-V1

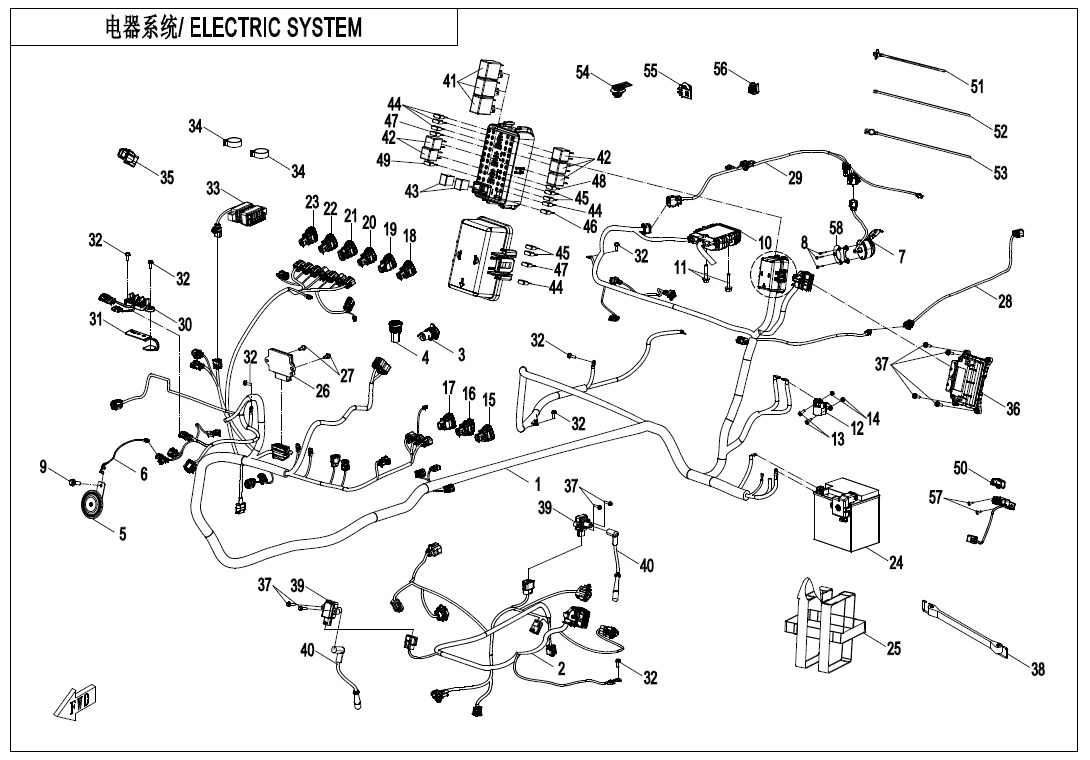

ELECTRIC SYSTEM
F15-1-V2
ELECTRIC SYSTEM
F15-2-V1

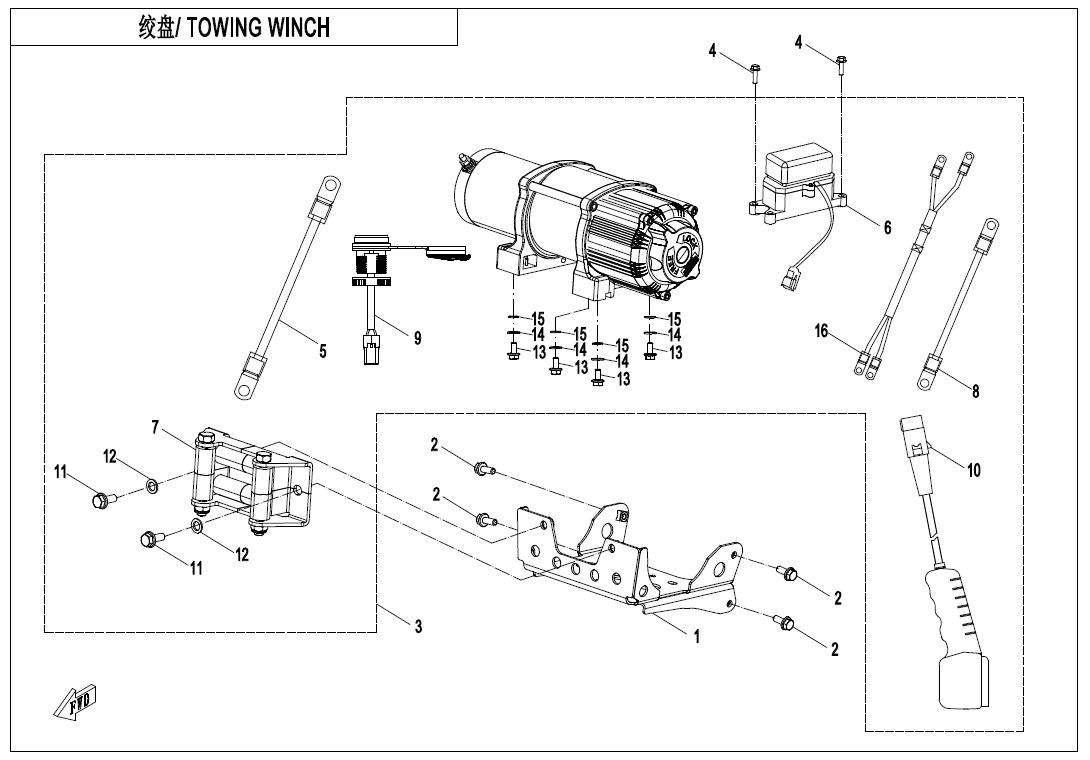

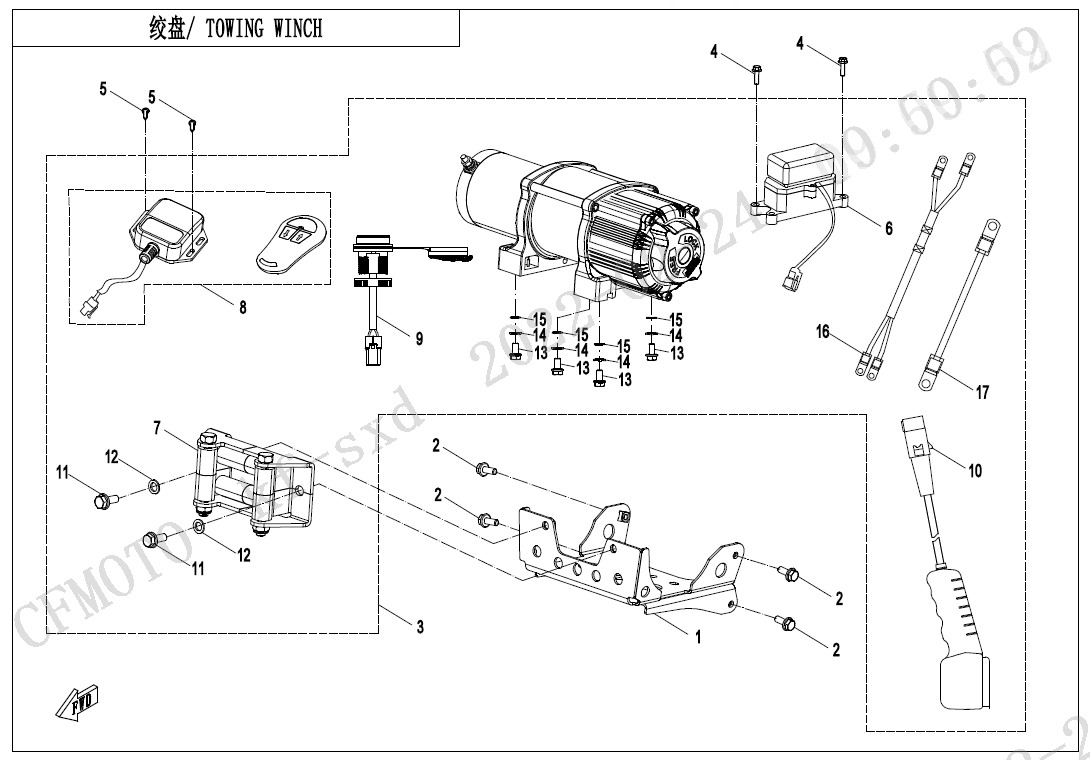

TOWING WINCH
F15-2-V2
TOWING WINCH
F15-3

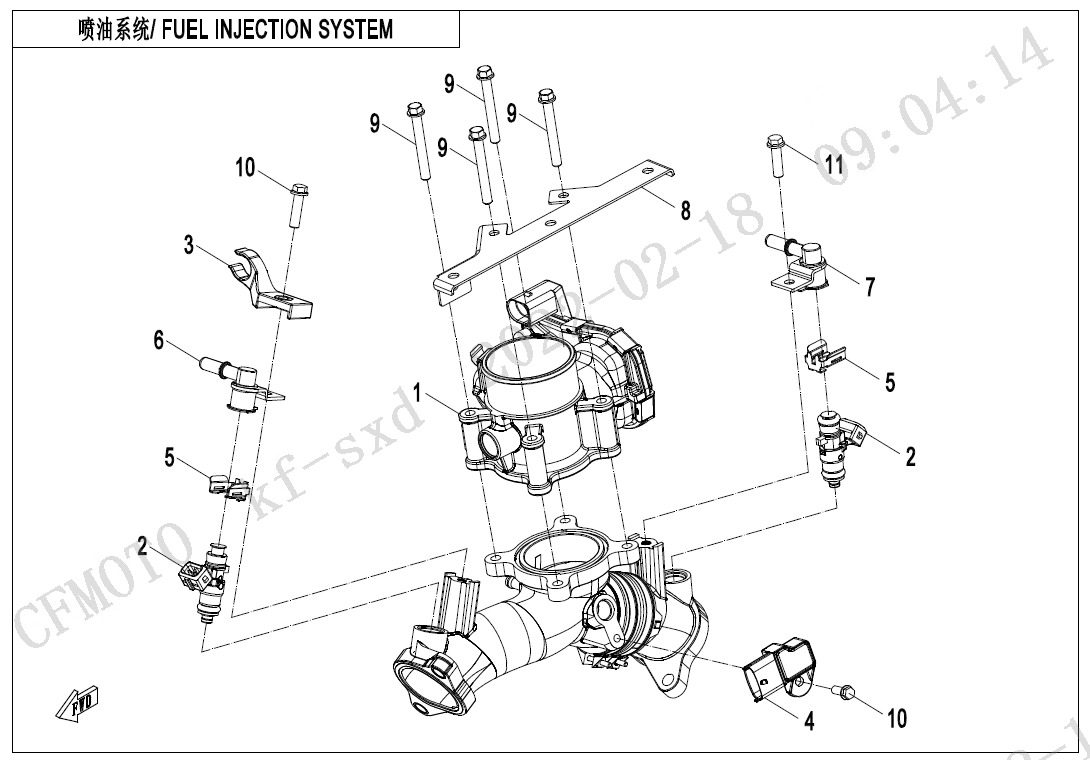

FUEL INJECTION SYSTEM
F16

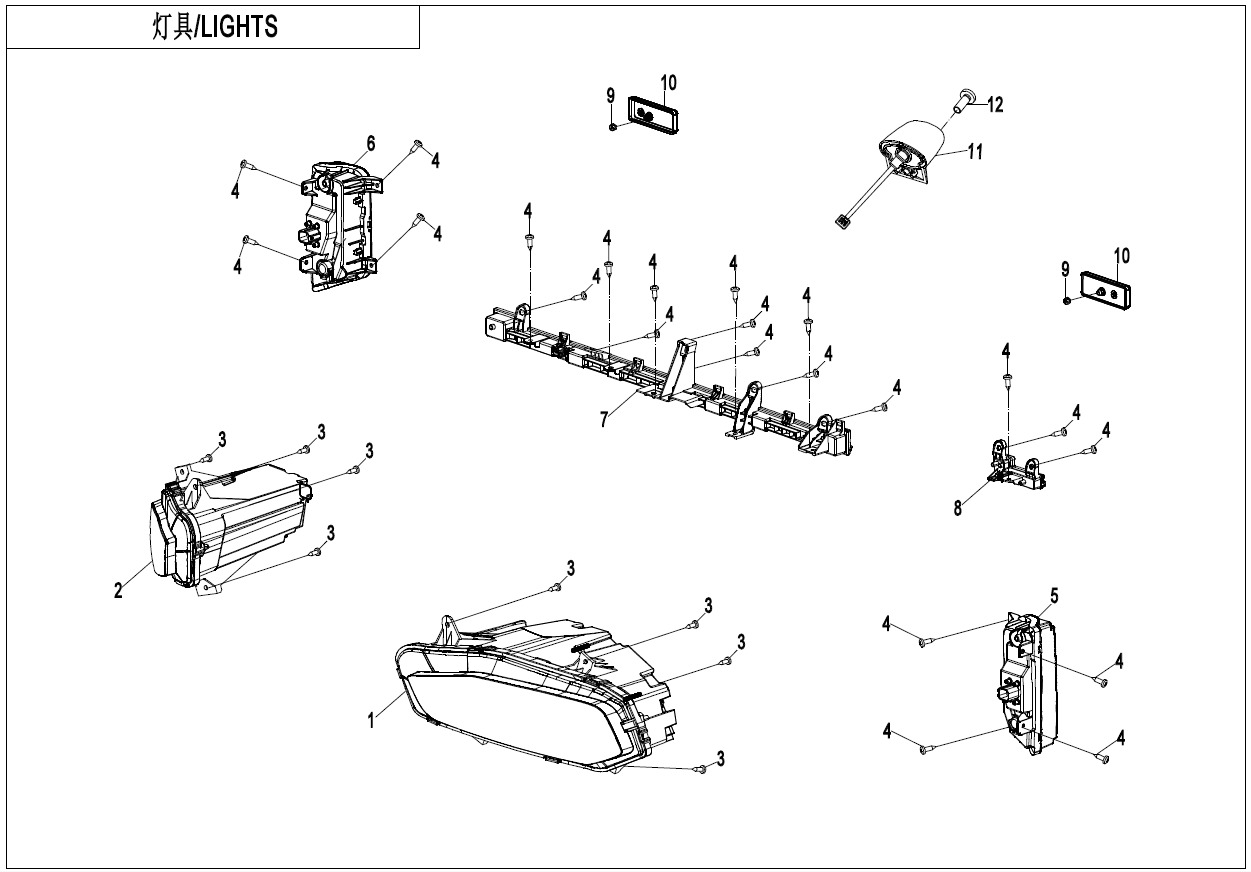

LIGHTS
F17

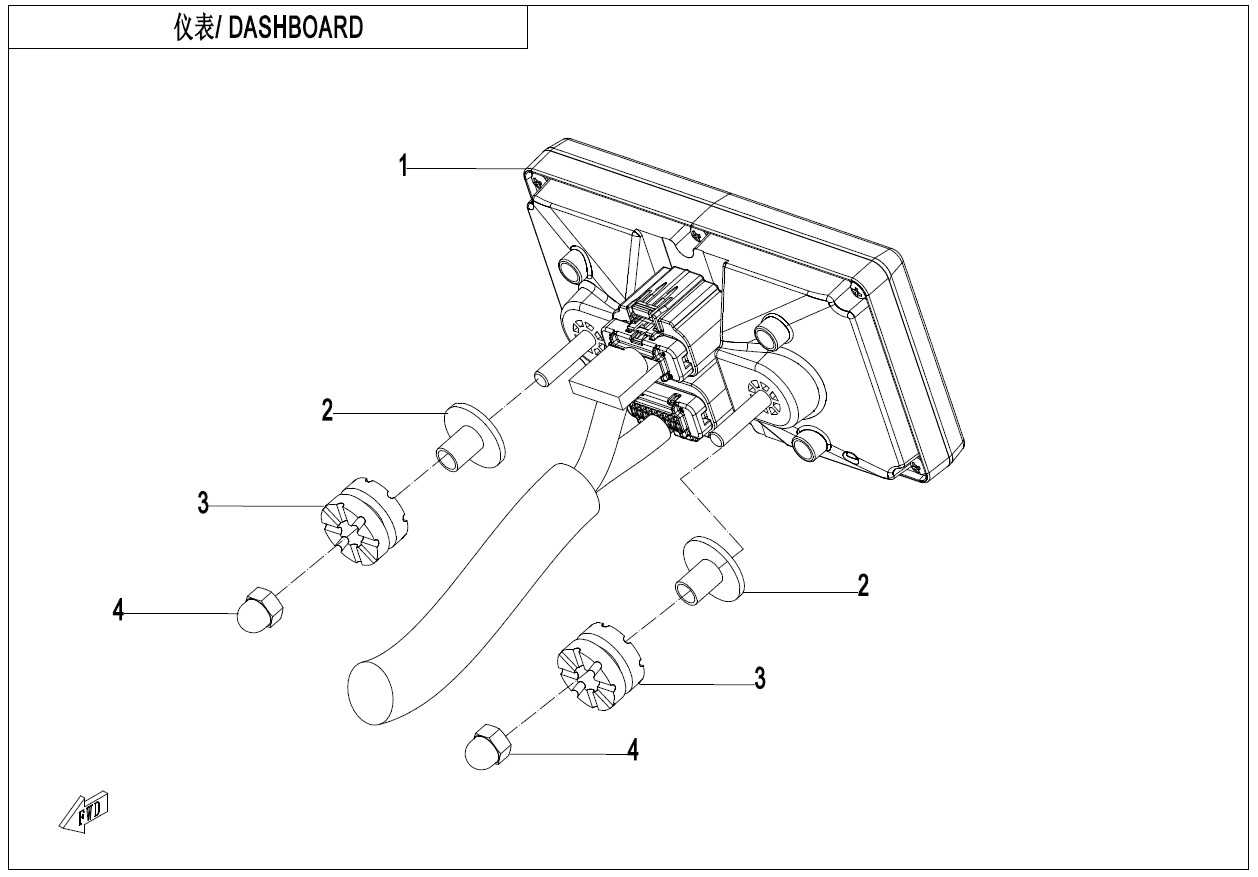

DASHBOARD
F18

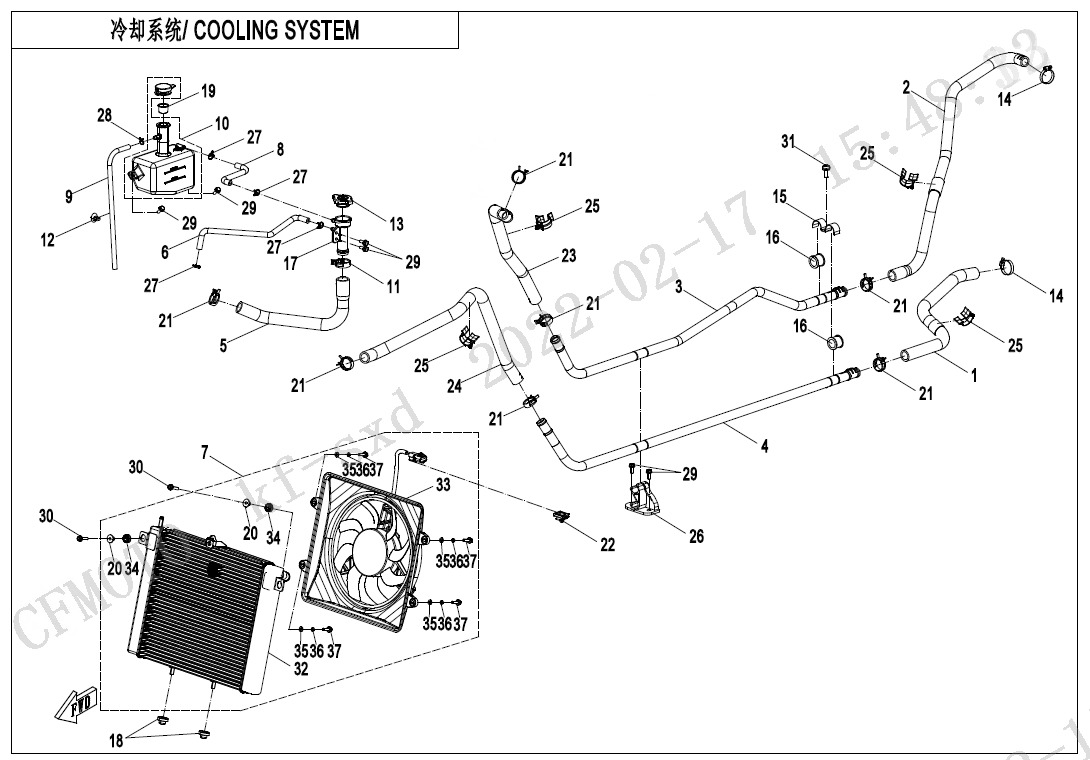

COOLING SYSTEM
F19-1-B

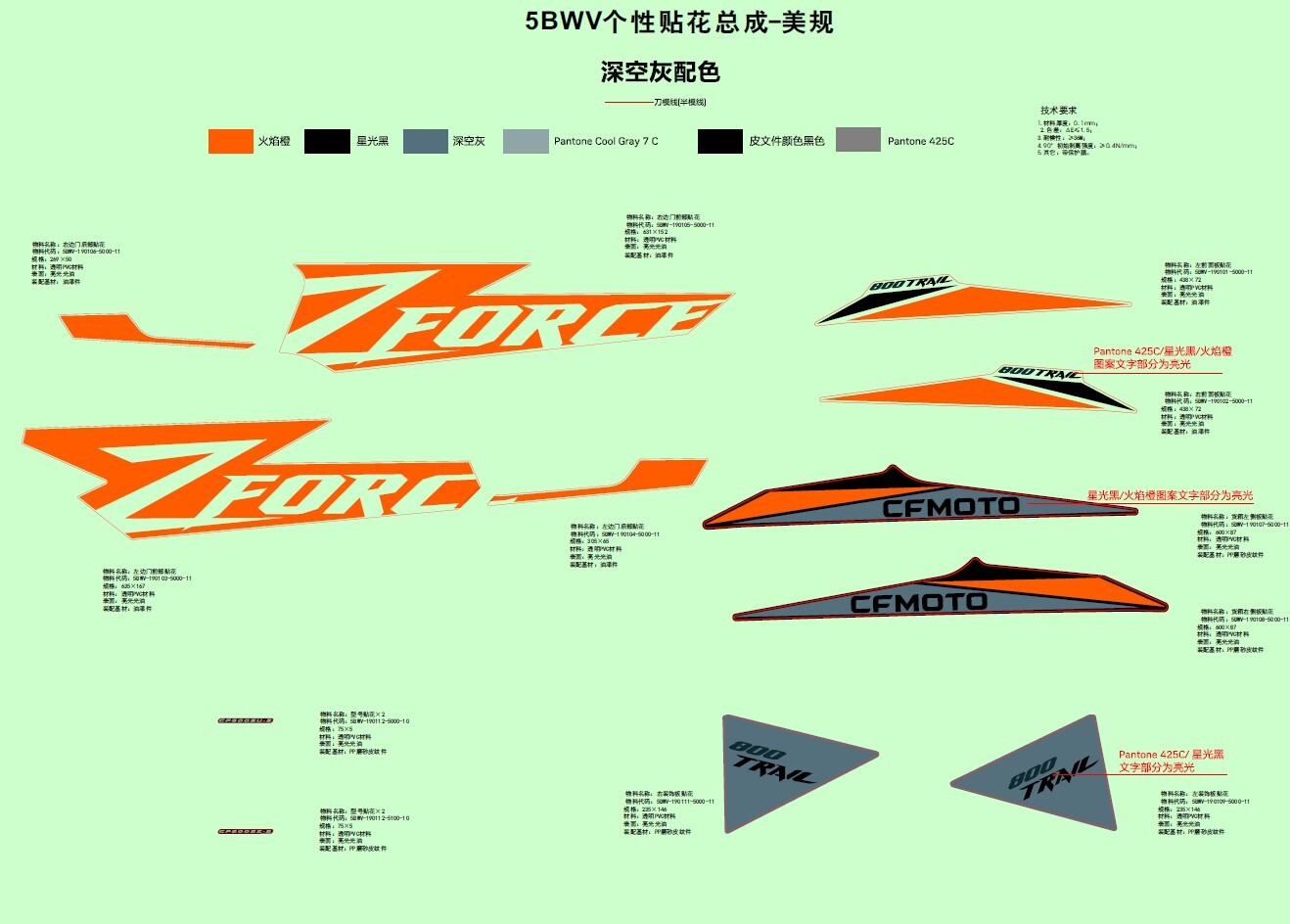

DECAL(GALAXY GREY)
F19-2-A
WARNING LABEL
F19-3
REFLECTOR
F19-4-V1

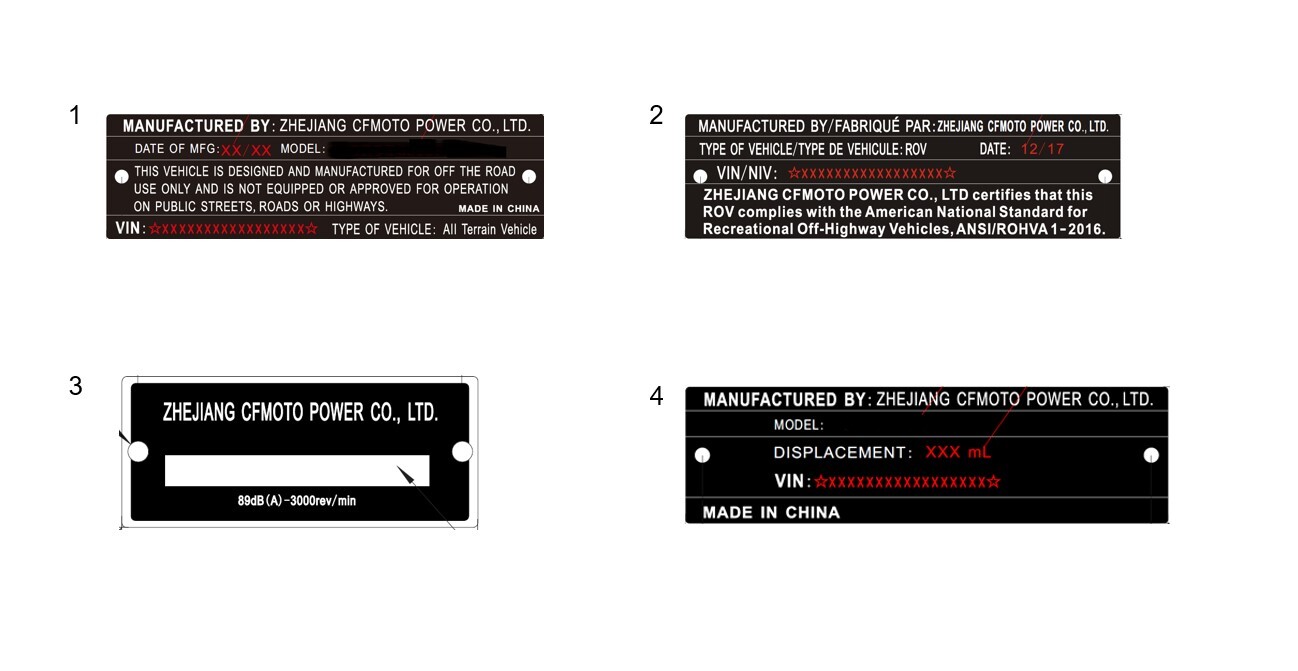

VEHICLE PLATE
F19-4-V2
VEHICLE PLATE
F20

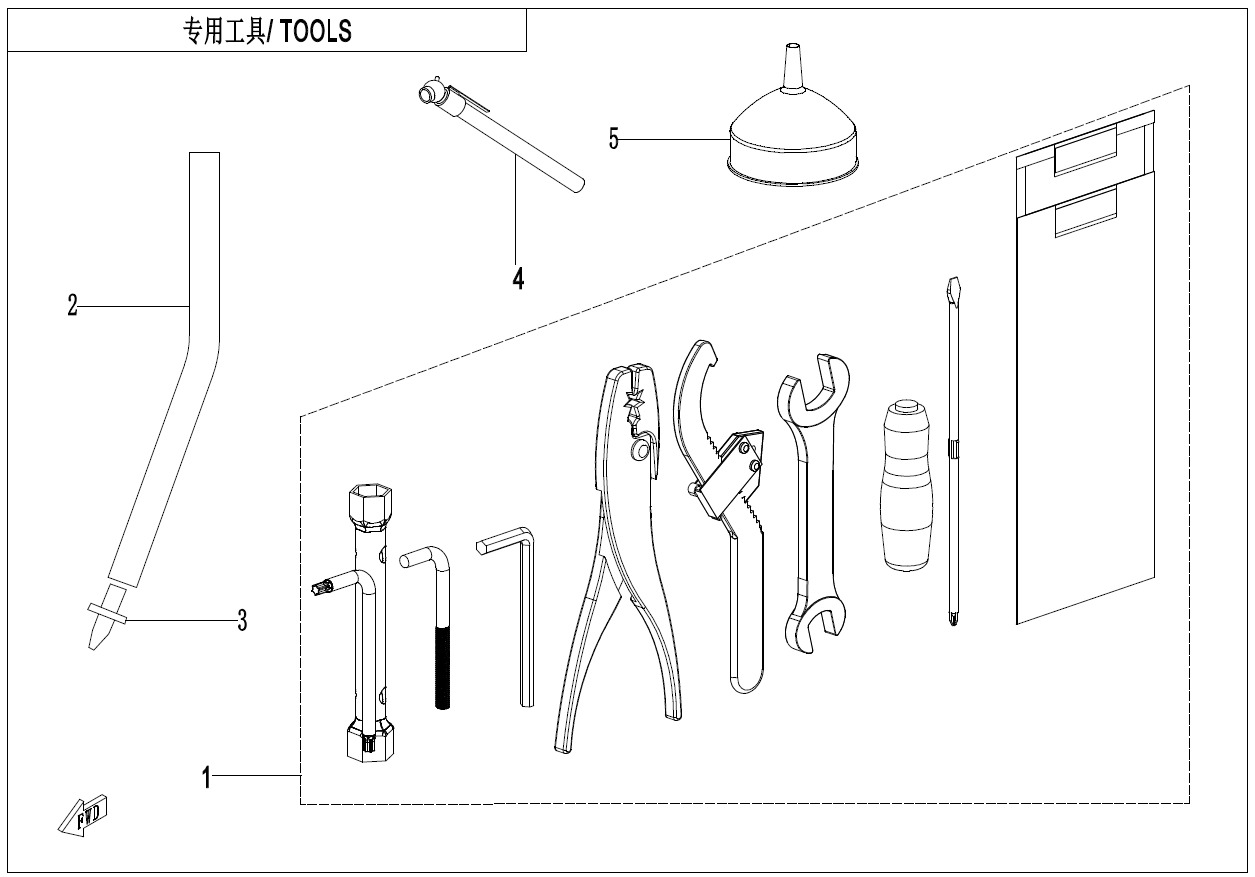

TOOLS
F23

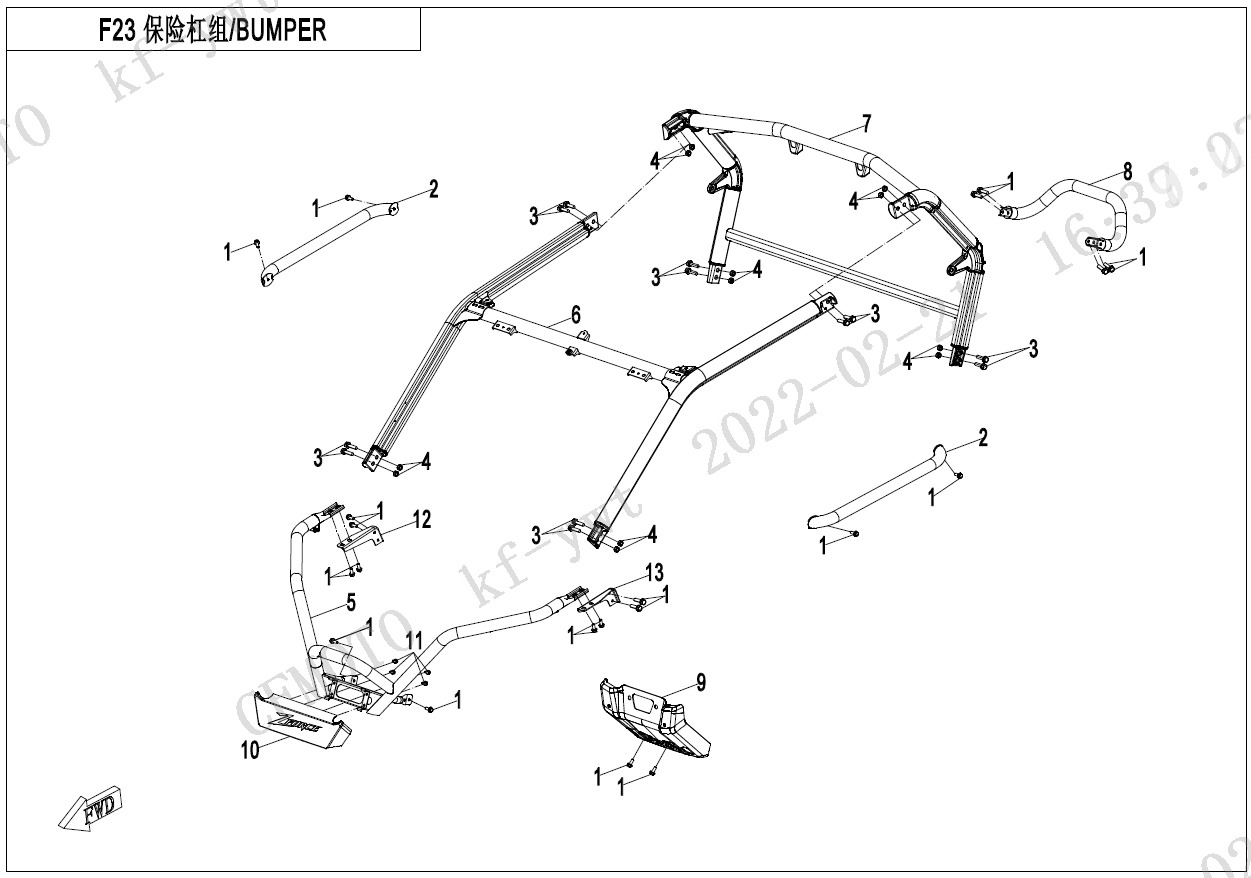

BUMPER
F26-1

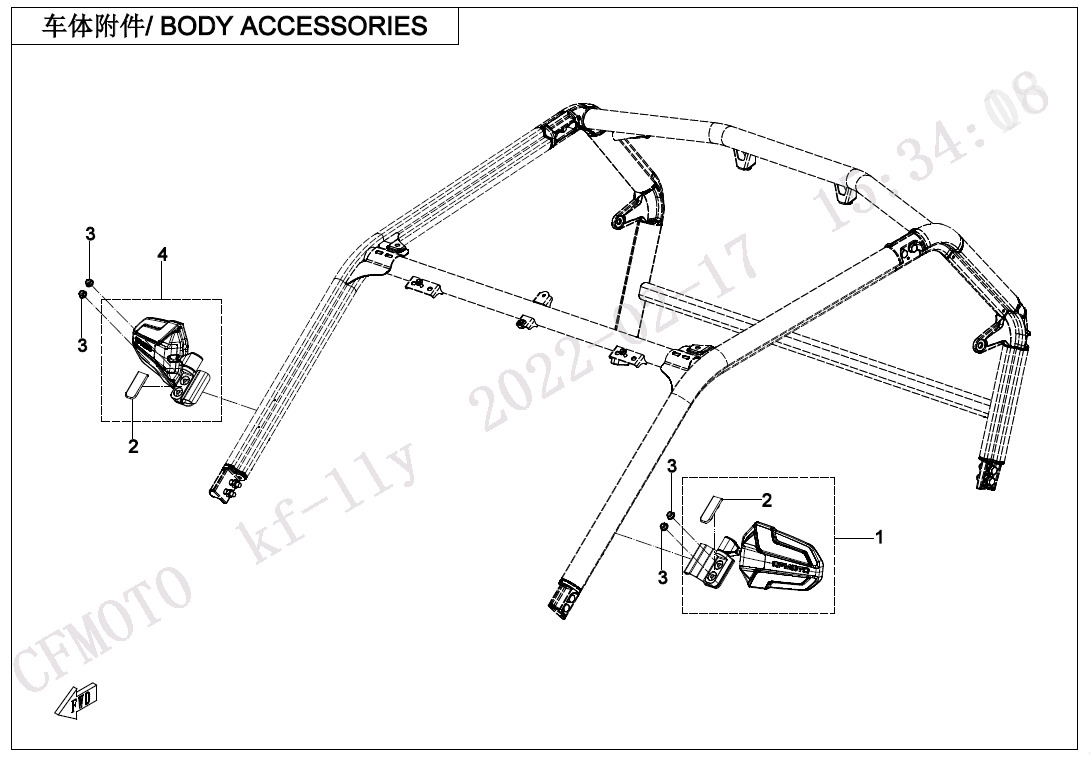

BODY ACCESSORIES
F26-2-V2

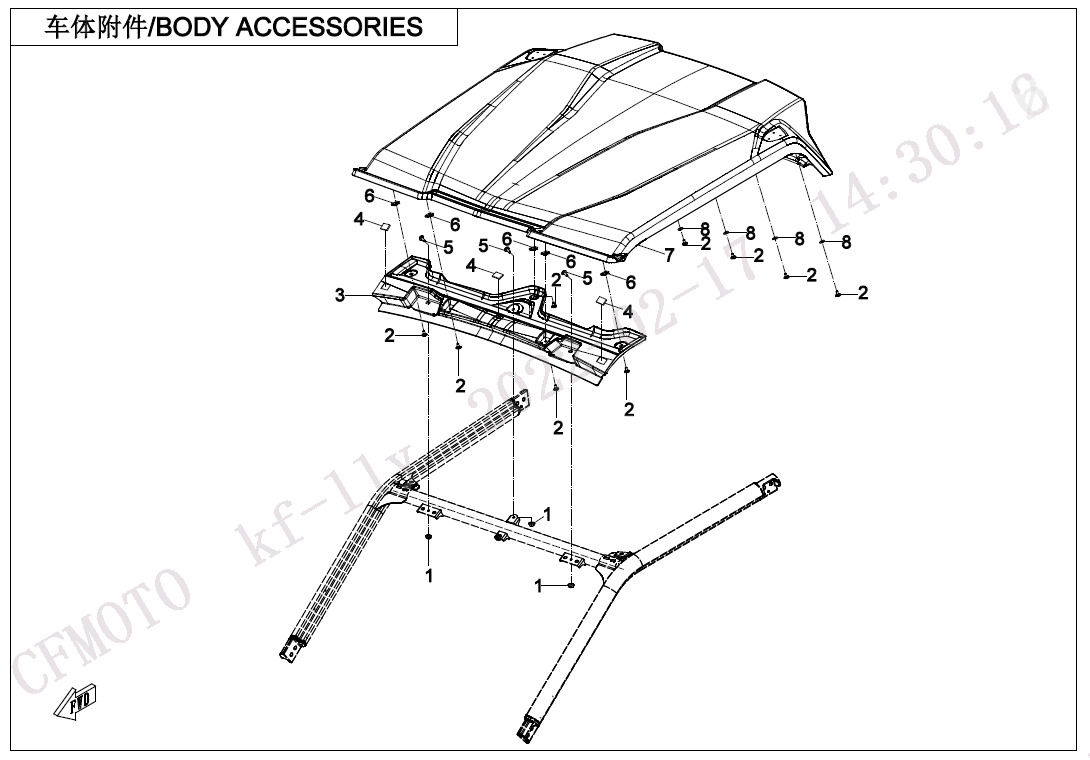

BODY ACCESSORIES
F27

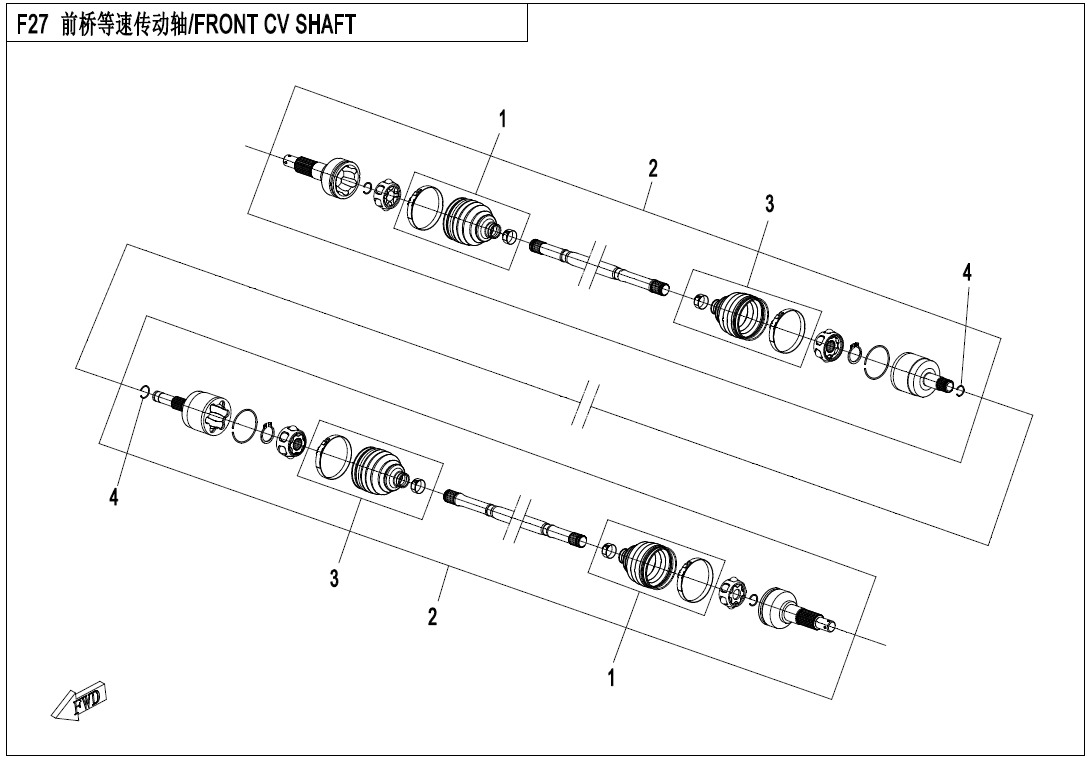

FRONT CV SHAFT
F28

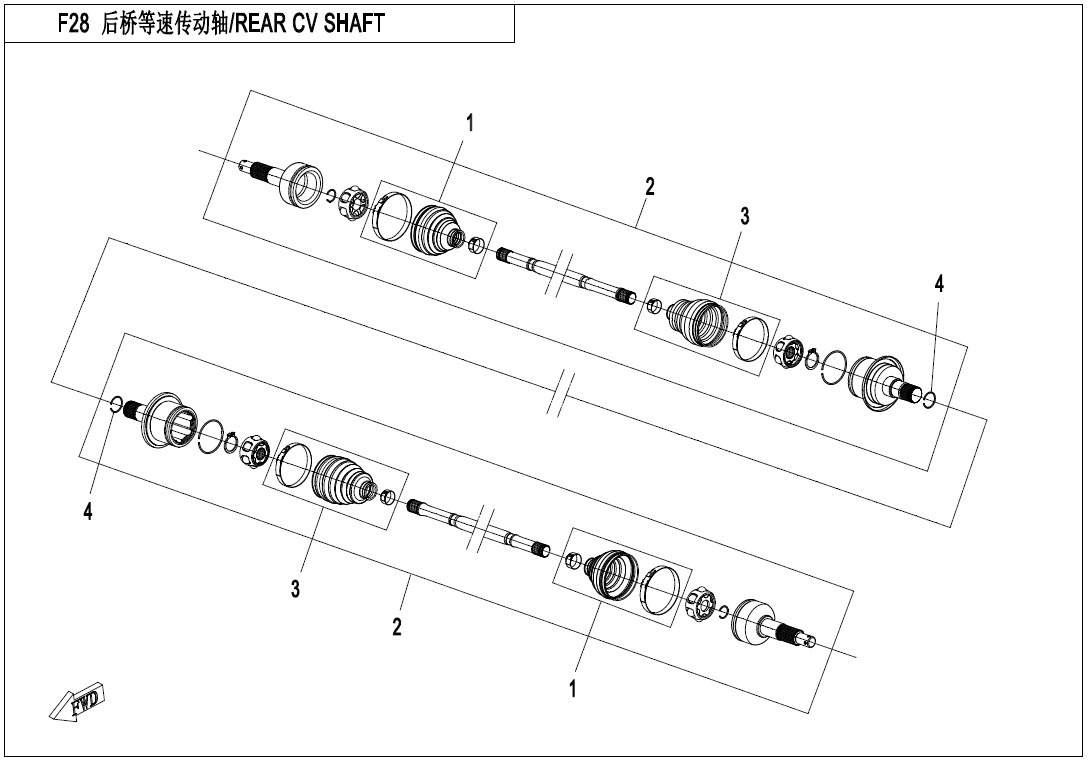

REAR CV SHAFT
F30

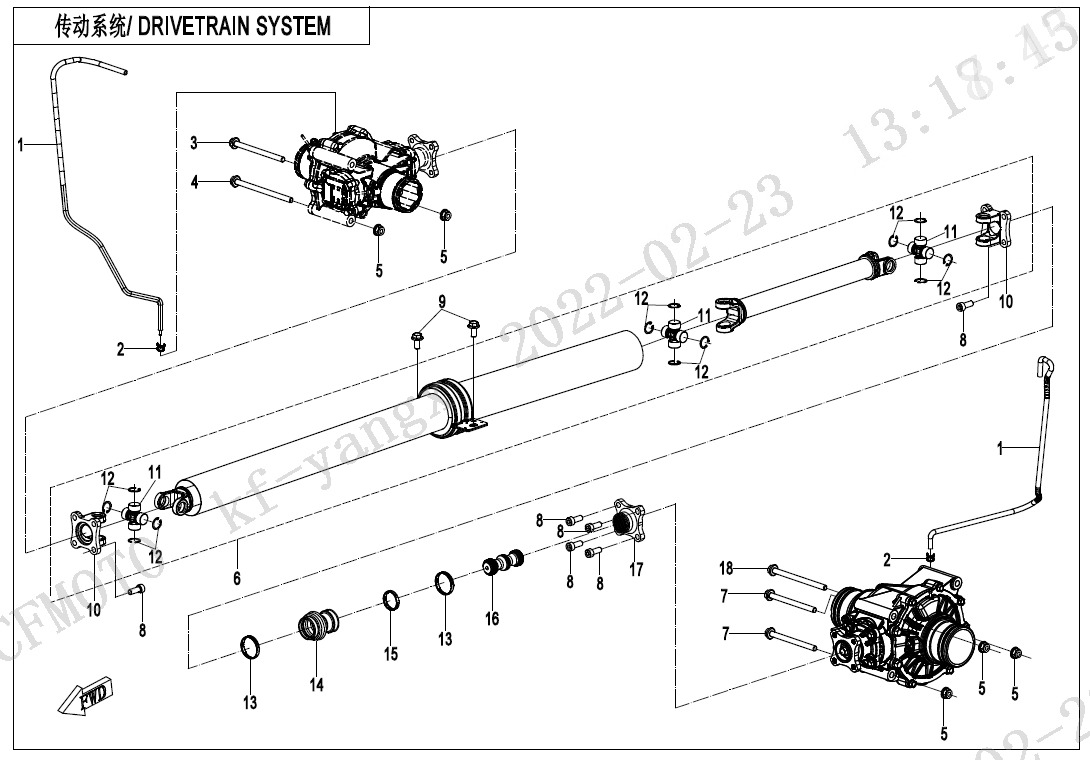

DRIVETRAIN SYSTEM
F31

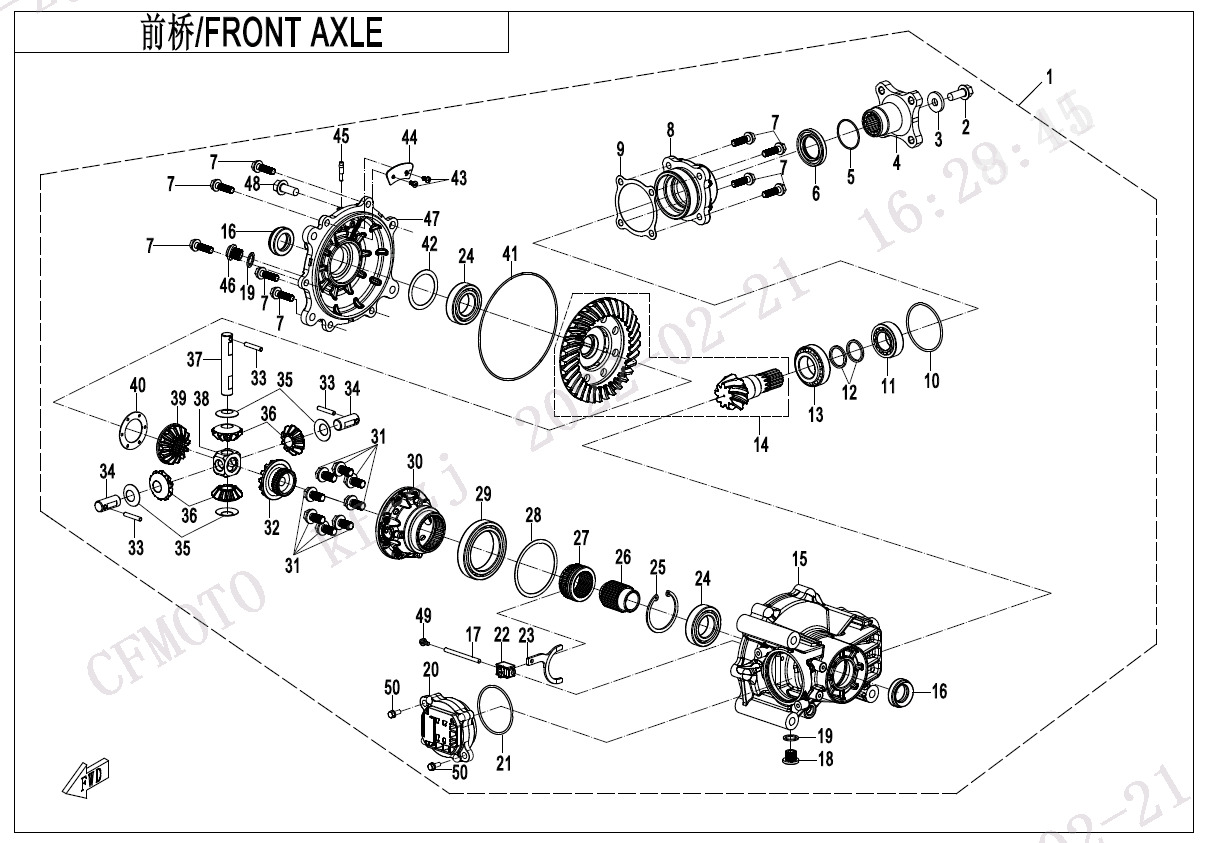

FRONT AXLE
F32

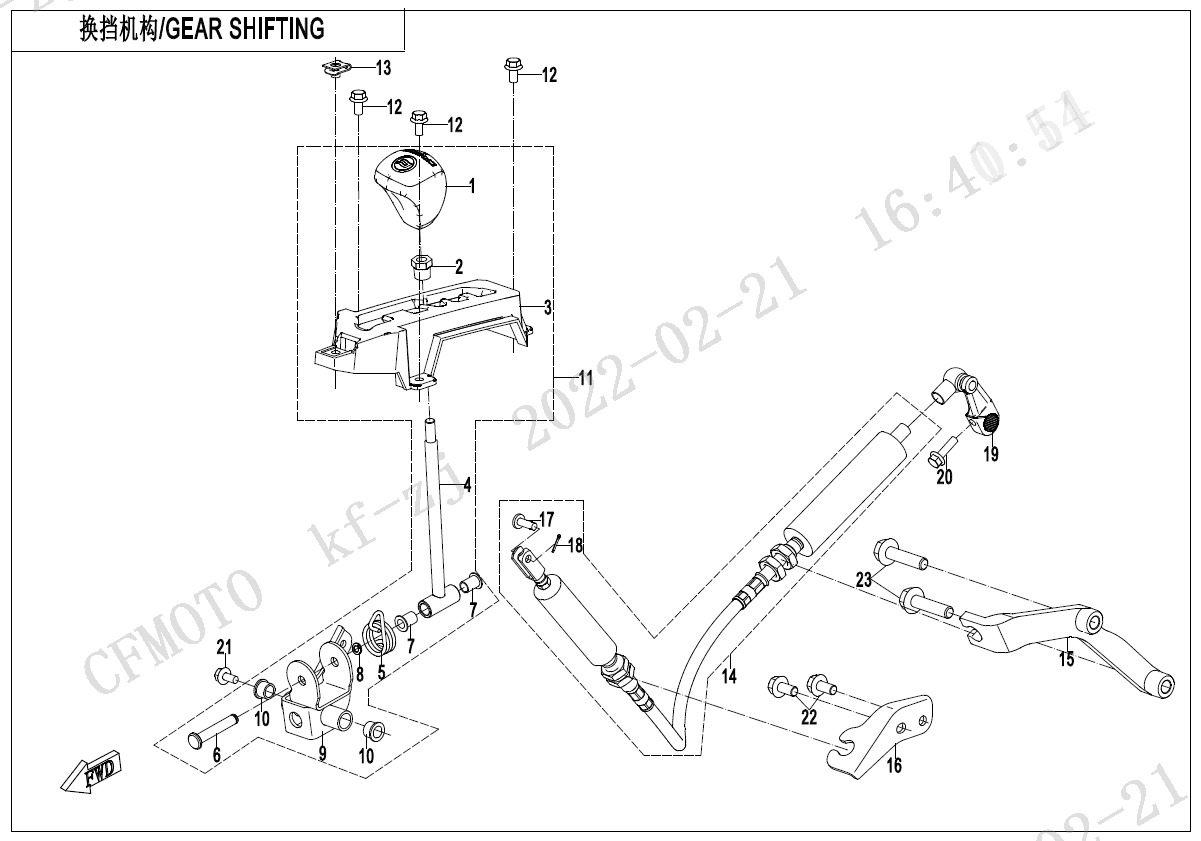

GEAR SHIFTING
F33-B-V1

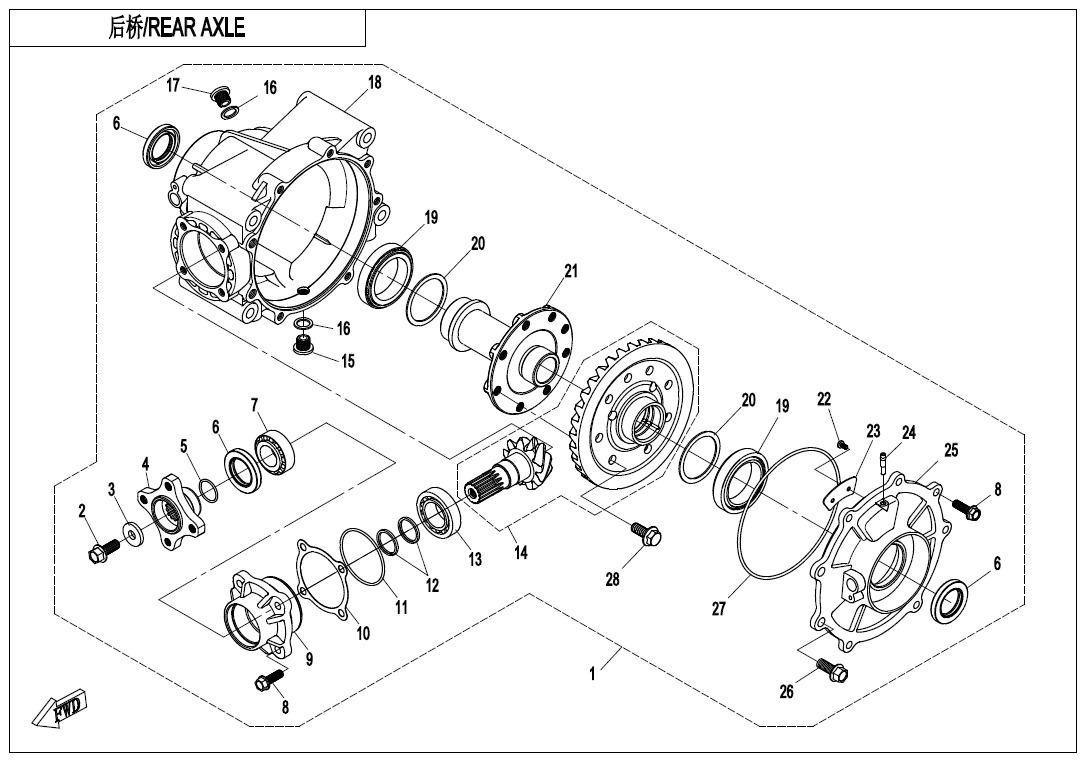

REAR AXLE(WITHOUT DIFFERENTIAL)
F33-B-V2
REAR AXLE(WITHOUT DIFFERENTIAL)
F34

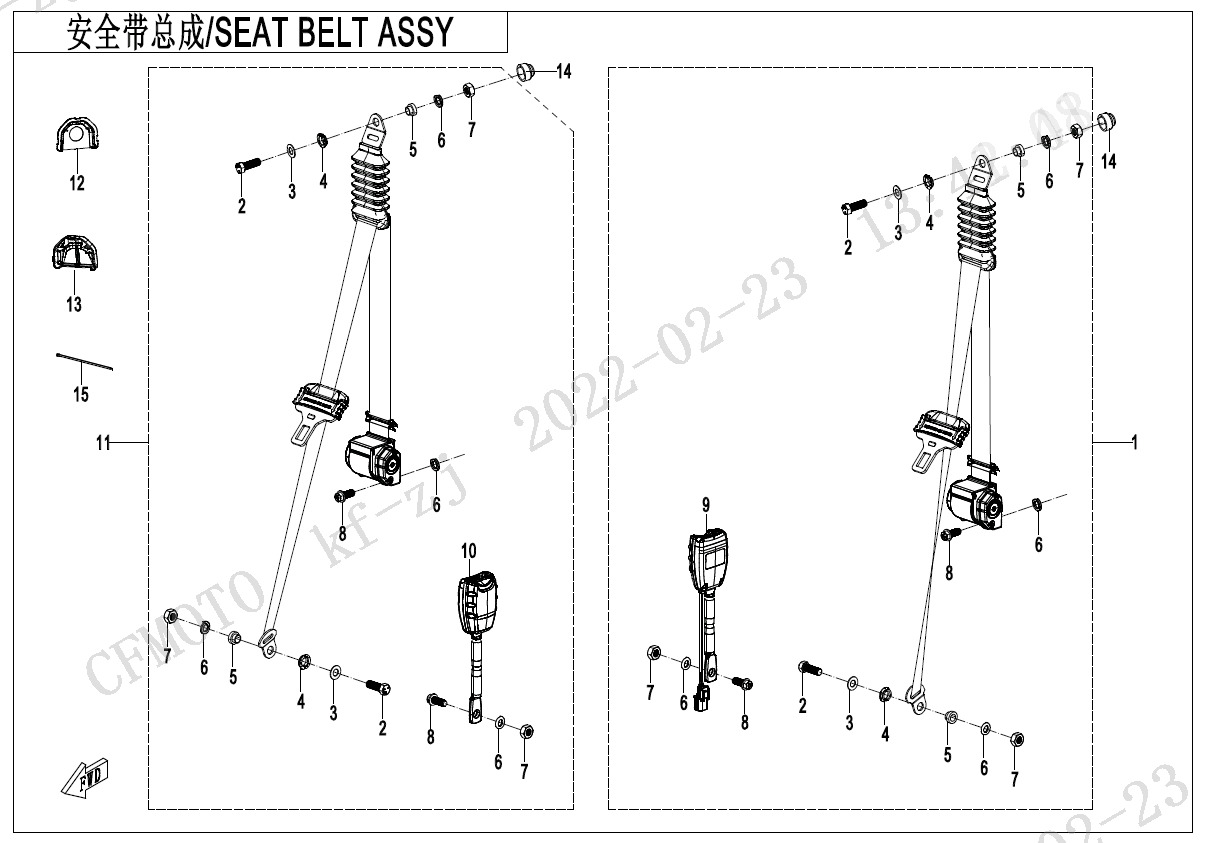

3-POINT SEAT BELT
F37

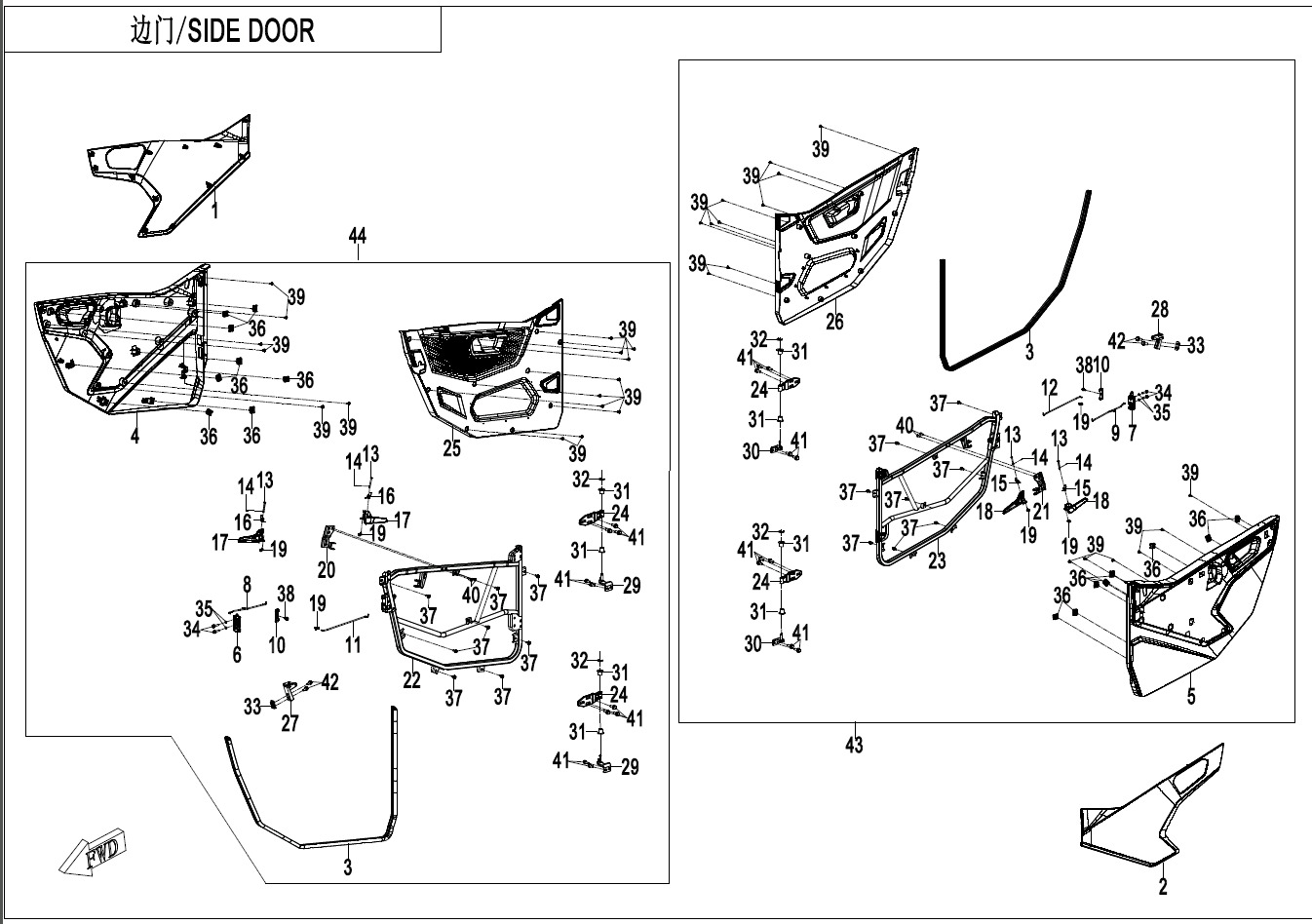

SIDE DOORS
F38-A
OWNERS MANUAL(NA)
F40-B

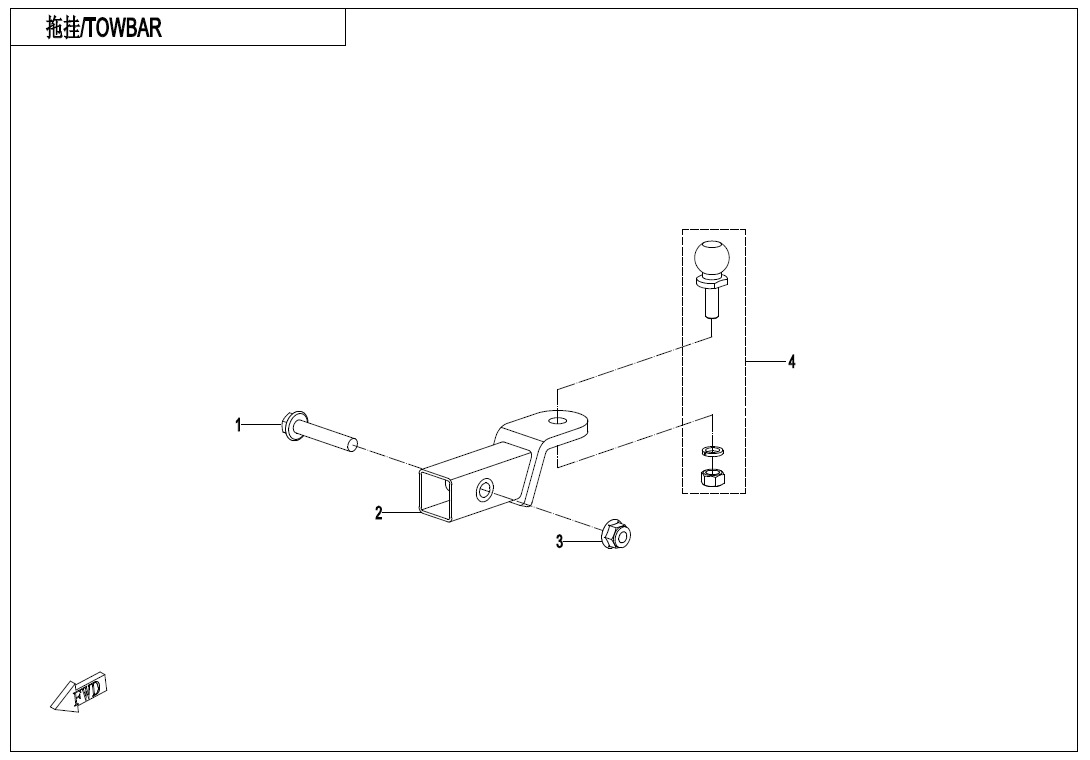

TOWBAR(BOLT CONNECTION)
F41

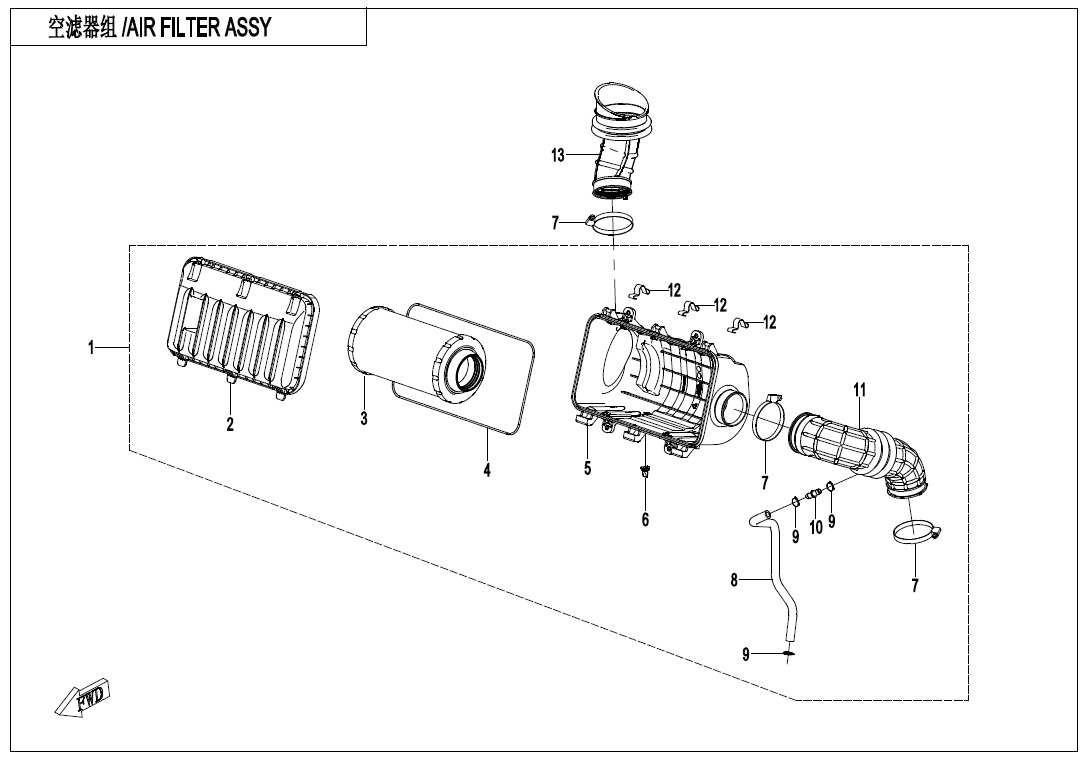

AIR FILTER ASSY
E01-1
LEFT CRANKCASE ASSY
E01-2
RIGHT CRANKCASE ASSY
E01-3
CVT CASE ASSY
E01-4
LEFT CRANKCASE COVER ASSY
E02-1
CYLINDER HEAD COVER ASSY
E02-2
CYLINDER HEAD NO.1 ASSY
E02-3
CYLINDER BODY
E02-4
CAMSHAFT OF CYLINDER 1 ASSY
E02-5-B
INTAKE MANIFOLD ASSY(WHITOUT FUEL VAPORIZATION SYSTEM)
E02-6
CYLINDER HEAD NO.2 ASSY
E02-7
CAMSHAFT OF CYLINDER 2 ASSY
E03
MAGNETO ASSY.
E04
CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY
E05
CVT ASSY
E06-1
TRANSMISSION SYSTEM(1)
E06-2
TRANSMISSION SYSTEM(2)
E06-3
TRANSMISSION SYSTEM(3)
E07-1
OIL PUMP ASSY
E07-2
OIL COOLING SYSTEM.
E08
WATER PUMP ASSY.
E09
STARTING SYSTEM
E29
ENGINE GASKET SET
