Genuine Parts Diagrams for 2024 ZFORCE 800 TRAIL - CF800SZ-2Change Model
Showing 76 parts diagrams.
F00-1

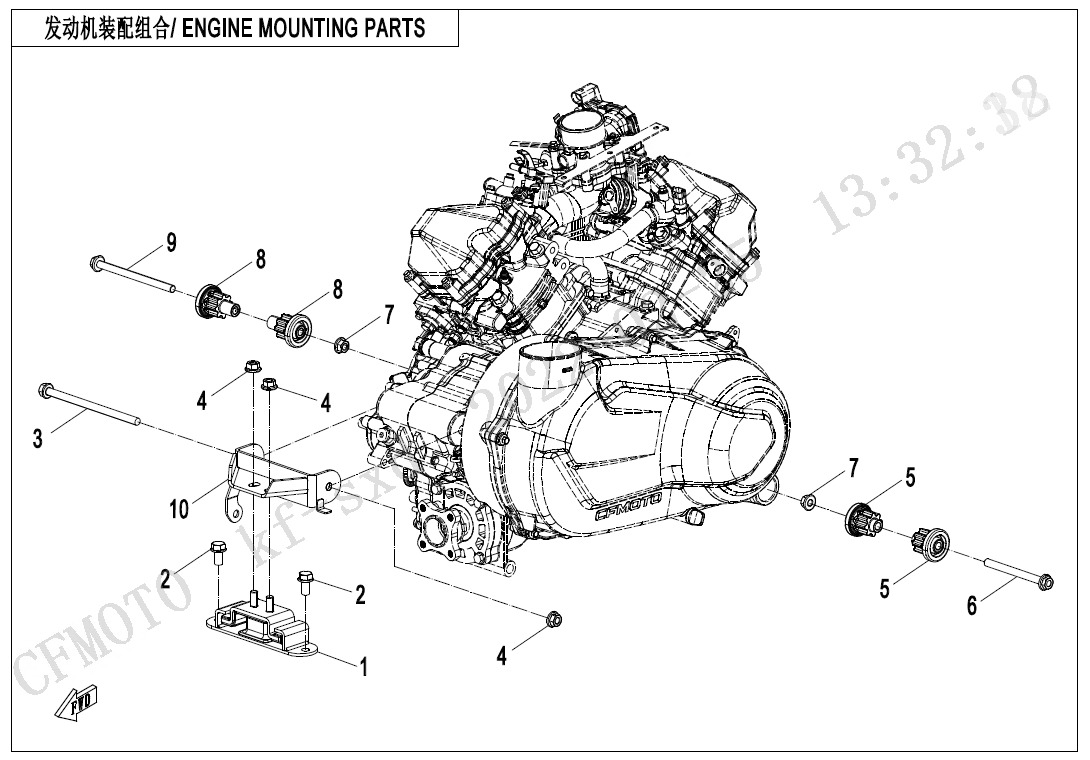

ENGINE MOUNTING PARTS
F00-2

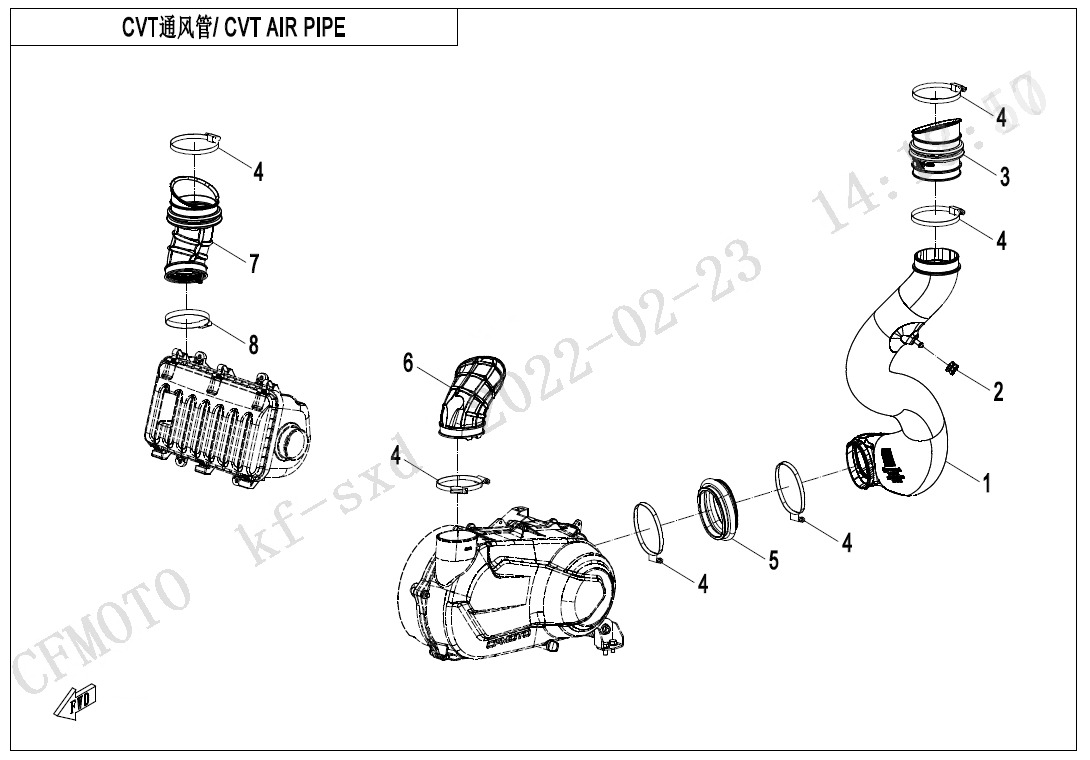

CVT AIR PIPE
F01

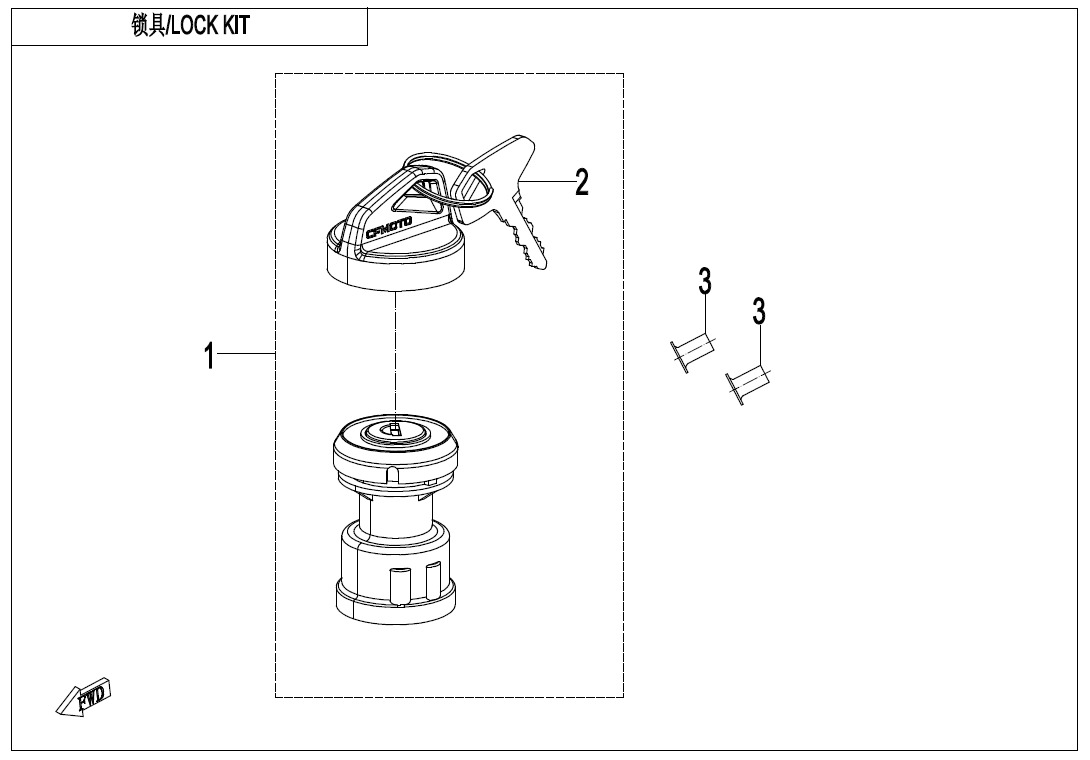

LOCK KIT
F02-V2

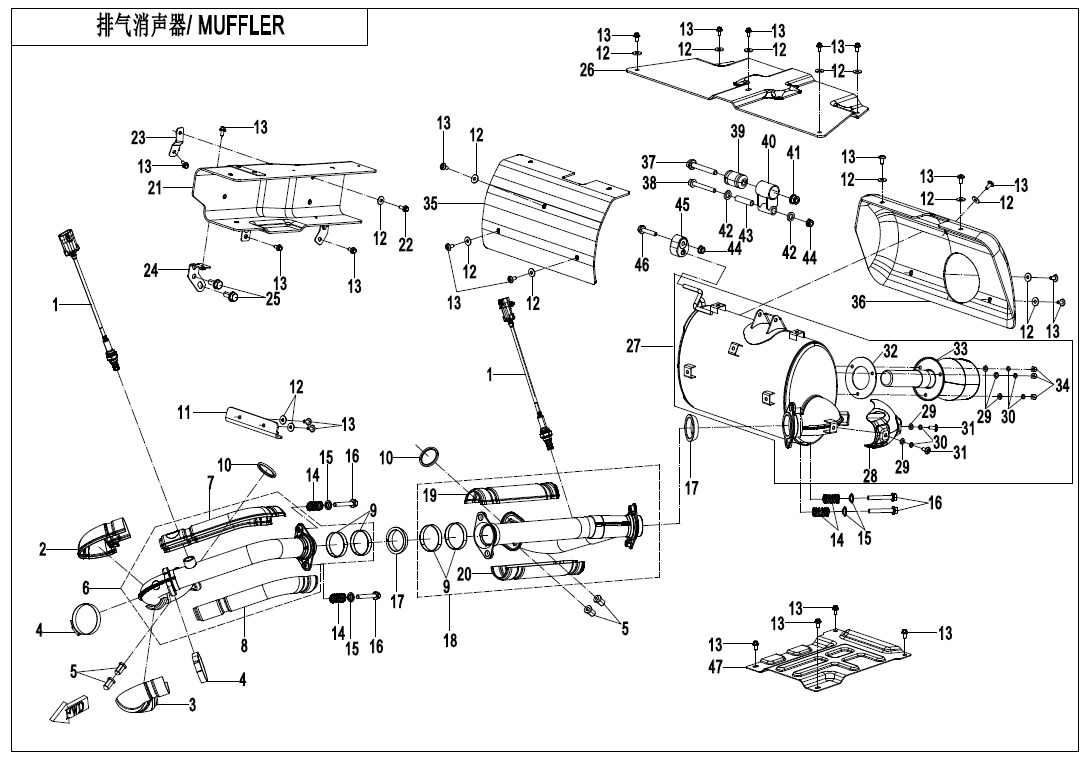

MUFFLER

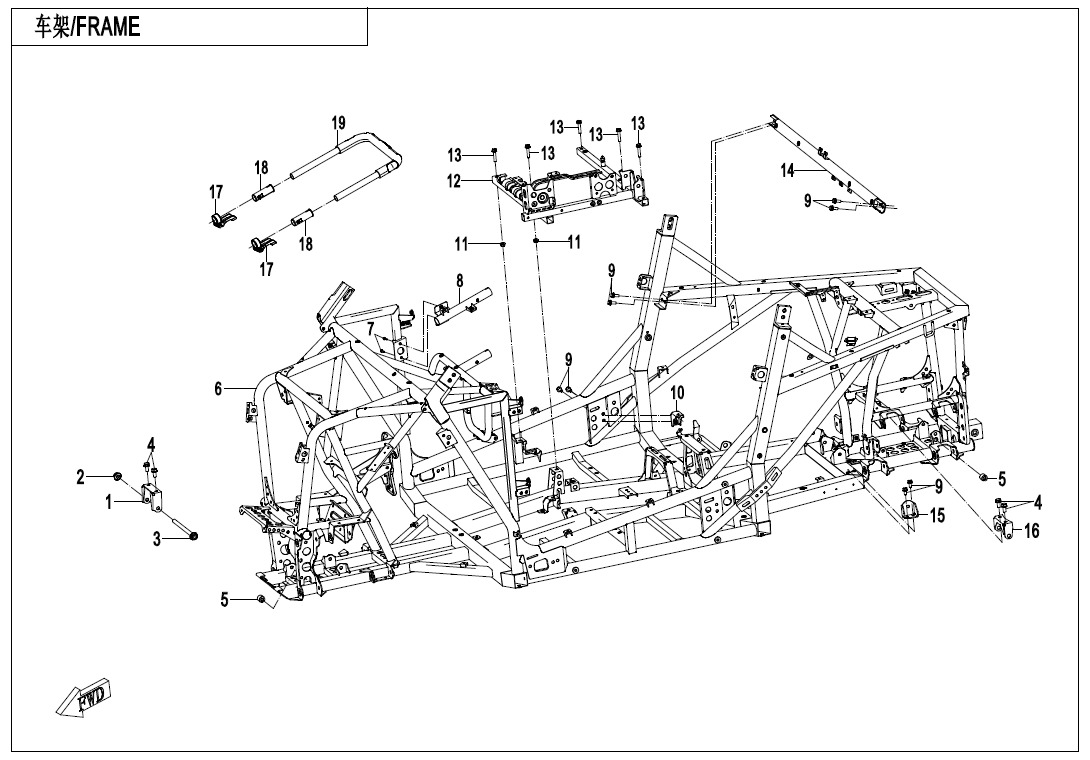

F03-A-V1
FRAM
F03-A-V2
FRAM

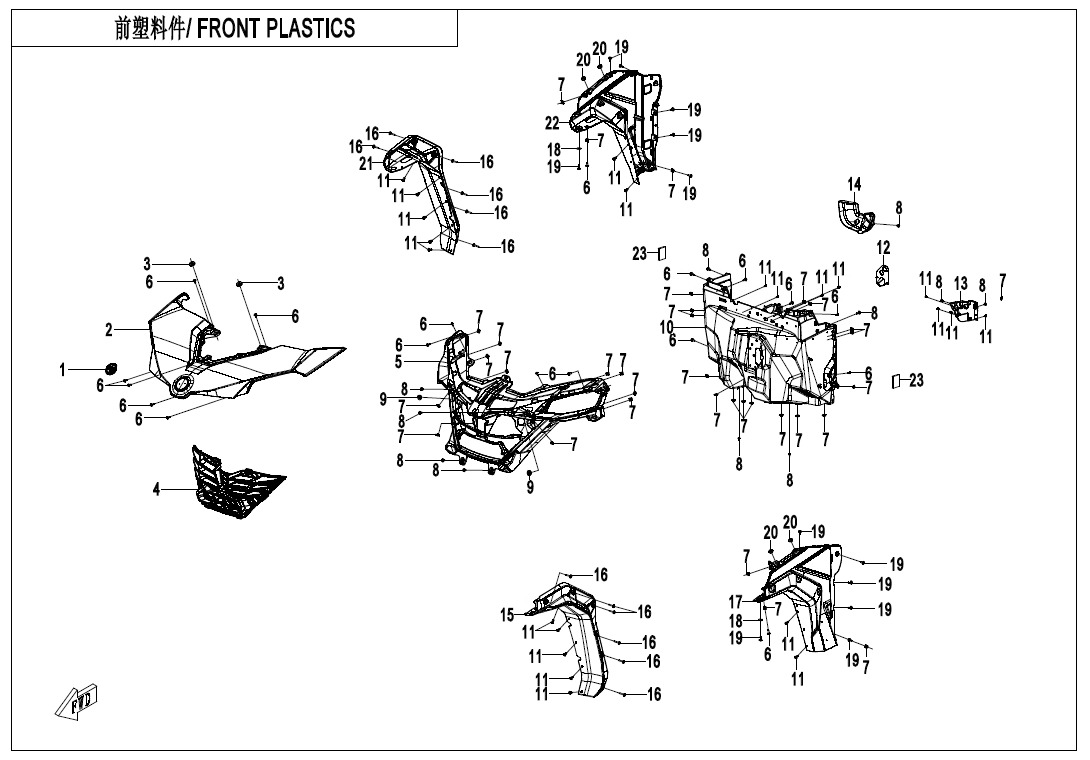

F04-1

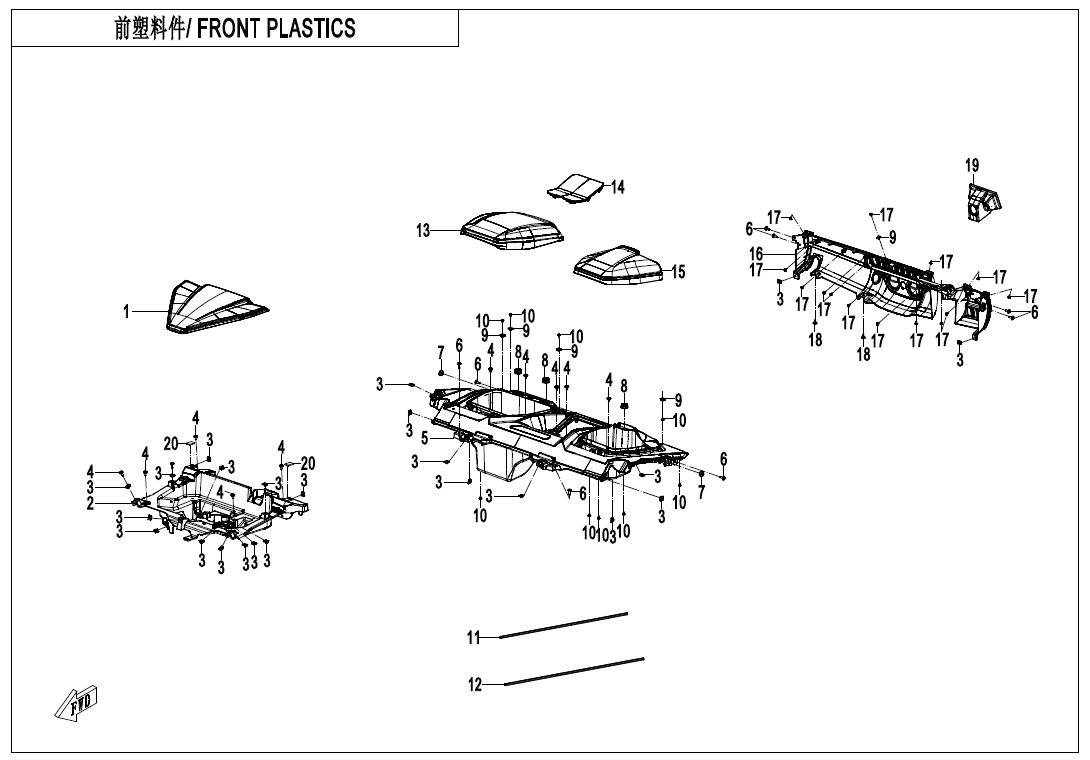

FRONT PLASTICS
F04-2
FRONT PLASTICS

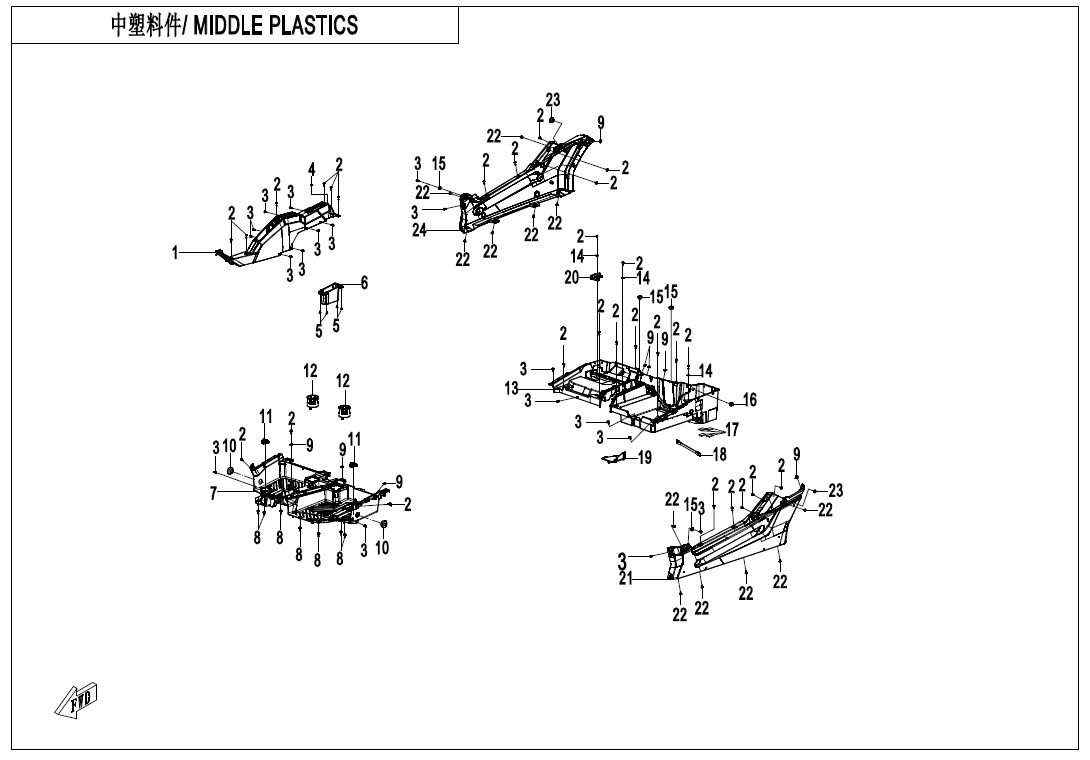

F04-3

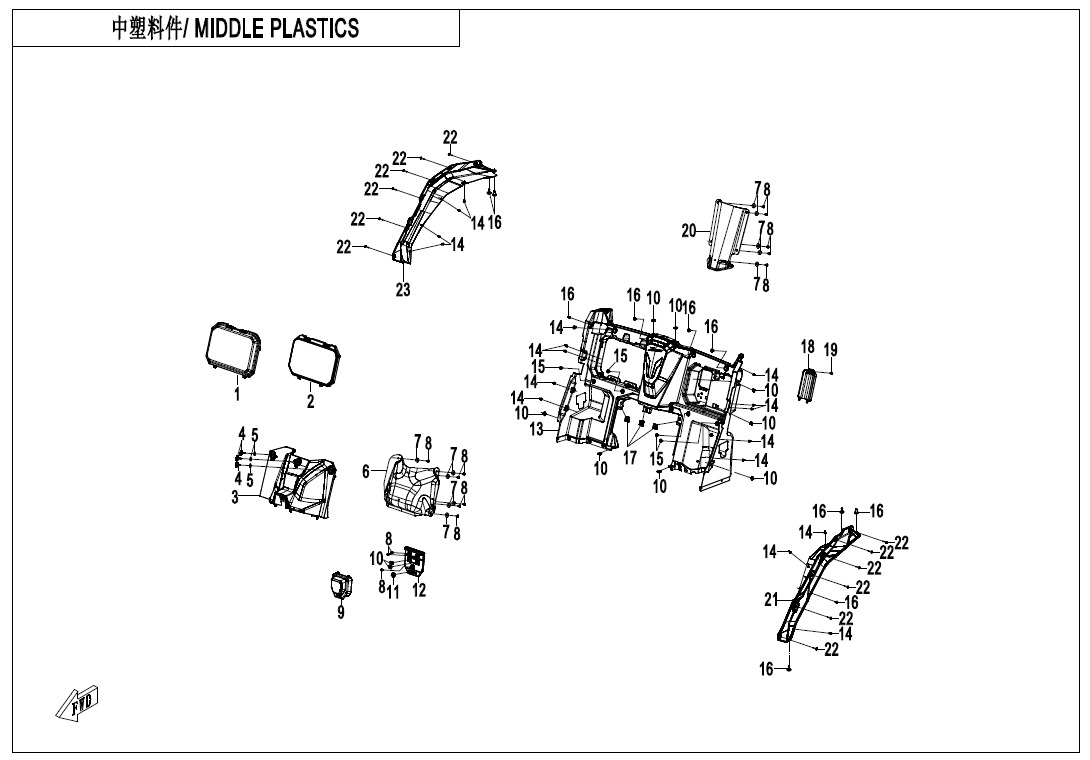

MIDDLE PLASTICS
F04-4
MIDDLE PLASTICS
F04-5

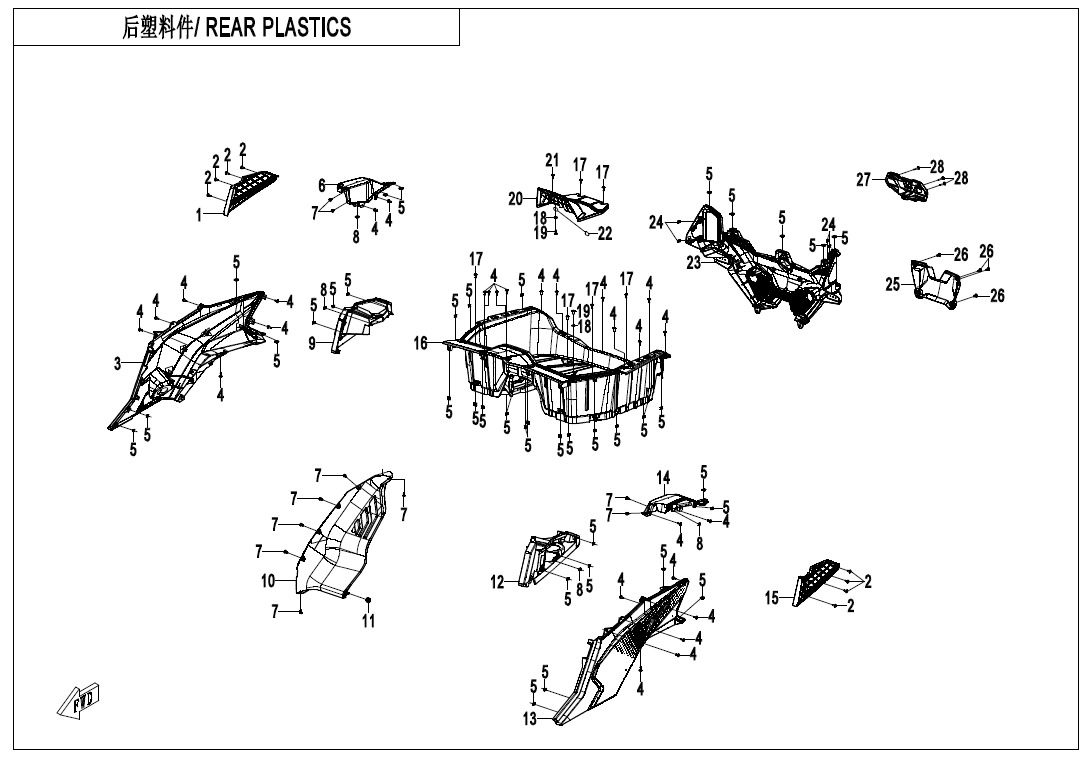

REAR PLASTICS

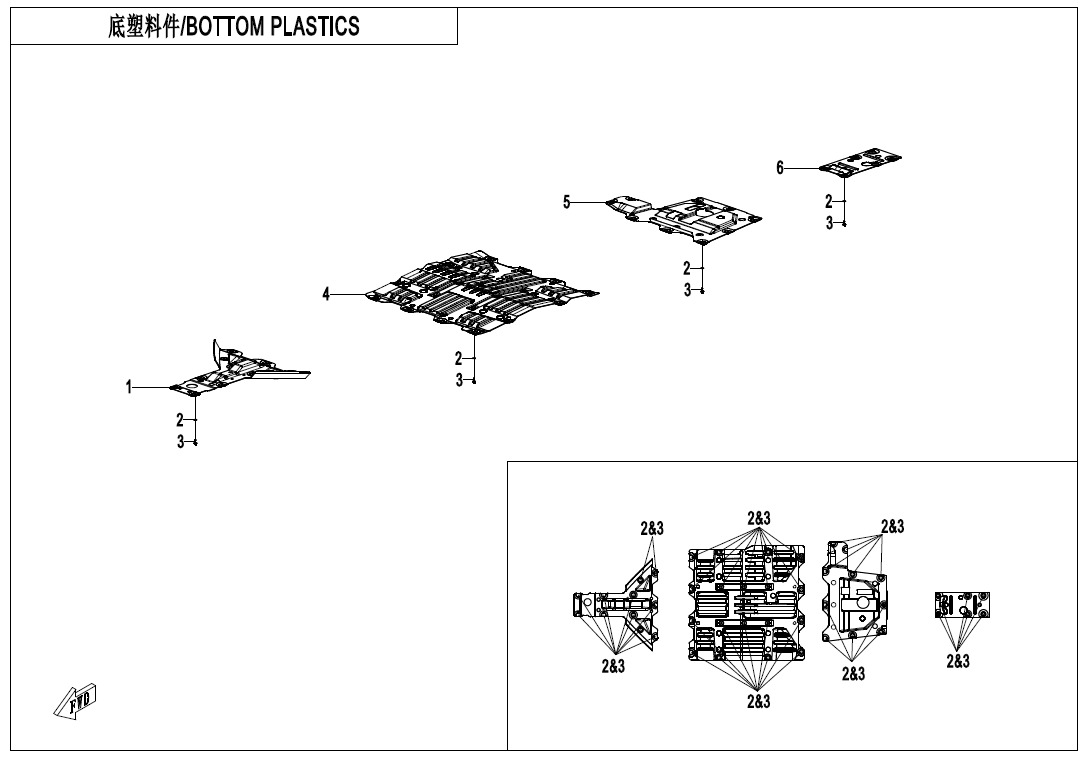

F04-6
BOTTOM PLASTICS

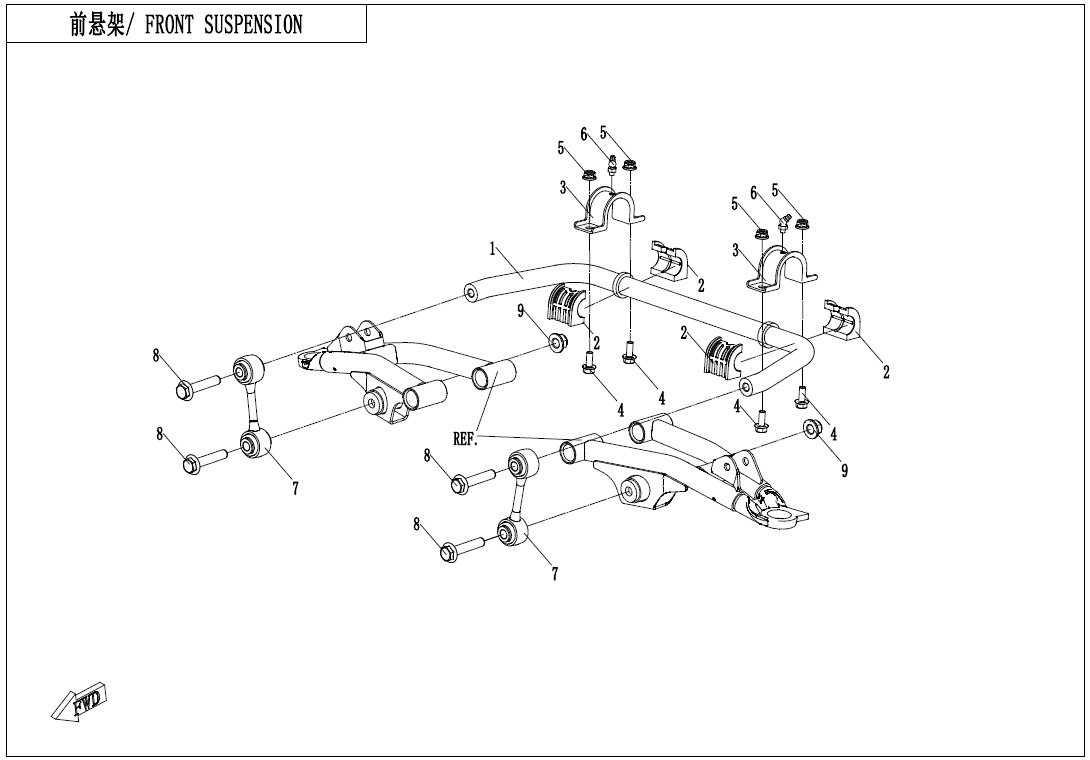

F05-1

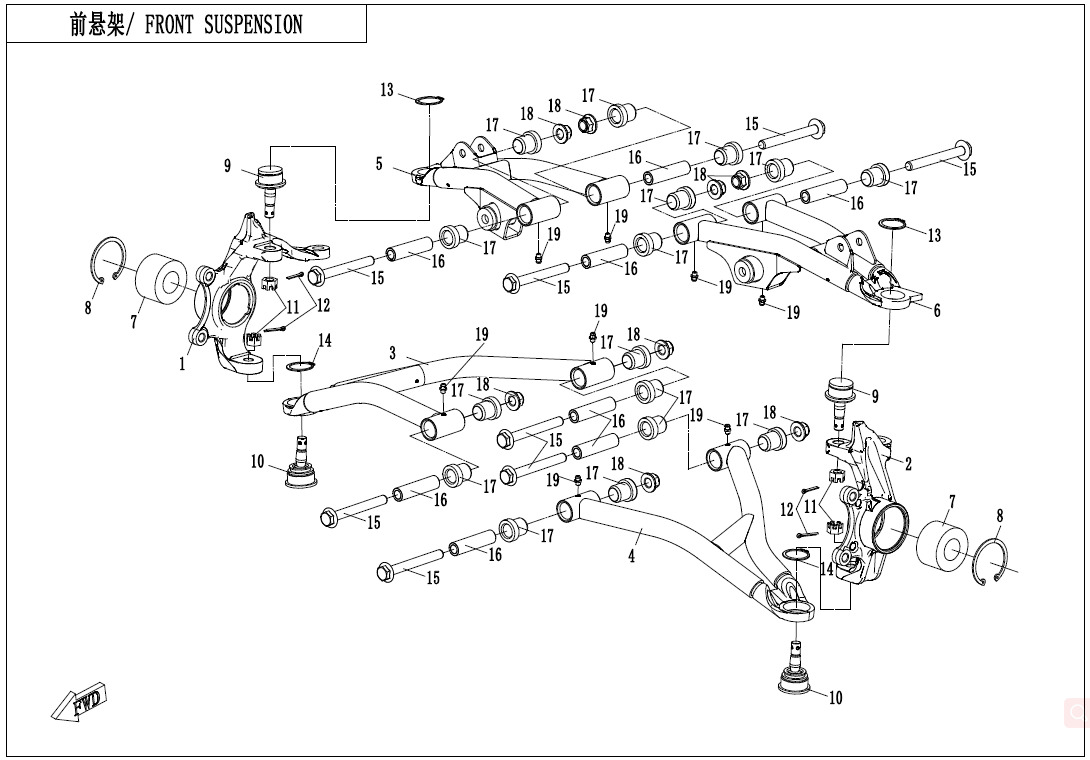

FRONT SUSPENSION
F05-2

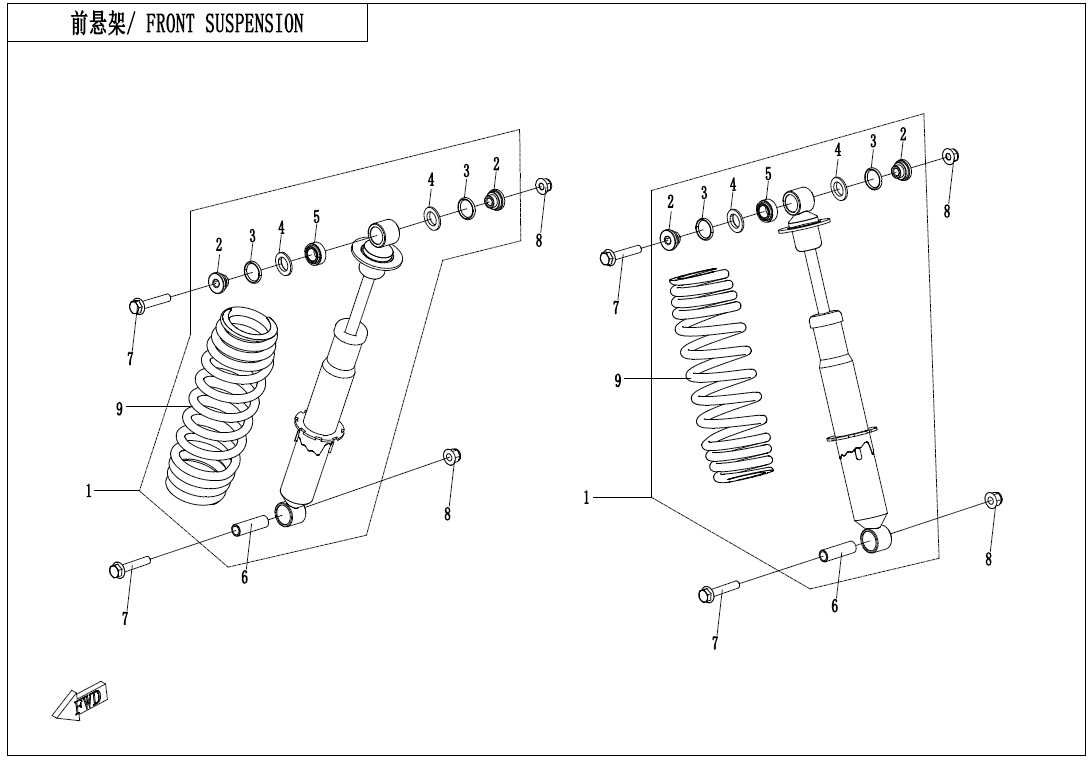

FRONT SHOCK ABSORBER
F05-3
FRONT SUSPENSION

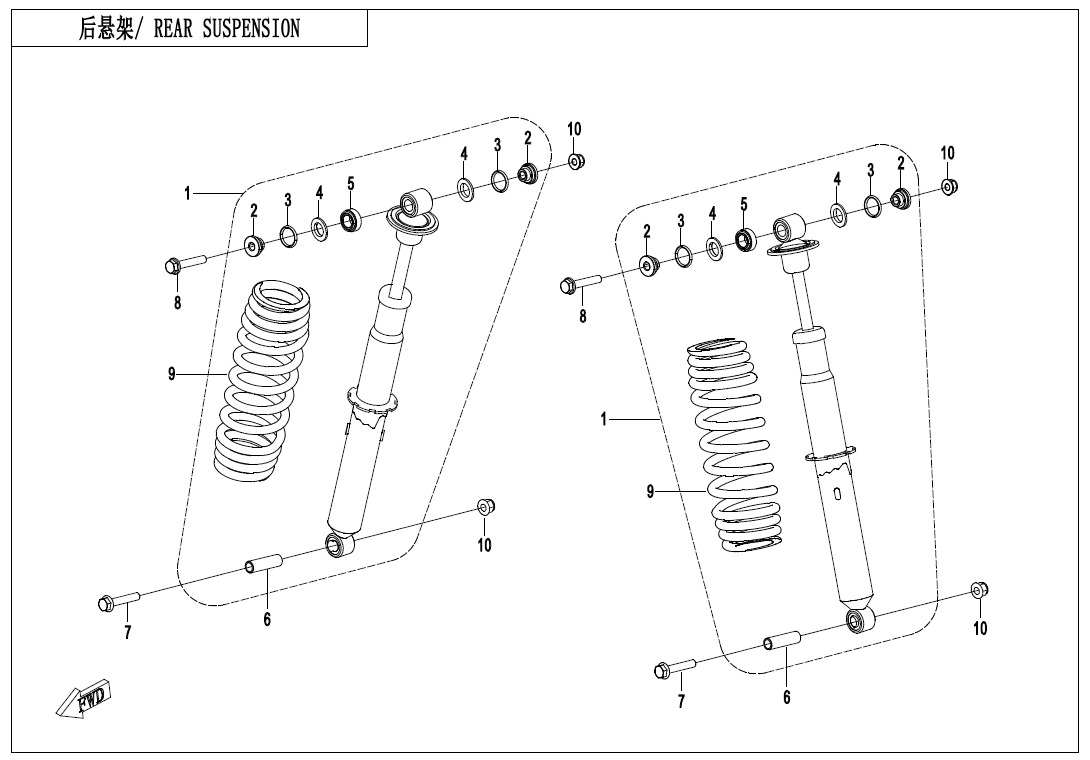

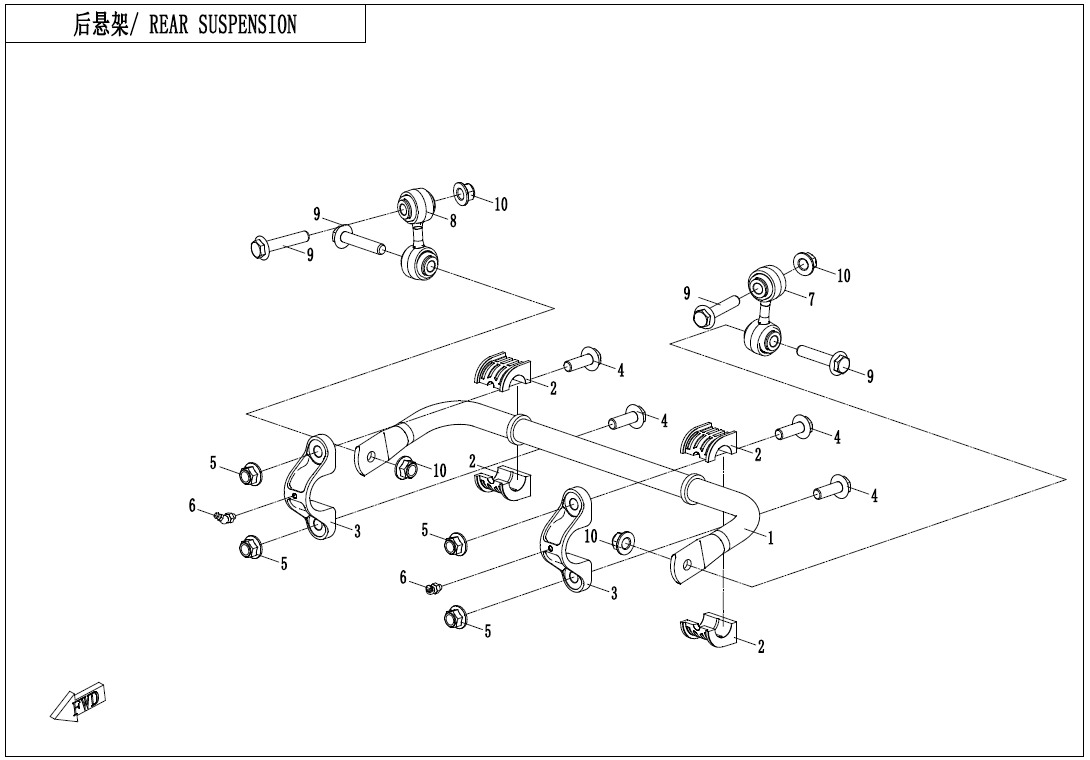

F06-1

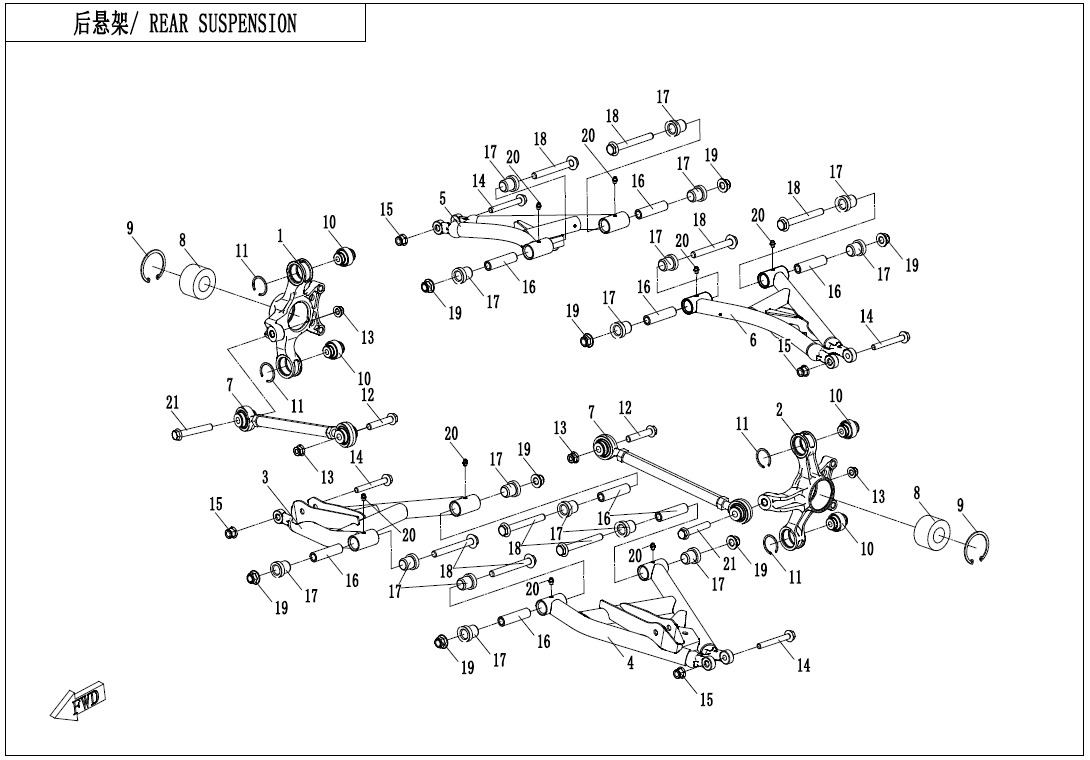

REAR SUSPENSION
F06-2
REAR SHOCK ABSORBER
F06-3
REAR SUSPENSION

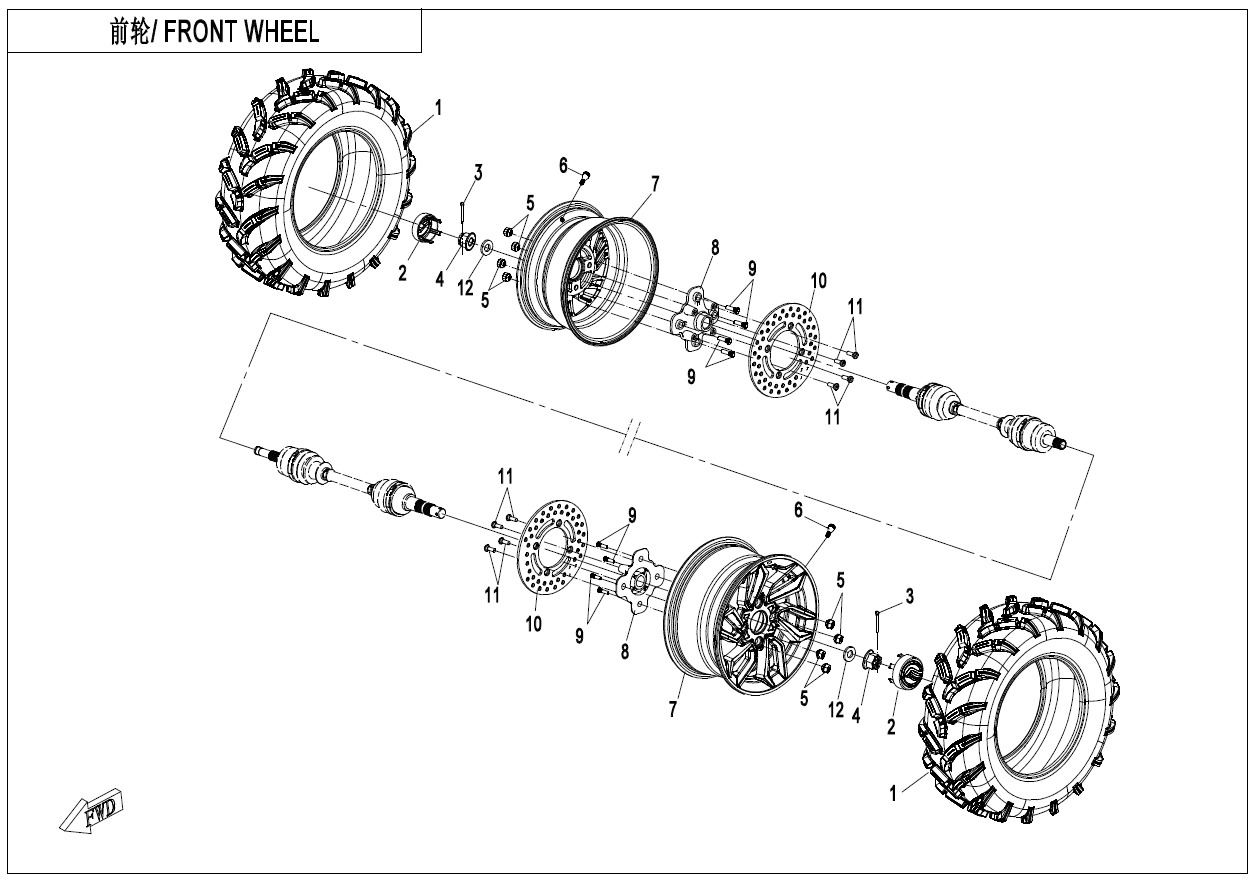

F07
FRONT WHEEL

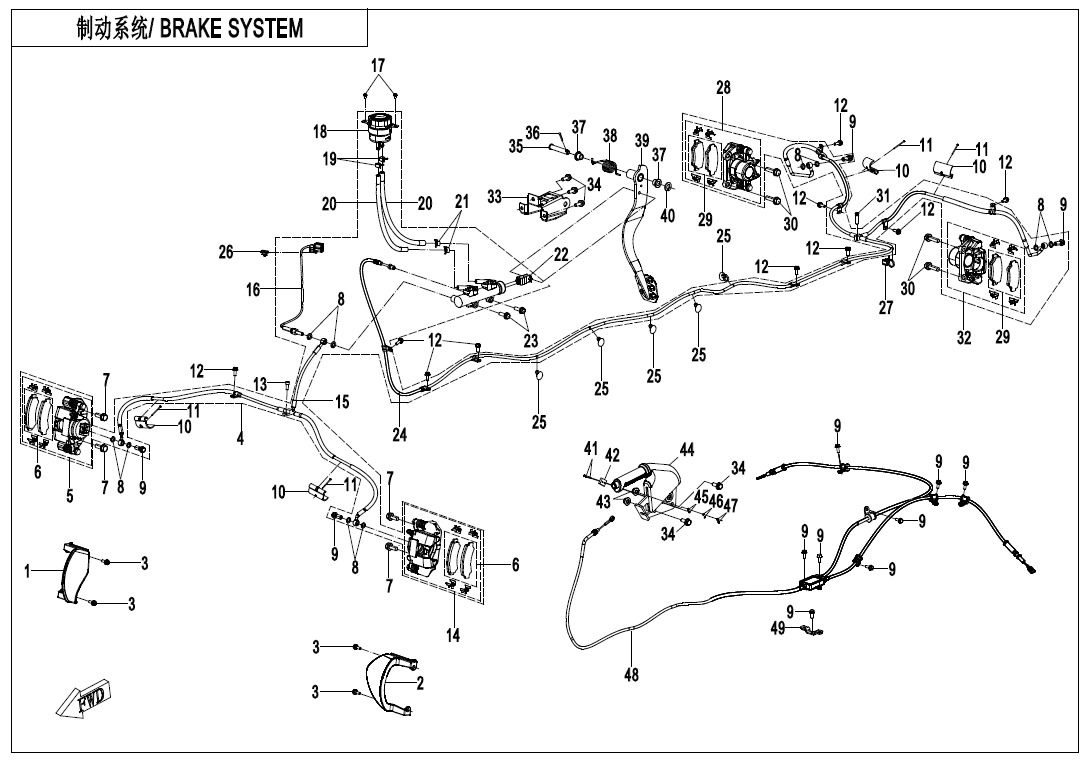

F08-A
BRAKE SYSTEM
F10
STEERING SYSTEM(EPS)
F11
REAR WHEEL
F12

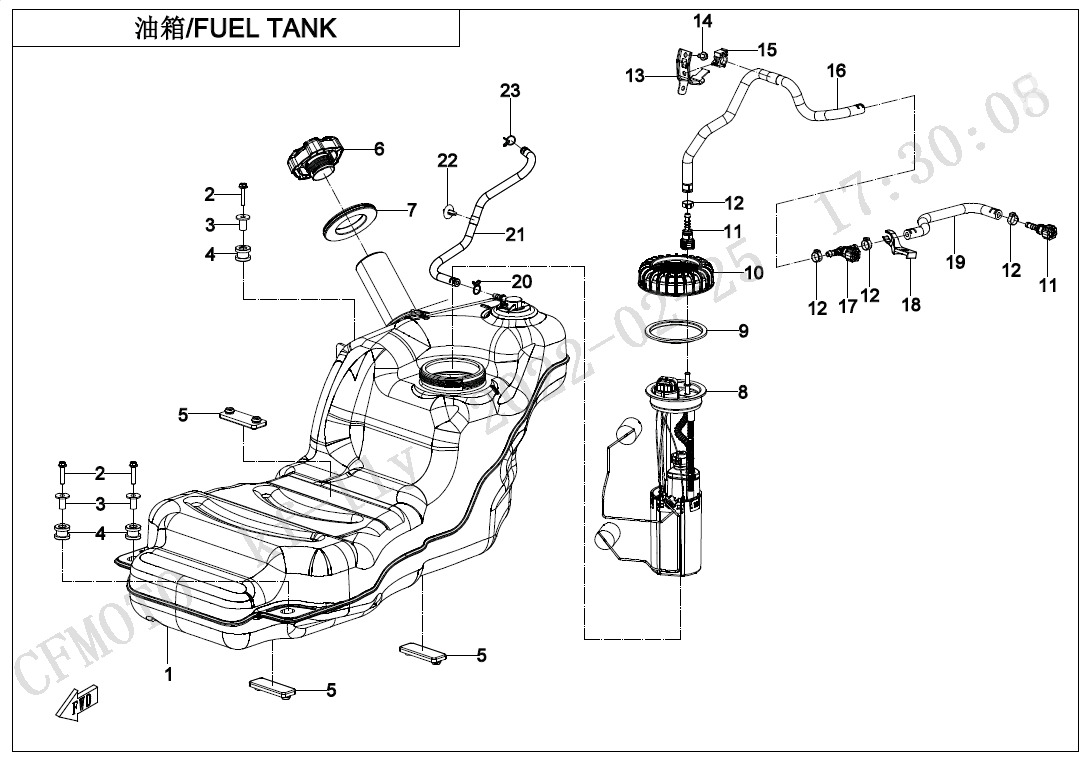

FUEL TANK
F13

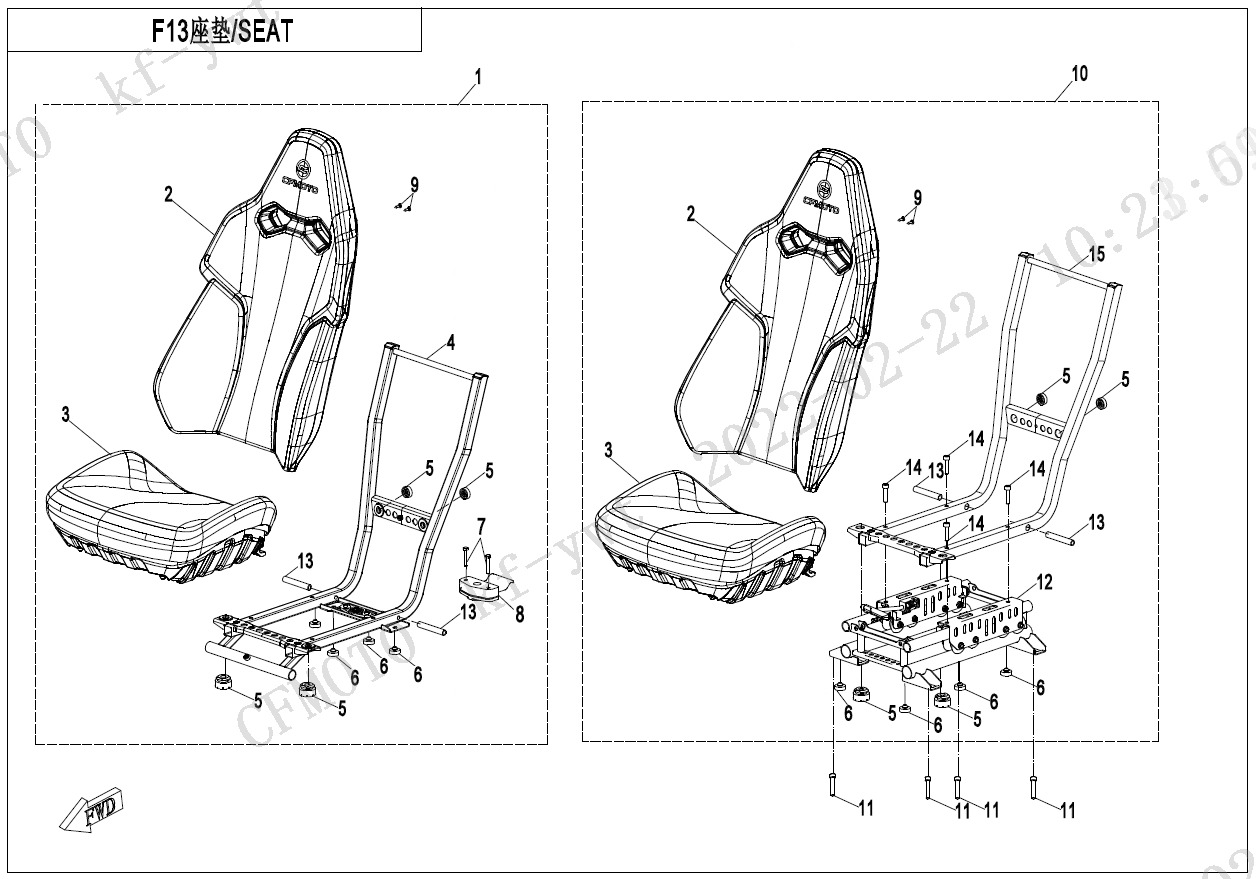

SEAT
F15-1-V2

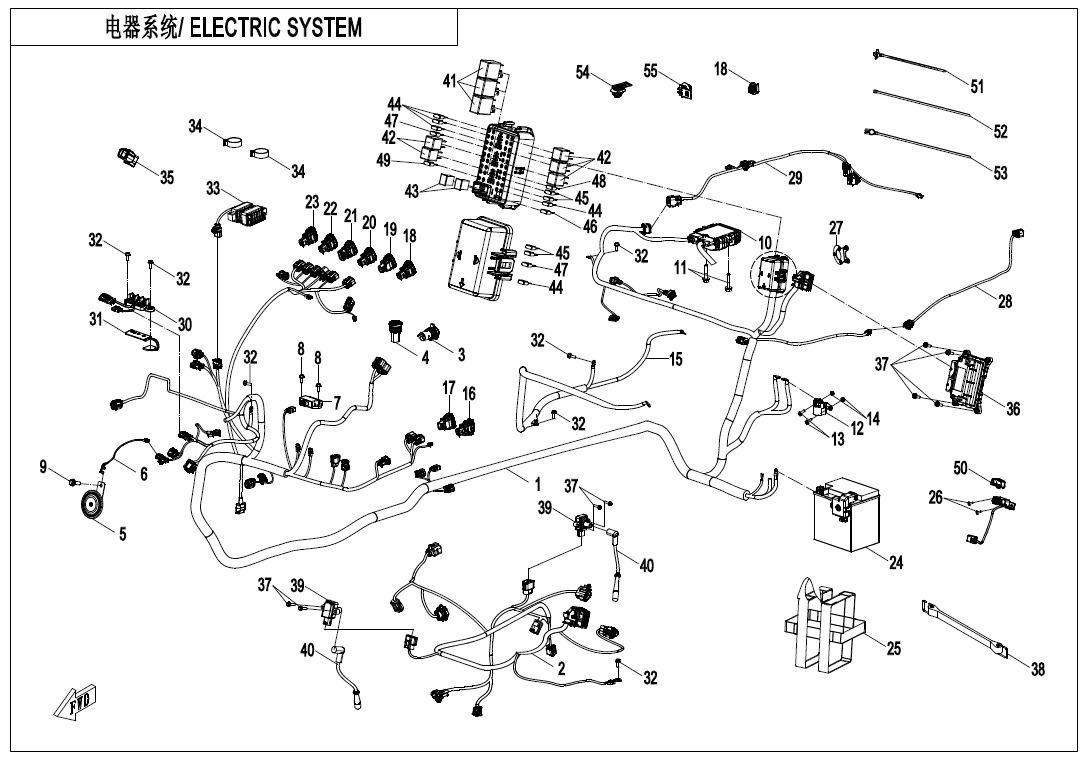

ELECTRIC SYSTEM

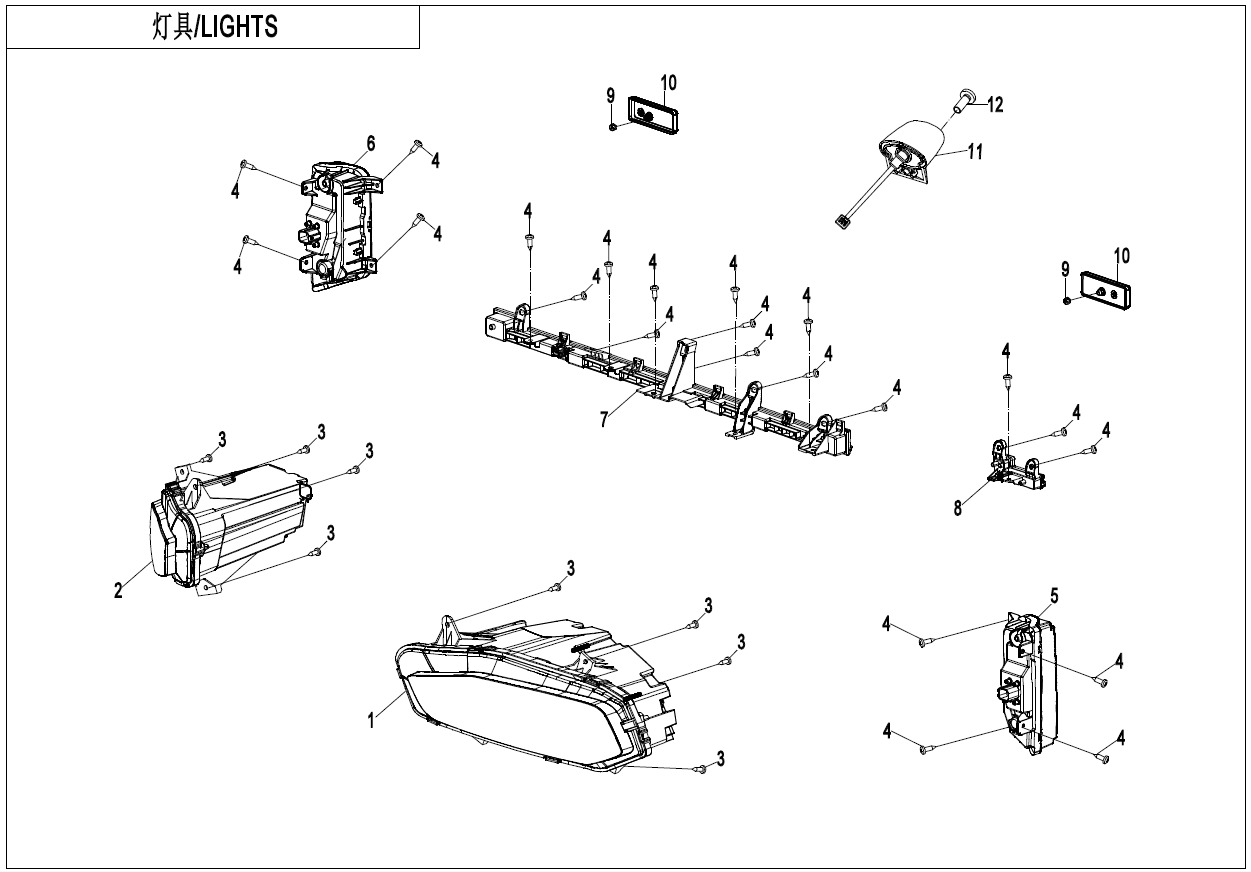

F16
LIGHTS
F17

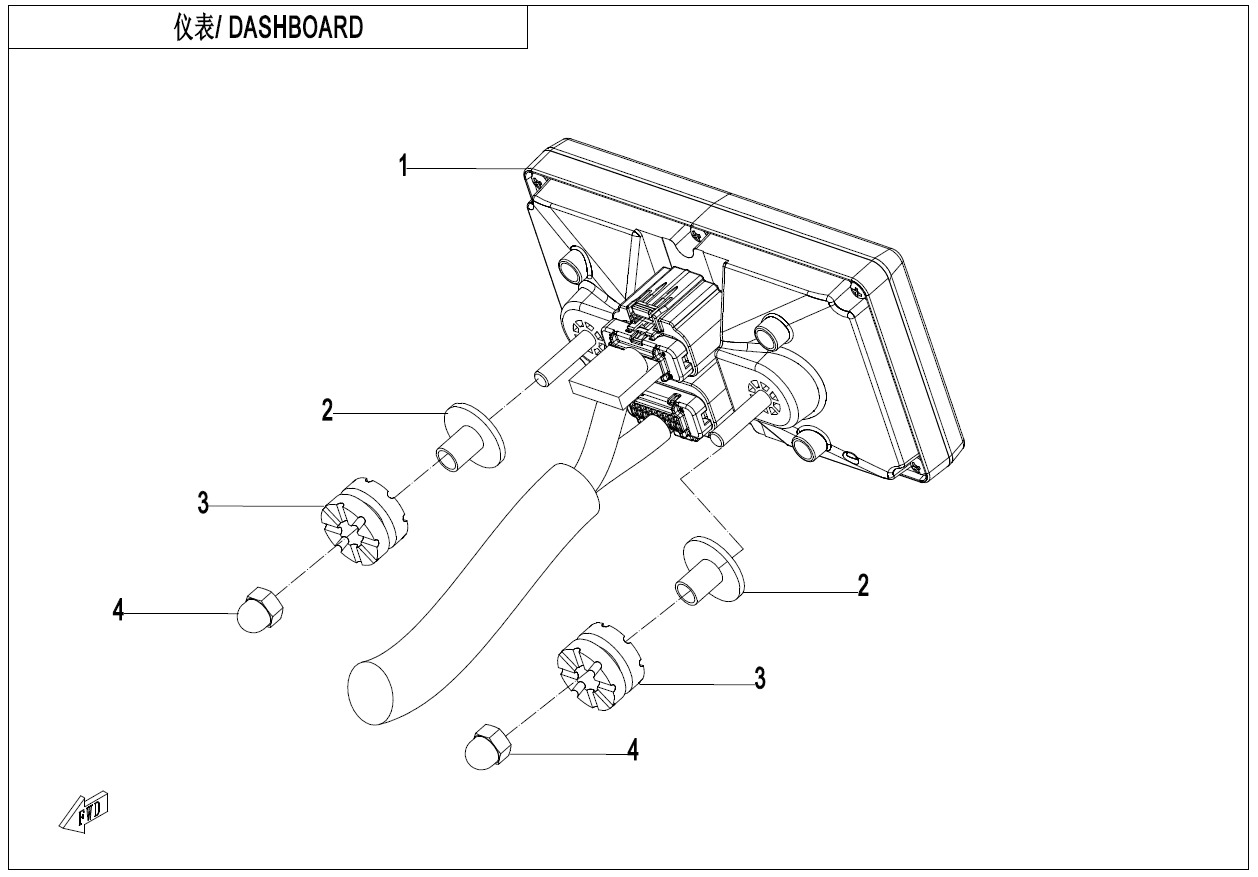

DASHBOARD
F18

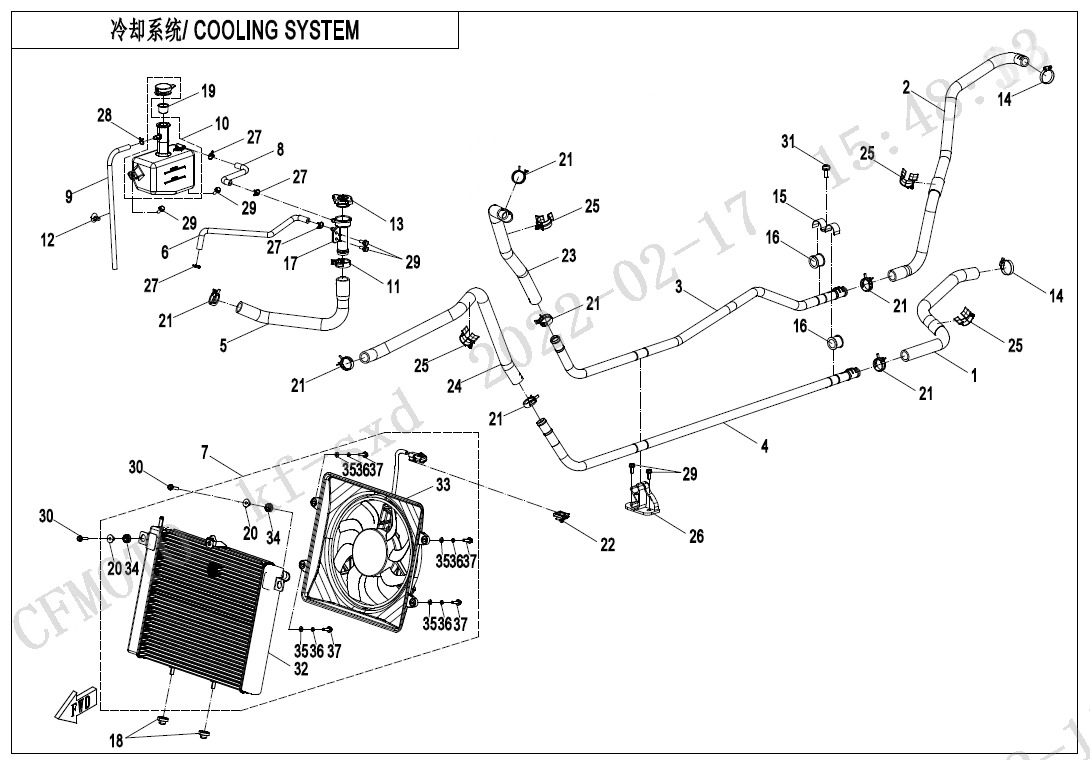

COOLING SYSTEM

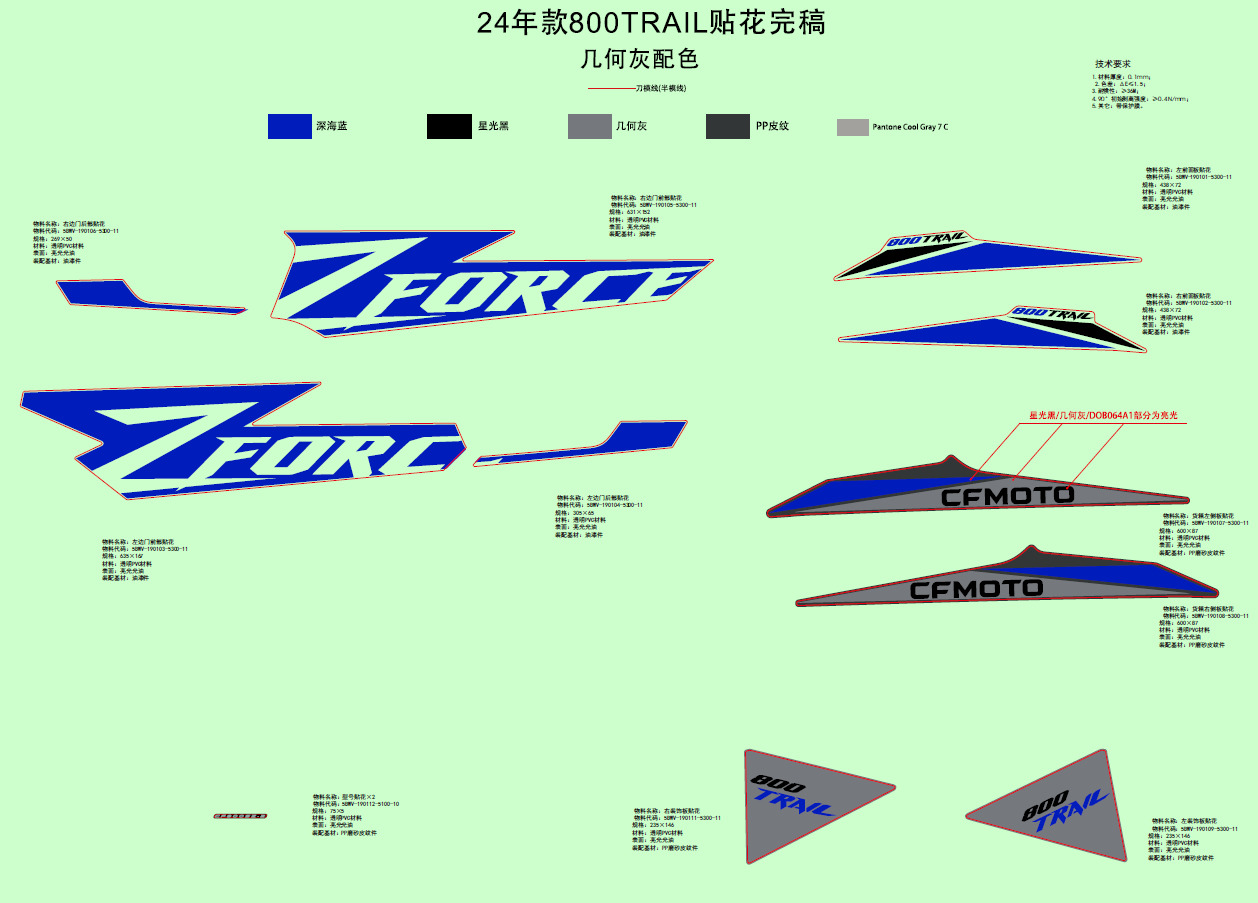

F19-1-B
DECAL,NA,2024(TUNDRA GREY)
F19-2-A
WARNING LABEL
F19-3

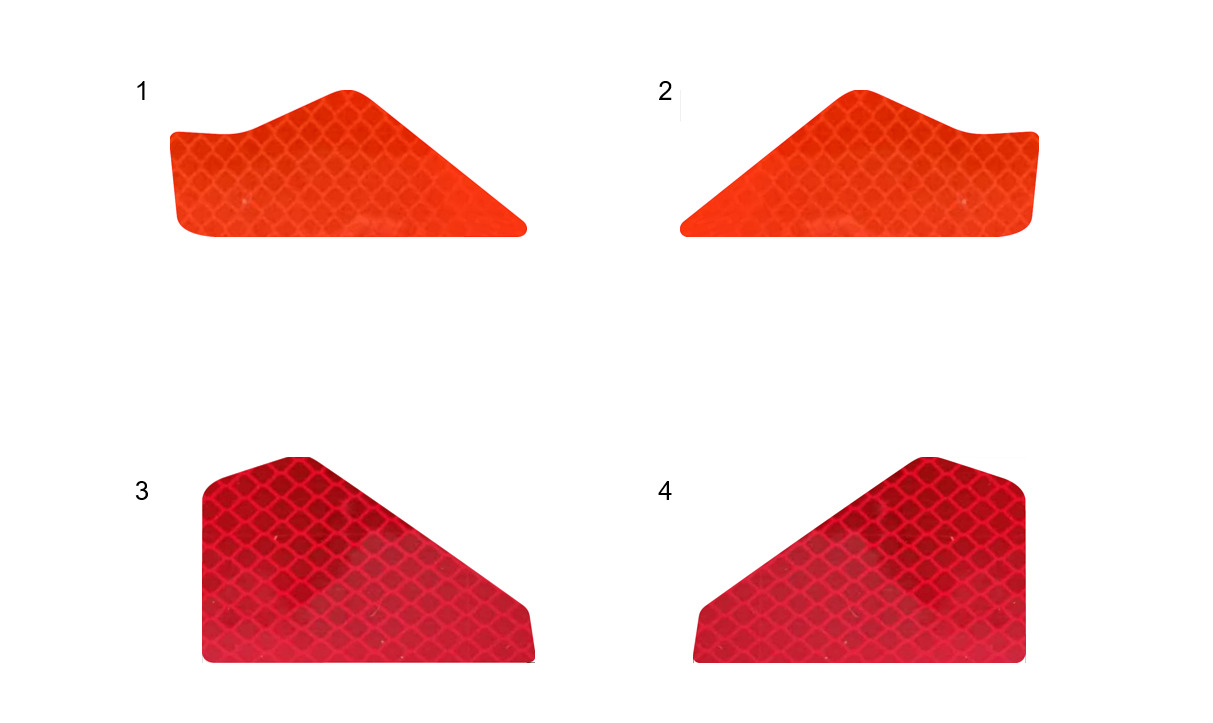

REFLECTOR

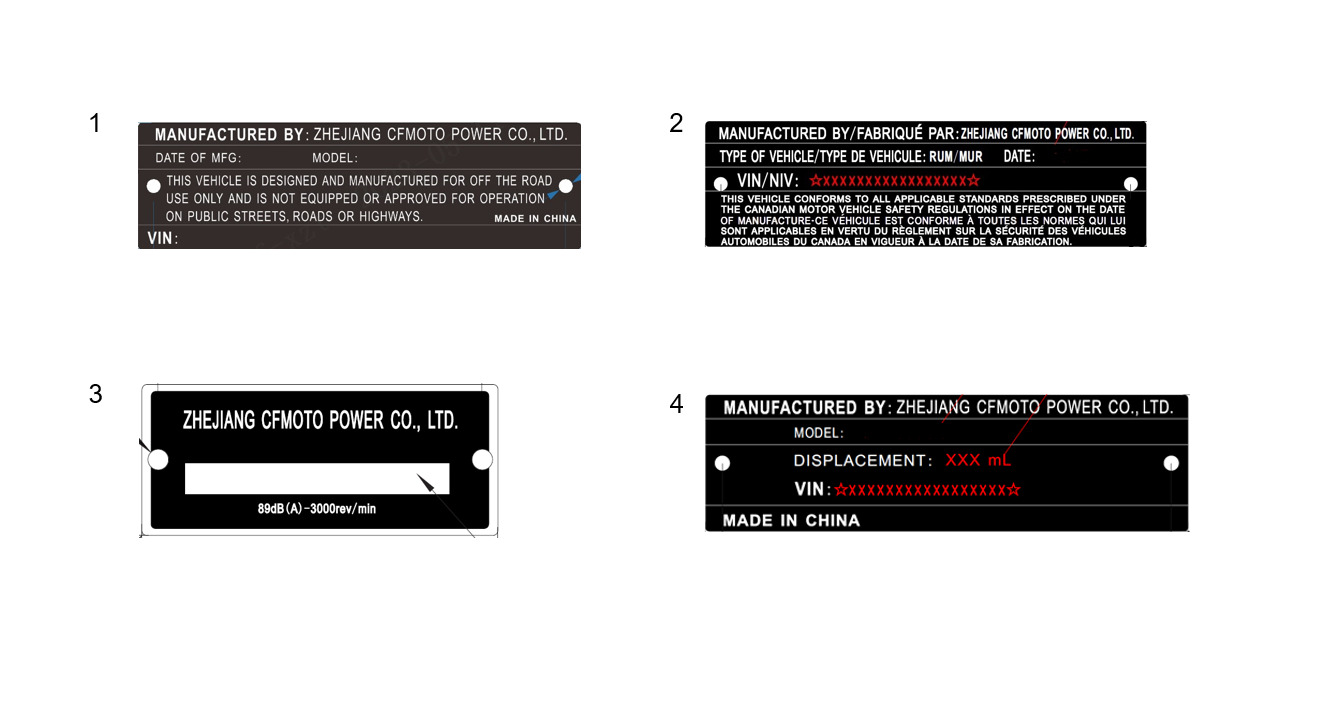

F19-4
VEHICLE PLATE

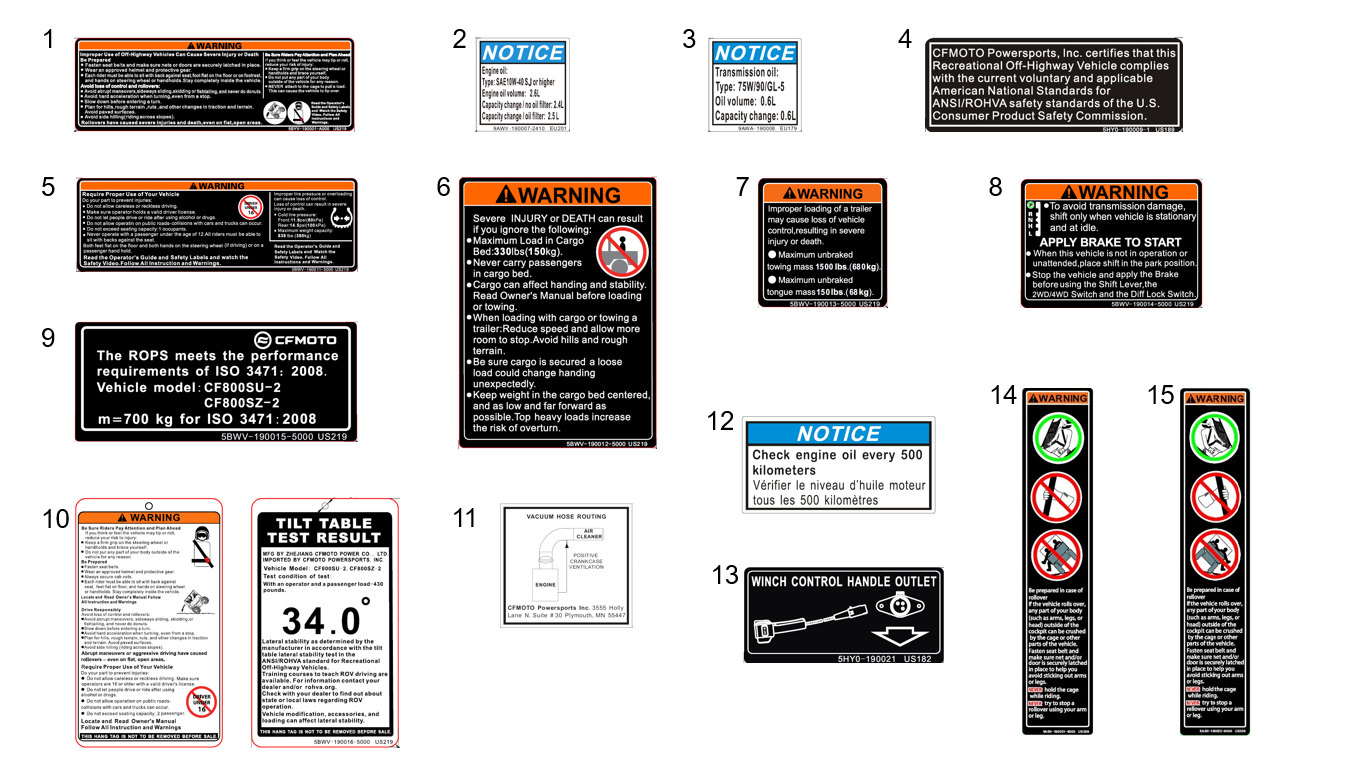

F19-5
SAFETY WARNING LABEL
F20

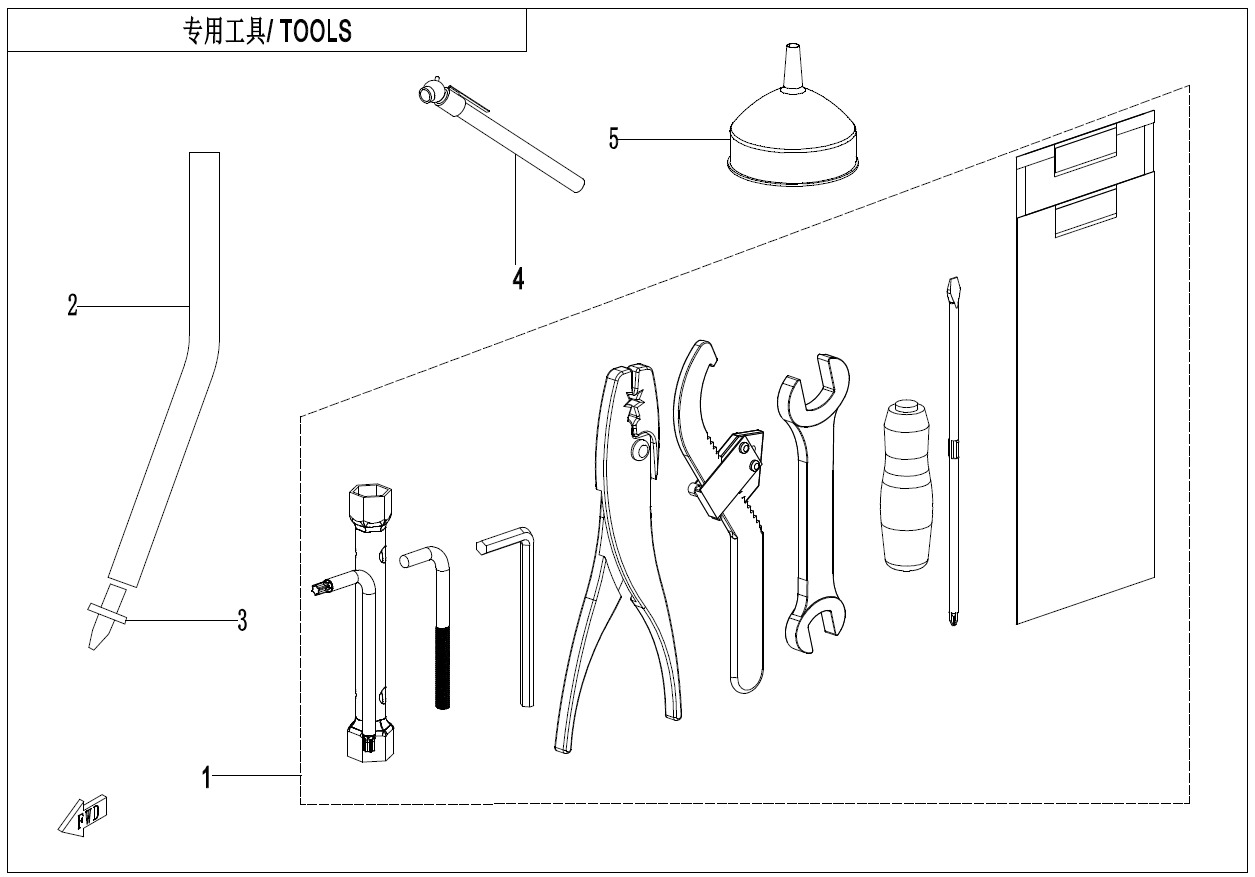

TOOLS
F23

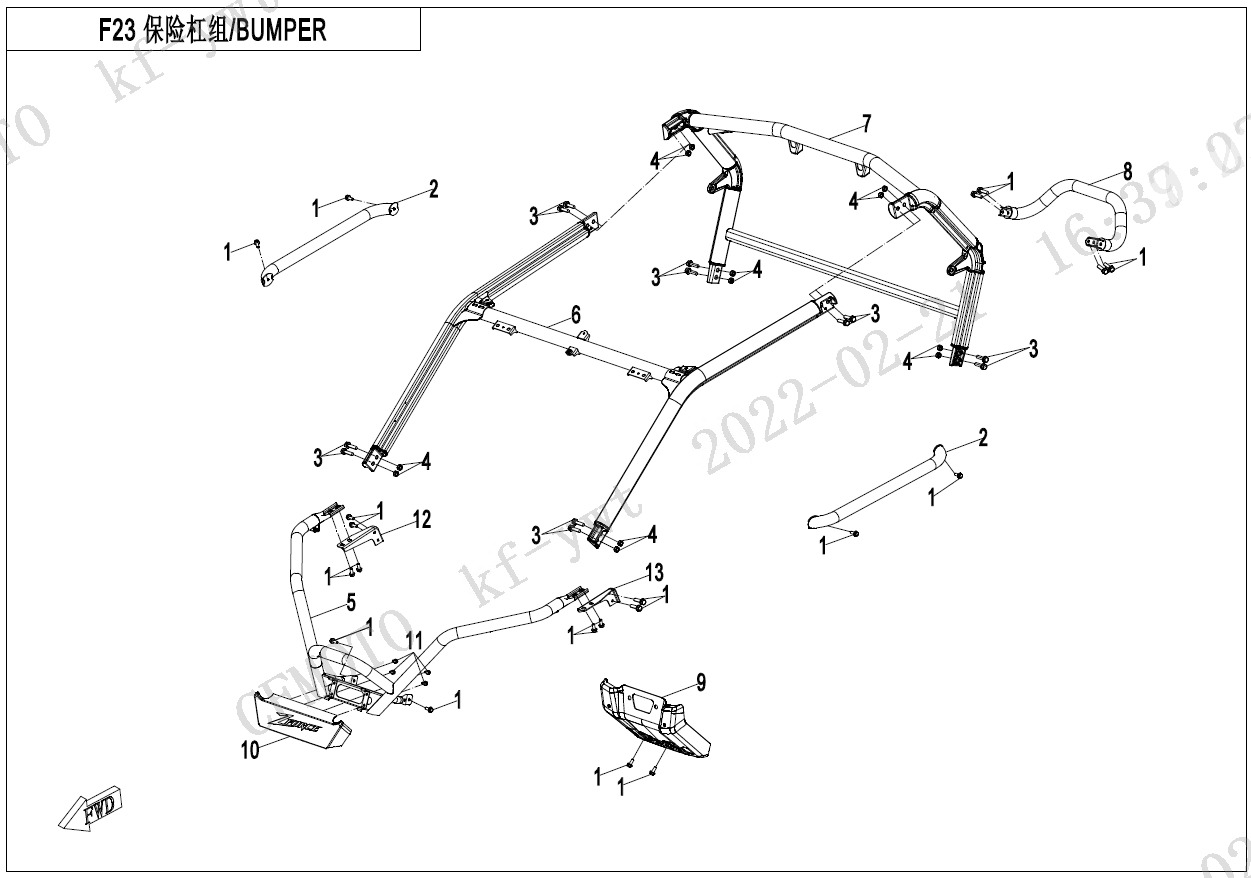

BUMPER
F26-1

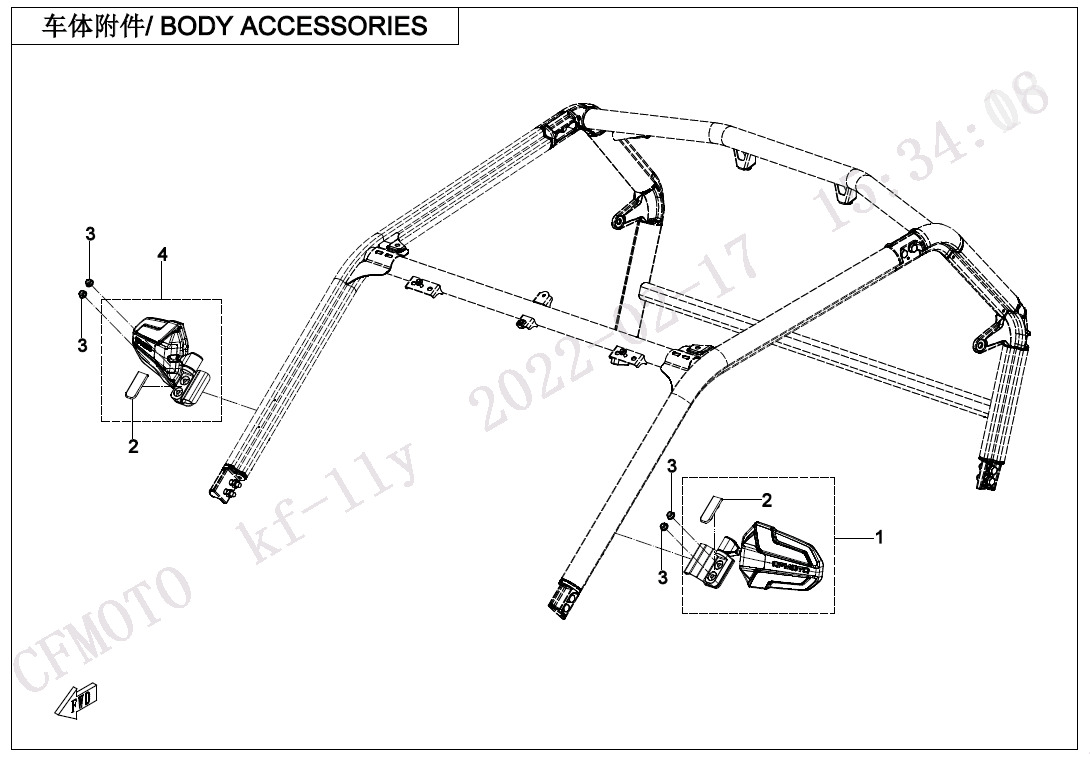

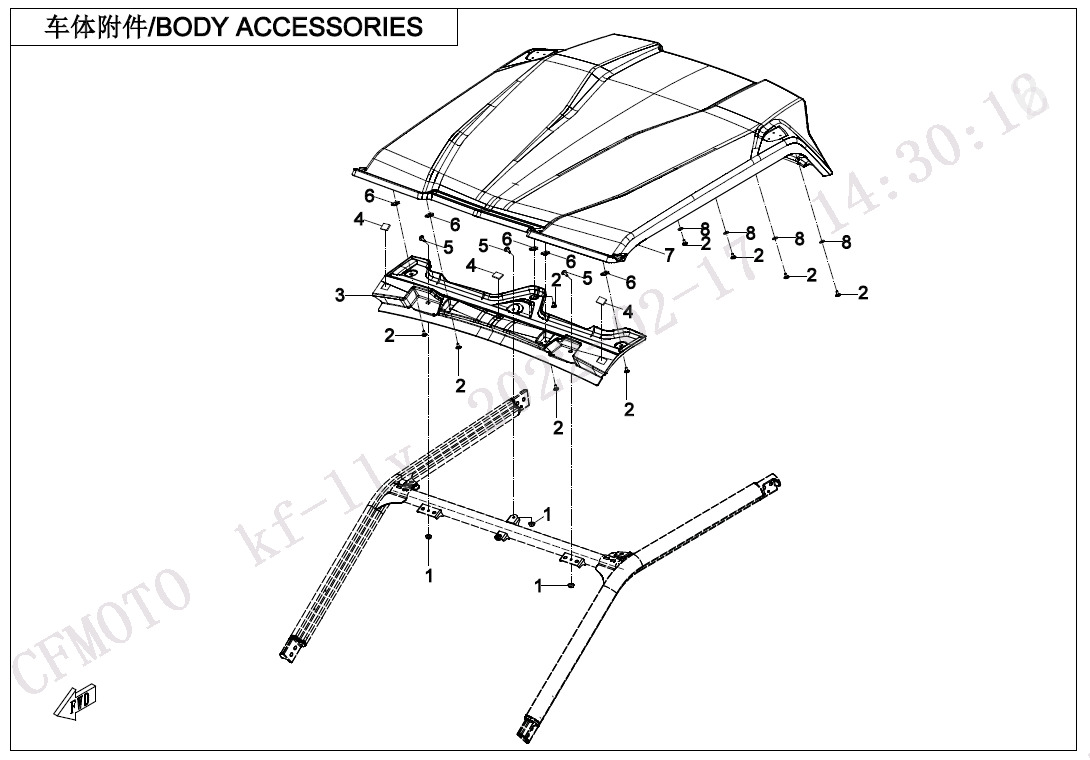

BODY ACCESSORIES
F26-2-V2
BODY ACCESSORIES
F27
FRONT CV SHAFT
F28

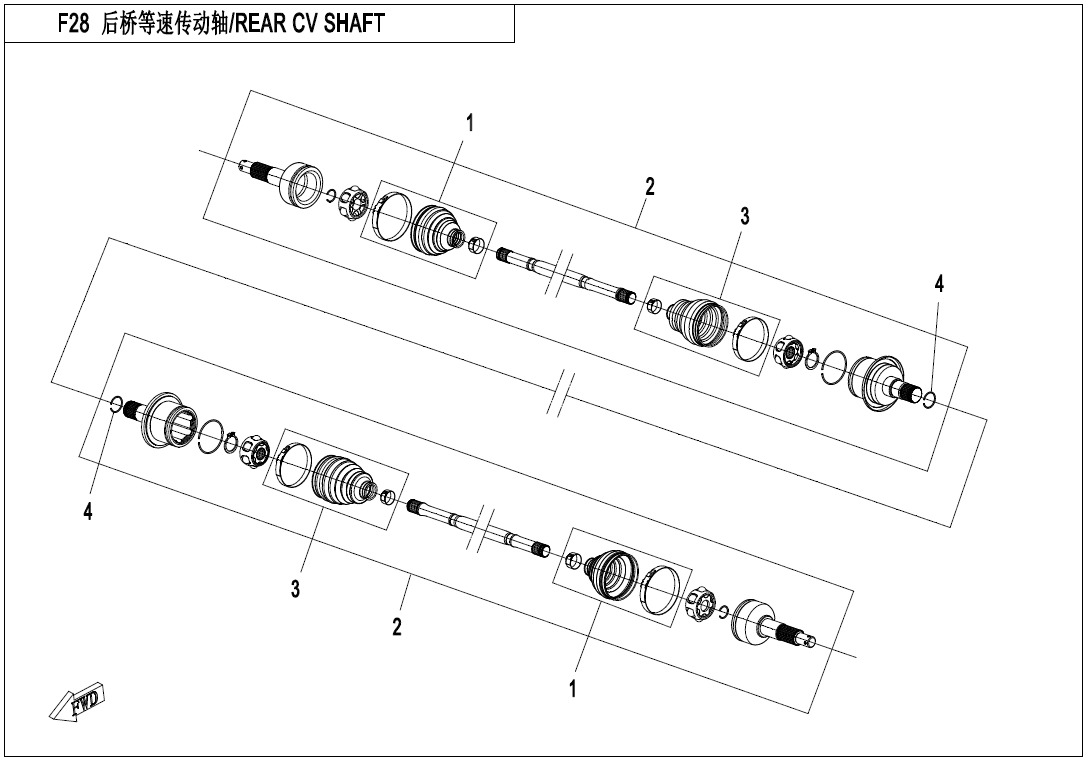

REAR CV SHAFT

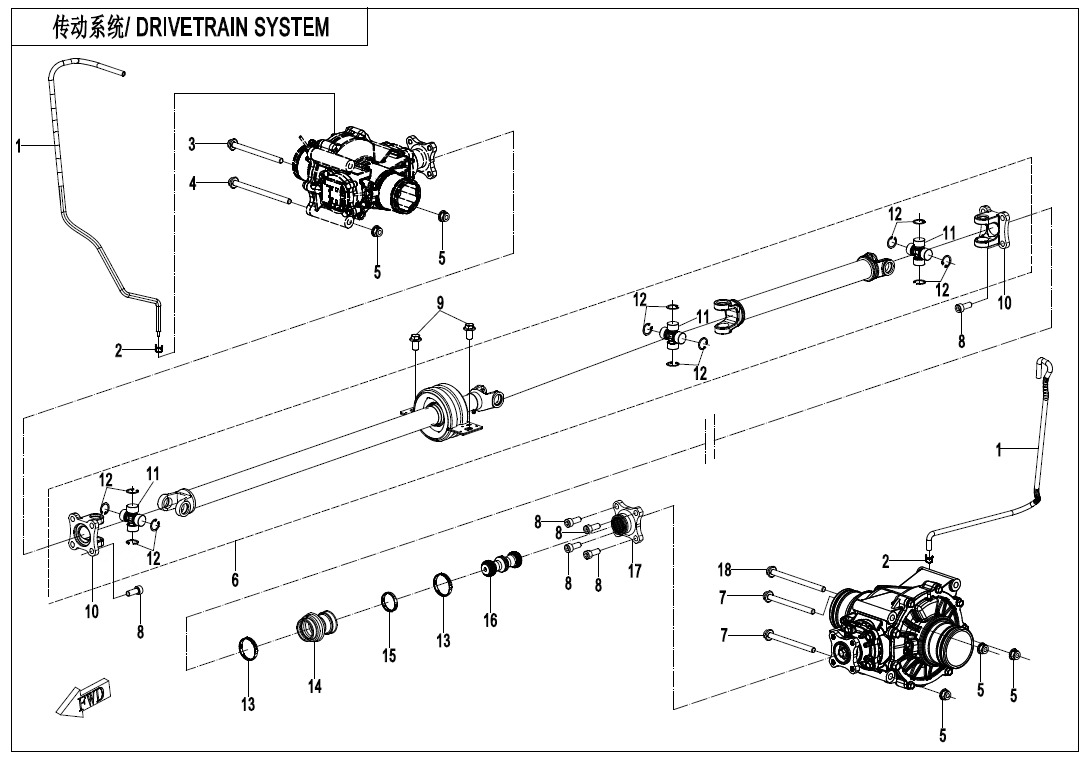

F30
DRIVETRAIN SYSTEM

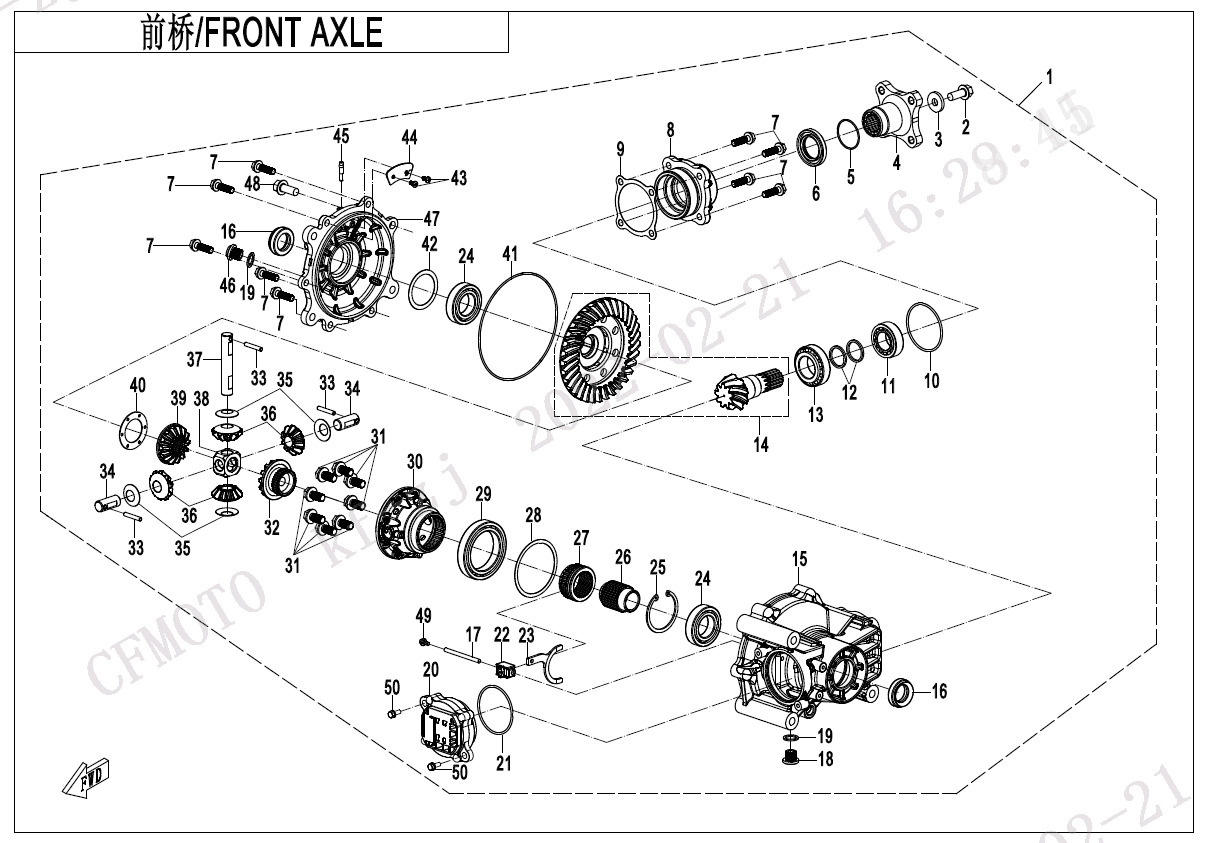

F31
FRONT AXLE

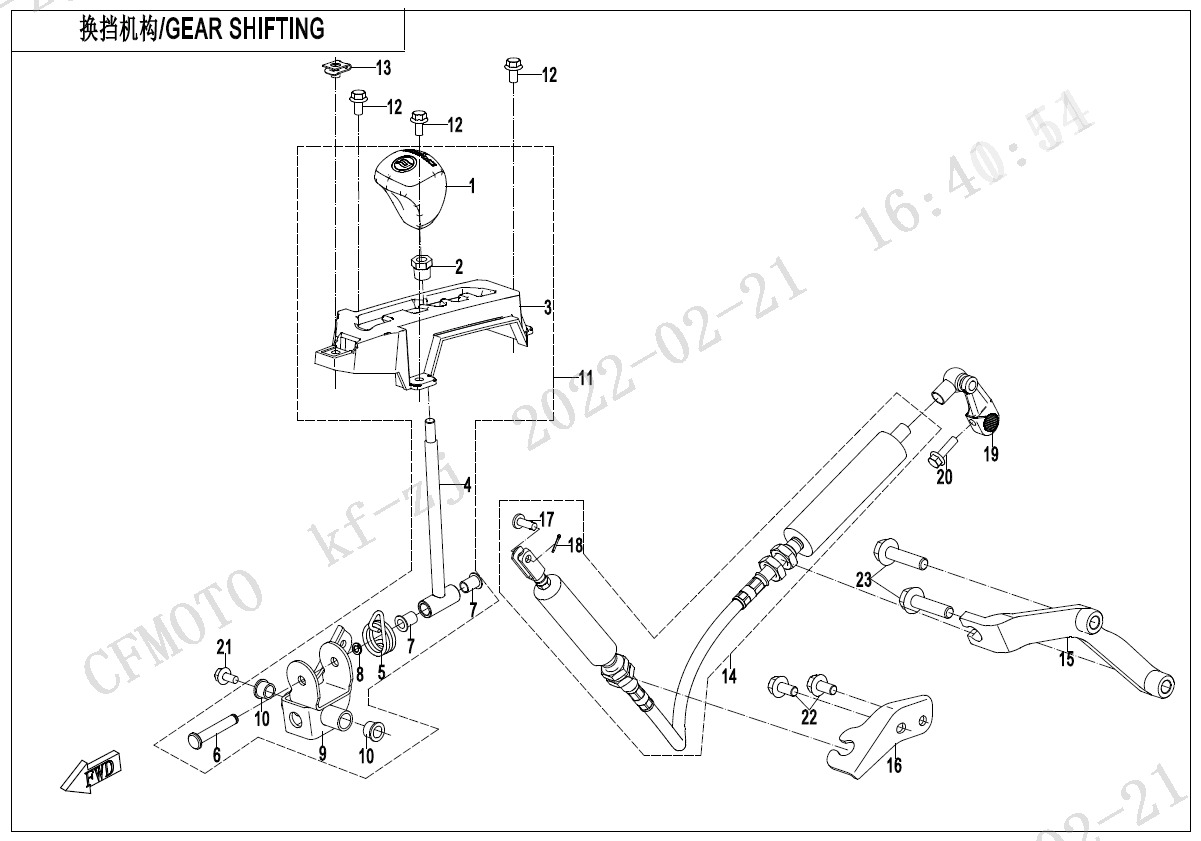

F32

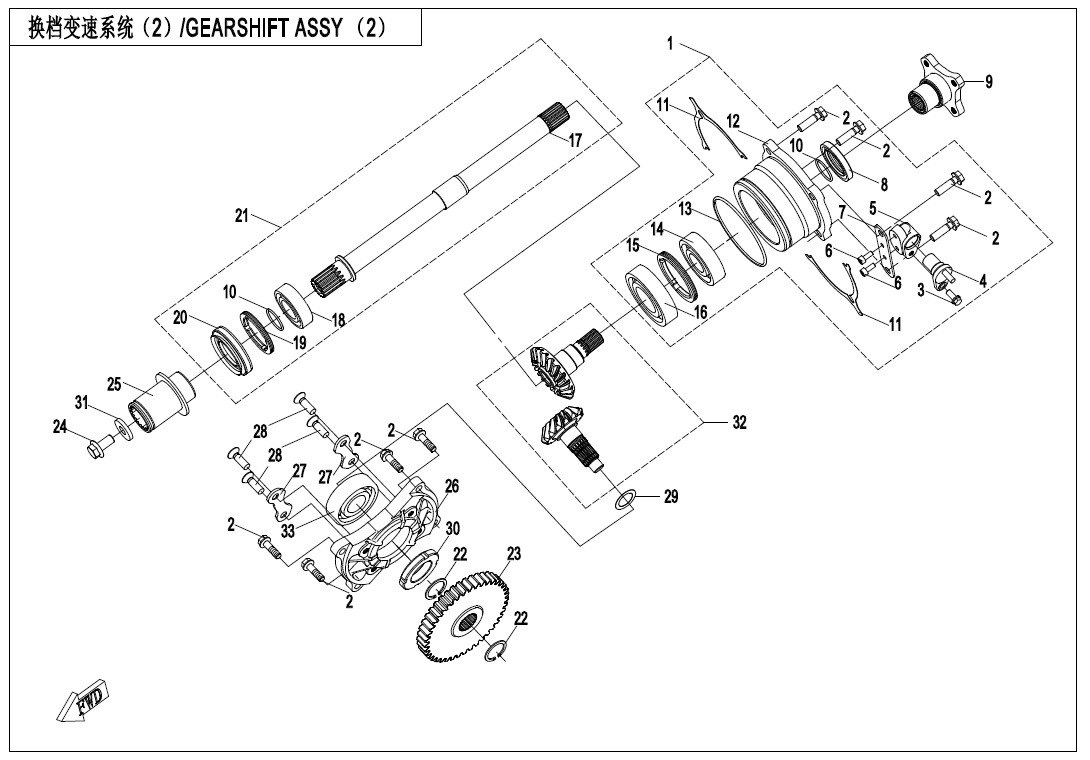

GEAR SHIFTING

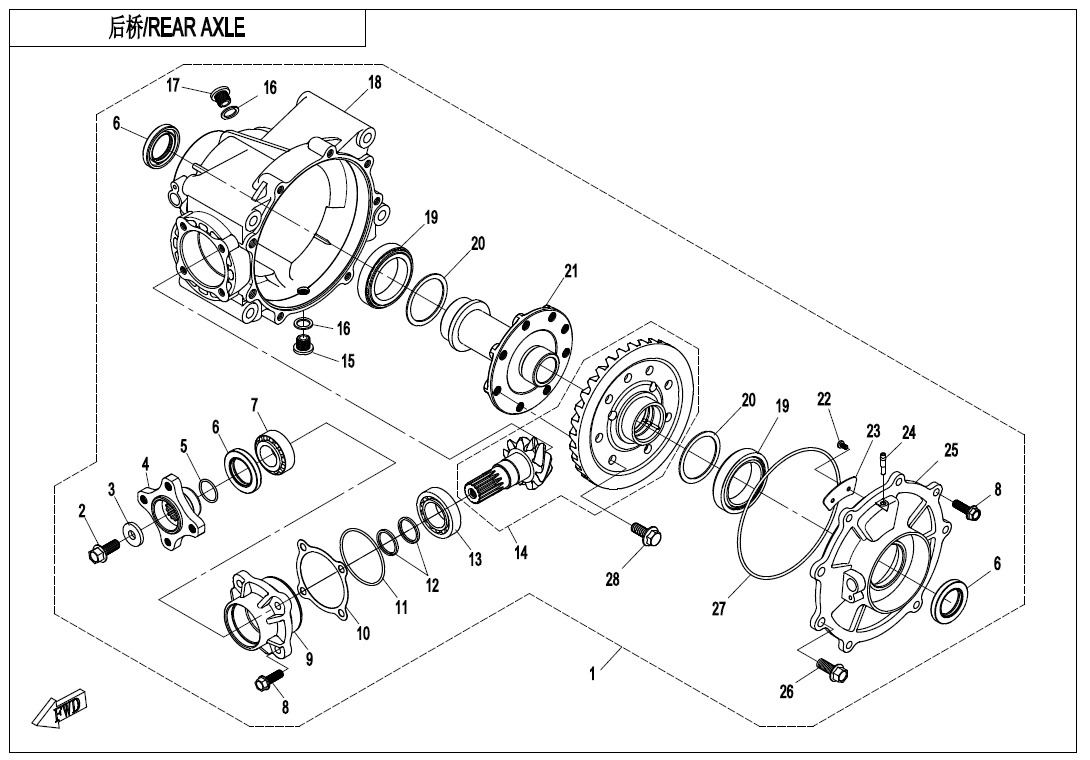

F33-B-V2
REAR AXLE(WITHOUT DIFFERENTIAL)
F34

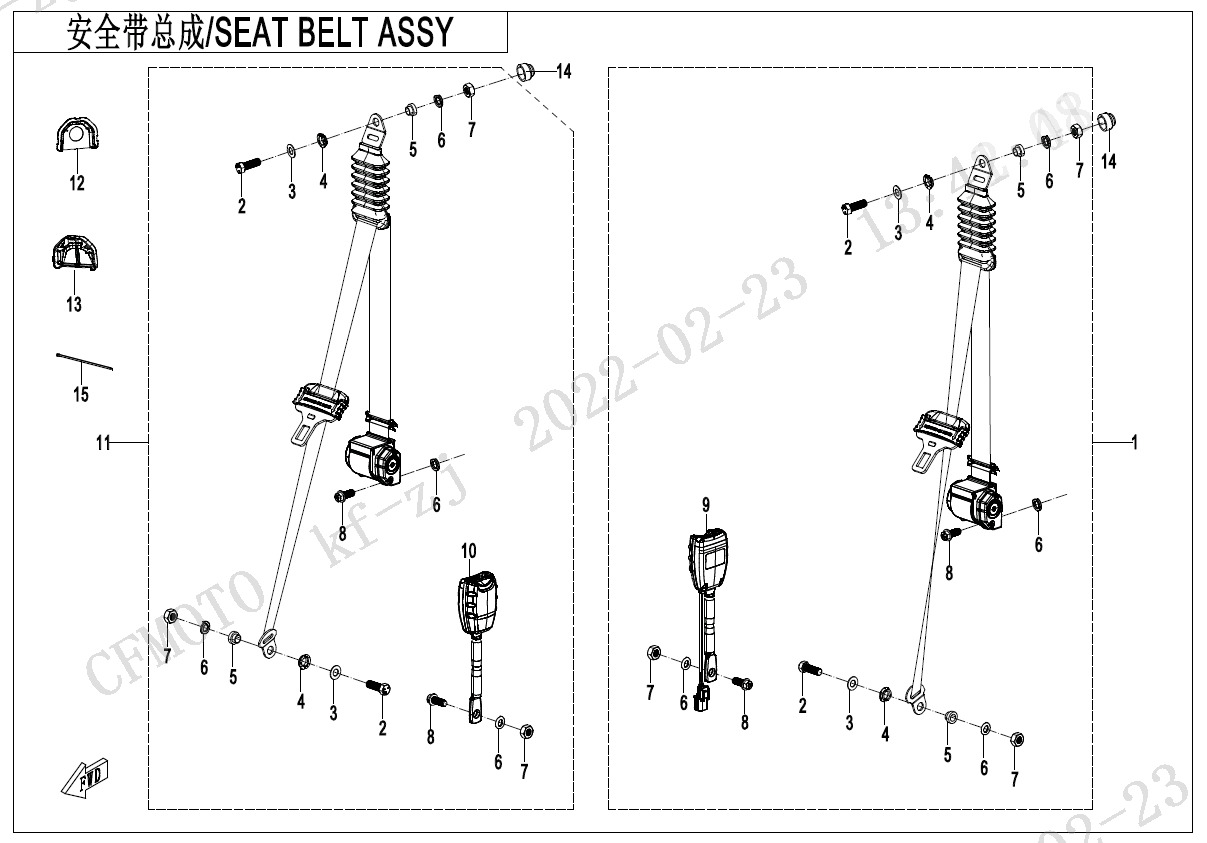

3-POINT SEAT BELT
F37

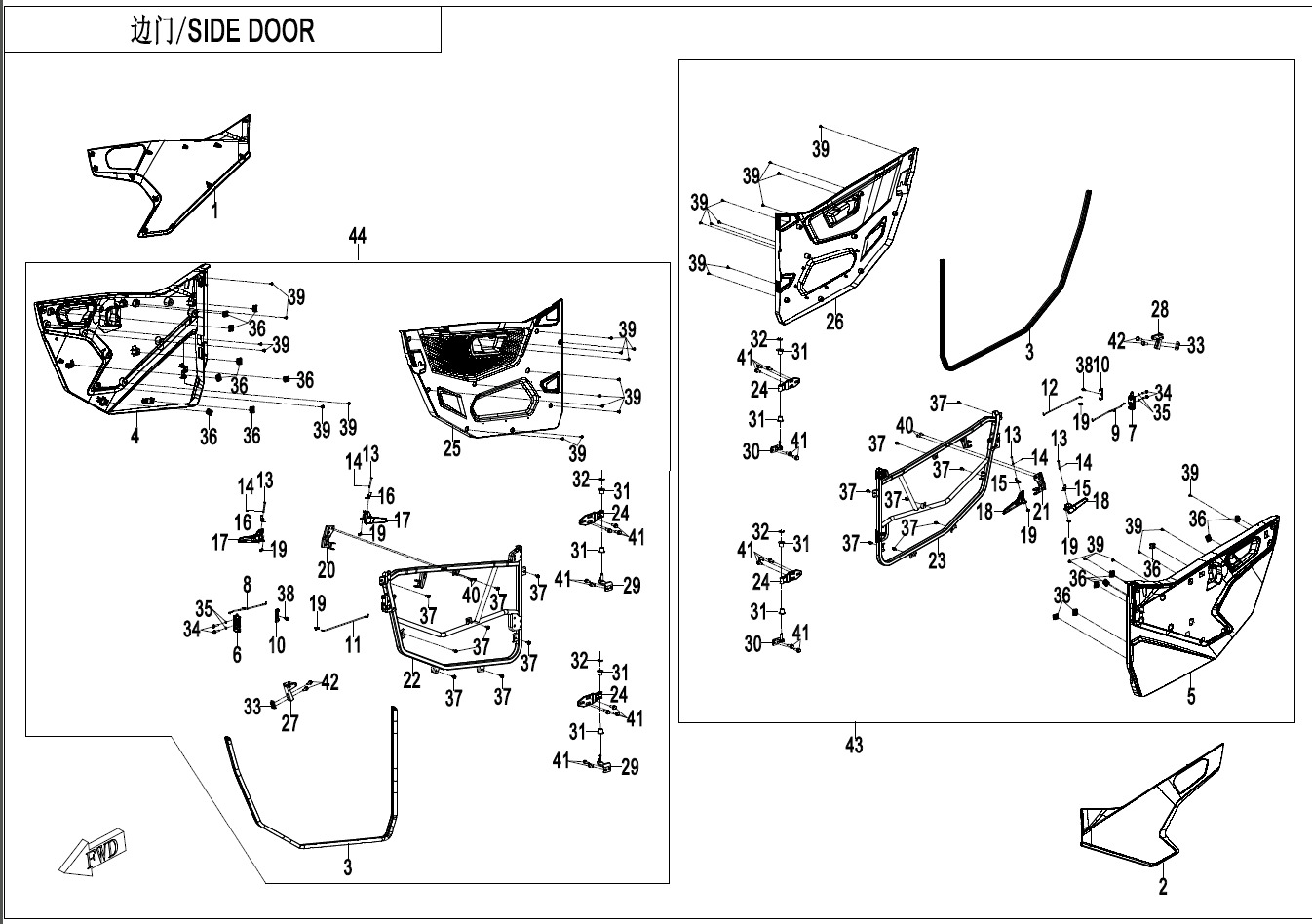

SIDE DOORS
F38-A
OWNERS MANUAL(NA)
F40-B

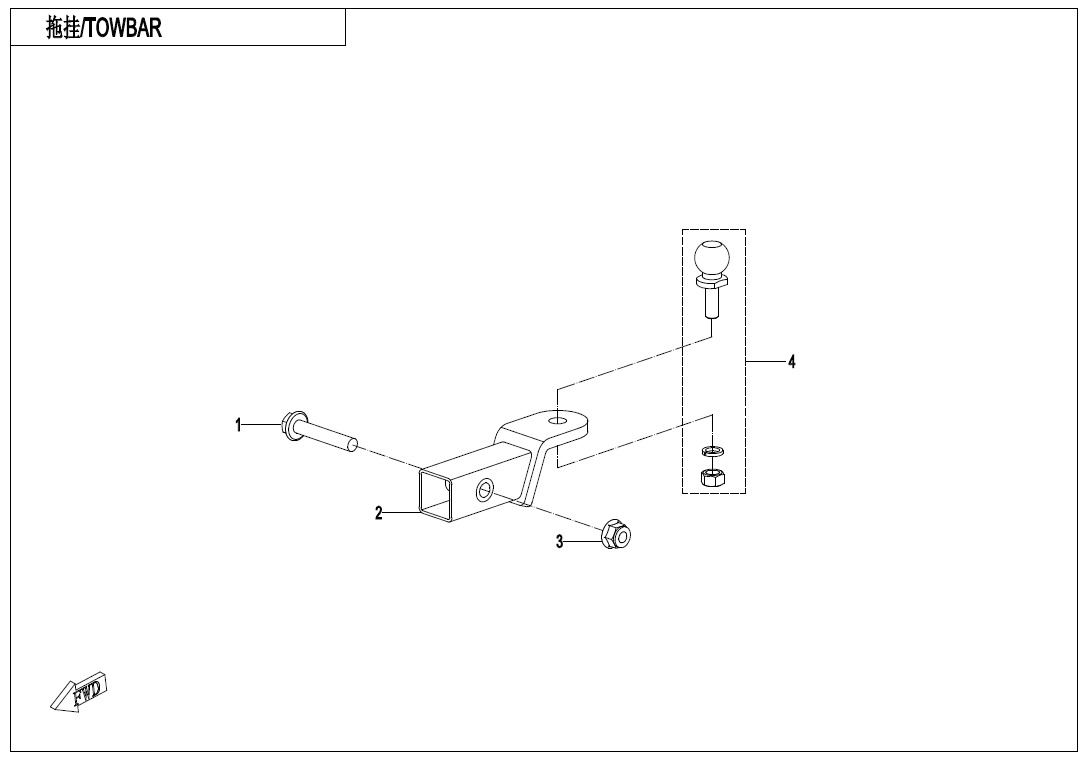

TOWBAR(BOLT CONNECTION)
F41

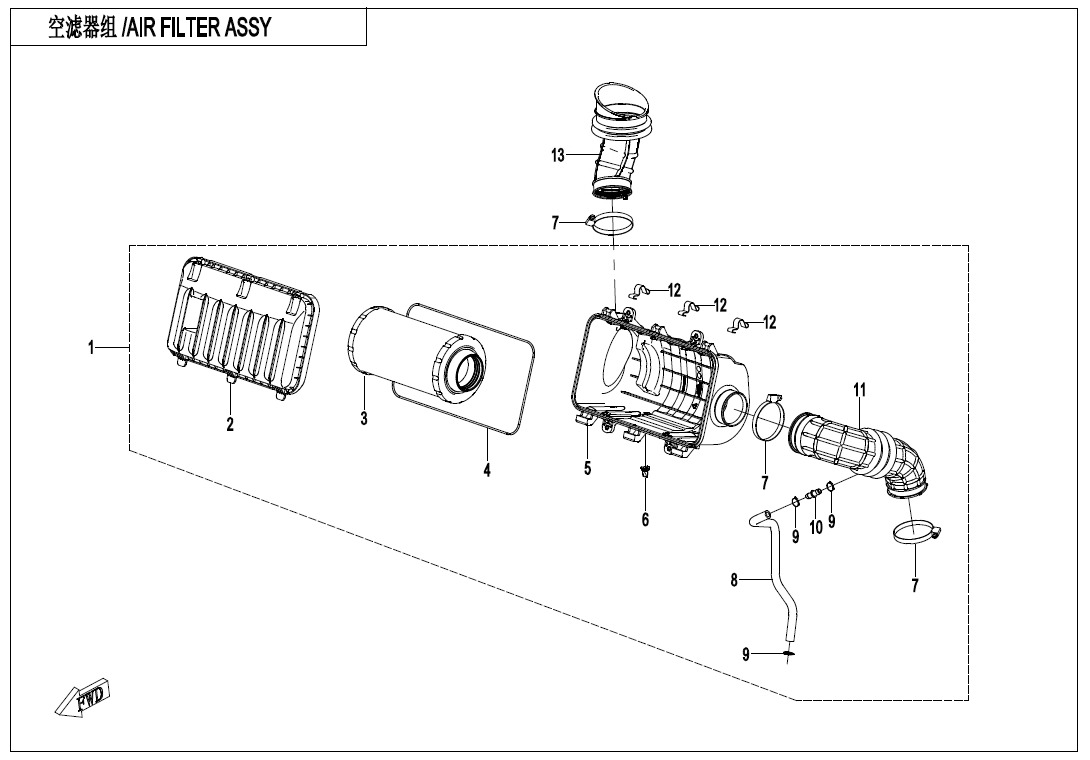

AIR FILTER ASSY
E00
LONG BLOCK

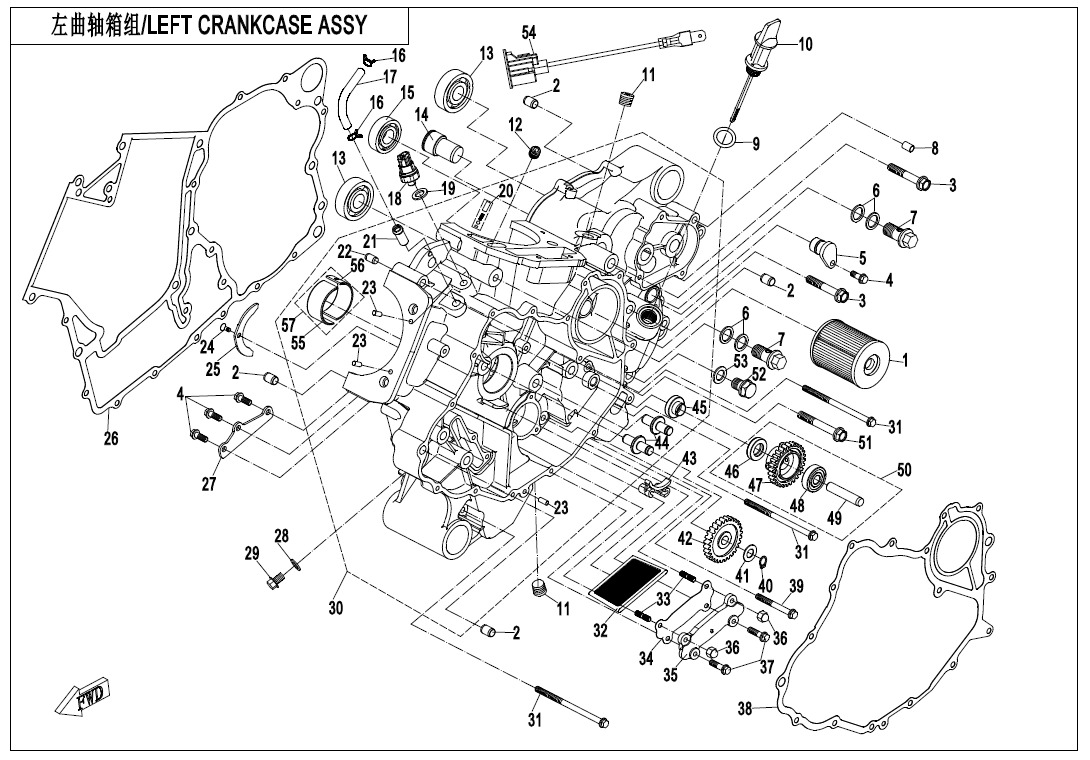

E01-1
LEFT CRANKCASE ASSY

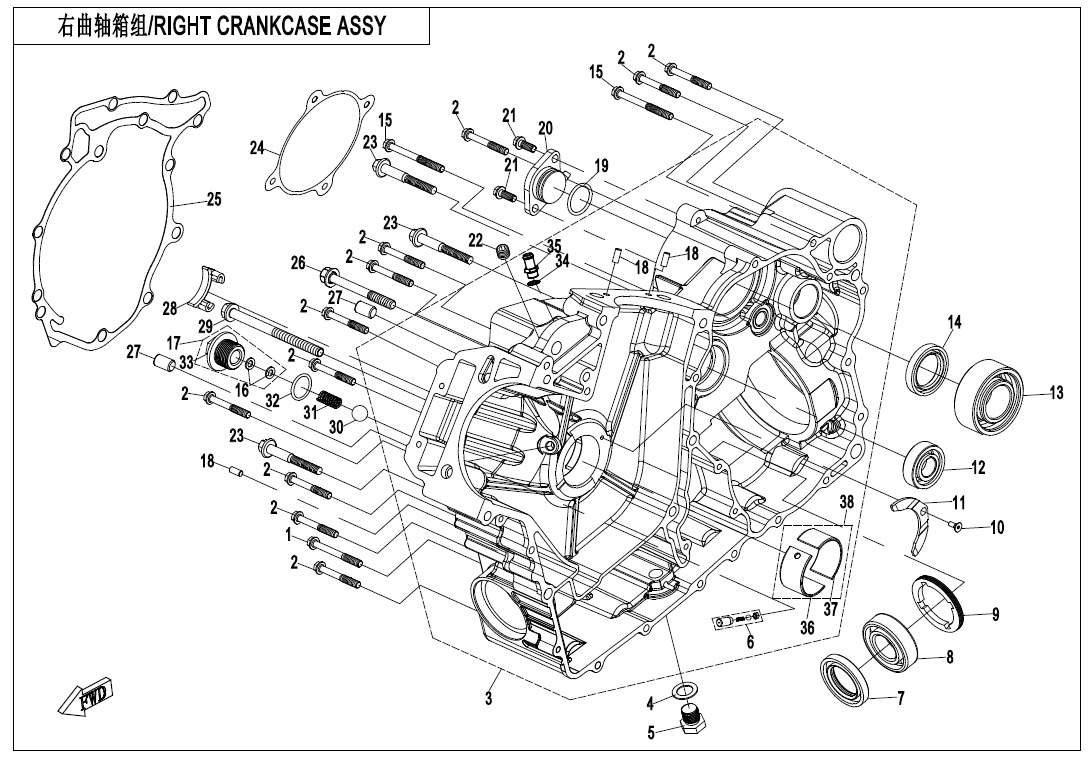

E01-2
RIGHT CRANKCASE ASSY

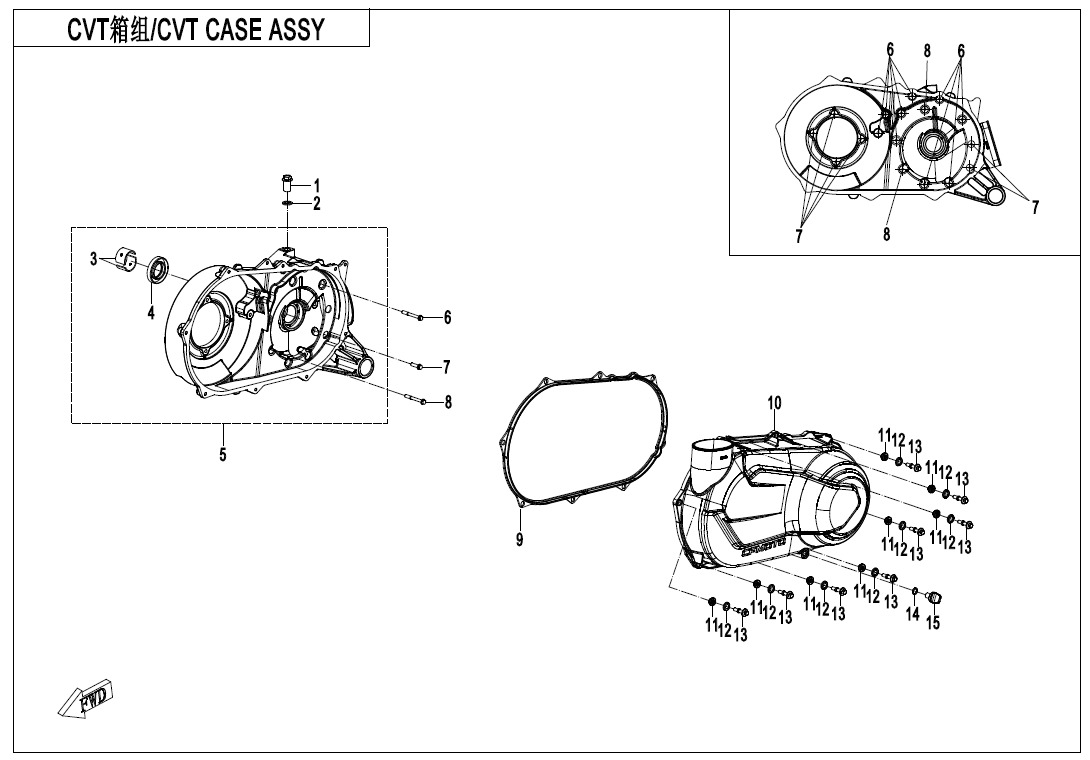

E01-3
CVT CASE ASSY
E01-4-V1

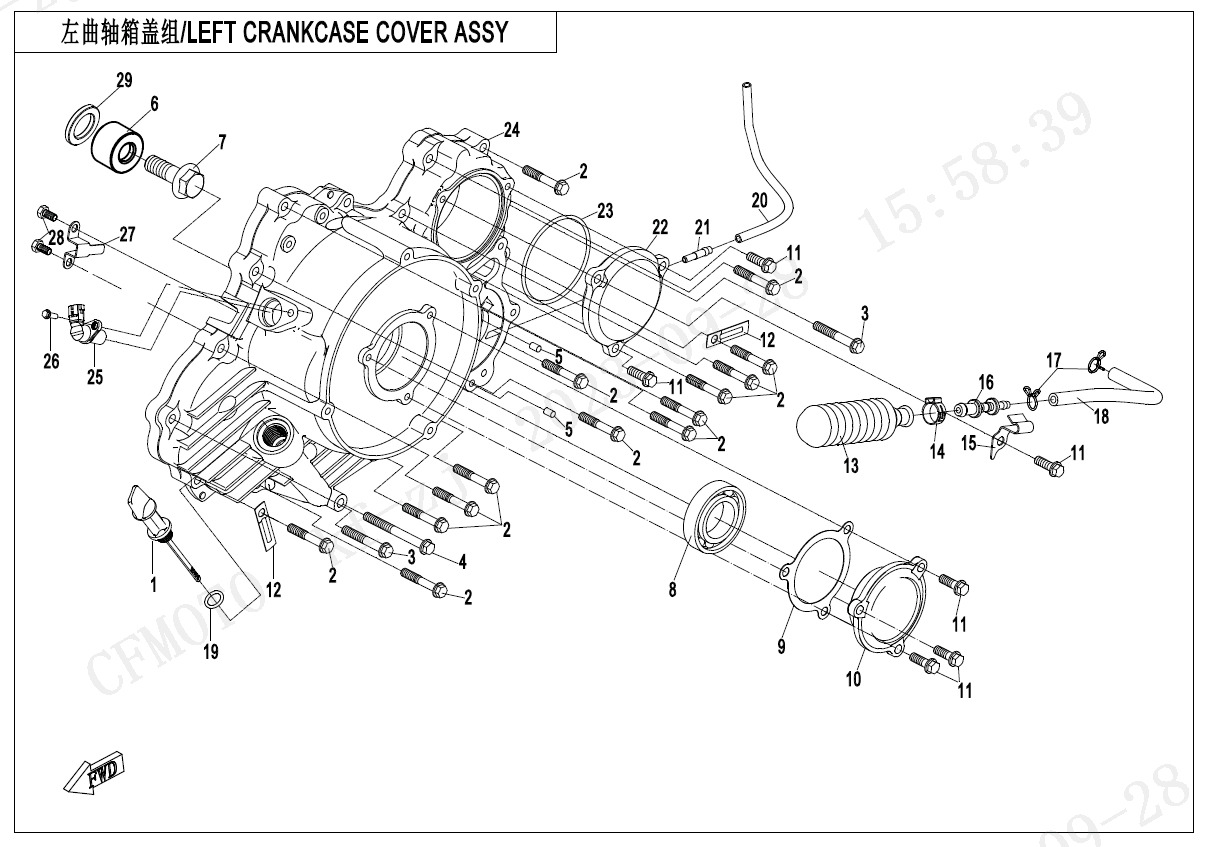

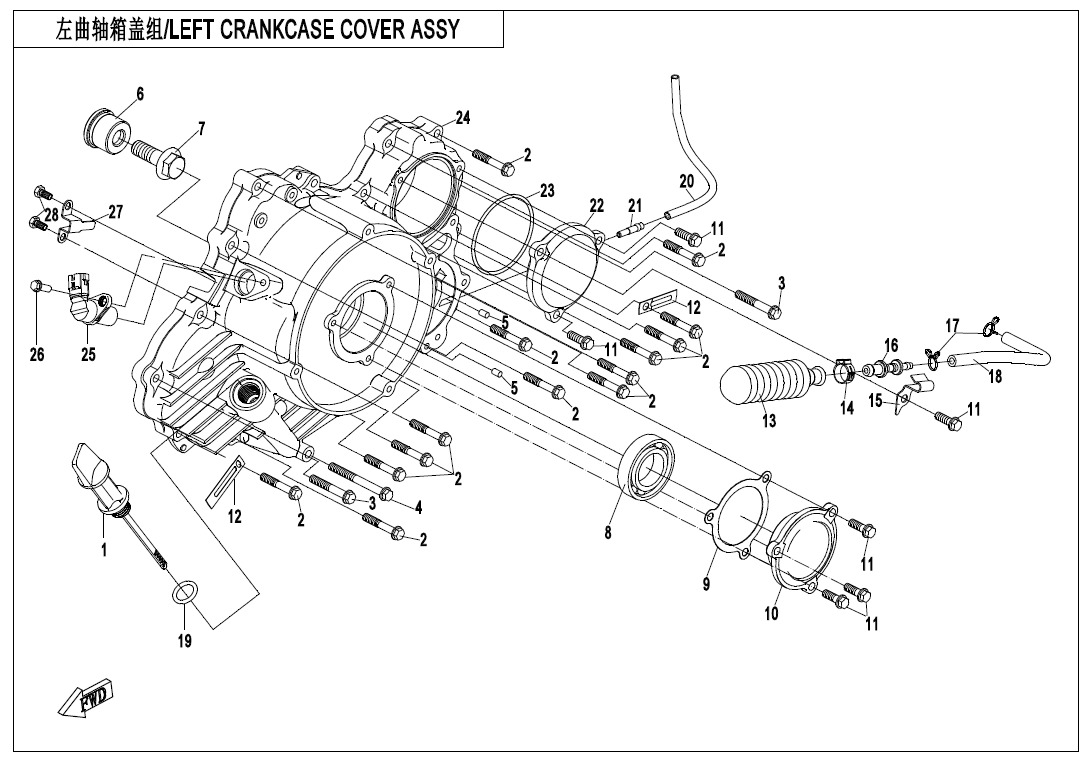

LEFT CRANKCASE COVER ASSY
E01-4-V2
LEFT CRANKCASE COVER ASSY
E02-1
CYLINDER HEAD COVER ASSY
E02-2

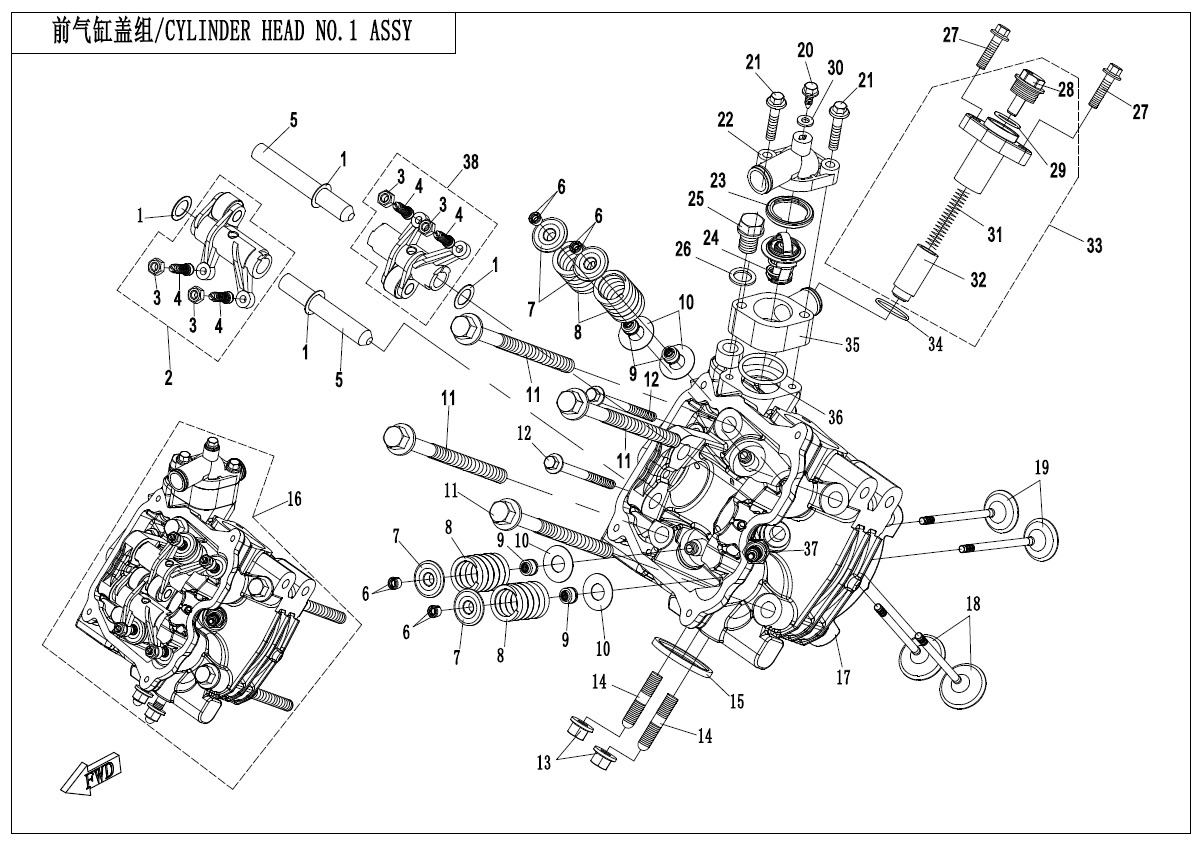

CYLINDER HEAD NO.1 ASSY
E02-3

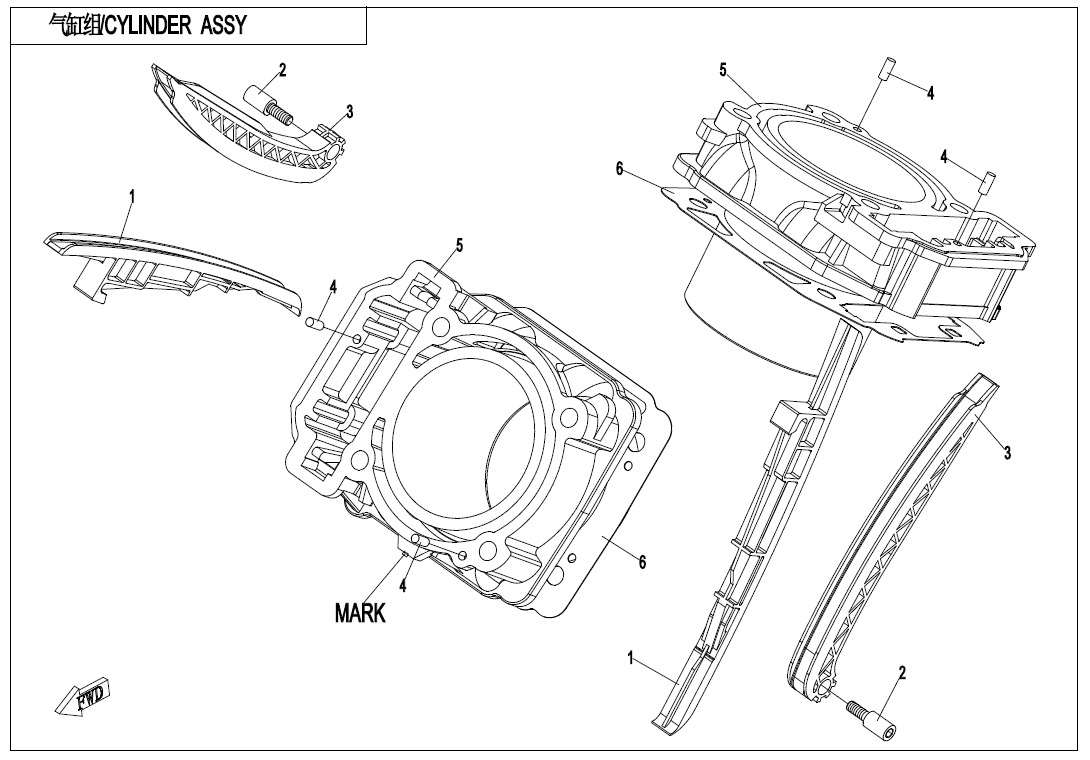

CYLINDER BODY
E02-4

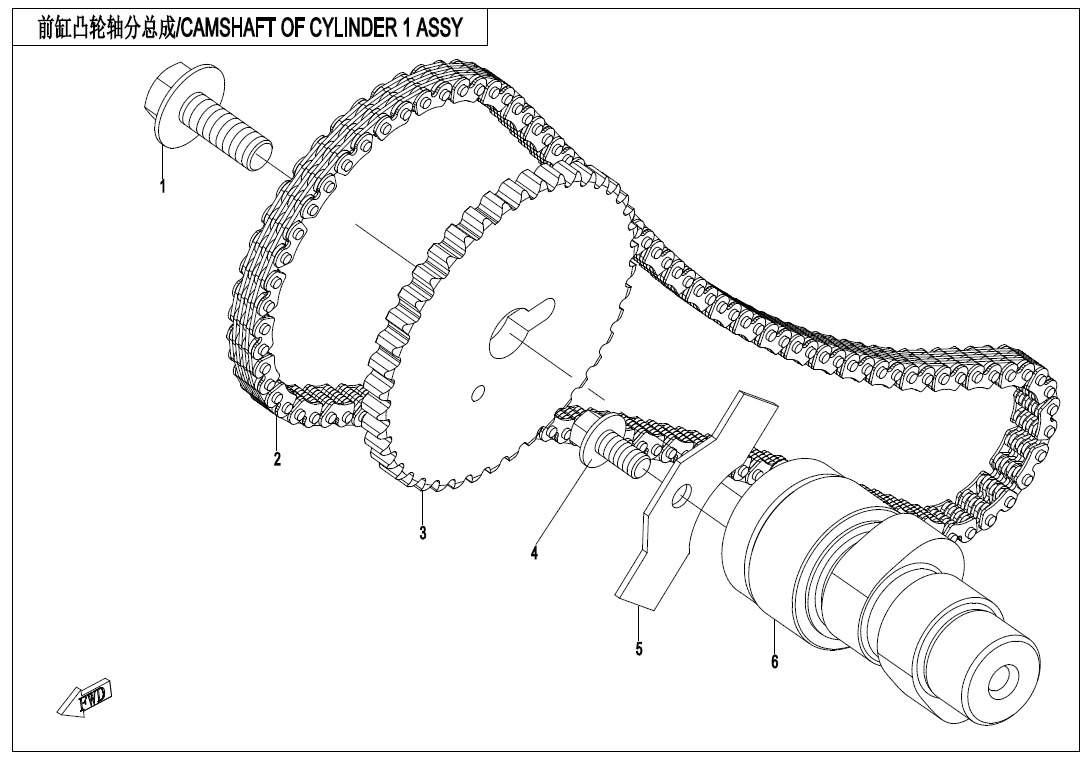

CAMSHAFT OF CYLINDER 1 ASSY
E02-5-B

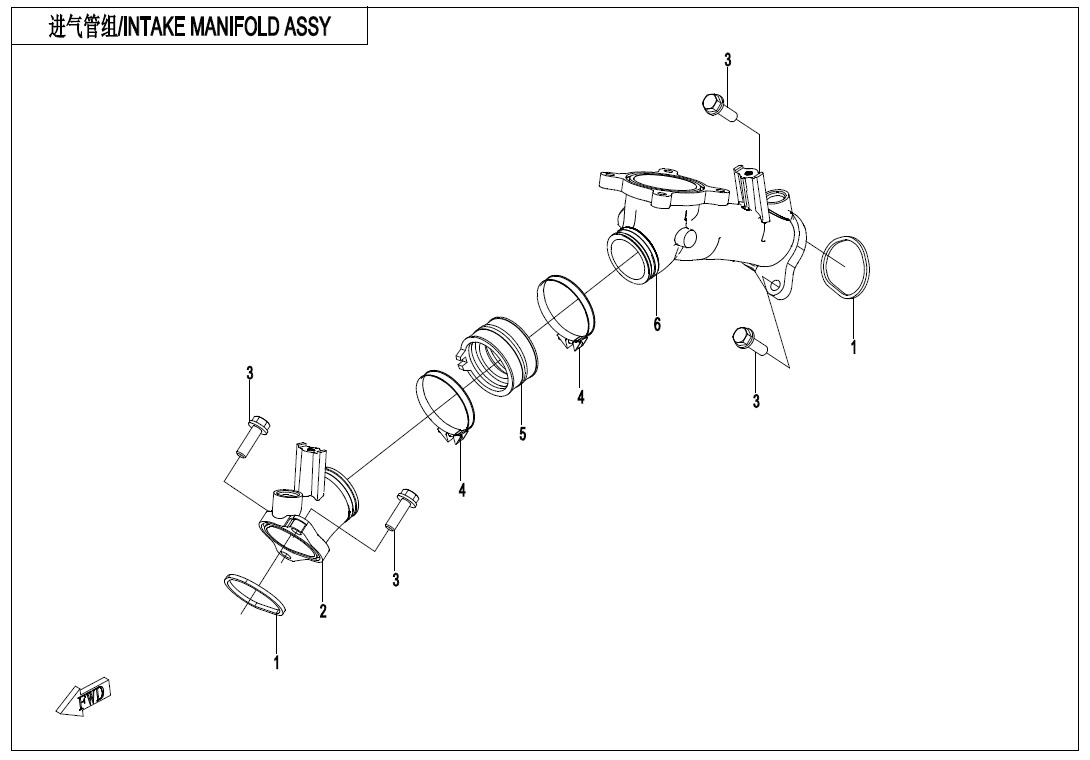

INTAKE MANIFOLD ASSY(WHITOUT FUEL VAPORIZATION SYSTEM)

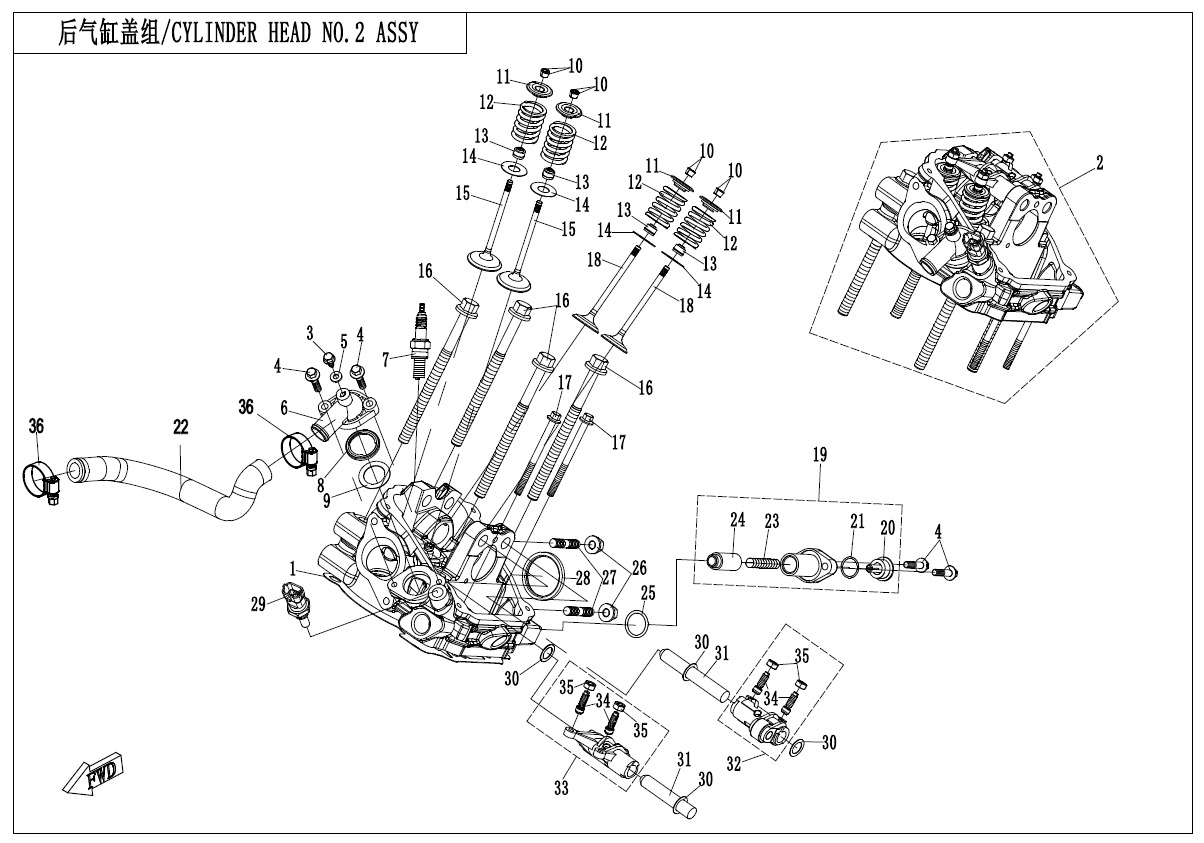

E02-6
CYLINDER HEAD NO.2 ASSY

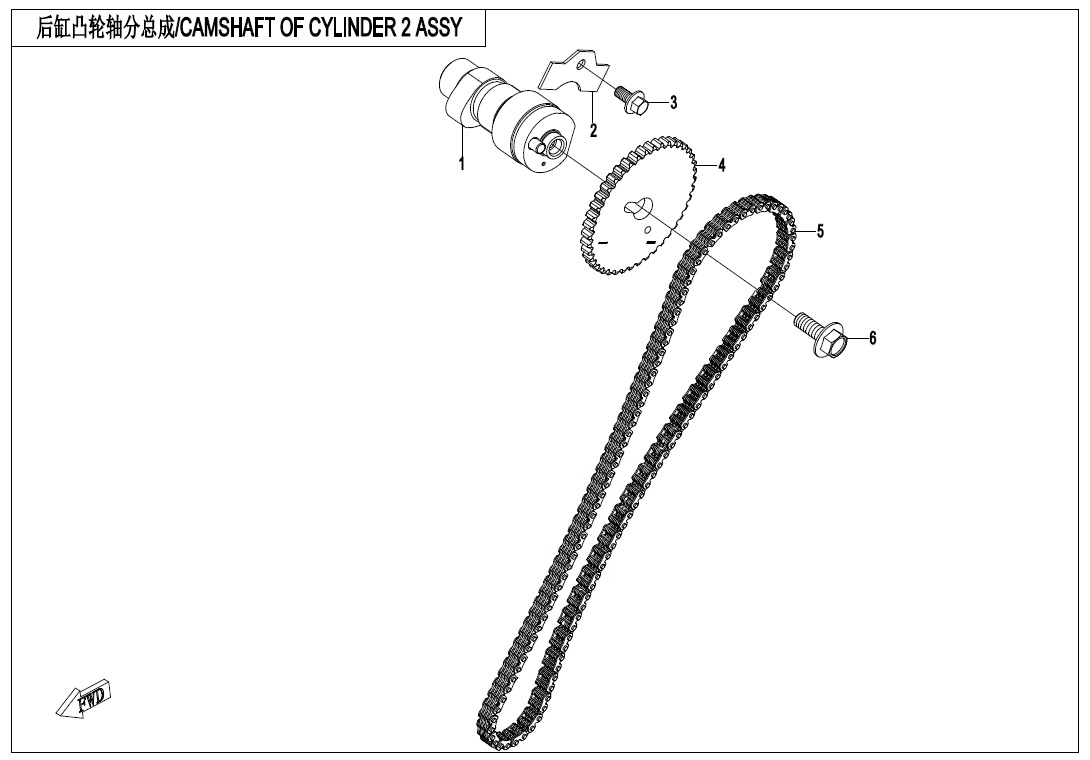

E02-7
CAMSHAFT OF CYLINDER 2 ASSY

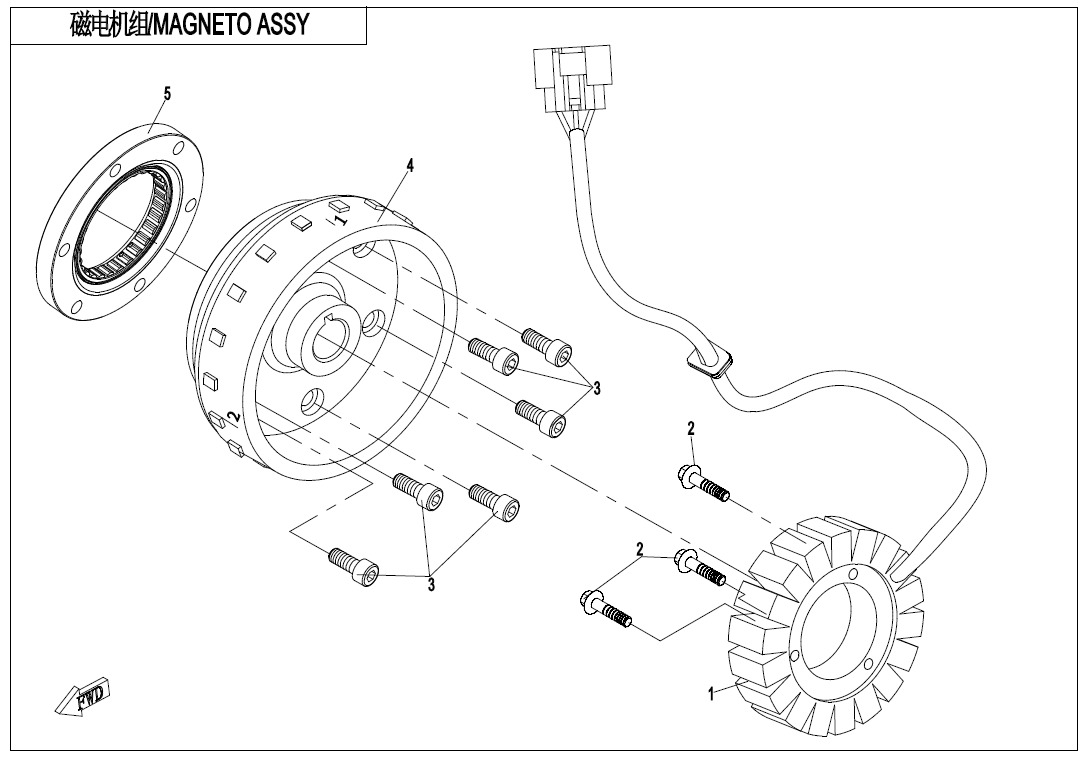

E03
MAGNETO ASSY.

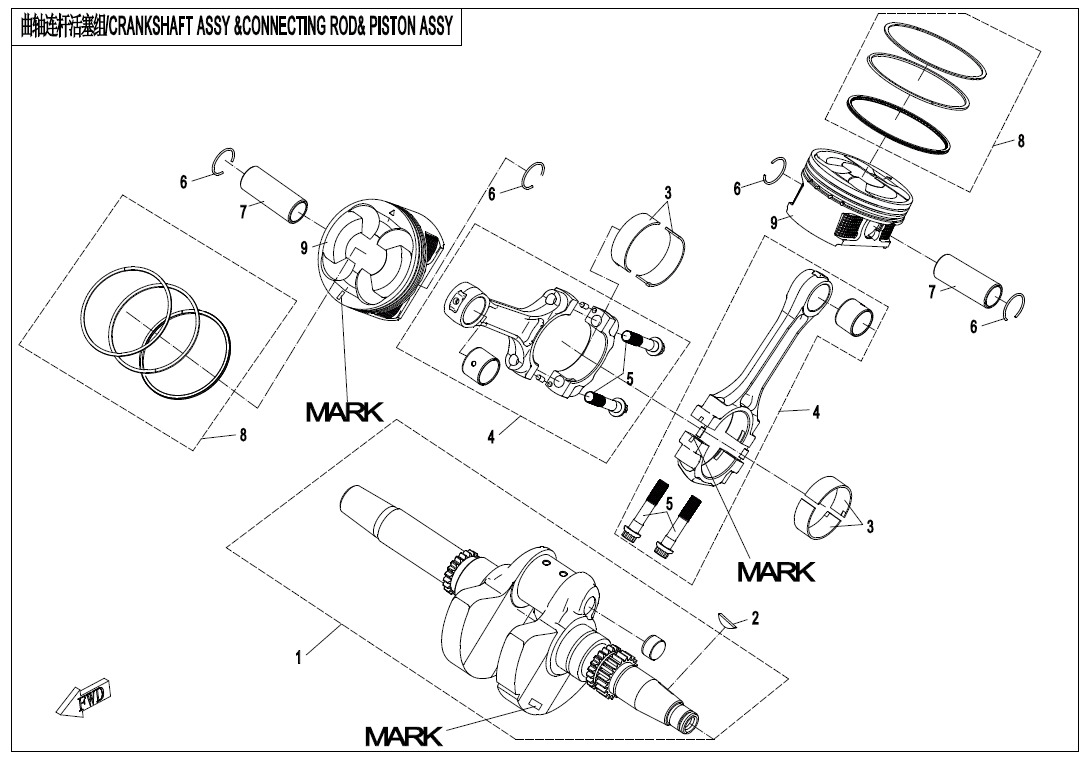

E04
CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY
E05

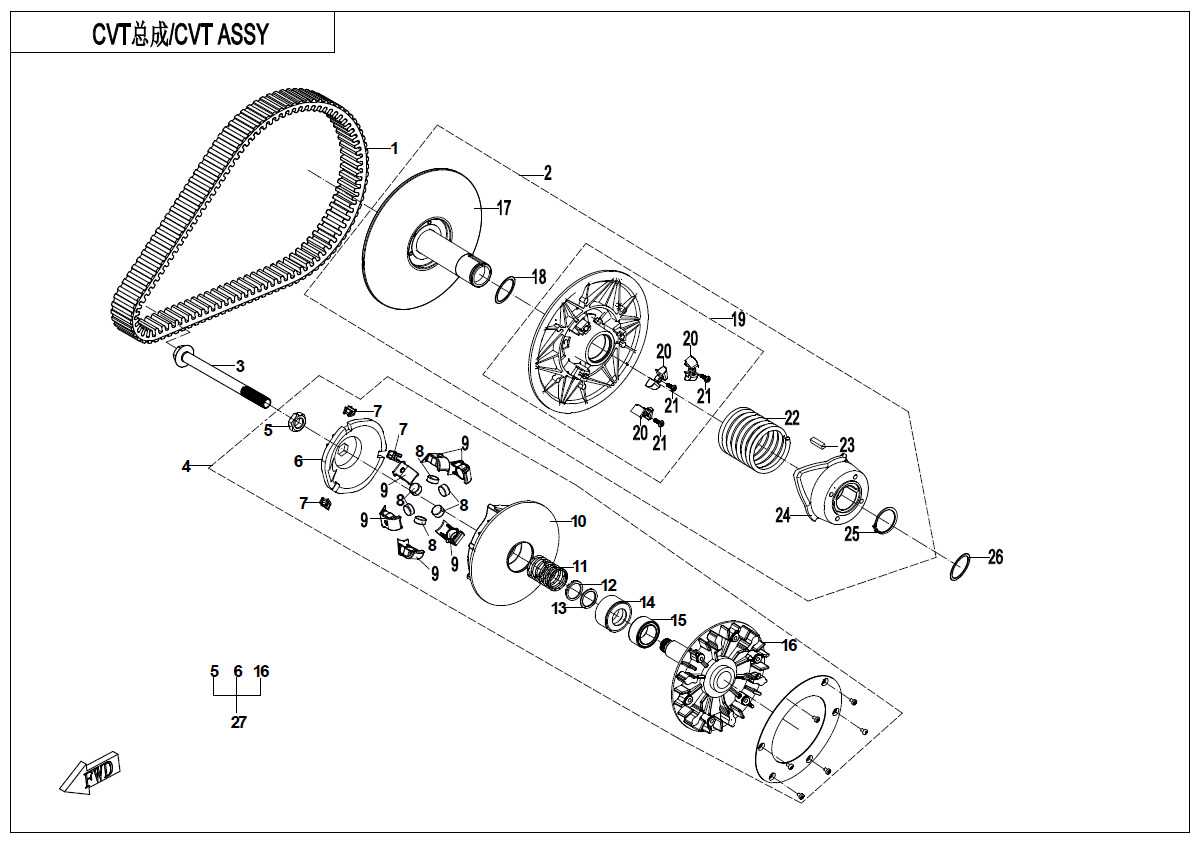

CVT ASSY

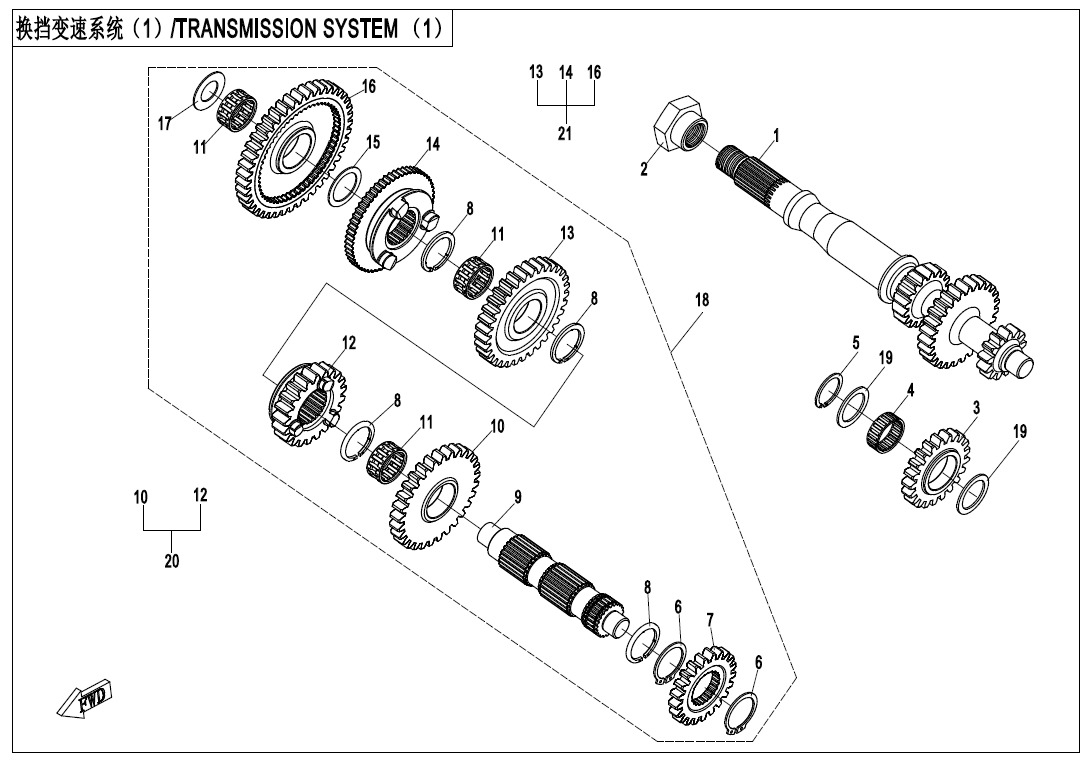

E06-1
TRANSMISSION SYSTEM(1)
E06-2
TRANSMISSION SYSTEM(2)
E06-3

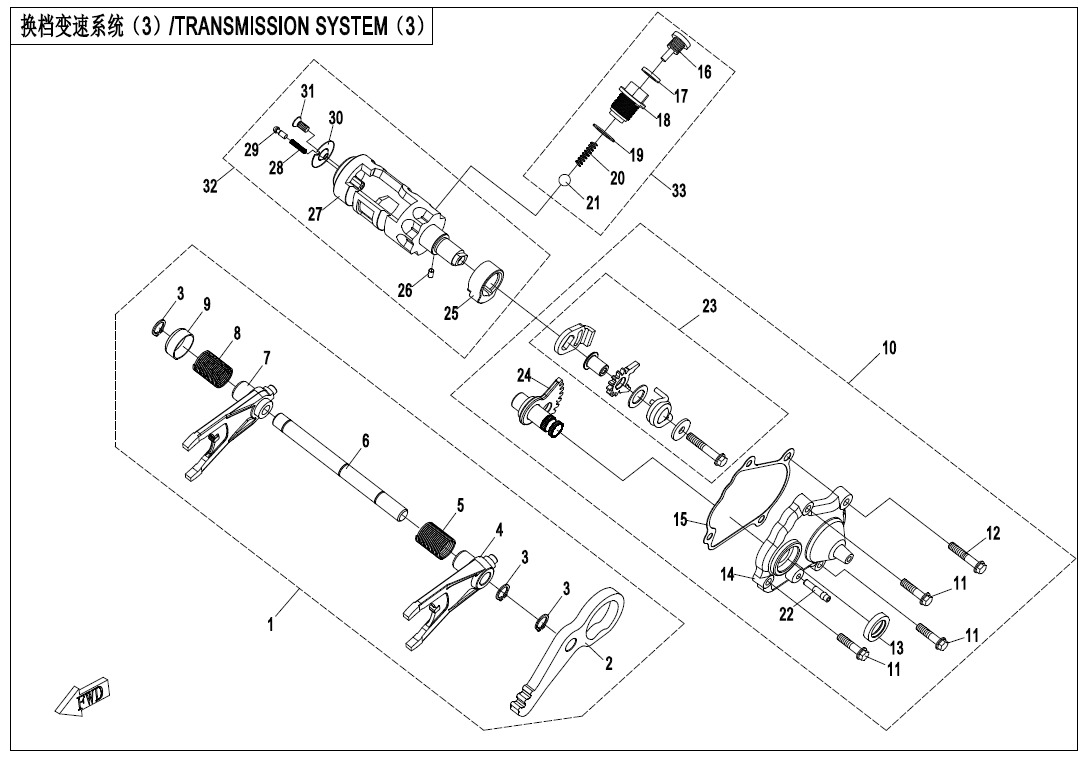

TRANSMISSION SYSTEM(3)
E07-1

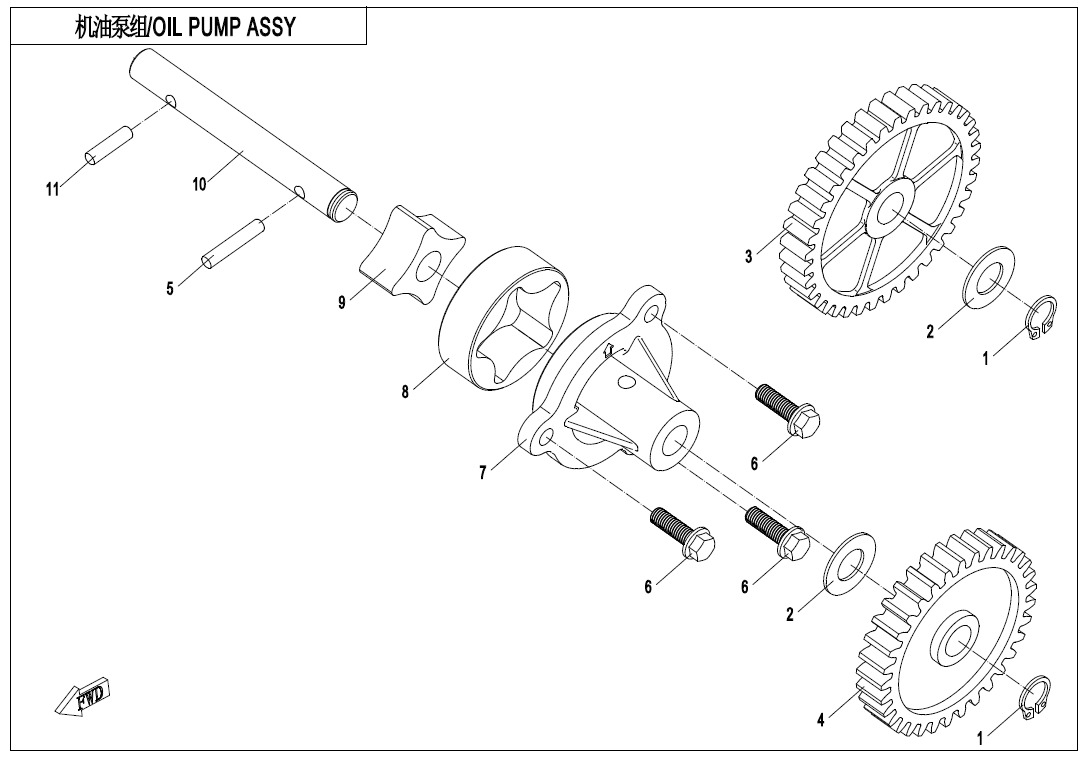

OIL PUMP ASSY
E07-2

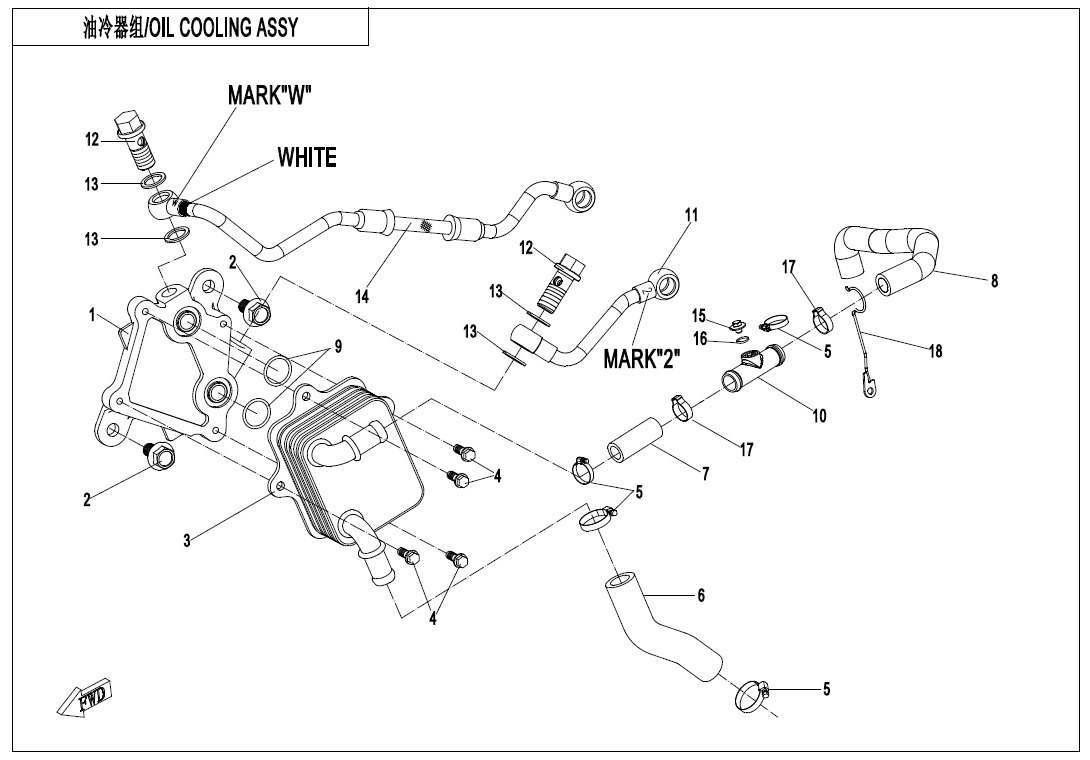

OIL COOLING SYSTEM.
E08
WATER PUMP ASSY.
E09

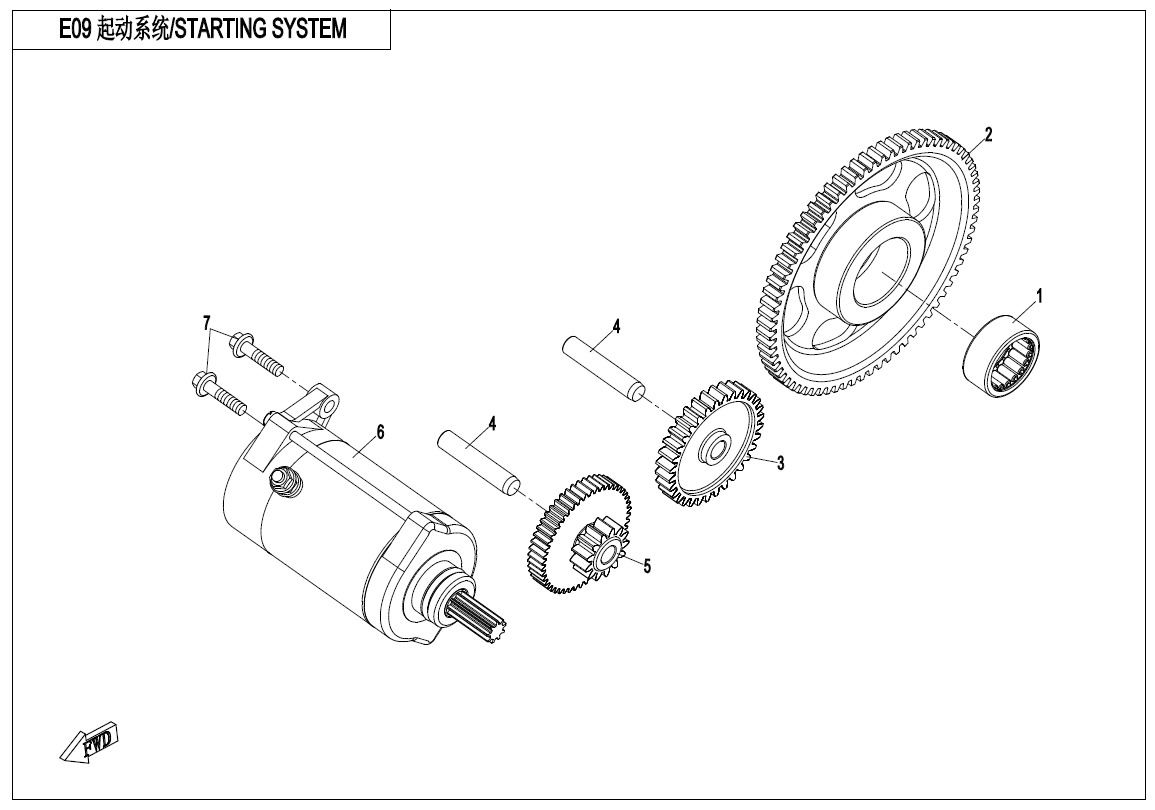

STARTING SYSTEM

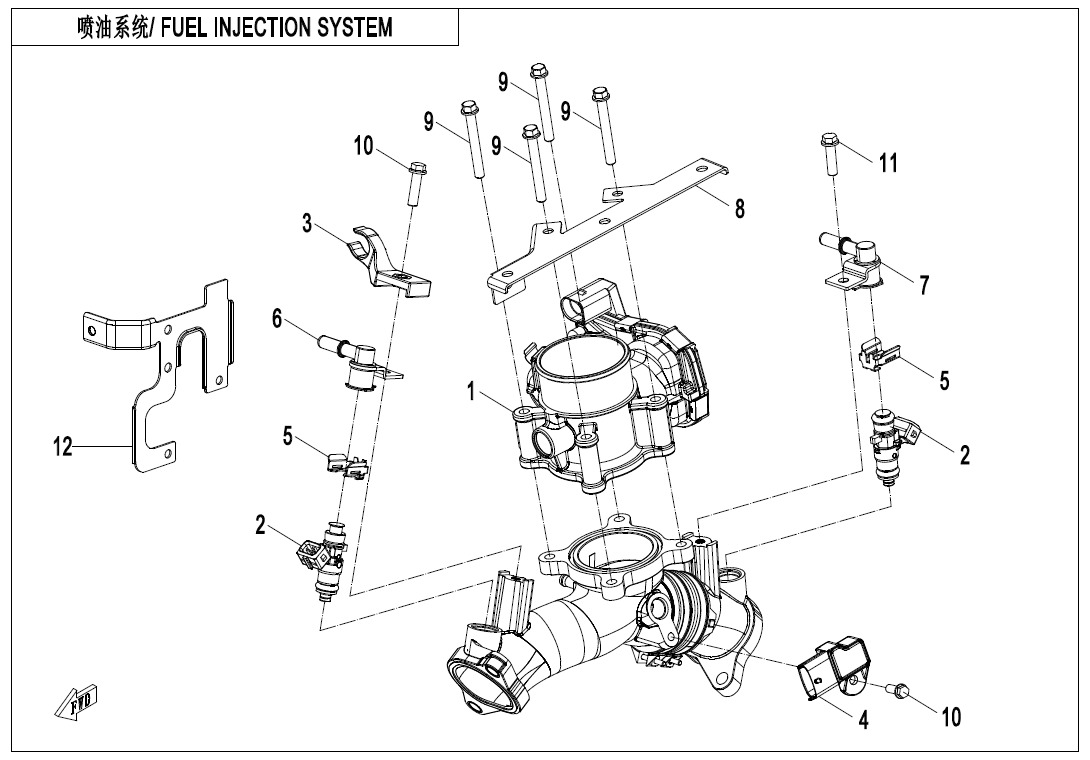

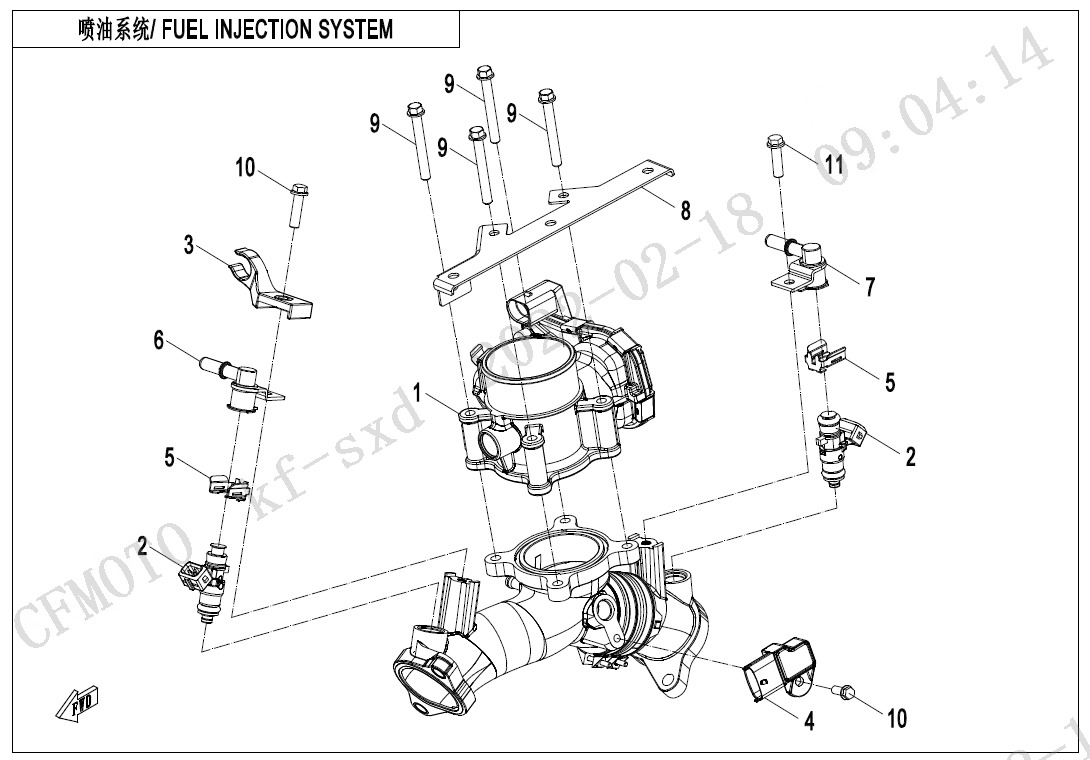

E17-V1
FUEL INJECTION SYSTEM
E17-V2
FUEL INJECTION SYSTEM
E29

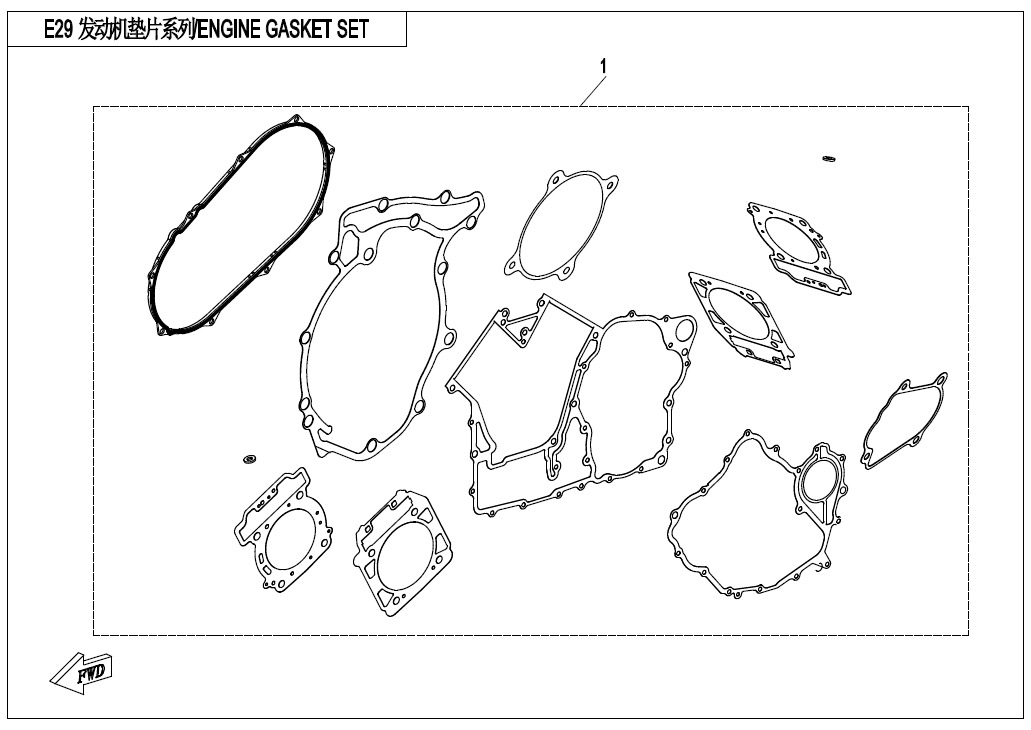

ENGINE GASKET SET
E30
