Genuine Parts Diagrams for 2023 ZFORCE 1000 SPORT R - CF1000SU-DChange Model
Showing 79 parts diagrams.

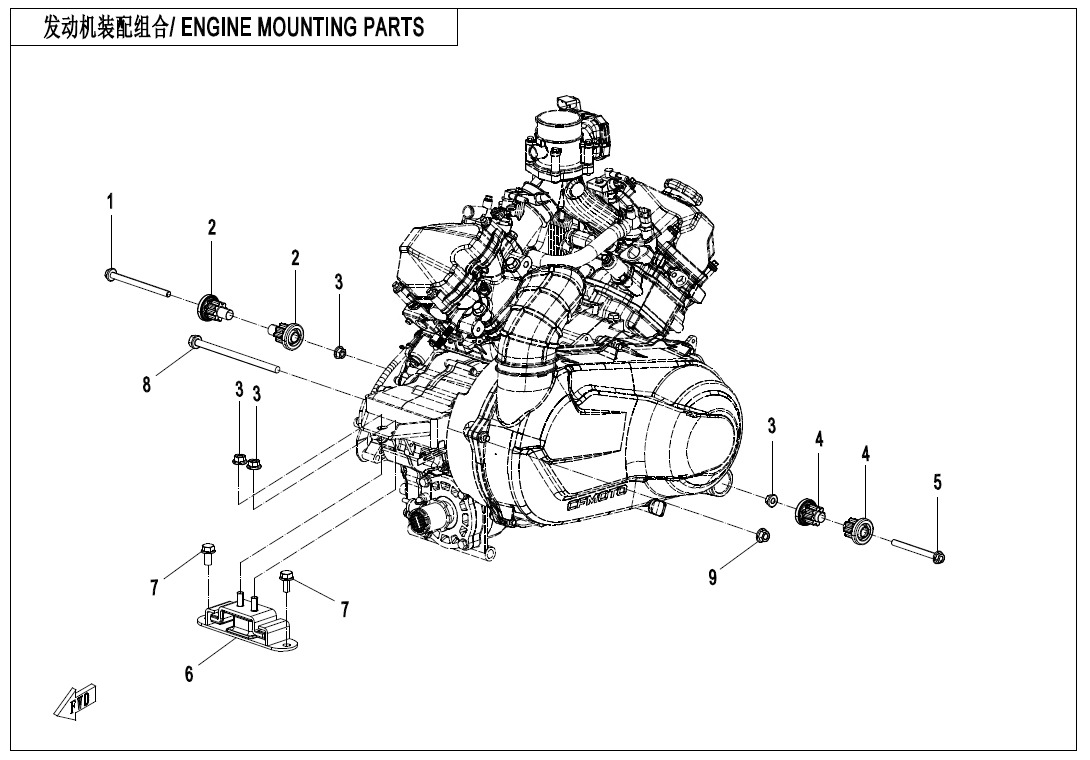

F00-1-ENGINE MOUNTING PARTS

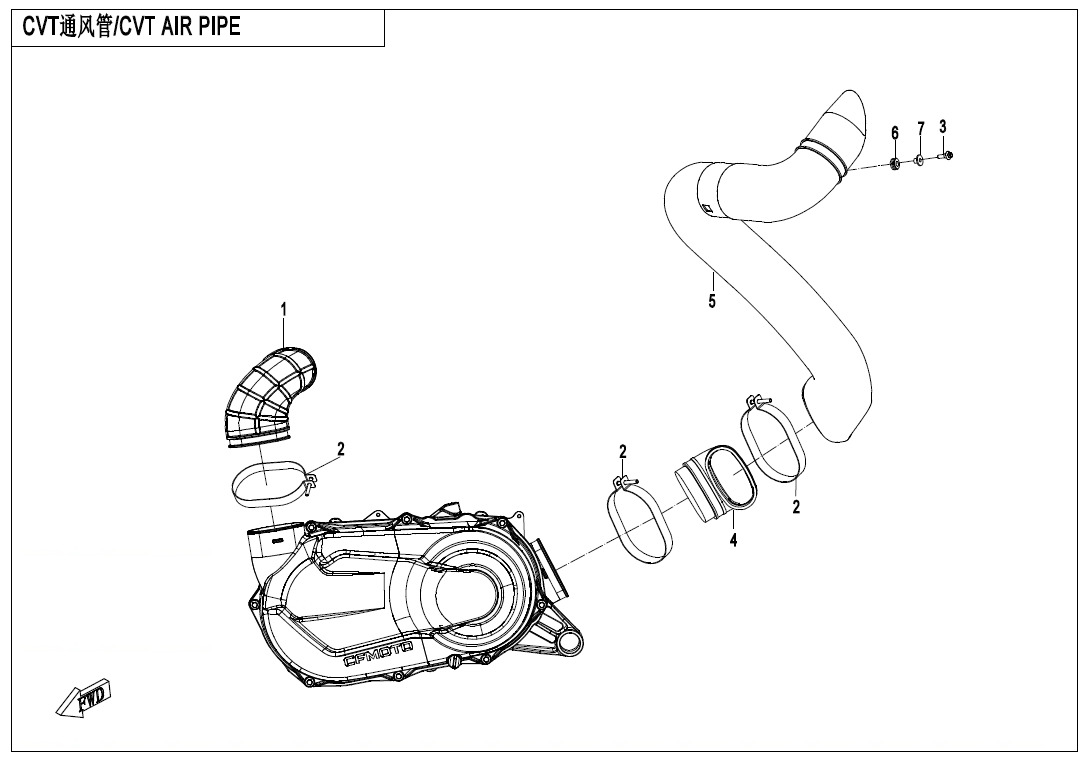

F00-2-CVT AIR PIPE

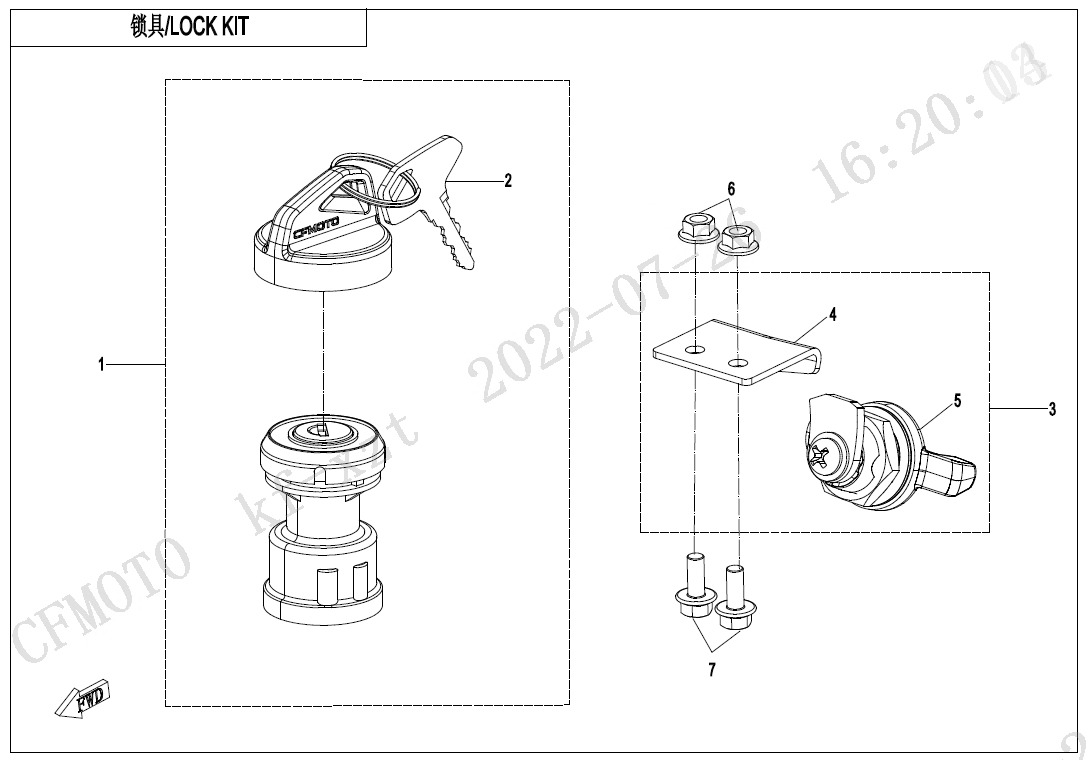

F01-LOCK KIT

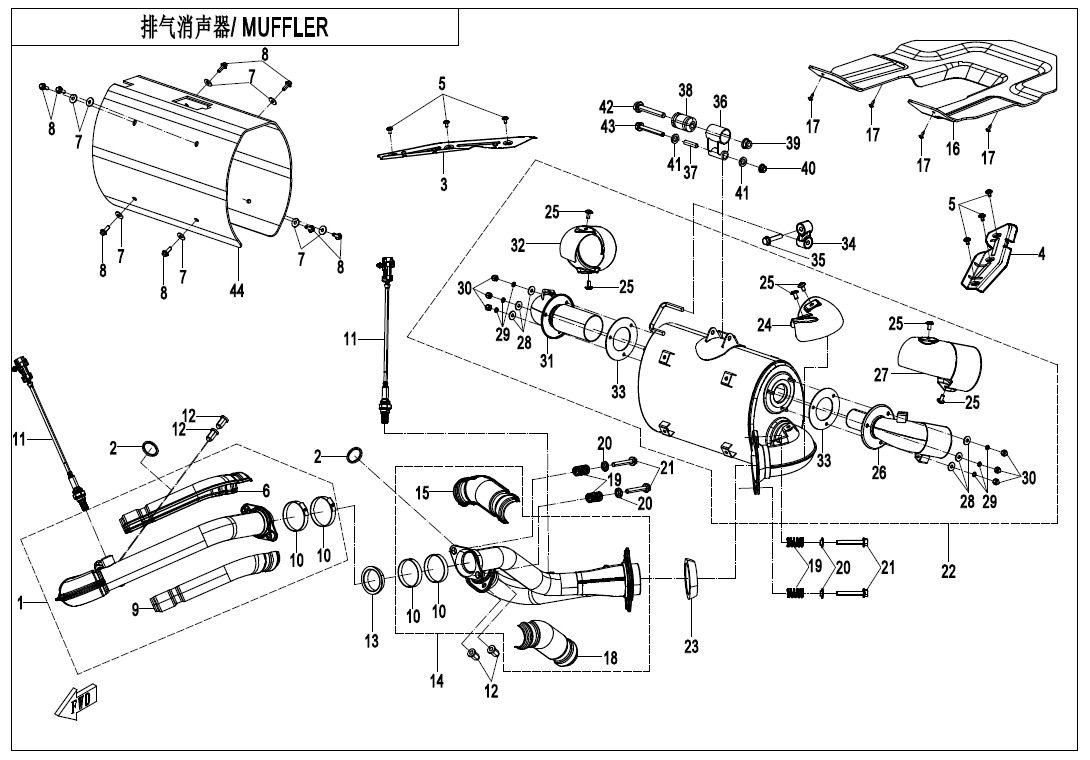

F02-MUFFLER
F03-FRAME

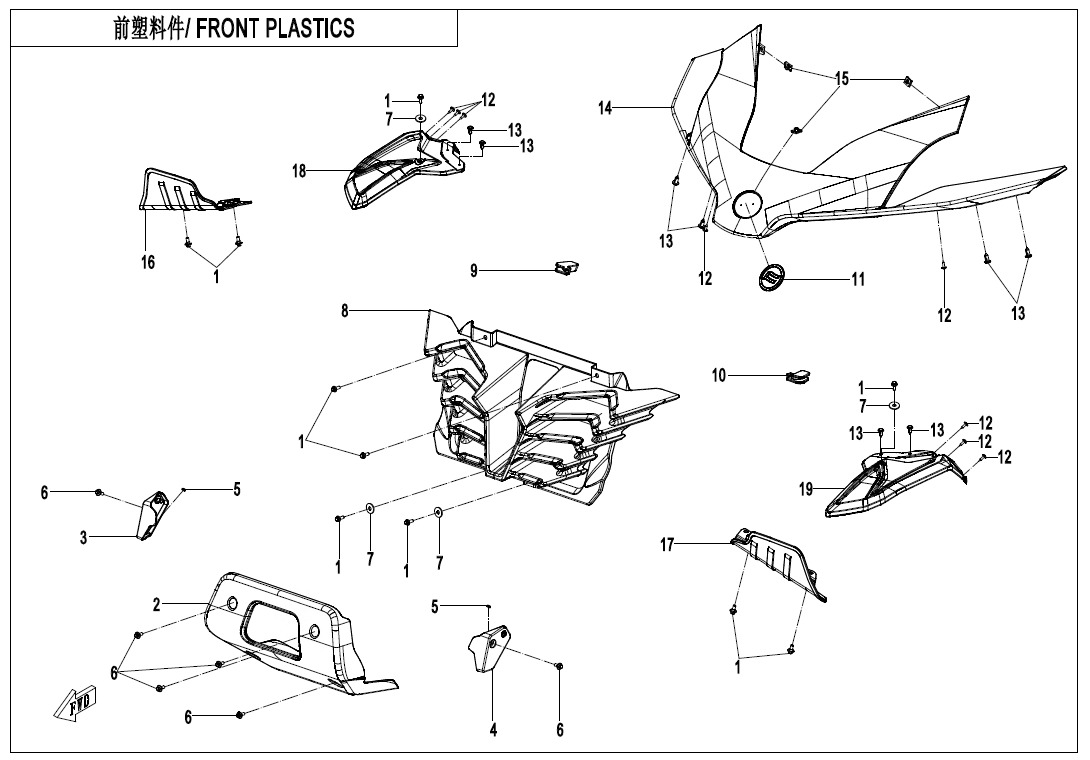

F04-1-FRONT PLASTICS
F04-2-FRONT PLASTICS

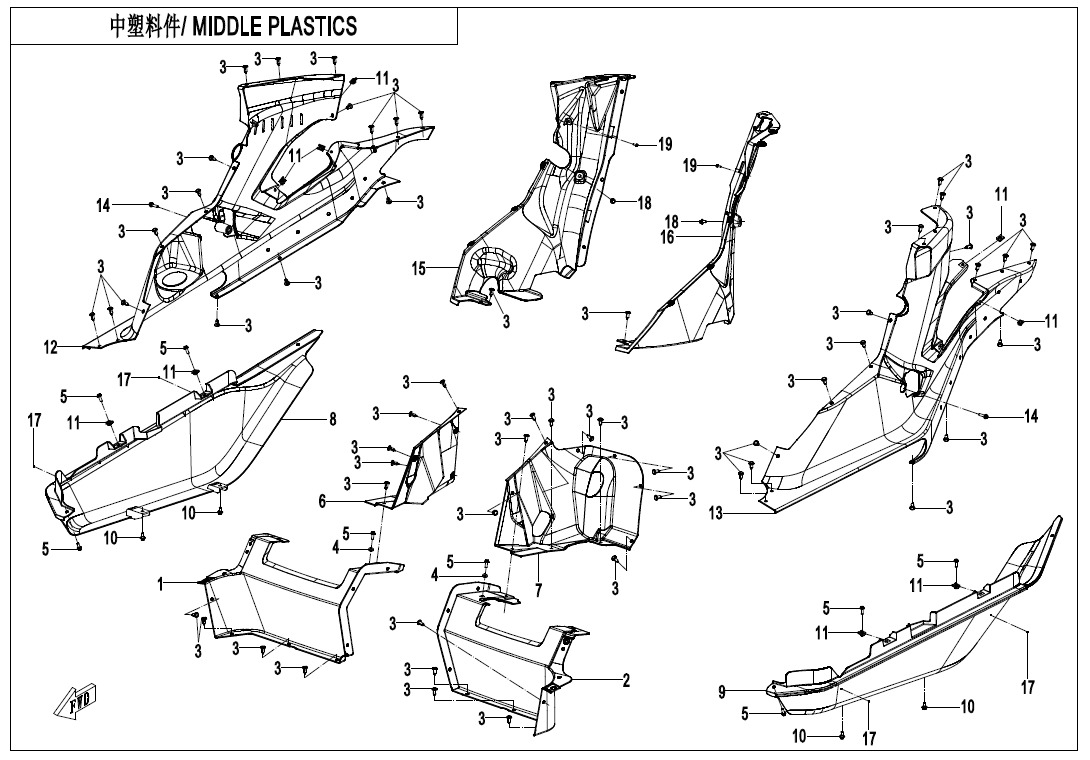

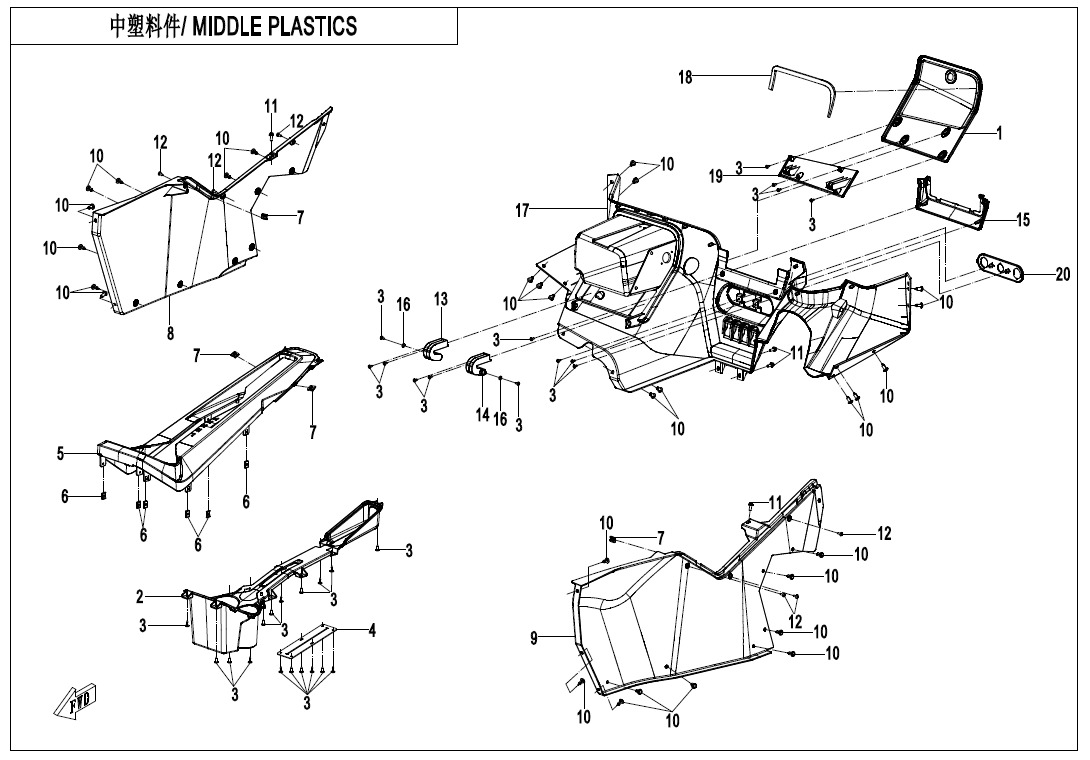

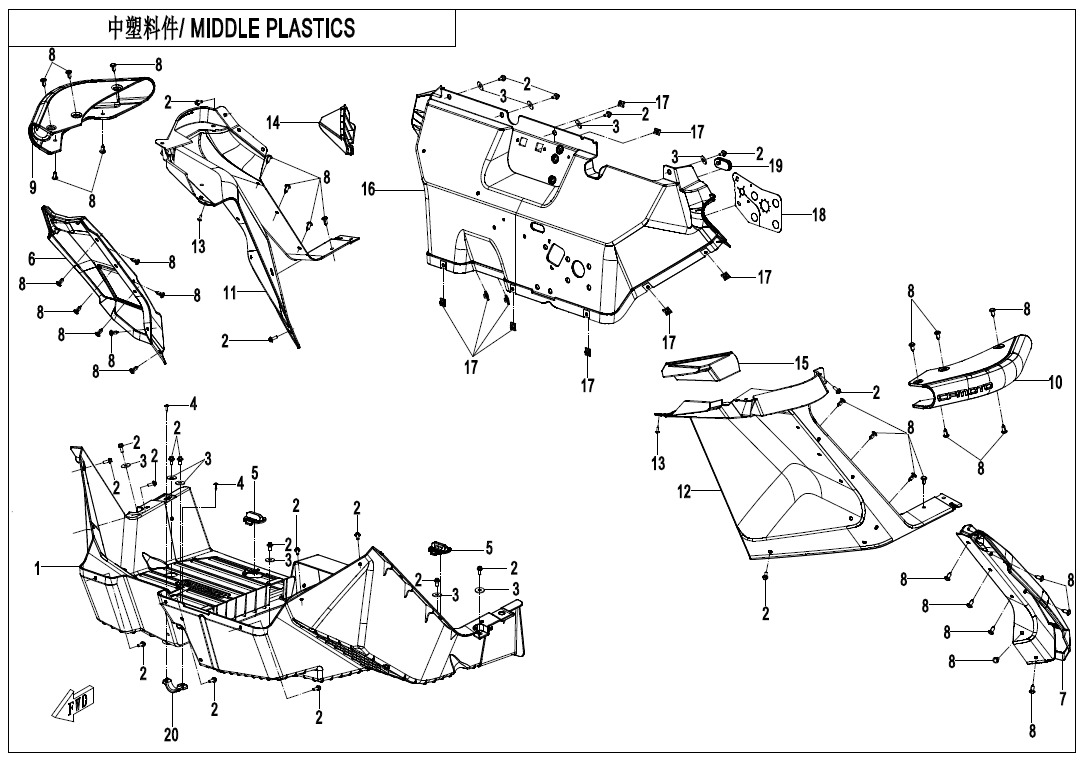

F04-3-MIDDLE PLASTICS
F04-4-MIDDLE PLASTICS
F04-5-MIDDLE PLASTICS

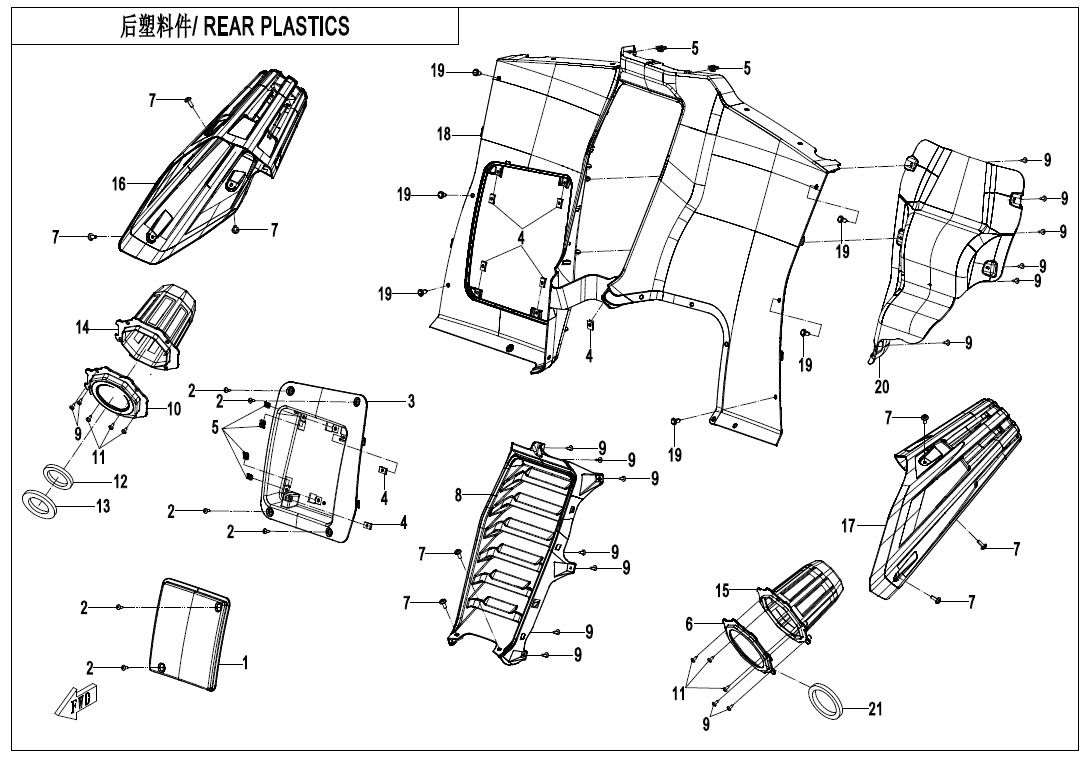

F04-6-REAR PLASTICS
F04-7-REAR PLASTICS
F04-8-BOTTOM PLASTICS

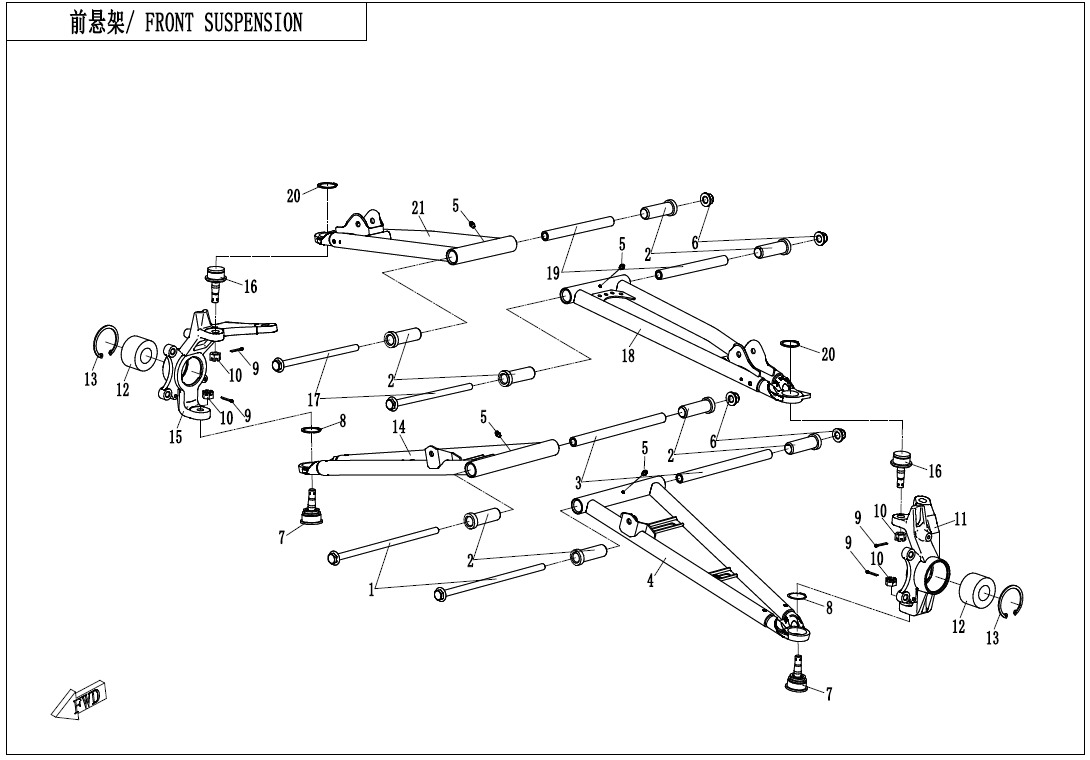

F05-1-FRONT SUSPENSION

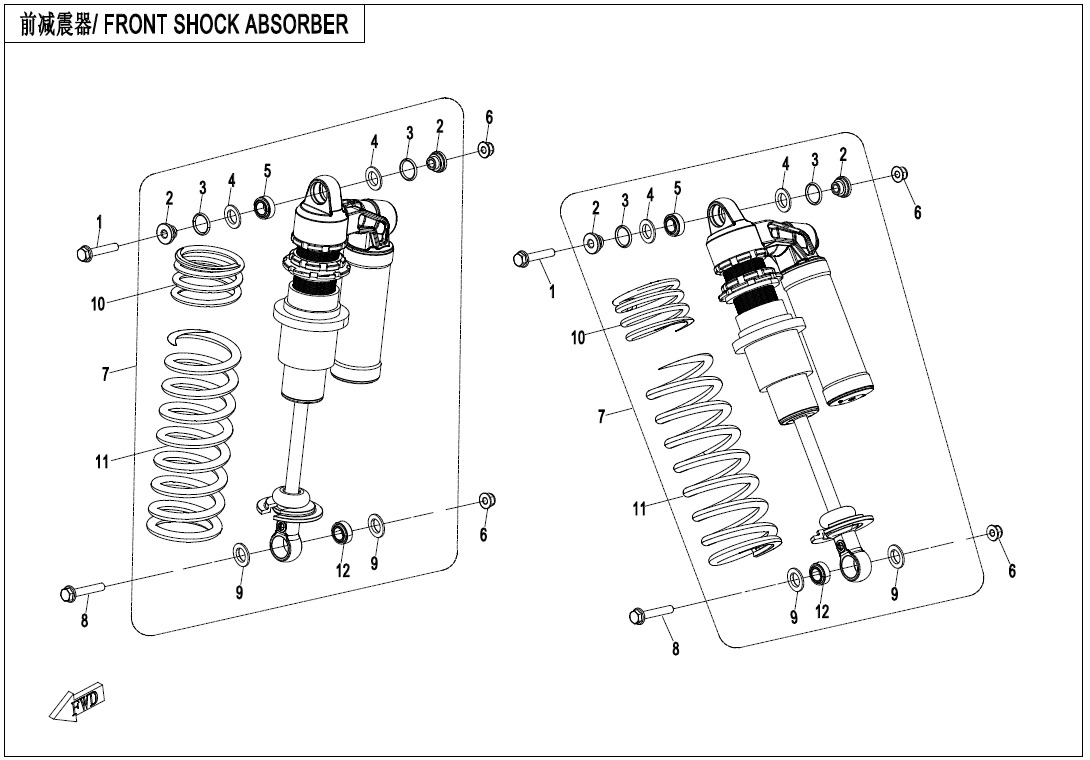

F05-2-FRONT SHOCK ABSORBER
F05-3-FRONT SUSPENSION

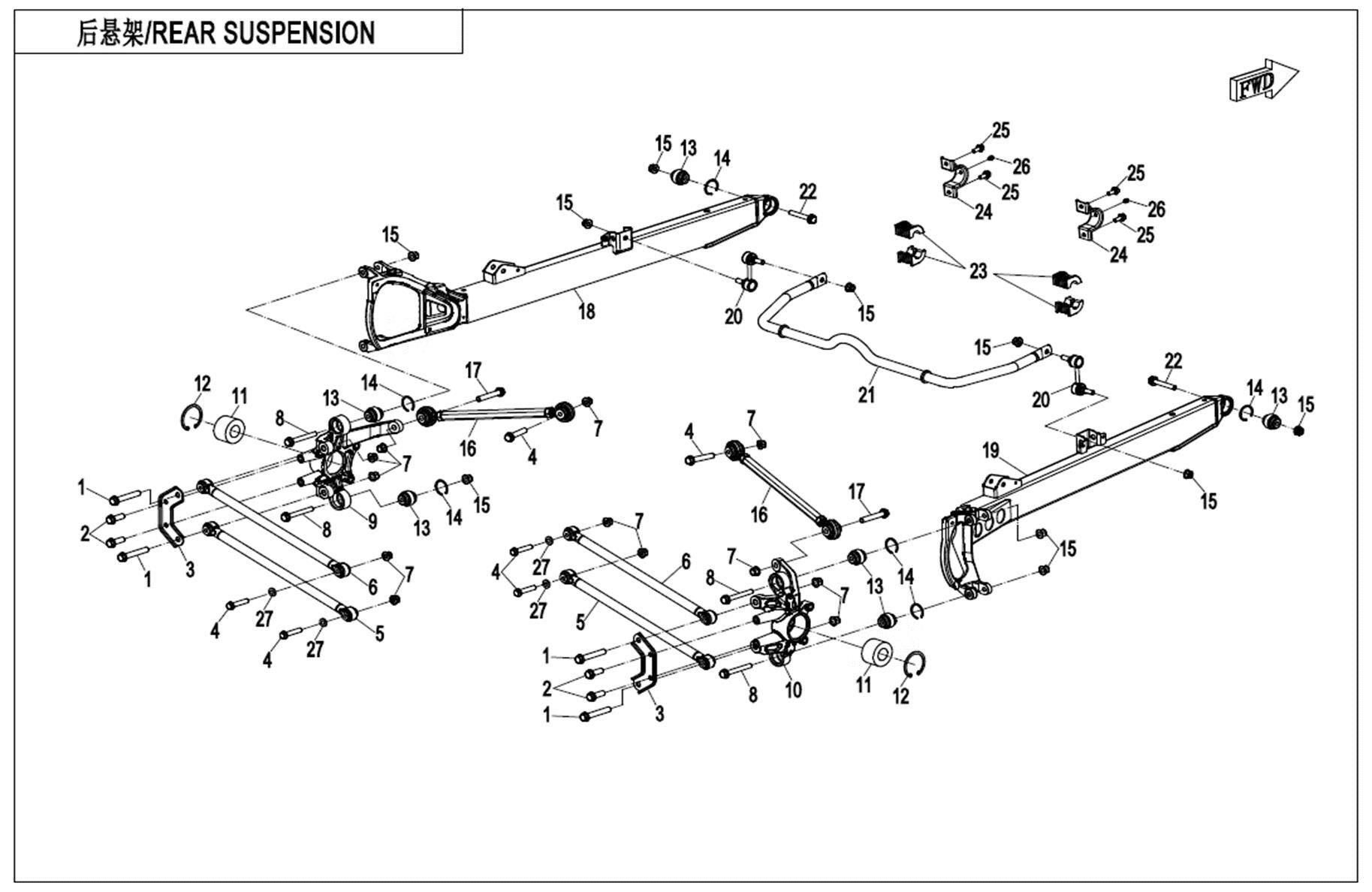

F06-1-REAR SUSPENSION

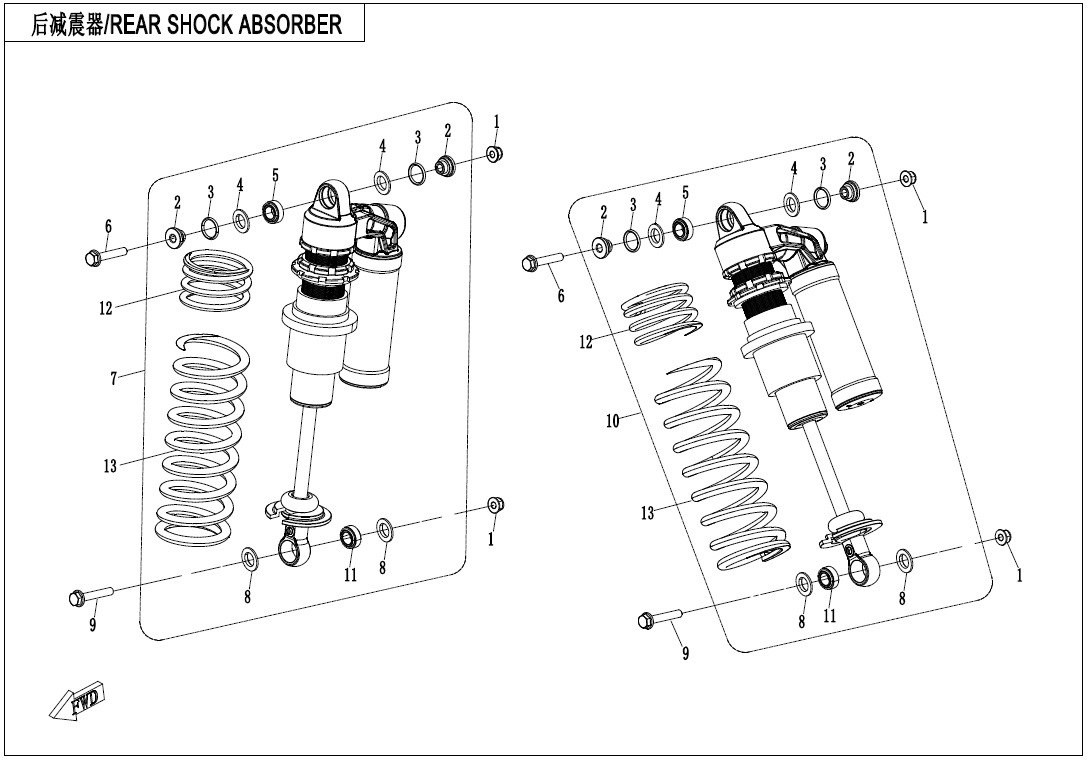

F06-2-REAR SHOCK ABSORBER

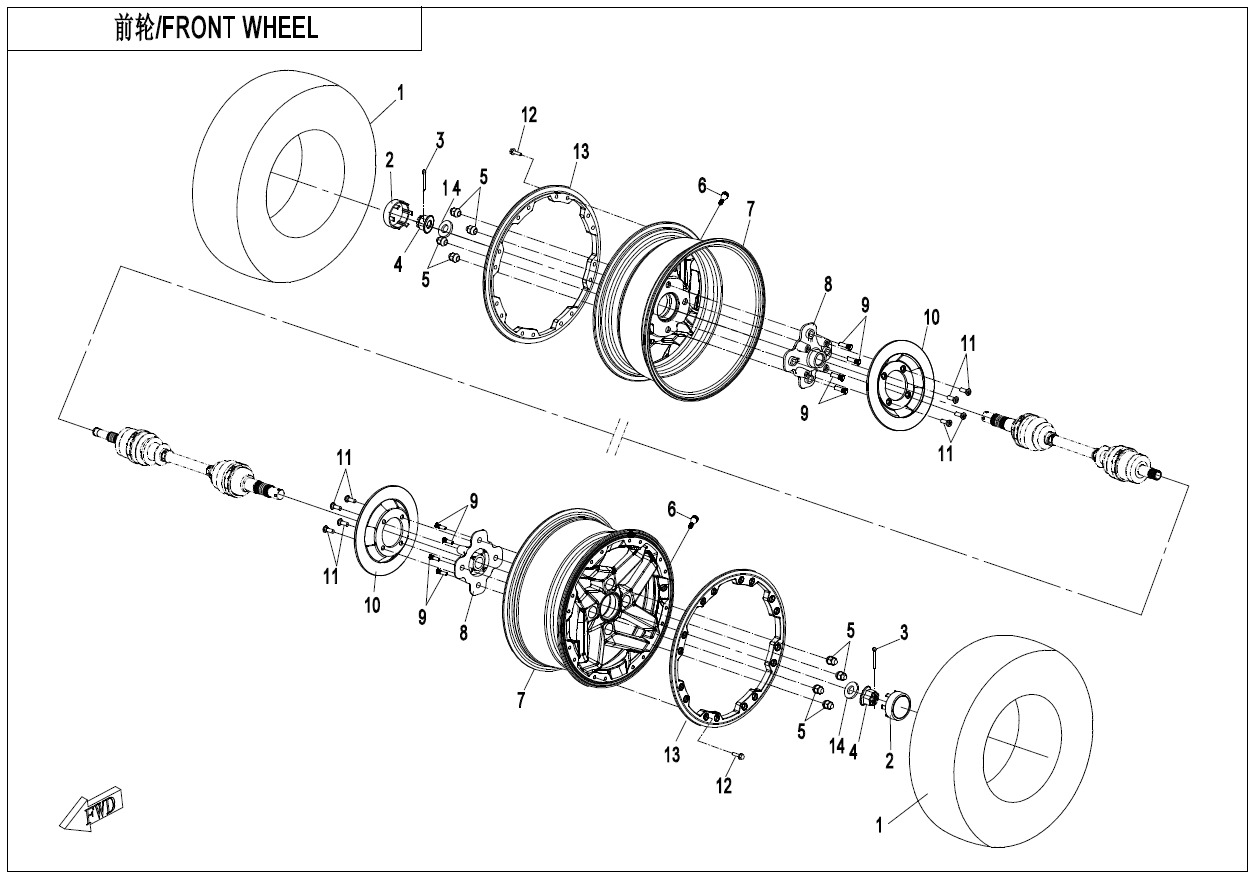

F07-FRONT WHEEL

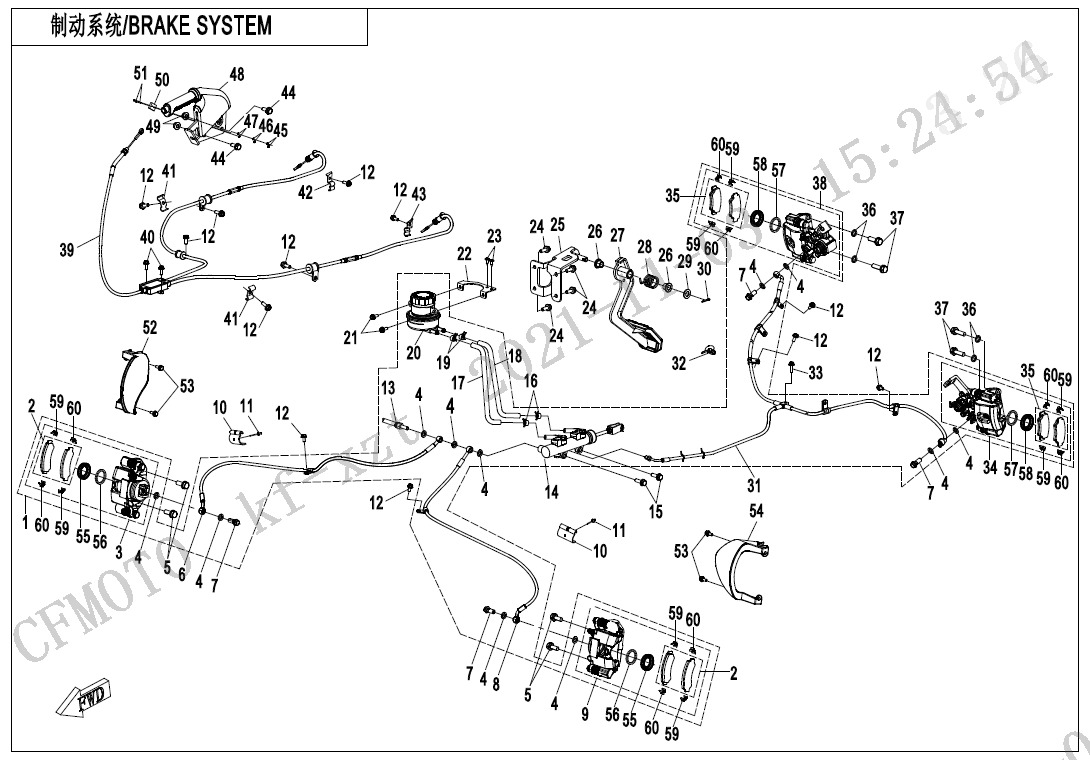

F08-BRAKE SYSTEM

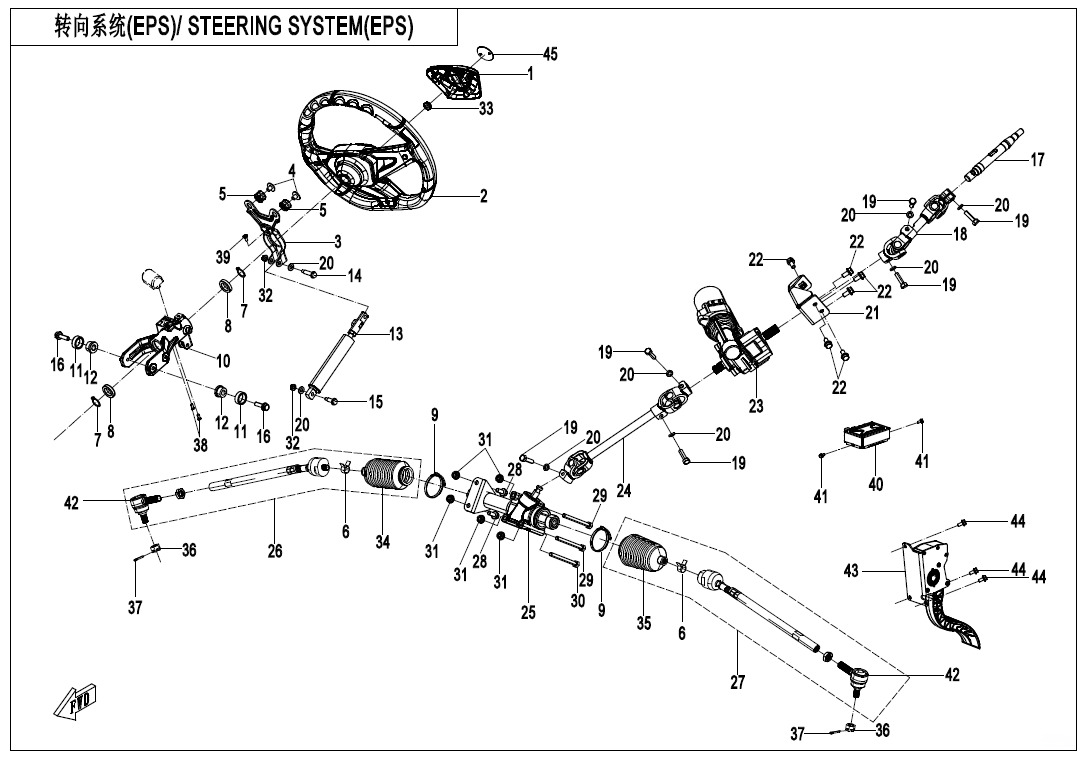

F10-STEERING SYSTEM

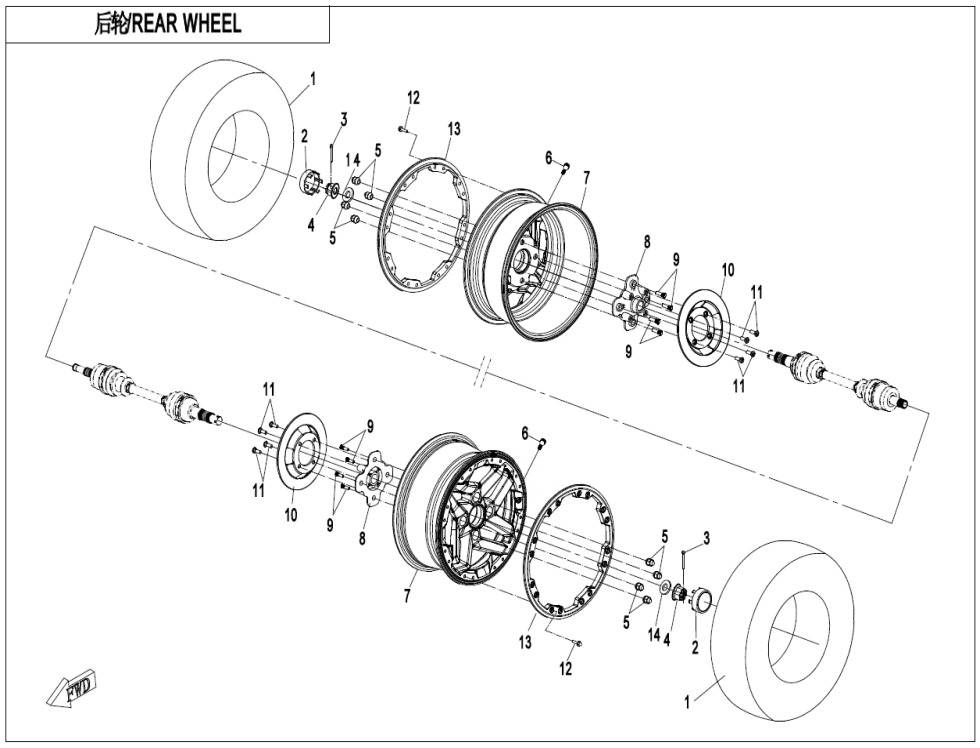

F11-REAR WHEEL

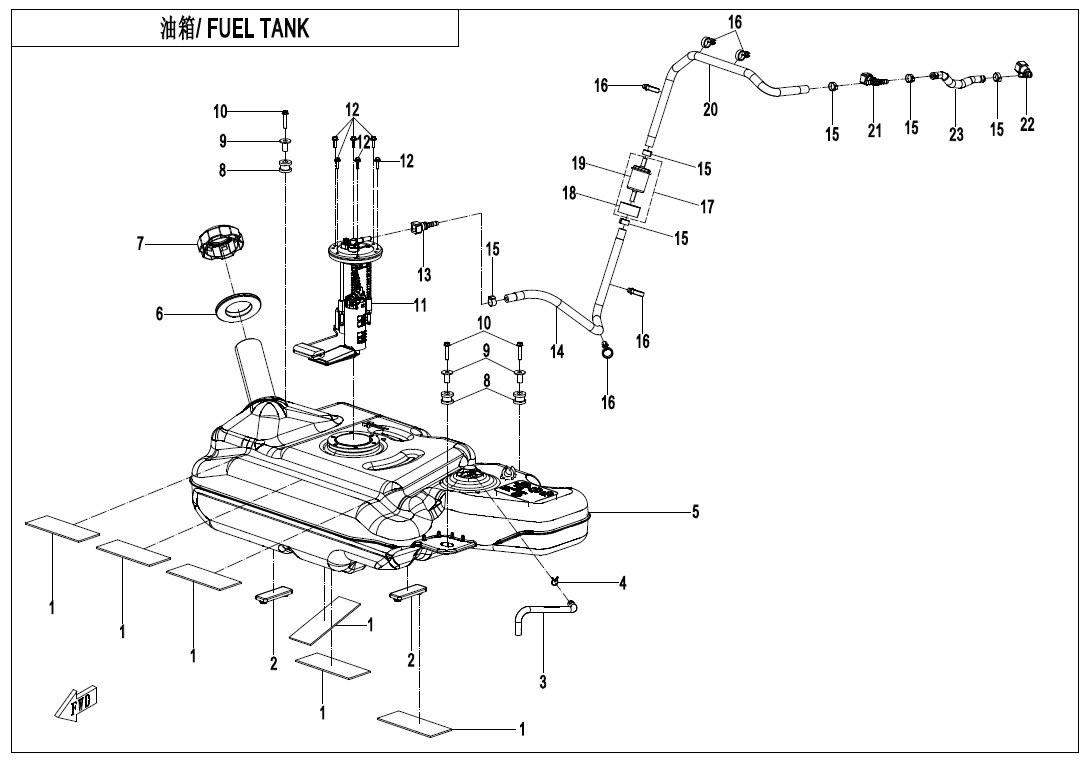

F12-FUEL TANK

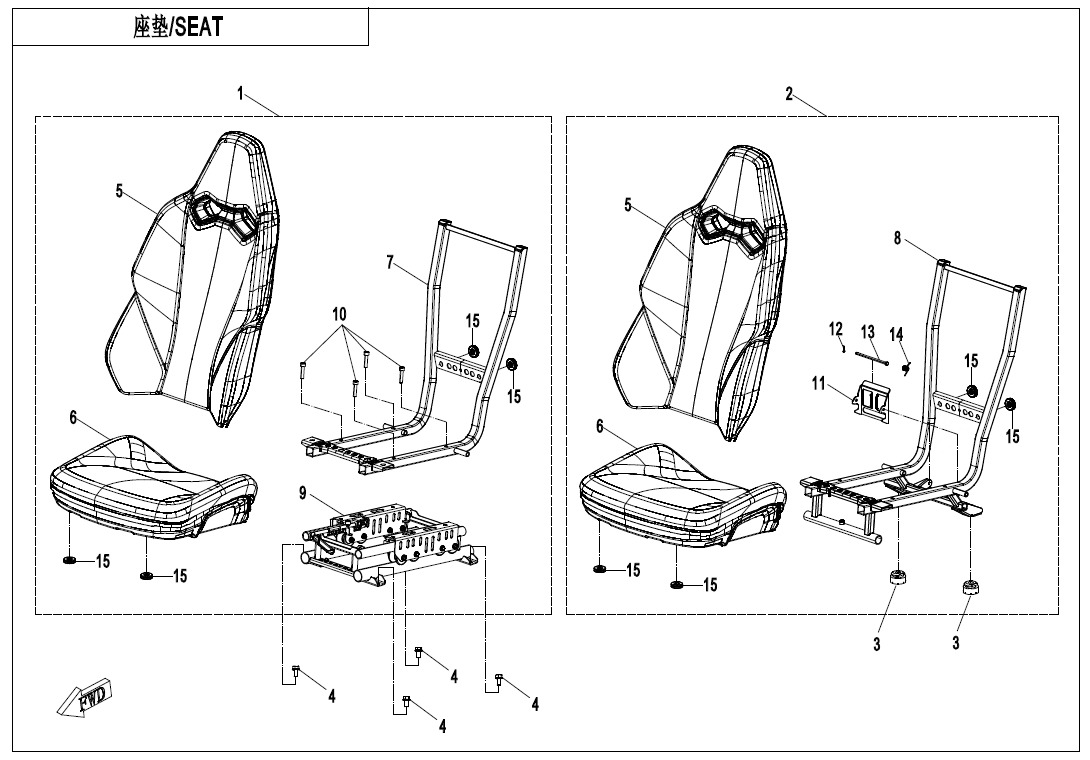

F13-SEAT

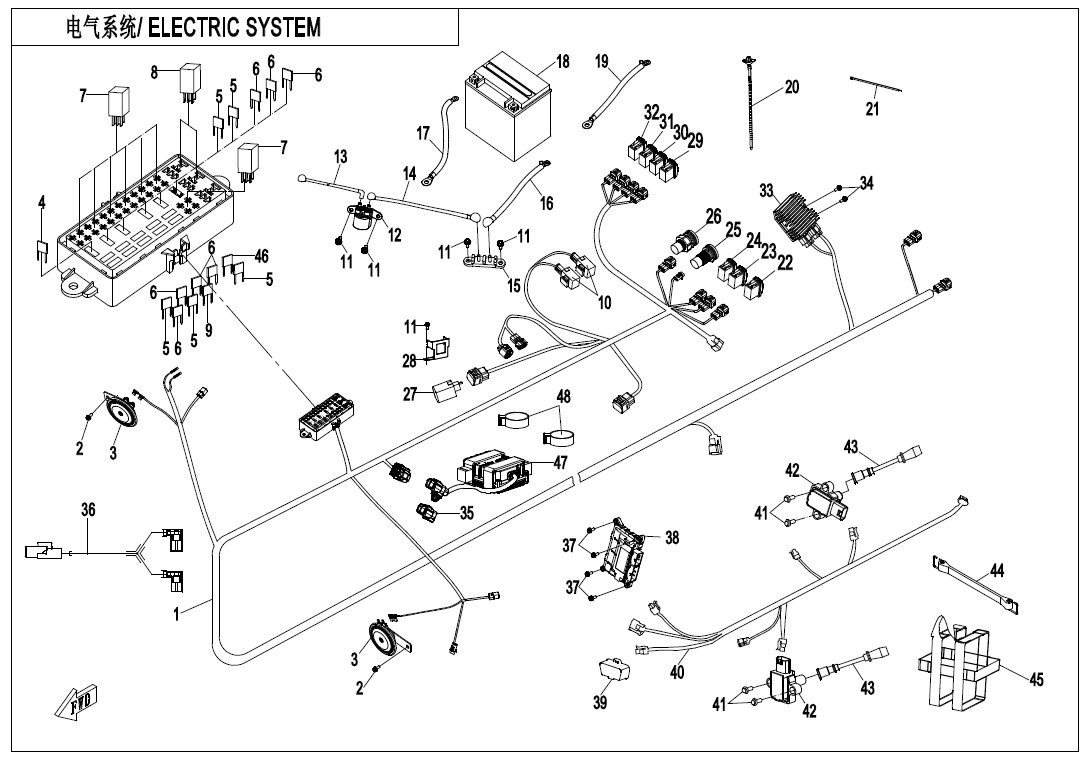

F15-1-V1-ELECTRIC SYSTEM
F15-1-V2-ELECTRIC SYSTEM

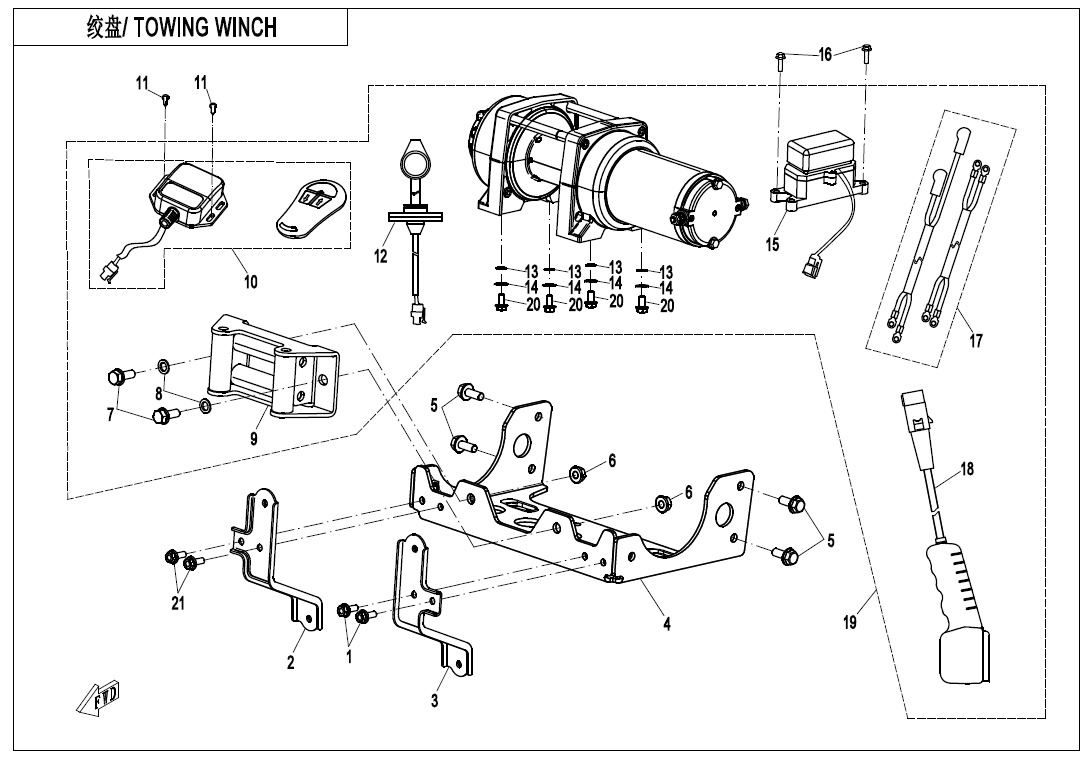

F15-2-TOWING WINCH

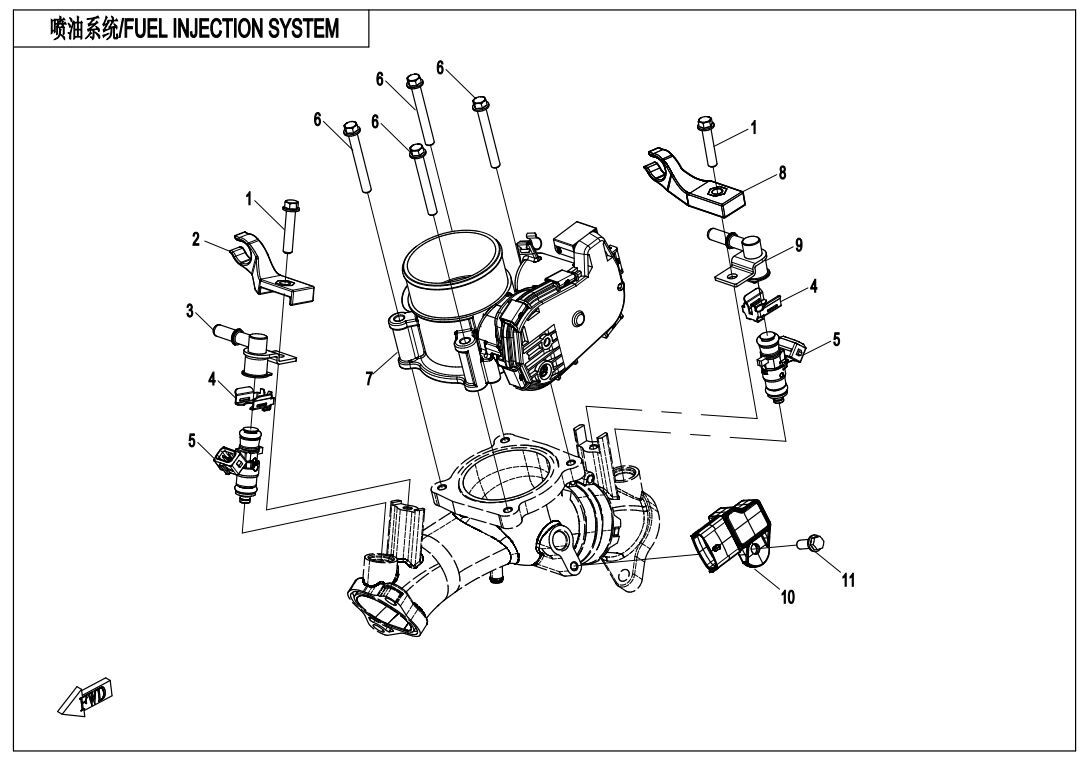

F15-3-FUEL INJECTION SYSTEM

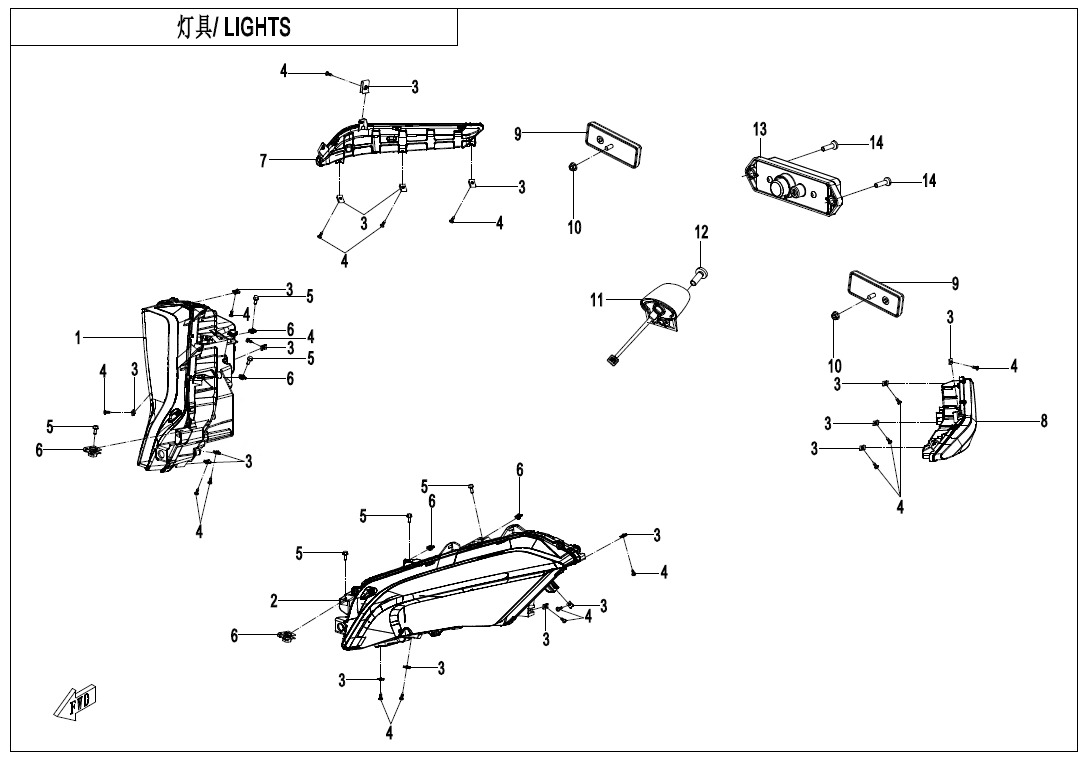

F16-B-LIGHT(INTERNATIONAL)

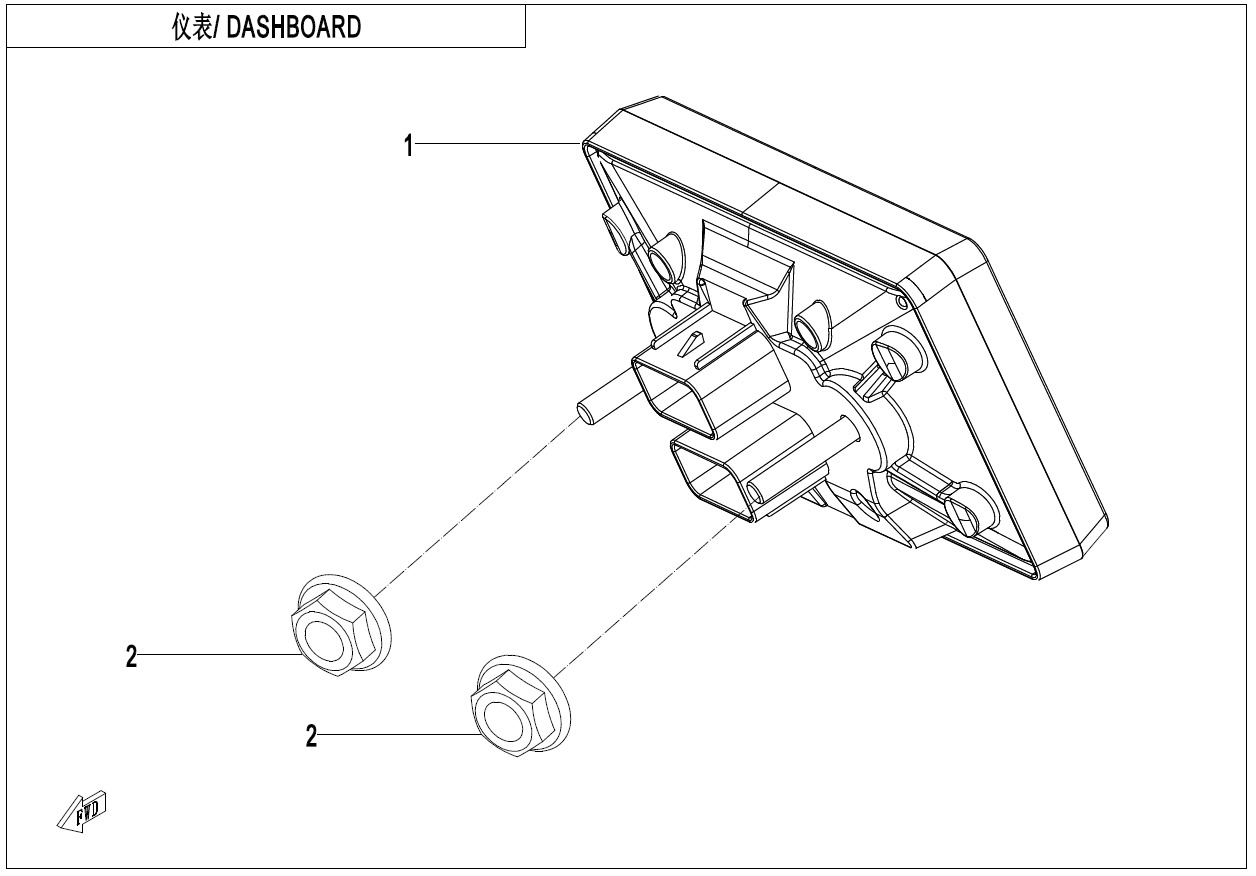

F17-DASHBOARD

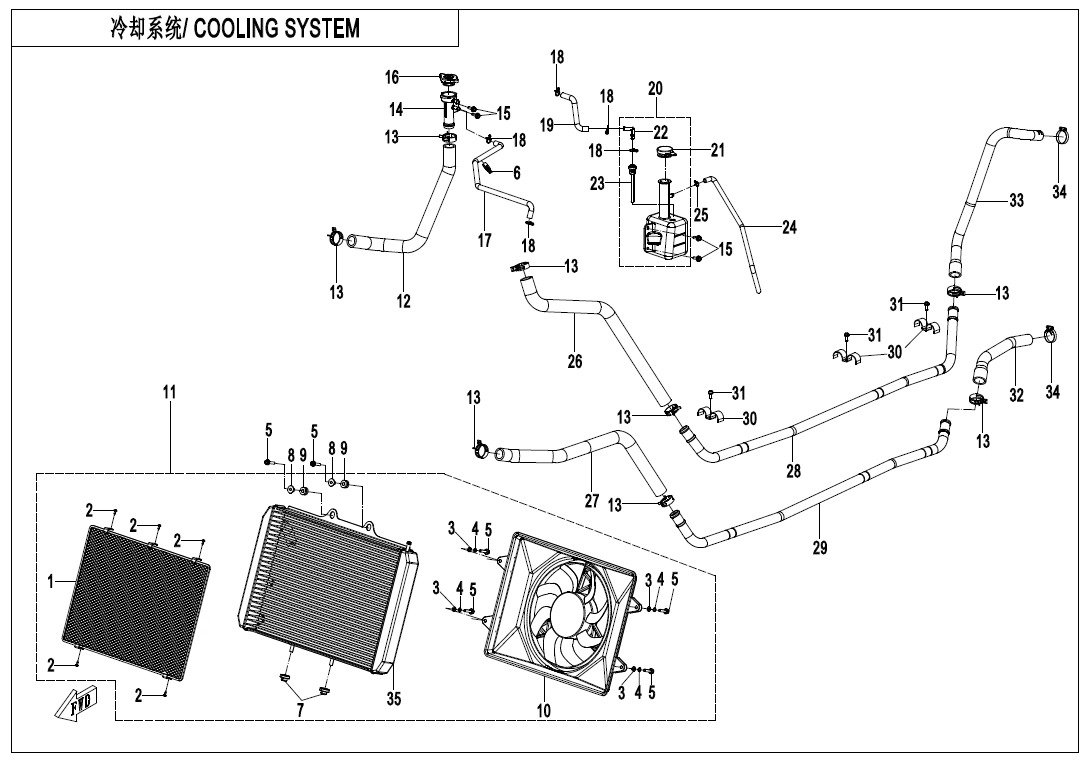

F18-COOLING SYSTEM

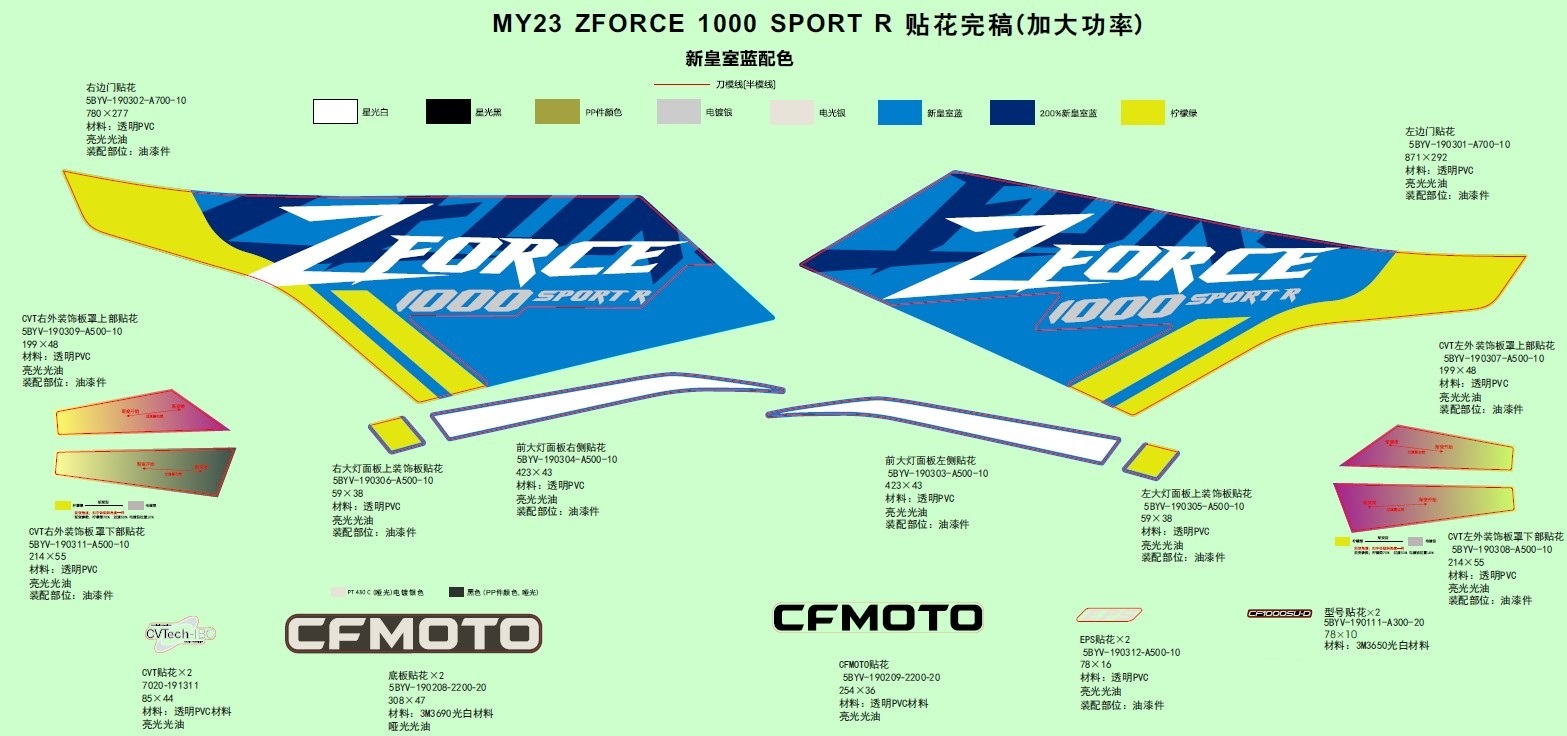

F19-1-A-DECAL,2023(NEW ROYAL BLUE)

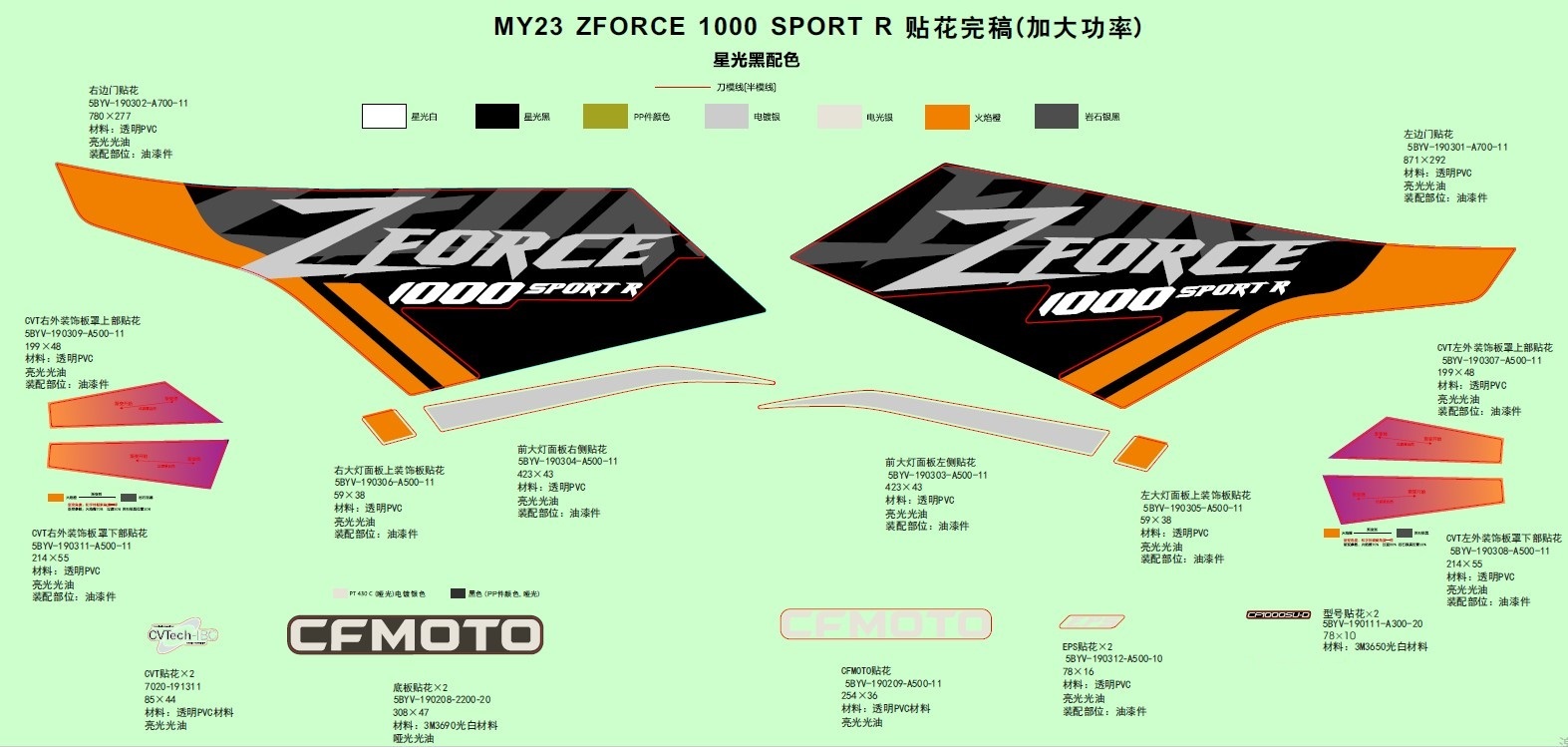

F19-1-B-DECAL,2023(NEBULA BLACK)

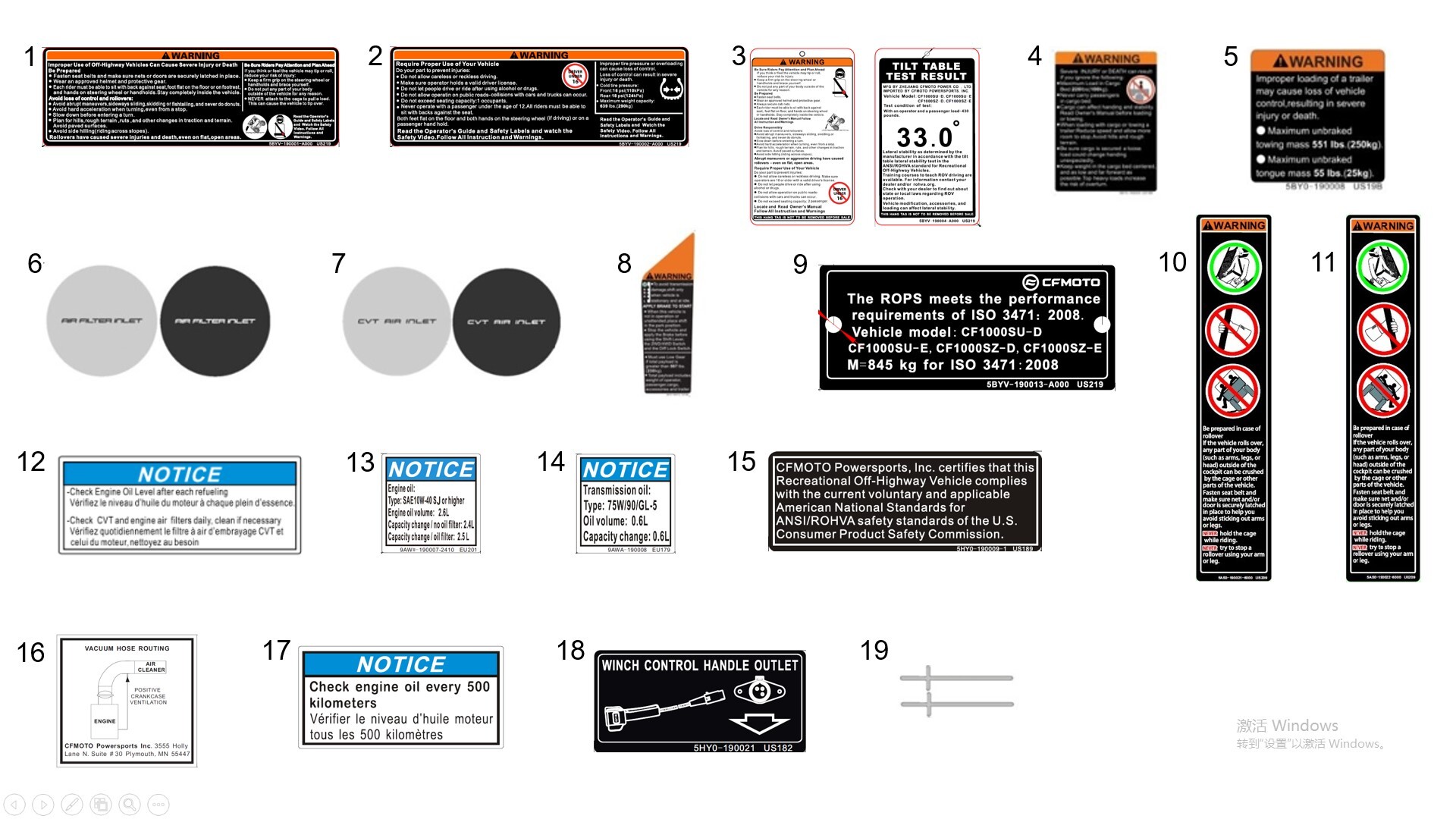

F19-2-A-WARNING LABEL

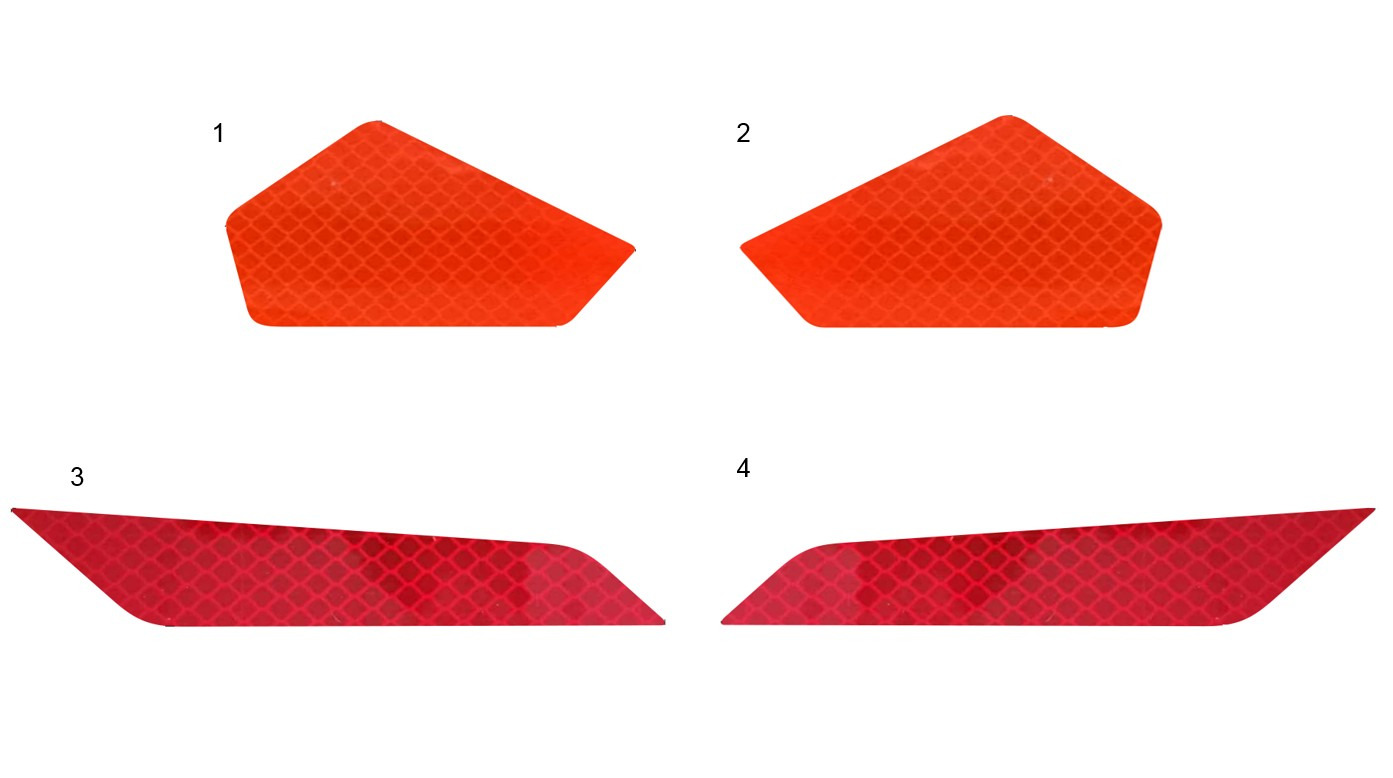

F19-3-REFLECTOR

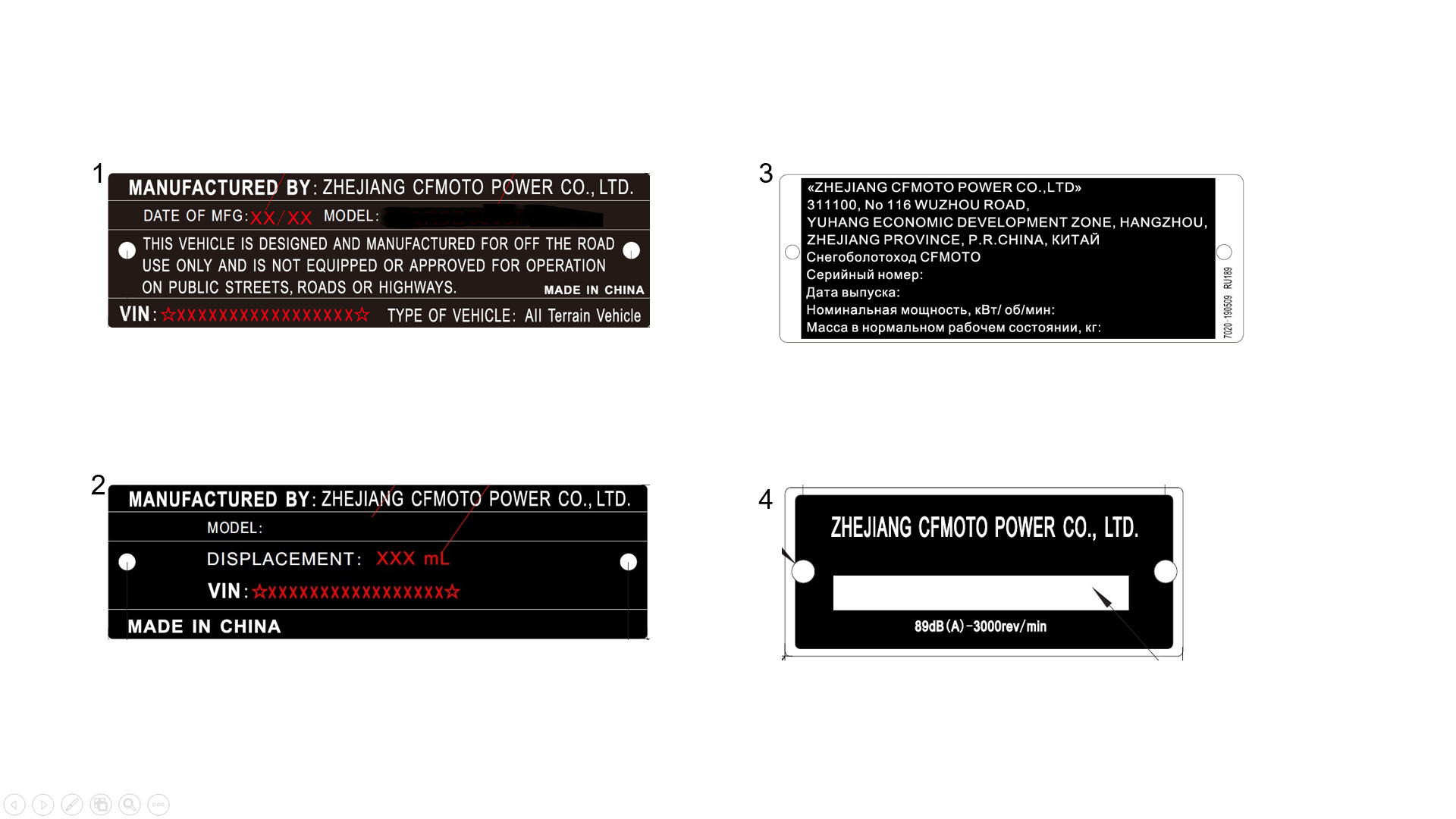

F19-4-VEHICLE PLATE

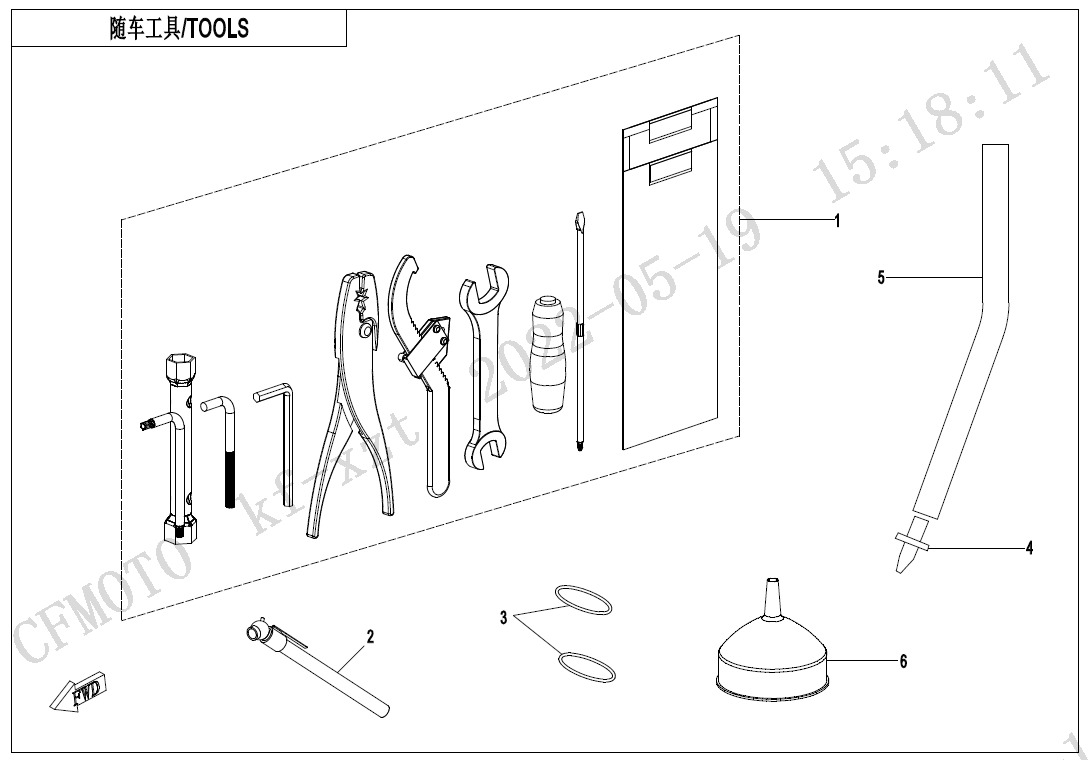

F20-TOOLS

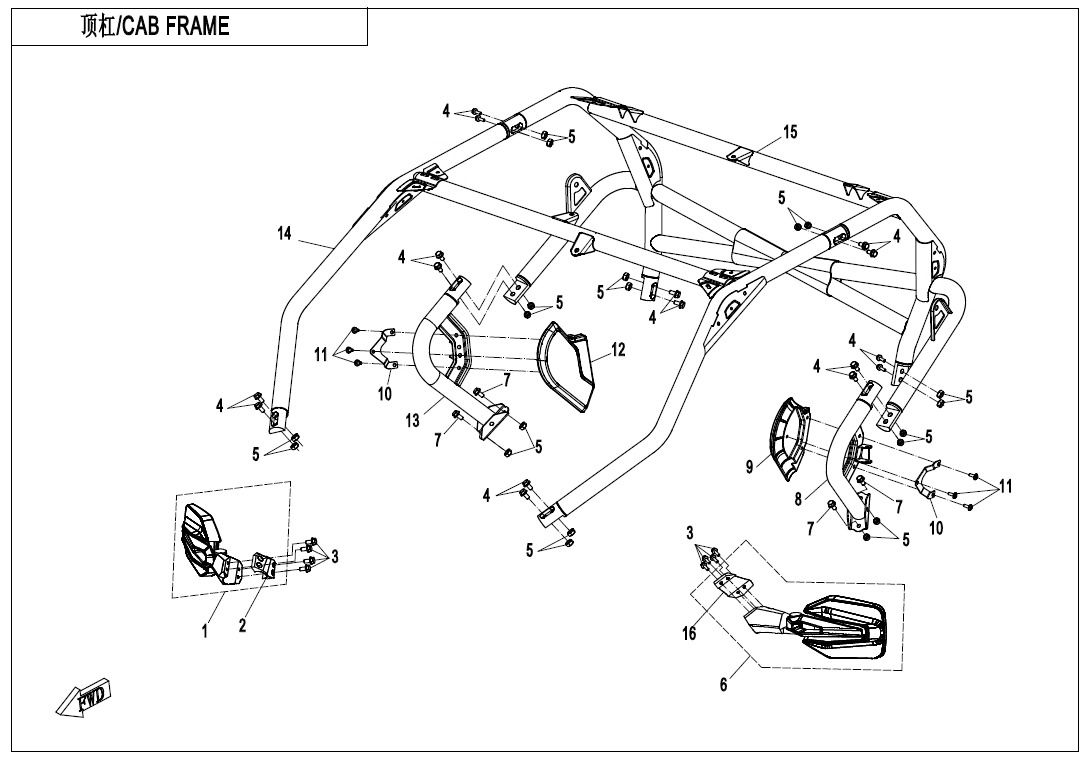

F23-CAB FRAME(FOR 3-POINT SEAT BELT)

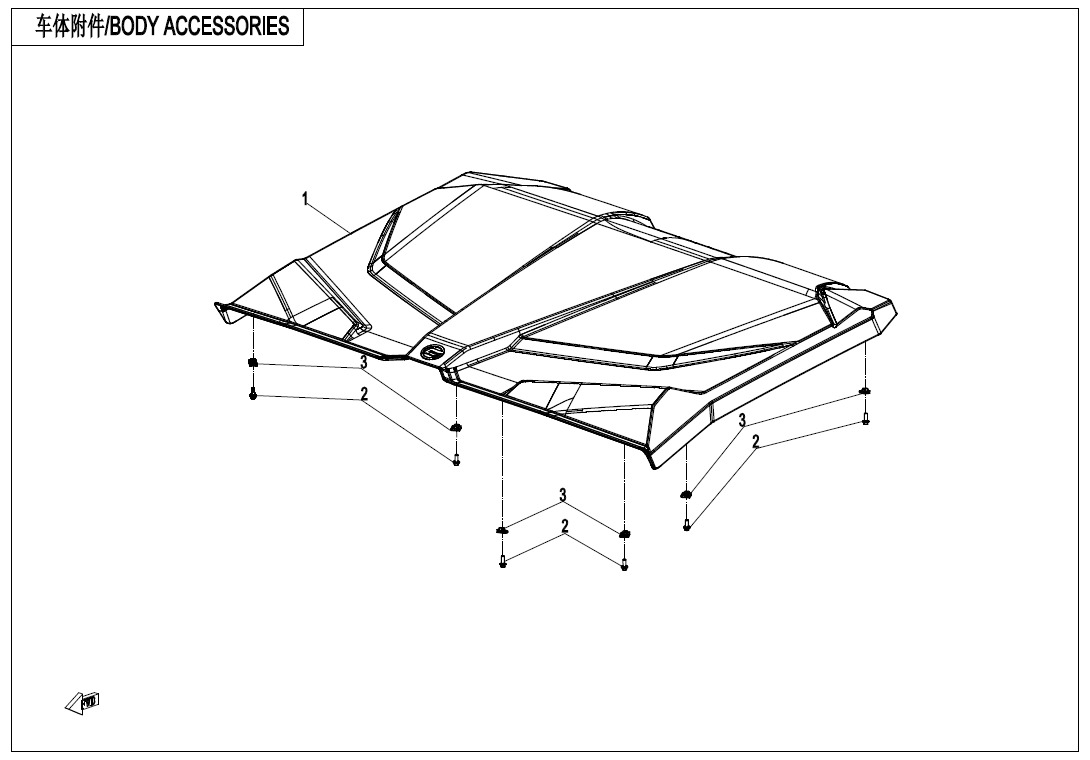

F26-BODY ACCESSORIES

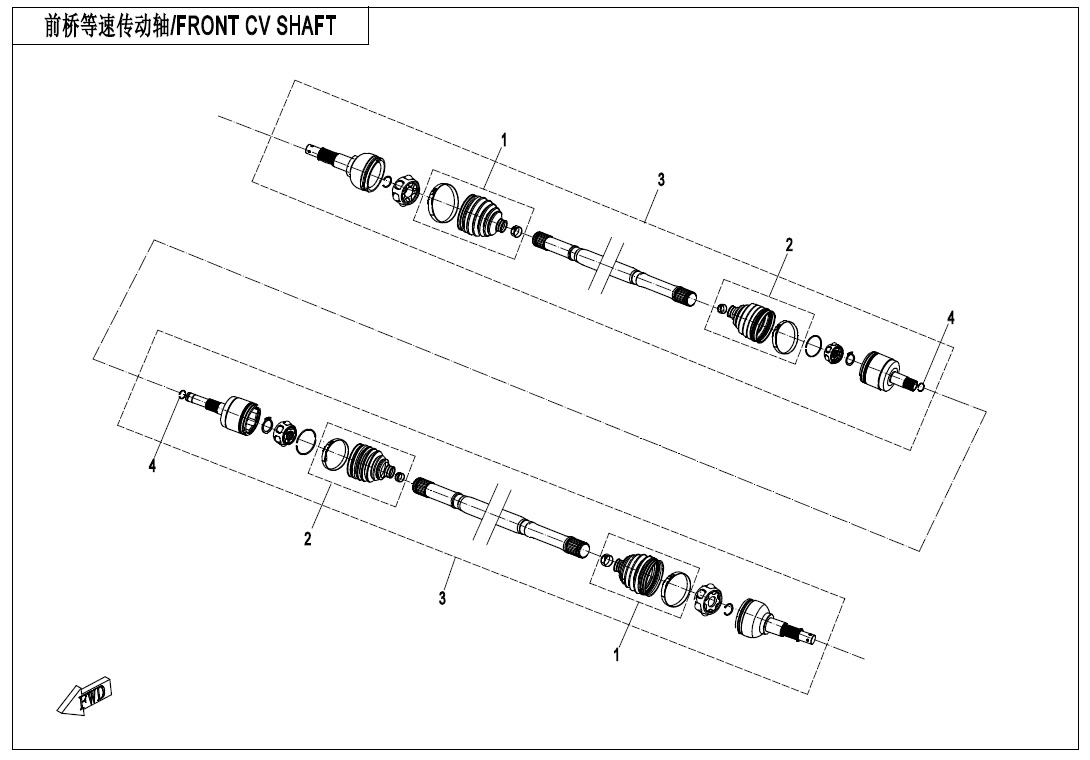

F27-FRONT CV SHAFT

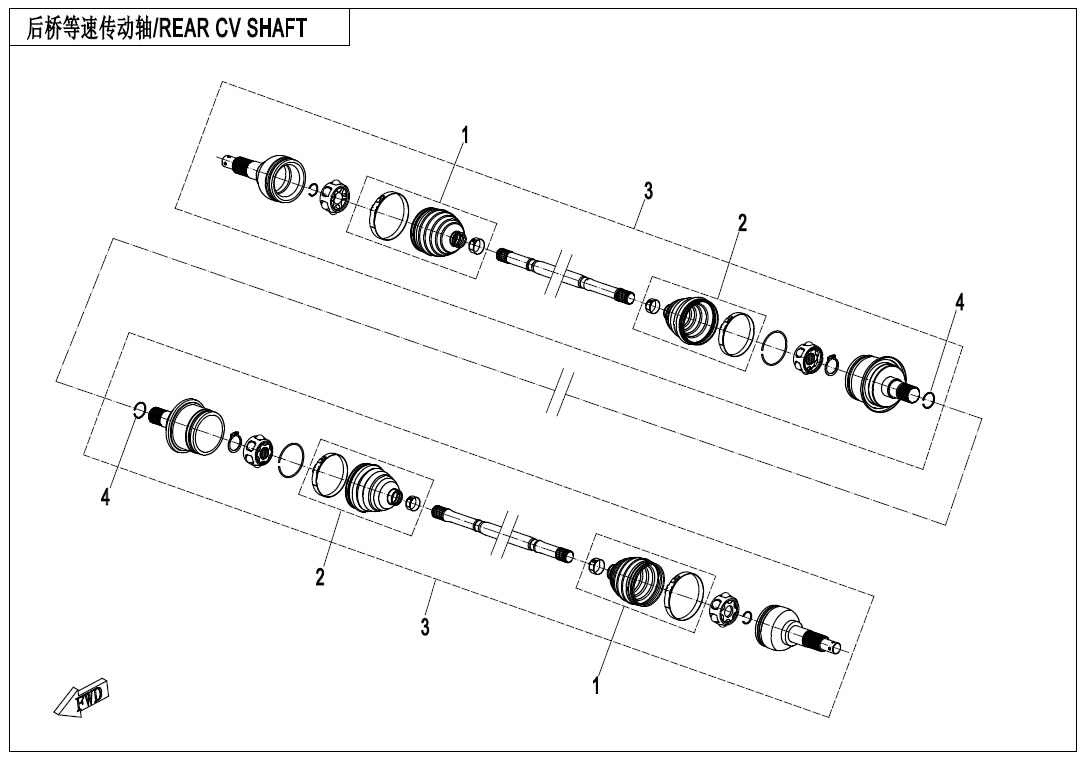

F28-REAR CV SHAFT

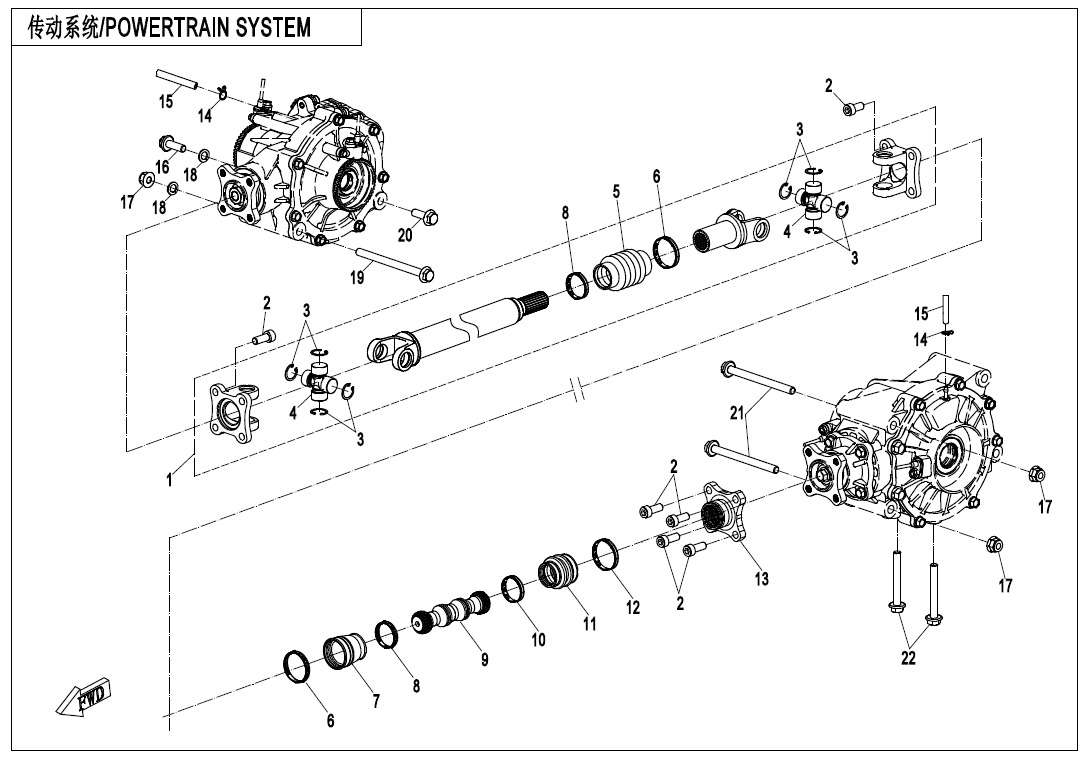

F30-DRIVETRAIN SYSTEM

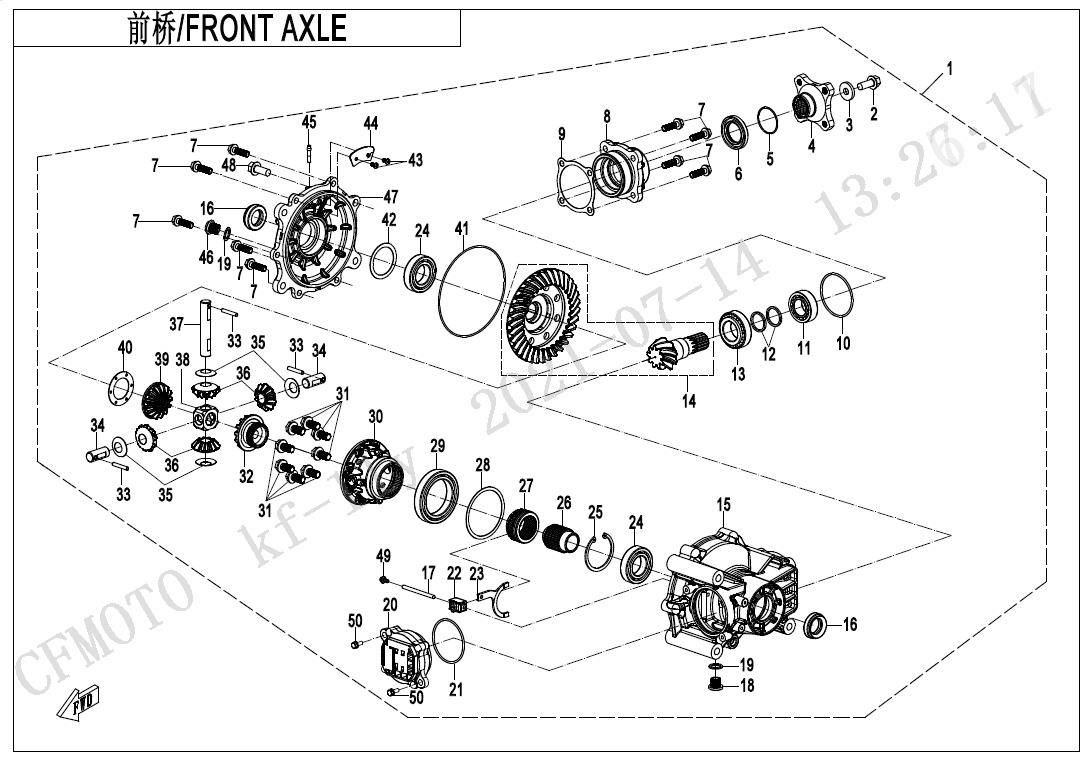

F31-FRONT AXLE

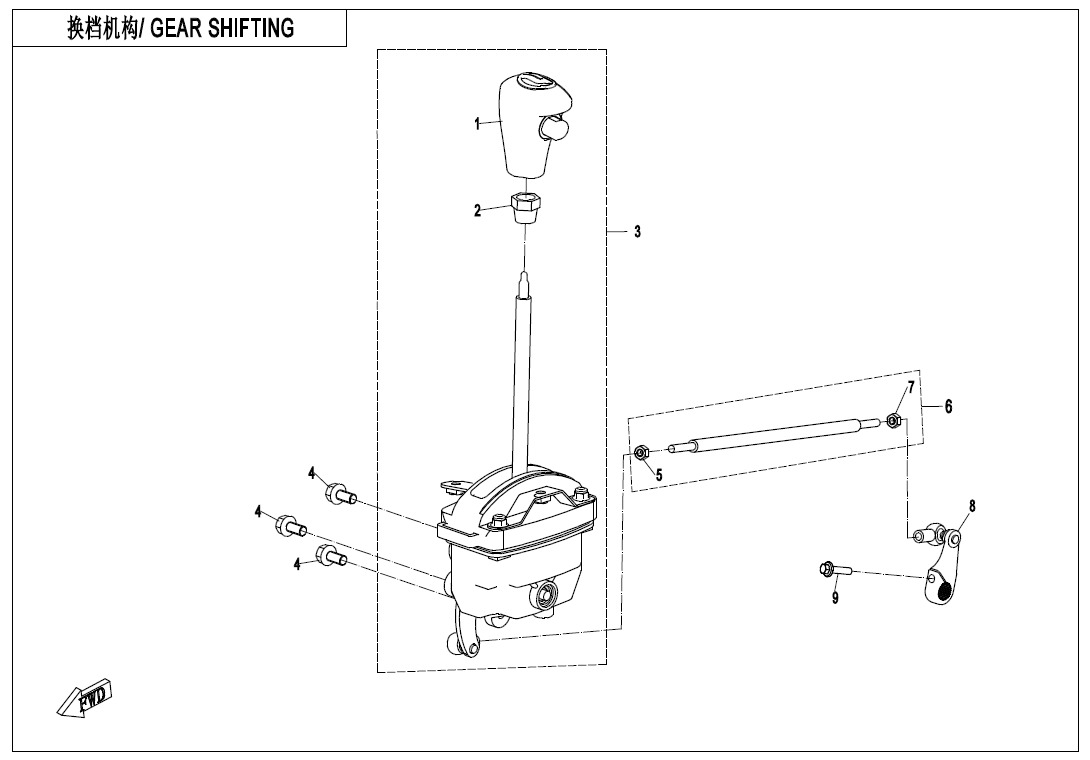

F32-GEAR SHIFTING

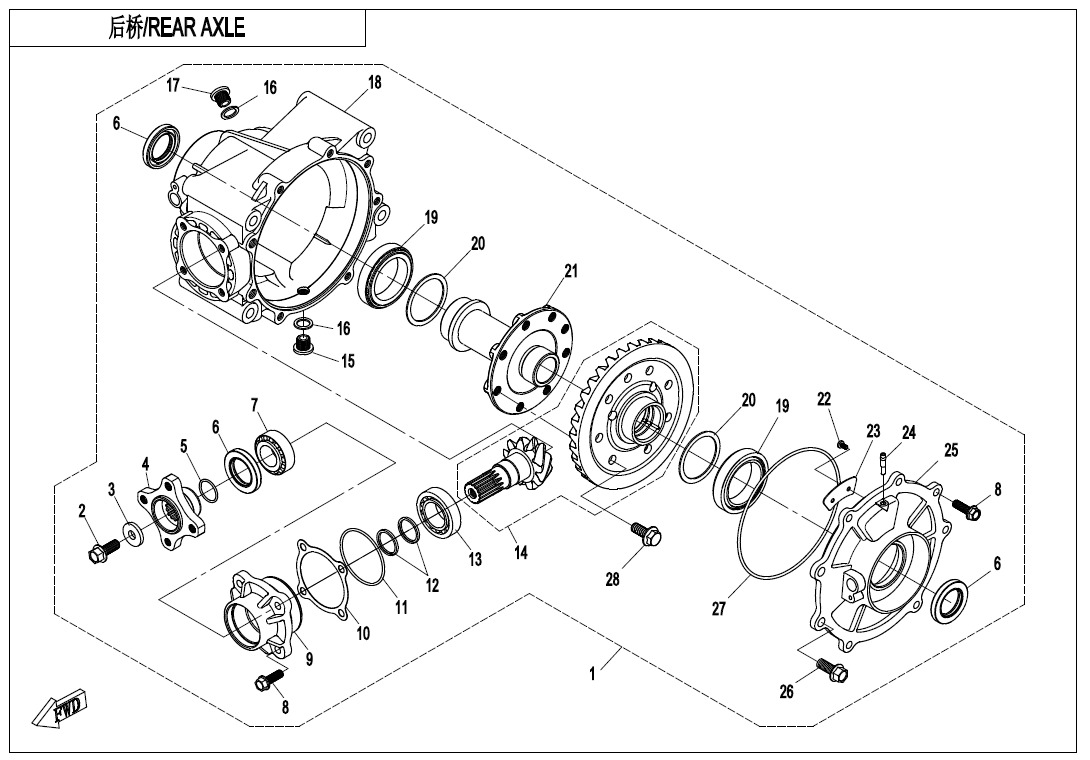

F33-B-REAR AXLE(WITHOUT DIFFERENTIAL)
F33-B-V2-REAR AXLE(WITHOUT DIFFERENTIAL)

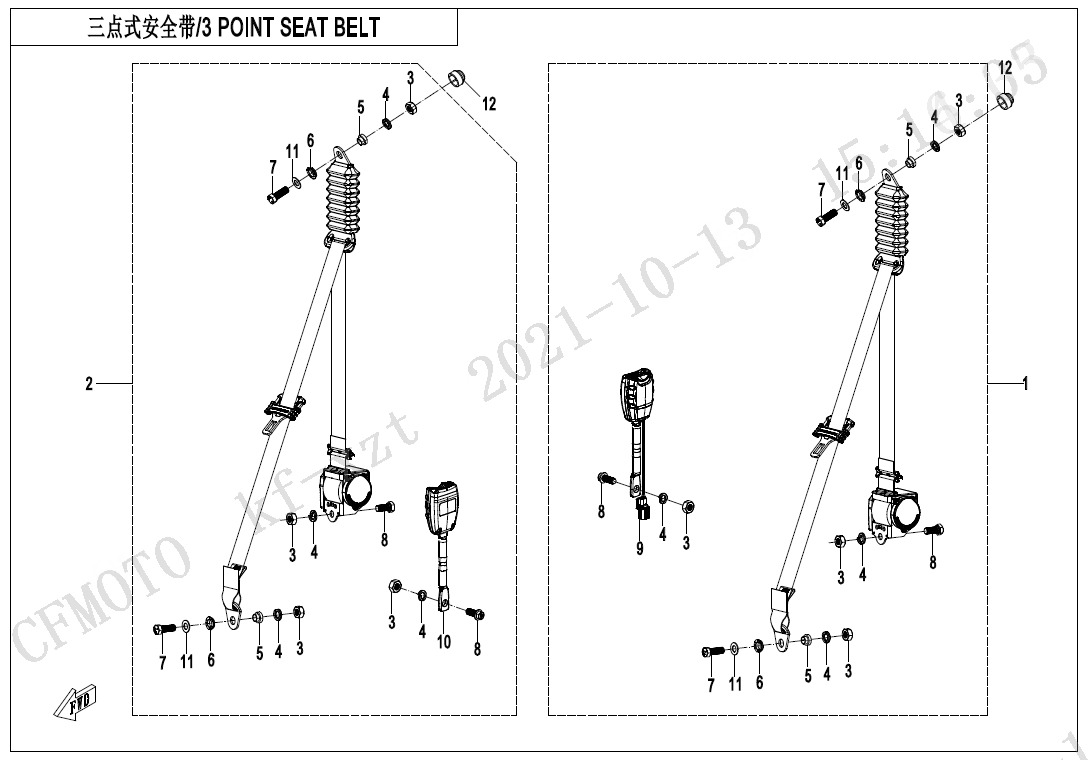

F34-3-POINT SEAT BELT

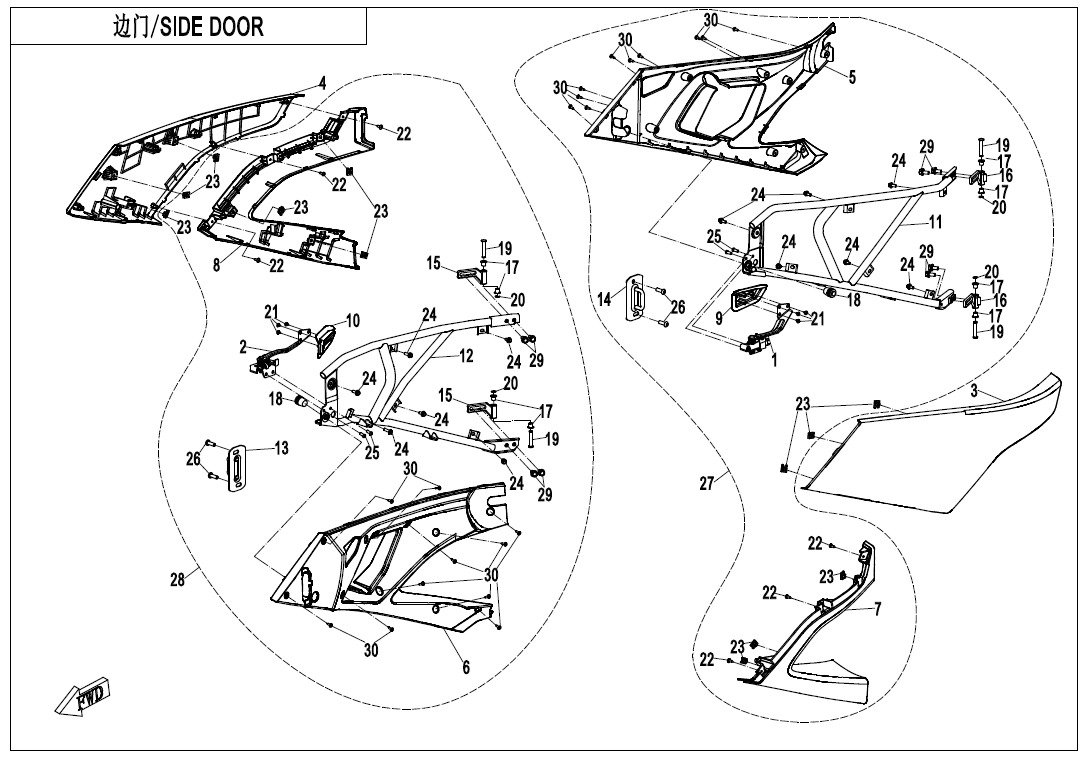

F37-SIDE DOORS
F38-B-OWNER\'S MANUAL(NA&INTERNATIONAL)

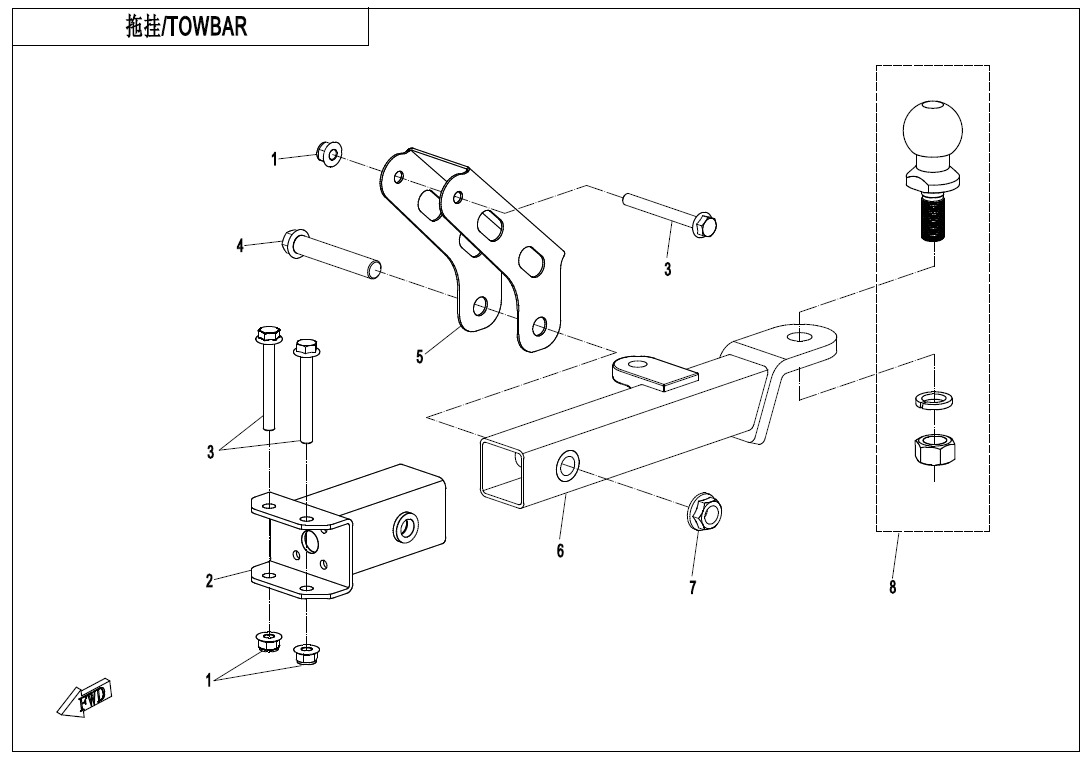

F40-TOWBAR(BOLT CONNECTION)

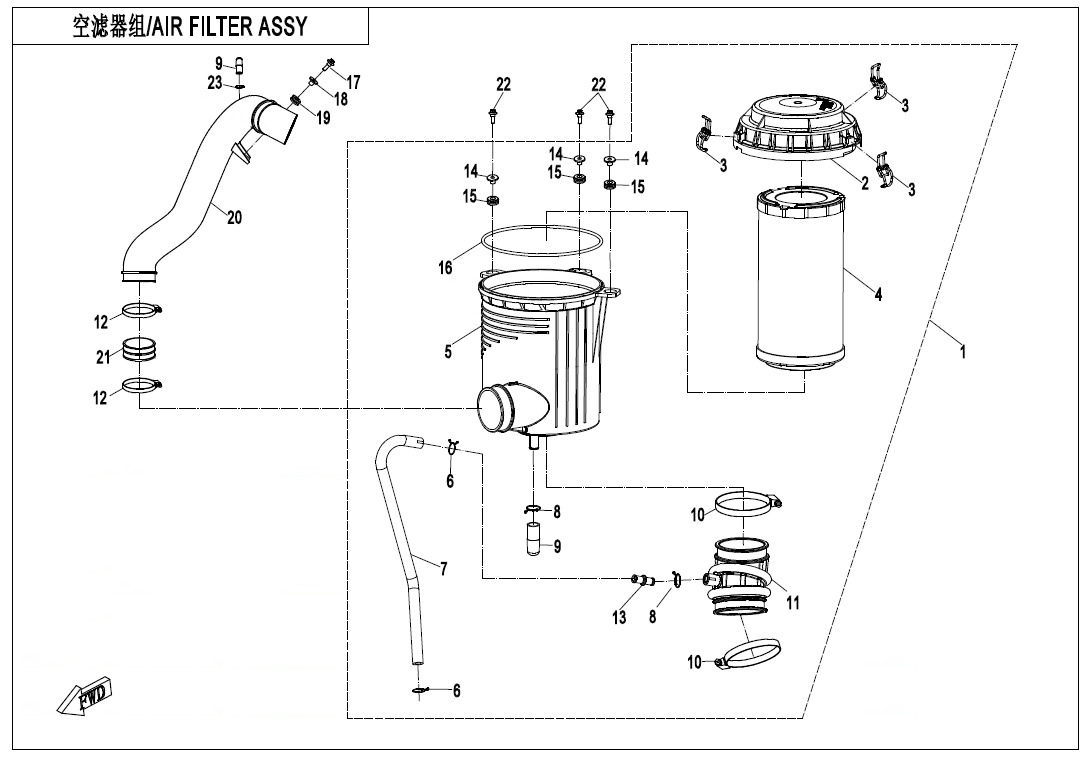

F41-AIR FILTER ASSY

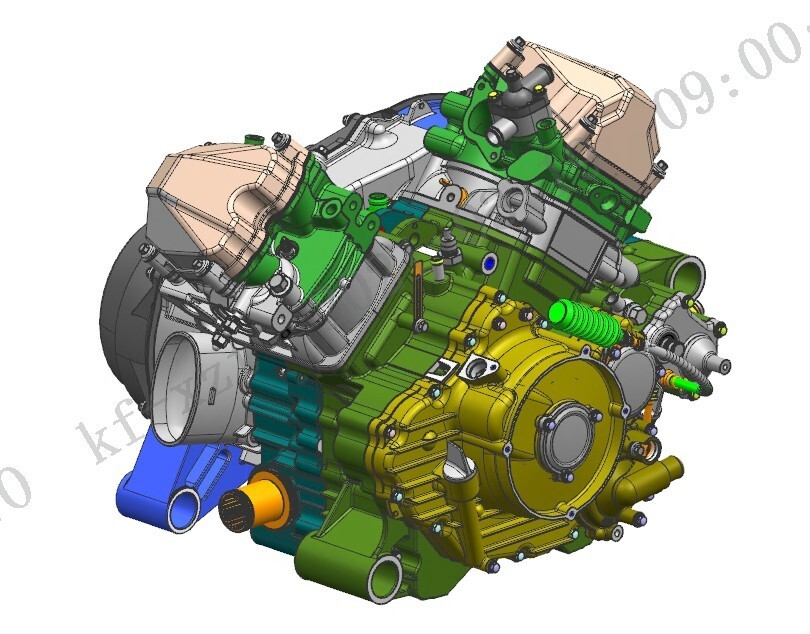

E00
LONG BLOCK
E01-1

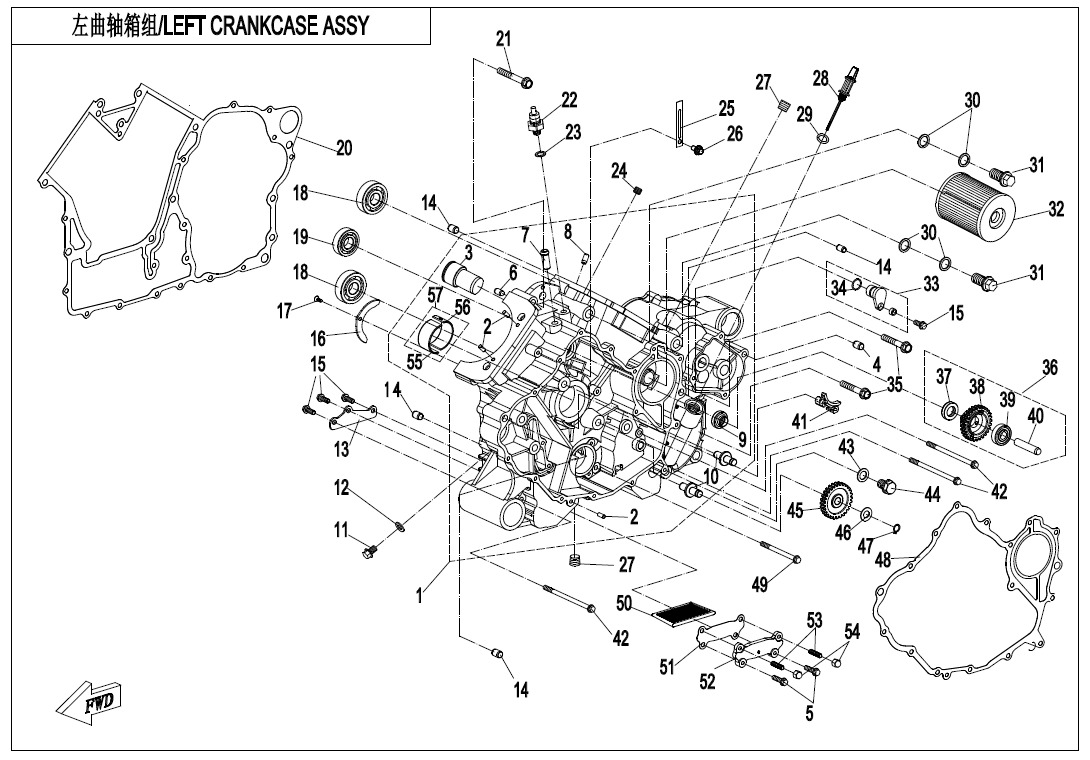

LEFT CRANKCASE ASSY
E01-2

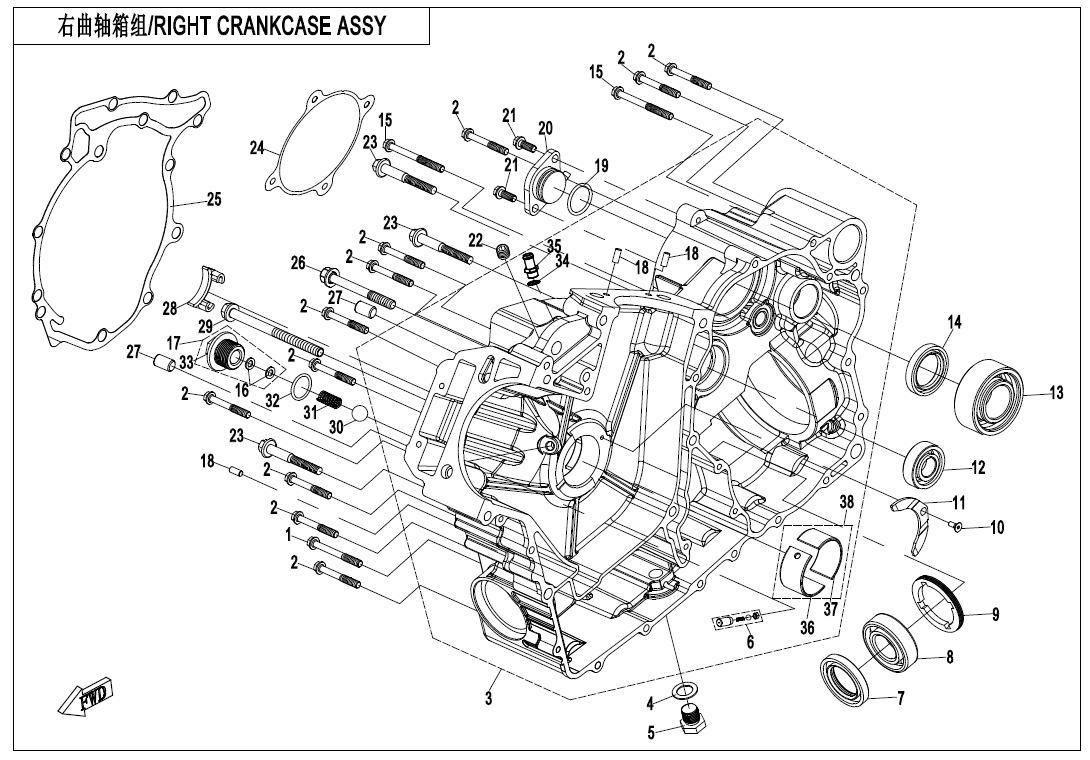

RIGHT CRANKCASE ASSY
E01-3

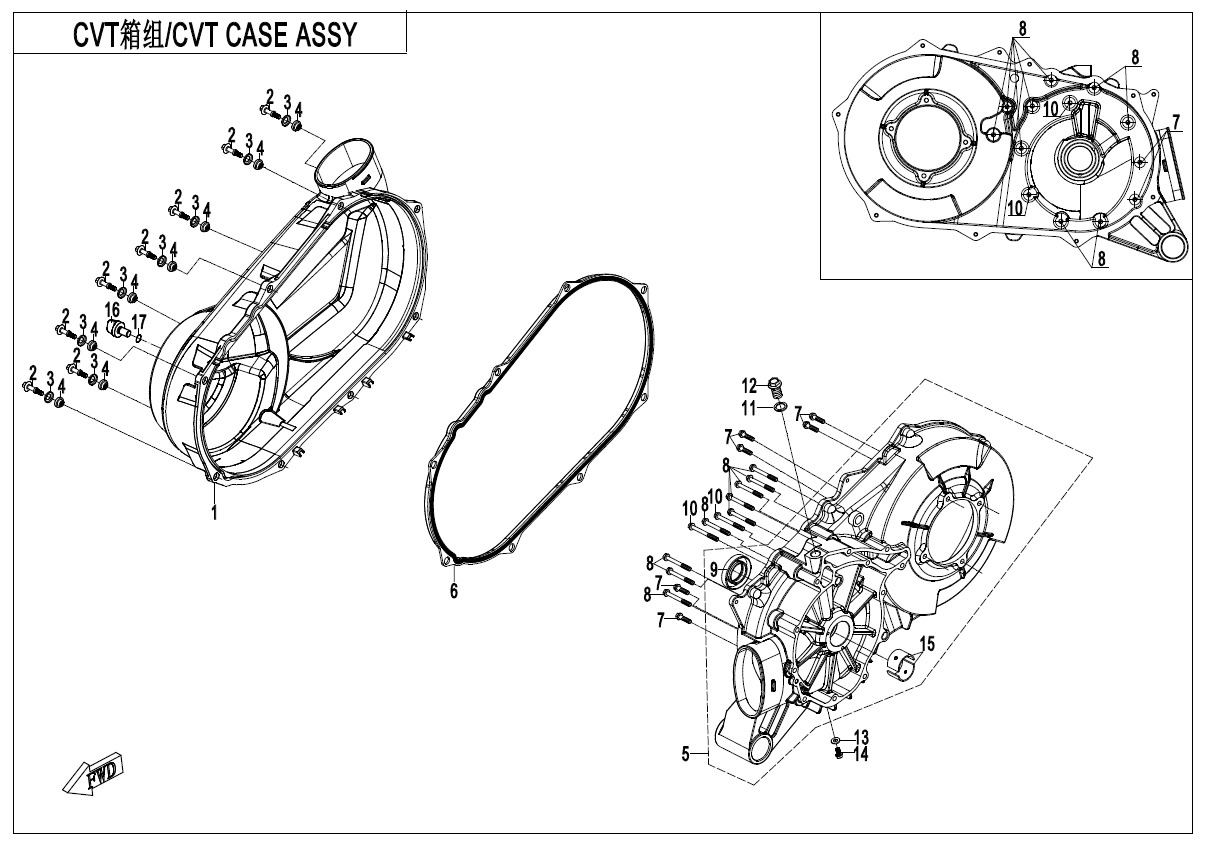

CVT CASE ASSY
E01-4

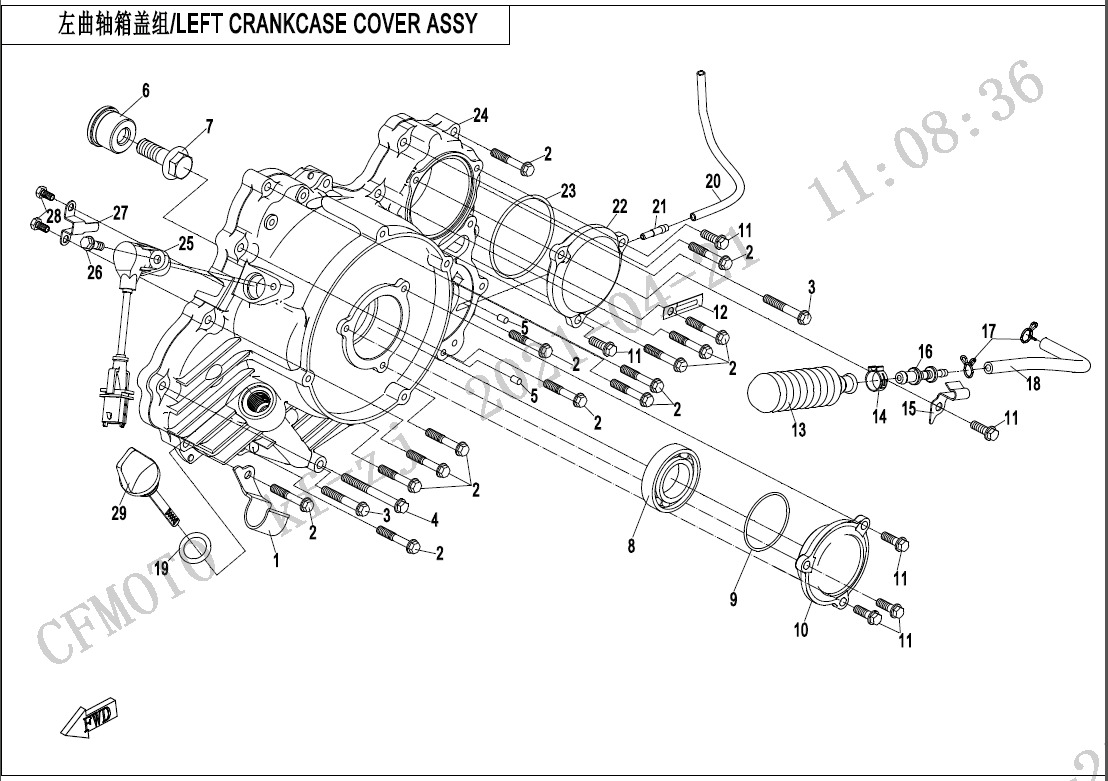

LEFT CRANKCASE COVER ASSY
E02-1
CYLINDER HEAD COVER NO.1 ASSY
E02-2-V1

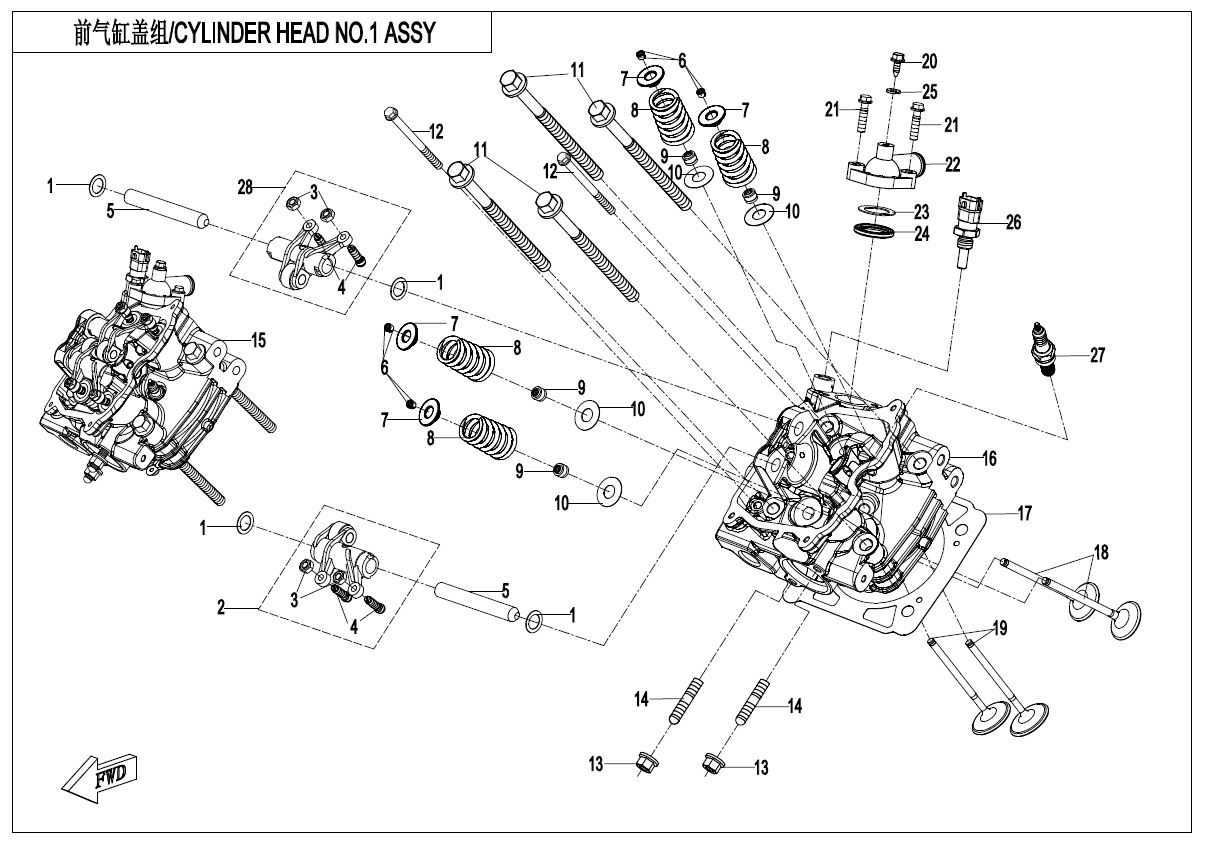

CYLINDER HEAD NO.1 ASSY
E02-2-V2
CYLINDER HEAD NO.1 ASSY
E02-3

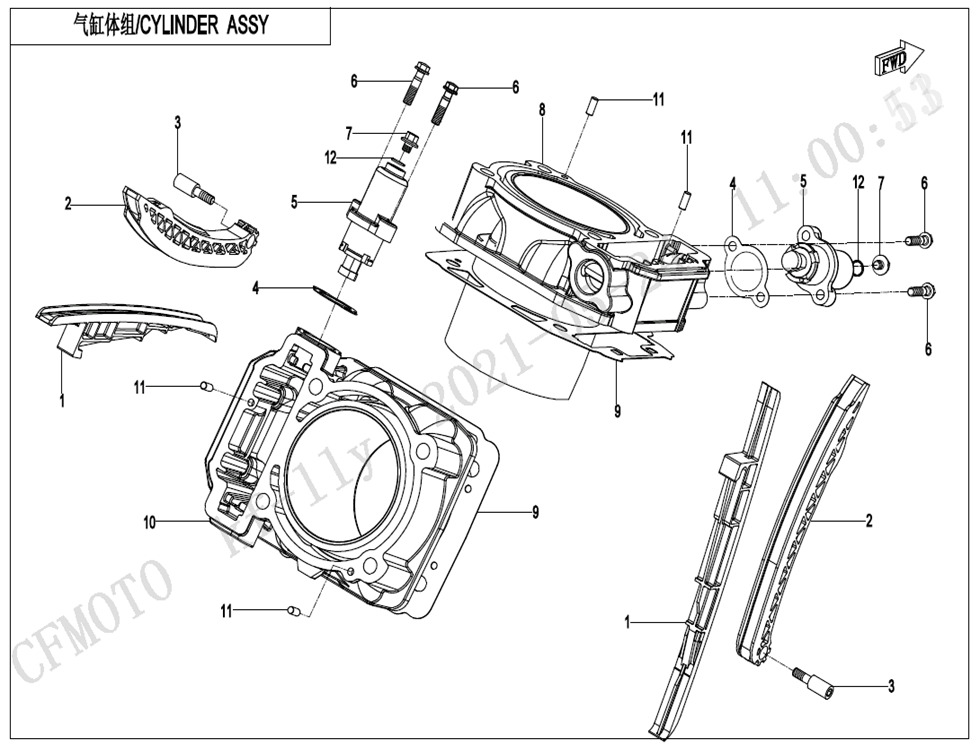

CYLINDER ASSY
E02-4

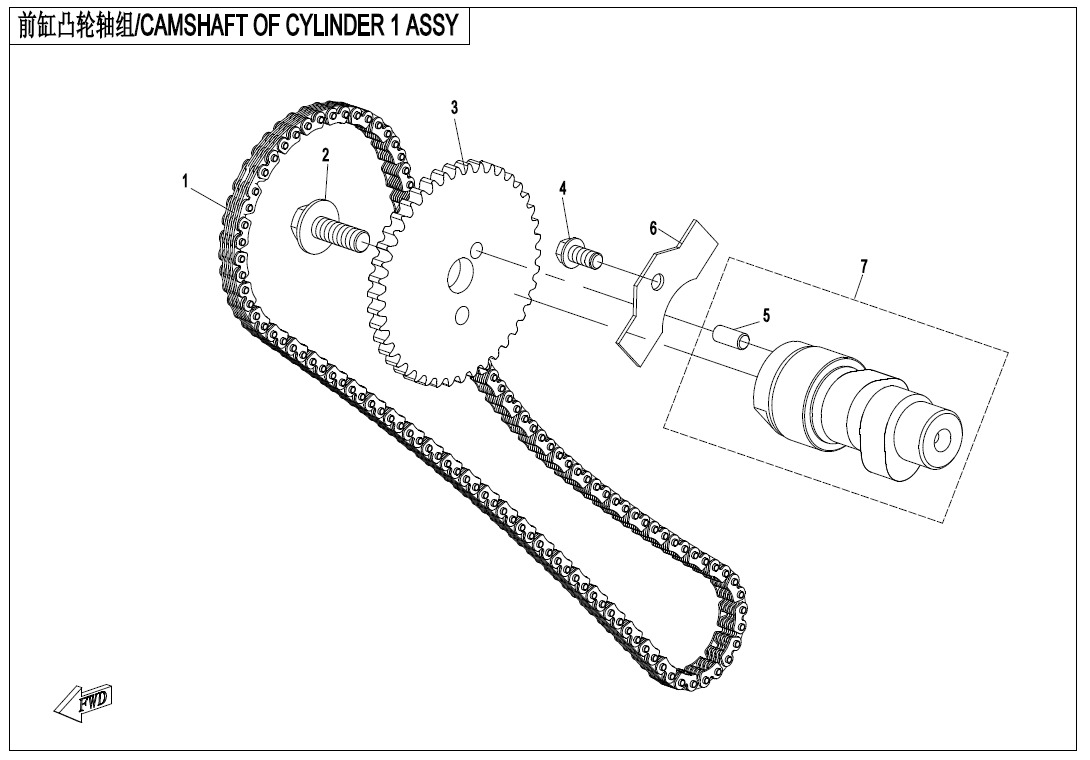

CAMSHAFT OF CYLINDER 1 ASSY
E02-5

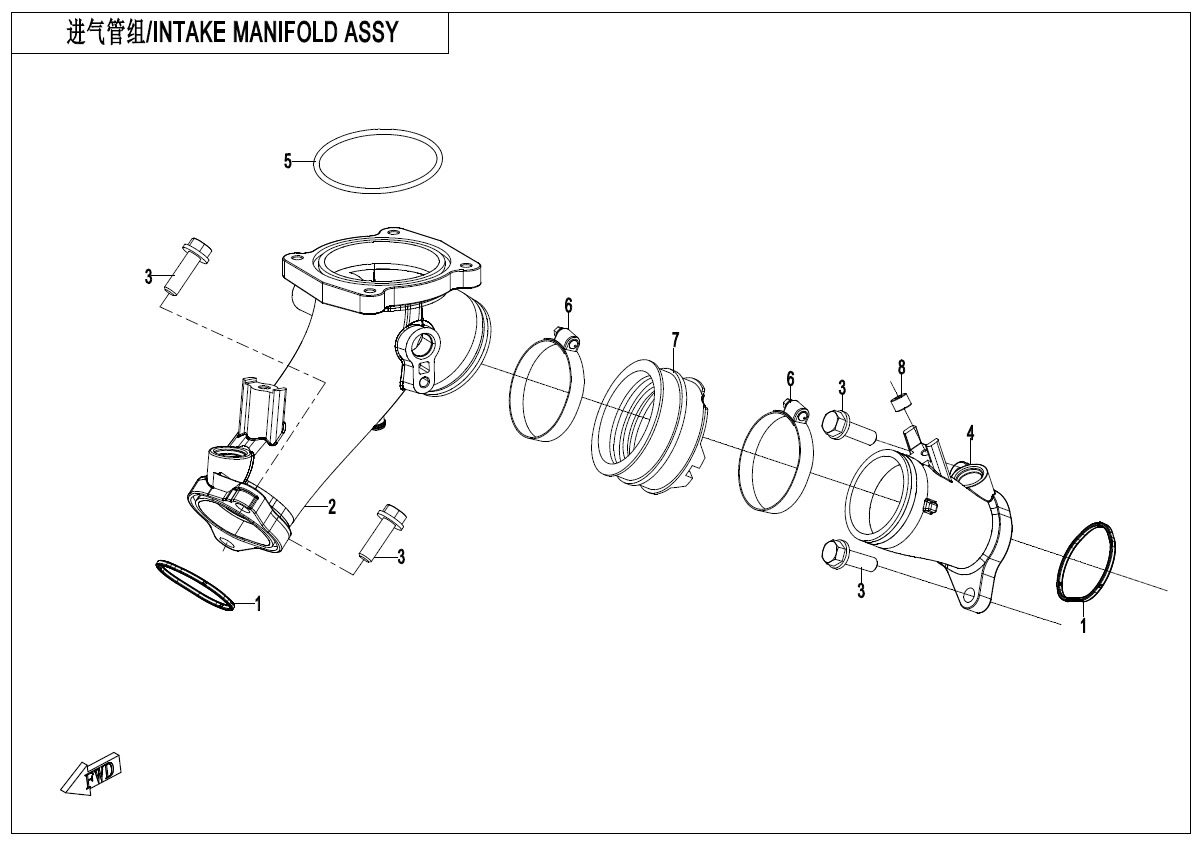

INTAKE MANIFOLD ASSY
E02-6-A-V1

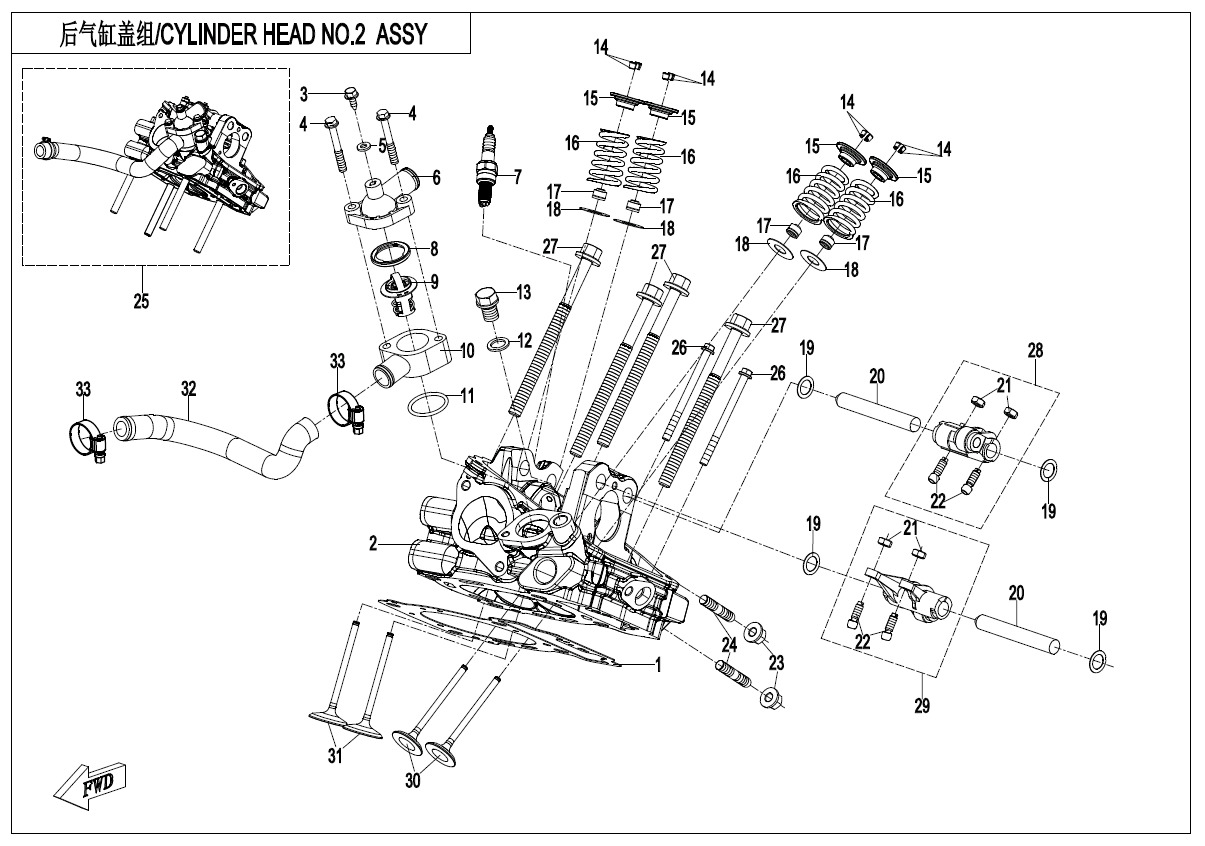

CYLINDER HEAD NO.2 ASSY
E02-6-A-V2
CYLINDER HEAD NO.2 ASSY
E02-7

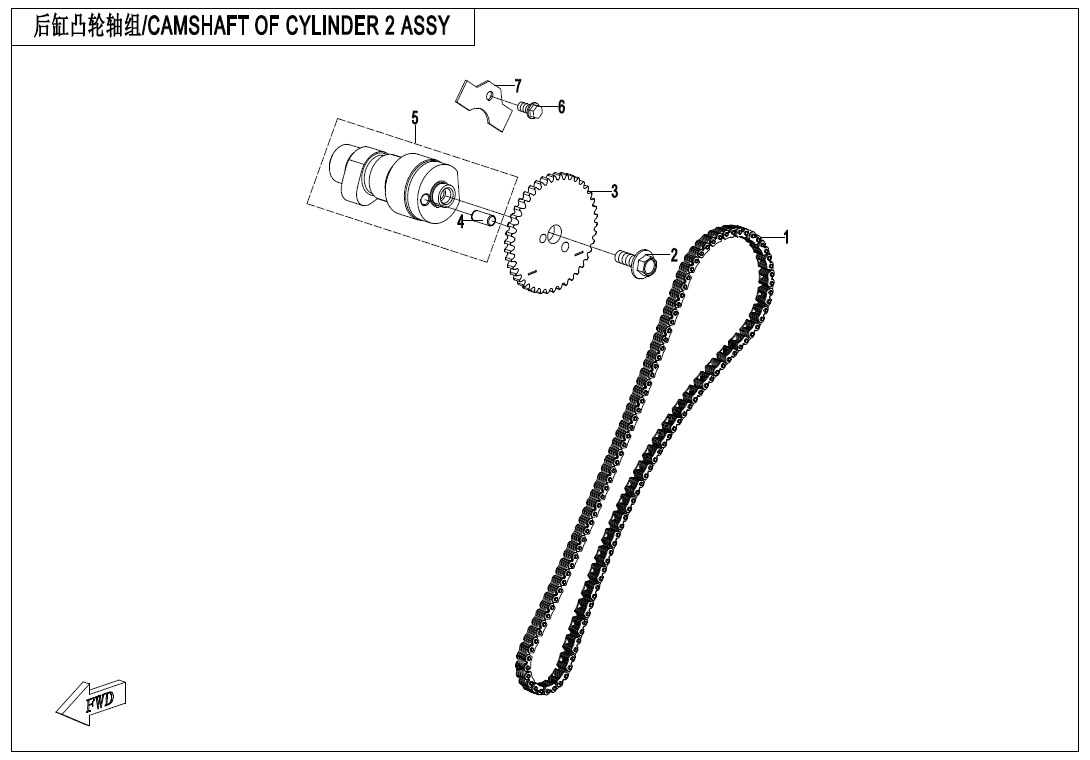

CAMSHAFT OF CYLINDER 2 ASSY
E02-8

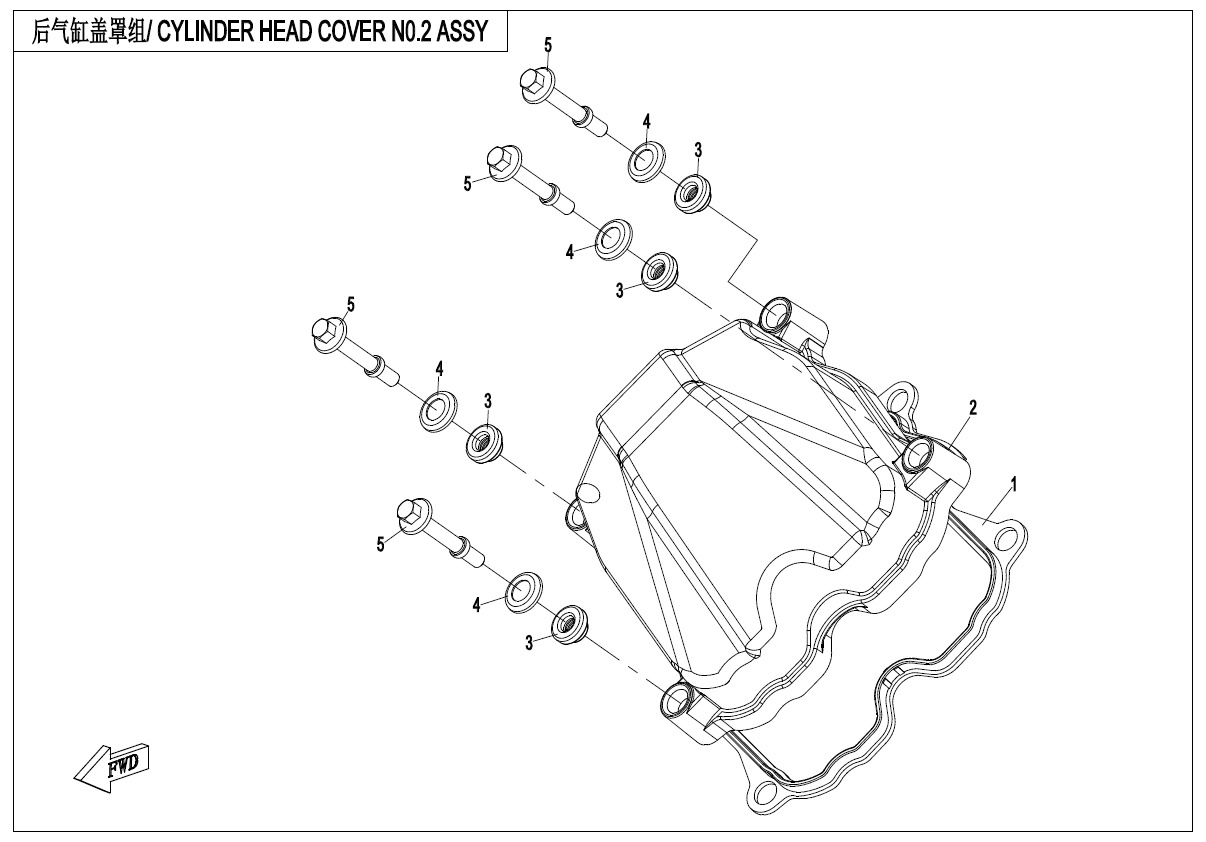

CYLINDER HEAD COVER NO.2 ASSY
E03

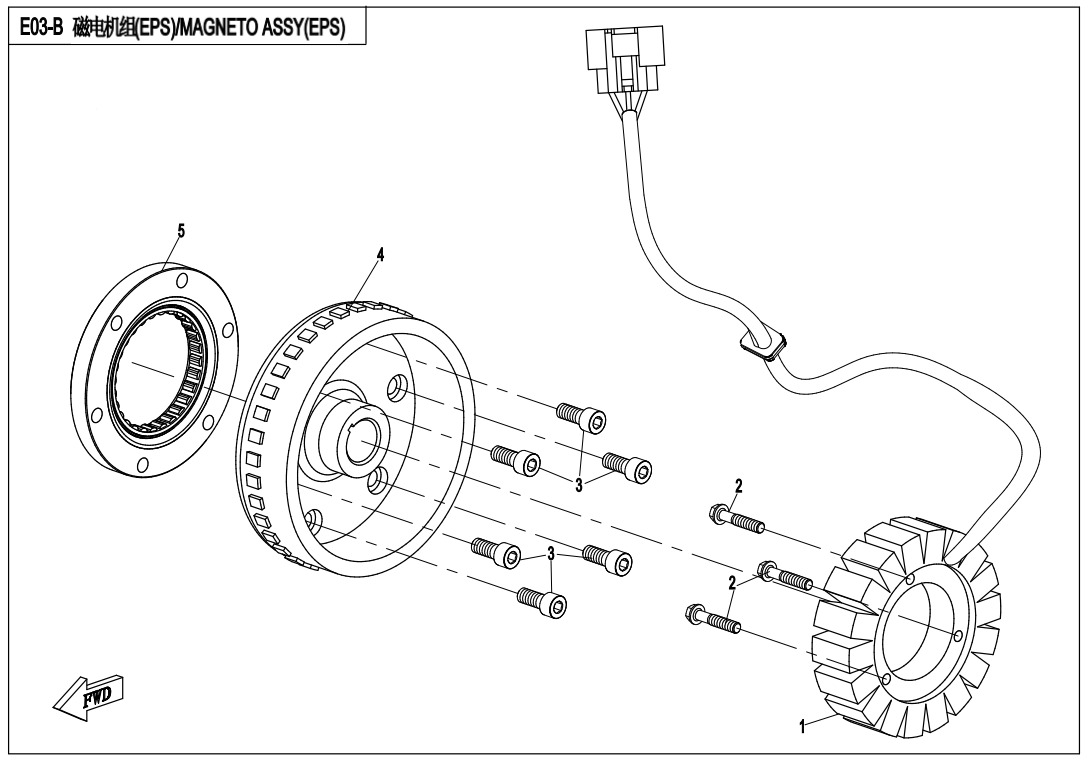

MAGNETO ASSY.(EPS)
E04

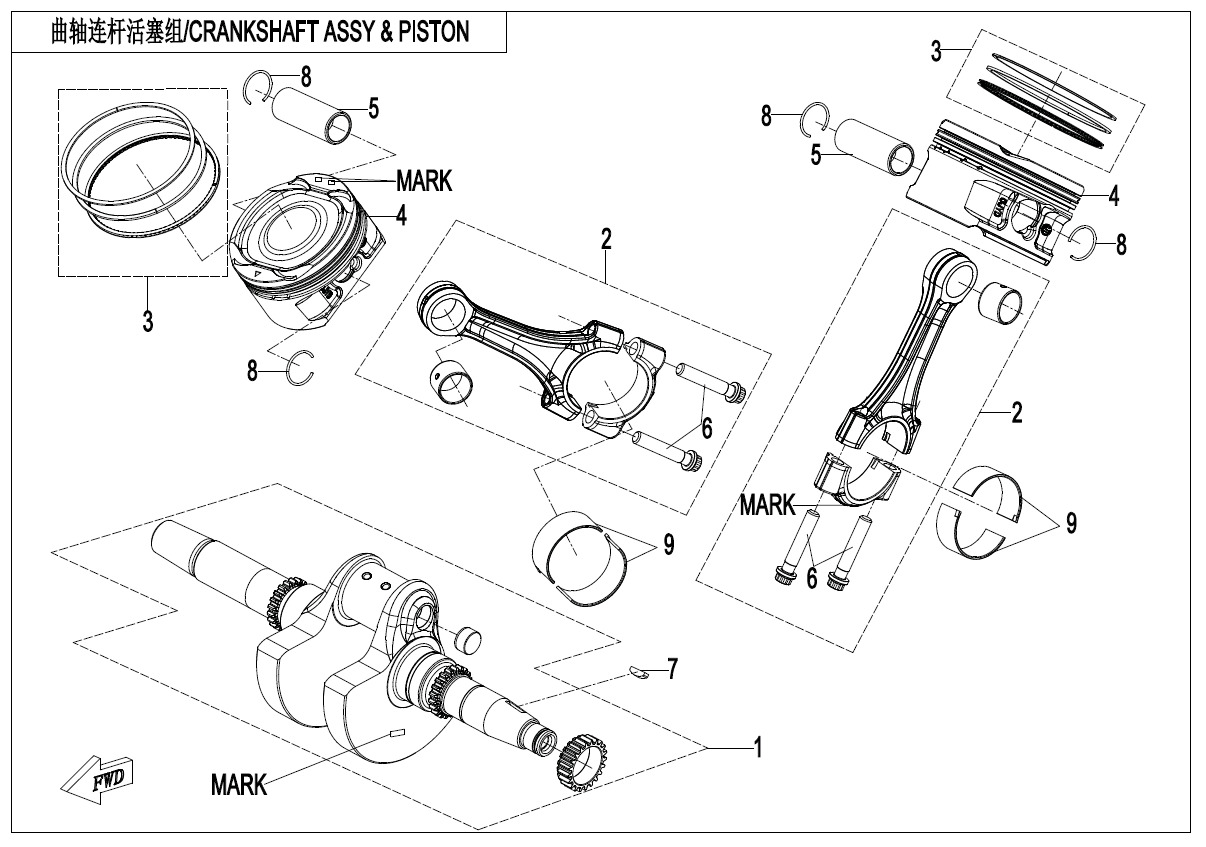

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY(HORIZONTALLY SPLIT CONNECTING ROD)
E05-V2

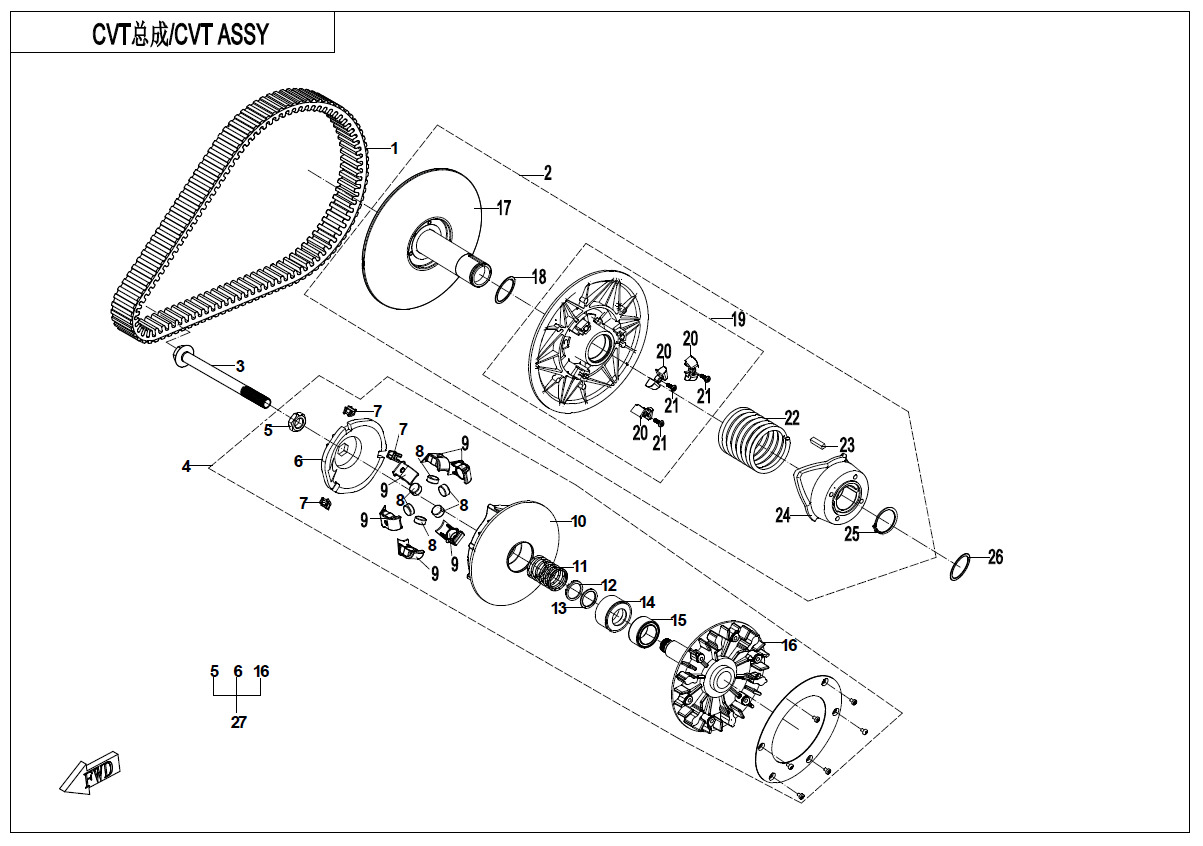

CVT ASSY
E06-1

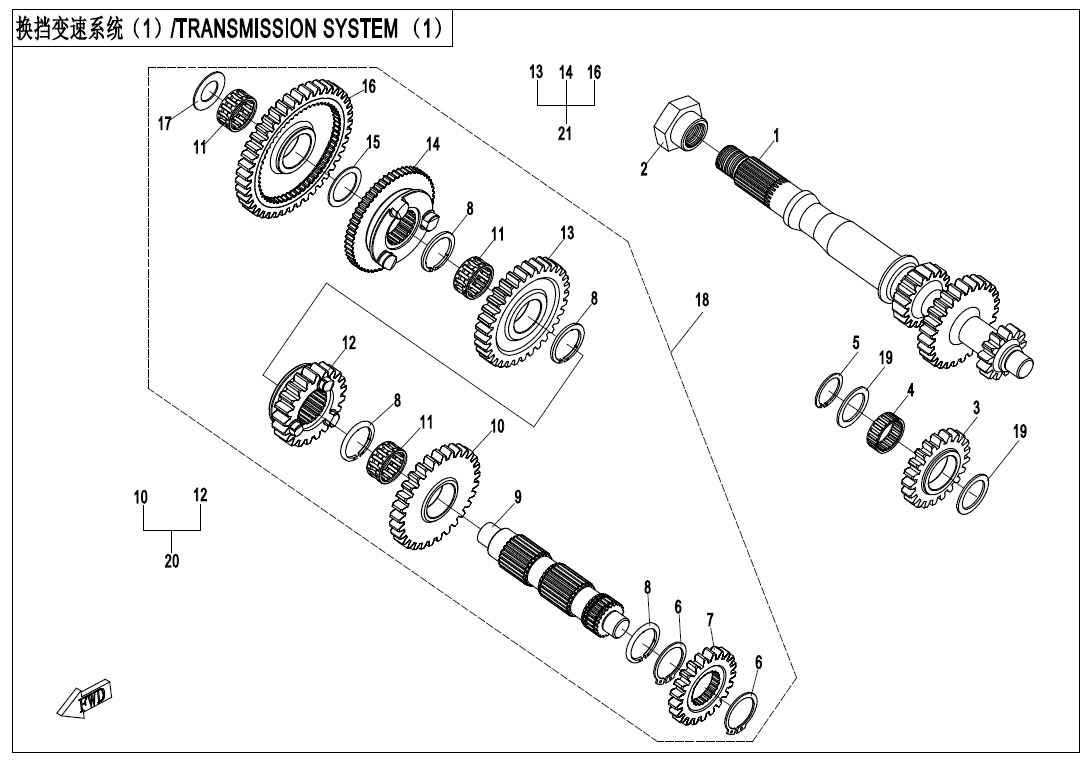

TRANSMISSION SYSTEM(1)
E06-2

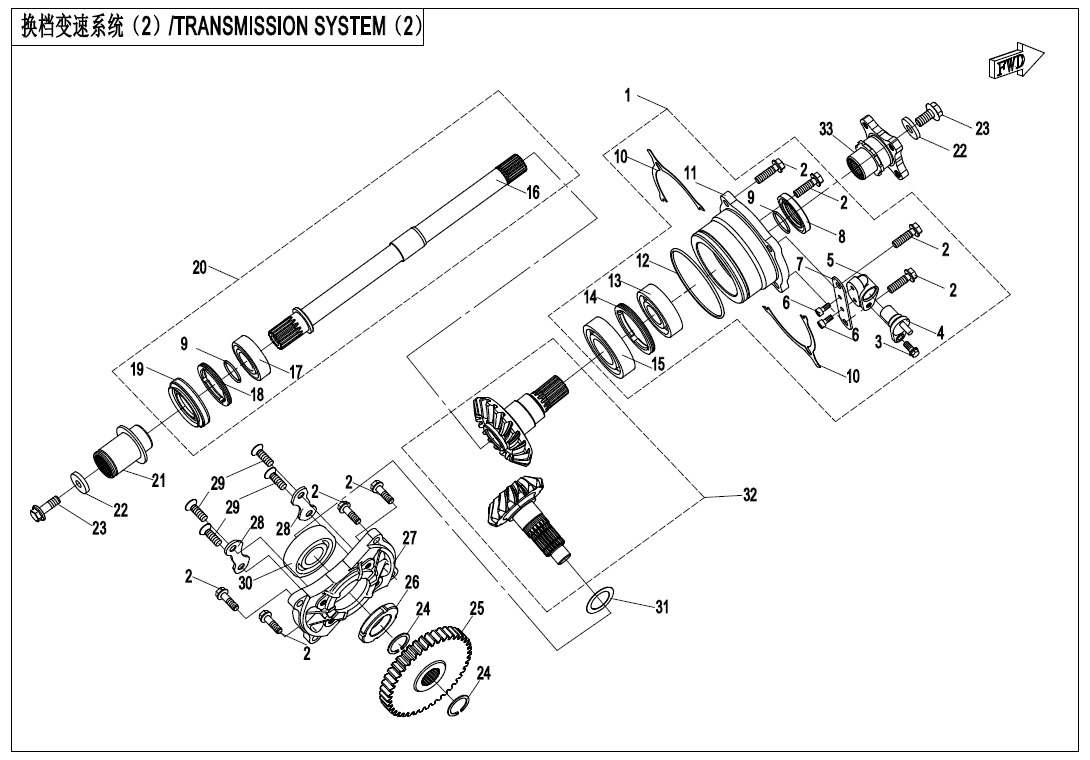

TRANSMISSION SYSTEM(2)
E06-3

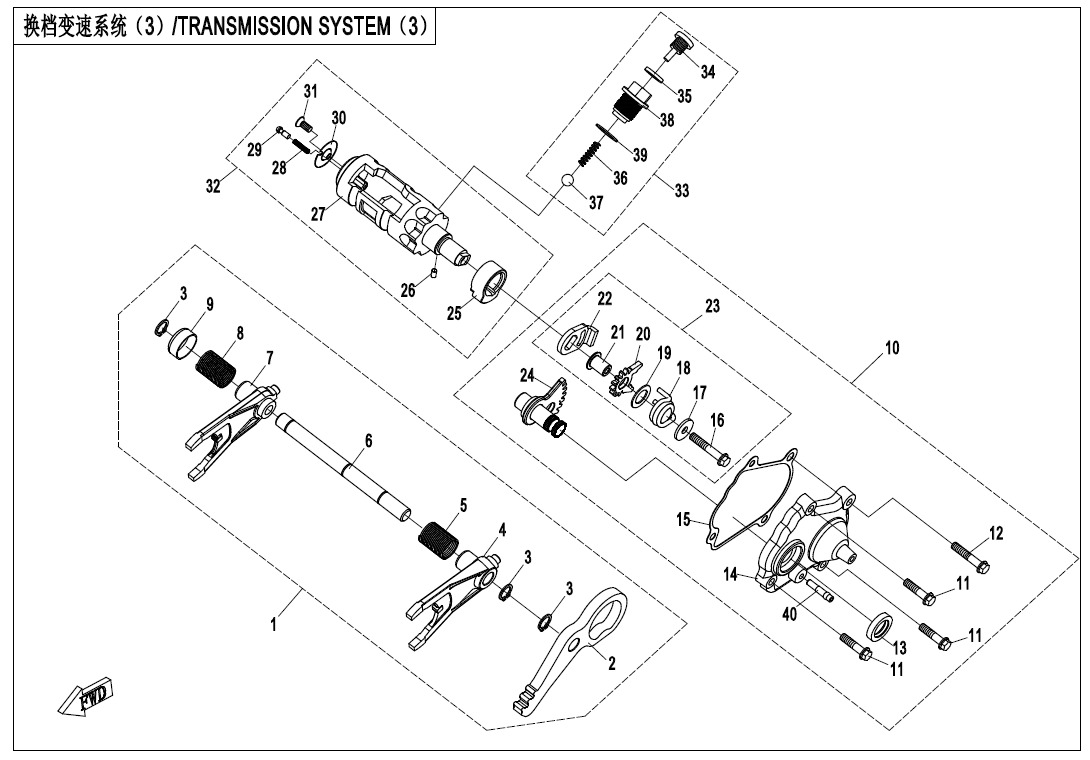

TRANSMISSION SYSTEM(3)
E07-1

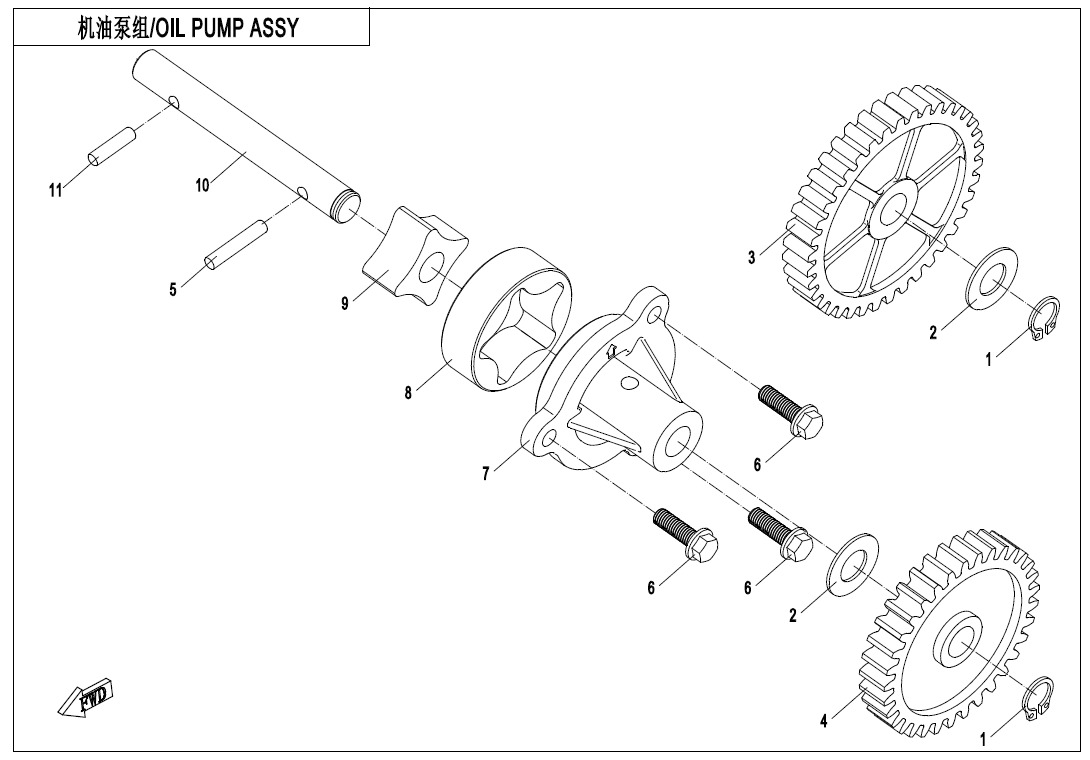

OIL PUMP ASSY
E08

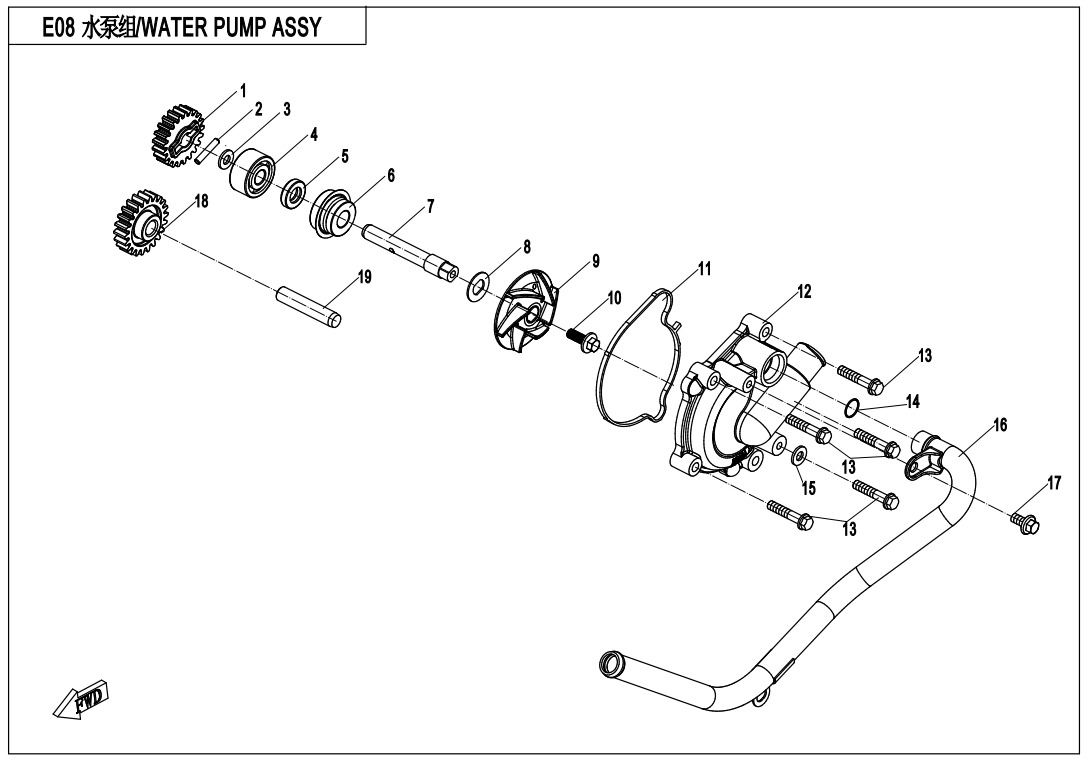

WATER PUMP ASSY.
E09

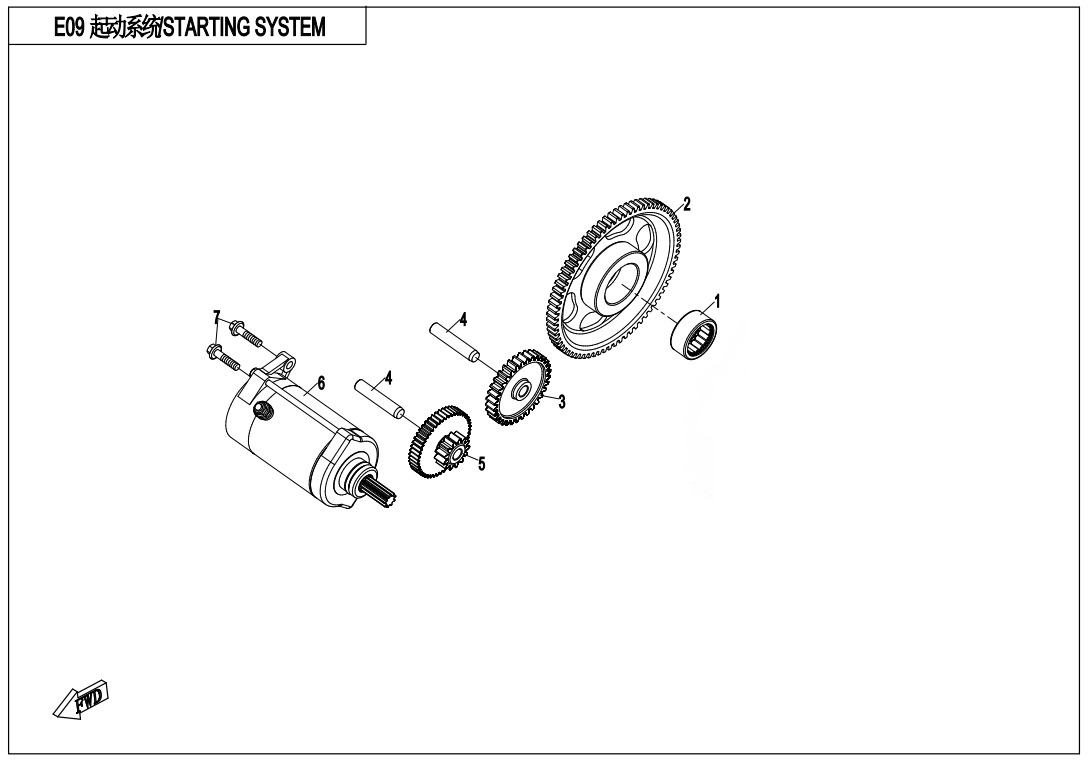

STARTING SYSTEM
E29

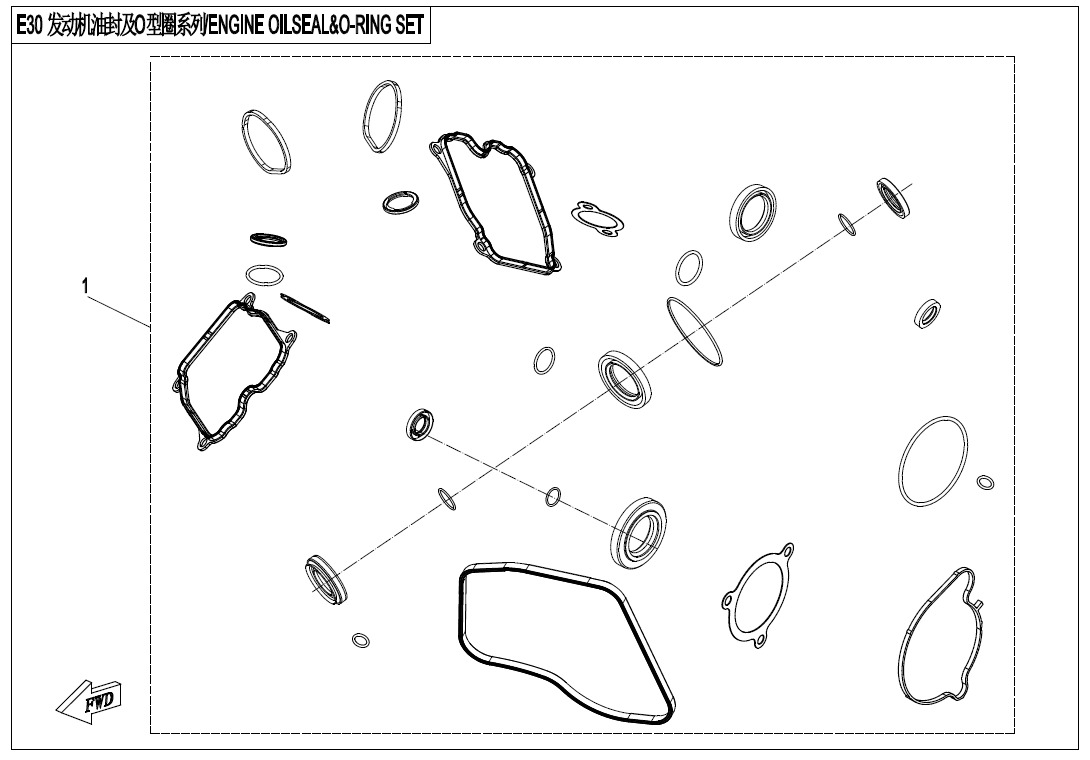

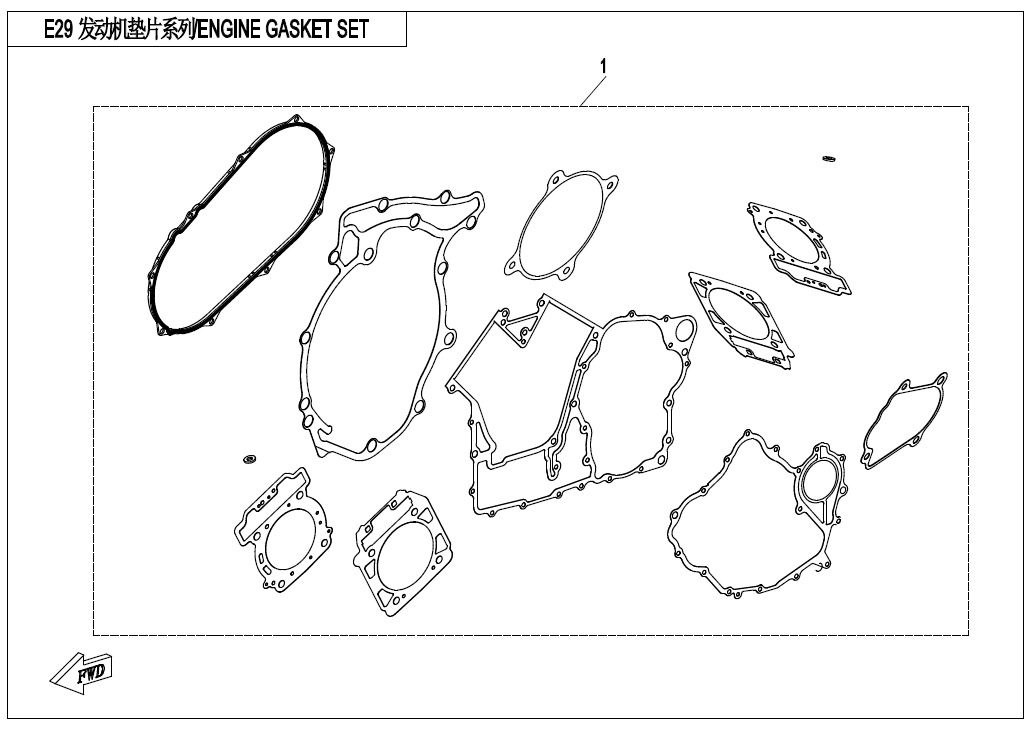

ENGINE GASKET SET
E30
