Genuine Parts Diagrams for 2018 650MT (UPDATED) - CF650-3Change Model
Showing 67 parts diagrams.
F00-A

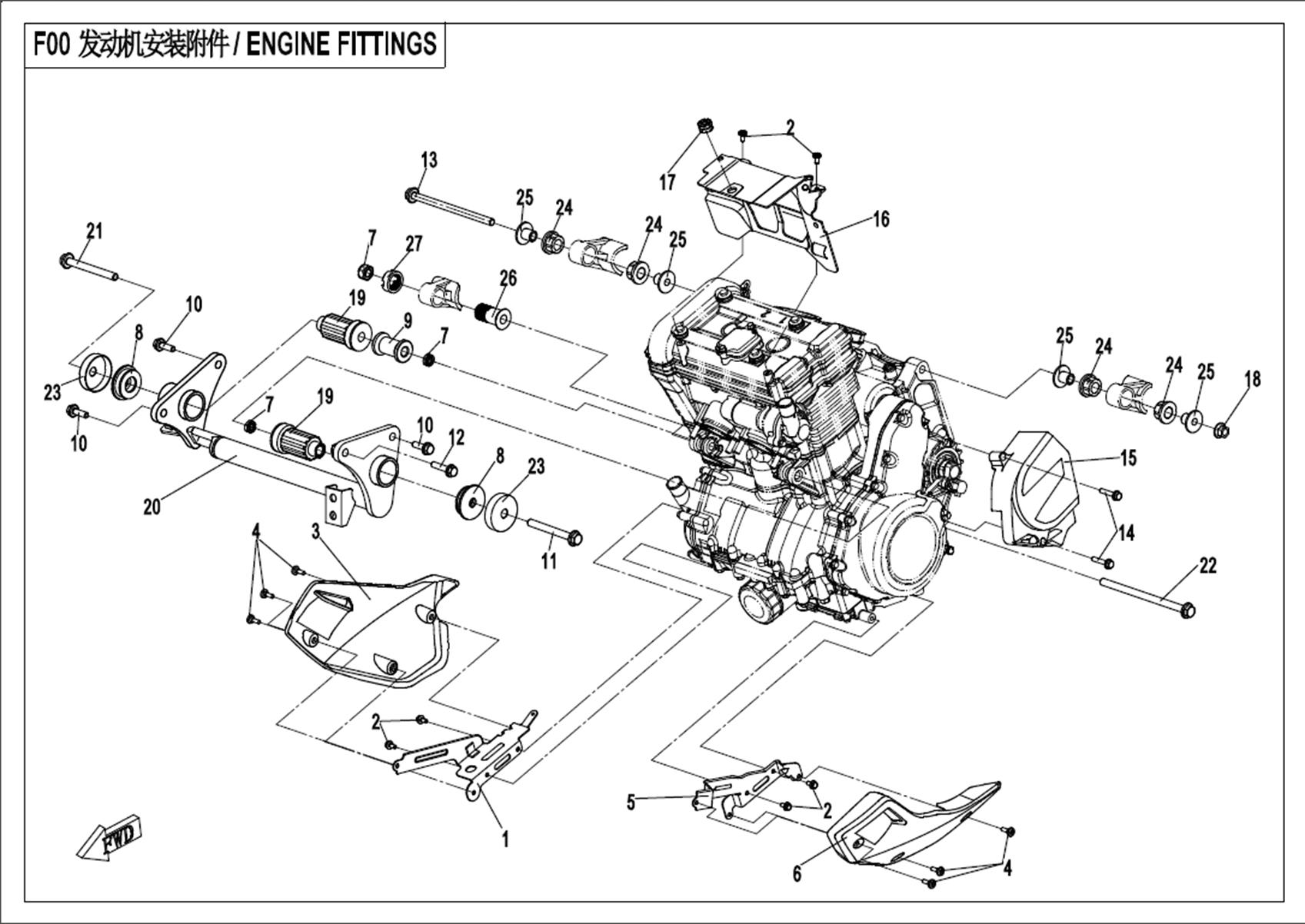

ENGINE FITTINGS (FOR PLASTIC LOWER GUARD)
F00-B

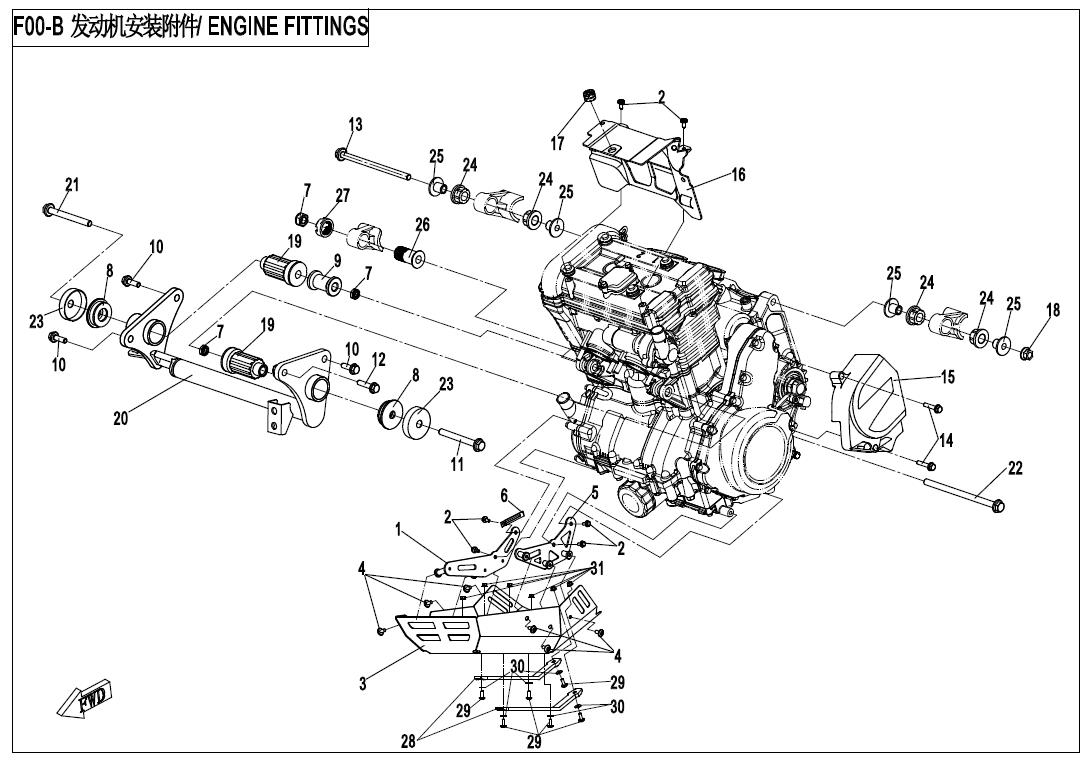

ENGINE FITTINGS (FOR ALUMINIUM LOWER GUARD)
F01
LOCK KIT

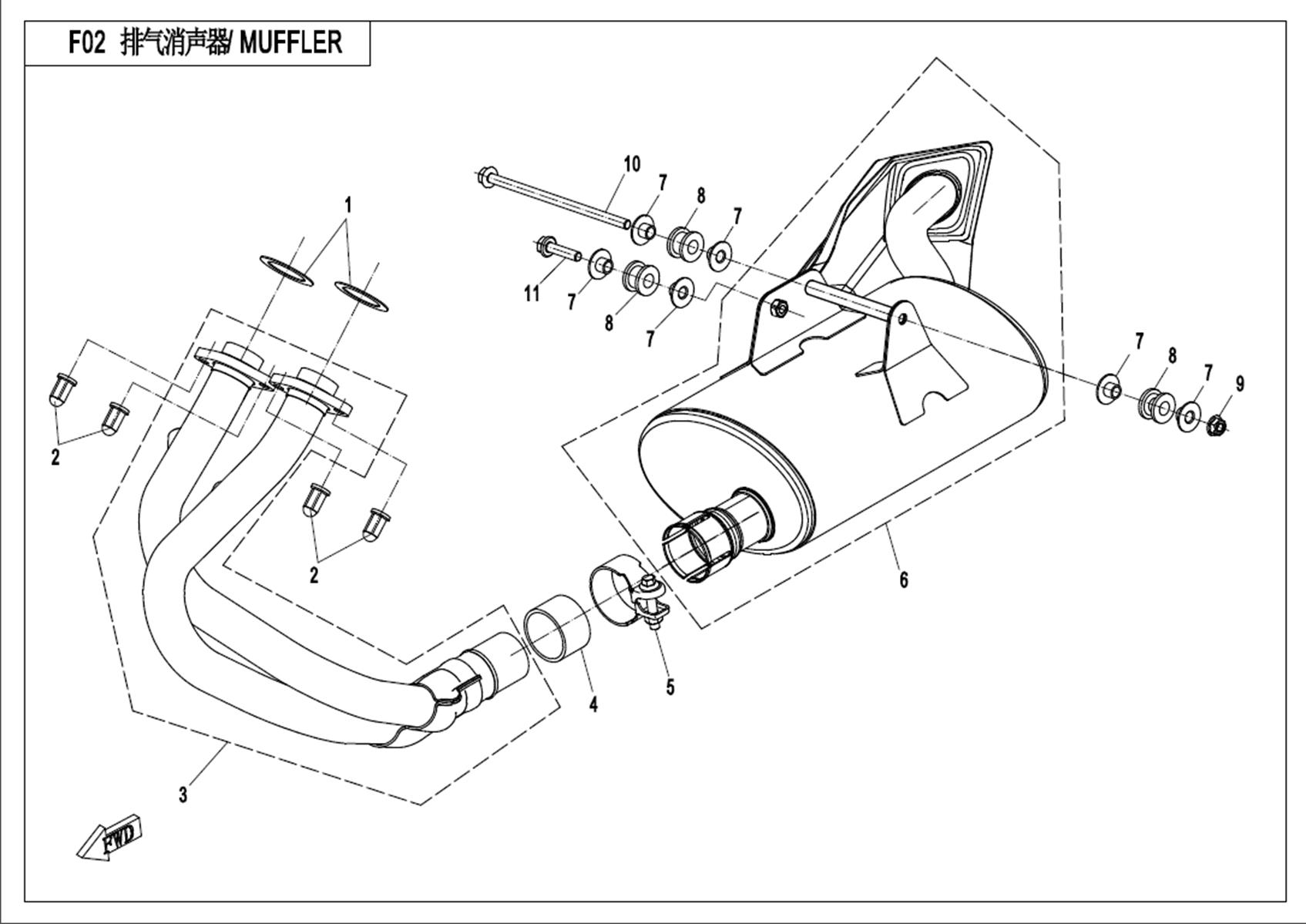

F02
MUFFLER
F03

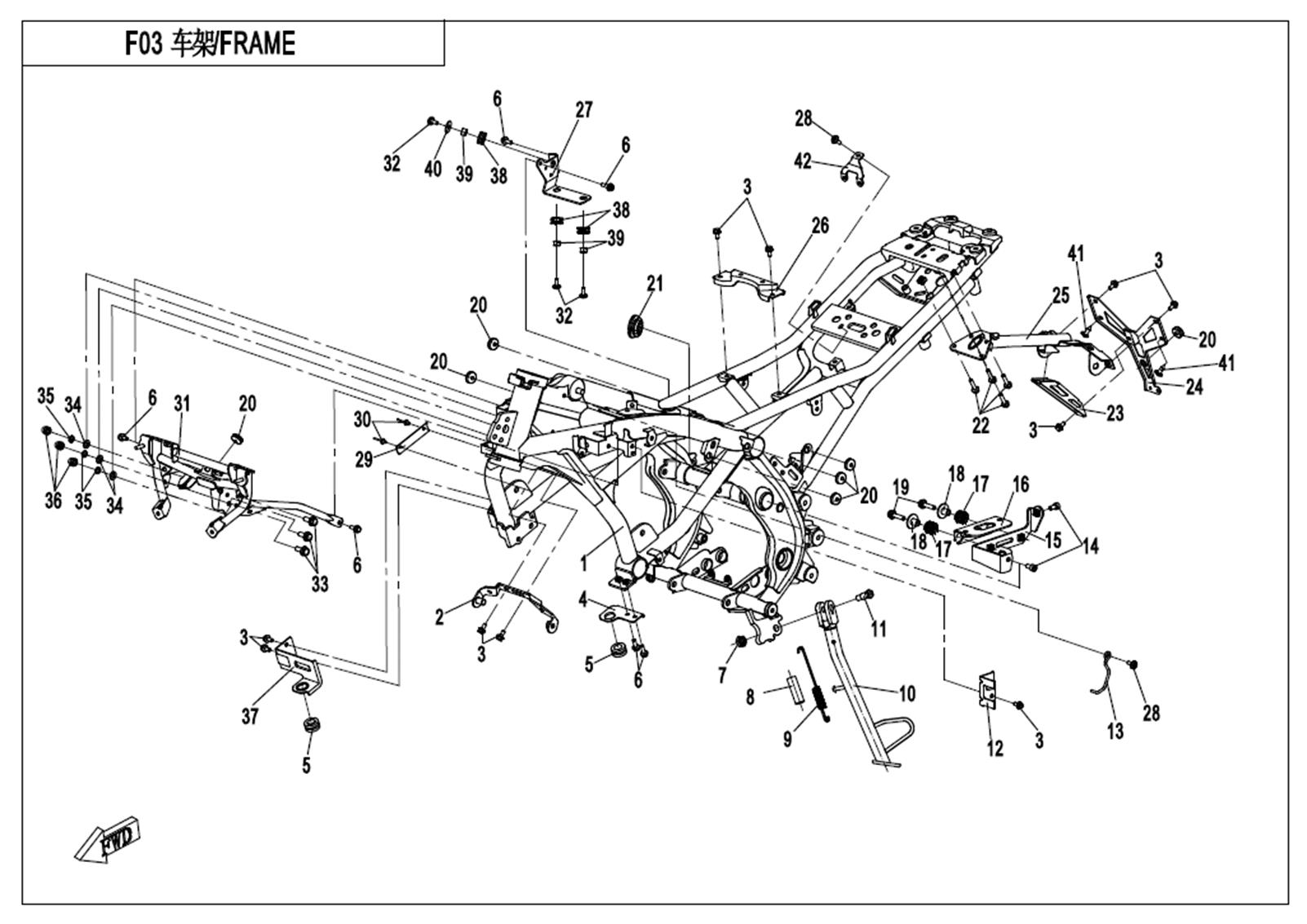

FRAME
F04-1-A

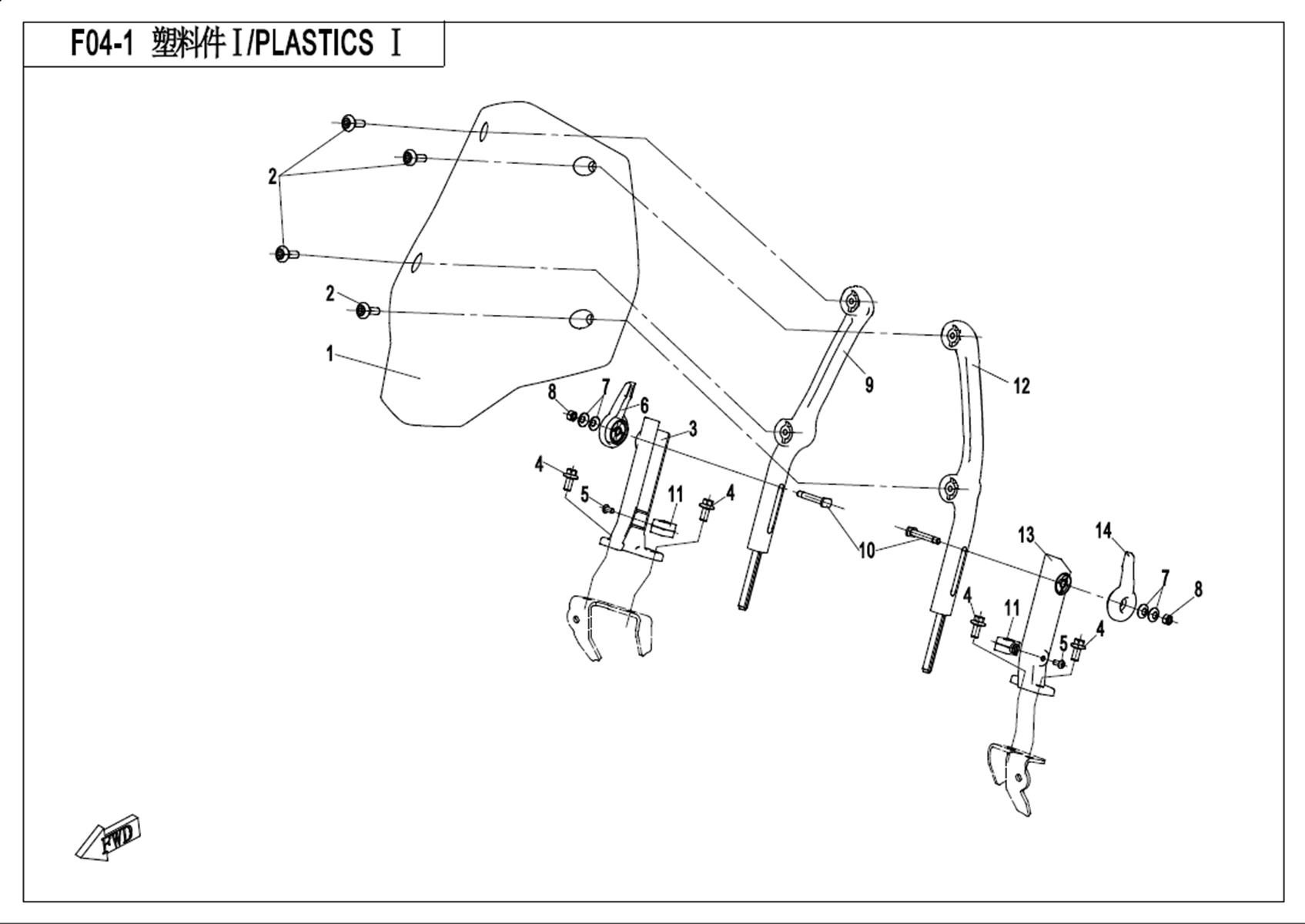

PLASTICS I (SMALL WINDSHIELD)

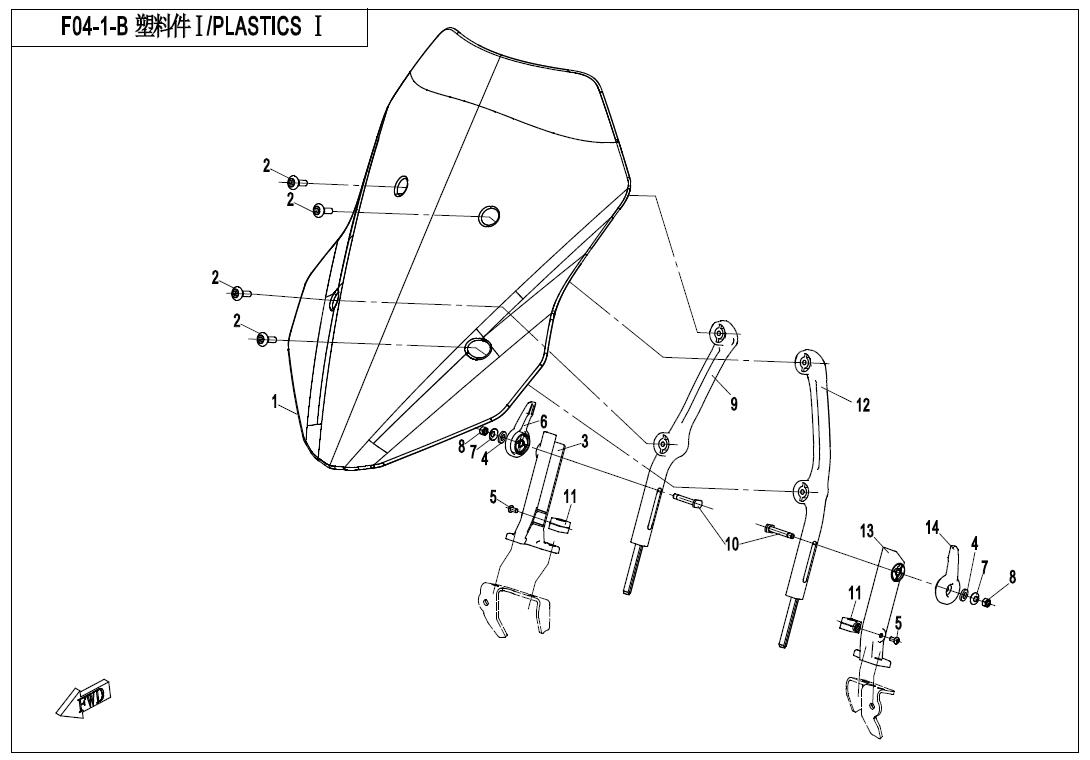

F04-1-B
PLASTICS I (BIG WINDSHIELD)

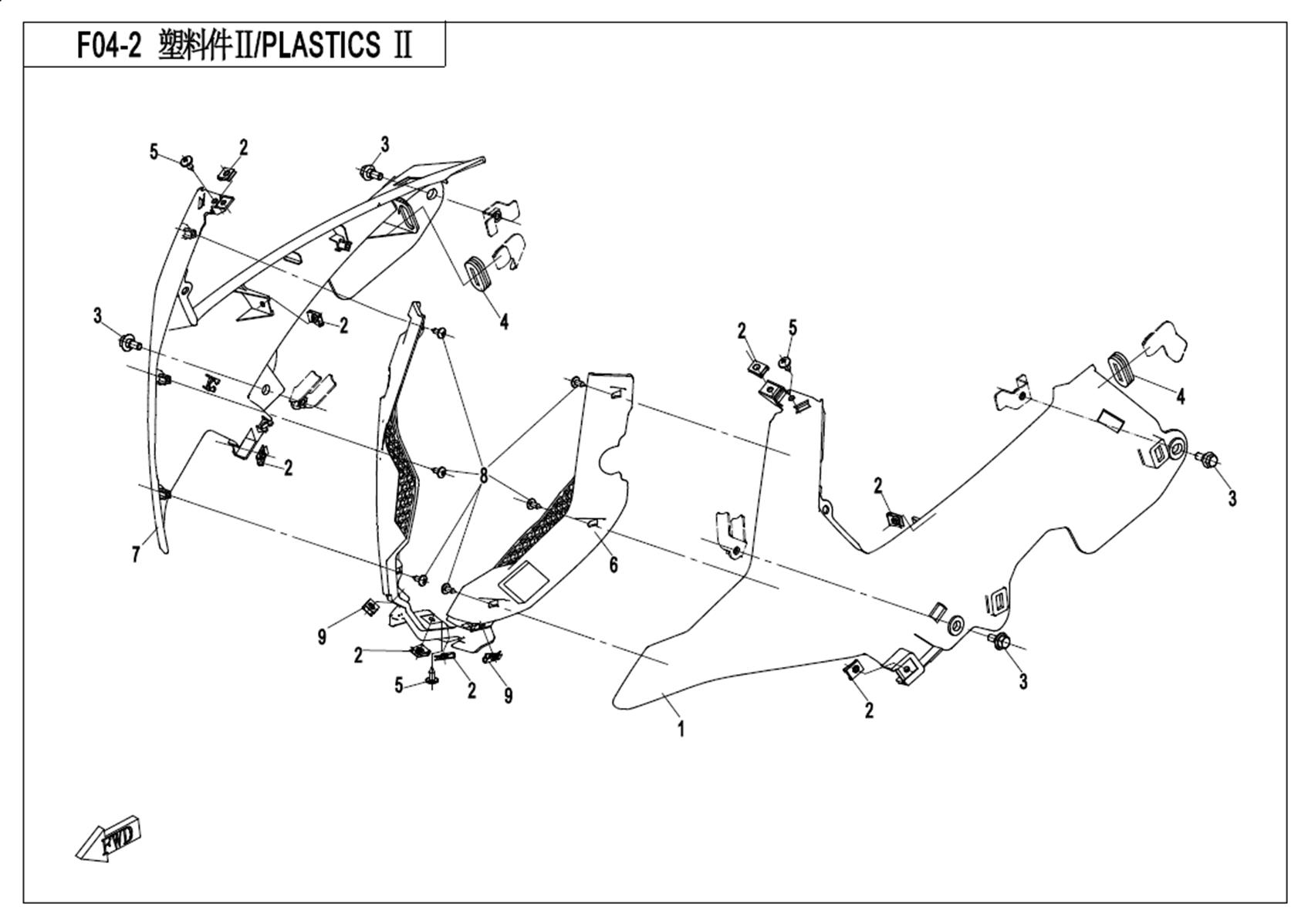

F04-2
PLASTICS II
F04-3-A

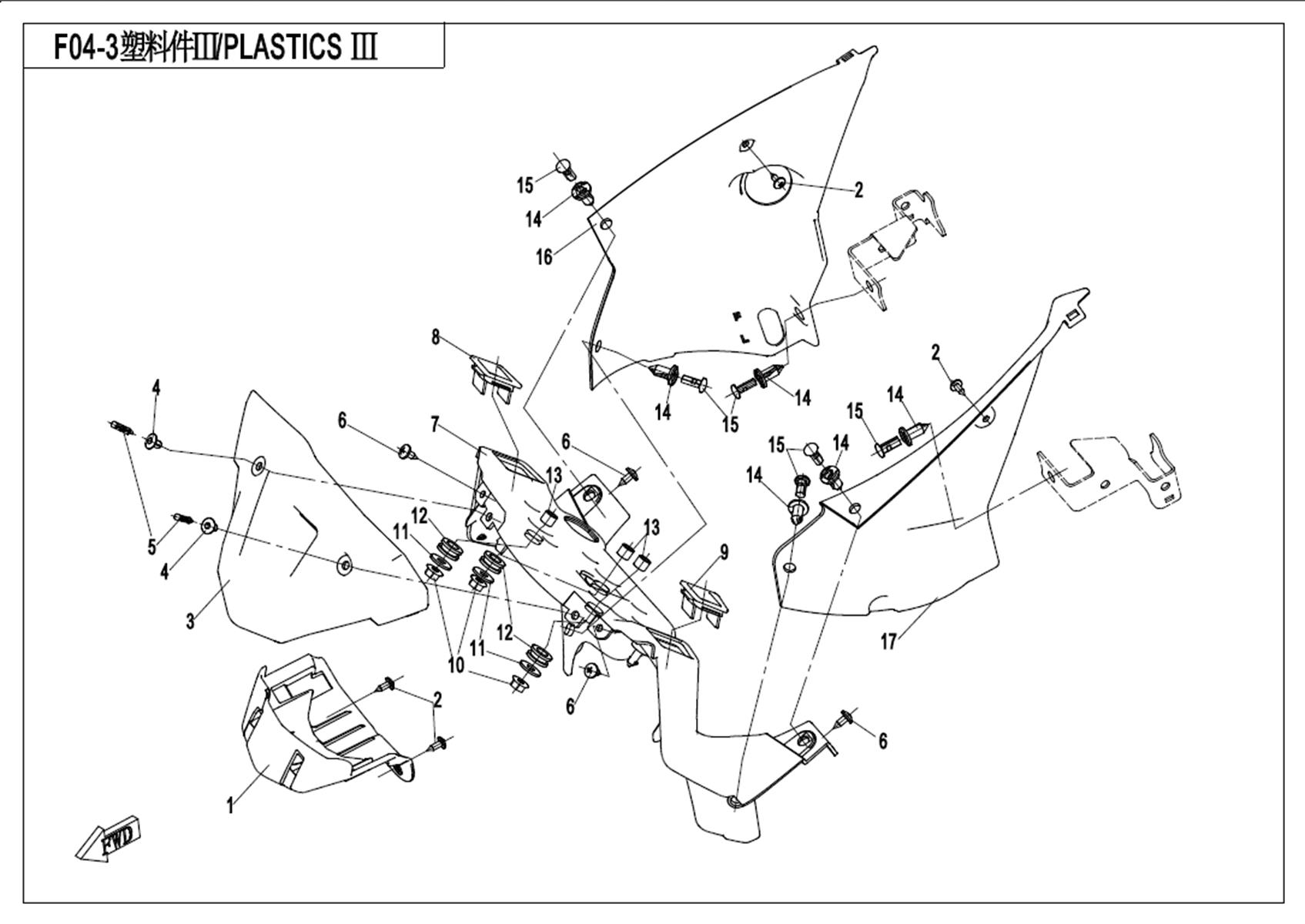

PLASTICS III (SMALL WINDSHIELD)
F04-3-B

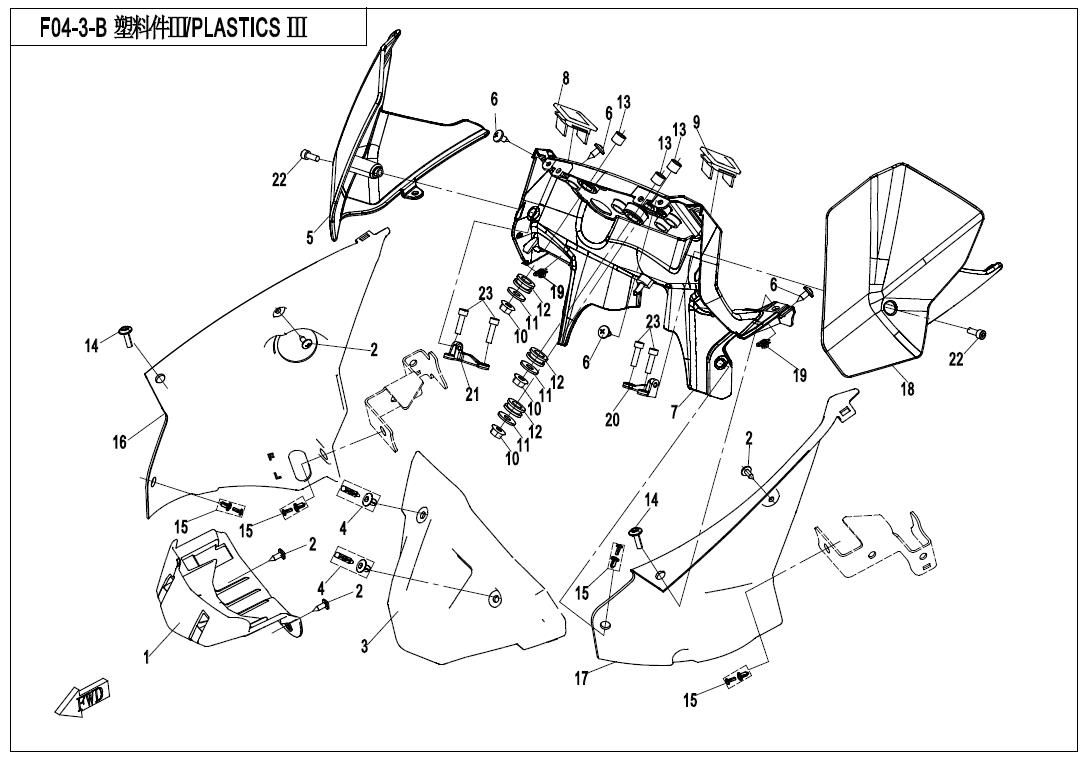

PLASTICS III (HIGH WINDSHIELD)
F04-4

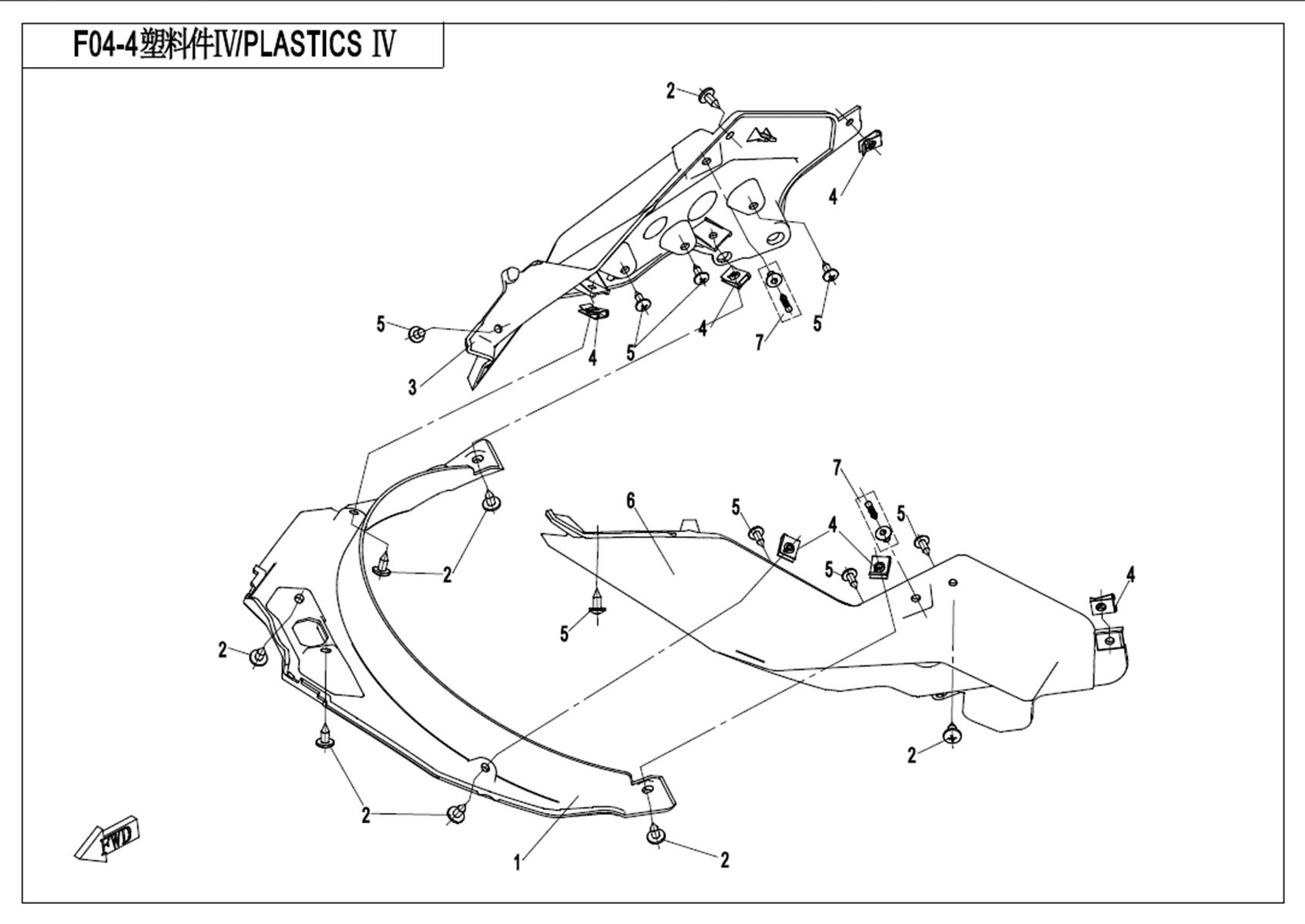

PLASTICS IV
F04-5

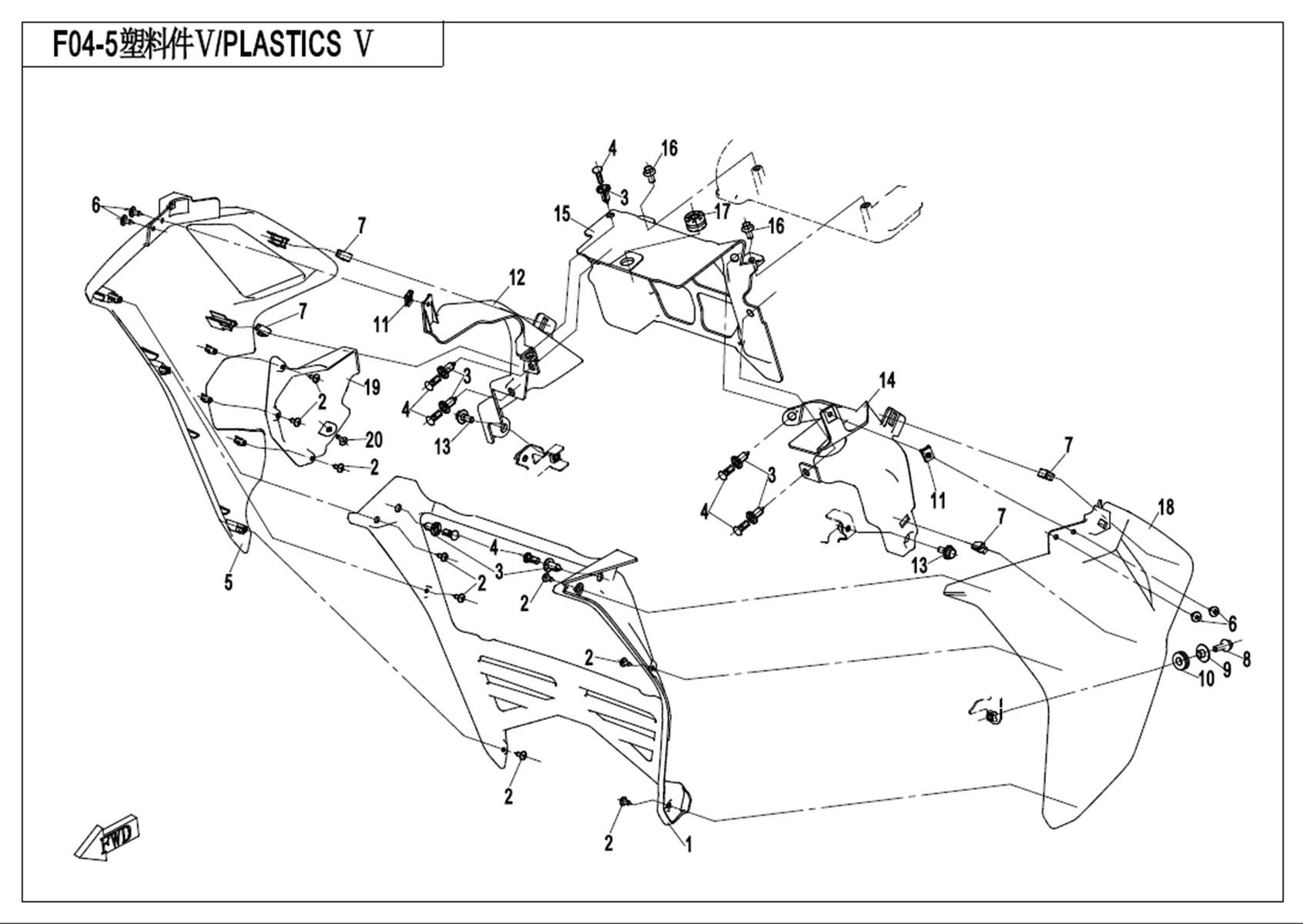

PLASTICS V
F04-6
PLASTICS VI

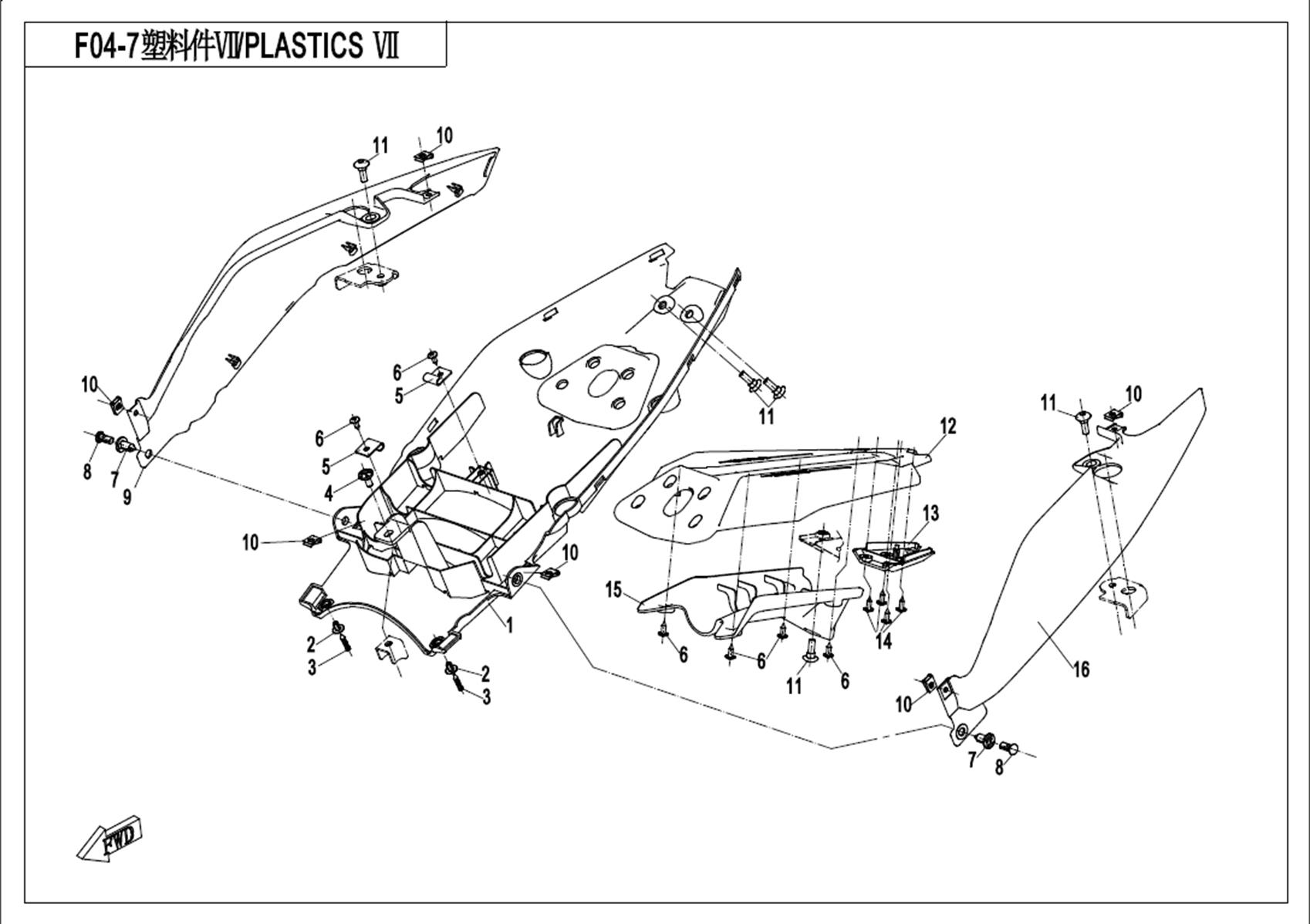

F04-7
PLASTICS VII
F05-A

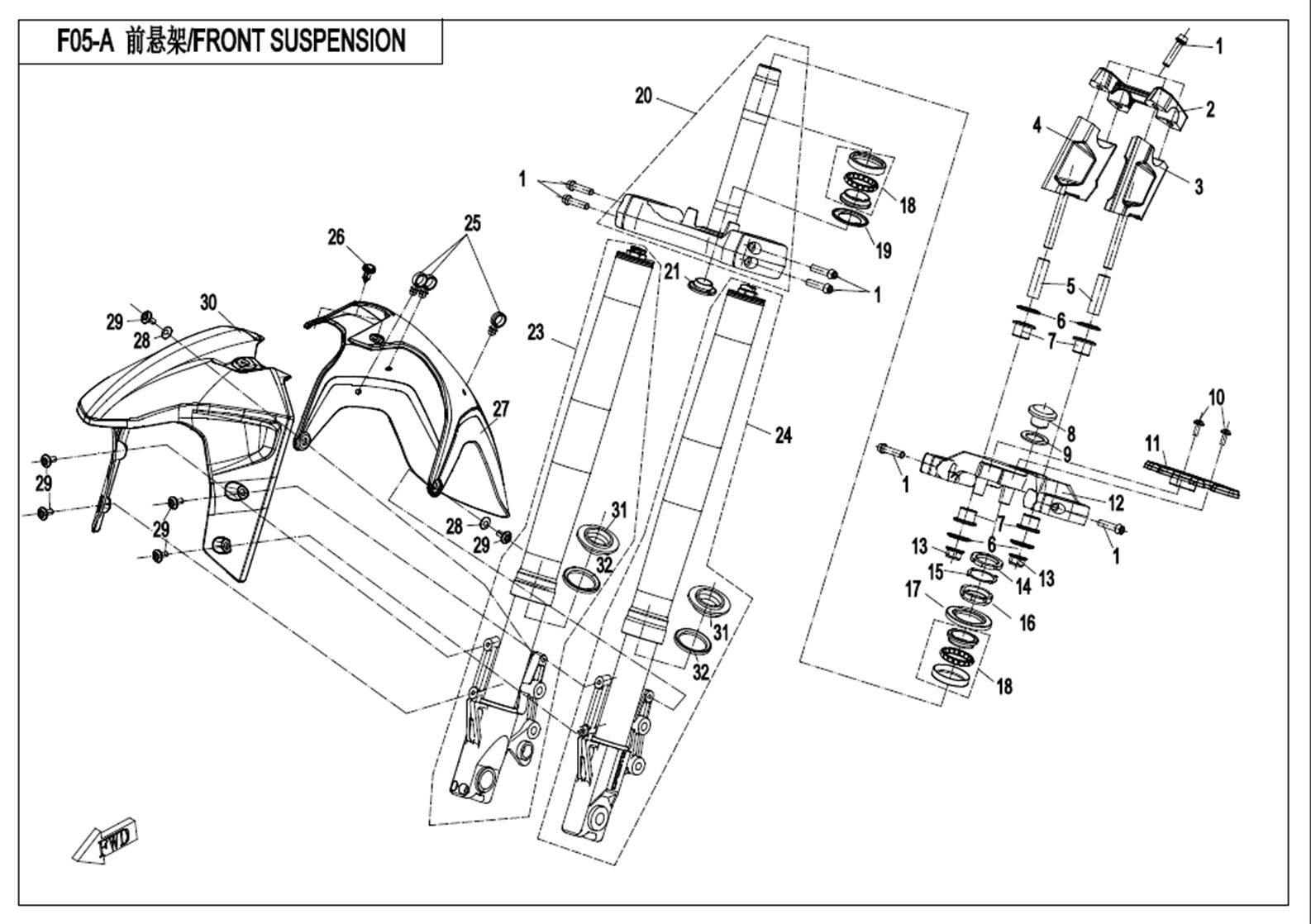

FRONT SUSPENSION(HIGH CONFIGURATION)
F05-B

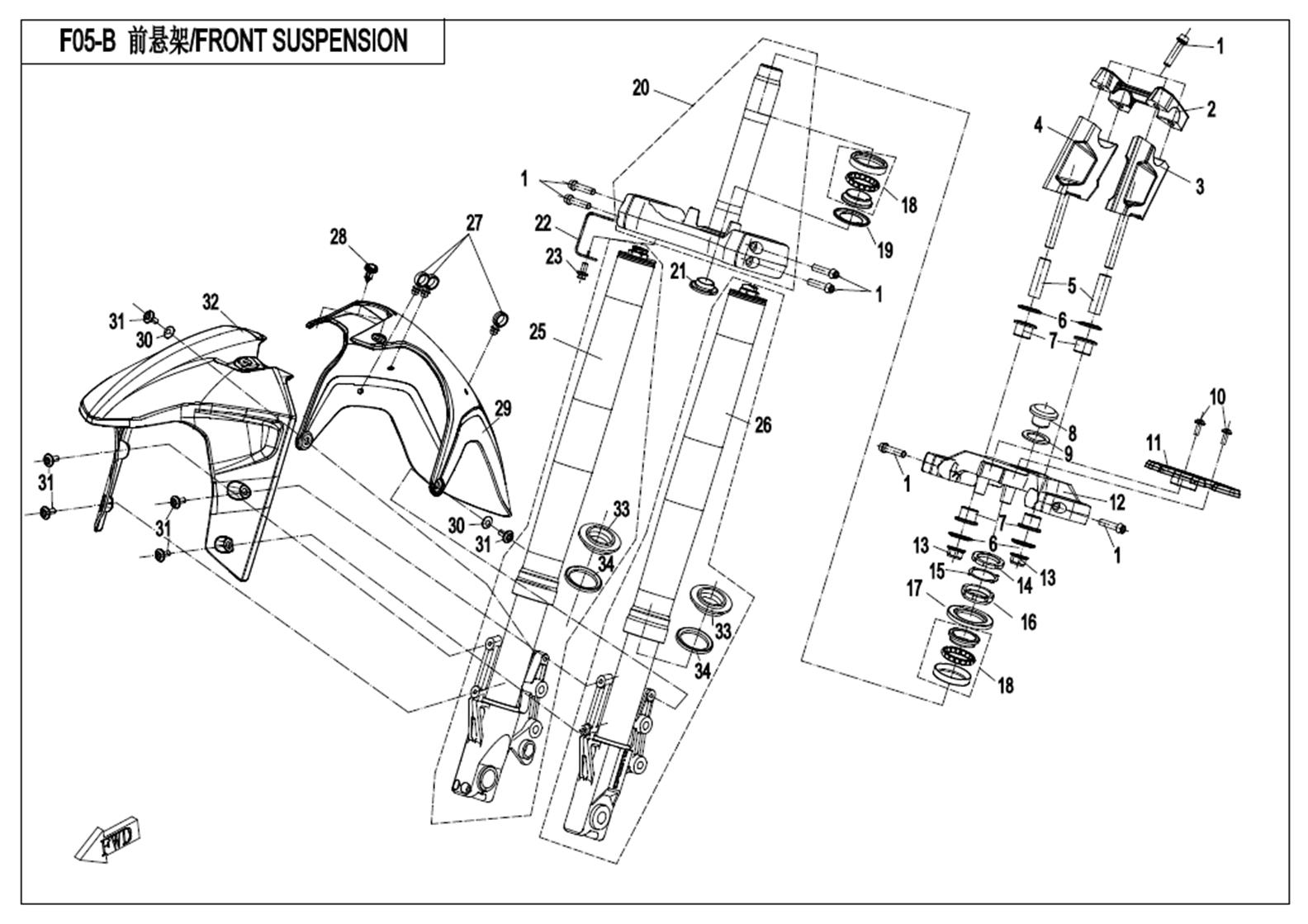

FRONT SUSPENSION(LOW CONFIGURATION)
F06-A

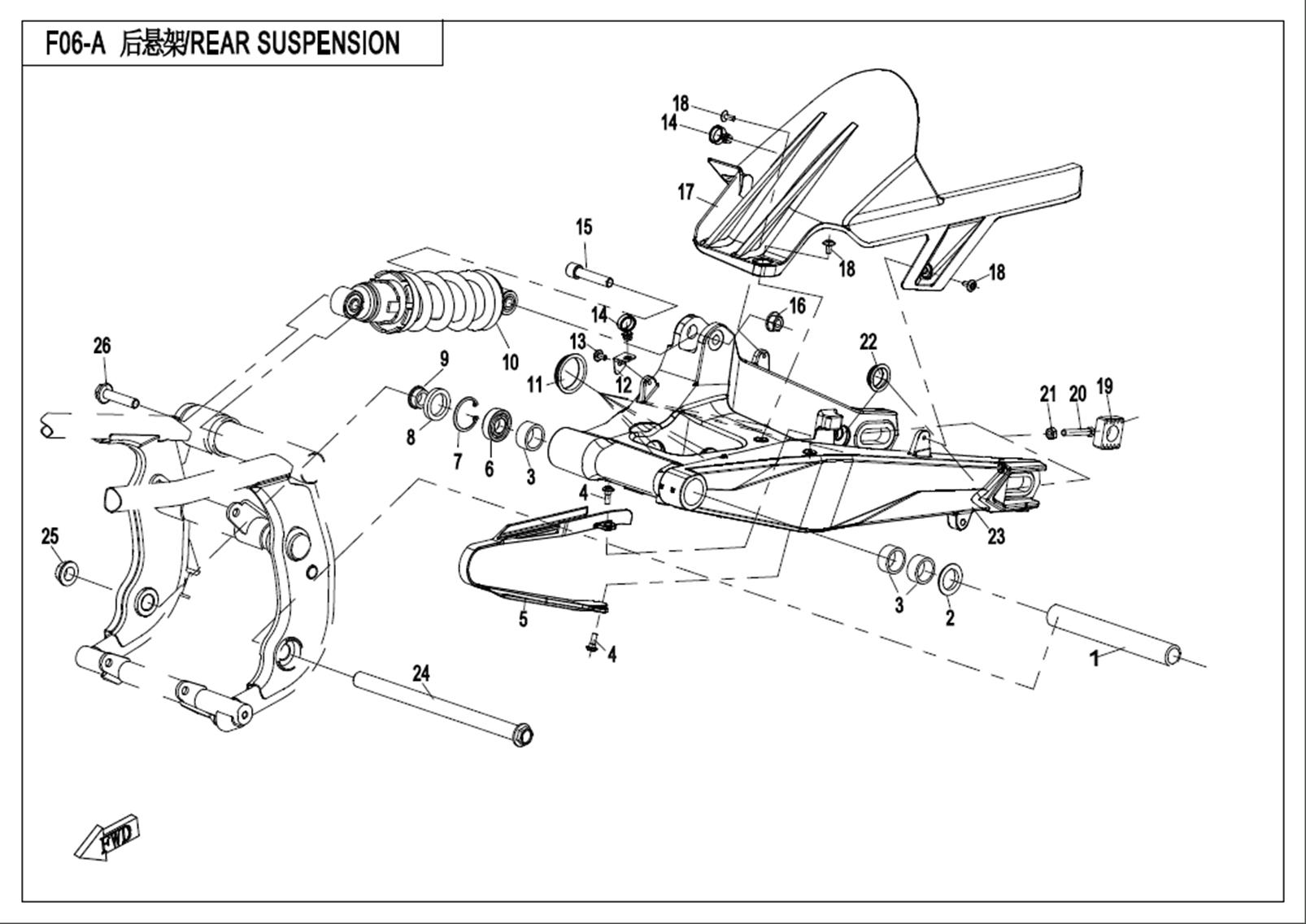

REAR SUSPENSION(HIGH CONFIGURATION)
F06-B

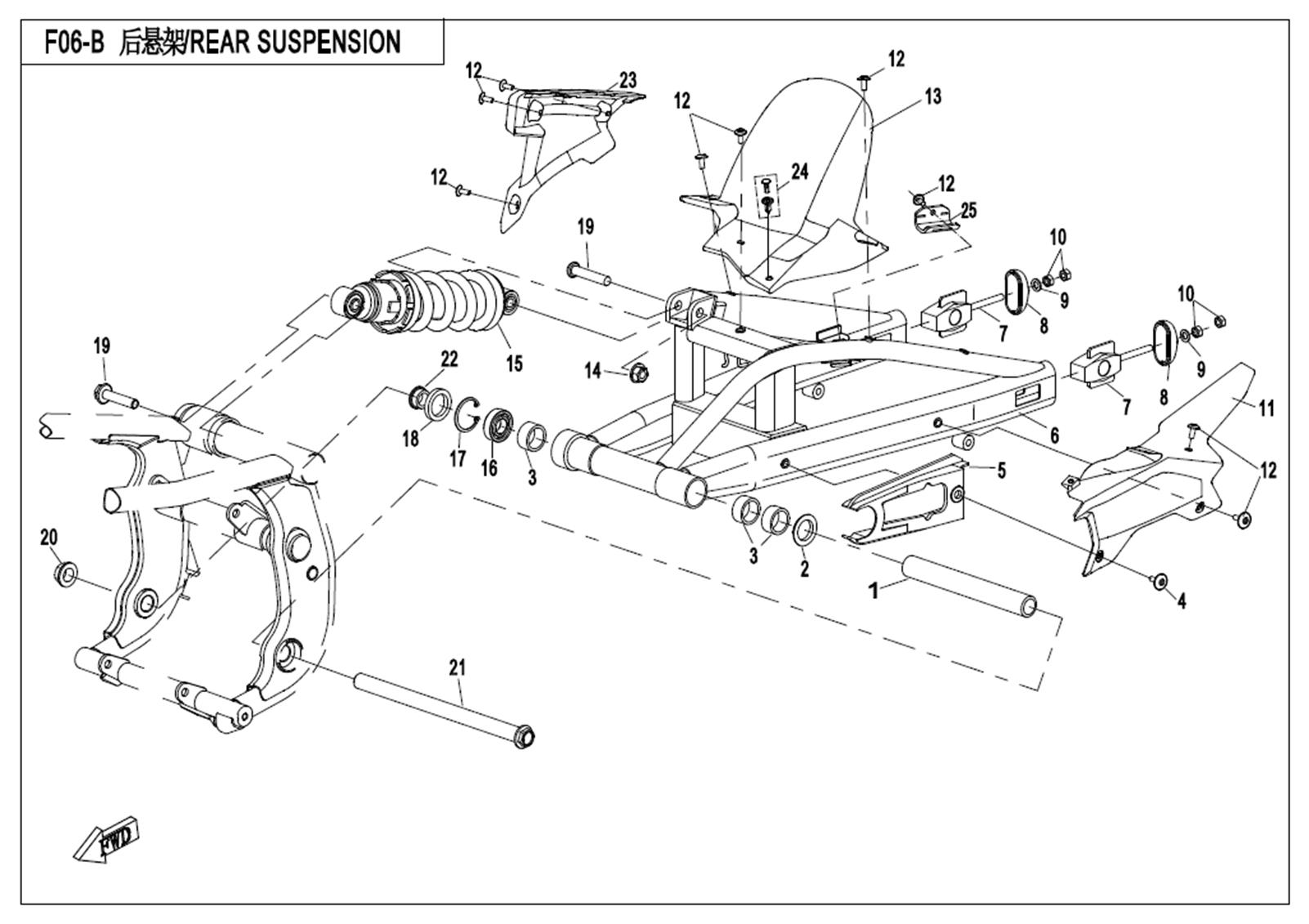

REAR SUSPENSION(LOW CONFIGURATION)
F07-A
FRONT WHEEL(HIGH CONFIGURATION)
F07-B

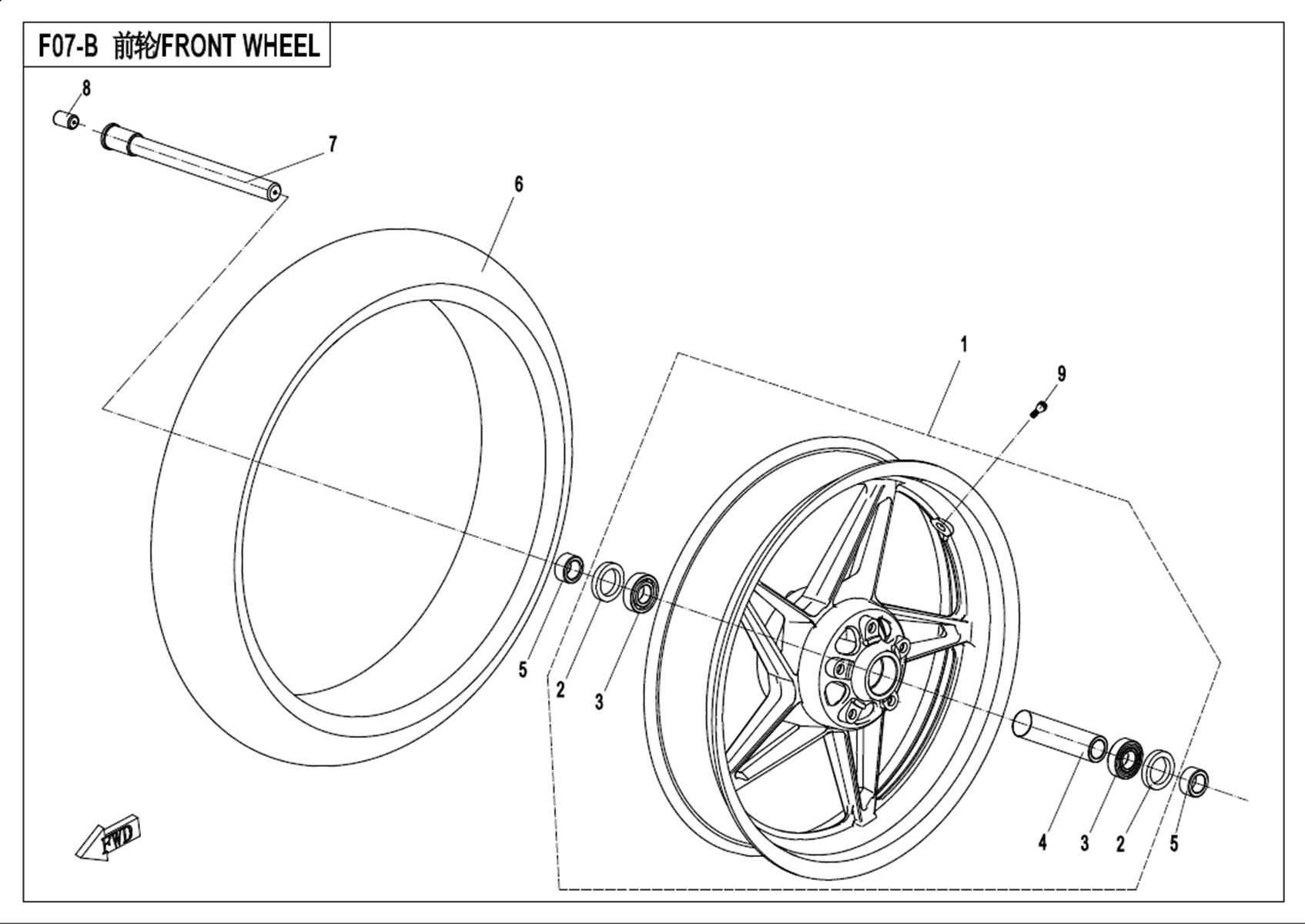

FRONT WHEEL (LOW CONFIGURATION)

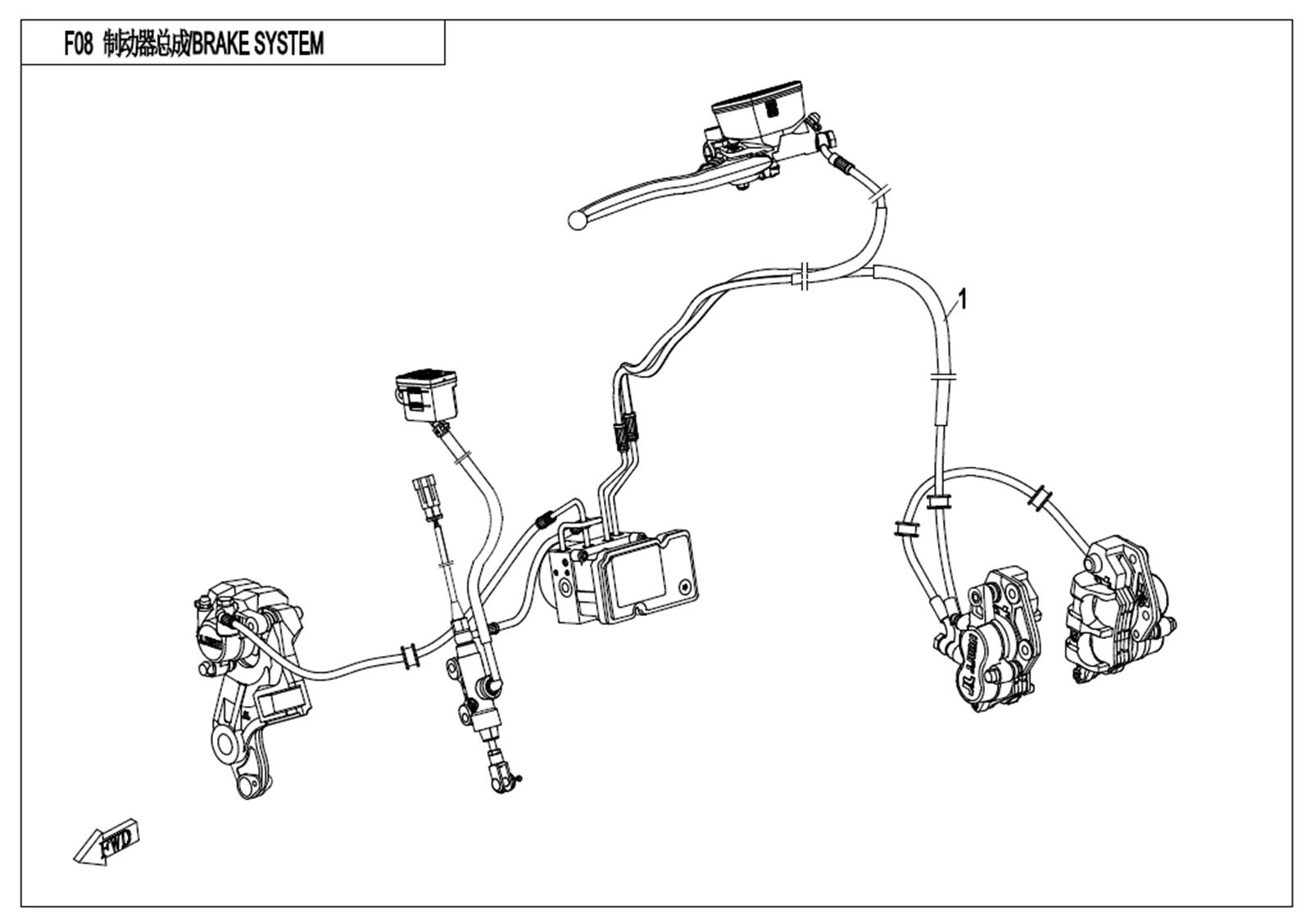

F08
BRAKE SYSTEM

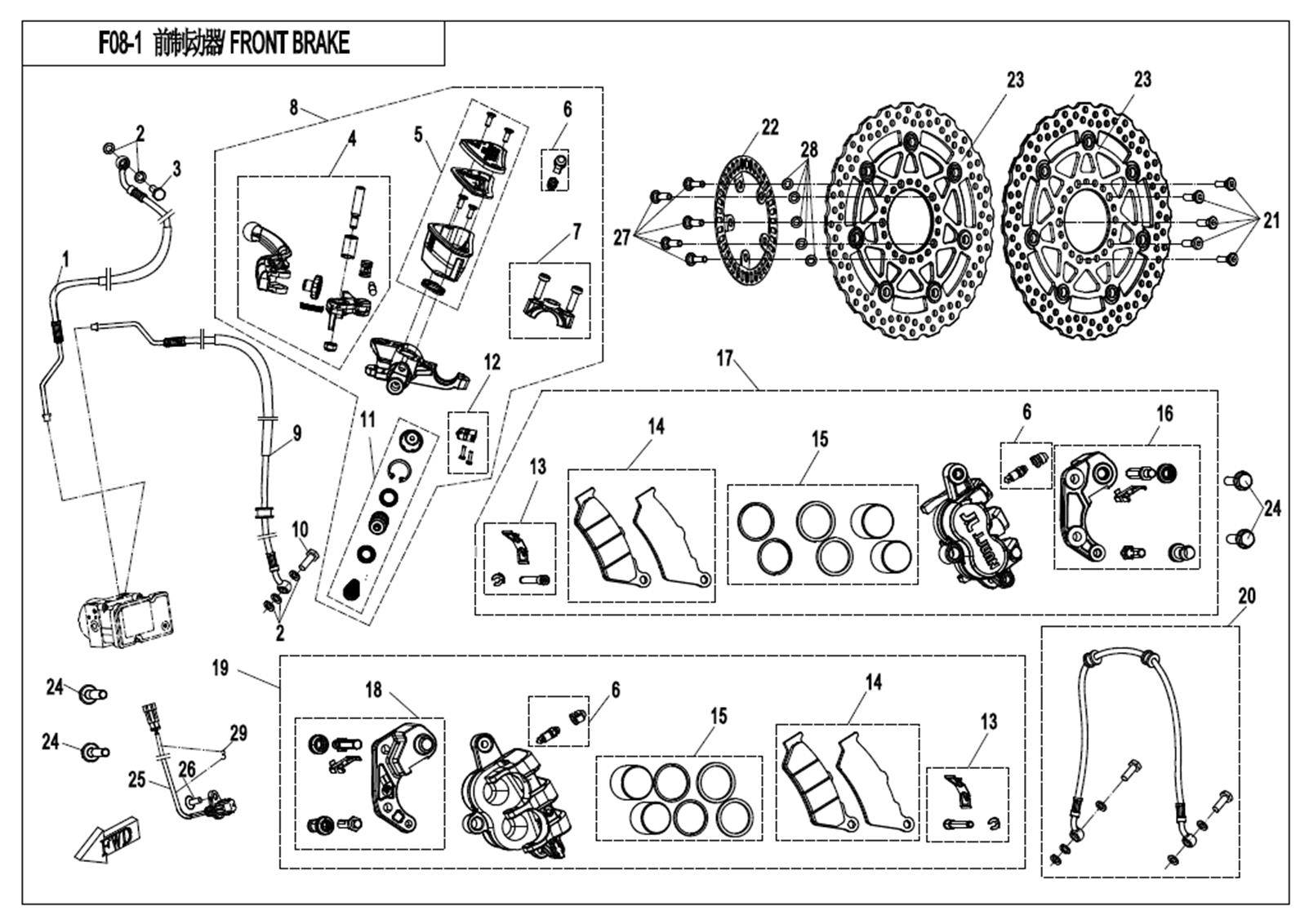

F08-1

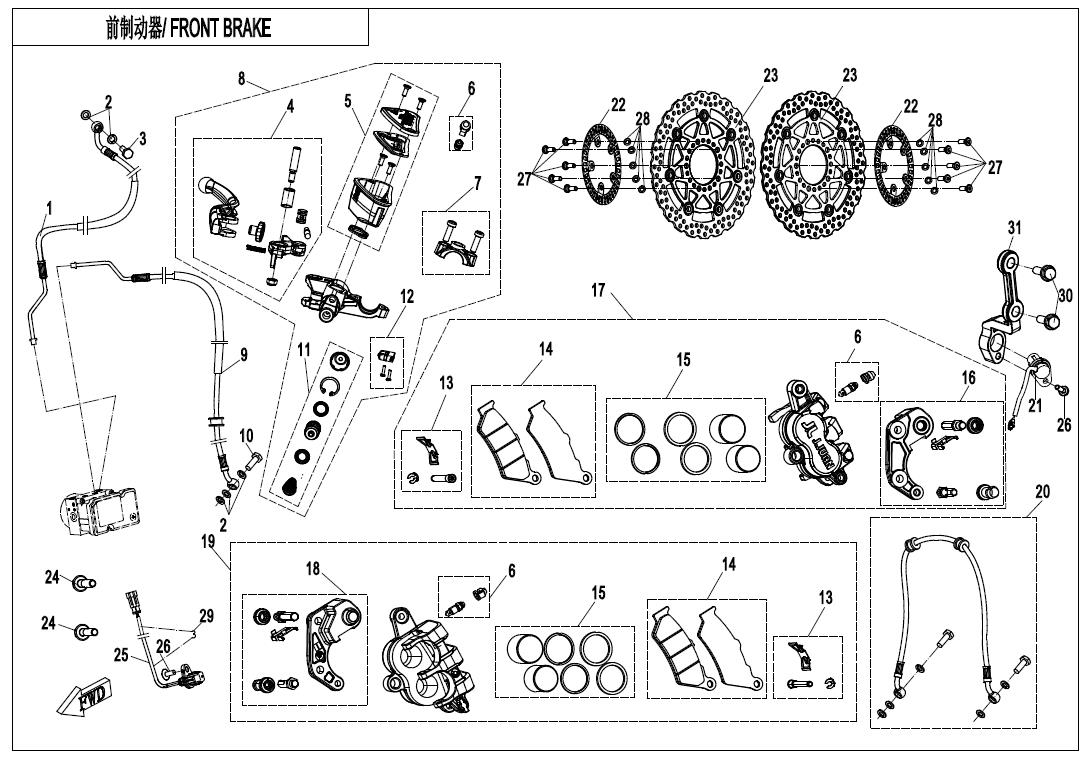

FRONT BRAKE
F08-1-V2
FRONT BRAKE
F08-2-V2

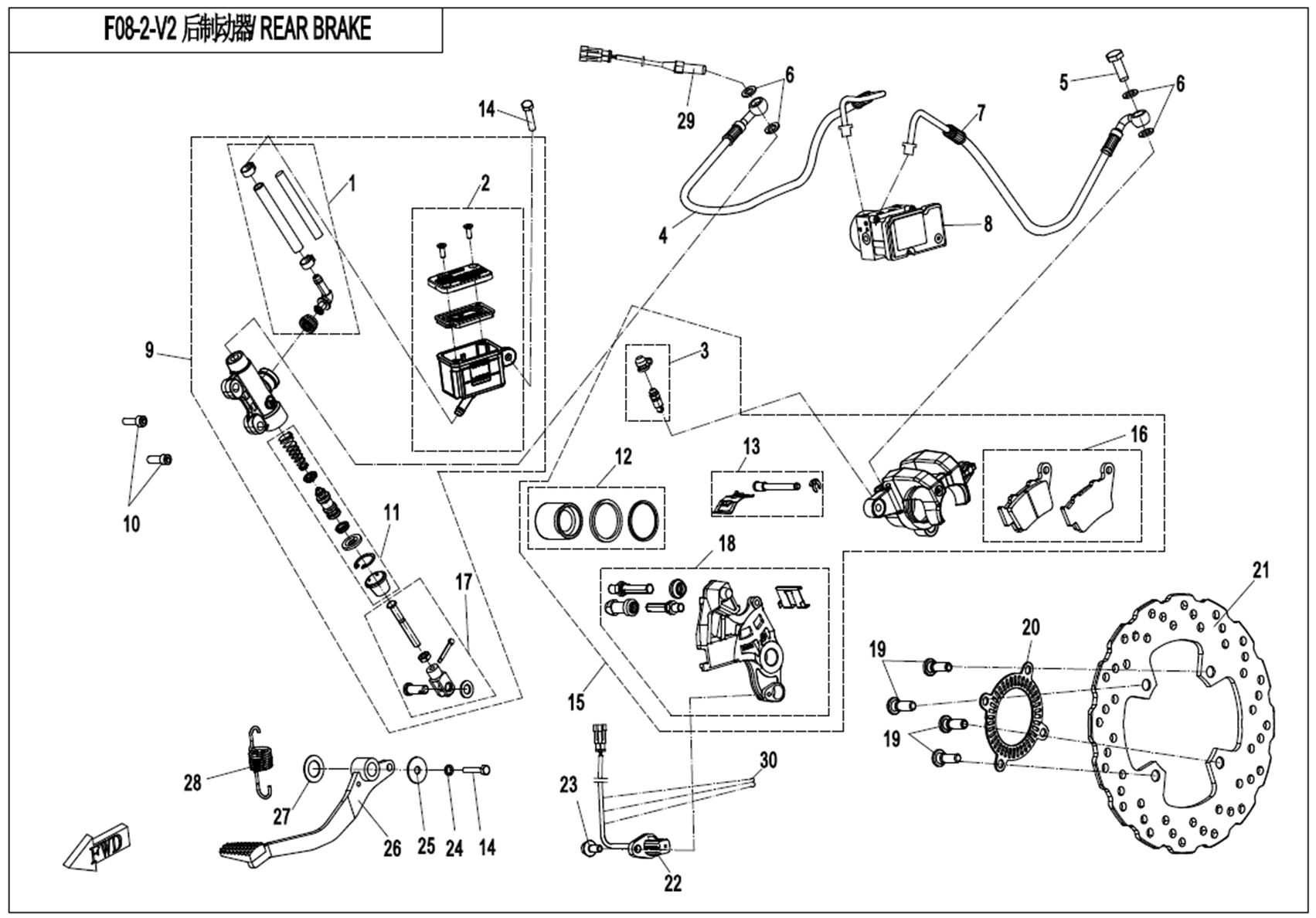

REAR BRAKE
F10-B

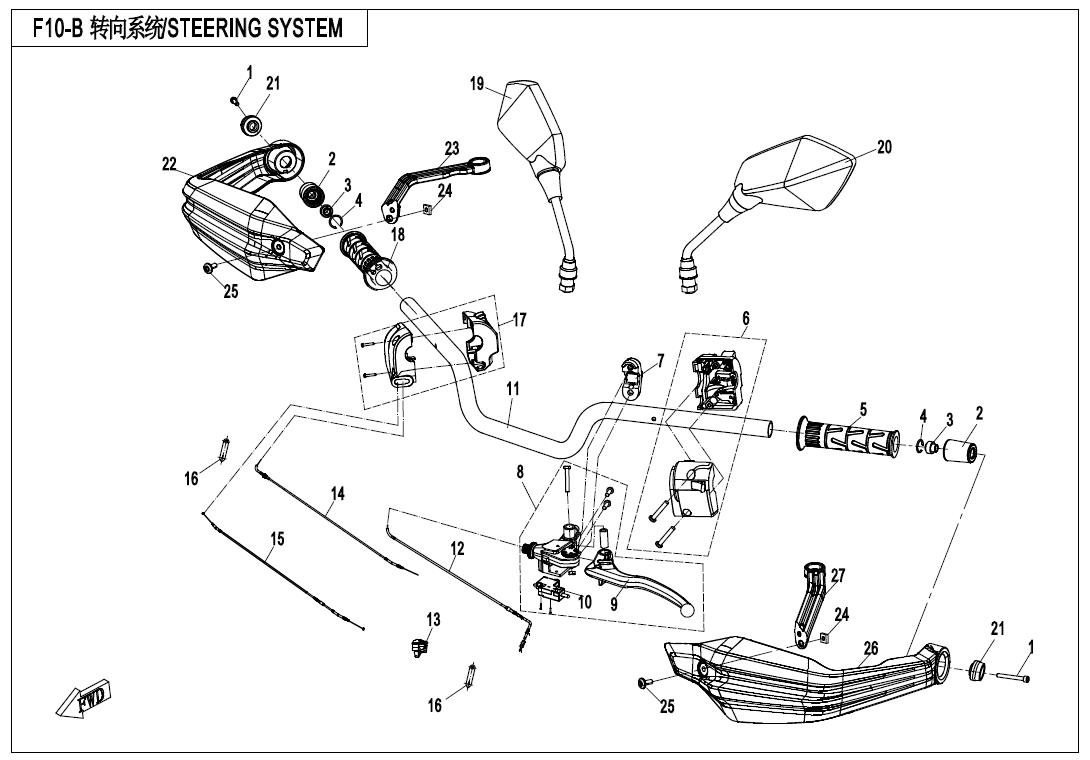

STEERING SYSTEM (HAND GUARDS)
F11-A

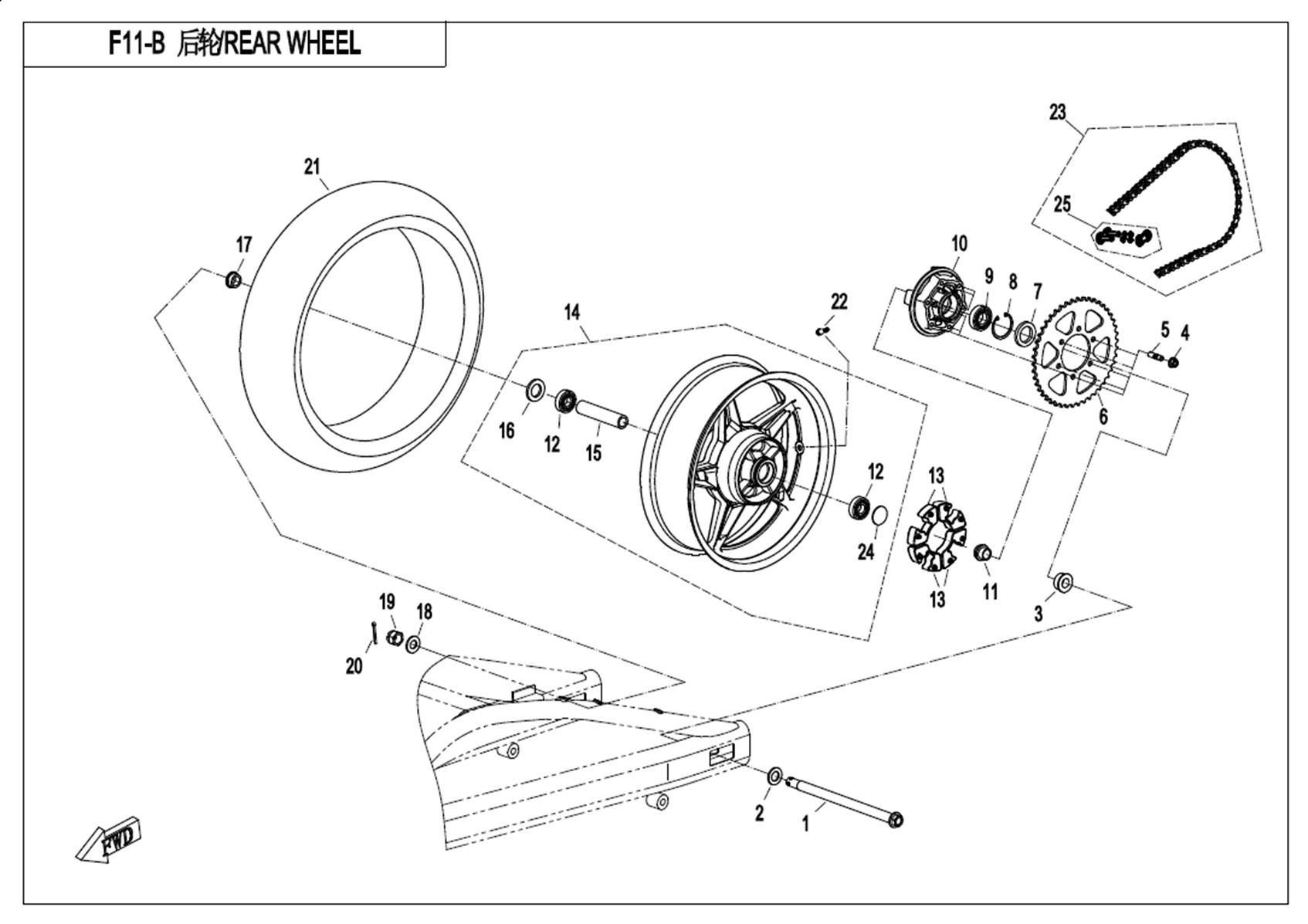

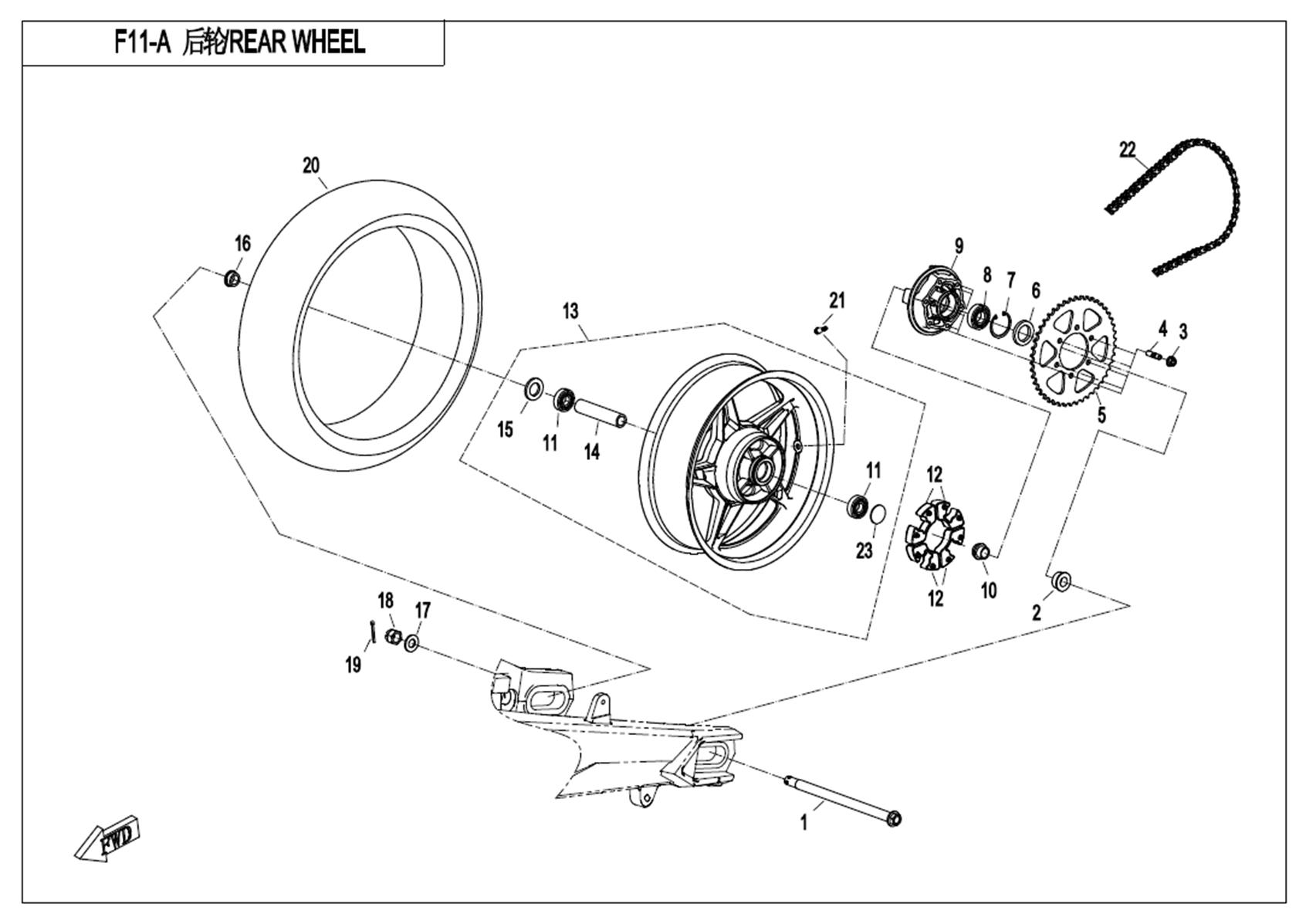

REAR WHEEL(HIGH CONFIGURATION)
F11-B
REAR WHEEL(LOW CONFIGURATION)

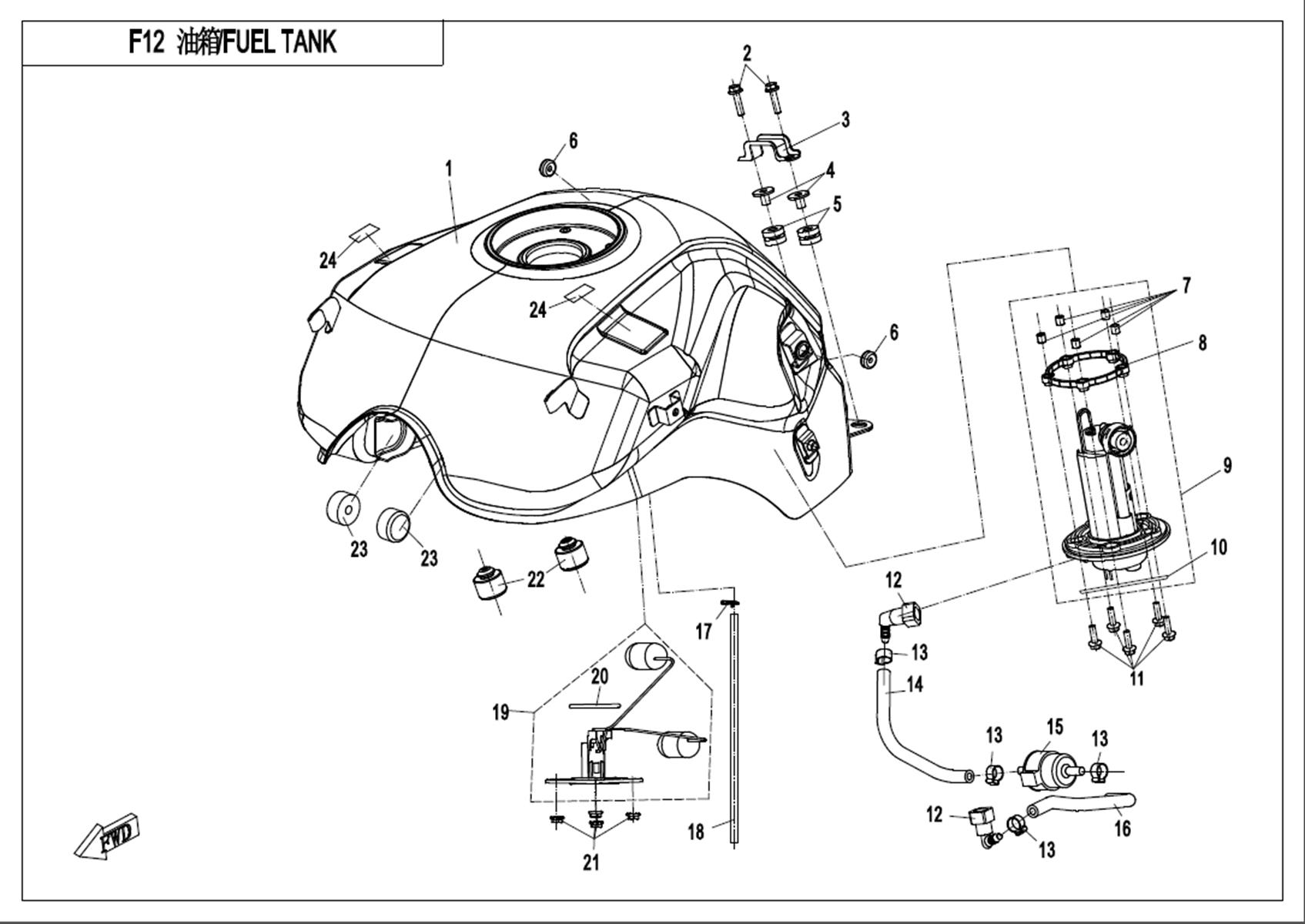

F12
FUEL TANK
F13-A

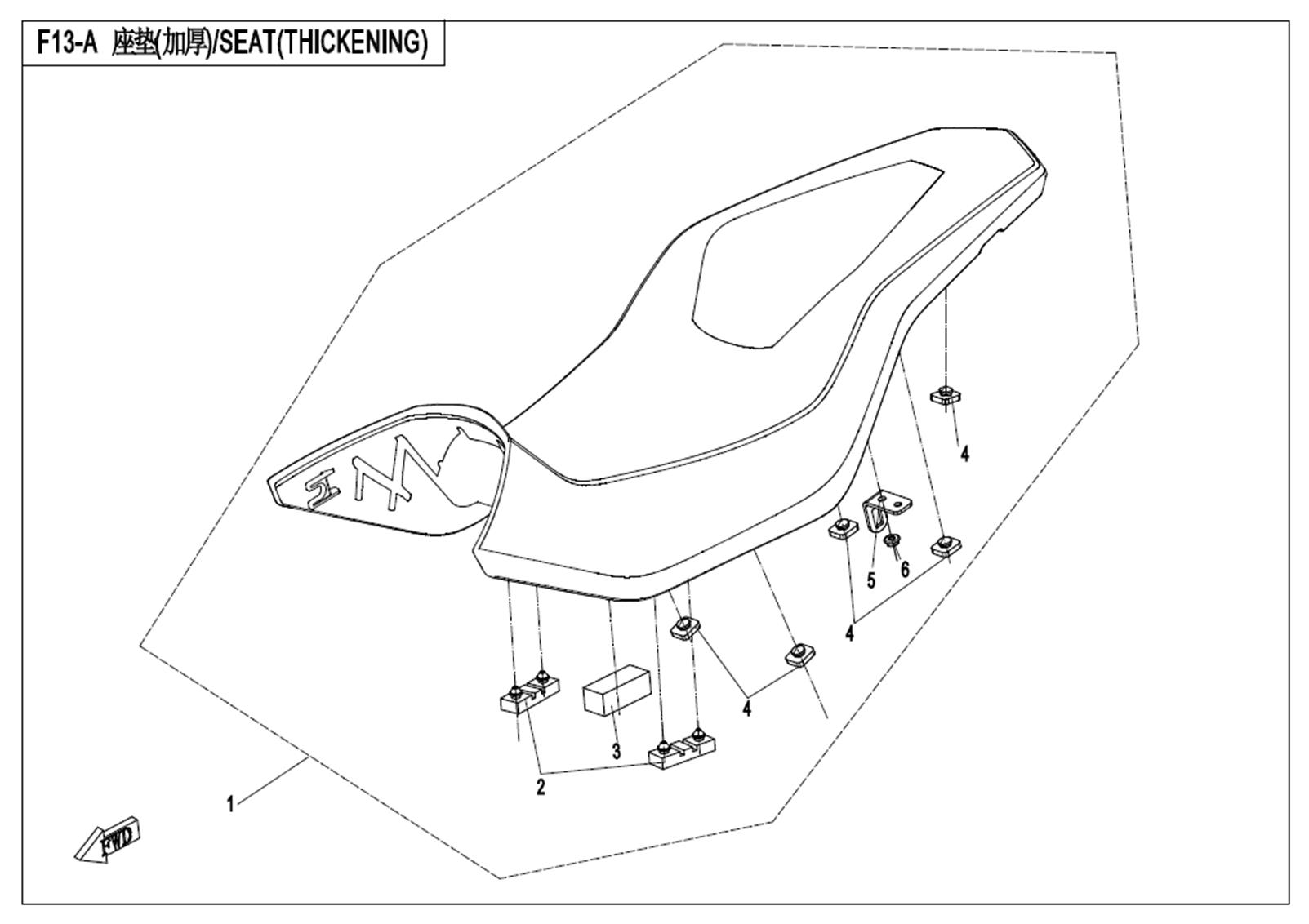

SEAT(THICKENING)
F13-B

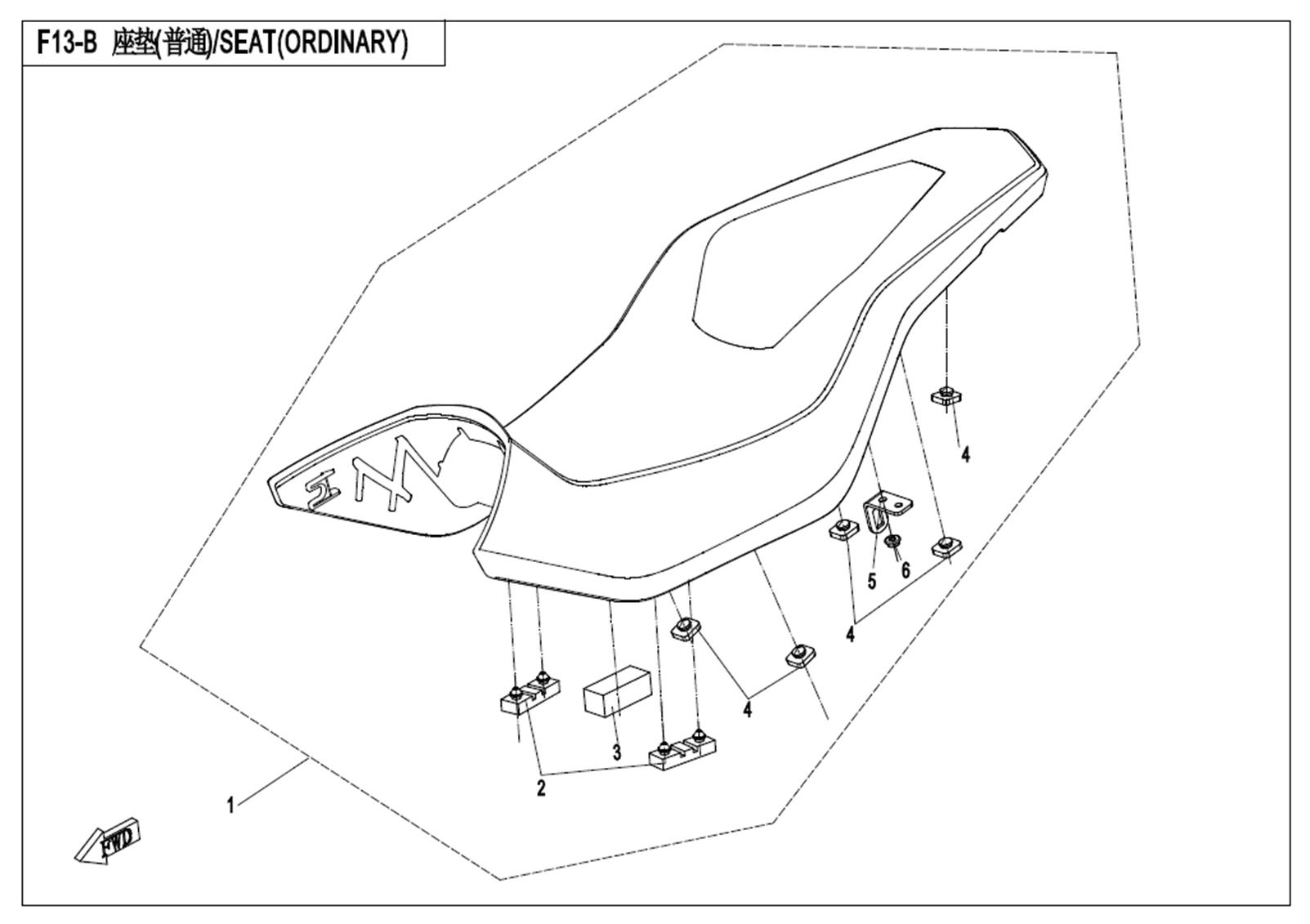

SEAT(ORDINARY)
F14-V3

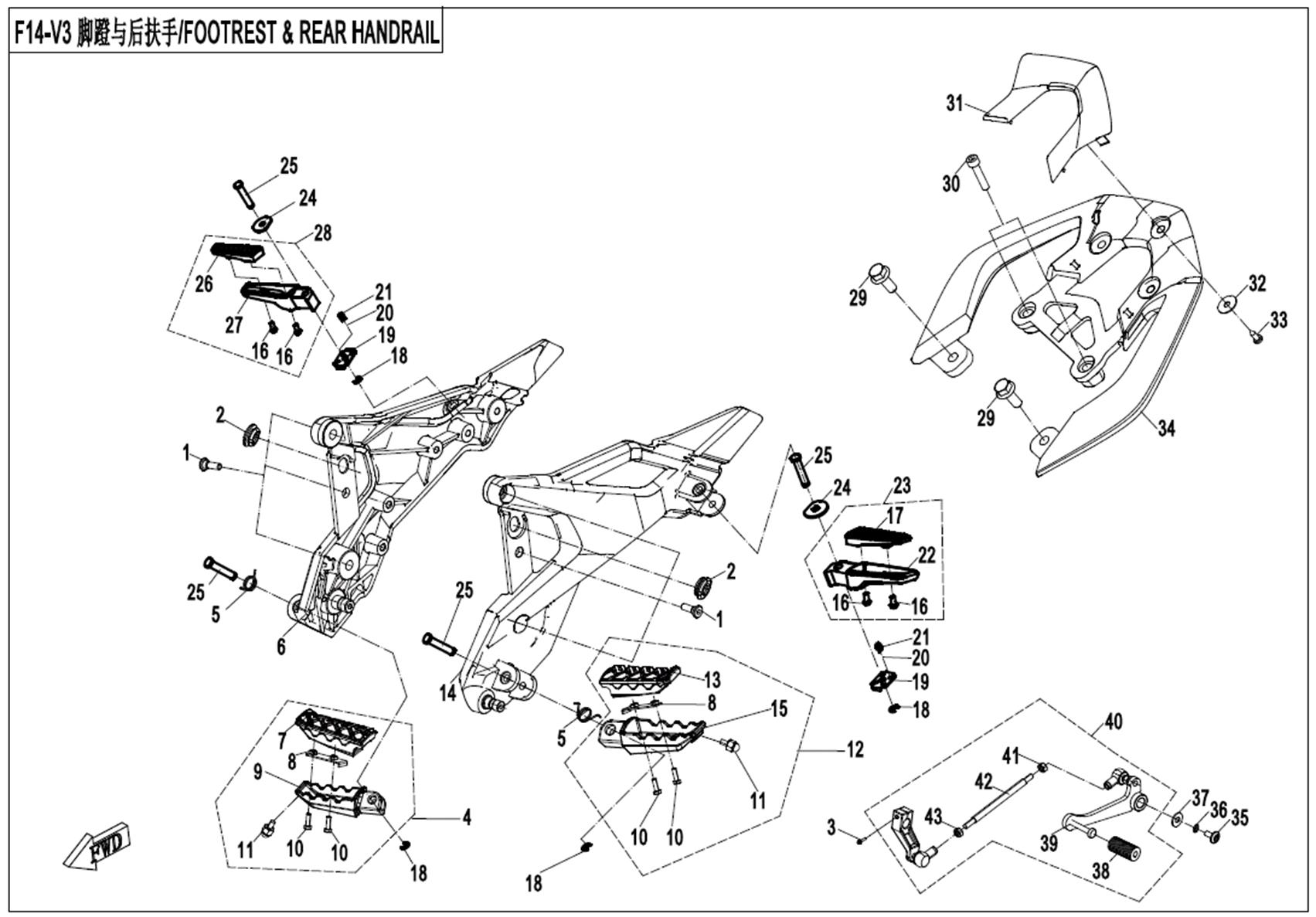

FOOTREST & REAR HANDRAIL
F15

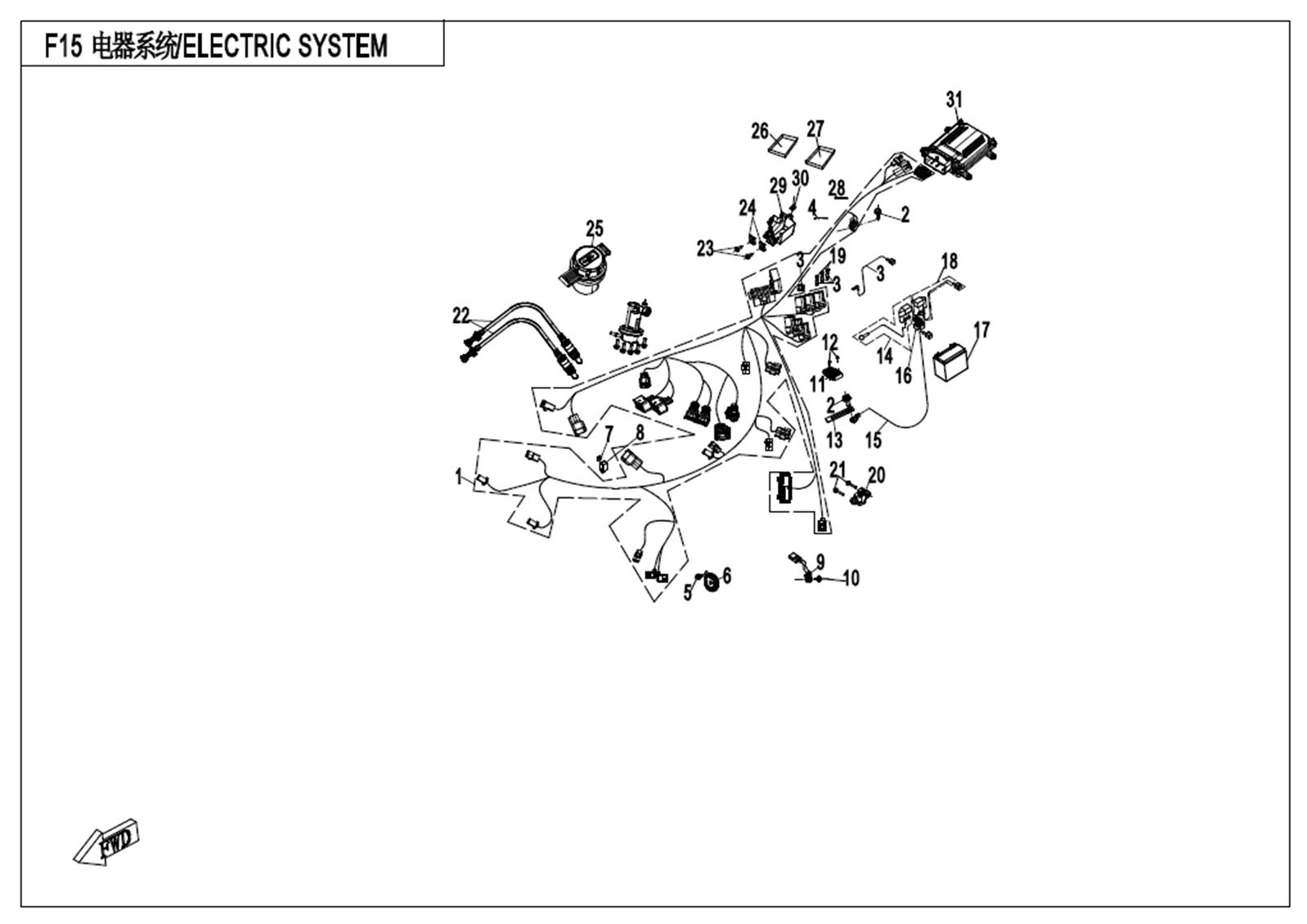

ELECTRIC SYSTEM
F16

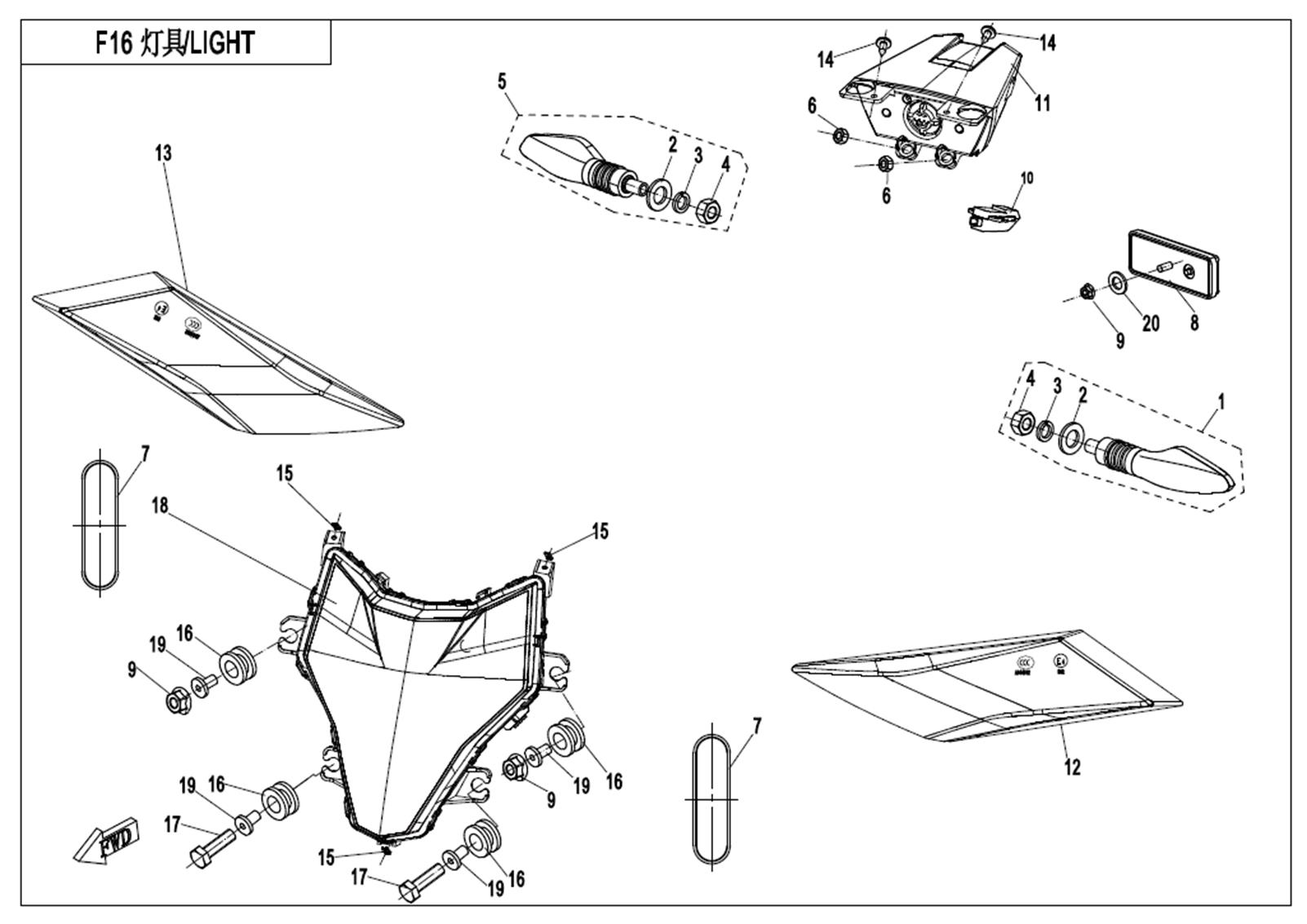

LIGHT
F17

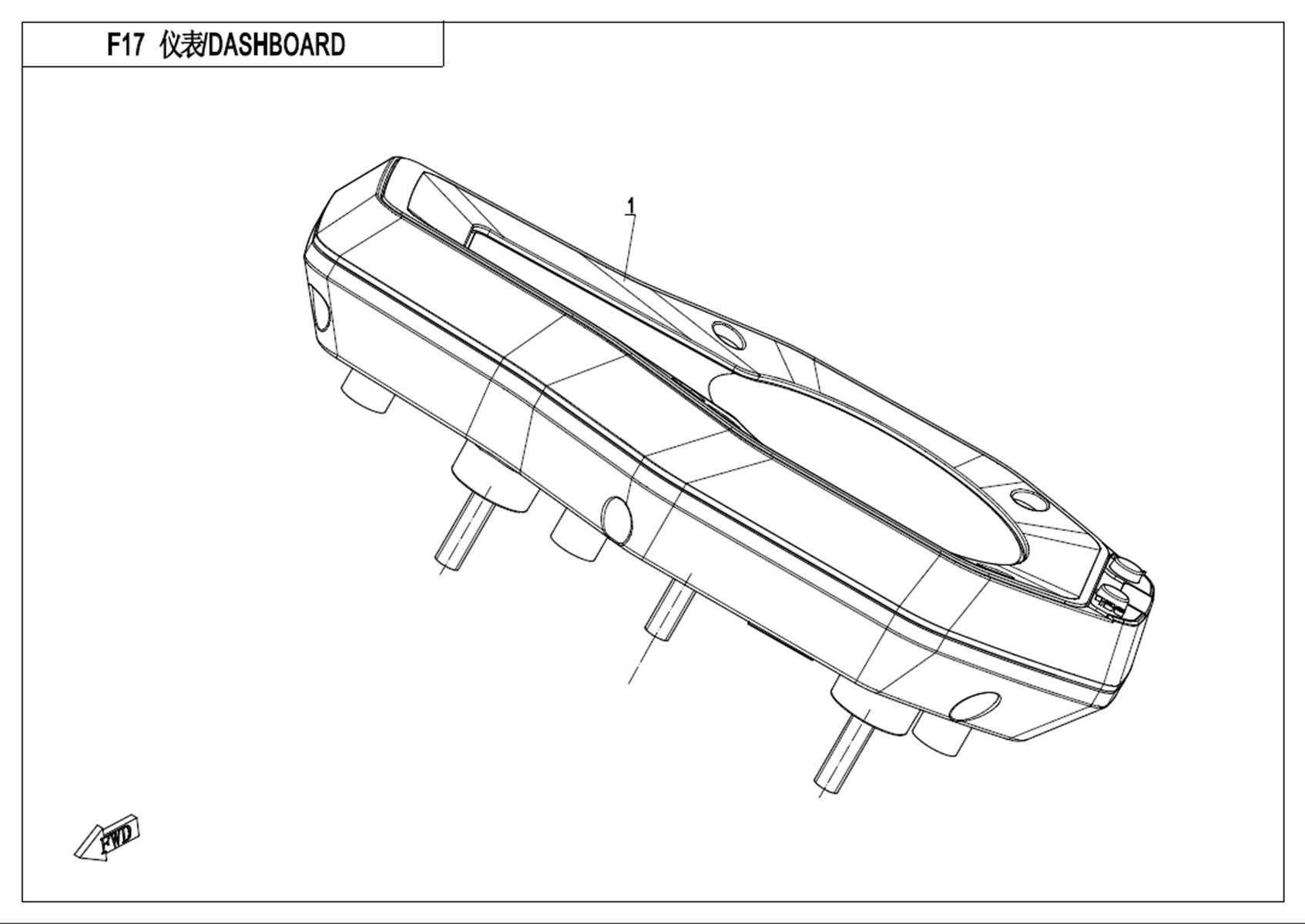

DASHBOARD

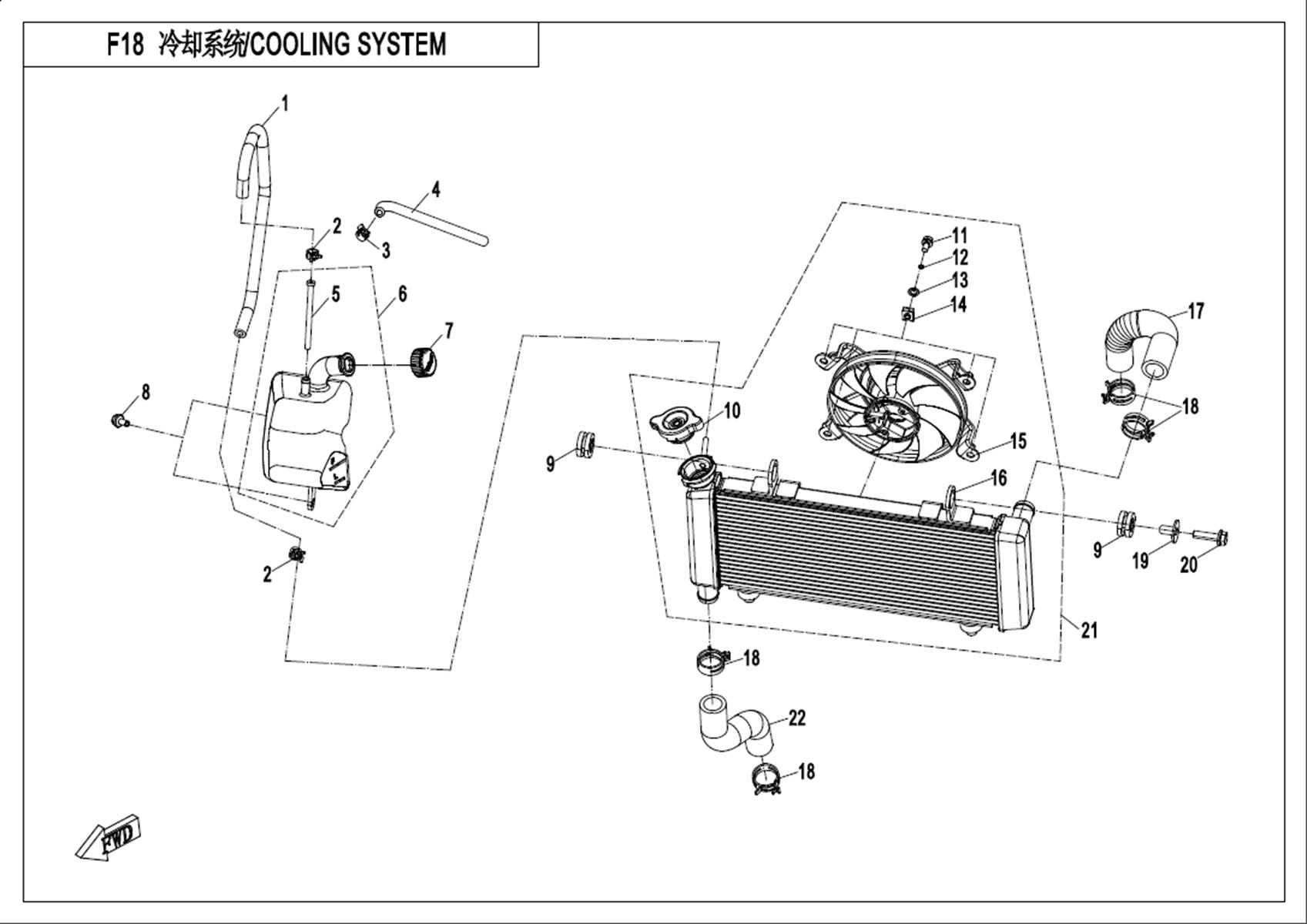

F18
COOLING SYSTEM

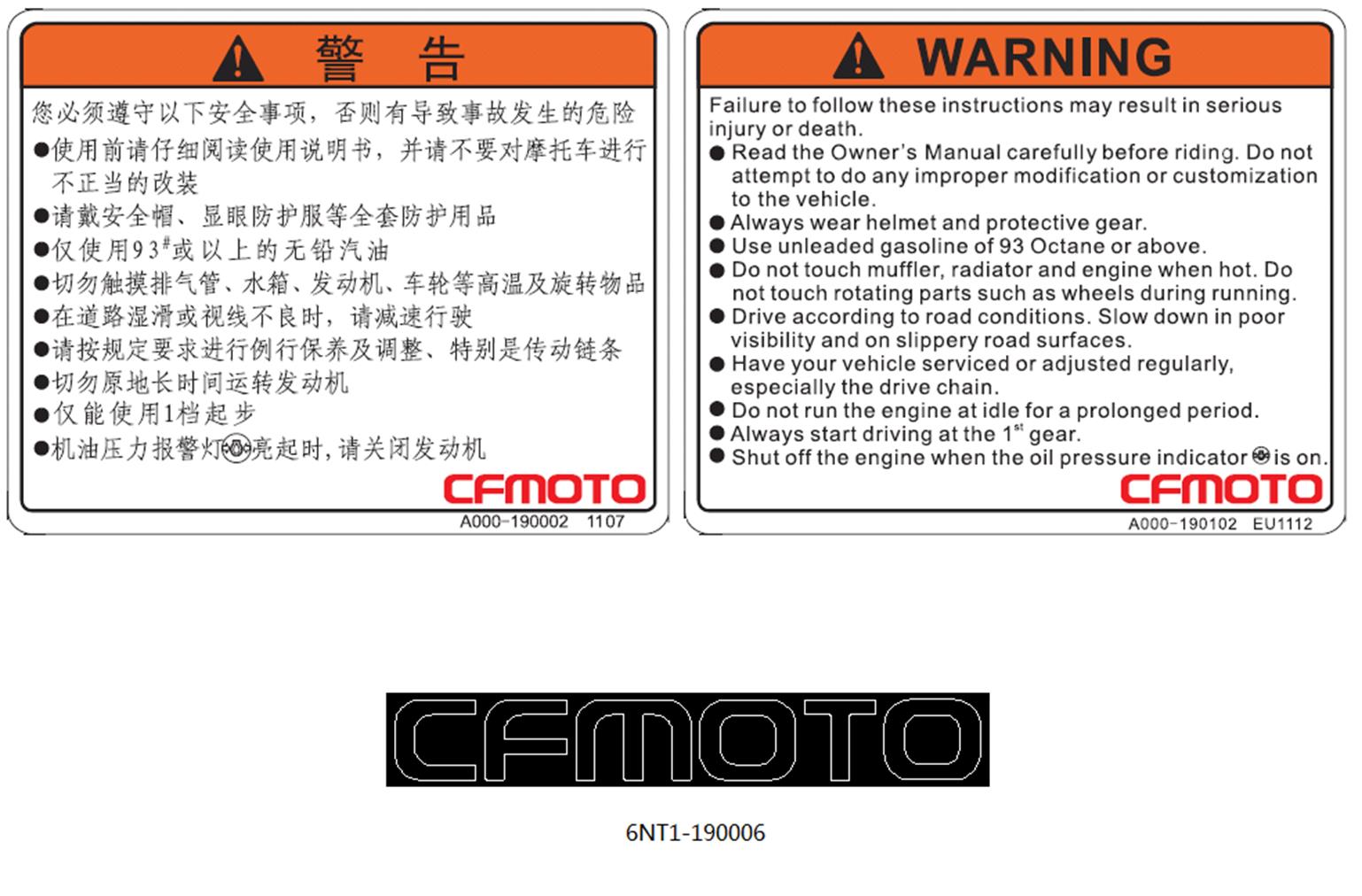

F19-A
DECAL(WARNING)

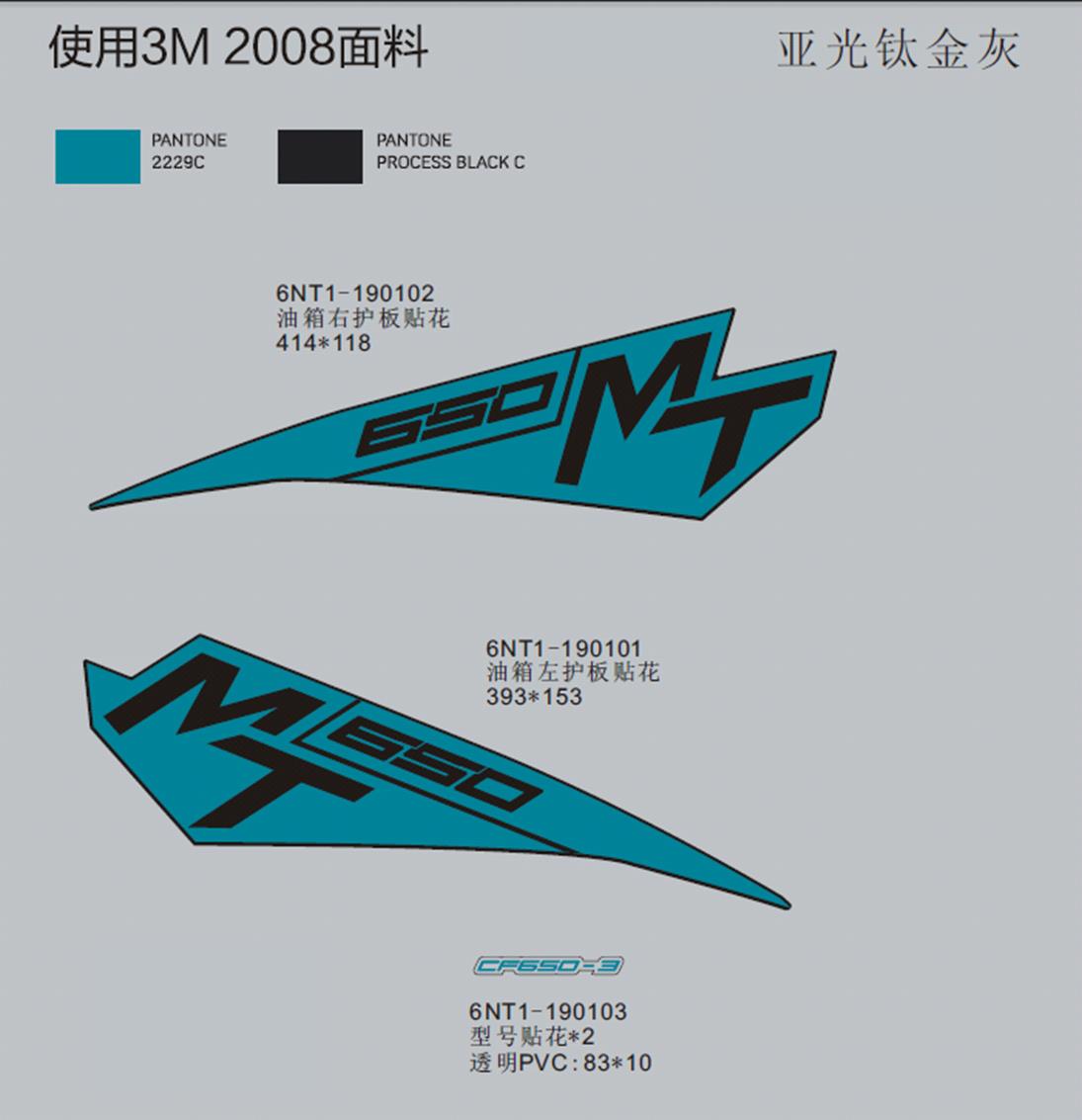

F19-E
DECAL(2018-MATTE TITANIUM GREY)

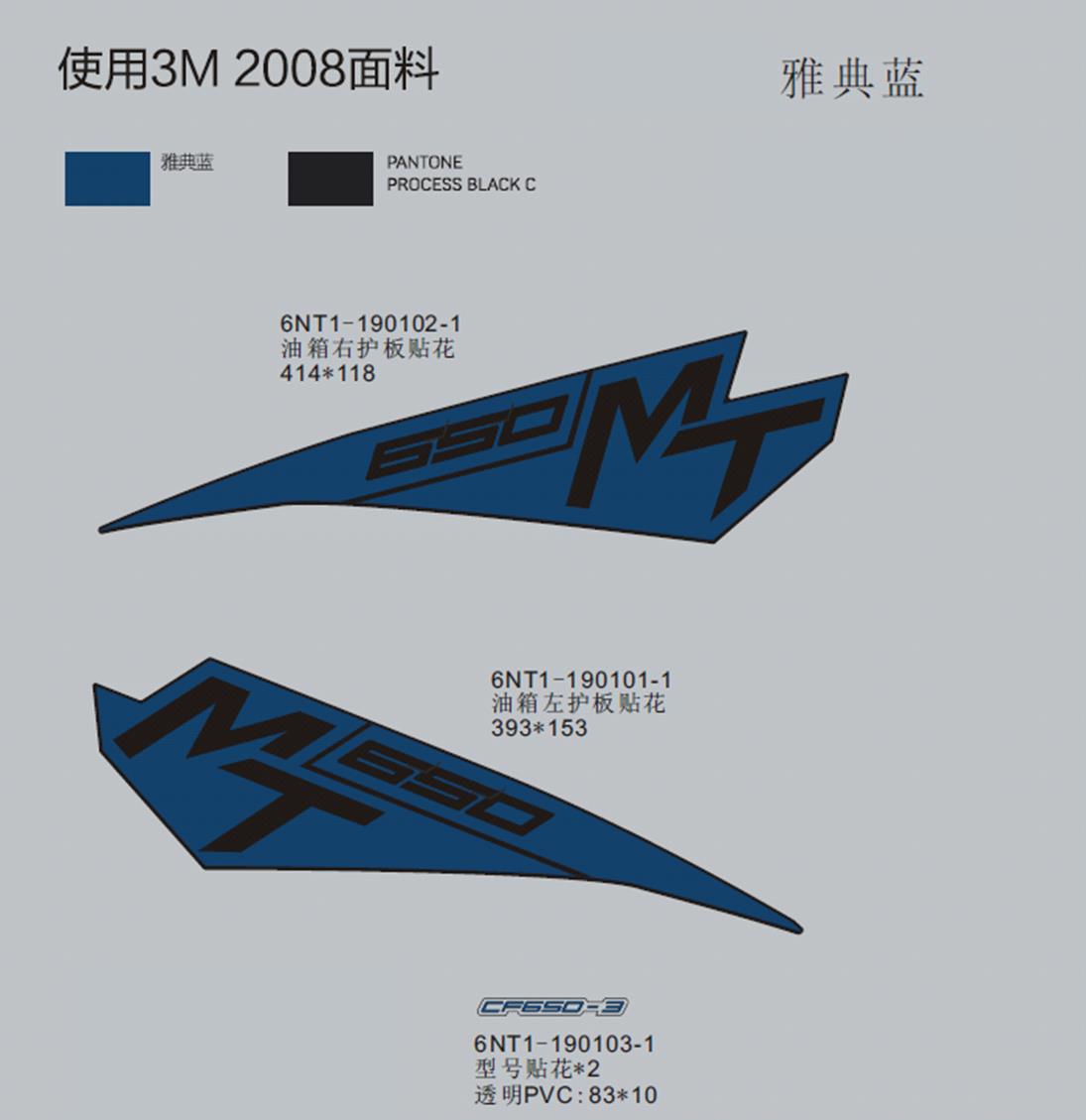

F19-F
DECAL(2018-IMPERIAL BULE)
F20

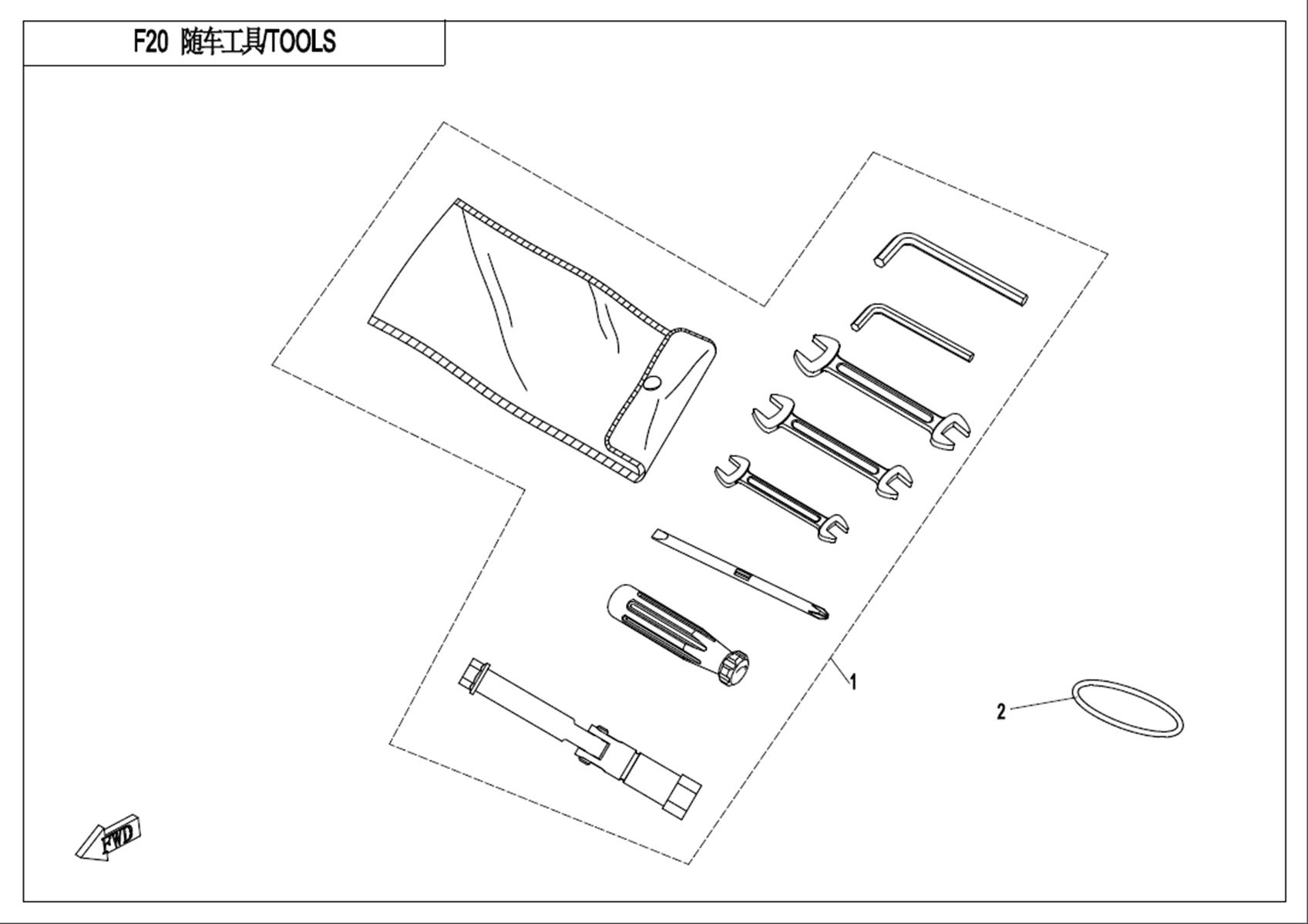

TOOLS
F22-A

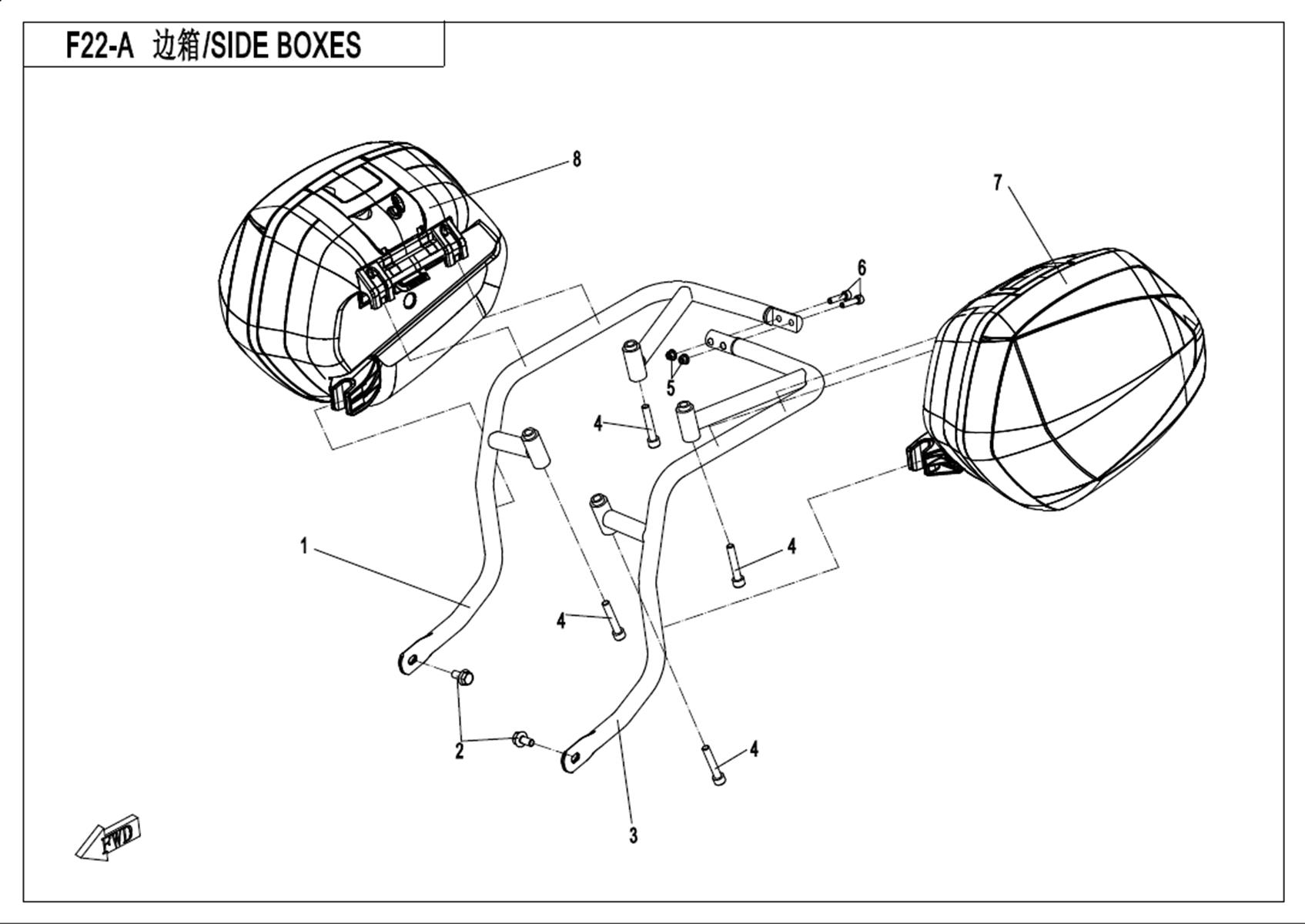

SIDE BOXES(PLASTIC)

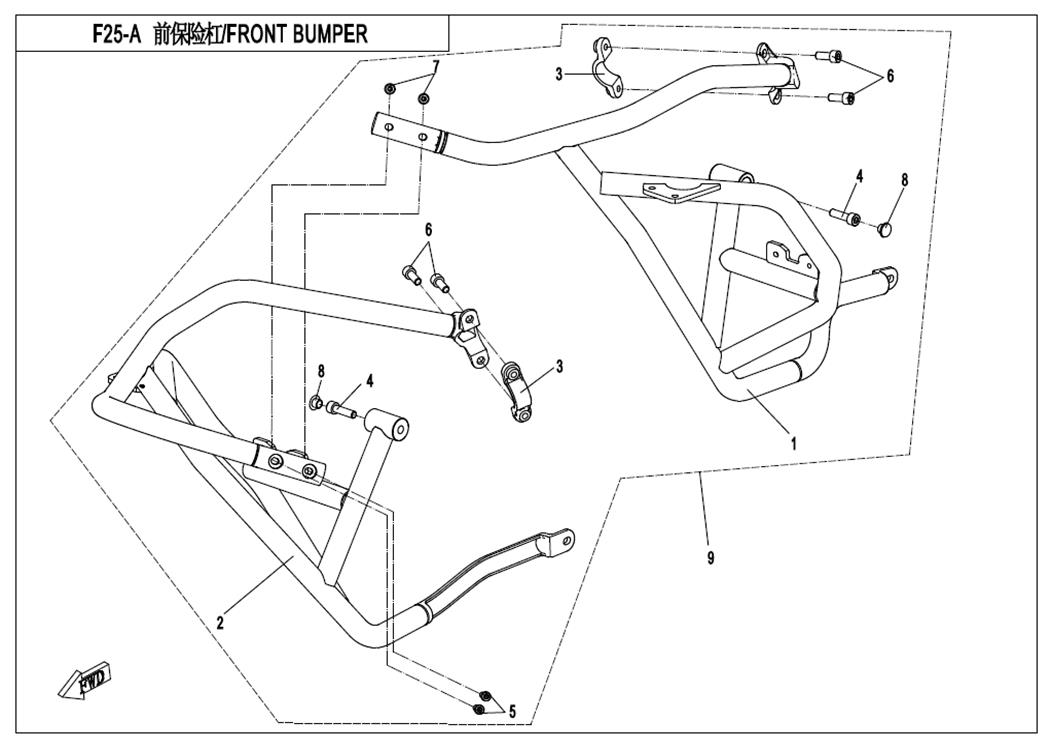

F25-A -V1- FRONT BUMPER(NORMAL)
F36

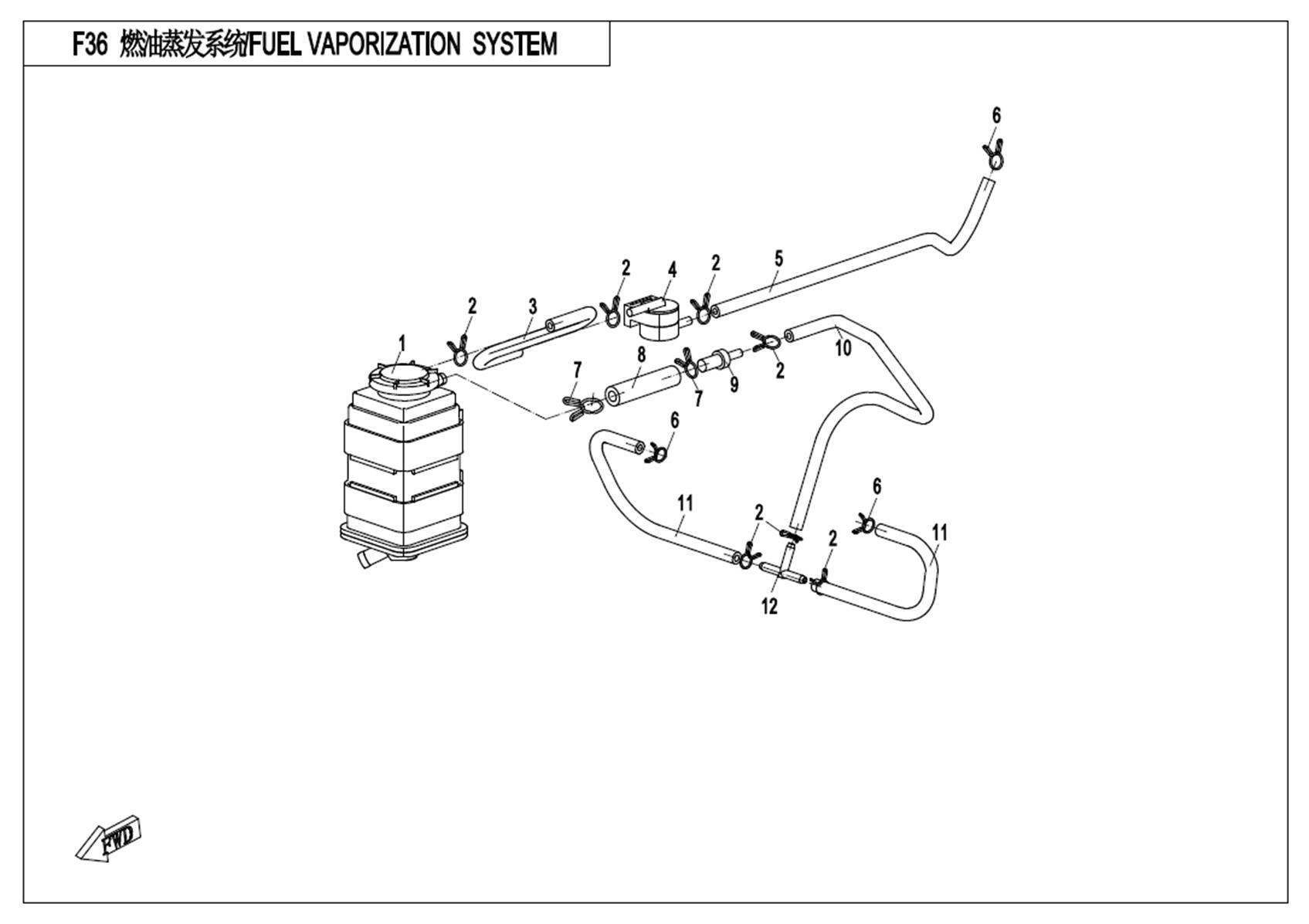

FUEL VAPORIZATION SYSTEM
F38
OWNER’S MANUAL
F41

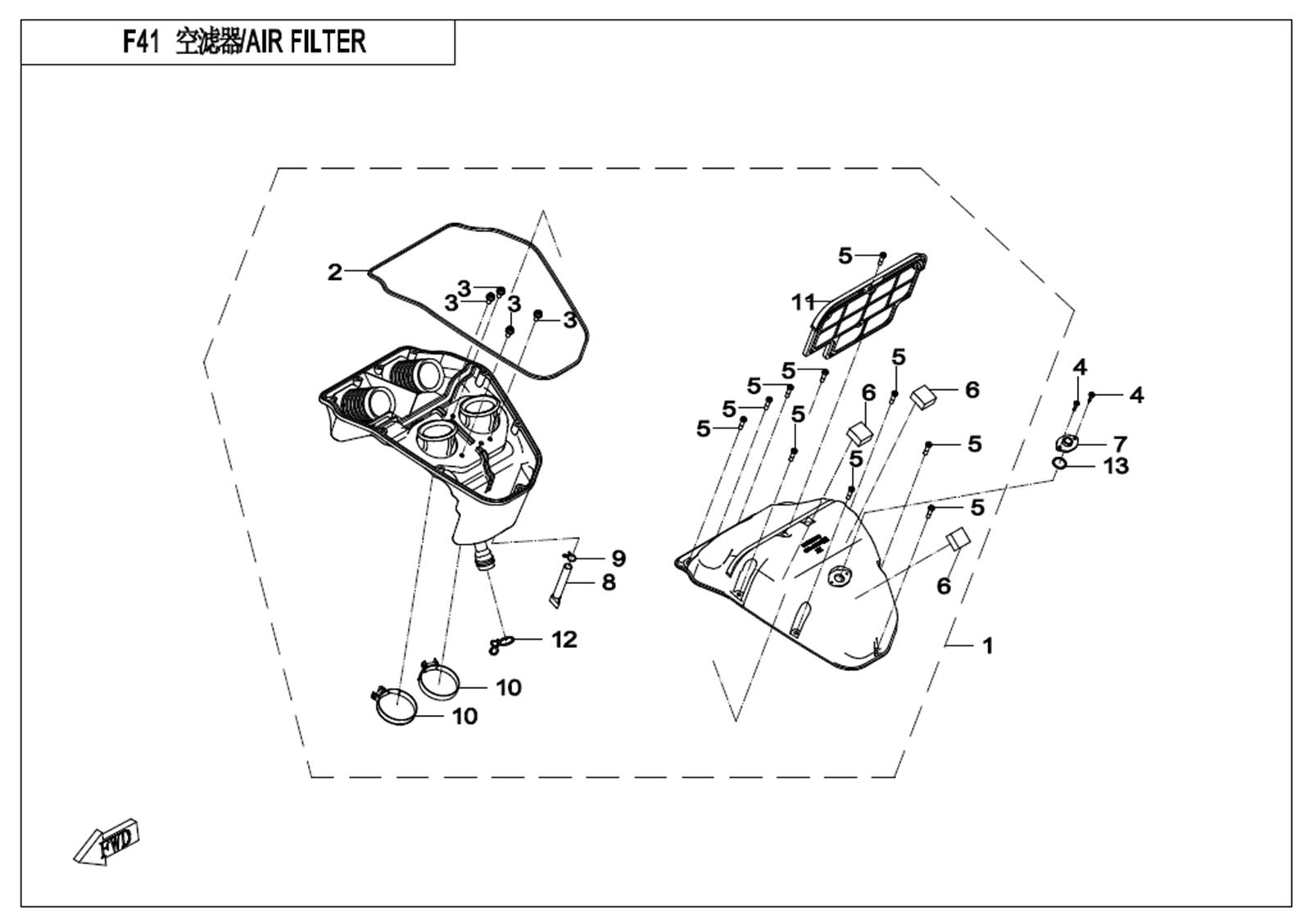

AIR FILTER
E01-1

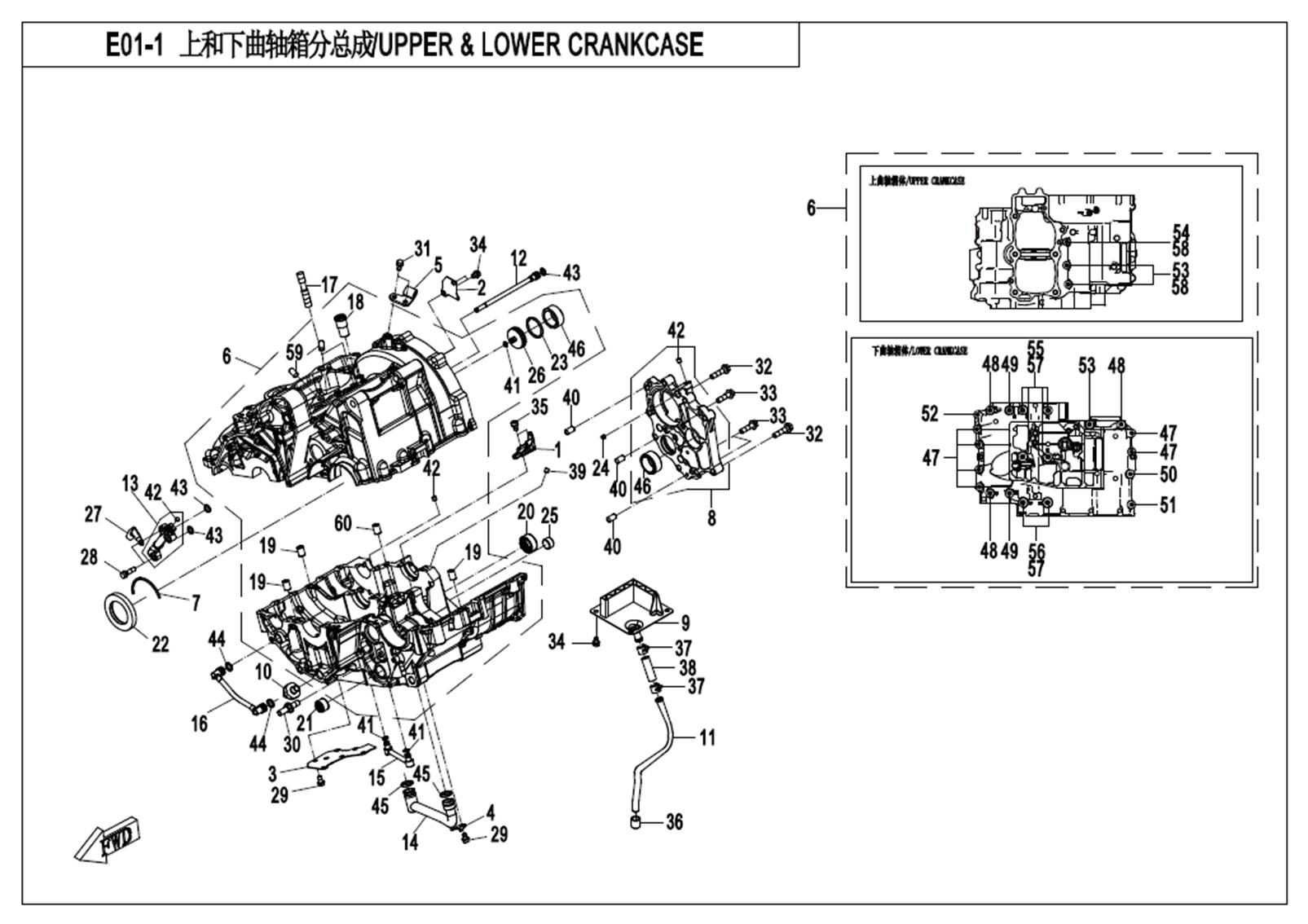

UPPER & LOWER CRANKCASE
E01-2

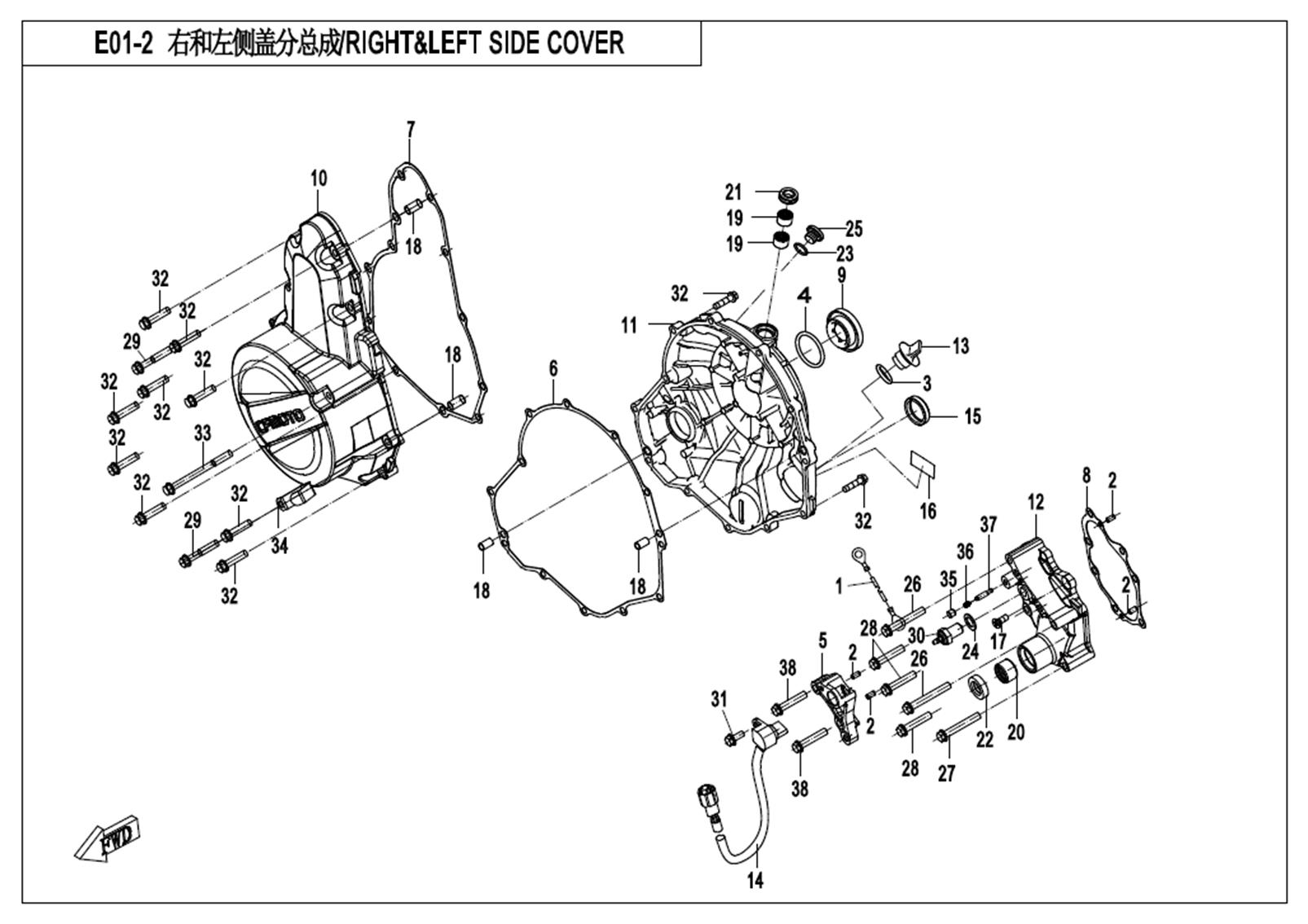

RIGHT&LEFT SIDE COVER
E01-3

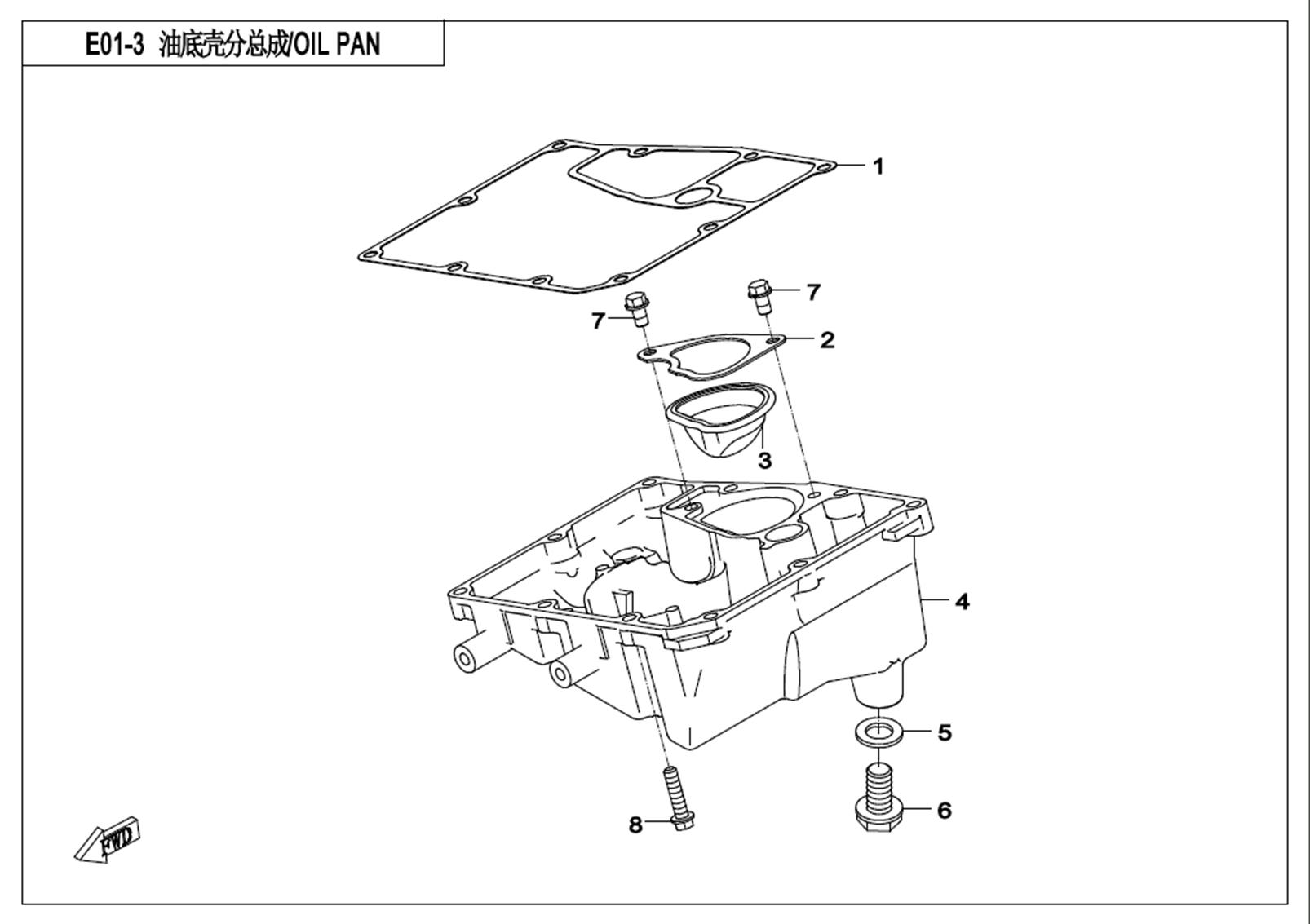

OIL PAN
E02-1

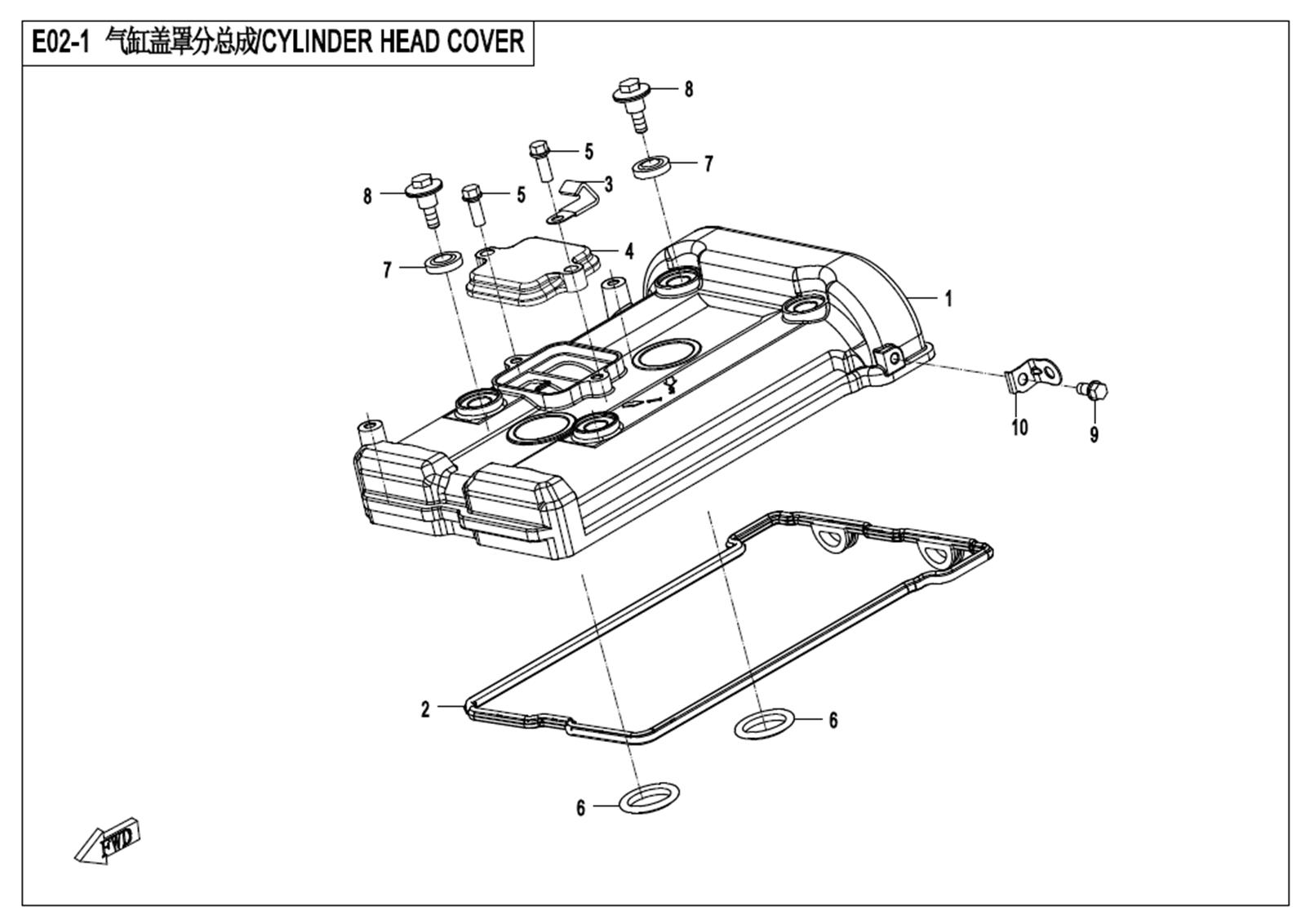

CYLINDER HEAD COVER
E02-2

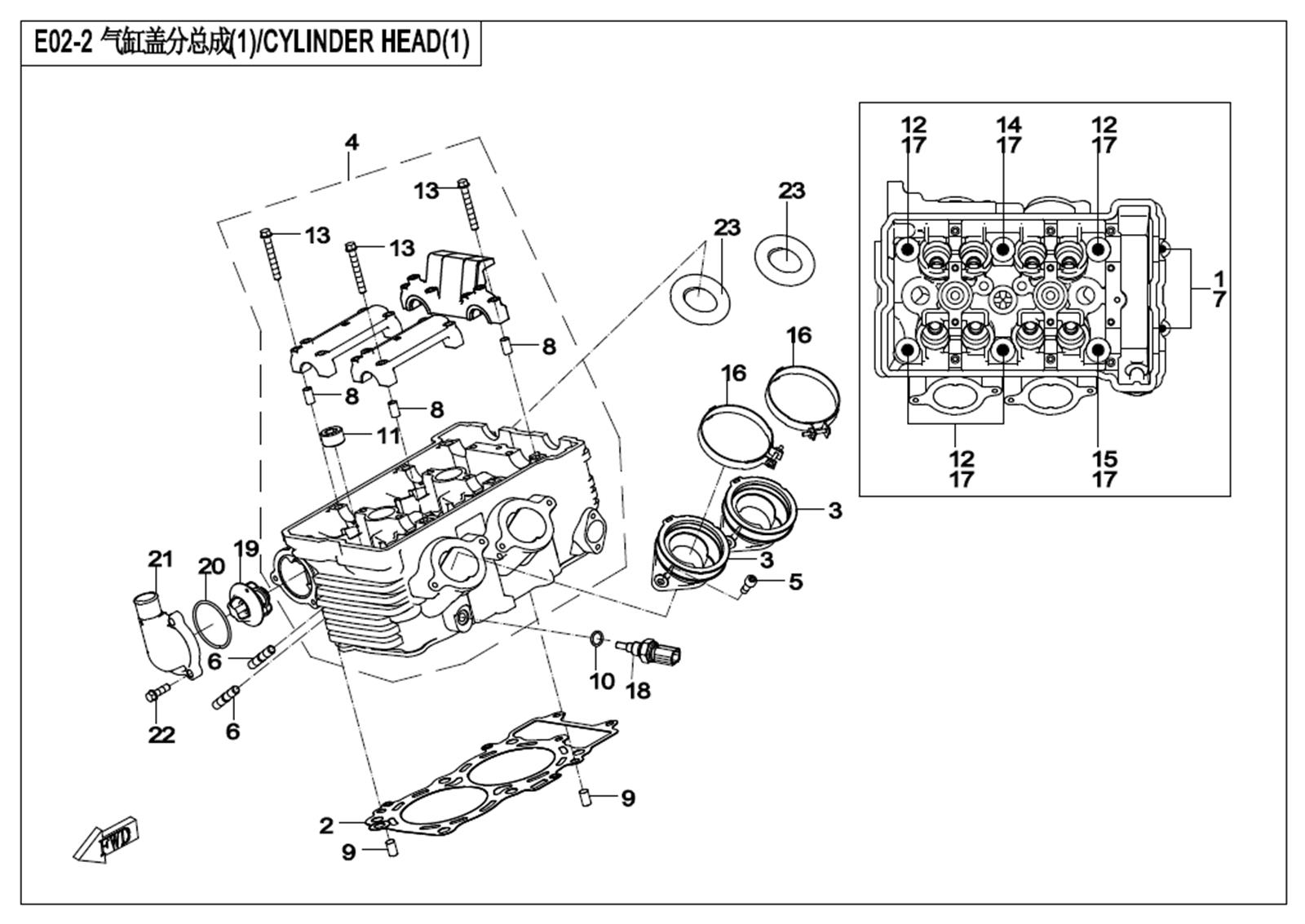

CYLINDER HEAD(1)
E02-3

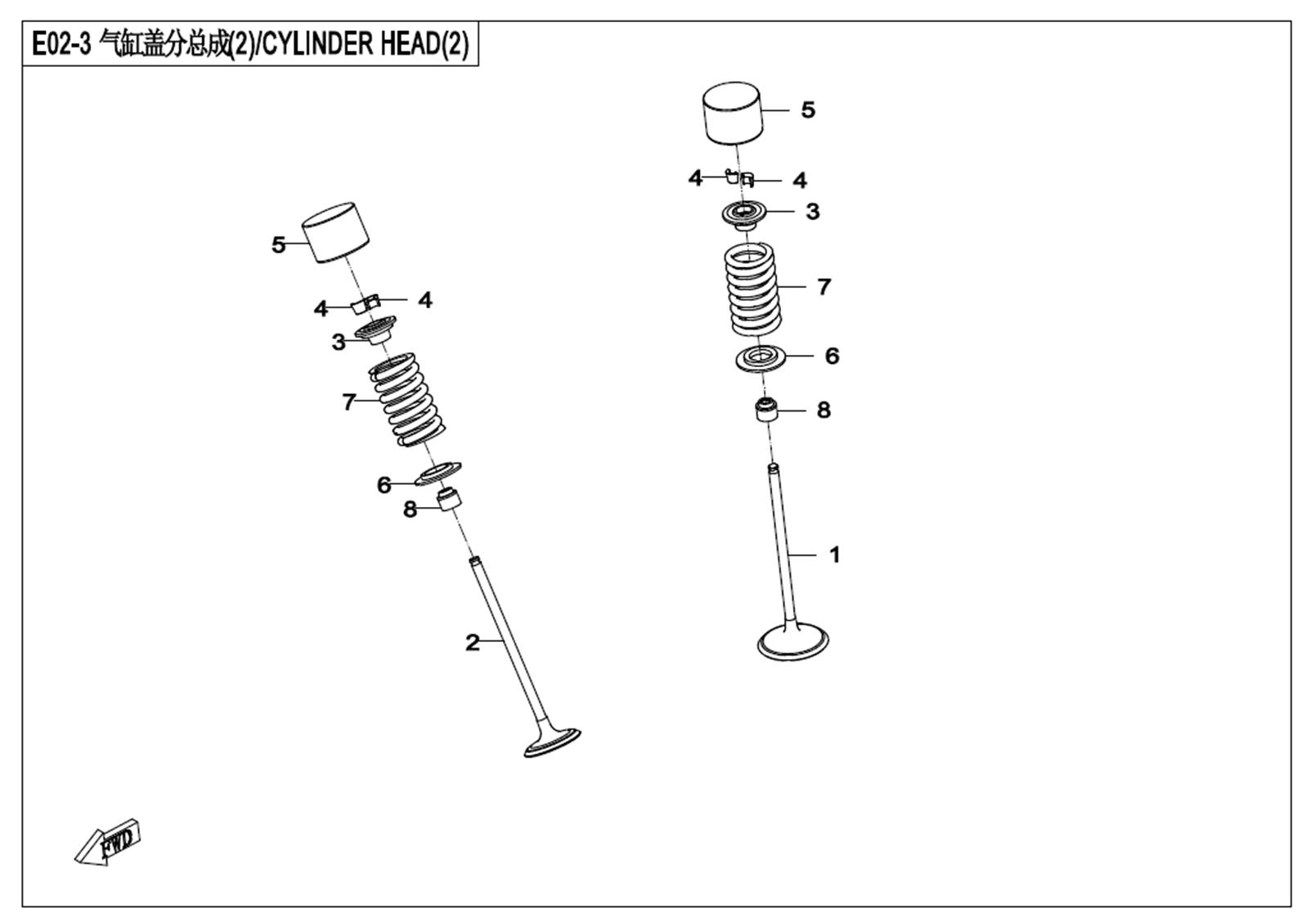

CYLINDER HEAD(2)
E02-4

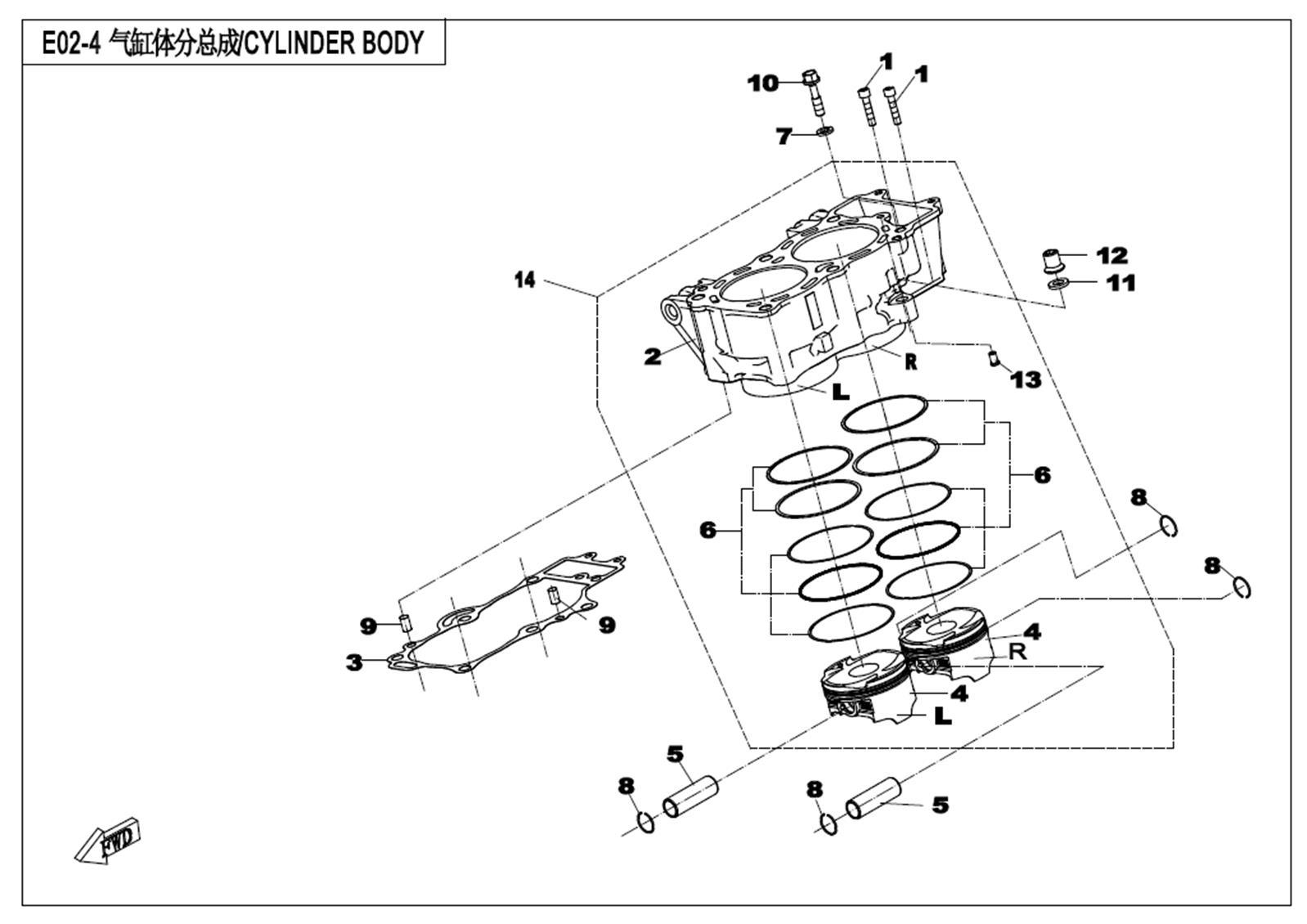

CYLINDER BODY
E02-5

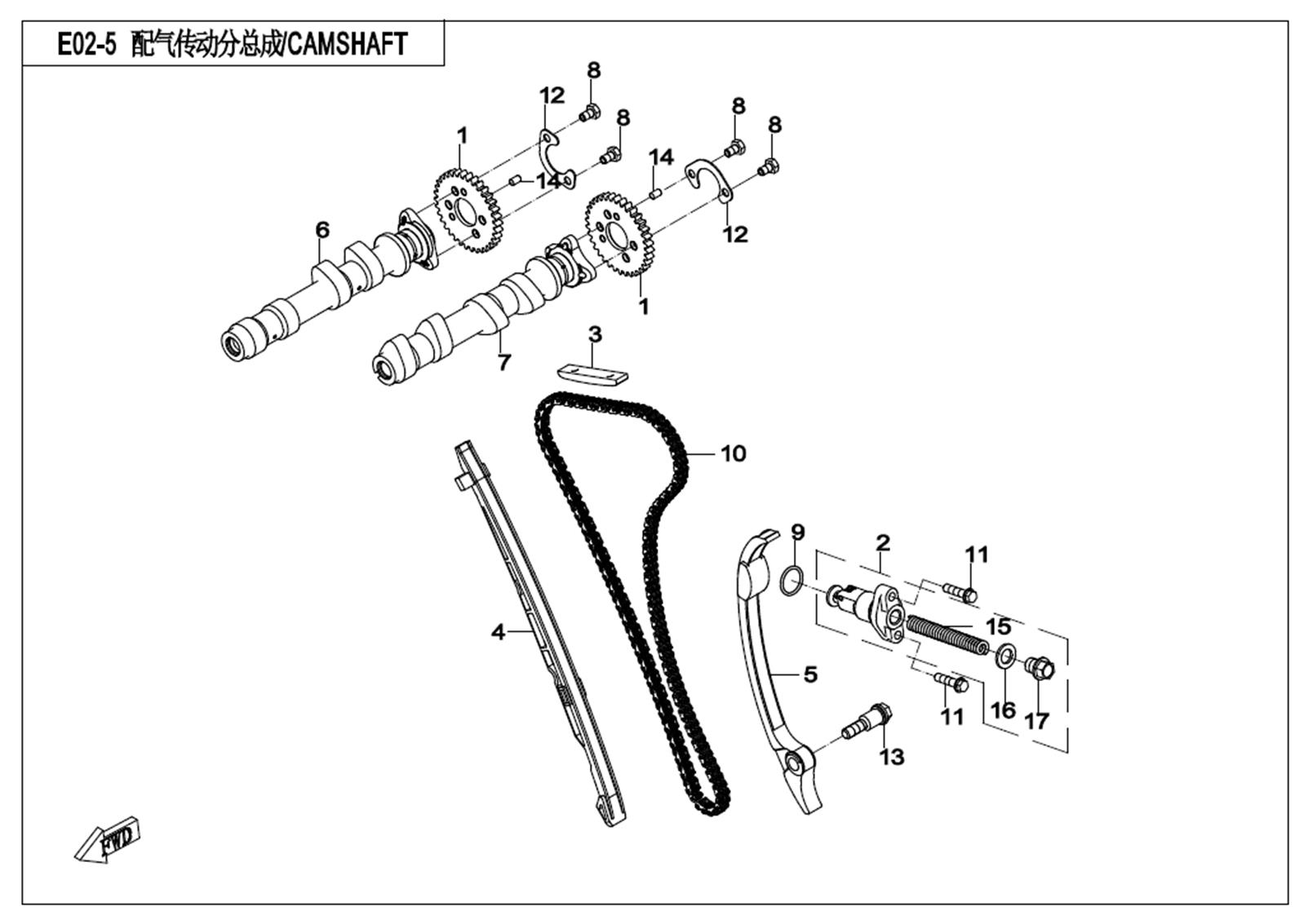

CAMSHAFT
E03

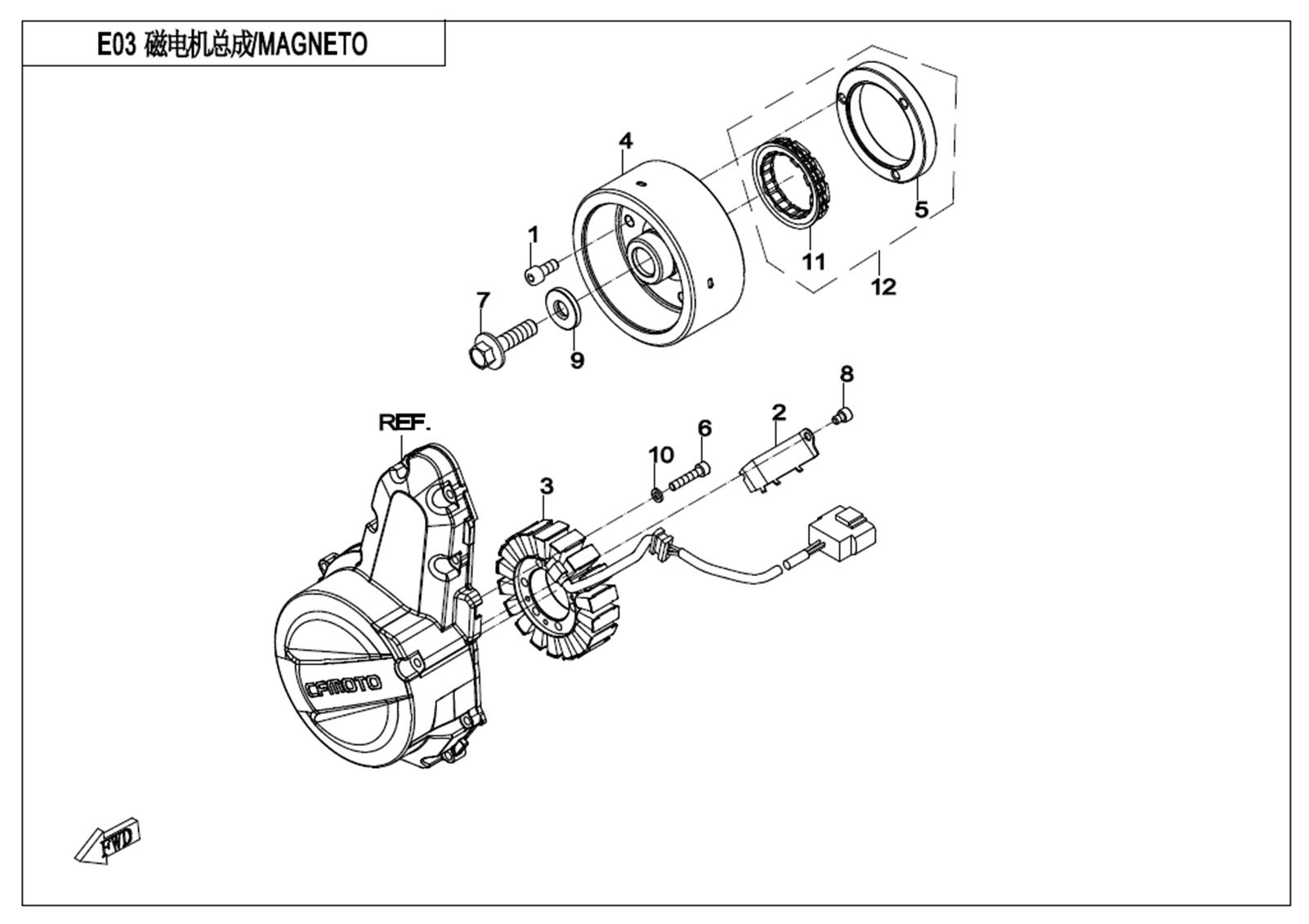

MAGNETO
E04-1
CRANKSHAFT &CONNECTING ROD(1)
E04-2
CRANKSHAFT &CONNECTING ROD(2)
E05

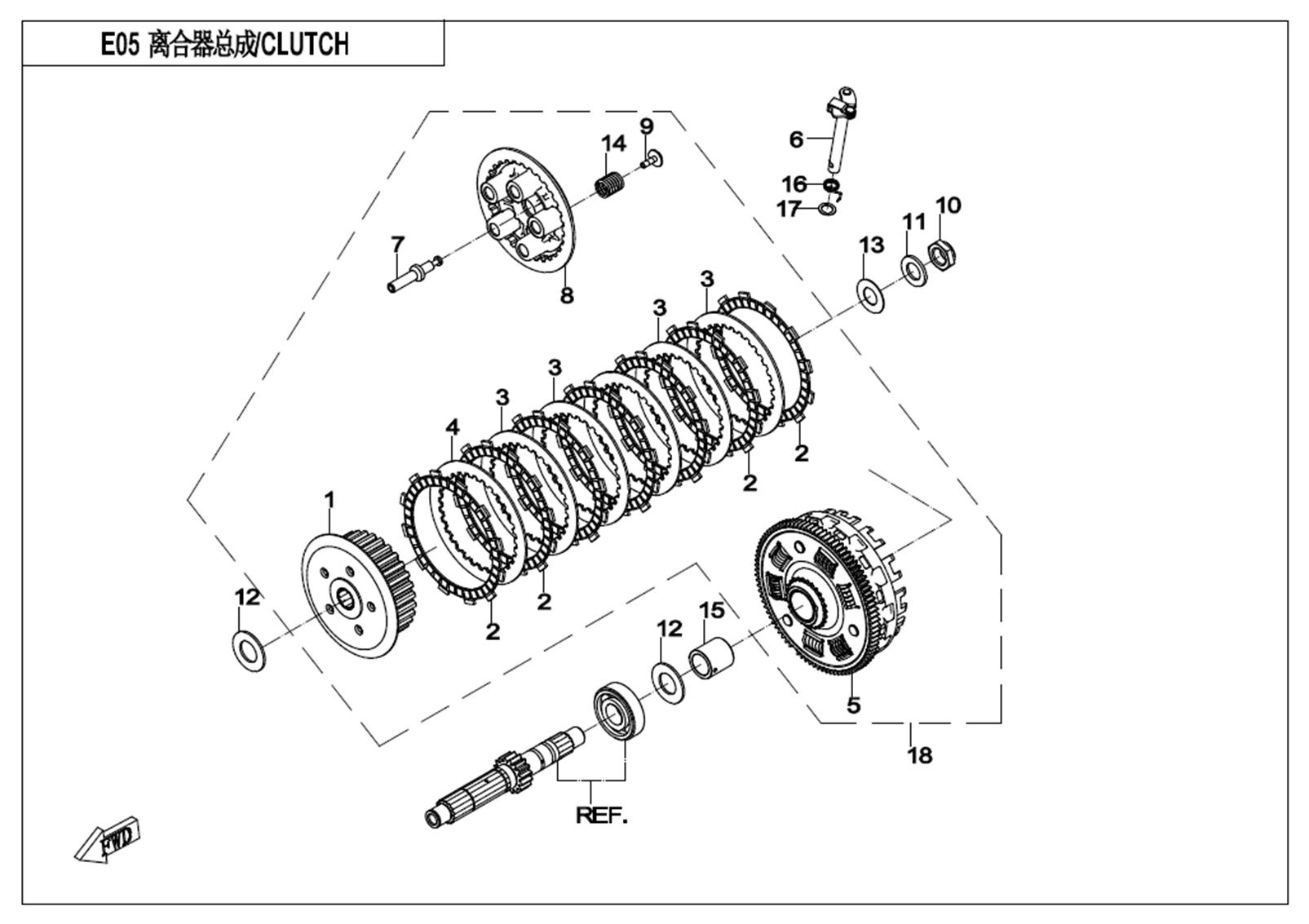

CLUTCH

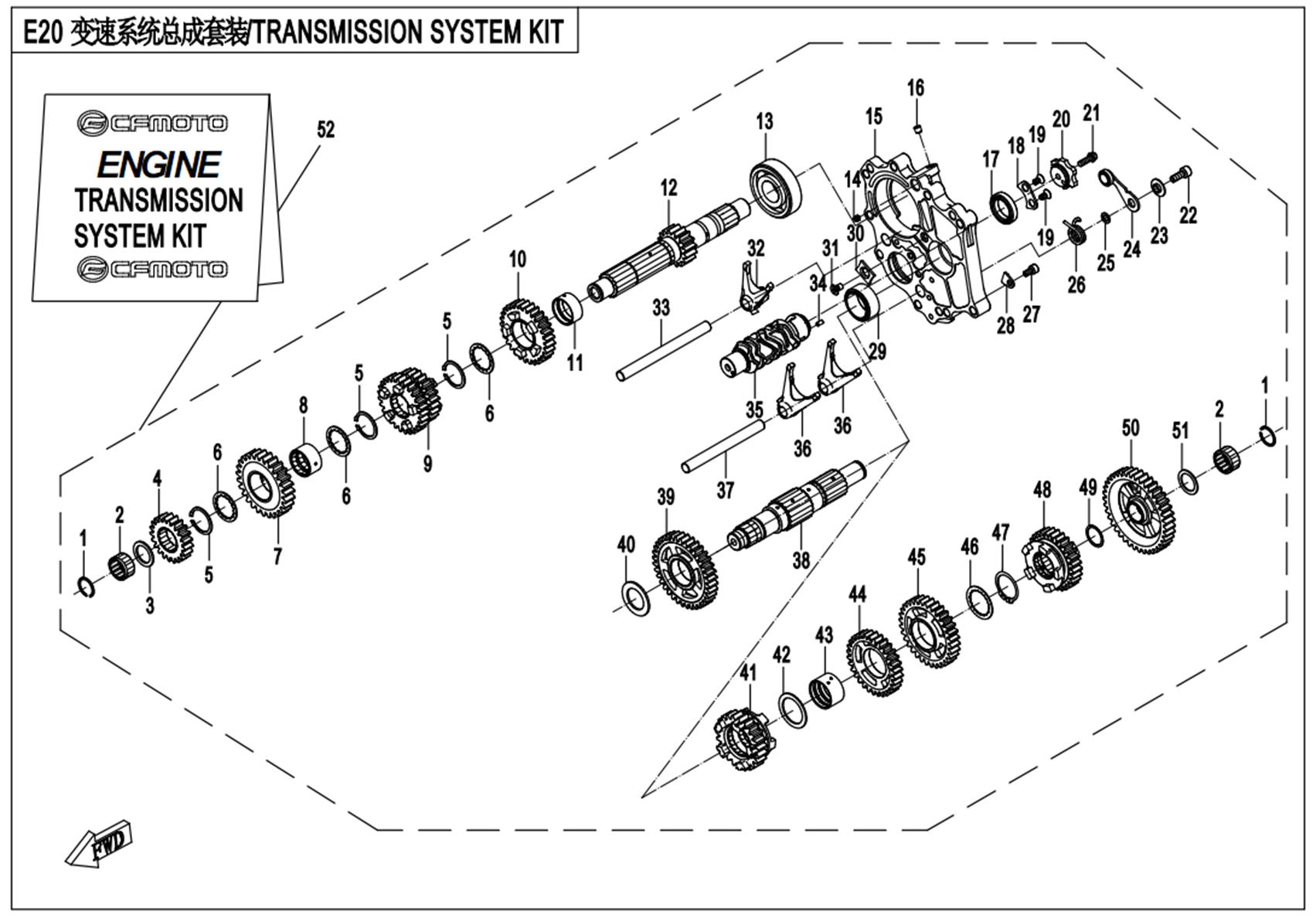

E06-1

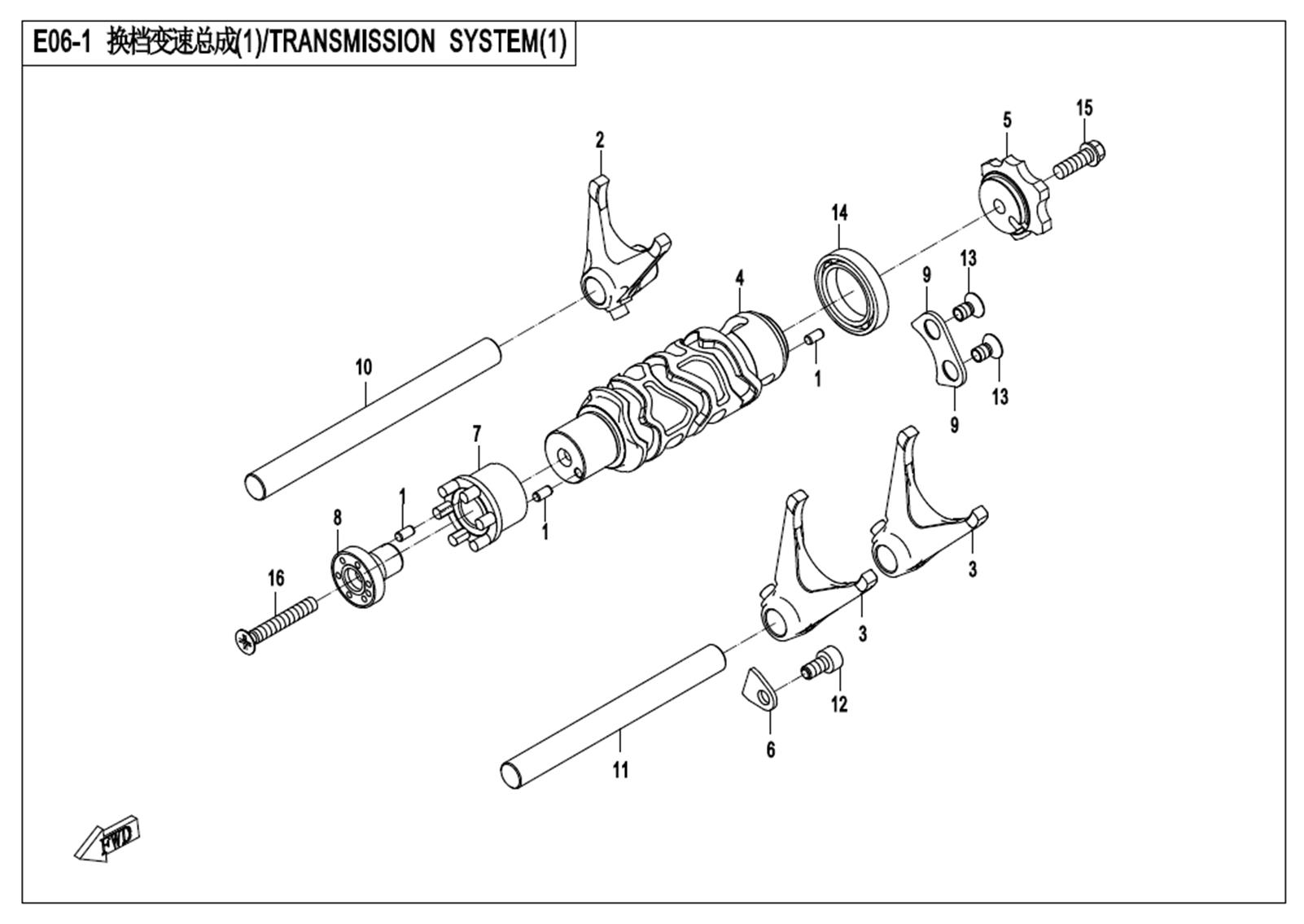

TRANSMISSION SYSTEM(1)

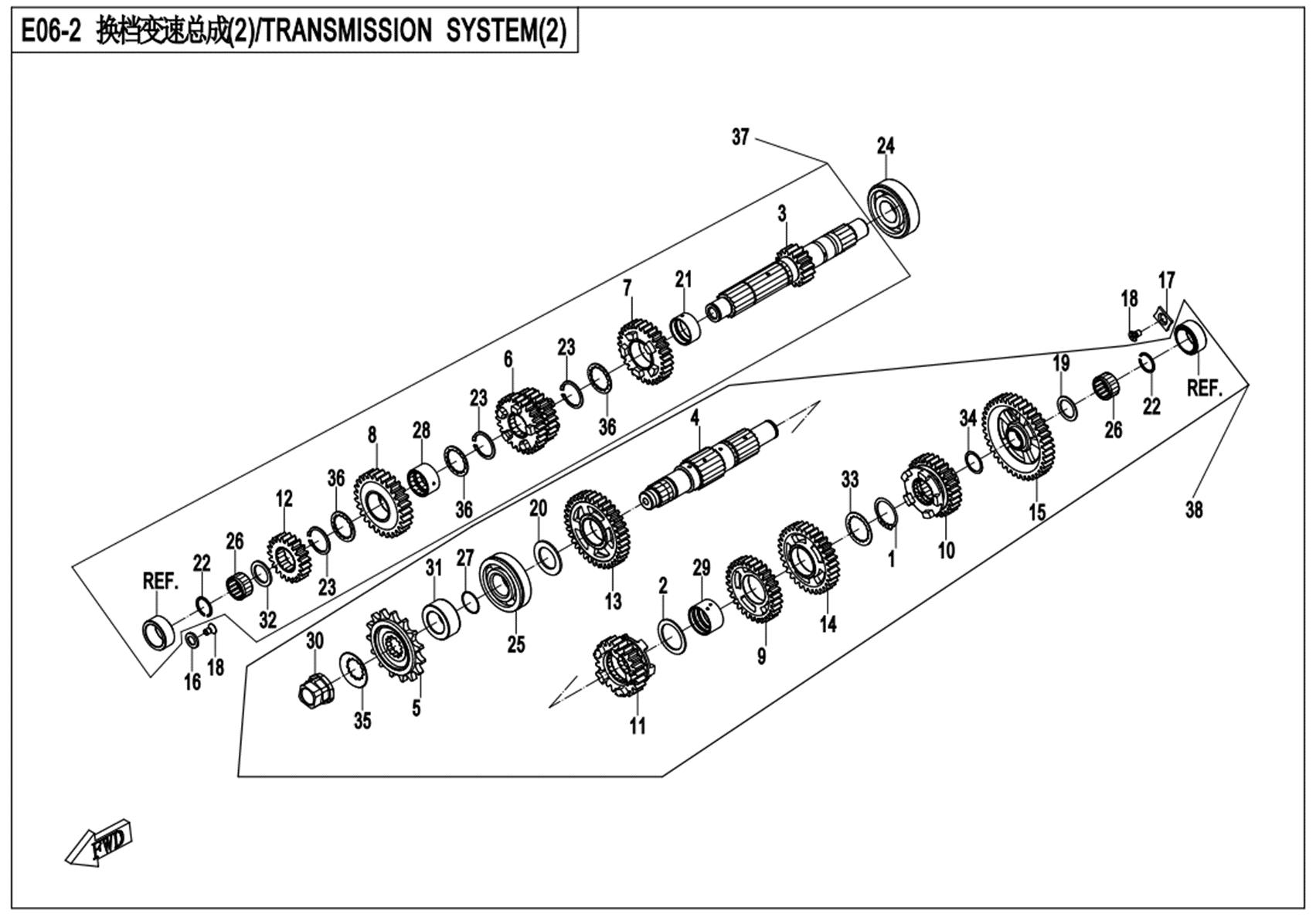

E06-2
TRANSMISSION SYSTEM(2)
E06-3

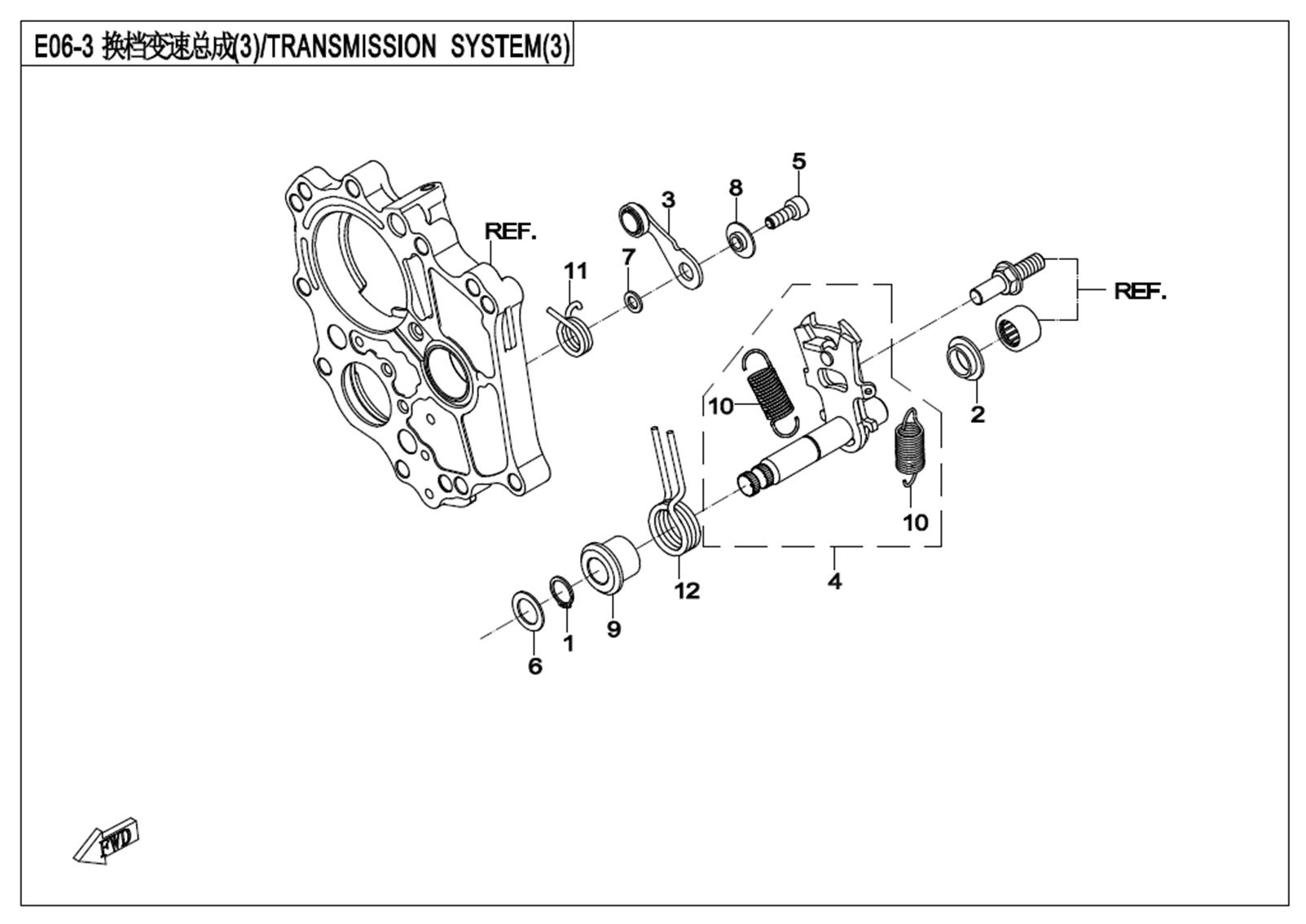

TRANSMISSION SYSTEM(3)
E07

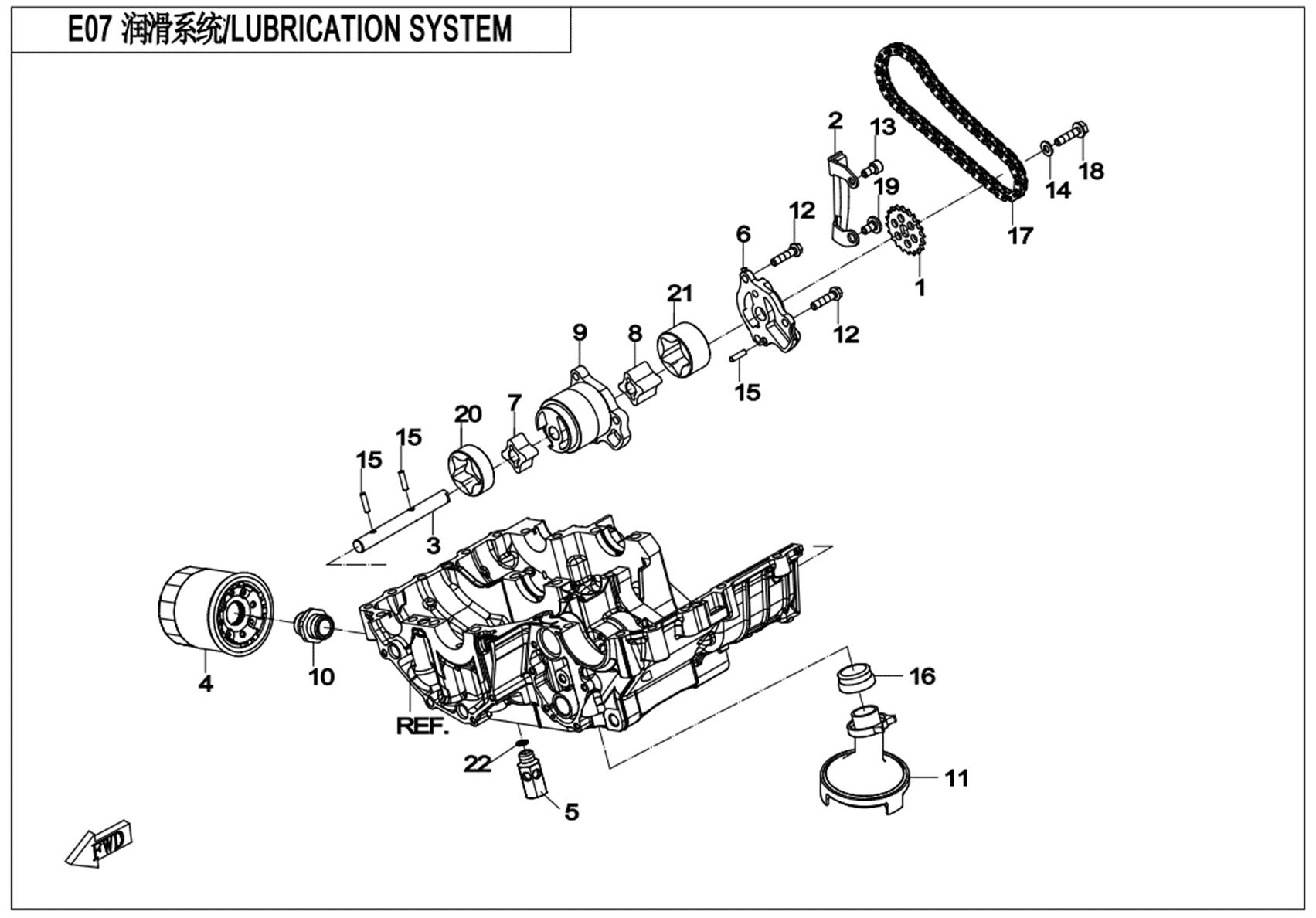

LUBRICATION SYSTEM
E08

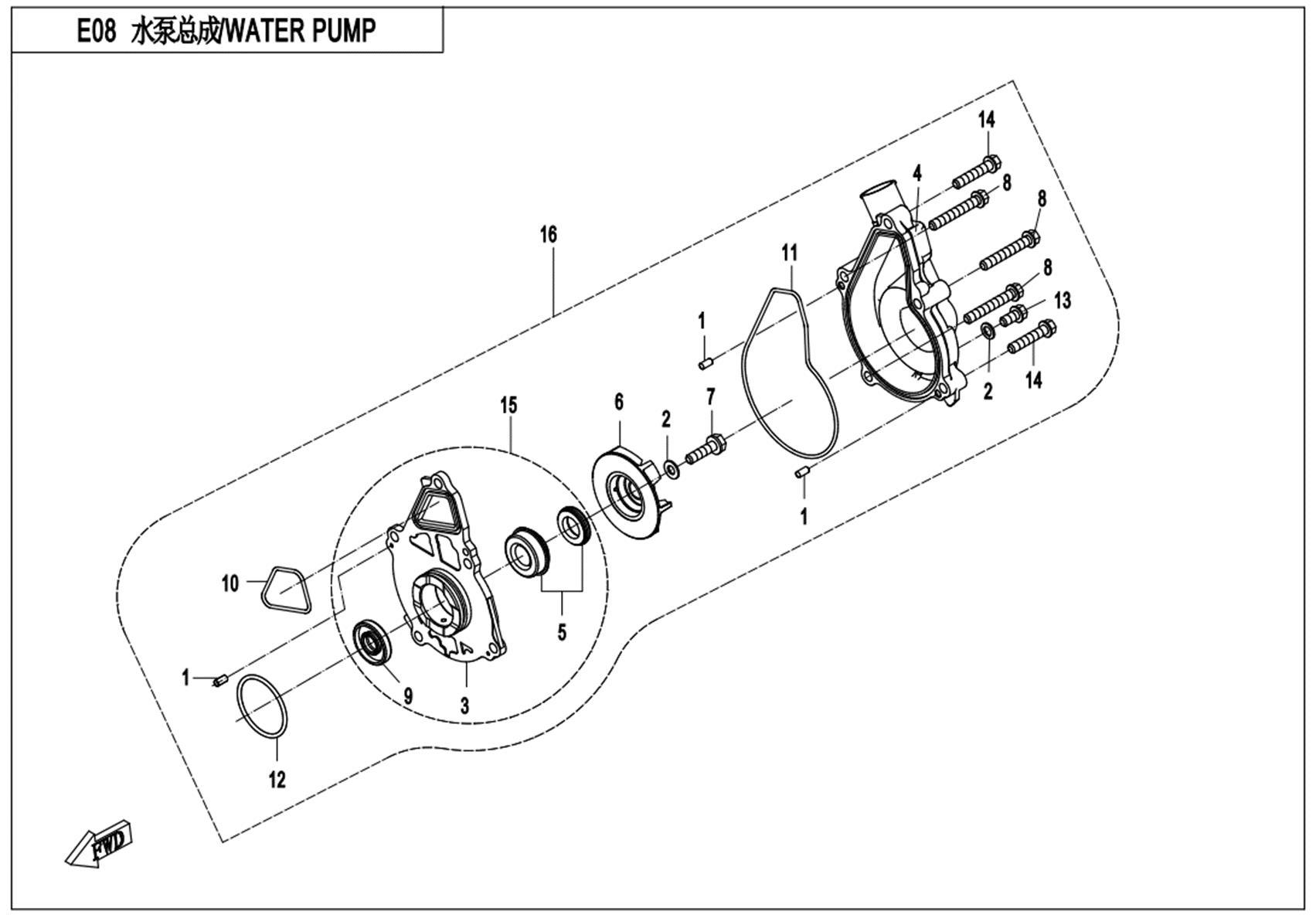

WATER PUMP
E09

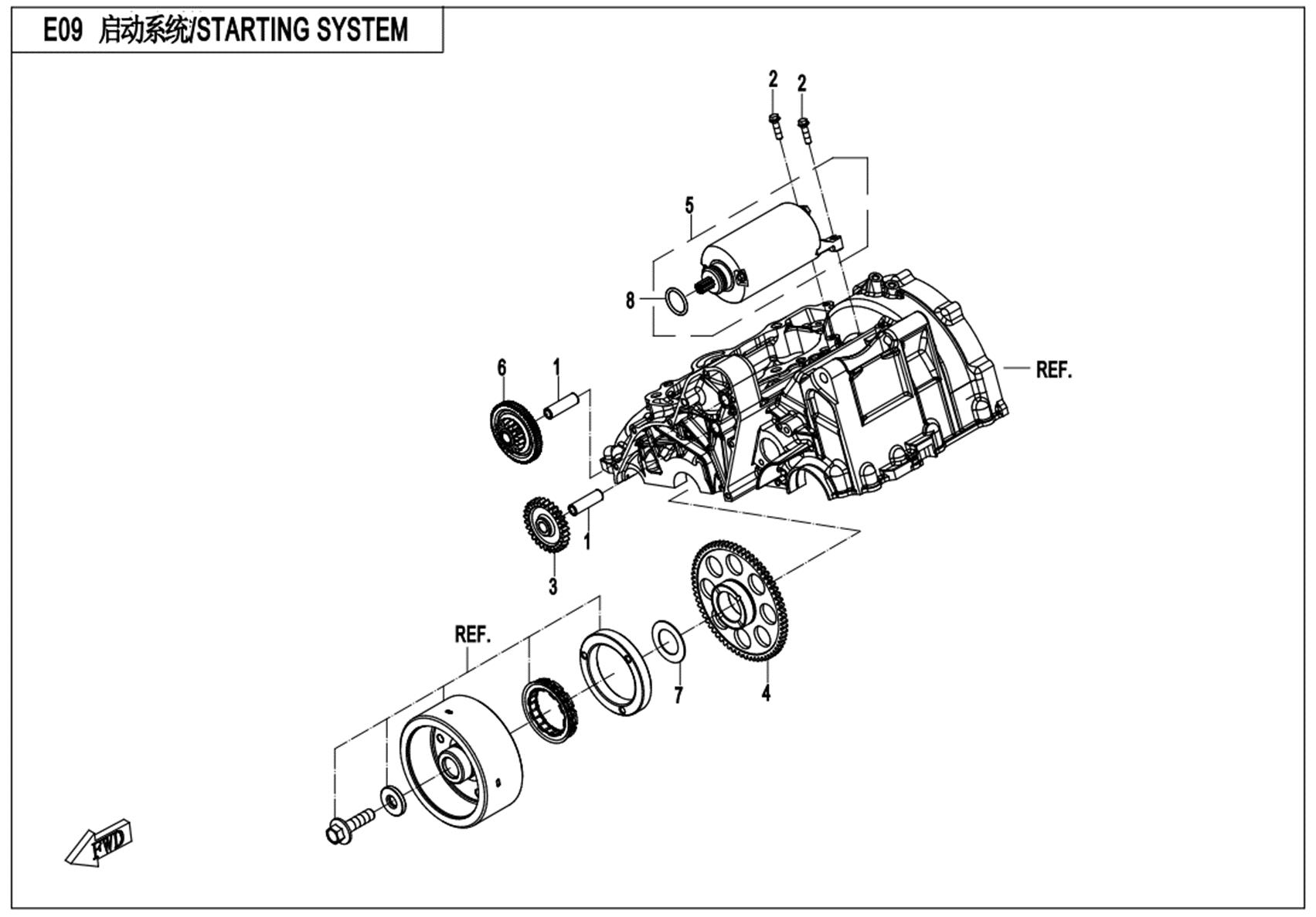

STARTING SYSTEM
E16

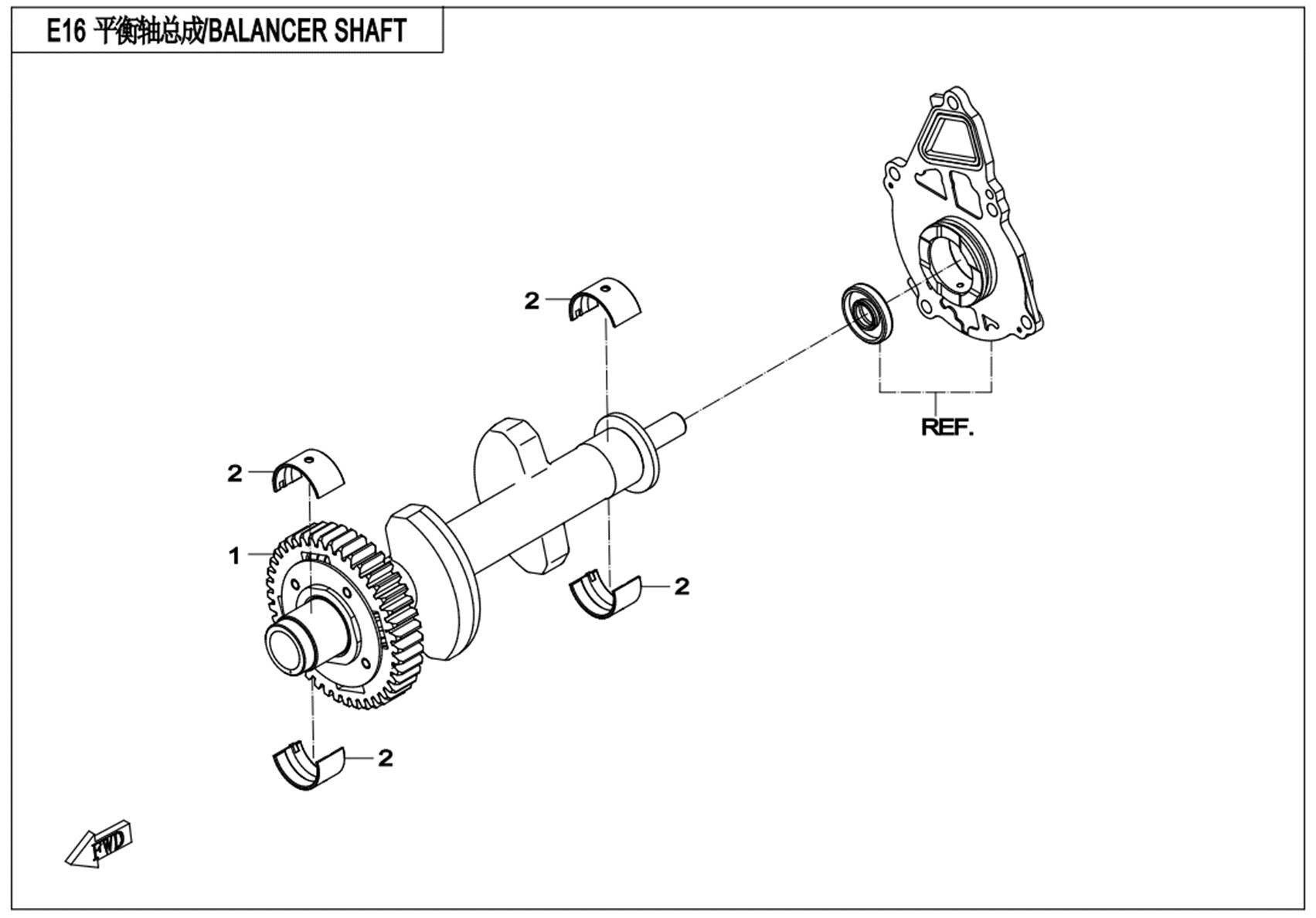

BALANCER SHAFT
E17

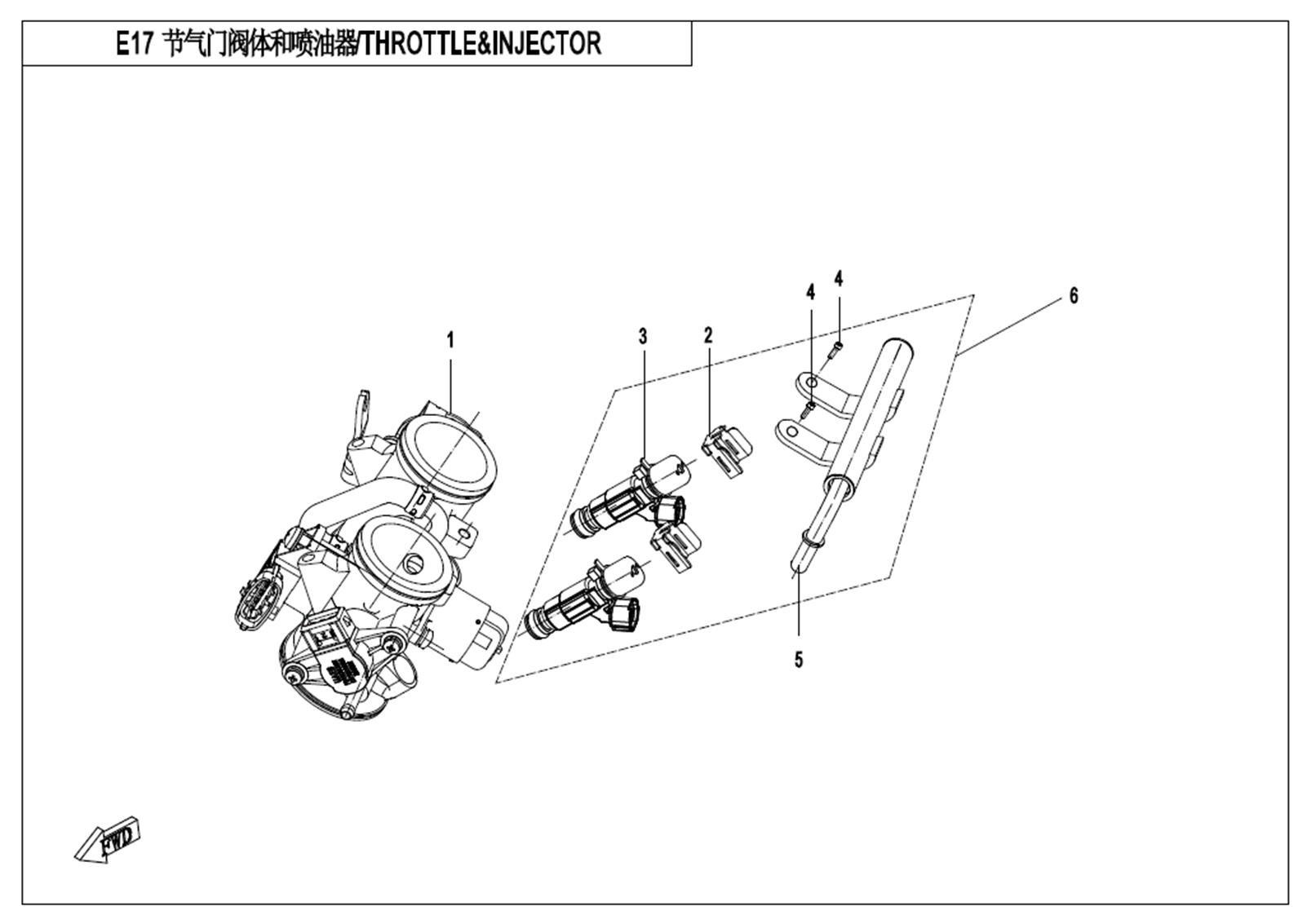

THROTTLE&INJECTOR
E18

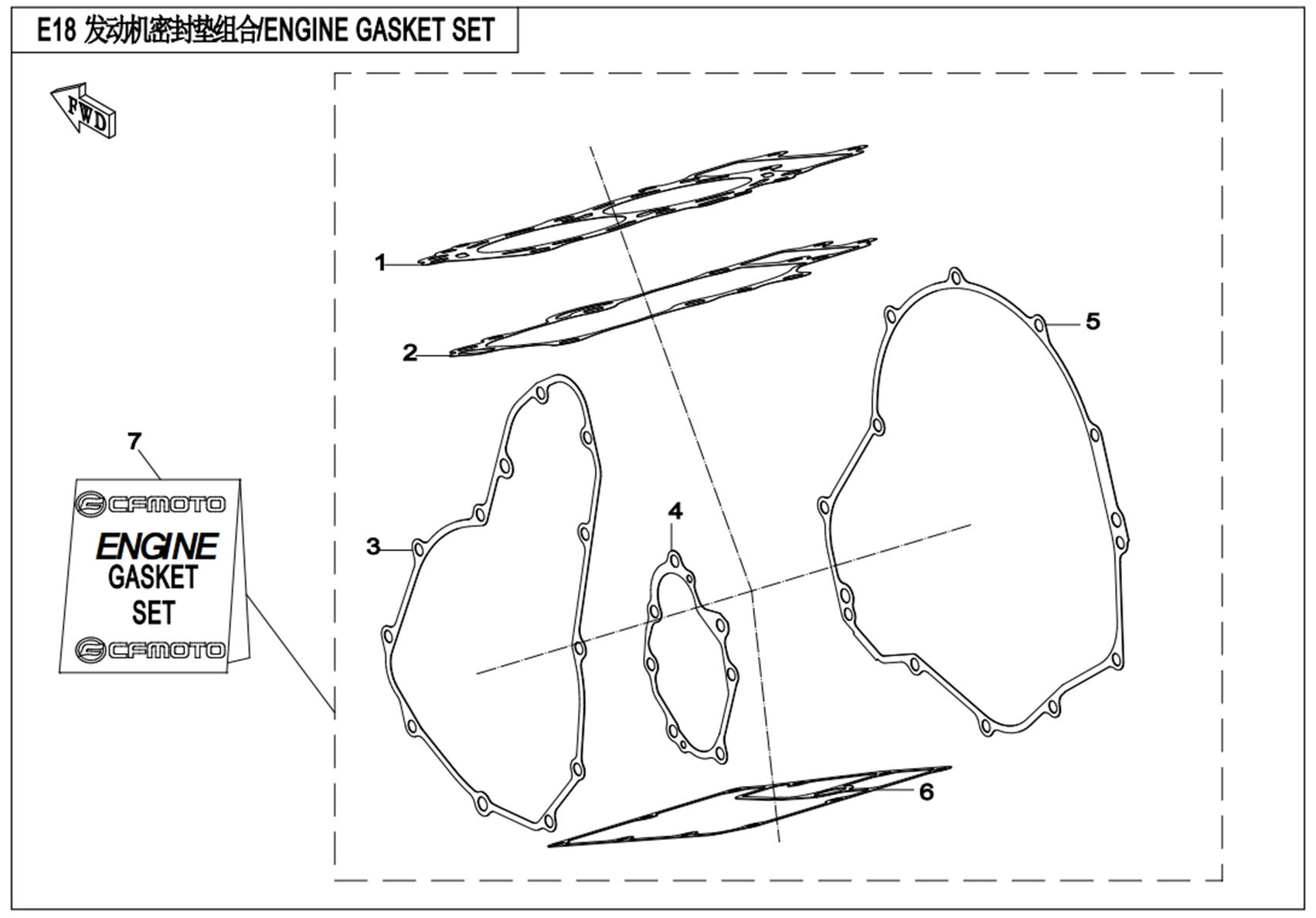

ENGINE GASKET SET
E19

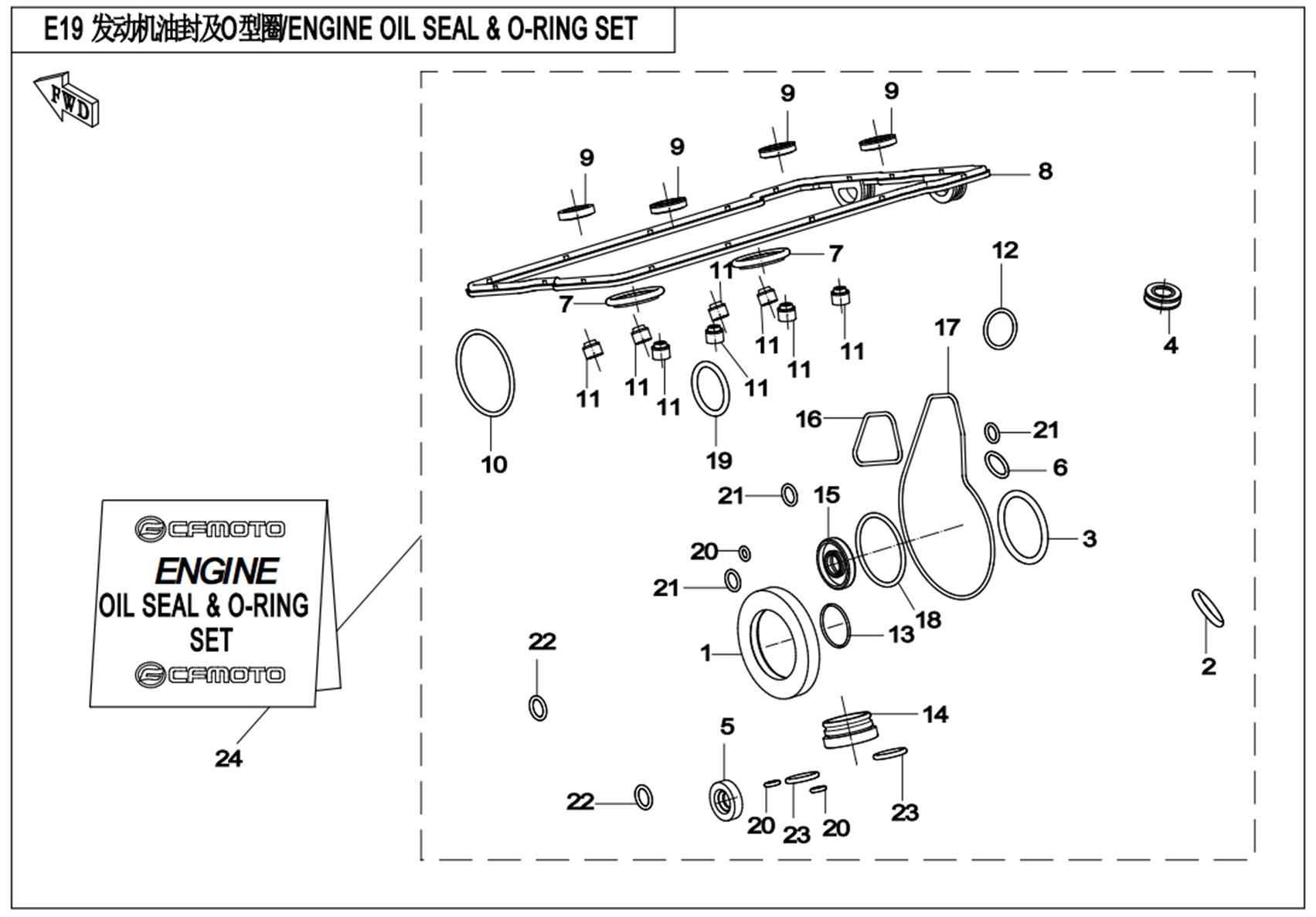

ENGINE OIL SEAL & O-RING SET
