Genuine Parts Diagrams for 2021 650GT - CF650-8FChange Model
Showing 53 parts diagrams.
E01-1

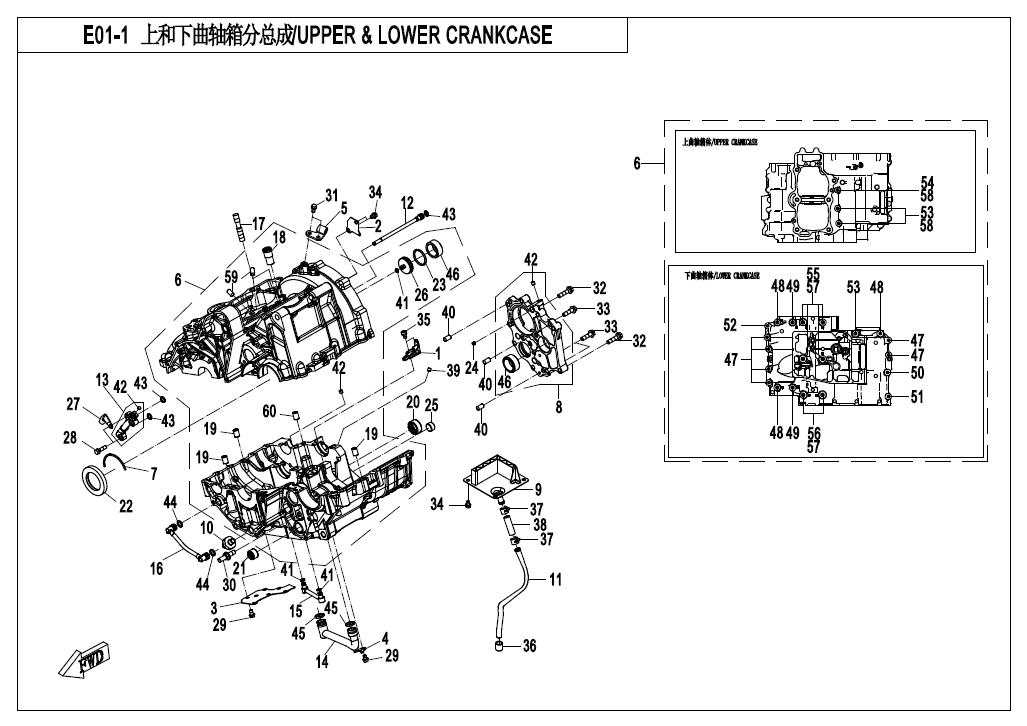

UPPER & LOWER CRANKCASE
E01-2

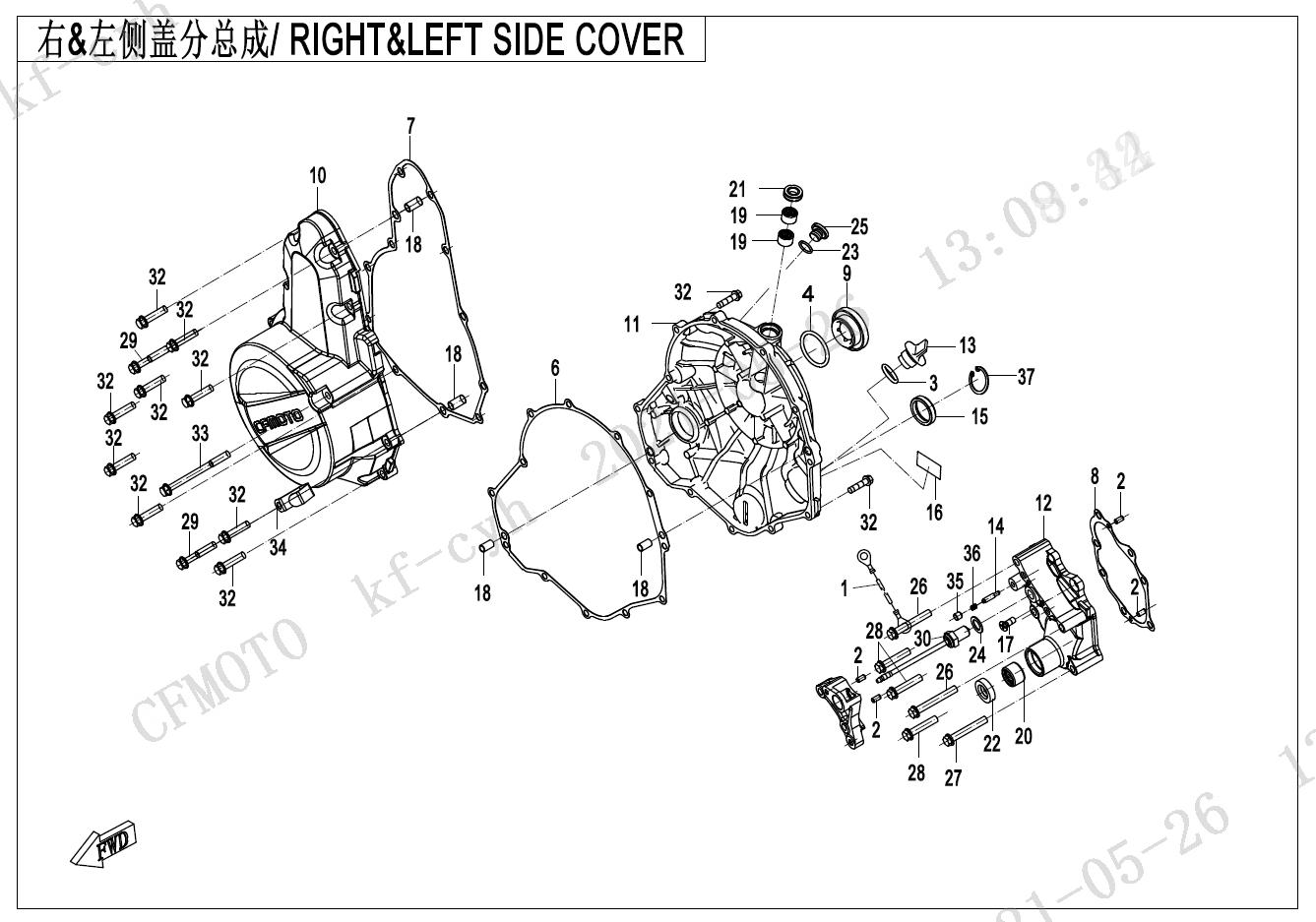

RIGHT & LEFT SIDE COVER
E01-3

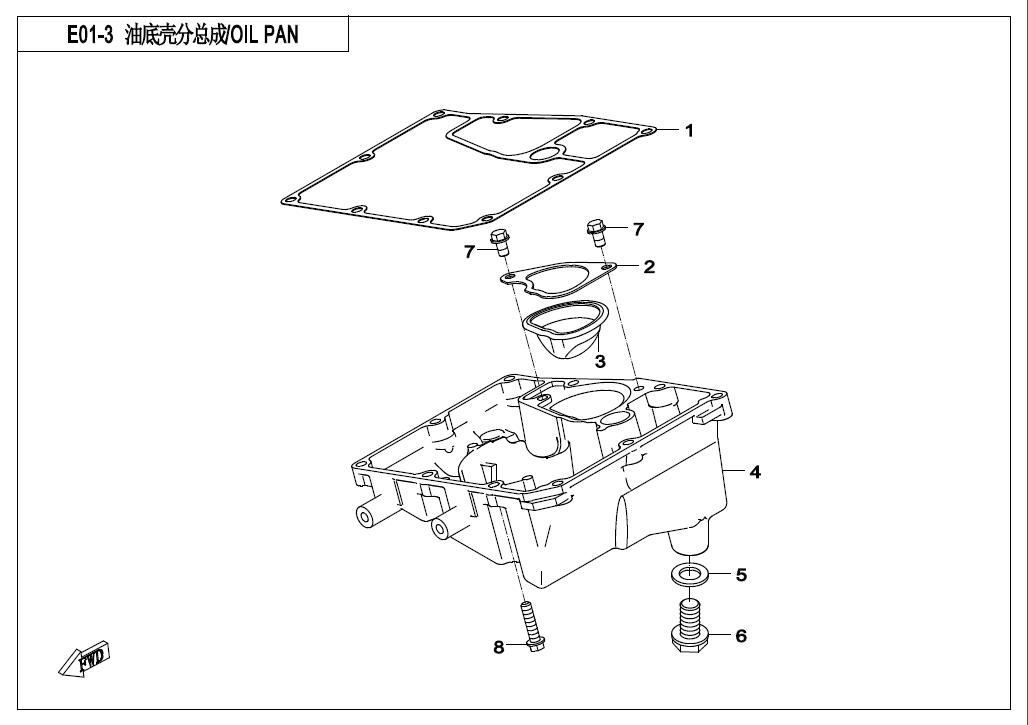

OIL PAN
E02-1

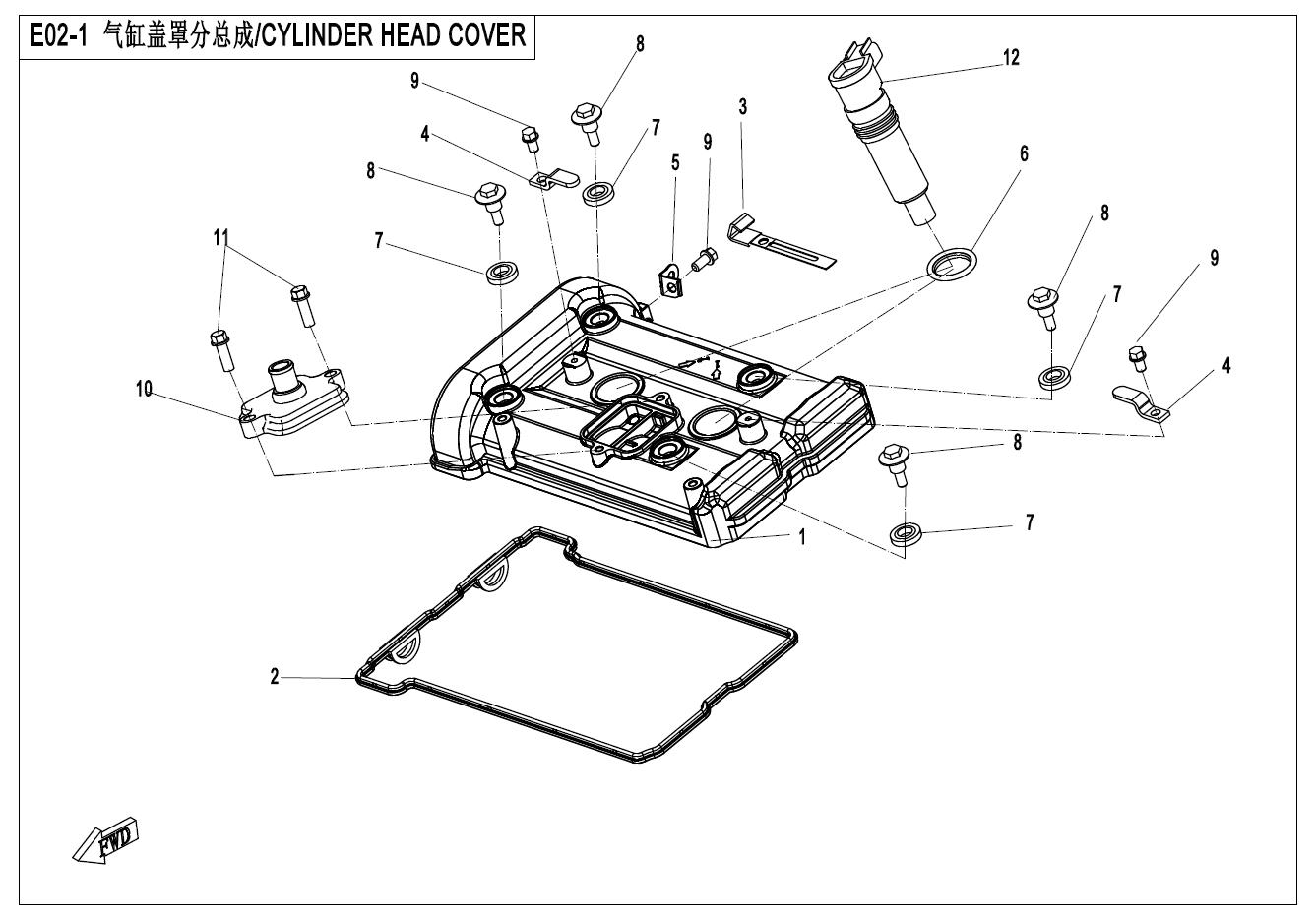

CYLINDER HEAD COVER
E02-2

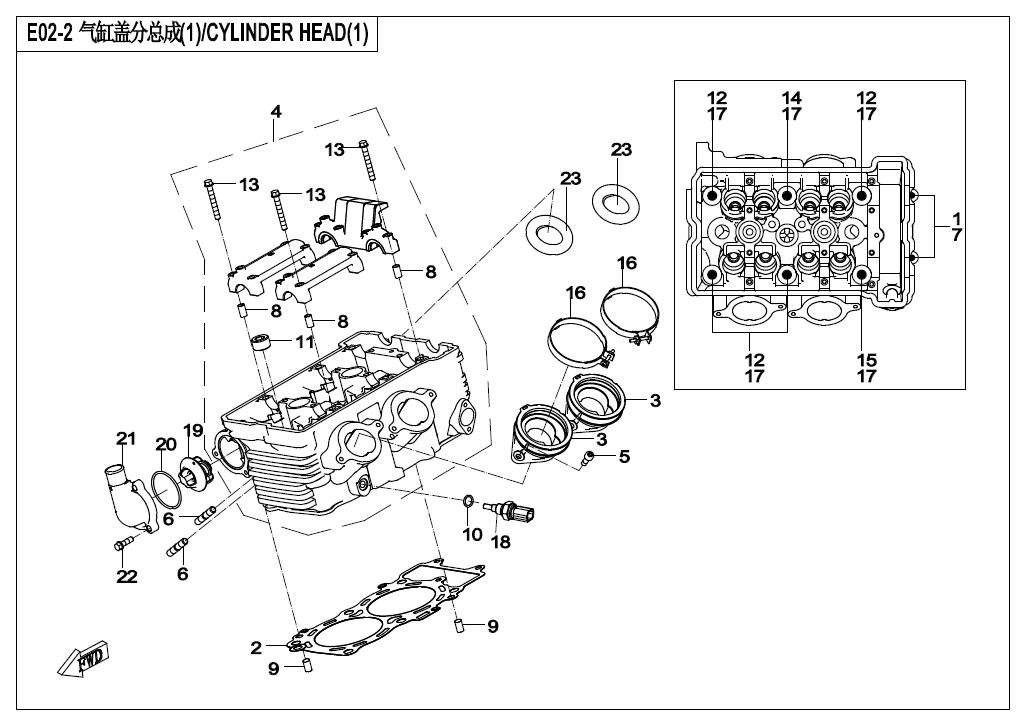

CYLINDER HEAD (1)

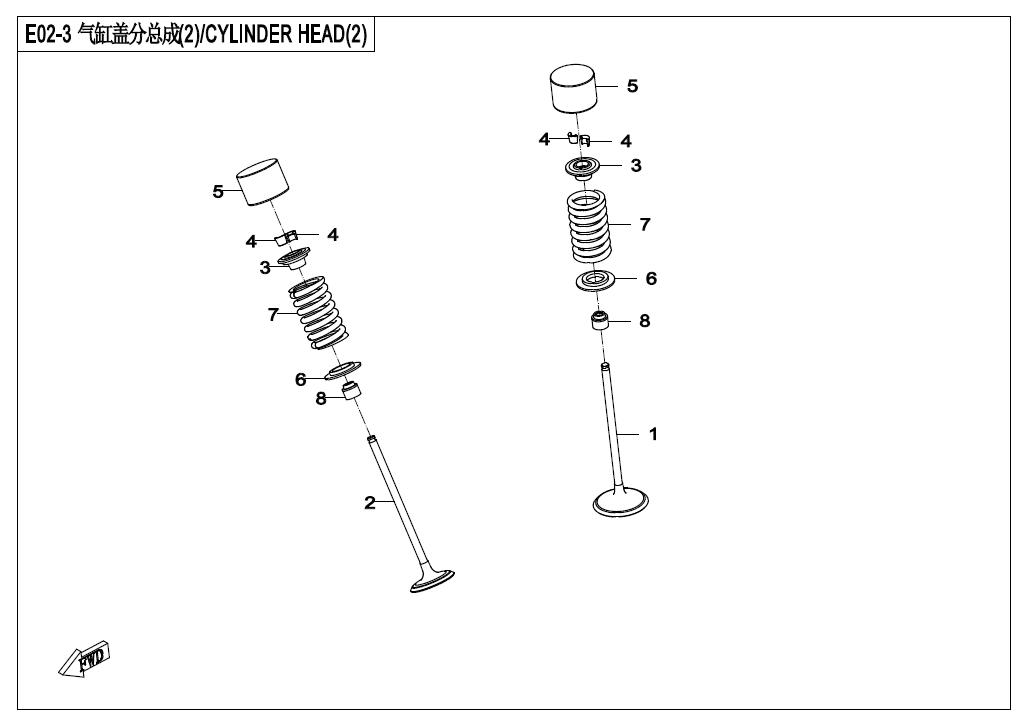

E02-3
CYLINDER HEAD (2)

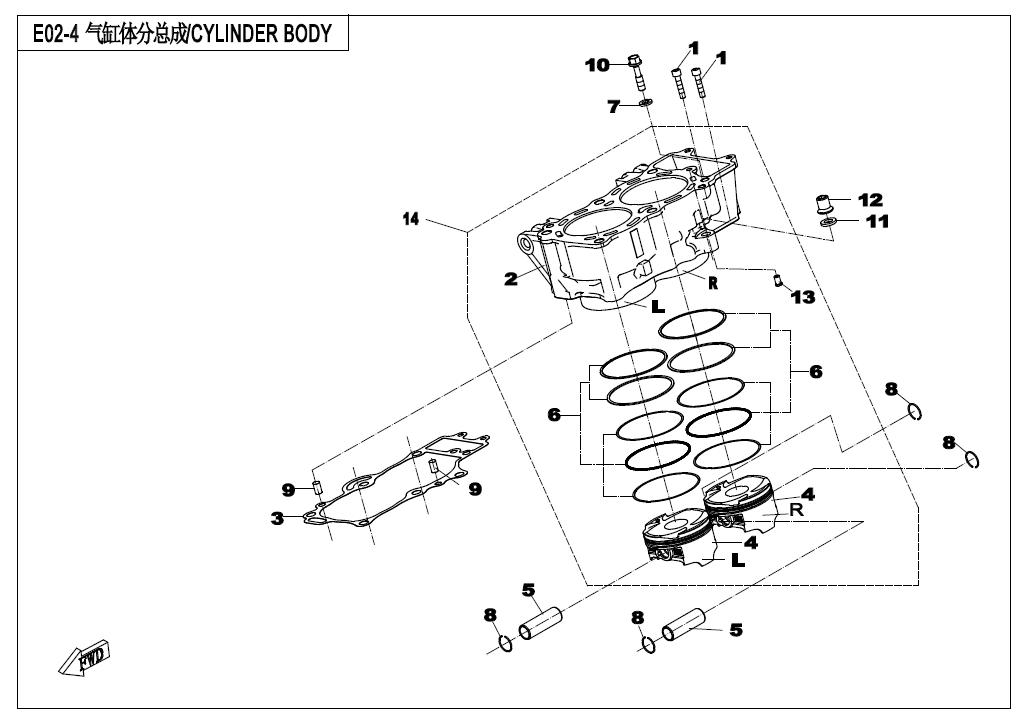

E02-4
CYLINDER BODY

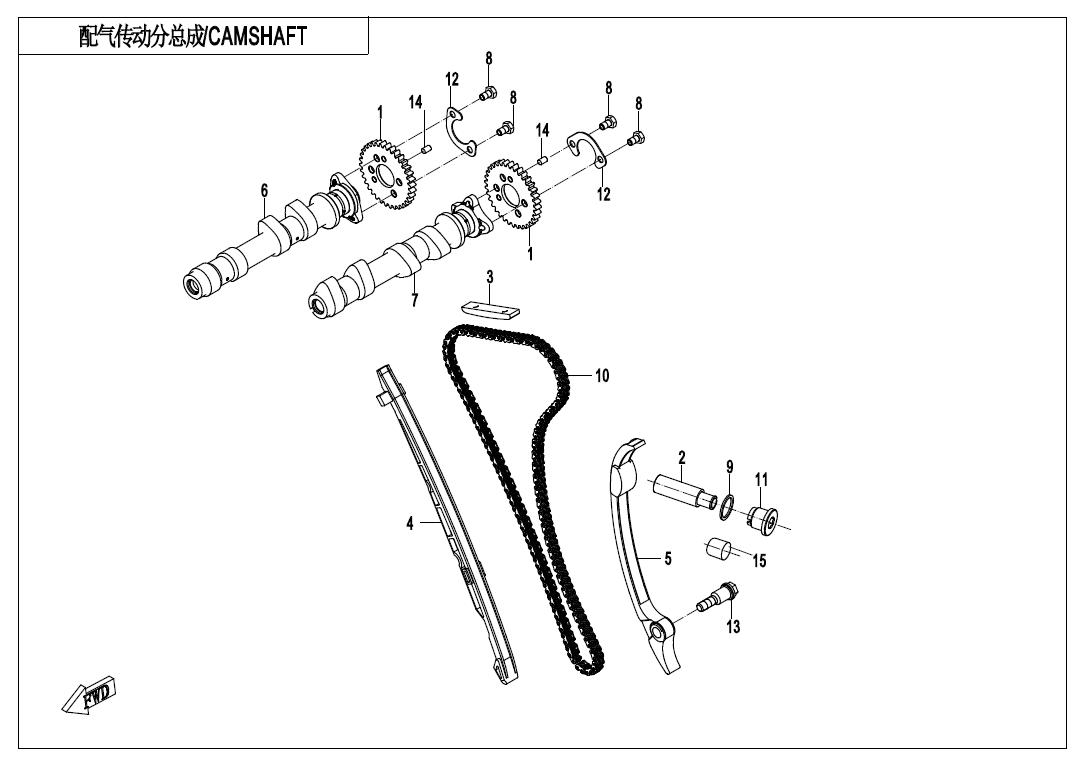

E02-5
CAMSHAFT
E03

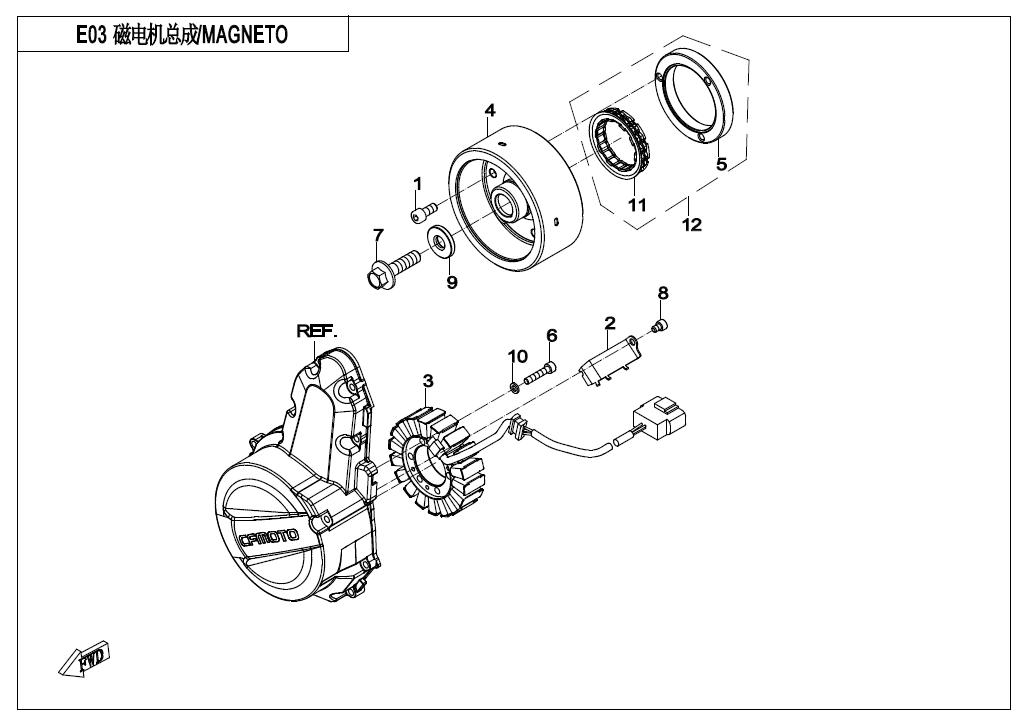

MAGNETO
E04-1

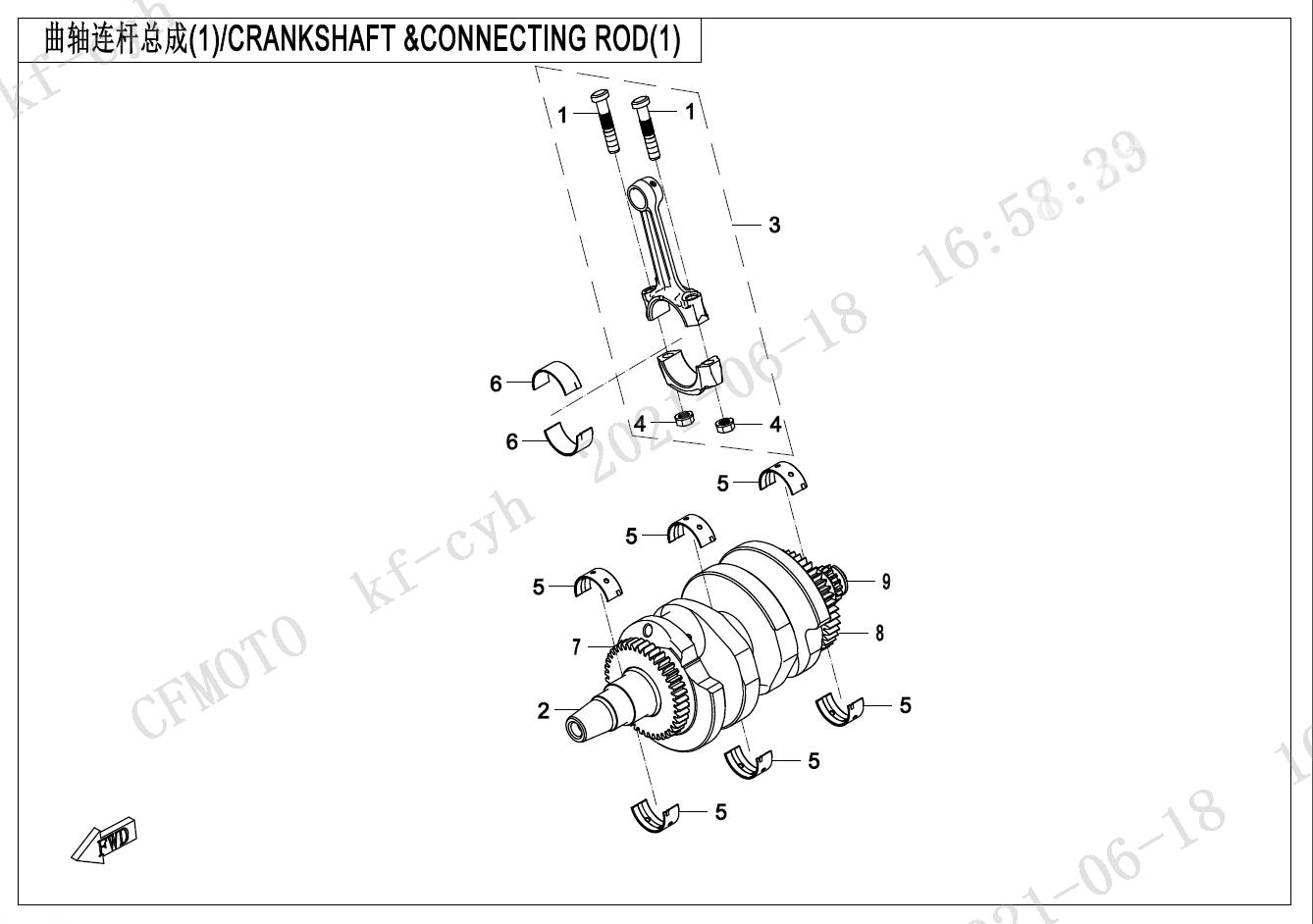

CRANKSHAFT & CONNECTING ROD (1)

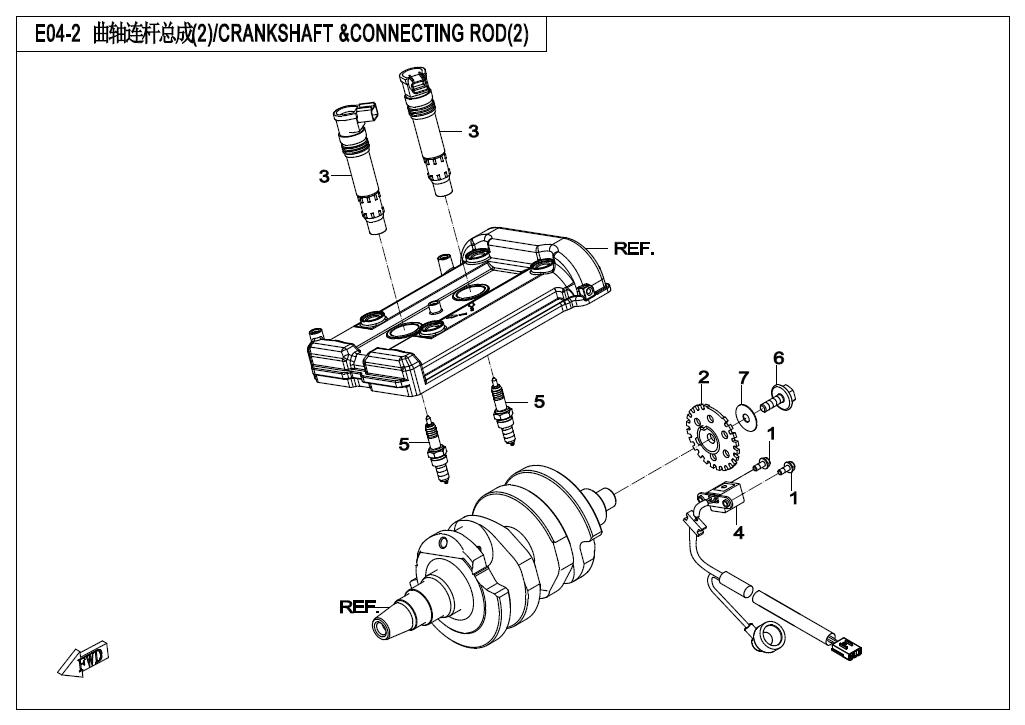

E04-2
CRANKSHAFT & CONNECTING ROD (2)
E05

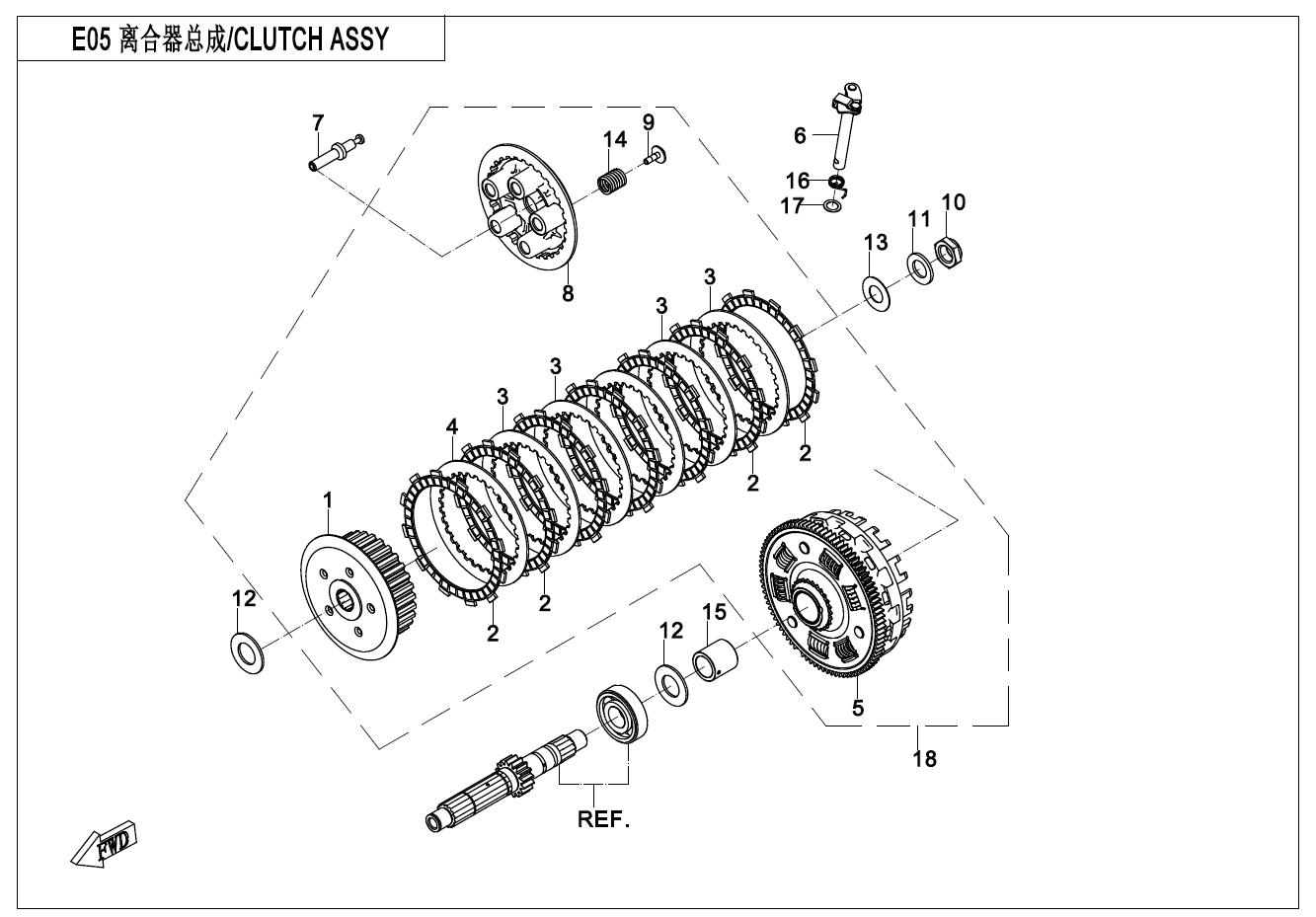

CLUTCH

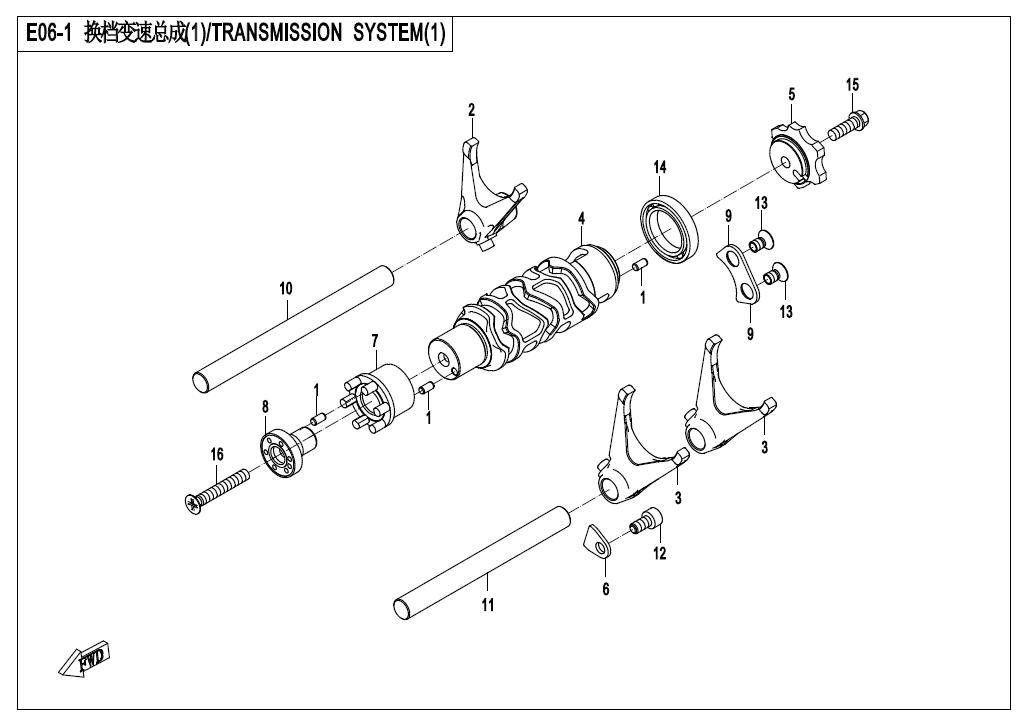

E06-1
TRANSMISSION SYSTEM (1)
E06-2

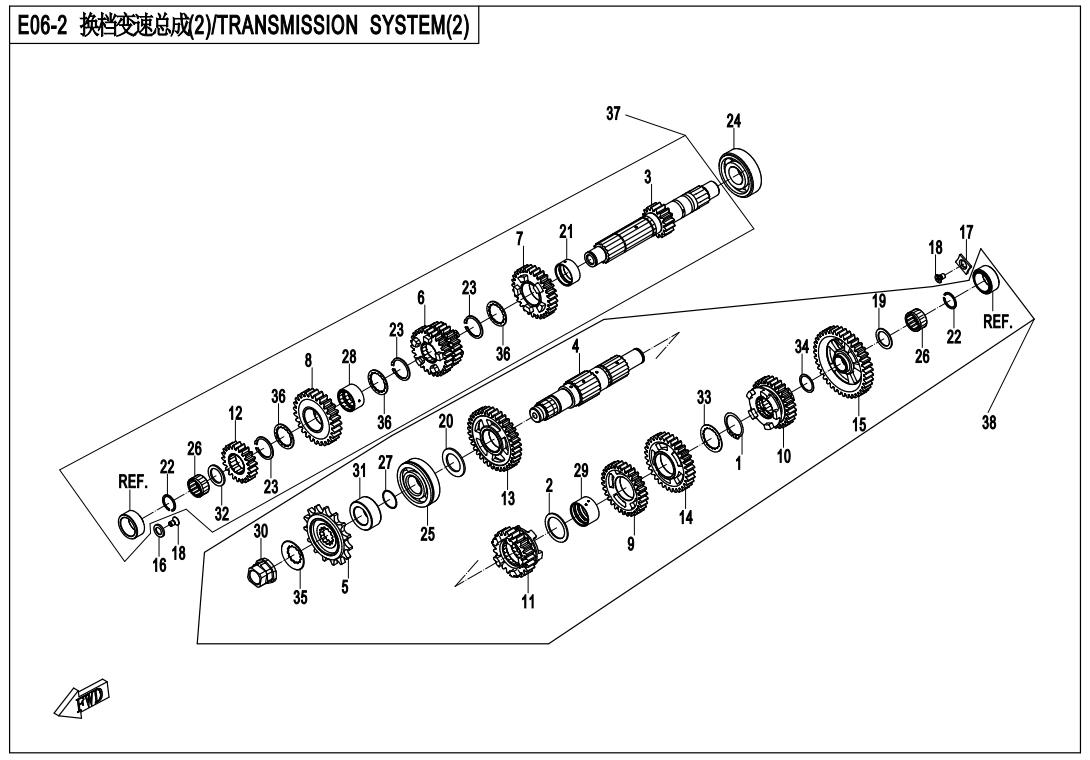

TRANSMISSION SYSTEM (2)

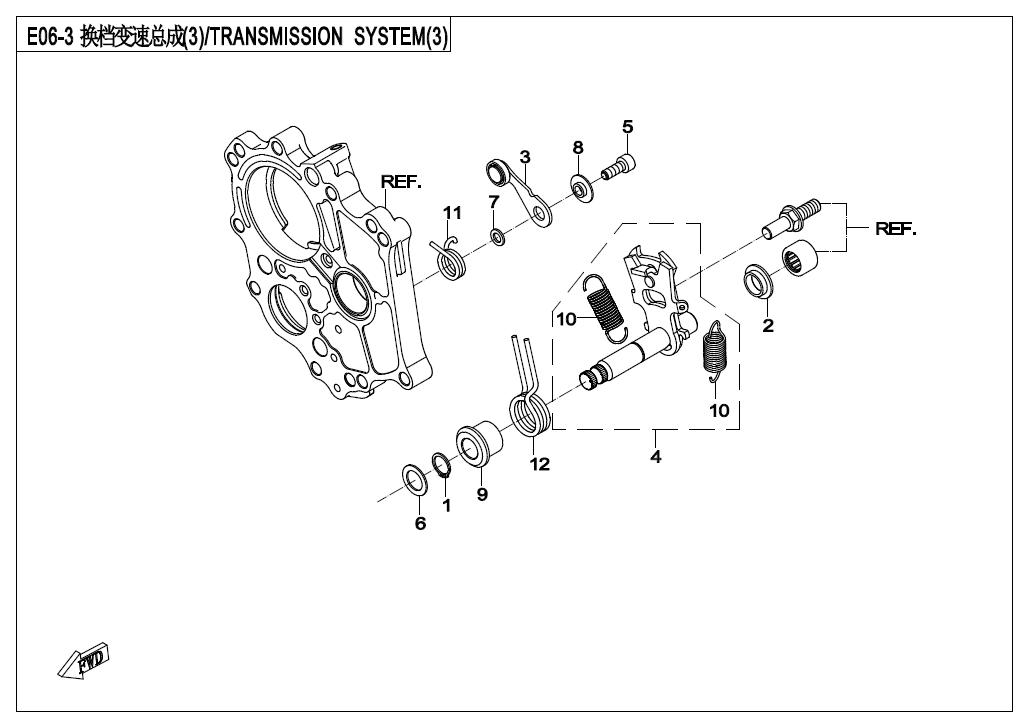

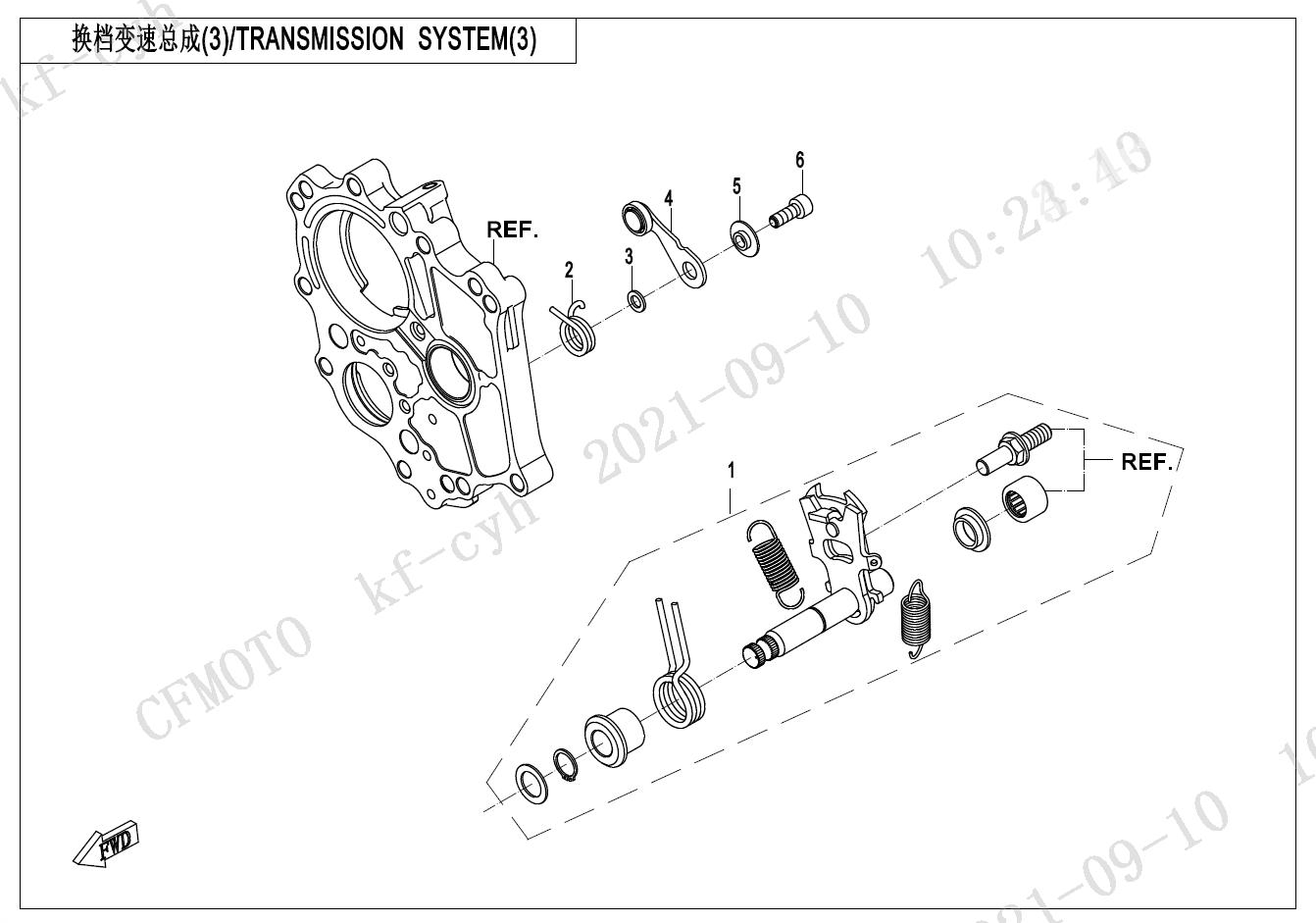

E06-3
TRANSMISSION SYSTEM (3)
E06-3-V2
TRANSMISSION SYSTEM (3)
E07

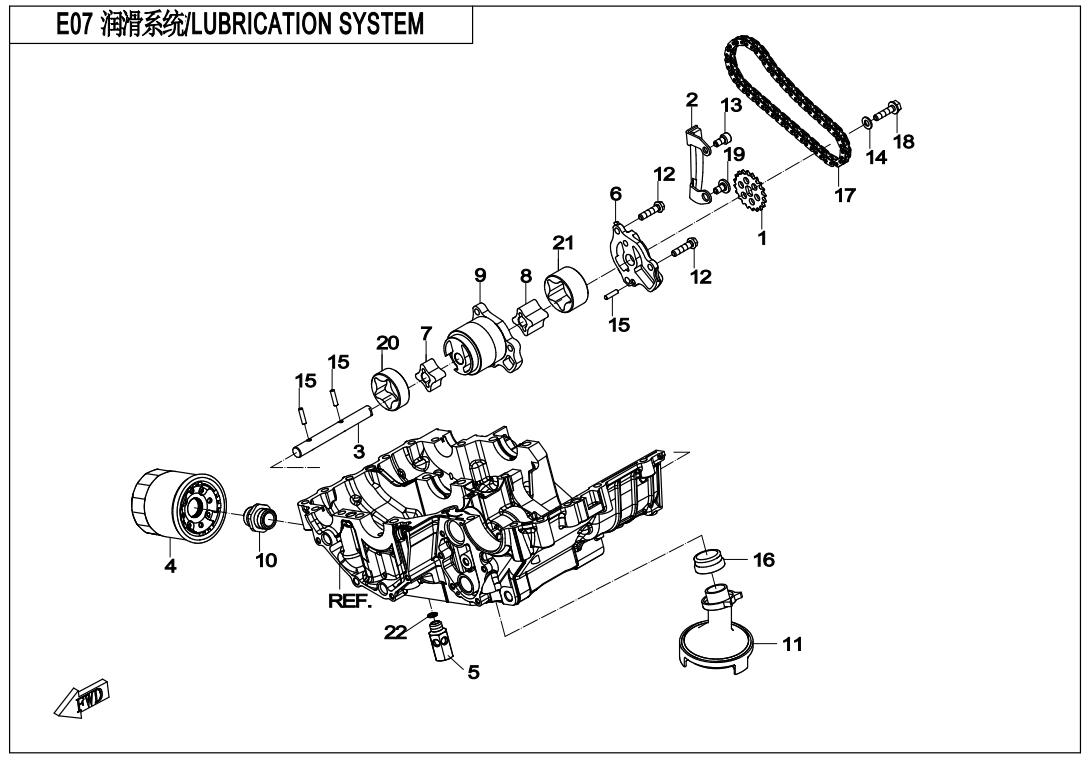

LUBRICATION SYSTEM
E08

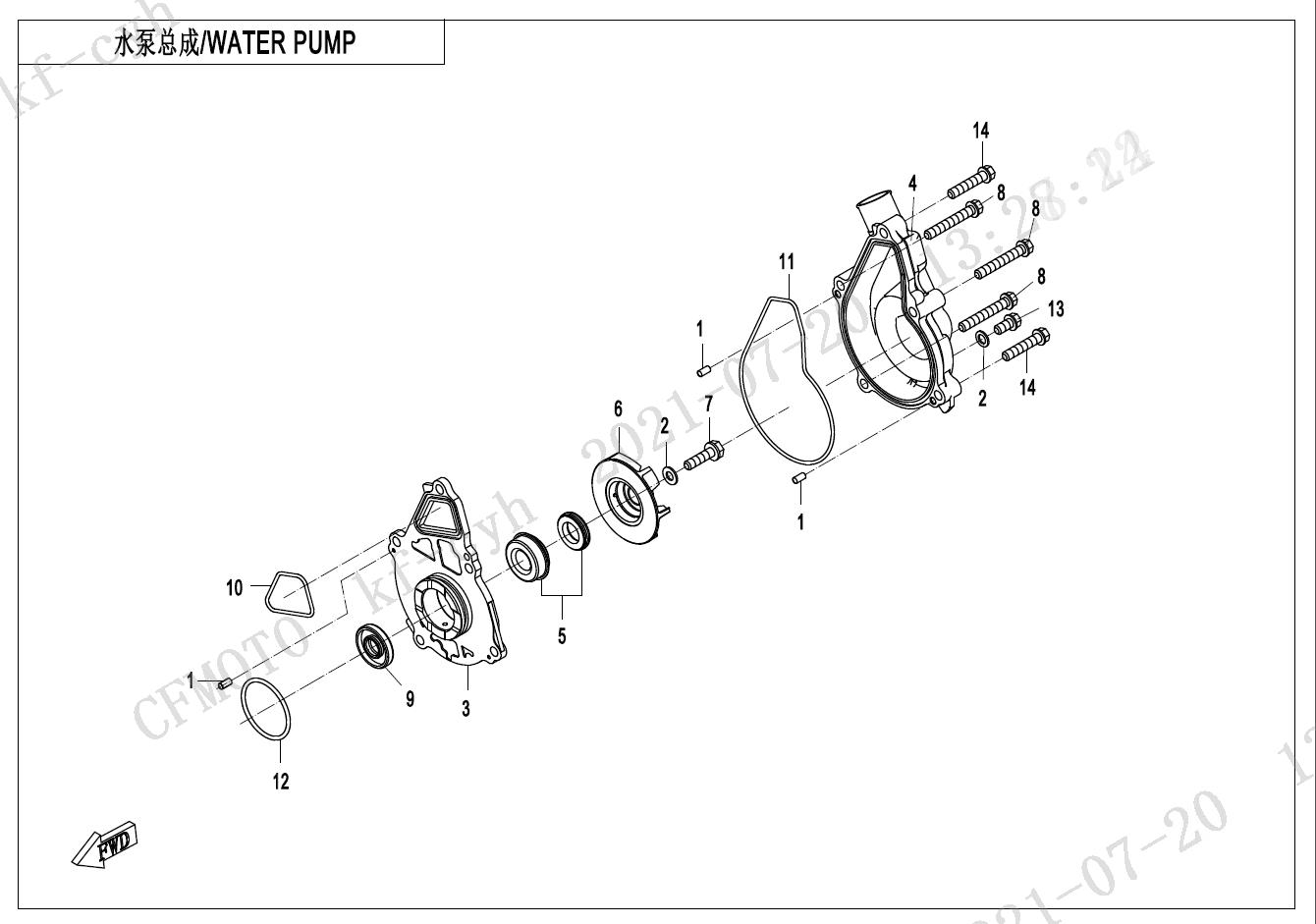

WATER PUMP

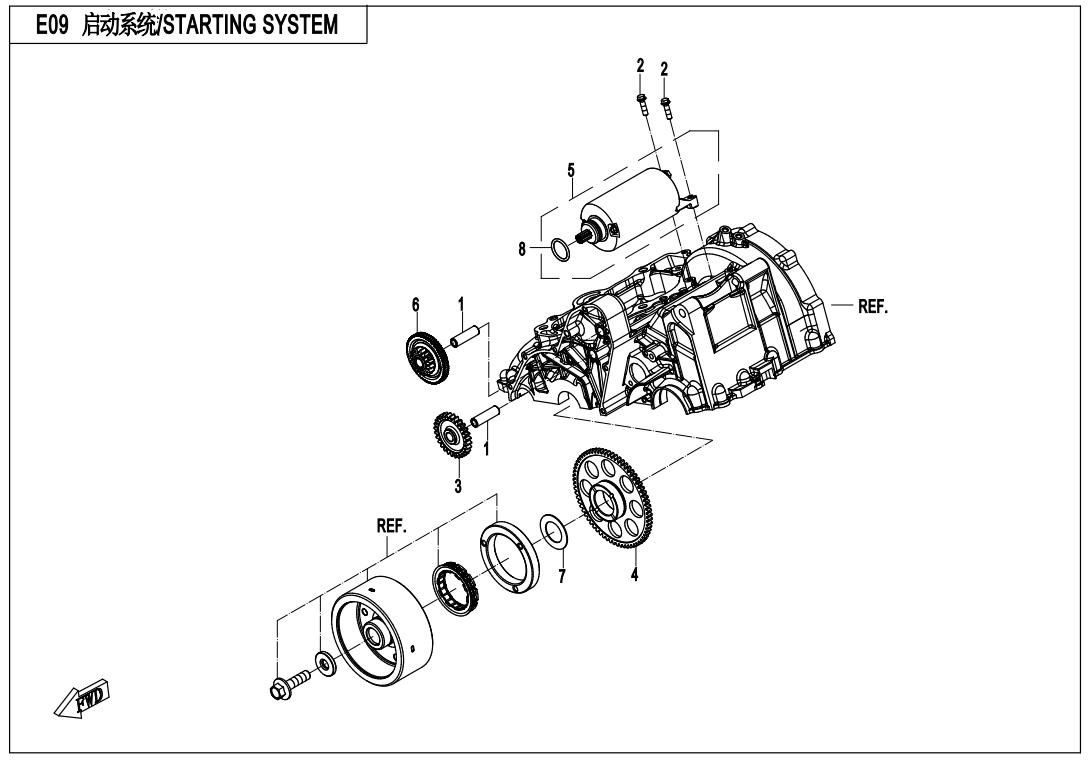

E09
STARTING SYSTEM

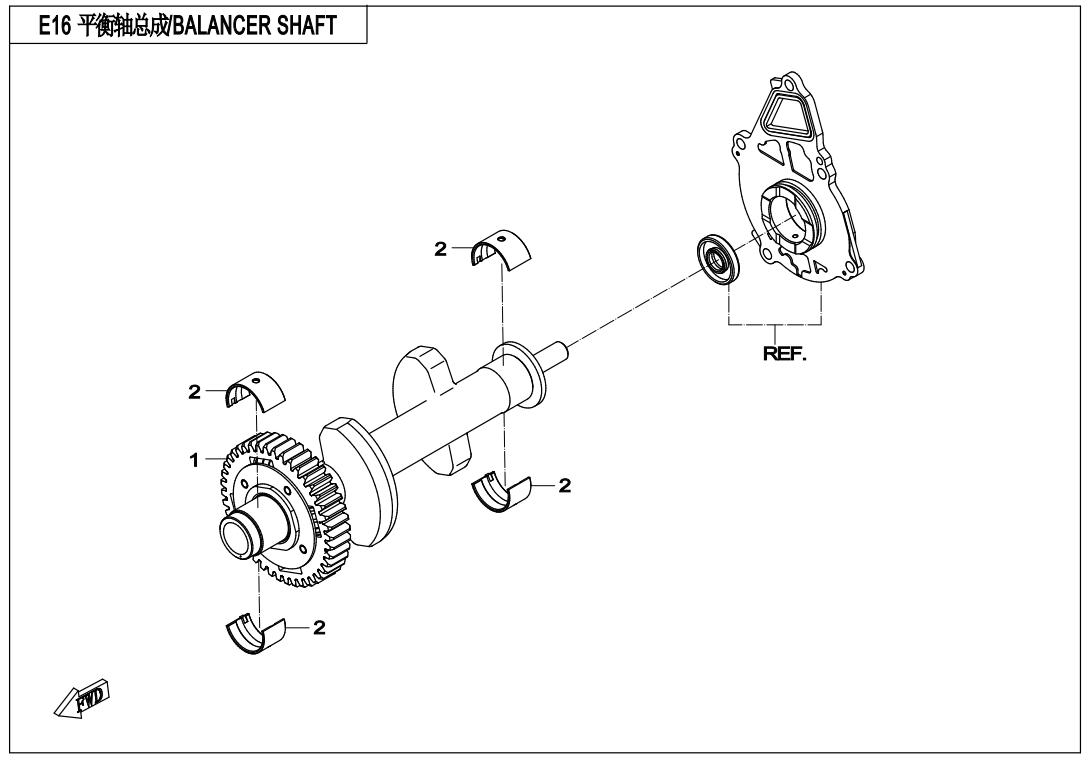

E16
BALANCER SHAFT
E17

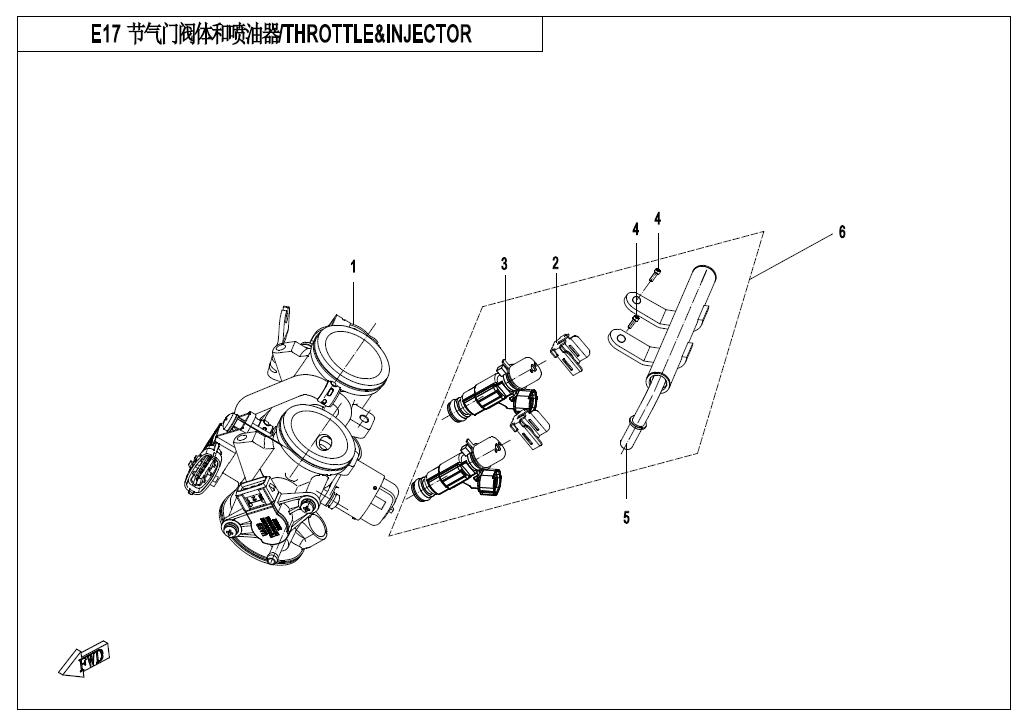

THROTTLE & INJECTOR
E18

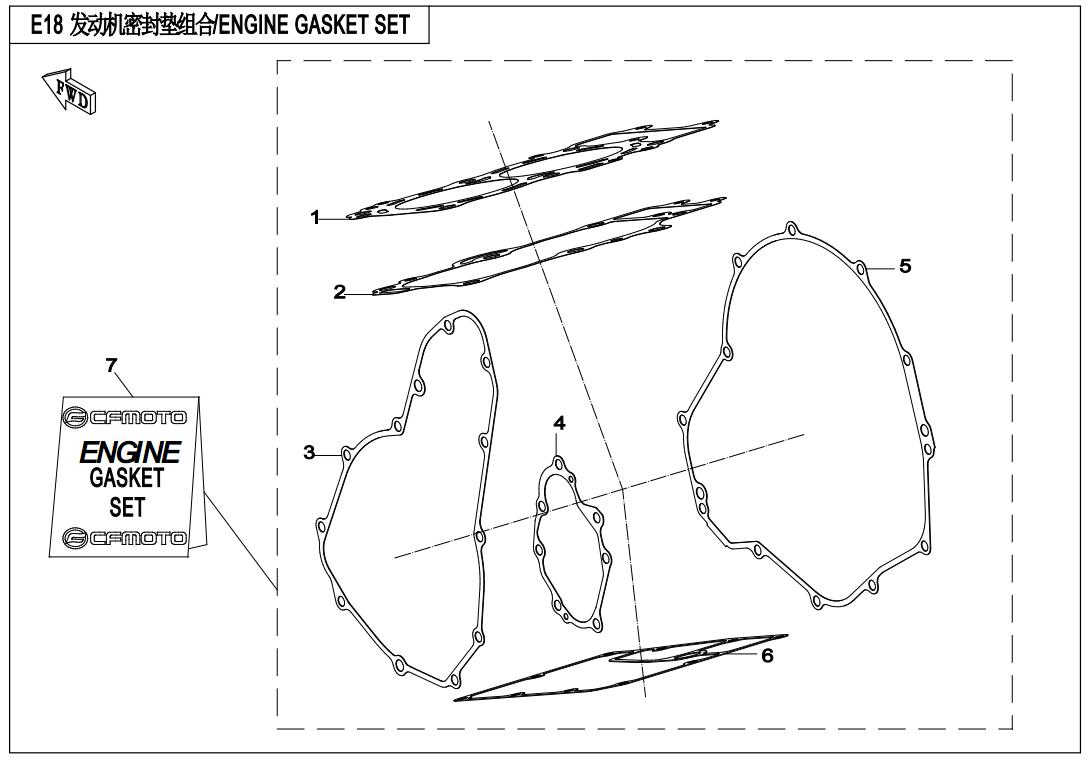

ENGINE GASKET SET
F00

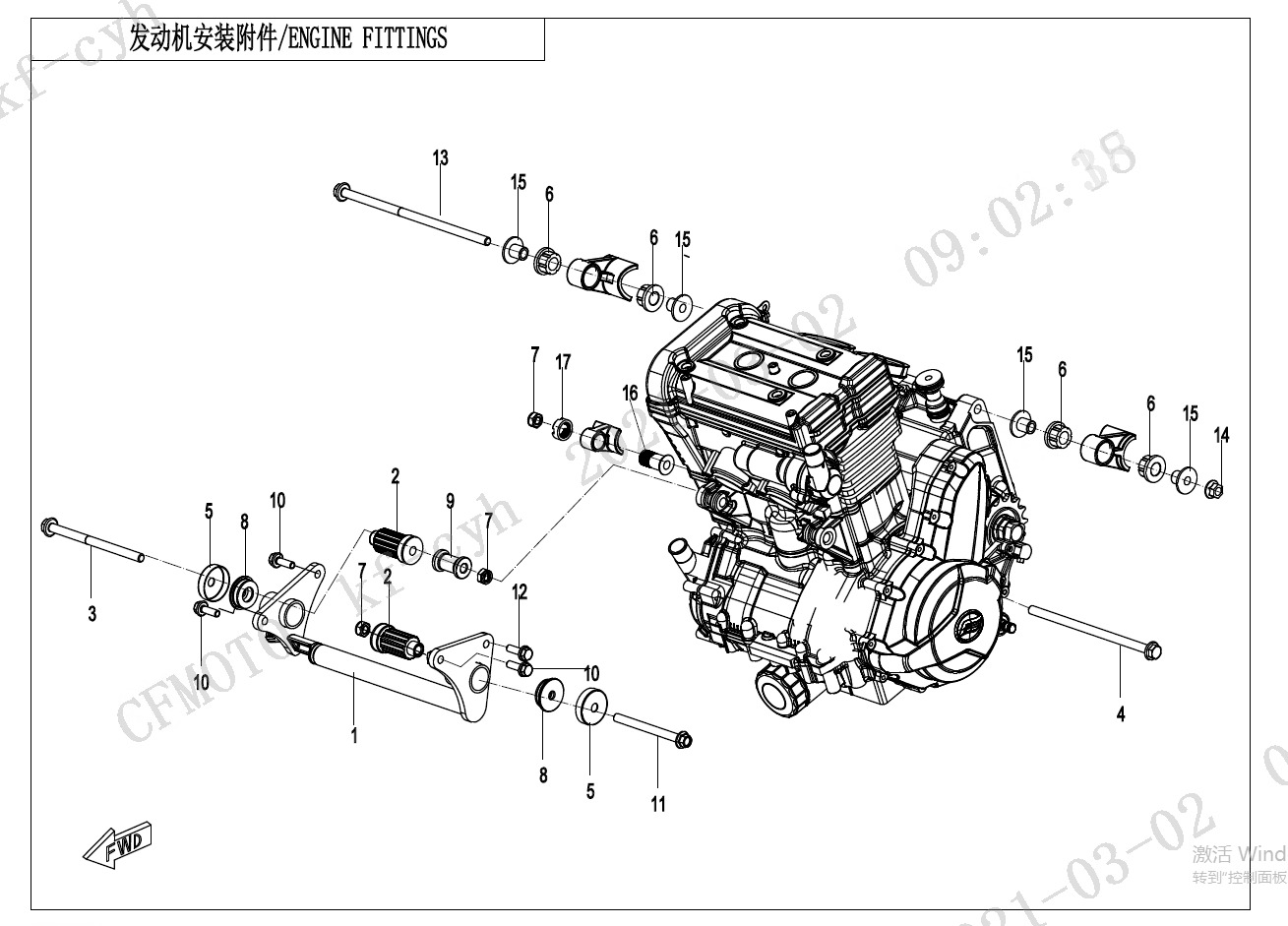

ENGINE FITTINGS
F01

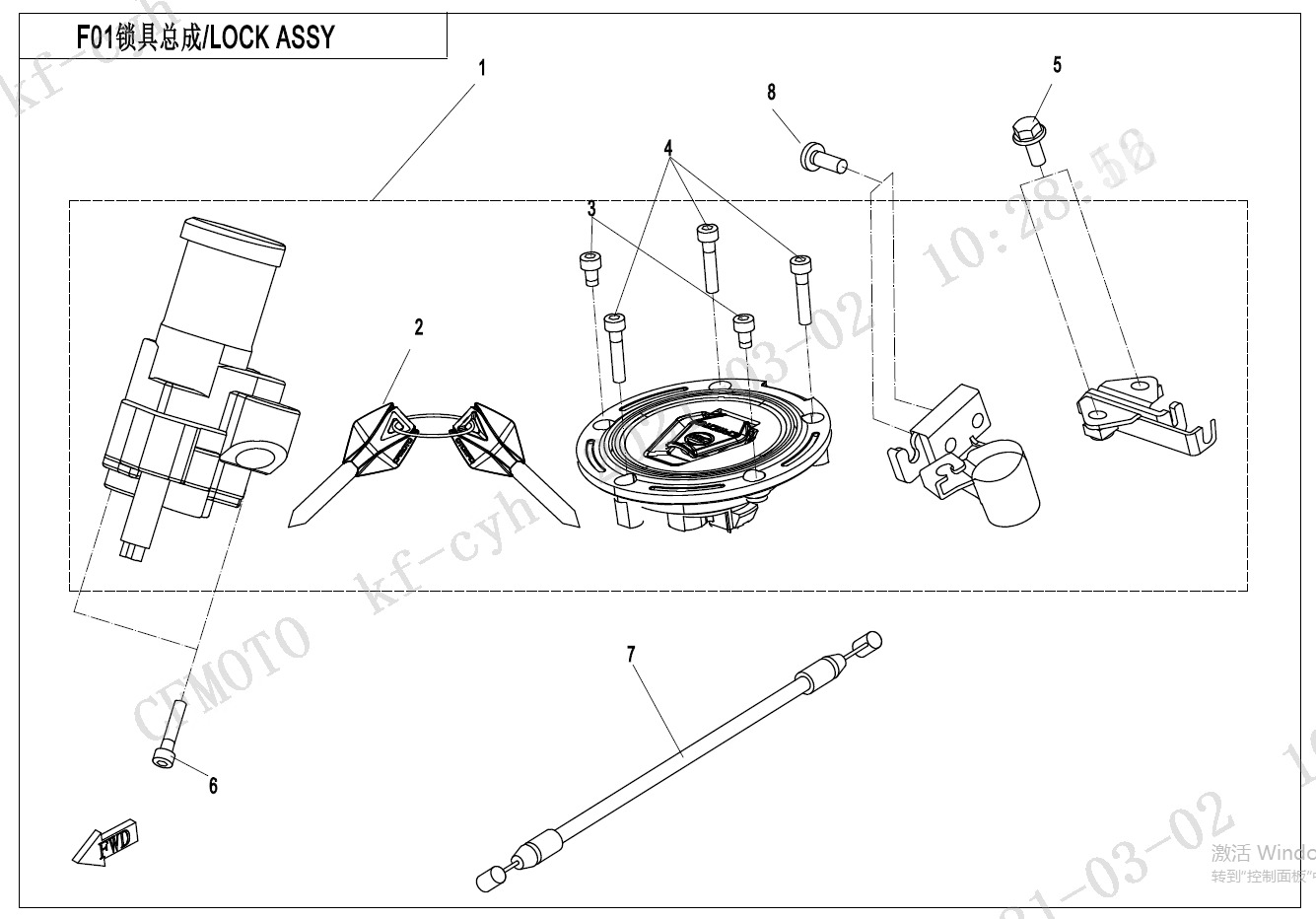

LOCK KIT
F02-A
MUFFLER
F03

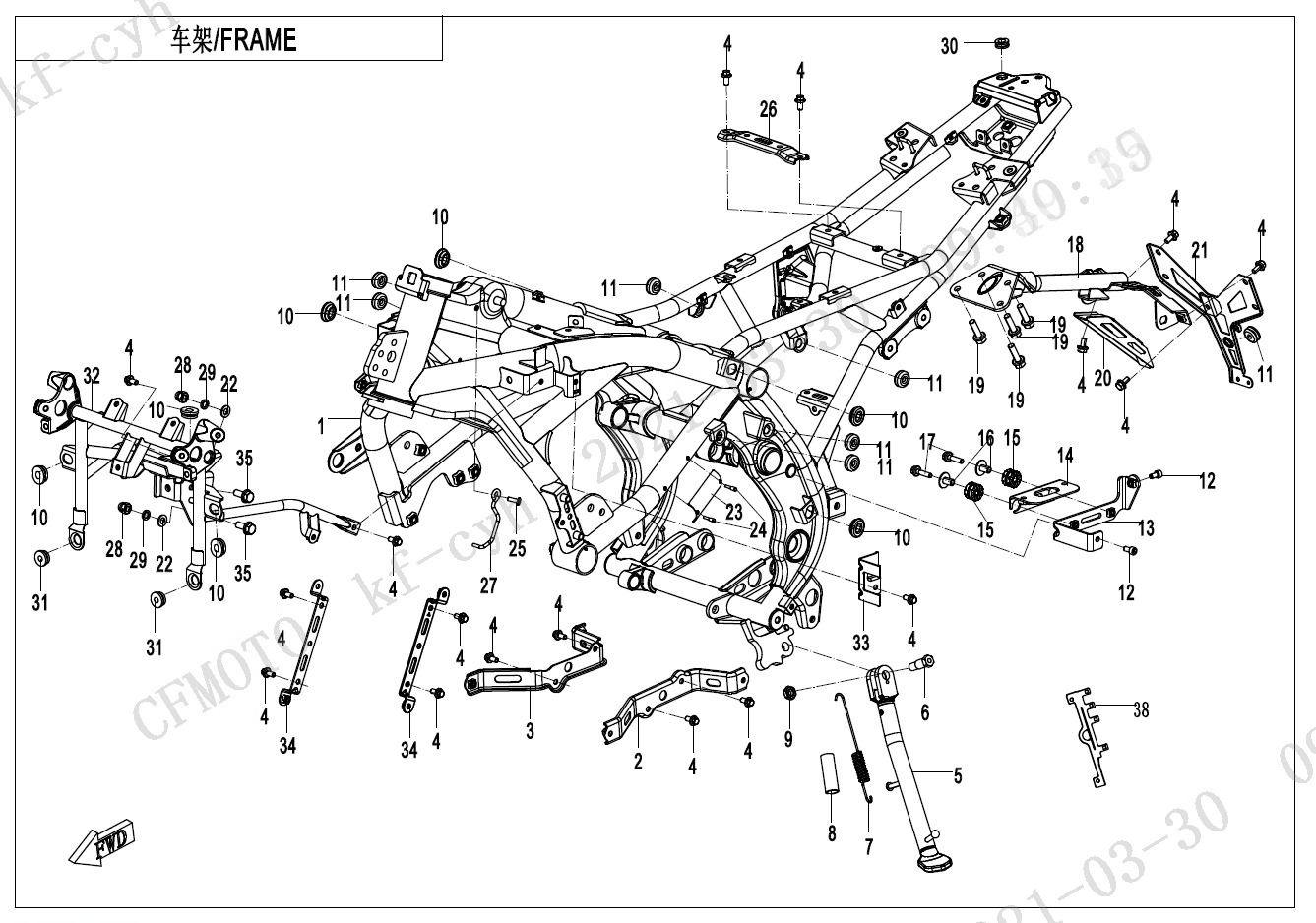

FRAME
F04-1

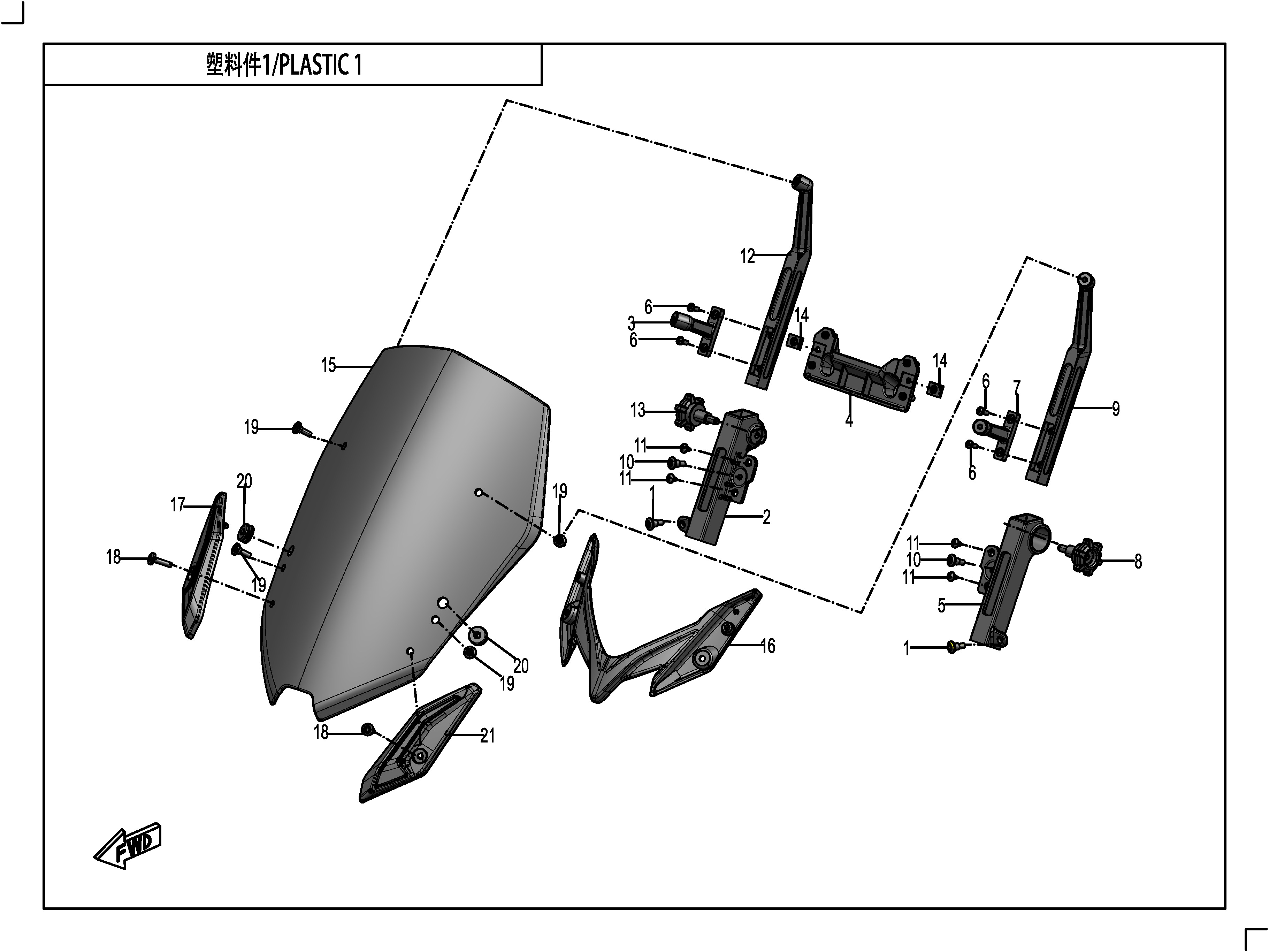

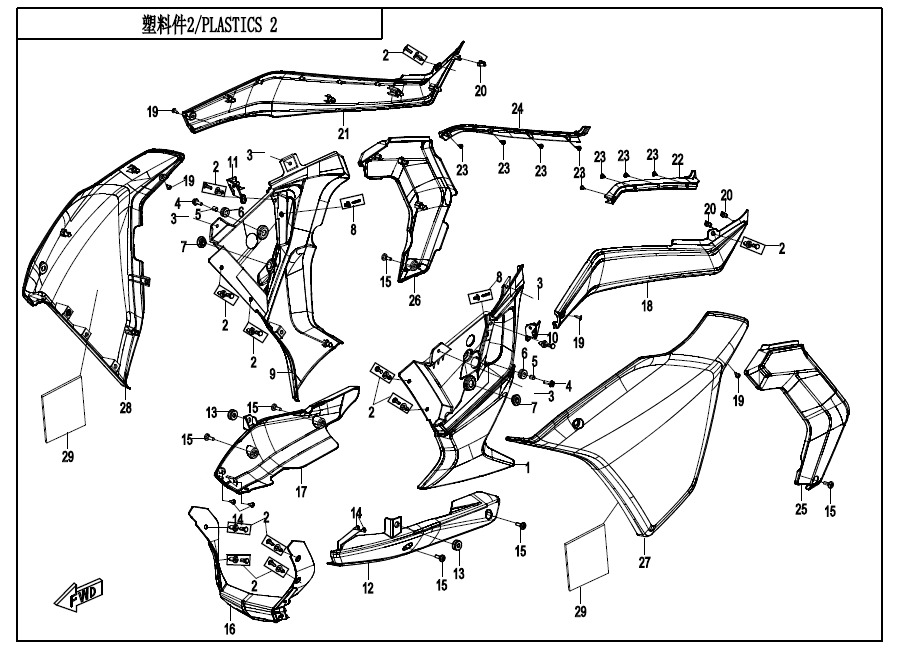

PLASTICS 1
F04-2
PLASTICS 2
F04-3

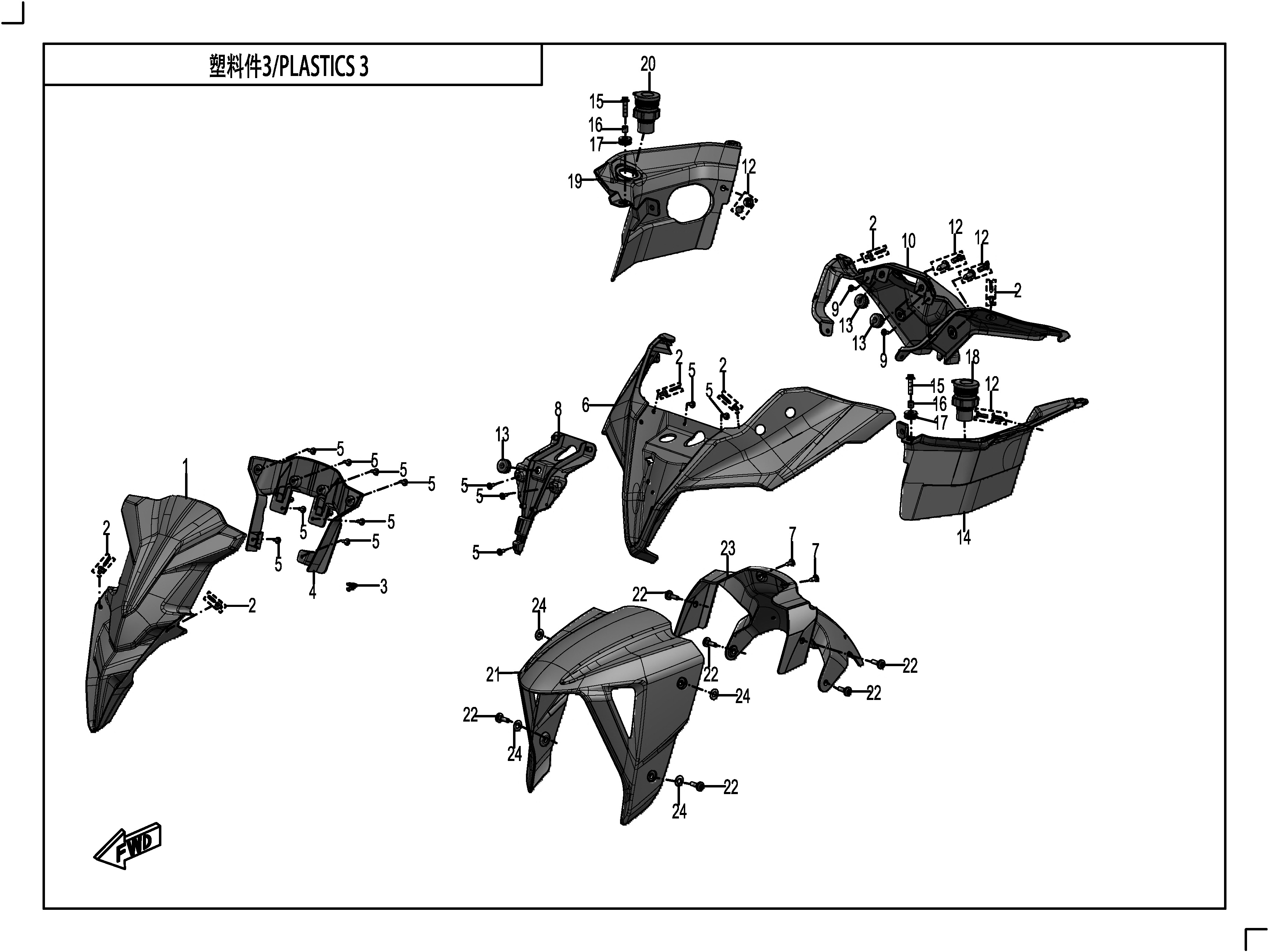

PLASTICS 3
F04-4

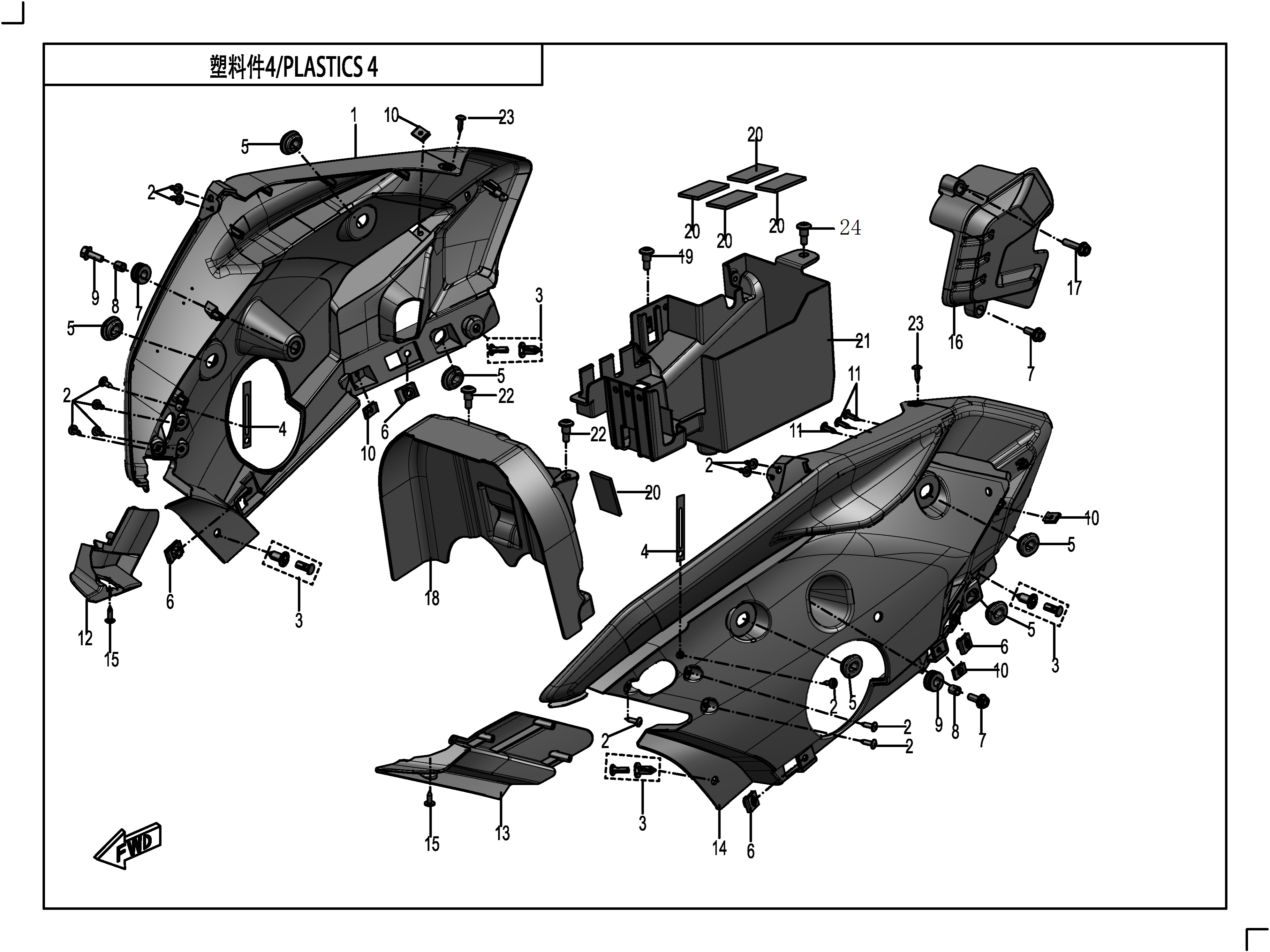

PLASTICS 4
F04-5

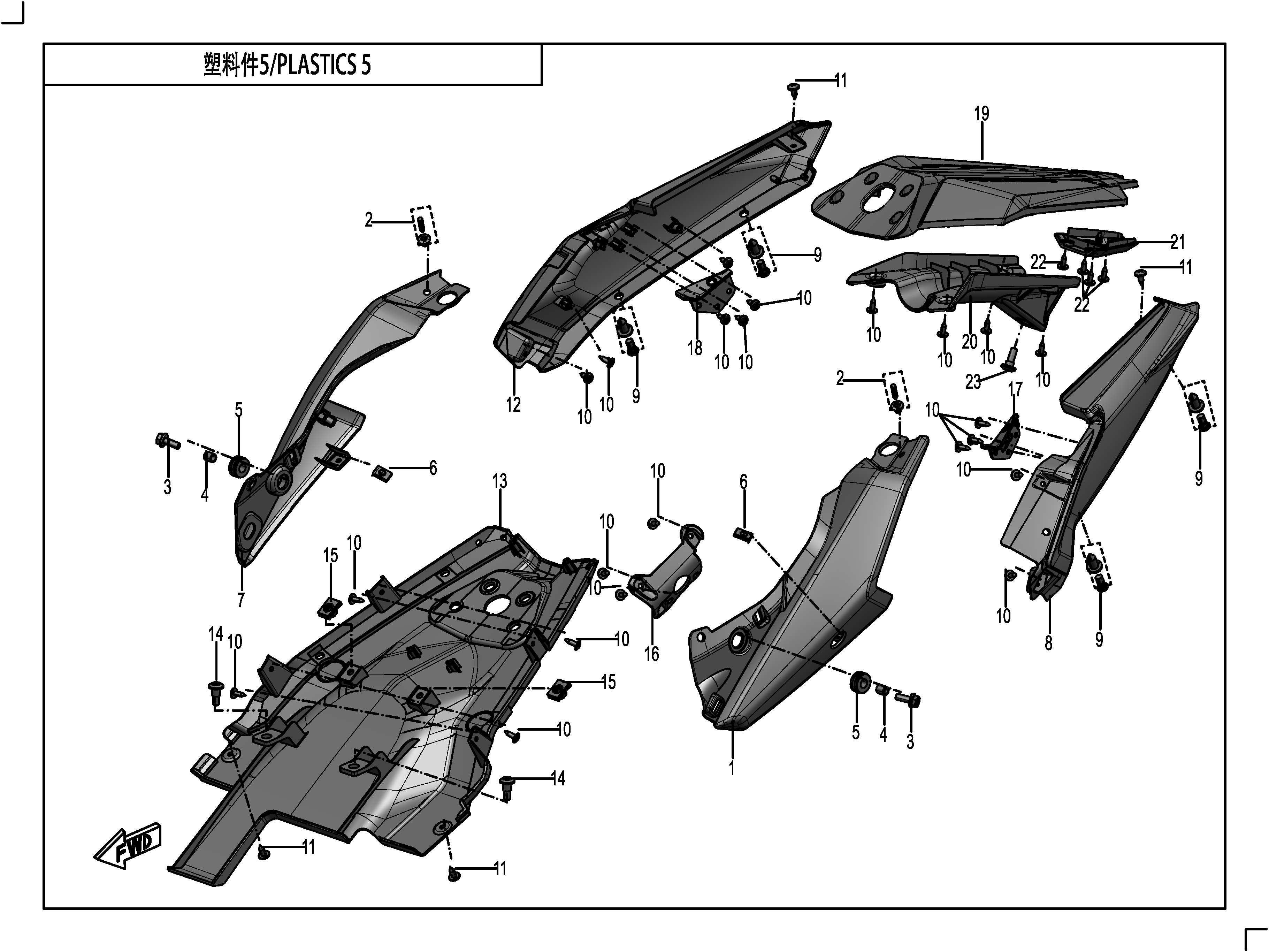

PLASTICS 5
F05

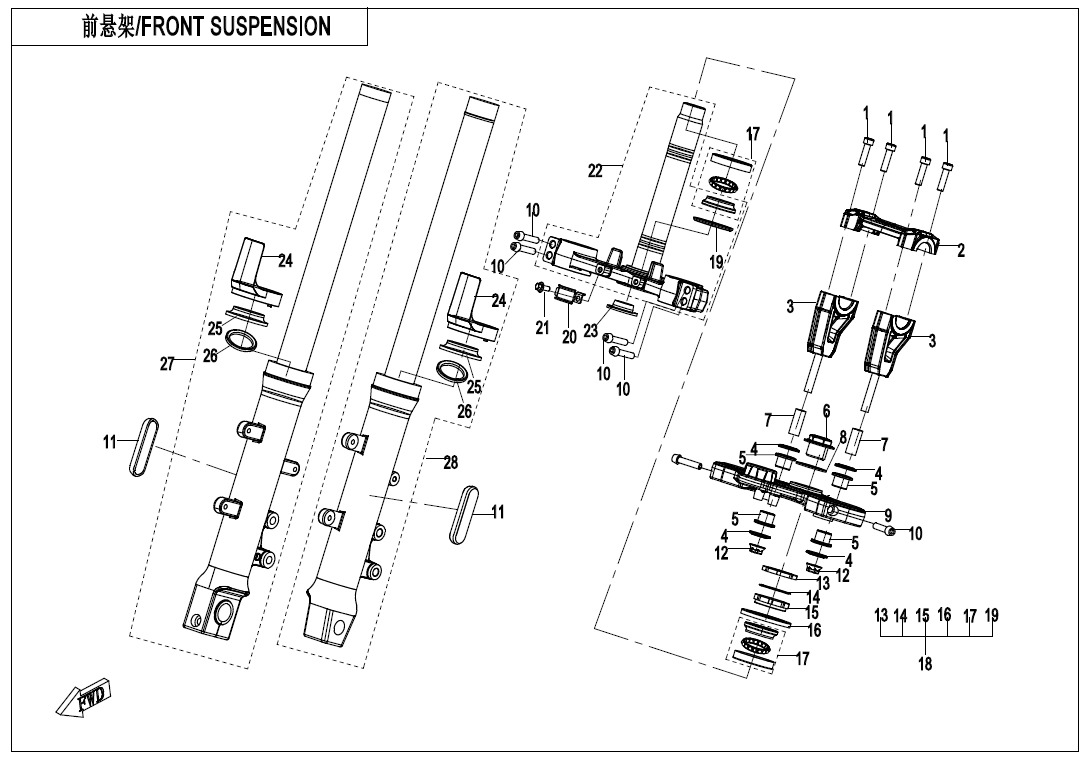

FRONT SUSPENSION
F06

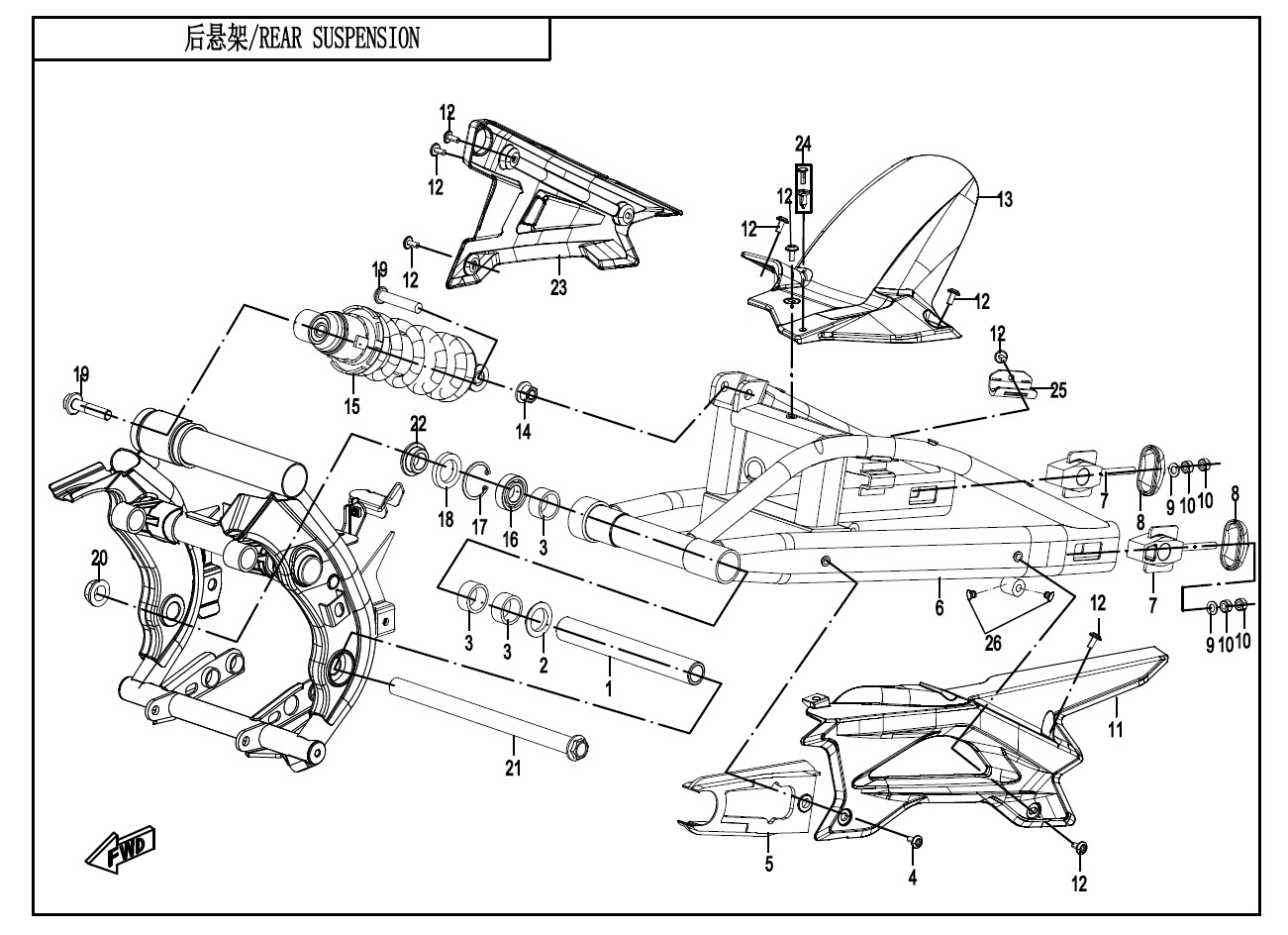

REAR SUSPENSION

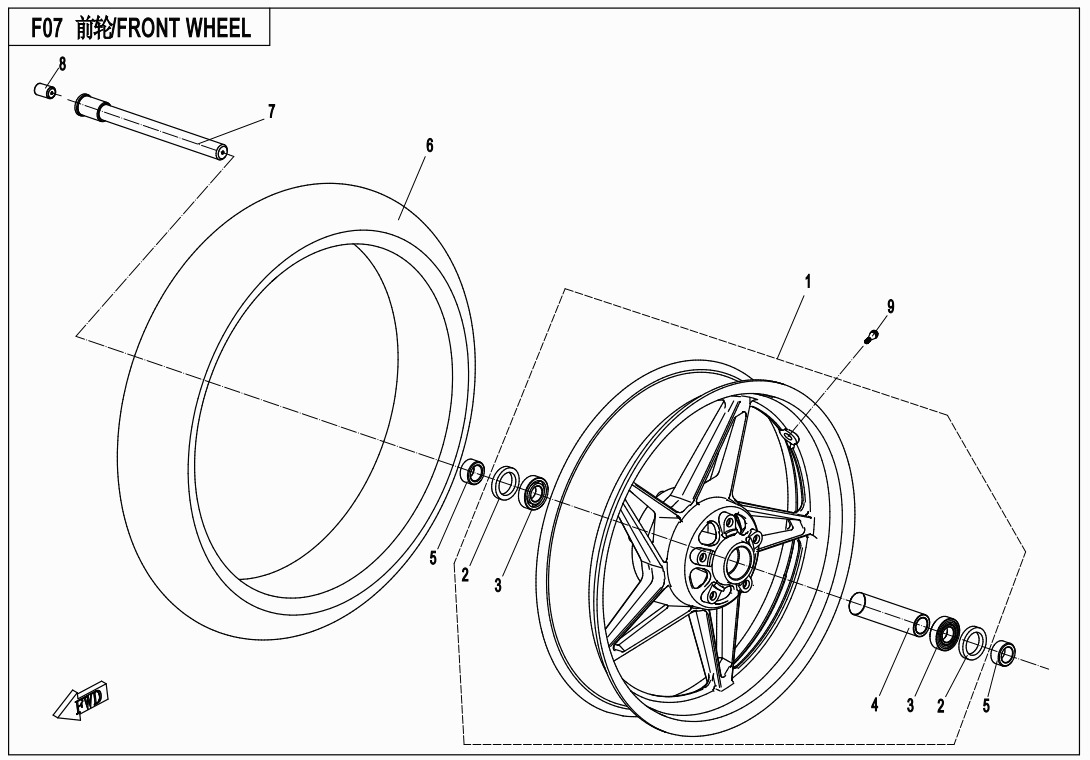

F07-A
FRONT WHEEL

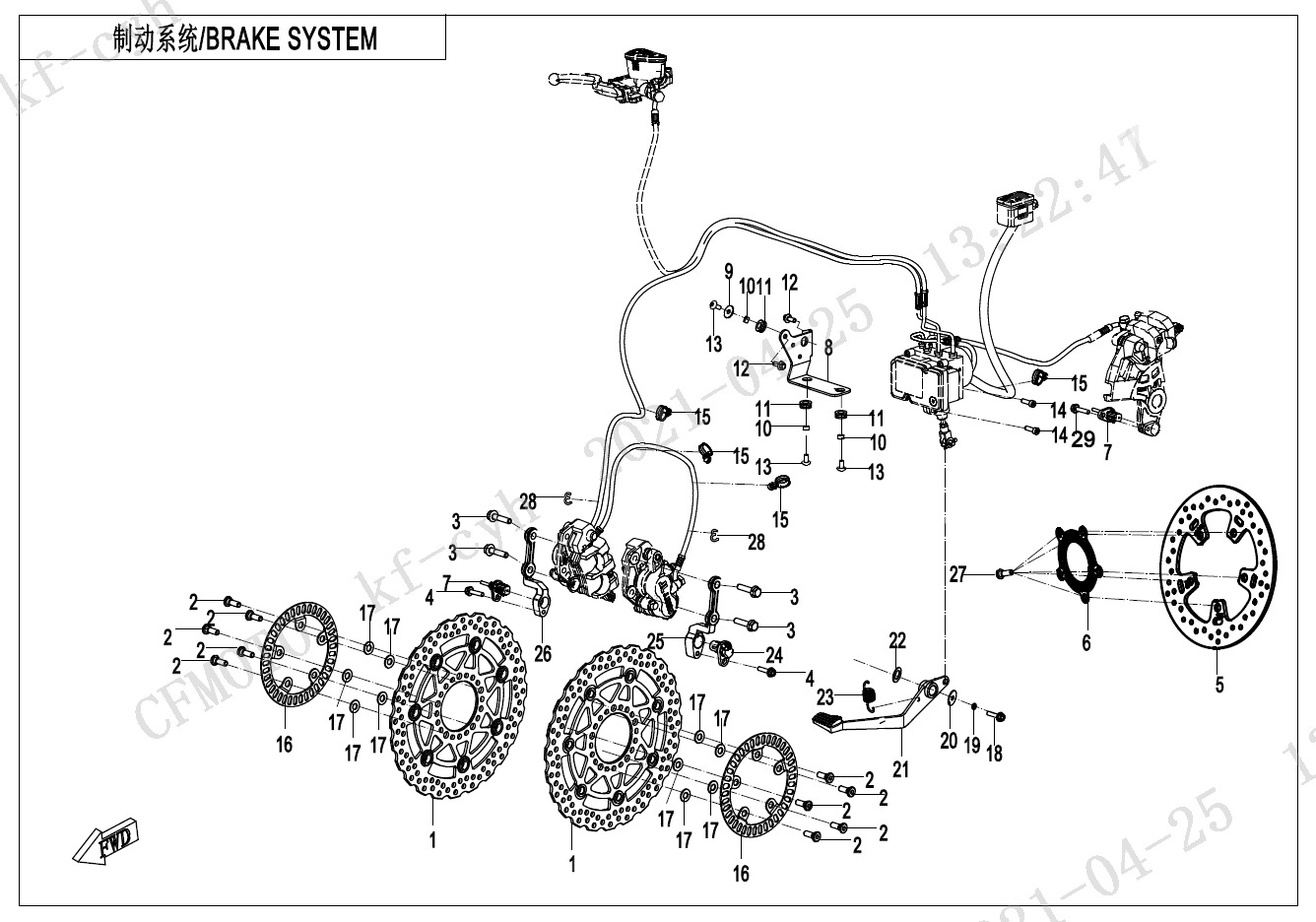

F08-1

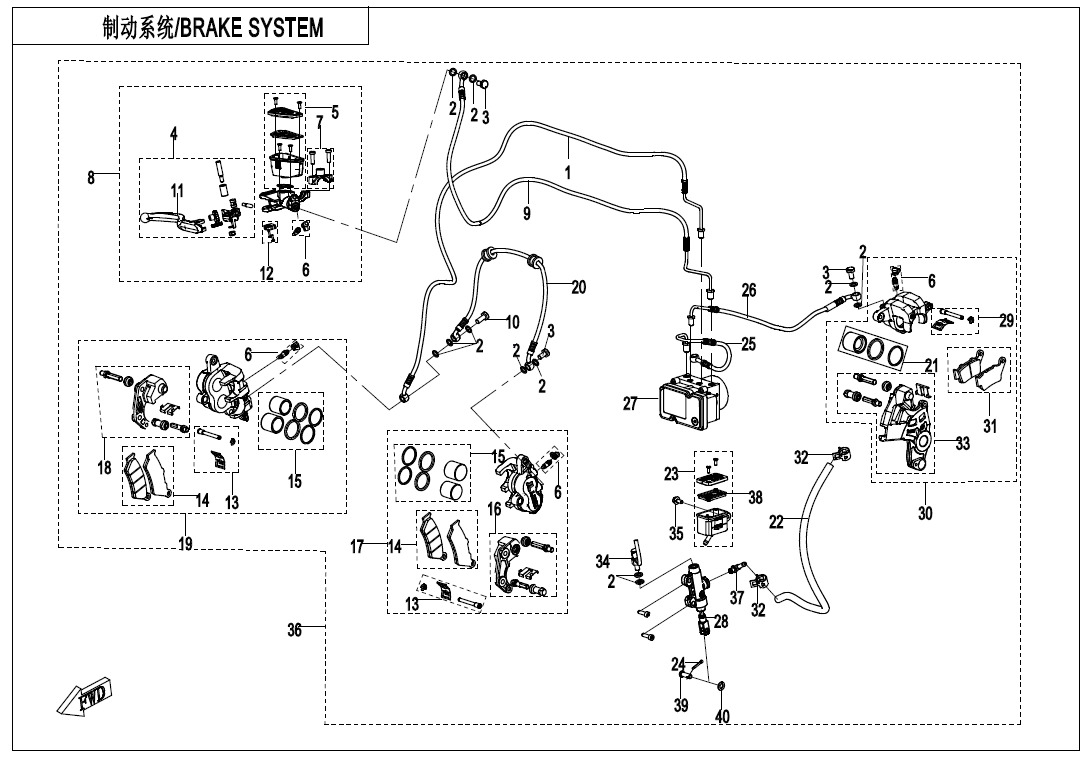

BRAKE SYSTEM
F08-2
BRAKE SYSTEM

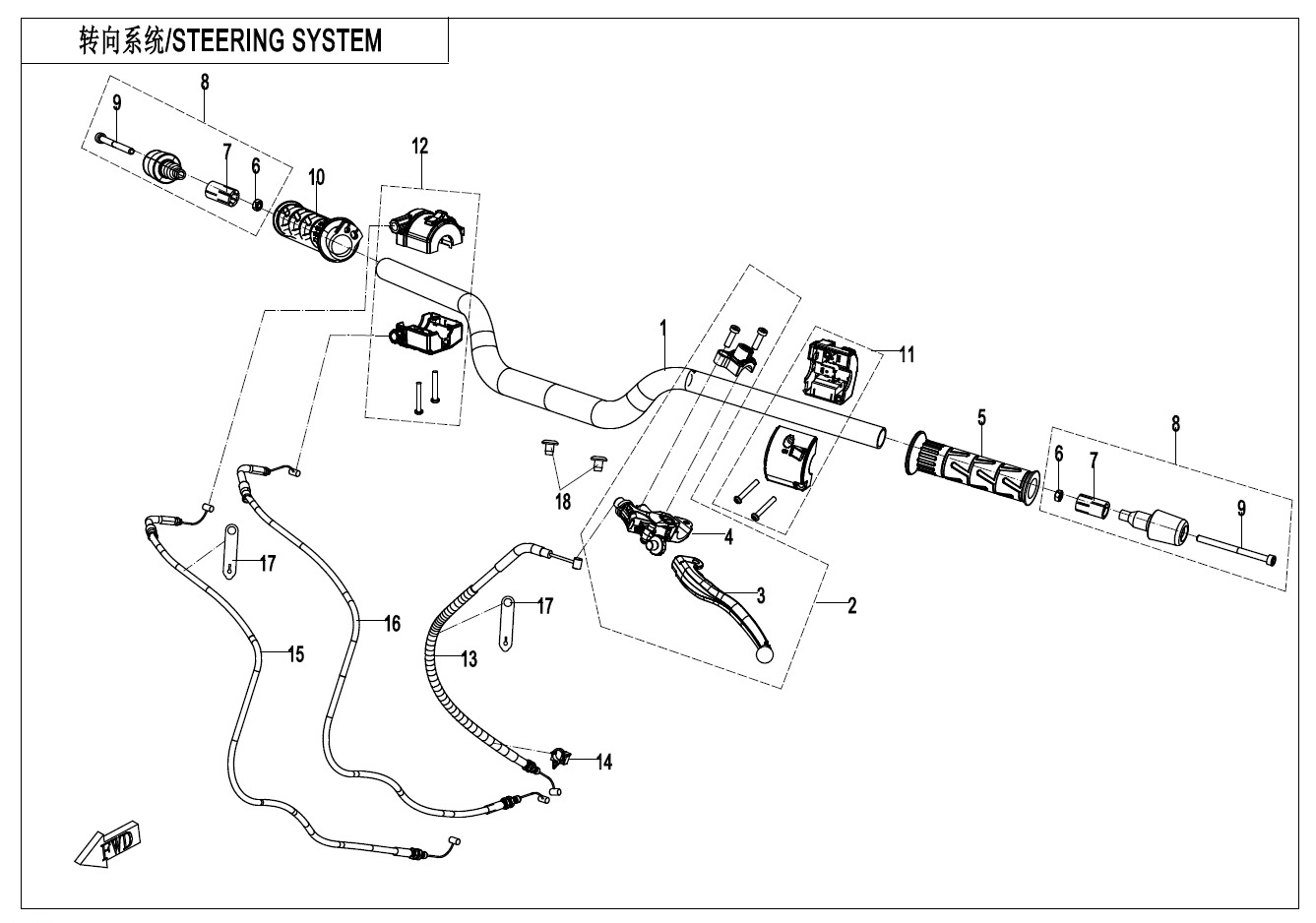

F10-B
STEERING SYSTEM
F11-A

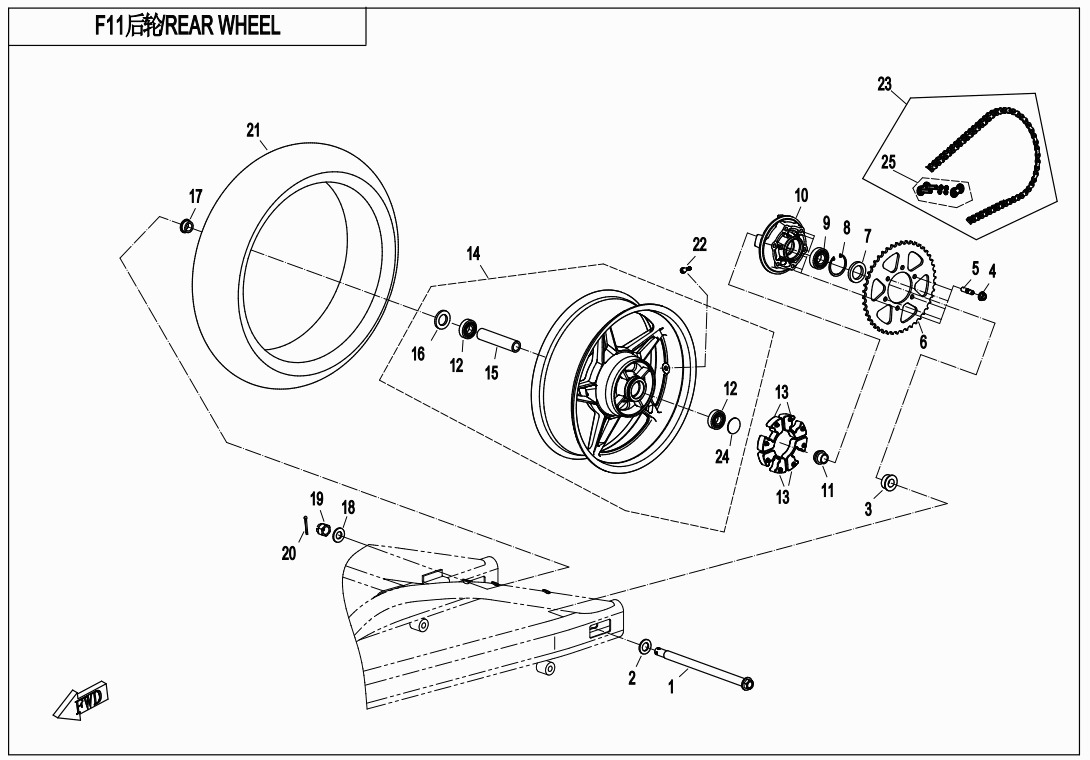

REAR WHEEL

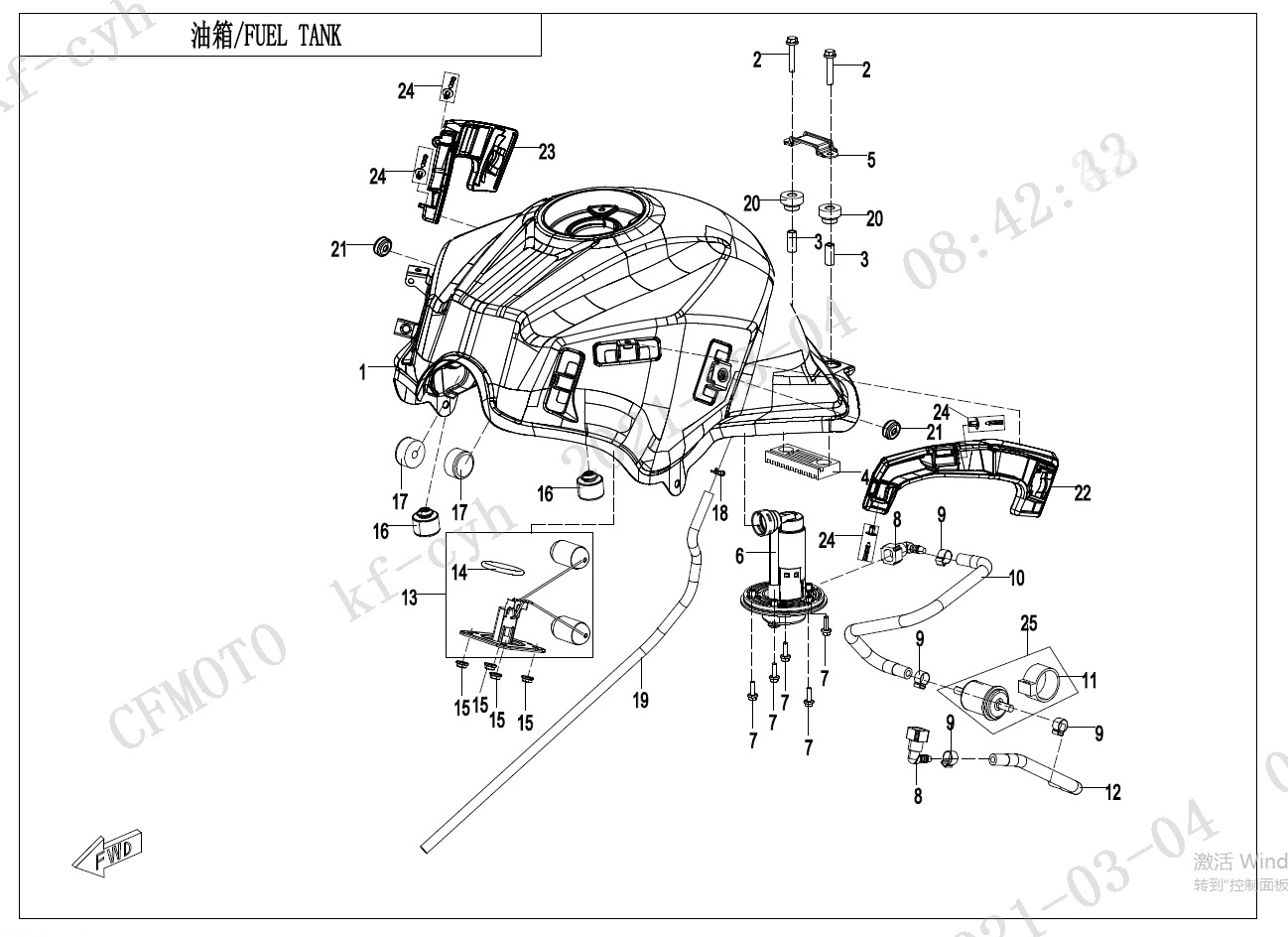

F12
FUEL TANK
F13
SEAT

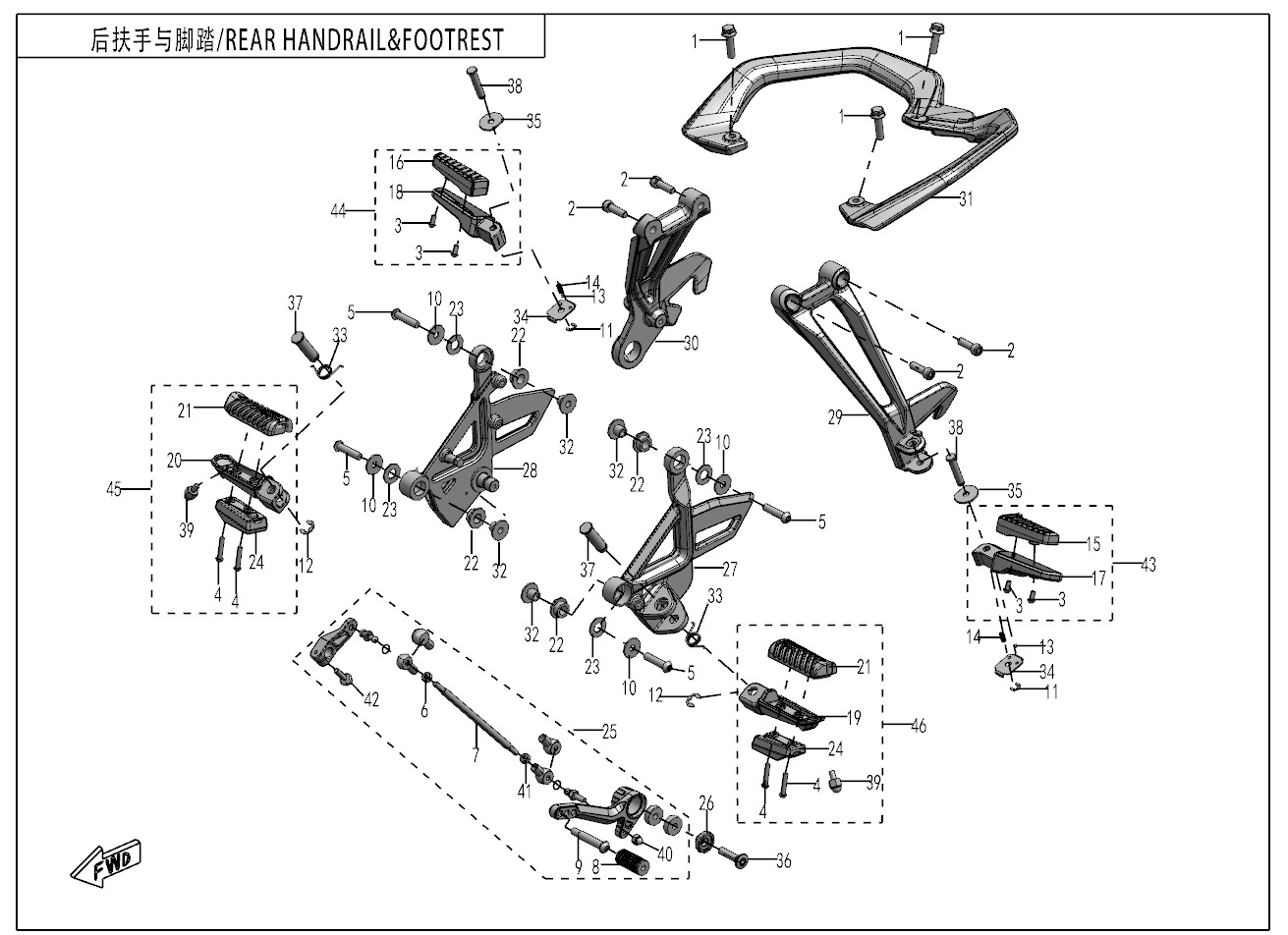

F14
REAR HANDRAIL@^FOOTREST
F15

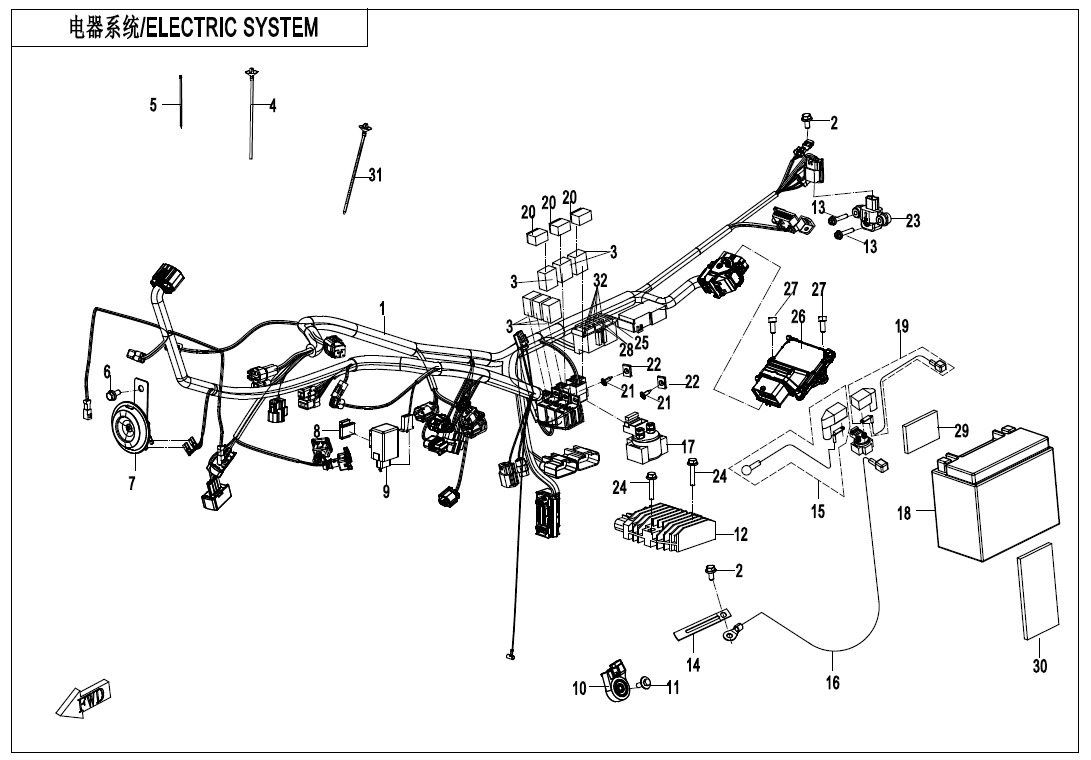

ELECTRIC SYSTEM
F16-V2

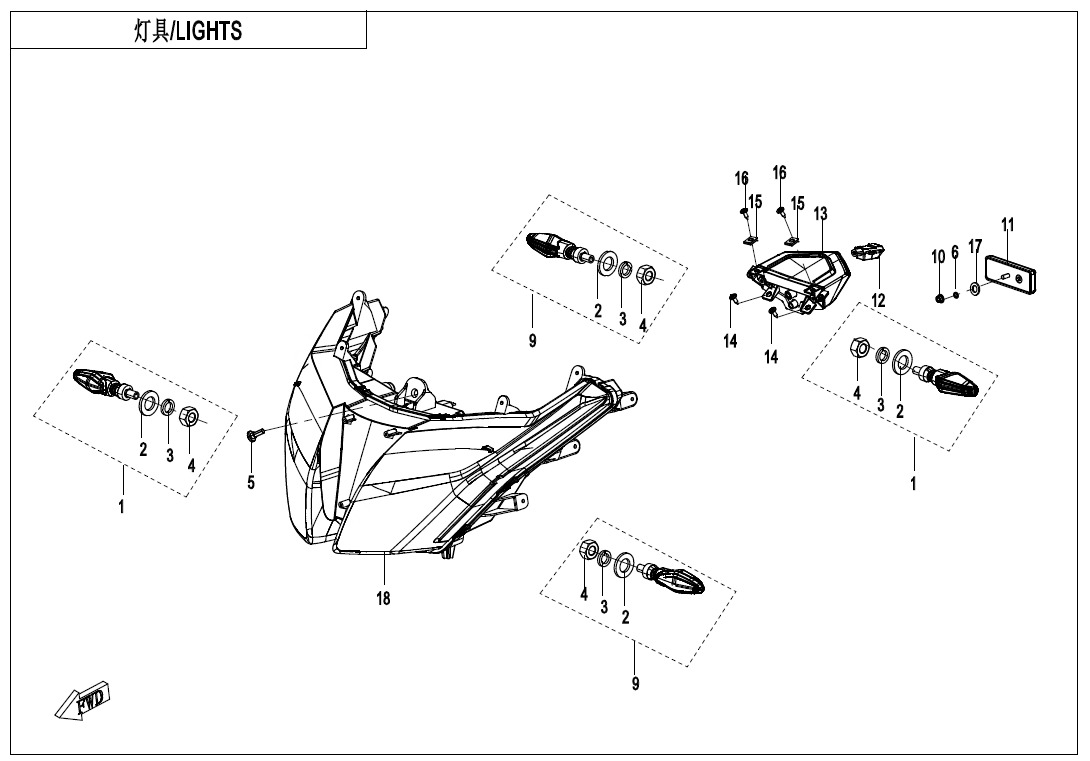

LIGHTS
F17

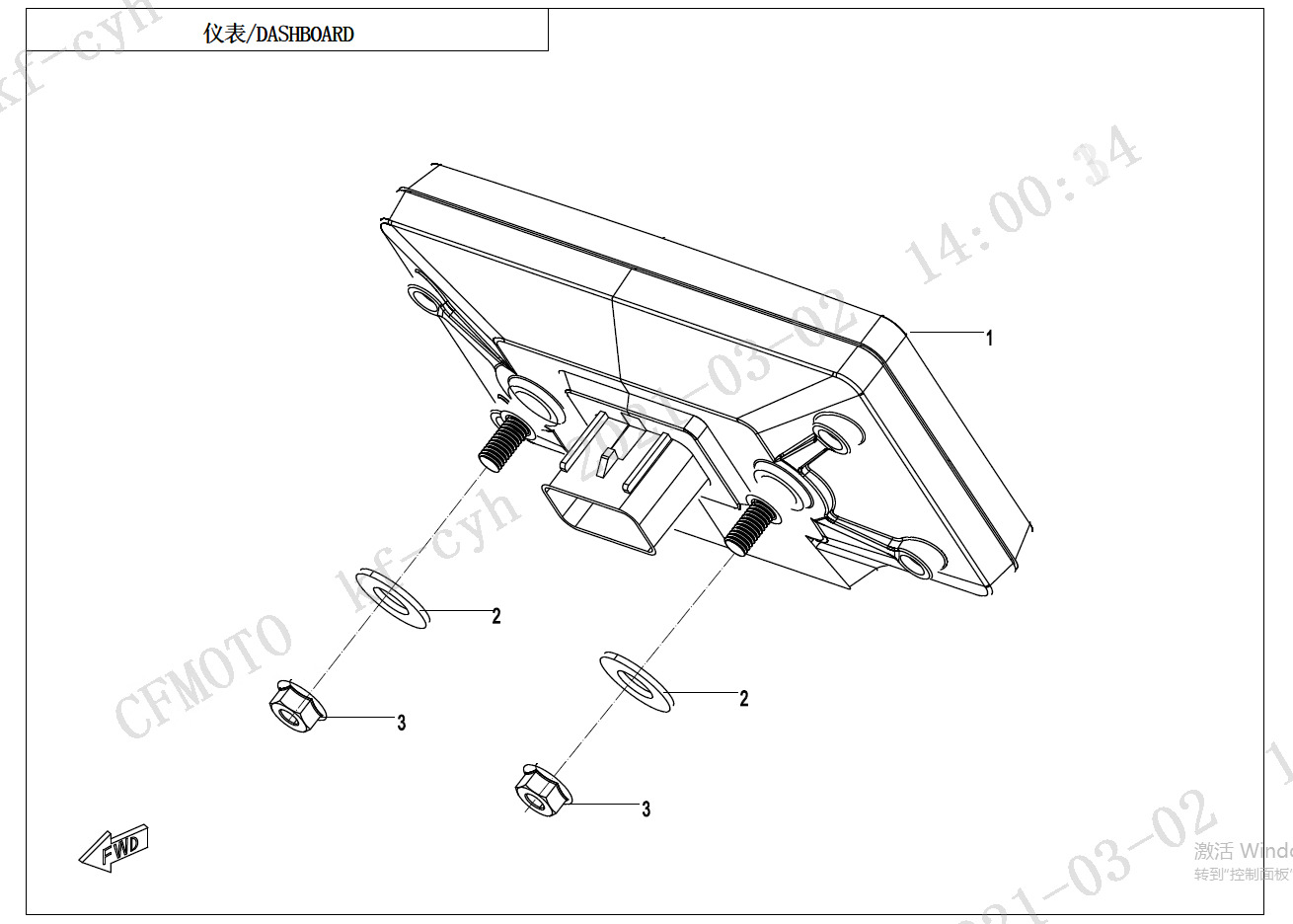

DASHBOARD

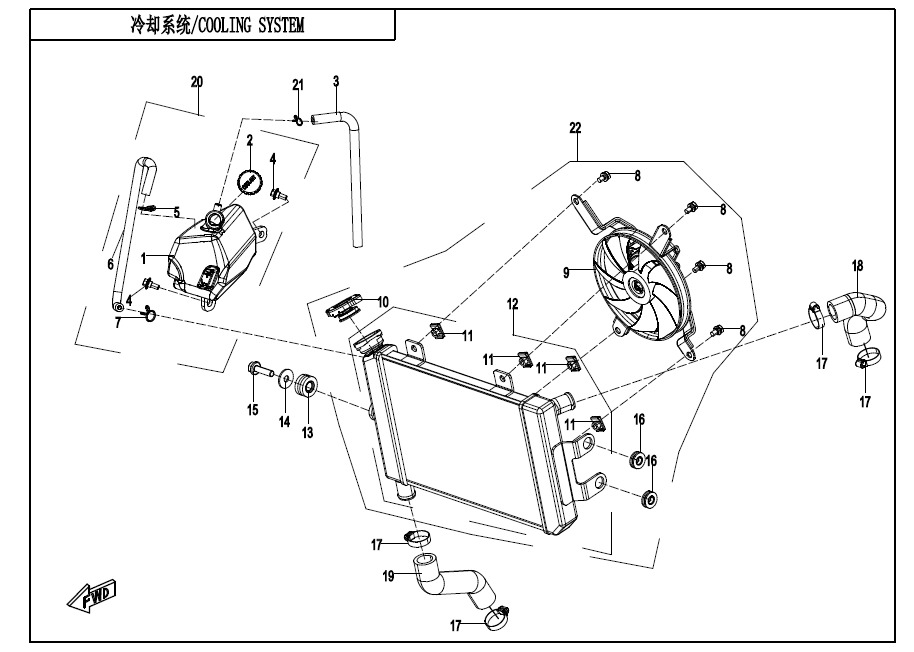

F18
COOLING SYSTEM
F19-1-V2

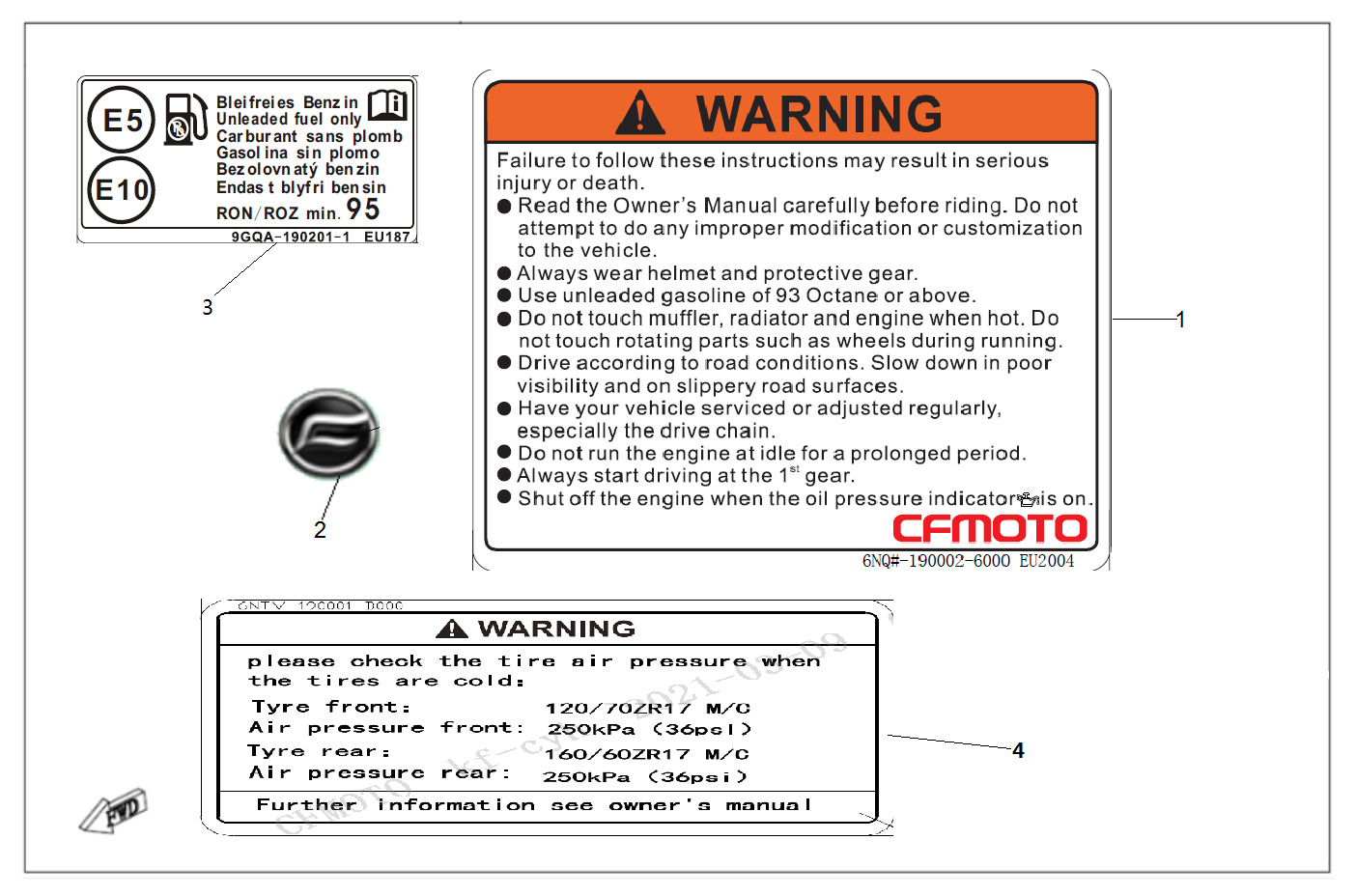

WARNING DECAL
F19-2-A

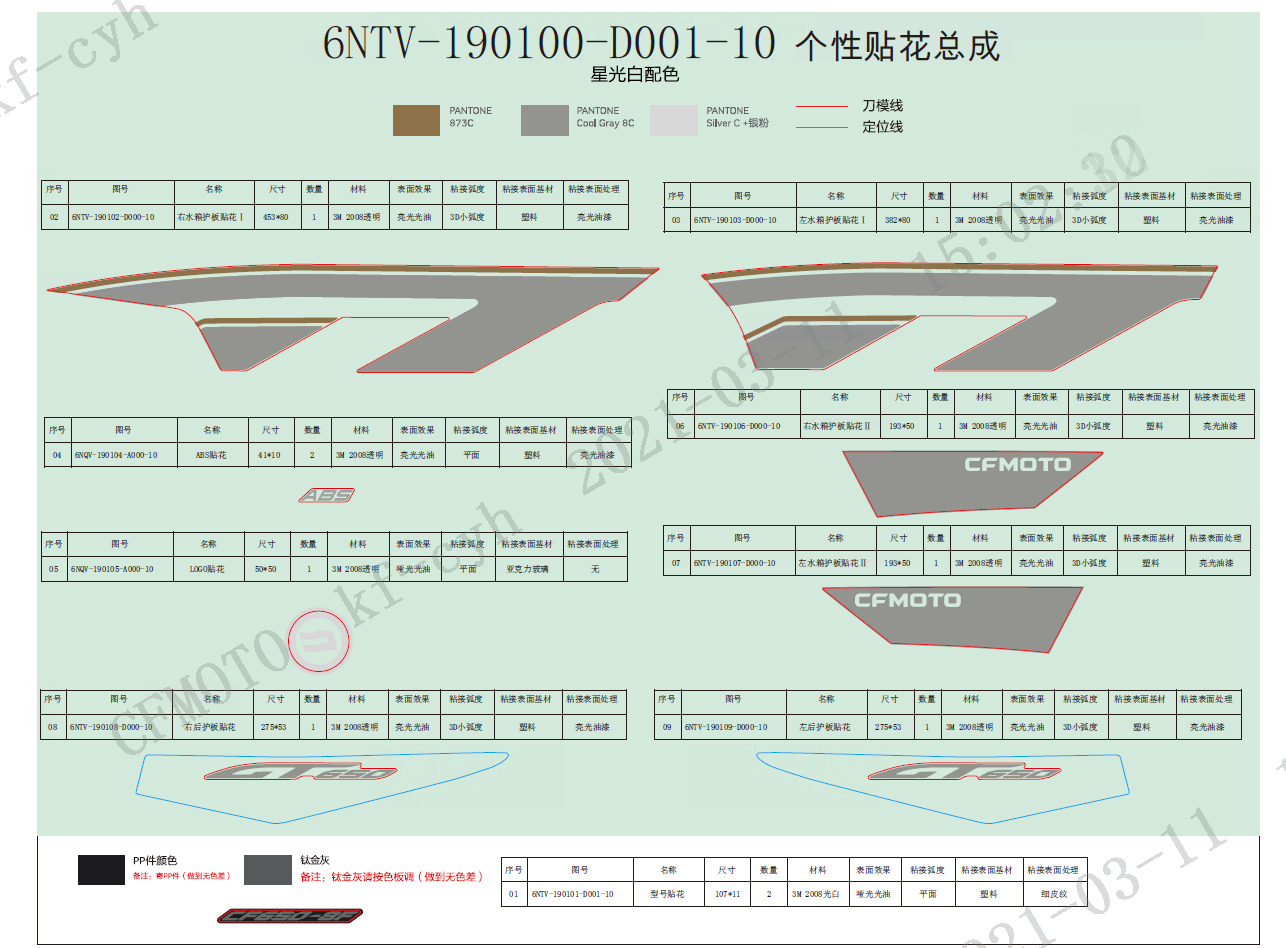

DECAL KITS(NEBULA WHITE )
F19-2-C

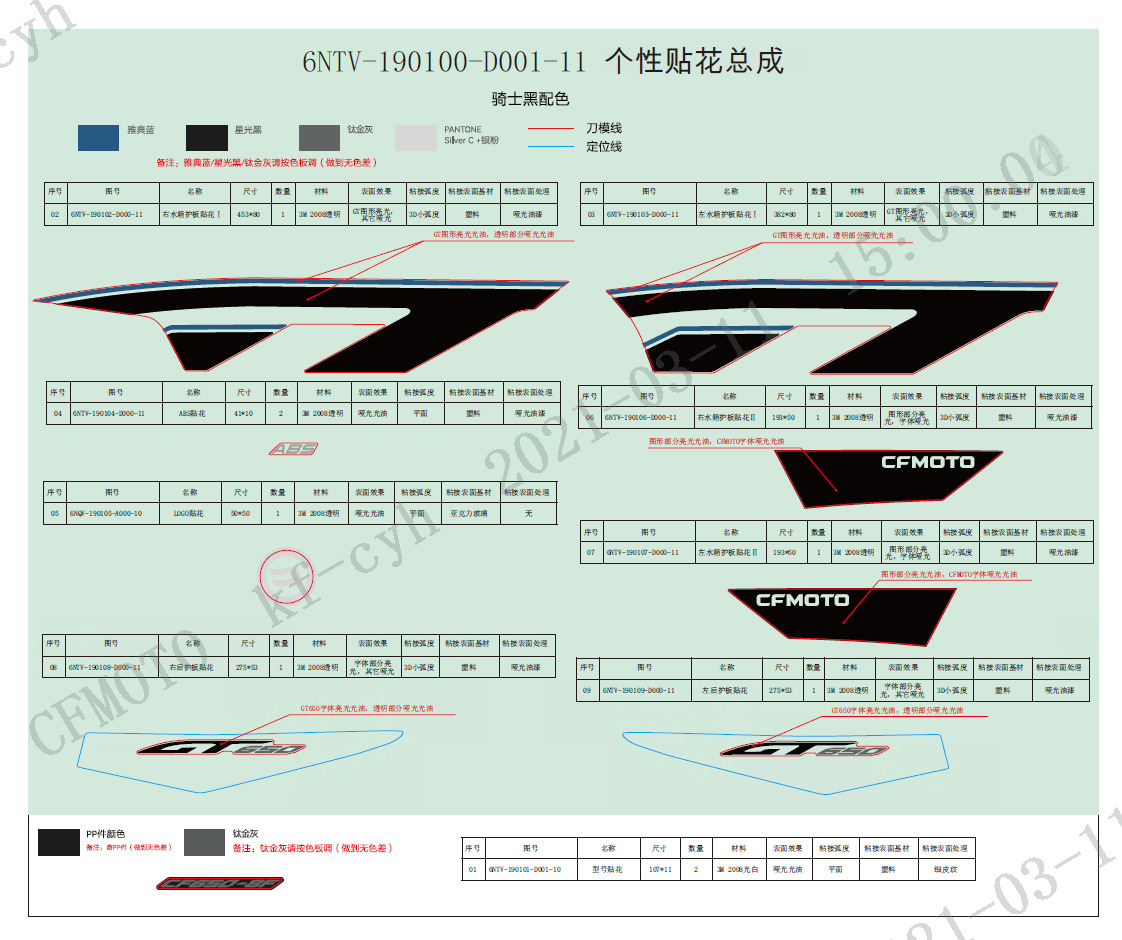

DECAL KITS (KNIGHT BLACK)
F20

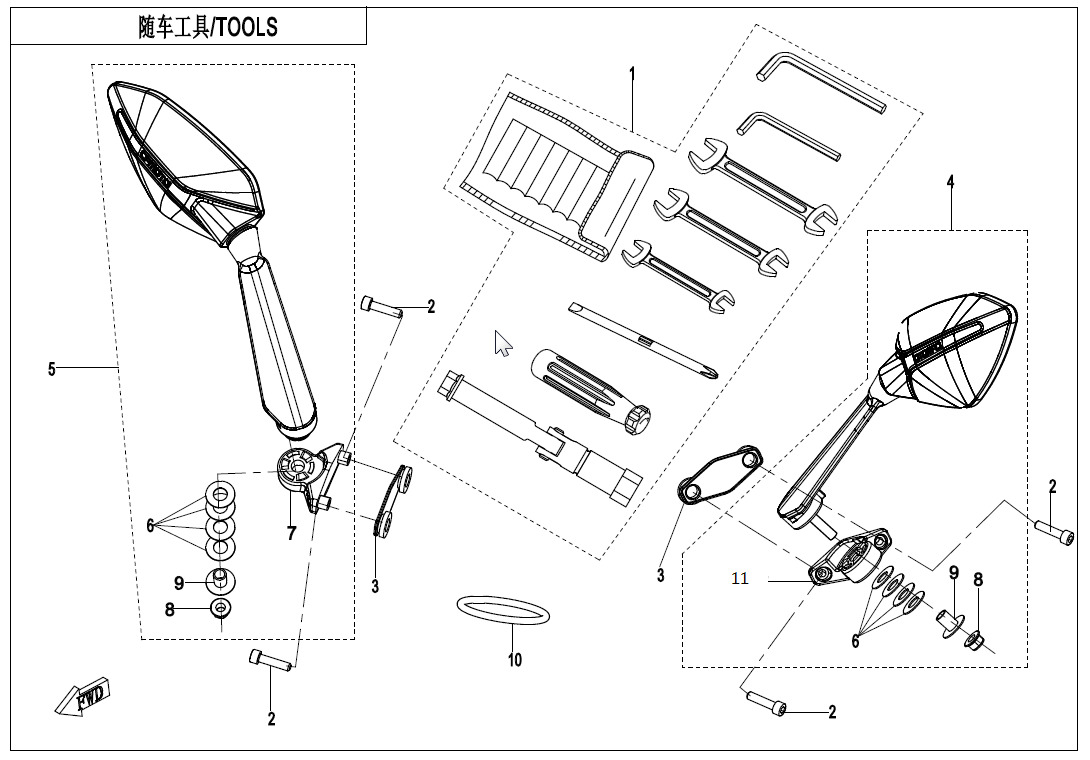

TOOLS

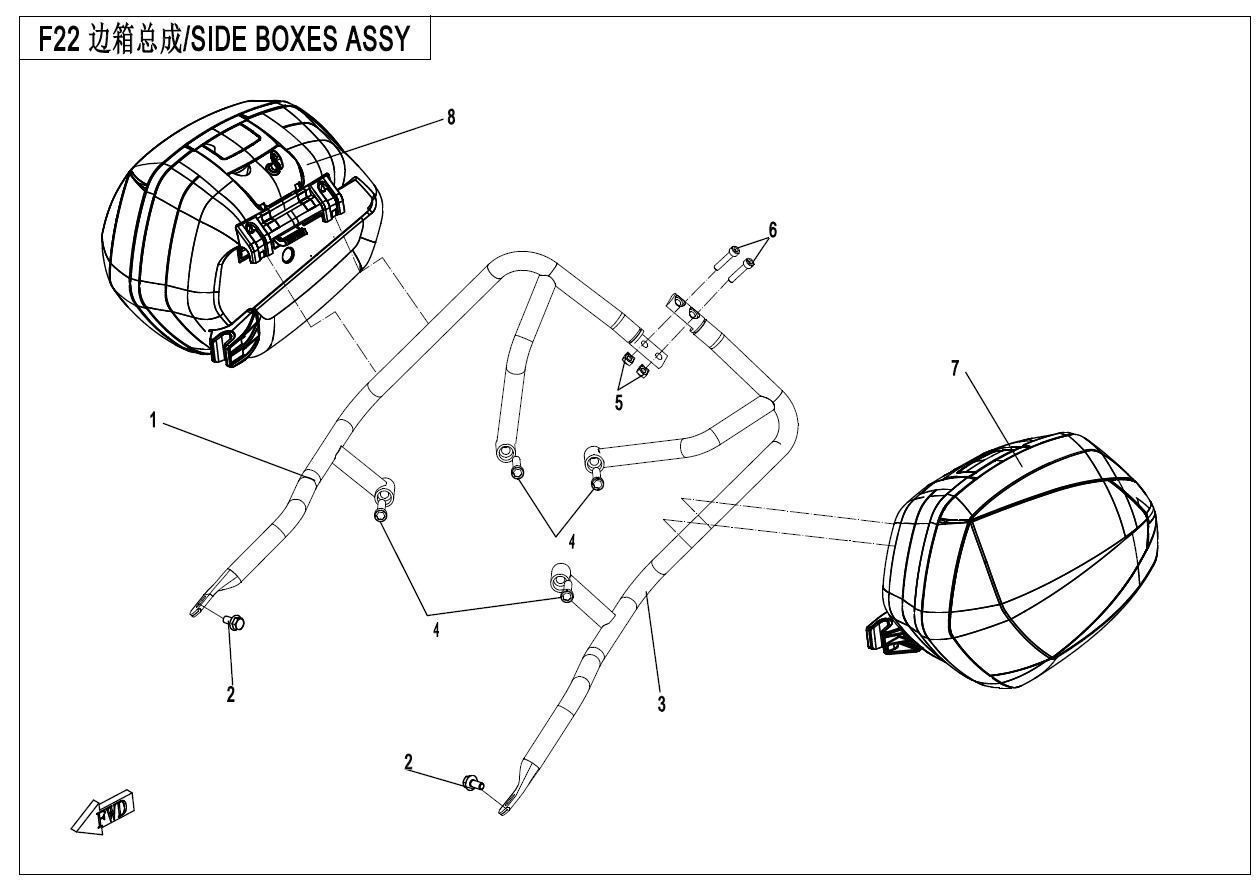

F22
SIDE BOXES(PLASTIC)
F36
FUEL VAPORIZATION SYSTEM
F38-A
OWNER\'S MANUAL(EU 5)
F41
