Genuine Parts Diagrams for 2024 650NK - CF650-7FChange Model
Showing 57 parts diagrams.
F00

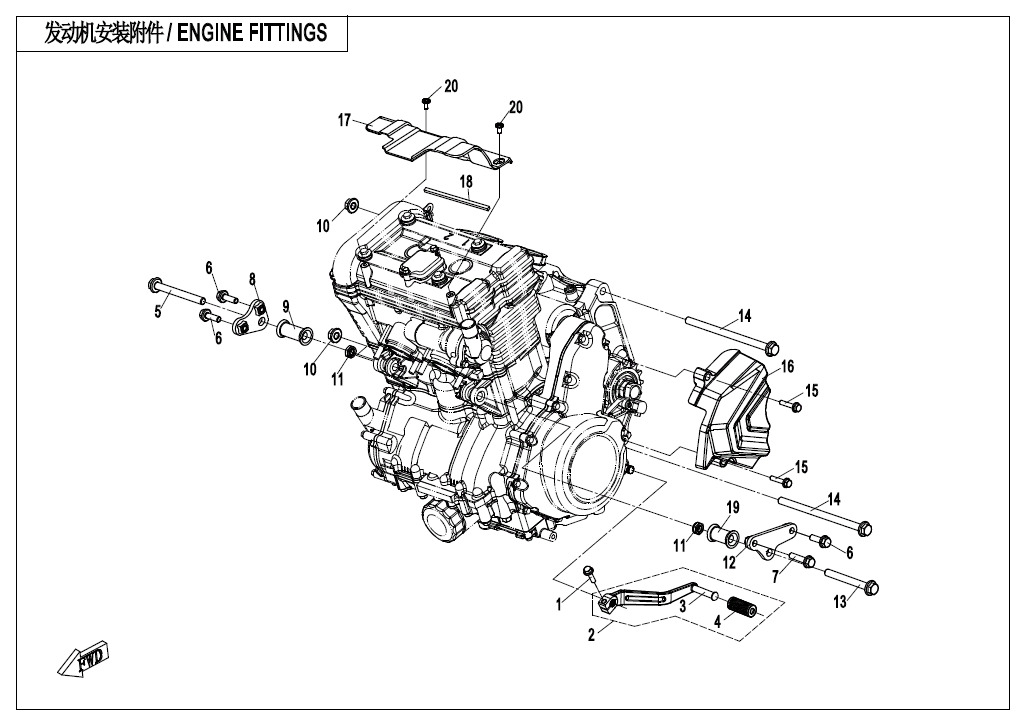

ENGINE FITTINGS
F01

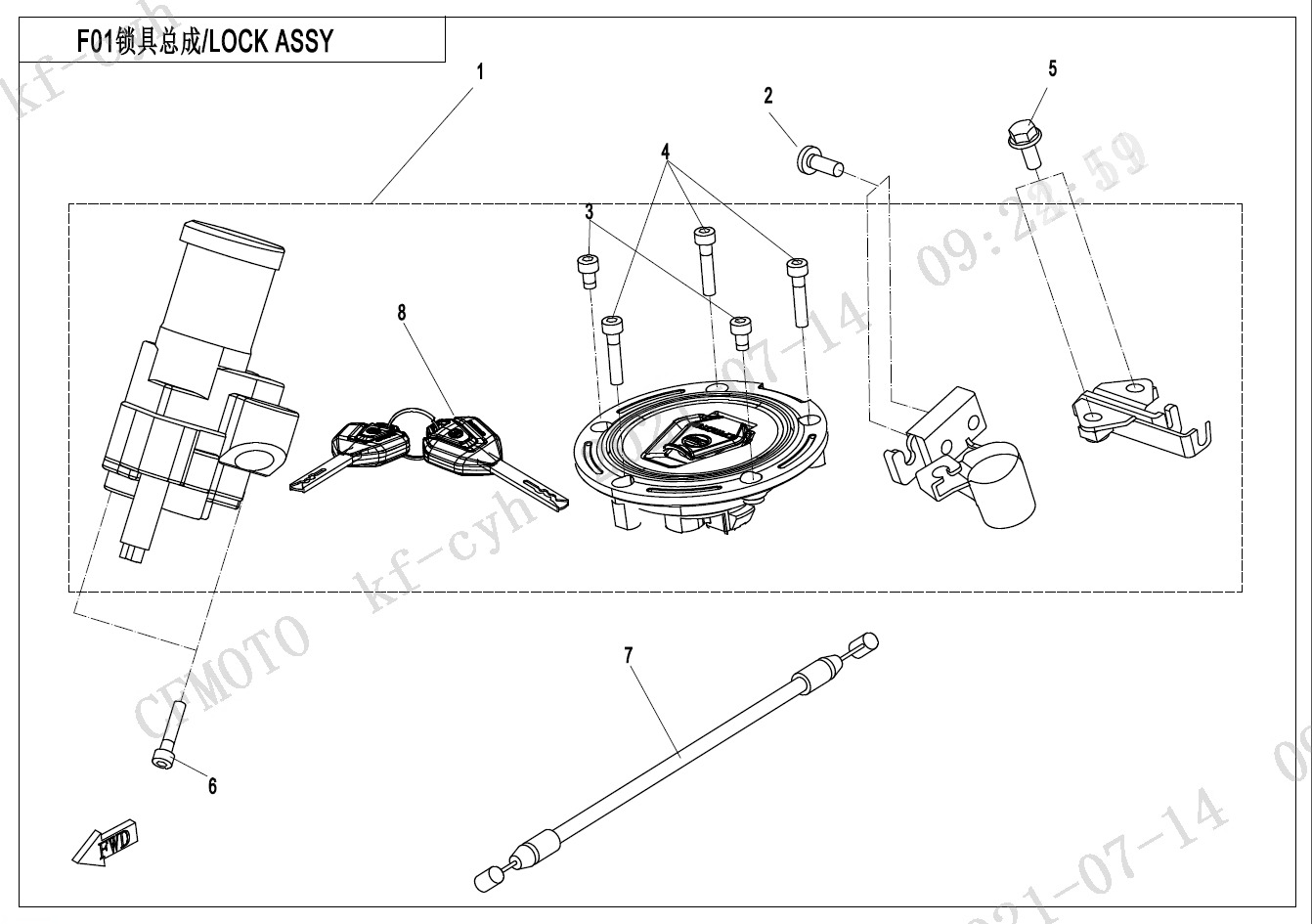

LOCK KIT
F02

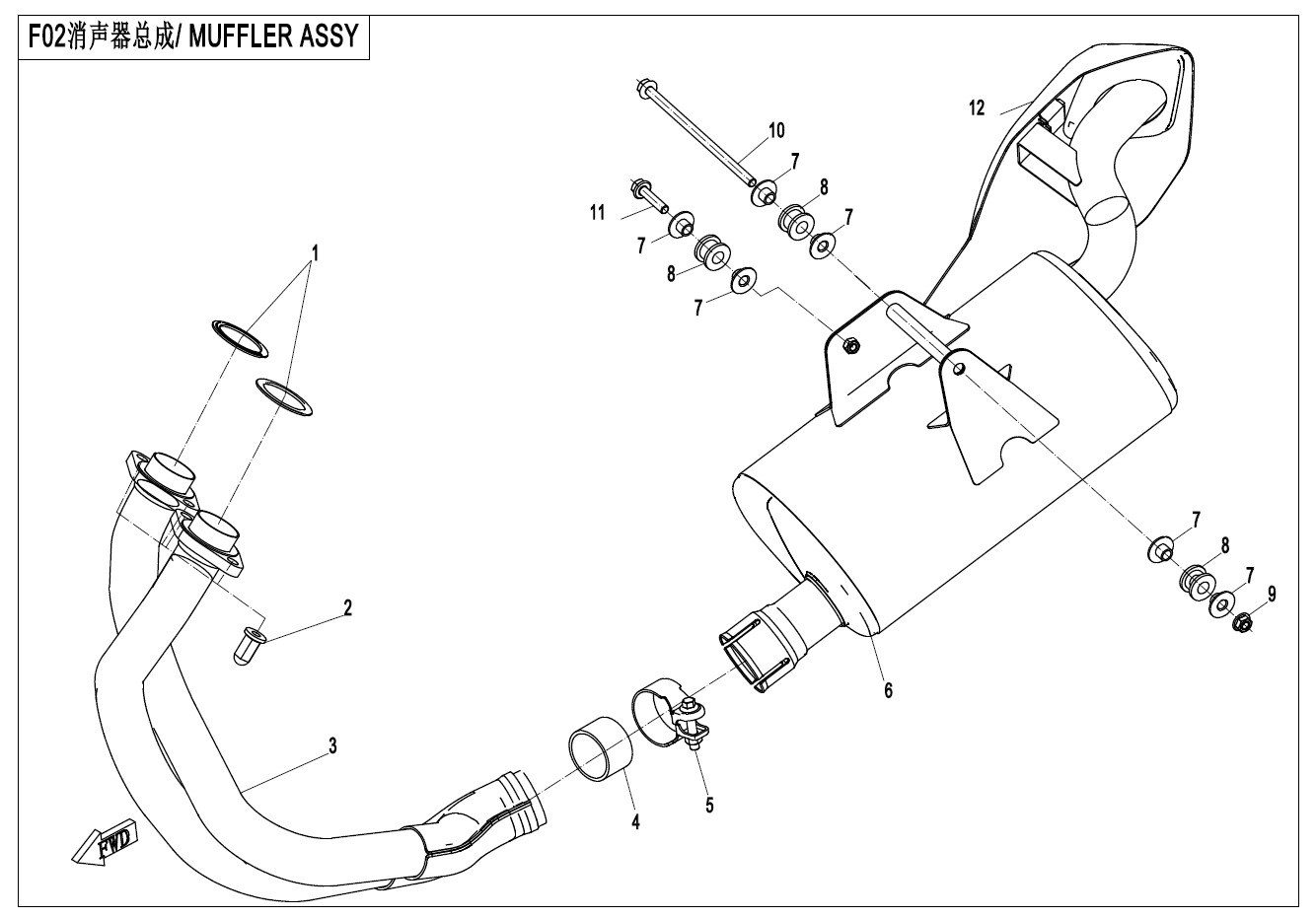

MUFFLER
F03

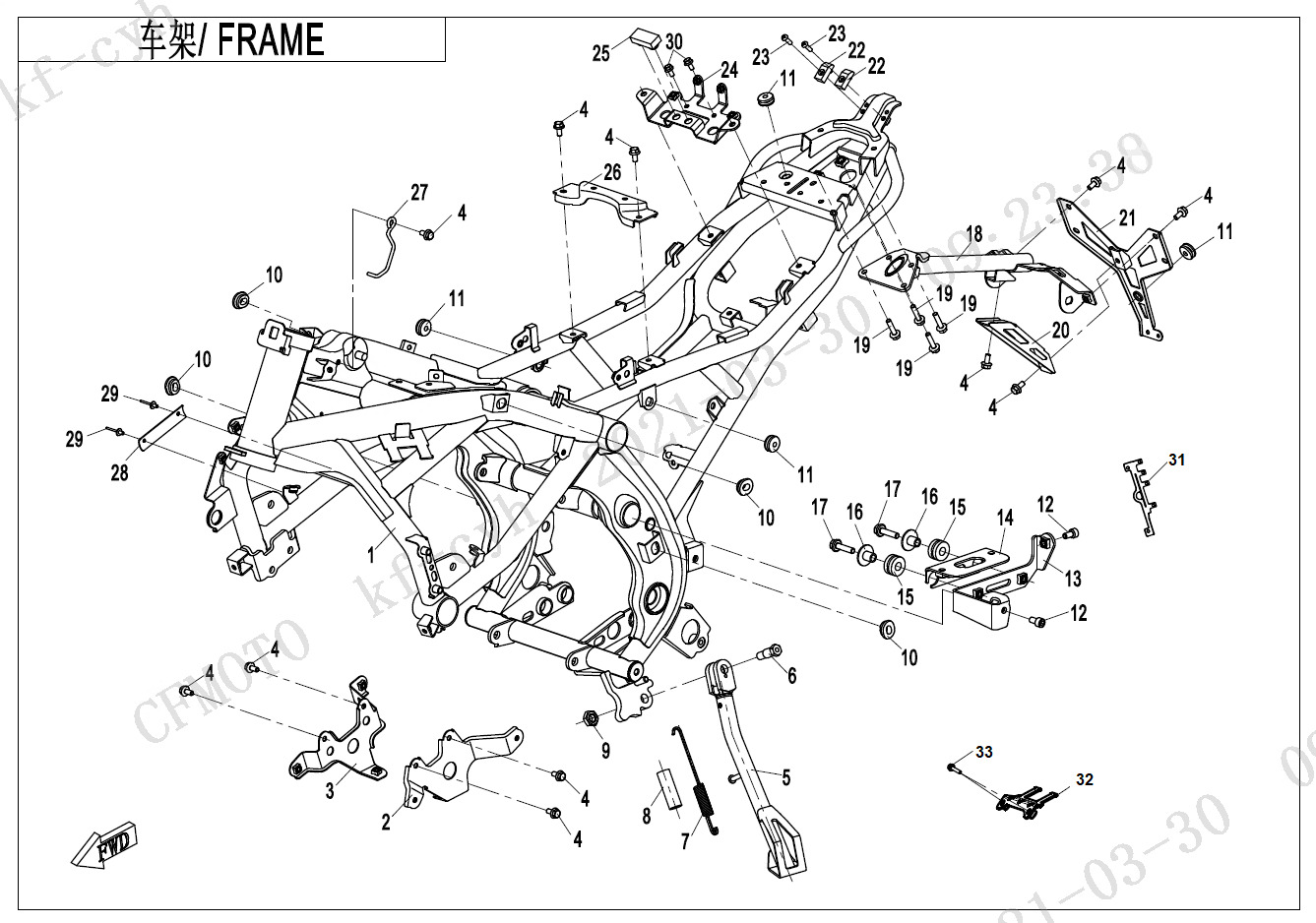

FRAME
F04-1

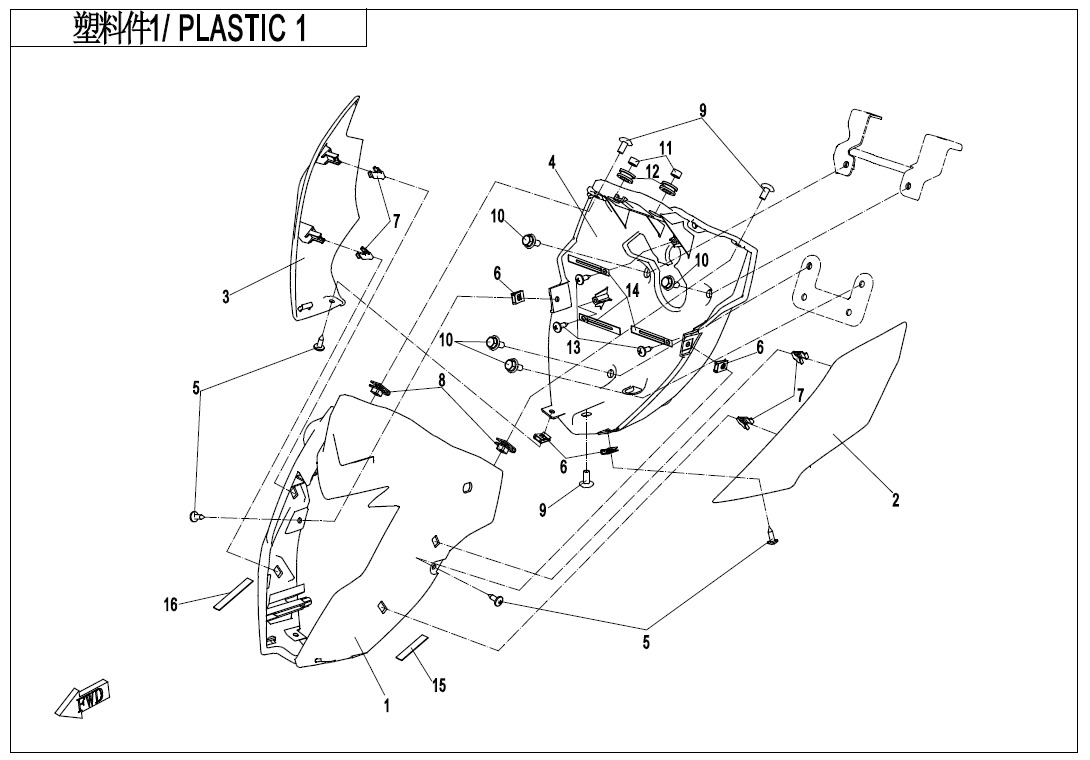

PLASTICS Ⅰ
F04-2

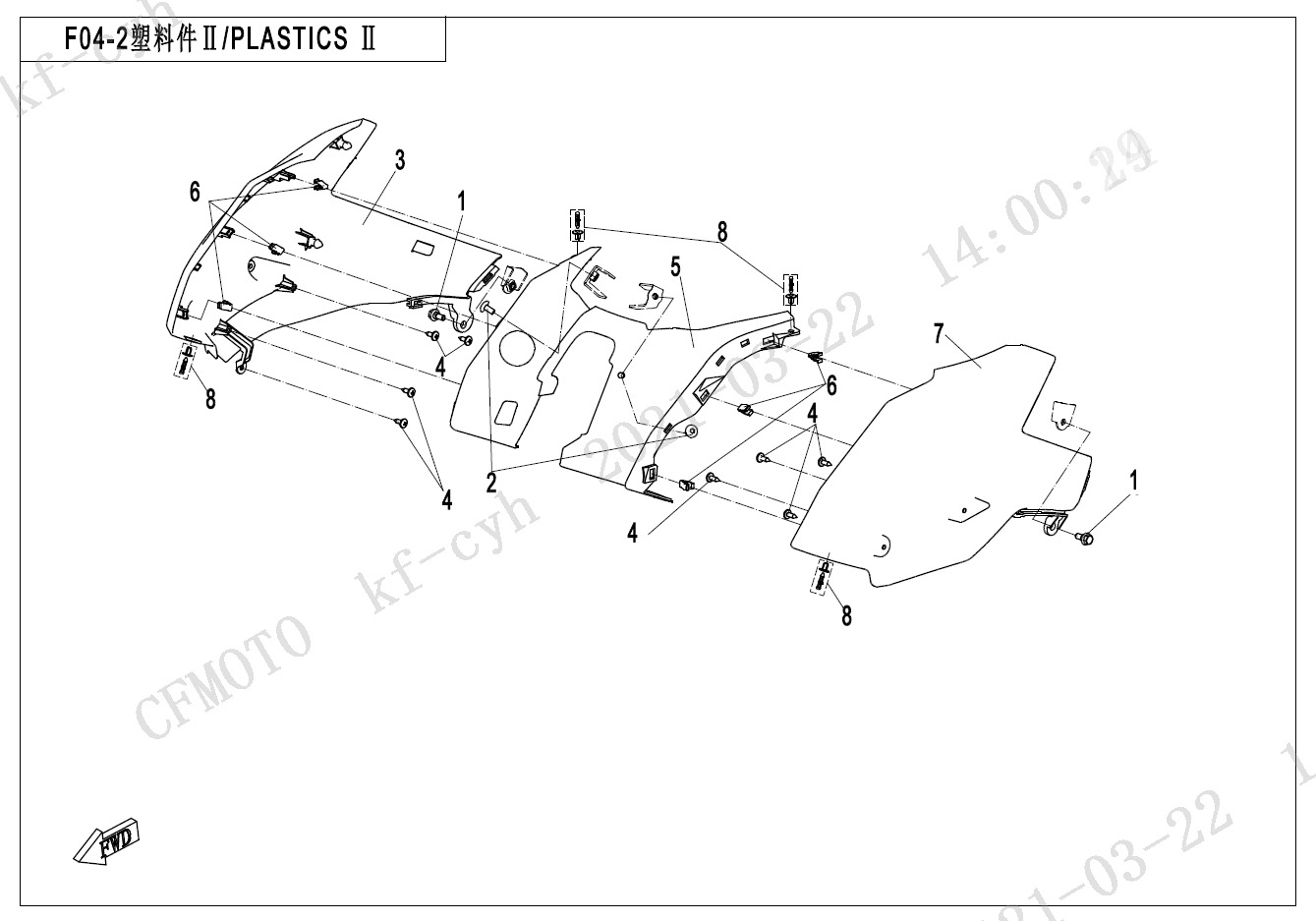

PLASTICS Ⅱ
F04-3

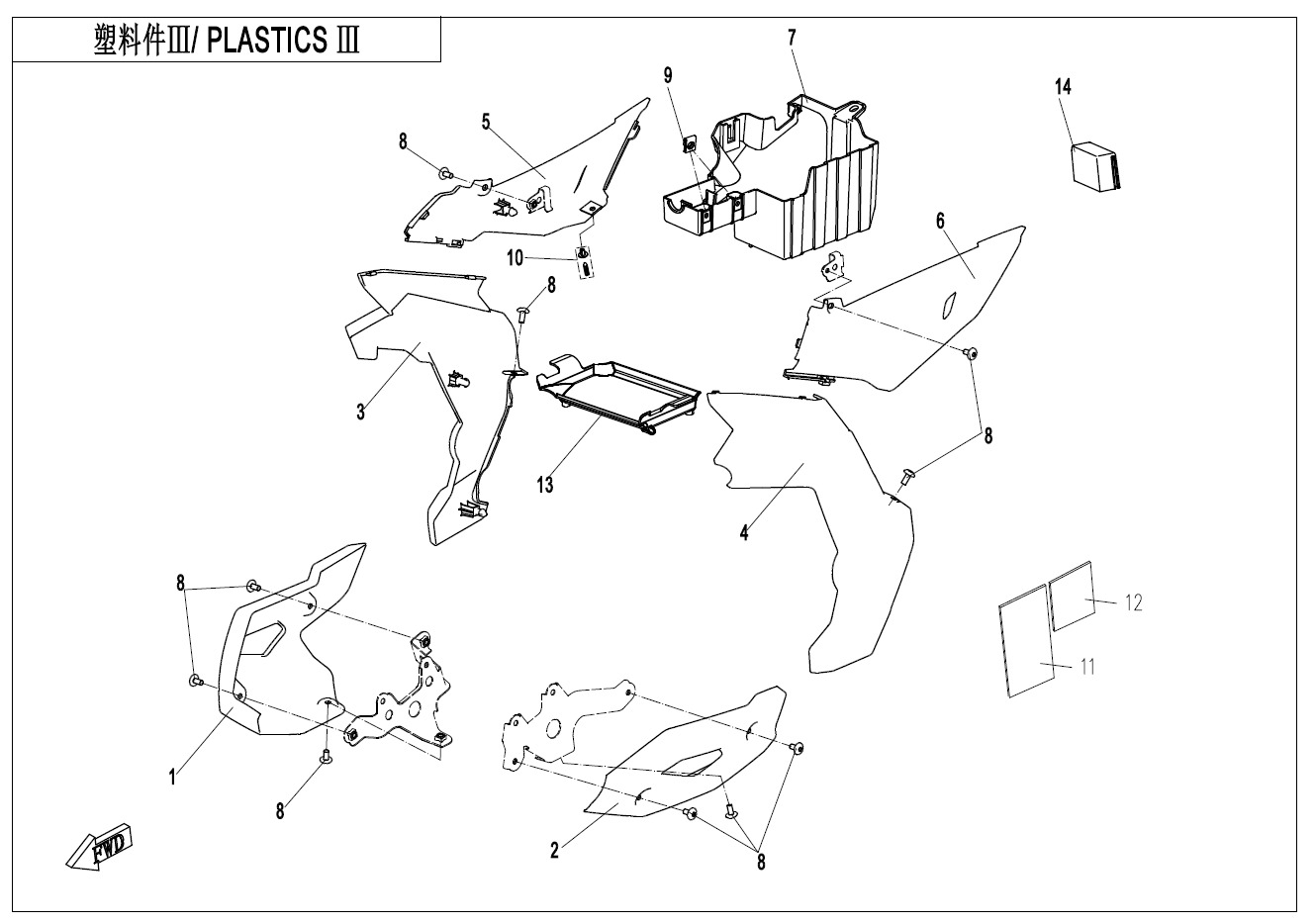

PLASTICS Ⅲ
F04-4

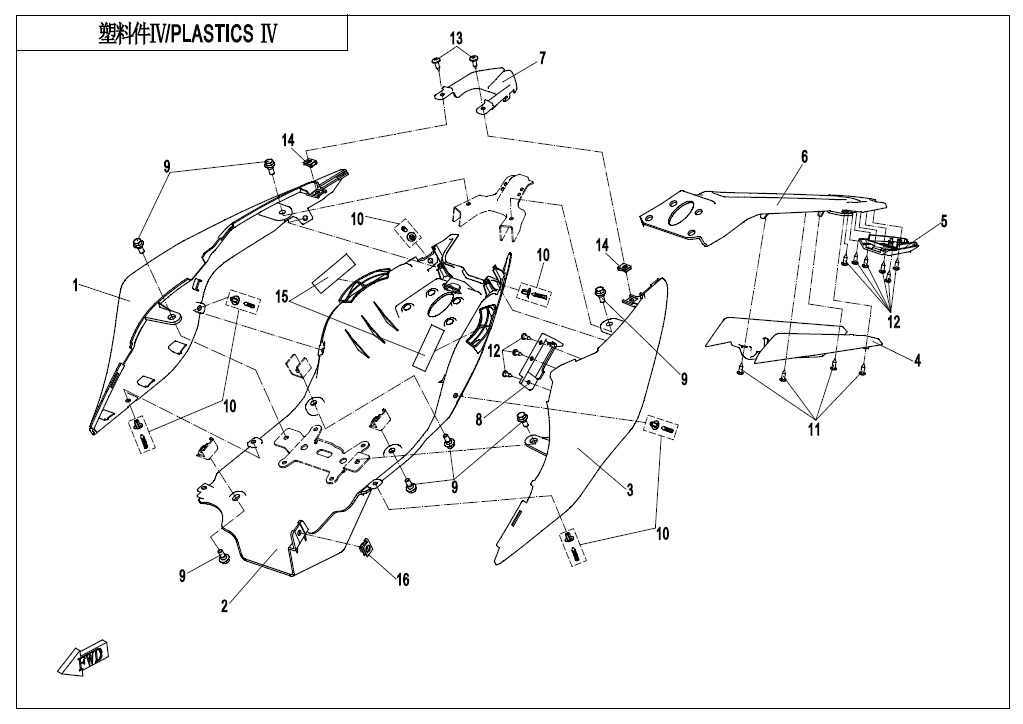

PLASTICS Ⅳ
F04-5

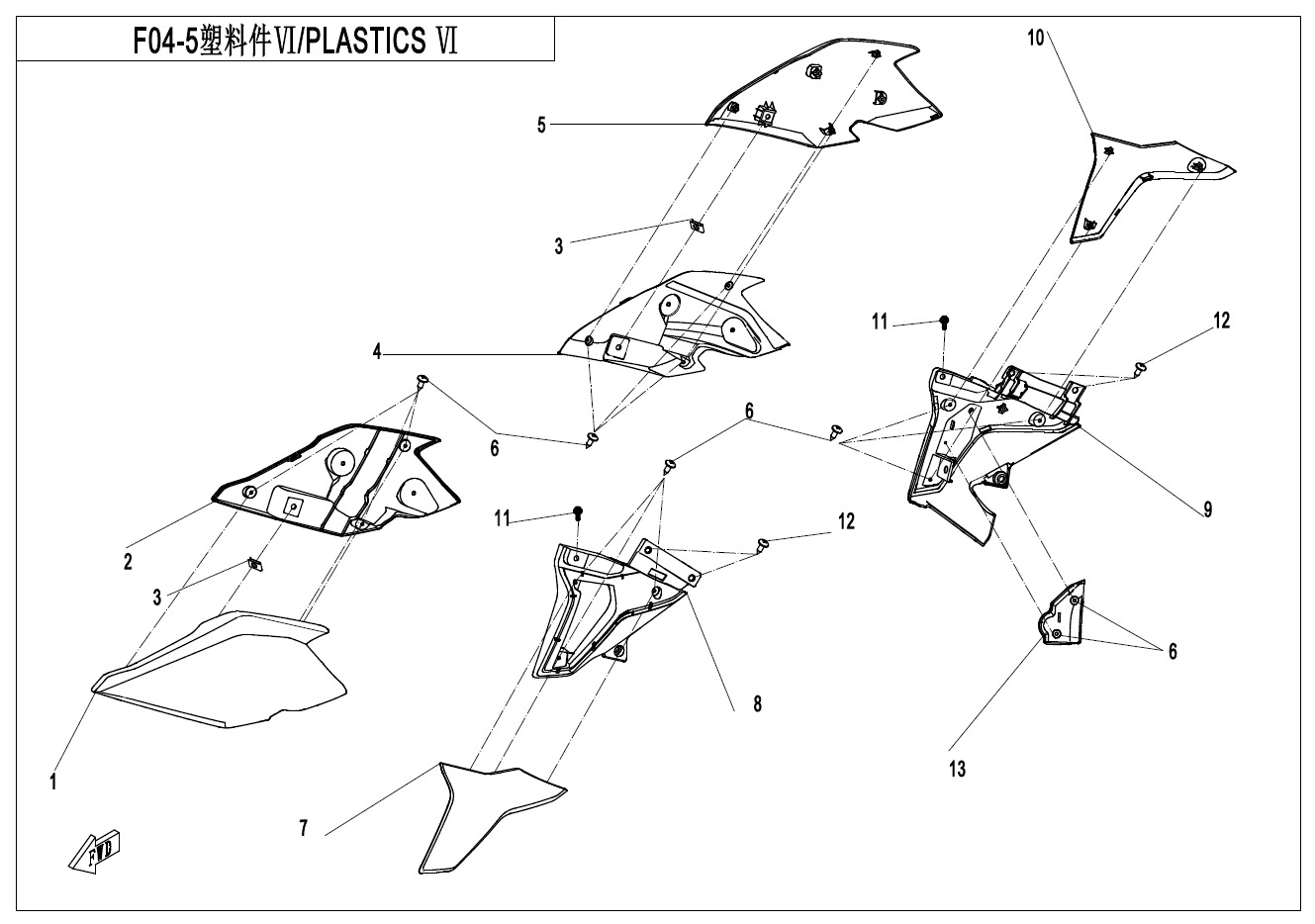

PLASTICSⅤ
F05-V2

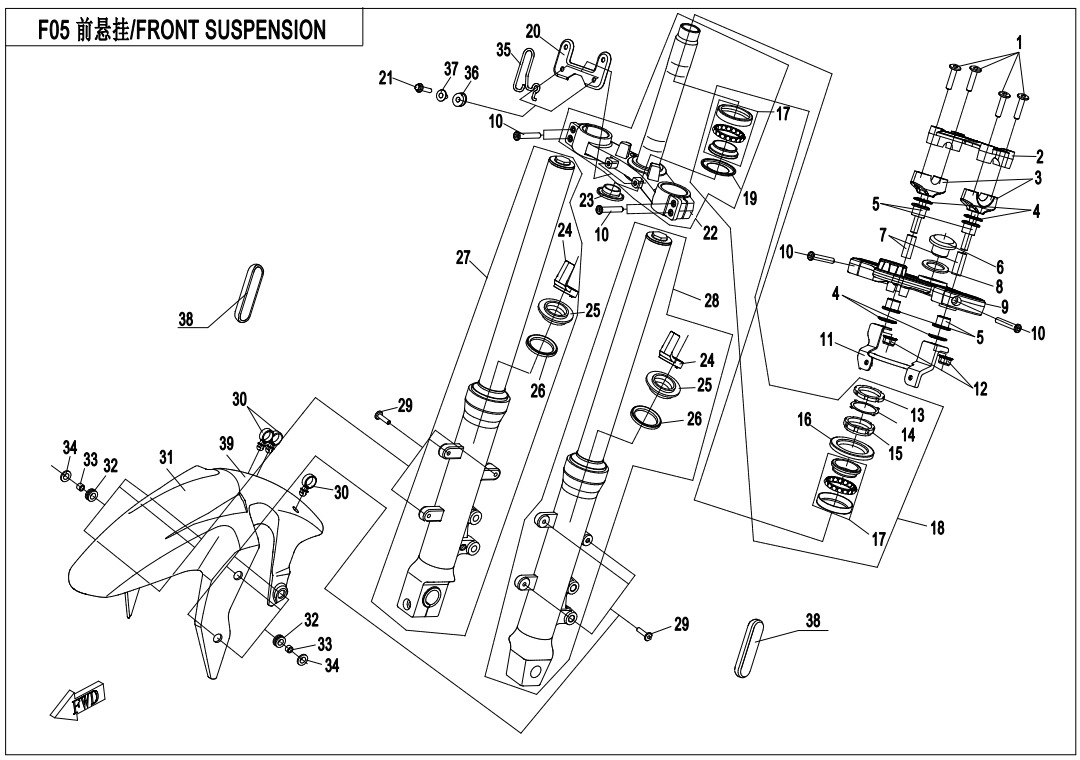

FRONT SUSPENSION(SHOCK ABSORBER-KYB)
F06-V2

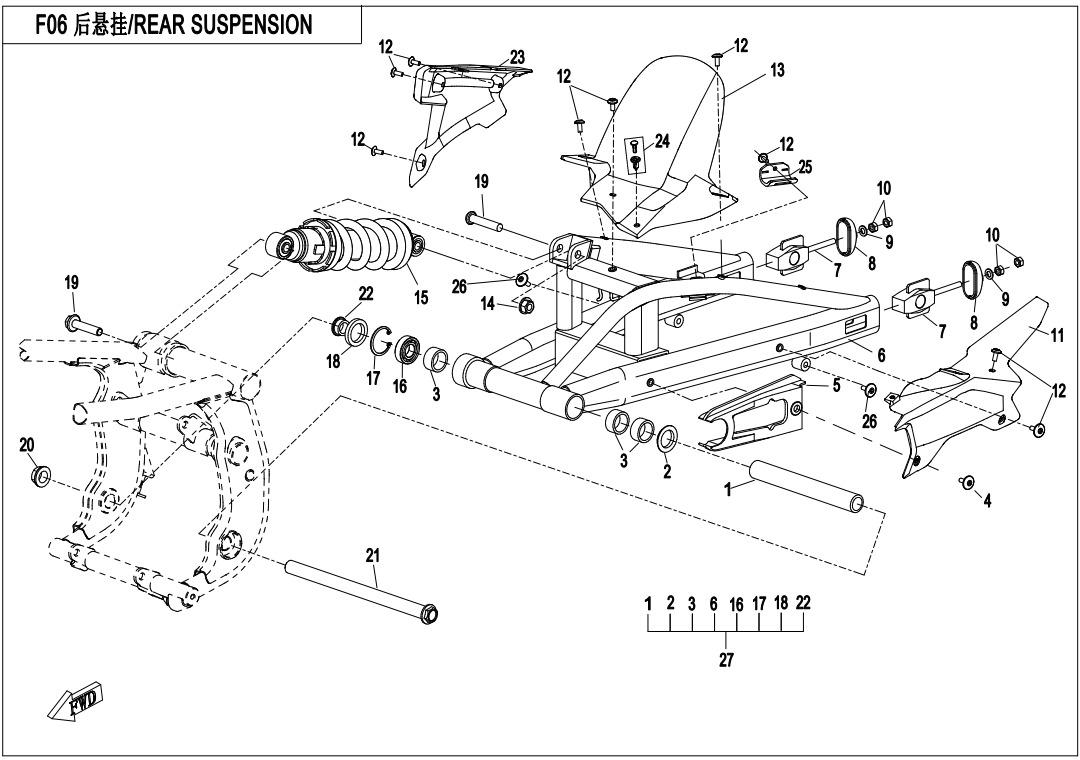

REAR SUSPENSION(SHOCK ABSORBER-KYB)
F07-A

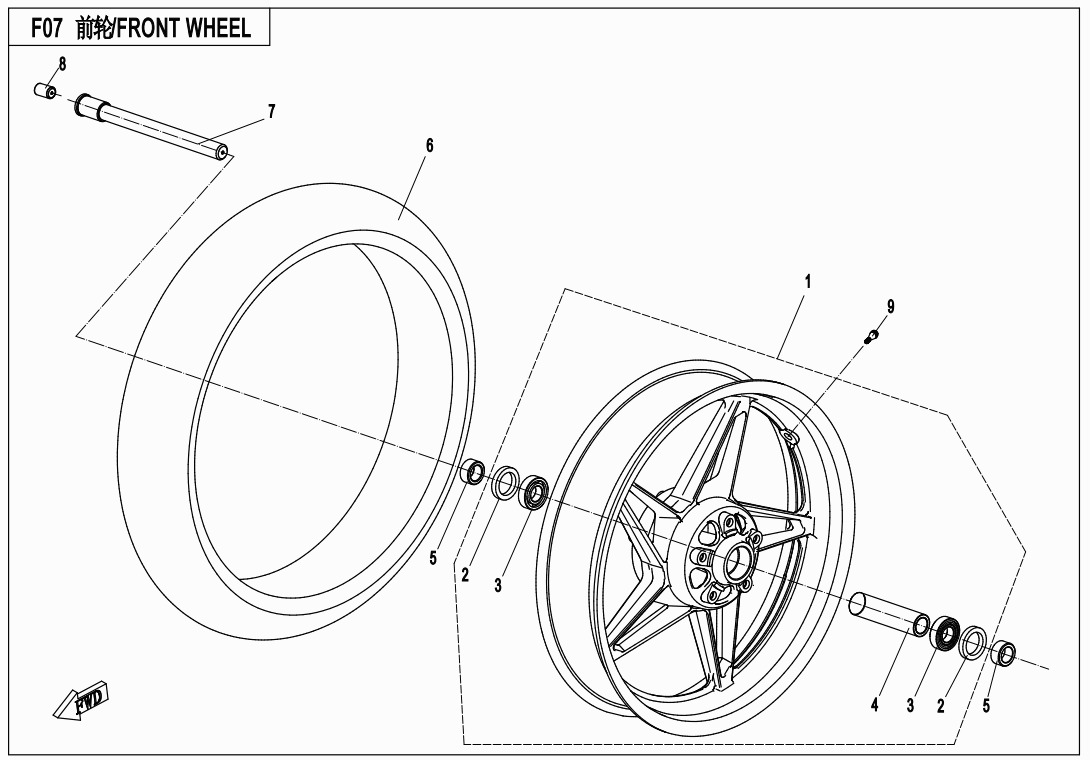

FRONT WHEEL
F08

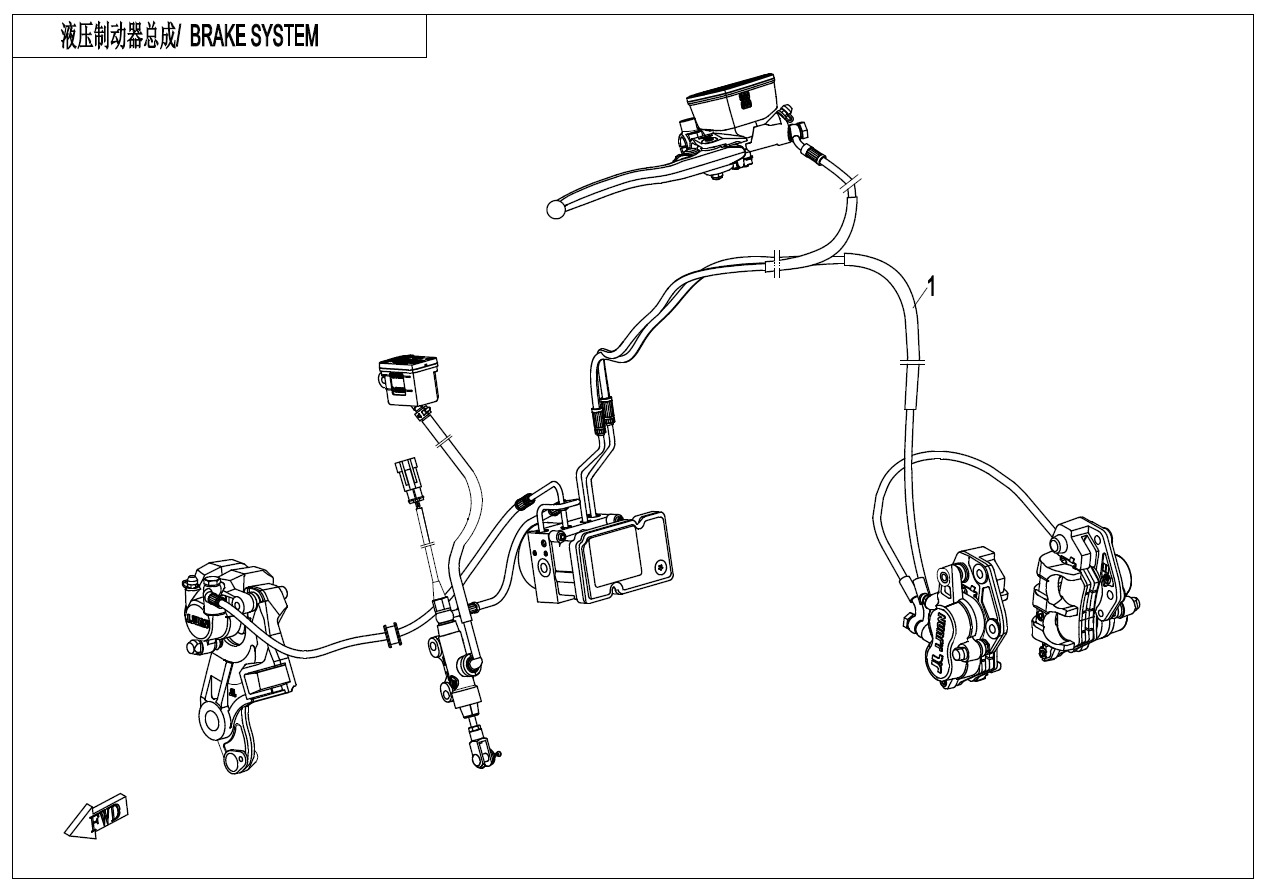

BRAKE ASSY
F08-1

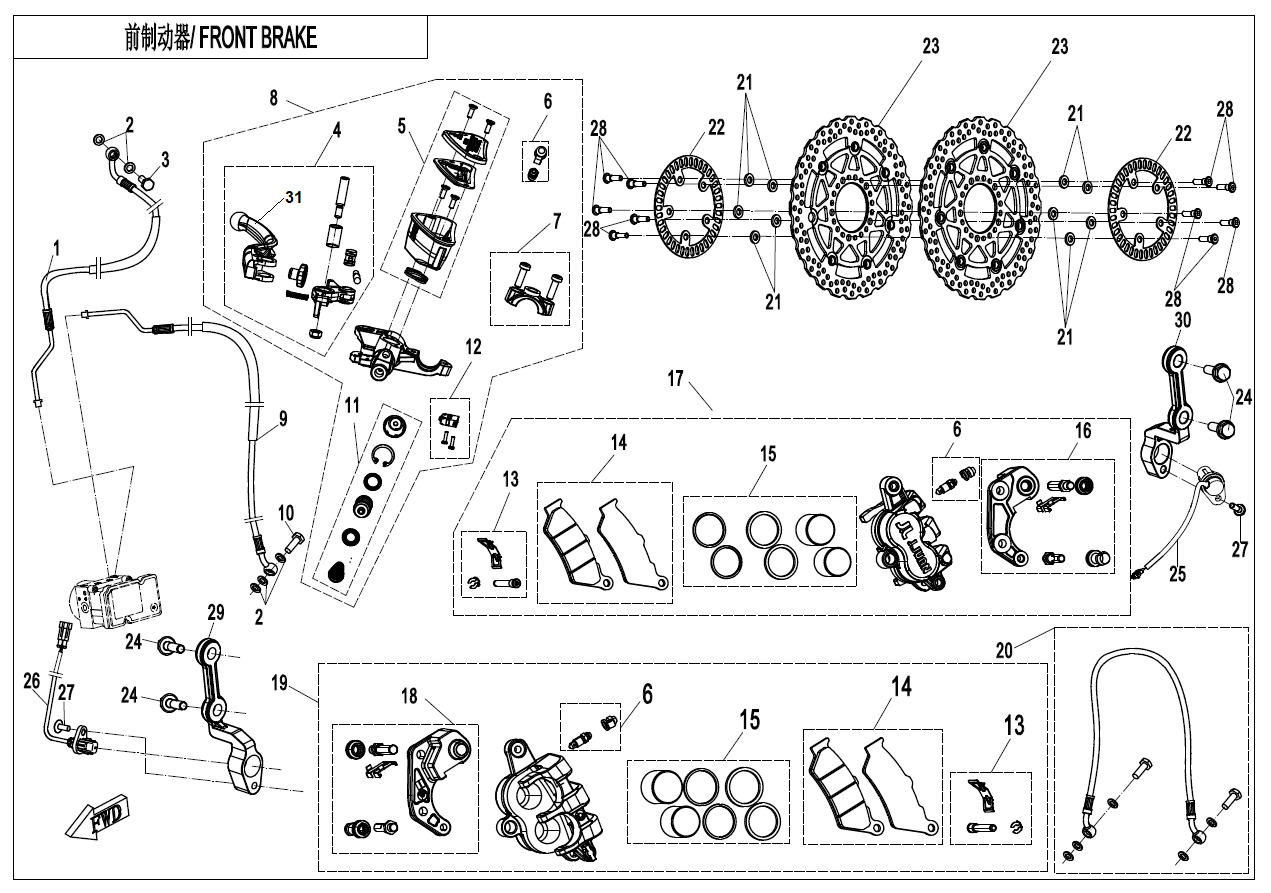

FRONT BRAKE(ABS)
F08-2

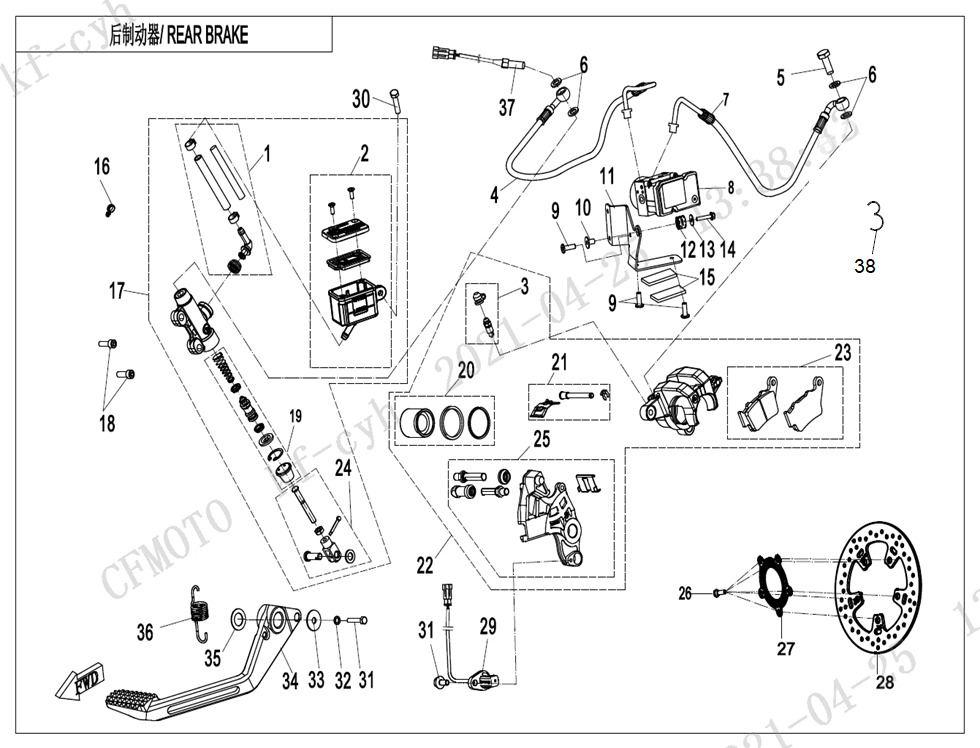

REAR BRAKE (ABS)
F10

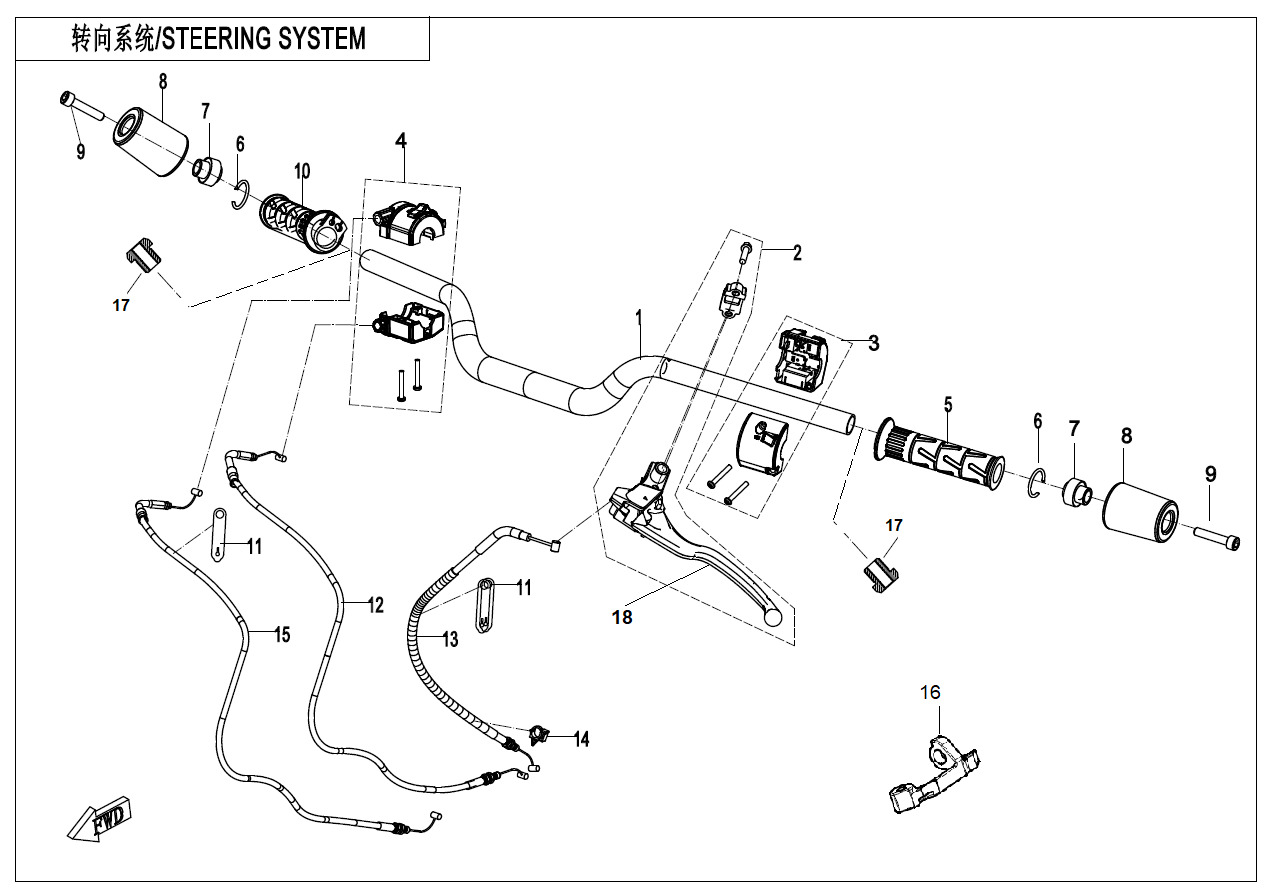

STEERING SYSTEM
F11-A

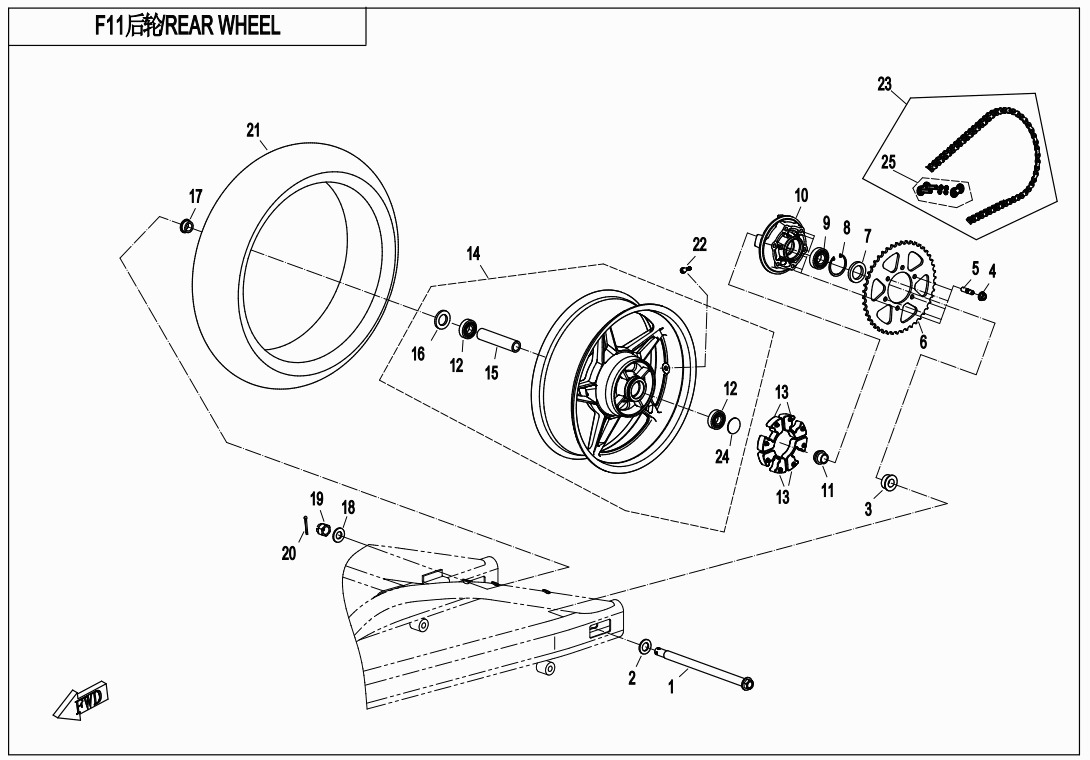

REAR WHEEL
F12

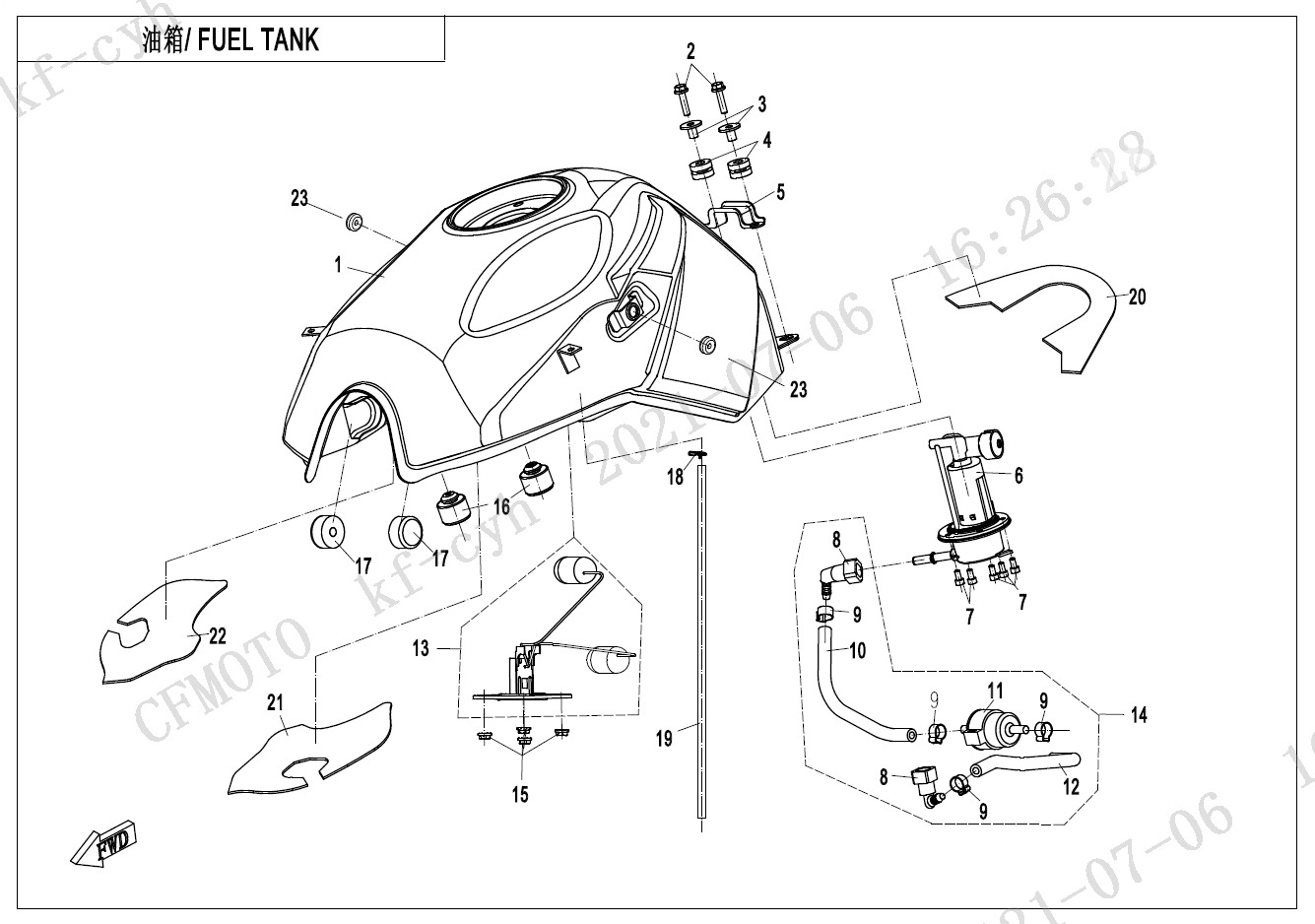

FUEL TANK
F13

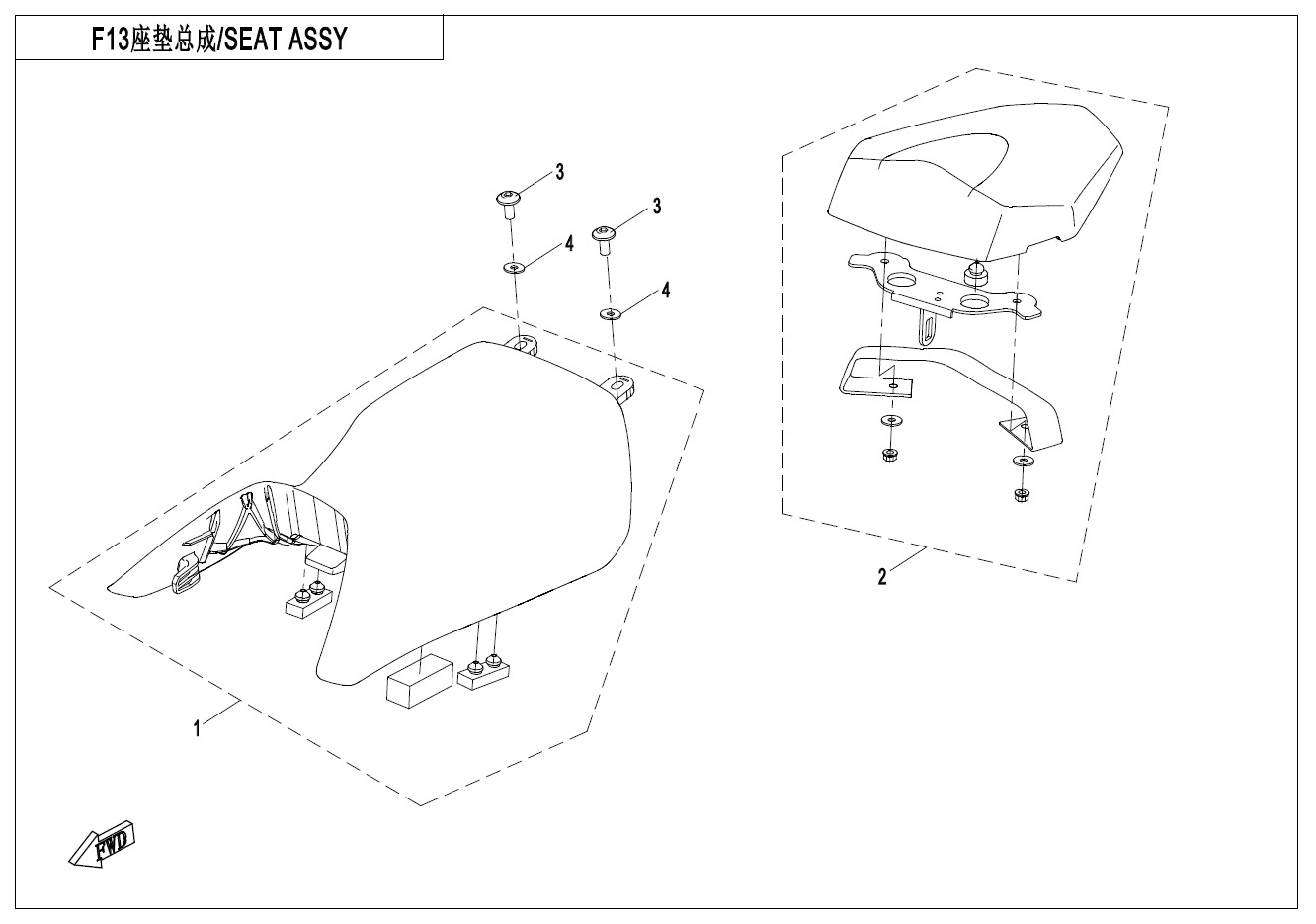

SEAT
F14

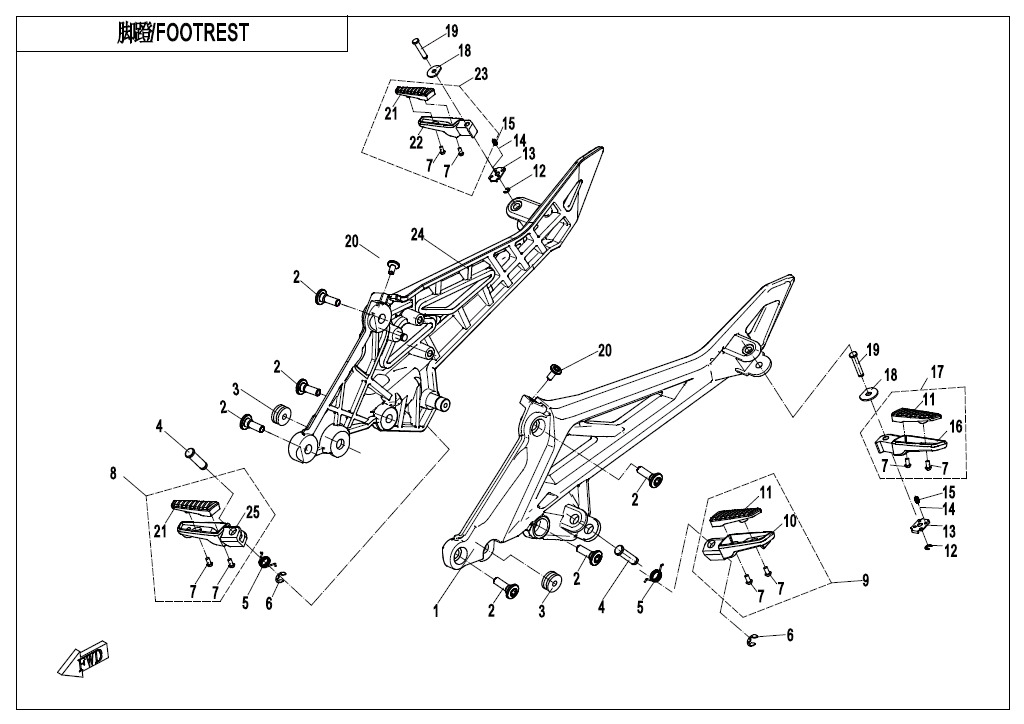

FOOTREST
F15

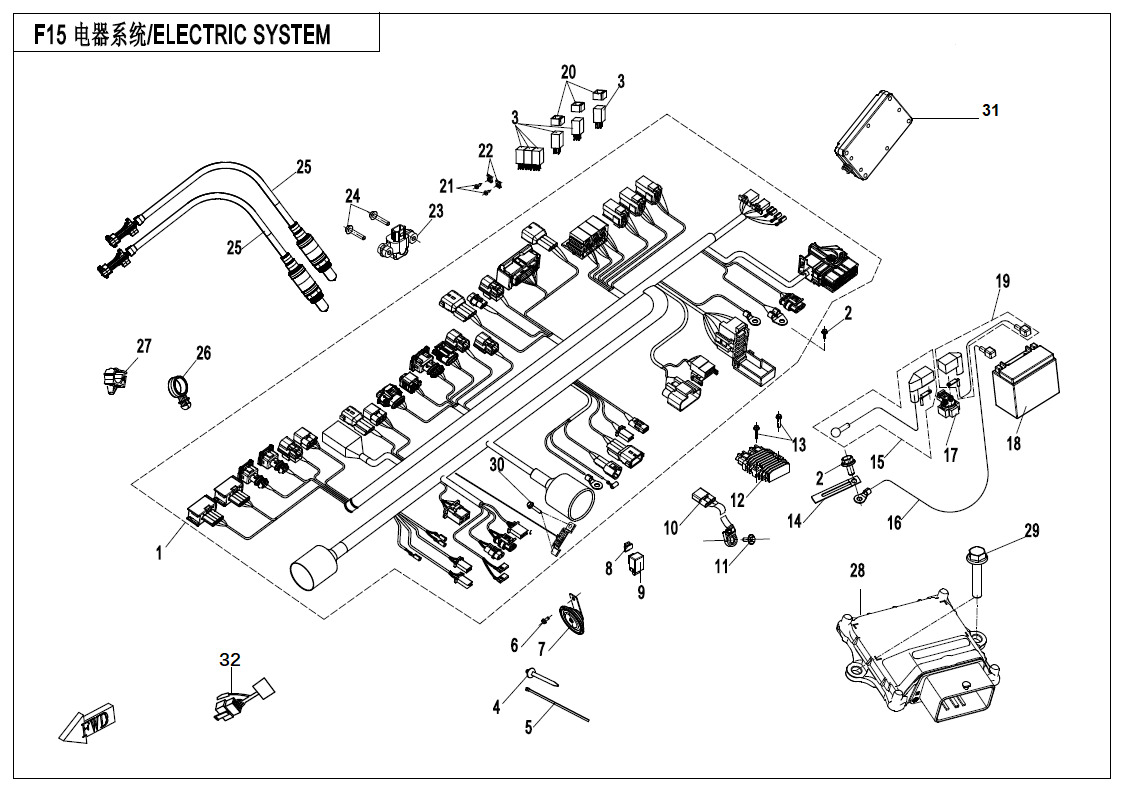

ELECTRIC SYSTEM
F16

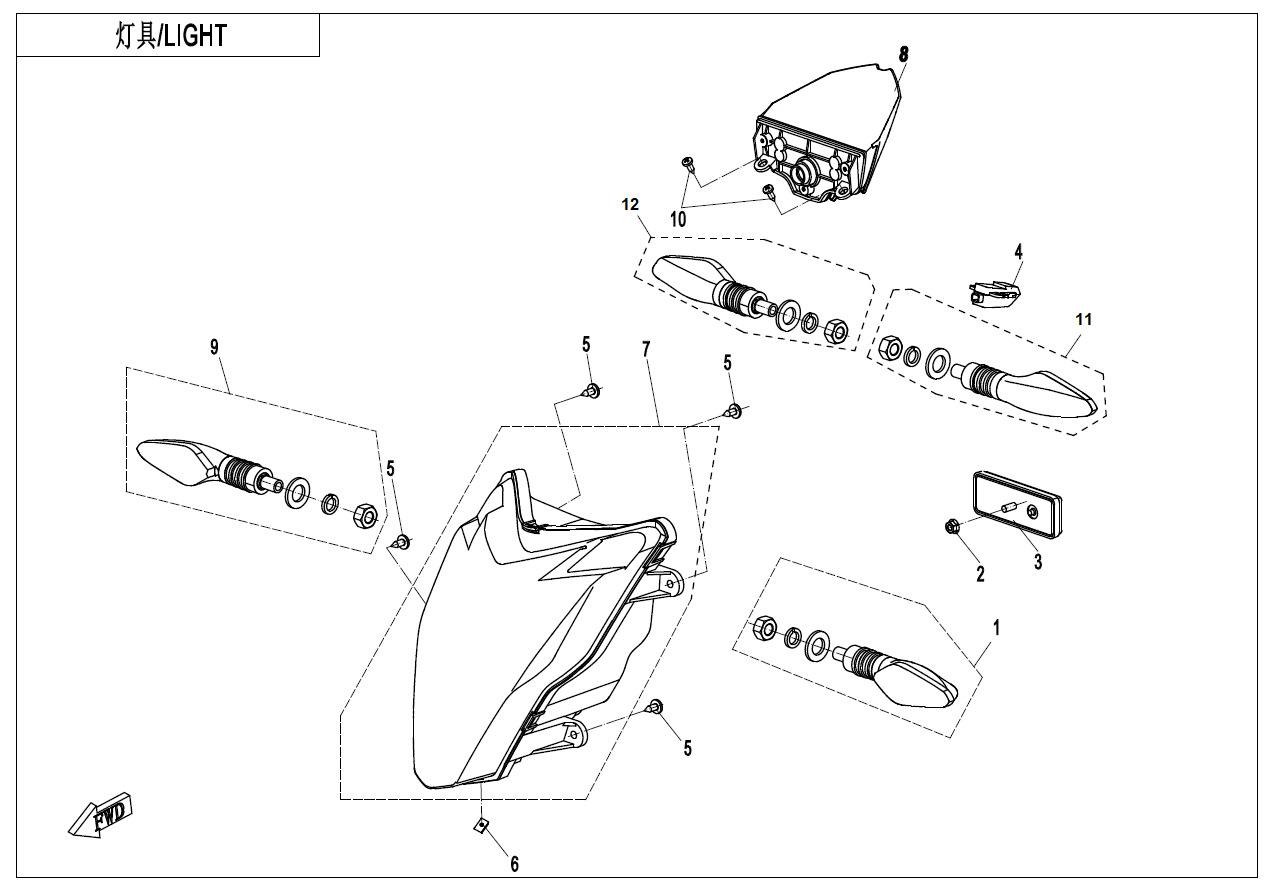

LIGHTS
F17

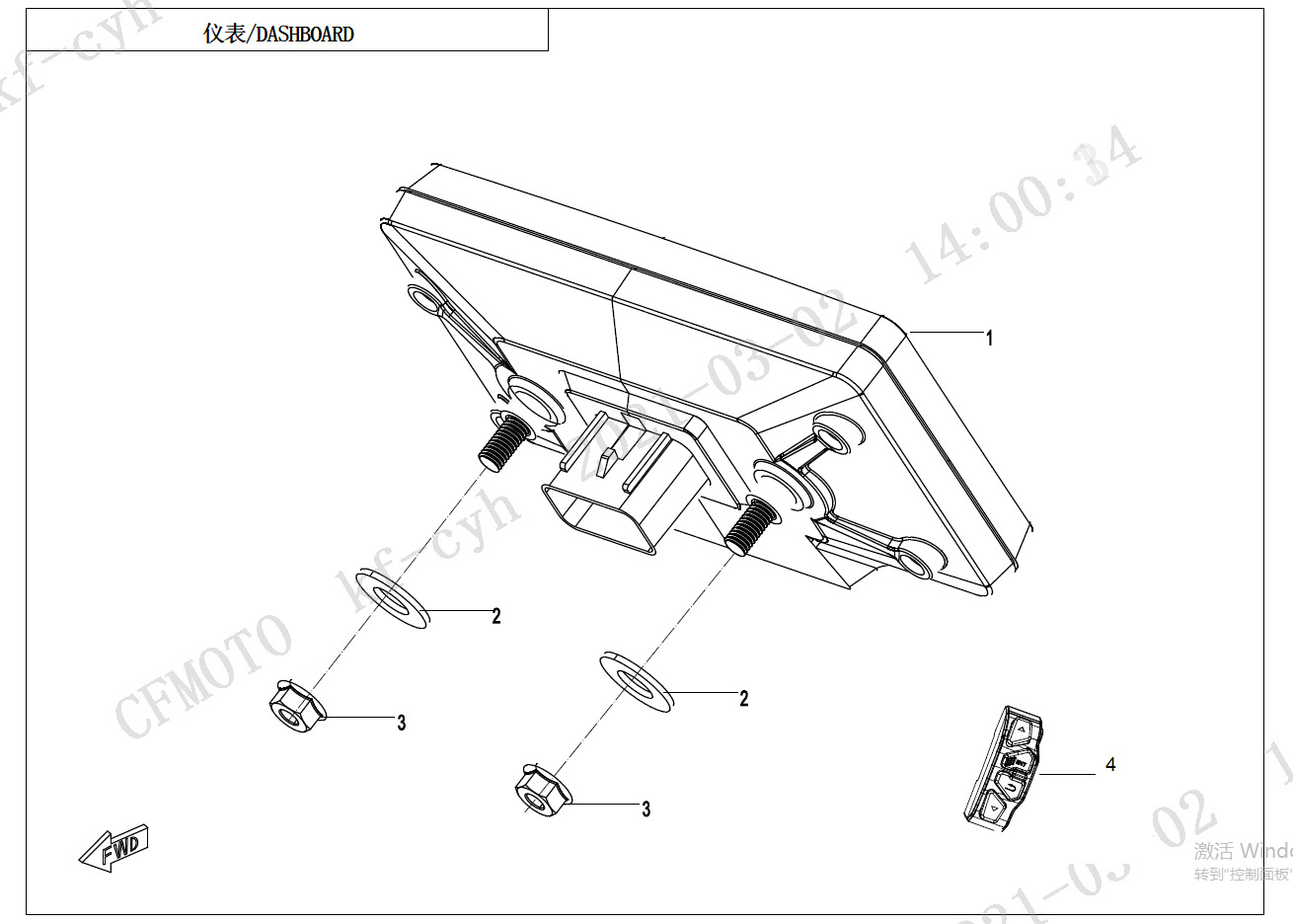

DASHBOARD
F18

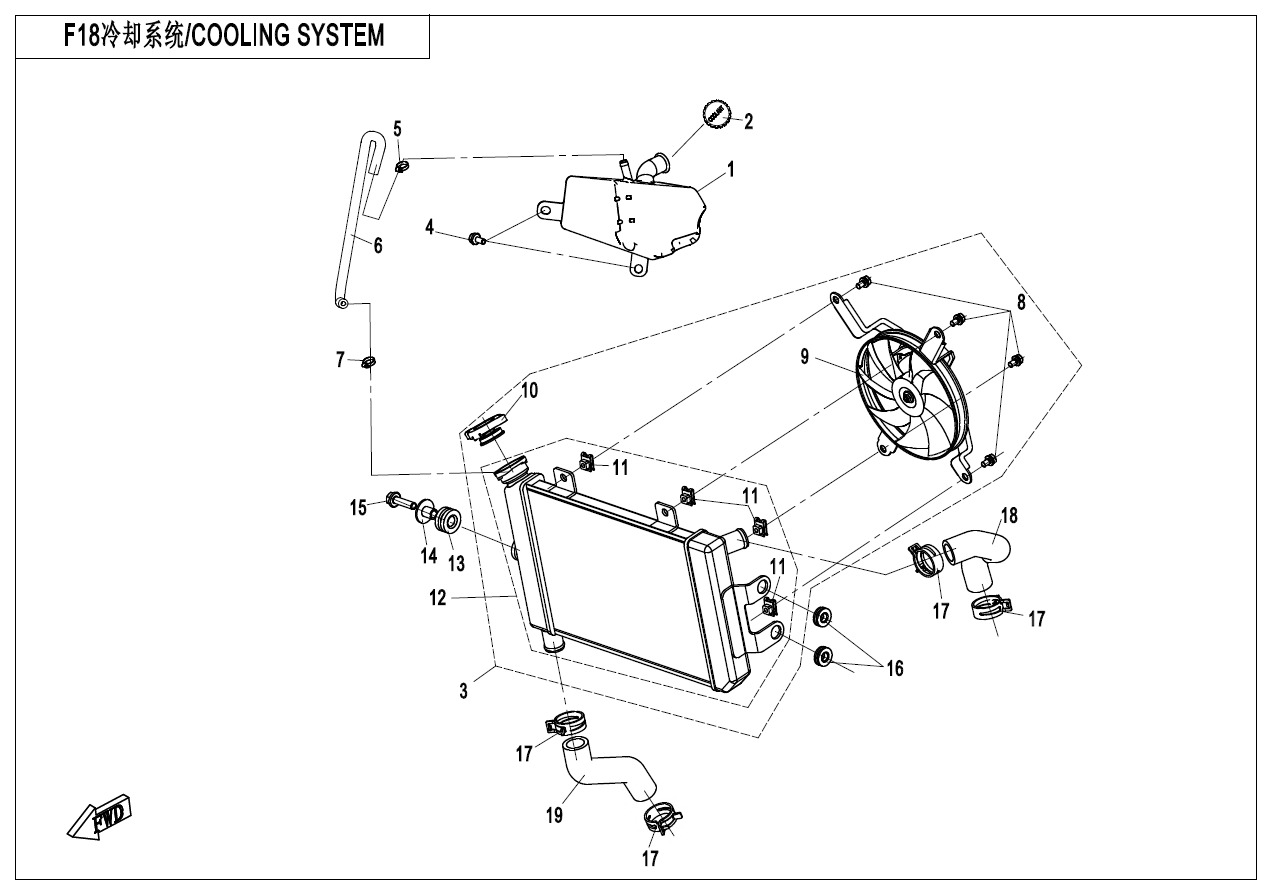

COOLING SYSTEM
F19-1

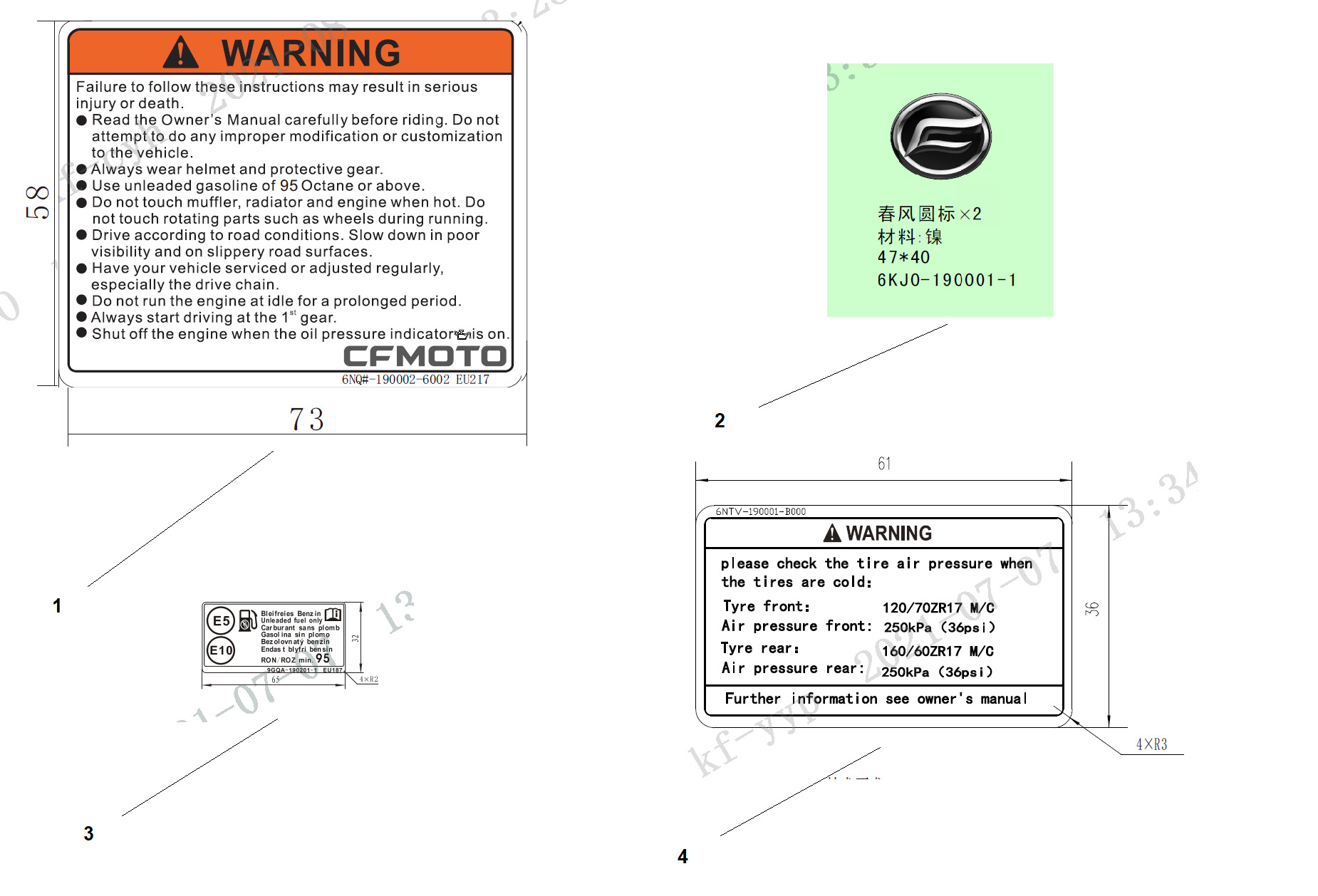

WARNING DECAL
F19-2

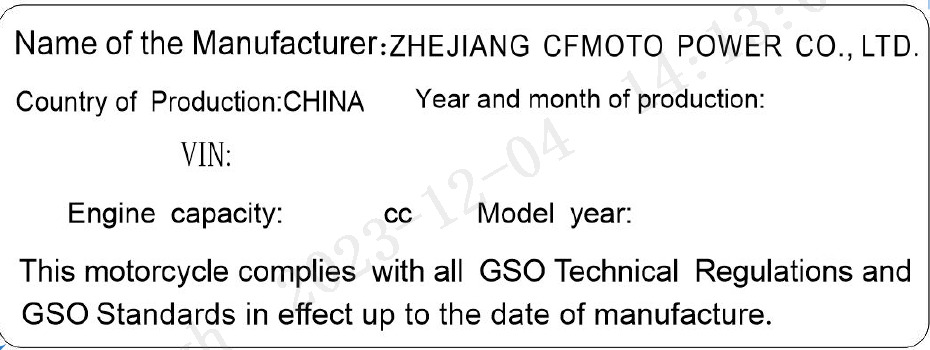

GS0 LABEL(MIDDLE EAST GULF STATES)
F19-3-A

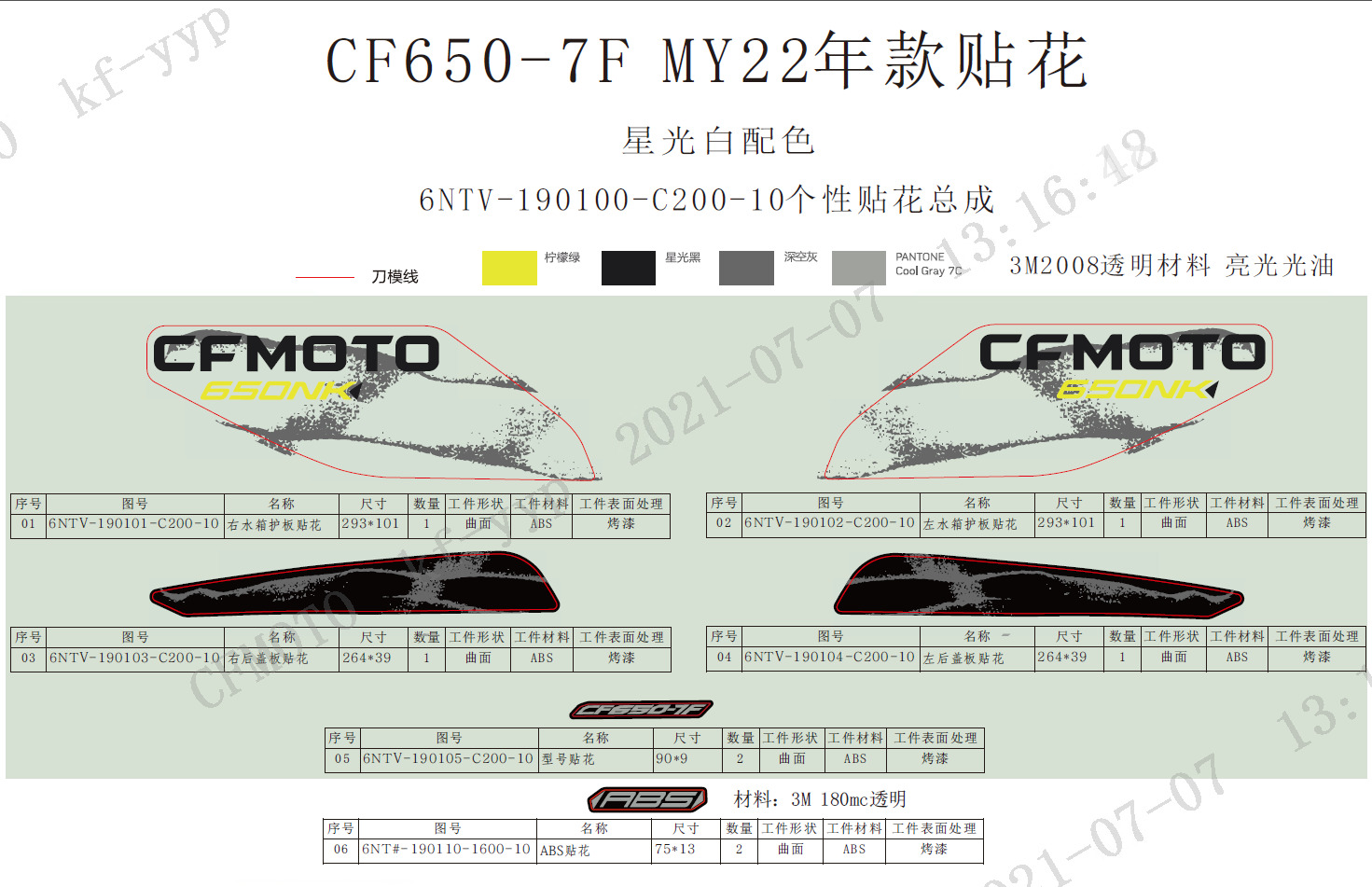

DECAL(NEBULA WHITE)
F19-3-B
DECAL(NEBULA BLACK)
F20

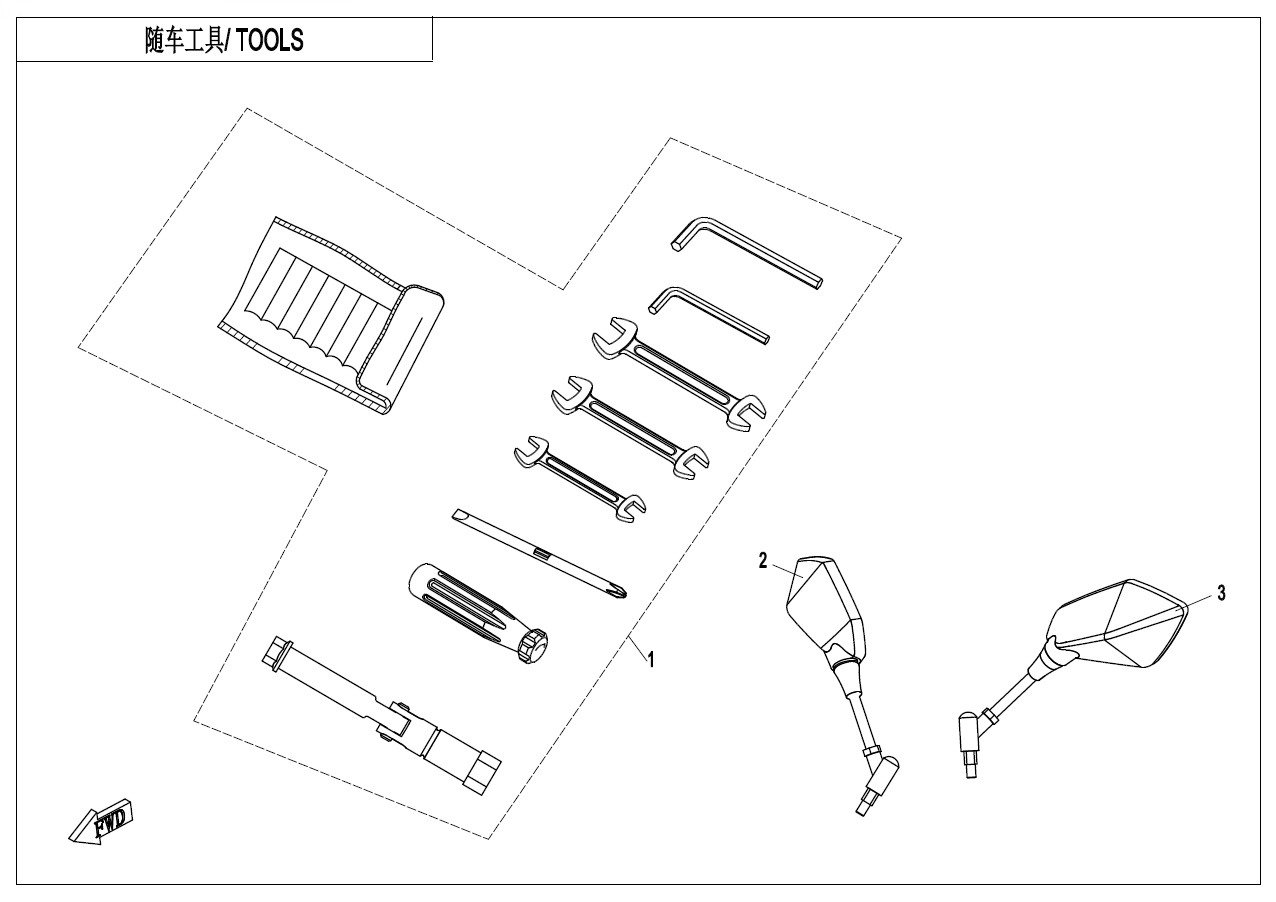

TOOLS
F36

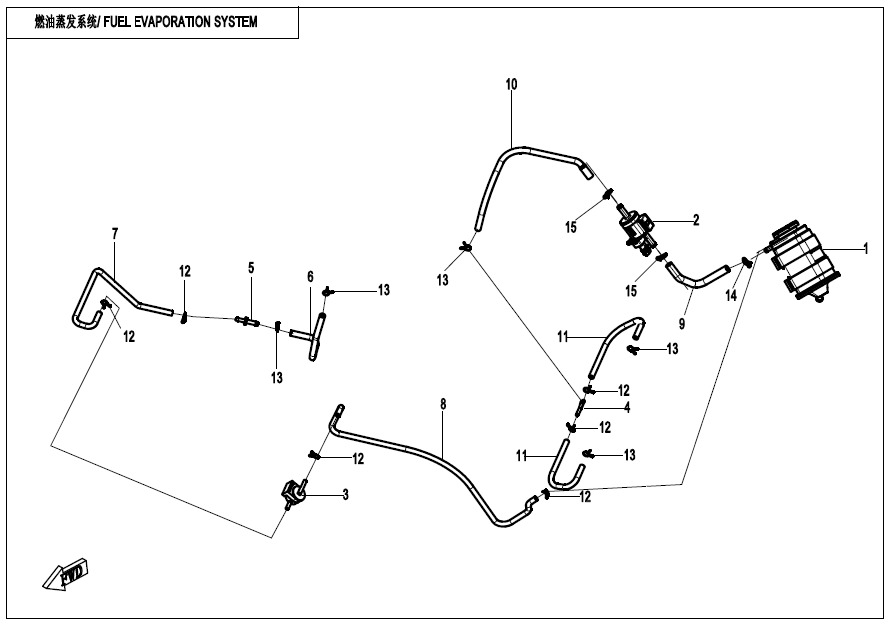

FUEL VAPORIZATION SYSTEM
F38-A
OWNER\'S MANUAL(EU 5)
F38-B
OWNER\'S MANUAL(GERMAN)
F41

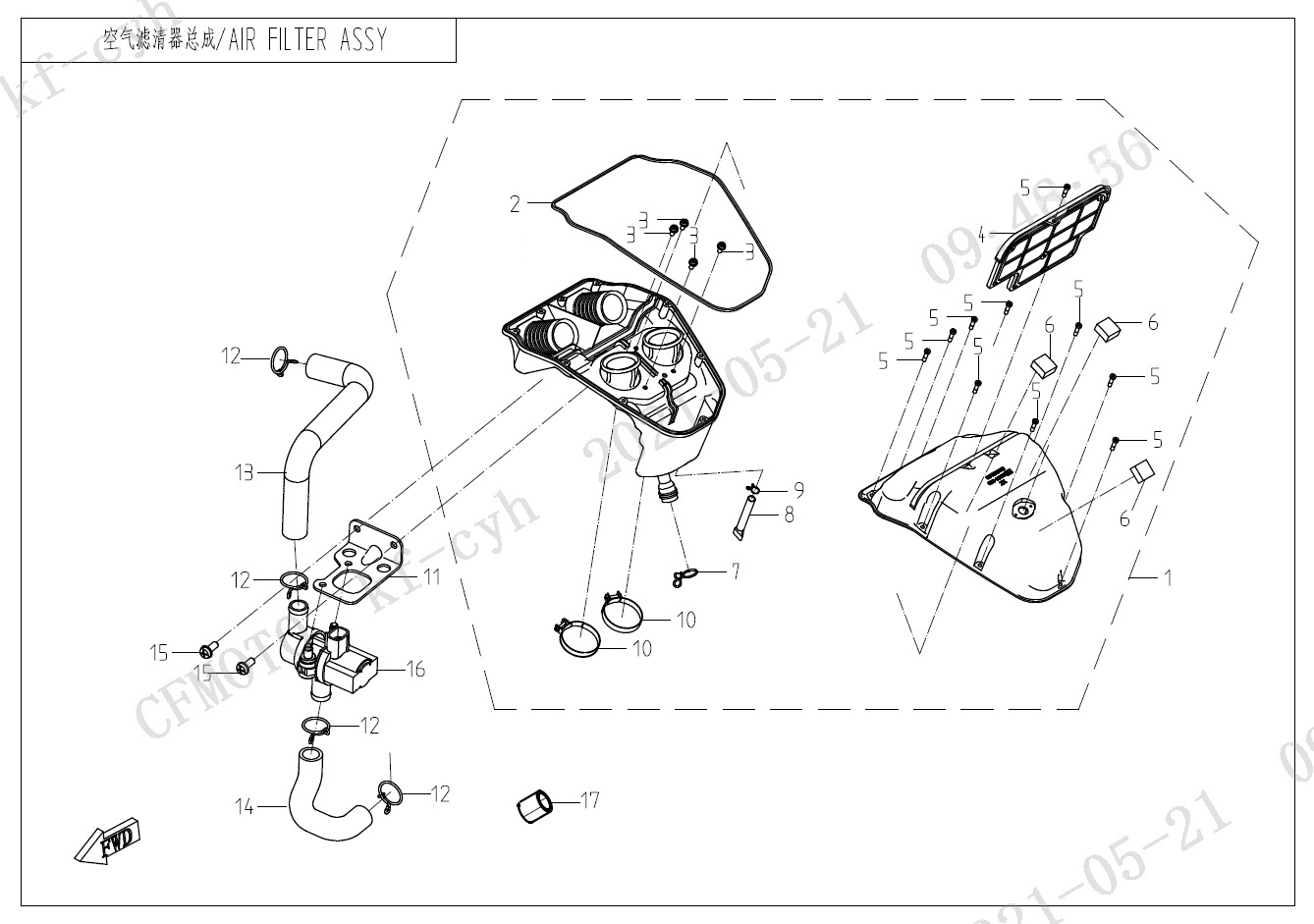

AIR FILTER
F88

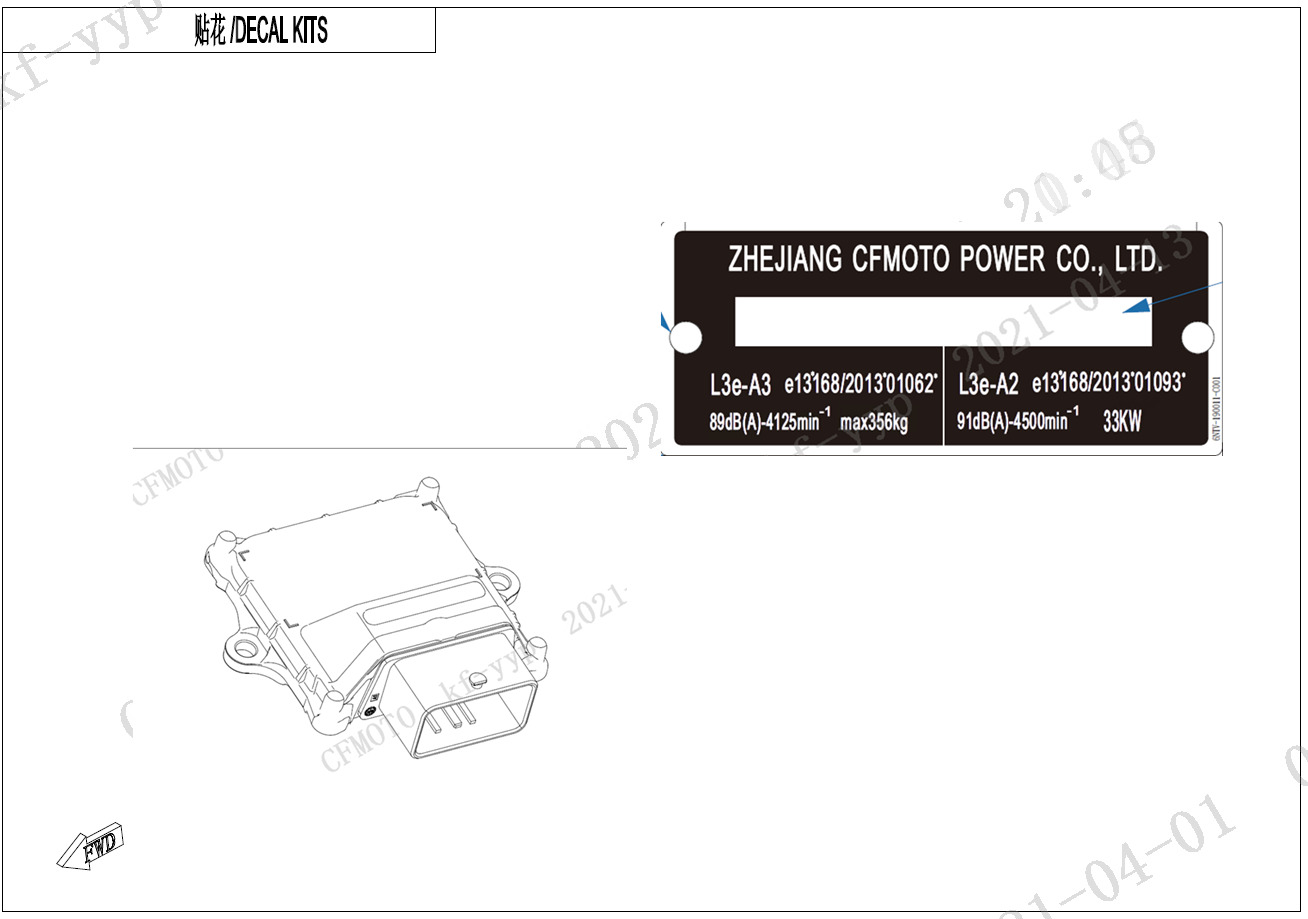

EU5 A2 PARTS
F89
EU5 A3 PARTS
E01-1

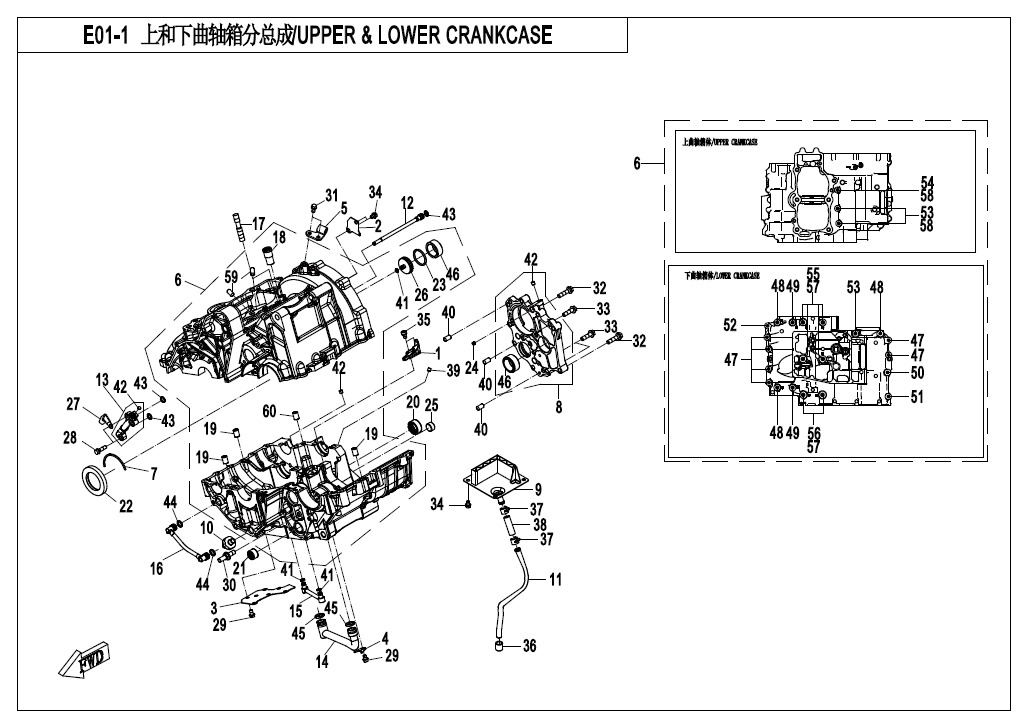

UPPER @^ LOWER CRANKCASE
E01-2
RIGHT@^LEFT SIDE COVER
E01-3
OIL PAN
E02-1

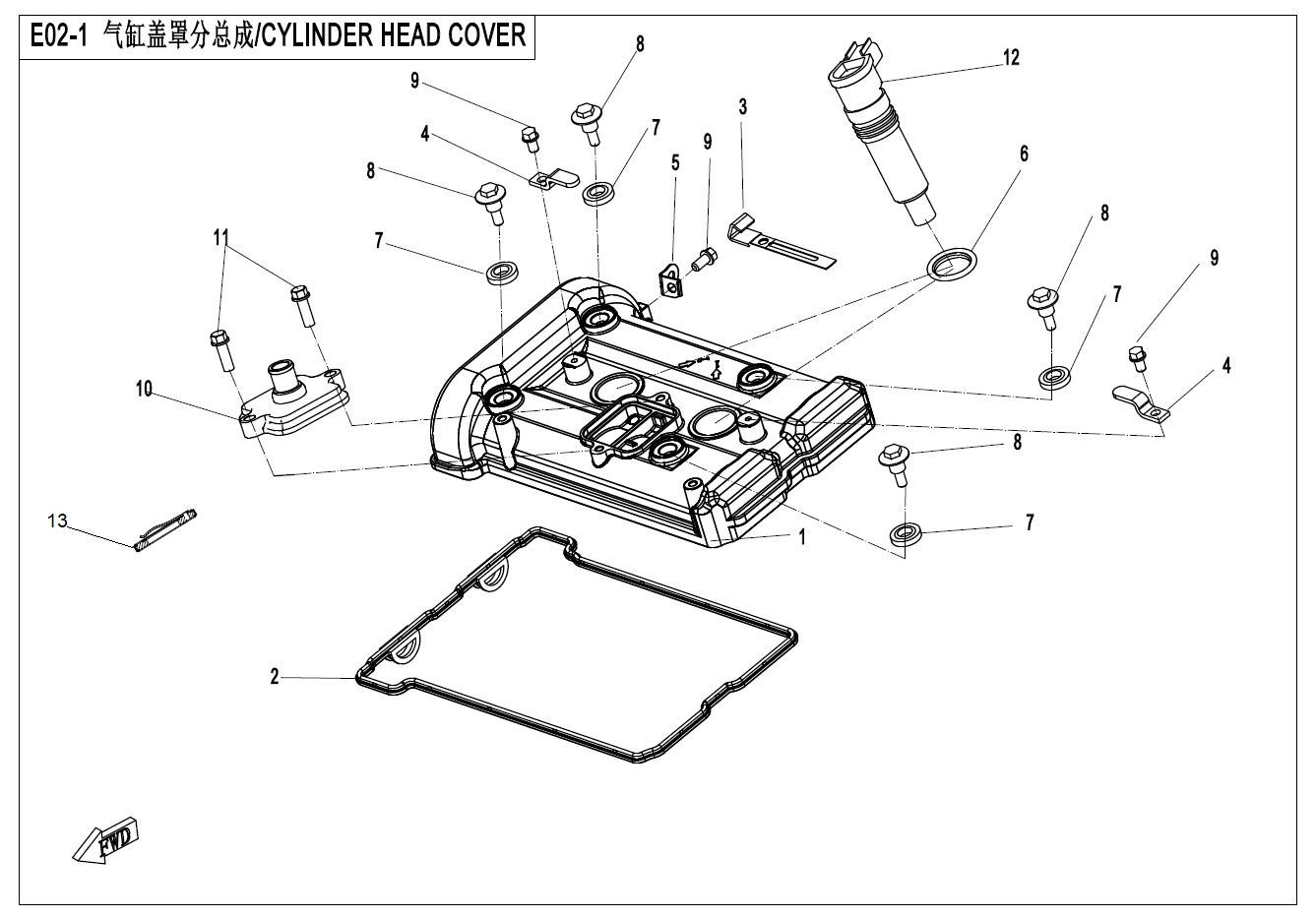

CYLINDER HEAD COVER
E02-2

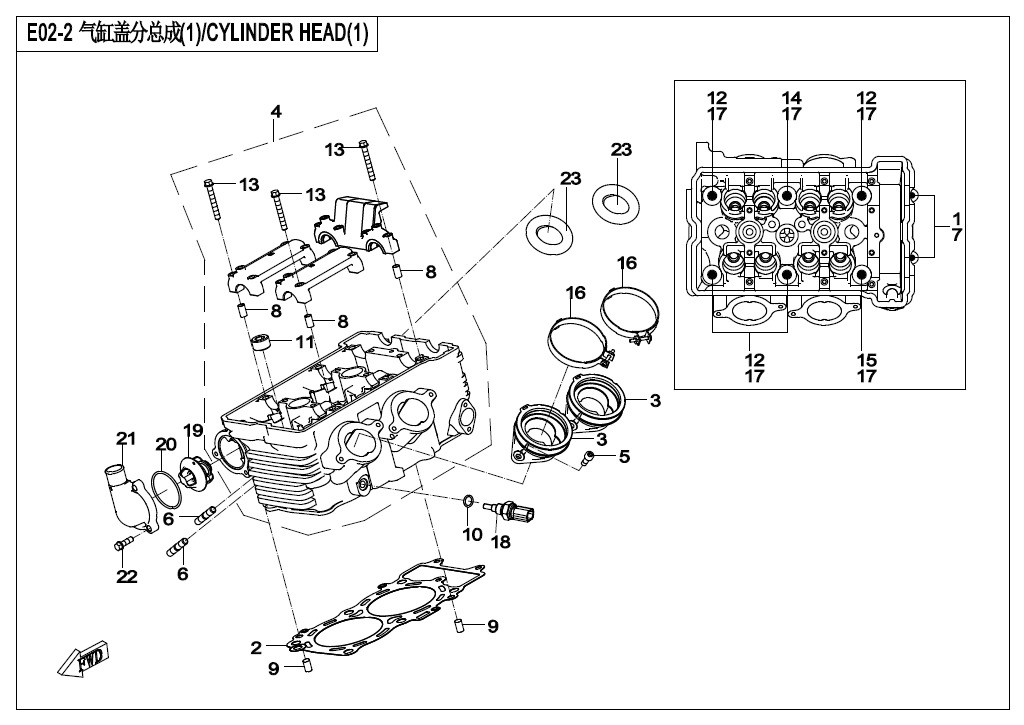

CYLINDER HEAD（1）
E02-3
CYLINDER HEAD（2）
E02-4

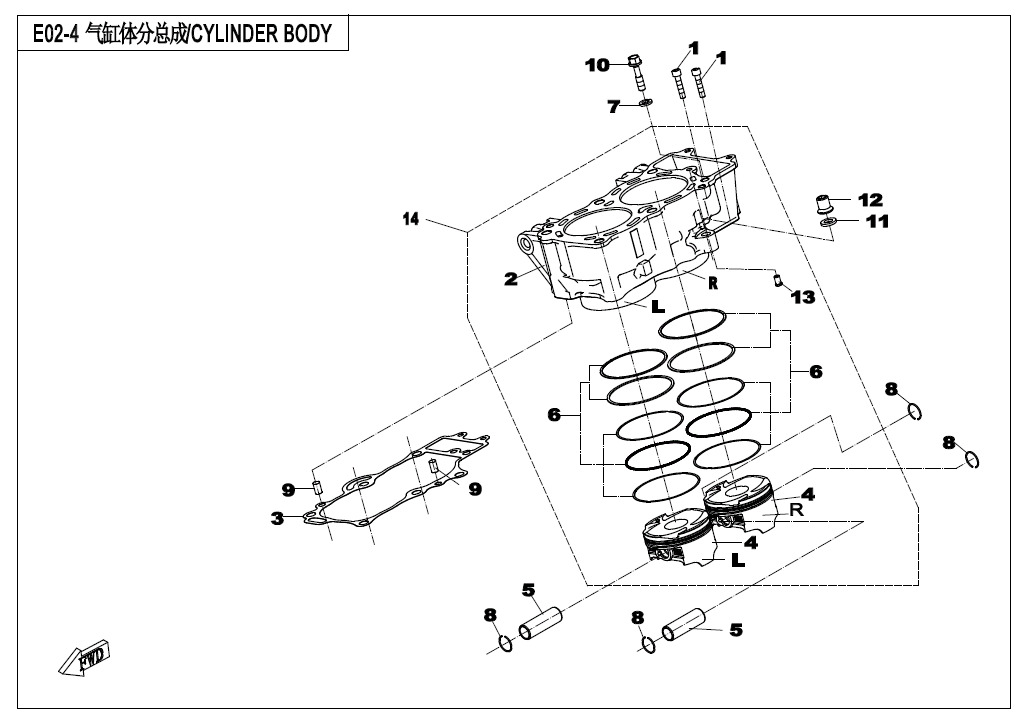

CYLINDER BODY
E02-5

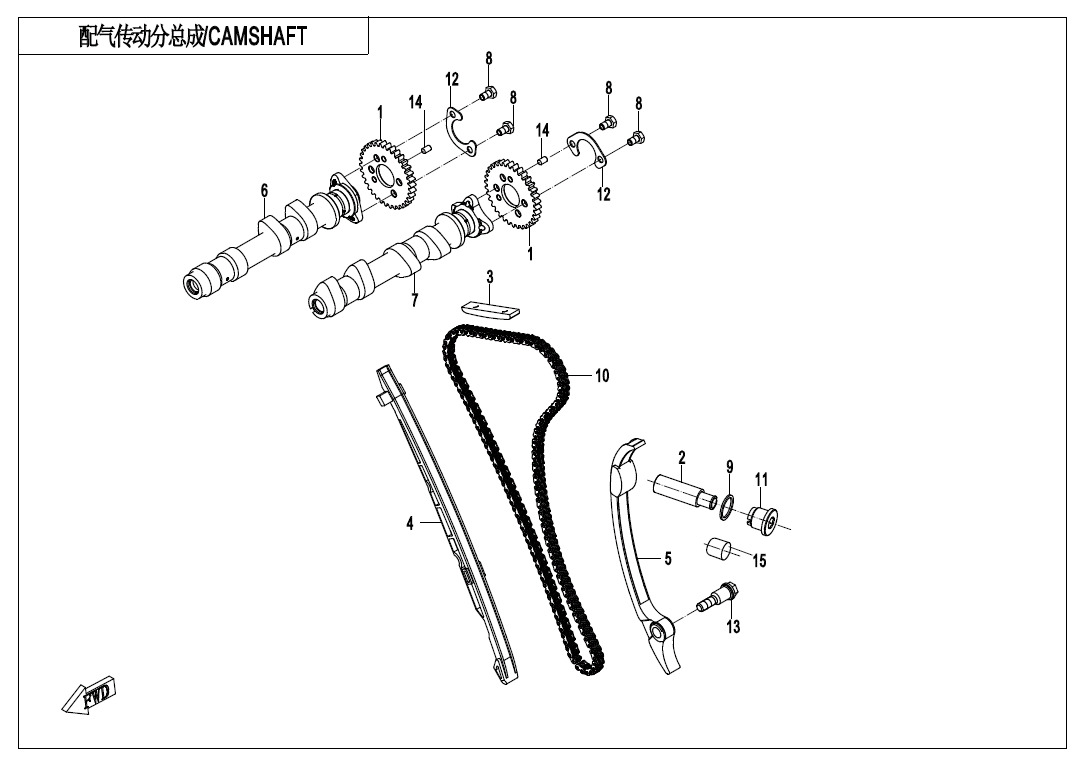

CAMSHAFT
E03

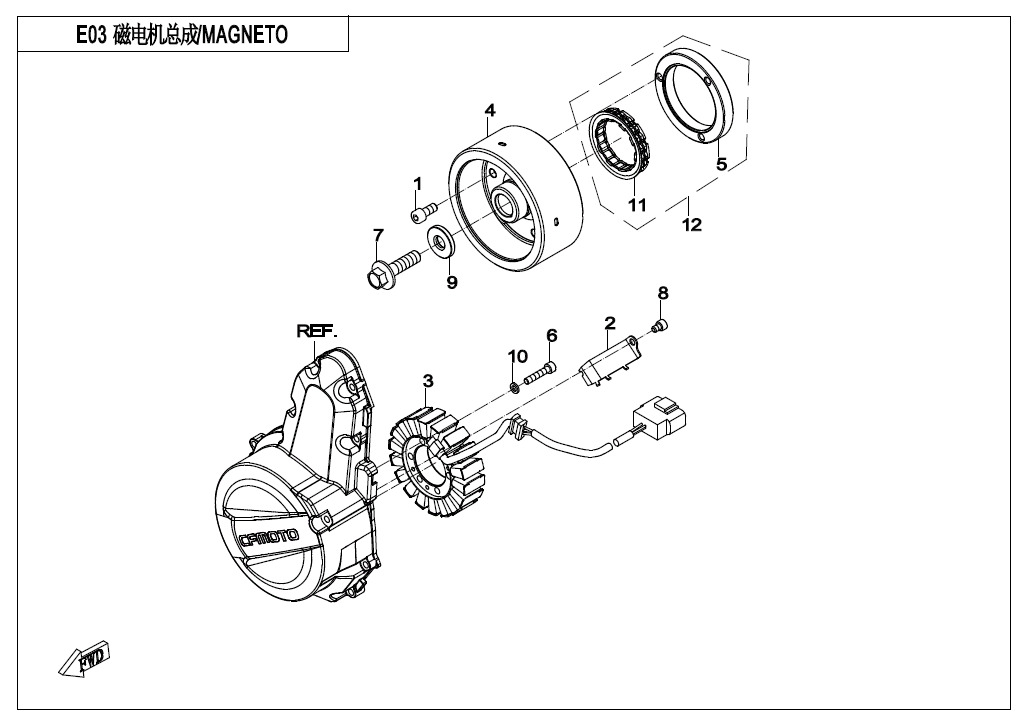

MAGNETO
E04-1

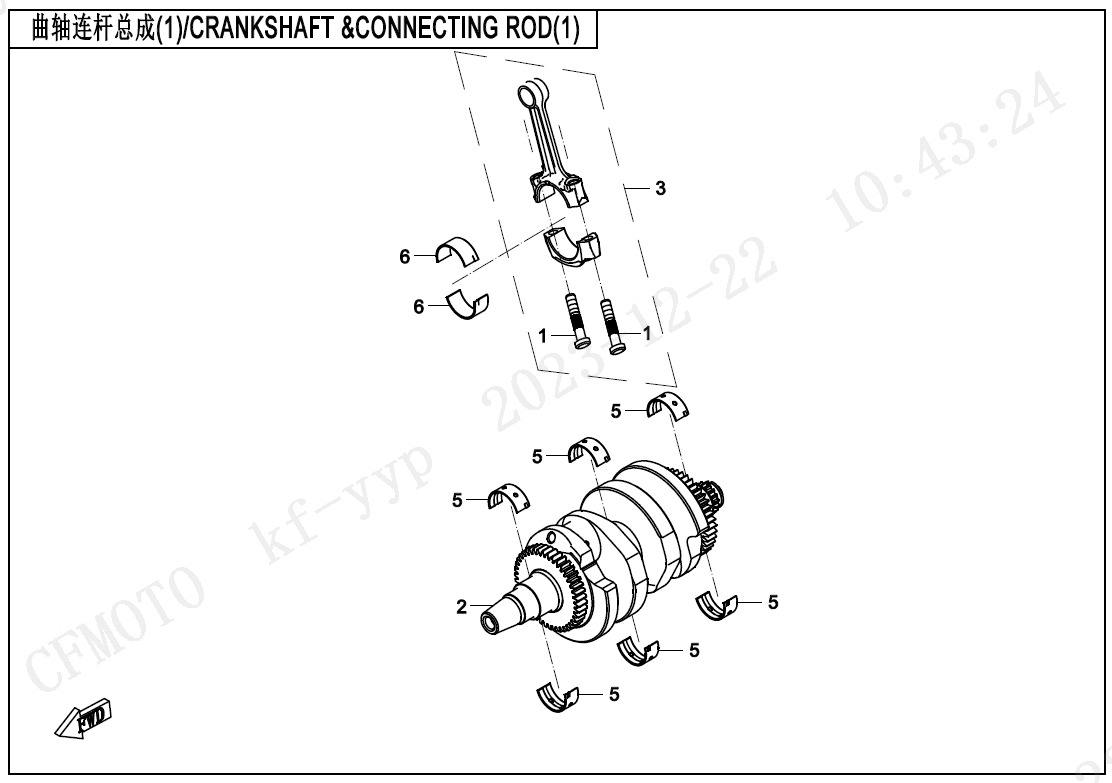

CRANKSHAFT @^CONNECTING ROD（1）
E04-2

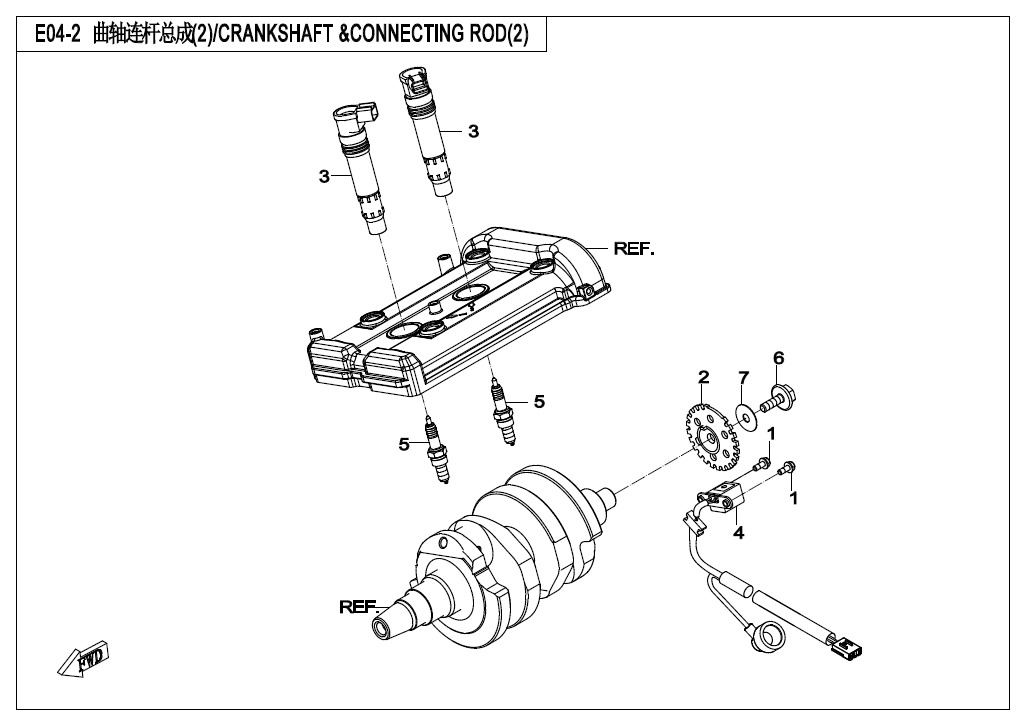

CRANKSHAFT @^CONNECTING ROD（2）
E05

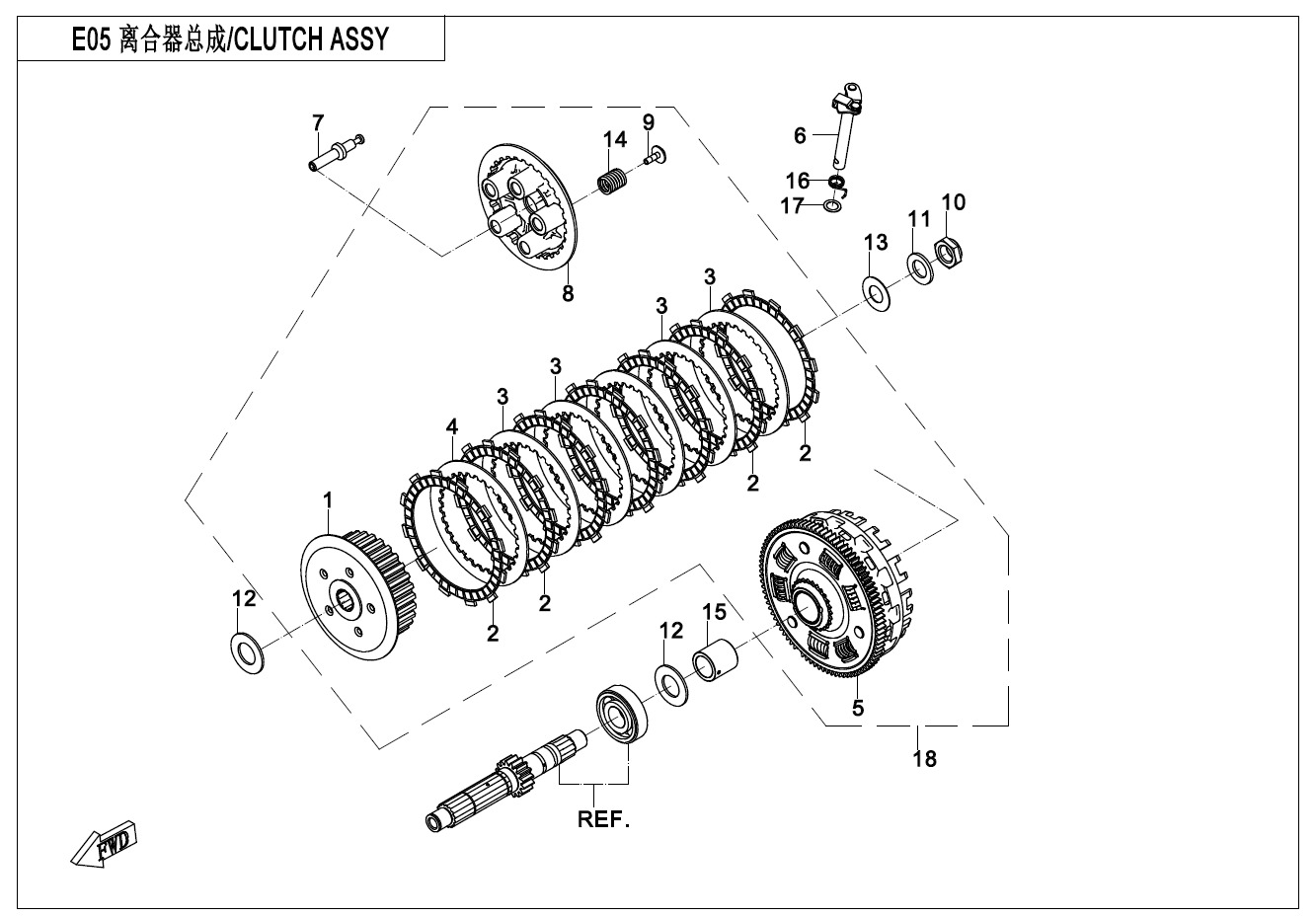

CLUTCH
E06-1

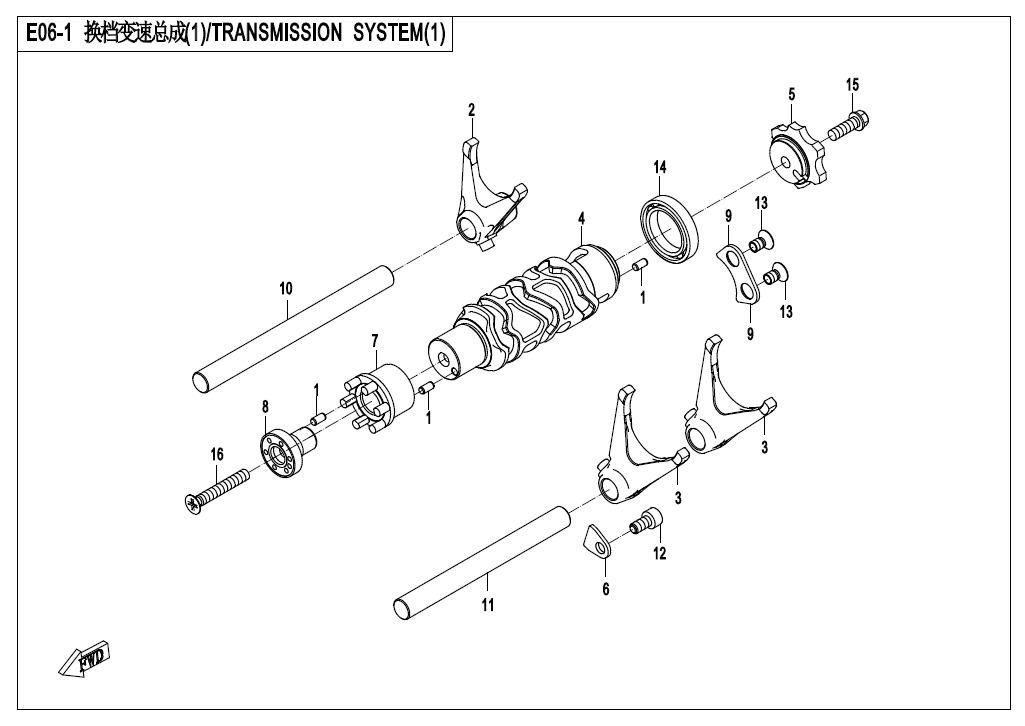

TRANSMISSION SYSTEM（1）
E06-2

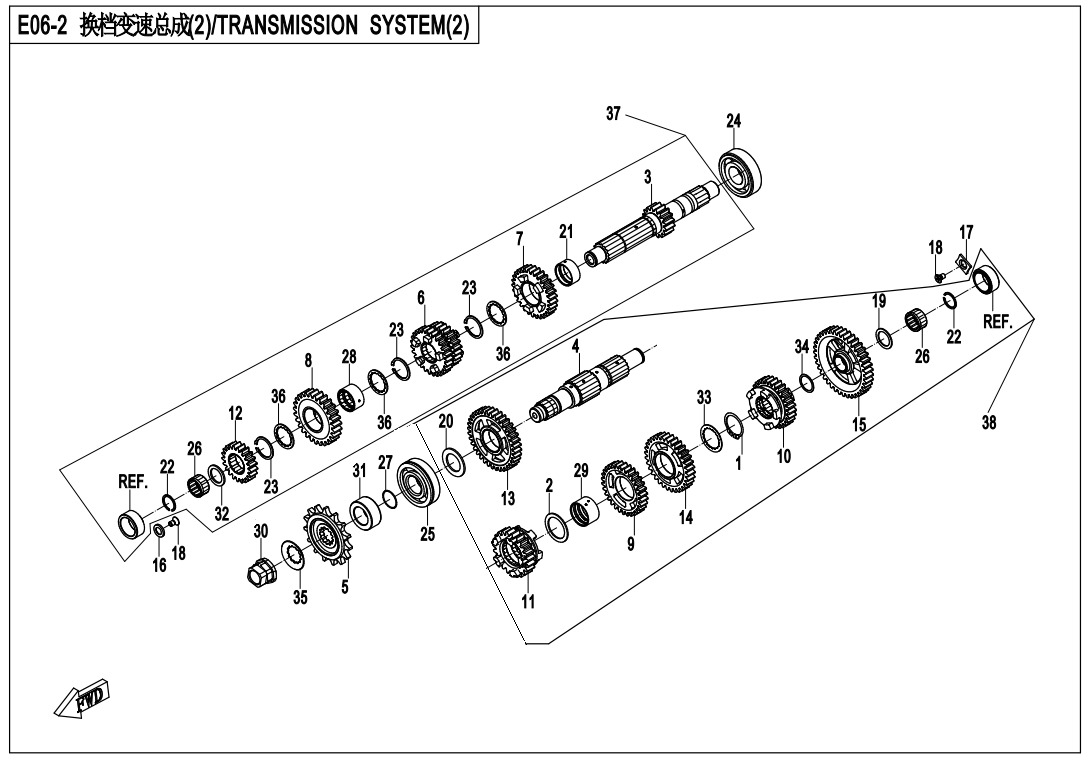

TRANSMISSION SYSTEM（2）
E06-3-V2

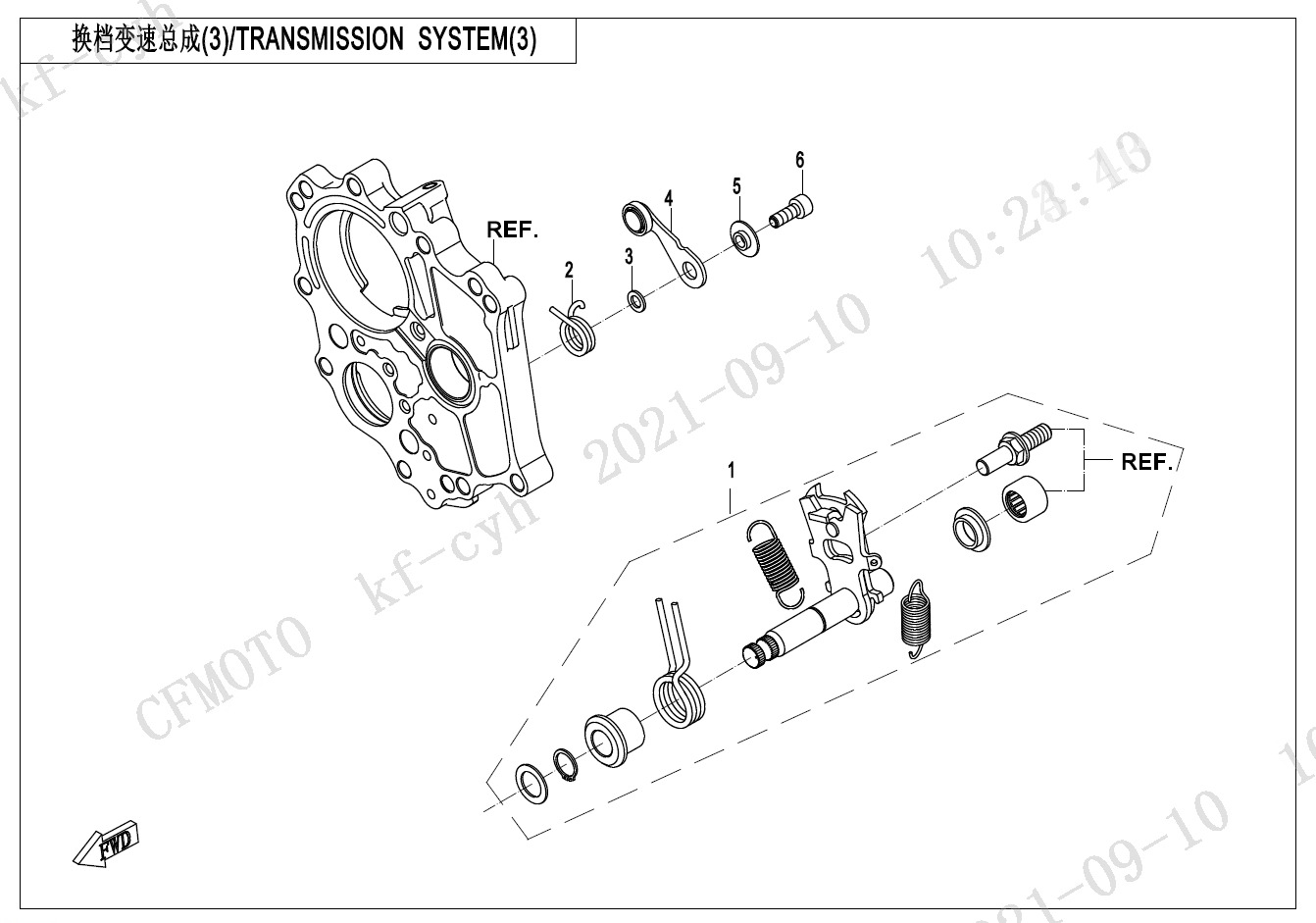

TRANSMISSION SYSTEM（3）
E07
LUBRICATION SYSTEM
E08

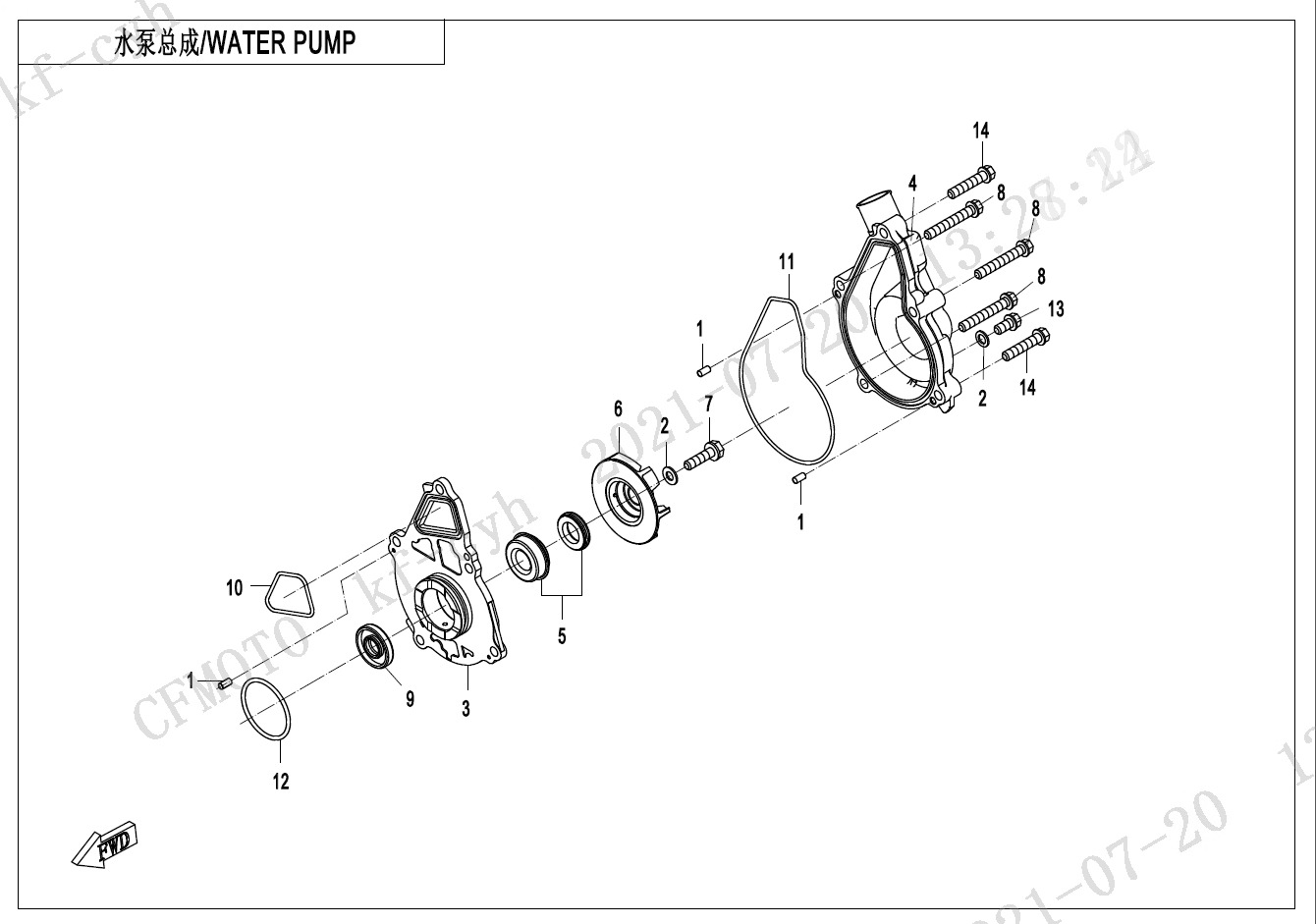

WATER PUMP
E09

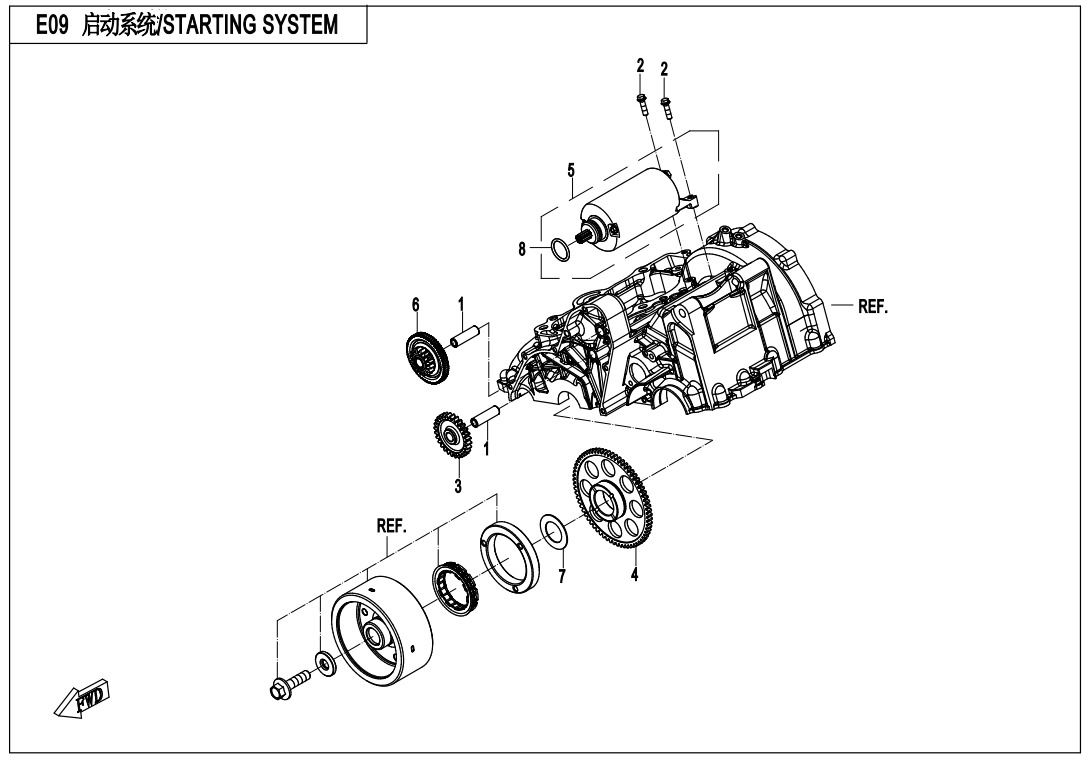

STARTING SYSTEM
E16

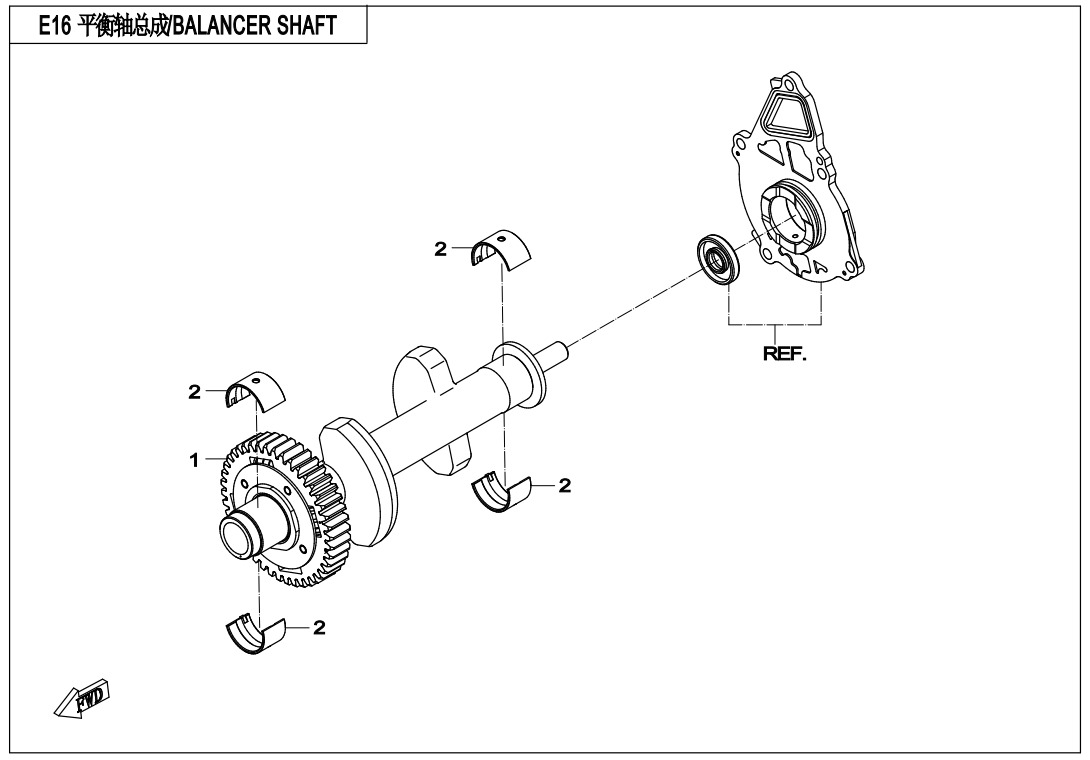

BALANCER SHAFT

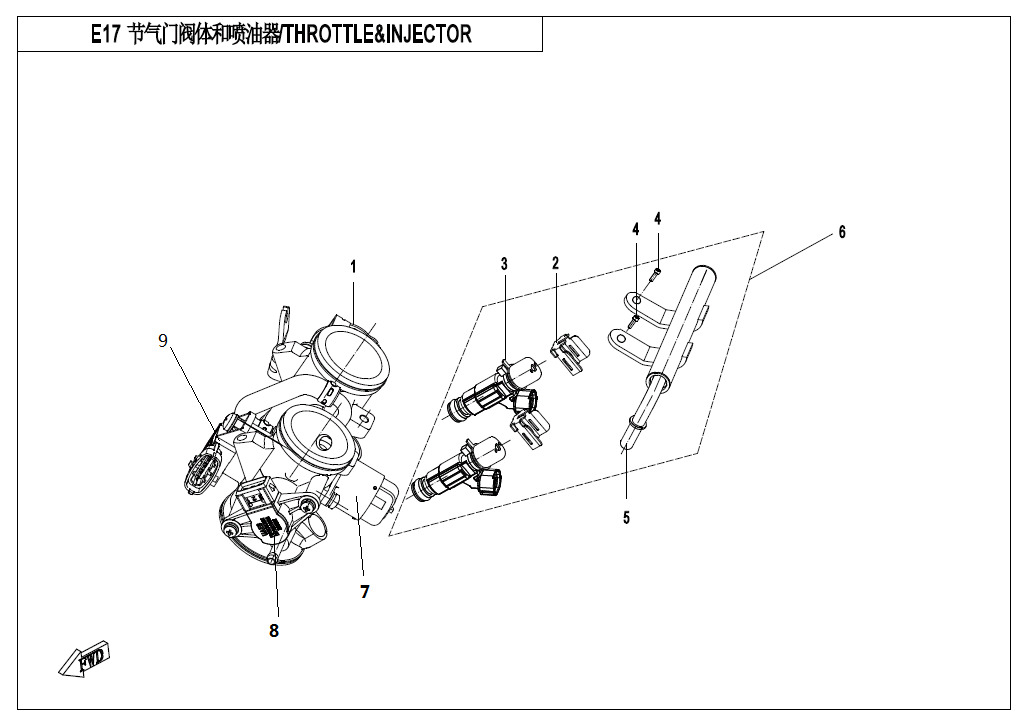

E17
THROTTLE@^INJECTOR

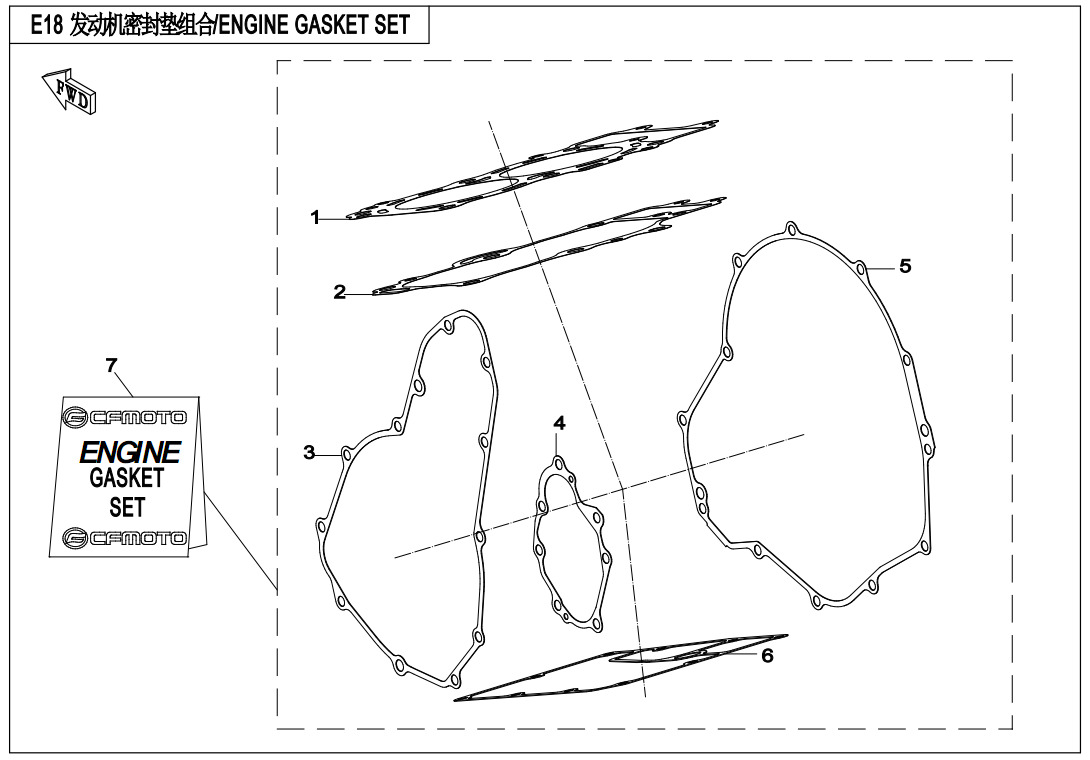

E18
