Genuine Parts Diagrams for 2024 450CL-C - CF400-10Change Model
Showing 67 parts diagrams.
F01
LOCK KIT
F02
MUFFLER

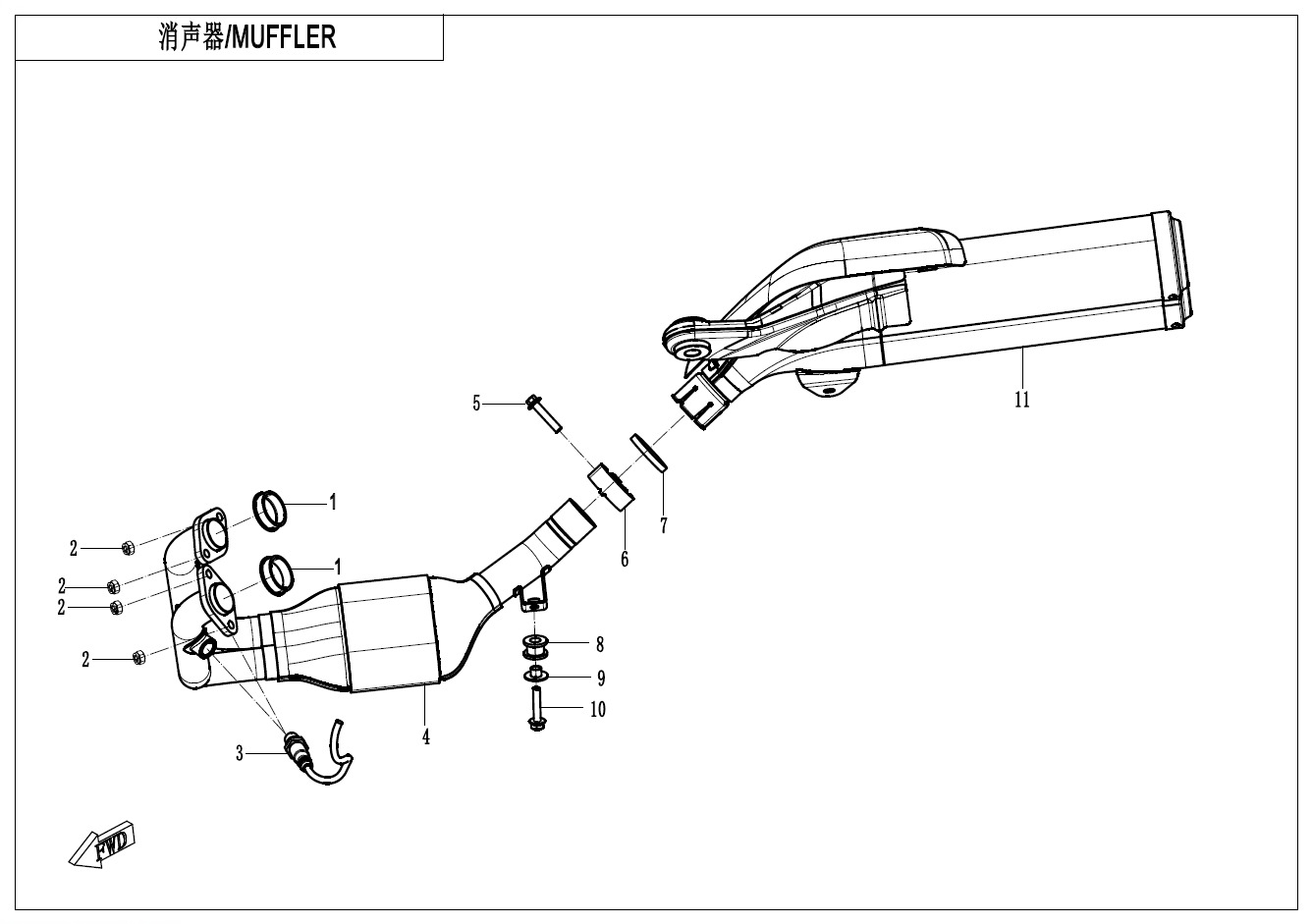

F02-V1

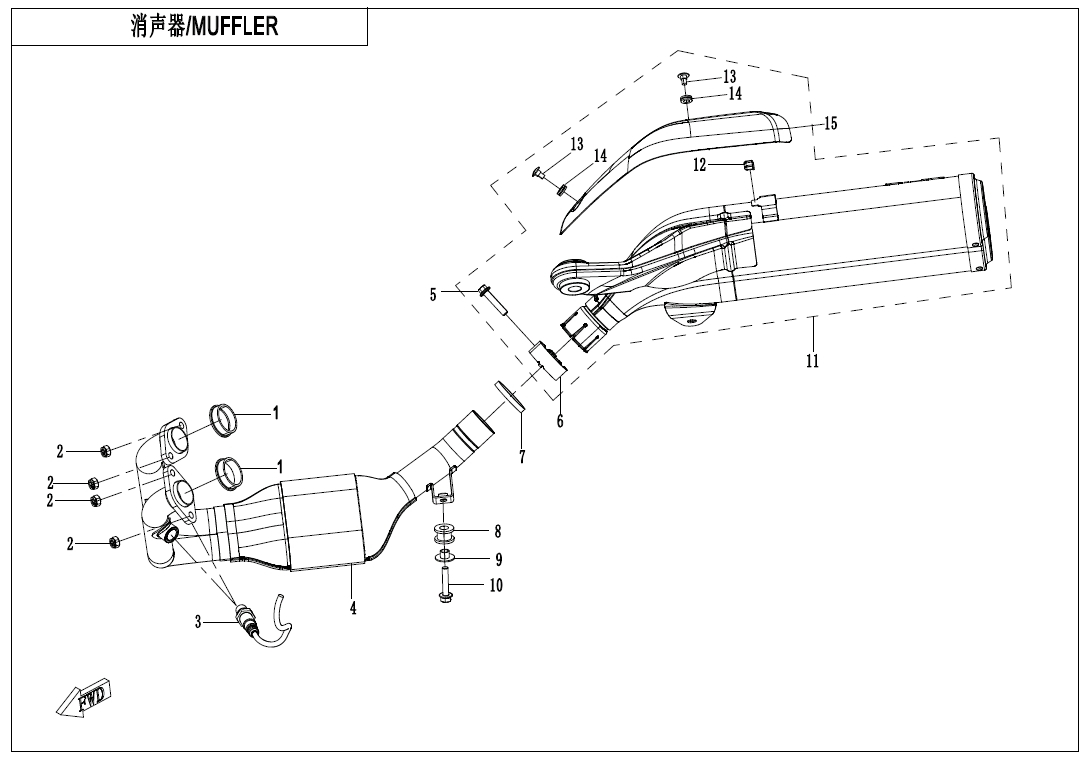

MUFFLER
F02-V2
MUFFLER
F03-1
FRAMEⅠ

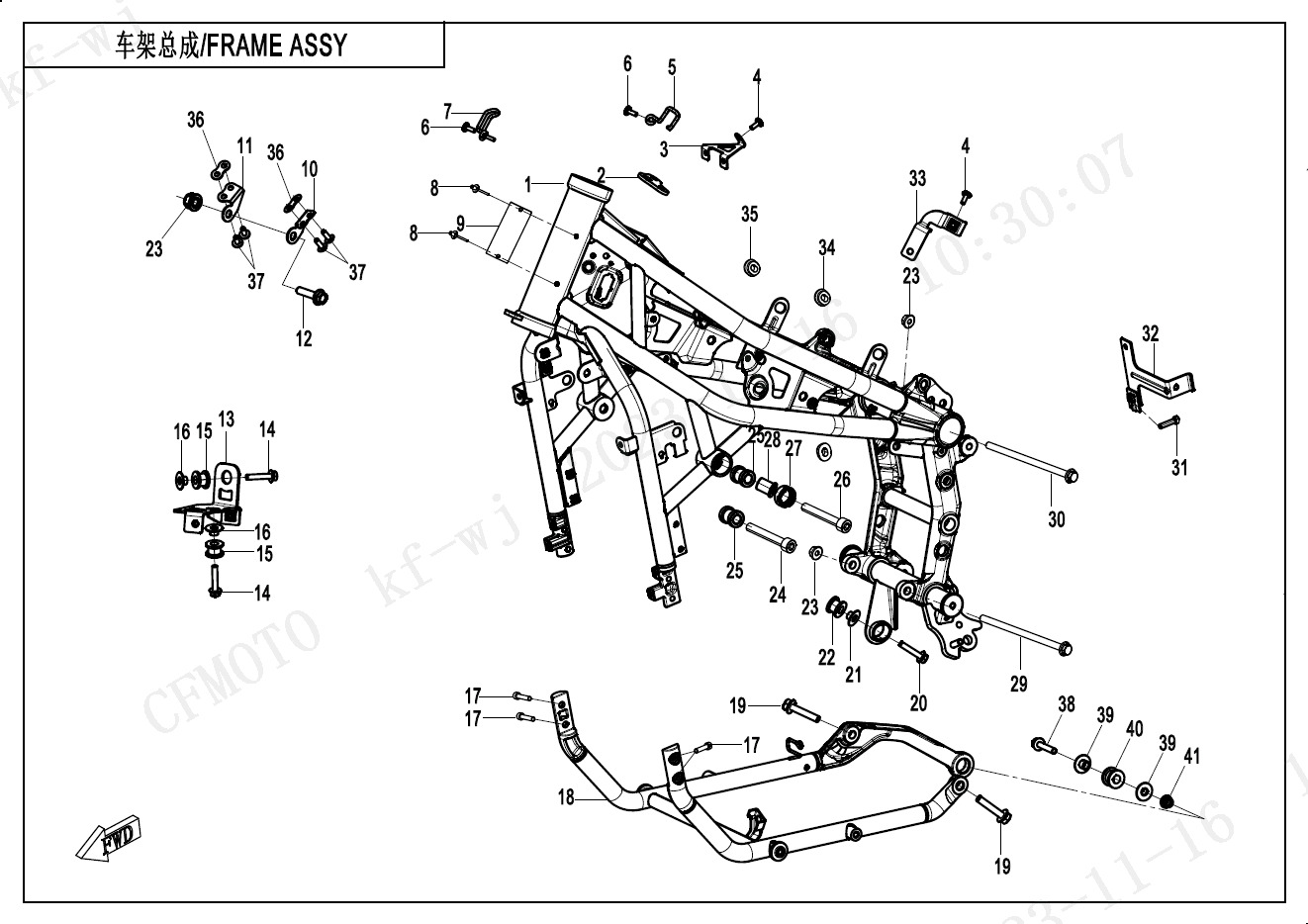

F03-1-V1
FRAMEⅠ

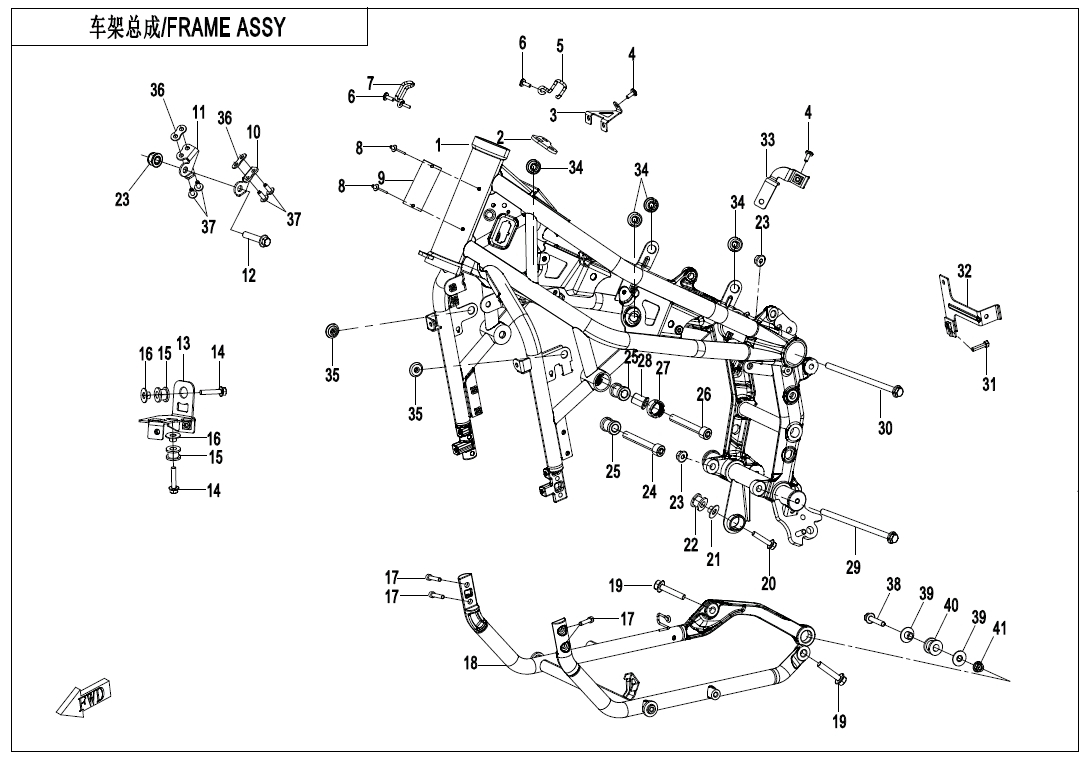

F03-1-V2
FRAMEⅠ
F03-2
FRAMEⅡ
F04-1
PLASTICS Ⅰ
F04-2
PLASTICS Ⅱ
F04-3
PLASTICS Ⅲ
F04-4
PLASTICS Ⅳ
F04-5
PLASTICSⅤ
F04-6
PLASTICS Ⅵ

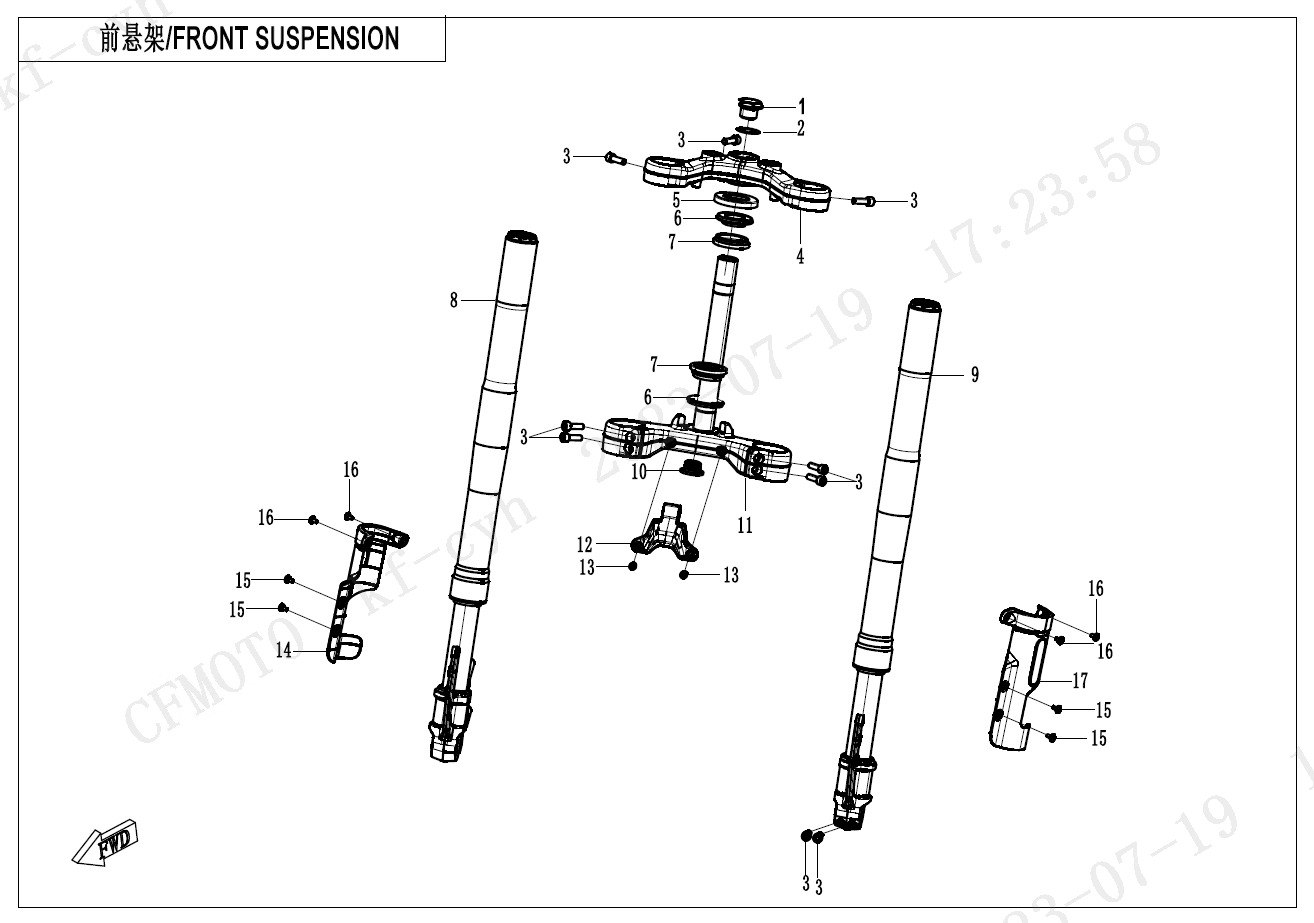

F05-1-V1
FRONT SUSPENSION
F05-1-V2
FRONT SUSPENSION

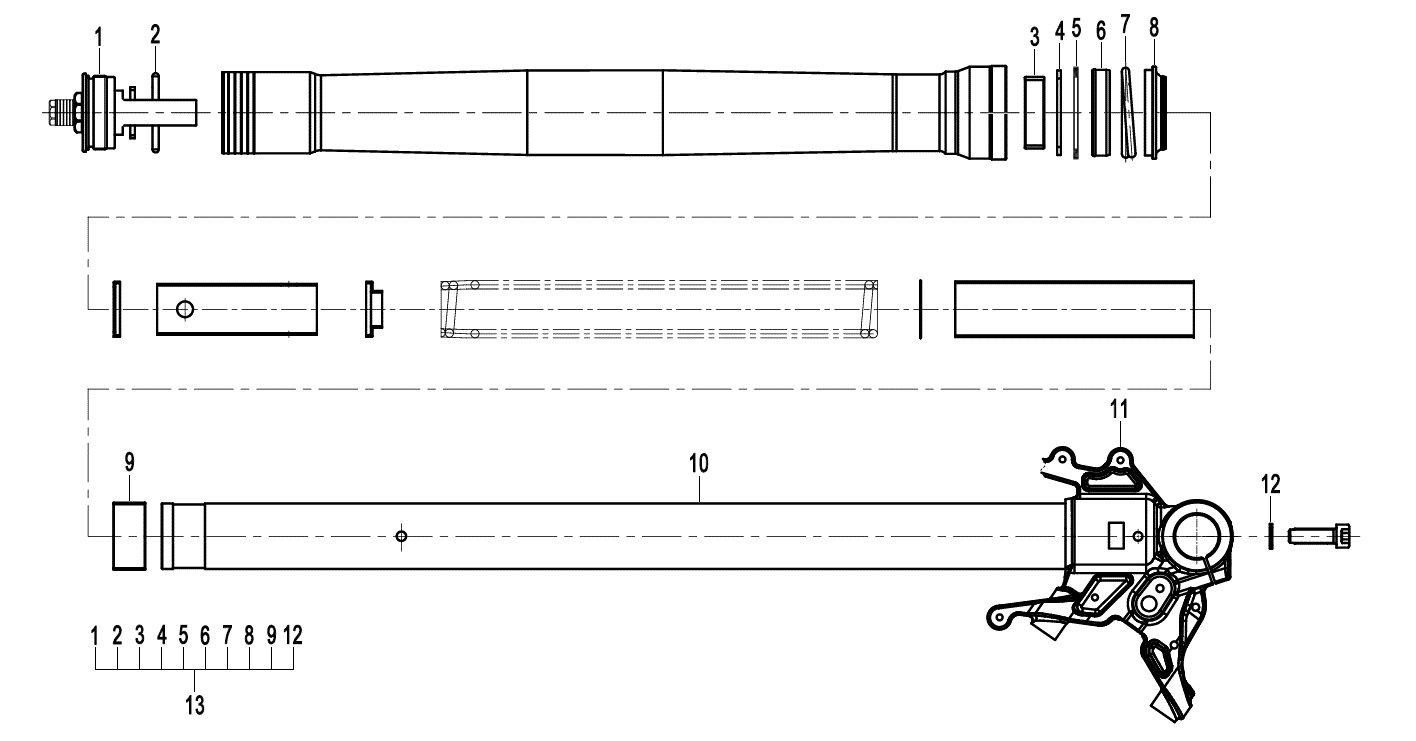

F05-2
FRONT SHOCK ABSORBER
F05-V1
FRONT SUSPENSION
F06
REAR SUSPENSION
F07
FRONT WHEEL
F08
MAB BRAKE ASSY
F08-V1
MAB BRAKE ASSY

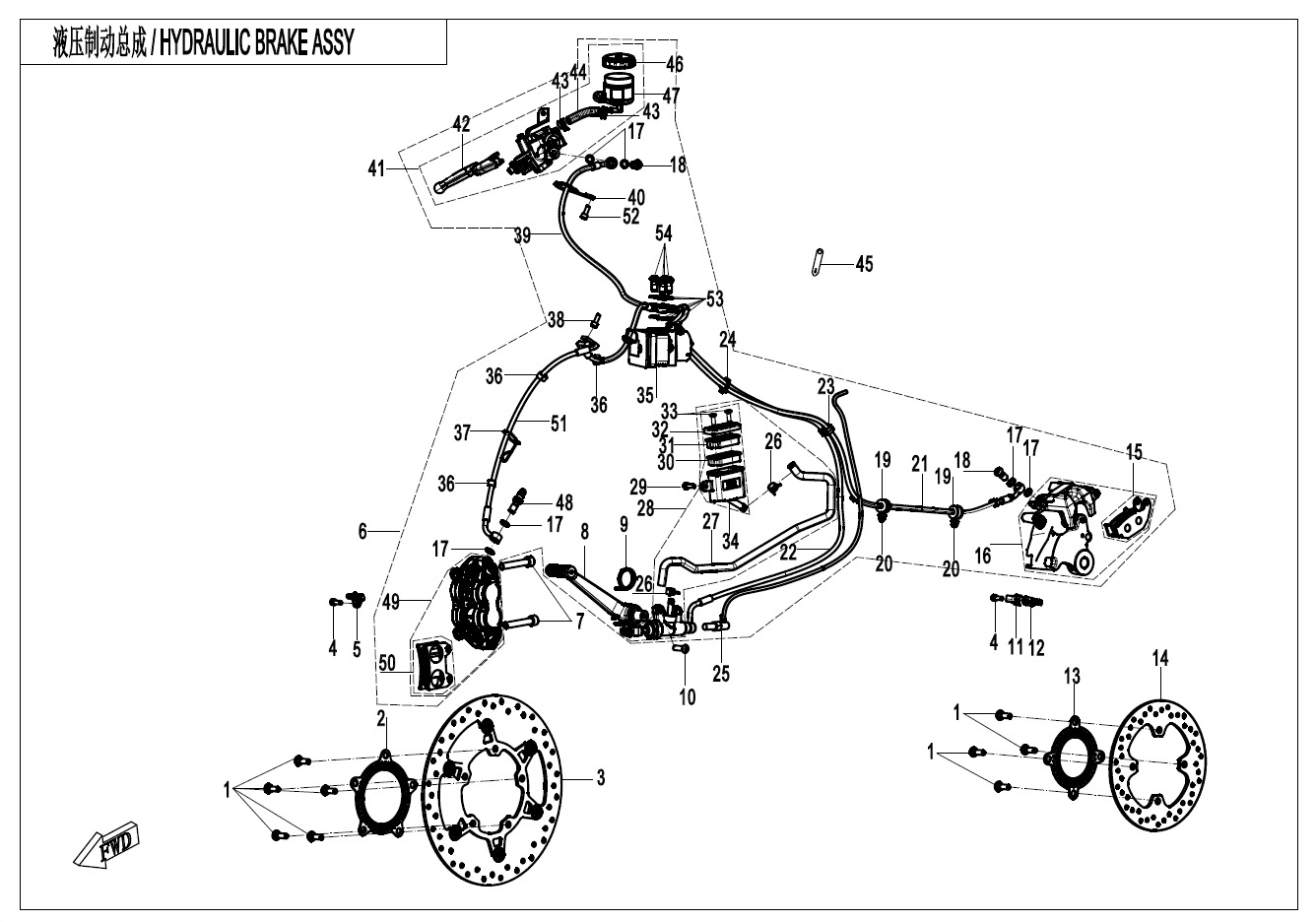

F08-V2
MAB BRAKE ASSY
F08-V3
MAB BRAKE ASSY
F10
STEERING SYSTEM
F11
REAR WHEEL
F12
FUEL TANK
F13-V1
SEAT

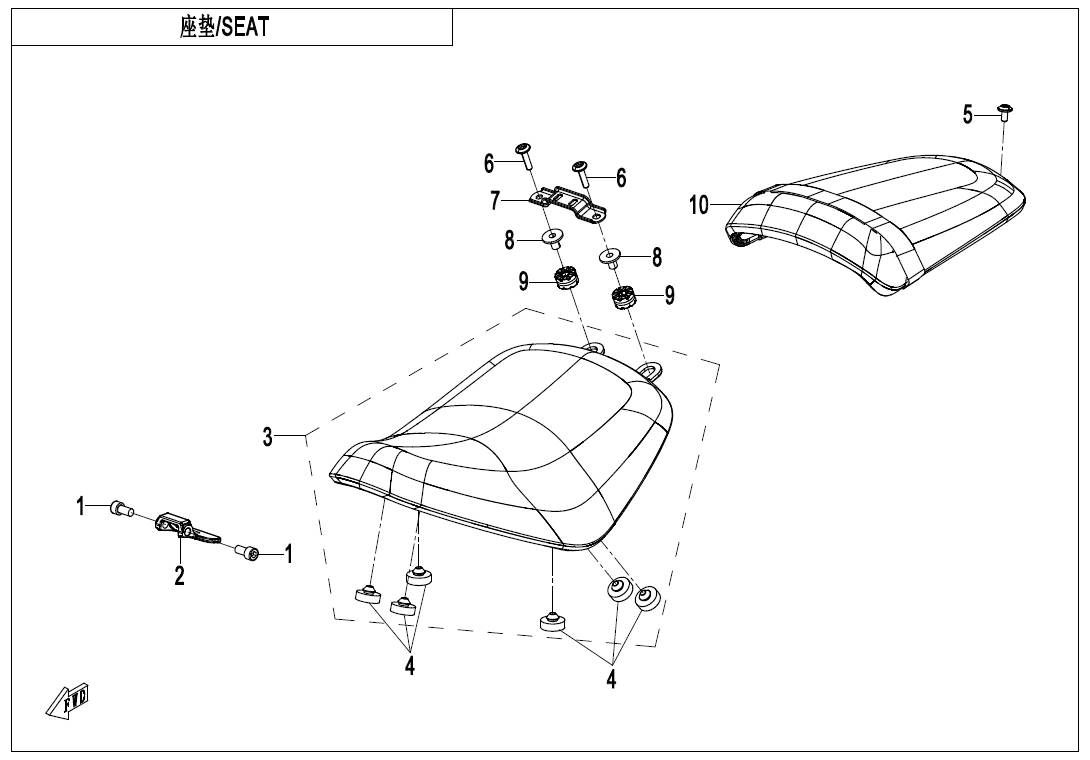

F13-V2
SEAT
F14
FOOTREST
F15
ELECTRIC SYSTEM
F16
LIGHTS
F17
DASHBOARD
F18
COOLING SYSTEM

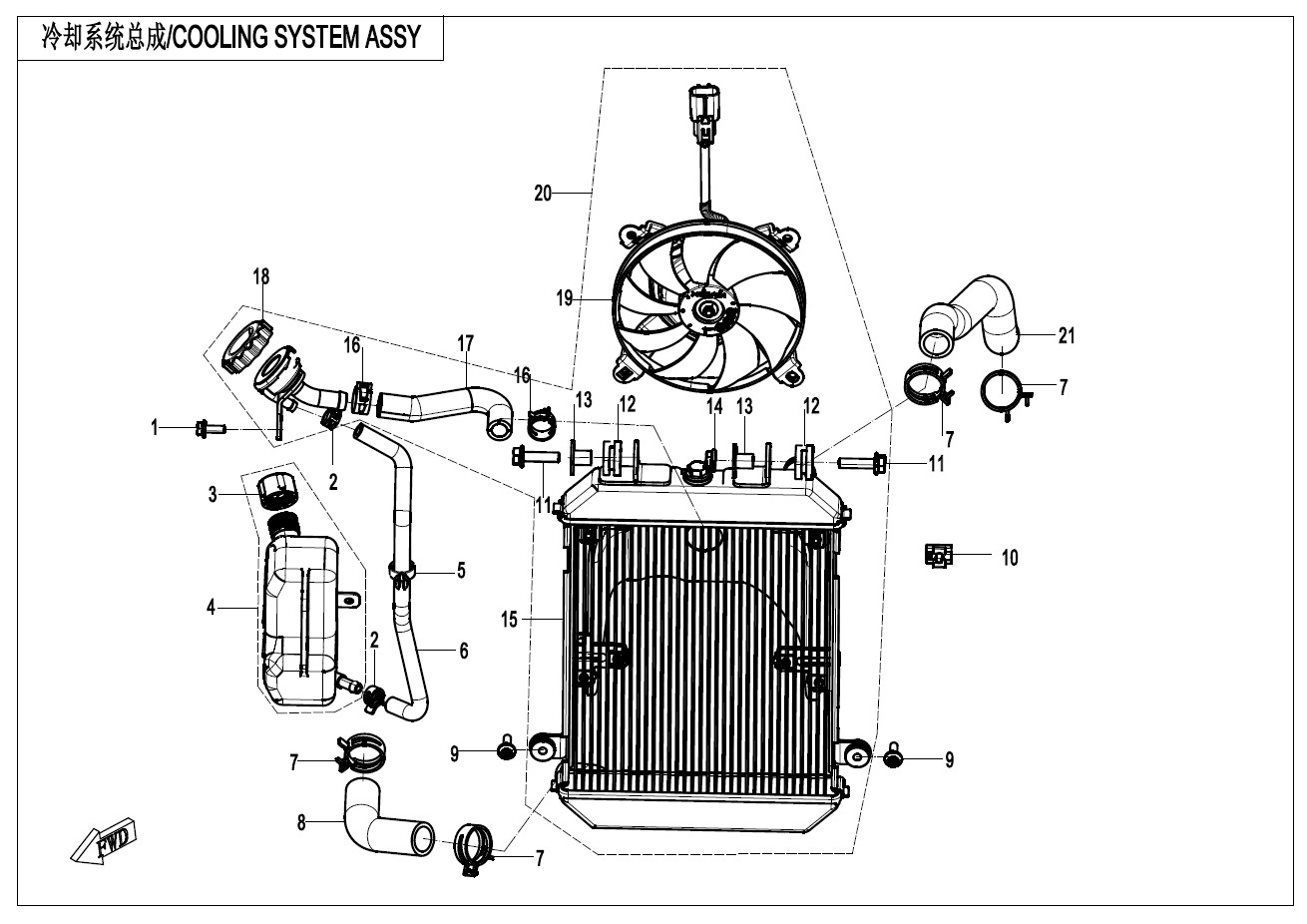

F18-V1
COOLING SYSTEM
F18-V2
COOLING SYSTEM
F19-1
WARNING DECAL
F19-2
L FUEL TANK LABEL
F19-3
MODEL DECAL
F19-4
NOISE LABEL(AUSTRALIA)
F20
TOOLS
F36
FUEL VAPORIZATION SYSTEM
F38
OWNERS MANUAL
F38-A
OWNERS MANUAL
F38-C
AUSTRALIA WARRANTY CARD
F41
AIR FILTER
E01-1
UPPER @^ LOWER CRANKCASE ASSY
E01-2
LEFT@^ RIGHT SIDE COVER
E01-3
OIL PAN
E02-1
CYLINDER HEAD COVER
E02-2
CYLINDER HEAD(1)
E02-3
CYLINDER HEAD(2)
E02-4
CYLINDER HEAD(3)
E02-5
CAMSHAFT
E03
MAGNETO
E04-1
CRANKSHAFT @^CONNECTING ROD（1）
E04-2
CRANKSHAFT @^CONNECTING ROD（2）
E05-A
CLUTCH(FCC)
E05-B
CLUTCH(CHONGQIN CHANGXIN)
E06-1
TRANSMISSION SYSTEM(1)
E06-2
TRANSMISSION SYSTEM(2)
E07
OIL PUMP
E08
WATER PUMP
E09
STARTING SYSTEM
E16
BALANCER SHAFT
E17
