Genuine Parts Diagrams for 2011 V-NIGHT - CF150-2CChange Model
Showing 48 parts diagrams.

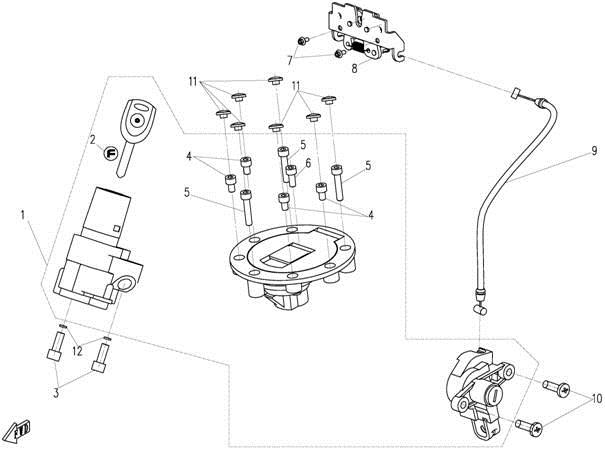

F01
LOCK KITS
F02-2

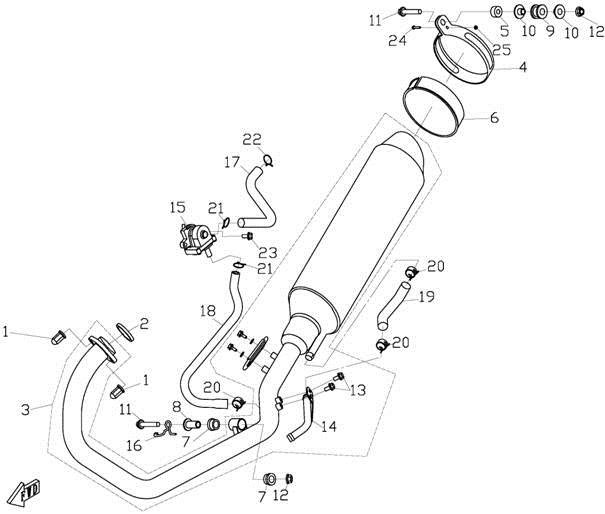

MUFFLER ASSY
F03-1

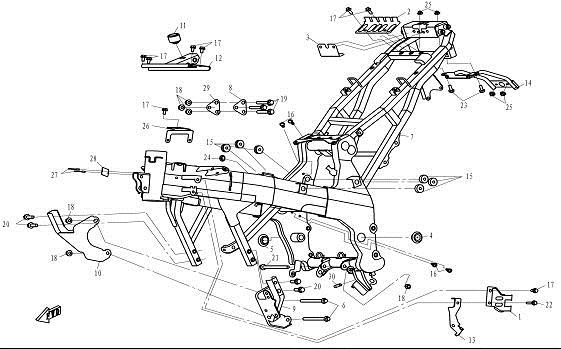

FRAME ASSY
F03-2

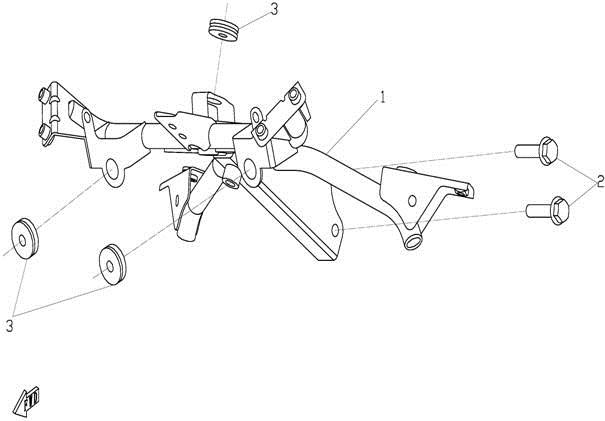

BRACKET OF DASHBOARD
F03-3

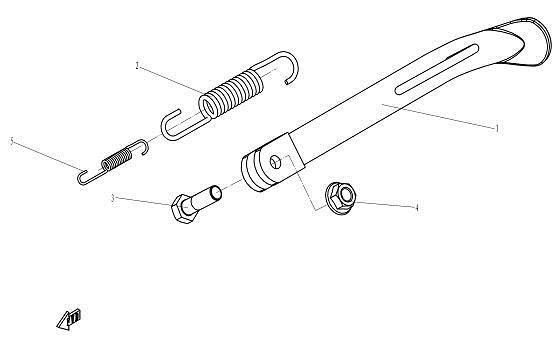

SIDE STAND
F03-4

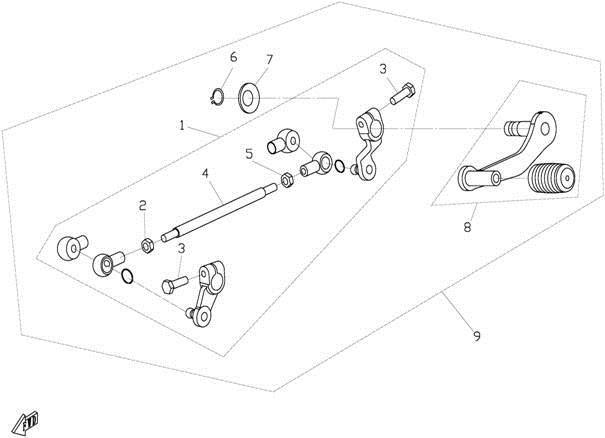

GEARSHIFT LEVER
F04-1

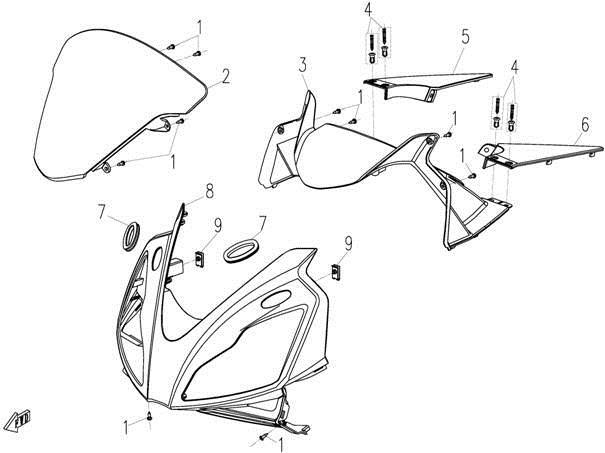

PLASTIC PARTS I

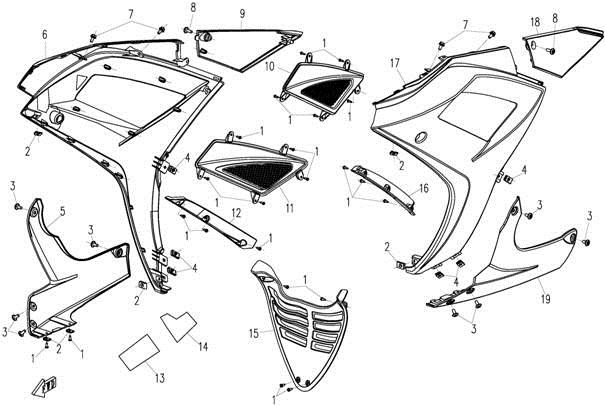

F04-2
PLASTIC PARTS II

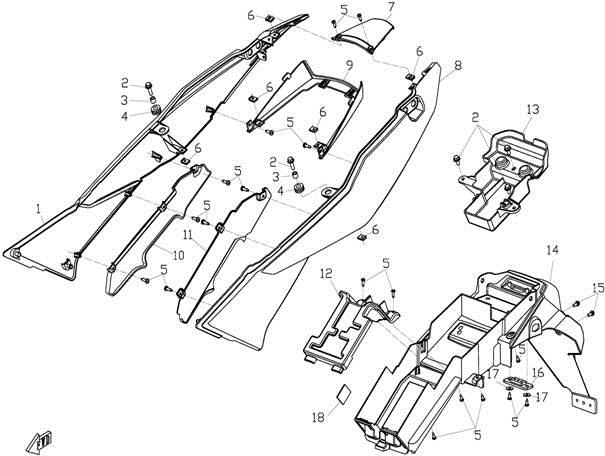

F04-3
PLASTIC PARTS III
F05

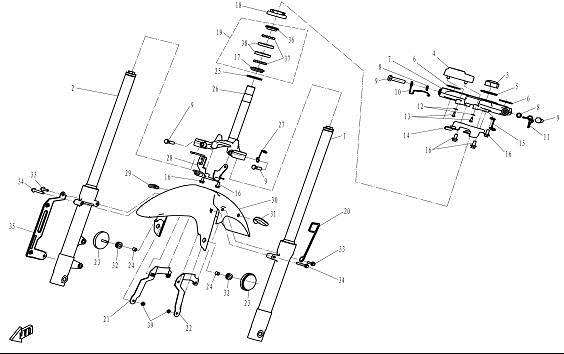

FRONT SUSPENSION
F06-1

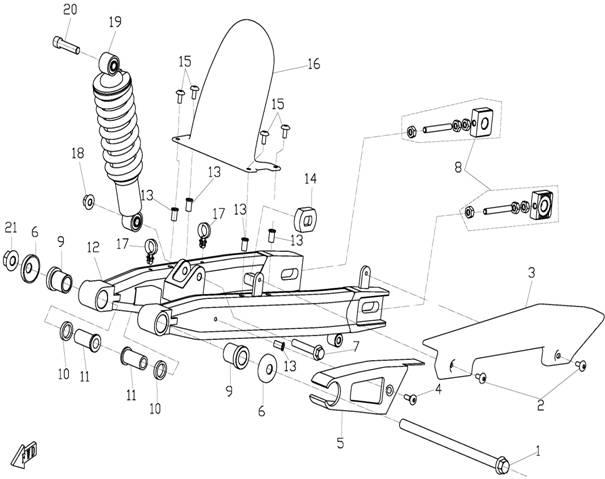

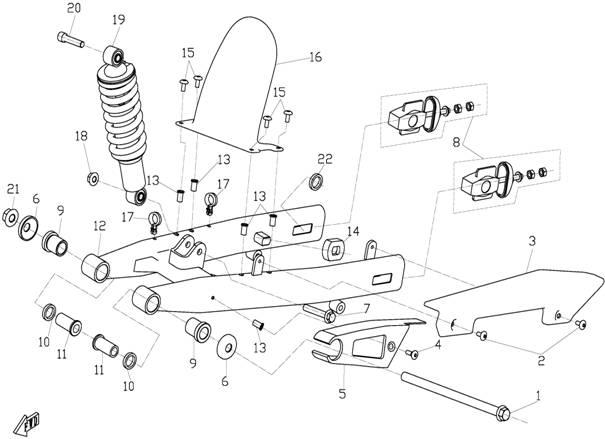

REAR SUSPENSION
F06-2
REAR SUSPENSION
F07

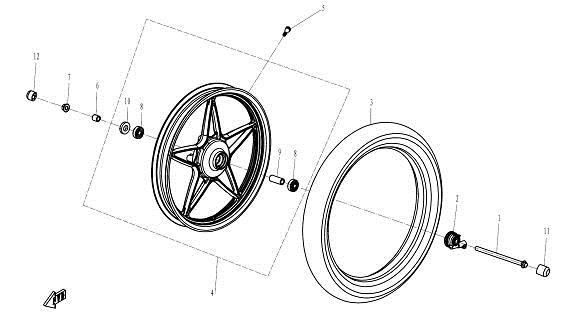

FRONT WHEEL
F08-1

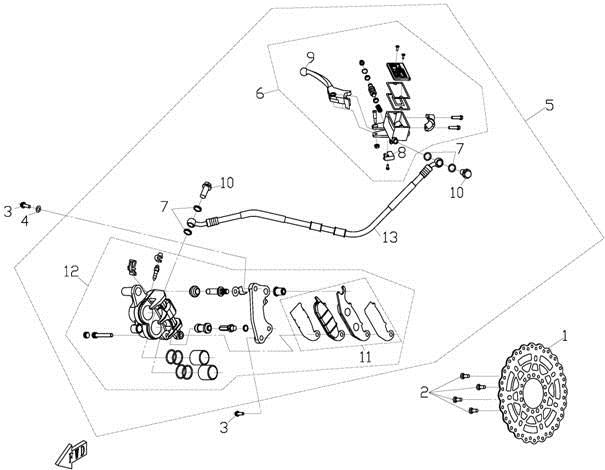

FRONT BRAKE SYSTEM
F08-2

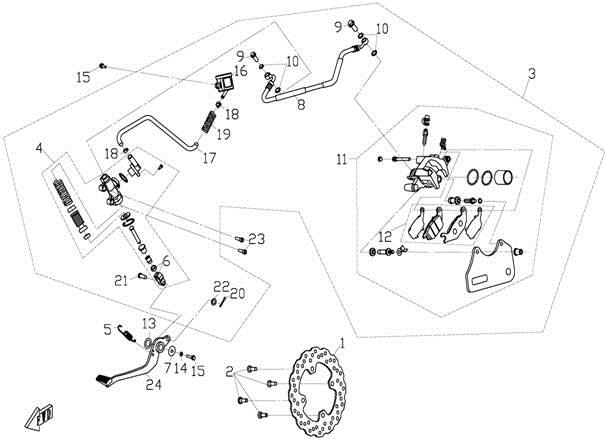

REAR BRAKE SYSTEM
F10

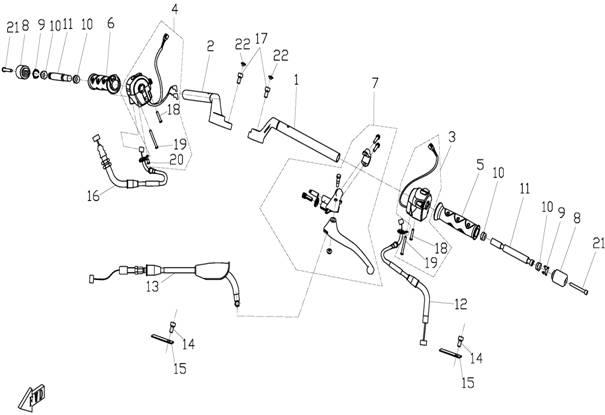

STEERING SYSTEM
F11

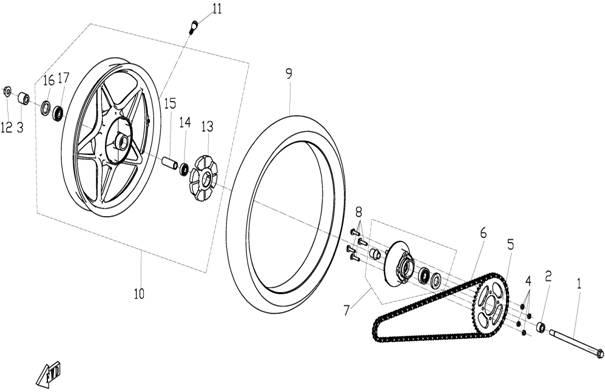

REAR WHEEL
F12-2

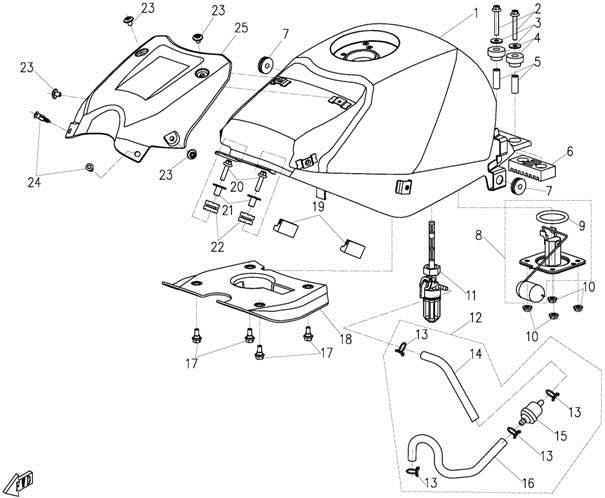

FUEL TANK
F13

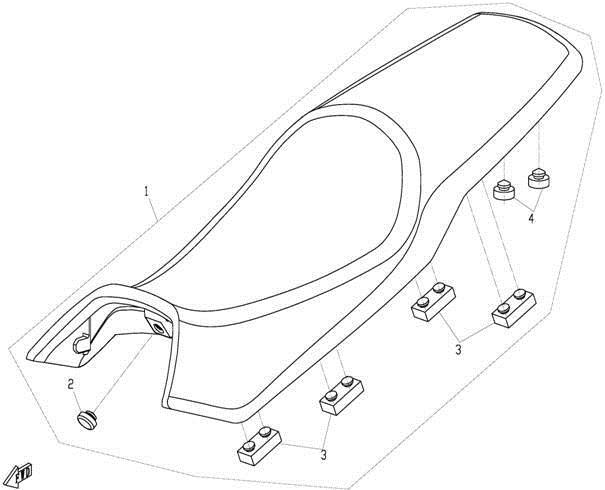

SEAT ASSY

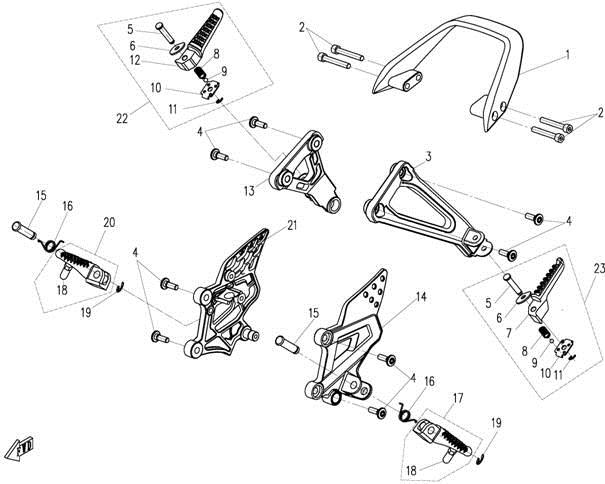

F14
FOOTREST &RACK
F15-1

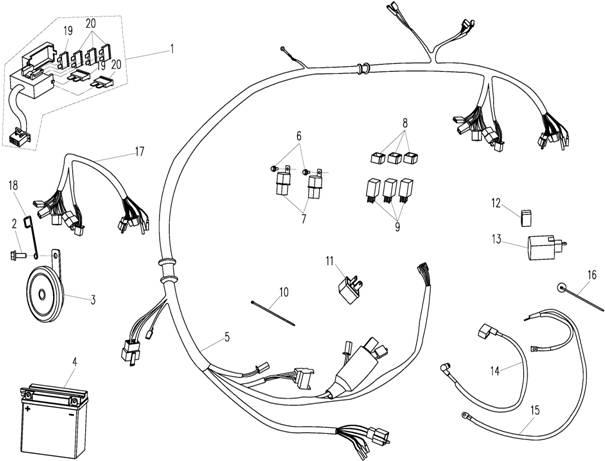

ELECTRIC SYSTEM

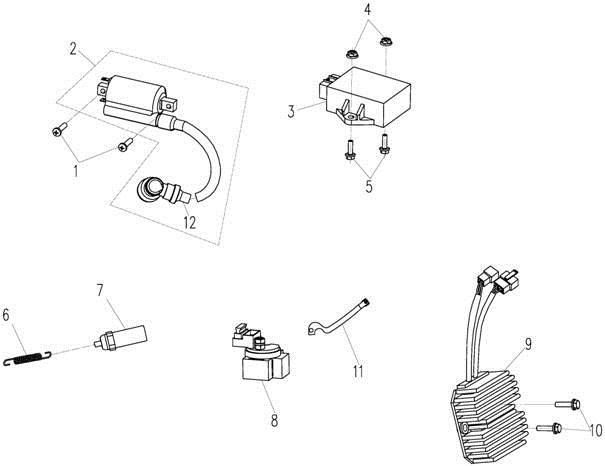

F15-3
ELECTRIC SYSTEM
F16-1

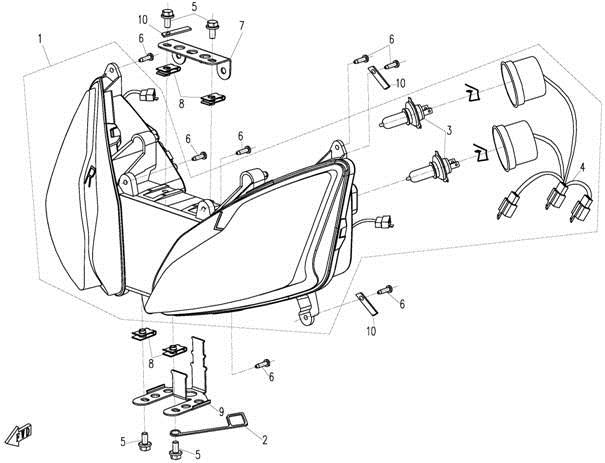

HEADLIGHT
F16-2

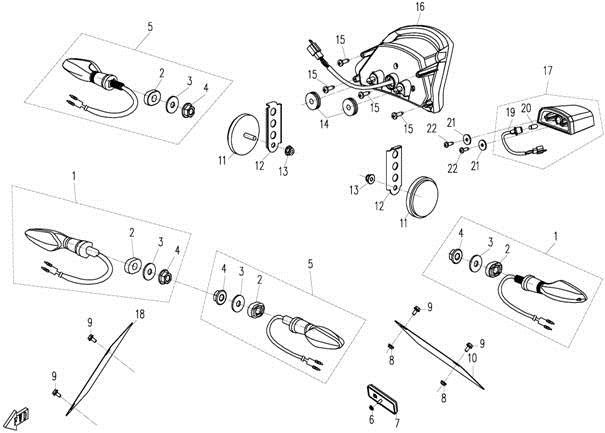

TAIL LIGHT & TURN SIGNALS
F17

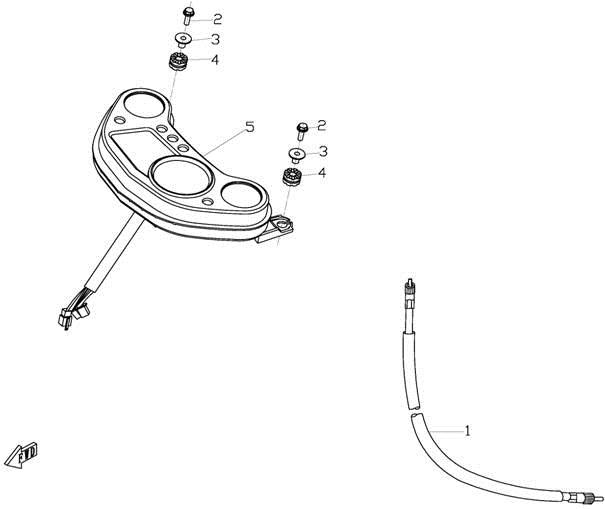

DASHBOARD
F18

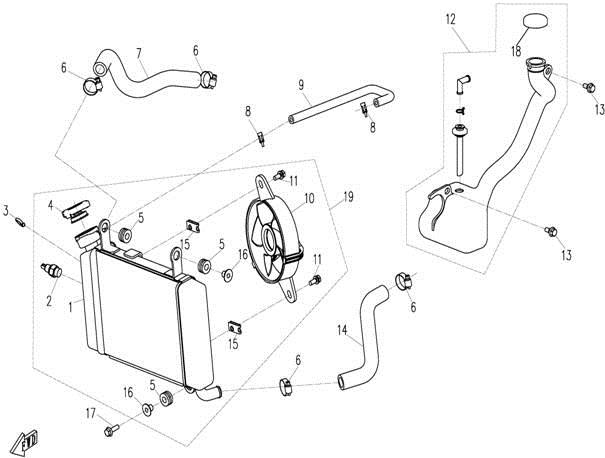

COOLING SYSTEM
F19

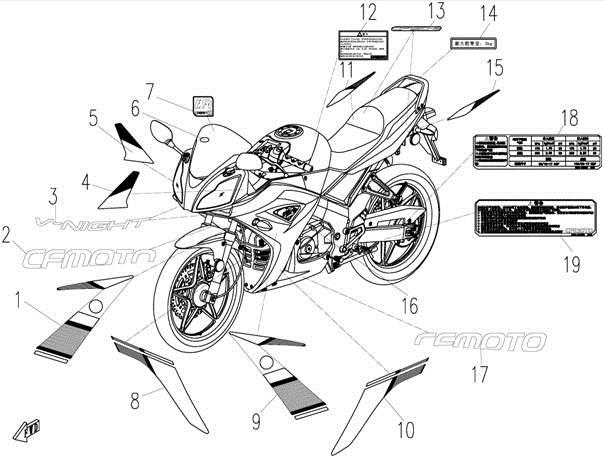

DECALSS&LABELS
F20
TOOLS& REAR MIRRORS
F36-2

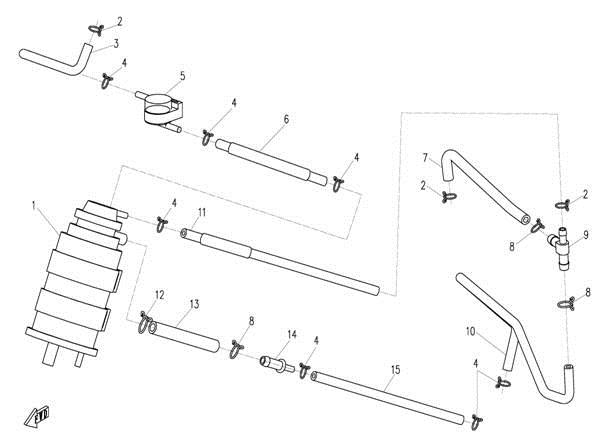

FUEL EVAPERATION SYSTEM
E01

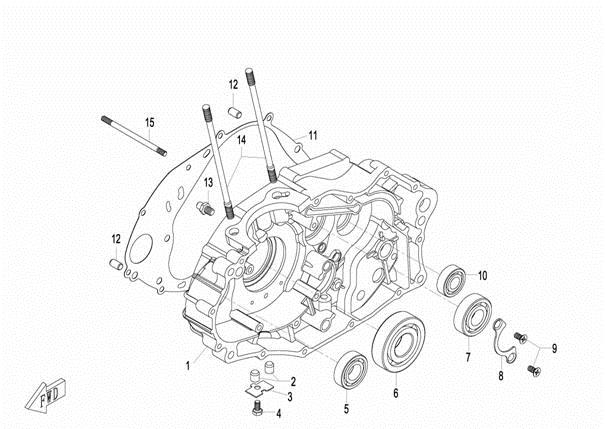

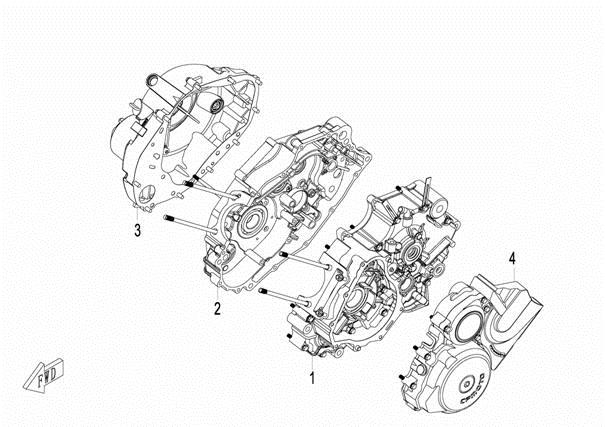

CRANKCASE ASSY
E02

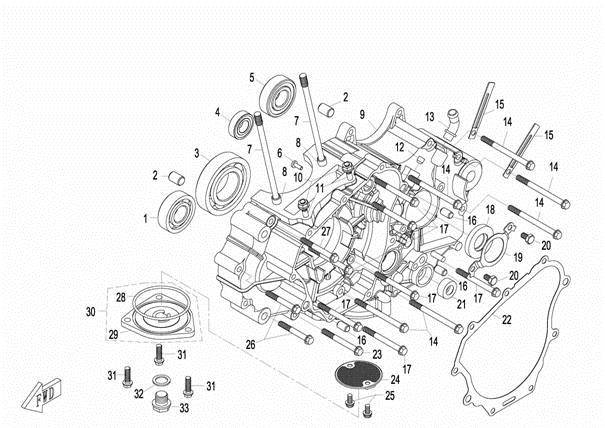

LEFT CRANKCASE
E03
RIGHT CRANKCASE

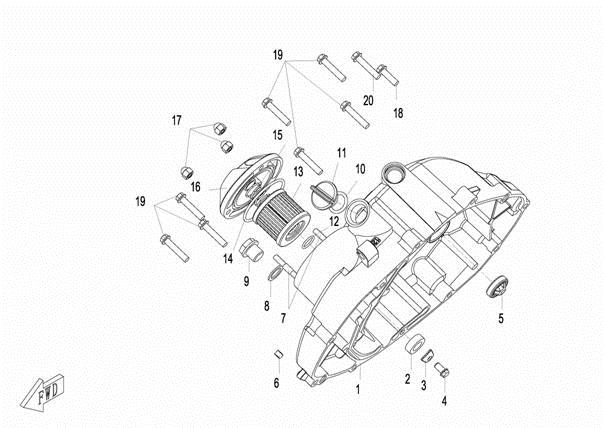

E04
RIGHT SIDE COVER
E05

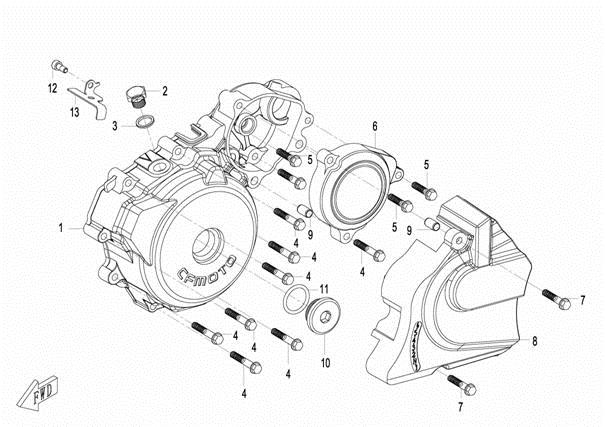

LEFT SIDE COVER

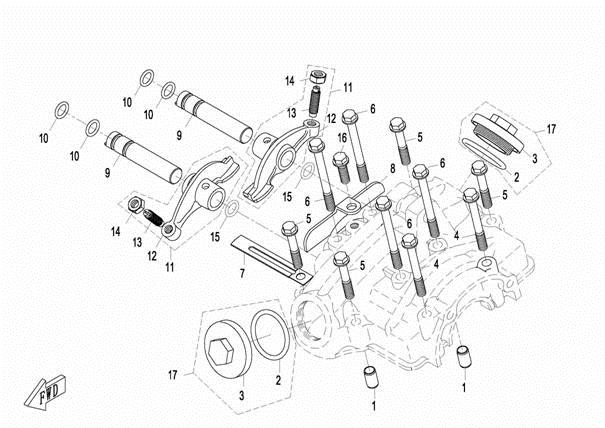

E06
CYLINDER HEAD COVER
E07

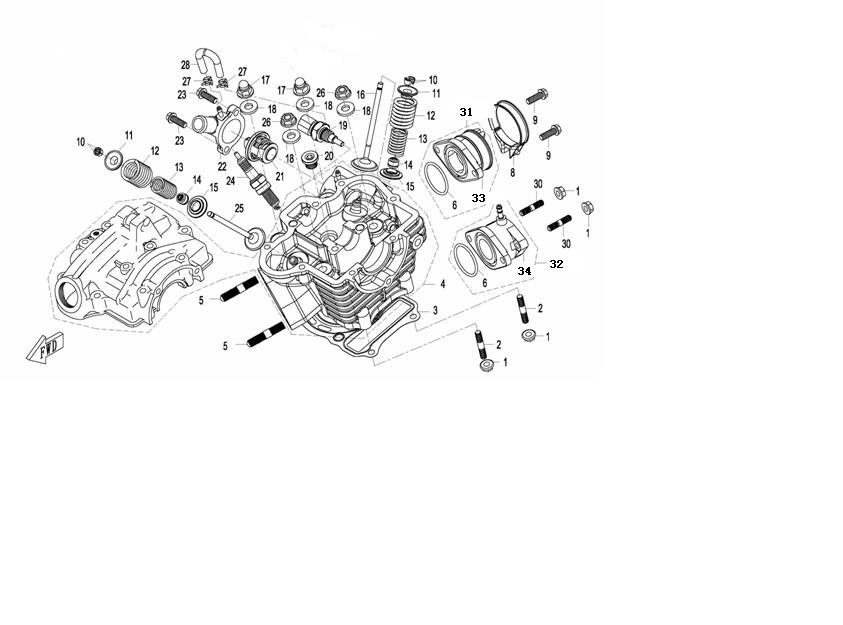

CYLINDER HEAD
E08

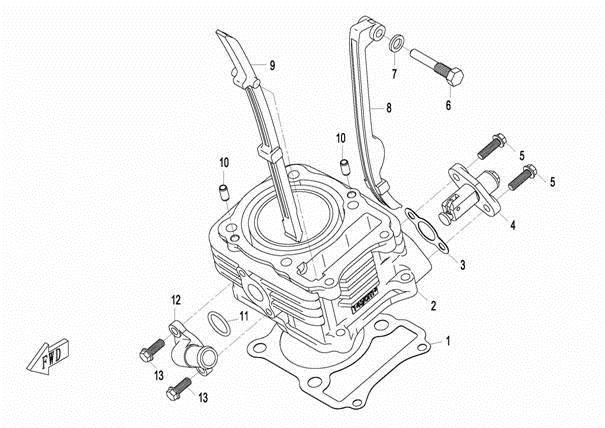

CYLINDER BODY ASSY
E09

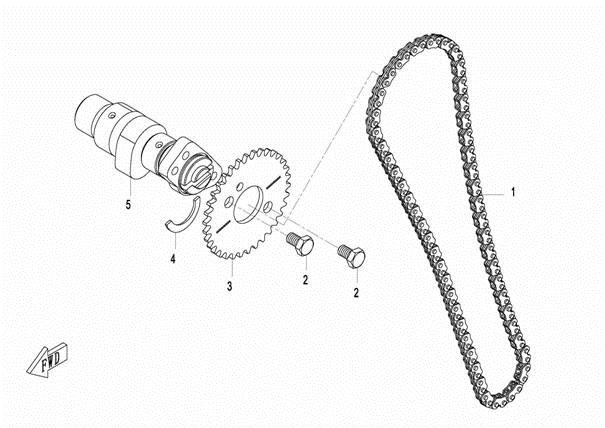

CAMSHAFT ASSY
E10

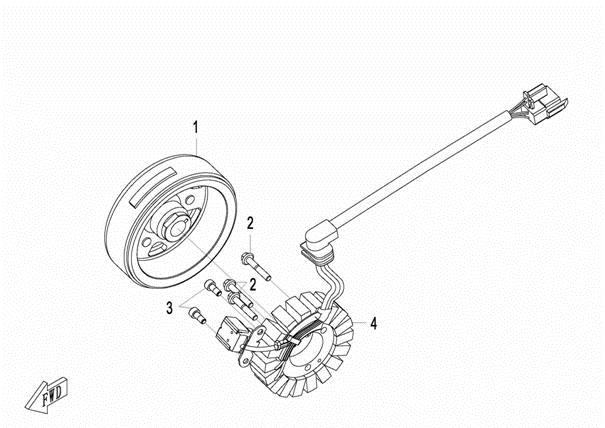

FLYWHEEL
E11

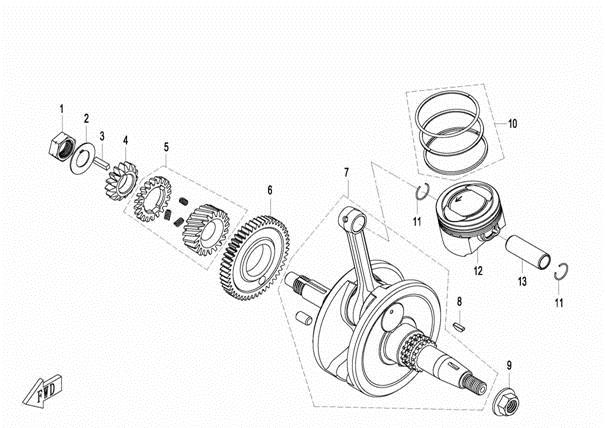

CRANKSHAFT & PISTON
E12

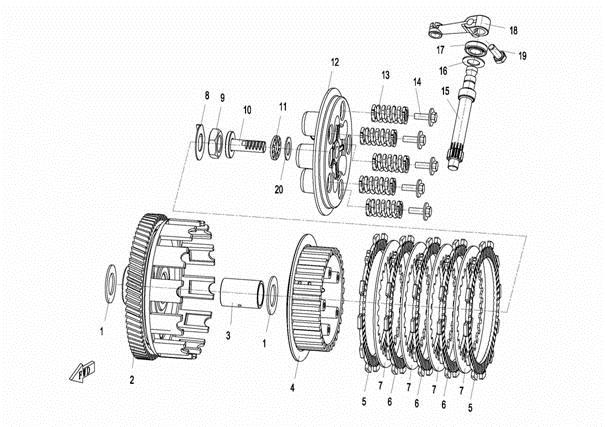

CLUTCH ASSY
E13

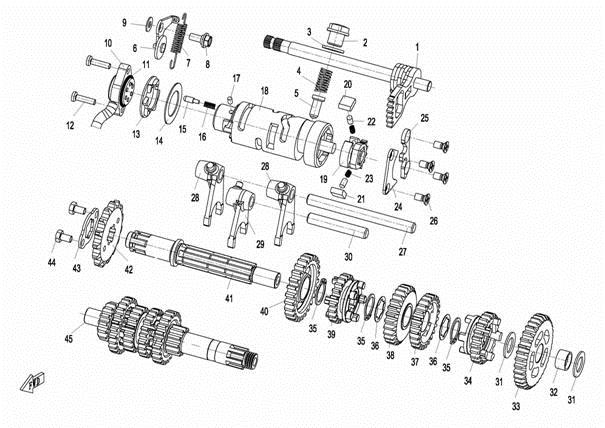

TRANSMISSION ASSY
E14

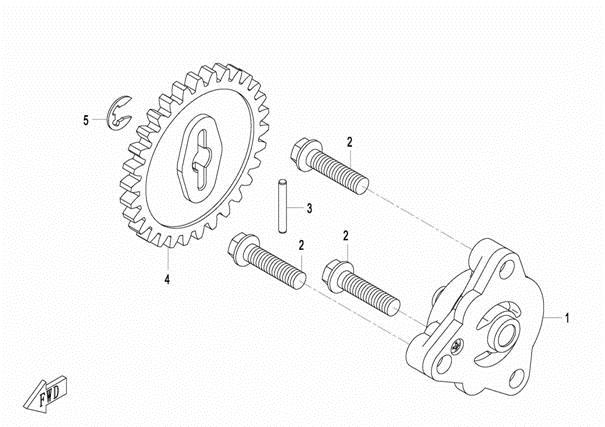

OIL PUMP
E15
WATER PUMP

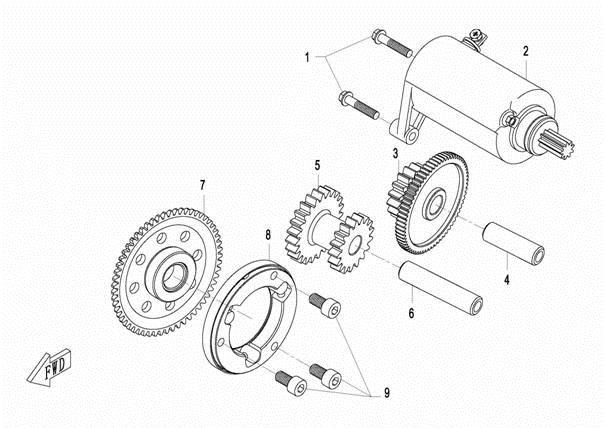

E16

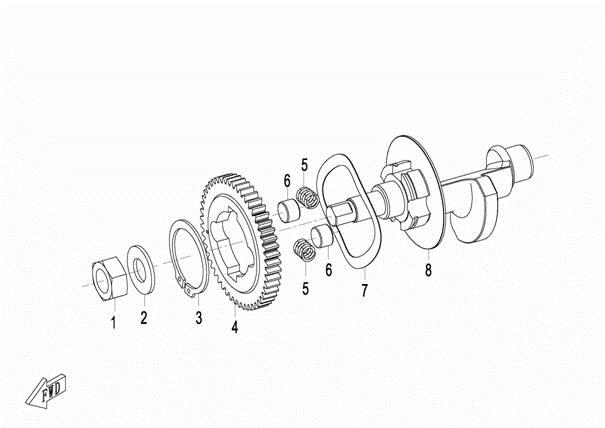

ELECTRIC STARTING
E17

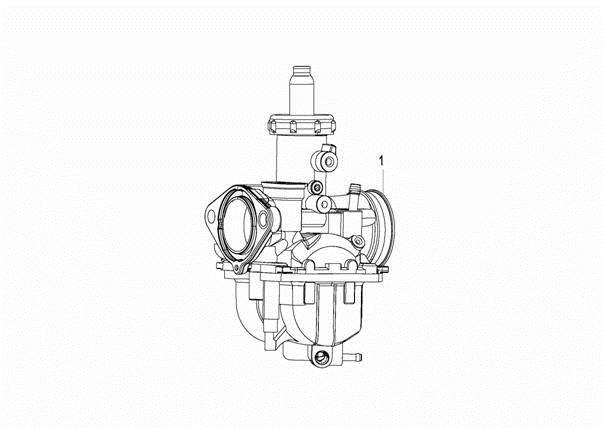

CARBURETOR
E18

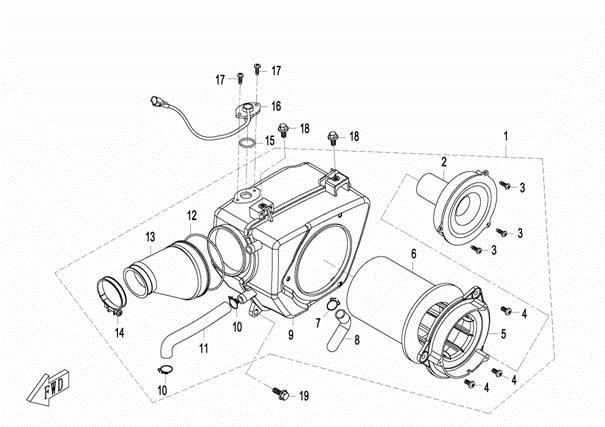

AIR FILTER ASSY
E19
