Genuine Parts Diagrams for 2012 V-NIGHT - CF150-2CChange Model
Showing 49 parts diagrams.
F00
ENGINE FITTINGS

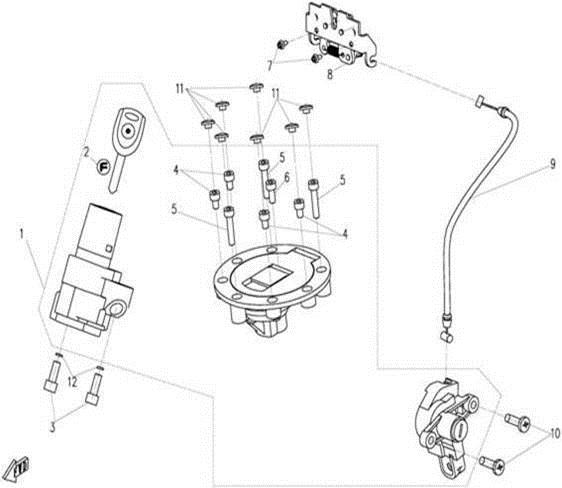

F01
LOCK KITS
F02-2

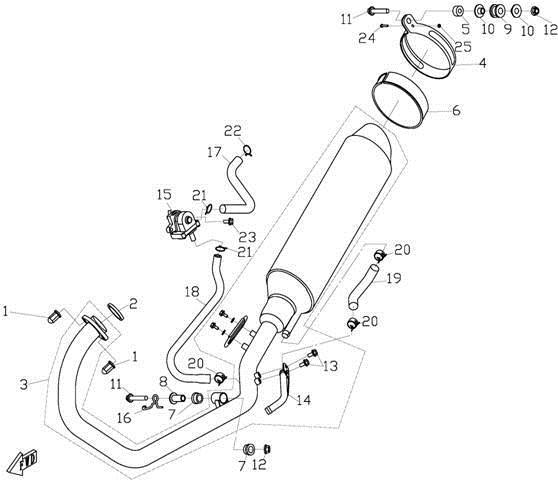

MUFFLER ASSY
F03-1

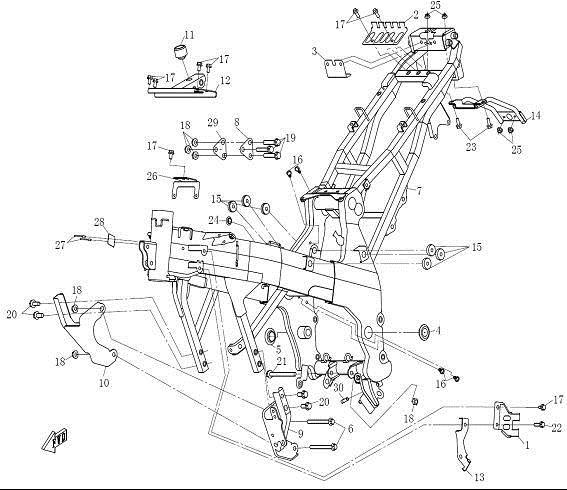

FRAME ASSY
F03-2

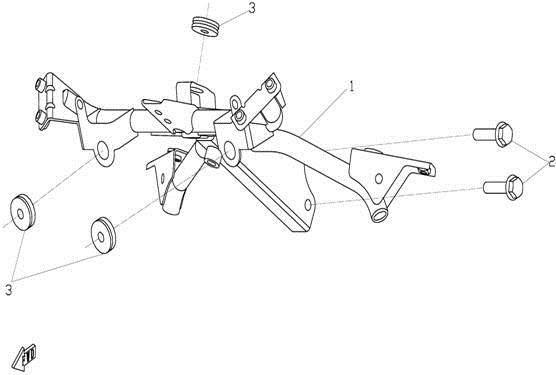

BRACKET OF DASHBOARD
F03-3

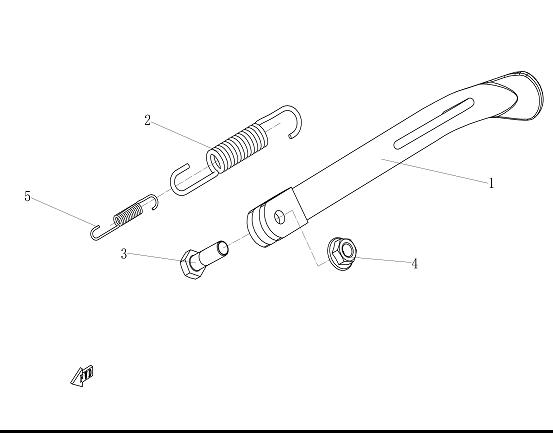

SIDE STAND
F03-4

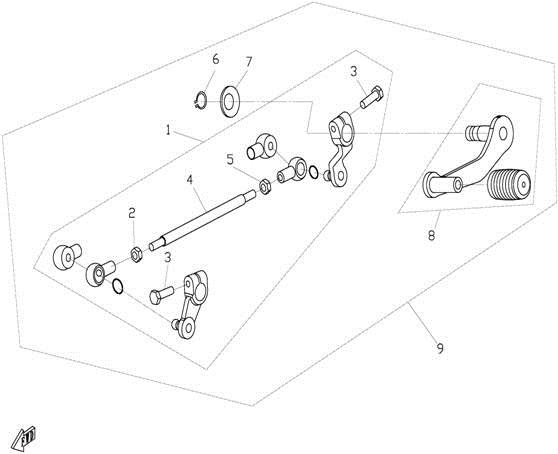

GEARSHIFT LEVER
F04-1

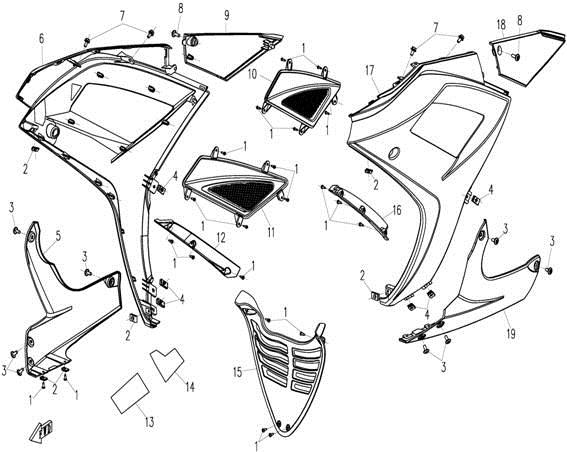

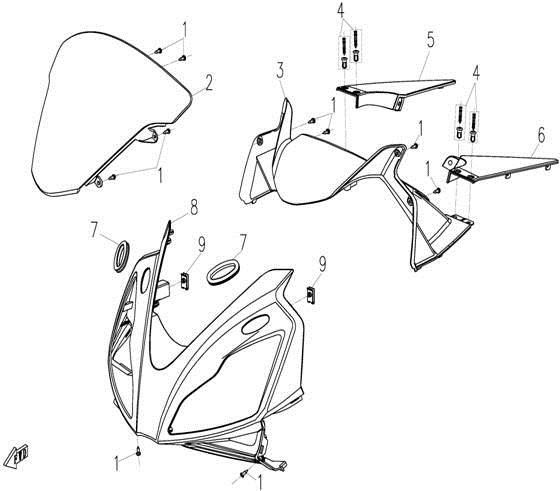

PLASTIC PARTS I
F04-2

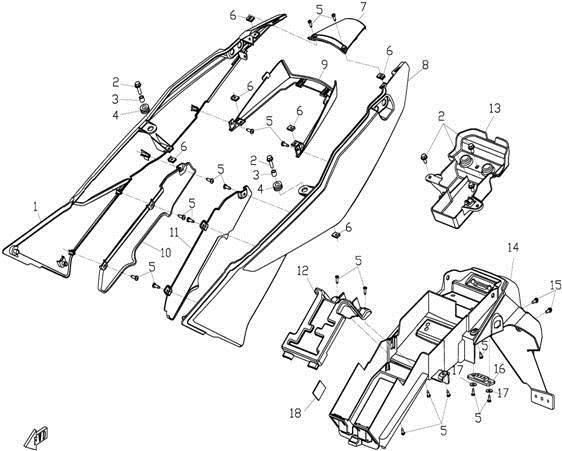

PLASTIC PARTS II
F04-3
PLASTIC PARTS III
F05

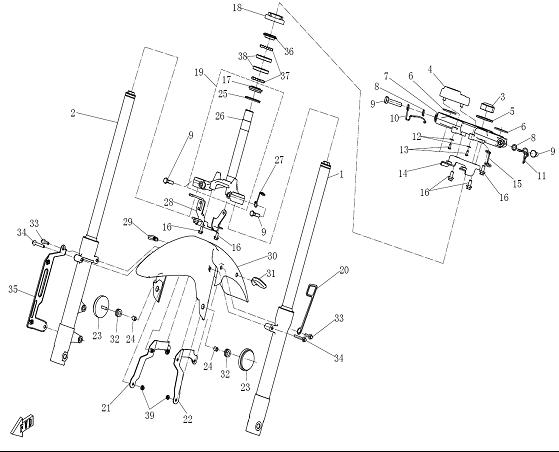

FRONT SUSPENSION
F06-1

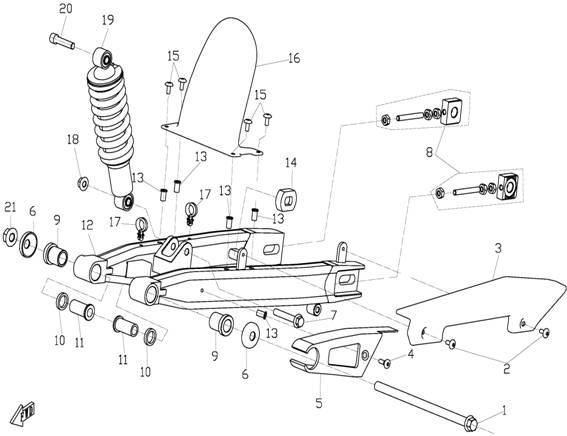

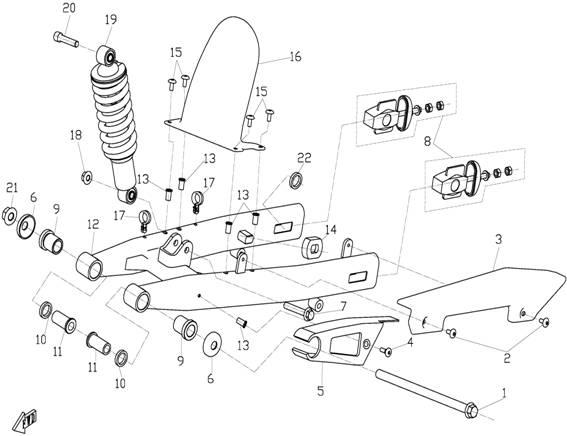

REAR SUSPENSION
F06-2
REAR SUSPENSION

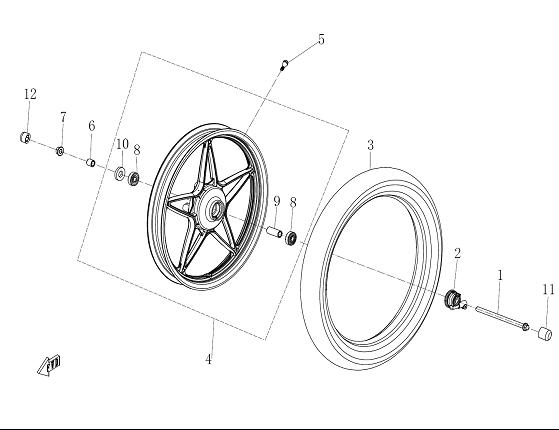

F07
FRONT WHEEL
F08-1

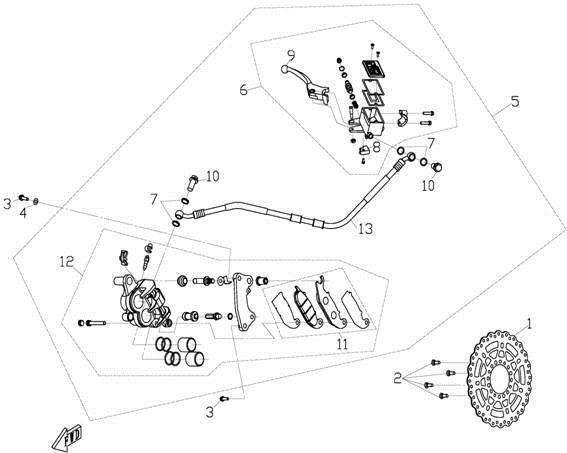

FRONT BRAKE SYSTEM
F08-2

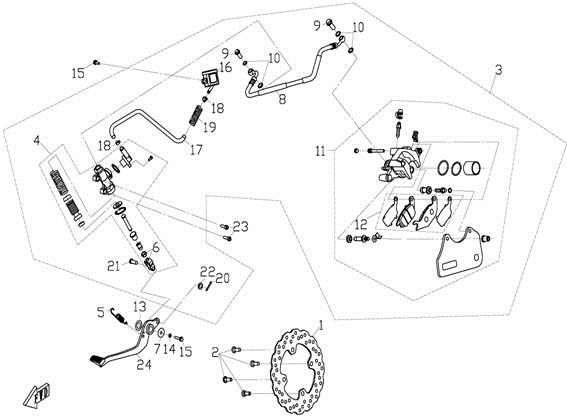

REAR BRAKE SYSTEM
F10

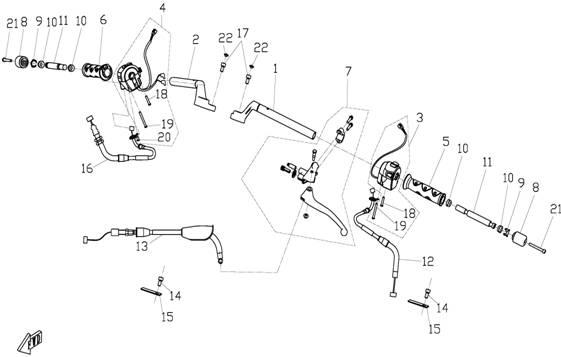

STEERING SYSTEM
F11
REAR WHEEL
F12-2

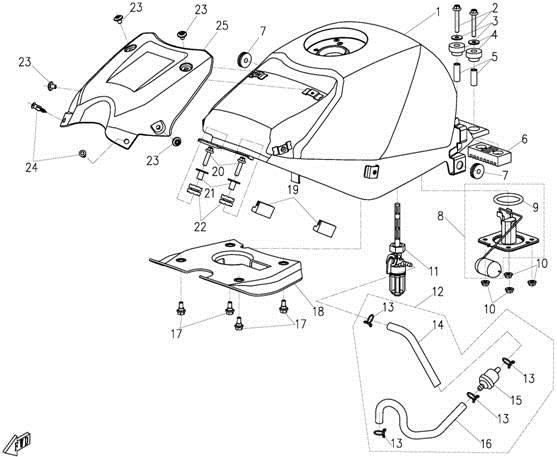

FUEL TANK
F13

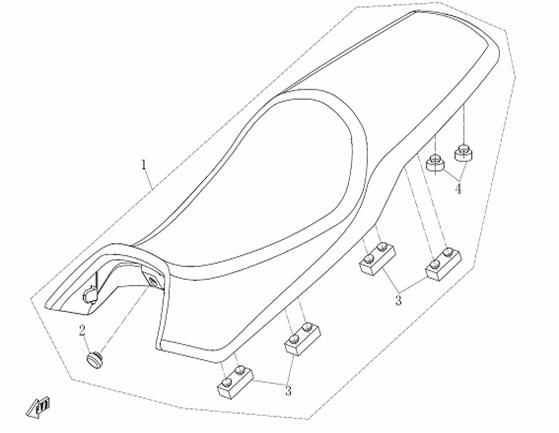

SEAT ASSY
F14

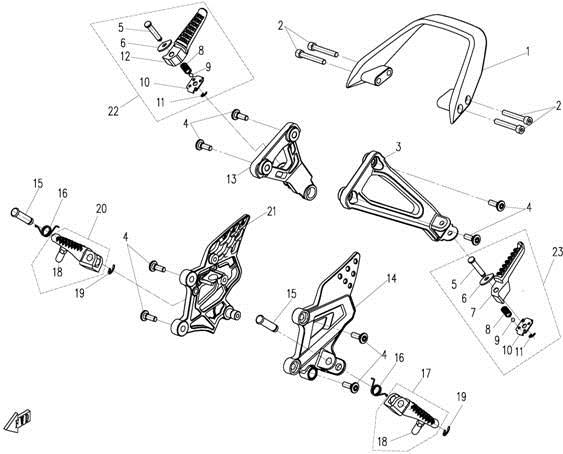

FOOTREST &RACK
F15-1

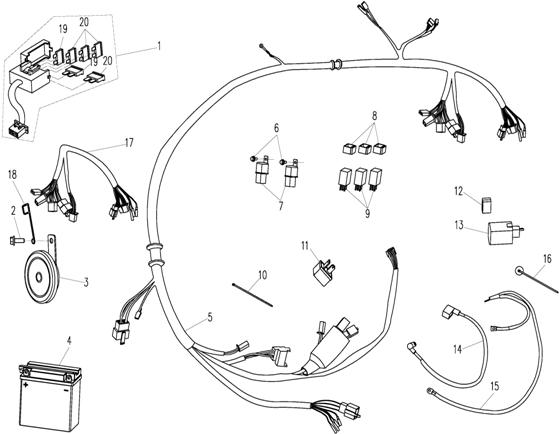

ELECTRIC SYSTEM
F15-3

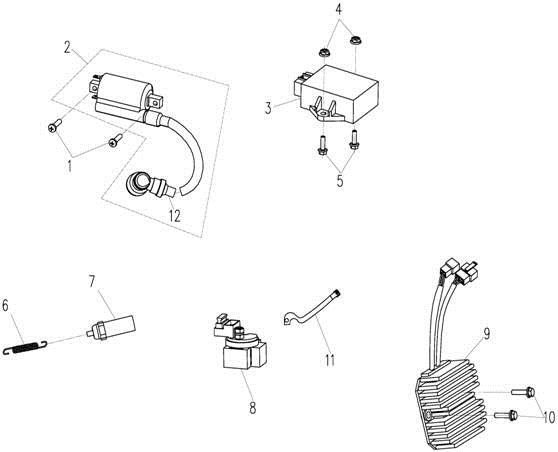

ELECTRIC SYSTEM
F16-1

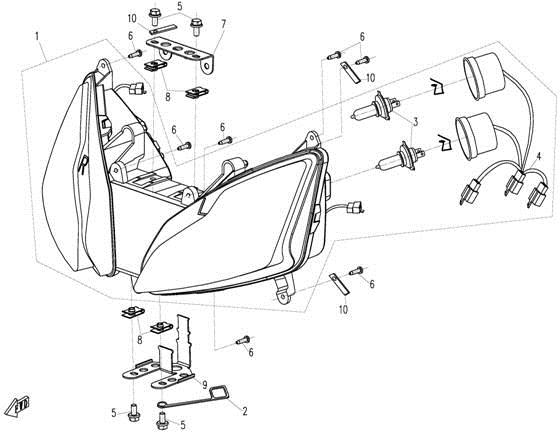

HEADLIGHT
F16-2

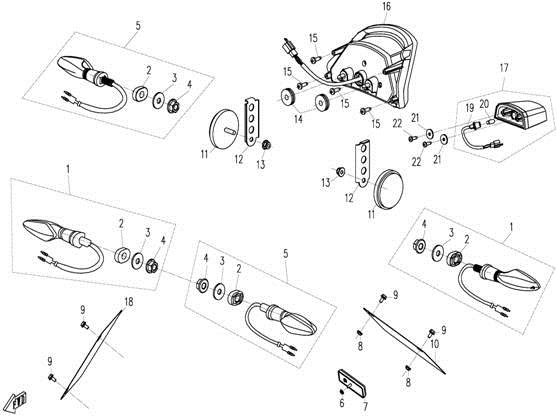

TAIL LIGHT & TURN SIGNALS

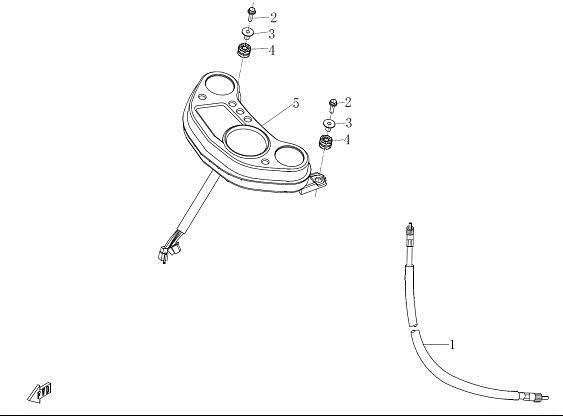

F17
DASHBOARD
F18

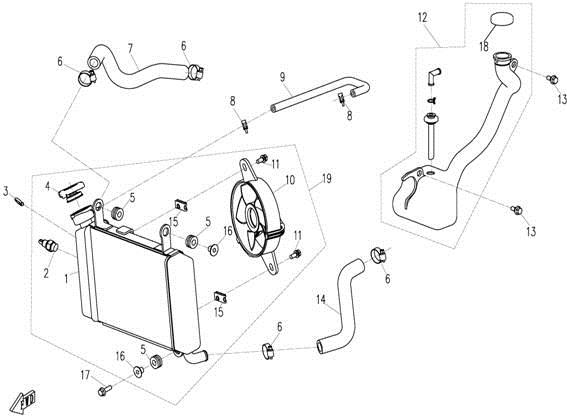

COOLING SYSTEM
F19

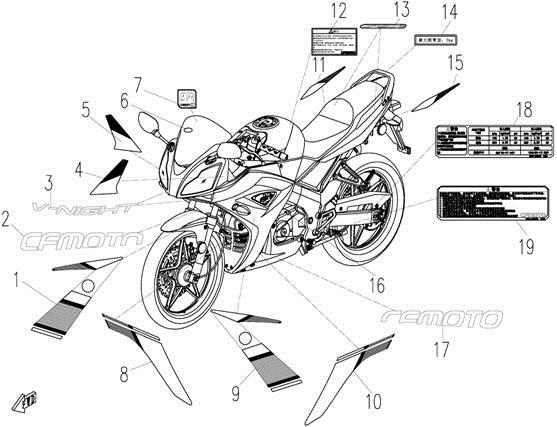

DECALSS&LABELS
F20

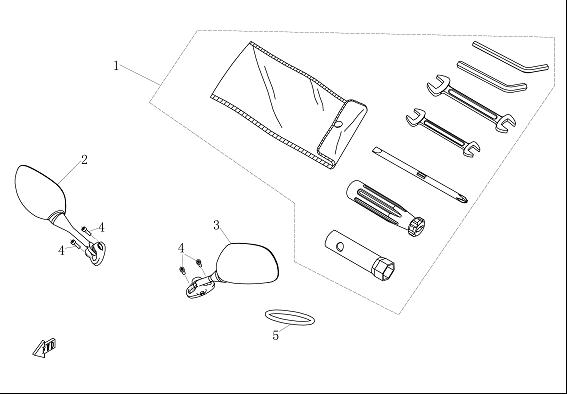

TOOLS& REAR MIRRORS
F36-2

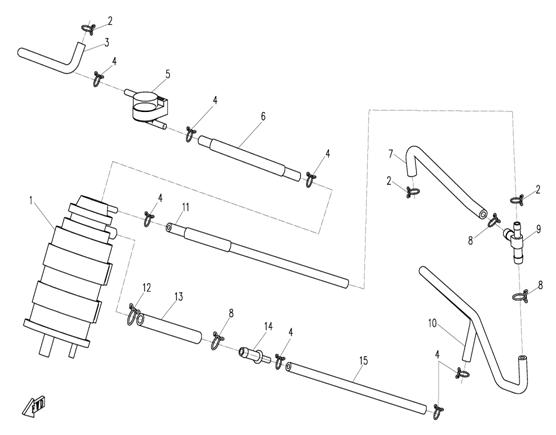

FUEL EVAPERATION SYSTEM
E01

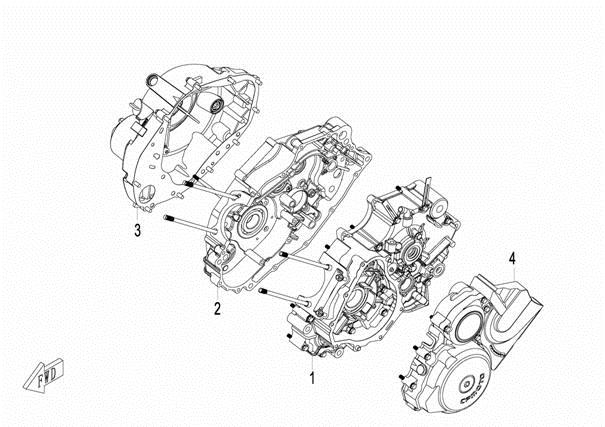

CRANKCASE ASSY
E02

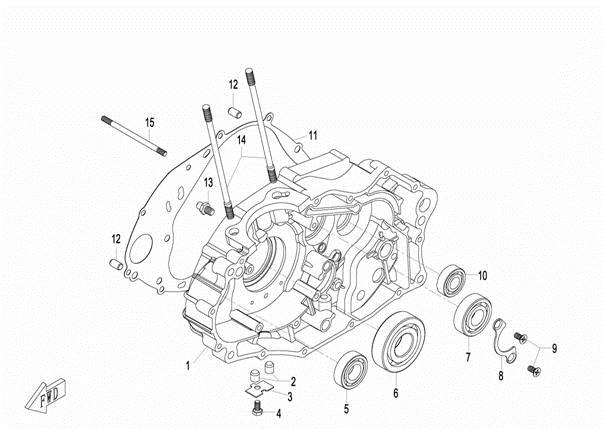

LEFT CRANKCASE
E03

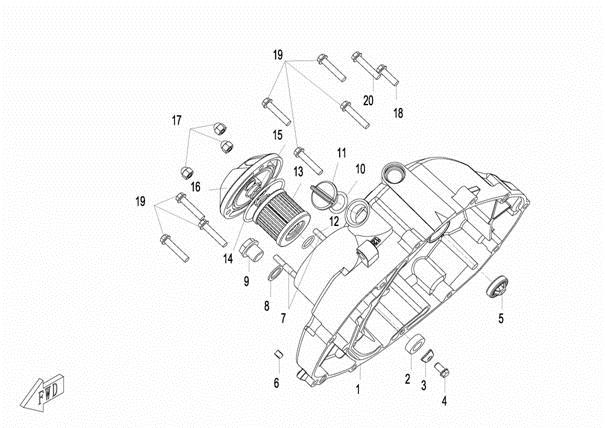

RIGHT CRANKCASE
E04

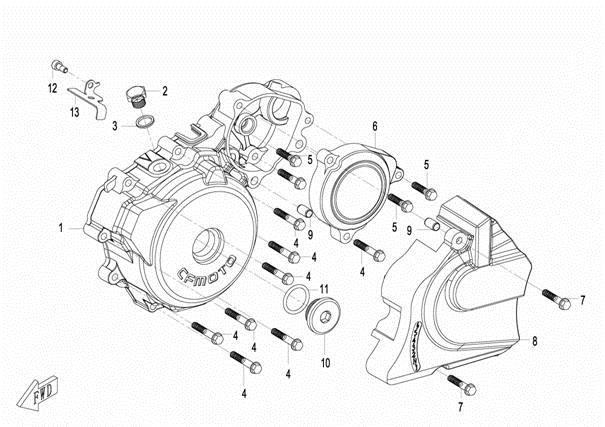

RIGHT SIDE COVER
E05
LEFT SIDE COVER
E06
CYLINDER HEAD COVER

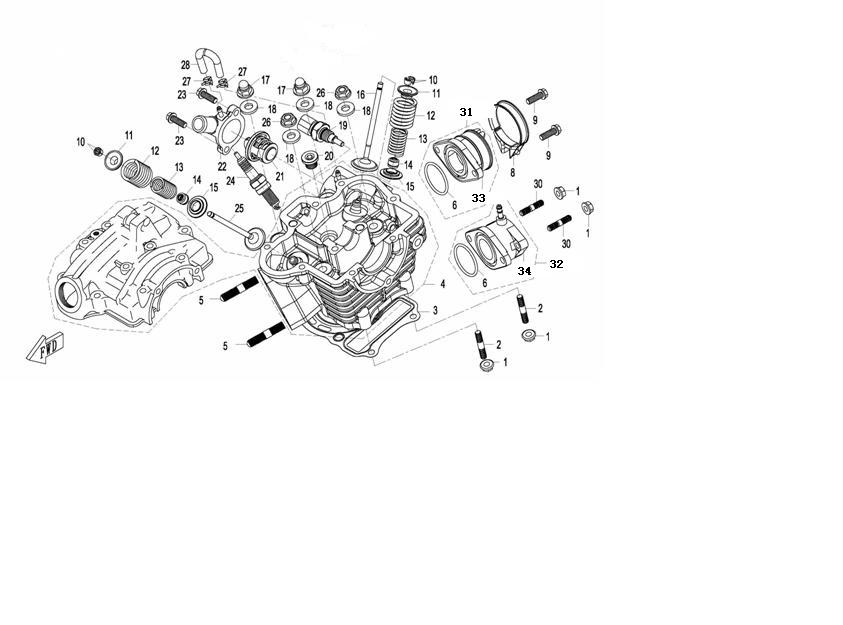

E07

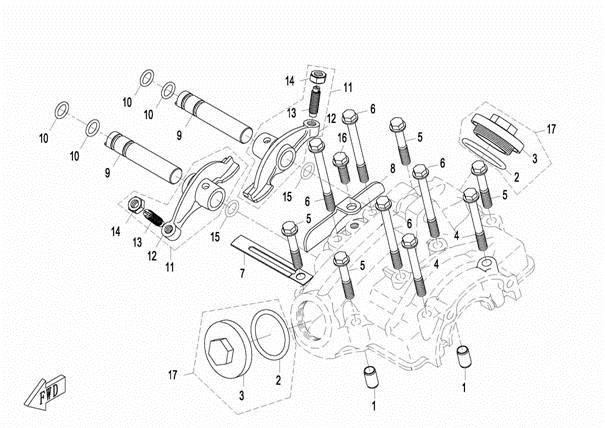

CYLINDER HEAD
E08

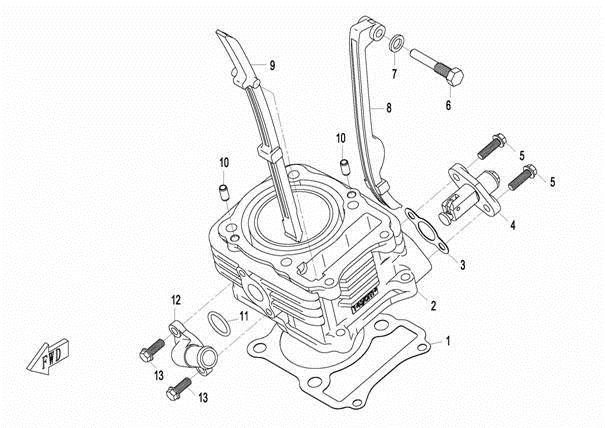

CYLINDER BODY ASSY
E09

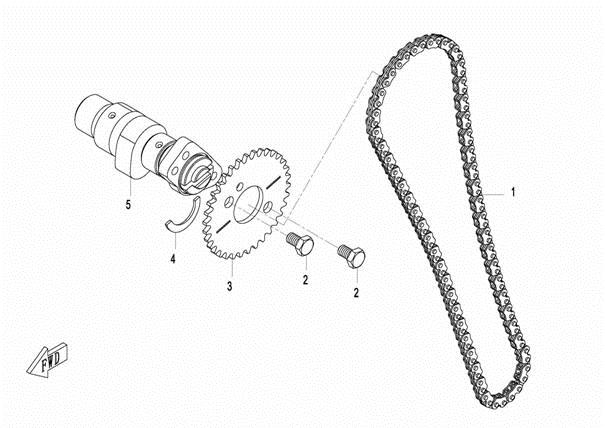

CAMSHAFT ASSY
E10

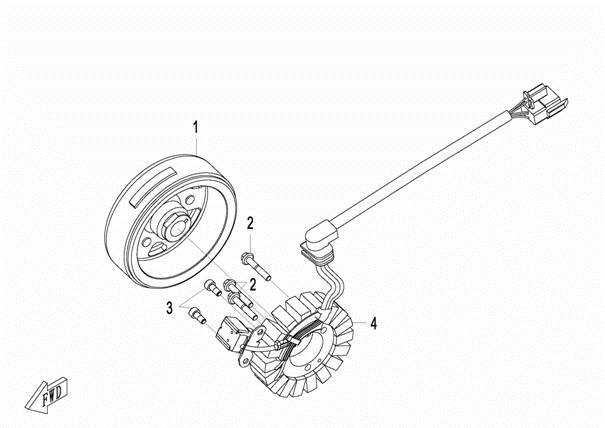

FLYWHEEL
E11
CRANKSHAFT & PISTON
E12

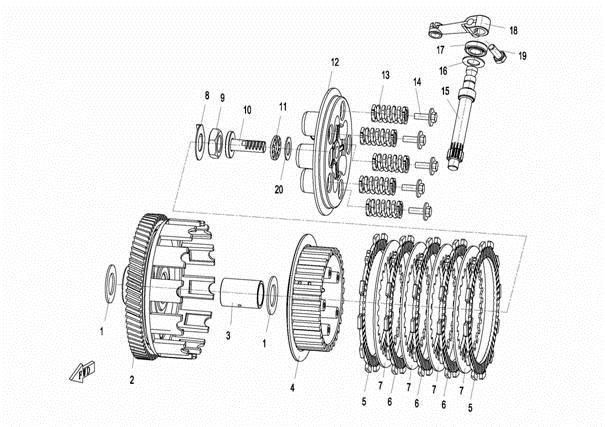

CLUTCH ASSY
E13

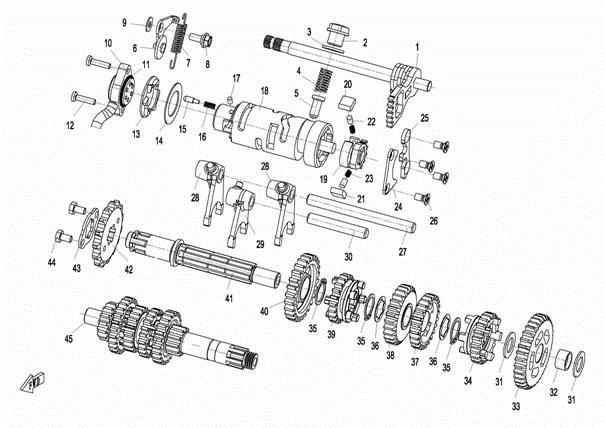

TRANSMISSION ASSY
E14

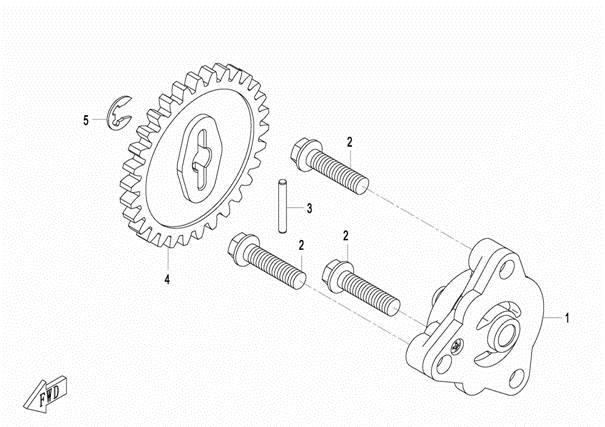

OIL PUMP
E15

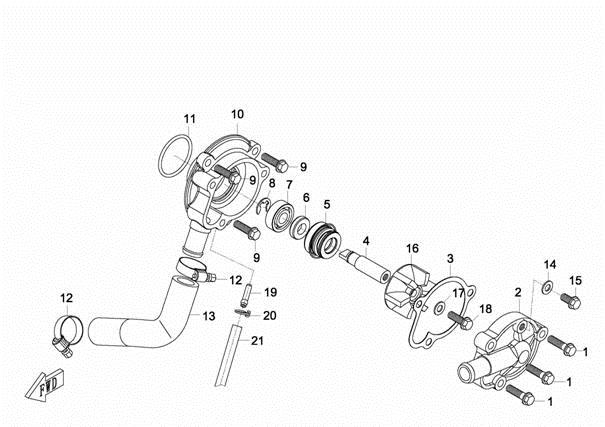

WATER PUMP

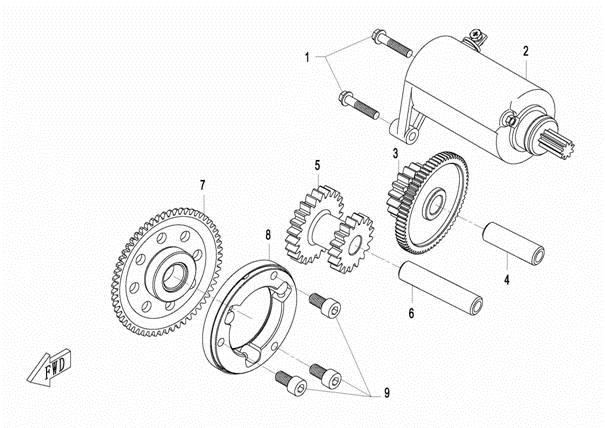

E16
ELECTRIC STARTING
E17

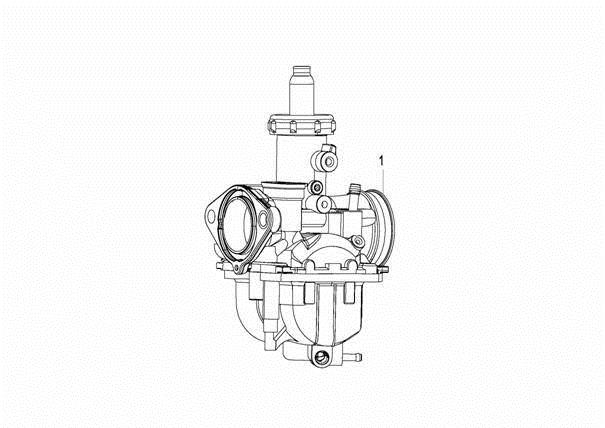

CARBURETOR
E18

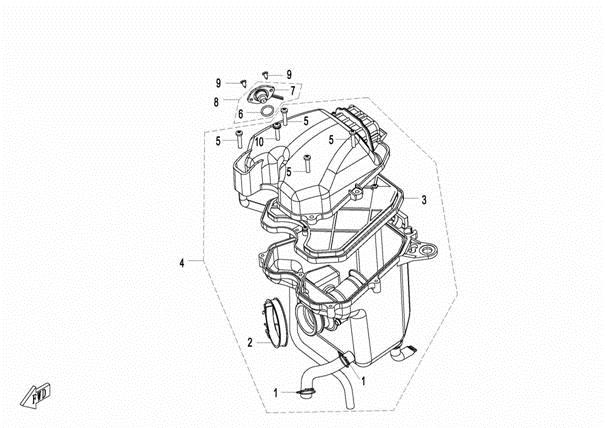

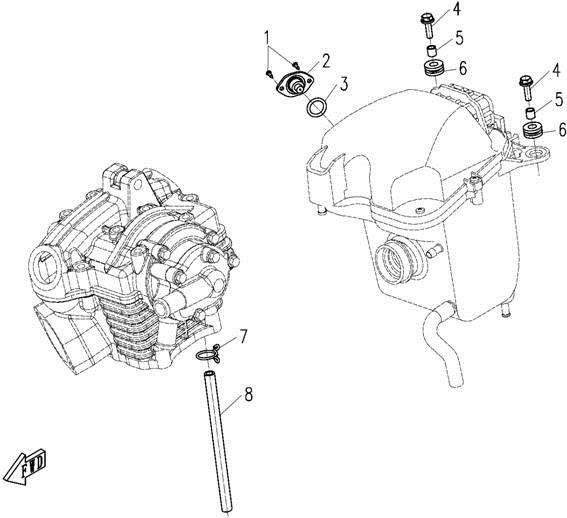

AIR FILTER ASSY
