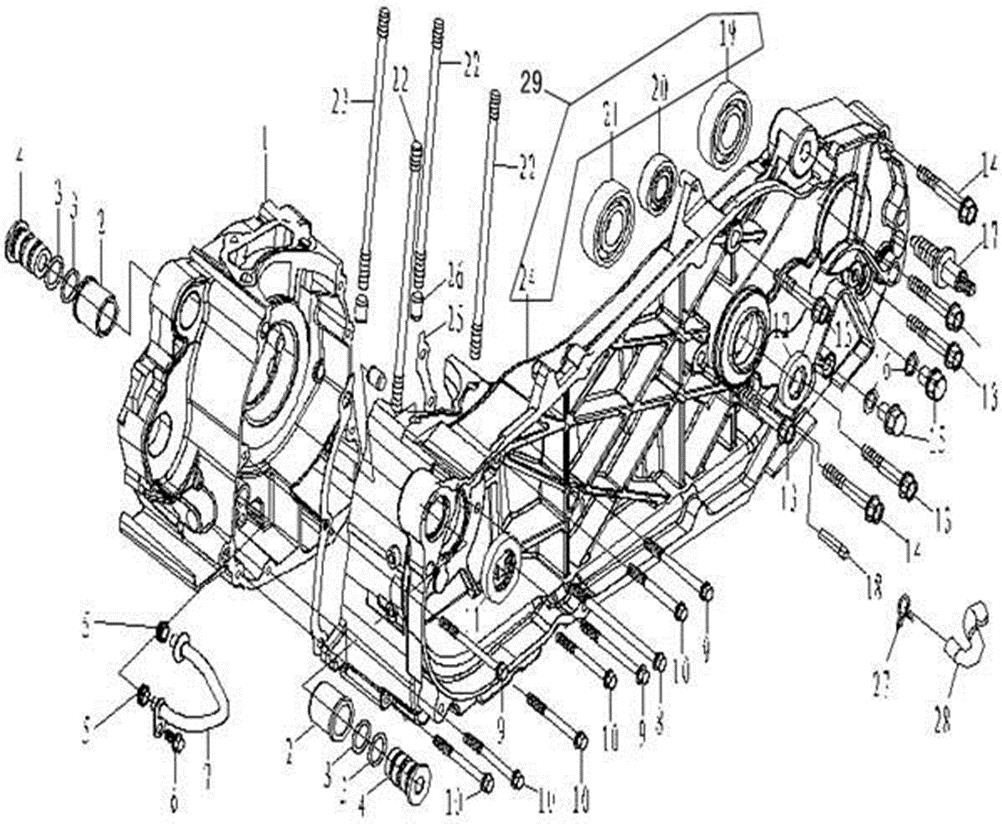

E01 - CRANKCASE ASSY
Back orders have a typical lead time of 3-4 weeks. Contact us for more details.
= Part has a supersession (newer, updated part). Click it for the superseded part.
| Scroll for price & availability | |||||||
|---|---|---|---|---|---|---|---|
| No. | Part No. | Description | Qty in Diagram | Stock | Price | ||
| 1 | 0120-011200-0080 | RIGHT CRANKCASE COMP | 1 | 0 in warehouse | $356.90 | ||
| 2 | 0010-011010-0050 | OUTER BUSH | 2 | 0 in warehouse | $14.90 | ||
| 3 | 0010-011008 | O-RING 15.8X2.4 | 4 | 0 in warehouse | $1.90 | ||
| 4 | 0010-011009-0050 | INNER BUSH | 2 | 0 in warehouse | $14.90 | ||
| 5 | 0110-011002 | SEAL RING, INNER OIL PIPE | 2 | 0 in warehouse | $1.90 | ||
| 6 | 0010-021019-0030 | BOLT M6X12 | 1 | 0 in warehouse | $1.90 | ||
| 7 | 0110-011400-0010 | INNER OIL PIPE SET | 1 | 0 in warehouse | $12.90 | ||
| 8 | 0030-011006-0030 | BOLT M6X105 | 1 | 0 in warehouse | $7.90 | ||
| 9 | 0020-011018-0030 | BOLT M6X70 | 3 | 0 in warehouse | $1.90 | ||
| 10 | 0010-011017-0030 | BOLT M6X60 | 5 | 0 in warehouse | $1.90 | ||
| 12 | 30501-022000F | OIL SEAL FB22X35X5 | 1 | 0 in warehouse | $19.90 | ||
| 13 | 0040-012006-0030 | BOLT M8X50 | 5 | 0 in warehouse | $5.90 | ||
| 14 | 0030-011007-0030 | BOLT M8X55 | 2 | 0 in warehouse | $3.90 | ||
| 15 | 0010-060011-0030 | DRAIN PLUG CFMOTO | 2 | 0 in warehouse | $3.90 | ||
| 16 | 0010-060010 | WASHER M10 | 2 | 10+ in warehouse | $1.90 | ||
| 17 | 0120-011006-0050 | REAR SUSPENSION SHAFT | 1 | 0 in warehouse | $16.90 | ||
| 18 | 0110-013010-0010 | JOINT | 1 | 0 in warehouse | $5.90 | ||
| 19 | 30499-02000 | BEARING, 6304 | 1 | 0 in warehouse | $54.90 | ||
| 20 | 30499-01500 | BEARING 6202 | 1 | 0 in warehouse | $34.90 | ||
| 21 | 30499-02200 | BEARING, 22?50?14 | 1 | 0 in warehouse | $96.90 | ||
| 22 | 0110-011004-0010 | BOLT A | 3 | 0 in warehouse | $8.90 | ||
| 24 | 0120-011100-0080 | LEFT CRANKCASE COMP | 1 | 0 in warehouse | $718.90 | ||
| 25 | 0110-011003-0B00 | GASKET, CRANKCASE BLACK | 1 | 0 in warehouse | $19.90 | ||
| 25 | 0110-011003-0E00 | GASKET, CRANKCASE SAPPHIRE BLUE | 1 | 0 in warehouse | $19.90 | ||
| 26 | 0010-021005 | DOWEL PIN 10X14 | 4 | 0 in warehouse | $1.90 | ||
| 27 | 30601-110030 | CLAMP D10 | 1 | 0 in warehouse | $1.90 | ||
| 28 | 0120-011007 | BREATHER HOSE | 1 | 0 in warehouse | $10.90 | ||
| 29 | 0120-0111A0 | LH CRANKCASE ASSY | 1 | 0 in warehouse | $761.90 | ||
