Genuine Parts Diagrams for 2014 650TK - CF650-2Change Model
Showing 51 parts diagrams.
F00

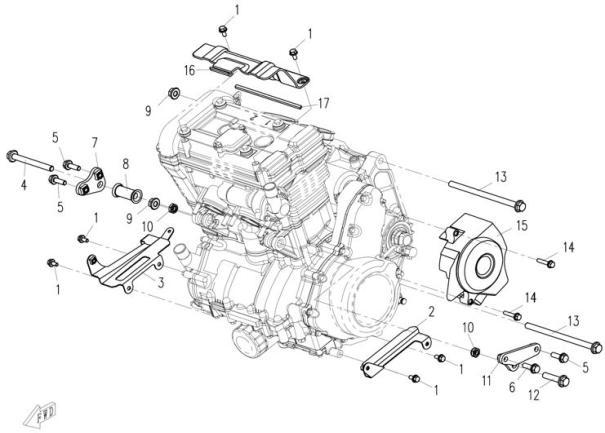

ENGINE FITTINGS
F01

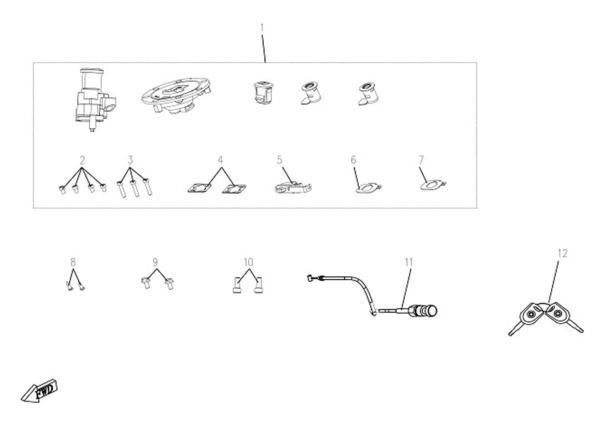

LOCK ASSY

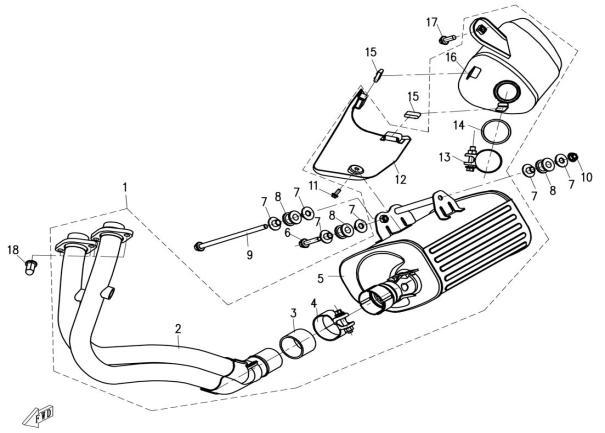

F02
MUFFLER ASSY
F03

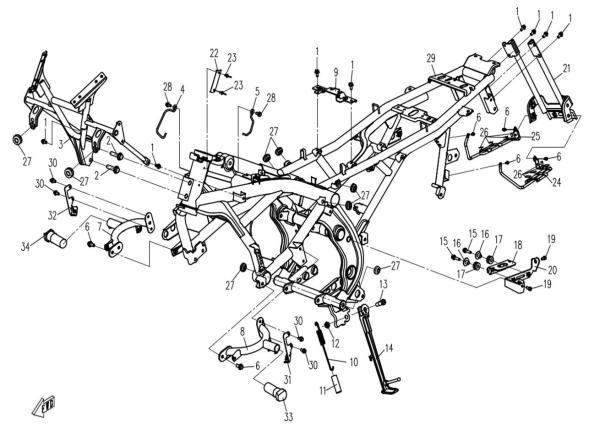

FRAME ASSY
F04-1

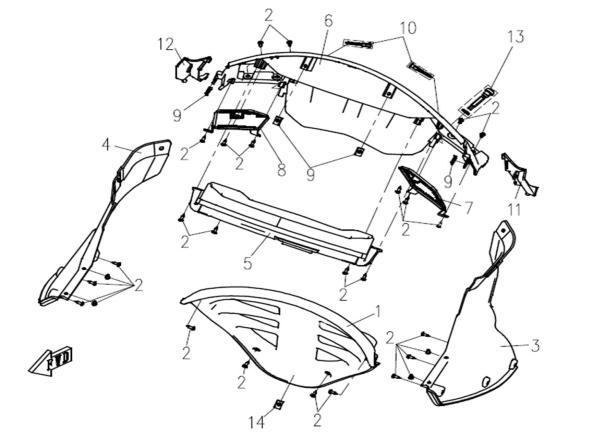

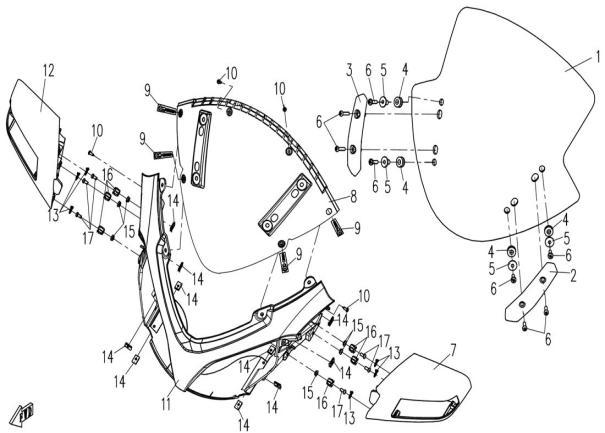

PLASTICS I

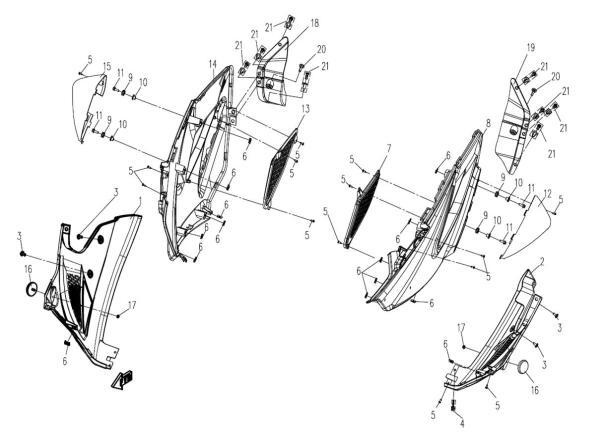

F04-2
PLASTICS II

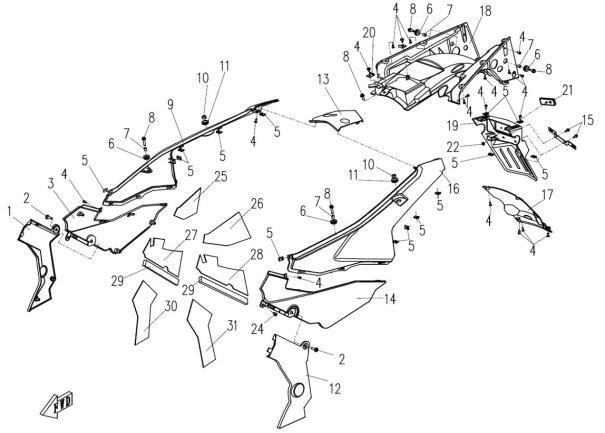

F04-3
PLASTICS III

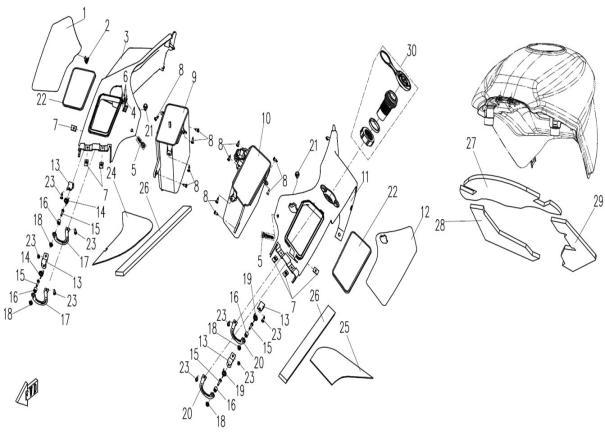

F04-4
PLASTICS IV
F04-5
PLASTICS V

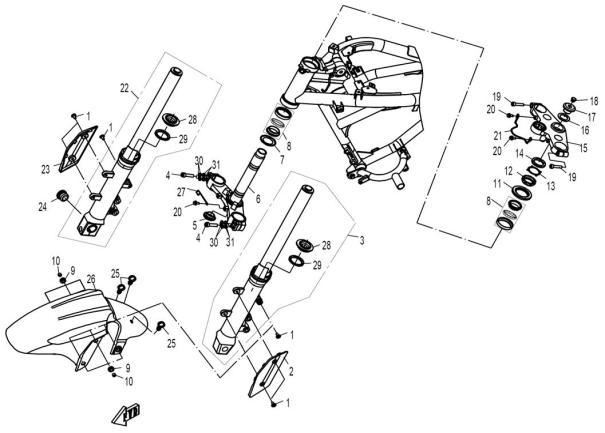

F05
FRONT SUSPENSION

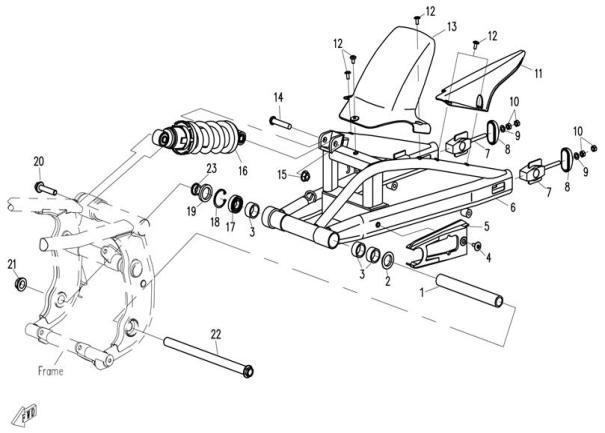

F06
REAR SUSPENSION
F07

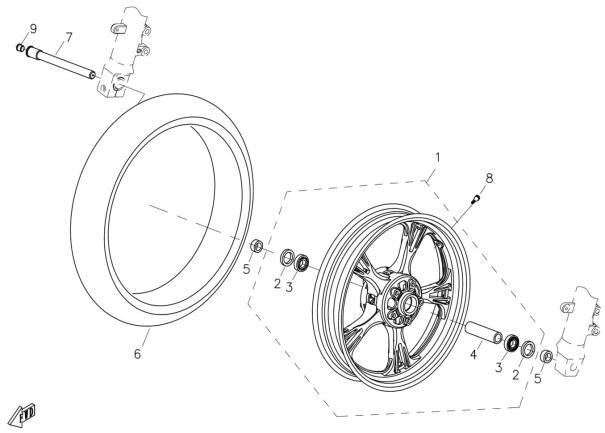

FRONT WHEEL
F08-1

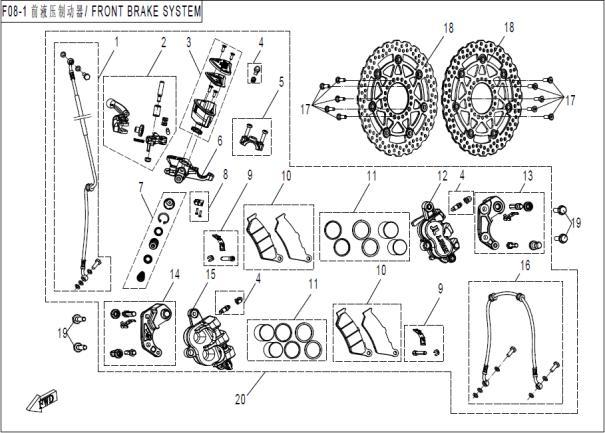

FRONT BRAKE SYSTEM

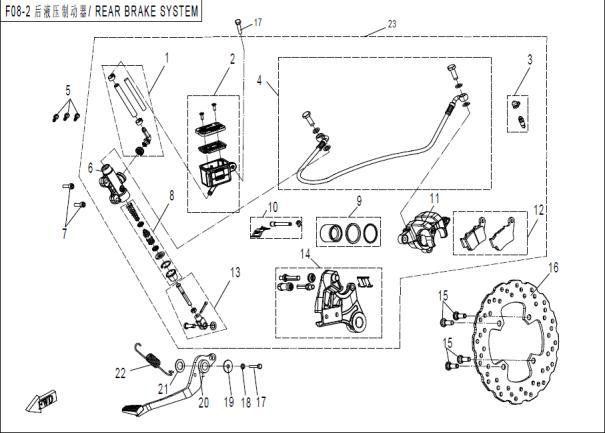

F08-2
REAR BRAKE SYSTEM
F10

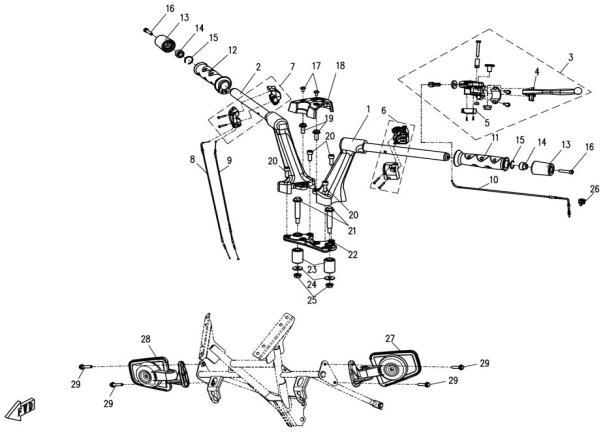

STEERING SYSTEM
F11

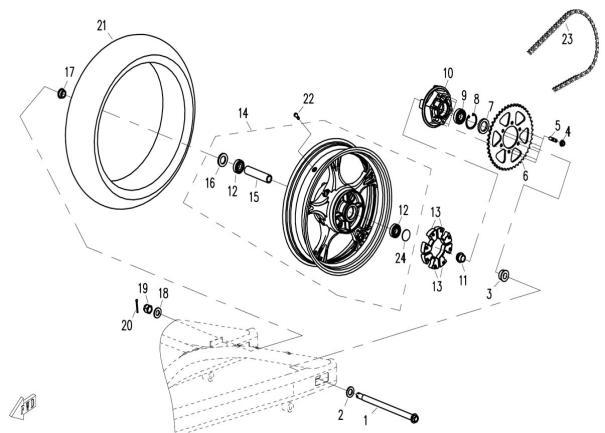

REAR WHEEL
F12

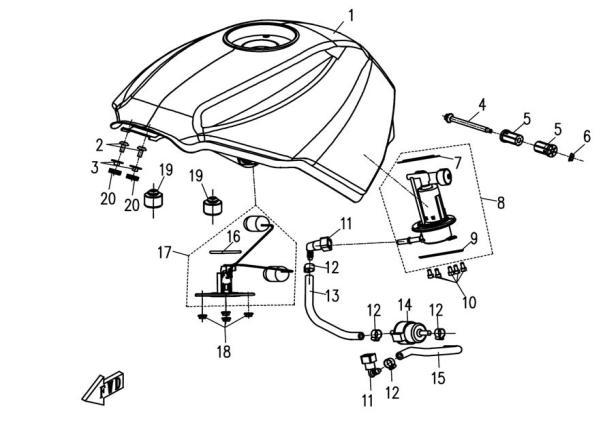

FUEL TANK
F13

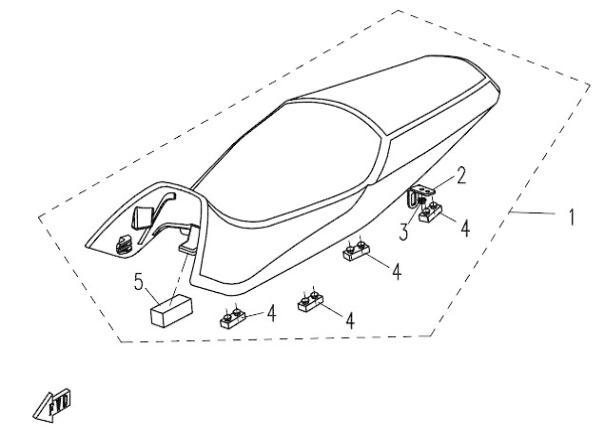

SEAT ASSY
F14

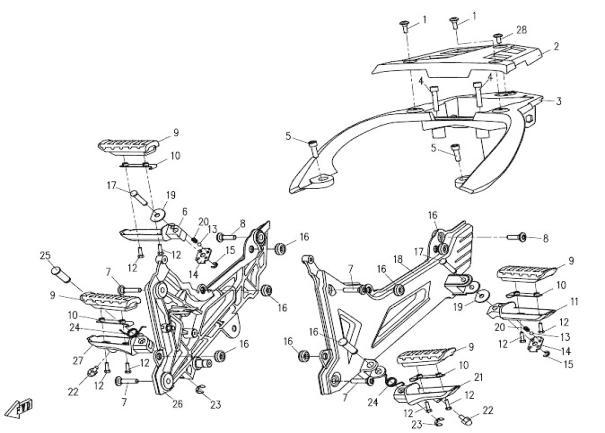

FOOTREST & REAR HANDRAIL
F15

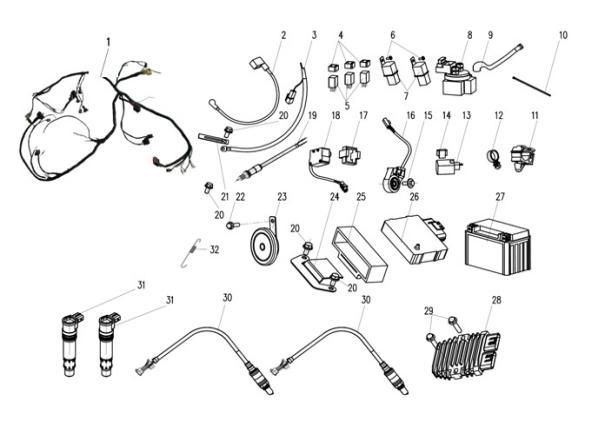

ELECTRIC SYSTEM

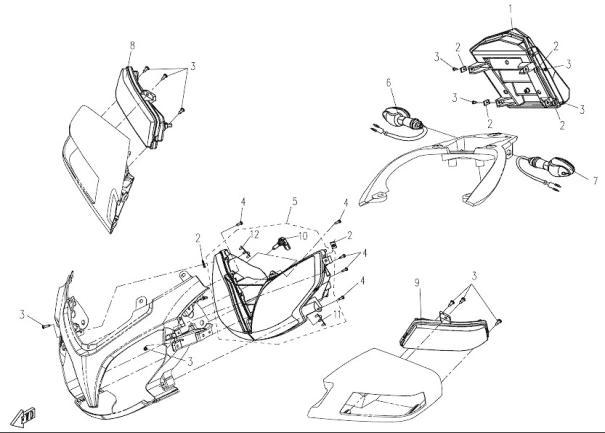

F16
LIGHT ASSY
F18
COOLING SYSTEM

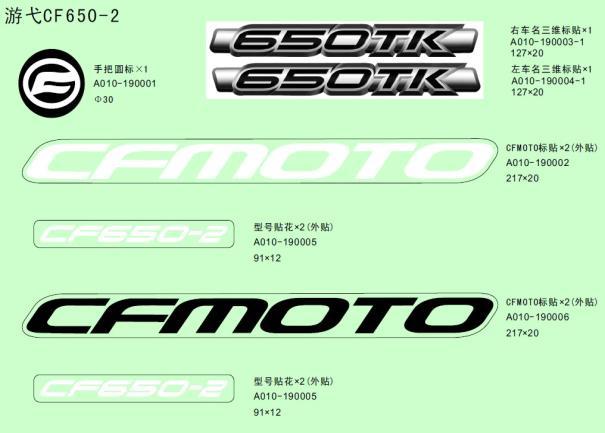

F19
DECAL KIT
F20

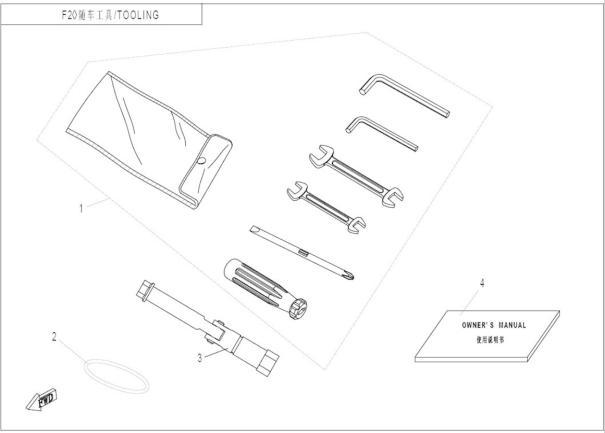

TOOLS

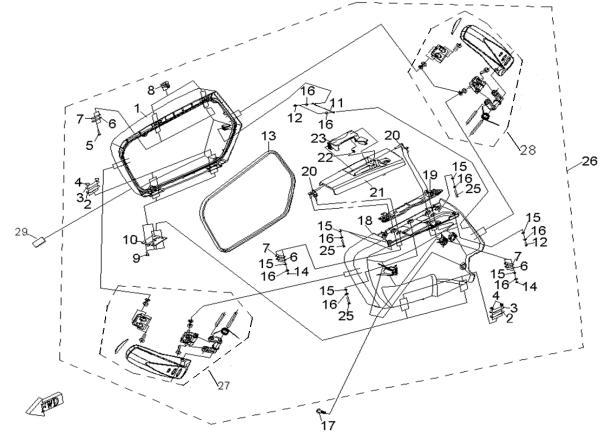

F22-1
SIDE BOX ,LH

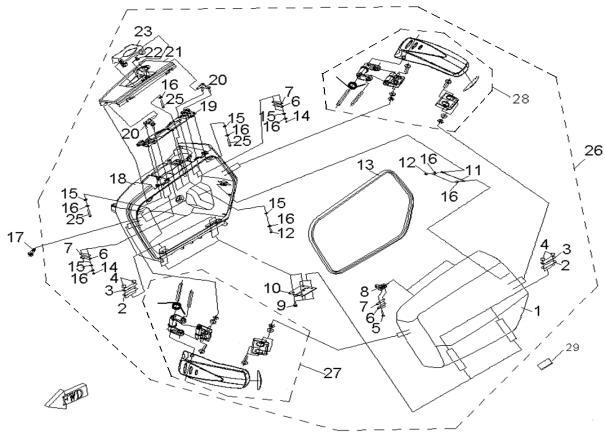

F22-2
SIDE BOX ,RH
F36

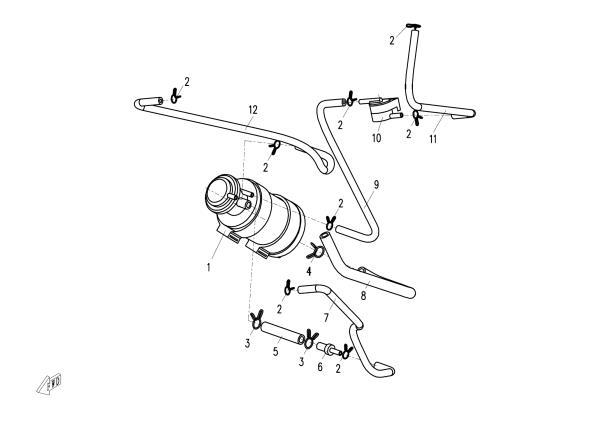

FUEL VAPOR SYSTEM
E01-1

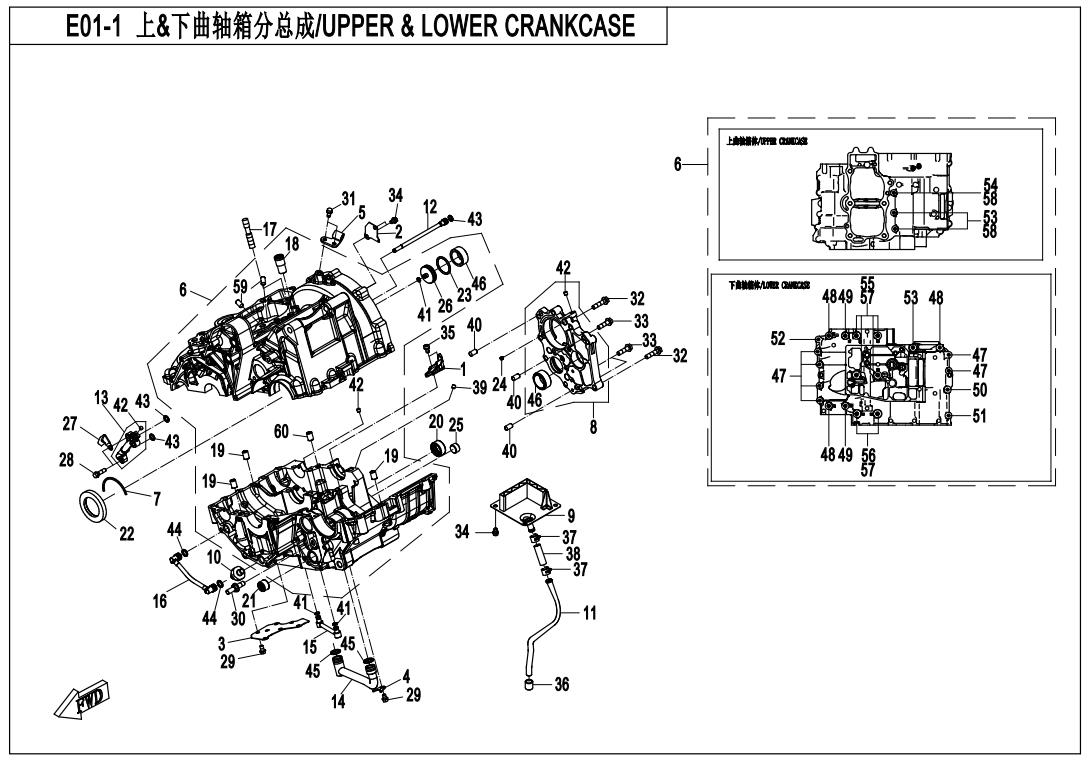

UPPER & LOWER CRANKCASE(1)
E01-2

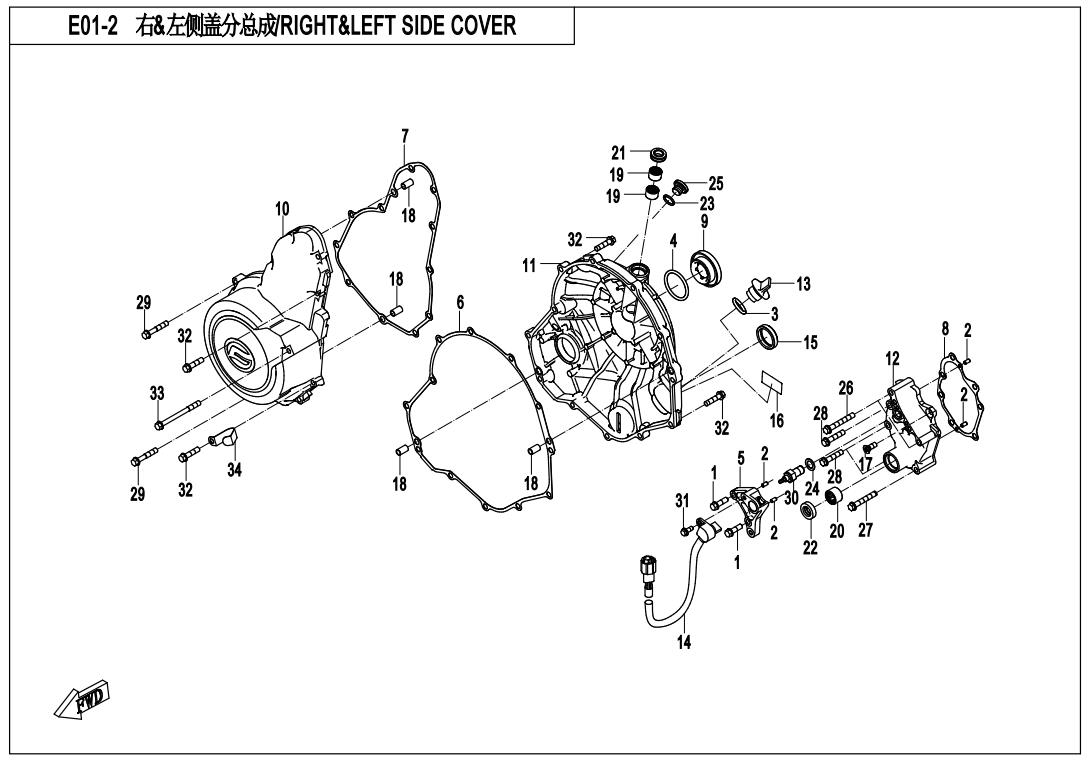

RIGHT&LEFT SIDE COVER
E01-3

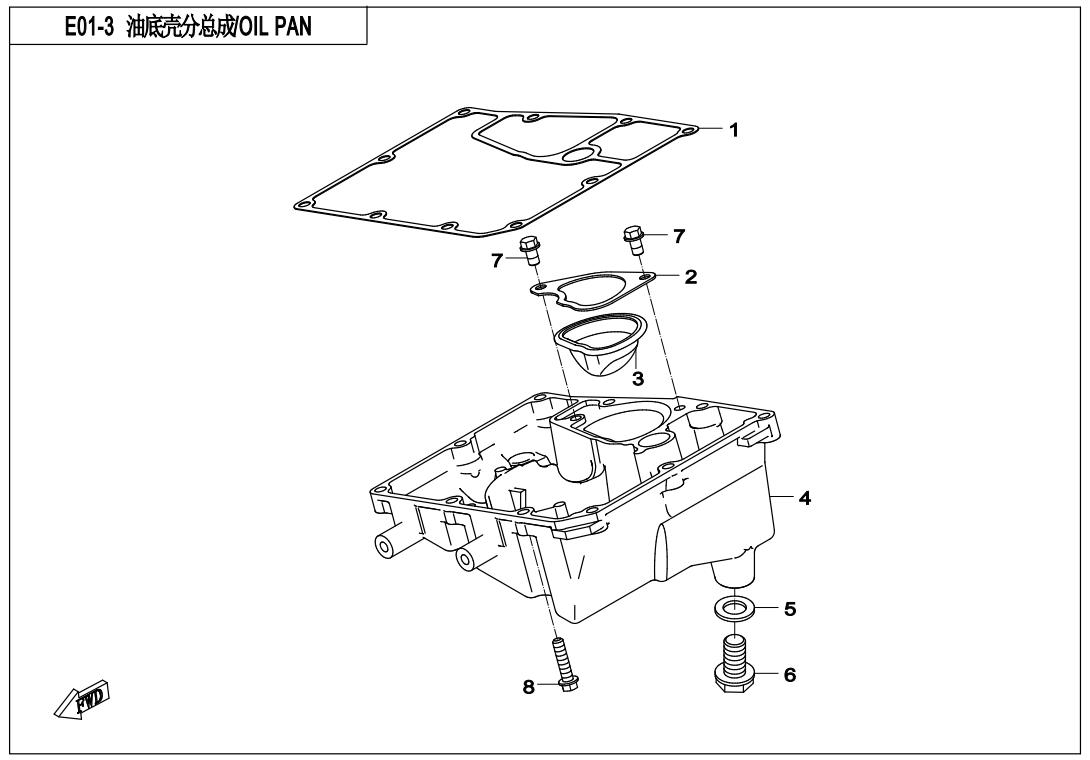

OIL PAN
E02-1

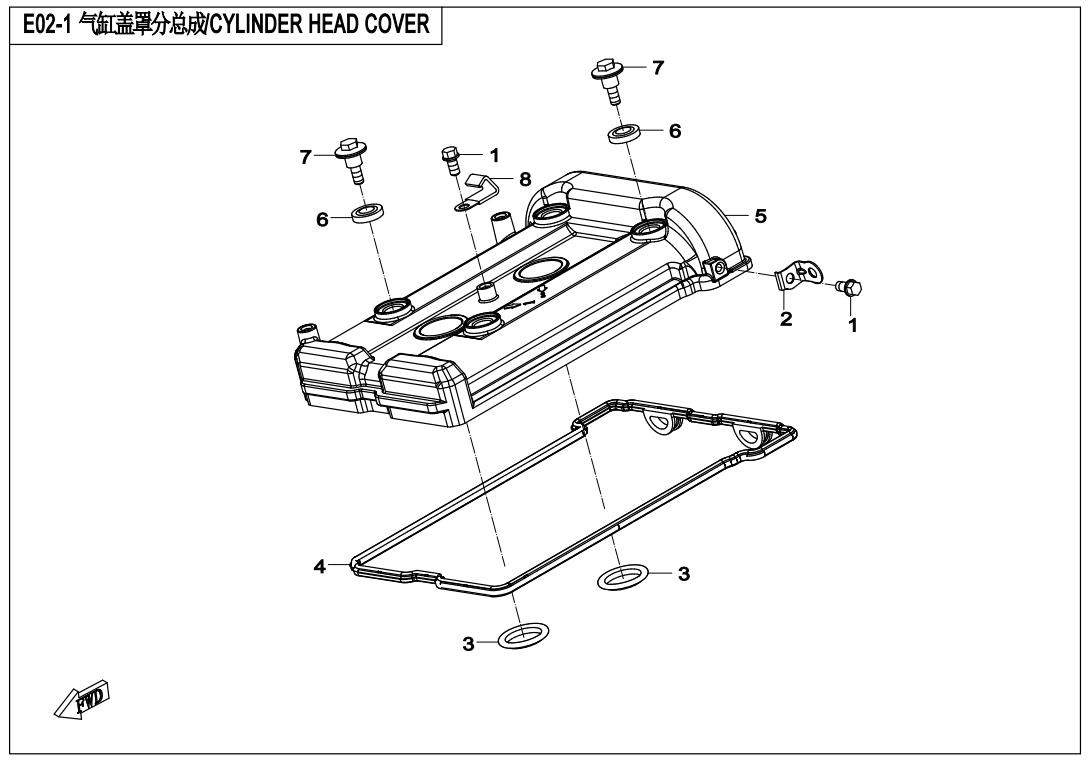

CYLINDER HEAD COVER
E02-2

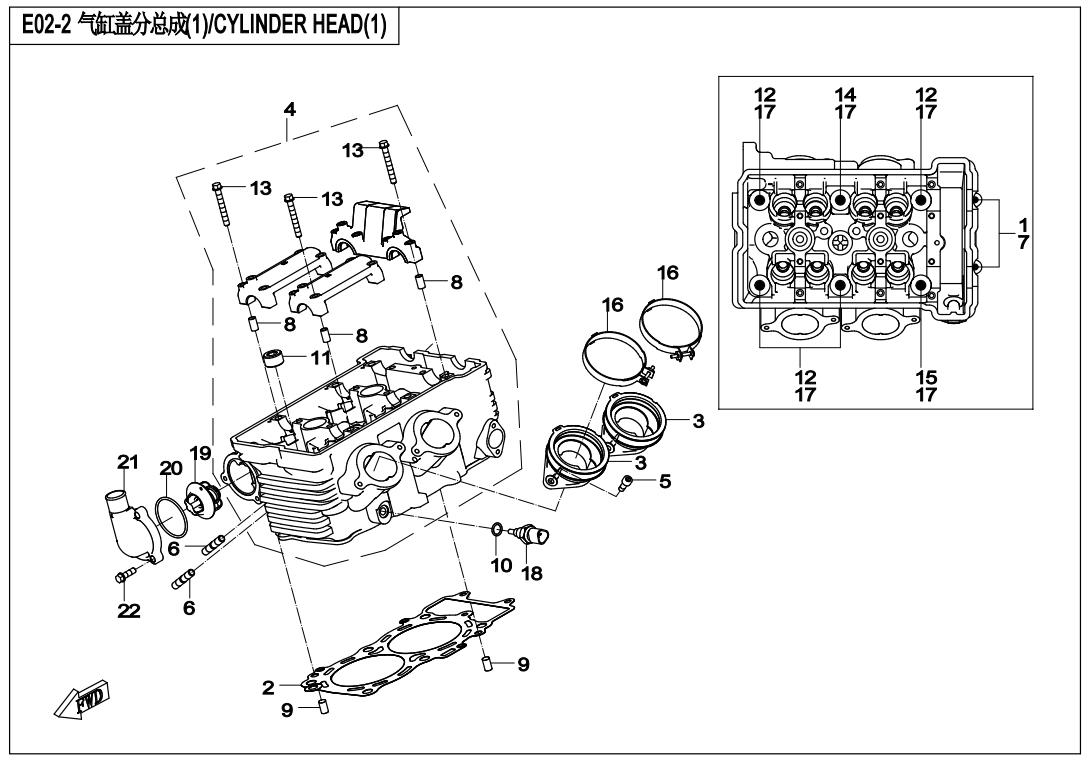

CYLINDER HEAD(1)

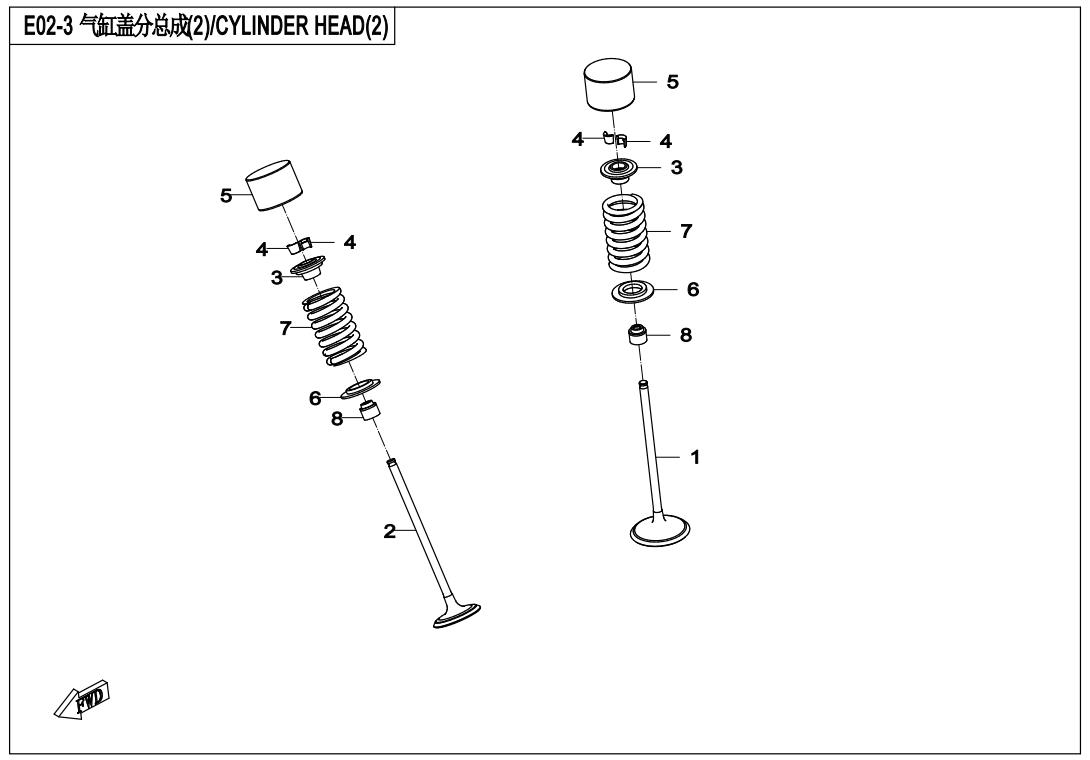

E02-3
CYLINDER HEAD(2)

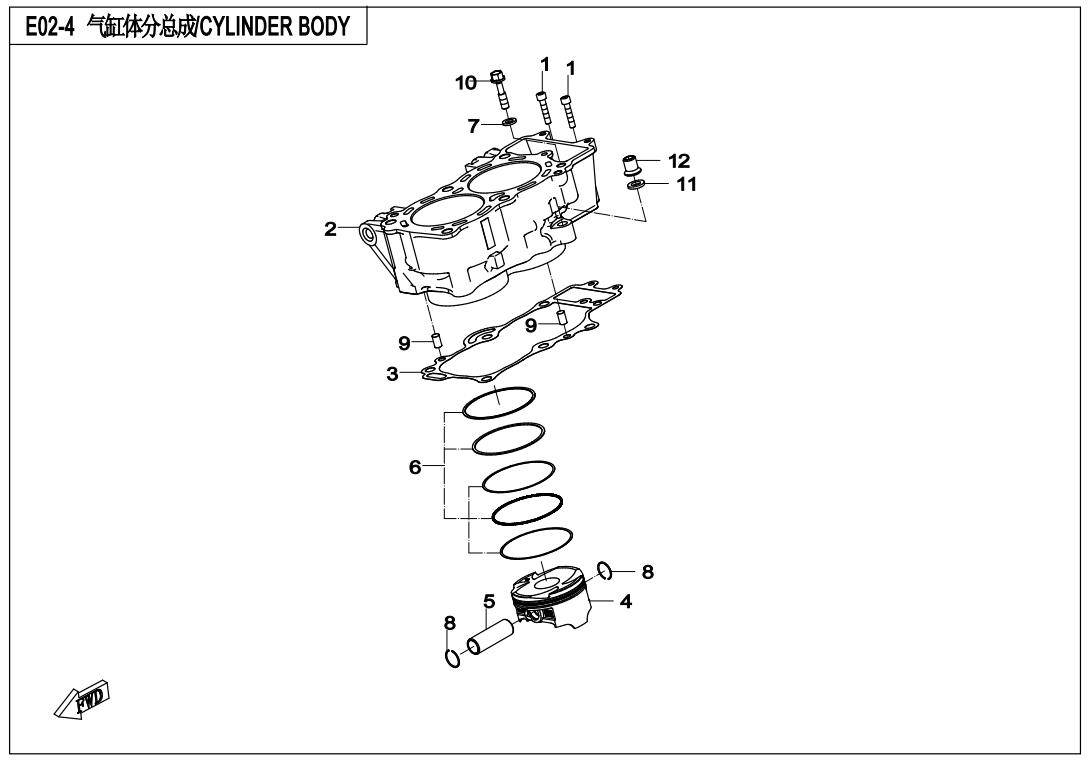

E02-4
CYLINDER BODY
E02-5

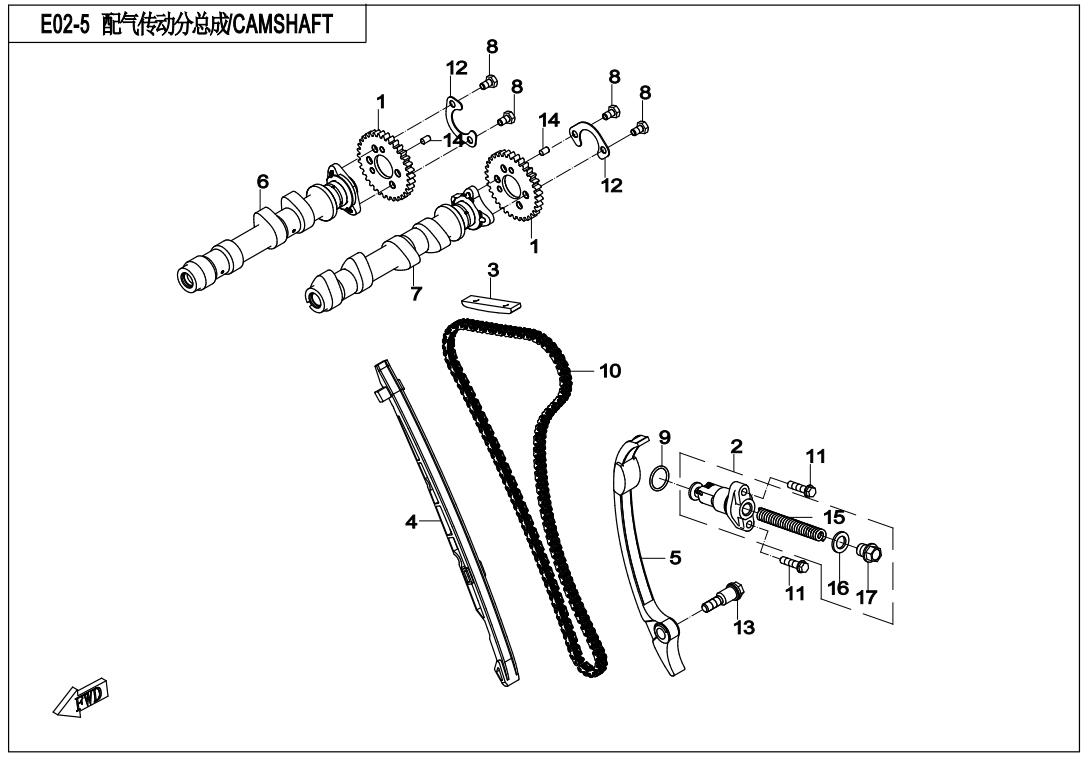

CAMSHAFT
E03

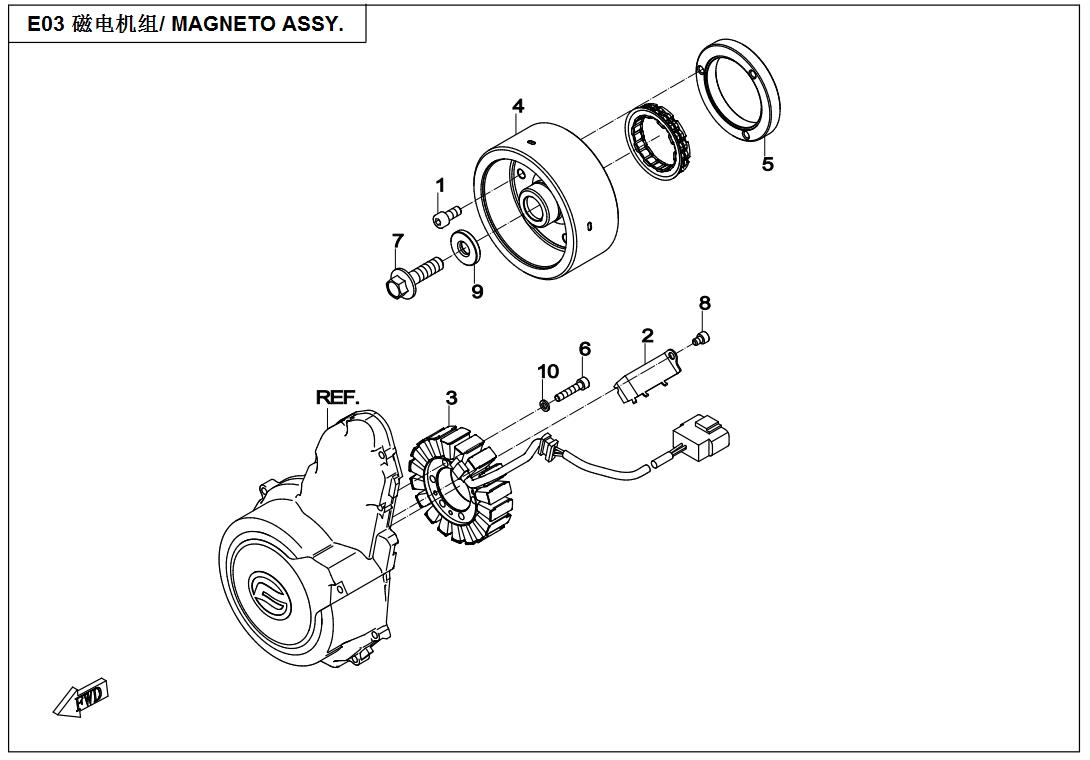

MAGNETO ASSY.
E04-1

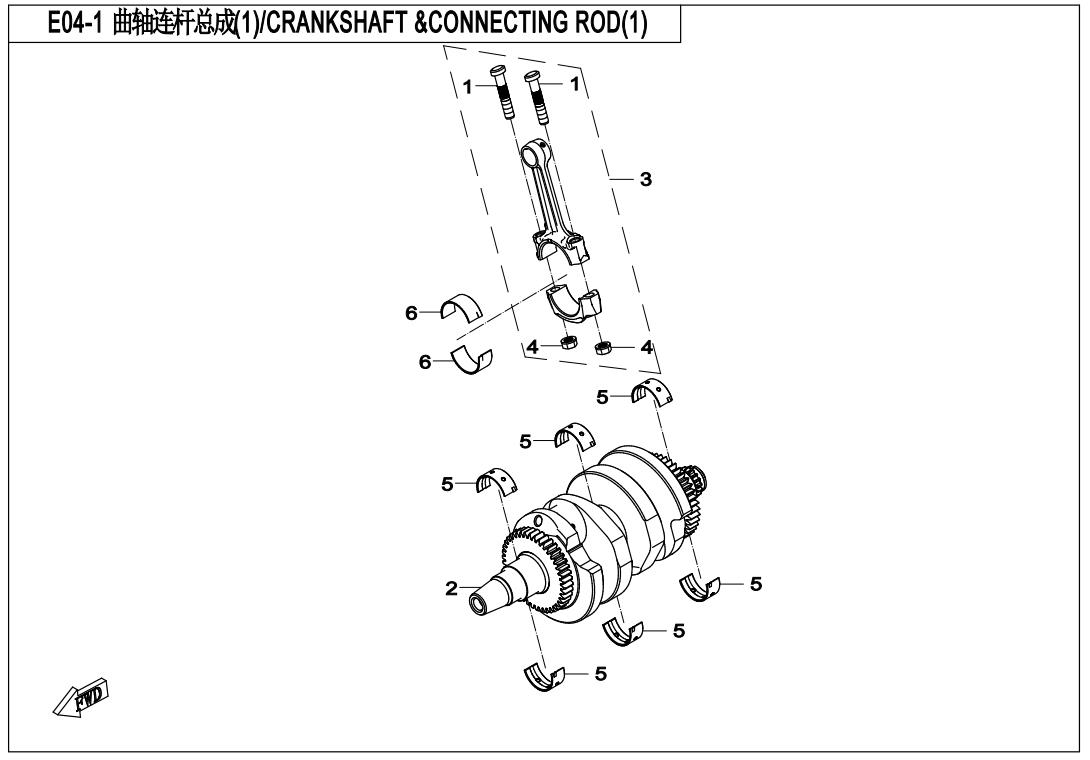

CRANKSHAFT &CONNECTING ROD(1)

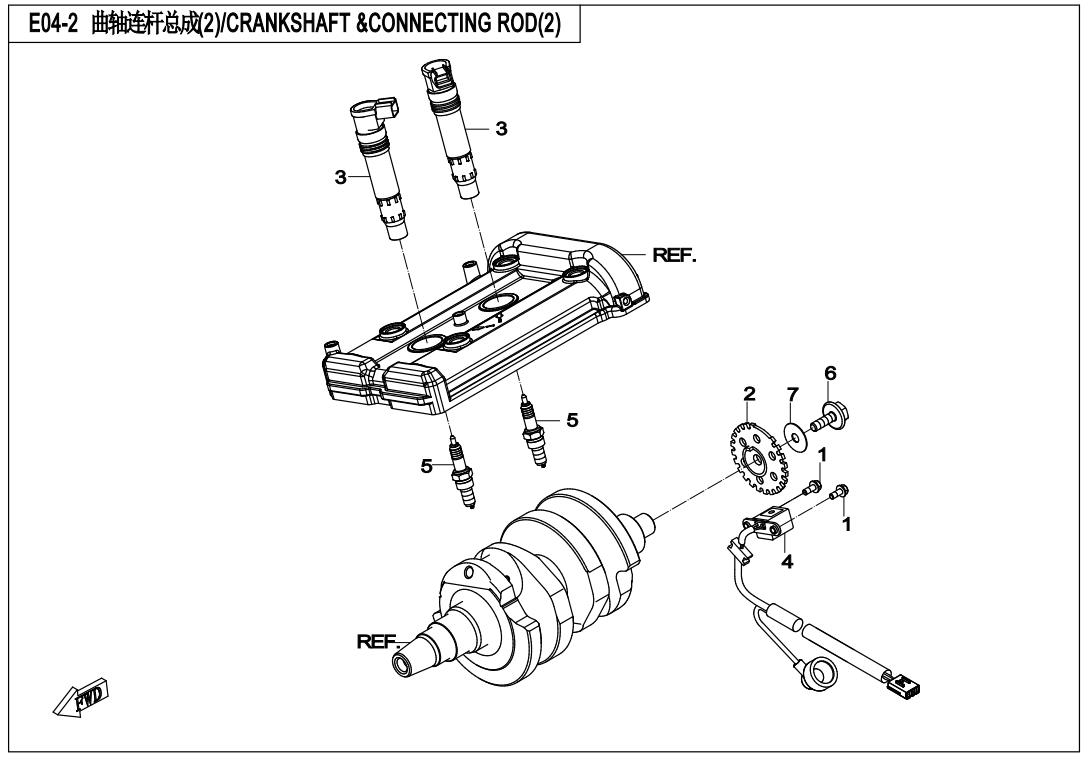

E04-2
CRANKSHAFT &CONNECTING ROD(2)
E05

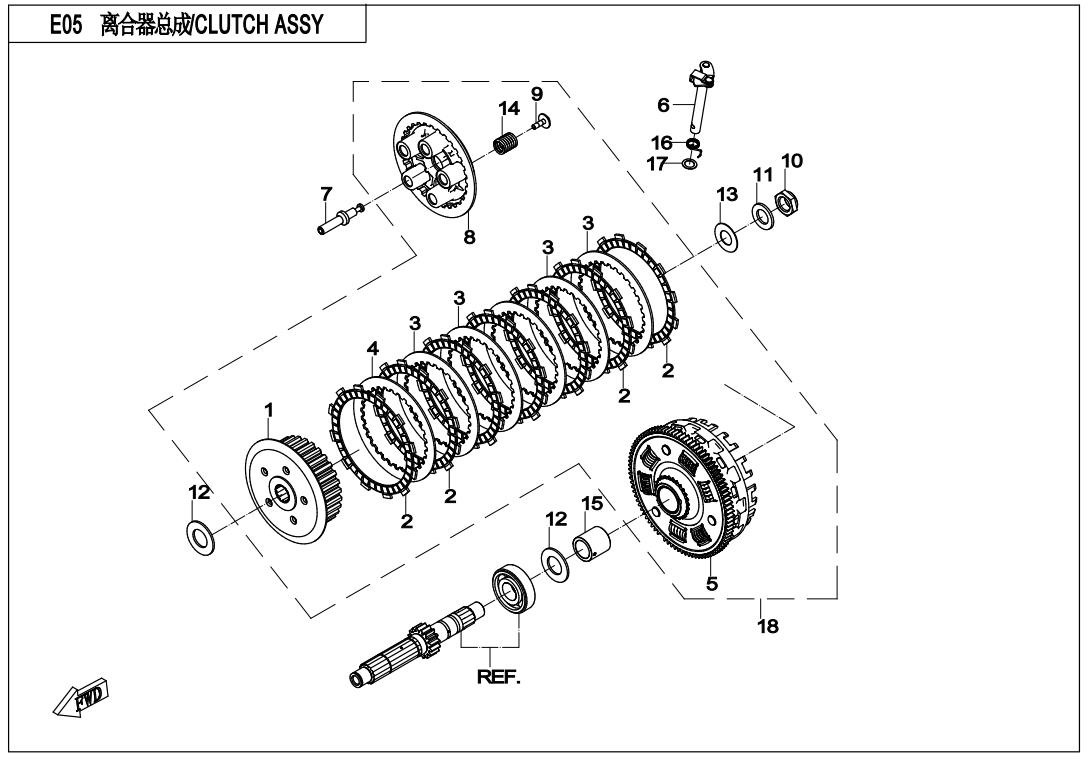

CLUTCH ASSY
E06-1

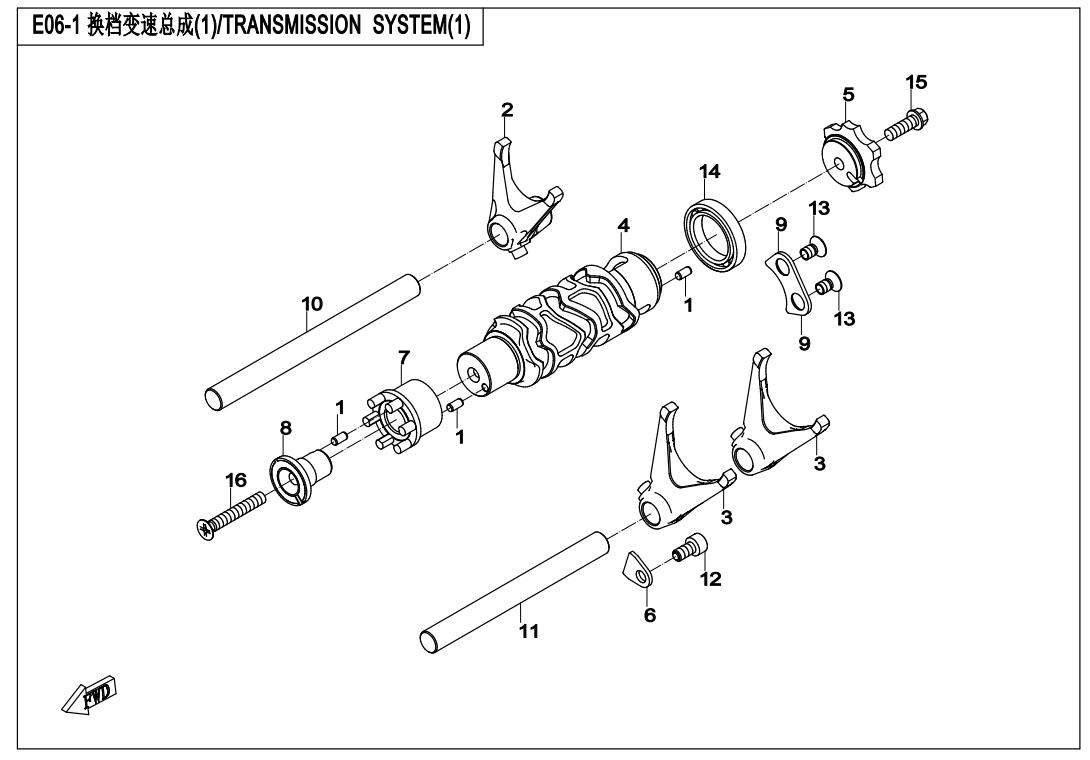

TRANSMISSION SYSTEM(1)

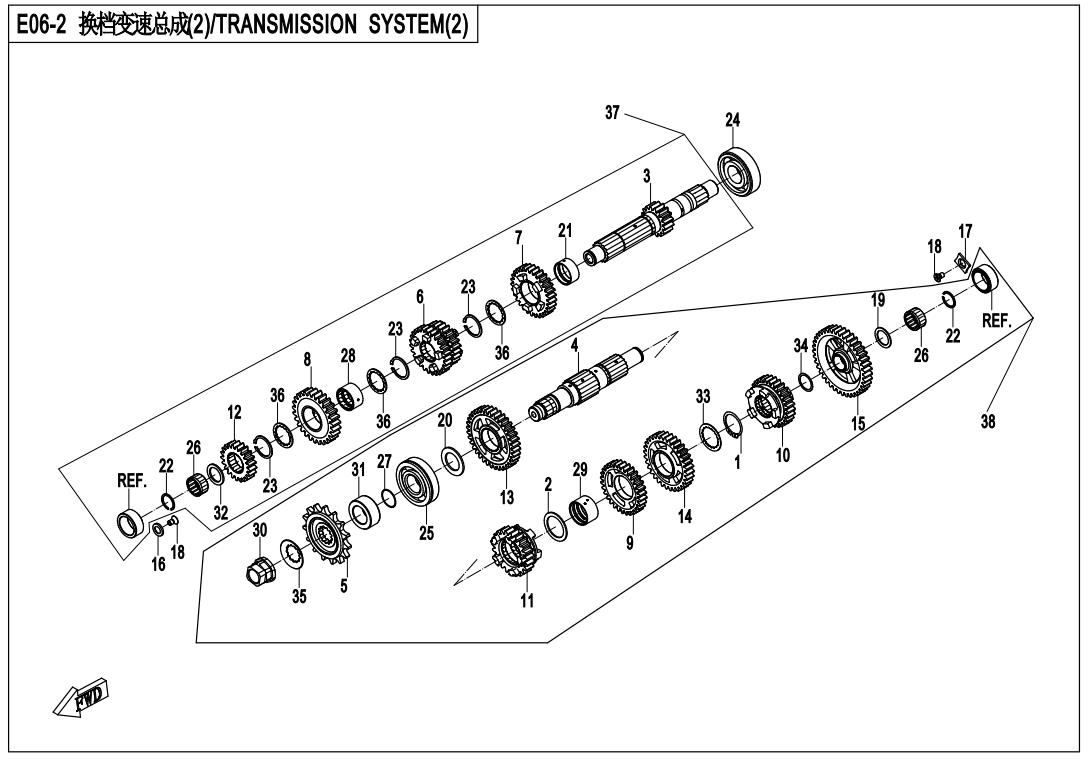

E06-2
TRANSMISSION SYSTEM(2

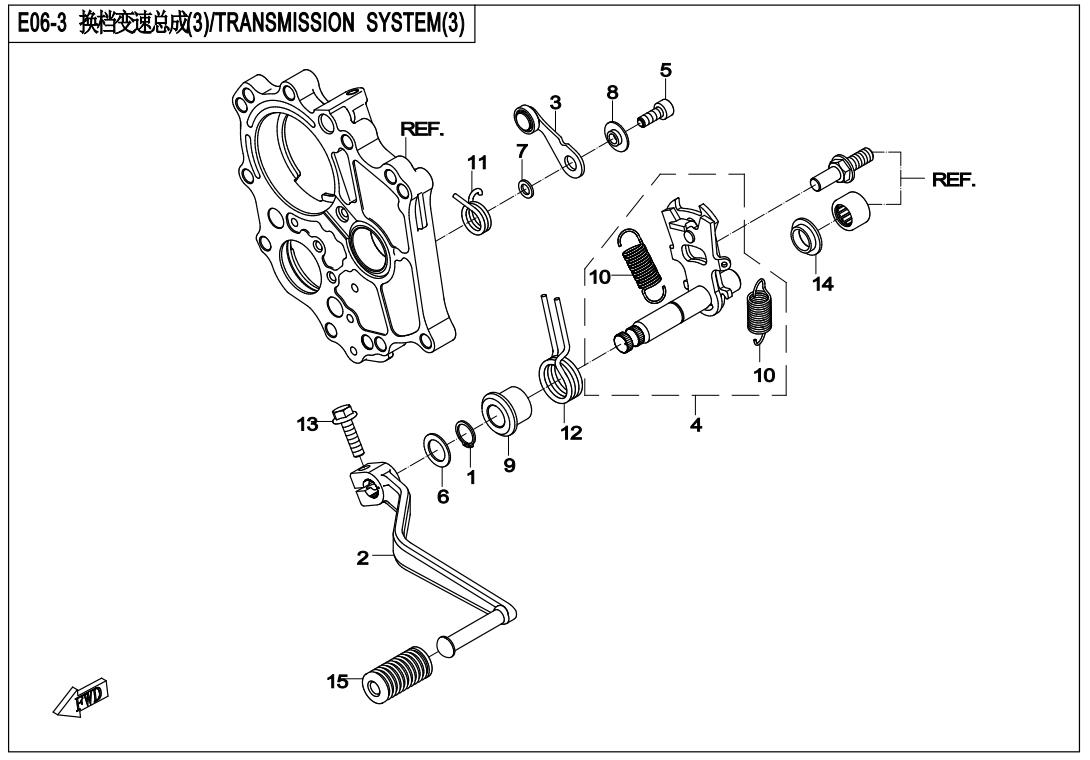

E06-3
TRANSMISSION SYSTEM(3)
E08

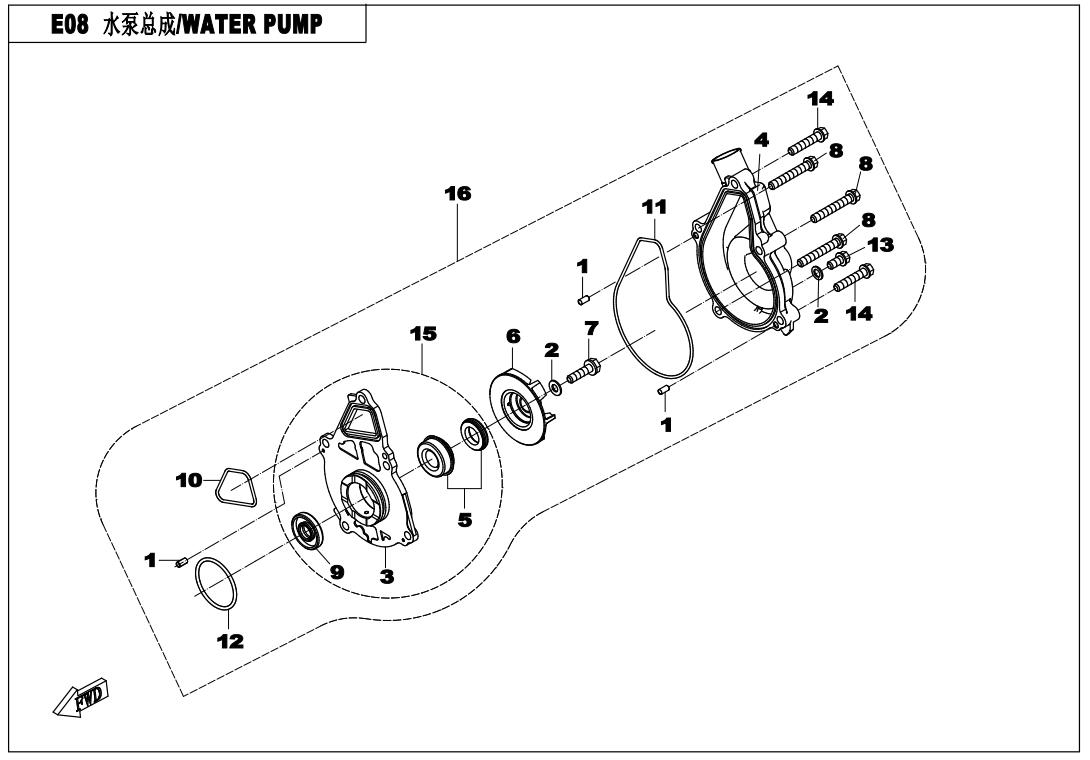

WATER PUMP

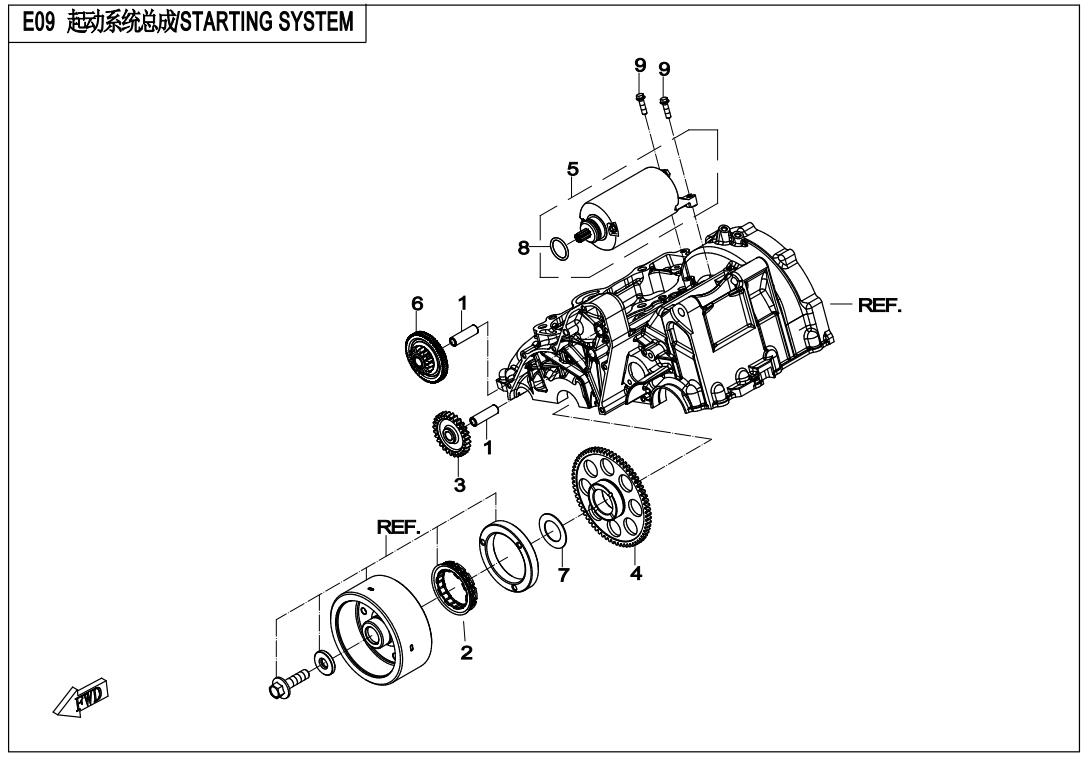

E09
STARTING SYSTEM
E11

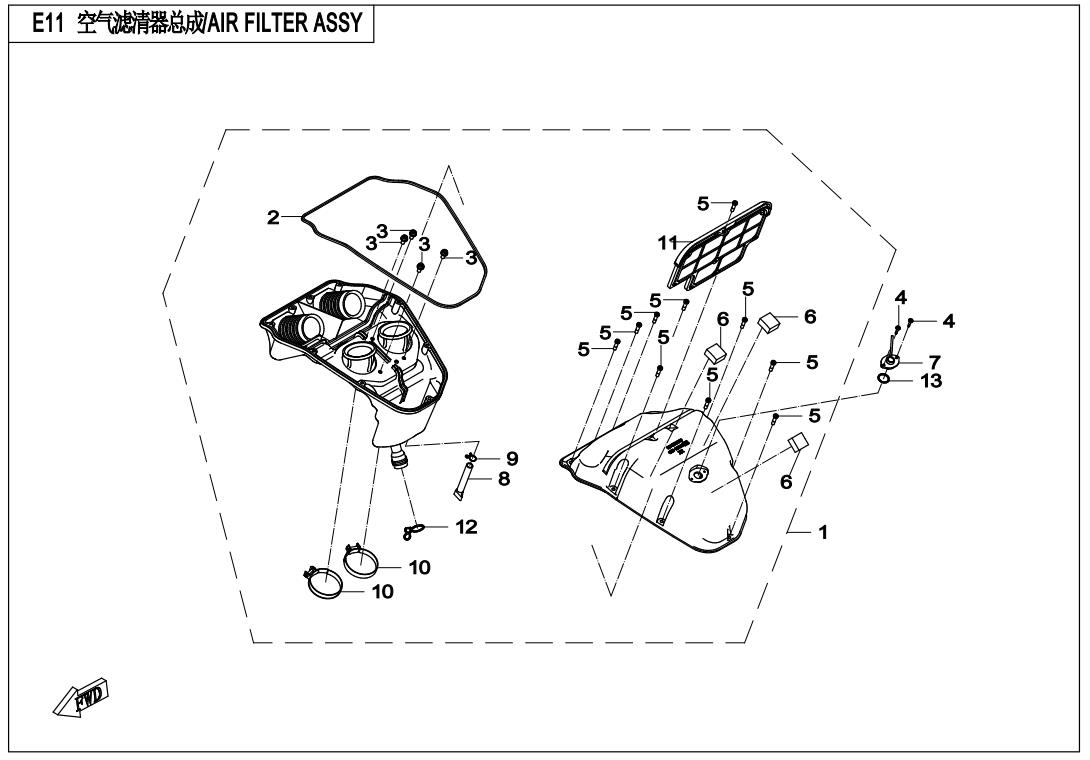

AIR FILTER ASSY
E12

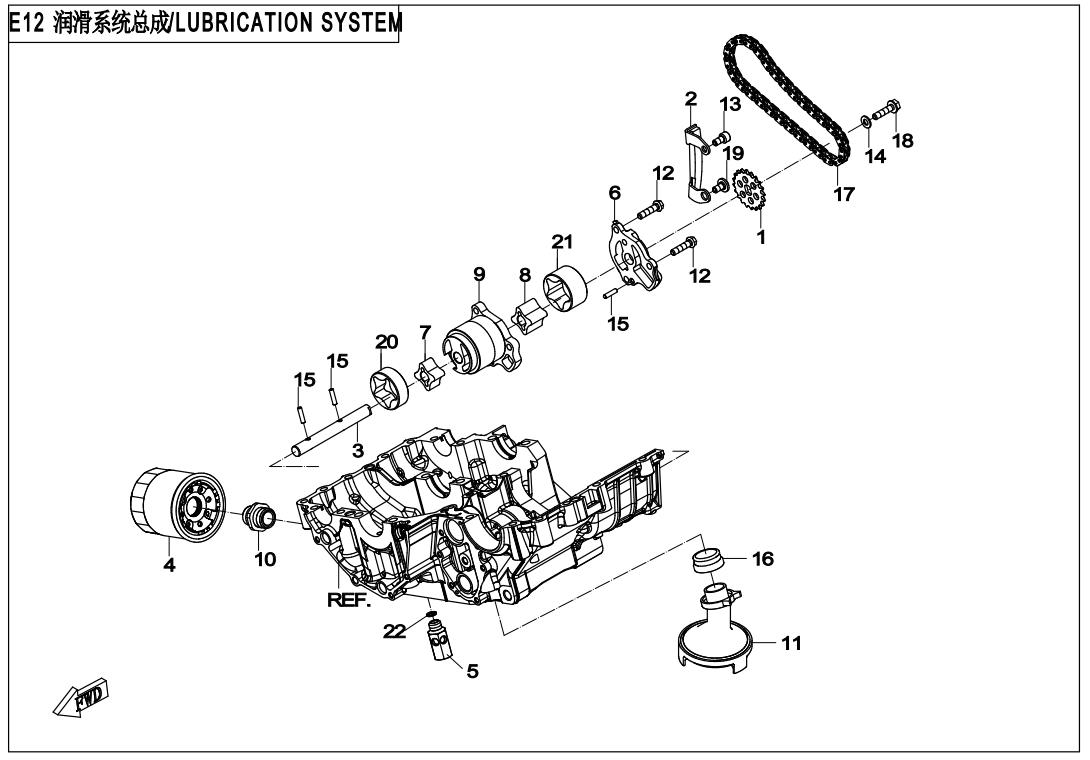

LUBRICATION SYSTEM
E16
BALANCER SHAFT
E17

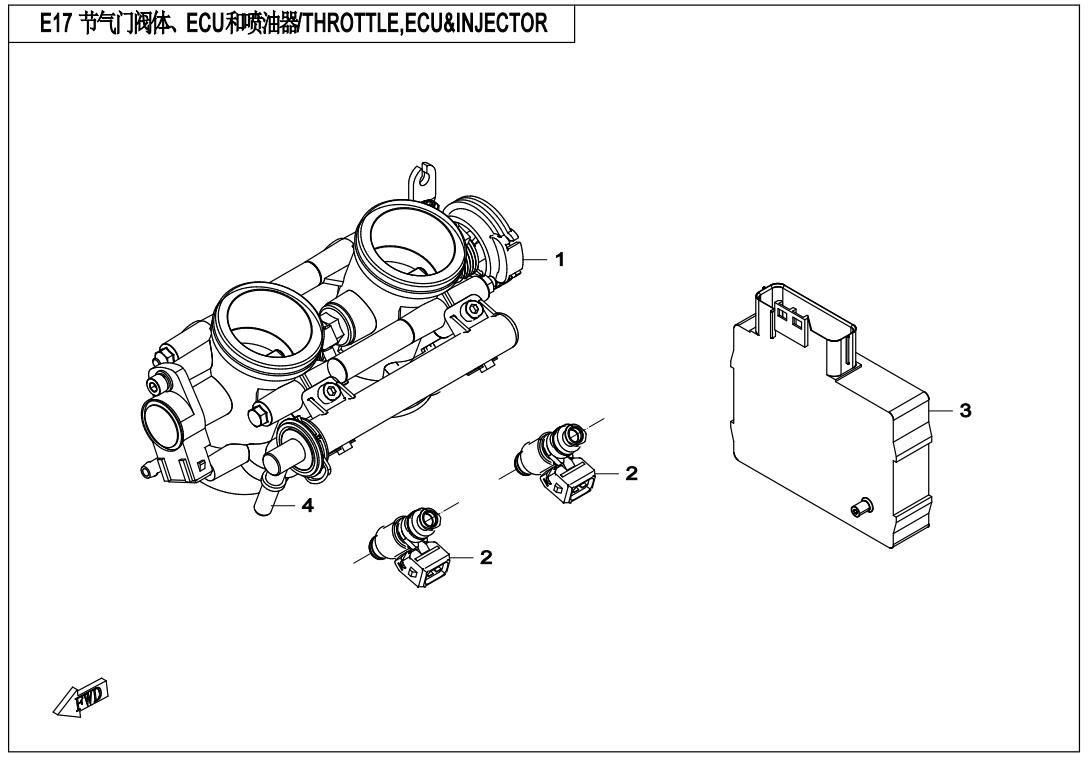

THROTTLE,ECU&INJECTOR
E18

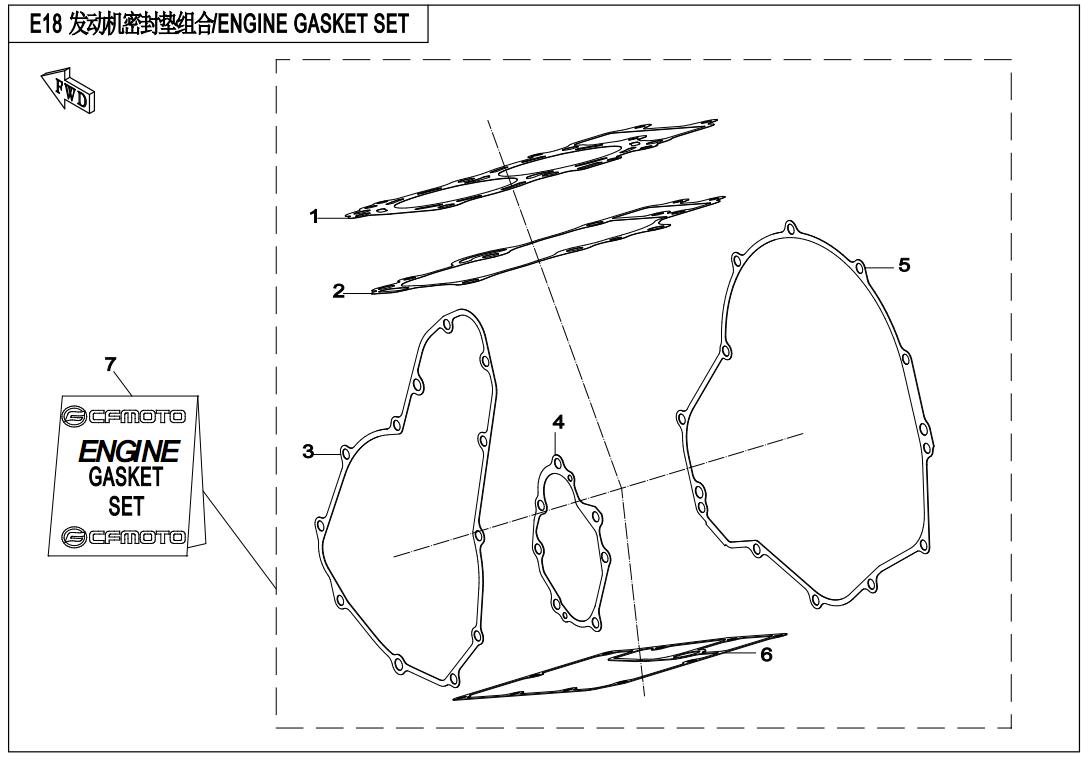

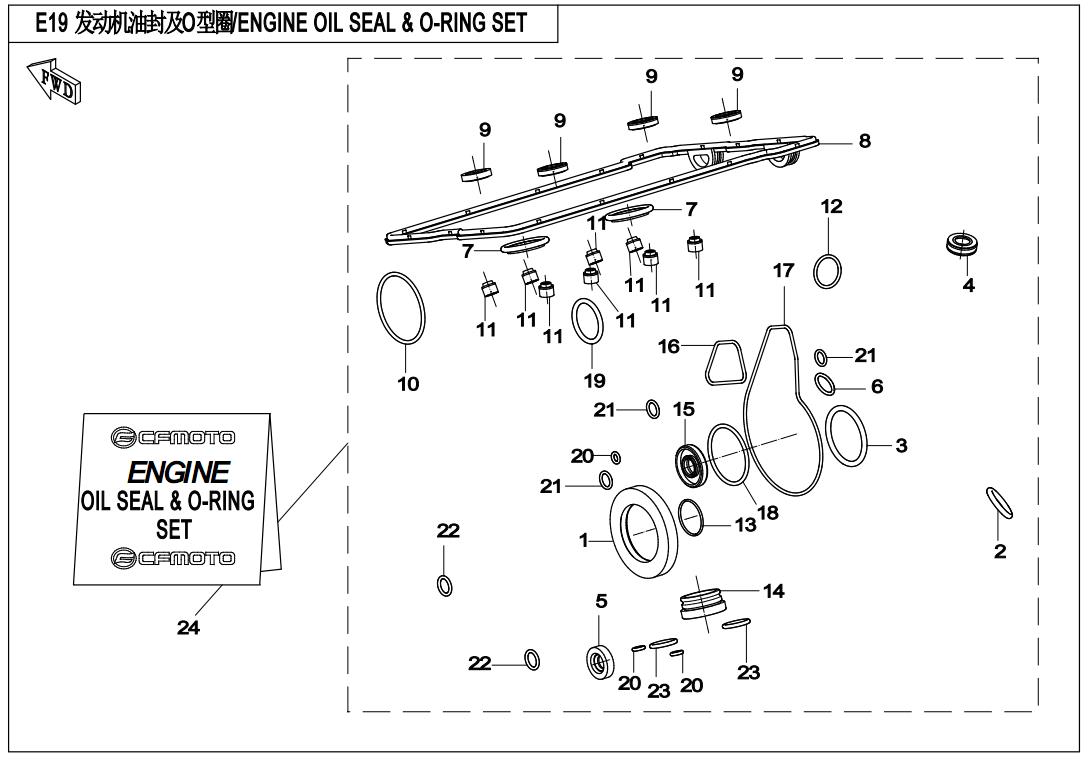

ENGINE GASKET SET
