Genuine Parts Diagrams for 2014 Z8S - CF800US-AChange Model
Showing 73 parts diagrams.

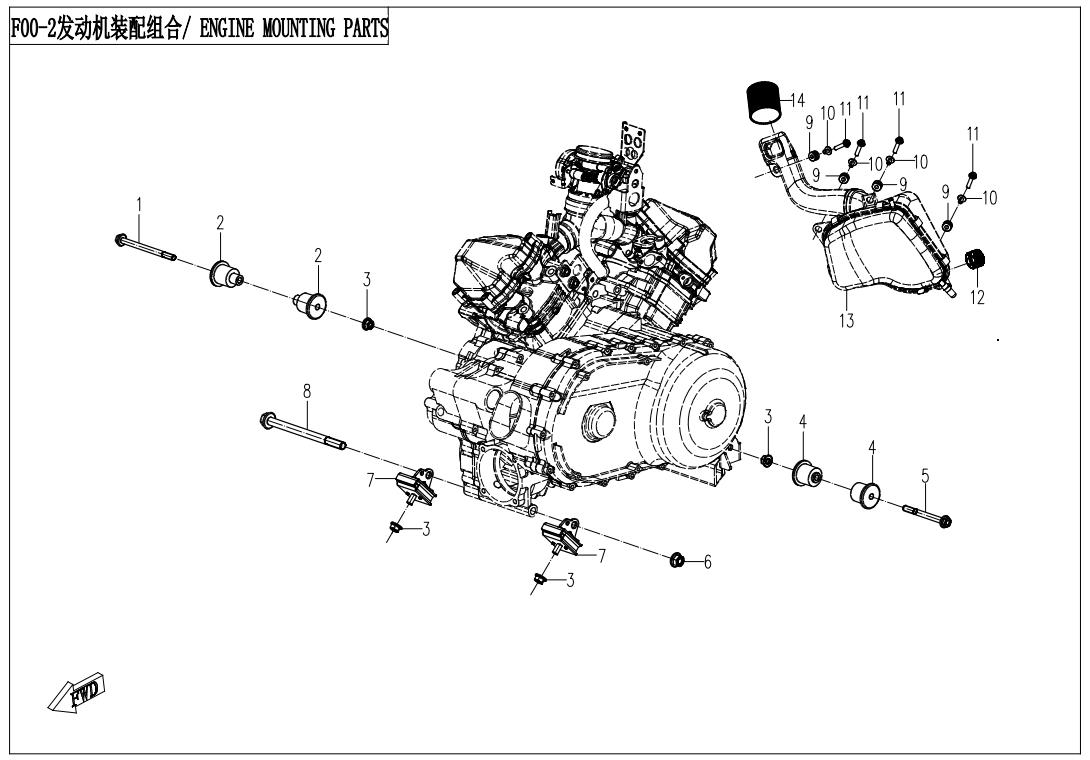

F00-1
ENGINE MOUNTING PARTS

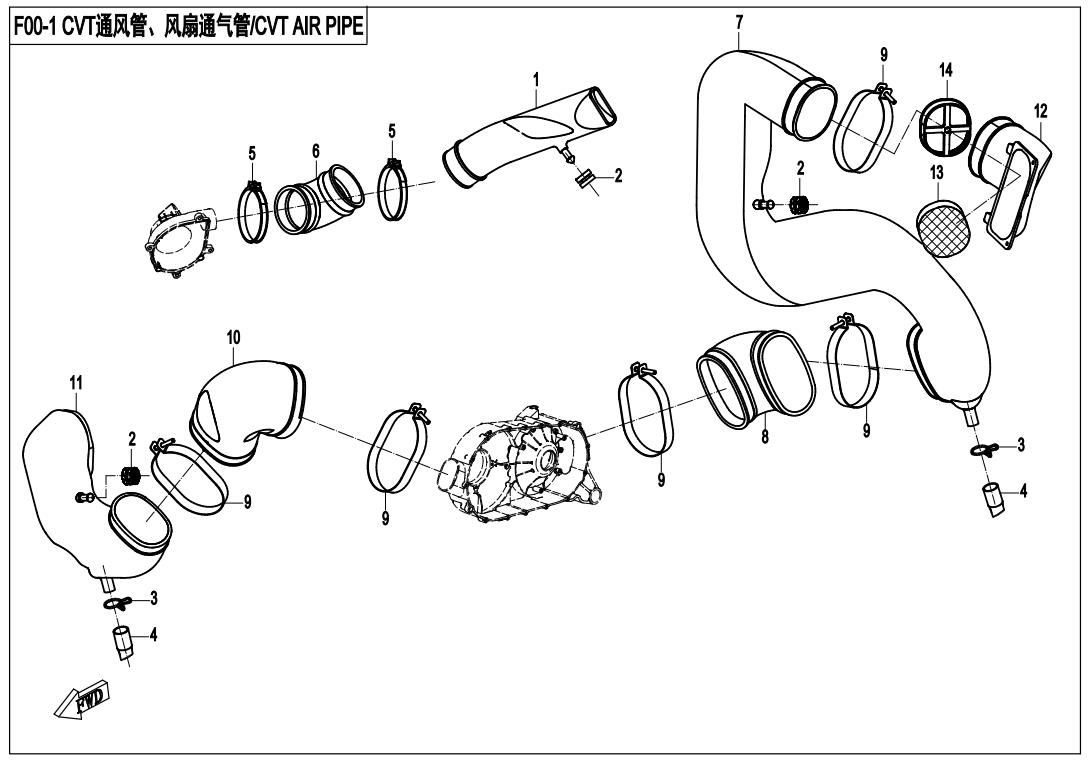

F00-2
CVT AIR PIPE
F01

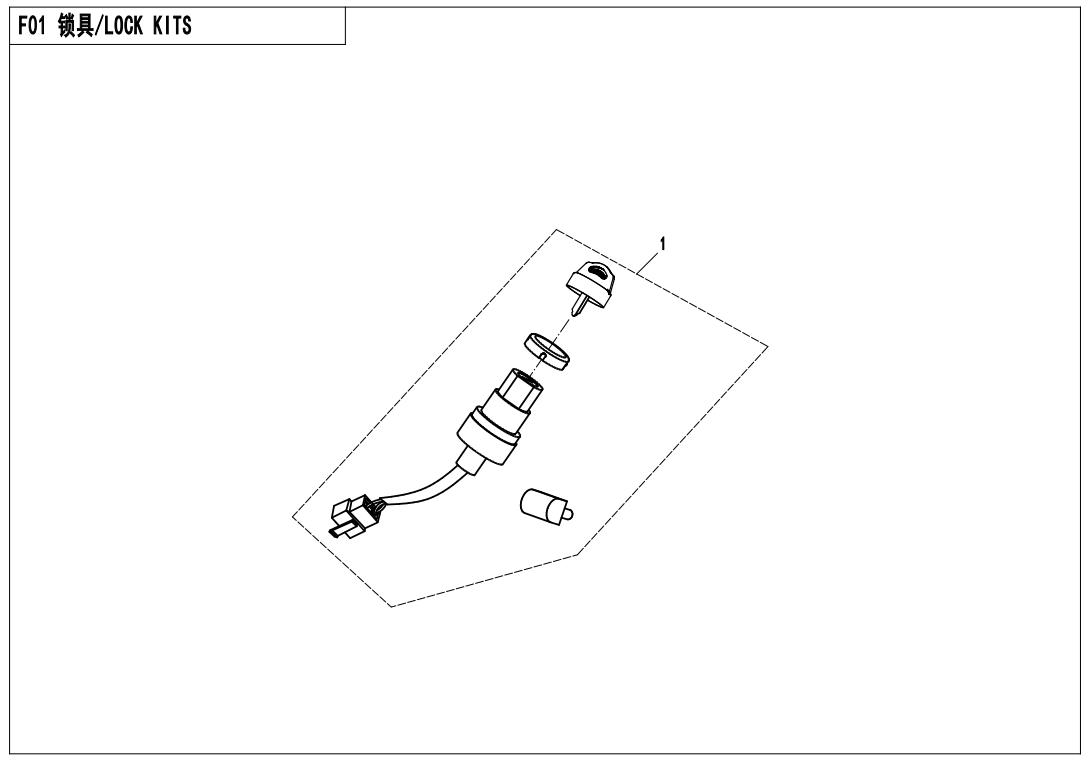

LOCK KITS
F02

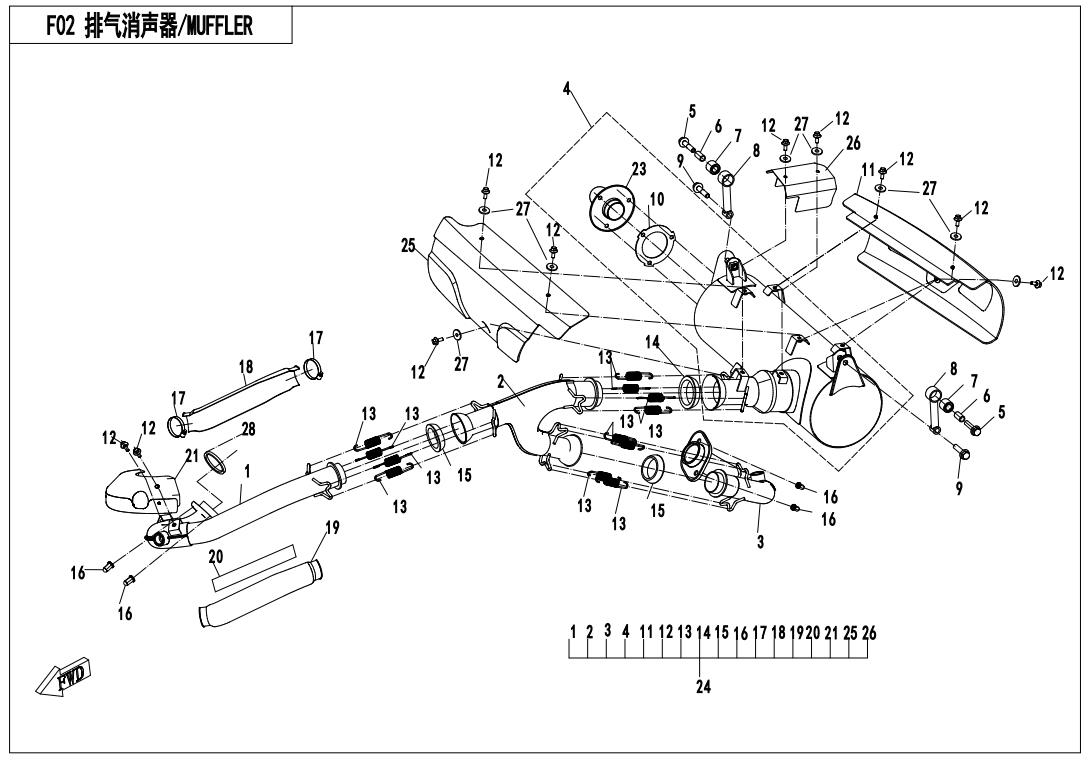

MUFFLER COMP

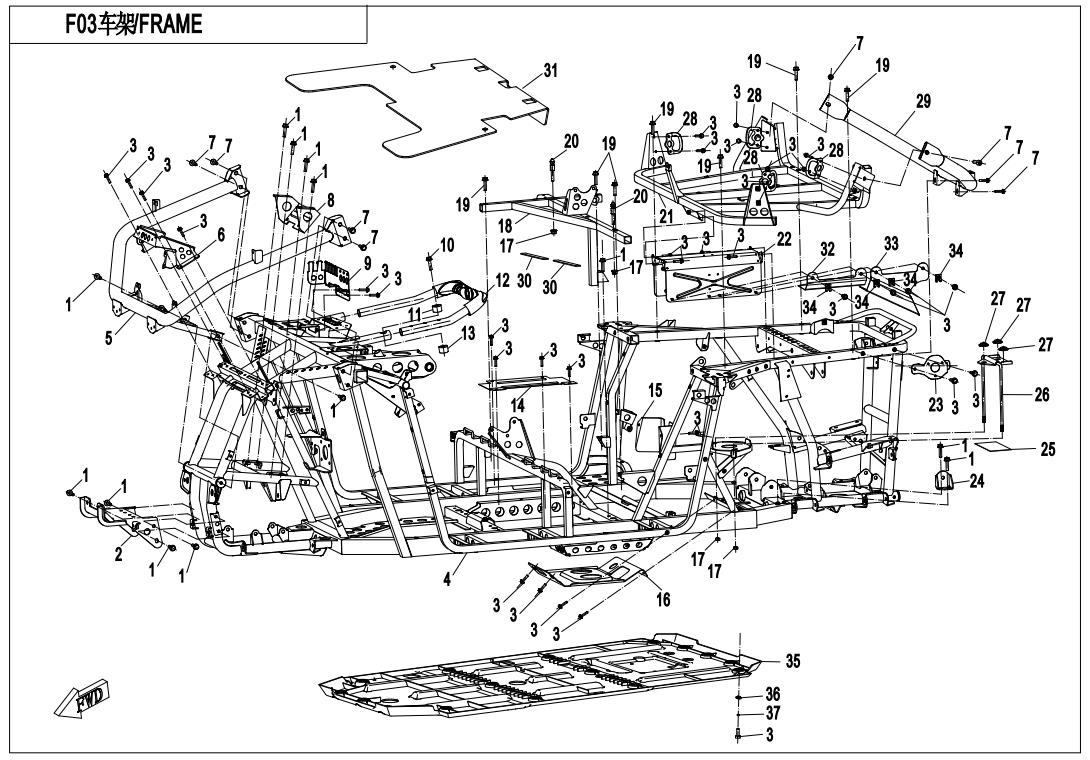

F03
FRAME ASSY
F04-1
PLASTIC PARTS-1

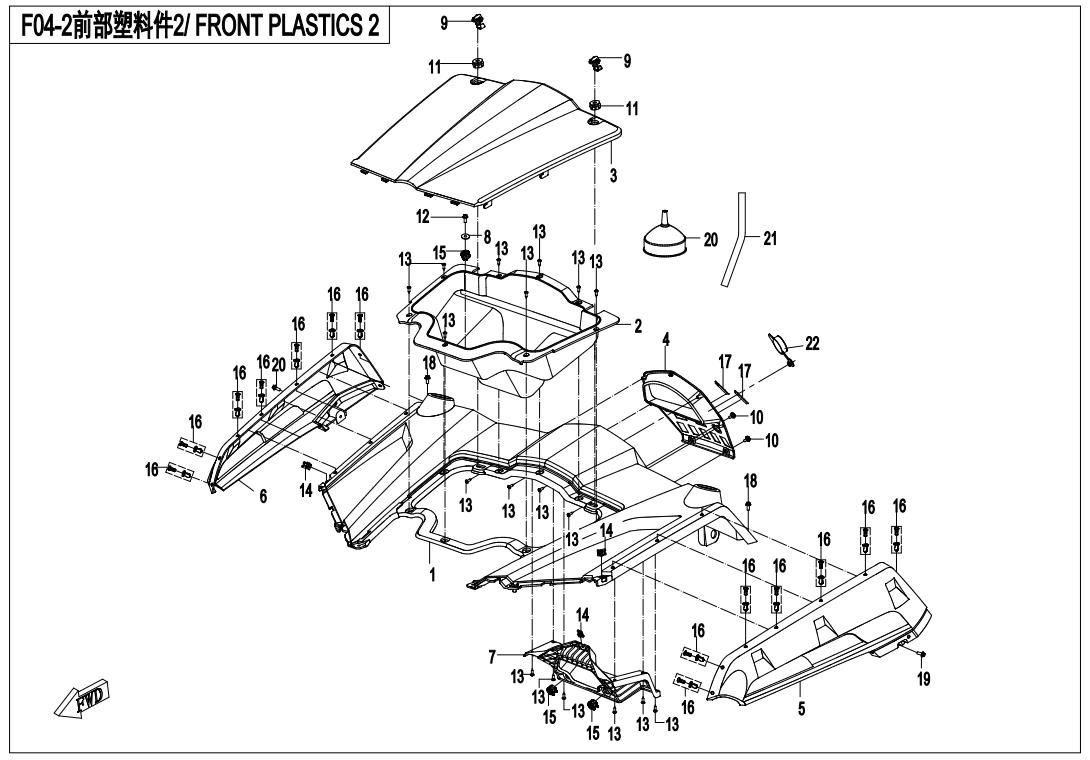

F04-2
PLASTIC PARTS-2
F04-3

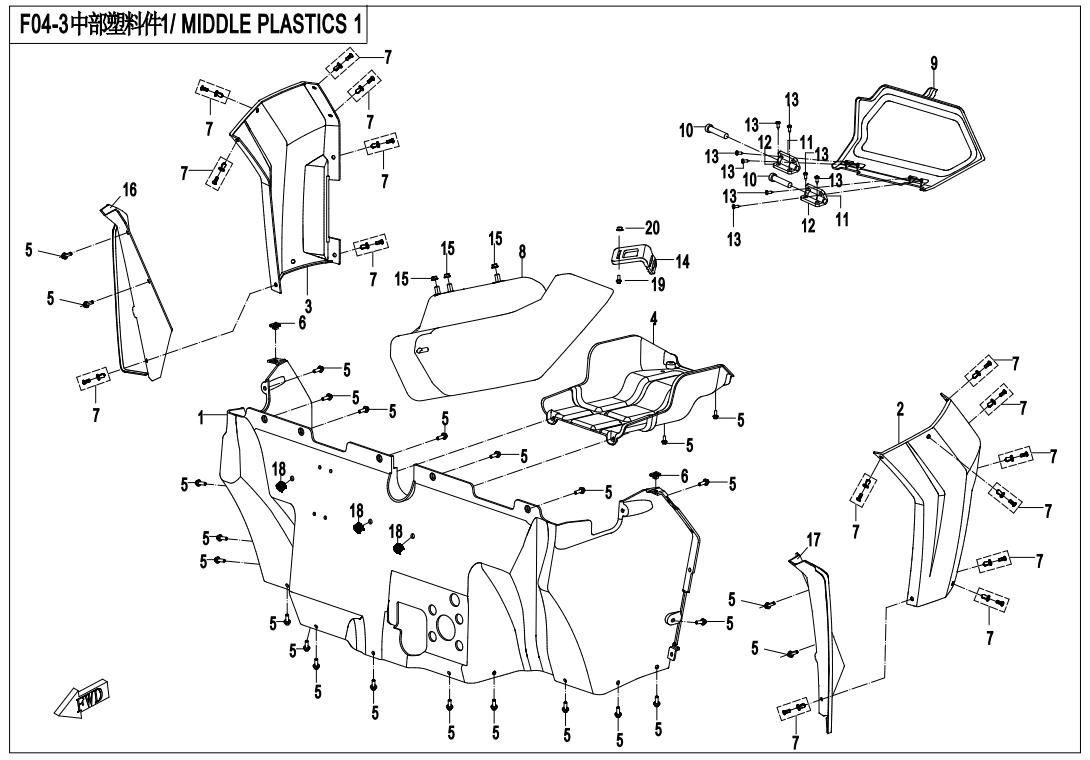

PLASTIC PARTS-3

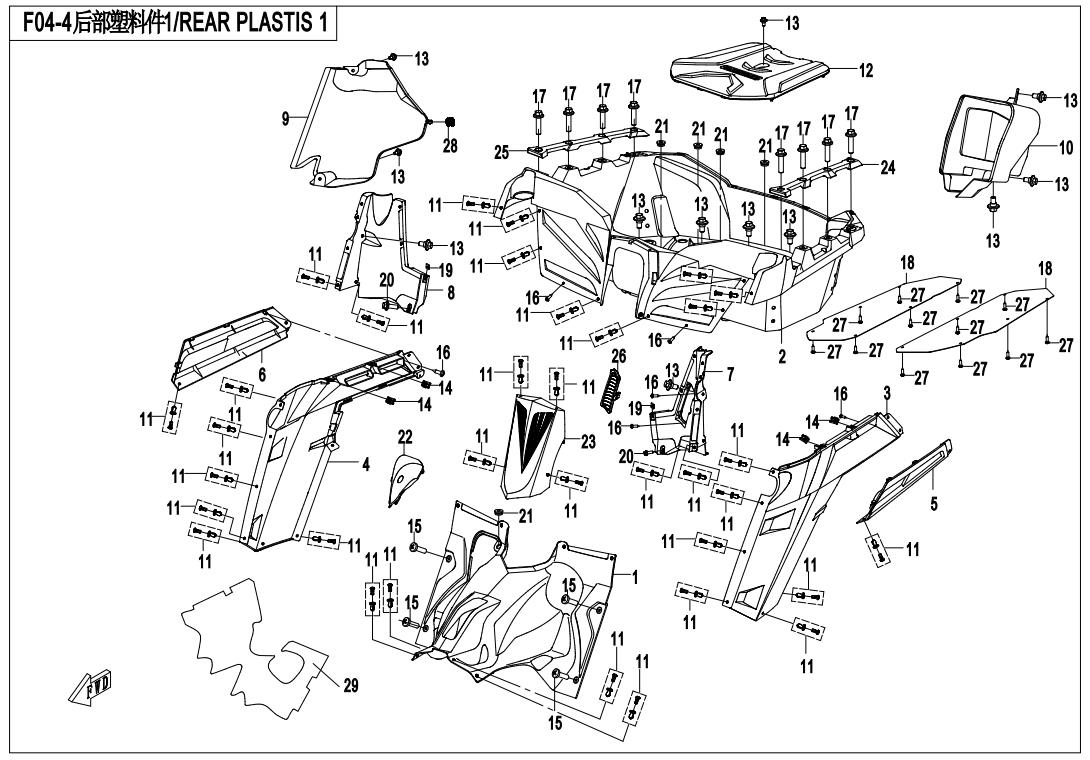

F04-4-1

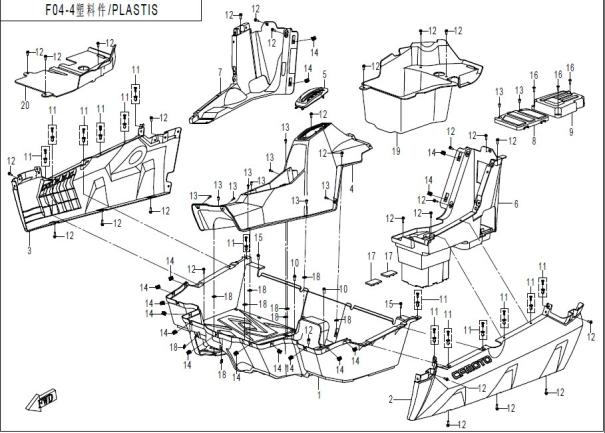

PLASTIC PARTS-4
F04-4-2
PLASTIC PARTS-4

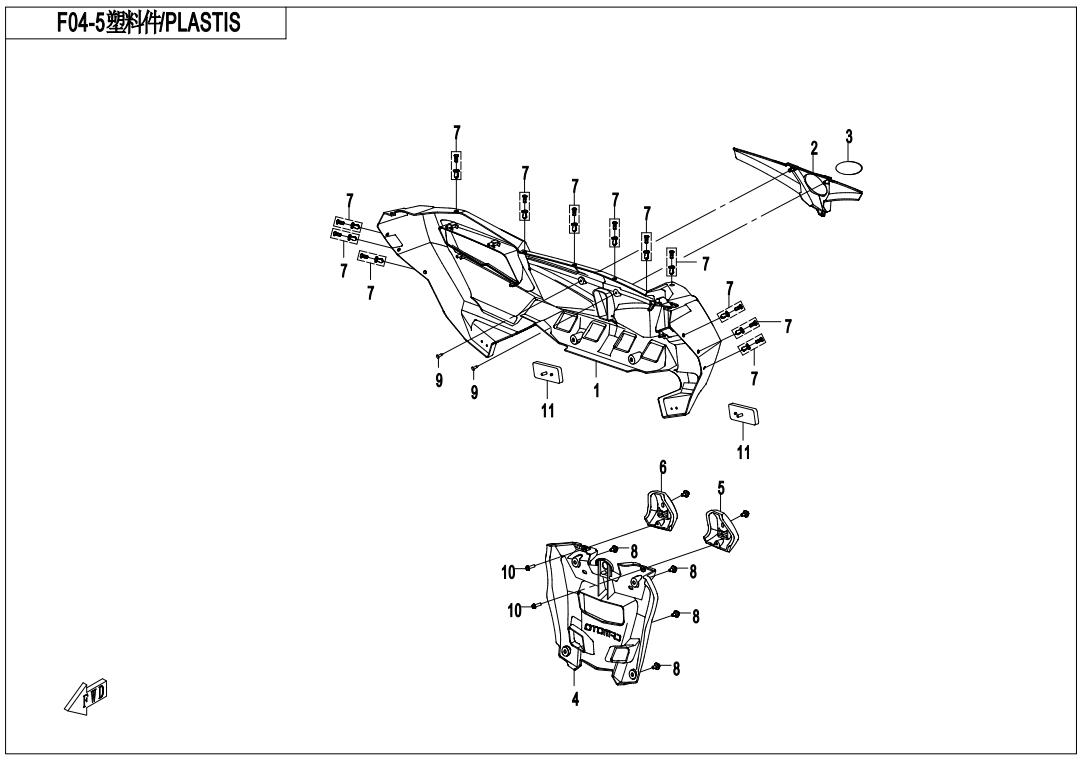

F04-5
PLASTIC PARTS-5

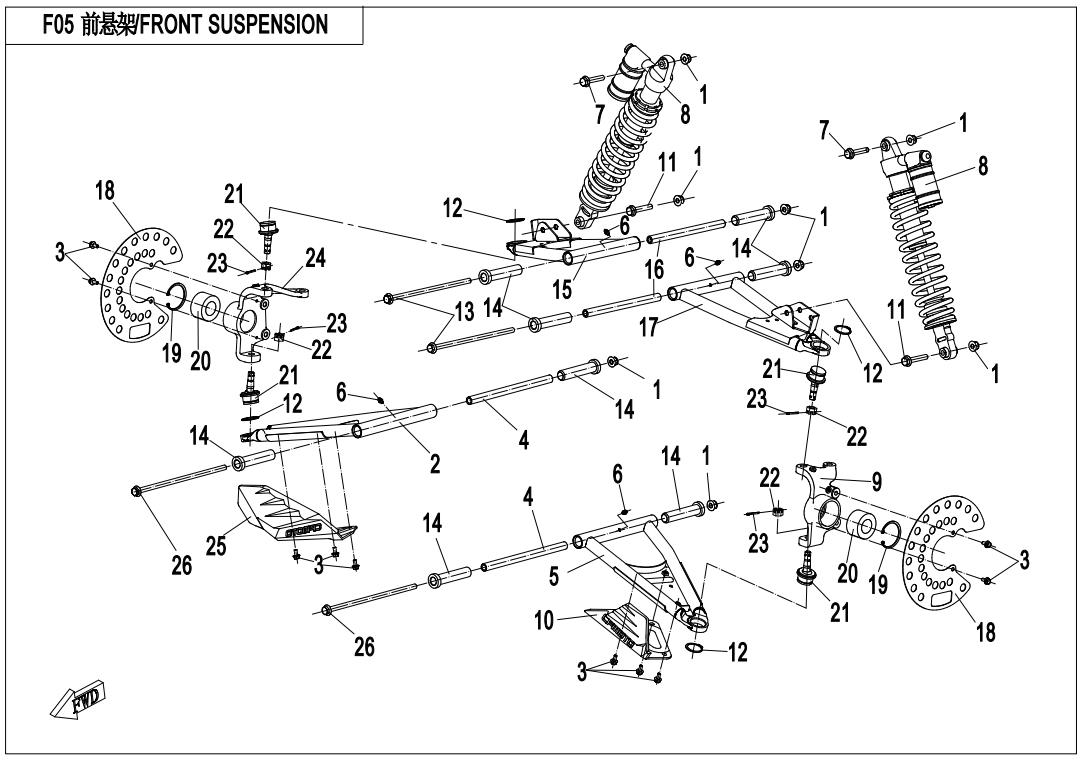

F05
FRONT SUSPENSION
F06

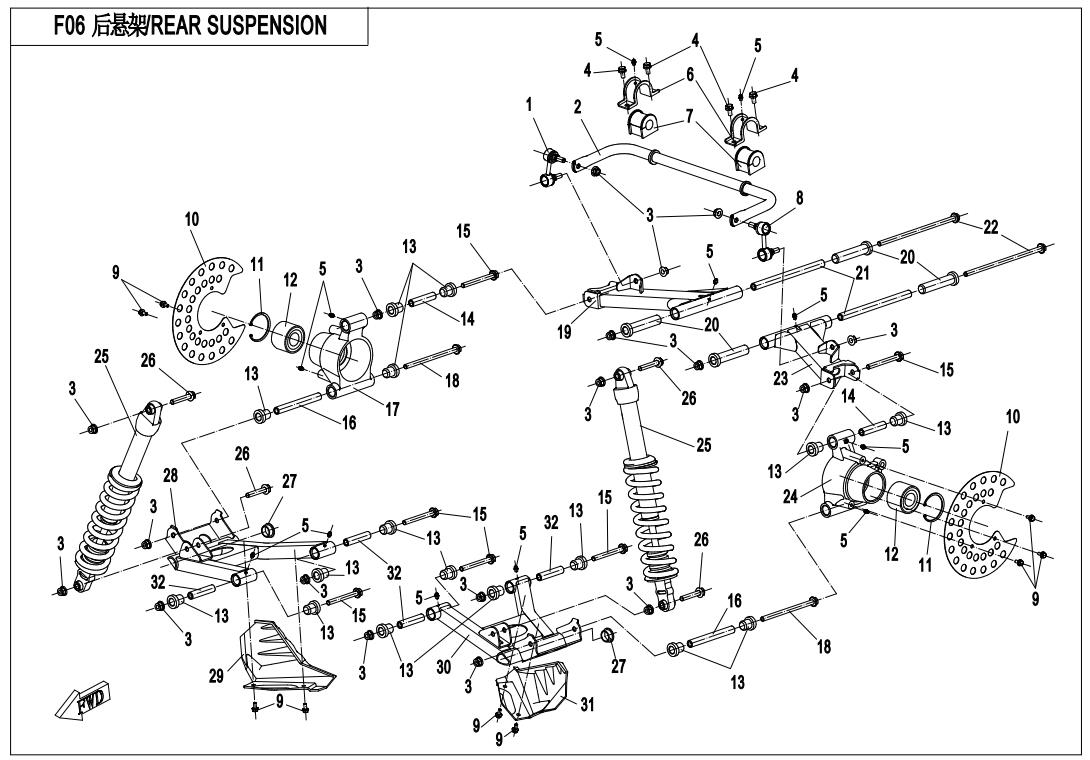

REAR SUSPENSION

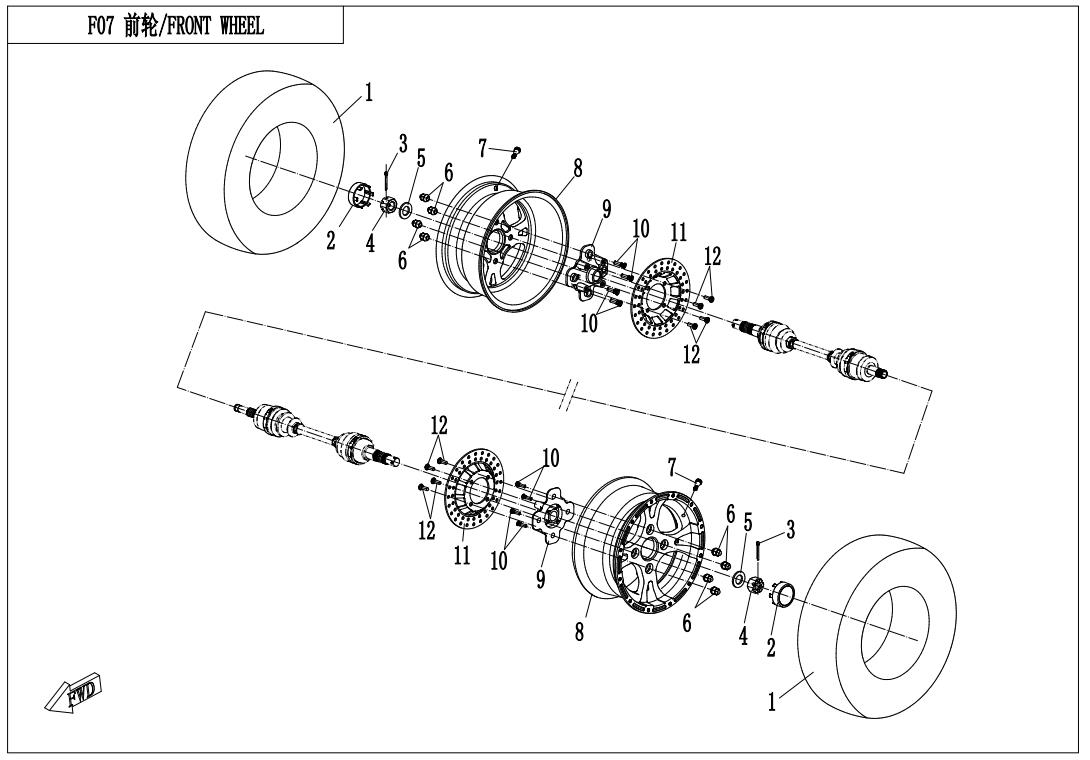

F07
FRONT WHEEL ASSY

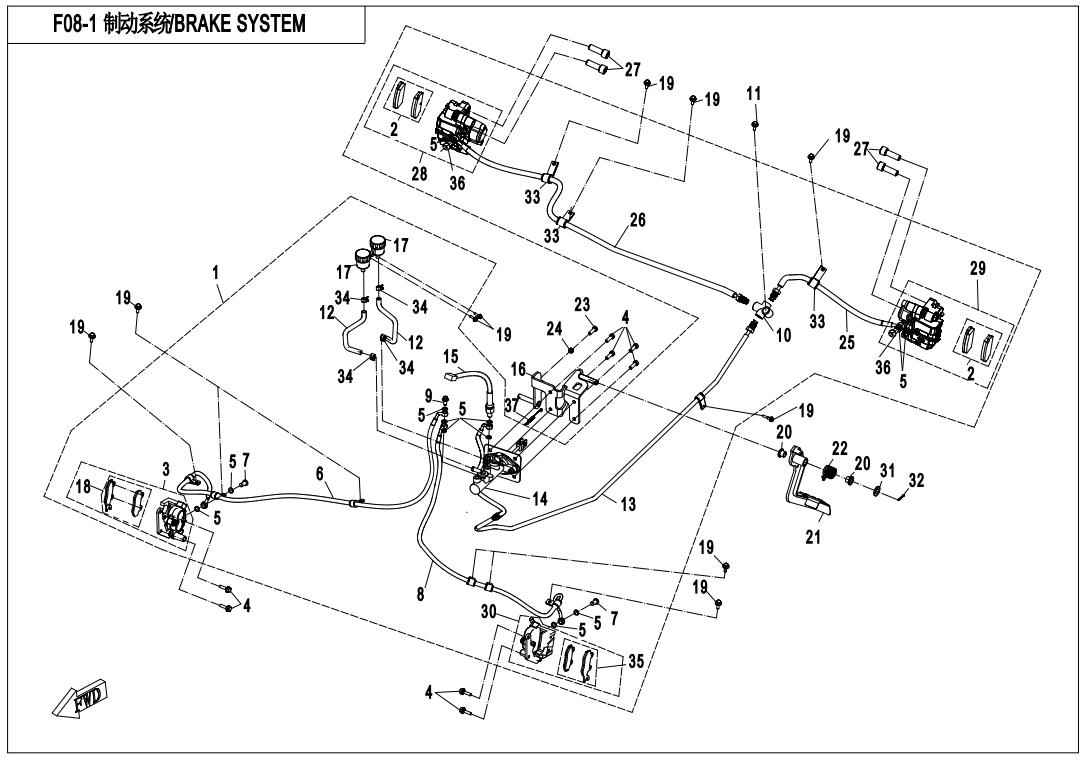

F08-1
HYDRAULIC BRAKE ASSY
F08-2

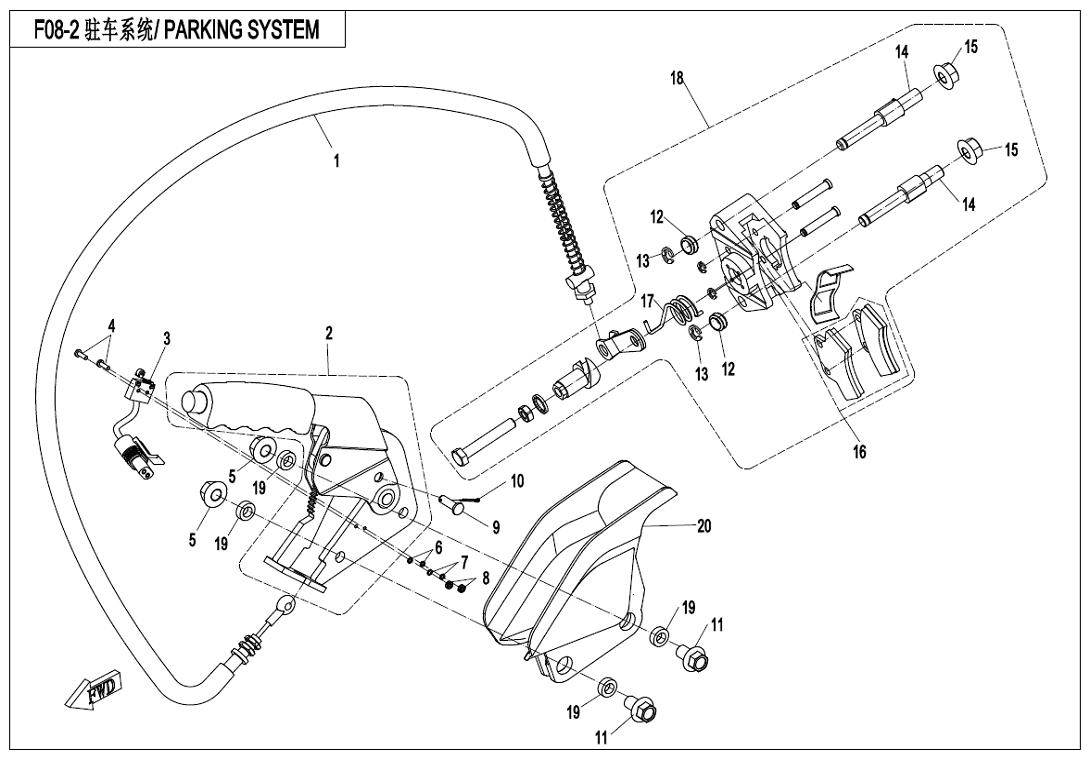

PARKING SYSTEM
F10

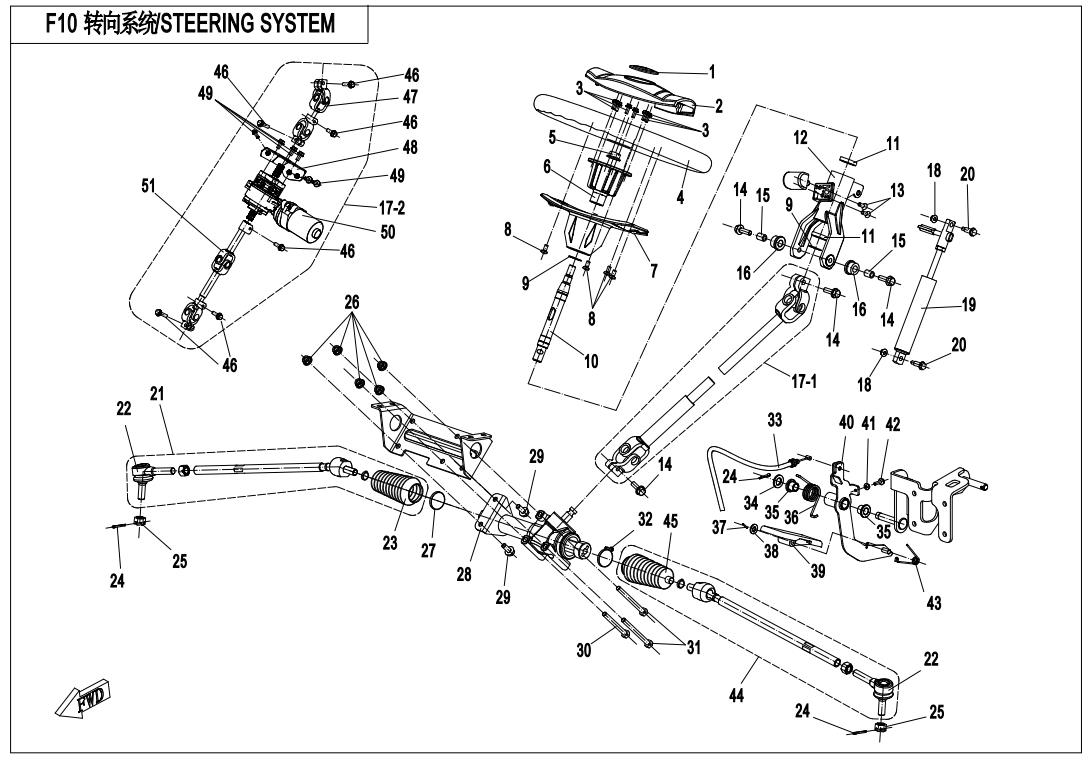

STEERING SYSTEM
F11

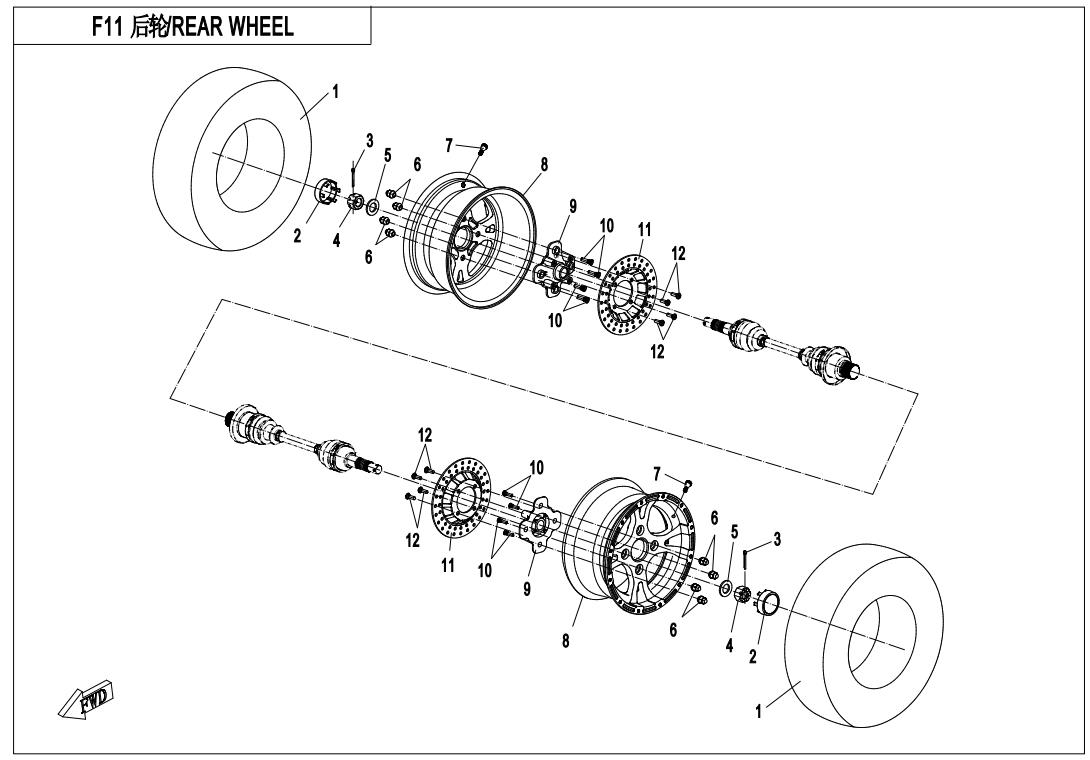

REAR WHEEL ASSY
F12

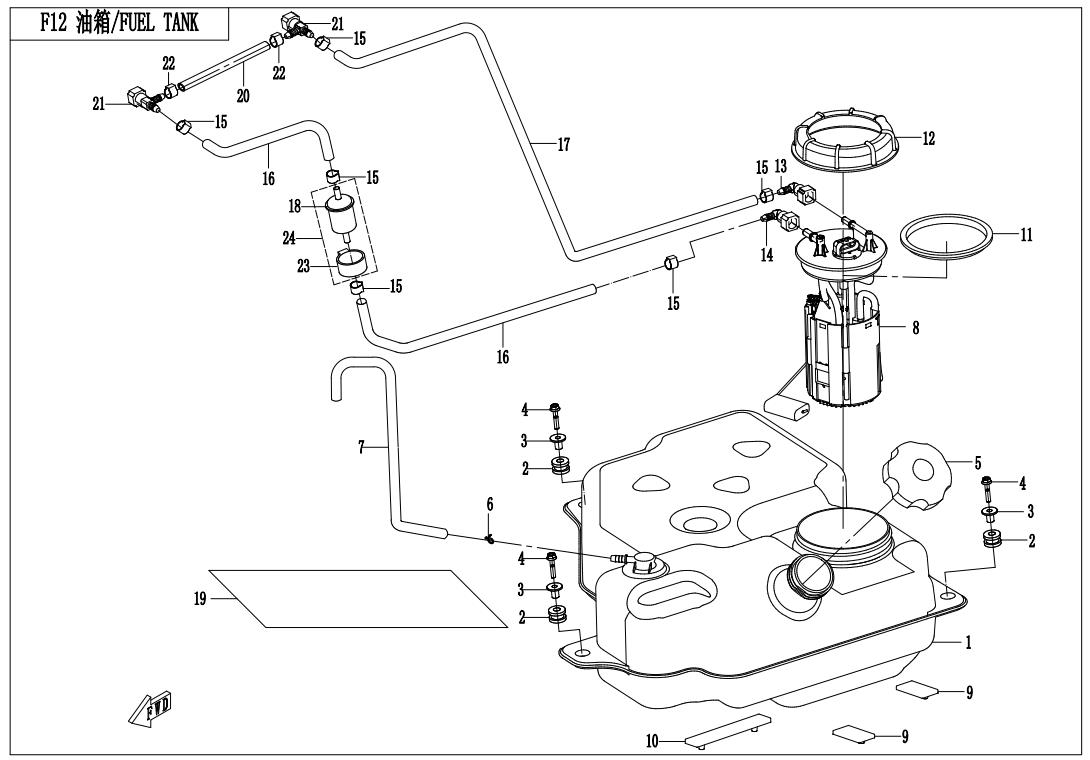

FUEL SYSTEM

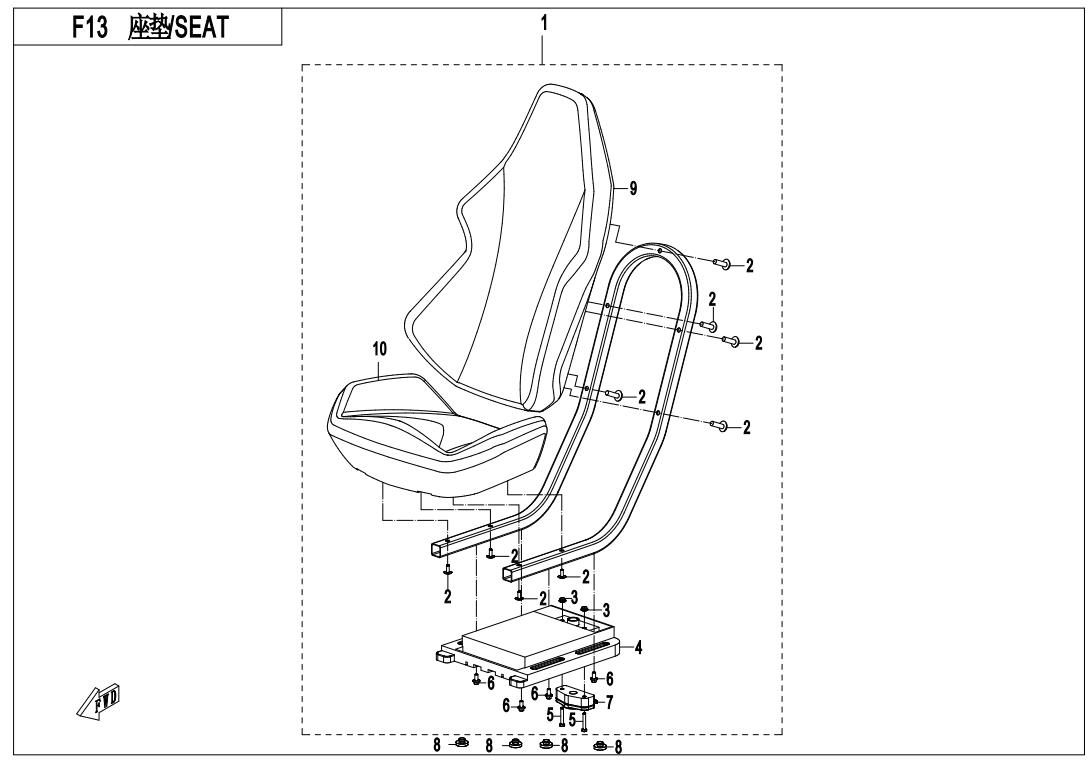

F13
SEAT ASSY
F15-1

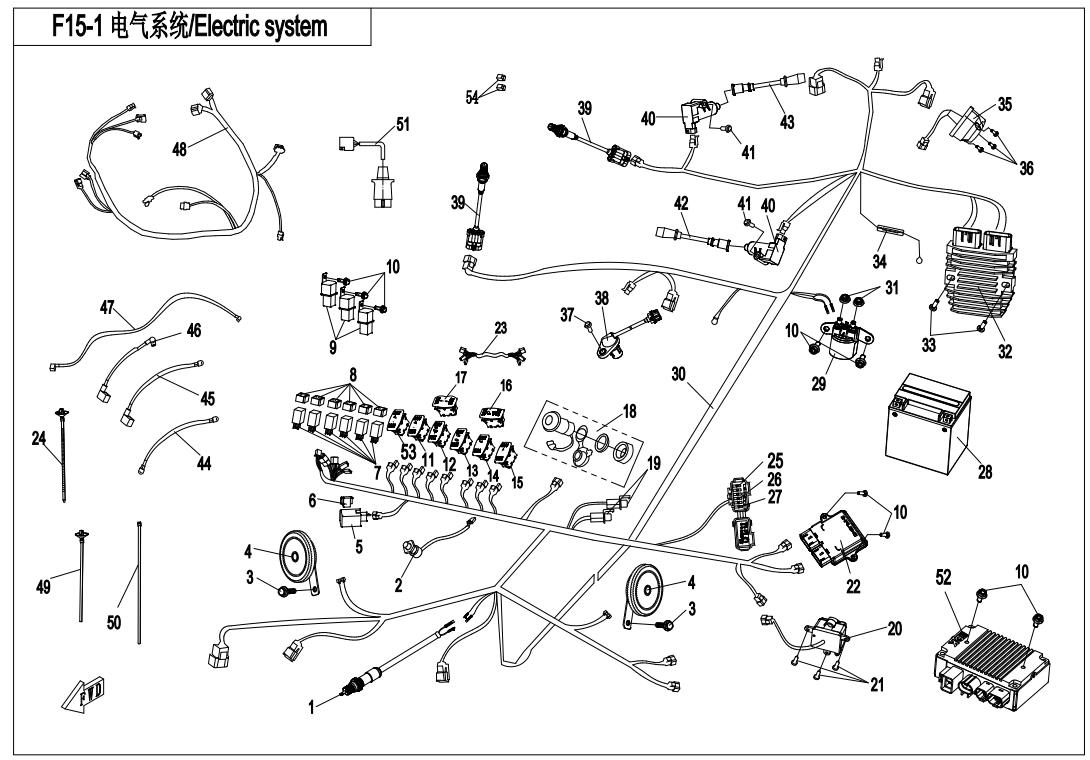

ELECTRIC SYSTEM
F15-2

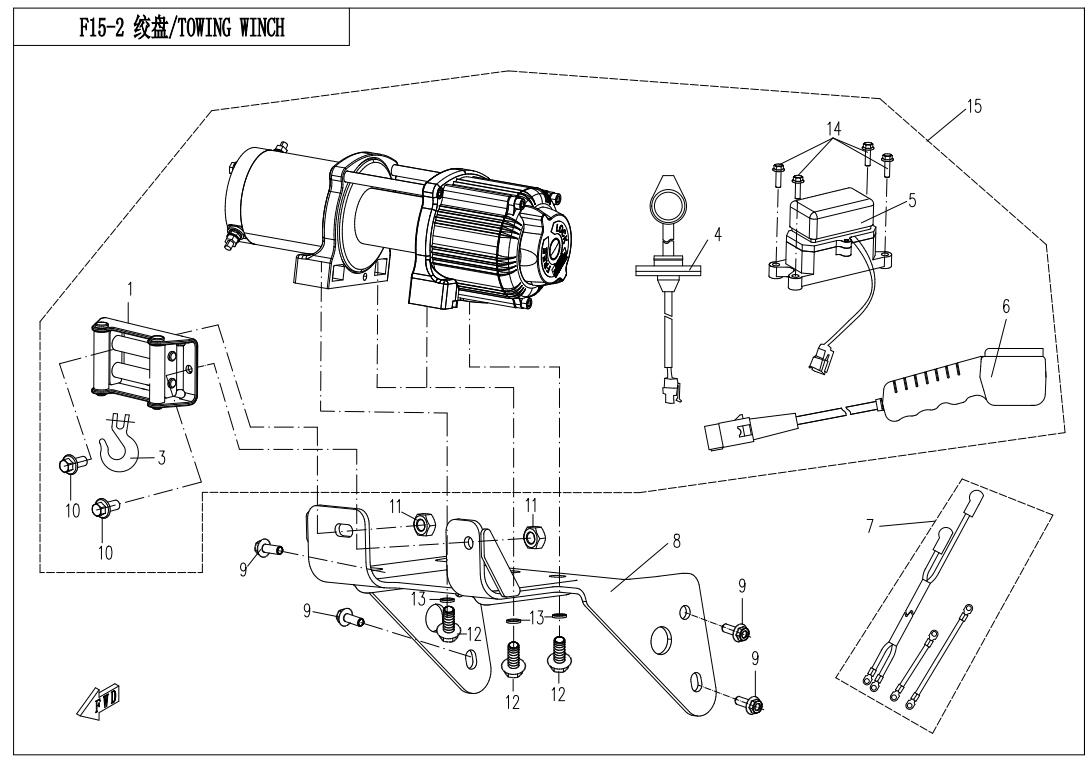

TOWING WINCH

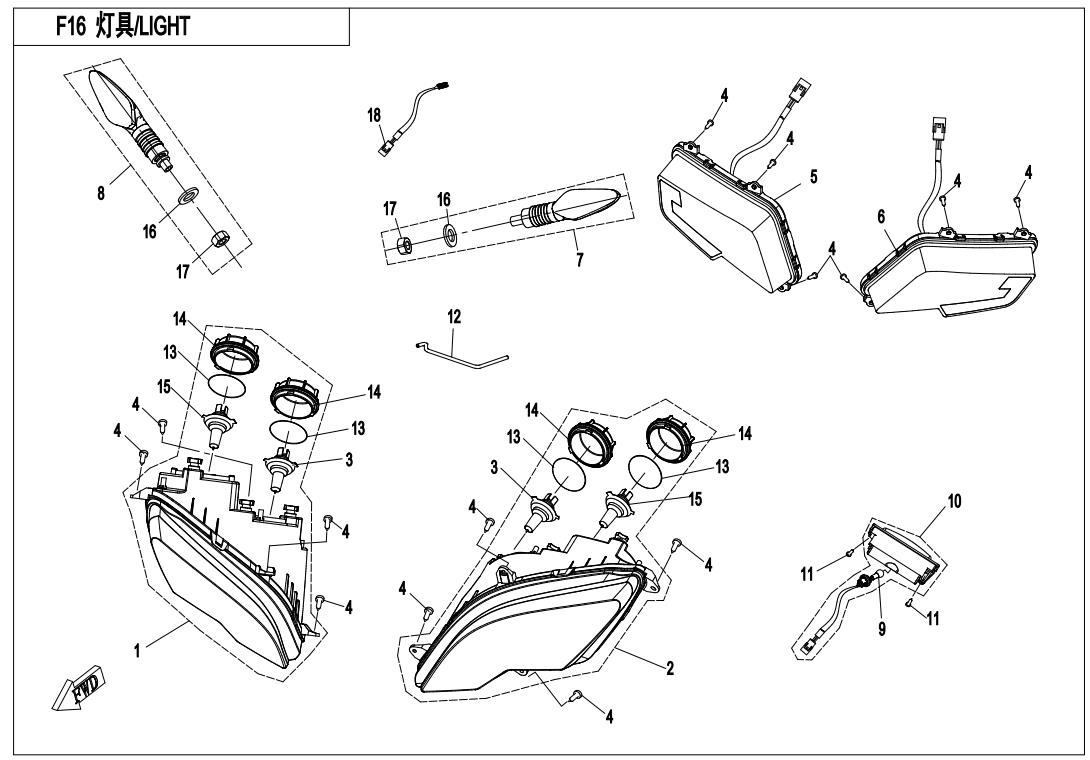

F16
LIGHT
F17

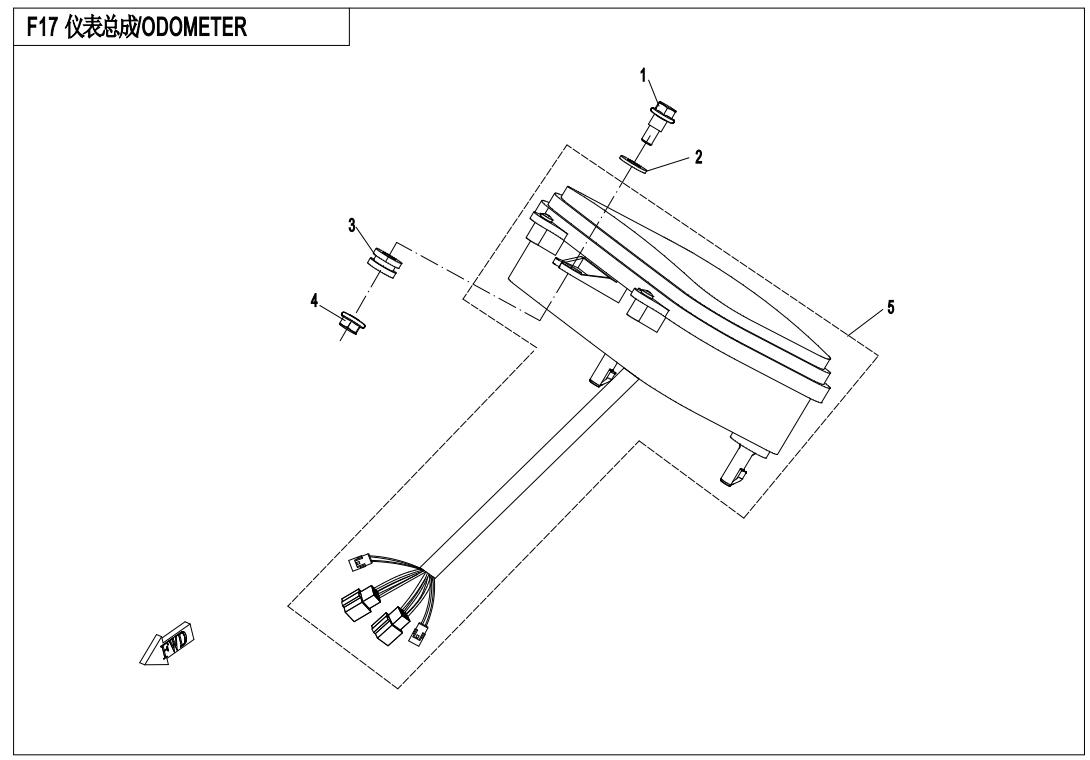

ODOMETER
F18-1

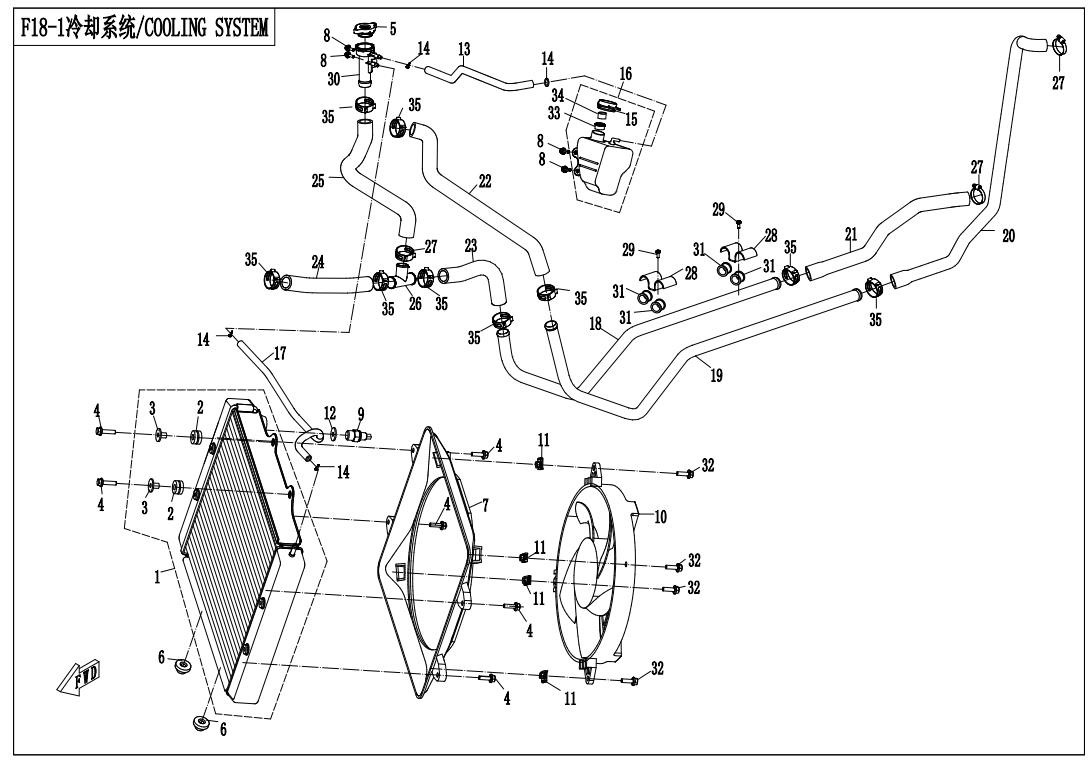

COOLING SYSTEM

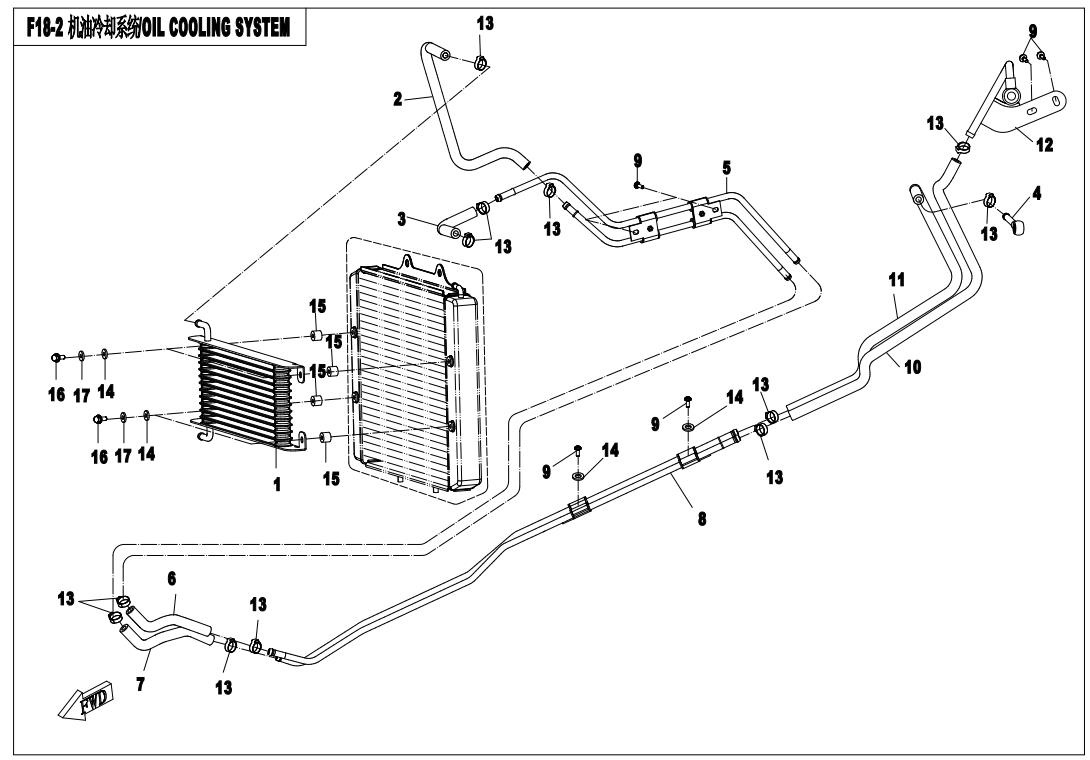

F18-2
OIL COOLING SYSTEM

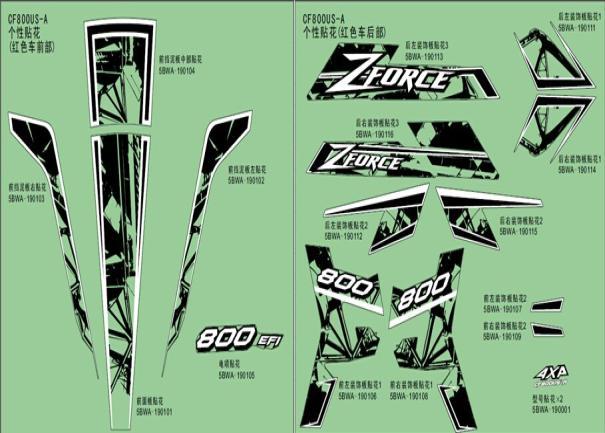

F19-1
DECAL (RED)

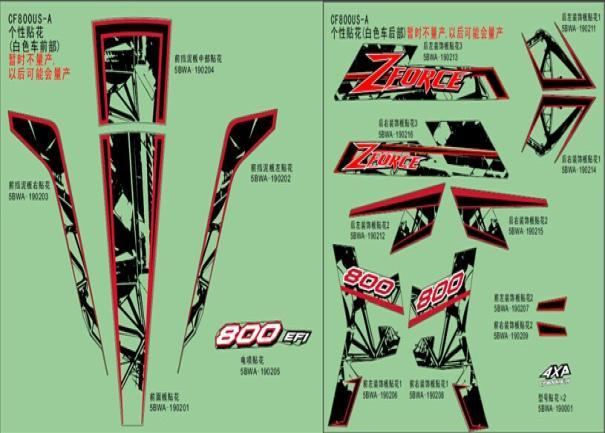

F19-2
DECAL (WHITE)
F19-3
DECAL (BLACK)
F20

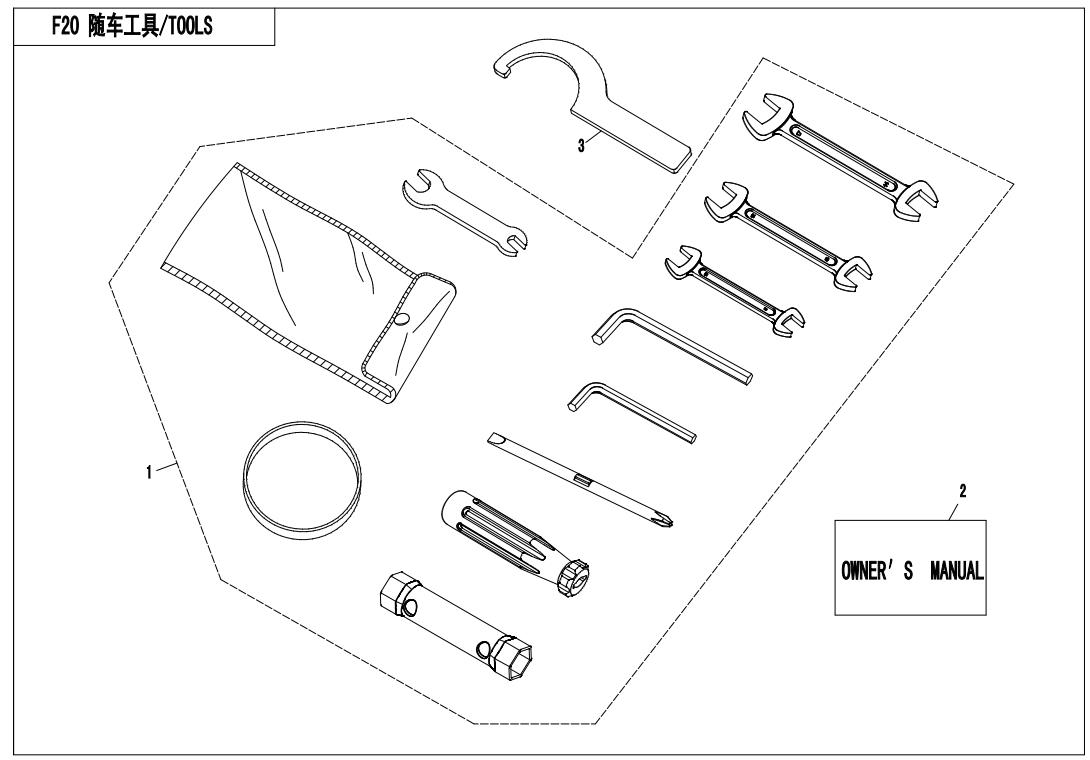

TOOLS

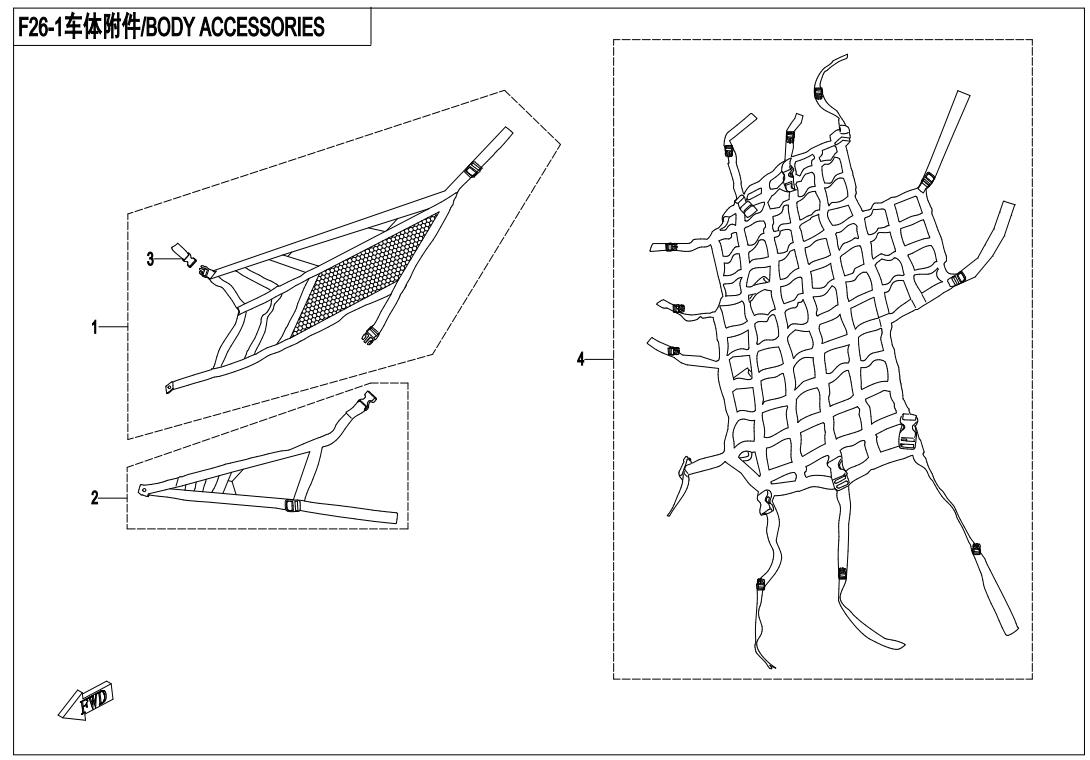

F26-1
BODY ACCESSORIES
F26-2

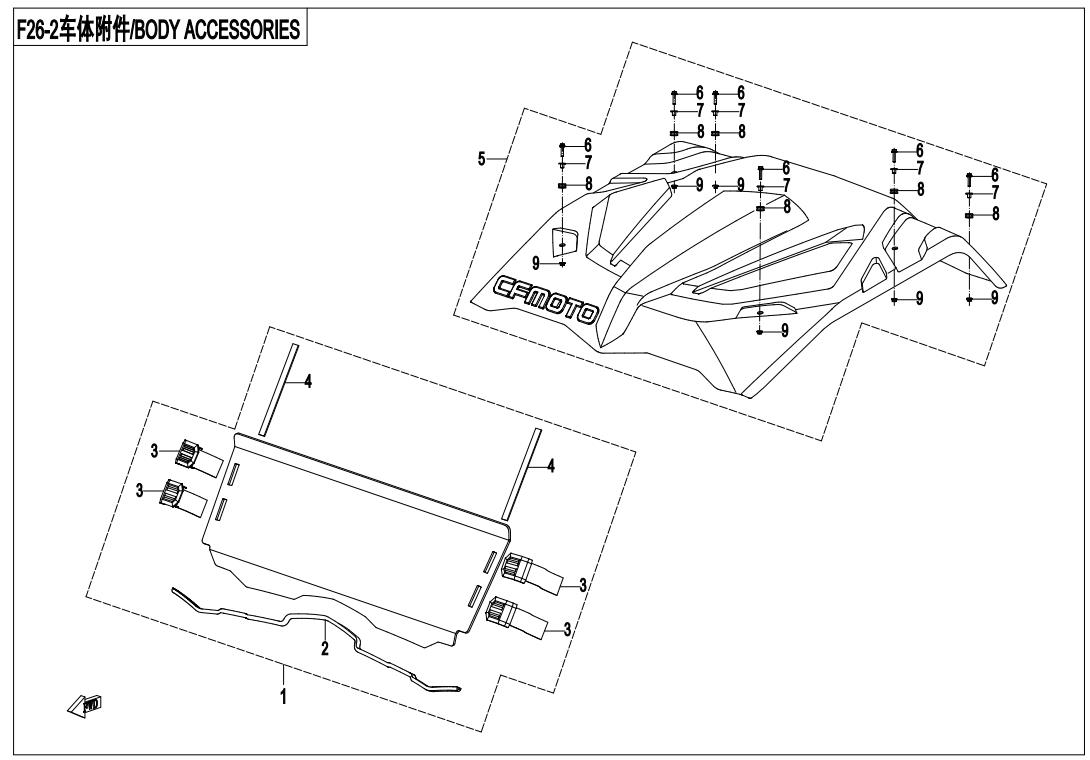

BODY ACCESSORIES
F27

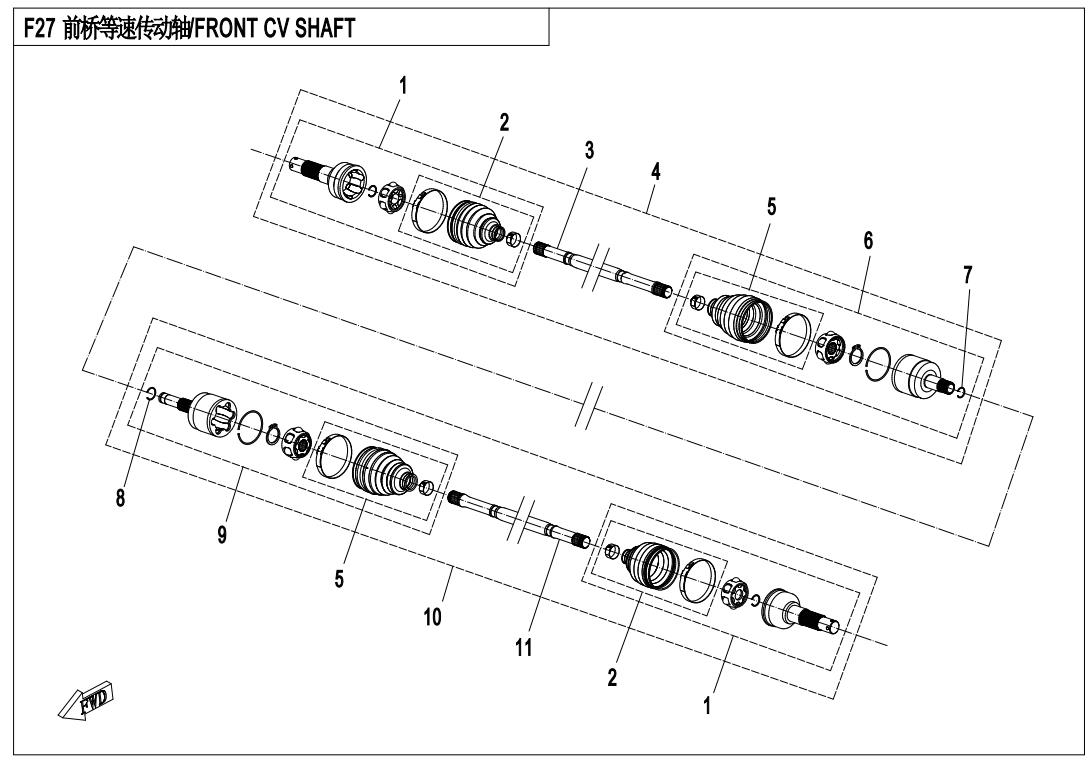

FRONT CV DRIVE SHAFT ASSY
F28

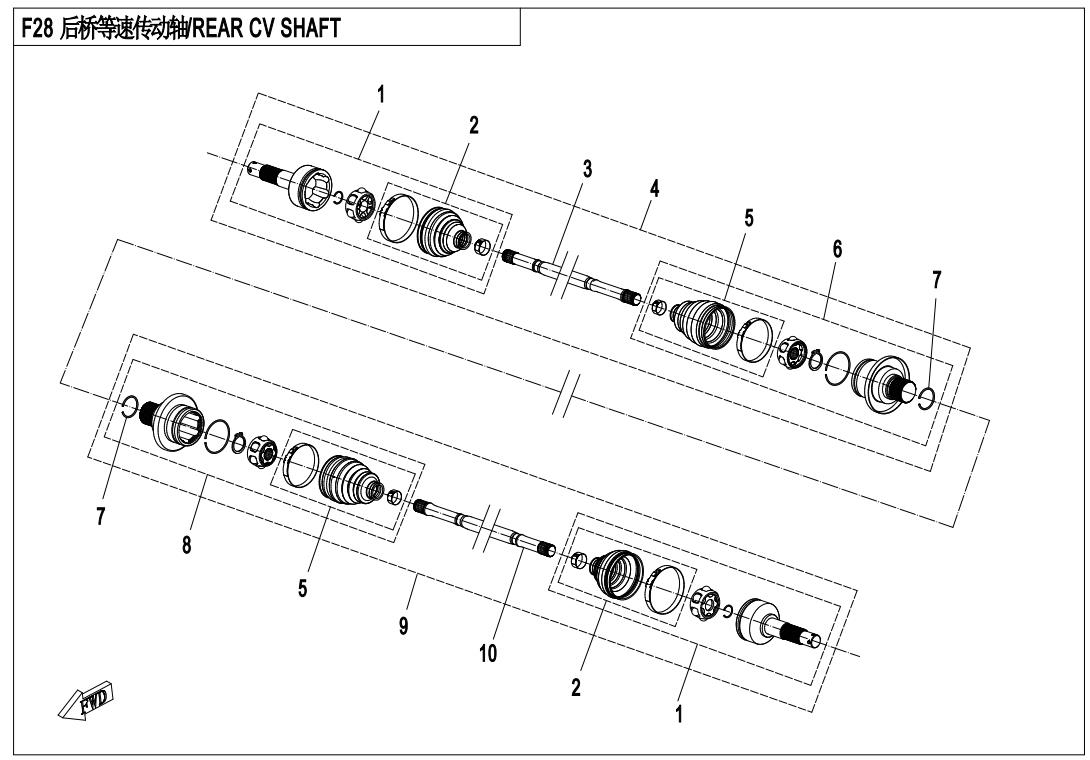

REAR CV DRIVE SHAFT ASSY
F30

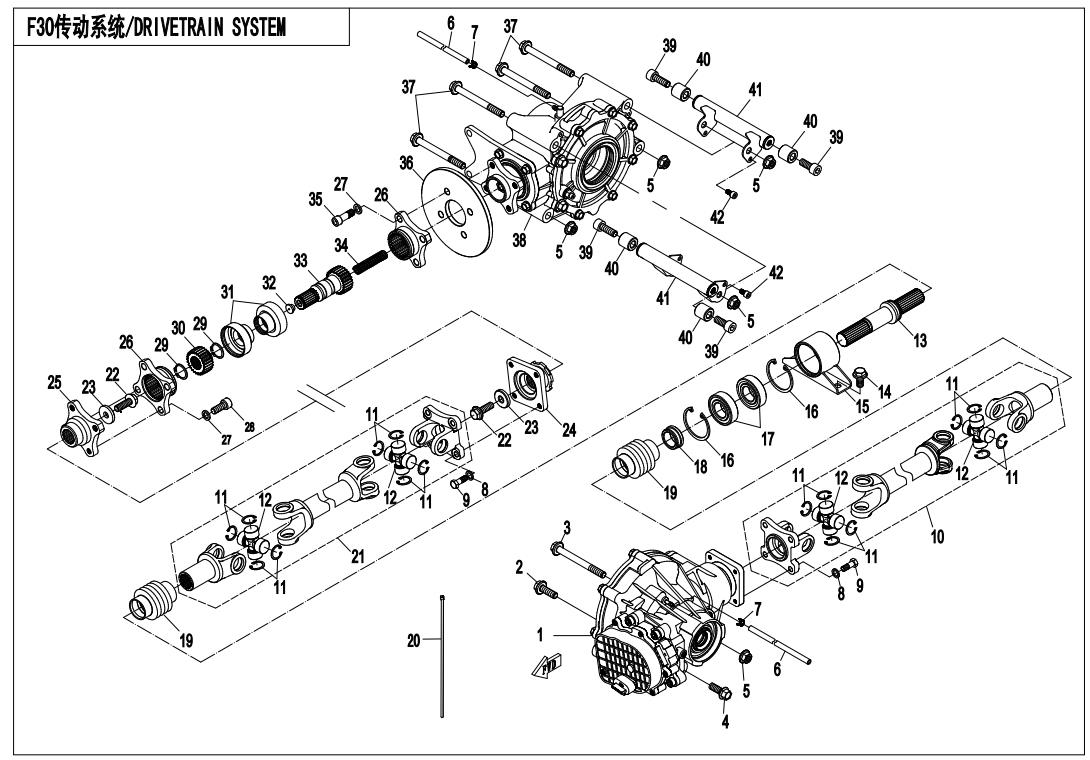

POWERTRAIN SYSTEM
F32

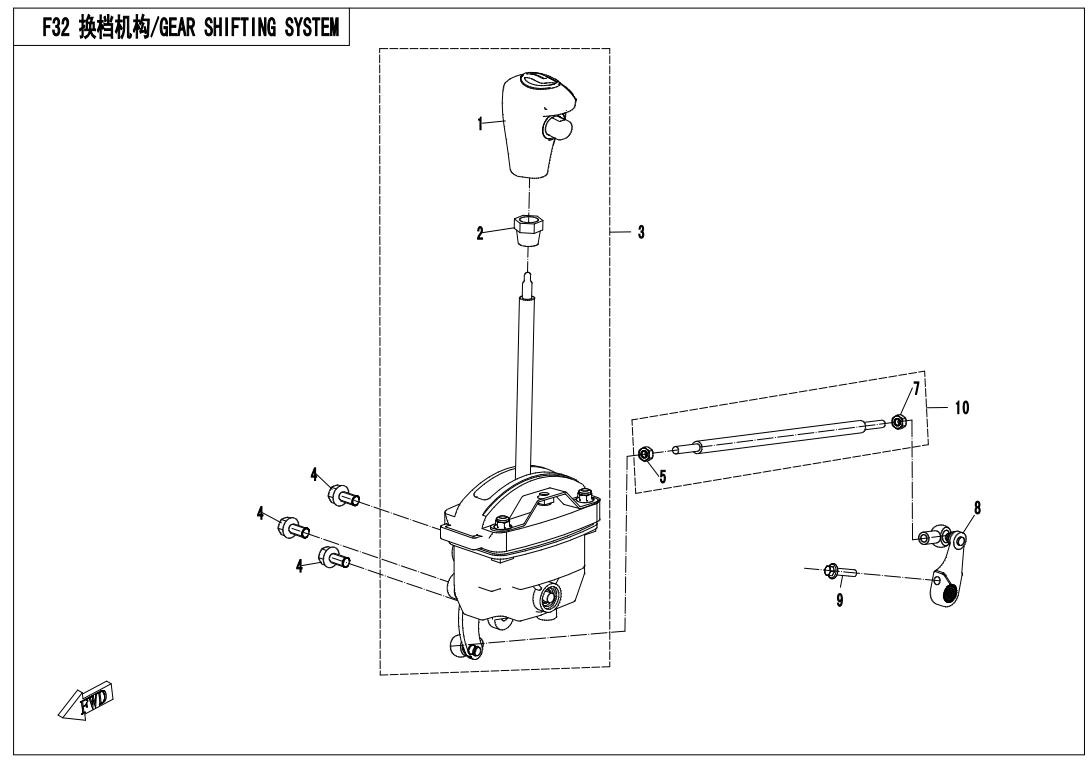

GEAR SHIFTING SYSTEM
F33

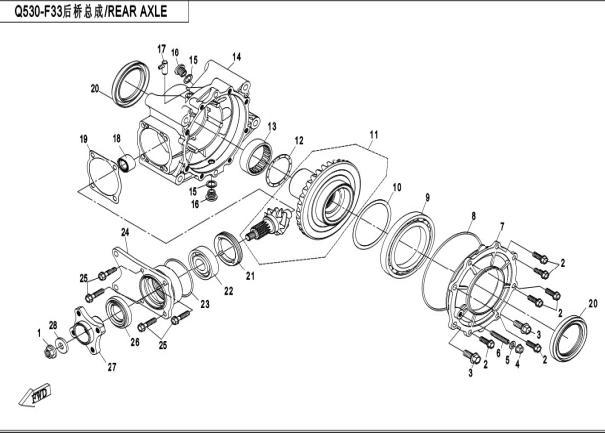

REAR AXLE
F34-1
3 POINT SEAT BELT
F34-2
5-POINT SEAT BELT

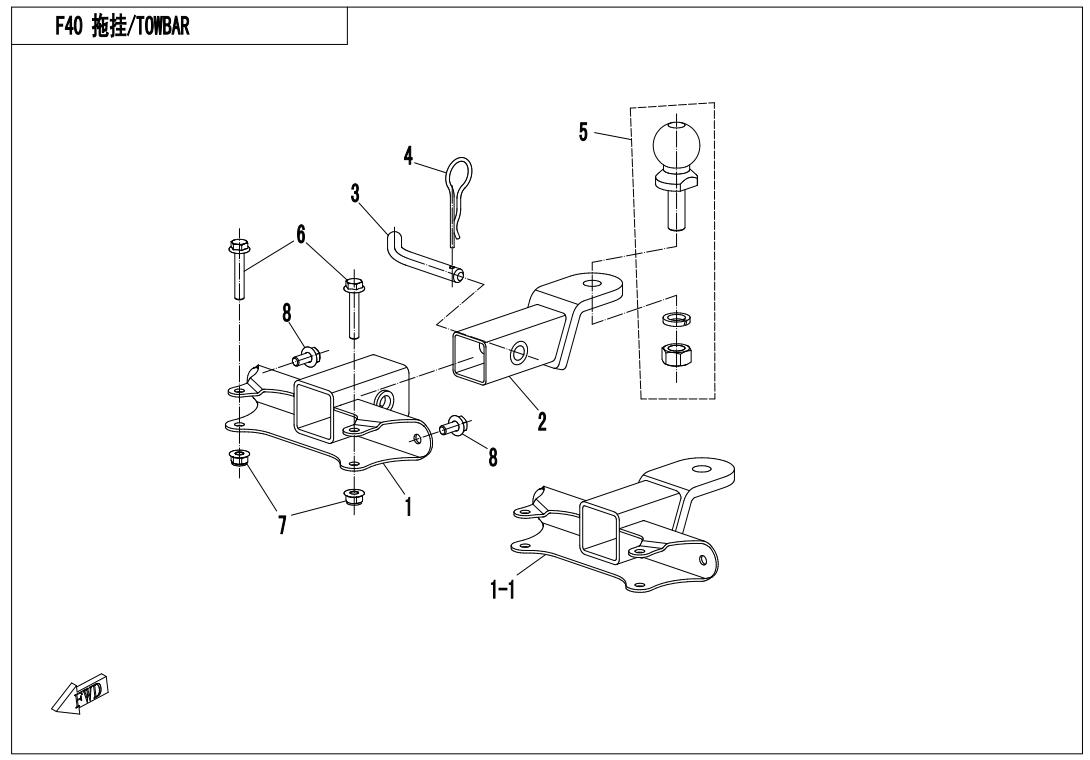

F40
TOWING SYSTEM

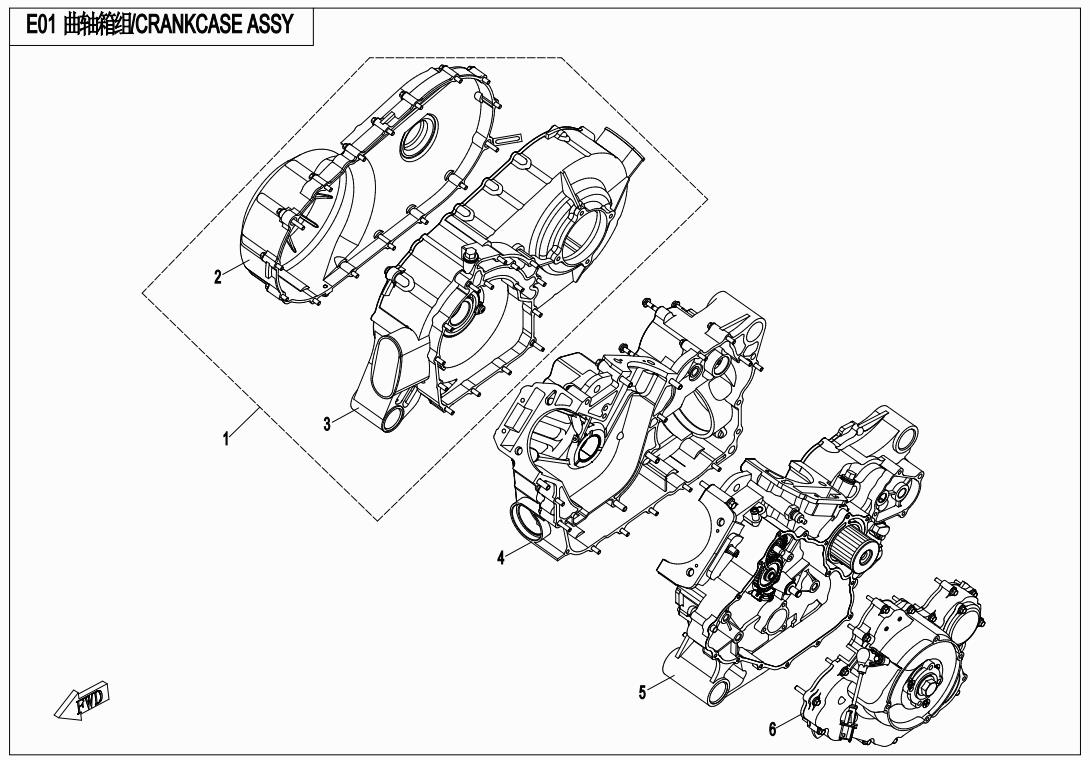

E01
CRANKCASE ASSY
E01-1

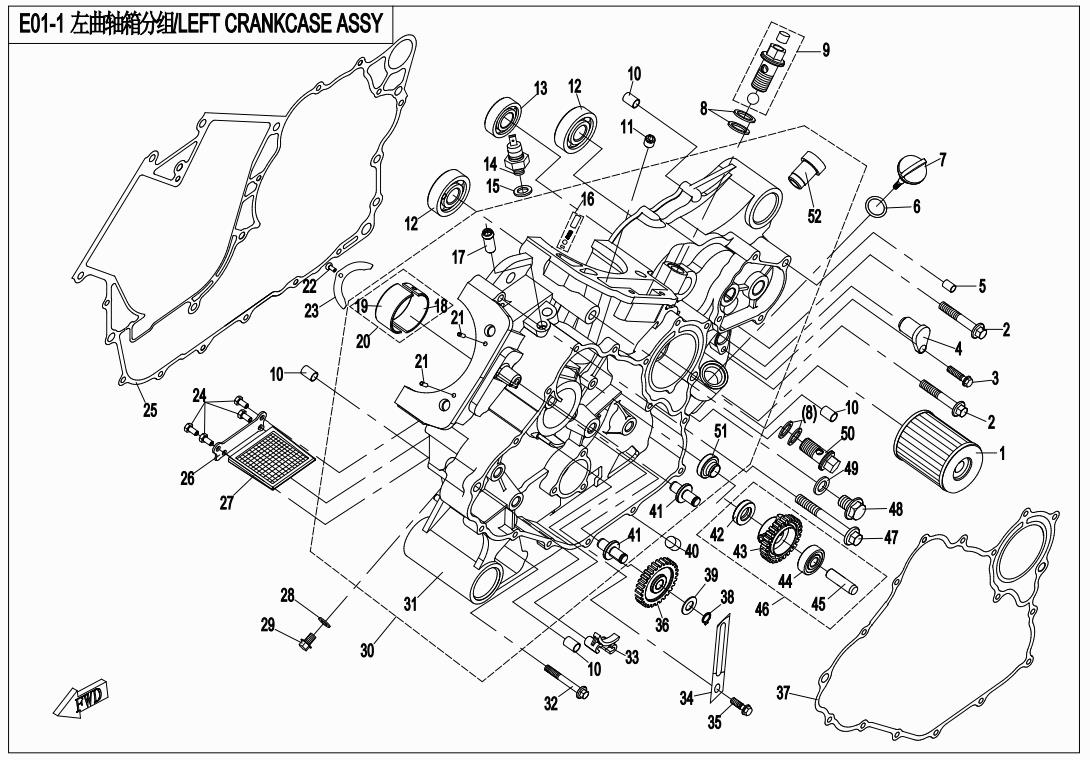

LEFT CRANKCASE ASSY

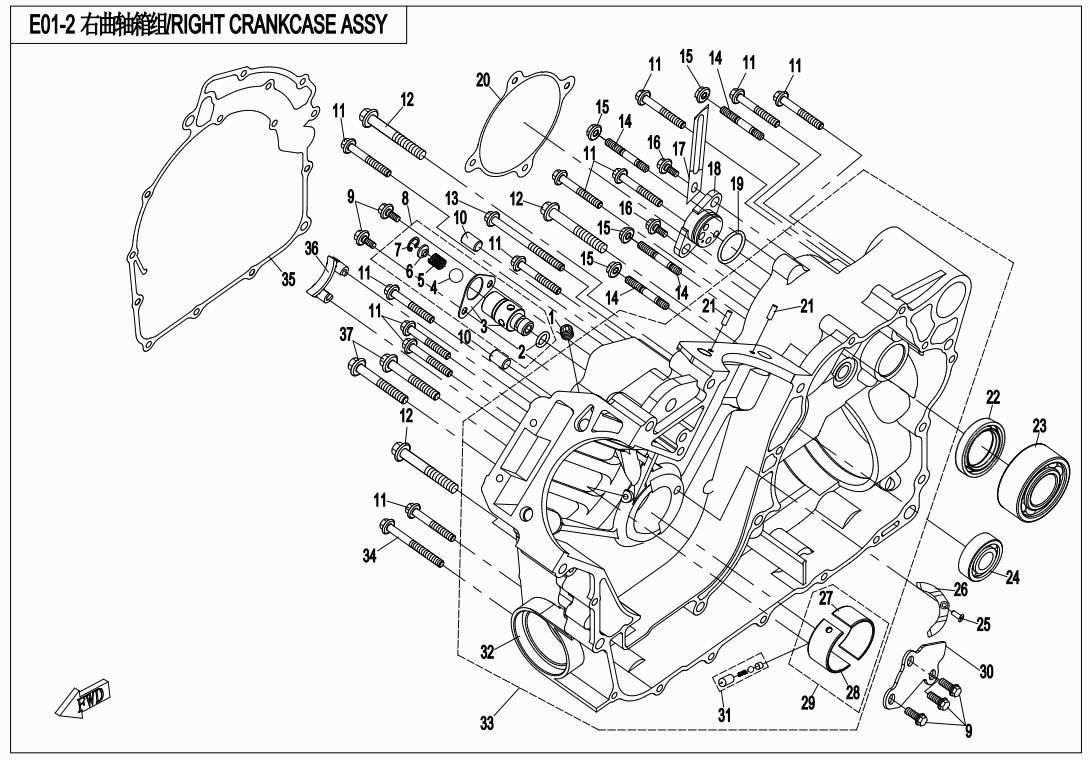

E01-2
RIGHT CRANKCASE ASSY

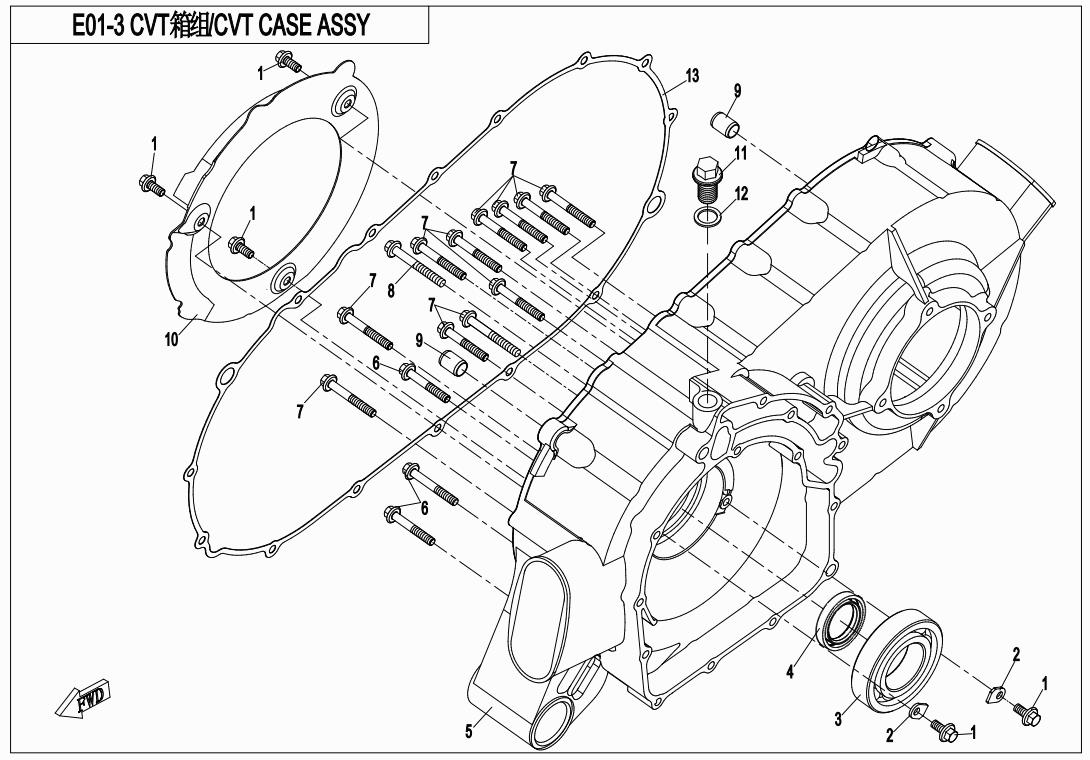

E01-3
CVT CASE ASSY

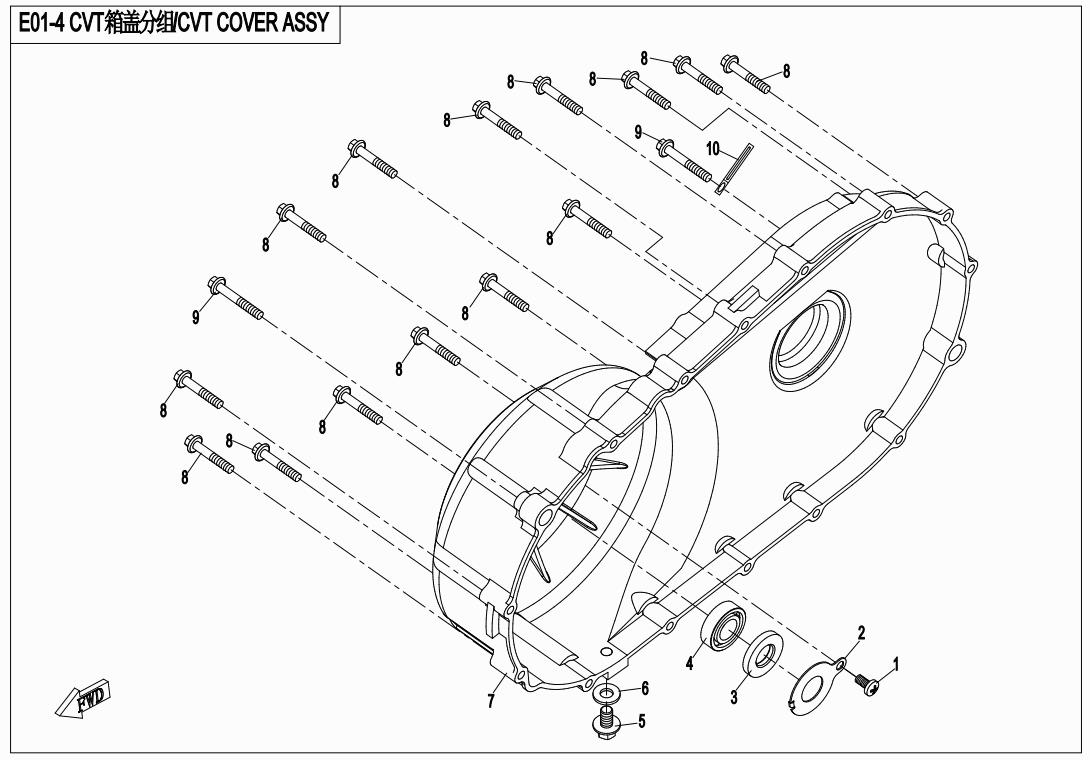

E01-4
CVT COVER ASSY

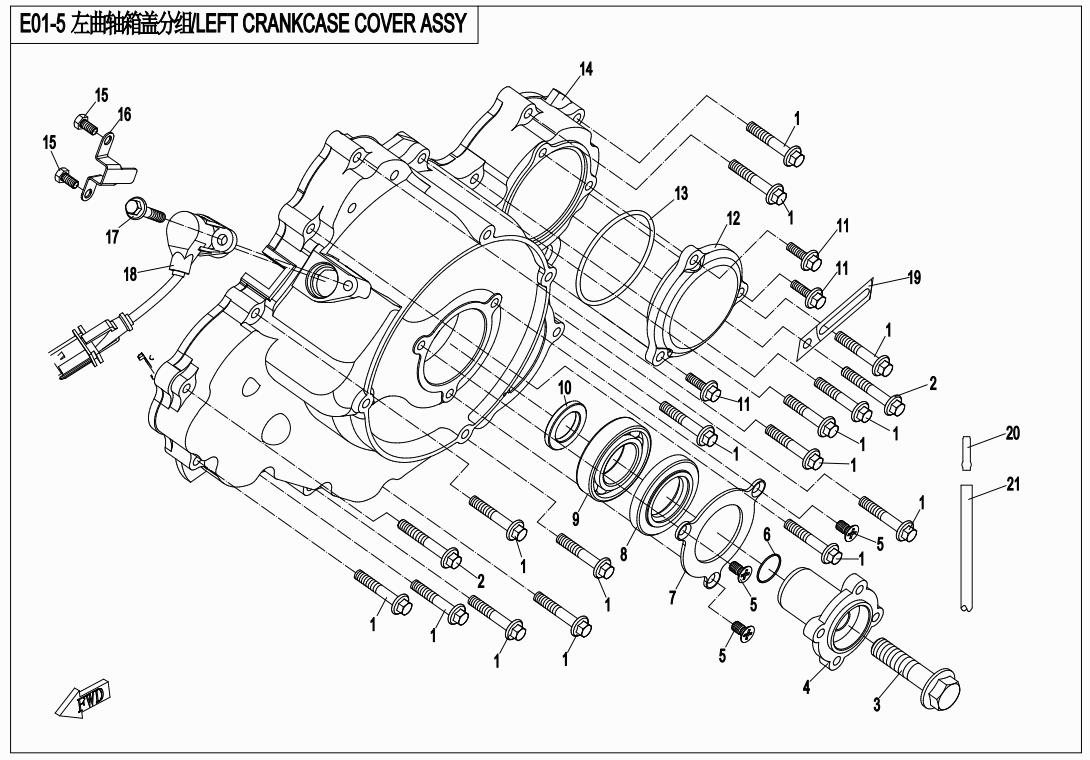

E01-5
LEFT CRANKCASE COVER ASSY

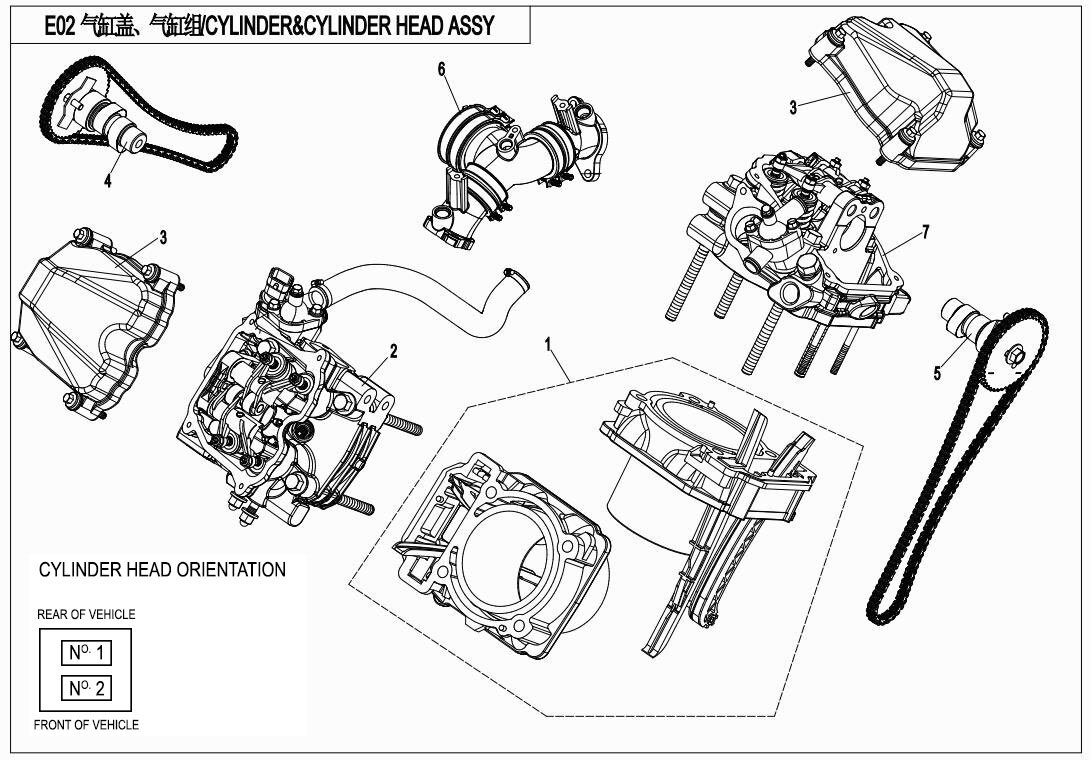

E02
CYLINDER ?CYLINDER HEAD ASSY
E02-1

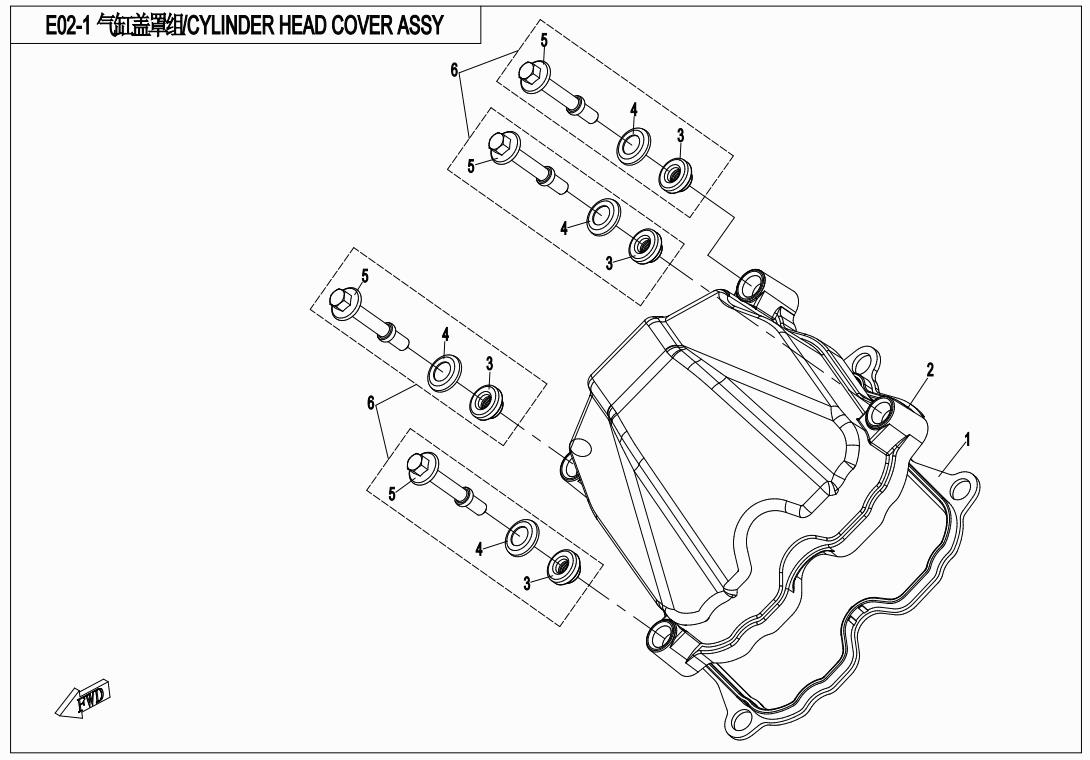

CYLINDER HEAD COVER ASSY
E02-2

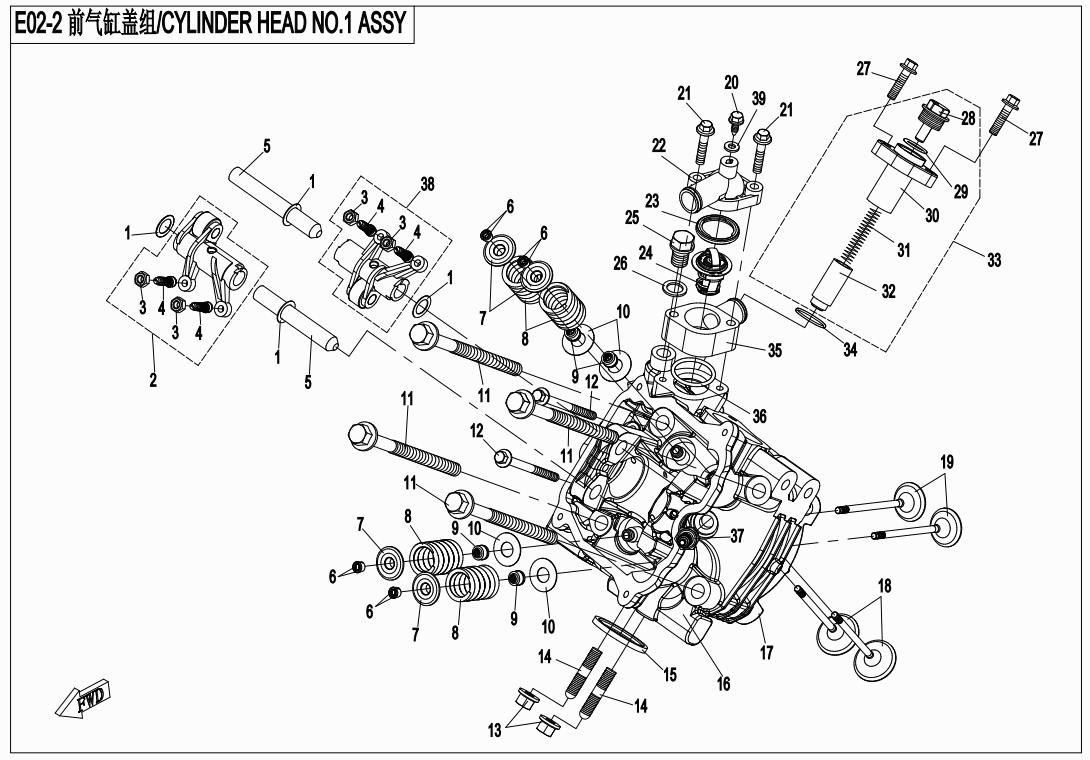

CYLINDER HEAD NO.1 ASSY
E02-3

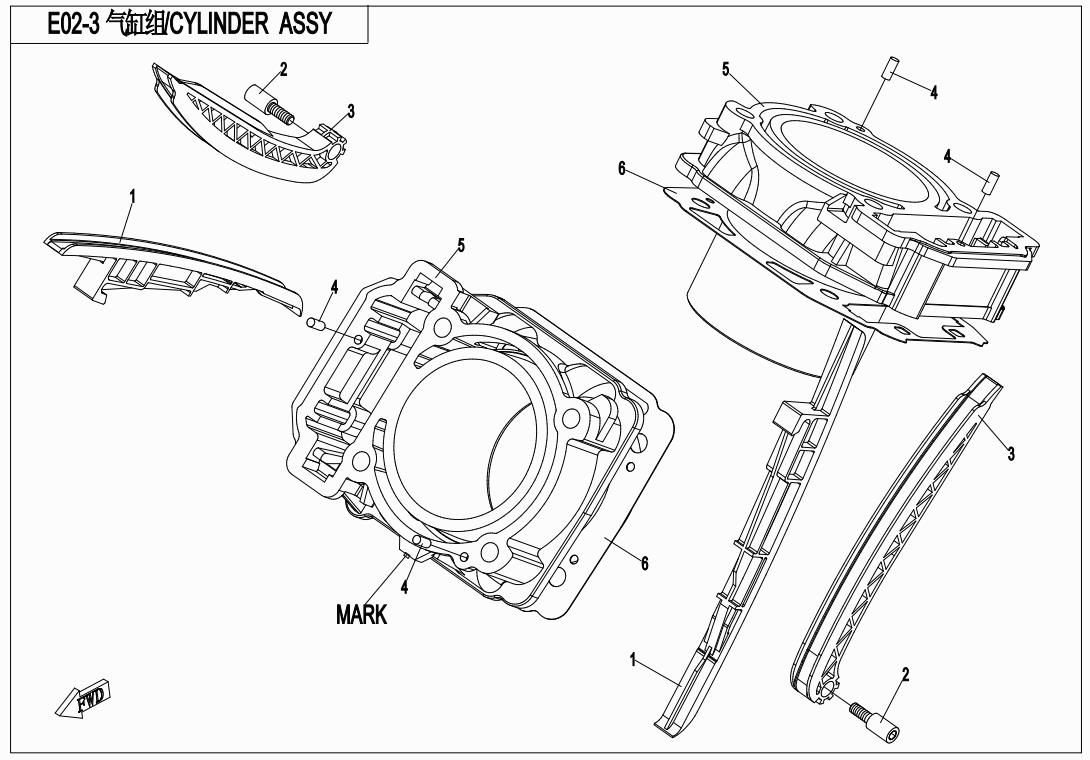

CYLINDER ASSY

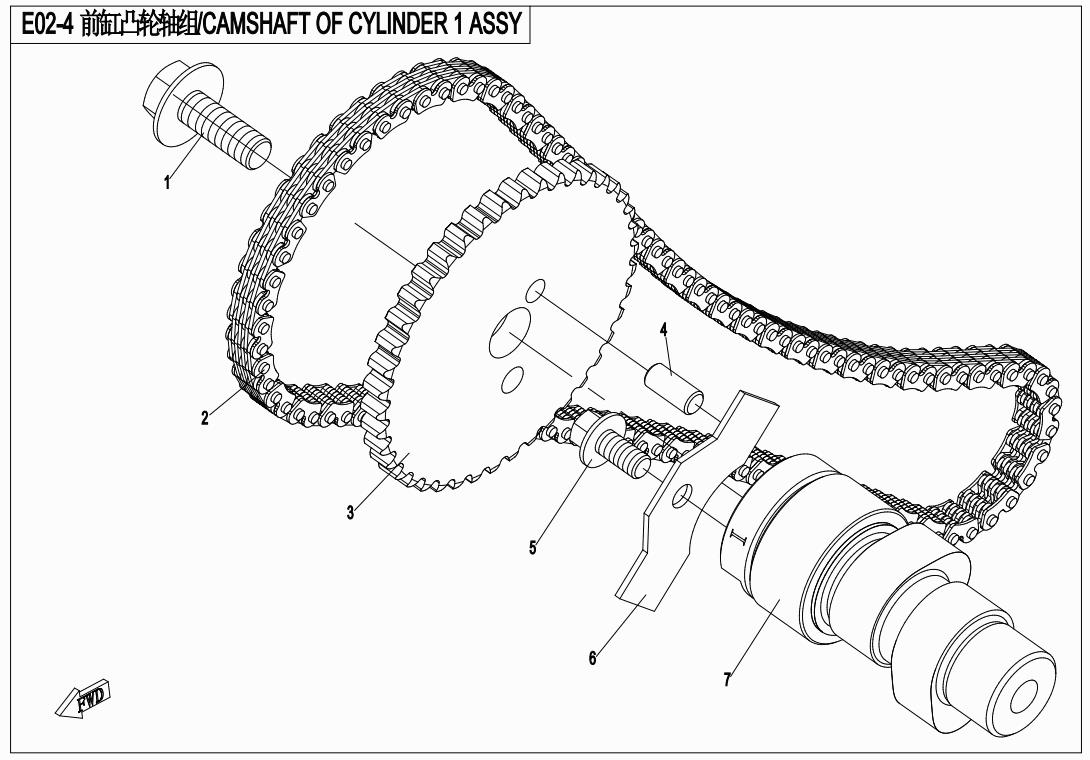

E02-4
CAMSHAFT OF CYLINDER 1 ASSY
E02-5

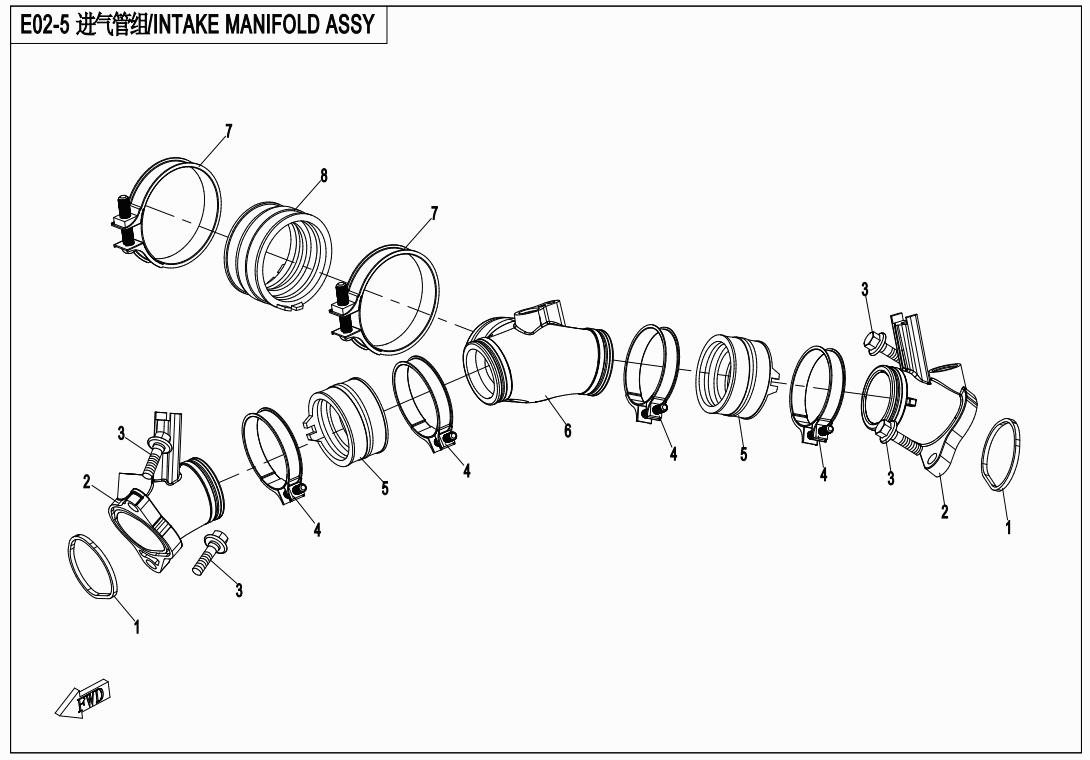

INTAKE MANIFOLD ASSY
E02-6

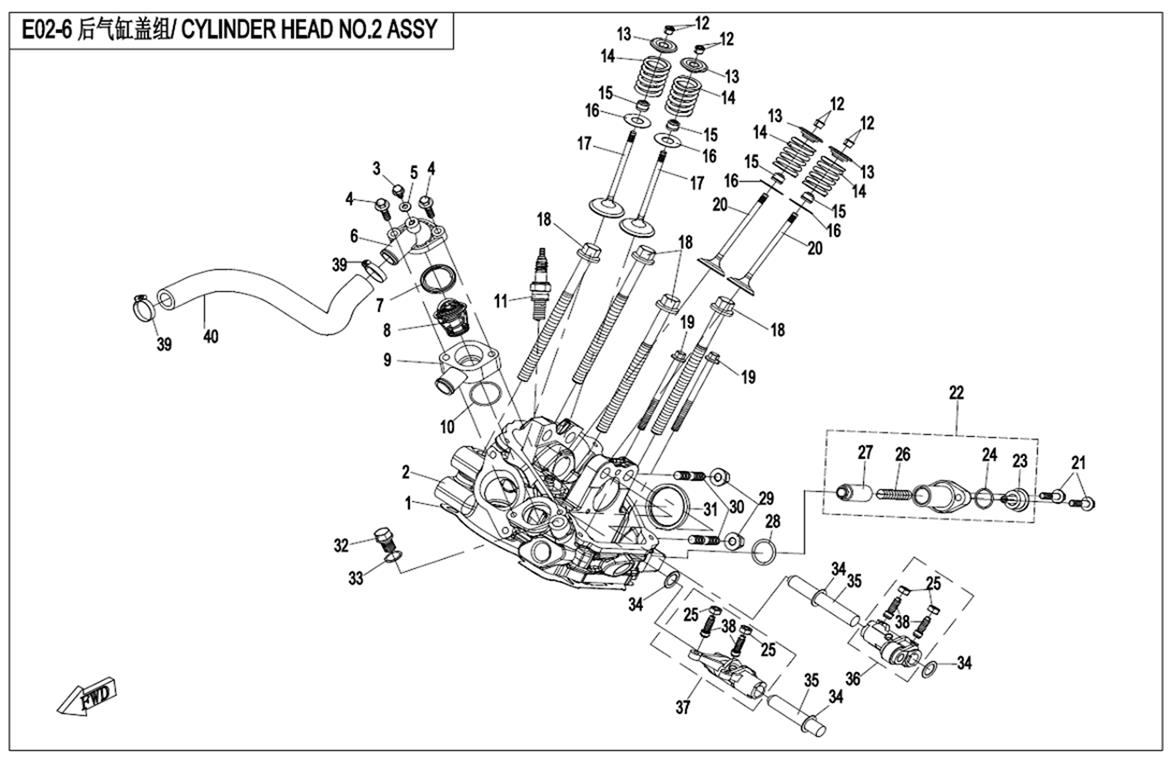

CYLINDER HEAD NO.2 ASSY

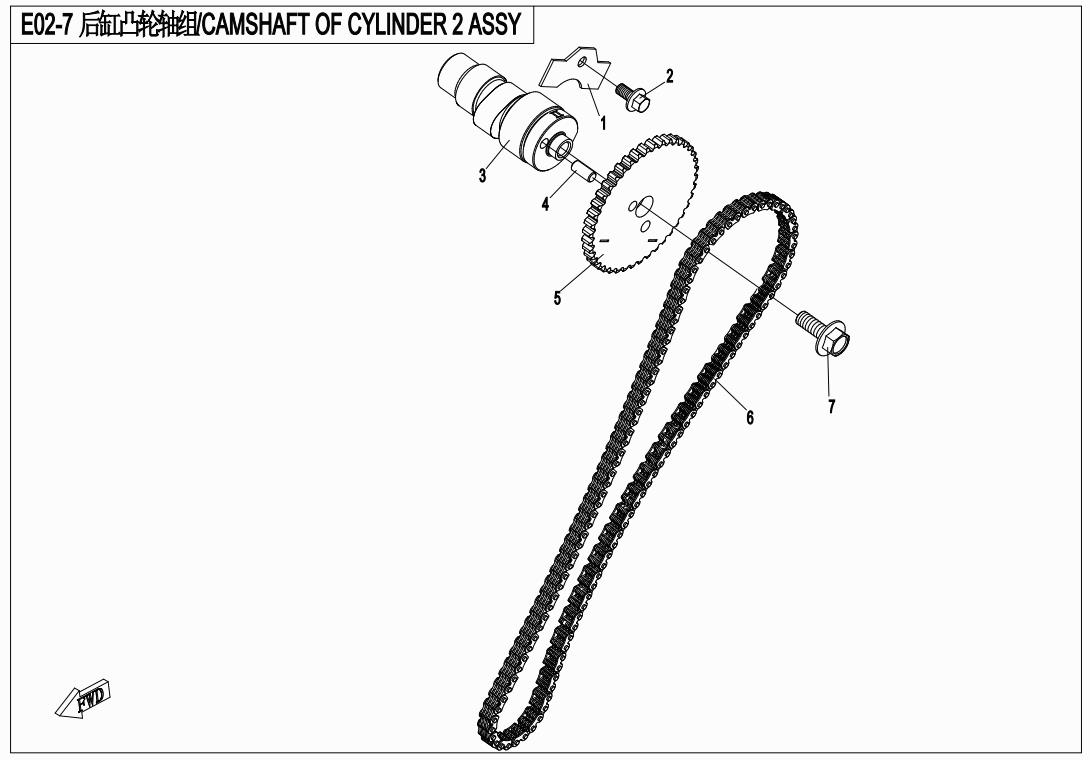

E02-7
CAMSHAFT OF CYLINDER 2 ASSY
E03

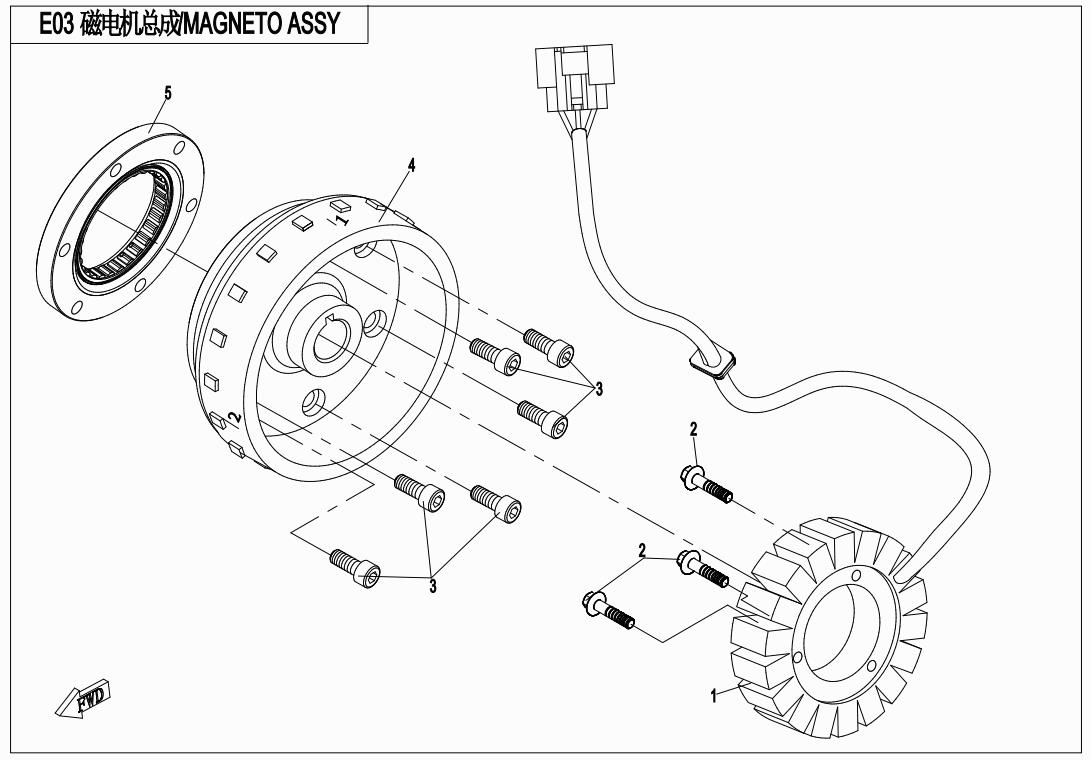

MAGNETO ASSY
E04
CRANKSHAFT CONNECTING ROD & PISTON ASSY

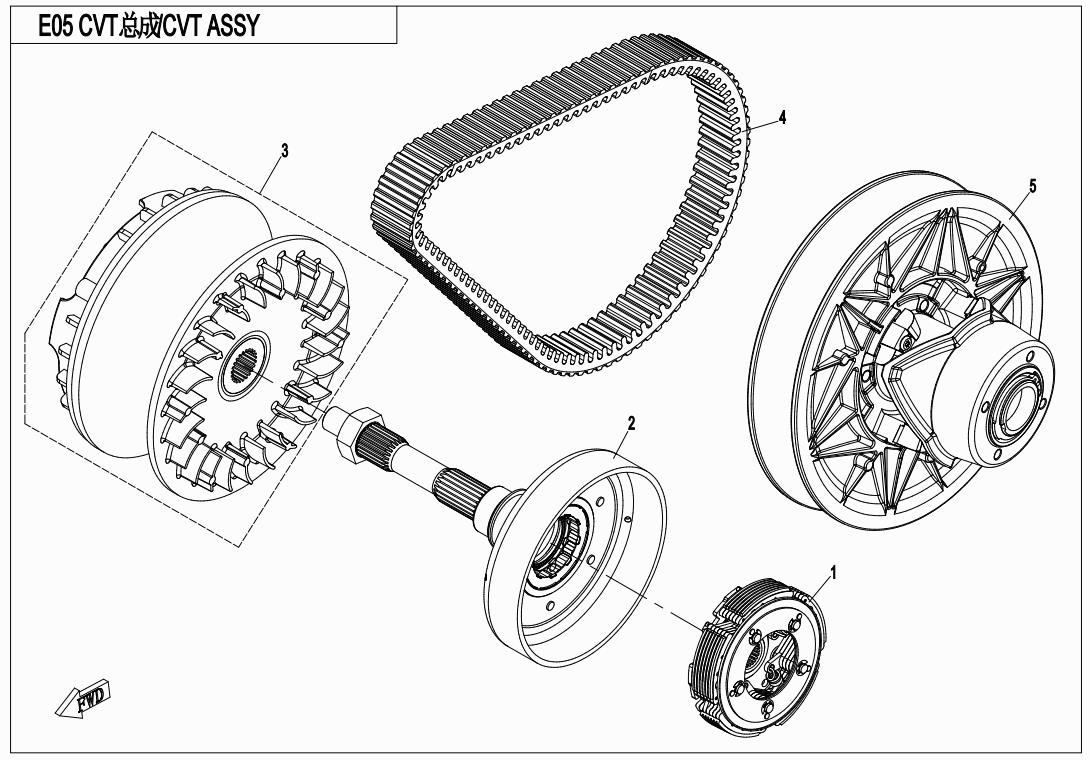

E05
CVT ASSY

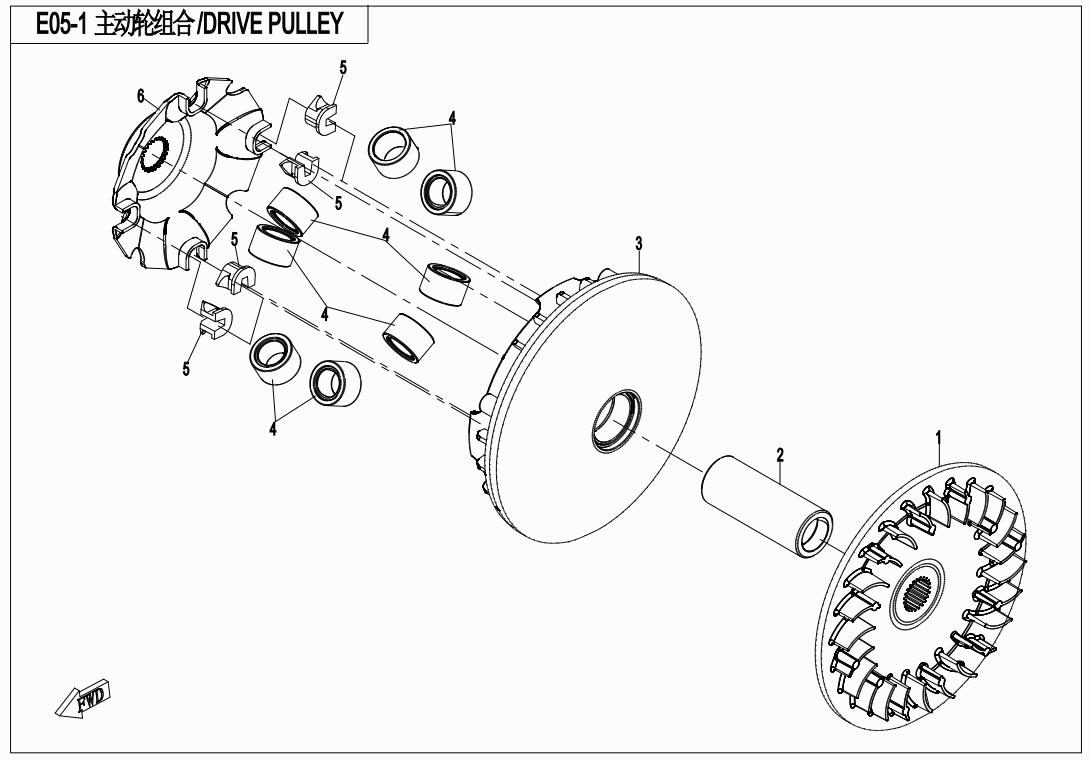

E05-1
DRIVE PULLEY
E05-2

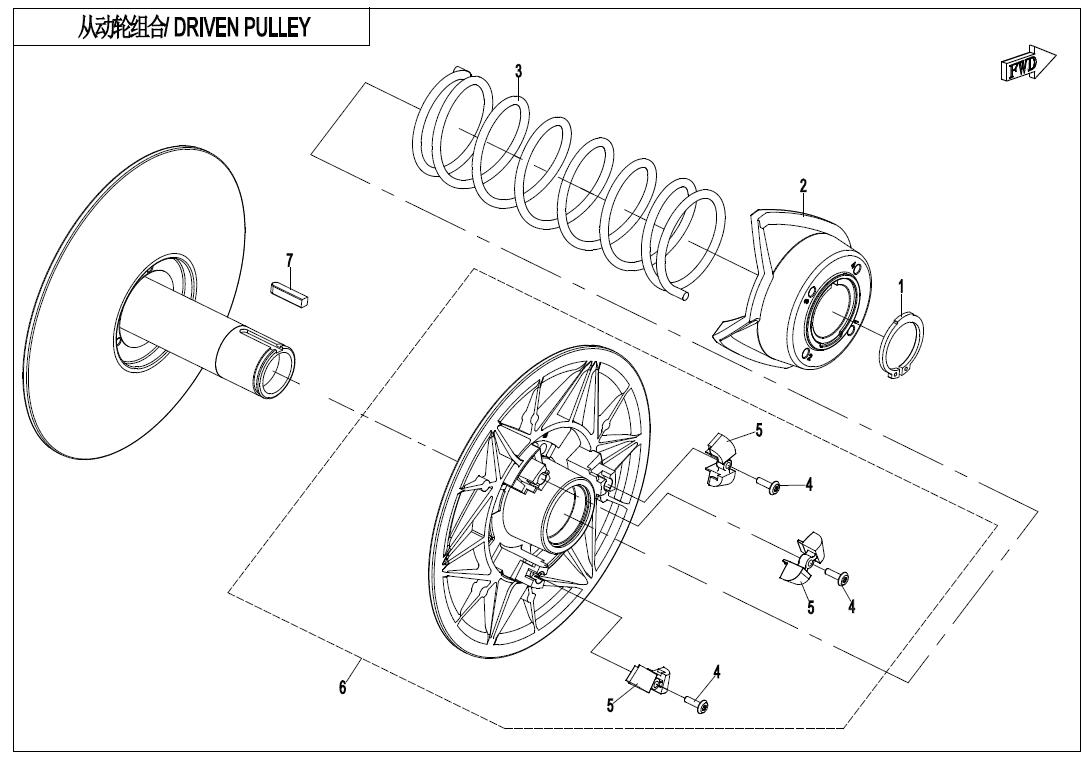

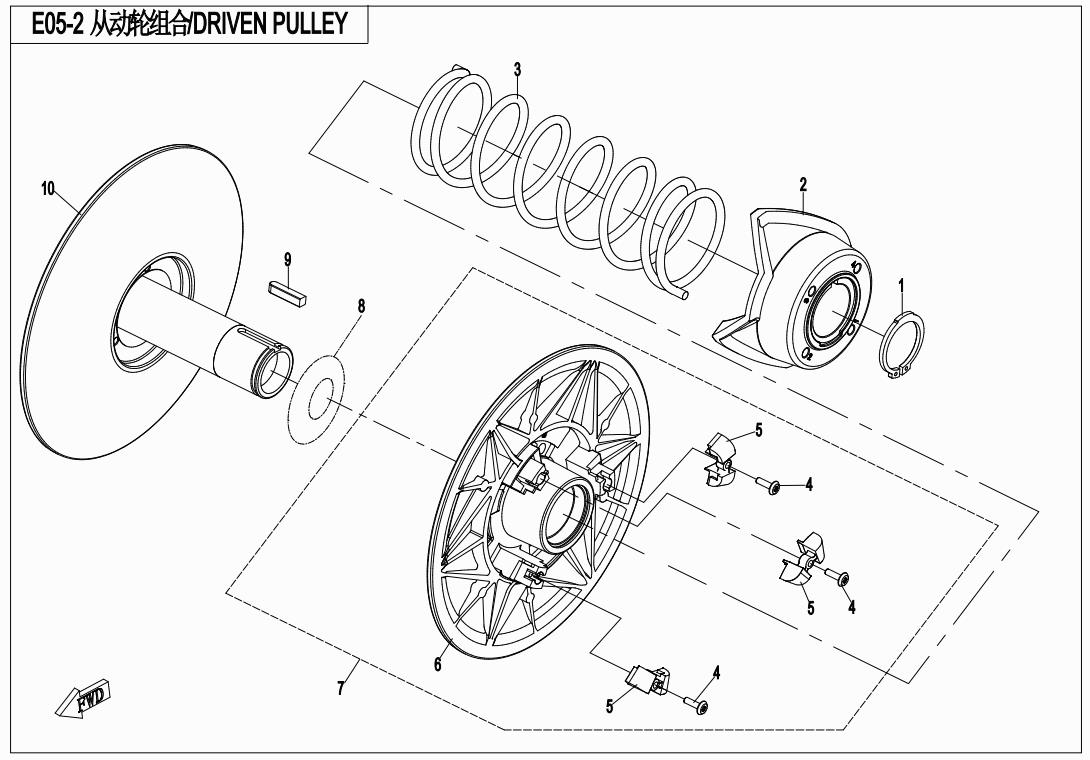

DRIVEN PULLEY
E05-2-B
DRIVEN PULLEY (CV TECH)
E05-3

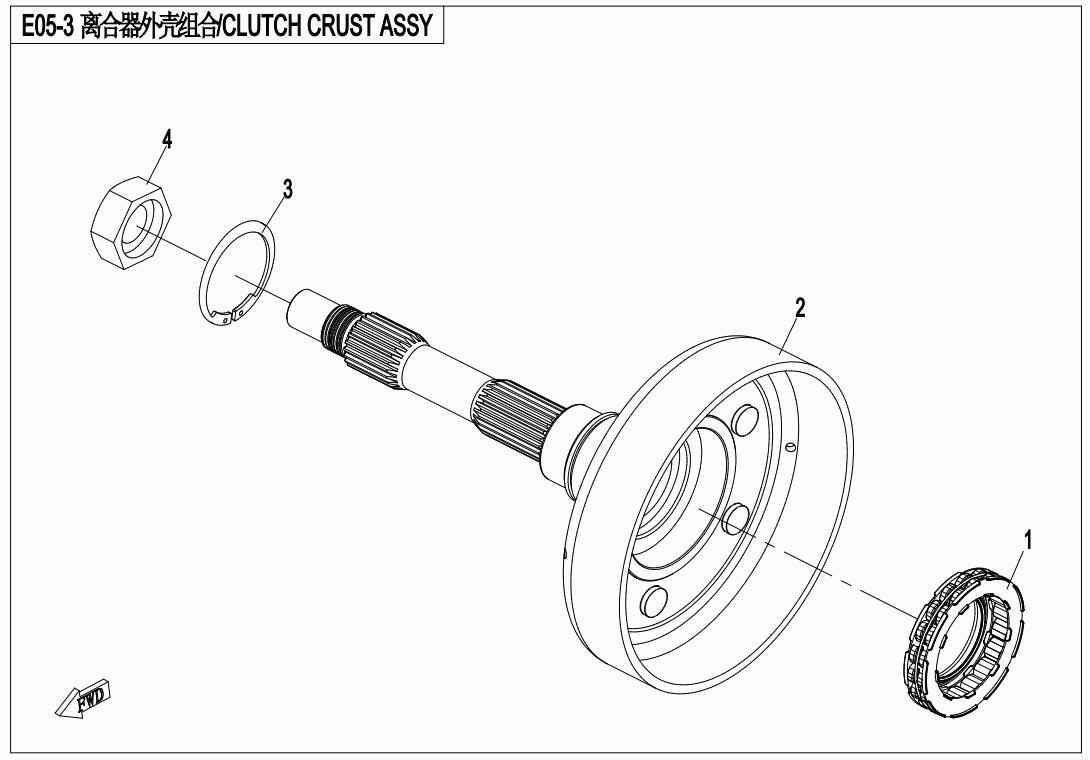

CLUTCH CRUST ASSY
E05-4

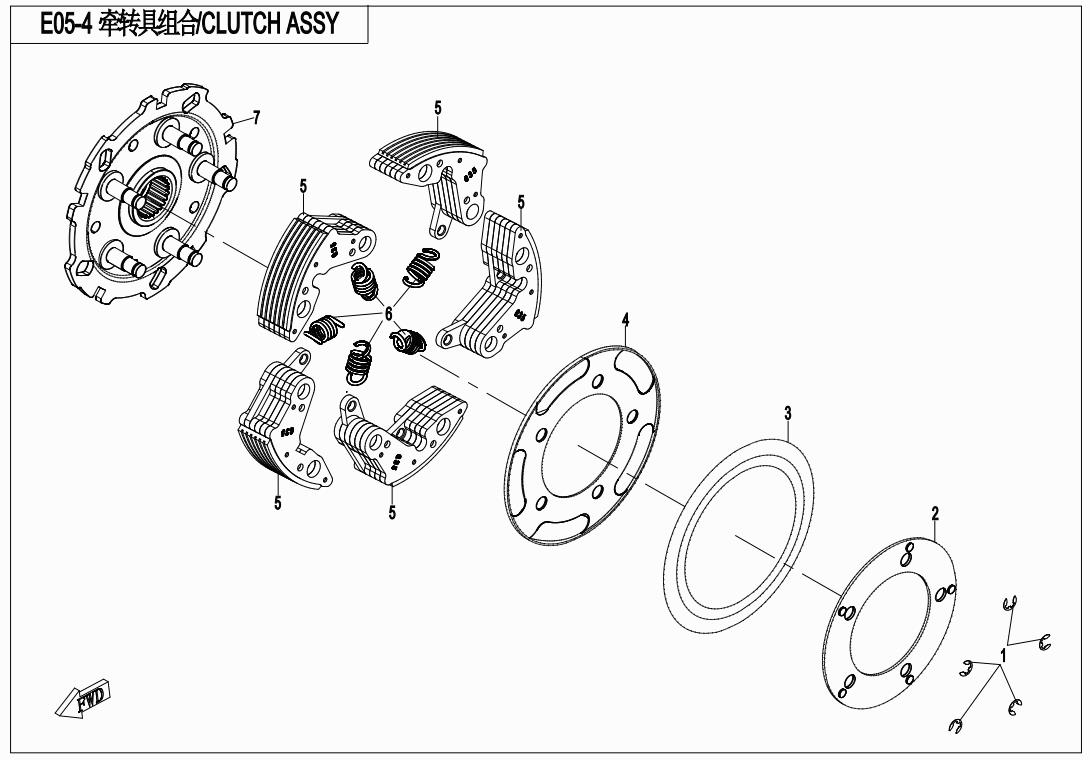

CLUTCH ASSY

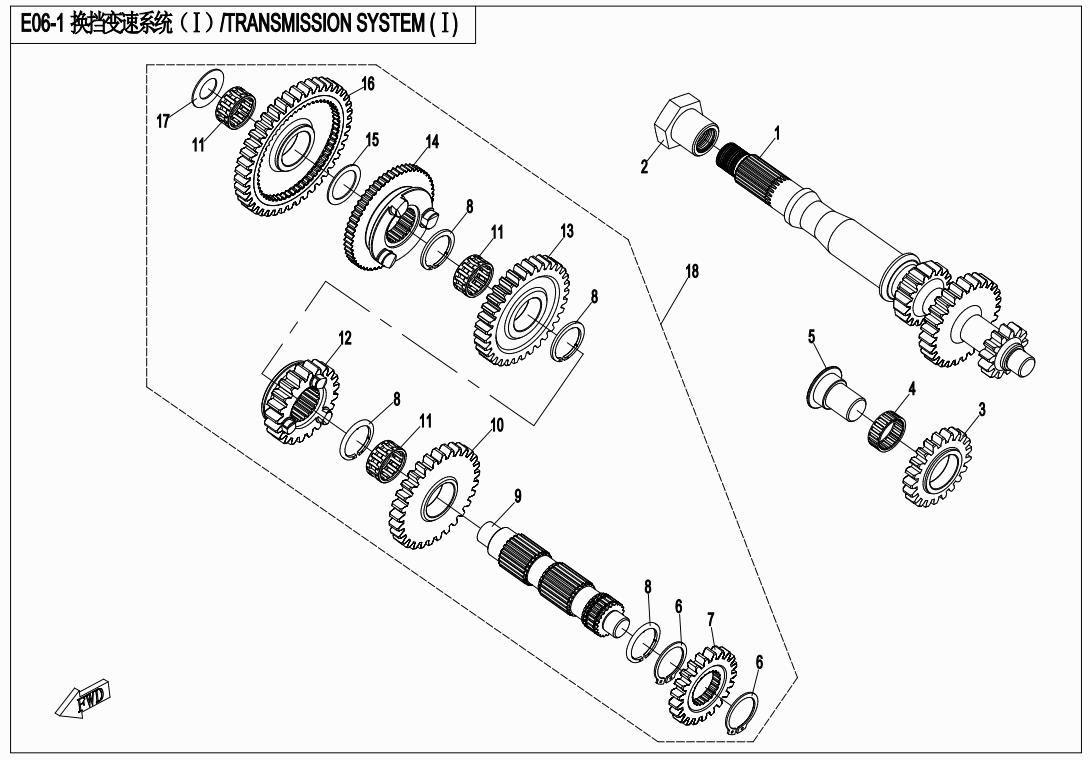

E06-1
TRANMISSION SYSTEM (?)
E06-2

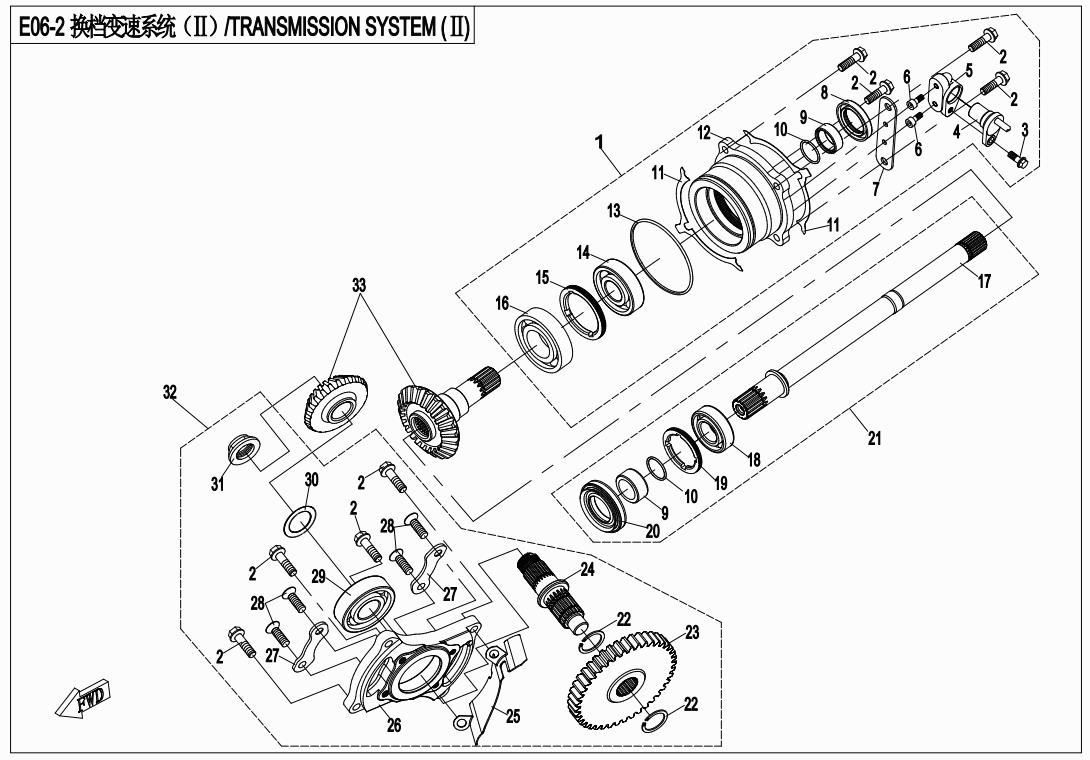

TRANMISSION SYSTEM (?)
E06-3

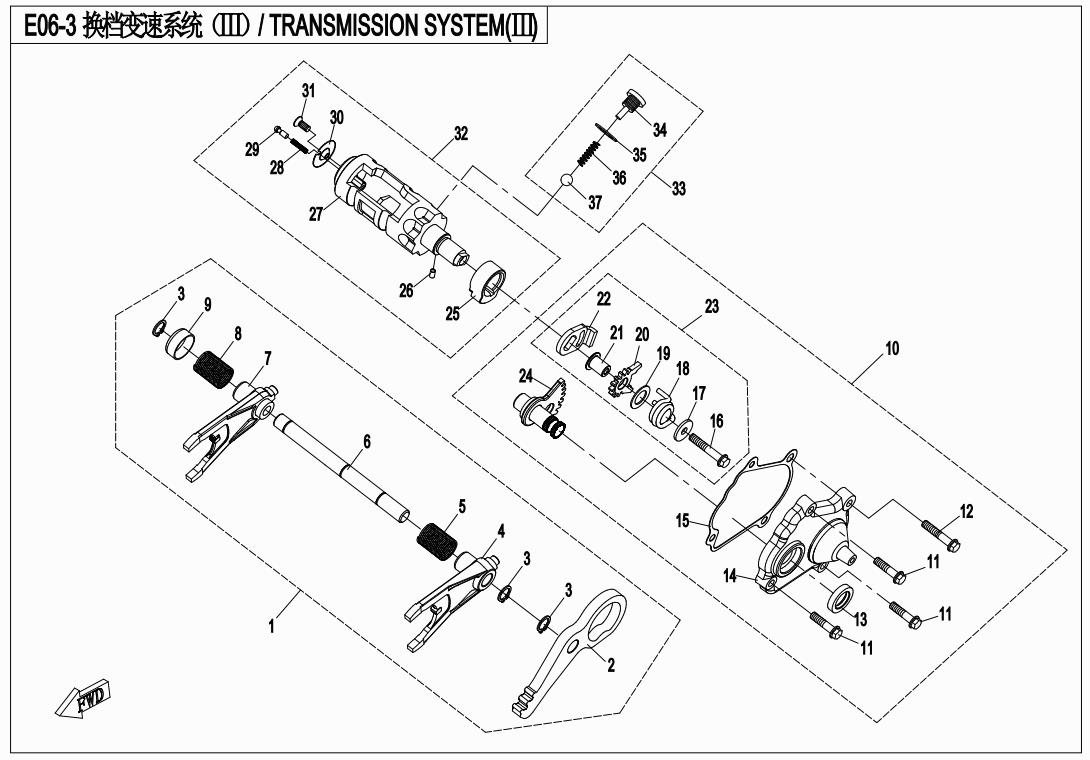

TRANMISSION SYSTEM(?)
E07

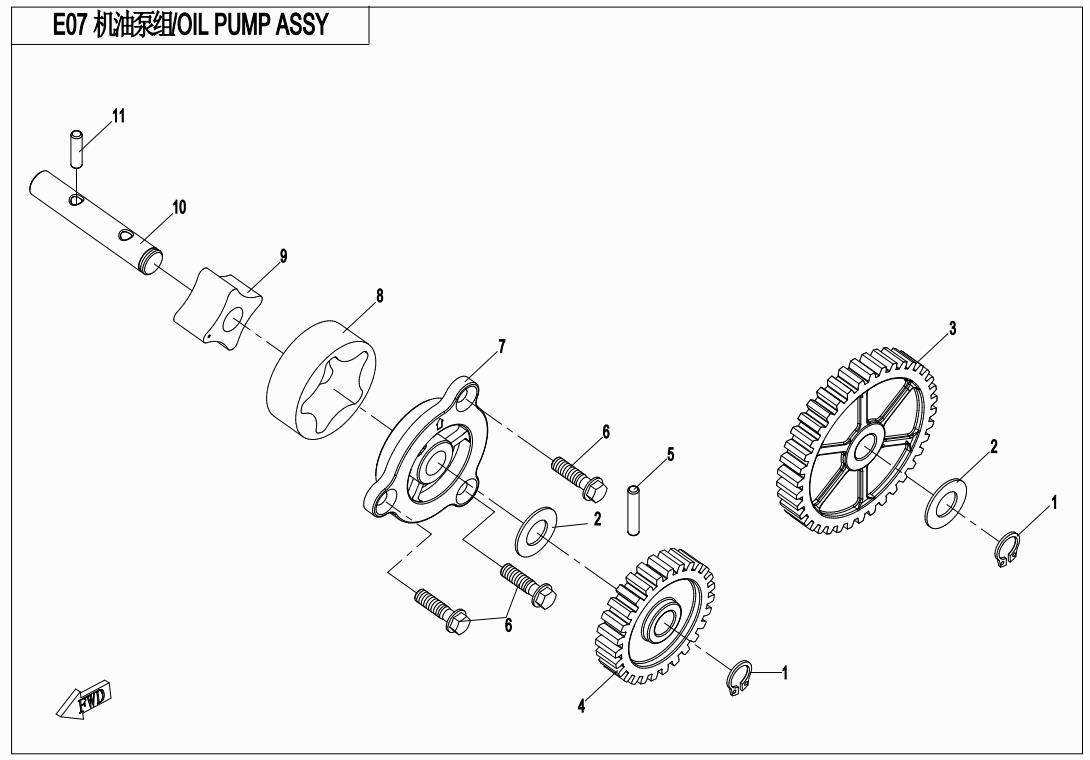

OIL PUMP ASSY

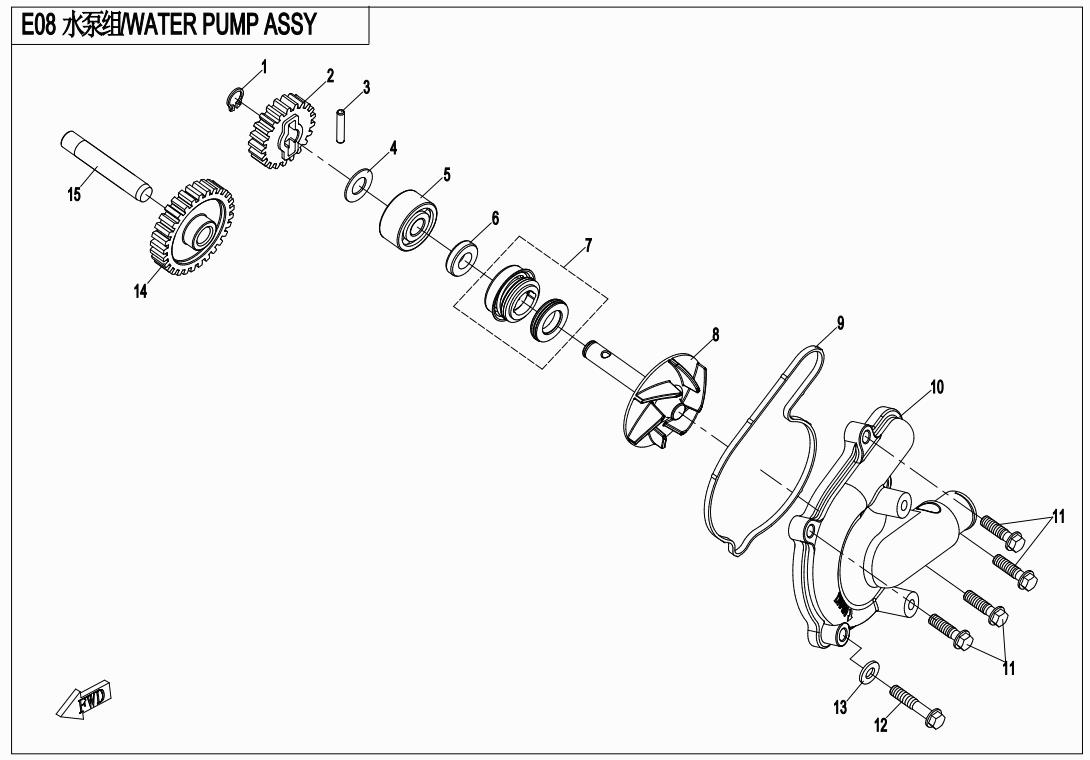

E08
WATER PUMP ASSY
E09

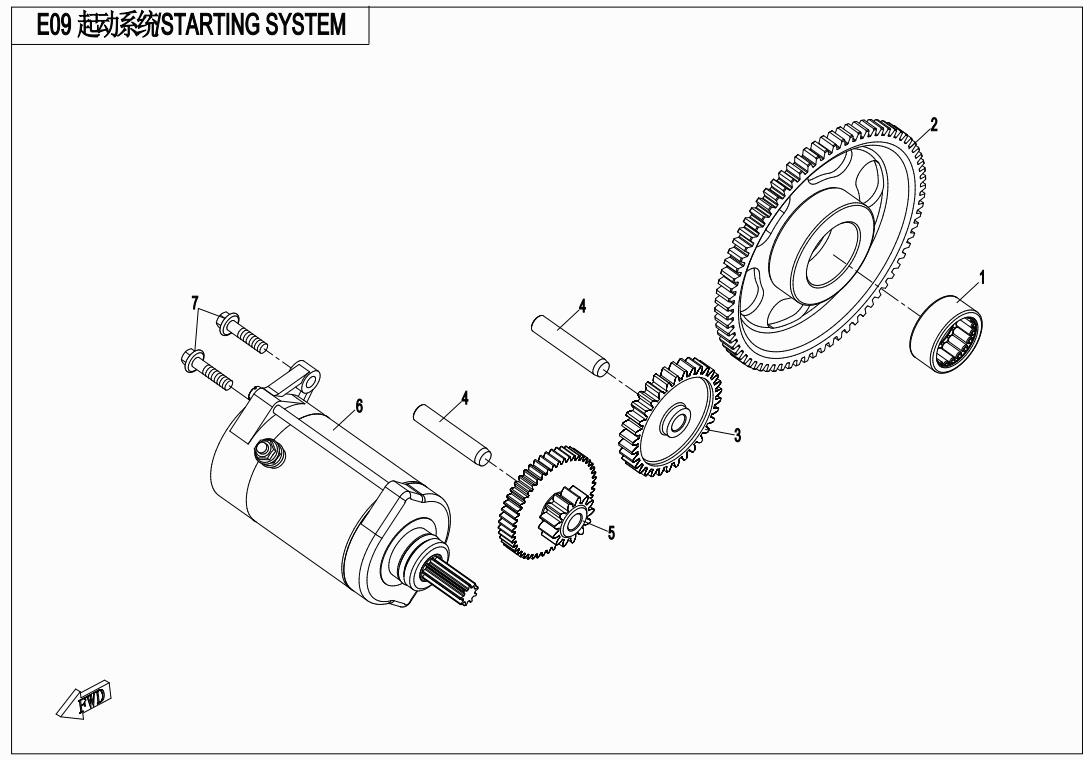

STARTERING SYSTEM
E11

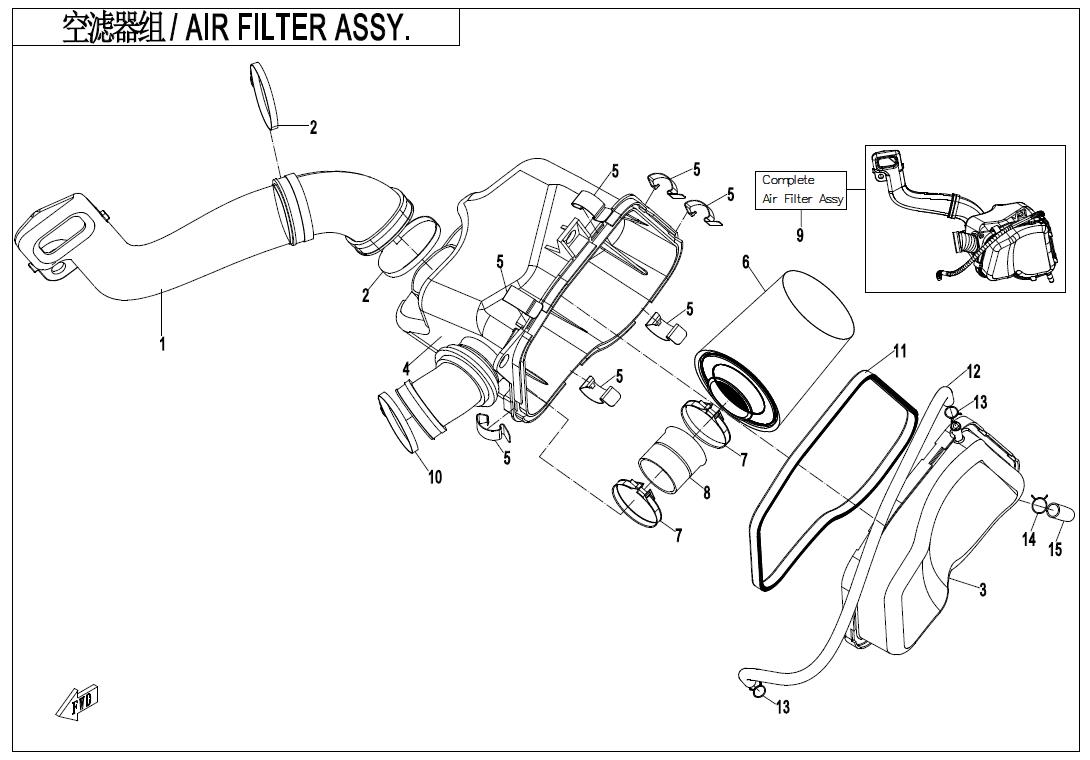

AIR FILTER ASSY
E15
ELECTRIC SYSTEM
E18

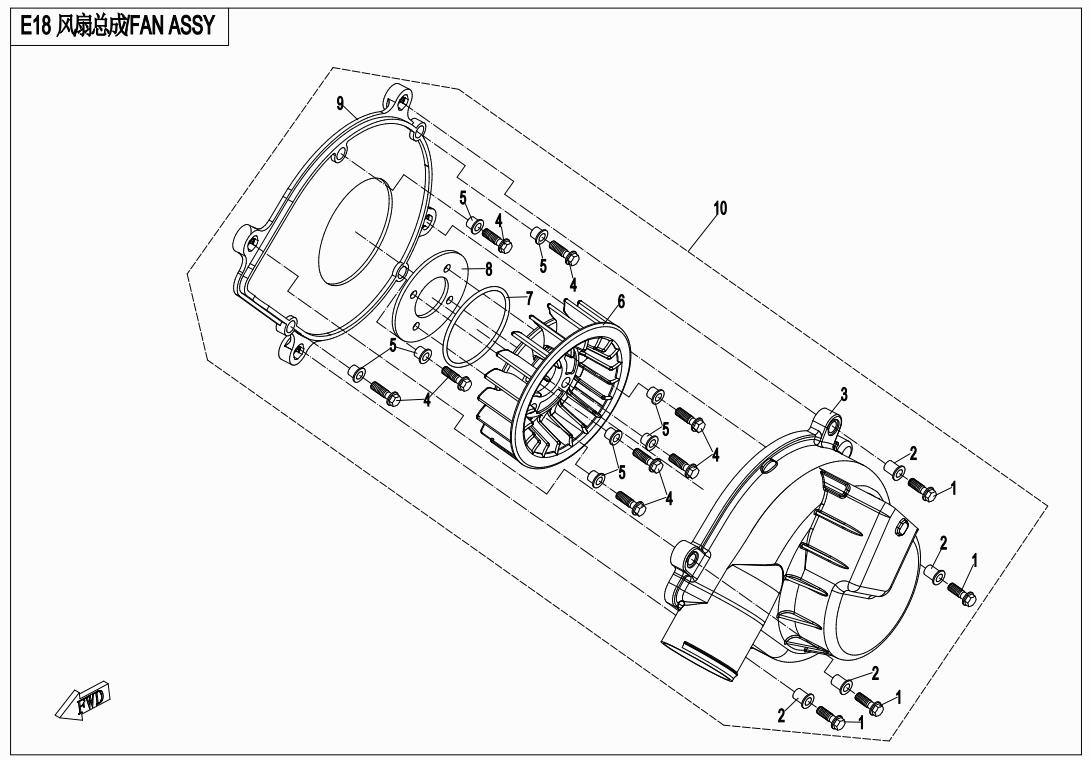

FAN ASSY

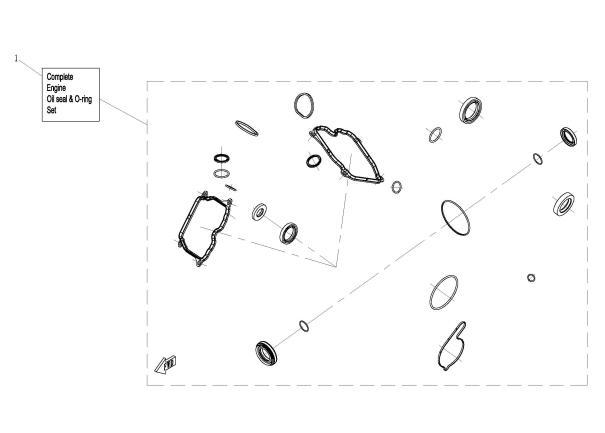

E29

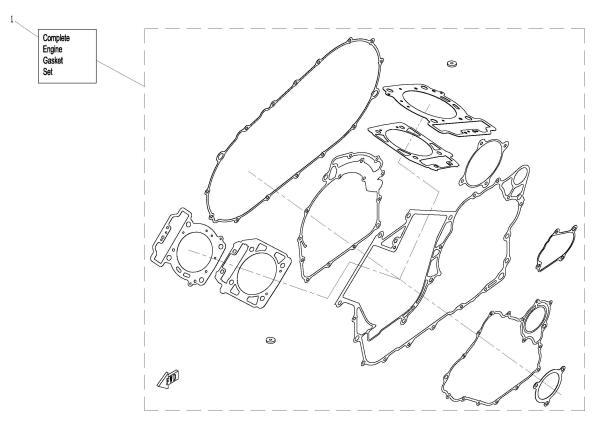

ENGINE GASKET SET
